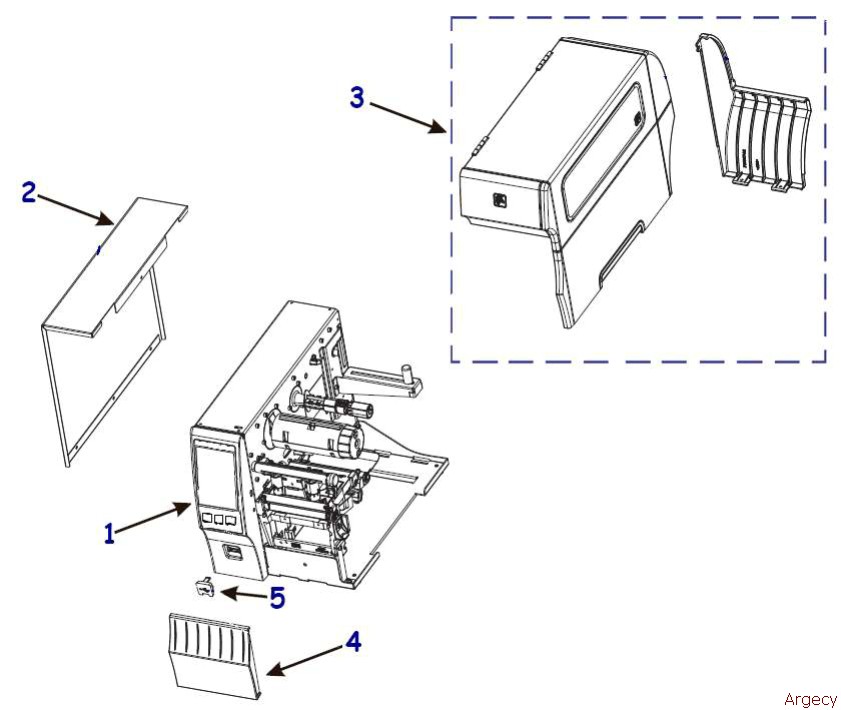

1 Standard Control Panel ZT411 (Standard control panels include USB ports) P1105147-001 1 Standard Control Panel ZT421 (Standard control panels include USB ports) P1105147-002 1 Economy Control Panel ZT411 (Economy control panels do not include USB ports) P1105147-003 1 Economy Control Panel ZT421 (Economy control panels do not include USB ports) P1105147-004 Covers for the Control Panel (Qty of 3) ZT411 ZT421 P1105147-029 2 Electronics Cover ZT400 Series P1058930-003 3 Media Cover (includes window) ZT411 P1058930-004 3 Media Cover (includes window) ZT421 P1058930-005 Window for Media Cover ZT400 Series P1058930-008 4 Front Lower Panels ZT411 (includes tear and peel panels) P1058930-006 4 Front Lower Panels ZT421 (includes tear and peel panels) P1058930-007 5 Cover for the USB ports (Qty of 3), ZT411, ZT421 P1058930-404

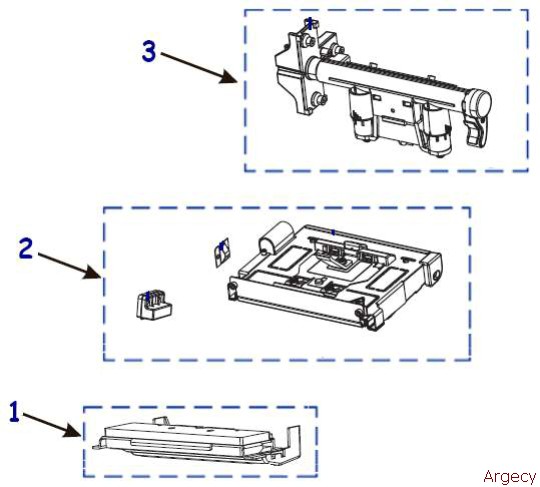

1 Printhead 203 dpi ZT411 & ZT411 RFID that is NOT printing On-Metal RFID labels P1058930-009 1 Printhead 300 dpi ZT411 & ZT411 RFID that is NOT printing On-Metal RFID labels P1058930-010 1 Printhead 600 dpi ZT411 & ZT411 RFID that is NOT printing On-Metal RFID labels P1058930-011 1 Printhead only for On-Metal RFID label printing applications 203 dpi ZT411 P1105147-300 1 Printhead only for On-Metal RFID label printing applications 300 dpi ZT411 P1105147-301 1 Printhead 203 dpi ZT421 & ZT421 RFID P1058930-012 1 Printhead 300 dpi ZT421 & ZT421 RFID P1058930-013 2 Thermal Transfer Print Mechanism ZT411 (includes ribbon sensor with cable,  printhead cables, ground contact and magnets) P1105147-005 2 Thermal Transfer Print Mechanism ZT421 (includes ribbon sensor with cable, printhead cables, ground contact and magnets) P1105147-006 3 Toggle Bar (includes lift strap) ZT411 P1058930-018 3 Toggle Bar (includes lift strap) ZT421 P1058930-019 Ribbon Strip Plate and Ribbon Static Brush ZT411 P1058930-094 Ribbon Strip Plate and Ribbon Static Brush ZT421 P1058930-095 Magnets for holding the Print Mechanism open P1058930-082 Ground Contact ZT400 Series P1058930-083 Printhead dpi conversion kits

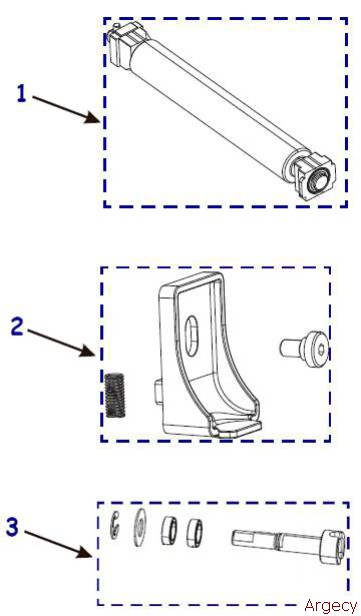

1 Platen Roller ZT411 P1058930-080 1 Platen Roller ZT421 P1058930-081 2 Lock/Retainer for the Platen Roller ZT400 Series P1058930-027 3 Coupler for Platen Roller ZT400 Series 79862M

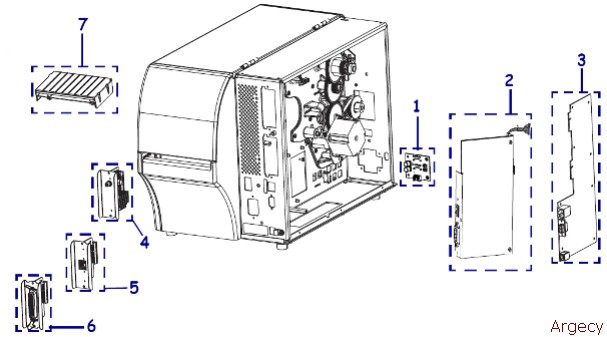

1 Dual Port USB PCBA ZT411 ZT421 P1058930-403 2 Power Supply ZT411 P1105147-012 2 Power Supply ZT421 P1105147-024 3 Standard Main Logic Board ZT411 ZT421. (Standard printer models have control panels with USB ports) P1105147-007 3  Economy Main Logic Board ZT411 ZT421. (Economy printer models have control panels without USB ports) P1105147-008 Mounting Bracket for the Main Logic Board ZT411 ZT421 P1105147-009 4 ZebraNet Internal Wireless 802.11 ac radio, BT4.0, ZT411 ZT421 USA & Canada. P1083320-037A 5 Internal Printserver (Ethernet port) ZT400 Series P1058930-074 6 Parallel Port ZT400 Series P1058930-075 7 RFID Module USA & Canada ZT400 Series P1058930-500A 7 RFID Module Japan ZT400 Series P1058930-500B 7 RFID Module Global (All countries except USA, Canada, Japan) ZT400 Series P1058930-500C Applicator Interface Card P1083320-038 Replacement RFID Cables and Hardware ZT400 Series P1058930-503 Light Assemblies (Includes 1 Print Mechanism Light & 1 Media Light) P1058930-079 Replacement Antenna for 802.11n & ac Radios P1037974-053 Electronics Cables ZT411 ZT421 P1105147-013 USA Power Cord 46693

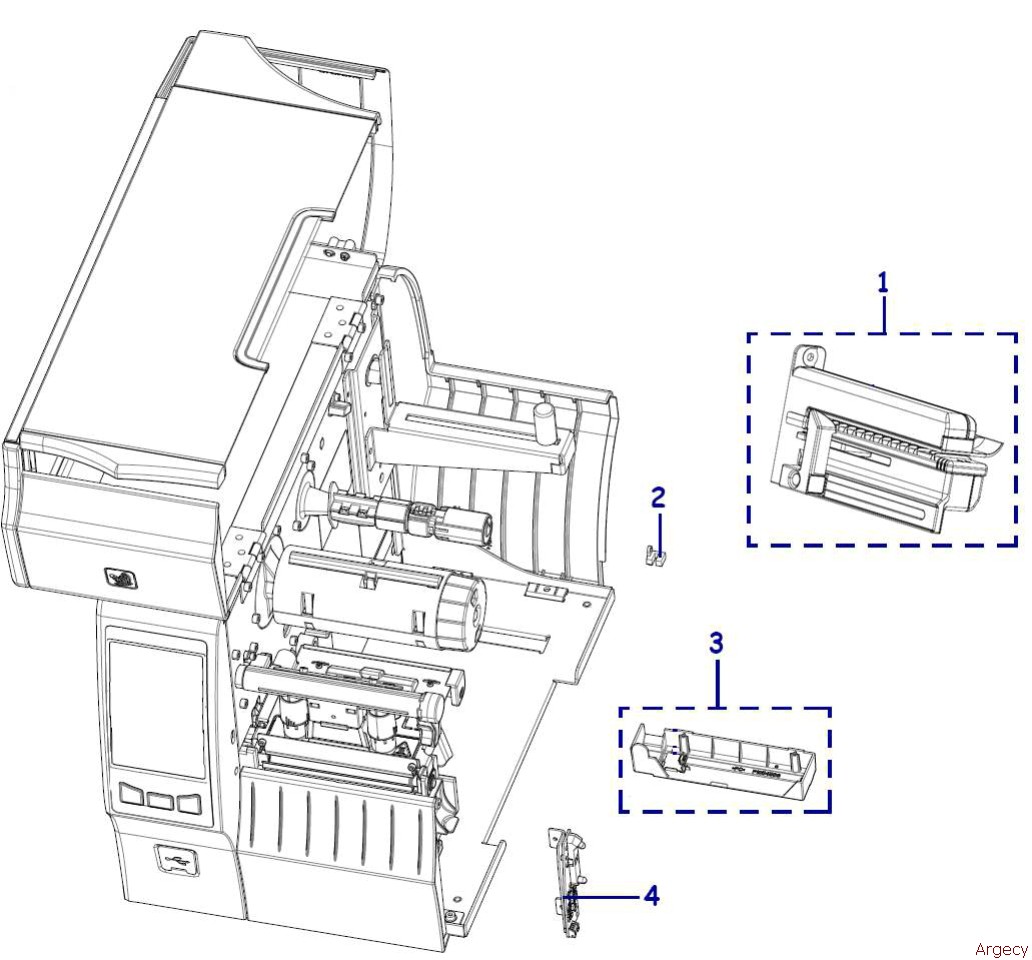

1 Media Sensor ZT411 P1105147-014 1 Media Sensor ZT421 P1105147-015 2 Head Open Sensor ZT411 ZT421 P1058930-084 3 Ribbon Sensor ZT411 P1105147-016 3 Ribbon Sensor ZT421 P1105147-017 4 Take Label Sensor ZT411 ZT421 P1105147-018

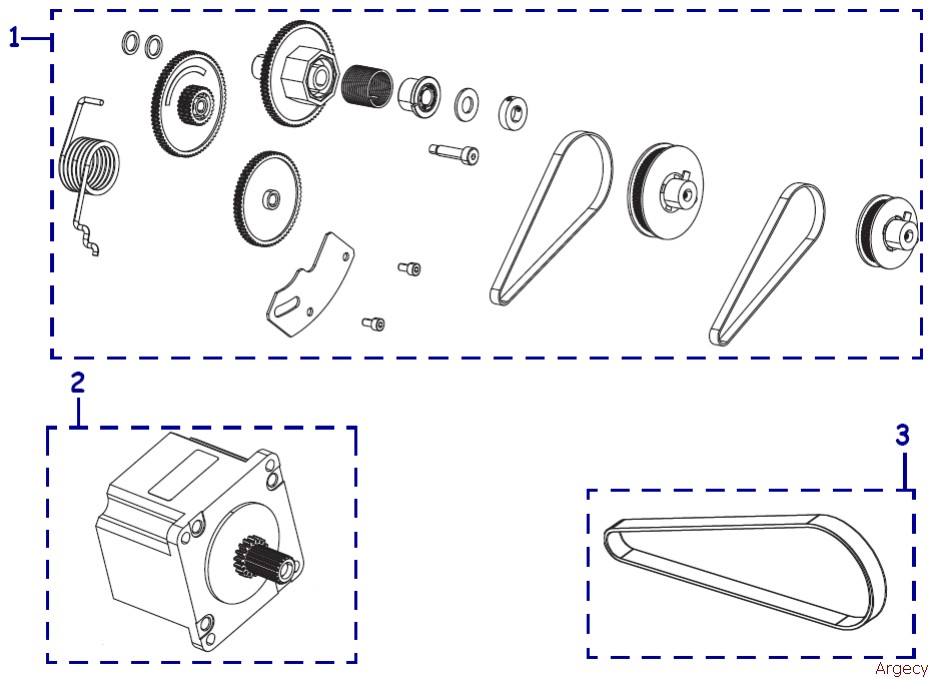

1Drive System ZT400 Series (includes gears, belts and pulleys for 203 dpi and 300/600 dpi) P1058930-039 2 Drive Motor ZT400 Series P1058930-040 3 Drive Belt 203 dpi ZT400 Series 79866M  3 Drive Belt 300 dpi and 600 dpi ZT400 Series 79867M

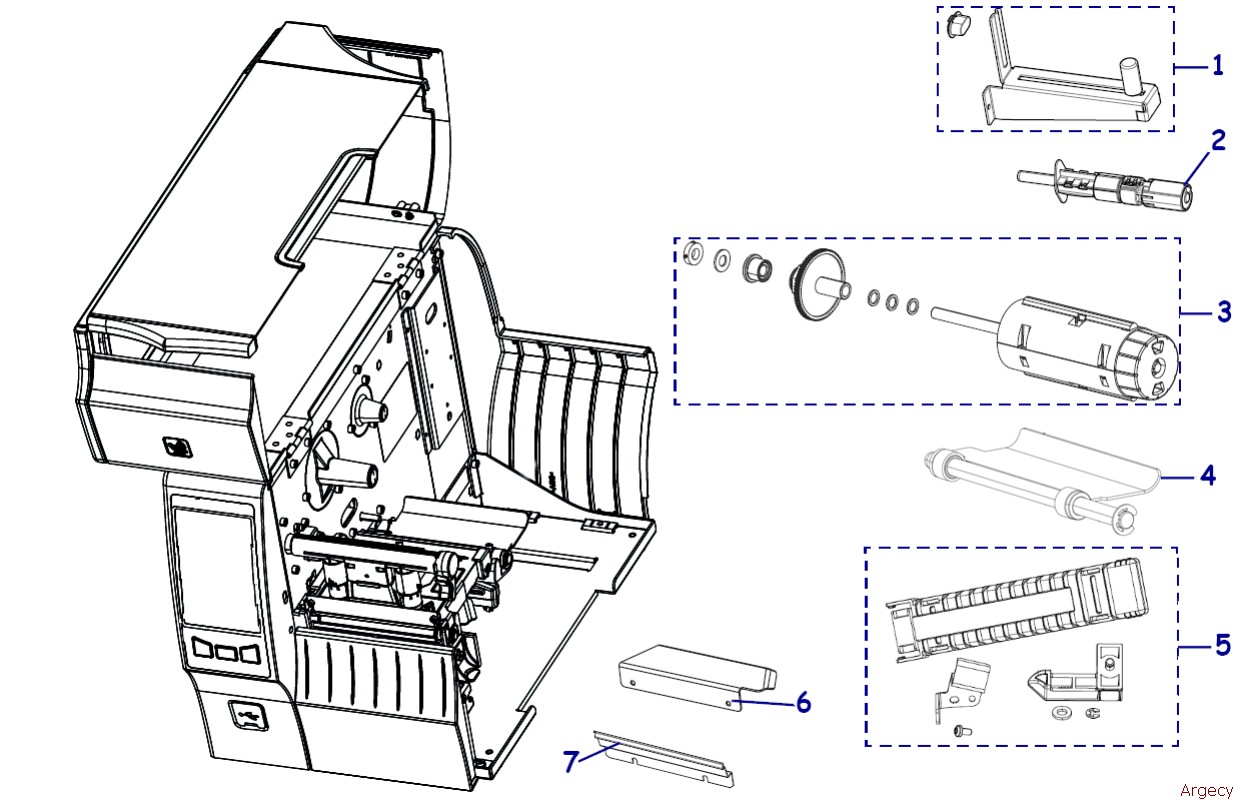

1 Standard Media Hanger for 3" (76mm) diameter media cores ZT411 P1058930-042 Media Hanger for 1" (25mm) diameter media cores ZT411 only P1058930-086 1 Standard Media Hanger ZT421 P1058930-043 2 Ribbon Supply Spindle ZT411 P1058930-085 2 Ribbon Supply Spindle: For Ribbons Coated Inside Only ZT411 79830M  2 Ribbon Supply Spindle ZT421 79829M 3 Ribbon Take Up Spindle ZT411 P1058930-045 3 Ribbon Take Up Spindle ZT421 P1058930-046 4 Media Dancer ZT411 P1105147-025 4 Media Dancer ZT421 P1105147-026 5 Standard Media Guides and Media Carrier ZT411 P1105147-027 5 On-Metal RFID Media Guides and Media Carrier ZT411 P1105147-302 5 Media Guides and Media Carrier ZT421 P1105147-028 6 Media Shelf ZT411 P1058930-047 6 Media Shelf ZT421 P1058930-048 7 Tear Bar ZT411 79837M  7 Tear Bar ZT421 79838M Covers for the Media Light holes on Economy models without Media Lights P1105147-010
1 Cutter Option ZT411 P1058930-1891 Cutter Option ZT421 P1058930-190 2 Peel Assembly ZT411 P1105147-019 2 Peel Assembly ZT421 P1105147-020 3 Liner Take Up Spindle & Motor ZT411 (To enable liner take up functionality, also purchase the P1105147-019 peel assembly) P1058930-052

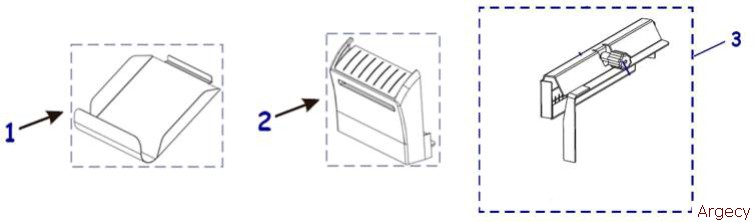

1 Catch Tray for Cutter ZT411 77041 1 Catch Tray for Cutter ZT421 77997  2 Cover for the Cutter includes PCBA and cutter cable ZT411. P1058930-102 2 Cover for the Cutter includes PCBA and cutter cable ZT421. P1058930-103 3 Replacement Static Brush & Cutter Guard ZT411. P1066612  3 Replacement Static Brush & Cutter Guard ZT421. P1066613
1 Roller for the Peel Assembly ZT411 77197M 1 Roller for the Peel Assembly ZT421 77727M
1 Motor and PCBA for Liner Take Up Spindle ZT411 G34112M

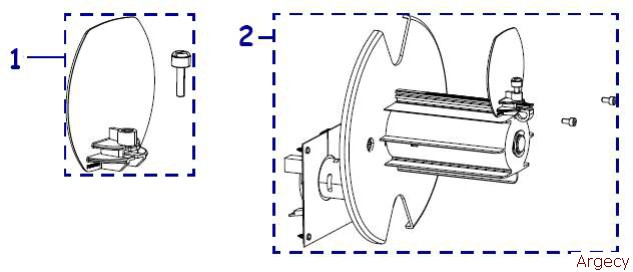

1 Media Guard for Media Rewind Spindle ZT400 Series P1058930-057 2Media Rewind Spindle (includes Motor and PCBA) ZT411 (This item is only for replacing an existing media rewind spindle on a printer that shipped from the factory with the media rewind option installed. Media rewind is not a field installable option) P1058930-058 2Media Rewind Spindle (includes Motor and PCBA) ZT421 (This item is only for replacing an existing media rewind spindle on a printer that shipped from the factory with the media rewind option installed. Media rewind is not a field installable option) P1058930-059 Motor and PCBA for Media Rewind Spindle ZT411 G34110M Motor and PCBA for Media Rewind Spindle ZT421 G34111M Steer Roller for Media Rewind ZT411 P1058930-055 Steer Roller for Media Rewind ZT421 P1058930-056 Door and Trim for Media Rewind ZT411 P1058930-060 Door and Trim for Media Rewind ZT421 P1058930-061

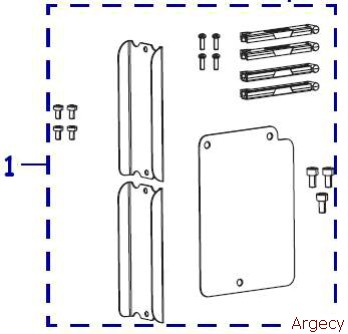

Covers/Mounts for Options ZT400 Series P1058930-062 Assorted Hardware ZT411 ZT421 (various screws and washers used throughout the printer) P1105147-023 Feet on bottom of printer (Qty 20) ZT400 Series P1058930-078
