1.1 Covers 1 OPERATION PANEL 802K60111 2 COVER OPEN 802E47284 3 COVER REAR 604K16460 4 COVER RIGHT 802E49522 5 802E47307 Cover Front New 802E47307 802E63801 (New) $135.00 6 COVER LEFT 802E49491 7 COVER TOP ASSY 8 COVER STOPPER 802E61862 9 STOPPER OPEN 10 HARNESS ASSY PANEL 962K22731 11 110K11894 Switch I/L Assembly New 110K11894 (New) Contact for Details 99 KIT TOP COVER 604K1538 50 51

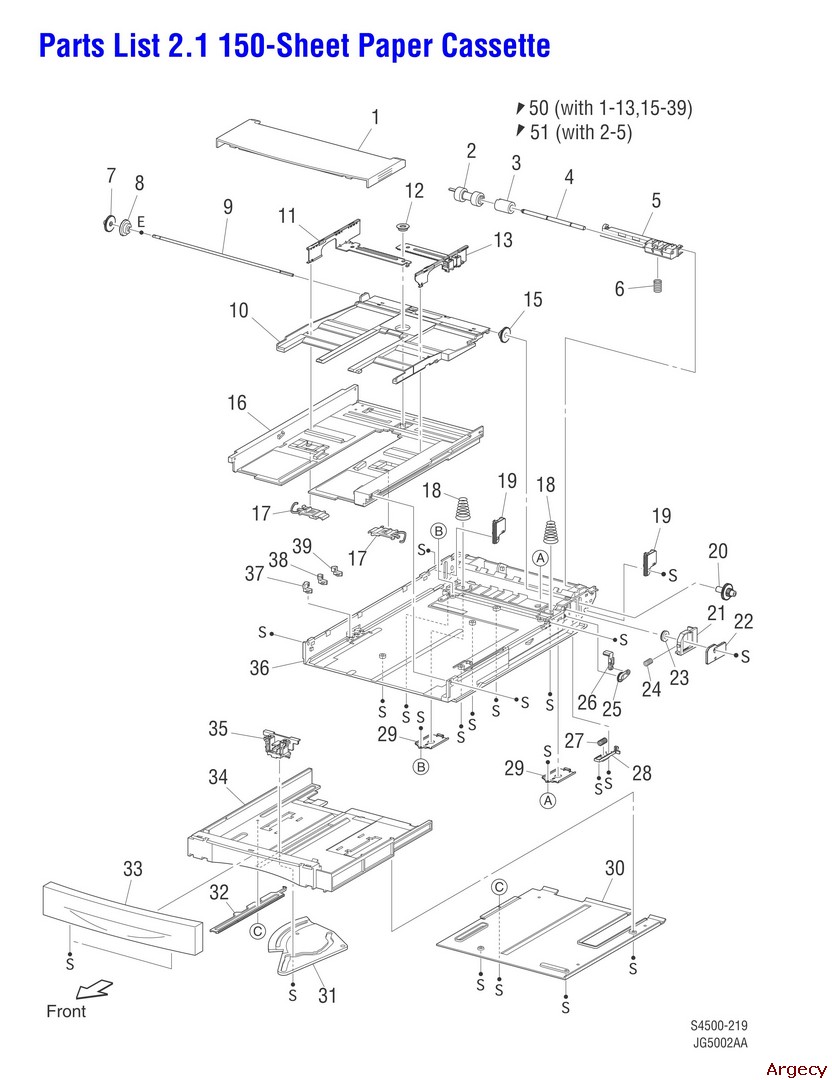

2.1 150-Sheet Paper Cassette 1 COVER CST 802E47191 2 ROLL ASSY RETARD 3 FRICTION CLUTCH 4 SHAFT RETARD 5 HOLDER RETARD 6 SPRING RETARD 809E37500 7 GEAR PB L 8 GEAR BTM ONEWAY 9 SHAFT PB 10 PLATE ASSY BTM 11 GUIDE ASSY SD L150 12 GEAR PINION 13 GUIDE ASSY SD R150 15 GEAR LOCK ONEWAY 16 HOUSING TOP 150 17 LOCK EXTENSION 18 SPRING BTM UP 150 19 PLATE GEAR LOCK 150 20 GEAR PB R 21 RACK BTM LOCK 150 22 COVER BTM UP 150 23 GEAR BOTTOM LOCK PINION 24 SPRING BTM LOCK 25 GEAR LEVER LOCK 26 LEVER BTM LOCK 27 SPRING STOPPER GEAR 28 STOPPER GEAR 29 PLATE SUPPORT 30 COVER EXTENSION 31 GEAR SECTOR 32 RACK SIZE 33 HANDLE EXTENSION 34 HOUSING EXTENSION 150 35 GUIDE END 150 36 HOUSING BASE 150 37 LINK SW SIZE1-150 38 LINK SW SIZE2-150 39 LINK SW SIZE3-150 50 150 PAPER CASSETTE 084K15350 51 019K98186 Holder Assembly Retard New 019K98186 (New) Contact for Details 99 604K11192 Kit Roll Assembly Feed (3Pcs) New 604K11192 (New) $78.00 50 51
4.1 550-Sheet Paper Cassette 1 COVER CST 802E47191 2 ROLL ASSY RETARD 3 FRICTION CLUTCH 4 SHAFT RETARD 5 HOLDER RETARD 6 SPRING RETARD 809E37500 7 GEAR PB L 8 GEAR BTM ONEWAY 9 SHAFT PB 10 PLATE ASSY BTM 11 GUIDE ASSY SD L550 12 GEAR PINION 13 GUIDE ASSY SD R550 15 GEAR LOCK ONEWAY 16 550 HOUSING TOP 17 LOCK EXTENSION 18 550 SPRING BTM UP 19 550 PLATE GEAR LOCK 20 GEAR PB R 21 550 RACK BTM LOCK" 22 550 COVER BTM UP 23 GEAR LOCK PINION 24 SPRING BTM LOCK 25 GEAR BTM LOCK 26 GEAR LEVER LOCK 27 LEVER BTM LOCK 28 SPRING STOPPER GEAR 29 STOPPER GEAR 30 PLATE SUPPORT 31 COVER EXTENSION 32 SUPPORT GUIDE IND 34 GUIDE INDICATOR 1 35 2 GUIDE INDICATOR 36 GUIDE INDICATOR" 37 LOW INDICATOR 38 LOW IND FRONT 39 GEAR SECTOR 40 RACK SIZE 41 42 550 HOUSING EXTENSION 43 550 GUIDE END 44 550 HOUSING BASE 45 LINK SW SIZE1-550 46 LINK SW SIZE 2-550 47 LINK SW SIZE 3-550 48 LINK SW SIZE LOW 50 084K15411 Paper Tray 550 Sheet Fully refurbished with 90-day warranty 084K15411 $128.00 51 019K98186 Holder Assembly Retard New 019K98186 (New) Contact for Details 52 STOPPER BASE R 53 STOPPER BASE L 99 604K11192 Kit Roll Assembly Feed (3Pcs) New 604K11192 (New) $78.00

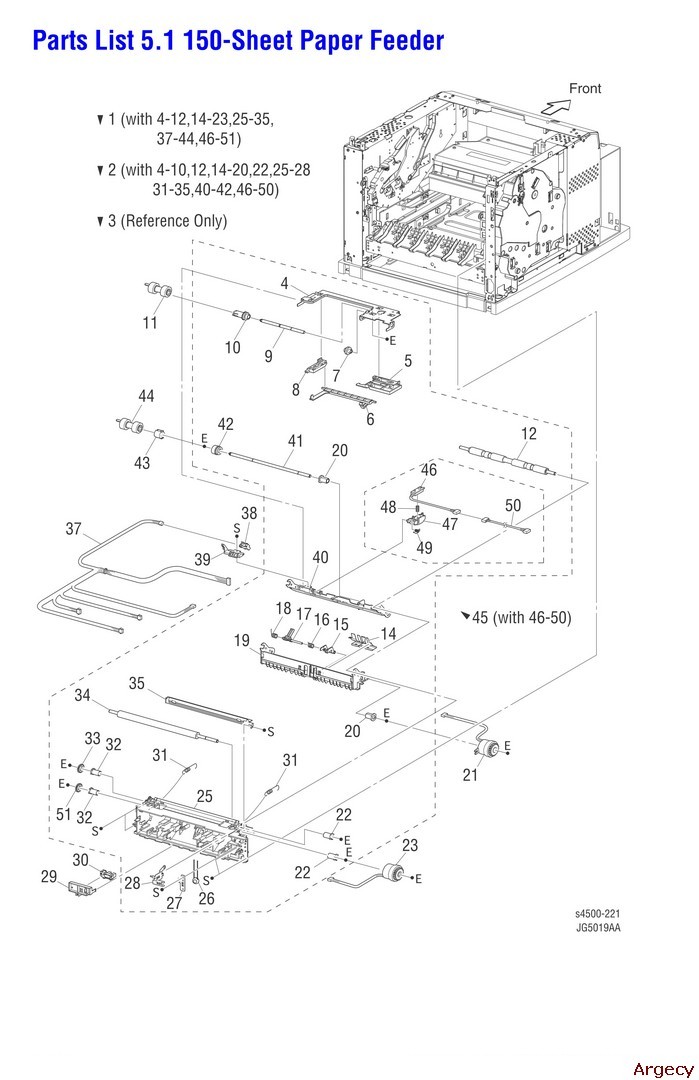

5.1 150-Sheet Paper Feeder 1 604K16682 150 Feeder Assembly New 604K16682 604K16683 604K16684 604K16686 (New) $231.00 2 FDR1 AS SUB 150 A4 3 CHUTE ASSY FDR 4 SUPPORT NUDGER 5 HOLDER LEFT 6 ACTUATOR NO PAPER 7 GEAR IDLER NUDGER 8 HOLDER RIGHT 9 SHAFT NUDGER 10 GEAR NUDGER 059K25270 11 ROLL ASSY NUDGER 12 ROLL REGI RUBBER 14 COVER ACTUATOR 15 ACTUATOR A 16 SPRING REGI SNR B 17 ACTUATOR B 18 SPRING REGI SNR A 19 CHUTE BTM ASSY 20 BEARING NUDGER 21 121K28511 Clutch Assembly PH New 121K28511 (New) Contact for Details 22 BEARING REGI LEFT 23 121K28511 Clutch Assembly PH New 121K28511 (New) Contact for Details 25 CHUTE REGI 26 VARISTER 27 EARTH PLATE BASE 28 EARTH PLATE MID 29 COVER SENSOR 30 SENSOR REGI 130E81970 31 SPRING REGI 809E41093 32 BEARING REGI RIGHT 33 GEAR REGI 807E01290 34 ROLL REGI METAL 35 CHUTE EARTH REGI 37 HARNESS ASSY TRAY1 38 SENSOR NO PAPER 130E81970 39 COVER HARNESS R 40 CHUTE TOP ASSY 41 SHAFT FEED 42 CLUTCH ONEWAY NUDGER 43 CLUTCH ONEWAY FEED 005E16941 44 ROLL ASSY FEED 45 SENSOR TONER ASSEMBLY 130K63601 46 SENSOR TONER 47 HOLDER-D 48 SPRING TONER 49 SPRING 50 1 HARNESS ASSY TONER 51 GEAR REGI METAL 97 604K11192 Kit Roll Assembly Feed (3Pcs) New 604K11192 (New) $78.00 98 KIT CHUTE REGI 99 KIT CHUTE BTM

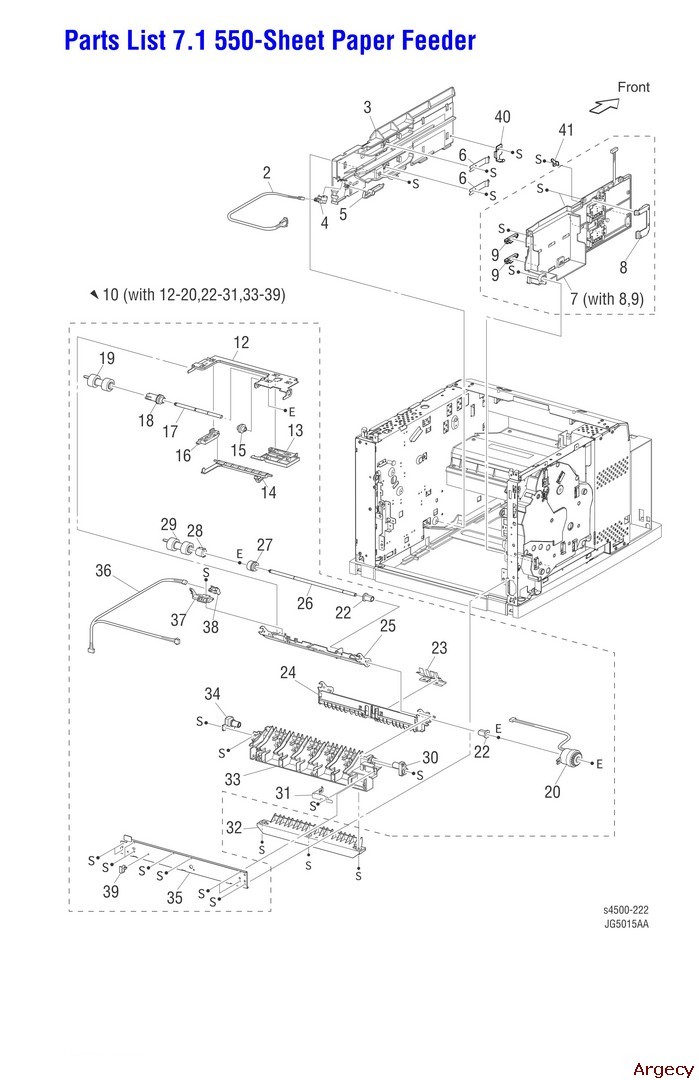

7.1 550-Sheet Paper Feeder 1 2 HARNESS ASSY LOW1 3 GUIDE TRAY RIGHT 032E18795 4 SENSOR LOW PAPER 130E81970 5 ACTUATOR 120E21311 6 PLATE CST LOCK 7 GUIDE TRAY LEFT 032K96836 8 COVER HARNESS SIZE 9 LOCK CST L 003E59231 10 550 FEEDER ASSY 022K66964 12 SUPPORT NUDGER 13 HOLDER LEFT 14 ACTUATOR NO PAPER 15 GEAR IDLER NUDGER 16 HOLDER RIGHT 17 SHAFT NUDGER 18 GEAR NUDGER 059K25270 19 ROLL ASSY NUDGER 20 121K28511 Clutch Assembly PH New 121K28511 (New) Contact for Details 22 BEARING NUDGER 23 COVER ACTUATOR 24 CHUTE BTM 25 CHUTE TOP ASSY 26 SHAFT FEED 27 CLUTCH ONEWAY NUDGER 005E16951 28 CLUTCH ONEWAY FEED 005E16941 29 ROLL ASSY FEED 30 HOLDER PIVOT LEFT 31 EARTH PLATE 32 CHUTE 550 LOWER 33 CHUTE OUT 34 HOLDER PIVOT RIGHT 35 PLATE TIE 36 HARNESS ASSY TRAY2 37 COVER HARNESS R 38 SENSOR NO PAPER 130E81970* 39 CLAMP-10V0 40 STOPPER TRAY R 41 STOPPER TRAY L 99 604K11192 Kit Roll Assembly Feed (3Pcs) New 604K11192 (New) $78.00

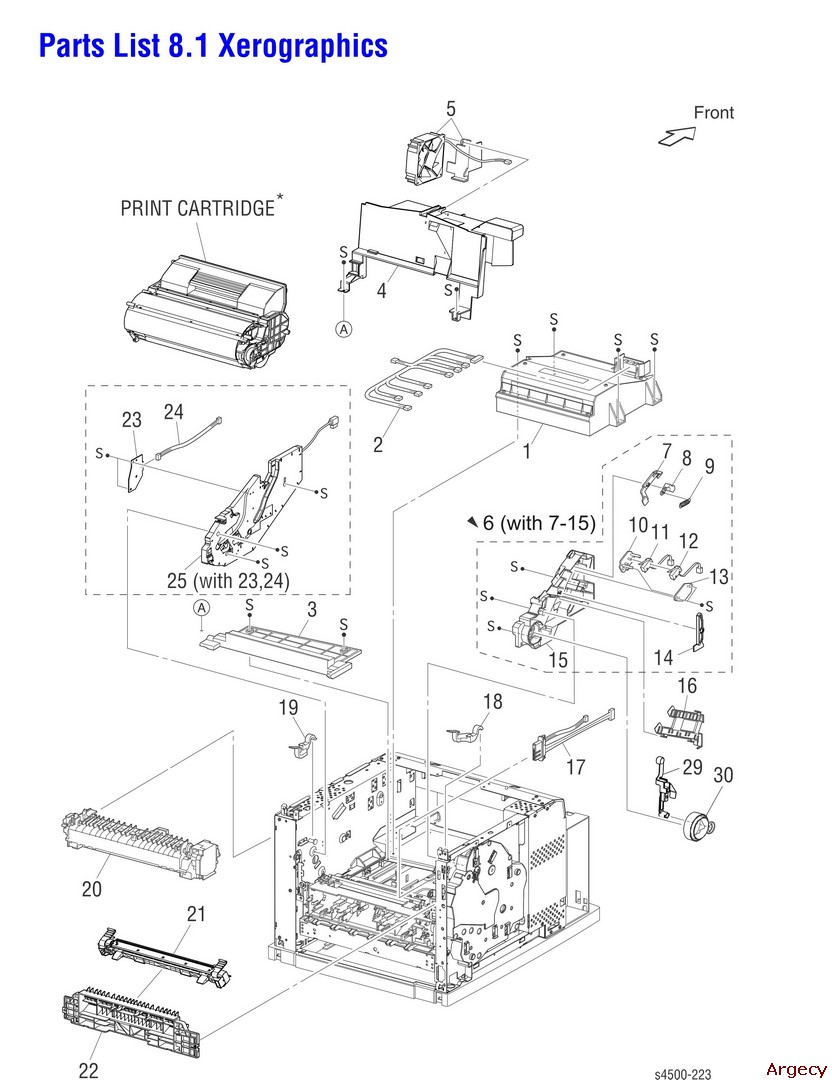

8.1 Xerographics 1 ROS ASSY 084K13151 2 HARNESS ASSY ROS 3 SHIELD PLATE ROS 4 DUCT FRONT 5 FAN SUB 127K39390 6 GUIDE ASSY CRU L 032K97110 7 GUIDE SL 8 SPACER SS 9 SPRING SL 10 HOLDER I/L SW1 11 INTERLOCK S/W 24 V 12 INTERLOCK S/W 5 V 13 HOLDER I/L SW2 14 LEVER GUIDE 15 GUIDE CRU LEFT 16 COVER GUIDE CRU 17 HARNESS ASSY FUSER 110V 962K08241 HARNESS ASSY FUSER 220V 962K12941 18 LEVER FUSER LH 011E13362 19 011E13373 Lever Fuser Rh 400 Fully refurbished with 90-day warranty 011E13373 $29.00 20 604K14921 Fuser New 604K14921 604K14922, 604K1493, 604K19443, 604K28530, 604K28531, 604K28532, 604K28534 (New) $299.00 FUSER ASSY 220V 604K14931 21 BTR ASSY 802K49746 22 CHUTE TRANSFER 054E26070 23 PWBA ASSY ANT 24 HARNESS ASSY ANT 25 GUIDE ASSY CRU R 032K97011 29 012K94351 Lever Link New 012K94351 (New) Contact for Details 30 LINK GEAR 3 012E1056

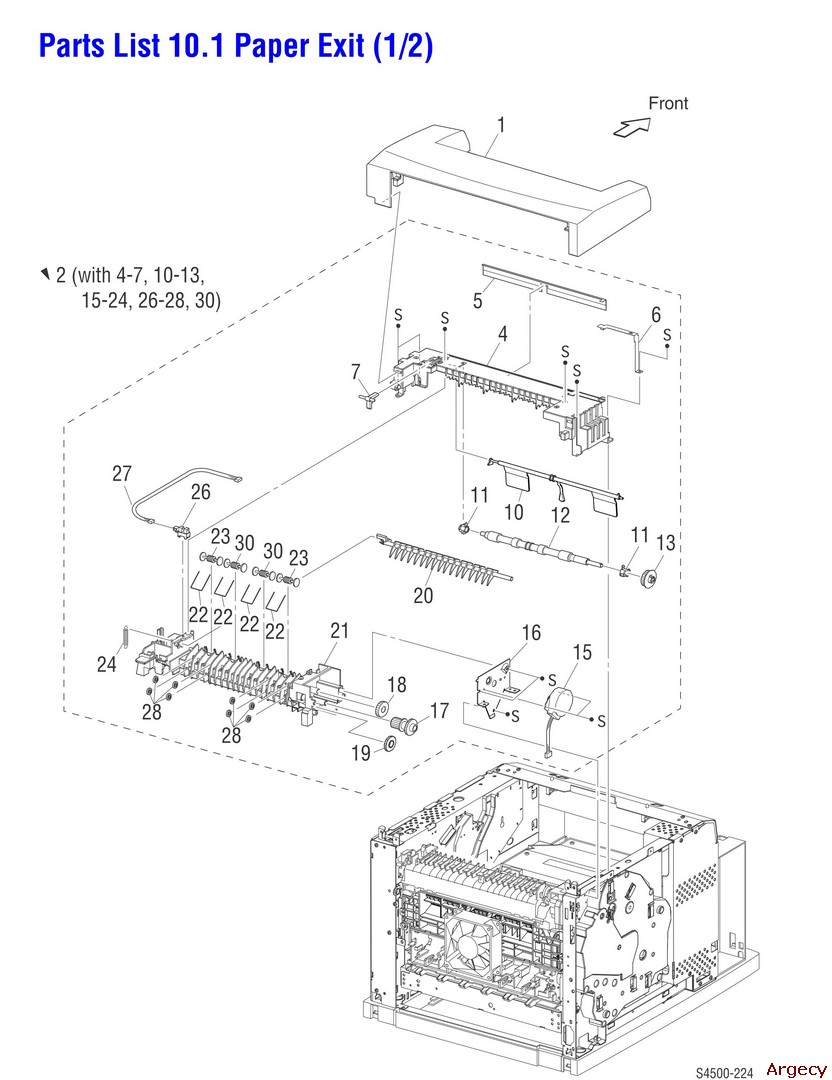

10.1 Paper Exit 1 COVER EXIT 500 604K16590 2 500 EXIT ASSY 084K18470 4 CHUTE UP EXIT 5 ELIMINATOR EXIT 6 EARTH PLATE EXIT 7 LINK GATE OCT 10 ACTUATOR FULL STACK 604K15560 11 BEARING EXIT 12 ROLL EXIT 13 GEAR 21 15 MOTOR ASSY EXIT 127K36930 16 BRACKET MOTOR EXIT 17 GEAR 16/49 18 GEAR 25-2 19 GEAR 25-1 20 GATE OCT EXIT 21 CHUTE LOW EXIT 22 SPRING PINCH EXIT 23 ROLLER PINCH EXIT 24 SPRING GATE OCT 26 SENSOR FULL STACK 130E81970 27 HARNESS ASSY EXIT SNR 28 ROLLER EXIT 500 30 ROLL PINCH EXIT OCT

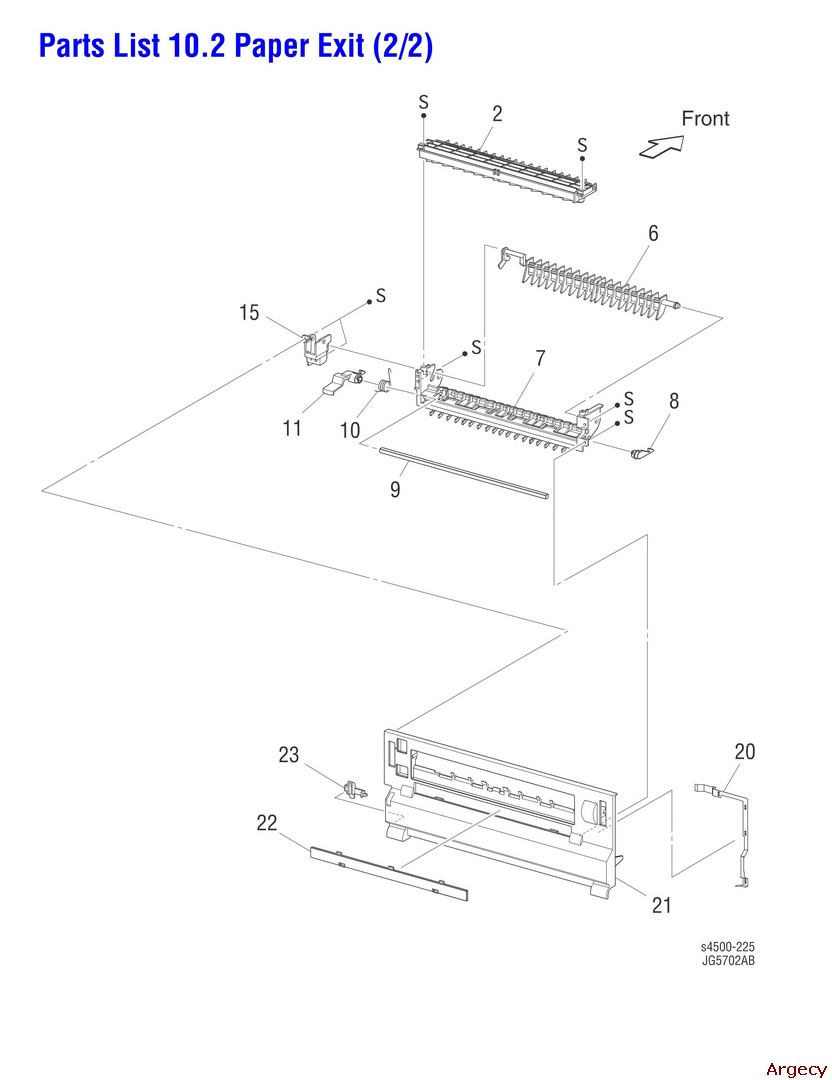

10.2 Paper Exit 2 CHUTE UP FU 6 GATE FU 7 CHUTE LOW FU 8 LEVER LATCH LEFT 9 PIPE LATCH LEFT 10 SPRING LATCH FU 11 LEVER LATCH RIGHT 15 LEVER GATE HOLDER 20 EARTH PLATE FU 21 COVER REAR 500 22 COVER DUP 802E48402 23 STOPPER FSR 99 COVER REAR 500 084K1845

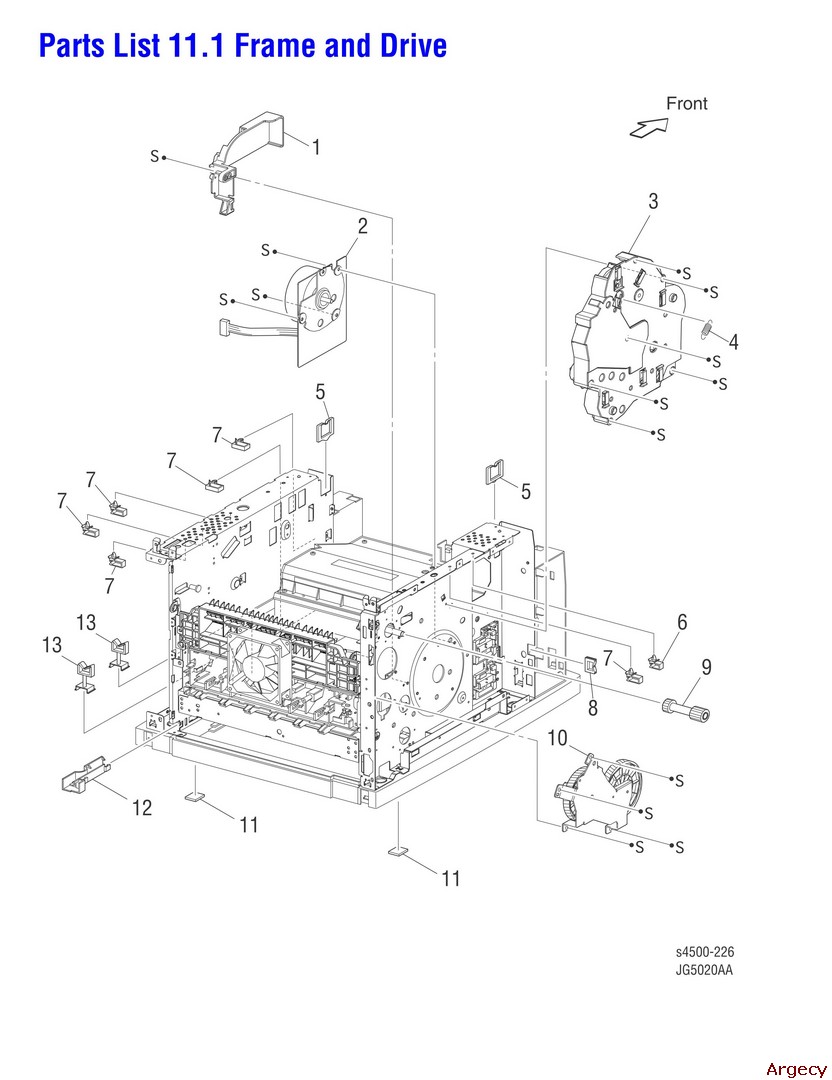

11.1 Frame and Drive 1 MOTOR COVER 2 MAIN MOTOR 127K36822 3 604K16670 Gear Assembly Housing 34Ppm New 604K16670 (New) $153.00 4 SPRING RELEASE 5 CLAMP EDGE 6 CLAMP-5 V0 7 CLAMP-10V0 8 CLAMP-EDGE 9 GEAR 9 807E02560 10 GEAR ASSY PLATE 007K87753 11 550 FOOT 12 GUIDE HARNESS R 13 CLAMP-RWSH

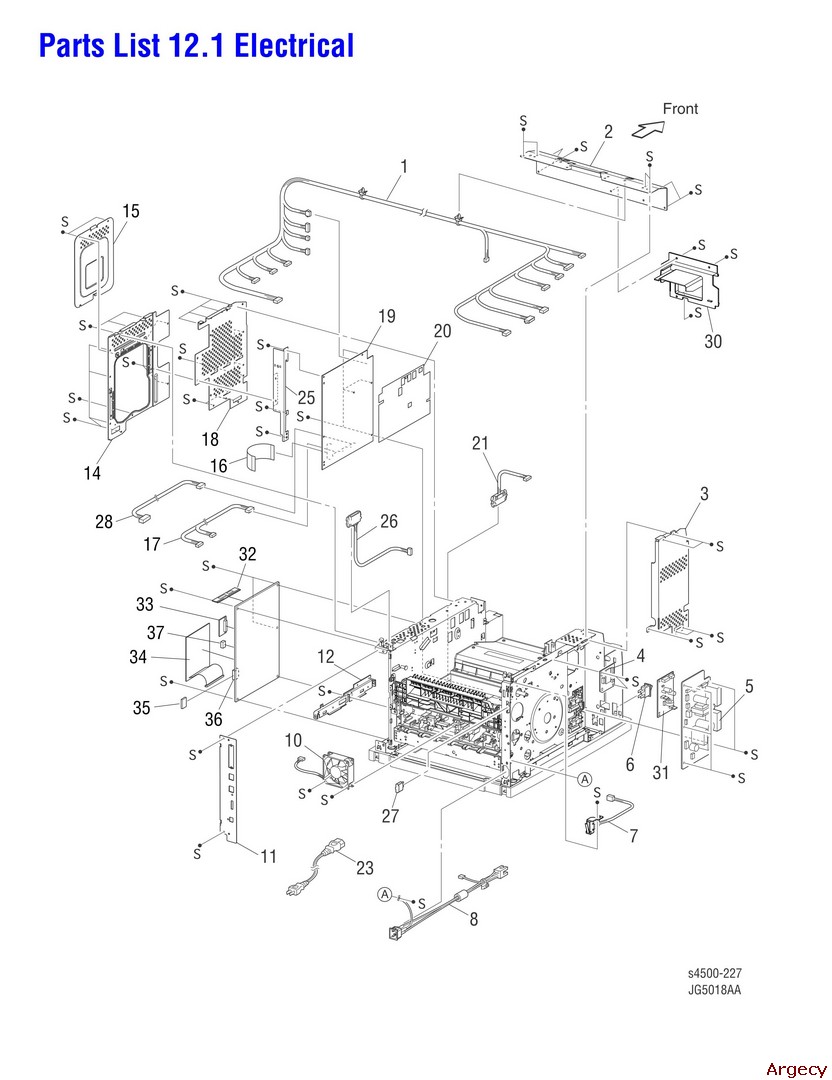

12.1 Electrical 1 HARNESS ASSY LVPS 2 PLATE TIE FRONT 3 SHIELD PLATE LVPS 4 PWBA EXIT MOTOR 160K91991 5 LVPS 110 V 105K20392 6 110K11570 Power Switch New 110K11570 (New) Contact for Details 7 110K11623 Interlock S/W Rear New 110K11623 (New) Contact for Details 8A HARNESS ASSY AC 110V 8B HARNESS ASSY AC 220V 10 127E83610 FAN MAIN New 127E83610 (New) Contact for Details 11 PANEL REAR 12 BRACKET HANDLE R 13 I/P PWBA 671-5321-80 14 SHIELD ASSY ESS 15 SHIELD ASSY WINDOW 16 FFC ASSY ESS 962K13460 17 HARNESS ASSY CHUTE 18 SHIELD PLATE HVPS 19 HVPS/MCU 110 V 675K05541 20 MYLAR HVPS 21 HARNESS ASSY FDR1 23 POWER CORD 110 V 675K04670 25 BRACKET SHIELD HVPS 26 1 HARNESS ASSY OCT 27 CAP CONNECTOR-DRAWER 28 2 HARNESS ASSY TONER 30 DUCT 054E23162 31 DC-DC Converter 105K20440 32 64 MB RAM DIMM 156-4838-00 128 156-4837-00 128 MB RAM SODIMM New 156-4837-00 (New) Contact for Details 256 156-4663-00 Mb Dimm Fully refurbished with 90-day warranty 156-4663-00 Contact for Details 33 FLASH DIMM 671-5325-0A 34 HARD DRIVE ASSY 650-4309-00 35 CONFIG CARD B TO N 163-1505-00 36 CONFIG CARD BASE 163-1513-00 37 163-1459-00 Nvram Device (I/P Board Nvram) Fully refurbished with 90-day warranty 163-1459-00 Contact for Details

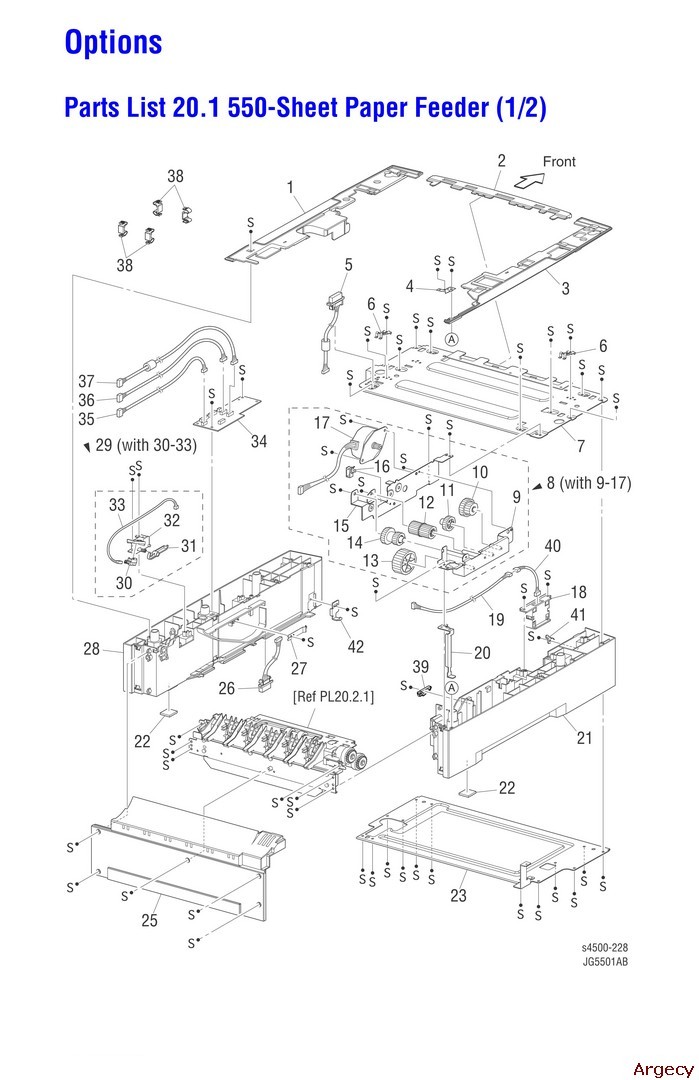

20.1 550-Sheet Paper Feeder 1 COVER RIGHT PLATE 2 COVER FRONT 3 COVER LEFT PLATE 4 EARTH PLATE 5 HARNESS ASSY FDR2 6 SPRING EARTH TOP 7 FRAME TOP ASSY 8 DRIVE ASSY OPT FDR 007K87654 9 BRACKET ASSY DRIVE 10 GEAR OPT FDR2 11 GEAR OPT FDR3 12 GEAR OPT FDR4 13 GEAR OPT FDR5 14 GEAR OPT FDR6 15 PLATE FEEDER DRIVE 16 CLAMP-5 V0 17 MOTOR FEEDER 18 OPT ASSY SIZE 110K11634 19 HARNESS ASSY SIZE FDR1 20 21 FRAME CVR L550 22 FOOT 23 FRAME BASE FRONT 25 COVER RE550 26 HARNESS ASSY FDR5 27 PLATE CST LOCK 28 FRAME CVR R550 29 HLD LOW PAPER ASSY 019K98503 30 SENSOR LOW PAPER 31 ACTUATOR LOW PAPER 32 HOLDER LOW PAPER 33 HARNESS LOW PAPER Parts Lists 9-31 34 PWBA FEEDER 550 160K86723 35 HARNESS ASSY SIZE FDR2 36 HARNESS ASSY CLSNR2 37 HARNESS ASSY FDR MOT 38 JOINT FEEDER 113E36900 39 LOCK CST L 003E59231 40 HARNESS ASSYSIZE FDR3 41 STOPPER TRAY L 42 STOPPER TRAY R 99 550 DECK ASSY 084K13412

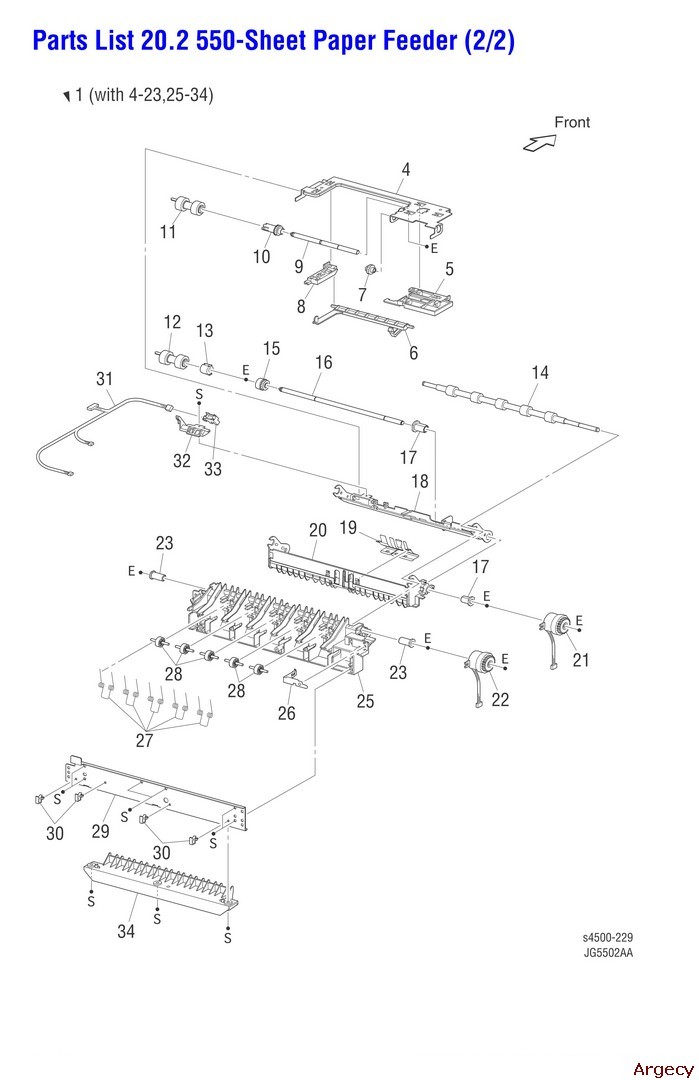

20.2 550-Sheet Paper Feeder 1 550 FEEDER OPTION 022K66124 4 SUPPORT NUDGER 5 HOLDER LEFT 6 ACTUATOR NO PAPER 7 GEAR IDLER NUDGER 8 HOLDER RIGHT 9 SHAFT NUDGER 10 GEAR NUDGER 059K25270 11 ROLL ASSY NUDGER 12 ROLL ASSY FEED 13 CLUTCH ONEWAY FEED 005E16941 14 ROLL ASSY TURN 15 CLUTCH ONEWAY NUDGER 005E16951 16 SHAFT FEED 17 BEARING NUDGER 013E22571 18 CHUTE TOP ASSY 19 COVER ACTUATOR 20 CHUTE BTM 21 121K28511 Clutch Assembly PH New 121K28511 (New) Contact for Details 22 121K28511 Clutch Assembly PH New 121K28511 (New) Contact for Details 23 BEARING FEEDER 25 CHUTE OUT 26 SPRING EARTH 27 SPRING PINCH TURN 28 ROLL PINCH TURN 29 PLATE TIE 30 CLAMP-5 V0 31 HARNESS ASSY CLSNR1 32 COVER HARNESS R 33 SENSOR NO PAPER 130E81970 34 CHUTE 550 LOWER 99 604K11192 Kit Roll Assembly Feed (3Pcs) New 604K11192 (New) $78.00

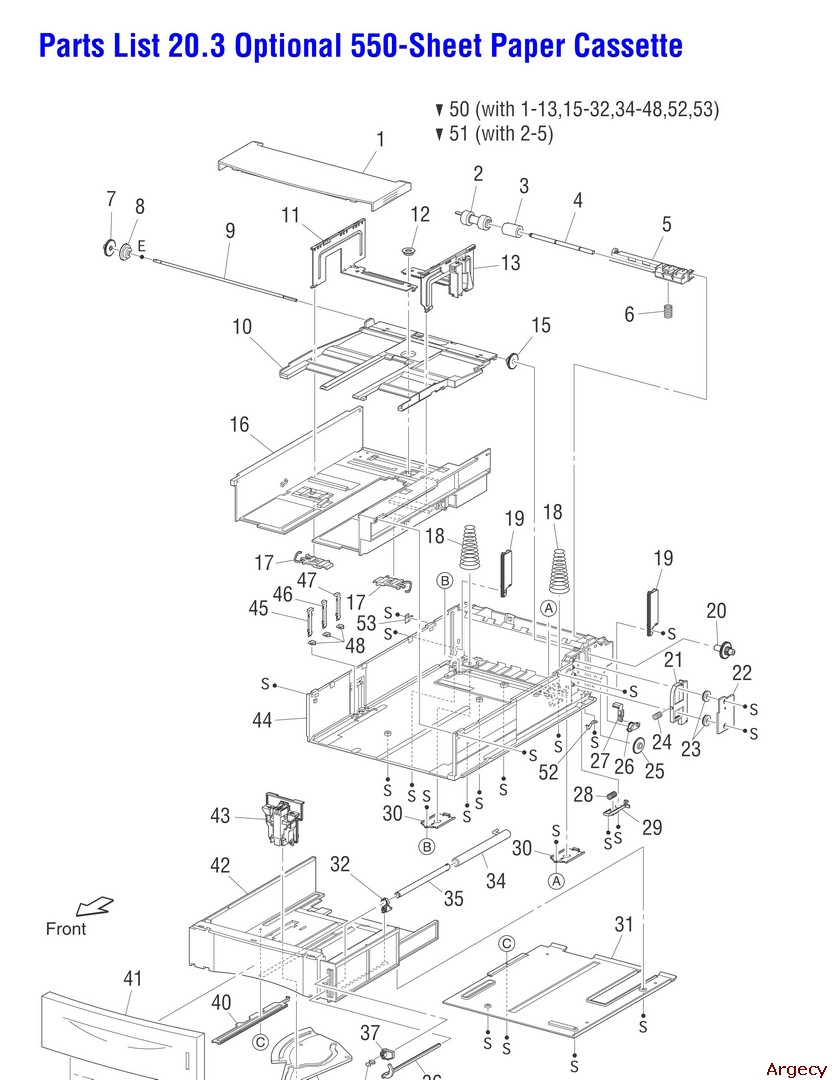

20.3 Optional 550-Sheet Paper Cassette 1 COVER CST 802E47191 2 ROLL ASSY RETARD 3 FRICTION CLUTCH 4 SHAFT RETARD 5 HOLDER RETARD 6 SPRING RETARD 809E37500 7 GEAR PB L 8 GEAR BTM ONEWAY 9 SHAFT PB 10 PLATE ASSY BTM 11 GUIDE ASSY SD L550 12 GEAR PINION 13 GUIDE ASSY SD R550 15 GEAR LOCK ONEWAY 16 550 HOUSING TOP 17 LOCK EXTENSION 18 550 SPRING BTM UP 19 550 PLATE GEAR LOCK 20 GEAR PB R 21 550 RACK BTM LOCK 22 550 COVER BTM UP 23 GEAR LOCK PINION 24 SPRING BTM LOCK 25 GEAR BTM LOCK 26 GEAR LEVER LOCK 27 LEVER BTM LOCK 28 SPRING STOPPER GEAR 29 STOPPER GEAR 30 PLATE SUPPORT 31 COVER EXTENSION 32 SUPPORT GUIDE IND 34 GUIDE INDICATOR 19-36 Phaser 4500 Service Manual 35 2 GUIDE INDICATOR 36 3 GUIDE INDICATOR 37 LOW INDICATOR 38 LOW IND FRONT 39 GEAR SECTOR 40 RACK SIZE 41 550 HANDLE EXTENSION 42 550 HOUSING EXTENSION" src="https://www.argecy.com/buy_image.php?product_id=11149"/> 43 550 GUIDE END 44 550 HOUSING BASE 45 LINK SW SIZE1-550 46 LINK SW SIZE2-550 47 LINK SW SIZE3-550 48 LINK SW SIZE LOW 50 084K15411 Paper Tray 550 Sheet Fully refurbished with 90-day warranty 084K15411 $128.00 51 019K98186 Holder Assembly Retard New 019K98186 (New) Contact for Details 52 STOPPER BASE R 53 STOPPER BASE L 99 604K11192 Kit Roll Assembly Feed (3Pcs) New 604K11192 (New) $78.00

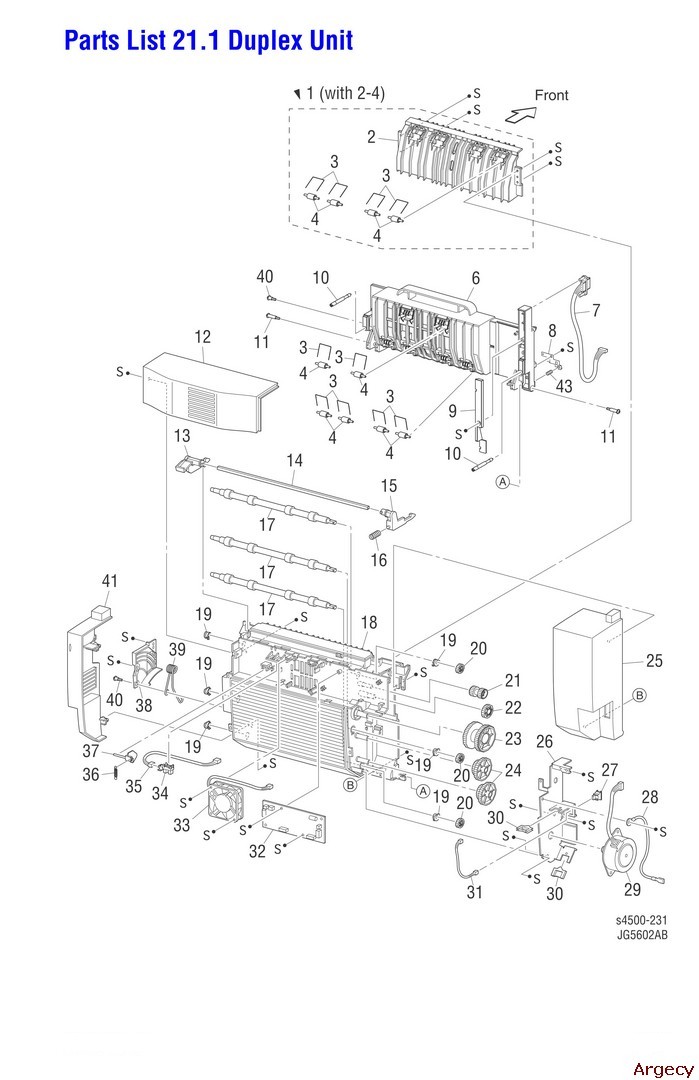

21.1 Duplex Unit 1 HSG UPPER ASSY 802K46801 2 HSG UPPER DUP 3 SPRING PINCH 809E37140 4 ROLL PINCH 059E97500 6 HSG LOWER DUP 7 HARNESS ASSY DUP 8 EARTH ASSY PLATE 9 COVER HARNESS 10 SCREW THUMB 11 SCREW HINGE 12 COVER TOP 13 LEVER LATCH RIGHT 14 SHAFT LATCH 15 LEVER LATCH LEFT 16 SPRING LATCH 17 ROLLER DUP 059E97811 18 COVER HSG DUP 19 BEARING DUP 013E22671 20 GEAR ROLLER 21 GEAR IDLE29 22 GEAR IDLE47 23 GEAR IDLE77 24 GEAR IDLE57/37 25 COVER LEFT 26 BRACKET MOTOR 27 SWITCH DUPLEX 110E10200 28 HARNESS ASSY DUP EARTH 29 MOTOR DUPLEX 127E83201 30 CLAMP EDGE 31 HARNESS ASSY DUP COVER 32 PWBA DUPLEX 160K86756 33 FAN DUPLEX 127E83210 34 SENSOR DUP 130E82740 35 HARNESS ASSY DUP SNR 36 SPRING ACTUATOR 809E50961 37 ACTUATOR DUP 604K16750 38 COVER DAMPER 39 SPRING DAMPER 40 SCREW TAPPING 41 COVER RIGHT 43 SPRING Frame Ground DUP 99 DUPLEX ASSY 084K18292

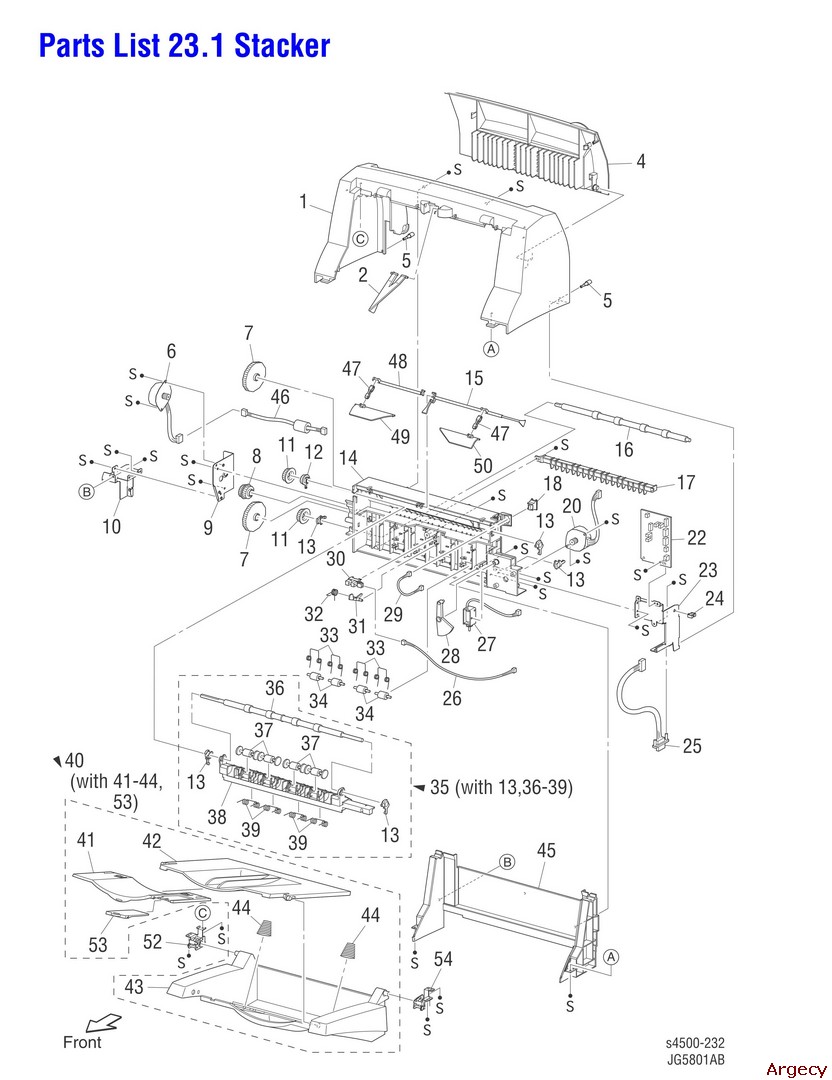

23.1 Stacker 1 COVER OCT 2 WEIGHT 036E91551 3 ELIMINATOR ASSY 4 COVER REAR 5 SCREW THUMB 6 MOTOR ASSY OCT 127K36291 7 GEAR 45 007E74830 8 GEAR 19/37 007E74840 9 BRACKET MOTOR OCT 10 SUPPORT OCT LEFT 11 GEAR 19 007E74821 12 BEARING OFFSET 013E22030 13 BEARING ROLL 013E22021 14 HOUSING OCT 15 ACTUATOR FULL STACK 120E21663 16 ROLL OCT LOWER 059K25121 17 CHUTE INLET 18 S/W REAR COVER 110E10200 20 MOTOR ASSY OFFSET 127K39340 22 PWBA OCT 160K86744 23 SUPPORT OCT RIGHT 24 CLAMP MINI 25 2 HARNESS ASSY OCT 26 HARNESS ASSY OCT SNR 27 SOLENOID ASSY GATE 121K28671 28 GEAR CAM 007E74810 29 HARNESS ASSY REAR COVER 30 SENSOR OCT 130E81970 31 ACTUATOR OCT 120E21270 32 SPRING ACTUATOR 809E37332 33 SPRING PINCH 809E37341 34 ROLL PINCH 059E9754135 CHUTE OFFSET ASSY 054K23313 36 ROLL OCT UPPER 37 ROLL PINCH OCT 38 CHUTE OFFSET 39 SPRING PINCH EXIT 40 TRAY ASSY OCT 050K49264 41 TRAY EXTENSION 42 TRAY EXIT 43 TRAY BASE 44 SPRING TRAY 45 COVER FRONT 46 HARNESS ASSY OCT MOT 47 LINK 48 SHAFT FULL STACK 006E79380 49 FLAPPER ASSY L 036K91582 50 FLAPPER ASSY R 036K91592 51 SPRING 52 DAMPER ASSY TRAY L 004K02070 53 STOPPER 54 DAMPER ASSY TRAY R 004K02080 99 STACKER ASSY 084K18114
