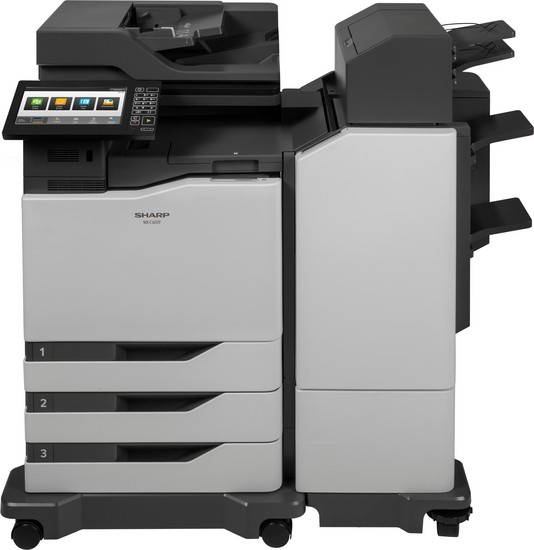

Sharp MX-C557F MX-C607F MFP Color Printer
Key Features
- 150-sheet DSPF scans documents at 114 opm*1 (two-sided) (MX-C607F/C557F)
- Envelope Tray option accommodates various types of envelopes
- Reliable, flexible media handling supports cardstock, small media, and envelopes from the main tray or the multipurpose feeder
- Finishing options include a compact staple finisher and a professional finisher with multi-position stapling and hole punching (MX-C607F/C557F)
- Compact finisher option with stapler (MX-C607P)
- Keyboard option facilitates fast and easy text entry (MX-C607F/C557F)
- Direct printing of Microsoft® Office (docx, xlsx, pptx) files
- OCR allows users to convert scanned documents into searchable PDF files or editable Microsoft Office Word files (MX-C607F/C557F)
- Card Copy function enables capturing both sides of ID/credit cards and printing on one side of paper (MX-C607F/C557F)
- Supports compact PDF (MX-C607F/C557F)
- Steel frame and durable design stand up to heavy use and harsh environments
- Standard-equipped with high-speed Super G3 fax (MX-C607F/C557F)
Superb Image Quality
- True 1,200 x 1,200 dpi printing
Secure Information Sharing
- Wireless connectivity enables easy access from mobile devices and flexible MFP/printer placement (option)
- Wi-Fi Direct® enables easy connection between MFP/printer and mobile device
- Supports various mobile printing services such as Sharp Print Service Plugin*2 and AirPrint
- Full-spectrum security features keep information safe—in the document, on the device, and over the network
Exceptional Ease of Use
- Sharp’s intuitive Easy UI mode makes it easy for everyone to use the MFP’s advanced functions (MX-C607F/C557F)
- Tiltable 10-inch (4.3-inch on MX-C607P) colour LCD touchscreen for easy access
- Preview function allows users to check print/scan*3 job document finishes before actual execution
- Front USB port allows walk-up printing of popular file formats without a computer
- SRDM (Sharp Remote Device Manager)*4 software allows centralised control of networked printers and MFPs
- Sharp’s printer driver setup window features a user-friendly design
- *1: Originals per minute; when feeding A4 sheets. 120 opm for 8 1/2" x 11" sheets.
- *2: Contact a Sharp customer representative for details.
- *3: Scanning available on MX-C607F/C557F.
- *4: Contact a Sharp customer representative for availability and other details.
MX-CS19 2200-Sheet Tray | |
MX-CS16 550-Sheet Tray | |
21K0787 Envelope Tray | |
42K1597 Multi-Position Staple Punch Finisher (Short) | 42K1597 CX825 CX860 Multi-position Staple Punch Finisher (LV Tall) Fully refurbished with 90-day warranty 42K1597 $2313.00 |
42K1267 Multi-Position Staple Punch Finisher (Tall) | 42K1267 CX825 CX860 Multi-position Staple Punch Finisher (S-LV) Fully refurbished with 90-day warranty 42K1267 |
40C2300 Adjustable Stand | |
57X7020 Keyboard Kit (English) | |
25A0013 Staple Cartridges (3-pack) | |
27X6510 MarkNet N8370 Wireless Print Server | |
1021294 USB Cable | |
57X9801 256 MB Flash Memory | 57X9801 256MB Flash Memory Card Fully refurbished with 90-day warranty 57X9801 11B76N-00 GC1430 $61.46 |
57X9022 2 GB Memory | |
21K0127 Forms and Barcode Card | |
21K0128 IPDS Card | |
21K0129 Prescribe Card | |
57X0085 Secure Element Security Module | |
SPD0001 Surge Protector (100 V) | |
57X0300 Contact Authentication Device | |
57X0301 Contactless Authentication Device |
| Model | MX-C607F/C557F | MX-C607P | |
|---|---|---|---|
| Type | Console | Desktop | |
| Engine speed | A4*1 | Max. 57/52 ppm | Max. 57 ppm |
| 8 1/2" x 11"*1 | Max. 60/55 ppm | Max. 60 ppm | |
| Control panel display | 10.0-inch colour LCD touchscreen | 4.3-inch colour LCD touchscreen | |
| Paper size | Max. A4 (8 1/2" x 14"), min. A6 (5 1/2" x 8 1/2") | ||
| Paper capacity (75 g/m2) |
Standard | 1,750 sheets (550-sheet tray x 3 and 100-sheet multipurpose feeder) |
650 sheets (550-sheet tray and 100-sheet multipurpose feeder) |
| Maximum | 4,500 sheets (1,750 sheets & optional 550-sheet tray and 2,200-sheet tray) |
4,500 sheets (650 sheets & optional 550-sheet tray x 3 and 2,200-sheet tray) |
|
| Paper weight | Tray 1 | 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) | |
| Trays 2–5 | 60 g/m2 to 176 g/m2 (16 lbs bond to 65 lbs cover) | ||
| Multipurpose feeder | 60 g/m2 to 176 g/m2 (16 lbs bond to 65 lbs cover) | ||
| 2,200-sheet tray | 60 g/m2 to 120 g/m2 (16 lbs bond to 32 lbs bond) | ||
| First print time*2 | – | 7.0 sec. | |
| Memory | Standard | 2 GB 500 GB HDD*3 | 1 GB 500 GB HDD*3 |
| Option | 2 GB | ||
| Dimensions (W x D x H) | 662 x 658 x 1,162 mm (26.1" x 25.9" x 45.8") | 558.8 x 522.4 x 535.94 mm (22" x 20.6" x 21.12") | |
| Weight (approx.) | 131.3 kg (288.9 lbs) | 62.3 kg (137 lbs) | |
Copier
| Model | MX-C607F/C557F | MX-C607P | ||
|---|---|---|---|---|
| Original paper size | Max. A4 (8 1/2" x 14") | – | ||
| First copy time*4 | A4 | Colour | MX-C607F: 7.0 sec. MX-C557F: 7.0 sec. |
– |
| B/W | MX-C607F: 7.0 sec. MX-C557F: 7.0 sec. |
– | ||
| 8 1/2" x 14" | Colour | MX-C607F: 7.0 sec. MX-C557F: 7.0 sec. |
– | |
| B/W | MX-C607F: 6.0 sec. MX-C557F: 6.5 sec. |
– | ||
| Continuous copy | Max. 9,999 copies | – | ||
| Resolution | Max. 600 x 600 dpi | – | ||
| Zoom range | 25% to 400% in 1% increments | – | ||
| Preset copy ratios | 6 ratios (2R/4E) | – | ||
Scanner
| Model | MX-C607F/C557F | MX-C607P | |
|---|---|---|---|
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
– | |
| Scan speed*5 (colour & B/W) |
[A4] One-sided | Max. 57 originals/min. | – |
| [A4] Two-sided | Max. 114 originals/min. | – | |
| [8 1/2" x 11"] One-sided | Max. 60 originals/min. | – | |
| [8 1/2" x 11"] Two-sided | Max. 120 originals/min. | – | |
| Resolution | Push scan | 75, 150, 200, 300, 400, 600 dpi | – |
| Pull scan | 75, 150, 200, 300, 400, 600, 1,200*6 dpi | – | |
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF*7, JPEG*7, searchable PDF, DOCX, CSV, text (TXT), rich text (RTF) | – | |
| Scan destinations | Scan to e-mail/FTP server/USB drive/network folder (SMB)/HDD | – | |
Printer
| Model | MX-C607F/C557F | MX-C607P | |
|---|---|---|---|
| Resolution | 1,200 x 1,200 dpi, 2,400 (equivalent) x 600 dpi | ||
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/ac/b/g/n)*8 | ||
| Supported OS | Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 7, Windows® 8.1, Windows® 10 Mac OS 10.10, 10.11, 10.12, 10.13, 10.14, 10.15 |
||
| Network protocols | TCP/IP | ||
| Printing protocols | LPD, Raw TCP (port 9100), enhanced IP (port 9400), secure IP (port 96xx), FTP, TFTP, IPP | ||
| PDL | PCL 5c/PCL 6 emulation, PostScript® 3™ emulation | ||
| Available fonts | 89 fonts for PCL, 158 fonts for PostScript 3 emulation | ||
Facsimile
| Model | MX-C607F/C557F | MX-C607P | |
|---|---|---|---|
| Compression method | MH/MR/MMR/JBIG/JBIG2/JPEG | – | |
| Communication protocol | Super G3/G3 | – | |
| Transmission time | Less than 3 seconds*9 | – | |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | – | |
| Transmission resolution | B/W | From Standard to Ultra Fine | – |
| Colour | From Fine to Super Fine | – | |
| Recording size | A4 to A6 (8 1/2" x 14" to 5 1/2" x 8 1/2") | – | |
| Memory | 1 GB (built-in) | – | |
