Samsung SF-750 SF-755P Parts
| Main Exploded View Parts List 0 SET SF-755P/XEU 1 ELA HOUSING UNIT FRAME 110V JC96-02982A 2 MEA UNIT COVER EXIT JC97-01854A 3 ELA UNIT RX DRIVE JC96-02984A 4 UNIT HUMMINGBIRD LSU JC59-00018A 5 CBF HARNESS LSU JC39-00324A 6 ELA HOUSING SCAN JC96-02981A SF-755P 6 ELA HOUSING SCAN JC96-03036A SF-750 6-1 ELA HOUSING OPE JC96-02967A SF-755P 6 ELA HOUSING OPE JC96-03031A SF-750P 6-2 MEA HOUSING SCAN LOWER JC96-02969A 6-3 PMO TRAY LINK MP JC72-00857A 7 PBA MAIN NIKE 2 HIGH JC92-01577A SF-755P 7 PBA MAIN HIGH FAX JC92-01591A SF-750 8 MEA UNIT STACKER JC97-01856A 8-1 TRAY M STACKER TX A JC63-00325A 8-2 TRAY M STACKER TX B JC63-00324A 9 MEA UNIT COVER FRONT JC97-01746K 9-1 COVER M FRONT JC63-00103K 9-2 ADJUST M MANUAL L JC70-00302F 9-3 ADJUST M MANUAL R JC70-00303F 9-4 ADJUST RACK M MANUAL JC70-00304A 9-5 GEAR RACK PINION JC66-00387A 10 COVER M SIDE R JC63-00320A 11 ELA HOUSING COVER SIDE L JC96-02974A 11-1 COVER M SIDE L JC63-00319A 11-2 SPEAKER 3001-001494 11-3 IPR UNIT FIXING BRAC GB70-10500A 12 MEA UNIT COVER REAR JC97-01859A 12-1 COVER M REAR JC63-00336A 12-2 COVER M FACE UP JC63-00142D 13 FAN DC HUMMINGBIRD JC31-00027A 14 MEA ETC TR JC97-01793A 14-1 ROLLER TRANSFER ROLLER JC66-00528A 14-2 PPR SPACER TR JC72-00851A 14-3 GEAR TRANSFER JC66-00395A 15 MEA UNIT CASSETTE JC97-01861A 16 SHIELD MAIN BOARD JC63-00339A 17 MEA UNIT SHIELD ENGINE JC97-01794A 17-1 SHIELD ENGINE ROCKY JC63-00144A 17-2 SUPPORTER 6103-001056 18 BRACKET P INLET ROCKY JC61-00693A 19 SMPS(V1) 110V JC44-00044A 110V 20 CBF HARNESS ENGINE JC39-00313A 21 PBA SUB LIU USA JC92-01575A SF-755P 21 PBA SUB LIU SERIAL JC92-01575D SF-755P 22 COVER MDUMMY FRONT JC63-00338A 23 ELA HOUSING SCAN LOWER JC96-02969A 24 GASKET 6302-001056 |  |
|

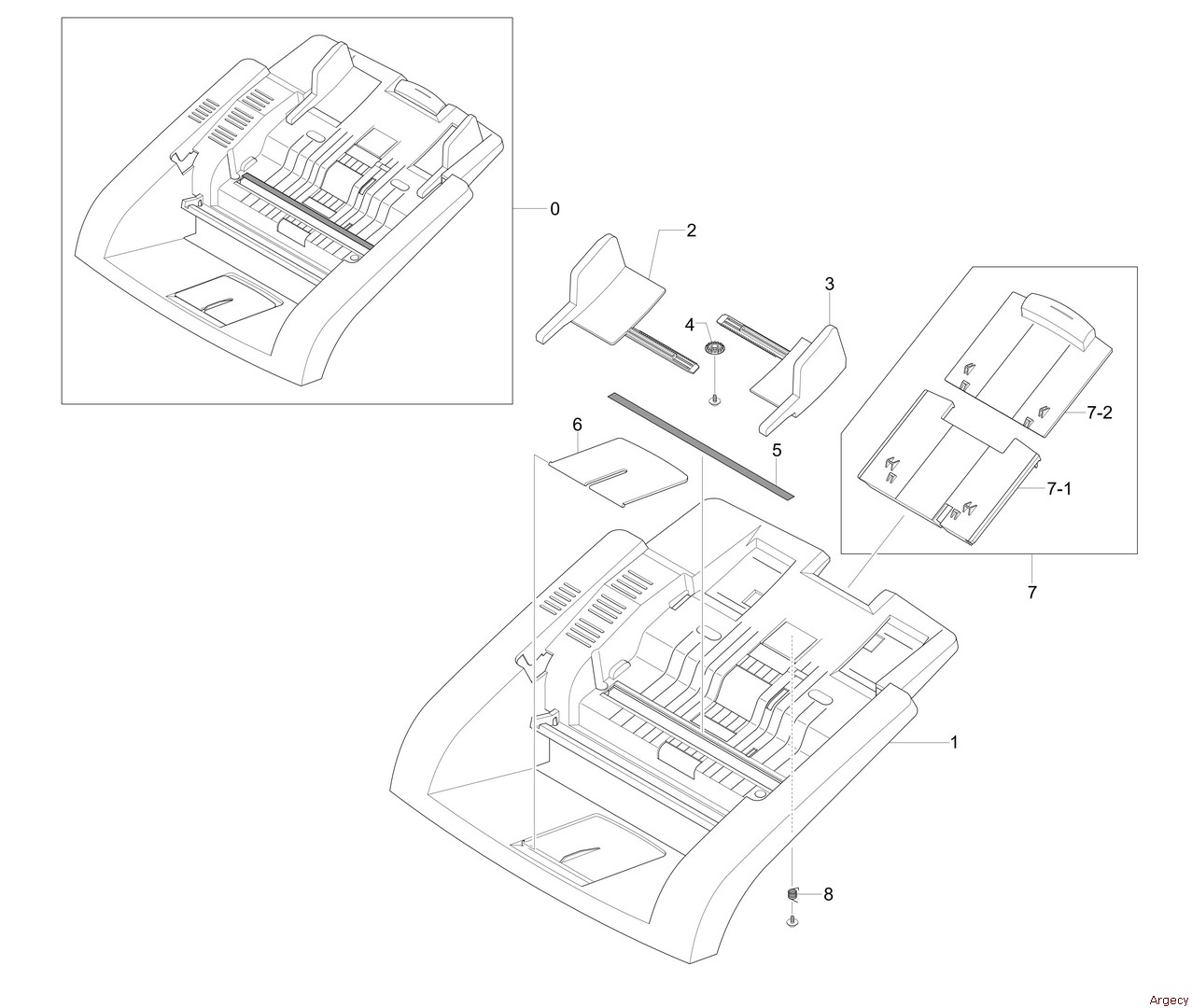

8.2 Top Cover Exploded View 0 MEA COVER M TOP JC97-01852A 1 COVER M TOP JC63-00340A 2 GUIDE M DOC L JC61-00872A 3 GUIDE M DOC R JC61-00873A 4 GEAR PINION SSI JB66-00126A 5 SHEET CIS JC63-00342A 6 TRAY M STACKER TX B JC63-00325B 7 MEA UNIT CHUTE JC97-01865A 7-1 CHUTE M A JC61-00860A 7-2 CHUTE M B JC61-00861A 8 IPR WASHER SPRING CU JF70-10616A |  |
|

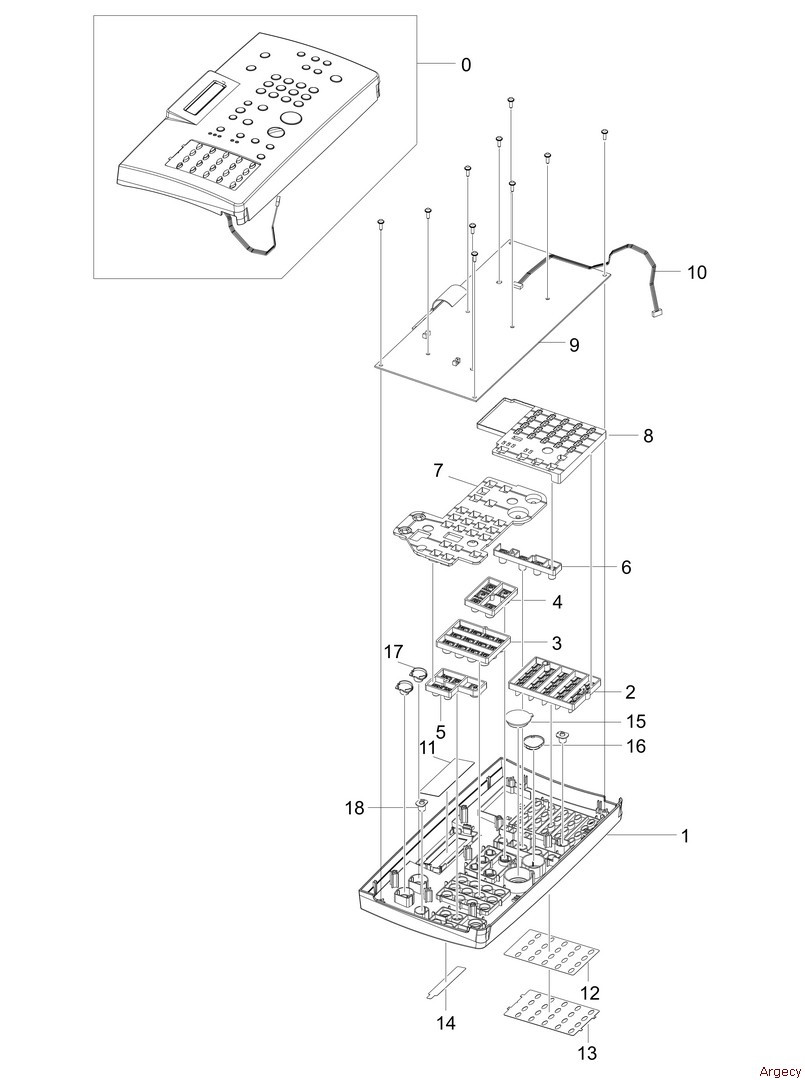

8.3 OPE Assembly Parts List 0 ELA HOUSING OPE JC96-03031A SF-750 0 ELA HOUSING OPE JC96-02967A SF-755P 1 COVER M OPE JC63-00423A SF-750 1 COVER M OPE JC63-00351A SF-755P 2 KEY M ONE TOUCH JC64-00113A 3 KEY M TEL JC64-00053A 4 KEY M SCROLL JC64-00056A 5 KEY M FAX JC64-00060A 6 KEY M COPY JC64-00112A 7 RUBBER TEL JC73-00173A 8 RUBBER ONE TOUCH JC73-00175A 9 PBA SUB HIGH OPE JC92-01549A 10 CBF HARNESS OPE JC39-00314A 11 PCT LCD WINDOW JC72-00672A 12 LABEL(P) ONE TOUCH JC68-01221B 13 SHEET ONE TOUCH JC63-00328A 14 COVER WINDOW SF-530 JC63-00076A 15 KEY M START JC64-00114A 16 PMO KEY STOP JB72-00107B 17 KEY M TONER SAVE JC64-00058A 18 KEY M SHIFT JC64-00115A |  |
|

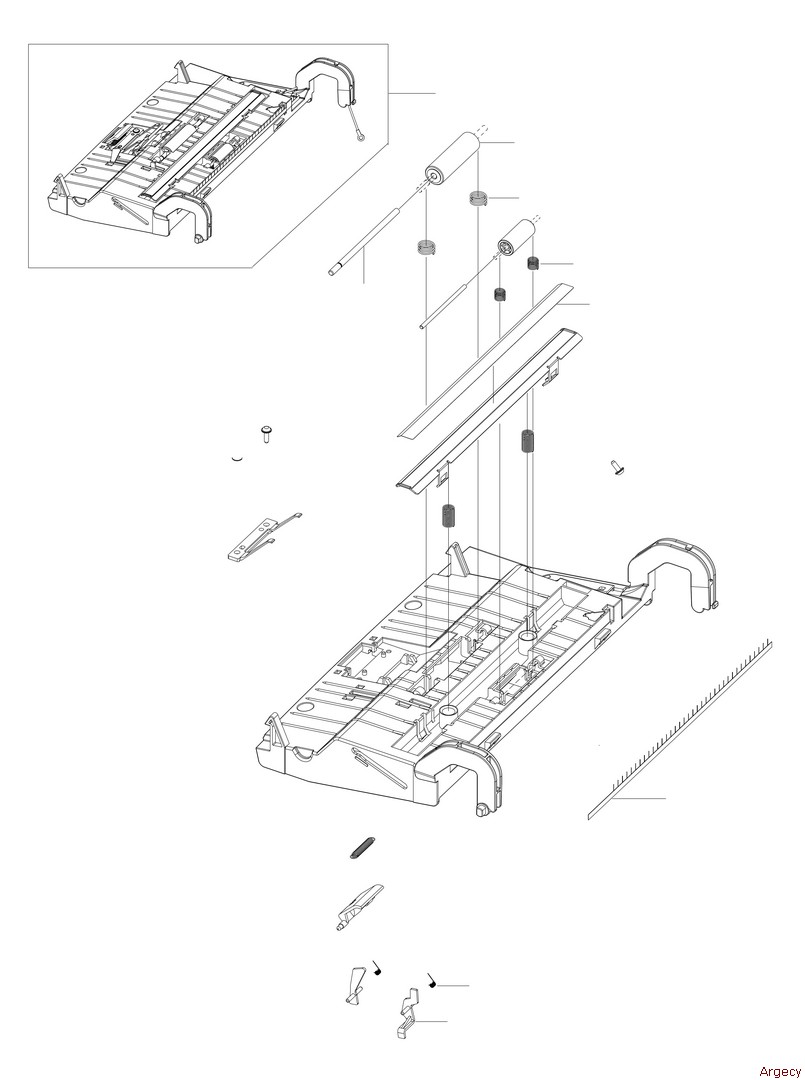

Scan Upper Assembly Exploded View Parts List 0 MEA SCAN UPPER JC97-01853A 1 FRAME M SCAN UPPER JC61-00875A 2 IPR BRKT WHITE BAR JC70-00225A 3 PPR WHITE BAR SHEET JC72-00752A 4 BRUSH ANTISTATIC 531P JC67-00055A 5 PMO ROLL PINCH JG72-40663A 6 MEC ROLLER IDLE JC75-00160A 7 SHAFT IDLE SCAN JC66-00692A 8 SHAFT IDLE FEED JC66-00558A 9 MEA HOUSING PRESSER ADF ASSEMBLY JC97-01664A 9-1 RIVET SNAP 6041-001028 9-2 PPR FILM ADF 1 JC72-00930A 9-3 SILICON/RUBBER PAD ADF JC73-00113A 9-4 PPR FILM ADF 2 JC72-00929A 9-5 IPR SPRING ADF 2 JC70-00286A 9-6 IPR SPRING ADF 1 JC70-00285A 9-7 PMO HOLDER ADF JC72-00905A 10 PMO SPRING ADF SET JC72-00922A 11 PMO HOLDER PICK UP JC72-00926A 12 LEVER M SENSOR DOC JC66-00686A 13 LEVER M SENSOR SCAN JC66-00687A 14 SPRING ETC LEVER SENSOR JB61-00107A 15 SPRING ETC PICK UP MP JC61-00041A 16 SPRING ETC FEED JC61-00011A 17 SPRING ETC CIS JB61-00083A 18 CBF HARNESS SCAN GND JC39-00322A 19 SPRING ETC PAPER OUT JB61-00070A NS SCREW TAPTITE 6003-000269 NS SCREW TAPTITE 6003-000267 |  |
|

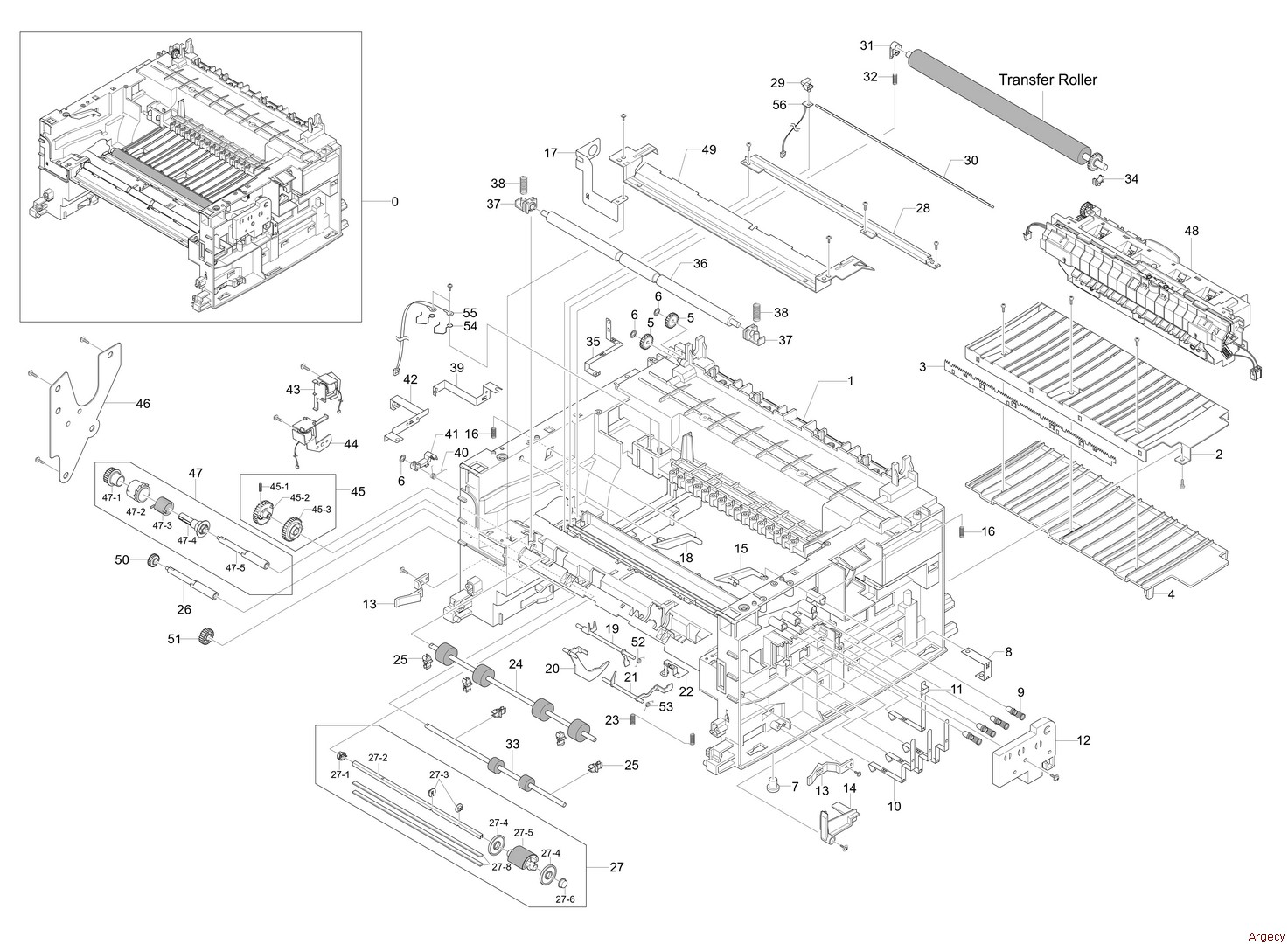

Main Frame Exploded View Parts List 0 ELA HOUSING UNIT FRAME 110V JC96-02982A 110V 1 FRAME MBASE JC61-00579A 2 GUIDE P TR JC61-00607A 3 PLATE P SAW JC61-00604A 4 GUIDE MTR RIB JC61-00594A 5 PMO GEAR EXIT DRV16 JC72-00143A 6 RING CS 6044-000001 7 FOOT FRONT JC61-00836A 8 IPR P GROUND TR JC70-00311A 9 MEC TERMINAL JC75-00049A 10 IPR P TERMINAL CON JC70-00312A 11 IPR P TERMINAL CR JC70-00313A 12 HOUSING TERMINAL JC61-00592A 13 PMO LOCKER CST JC72-00983A 14 PMO ACTUATOR CVR OPEN JC72-00974A 15 PMO PLATE GUIDE DEVE R JC72-00985A 16 SPRING ETC GUIDE DEVE JC61-70932A 17 IPR P GROUND GUIDE PAPER JC70-00458A 18 PMO PLATE GUIDE DEVE L JC72-00984A 19 PMO ACTUATOR FEED JC72-00976A 20 PMO ACTUATOR EMPTY JC72-00975A 21 PMO ACTUATOR MANUAL JC72-00977A 22 IPR P GROUND EARTH TR JC70-00307A 23 SPRING ETC 6107-001162 24 ROLLER FEED ROLLER 1 JC66-00526A 25 PMO BUSHING FEED JC72-00382B 26 SHAFT FEED JC66-00398A 27 AS PICK UP JC81-01693A 27-1 BUSH M PICK UP L JC61-00586A 27-2 SHAFT P PICK UP JC66-00399A 27-3 STOPPER PICK UP JC61-00593A 27-4 PMO IDLE PICK UP JC72-00982A 27-5 SPONGE ROLLER PICK UP JC72-01231A 27-6 BUSH M PICK UP R JC61-00587A 27-7 HOUSING M PICK UP JC61-00591A 27-8 SHAFT P CORE JC66-00720A 28 IPR P EARTH TRANSFER JC70-00307A 29 HOLDER PTL JC61-00583A 30 LENS PTL JC67-00027A 31 BUSH MTR L JC61-00588A 32 SPRING ETC TR L HAWK JC61-00047A 33 ROLLER FEED JC66-00598A 34 PMO BUSHING TR(L) JC72-00102A 35 IPR P GROUND FUSER JC70-00310A 36 SHAFT FEED IDLE JC66-00527A 37 BUSH M FEED IDLE JC61-00585A 38 SPRING ETC TR JC61-70958A 39 IPR P GROUND DRIVE2 JC70-00335A 40 SPRING TS 6107-001170 41 CAM M PICK UP JC66-00377A 42 IPR P GROUND DRIVE JC70-00308A 43 SOLENOID HB (PICK UP) JC33-00009A 44 SOLENOID HB (MANUAL) JC33-00010A 45 AS GEAR PICK UP JC81-01692A 45-1 PMO GEAR PICK UP B JC72-00980A 45-2 PMO GEAR PICK UP A JC72-00979A 45-3 SPRING CS 6107-001167 46 BRACKET P FEED JC61-00602A 47 MEA UNIT CLUTCH JC97-01788A 47-1 GEAR FEED 1 JC66-00393A 47-2 PMO COLLAR SPRING JC72-00978A 47-3 SPRING TS 6107-001170 47-4 PMO HUB CLUTCH JC72-00981A 47-5 SHAFT FEED JC66-00398A 48 ELA HOUSING FUSER 110V ROCKY JC96-02660C 110V 49 GUIDE P PAPER JC61-00718A 50 GEAR FEED 2 JC66-00394A 51 GEAR IDLE 23 JC66-00396A 52 SPRING TS 6107-001164 53 SPRING TS 6107-001165 54 IPR P TERMINAL DEVE KEY JC7000340A 55 CBF HARNESS OPC FUSE JC39-00315A 56 PBA MAIN PTL JC92-01440B NS SCREW TAPTITE 6003-000119 NS SCREW TAPTITE 6003-000196 NS SCREW TAPTITE 6006-001078 |  |

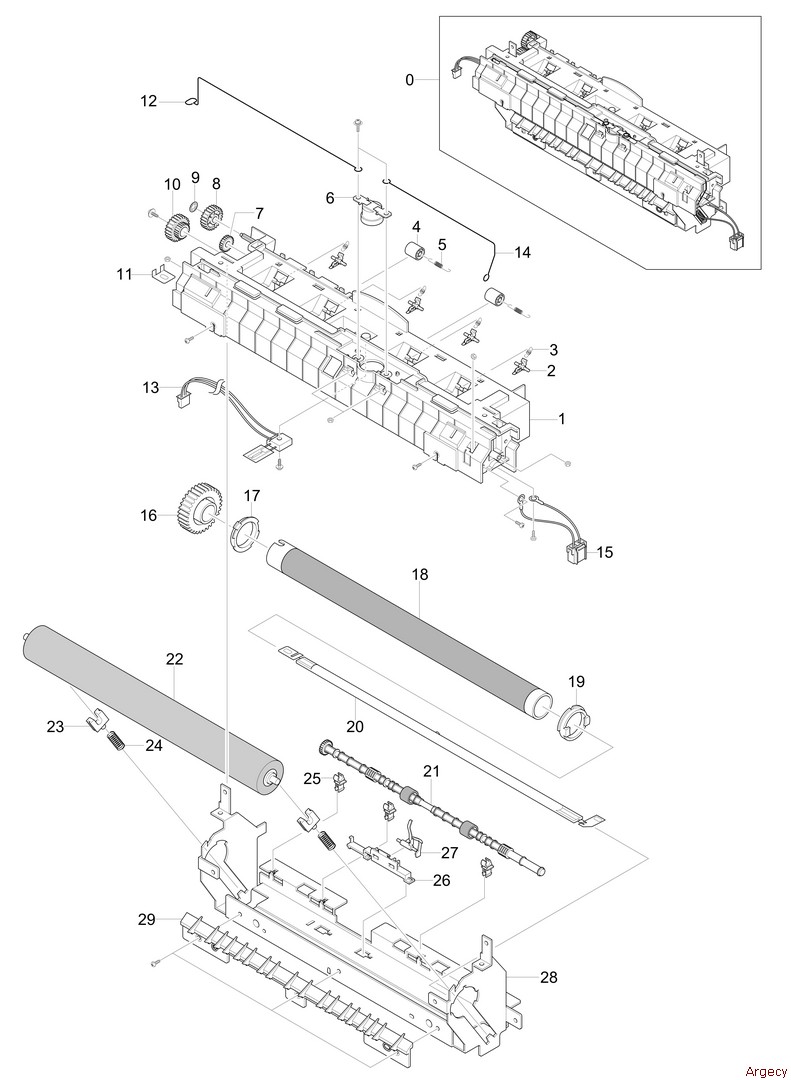

Fuser Unit Exploded View Parts List 0 ELA HOUSING FUSER 110V JC96-02660C 110V 1 COVER M FUSER JC63-00105A 2 HOLDER M PLATE CLAW JC61-00584A 3 SPRING ETC CLAW JC61-00064A 4 PMO ROLLER EXIT JC72-40361A 5 SPRING ETC FUSER EXIT JC61-70976A 6 THERMOSTAT 150 JC47-00005A 7 PMO GEAR EXIT DRV16 JC72-00143A 8 GEAR IDLE 23 JC66-00396A 9 RING CS 6044-000001 10 GEAR RDCN 25/15 JC66-00397A 11 ELECTRODE LAMP2 JC70-00466A 12 ELECTRODE WIRE L JC70-00450A 13 THERMISTOR NTC 1404-001298 14 ELECTRODE WIRE R JC70-00449A 15 CBF HARNESS FUSER 110V JC39-00239A 110V 16 GEAR FUSER Z37 JC66-00564A 17 BUSH MHR L JC61-00589A 18 ROLLER HEAT JC66-00601A 19 BUSH MHR R JC61-00590A 20 LAMP HALOGEN 4713-001182 110V 21 ROLLER M EXIT F/UP JC66-00380A 22 ROLLER PRESSURE JC66-00600A 23 BEARING PRESSURE/R JC66-10901A 24 SPRING CS 6107-001168 25 PMO BUSHING TX JC72-00382A 26 HOLDER ACTUATOR JC61-00581A 27 PMO ACTUATOR EXIT JC72-00987A 28 IPR P FRAME FUSER JC70-00317A 29 GUIDE M INPUT JC61-00595A 30 SPRING TS 6107-001165 31 RMO RUBBER EXIT JC73-00017A 32 NUT HEXAGON 6021-000222 5 X 33 LABEL(P)CAUTION HOT FUSER JC68-30928D 34 COVER M EXIT LOWER JC63-00244A 35 PLATE P CLAW JC61-00605A |  |
|

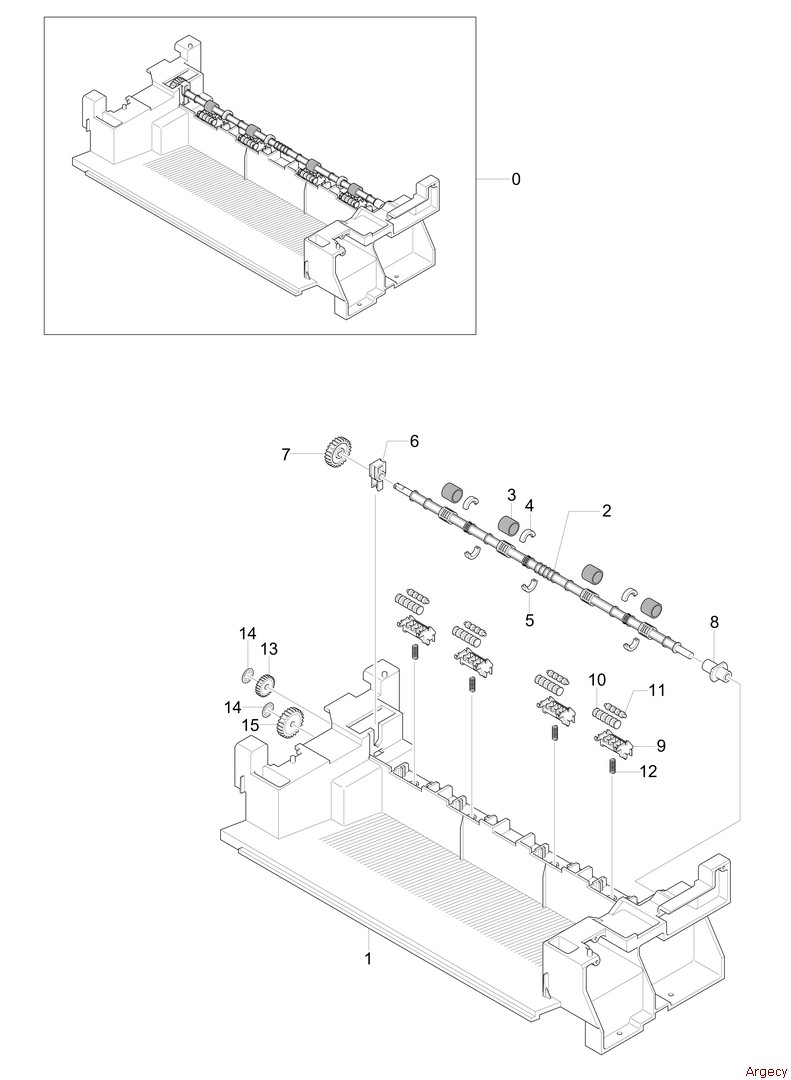

Exit Cover Exploded View Parts 0 MEA UNIT COVER EXIT JC97-01854A 1 COVER M EXIT JC63-00322A 2 ROLLER EXIT EXIT F/DOWN JC66-00378A 3 RMO RUBBER EXIT JC73-40915A 4 ROLLER M DECURL JC66-00626A 6 MEC BEARING EXIT JC75-10529A 7 GEAR EXIT F/DOWN JC66-00028A 8 BEARING EXIT FU JC66-10201A 9 HOLDER M EXIT F/DOWN JC61-00582A 10 ROLLER EXIT MAIN JC72-41801A 11 ROLLER EXIT FR JC72-41802A 12 SPRING EXIT F/DOWN 6107-001163 13 PMO GEAR EXIT DRV 16 JC72-00143A 14 RING CS 6044-000001 15 GEAR IDLE 23 JC66-00396A 16 HOOK PBA JC92-01570A 17 HOOK HANESS JC39-00311A |  |
|

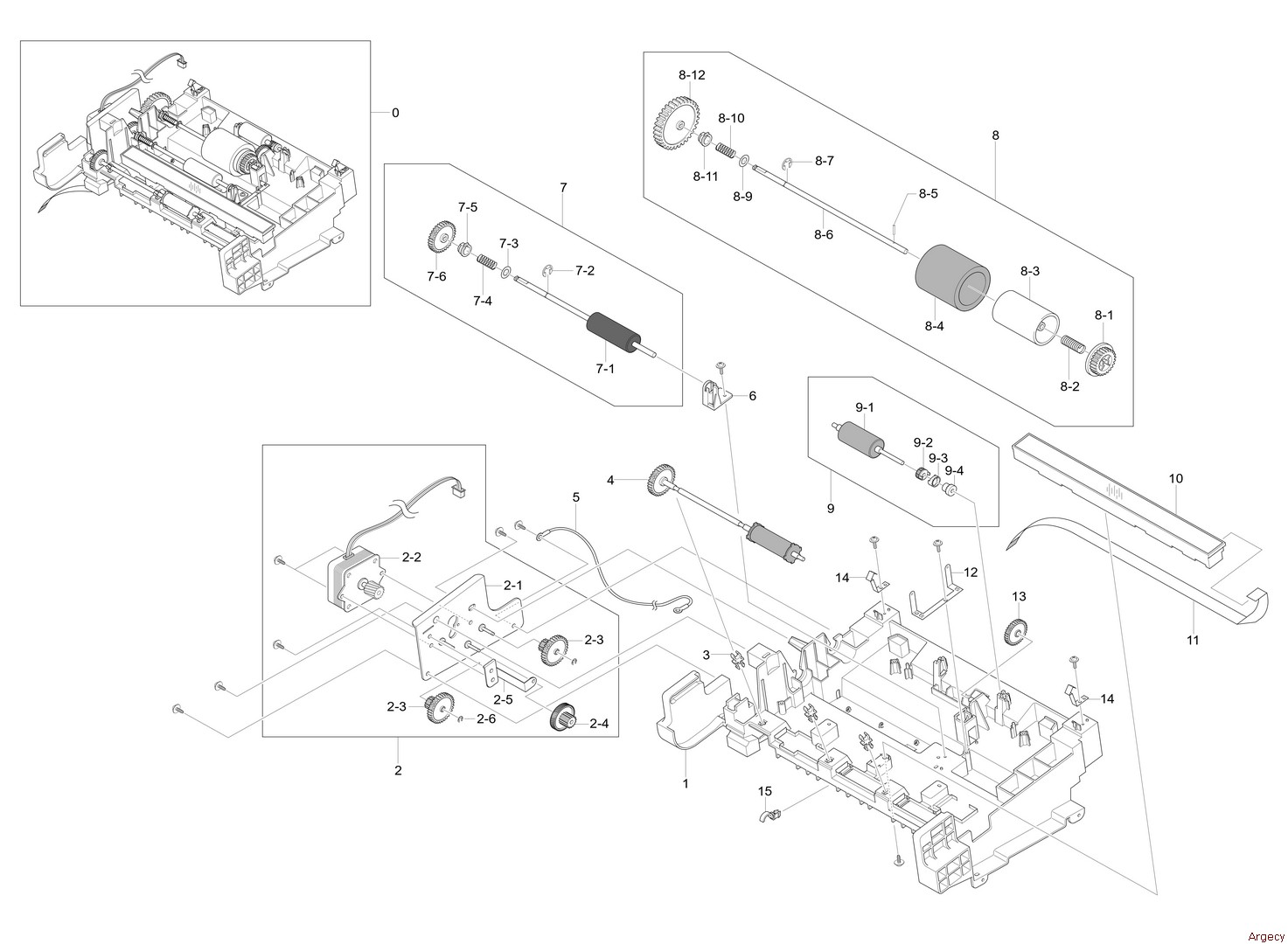

Scan Lower Exploded View Parts List 0 ELA HOUSING SCAN LOWER JC96-02969A 1 COVER M SCAN LOWER JC63-00341A 2 ELA HOUSING SCAN MOTOR JC96-02968A 2-1 BRACKET P GEAR JC61-00874A 2-2 MOTOR STEP HELICAL JB31-00006B 2-3 GEAR REDUCTION 45/19 JC66-00324A 2-4 GEAR RDCN 4316 JC66-00362A 2-5 GROUND ROLLER JC70-10467A 2-6 RING C 6044-000159 3 PMO BUSHING TX(B4) JG72-40744A 4 ROLLER EXIT JC66-00717A 5 CBF HARNESS SCAN GND JC39-00320A 6 PMO HOLDER SHAFT JC72-00913A 7 MEA HOUSING ROLLER SCAN ASSY JC97-01658A 7-1 MEC ROLLER SCAN JC75-00154A 7-2 RING E 6044-000125 7-3 WASHER PLAIN 6031-000019 7-4 SPRING ETC SHAFT JC61-00555A 7-5 PMO BUSHING SHAFT JC72-00912A 7-6 GEAR AGITATOR 1 JC66-40951A 8 MEA HOUSING ROLLER ADF ASSY JC97-01613A 8-1 GEAR ADF ROLL JC66-00361A 8-2 SPRING ETC CLUTCH JC61-00554A 8-3 PMO SLEEVE ADF JC72-00911A 8-4 MEC ROLLER ADF JC75-00153A 8-5 ICT PIN ADF JB70-00168A 8-6 ICT SHAFT ADF JC70-00292A 8-7 RING E 6044-000125 8-8 WASHER PLAIN 6031-000019 8-9 SPRING ETC SHAFT JC61-00555A 8-10 PMO BUSHING SHAFT JC72-00912A 8-11 GEAR ADF JC66-00363A 9 MEA HOUSING PICK UP ASSY JC97-01661A 9-1 MEC ROLLER PICK UP JC75-00152A 9-2 GEAR PICK UP JC66-00360A 9-3 PMO PICK UP CLUTCH SUB JB72-00845A 9-4 PMO BUSHING PICK UP JC72-00910A 10 CONTACK IMAGE SENSOR 0609-001206 11 CBF SIGNAL CIS FFC JC39-00318A 12 GROUND P SHAFT JC63-00343A 13 GEAR PICK UP IDEL 38 JB66-00102A 14 IPR LOKER TX JB70-10958A 15 PMO BUSHING F/DOWN JC72-00387A |  |
|

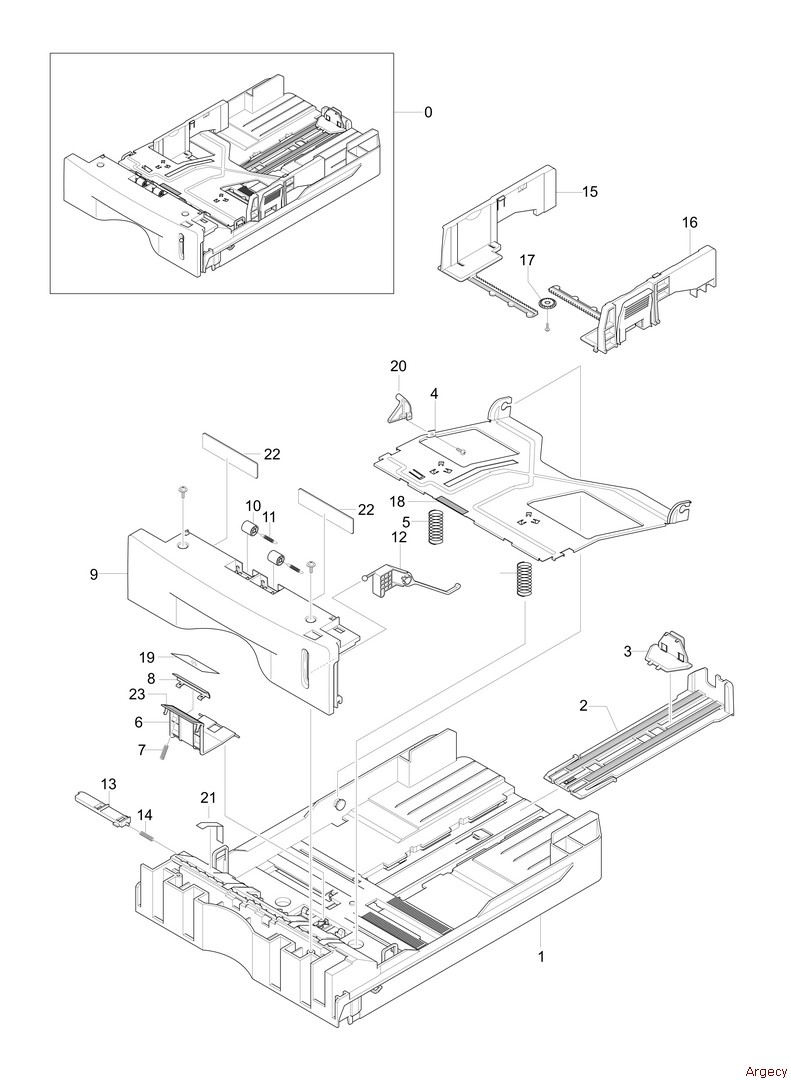

Cassette Unit Exploded View Parts List 0 MEA UNIT CASSETTE JC97-01861A 1 FRAME M CASSETTE JC61-00876A 2 GUIDE MEXTENSION L2 JC61-00918B 3 PMO EXTENSION SMALL JC72-00971A 4 PLATE P KNOCK UP JC61-00603A 5 SPRING CS 6107-001166 Spring-Knock up 6 HOLDER M PAD JC61-00580A 7 SPRING ETC LOCKERPLATE JG61-70531A 8 IPR PLATE PAD JC70-00314A 9 FRAME M SUB CASSETTE JC61-00883A 10 ROLLER MIDLE FEED JC66-00529A 11 SPRING ES 6107-001047 Spring Feed 12 INDICATOR M LEVER INDICATOR JC64-00040A 13 PMO PLATE LOCKER JC72-00972A 14 SPRING ETC EXIT ROLL FD JC61-70911A 15 ADJUST M CASSETTE R JC70-00301A 16 ADJUST M CASSETTE L JC70-00300A 17 GEAR PINION JG66-40003A 18 RPR PAD CASSETTE JC73-00141A 19 SHEET HOLDER PAD JC63-00290A 20 CAM M KNOCK UP JC66-00719A 21 SHEET GUIDE PAPER JC63-00482A 22 SHEET SUB CASSETTE JC63-00483A |  |
|

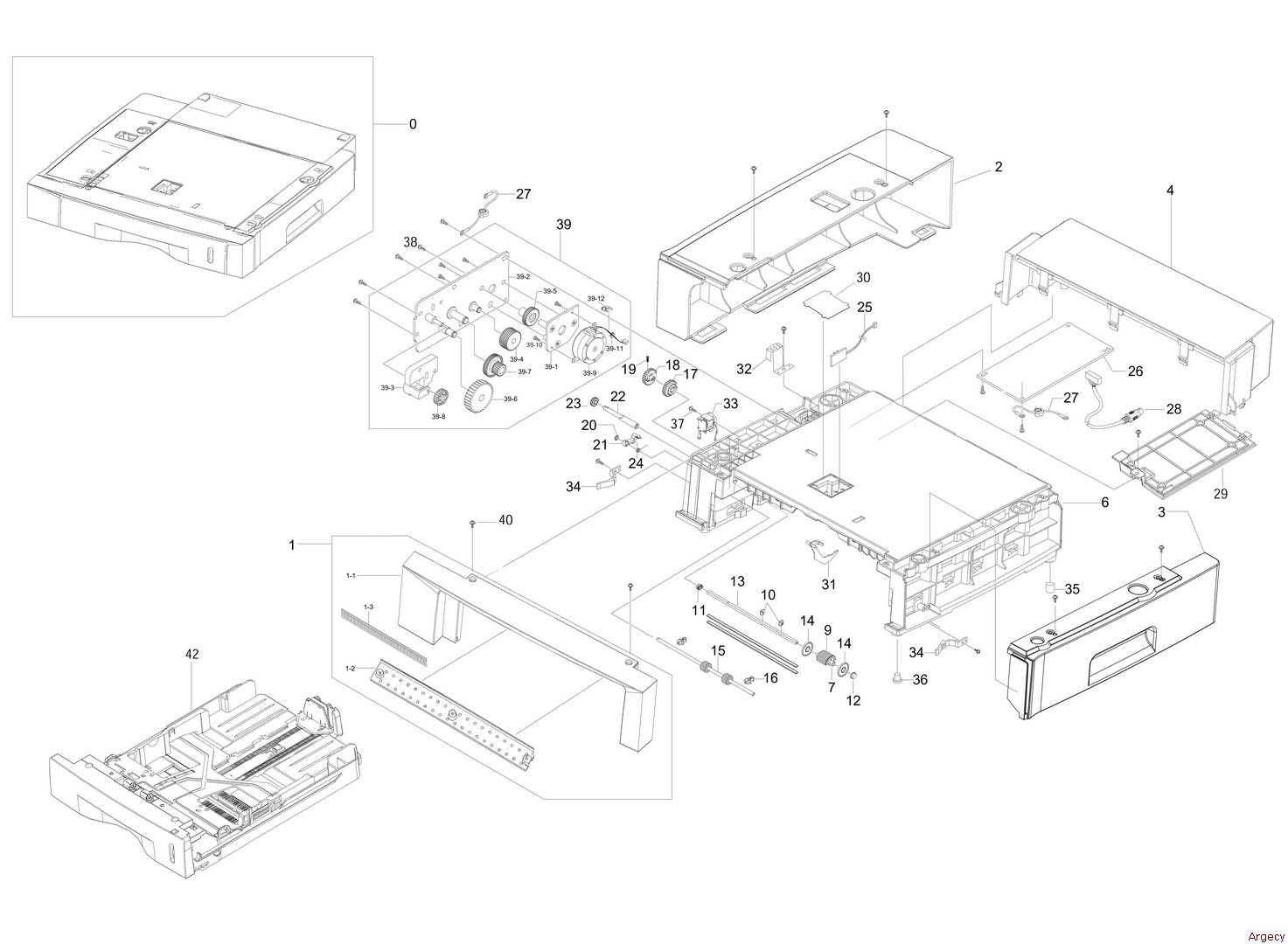

SCF Frame Assembly Assembly Parts List 0 ELA HOUSING SCF ASSEMBLY JC96-03010A 1 MEA UNIT FRONT SCF JC97-01889A 1-1 COVER M FRONT SCF JC63-00346A 1-2 ICT BRKT REAR COVER JC70-00007A 1-3 BRUSH ANTISTATIC JC67-00055A 2 COVER M LEFT SCF JC63-00348A 3 COVER M RIGHT SCF JC63-00349A 4 COVER M REAR SCF JC63-00350A 5 ELA HOUSING MAINFRAME SCF JC96-03012A 6 FRAME M SCF JC61-00877A 7 HOUSING M PICK UP JC61-00591A 8 SHAFT P CORE JC66-00720A 9 SPONGE ROLLER PICK UP JC72-01231A 10 BUSHING PICK UP JC61-00593A 11 BUSH M PICK UP L JC61-00586A 12 BUSH M PICK UP R JC61-00587A 13 SHAFT P PICK UP JC66-00399A 14 PMO IDLE PICK UP JC72-00982A 15 ROLLER FEED JC66-00598A 16 PMO BUSHING TX JC72-00382A 17 PMO GEAR PICK UP A JC72-00979A 18 PMO GEAR PICK UP B JC72-00980A 19 SPRING CS 6107-001167 20 RING CS 6044-000001 21 CAM M PICK UP JC66-00377A 22 SHAFT FEED JC66-00527A 23 GEAR FEED 2 JC66-00394A 24 SPRING TS 6107-001170 25 PCB SENSOR JC92-01364B 26 PBA SUB SCF JC92-01614A 27 CBF HARNESS SCF GND JC39-00366A 28 CBF HARNESS SCF JC39-00357A 29 COVER MSIMM R2 JC63-00492A 30 SHEET COVER SENSOR JC63-00369A 31 PMO ACTUATOR EMPTY JC72-00975A 32 IPR GND TOP JC70-11028A 33 SOLENOID HB (MANUAL) JC33-00010A 34 PMO LOCKER CST JC72-00983A 35 FOOT BACK JC61-00835A 36 FOOT FRONT JC61-00836A 37 SCREW ASSEMBLY TAPT 6006-001078 38 SCREW TAPTITE 6003-000196 10 X 39 ELA HOUSING MOTOR SCF JC96-03003A 39-1 BRKT P MOTOR SCF JC61-00879A 39-2 BRKT P GEAR SCF JC61-00881A 39-3 BRKT M FEED SCF JC61-00878A 39-4 GEAR 61/47 IDLE JC66-00688A 39-5 GEAR 59 IDLE JC66-00689A 39-6 GEAR 35 IDLE JC66-00690A 39-7 GEAR RDCN 57/18 JC66-00389A 39-8 GEAR IDLE 23 JC66-00396A 39-9 MOTOR STEP(SCF) JC31-00009A 39-10 SCREW MACHINE 6001-000131 39-11 CORE FERRITE 3301-001635 39-12 CABLE TIE 6501-000004 40 BUSH CABLE JC61-00804A 41 SCREW TAPTITE 6003-000196 42 MEA UNIT CASSETTE JC97-01861A |  |
