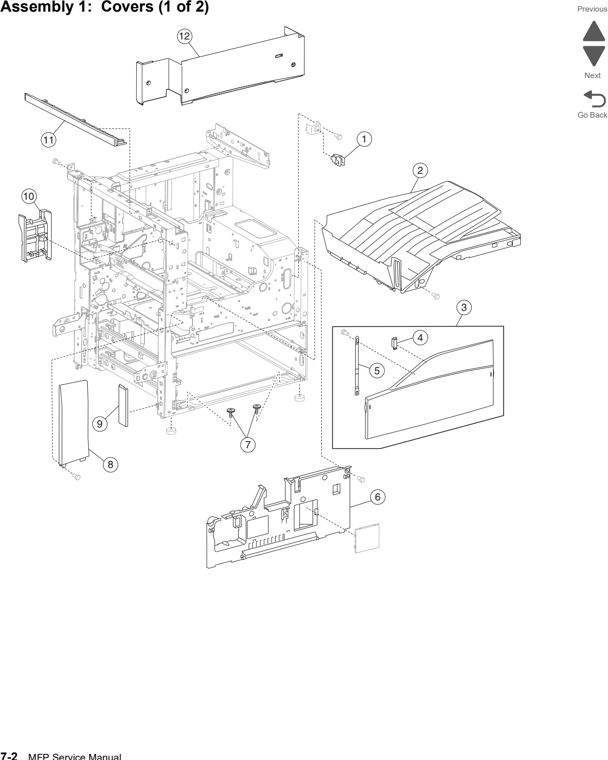

Assembly 1: Covers (1 of 2) 1 40X0553 Switch New 40X0553 (New) $14.32 40X0553 Switch Fully refurbished with 90-day warranty 40X0553 $12.85 2 40X2366 Top Cover Assembly New 40X2366 (New) $47.30 40X2366 Top Cover Assembly Fully refurbished with 90-day warranty 40X2366 $39.37 3 40X2385 Front Door Assembly New 40X2385 (New) $29.38 40X2385 front door assembly Fully refurbished with 90-day warranty 40X2385 $24.71 4 40X0560 Front door magnetic catch Fully refurbished with 90-day warranty 40X0560 $17.77 5 40X0561 Front Door Support Strap New 40X0561 (New) $71.00 40X0561 Front door support strap Fully refurbished with 90-day warranty 40X0561 $54.92 6 40X0562 Front Inner Cover New 40X0562 (New) $21.90 40X0562 Front inner cover Fully refurbished with 90-day warranty 40X0562 $17.83 7 8 40X2294 Front left cover New 40X2294 (New) $16.96 9 40X0550 Left Lower Cover New 40X0550 (New) $30.03 40X0550 Left Lower Cover Fully refurbished with 90-day warranty 40X0550 $24.71 10 40X2296 Front interior cover New 40X2296 (New) $13.90 11 40X2297 Left upper cover 12 40X2295 Rear Interior Cover New 40X2295 (New) $18.55

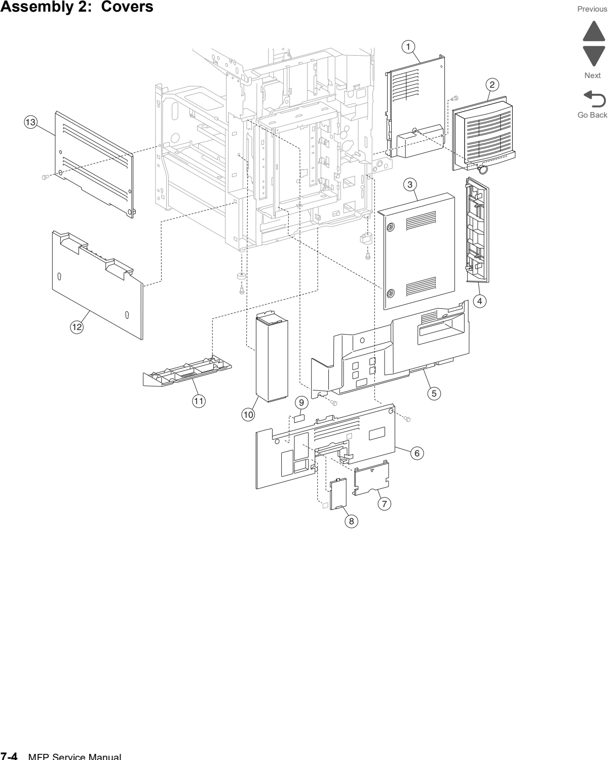

Assembly 2: Covers 1 40X2300 Rear Motor Cover New 40X2300 (New) $19.22 40X2300 Rear Motor Cover Fully refurbished with 90-day warranty 40X2300 $17.28 2 40X2382 TVOC Filter Assembly New 40X2382 (New) $60.30 3 40X2304 Rear RIP Card Cover New 40X2304 (New) $24.71 40X2304 Rear RIP Card Cover Fully refurbished with 90-day warranty 40X2304 $24.19 4 40X2306 Controller Box Side Cover New 40X2306 (New) $21.62 40X2306 Controller Box Side Cover Fully refurbished with 90-day warranty 40X2306 $17.60 5 40X2301 Rear Upper Cover New 40X2301 (New) $24.71 40X2301 Rear Upper Cover Fully refurbished with 90-day warranty 40X2301 $21.93 6 40X2386 Rear Lower Cover (110V) New 40X2386 (New) $23.95 6 40X2387 Rear lower cover (220V) 7 40X0568 Option hookup cover Fully refurbished with 90-day warranty 40X0568 $34.75 8 40X2302 Rear lower cap cover New 40X2302 (New) $13.53 9 10 40X2299 Rear Corner Cover New 40X2299 (New) $13.81 11 40X2305 Controller Box Lower Cover New 40X2305 (New) $14.50 12 40X0564 Right Lower Cover New 40X0564 (New) $31.60 40X0564 Right Lower Cover Fully refurbished with 90-day warranty 40X0564 $66.44 13 40X0563 Right Upper Cover New 40X0563 (New) $31.94 40X0563 Right Upper Cover Fully refurbished with 90-day warranty 40X0563 $39.71

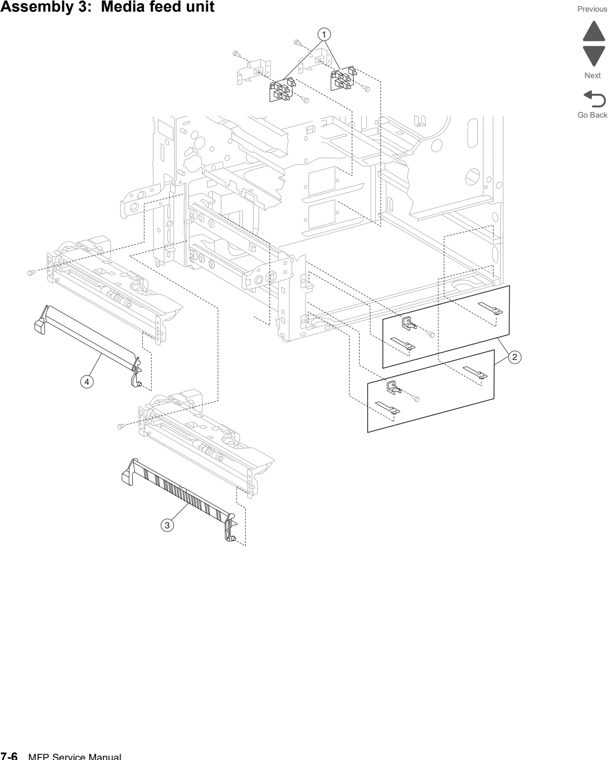

Assembly 3: Media feed unit 1 40X0570 Switch (Media Size) New 40X0570 (New) $47.87 2 40X0569 Media Tray Catch Kit New 40X0569 (New) $19.55 - - Media tray catch - - Media tray slide (2 each) 3 40X0572 Vertical Turn Guide New 40X0572 (New) $24.21 40X0572 Vertical turn guide Fully refurbished with 90-day warranty 40X0572 $19.71 4 40X0571 Vertical Turn Mylar Guide New 40X0571 (New) $67.00 40X0571 Vertical Turn Mylar Guide Fully refurbished with 90-day warranty 40X0571 $33.78

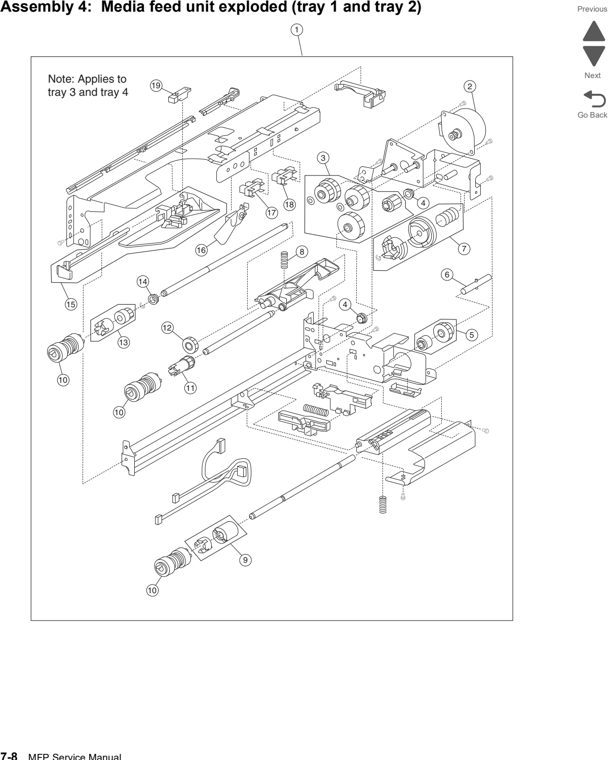

Assembly 4: Media feed unit exploded (tray 1 and tray 2) Note: Applies to tray 3 and tray 4 1 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 2 40X0582 Media feed lift motor New 40X0582 (New) $35.23 40X0582 Media feed lift motor Fully refurbished with 90-day warranty 40X0582 $28.71 3 40X0585 Media Feed Drive Gear Kit New 40X0585 (New) $43.89 includes: - - Media feed unit drive gear 13T - - Media feed unit drive gear 28/21T - - Media feed unit drive gear 29T - - Media feed unit drive gear 27T - - 2 mm washer (2 each) 4 40X0880 Bushing 6 mm New 40X0880 (New) $15.58 5 40X0967 Media tray lift one-way clutch and gear New 40X0967 (New) $36.19 40X0967 Media tray lift one-way clutch and gear Fully refurbished with 90-day warranty 40X0967 $29.48 includes: - - Media tray lift one-way clutch - - Media tray lift one-way gear 6 40X0968 Media tray lift one-way shaft New 40X0968 (New) $33.60 40X0968 Media tray lift one-way shaft Fully refurbished with 90-day warranty 40X0968 $27.38 7 40X0583 Tray Lift Coupling Kit Fully refurbished with 90-day warranty 40X0583 $29.11 40X0583 Tray Lift Coupling Kit New 40X0583 (New) $35.73 includes: - - Tray lift coupling - - Tray lift coupling gear 31T - - Spring 8 40X0590 Pick Roll Assembly Spring New 40X0590 (New) $16.60 9 40X0593 Separation Roll Friction Clutch Kit New 40X0593 (New) $22.74 includes: - - Separation roll one-way friction clutch - - Separation roll spacer 10 Sale40x0594 Feed Roll Kit (Qty 6) New 40x0594 (New) $94.71 $58.00 includes: - - Feed roll (2 each) - - Pick roll (2 each) - - Separation roll (2 each) 11 40X0970 Pick roll drive gear New 40X0970 (New) $13.57 12 13 40X0591 Feed Roll One-Way Clutch Kit New 40X0591 (New) $40.76 40X0591 Feed roll one-way clutch kit Fully refurbished with 90-day warranty 40X0591 $33.23 includes: - - Feed roll one-way clutch - - Feed roll one-way gear 22T 14 40X0952 Bushing 6 mm 15 40X0586 Media Feed Unit Front Guide Kit New 40X0586 (New) $24.71 40X0586 Media Feed Unit Front Guide Kit Fully refurbished with 90-day warranty 40X0586 $25.00 includes: - - Media feed unit front guide - - Media feed unit front guide rail 16 40X0587 Media Out Actuator New 40X0587 (New) $22.56 40X0587 Media Out Actuator Fully refurbished with 90-day warranty 40X0587 $20.29 17 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 18 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 19 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 Contact for Details Note: Assembly index items 17 and 18 are identical sensors with different functions; therefore, they are the same part number with different descriptions.

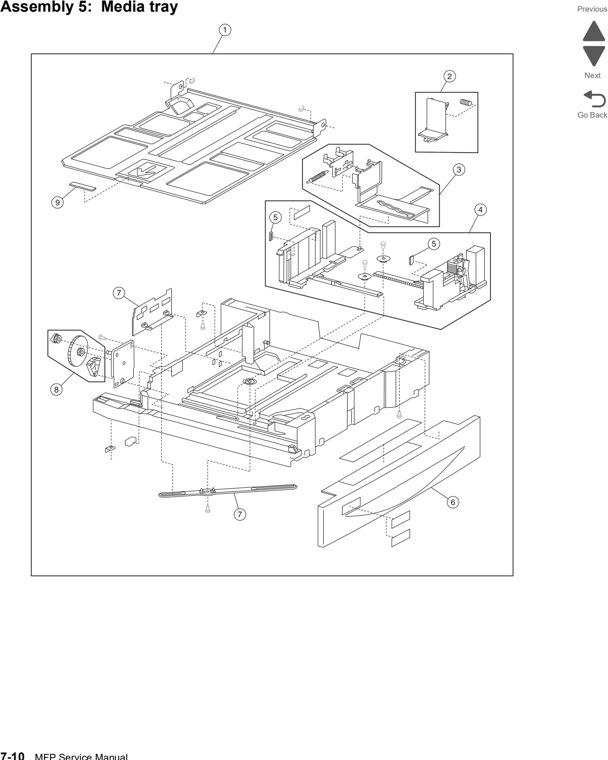

Assembly 5: Media tray 1 40X0573 Media Tray Assembly 500 Sheet New 40X0573 (New) $275.00 40X0573 Media Tray Assembly Fully refurbished with 90-day warranty 40X0573 $95.00 includes: - - Media tray assembly - - Labels (2 each) 2 40X0578 Media Tray End Guide Kit New 40X0578 (New) $35.73 40X0578 Media Tray End Guide Kit Fully refurbished with 90-day warranty 40X0578 $29.11 includes: - - Media tray end guide - - Spring 3 40X0577 Media Tray Side Guide Actuator Kit New 40X0577 (New) $82.31 40X0577 Media Tray Side Guide Actuator Kit Fully refurbished with 90-day warranty 40X0577 $67.13 includes: - - Media tray side guide actuator - - Media tray side guide slide - - Spring 4 40X0576 Media Tray Side Guide Kit New 40X0576 (New) $161.25 40X0576 Media Tray Side Guide Kit Fully refurbished with 90-day warranty 40X0576 $111.48 includes: - - Media max label - - Front media tray guide assembly - - Rear media tray guide - - Pinion gear (2 each) 5 40X0966 Media tray separation brush New 40X0966 (New) $11.58 6 40X0574 Media Tray Front Cover New 40X0574 (New) $59.03 40X0574 Media Tray Front Cover Fully refurbished with 90-day warranty 40X0574 $48.14 includes: - - Media tray front cover - - Labels (2 each) 7 40X0579 Media Tray End Guide Actuator Kit New 40X0579 (New) $99.00 40X0579 Media Tray End Guide Actuator Kit Fully refurbished with 90-day warranty 40X0579 $82.45 includes: - - Media end guide actuator - - Actuator link Note: The graphic on the previous page, shows two #7 callouts. These callouts are the two items that make up the media tray end guide actuator kit. 8 40X0580 Media Tray Lift Gear Kit New 40X0580 (New) $59.98 40X0580 Media Tray Lift Gear Kit Fully refurbished with 90-day warranty 40X0580 $45.25 includes: - - Tray lift coupling gear 13T - - Tray lift gear 13/60T - - Tray lift sector gear 12T 9 40X0965 Media tray separation pad New 40X0965 (New) $15.93 Media tray separation pad

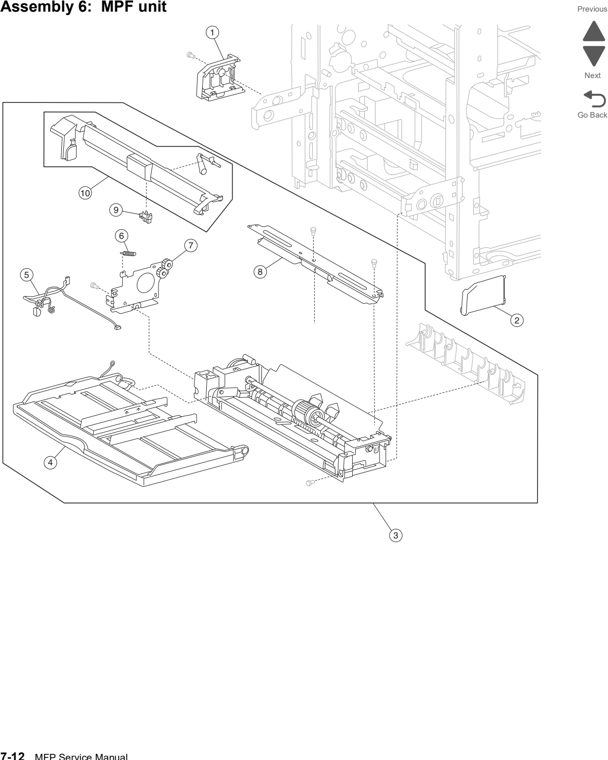

Assembly 6: MPF unit 1 40X0600 Multipurpose Feeder Rear Cover New 40X0600 (New) $74.00 40X0600 MPF Rear Cover Fully refurbished with 90-day warranty 40X0600 $24.71 2 40X0599 Multipurpose Feeder Front Cover New 40X0599 (New) $27.50 40X0599 Multipurpose Feeder Front Cover Fully refurbished with 90-day warranty 40X0599 $24.71 3 40X6000 Multipurpose Feed Unit Assembly New 40X6000 (New) $229.00 40X6000 Multipurpose Feed Unit Assembly Fully refurbished with 90-day warranty 40X6000 $155.37 4 40X0608 MPF Fold Down Tray Assembly New 40X0608 (New) $94.94 40X0608 MPF Fold Down Tray Assembly Fully refurbished with 90-day warranty 40X0608 $73.45 5 40X0597 MPF Unit Cable Assembly New 40X0597 (New) $19.70 40X0597 MPF unit cable assembly Fully refurbished with 90-day warranty 40X0597 $24.81 6 40X0755 Multipurpose Feeder Pickup Spring Fully refurbished with 90-day warranty 40X0755 $56.82 7 40X0598 MPF Idler Gear Bracket Assembly New 40X0598 (New) $24.71 40X0598 MPF Idler gear bracket assembly Fully refurbished with 90-day warranty 40X0598 $43.67 8 40X0601 MPF Transport Pinch Roll Assembly New 40X0601 (New) $45.98 40X0601 MPF Transport Pinch Roll Assembly New 40X0601 (New) $45.98 9 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 10 40X0596 MPF Media Out Actuator Kit New 40X0596 (New) $65.16 40X0596 MPF media out actuator kit Fully refurbished with 90-day warranty 40X0596 $122.06 includes: - - MPF media out actuator - - Upper frame

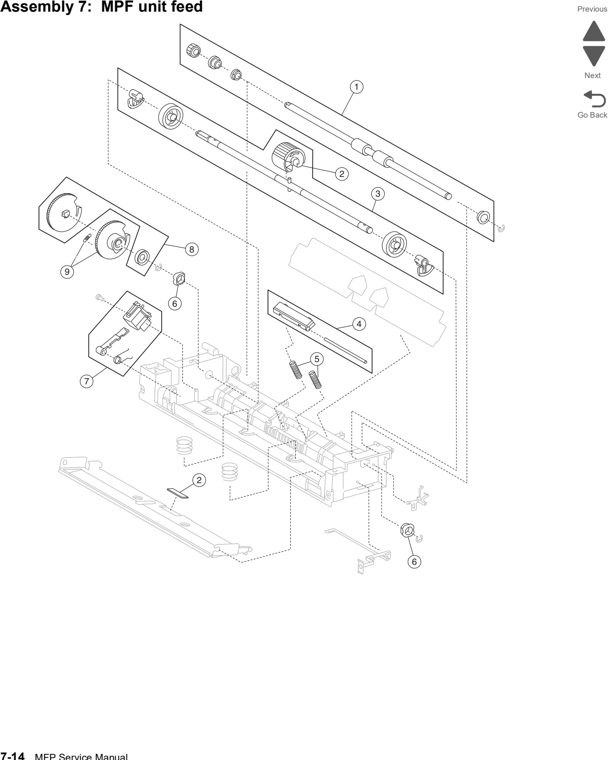

Assembly 7: MPF unit feed 1 40X0605 MPF Transport Roll Kit New 40X0605 (New) $94.71 40X0605 MPF transport roll kit Fully refurbished with 90-day warranty 40X0605 $88.95 includes - - MPF transport shaft collar - - MPF transport gear 18T - - MPF transport roll assembly - - Bushing 8 mm 2 40X0603 Multipurpose Feeder Pick Roll Kit New 40X0603 (New) $148.58 40X0603 Multipurpose feeder pick roll kit Fully refurbished with 90-day warranty 40X0603 $141.25 includes: - - MPF pressure pad - - MPF pick roll assembly 3 40X1382 MPF Feed Shaft Kit New 40X1382 (New) $68.73 40X1382 MPF Feed Shaft Kit Fully refurbished with 90-day warranty 40X1382 $118.82 includes: - - MPF feed shaft - - MPF feed shaft cam rear - - MPF feed shaft cam front - - MPF feed shaft roll core - - MPF feed roll assembly 4 40X0974 MPF pressure pad kit New 40X0974 (New) $68.84 includes: - - Shaft - - MPF pressure pad 5 40X1380 MPF pressure pad spring 6 40X1381 MPF feed shaft bushing 7 40X0606 MPF Pick Solenoid Kit New 40X0606 (New) $42.30 40X0606 MPF pick Solenoid Kit Fully refurbished with 90-day warranty 40X0606 $83.73 includes: - - Pick lever - - Pick solenoid - - Spring 8 40X0971 MPF feed drive gear kit includes: - - MPF feed gear - - MPF feed gear stopper 9 40X0973 MPF feed cam gear kit New 40X0973 (New) $32.92 40X0973 MPF feed cam gear kit Fully refurbished with 90-day warranty 40X0973 $63.87 includes: - - MPF feed cam gear - - Spring

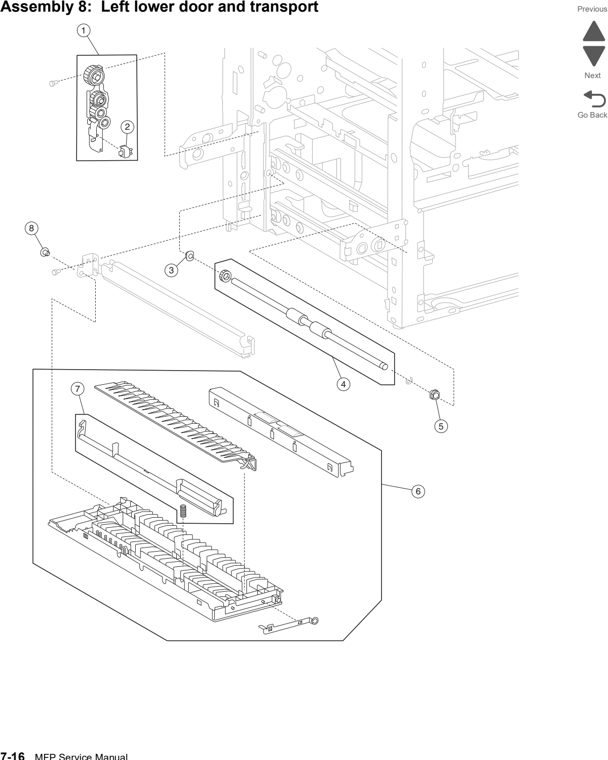

Assembly 8: Left lower door and transport 1 40X0609 Vertical Drive Gear Assembly New 40X0609 (New) $238.15 40X0609 Vertical Drive Gear Assembly Fully refurbished with 90-day warranty 40X0609 $45.21 2 40X0610 Switch (left lower door interlock) New 40X0610 (New) $14.33 3 40X1386 Bushing 6 mm (transport roll rear) New 40X1386 (New) $24.71 4 40X1387 Transport Roll Kit New 40X1387 (New) $197.00 40X1387 Transport Roll Kit Fully refurbished with 90-day warranty 40X1387 $127.00 includes: - - Transport roll assembly - - Transport roll gear 18T 5 40X1388 Bushing 8 mm New 40X1388 (New) $14.25 40X1388 Bushing 8 mm Fully refurbished with 90-day warranty 40X1388 Contact for Details 6 40X0612 Left Lower Door Assembly (Assembled) New 40X0612 (New) $76.59 40X0612 Left Lower Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0612 $49.00 7 40X0614 Left Lower Door Handle Kit New 40X0614 (New) $88.07 40X0614 Left Lower Door Handle Kit Fully refurbished with 90-day warranty 40X0614 $71.84 includes: - - Left lower door handle - - Spring 8 40X0613 Hinge pin New 40X0613 (New) Contact for Details

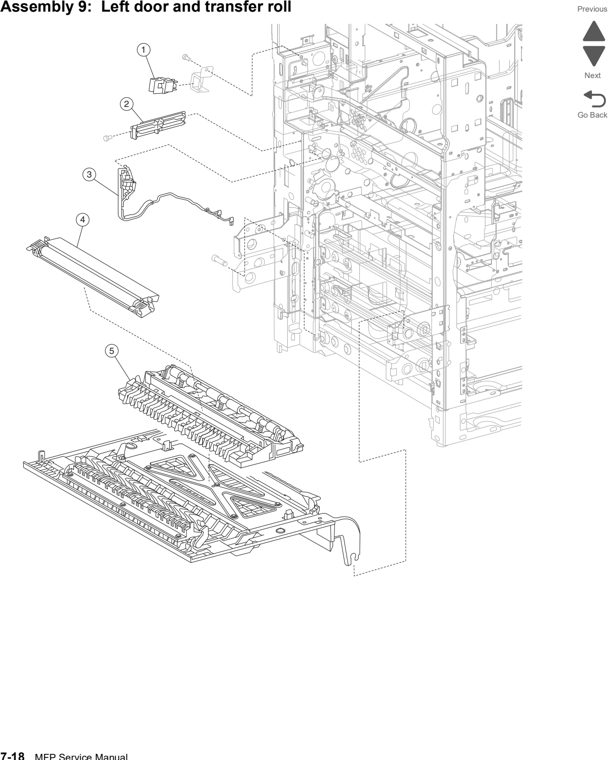

Assembly 9: Left door and transfer roll 1 40X0553 Switch New 40X0553 (New) $14.32 40X0553 Switch Fully refurbished with 90-day warranty 40X0553 $12.85 2 40X0618 PC Cartridge Shutter Link New 40X0618 (New) $27.37 40X0618 PC Cartridge Shutter Link Fully refurbished with 90-day warranty 40X0618 $24.71 3 40X0617 Transfer Roll Power Contact New 40X0617 (New) $27.89 40X0617 Transfer Roll Power Contact Fully refurbished with 90-day warranty 40X0617 $24.71 4 40X0616 Transfer Roll Assembly New 40X0616 (New) $99.00 40X0616 Transfer Roll Assembly New 40X0616 Compatible (New) $39.00 5 40X0619 Transfer Roll Guide Assembly New 40X0619 (New) $126.06 40X0619 Transfer Roll Guide Assembly Fully refurbished with 90-day warranty 40X0619 $104.99

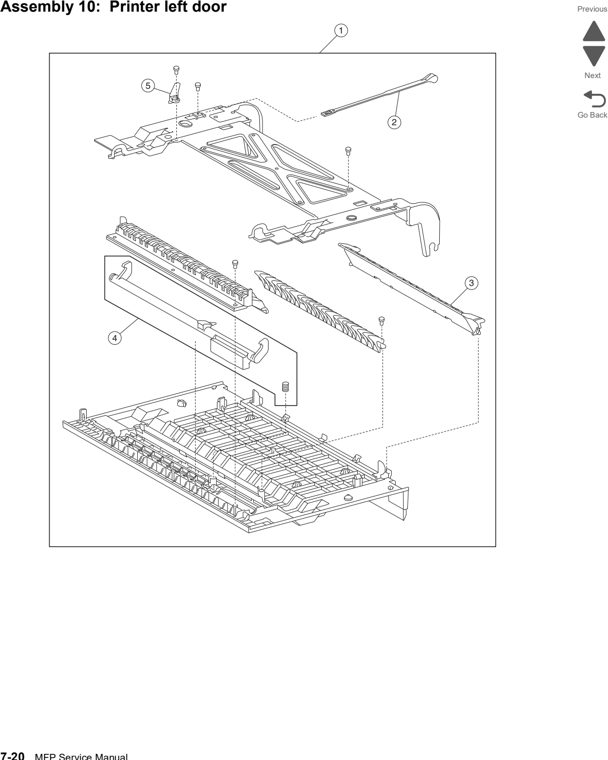

Assembly 10: Printer left door 1 40X0620 Left Door Assembly New 40X0620 (New) Contact for Details 40X0620 Left Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0620 $185.00 2 40X0624 Left Door Support Strap New 40X0624 (New) $69.74 40X0624 Left Door Support Strap Fully refurbished with 90-day warranty 40X0624 $56.87 3 40X0623 Left Door Duplex Entrance Guide New 40X0623 (New) $71.80 40X0623 Left Door Duplex Entrance Guide Fully refurbished with 90-day warranty 40X0623 $58.55 4 40X0621 Left Door Assembly Handle Kit New 40X0621 (New) $154.00 includes: - - Printer left door assembly handle - - Spring 5 40X0622 PC Cartridge Shutter Actuator New 40X0622 (New) $55.67 40X0622 PC Cartridge Shutter Actuator Fully refurbished with 90-day warranty 40X0622 Contact for Details

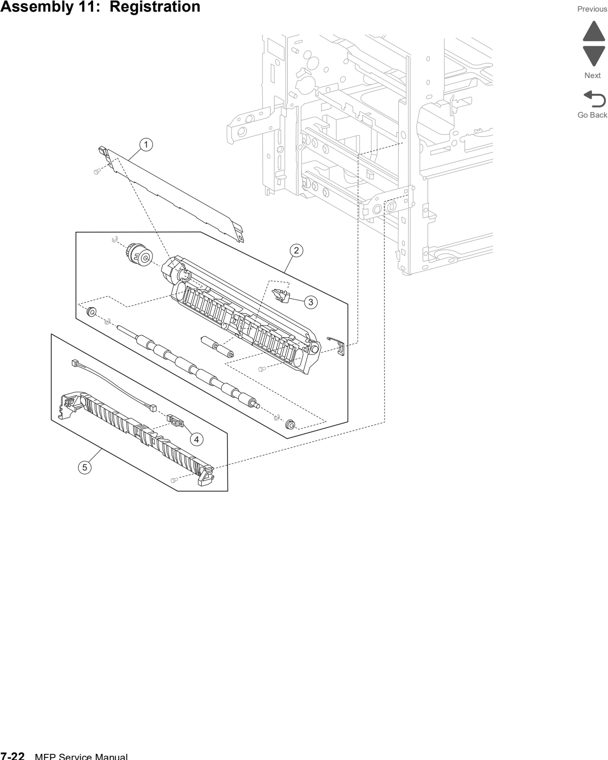

Assembly 11: Registration 1 40X0628 Registration Mylar Guide assembly New 40X0628 (New) $72.80 40X0628 Registration Mylar Guide assembly Fully refurbished with 90-day warranty 40X0628 $36.71 2 40X0625 Registration roll assembly Fully refurbished with 90-day warranty 40X0625 $78.00 40X0625 Registration Roll Assembly New 40X0625 (New) $125.00 3 40X0627 Sensor (registration) New 40X0627 (New) $75.50 40X0627 Sensor (registration) Fully refurbished with 90-day warranty 40X0627 $61.59 4 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 Contact for Details 5 40X0630 Tray 2 feed-out sensor guide (assembled) Fully refurbished with 90-day warranty 40X0630 $11.72 40X0630 Tray feed-out sensor guide New 40X0630 (New) $16.41

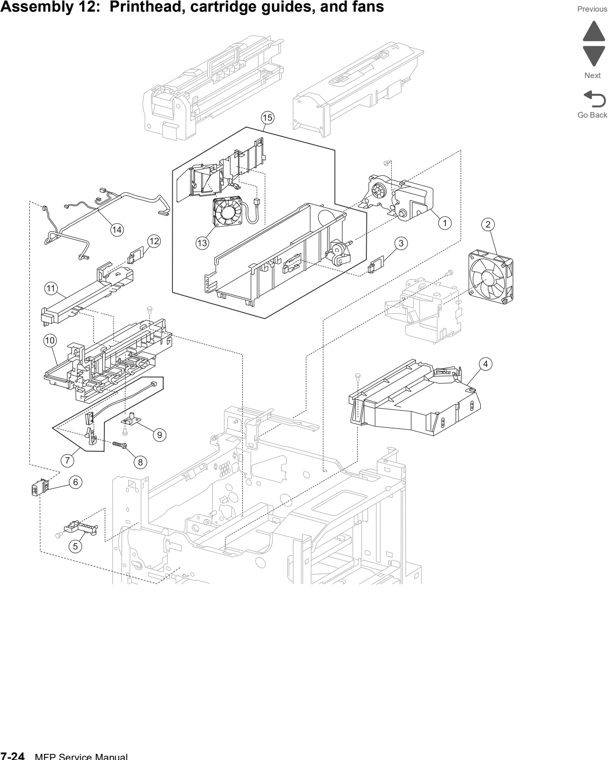

Assembly 12: Printhead, cartridge guides, and fans 1 40X0639 Toner Add Motor Assembly New 40X0639 (New) $35.00 40X0639 Toner Add Motor Assembly Fully refurbished with 90-day warranty 40X0639 $28.53 2 40X0640 Fuser Cooling Fan New 40X0640 (New) $119.00 Sale40X0640 Fuser Cooling Fan Fully refurbished with 90-day warranty 40X0640 $38.00 $23.71 3 40X0636 Sensor (RFID toner PC cartridge) New 40X0636 (New) $21.71 40X0636 Sensor Fully refurbished with 90-day warranty 40X0636 $22.00 Make an Offer 4 40X0641 Printhead Assembly Fully refurbished with 90-day warranty 40X0641 Contact for Details 5 40X0631 PC cartridge stop New 40X0631 (New) $27.05 40X0631 PC cartridge stop Fully refurbished with 90-day warranty 40X0631 $56.92 6 40X0644 PC Cartridge Sensor Connector New 40X0644 (New) $23.00 40X0644 PC cartridge sensor connector Fully refurbished with 90-day warranty 40X0644 $19.94 7 40X1390 Switch (PC cartridge interlock) kit New 40X1390 (New) $41.96 40X1390 Switch (PC cartridge interlock) kit Fully refurbished with 90-day warranty 40X1390 $32.21 includes: - - Backup spring - - Switch (PC cartridge interlock) 8 40X1389 PC cartridge interlock switch screw 9 40X0633 Sensor (humidity & temperature) Fully refurbished with 90-day warranty 40X0633 $11.75 10 40X0634 PC cartridge guide assembly New 40X0634 (New) $70.00 40X0634 PC cartridge guide assembly Fully refurbished with 90-day warranty 40X0634 $33.00 11 40X0635 Laser opening guide New 40X0635 (New) $70.00 40X0635 Laser opening guide Fully refurbished with 90-day warranty 40X0635 $33.00 12 40X0636 Sensor (RFID toner PC cartridge) New 40X0636 (New) $21.71 40X0636 Sensor Fully refurbished with 90-day warranty 40X0636 $22.00 Make an Offer 13 40X0643 PC Cartridge Cooling Fan New 40X0643 (New) $17.50 40X0643 PC Cartridge Cooling Fan Fully refurbished with 90-day warranty 40X0643 $15.73 Make an Offer 14 40X0637 Multi-Connector Cable Assembly 1 New 40X0637 (New) $31.25 40X0637 Multi-connector cable assembly 1 Fully refurbished with 90-day warranty 40X0637 $31.25 15 40X0638 Toner Cartridge Guide Assembly New 40X0638 (New) $74.46 40X0638 Toner cartridge guide assembly Fully refurbished with 90-day warranty 40X0638 $48.46 includes: - - Toner cartridge guide assembly - - PC cartridge cooling fan duct - - PC cartridge cooling fan Note: Assembly index items 2 and 11 are identical sensors with different functions; therefore, they are the same part number with different descriptions.

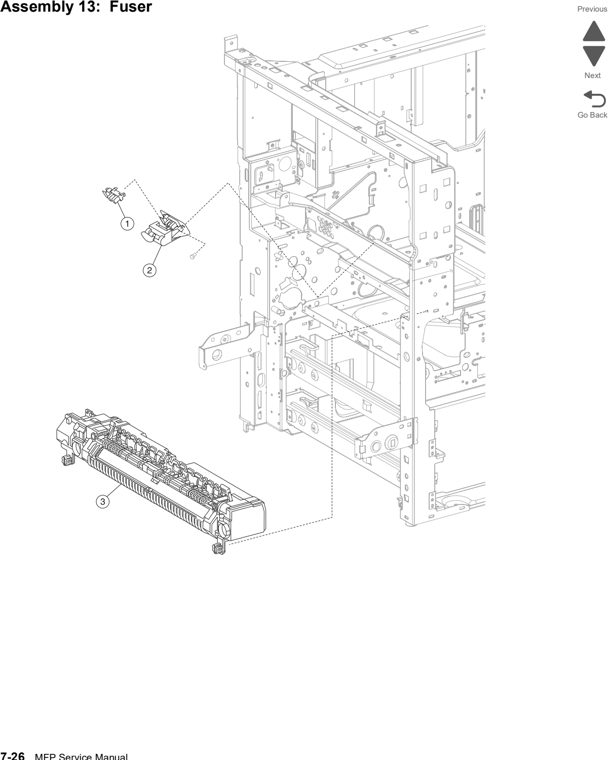

Assembly 13: Fuser 1 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 2 40X5931 Sensor Assembly New 40X0645 40x5931 40x5985 (New) $70.06 40X5931 Sensor Assembly Fully refurbished with 90-day warranty 40x5931 40x5985 40X0645 Contact for Details 3 40X2503 Fuser Assembly 110-120V New 40X2503 Advanced Exchange (New) Contact for Details Sale40X2503 Fuser Assembly 110-120V New 40X2503 (New) Contact for Details 3 40X2504 Fuser assembly 220 V (this comes assembled) 3

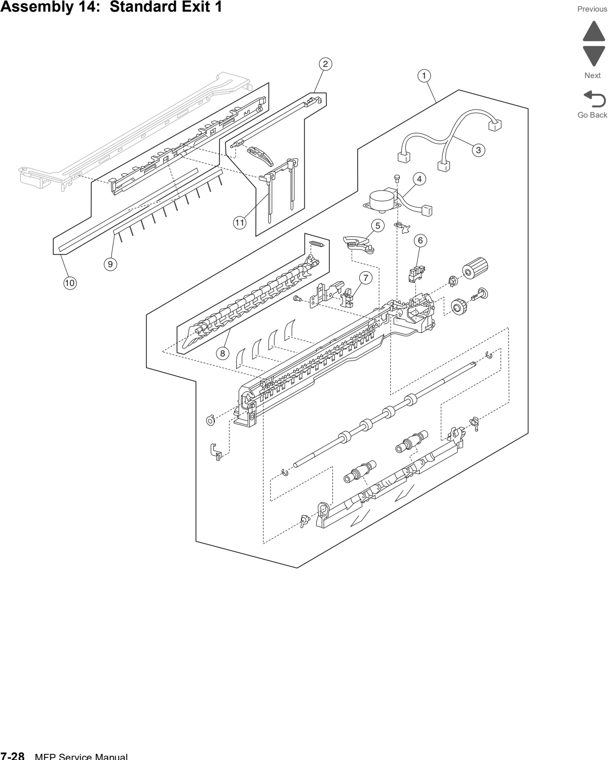

Assembly 14: Standard Exit 1 1 40X2384 Exit 1 Media Shift Assembly (Assembled) New 40X2384 (New) $50.41 2 40X0657 Bin full Actuator Kit New 40X0657 (New) $29.18 40X0657 Bin full actuator kit Fully refurbished with 90-day warranty 40X0657 $24.31 includes: - - Standard bin full exit 1 actuator shaft - - Standard bin full exit 1 actuator - - Output guide 3 40X0650 Exit 1 Sensor Cable Assembly New 40X0650 (New) $25.96 40X0650 Exit sensor cable assembly Fully refurbished with 90-day warranty 40X0650 $26.24 4 40X0651 Media Shift Motor New 40X0651 (New) $62.10 40X0651 Media Shift Motor Fully refurbished with 90-day warranty 40X0651 $50.64 5 40X0653 Exit 1 media shift gear Fully refurbished with 90-day warranty 40X0653 $13.44 40X0653 Exit media shift gear New 40X0653 (New) $14.97 6 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 7 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 8 40X0654 Media Diverter Gate Kit New 40X0654 (New) $129.00 40X0654 Media Diverter Gate Kit Fully refurbished with 90-day warranty 40X0654 $97.00 includes: - - Media diverter gate - - Spring 9 40X1391 Exit static eliminator New 40X1391 (New) $13.03 40X1391 Exit static eliminator Fully refurbished with 90-day warranty 40X1391 Contact for Details 10 40X1392 Exit 1 Media Exit Guide Kit New 40X1392 (New) $34.71 40X1392 Exit 1 media exit guide kit Fully refurbished with 90-day warranty 40X1392 $24.71 includes: - - Exit 1 media exit guide - - Exit 1 media exit guide pad 11 40X2389 Output guide Note: Assembly index items 6 and 7 are identical sensors with different functions; therefore, they are the same part number with different descriptions.

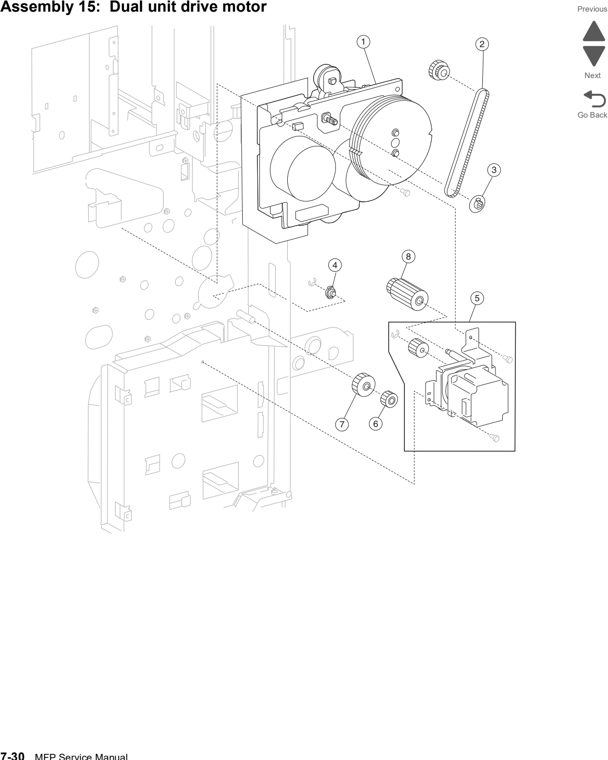

Assembly 15: Dual unit drive motor 1 40X0660 Dual Drive Motor Assembly New 40X0660 (New) $129.72 40X0660 Dual Drive Motor Assembly Fully refurbished with 90-day warranty 40X0660 $79.71 Make an Offer 2 40X0659 Exit 1 drive belt 3 40X0661 Drive belt flange New 40X0661 (New) $11.53 4 40X2374 Transport Motor Support Busing New 40X2374 (New) $35.96 5 40X2309 MPF/Transport Drive Motor Assembly New 40X2309 (New) $29.63 40X2309 MPF/transport drive motor assembly Fully refurbished with 90-day warranty 40X2309 $24.71 6 7 8 40X2310 MPF/transport drive gear 19/29T New 40X2310 (New) $11.15

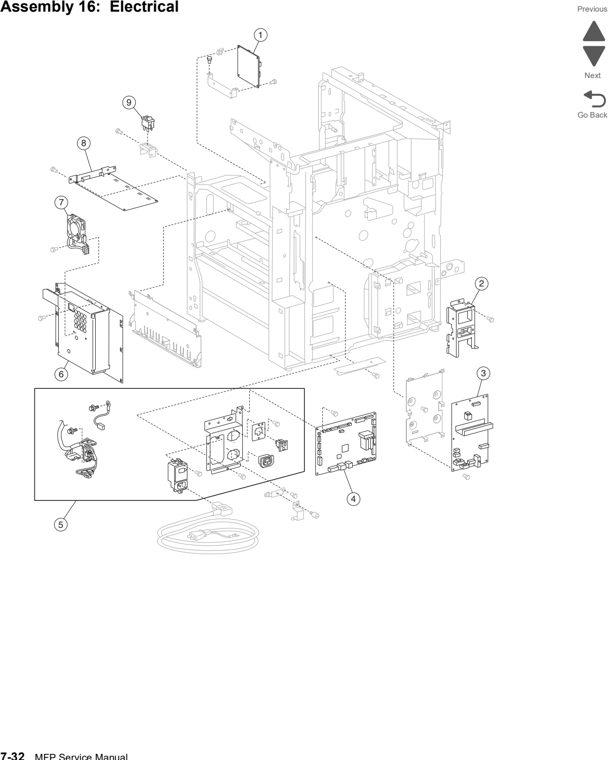

Assembly 16: Electrical 1 40X0664 Exit Interface Card Assembly New 40X0664 (New) $70.81 40X0664 Exit Interface Card Assembly Fully refurbished with 90-day warranty 40X0664 $54.41 2 40X0673 HCF Hookup Connector Assembly New 40X0673 (New) $25.00 40X0673 HCF Hookup Connector Assembly Fully refurbished with 90-day warranty 40X0673 $25.00 3 40X2314 AC Drive Card Assembly 110 V New 40X2314 (New) $63.19 40X2314 AC Drive Card Assembly 110 V Fully refurbished with 90-day warranty 40X2314 $109.25 3 40X2315 AC drive card assembly 220 V 4 40X2316 Print Engine Card Assembly 35 PPM New 40X2316 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $142.72 Make an Offer 40X2316 Print Engine Card Assembly 35 PPM New 40X2316 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $142.72 Make an Offer 4 40X2379 Print Engine Card Assembly 45PPM New 40X2379 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $291.71 40X2379 Print Engine Card Assembly 45PPM New 40X2379 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $291.71 4 40X2380 Engine Card Assembly 55PPM New 40X2380 L (New) $175.00 Make an Offer 40X2380 Engine Card Assembly 55PPM Fully refurbished with 90-day warranty 40X2380 $99.00 5 40X2313 AC Power Input Socket Kit New 40X2313 (New) $53.23 40X2313 AC power input socket kit Fully refurbished with 90-day warranty 40X2313 $38.71 includes: - - Screws 4 mm - - Bracket - - AC power input socket - - Ground wire - - Main AC cable assembly - - Finisher AC output 6 40X2312 Universal LVPS Card Assembly New 40X2312 (New) $77.71 40X2312 Universal LVPS Card Assembly Fully refurbished with 90-day warranty 40X2312 $38.71 7 40X2311 LVPS Cooling Fan New 40X2311 (New) $18.83 40X2311 LVPS cooling fan Fully refurbished with 90-day warranty 40X2311 $16.93 8 40X0662 HVPS New 40X0662 (New) $54.96 40X0662 HVPS Fully refurbished with 90-day warranty 40X0662 $28.96 Make an Offer 9 40X2388 Switch (Main Power) New 40X2388 (New) $19.16 40X2388 Switch (main power) Fully refurbished with 90-day warranty 40X2388 $12.73
Assembly 16 (continued): Electrical Important: The replacement RIP card assembly does not contain a NVRAM card. Remove the NVRAM card from the old RIP card and install on the replacement RIP card to restore the NVRAM settings. 1 40X4822 Hard disk New 40X4822 (New) $274.71 includes: Mounting bracket Interface card 2 40X5316 14-pin JST cable assembly for ISP interface cable Fully refurbished with 90-day warranty 40X5316 I Contact for Details 3 40X4821 Fax Interface Card New 40X4821 (New) $63.00 4 40X0507 Modem 30-pin cable New 40X0507 (New) $18.94 40X0507 Modem 30-pin cable Fully refurbished with 90-day warranty 40X0507 $19.22 5 40X6380 RIP card chassis bracket assembly (assembled) New 40X6380 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $643.61 40X6380 RIP card chassis bracket assembly (assembled) New 40X6380 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $643.61 6 40X6091 NVRAM card

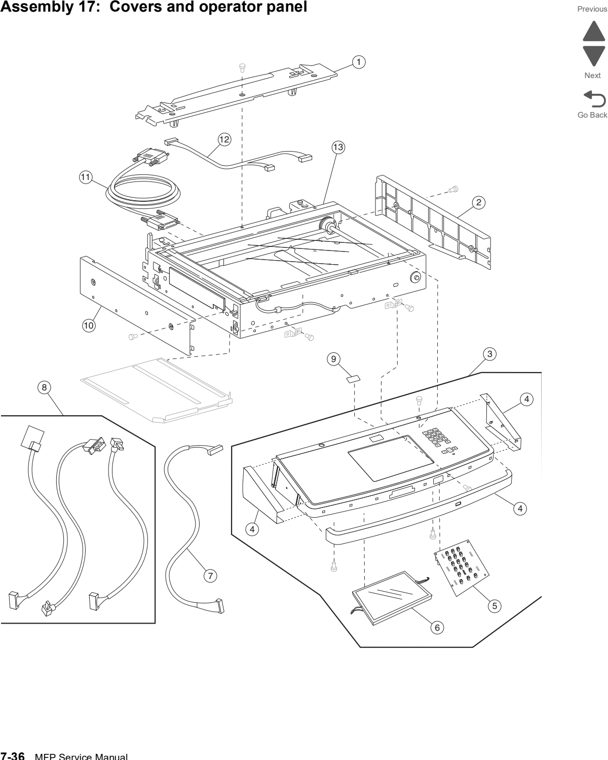

Assembly 17: Covers and operator panel 1 40X2200 Scanner Top Rear Cover New 40X2200 (New) $20.49 40X2200 Scanner top rear cover Fully refurbished with 90-day warranty 40X2200 $16.69 2 40X2201 Scanner Right Cover New 40X2201 (New) $19.32 40X2201 Scanner right cover Fully refurbished with 90-day warranty 40X2201 $19.72 3 40X5555 Operator panel assembly (universal) New 40X5555 (New) $689.58 40X5555 Operator panel assembly (universal) Fully refurbished with 90-day warranty 40X5555 Contact for Details Note: This operator panel can be used on any X860 Series product. 4 40X0388 Operator panel cover assembly w/o Smart card slot New 40X0388 (New) $38.53 4 40X5554 Operator panel cover assembly w/ Smart card slot New 40X5554 (New) $58.07 40X5554 Operator panel cover assembly w/ Smart card slot Fully refurbished with 90-day warranty 40X5554 $47.35 5 40X5556 Operator panel controller card New 40X5556 (New) $89.46 40X5556 Operator panel controller card Fully refurbished with 90-day warranty 40X5556 $37.82 6 40X5557 Operator Panel User Touch Screen New 40X5557 (New) $543.06 40X5557 Operator panel user touch screen Fully refurbished with 90-day warranty 40X5557 Contact for Details 7 40X5559 Operator panel cable New 40X5559 (New) $42.16 40X5559 Operator panel cable Fully refurbished with 90-day warranty 40X5559 $34.37 8 40X1527 USB, Smart card, and LED cable assembly New 40X1527 (New) $57.96 9 40X5568 Operator panel bezel X860e X862e X864e New 40X5568 (New) $22.07 40X5568 Operator panel bezel X860e X862e X864e Fully refurbished with 90-day warranty 40X5568 $19.83 10 40X2205 Scanner Left Cover New 40X2205 (New) $19.13 40X2205 Scanner Left Cover Fully refurbished with 90-day warranty 40X2205 $21.55 11 40X2219 Scanner Interface Cable New 40X2219 (New) $39.78 40X2219 Scanner interface cable Fully refurbished with 90-day warranty 40X2219 $25.71 12 40X2207 Scanner PS Cable Assembly New 40X2207 (New) $63.32 40X2207 Scanner PS cable assembly Fully refurbished with 90-day warranty 40X2207 $51.64 13 40X2206 Flatbed Scanner Unit Assembly New 40X2206 (New) $532.72 40X2206 Flatbed Scanner Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X2206 $210.97

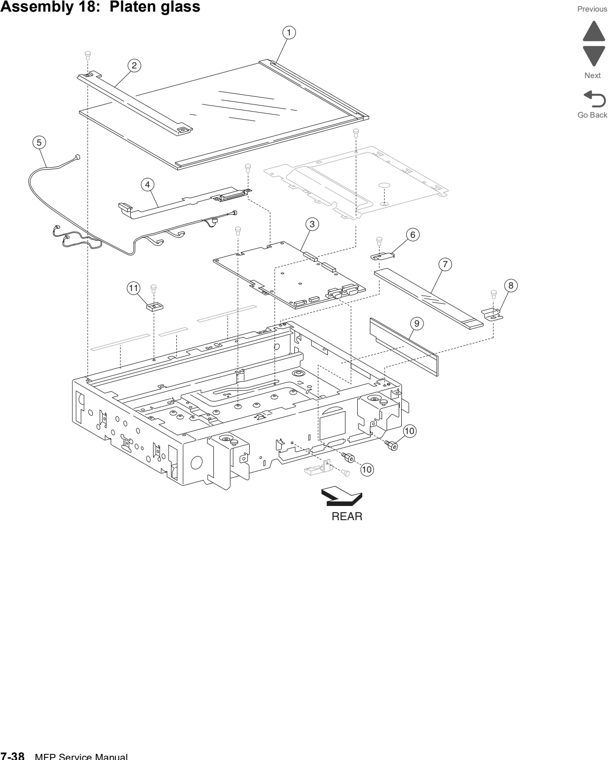

Assembly 18: Platen glass 1 40X2208 Large Platen Glass New 40X2208 (New) $53.57 40X2208 Large platen glass Fully refurbished with 90-day warranty 40X2208 $38.71 2 40X2209 Large Platen Glass Retainer Cover New 40X2209 (New) $14.95 40X2209 Large platen glass retainer cover Fully refurbished with 90-day warranty 40X2209 $13.44 3 40X2210 Scanner Controller Card New 40X2210 (New) $340.96 40X2210 Scanner Controller Card Assembly Fully refurbished with 90-day warranty 40X2210 $168.72 4 40X2211 CCD Ribbon Cable New 40X2211 (New) $37.28 40X2211 Scanner Interface Cable Assembly Fully refurbished with 90-day warranty 40X2211 $28.96 5 40X2212 Scanner Main Cable New 40X2212 (New) $18.46 40X2212 Scanner main cable assembly Fully refurbished with 90-day warranty 40X2212 $23.25 6 40X2213 Small platen glass front retainer New 40X2213 (New) $17.45 7 40X2214 Small Platen Glass New 40X2214 (New) $47.00 40X2214 Small platen glass Fully refurbished with 90-day warranty 40X2214 $33.55 8 40X2215 Small platen glass rear retainer New 40X2215 (New) $17.45 9 40X2216 Scanner Filter New 40X2216 (New) $23.40 10 40X2217 Card Mounting Screws New 40X2217 (New) $27.46 40X2217 Card mounting screws Fully refurbished with 90-day warranty 40X2217 $14.44 11 40X2218 Large platen retainer

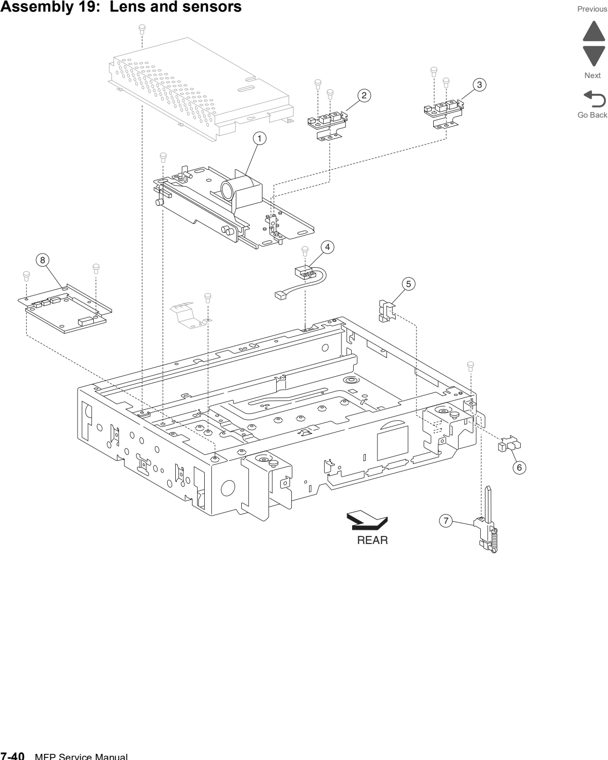

Assembly 19: Lens and sensors 1 40X2220 CCD Card And Lens Assembly New 40X2220 (New) $124.14 Make an Offer 40X2220 CCD Card/Lens Assembly Fully refurbished with 90-day warranty 40X2220 $77.71 2 40X2320 Sensor (Platen LengthAPS 2 APS 1) New 40X2320 (New) $24.75 40X2320 Sensor (Platen Length APS 1) Fully refurbished with 90-day warranty 40X2320 $24.71 3 40X2320 Sensor (Platen LengthAPS 2 APS 1) New 40X2320 (New) $24.75 40X2320 Sensor (Platen Length APS 1) Fully refurbished with 90-day warranty 40X2320 $24.71 4 40X2222 Switch (Platen Interlock) New 40X2222 (New) $19.05 5 6 7 40X2224 ADF Angle Actuator Assembly New 40X2224 (New) $24.36 8 40X2225 Scanner PS card New 40X2225 (New) Contact for Details 40X2225 Scanner PS Card Assembly Fully refurbished with 90-day warranty 40X2225 $59.53

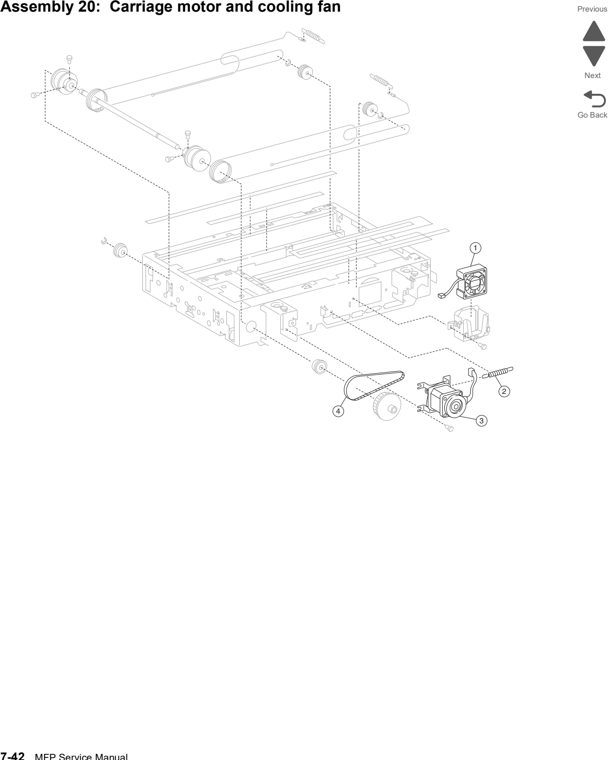

Assembly 20: Carriage motor and cooling fan 1 40X2231 Scanner Cooling Fan New 40X2231 (New) $42.21 40X2231 Scanner cooling fan Fully refurbished with 90-day warranty 40X2231 $20.53 2 40X2229 Scanner drive motor tension spring 3 40X2228 Scanner Drive Motor Assembly New 40X2228 (New) $49.80 40X2228 Scanner drive motor assembly Fully refurbished with 90-day warranty 40X2228 $24.24 4

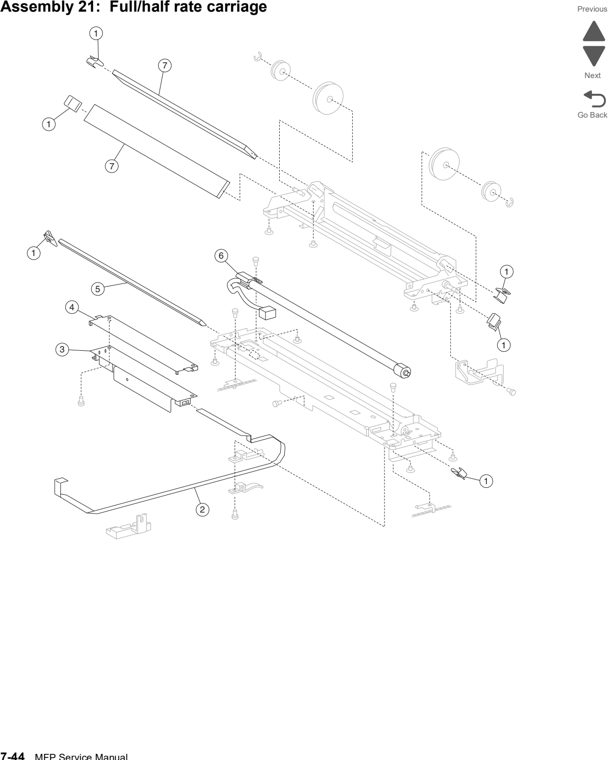

Assembly 21: Full/half rate carriage 1 40X2233 Mirror retaining clip New 40X2233 (New) $17.11 2 40X2236 Exposure Lamp PS Ribbon Cable New 40X2236 (New) $118.88 3 40X2353 Exposure Lamp PS Card Assembly New 40X2353 (New) $216.23 40X2353 Exposure Lamp PS Card Assembly Fully refurbished with 90-day warranty 40X2353 $64.67 4 40X2352 Exposure Lamp PS Card Insulator New 40X2352 (New) $24.96 40X2352 Exposure Lamp PS Card Insulator Fully refurbished with 90-day warranty 40X2352 $13.11 5 40X2234 Scanner 1st mirror New 40X2234 (New) $17.31 40X2234 Scanner 1st mirror Fully refurbished with 90-day warranty 40X2234 Contact for Details 6 40X2237 Exposure Lamp New 40X2237 (New) $31.66 7 40X2232 Scanner 2nd 3rd mirror New 40X2232 (New) $24.71 40X2232 Scanner 2nd/3rd mirror Fully refurbished with 90-day warranty 40X2232 $17.71

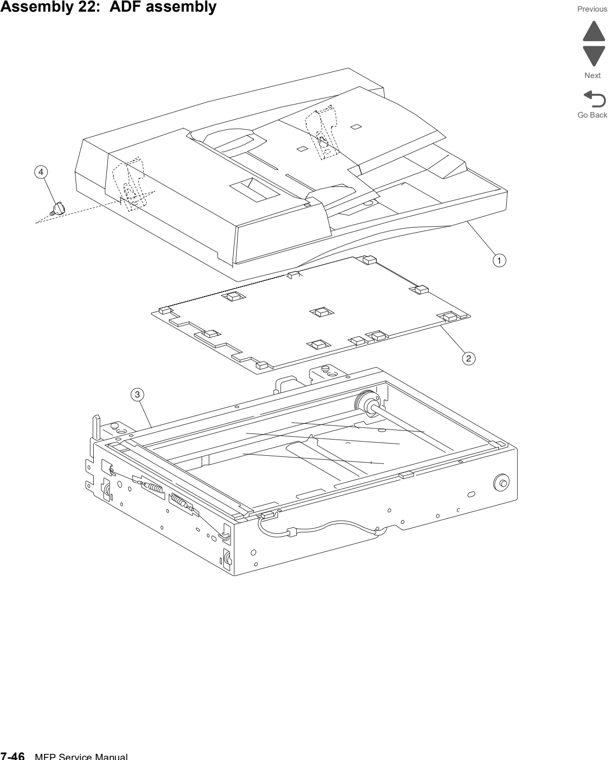

Assembly 22: ADF assembly 1 40X2240 ADF Unit Assembly (Complete Unit) New 40X2240 (New) Retired, no longer available: Contact for alternatives Contact for Details Sale40X2240 ADF Unit Assembly (Complete Unit) Fully refurbished with 90-day warranty 40X2240 $999.00 $575.00 2  40X2239 Platen Cushion New 40X2239 (New) $68.52 3 40X2206 Flatbed Scanner Unit Assembly New 40X2206 (New) $532.72 40X2206 Flatbed Scanner Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X2206 $210.97 4 40X2238 ADF mounting screw

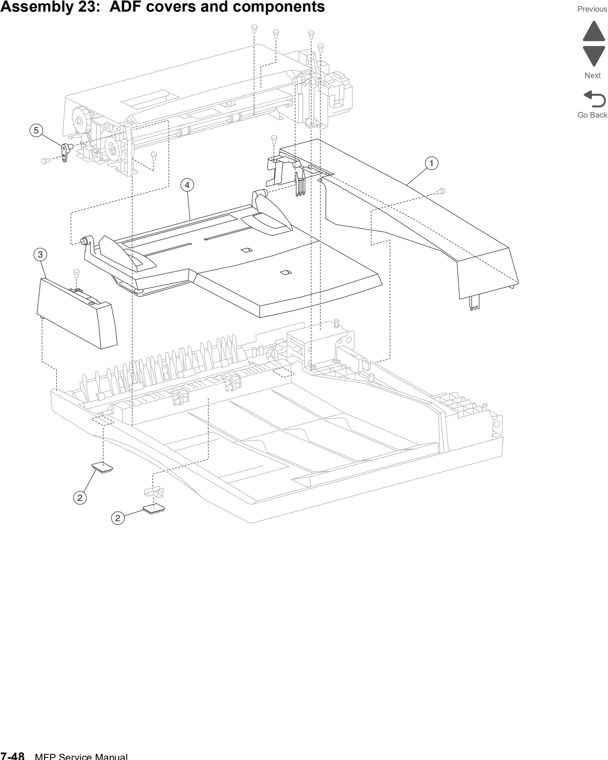

Assembly 23: ADF covers and components 1 40X2244 ADF Rear Cover New 40X2244 (New) $71.84 40X2244 ADF Rear Cover Fully refurbished with 90-day warranty 40X2244 $46.82 2 3 40X2245 ADF front cover assembly New 40X2245 (New) $13.53 4 40X2242 Document Tray Assembly (assembled) New 40X2242 (New) $108.88 40X2242 Document Tray Assembly (Assembled) Fully refurbished with 90-day warranty 40X2242 $35.19 5 40X2243 Document tray hinge New 40X2243 (New) $17.38

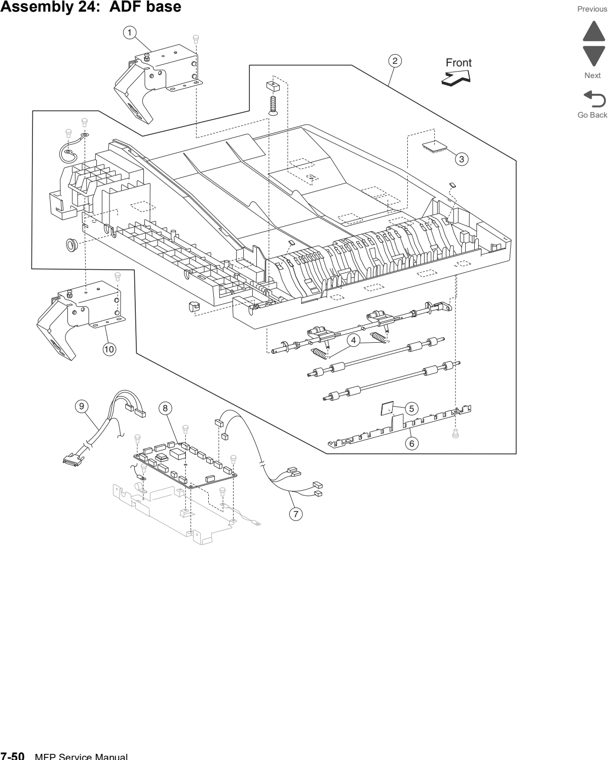

Assembly 24: ADF base 1 40X2257 ADF Left Hinge New 40X2257 (New) $62.39 40X2257 ADF left hinge Fully refurbished with 90-day warranty 40X2257 $24.71 2 40X2371 ADF Registration Pinch Frame Assembly New 40X2371 (New) $201.61 40X2371 ADF Registration Pinch/Frame Assembly (This Comes Assembled) Fully refurbished with 90-day warranty 40X2371 $60.28 3 40X2247 Large hook/loop strip 4 40X2330 Spring 5 40X2354 Registration pad New 40X2354 (New) $17.05 6 40X2355 Registration Pad Cover New 40X2355 (New) $24.65 7 40X2248 Solenoid Interlock Cable New 40X2248 (New) $15.90 8 40X2260 ADF Controller Card New 40X2260 40X5978 (New) $110.21 40X2260 ADF Controller Card Assembly Fully refurbished with 90-day warranty 40X2260 40X5978 $161.09 9 40X2259 ADF Interface Cable New 40X2259 (New) $69.20 40X2259 ADF interface cable Fully refurbished with 90-day warranty 40X2259 $45.10 10 40X2258 ADF Right Hinge New 40X2258 (New) $55.82 40X2258 ADF right hinge Fully refurbished with 90-day warranty 40X2258 $24.71

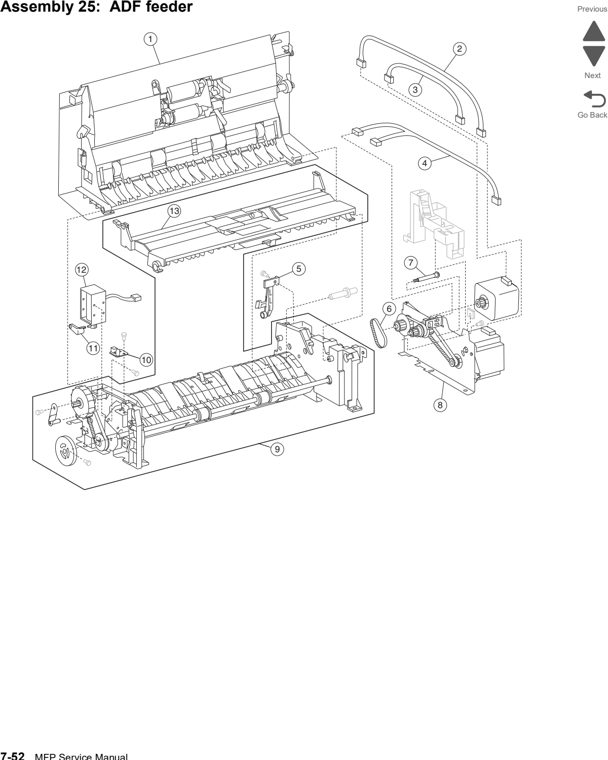

Assembly 25: ADF feeder 1 40X2262 ADF Left Cover Assembly (Assembled) New 40X2262 (New) $278.86 40X2262 ADF Left Cover Assembly (Assembled) Fully refurbished with 90-day warranty 40X2262 Contact for Details Make an Offer 2 40X2265 Registration Motor Cable Assembly New 40X2265 (New) $19.29 3 40X2266 Feed Motor Cable Assembly New 40X2266 (New) $19.36 4 40X2264 Document set/sheet through cable assembly New 40X2264 (New) $17.98 5 40X2267 Left cover hinge retainer Fully refurbished with 90-day warranty 40X2267 $13.57 6 40X2270 Registration Main Drive Belt Fully refurbished with 90-day warranty 40X2270 $14.07 7 40X2269 Stud screw 8 40X2327 ADF Feed Motor Assembly (Assembled) New 40X2327 (New) $72.95 40X2327 ADF feed motor assembly (assembled) Fully refurbished with 90-day warranty 40X2327 $47.53 9 40X2383 ADF Main Feed Assembly (Assembled) New 40X2383 (New) $444.06 40X2383 ADF Main Feed Assembly (This Comes Assembled) Fully refurbished with 90-day warranty 40X2383 $341.52 10 40X2272 Document set LED Fully refurbished with 90-day warranty 40X2272 $19.93 40X2272 Document set LED New 40X2272 (New) $22.18 11 40X2256 Inverter lever New 40X2256 (New) $17.29 12 40X2271 Inverter Solenoid Fully refurbished with 90-day warranty 40X2271 $16.12 40X2271 Inverter solenoid assembly New 40X2271 (New) $30.63 13 40X2273 Separation roll guide assembly (this comes assembled) New 40X2273 (New) Contact for Details 40X2273 Separation Roll Guide Assembly (Assembled) Fully refurbished with 90-day warranty 40X2273 $61.34

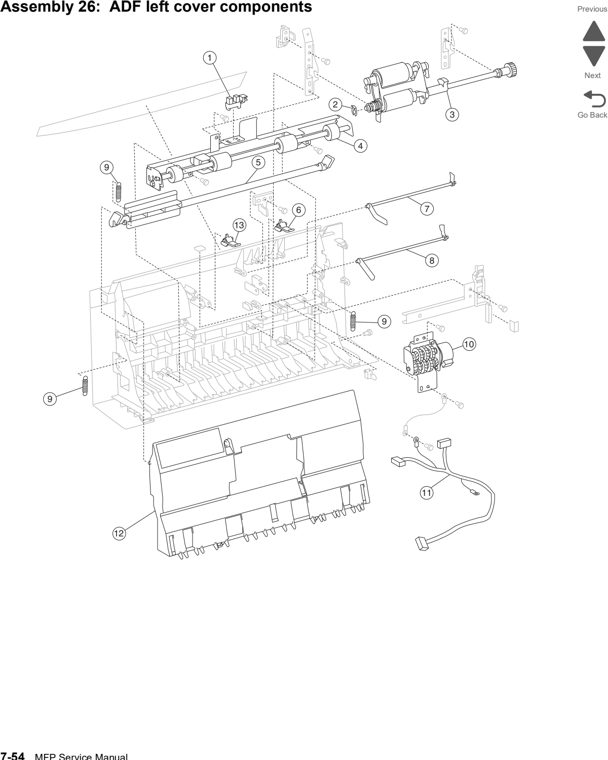

Assembly 26: ADF left cover components 1 2 3 40X2280 ADF Feed/Pick Roll Assembly (Assembled) New 40X2280 (New) $43.26 4 40X2276 Left Cover Pinch Roll Assembly (Assembled) New 40X2276 (New) $37.60 40X2276 Left Cover Pinch Roll Assembly (Assembled) Fully refurbished with 90-day warranty 40X2276 $30.64 5 40X2274 ADF Left Cover Handle New 40X2274 (New) $40.12 40X2274 ADF Left Cover Handle Fully refurbished with 90-day warranty 40X2274 $32.69 6 40X2381 Document Set Rear Stop New 40X2381 (New) $23.32 7 8 40X2275 Sheet Through Actuator New 40X2275 (New) $22.64 40X2275 Sheet Through Actuator Fully refurbished with 90-day warranty 40X2275 $20.36 9 40X2330 Spring 10 40X2277 Pick Roll Position Motor New 40X2277 (New) $41.23 40X2277 Pick roll position motor Fully refurbished with 90-day warranty 40X2277 $33.60 11 40X2278 Pick Roll Position Cable New 40X2278 (New) $18.81 40X2278 Pick roll position cable Fully refurbished with 90-day warranty 40X2278 $16.90 12 40X2321 Left Cover Media Guide New 40X2321 (New) $78.37 40X2321 Left Cover Media Guide Fully refurbished with 90-day warranty 40X2321 $63.91 13 40X2279 Document Set Front Stop New 40X2279 (New) $23.32 40X2279 Document set front stop Fully refurbished with 90-day warranty 40X2279 $20.96

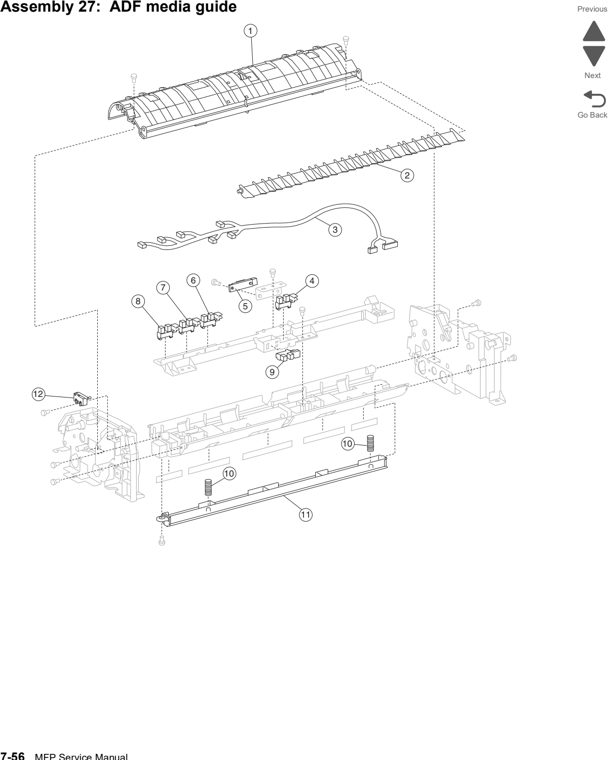

Assembly 27: ADF media guide 1 40X2290 Media Guide Actuator Assembly (Assembled) New 40X2290 (New) $52.30 2 40X2289 Inverter Gate New 40X2289 (New) $24.23 3 40X2288 ADF Main Feed Cable New 40X2288 (New) $17.65 4 5 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 Contact for Details 6 7 8 9 10 40X2324 Media scan guide spring 11 40X2323 Media Scan Guide New 40X2323 (New) $34.98 12 40X2286 Switch (ADF Left Cover Interlock) New 40X2286 (New) $22.71 40X2286 Switch (ADF left cover interlock) Fully refurbished with 90-day warranty 40X2286 $20.40

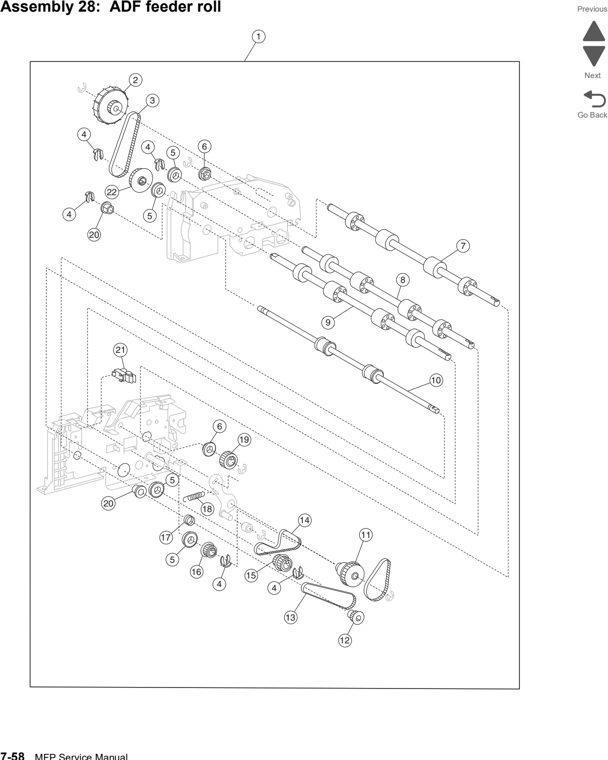

Assembly 28: ADF feeder roll 1 40X2383 ADF Main Feed Assembly (Assembled) New 40X2383 (New) $444.06 40X2383 ADF Main Feed Assembly (This Comes Assembled) Fully refurbished with 90-day warranty 40X2383 $341.52 2 40X2346 Manual Feed Drive Wheel New 40X2346 (New) $27.95 40X2346 Manual Feed Drive Wheel Fully refurbished with 90-day warranty 40X2346 $28.23 3 40X2345 Manual Feed Drive Belt New 40X2345 (New) $33.66 40X2345 Manual Feed Drive Belt Fully refurbished with 90-day warranty 40X2345 $27.43 4 Plastic ring clip kit includes: - - Plastic ring clip 6 mm - - Plastic ring clip 8 mm 5 40X2337 Bearing 8 mm New 40X2337 (New) $16.45 6 40X2339 Bushing 8 mm 7 40X2336 ADF Transport Roll Assembly New 40X2336 (New) Contact for Details 40X2336 ADF Transport Roll Assembly Fully refurbished with 90-day warranty 40X2336 $27.05 8 40X2333 ADF Registration Roll Assembly New 40X2333 (New) $32.48 40X2333 ADF Registration Roll Assembly Fully refurbished with 90-day warranty 40X2333 Contact for Details 9 40X2334 ADF Feed-Out Roll Assembly New 40X2334 (New) $33.50 40X2334 ADF Feed-Out Roll Assembly Fully refurbished with 90-day warranty 40X2334 $27.30 10 40X2335 ADF Exit Roll Assembly New 40X2335 (New) $19.98 40X2335 ADF Exit Roll Assembly Fully refurbished with 90-day warranty 40X2335 $17.96 11 40X2349 Registration main drive pulley 21/54T 12 40X2342 Exit roll drive pulley 20T New 40X2342 (New) $17.38 13 40X2347 Exit Roll Drive Belt New 40X2347 (New) $15.49 14 40X2350 Registration Secondary Drive Belt New 40X2350 (New) $16.18 15 40X2341 Exit/feed-out roll drive pulley 25/28T New 40X2341 (New) $17.38 16 40X2340 Registration roll drive pulley 28T New 40X2340 (New) $17.38 17 40X2351 Interconnect card assembly New 40X2351 (New) $14.97 18 40X2348 Tension spring 19 40X2343 Transport roll drive gear 20T New 40X2343 (New) $17.53 20 40X2338 Bushing 6 mm 21 22 40X2344 Manual Feed Drive Pulley New 40X2344 (New) $22.54 40X2344 Manual Feed Drive Pulley Fully refurbished with 90-day warranty 40X2344 $20.25

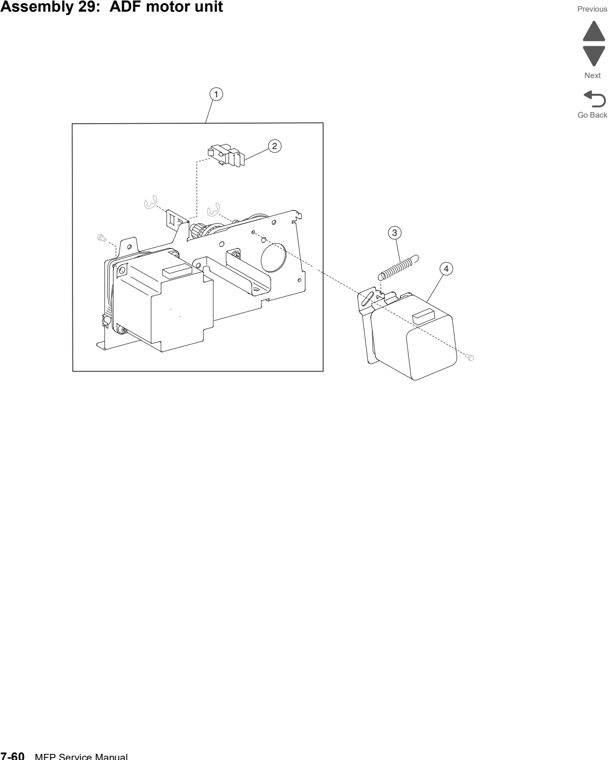

Assembly 29: ADF motor unit 1 40X2327 ADF Feed Motor Assembly (Assembled) New 40X2327 (New) $72.95 40X2327 ADF feed motor assembly (assembled) Fully refurbished with 90-day warranty 40X2327 $47.53 2 3 40X2326 Tension spring 4 40X2325 ADF Registration Motor New 40X2325 (New) $52.30 40X2325 ADF Registration Motor Fully refurbished with 90-day warranty 40X2325 $42.64

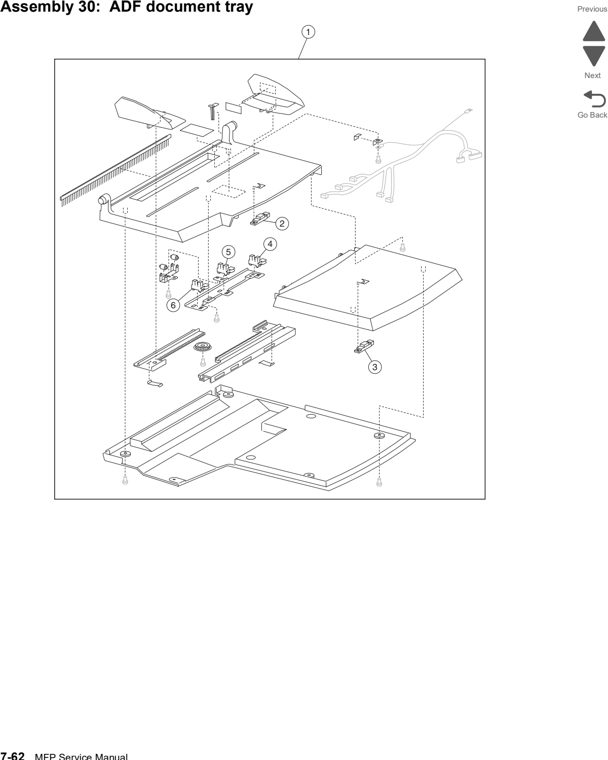

Assembly 30: ADF document tray 1 40X2242 Document Tray Assembly (assembled) New 40X2242 (New) $108.88 40X2242 Document Tray Assembly (Assembled) Fully refurbished with 90-day warranty 40X2242 $35.19 2 40X2328 Sensor (Document Tray Length 1 2) New 40X2328 (New) $15.58 3 40X2328 Sensor (Document Tray Length 1 2) New 40X2328 (New) $15.58 4 5 6 Note: Assembly index items 2, 3, 4, 5 and 6 are identical sensors with different functions; therefore, they are the same part number with different descriptions.

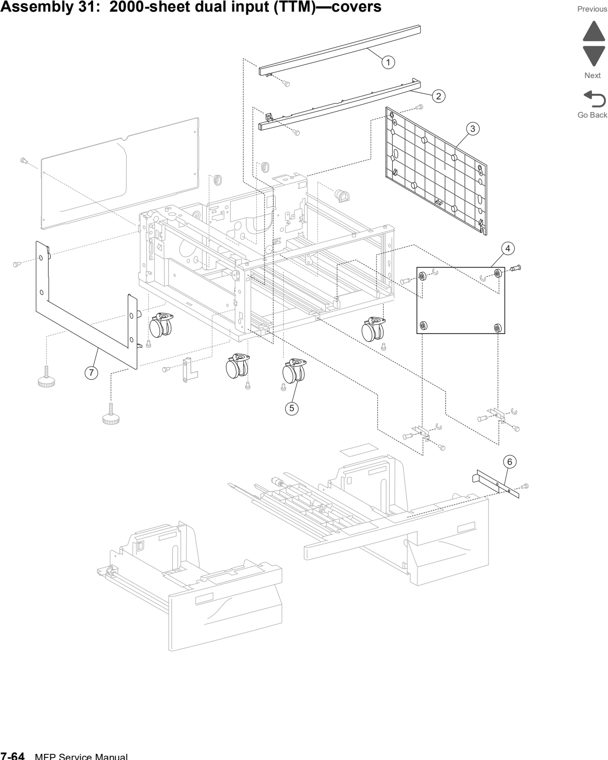

Assembly 31: 2000-sheet dual input (TTM)-covers 31-1 40X0687 Top Cover New 40X0687 (New) $24.71 40X0687 Top Cover Fully refurbished with 90-day warranty 40X0687 $50.57 2 40X0688 Foot Cover New 40X0688 (New) $24.71 40X0688 Foot Cover Fully refurbished with 90-day warranty 40X0688 $50.69 3 40X0689 Right Cover New 40X0689 (New) $27.64 40X0689 Right Cover Fully refurbished with 90-day warranty 40X0689 $24.71 4 40X0703 Tray support roll (4) 5 40X0691 Locking Caster New 40X0691 (New) $18.86 6 40X0704 Tray 4 Stopper New 40X0704 (New) $19.78 7 40X0690 Left Cover New 40X0690 (New) $26.38 40X0690 Left Cover Fully refurbished with 90-day warranty 40X0690 $55.51

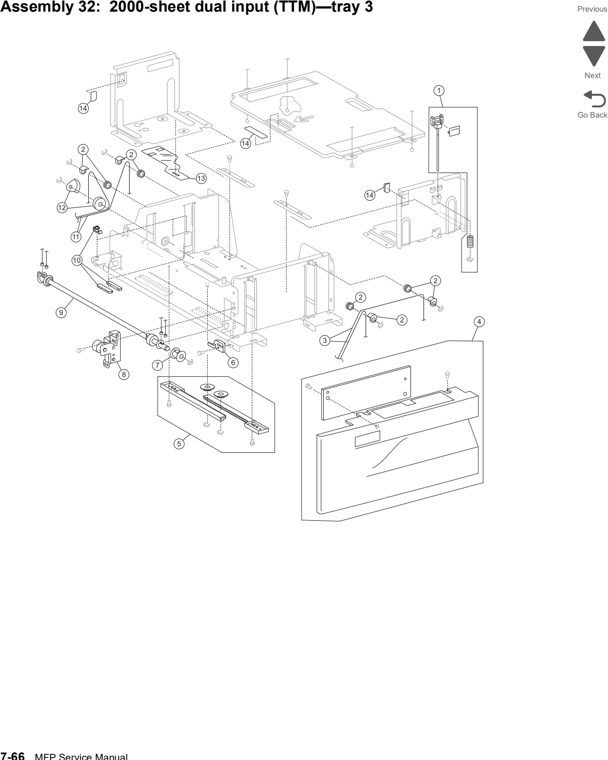

2000-sheet dual input (TTM)-tray 3 32-1 40X0712 Tray 3 Media Guide Lock Kit New 40X0712 (New) $24.71 includes: - - Tray 3 media guide lock button - - Tray 3 media guide lock shaft - - Spring 2 includes: - - TTM tray lift pulley (4) - - Pulley guide (4) 3 40X0710 Tray 3 Front Cable (2) New 40X0710 (New) $17.74 4 40X0705 Tray 3 Front Cover Kit New 40X0705 (New) $72.56 Make an Offer 40X0705 Tray 3 front cover kit Fully refurbished with 90-day warranty 40X0705 $74.05 includes: - - Tray 3 front cover - - Tray 3 tray handle 5 40X0713 Media Guide Rack And Pinion Kit New 40X0713 (New) $70.00 40X0713 Media Guide Rack And Pinion Kit Fully refurbished with 90-day warranty 40X0713 $54.37 includes: - - Media guide rack gear (2) - - Media guide pinion gear (2) 6 40X0714 TTM media tray catch 7 40X0706 Lift cable pulley 8 40X0715 Tray 3 Brake Assembly New 40X0715 (New) $23.11 40X0715 Tray 3 brake assembly Fully refurbished with 90-day warranty 40X0715 $29.10 9 40X0707 Tray Lift Shaft Assembly New 40X0707 (New) $79.00 40X0707 Tray lift shaft assembly Fully refurbished with 90-day warranty 40X0707 $45.00 10 40X0716 Tray 3 slide kit New 40X0716 (New) $22.88 includes: - - Tray 3 slide strip (2) - - Tray 3 slide button (2) 11 40X0709 Tray 3 rear cable (2) 12 40X0708 Large Idler Pulley Kit New 40X0708 (New) $16.27 includes: - - Large idler pulley - - Large idler guide 13 40X0717 Mylar Actuator New 40X0717 (New) $14.97 14 40X0711 Tray Separator Kit New 40X0711 (New) $13.39 includes: - - TTM tray separation pad - - TTM tray brush (2)

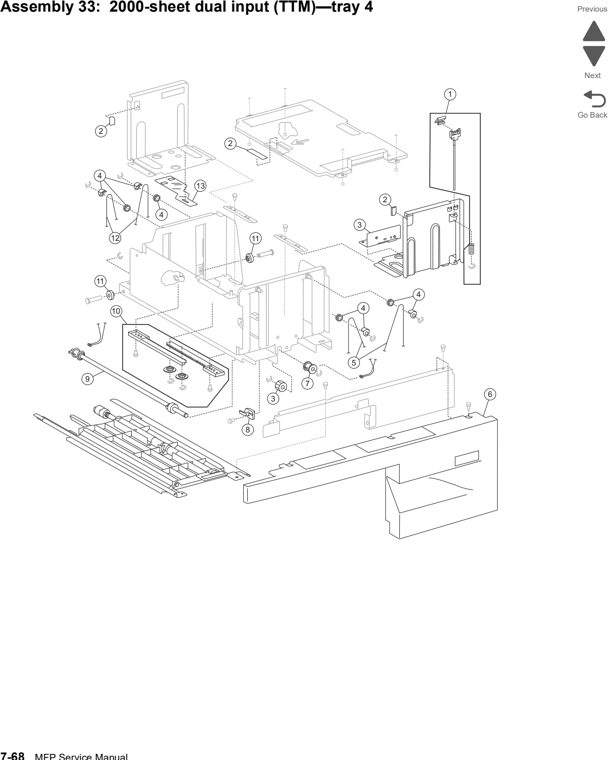

Assembly 33: 2000-sheet dual input (TTM)-tray 4 33-1 40X0721 Tray 4 Media Guide Lock Kit New 40X0721 (New) $24.71 includes: - - Tray 4 media guide lock button - - Tray 4 media guide lock shaft - - Spring 2 40X0711 Tray Separator Kit New 40X0711 (New) $13.39 includes: - - TTM tray separation pad - - TTM tray brush (2) 3 40X0722 Tray 4 Brake Kit New 40X0722 (New) $23.13 includes: - - Tray 4 brake assembly - - Tray 4 brake gear 18T 4 40X0953 Tray lift pulley kit New 40X0953 (New) $23.48 TTM tray lift pulley kit includes: - - TTM tray lift pulley (4) - - Pulley guide (4) 5 40X0720 Tray 4 front cable (2) 6 40X0718 Tray 4 Front Cover New 40X0718 (New) $82.34 40X0718 Tray 4 front cover Fully refurbished with 90-day warranty 40X0718 $67.17 7 40X0706 Lift cable pulley 8 40X0714 TTM media tray catch 9 40X0707 Tray Lift Shaft Assembly New 40X0707 (New) $79.00 40X0707 Tray lift shaft assembly Fully refurbished with 90-day warranty 40X0707 $45.00 10 40X0713 Media Guide Rack And Pinion Kit New 40X0713 (New) $70.00 40X0713 Media Guide Rack And Pinion Kit Fully refurbished with 90-day warranty 40X0713 $54.37 includes: - - Media guide rack gear (2) - - Media guide pinion gear (2) 11 40X0723 Tray 4 rear support roll (2) 12 40X0719 Tray 4 rear cable (2) 13 40X0717 Mylar Actuator New 40X0717 (New) $14.97

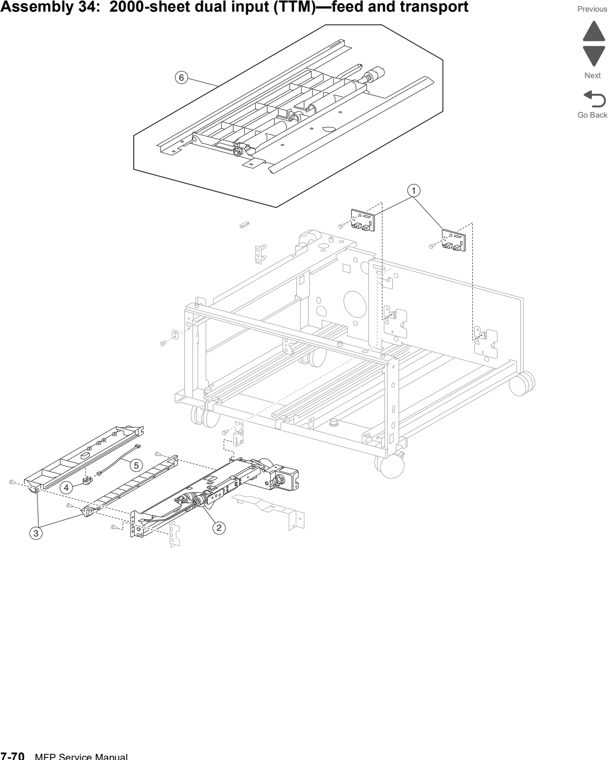

Assembly 34: 2000-sheet dual input (TTM)-feed and transport 1 40X0729 Switch (Media Size Switch) New 40X0729 (New) $46.60 40X0729 Switch (Media Size Switch) Fully refurbished with 90-day warranty 40X0729 $38.78 2 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 3 40X0728 Tray 4 Media Guide Kit New 40X0728 (New) $148.64 40X0728 Tray 4 Media Guide Kit Fully refurbished with 90-day warranty 40X0728 $142.90 includes: - - Tray 4 upper media guide - - Tray 4 lower media guide 4 40X0727 Sensor (tray 4 feed-out) 5 40X0730 Tray 4 Feed-Out Sensor Cable Assembly New 40X0730 (New) $17.80 6 40X0724 Tray 4 Media Transport Assembly New 40X0724 (New) $74.70 40X0724 Tray 4 media transport assembly Fully refurbished with 90-day warranty 40X0724 $60.94

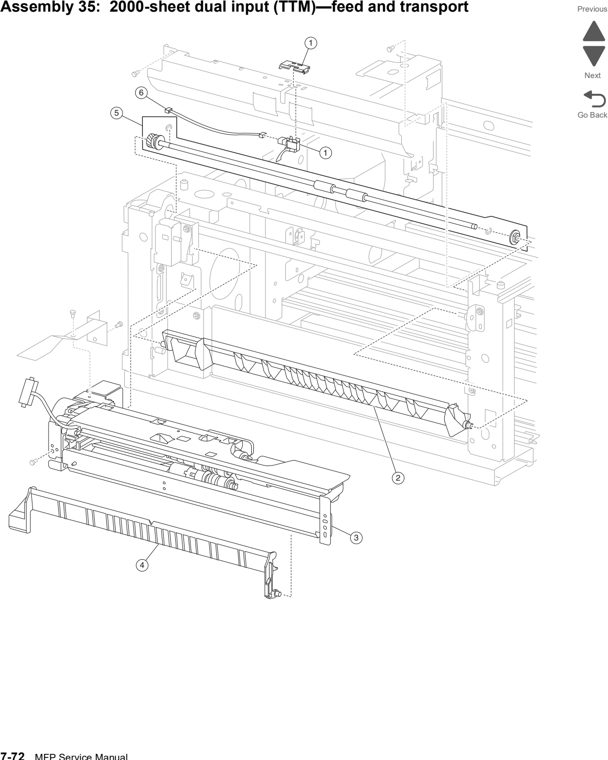

Assembly 35: 2000-sheet dual input (TTM)-feed and transport 1 40X0692 Sensor (Tray 3 Feed-Out) Kit New 40X0692 (New) $52.92 40X0692 Sensor (Tray 3 Feed-Out) Kit Fully refurbished with 90-day warranty 40X0692 $43.16 includes: - - Sensor (tray 3 feed-out) - - Sensor protector 2 40X0732 Upper Vertical Turn Guide Fully refurbished with 90-day warranty 40X0732 Contact for Details 40X0732 Upper Vertical Turn Guide New 40X0732 (New) $92.00 3 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 4 40X0572 Vertical Turn Guide New 40X0572 (New) $24.21 40X0572 Vertical turn guide Fully refurbished with 90-day warranty 40X0572 $19.71 5 40X0695 Media Transport Roll Assembly Kit New 40X0695 (New) $29.00 40X0695 Media transport roll assembly kit Fully refurbished with 90-day warranty 40X0695 $22.27 includes: - - 2TM/TTM media transport roll assembly - - Bushing 8 mm 6 40X0693 Sensor Cable Kit New 40X0693 (New) $31.61 40X0693 Sensor cable kit Fully refurbished with 90-day warranty 40X0693 $39.76 includes: - - Tray 3 feed-out sensor cable - - Tray 4 feed-out sensor cable

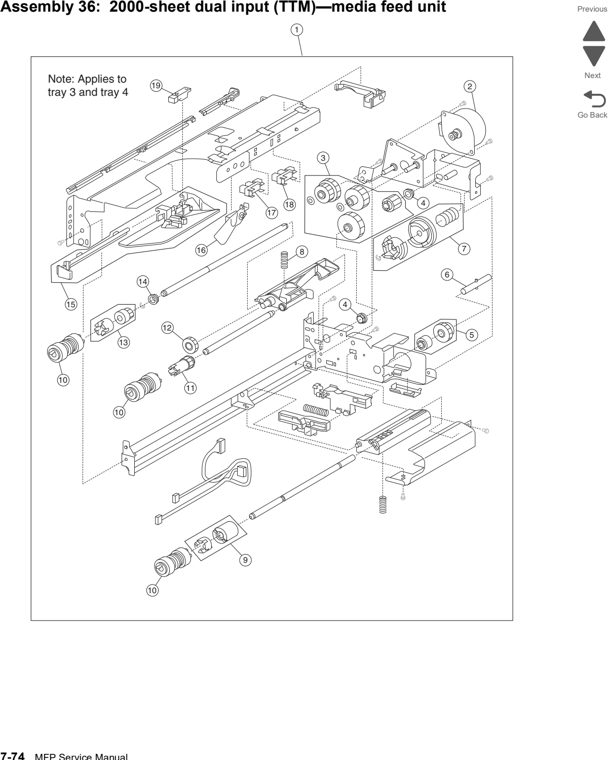

Assembly 36: 2000-sheet dual input (TTM) - media feed unit 1 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 2 40X0582 Media feed lift motor New 40X0582 (New) $35.23 40X0582 Media feed lift motor Fully refurbished with 90-day warranty 40X0582 $28.71 3 40X0585 Media Feed Drive Gear Kit New 40X0585 (New) $43.89 includes: - - Media feed unit drive gear 13T - - Media feed unit drive gear 28/21T - - Media feed unit drive gear 29T - - Media feed unit drive gear 27T - - 2 mm washer (2 each) Note: The graphic on the previous page, shows two #3 callouts. These callouts are the items that make up the media feed drive gear kit. 4 40X0880 Bushing 6 mm New 40X0880 (New) $15.58 5 40X0967 Media tray lift one-way clutch and gear New 40X0967 (New) $36.19 40X0967 Media tray lift one-way clutch and gear Fully refurbished with 90-day warranty 40X0967 $29.48 includes: - - Media tray lift one-way clutch - - Media tray lift one-way gear 6 40X0968 Media tray lift one-way shaft New 40X0968 (New) $33.60 40X0968 Media tray lift one-way shaft Fully refurbished with 90-day warranty 40X0968 $27.38 7 40X0583 Tray Lift Coupling Kit New 40X0583 (New) $35.73 40X0583 Tray Lift Coupling Kit Fully refurbished with 90-day warranty 40X0583 $29.11 includes: - - Tray lift coupling - - Tray lift coupling gear 31T - - Spring 8 40X0590 Pick Roll Assembly Spring New 40X0590 (New) $16.60 9 40X0593 Separation Roll Friction Clutch Kit New 40X0593 (New) $22.74 includes: - - Separation roll one-way friction clutch - - Separation roll spacer 10 Sale40x0594 Feed Roll Kit (Qty 6) New 40x0594 (New) $94.71 $58.00 40x0594 Feed Roll Kit (Qty 6) New 40x0594 Compatible (New) $27.00 includes: - - Feed roll - - Pick roll - - Separation roll 11 40X0970 Pick roll drive gear New 40X0970 (New) $13.57 12 13 40X0591 Feed Roll One-Way Clutch Kit New 40X0591 (New) $40.76 40X0591 Feed roll one-way clutch kit Fully refurbished with 90-day warranty 40X0591 $33.23 includes: - - Feed roll one-way clutch - - Feed roll one-way gear 22T 14 40X0952 Bushing 6 mm 15 40X0586 Media Feed Unit Front Guide Kit New 40X0586 (New) $24.71 includes: - - Media feed unit front guide - - Media feed unit front guide rail 16 40X0587 Media Out Actuator Fully refurbished with 90-day warranty 40X0587 $20.29 17 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 18 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 19 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 Contact for Details Note: Assembly index items 17 and 18 are identical sensors with different functions; therefore, they are the same part number with different descriptions.

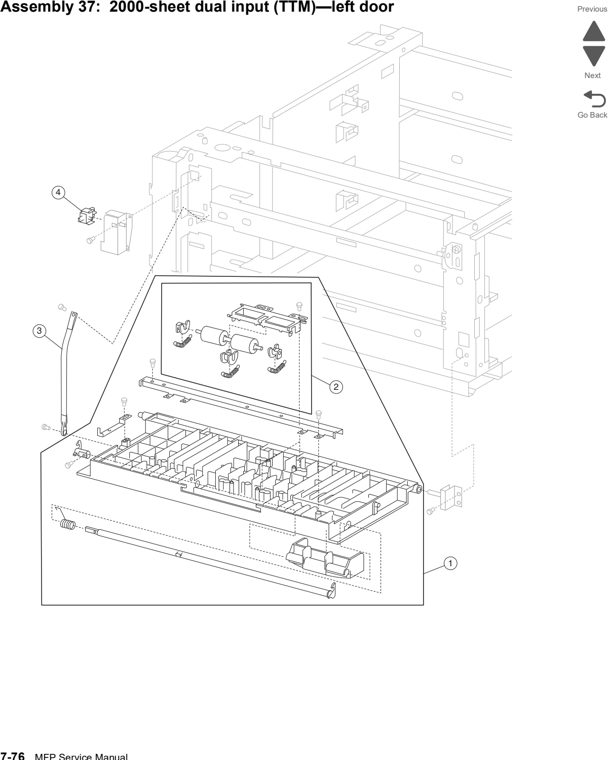

Assembly 37: 2000-sheet dual input (TTM)-left door 1 40X0733 Left Door Assembly (Assembled) New 40X0733 (New) $62.03 40X0733 Left Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0733 Contact for Details 2 40X0696 Left Door Pinch Roll Assembly (Assembled) New 40X0696 (New) $46.00 3 40X0697 2TM/TTM left door support strap 4 40X0610 Switch (left lower door interlock) New 40X0610 (New) $14.33

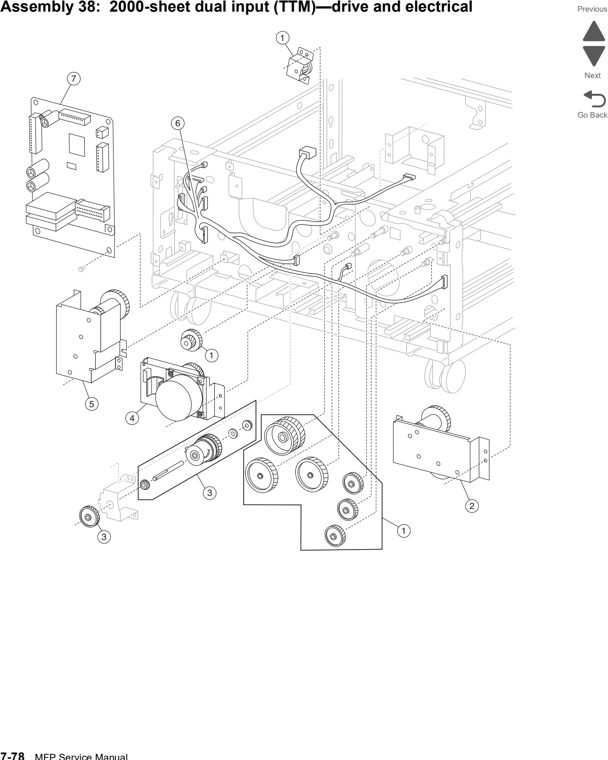

Assembly 38: 2000-sheet dual input (TTM)-drive and electrical 1 40X0736 Drive Gear Kit New 40X0736 (New) $72.28 includes: - - TTM drive gear 22/40T - - TTM drive gear 37T (2 each) - - TTM drive gear 32T - - TTM drive gear 60T (2 each) - - TTM drive gear 60T - - TTM drive gear bracket assembly 2 40X0734 Tray 3 Lift Gear Assembly New 40X0734 (New) $99.88 40X0734 Tray 3 Lift Gear Assembly Fully refurbished with 90-day warranty 40X0734 $32.26 3 40X0699 Clutch Kit New 40X0699 (New) $33.07 includes: - - 2TM/TTM clutch assembly - - Shaft - - Bushing 8 mm - - Clutch gear 38T - - Bushing 8 mm - - Washer 4 40X3664 Drive motor New 40X3664 (New) $279.05 40X3664 Drive motor Fully refurbished with 90-day warranty 40X3664 $51.71 5 40X0735 Tray 4 Lift Gear Assembly New 40X0735 (New) $60.00 40X0735 Tray 4 lift gear assembly Fully refurbished with 90-day warranty 40X0735 $41.00 6 40X3666 Main cable assembly New 40X3666 (New) $63.12 40X3666 Main cable assembly Fully refurbished with 90-day warranty 40X3666 $63.41 7 40X2735 2x 500-Sheet Drawer Dual Input Controller Card Assembly New 40X2735 (New) $49.53

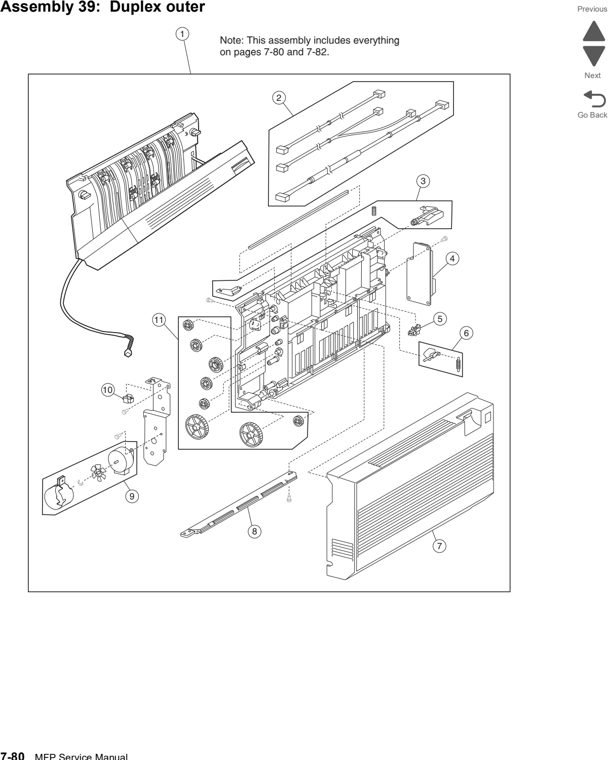

Assembly 39: Duplex outer 1 40X0780 Duplex Unit Assembly (Assembled) New 40X0780 (New) $97.21 40X0780 Duplex Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0780 $44.57 2 40X0788 Duplex Cable Kit New 40X0788 (New) $88.07 40X0788 Duplex Cable Kit Fully refurbished with 90-day warranty 40X0788 $71.84 includes: - - Duplex sensor cable assembly - - Duplex motor cable assembly - - Duplex main cable assembly 3 40X0782 Duplex Left Door Handle Kit New 40X0782 (New) $153.03 40X0782 Duplex Left Door Handle Kit Fully refurbished with 90-day warranty 40X0782 $111.52 includes: - - Duplex left door handle latch - - Duplex left door handle - - Spring 4 40X0786 Duplex Controller Card Assembly New 40X0786 (New) $608.24 40X0786 Duplex Controller Card Assembly Fully refurbished with 90-day warranty 40X0786 $467.81 5 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 6 40X0784 Duplex wait actuator kit includes: - - Duplex wait actuator - - Spring 7 40X0787 Duplex Left Cover New 40X0787 (New) $84.73 40X0787 Duplex Left Cover Fully refurbished with 90-day warranty 40X0787 $69.10 8 40X0783 Duplex Lower Guide New 40X0783 (New) $22.98 9 40X0785 Duplex Drive Motor Kit New 40X0785 (New) $188.95 40X0785 Duplex Drive Motor Kit Fully refurbished with 90-day warranty 40X0785 $137.70 includes: - - Duplex drive motor - - Duplex drive motor cooling fan - - Duplex drive motor cooling fan shroud 10 40X0610 Switch (left lower door interlock) New 40X0610 (New) $14.33 11 40X0781 Duplex Drive Gear Kit New 40X0781 (New) $236.89 40X0781 Duplex Drive Gear Kit Fully refurbished with 90-day warranty 40X0781 $182.15 includes: - - Duplex drive gear 28T (3 each) - - Duplex drive gear 33/74T (2 each) - - Duplex drive gear 33T (2 each) - - Duplex drive gear 42T

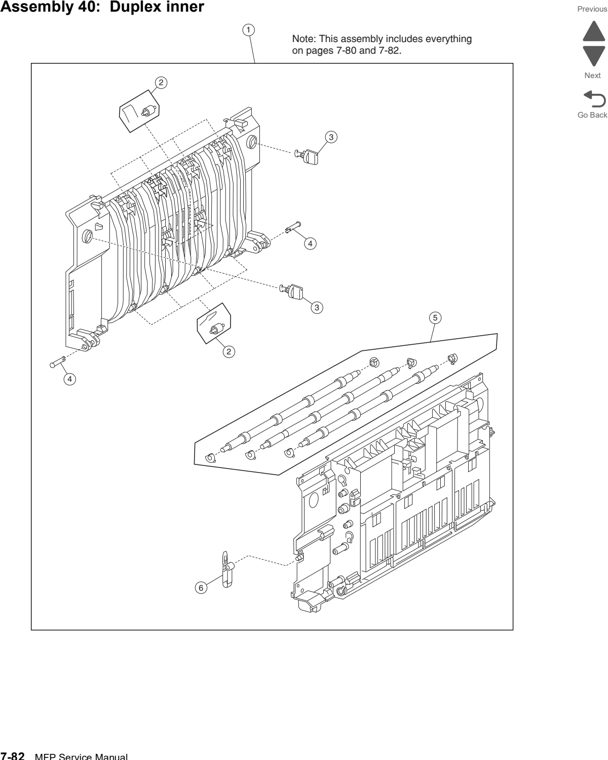

Assembly 40: Duplex inner 1 40X0780 Duplex Unit Assembly (Assembled) New 40X0780 (New) $97.21 40X0780 Duplex Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0780 $44.57 2 40X0792 Duplex Media Transport Pinch Roll Kit New 40X0792 (New) $57.00 includes: - - Duplex media transport pinch roll (10 each) - - Spring (10 each) 3 40X0790 Docking Lock (2) New 40X0790 (New) $53.64 4 40X0791 Hinge Pin (2) New 40X0791 (New) $69.59 5 40X0793 Duplex Media Transport Roll Kit New 40X0793 (New) $118.39 includes: - - Bushing 6 mm (6 each) - - Duplex media transport roll (2 each) - - Duplex media center transport roll 6 40X0789 Duplex Left Door Support Strap New 40X0789 (New) $69.85

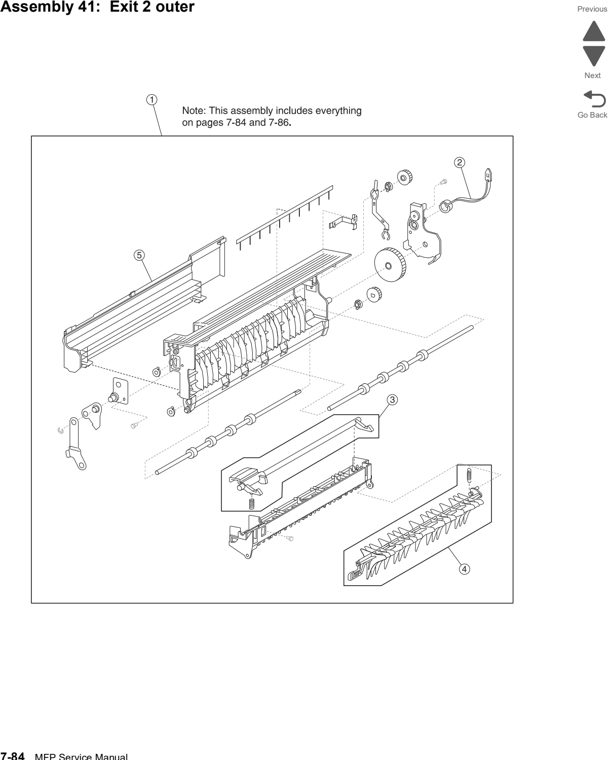

Assembly 41: Exit 2 outer 1 40X0794 Exit 2 Unit Assembly (Assembled) New 40X0794 (New) $182.93 40X0794 Exit 2 Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0794 $140.65 Make an Offer 2 40X0797 Exit 2 Left Door Support Strap New 40X0797 (New) $37.00 3 40X0795 Exit 2 Left Door Handle Kit New 40X0795 (New) $55.00 40X0795 Exit 2 Left Door Handle Kit Fully refurbished with 90-day warranty 40X0795 $44.00 includes: - - Exit 2 left door handle - - Spring 4 40X0796 Media Diverter Gate Kit New 40X0796 (New) $93.00 40X0796 Media Diverter Gate Kit Fully refurbished with 90-day warranty 40X0796 $73.00 includes: - - Media diverter gate - - Spring 5 40X0798 Left Cover New 40X0798 (New) $51.00 40X0798 Left Cover Fully refurbished with 90-day warranty 40X0798 $38.00

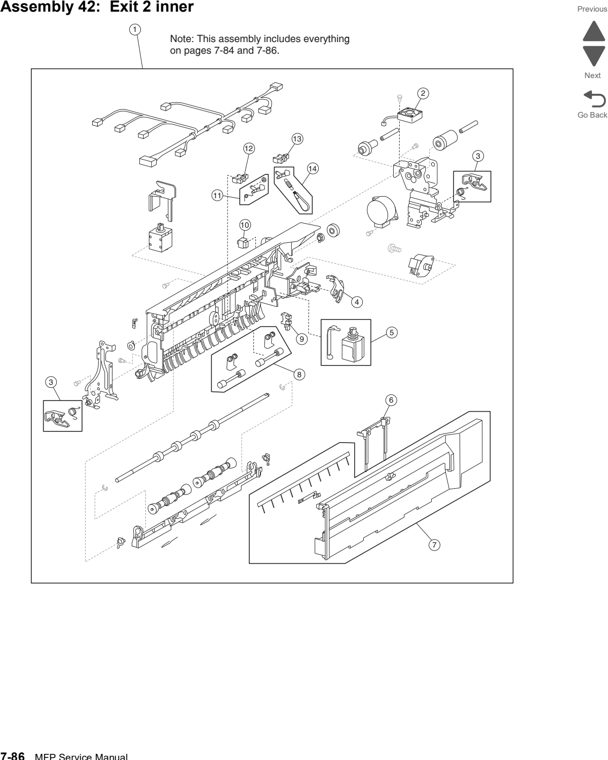

Assembly 42: Exit 2 inner 1 40X0794 Exit 2 Unit Assembly (Assembled) New 40X0794 (New) $182.93 40X0794 Exit 2 Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0794 $140.65 Make an Offer 2 40X0807 Exit 2 Cooling Fan New 40X0807 (New) $20.98 3 40X0802 Docking Latch Kit New 40X0802 (New) $32.25 includes: - - Docking latch (2 each) - - Docking latch spring front - - Docking latch spring rear 4 40X0803 Exit 2 Media Shift Gear New 40X0803 (New) $17.27 5 40X0805 Media Diverter Solenoid Kit New 40X0805 (New) $51.69 40X0805 Media diverter solenoid kit Fully refurbished with 90-day warranty 40X0805 $64.99 includes: - - Media diverter solenoid - - Media diverter link 6 40X2389 Output guide 7 40X0801 Right Cover Kit New 40X0801 (New) $68.64 40X0801 Right cover kit Fully refurbished with 90-day warranty 40X0801 $88.09 includes: - - Right cover - - Right cover anti static brush - - Right cover grounding plate 8 40X0806 Pinch Roll Kit New 40X0806 (New) $27.77 40X0806 Pinch roll kit Fully refurbished with 90-day warranty 40X0806 $34.94 includes: - - Spring (2 each) - - Exit 2 pinch roll (2 each) 9 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 10 40X0610 Switch (left lower door interlock) New 40X0610 (New) $14.33 11 40X0809 Exit 2 Actuator Kit New 40X0809 (New) $24.21 includes: - - Exit 2 actuator - - Roller - - Spring 12 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 13 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 14 40X0808 Bin Full Actuator Kit New 40X0808 (New) $18.30 includes: - - Standard bin full exit 2 actuator inner - - Standard bin full exit 2 actuator outer - - Spring Note: Assembly index items 12 and 13 are identical sensors with different functions; therefore, they are the same part number with different descriptions.
