Please call for parts assistance

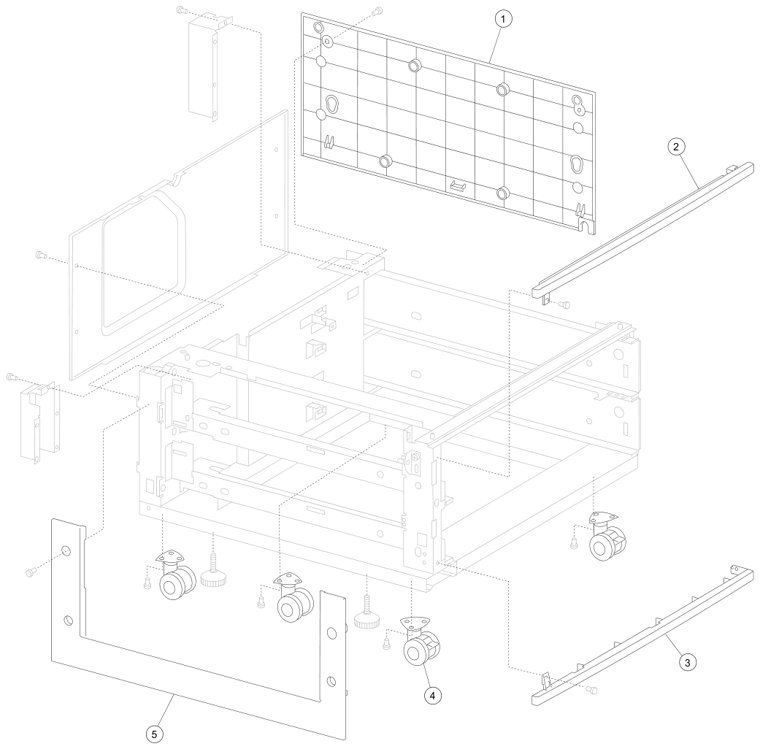

Assembly 1: 2X 500 -sheet drawer (2TM) -covers 1-1 40X0689 Right Cover New 40X0689 (New) $27.64 40X0689 Right Cover Fully refurbished with 90-day warranty 40X0689 $24.71 2 40X0687 Top Cover New 40X0687 (New) $24.71 40X0687 Top Cover Fully refurbished with 90-day warranty 40X0687 $50.57 3 40X0688 Foot Cover New 40X0688 (New) $24.71 40X0688 Foot Cover Fully refurbished with 90-day warranty 40X0688 $50.69 4 40X0691 Locking Caster New 40X0691 (New) $18.86 40X0691 Locking caster Fully refurbished with 90-day warranty 40X0691 $23.74 5 40X0690 Left Cover New 40X0690 (New) $26.38 40X0690 Left Cover Fully refurbished with 90-day warranty 40X0690 $55.51

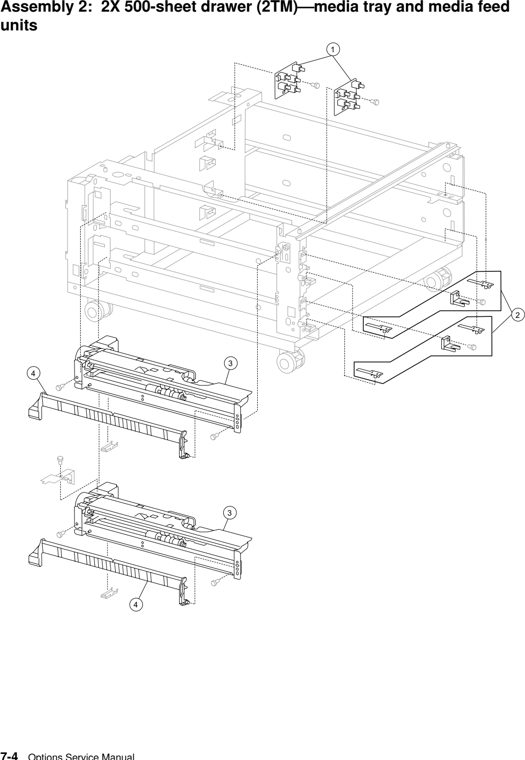

Assembly 2: 2X 500-sheet drawer (2TM) media tray and media feed units 2-1 40X0570 Switch (Media Size) New 40X0570 (New) $47.87 2 40X0569 Media Tray Catch Kit New 40X0569 (New) $19.55 40X0569 Media tray catch kit Fully refurbished with 90-day warranty 40X0569 $17.56 - - Media tray catch - - Media tray slide (2) 3 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 4 40X0572 Vertical Turn Guide New 40X0572 (New) $24.21 40X0572 Vertical turn guide Fully refurbished with 90-day warranty 40X0572 $19.71

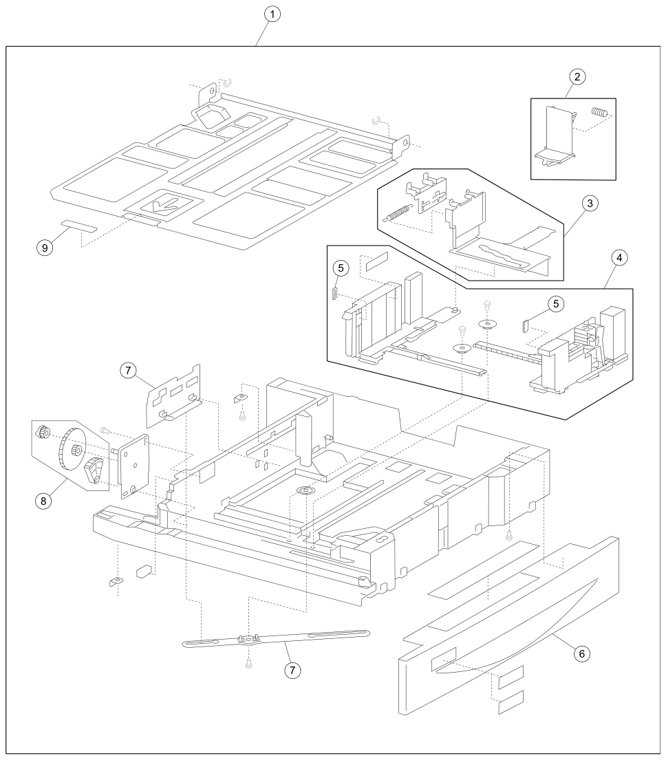

Assembly 3: 2X 500-sheet drawer (2TM) media tray 3-1 40X0573 Media Tray Assembly 500 Sheet New 40X0573 (New) $275.00 40X0573 Media Tray Assembly Fully refurbished with 90-day warranty 40X0573 $95.00 - - Media tray assembly - - Labels (2) 2 40X0578 Media Tray End Guide Kit New 40X0578 (New) $35.73 40X0578 Media Tray End Guide Kit Fully refurbished with 90-day warranty 40X0578 $29.11 - - Media tray end guide - - Spring 3 40X0577 Media Tray Side Guide Actuator Kit New 40X0577 (New) $82.31 40X0577 Media Tray Side Guide Actuator Kit Fully refurbished with 90-day warranty 40X0577 $67.13 - - Media tray side guide actuator - - Media tray side guide slide (2) - - Spring 4 40X0576 Media Tray Side Guide Kit New 40X0576 (New) $161.25 40X0576 Media Tray Side Guide Kit Fully refurbished with 90-day warranty 40X0576 $111.48 - - Media max label - - Front media tray guide assembly - - Rear media tray guide - - Pinion gear (2) 5 40X0966 Media tray separation brush 6 40X0574 Media Tray Front Cover New 40X0574 (New) $59.03 40X0574 Media Tray Front Cover Fully refurbished with 90-day warranty 40X0574 $48.14 7 40X0579 Media tray end guide actuator kit includes: - - Media end guide actuator - - Actuator link Note: The graphic shows two #7 callouts. These callouts are the two items that make up the media tray end guide actuator kit. 8 40X0580 Media Tray Lift Gear Kit New 40X0580 (New) $59.98 40X0580 Media Tray Lift Gear Kit Fully refurbished with 90-day warranty 40X0580 $45.25 kit includes: - - Tray lift coupling gear 13T - - Tray lift gear 13/60T - - Tray lift sector gear 12T 9 40X0580 Media Tray Lift Gear Kit New 40X0580 (New) $59.98

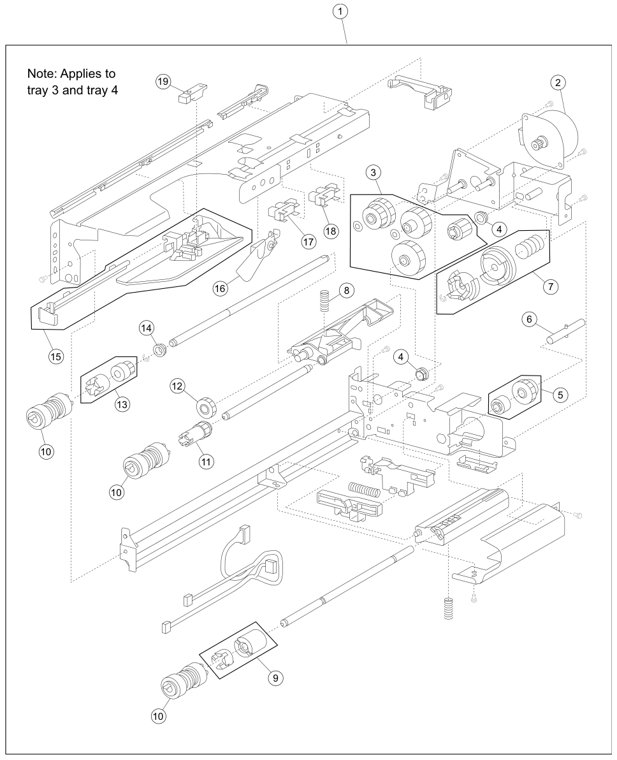

Assembly 4: 2X 500-sheet drawer (2TM) media feed unit 4-1 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 2 40X0582 Media feed lift motor New 40X0582 (New) $35.23 40X0582 Media feed lift motor Fully refurbished with 90-day warranty 40X0582 $28.71 3 40X0585 Media Feed Drive Gear Kit New 40X0585 (New) $43.89 - - Media feed unit drive gear 13T - - Media feed unit drive gear 28/21T - - Media feed unit drive gear 29T - - Media feed unit drive gear 27T - - 2 mm washer (2) Note: The graphic shows two #3 callouts. These callouts are the items that make up the media feed drive gear kit. 4 40X0880 Bushing 6 mm 5 40X0967 Media tray lift one-way clutch and gear New 40X0967 (New) $36.19 40X0967 Media tray lift one-way clutch and gear Fully refurbished with 90-day warranty 40X0967 $29.48 includes: - - Media tray lift one-way clutch - - Media tray lift one-way gear 6 40X0968 Media tray lift one-way shaft 7 40X0583 Tray Lift Coupling Kit New 40X0583 (New) $35.73 40X0583 Tray Lift Coupling Kit Fully refurbished with 90-day warranty 40X0583 $29.11 - - Tray lift coupling - - Tray lift coupling gear 31T - - Spring 8 40X0590 Pick Roll Assembly Spring New 40X0590 (New) $16.60 9 40X0593 Separation Roll Friction Clutch Kit New 40X0593 (New) $22.74 - - Separation roll one-way friction clutch - - Separation roll spacer 10 Sale40x0594 Feed Roll Kit (Qty 6) New 40x0594 (New) $94.71 $58.00 - - Feed roll (2) - - Pick roll (2) - - Separation roll (2) 11 40X0970 Pick roll drive gear 12 40X0969 Pick roll idler gear 13 40X0591 Feed Roll One-Way Clutch Kit New 40X0591 (New) $40.76 40X0591 Feed roll one-way clutch kit Fully refurbished with 90-day warranty 40X0591 $33.23 - - Feed roll one-way clutch - - Feed roll one-way gear 22T 14 40X0952 Bushing 6 mm 15 40X0586 Media Feed Unit Front Guide Kit New 40X0586 (New) $24.71 40X0586 Media Feed Unit Front Guide Kit Fully refurbished with 90-day warranty 40X0586 $25.00 - - Media feed unit front guide - - Media feed unit front guide rail 16 40X0587 Media Out Actuator New 40X0587 (New) $22.56 40X0587 Media Out Actuator Fully refurbished with 90-day warranty 40X0587 $20.29 17 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 18 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 19 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) New 40X0589 (New) $27.00 Note: Assembly index items 17 and 18 are identical sensors with different functions; therefore, are the same part number with different descriptions.

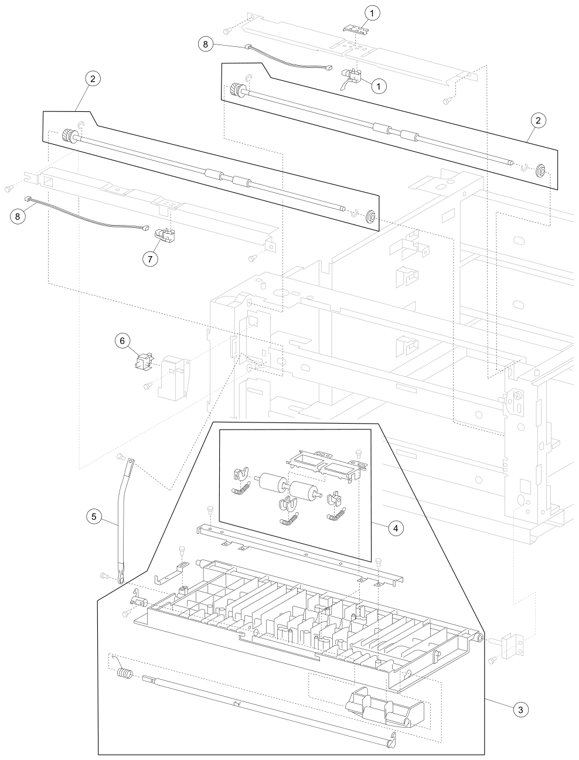

Assembly 5: 2X 500-sheet drawer (2TM)-left door 5-1 40X0692 Sensor (Tray 3 Feed-Out) Kit New 40X0692 (New) $52.92 - - Sensor (tray 3 feed-out) - - Sensor protector 2 40X0695 Media Transport Roll Assembly Kit New 40X0695 (New) $29.00 - - 2TM/TTM media transport roll assembly - - Bushing 8 mm 3 40X0733 Left Door Assembly (Assembled) New 40X0733 (New) $62.03 40X0733 Left Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0733 Contact for Details this comes assembled 4 40X0696 Left Door Pinch Roll Assembly (Assembled) New 40X0696 (New) $46.00 40X0696 Left door pinch roll assembly (assembled) Fully refurbished with 90-day warranty 40X0696 $35.37 5 40X0697 2TM/TTM left door support strap 6 40X0610 Switch (2TM/TTM left door interlock) 7 40X0694 Sensor (tray 4 feed-out) 8 40X0693 Sensor Cable Kit New 40X0693 (New) $31.61 40X0693 Sensor cable kit Fully refurbished with 90-day warranty 40X0693 $39.76 - - Tray 3 feed-out sensor cable - - Tray 4 feed-out sensor cable

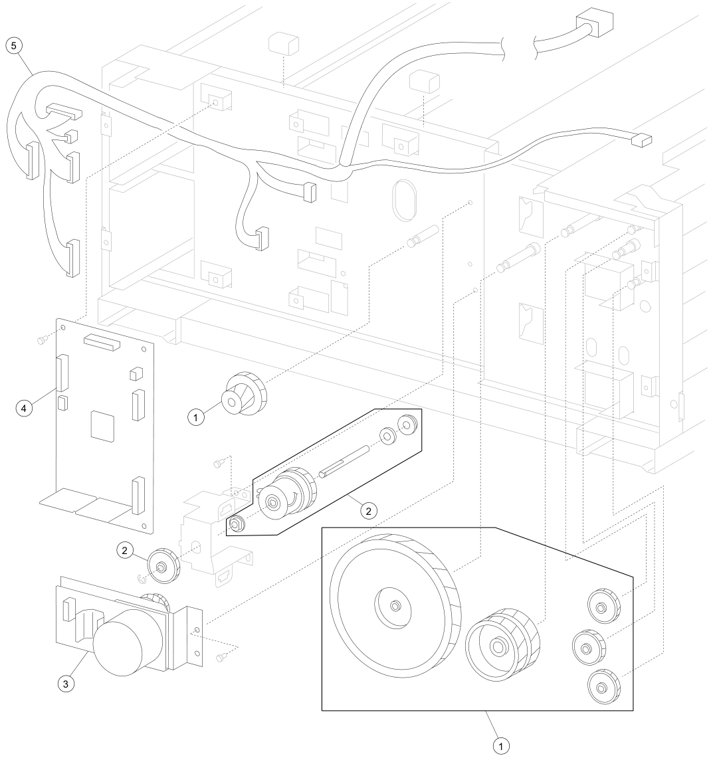

Assembly 6: 2X 500 -sheet drawer (2TM) -drive and electrical 6-1 40X0701 2TM drive gear kit includes: - - 2TM drive gear 22T/40T - - 2TM drive gear 126T - - 2TM drive gear 60T - - 2TM drive gear 37T (2) - - 2TM drive gear 32T 2 40X0699 Clutch Kit New 40X0699 (New) $33.07 40X0699 Clutch kit Fully refurbished with 90-day warranty 40X0699 $26.96 - - 2TM/TTM clutch assembly - - Shaft - - Bushing 8 mm - - Clutch gear 38T - - Bushing 8 mm - - Washer Warning: When replacing the 2TM/TTM drive motor, the serial number must be verified inside the option drawer. 3 40X0700 Drive Motor New 40X0700 (New) $275.06 40X0700 Drive motor Fully refurbished with 90-day warranty 40X0700 $115.00 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -20-, then order this FRU. 3 40X3664 Drive motor New 40X3664 (New) $279.05 40X3664 Drive motor Fully refurbished with 90-day warranty 40X3664 $51.71 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -87-, then order this FRU. 4 40X2735 2x 500-Sheet Drawer Dual Input Controller Card Assembly New 40X2735 (New) $49.53 40X2735 2x 500-Sheet Drawer Dual Input Controller card assembly Fully refurbished with 90-day warranty 40X2735 $28.96 Warning: When replacing the 2TM main cable, the serial number must be verified inside the option drawer. 5 40X0702 2TM main cable assembly 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -20-, then order this FRU. 5 40X3665 2TM main cable assembly 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -87-, then order this FRU.
Assembly 7: 2000-sheet dual input (TTM) -covers 7-1 40X0687 Top Cover New 40X0687 (New) $24.71 40X0687 Top Cover Fully refurbished with 90-day warranty 40X0687 $50.57 2 40X0688 Foot Cover New 40X0688 (New) $24.71 40X0688 Foot Cover Fully refurbished with 90-day warranty 40X0688 $50.69 3 40X0689 Right Cover New 40X0689 (New) $27.64 40X0689 Right Cover Fully refurbished with 90-day warranty 40X0689 $24.71 4 40X0703 Tray support roll (4) 5 40X0691 Locking Caster New 40X0691 (New) $18.86 40X0691 Locking caster Fully refurbished with 90-day warranty 40X0691 $23.74 6 40X0704 Tray 4 Stopper New 40X0704 (New) $19.78 40X0704 Tray 4 stopper Fully refurbished with 90-day warranty 40X0704 $17.77 7 40X0690 Left Cover New 40X0690 (New) $26.38 40X0690 Left Cover Fully refurbished with 90-day warranty 40X0690 $55.51
Assembly 8: 2000-sheet dual input (TTM) -tray 3 8-1 40X0712 Tray 3 Media Guide Lock Kit New 40X0712 (New) $24.71 40X0712 Tray 3 media guide lock kit Fully refurbished with 90-day warranty 40X0712 $35.78 - - Tray 3 media guide lock button - - Tray 3 media guide lock shaft - - Spring 2 40X0953 Tray lift pulley kit New 40X0953 (New) $23.48 - - TTM tray lift pulley (4) - - Pulley guide (4) 3 40X0710 Tray 3 Front Cable (2) New 40X0710 (New) $17.74 40X0710 Tray 3 front cable (2) Fully refurbished with 90-day warranty 40X0710 $21.36 4 40X0705 Tray 3 Front Cover Kit New 40X0705 (New) $72.56 Make an Offer 40X0705 Tray 3 front cover kit Fully refurbished with 90-day warranty 40X0705 $74.05 - - Tray 3 front cover - - Tray 3 tray handle 5 40X0713 Media Guide Rack And Pinion Kit New 40X0713 (New) $70.00 40X0713 Media Guide Rack And Pinion Kit Fully refurbished with 90-day warranty 40X0713 $54.37 - - Media guide rack gear (2) - - Media guide pinion gear (2) 6 40X0714 TTM media tray catch 7 40X0706 Lift cable pulley 8 40X0715 Tray 3 Brake Assembly New 40X0715 (New) $23.11 40X0715 Tray 3 brake assembly Fully refurbished with 90-day warranty 40X0715 $29.10 9 40X0707 Tray Lift Shaft Assembly New 40X0707 (New) $79.00 40X0707 Tray lift shaft assembly Fully refurbished with 90-day warranty 40X0707 $45.00 10 40X0716 Tray 3 slide kit New 40X0716 (New) $22.88 - - Tray 3 slide strip (2) - - Tray 3 slide button (2) 11 40X0709 Tray 3 rear cable (2) 12 40X0708 Large Idler Pulley Kit New 40X0708 (New) $16.27 40X0708 Large idler pulley kit Fully refurbished with 90-day warranty 40X0708 $19.57 - - Large idler pulley - - Large idler guide 13 40X0717 Mylar Actuator New 40X0717 (New) $14.97 40X0717 Mylar actuator Fully refurbished with 90-day warranty 40X0717 $13.44 14 40X0711 Tray Separator Kit New 40X0711 (New) $13.39 - - TTM tray separation pad - - TTM tray brush (2)
Assembly 9: 2000-sheet dual input (TTM) -tray 4 9-1 40X0721 Tray 4 Media Guide Lock Kit New 40X0721 (New) $24.71 40X0721 Tray 4 media guide lock kit Fully refurbished with 90-day warranty 40X0721 $37.14 - - Tray 4 media guide lock button - - Tray 4 media guide lock shaft - - Spring 2 40X0711 Tray Separator Kit New 40X0711 (New) $13.39 - - TTM tray separation pad - - TTM tray brush (2) 3 40X0722 Tray 4 Brake Kit New 40X0722 (New) $23.13 40X0722 Tray 4 brake kit Fully refurbished with 90-day warranty 40X0722 $29.11 - - Tray 4 brake assembly - - Tray 4 brake gear 18T 4 40X0953 Tray lift pulley kit New 40X0953 (New) $23.48 40X0953 Tray lift pulley kit Fully refurbished with 90-day warranty 40X0953 $32.05 kit includes: - - TTM tray lift pulley (4) - - Pulley guide (4) 5 40X0720 Tray 4 front cable (2) 6 40X0718 Tray 4 Front Cover New 40X0718 (New) $82.34 40X0718 Tray 4 front cover Fully refurbished with 90-day warranty 40X0718 $67.17 7 40X0706 Lift cable pulley 8 40X0714 TTM media tray catch 9 40X0707 Tray Lift Shaft Assembly New 40X0707 (New) $79.00 40X0707 Tray lift shaft assembly Fully refurbished with 90-day warranty 40X0707 $45.00 10 40X0713 Media Guide Rack And Pinion Kit New 40X0713 (New) $70.00 40X0713 Media Guide Rack And Pinion Kit Fully refurbished with 90-day warranty 40X0713 $54.37 - - Media guide rack gear (2) - - Media guide pinion gear (2) 11 40X0723 Tray 4 rear support roll (2) 12 40X0719 Tray 4 rear cable (2) 13 40X0717 Mylar Actuator New 40X0717 (New) $14.97 40X0717 Mylar actuator Fully refurbished with 90-day warranty 40X0717 $13.44
Assembly 10: 2000-sheet dual input (TTM) -feed and transport 10-1 40X0729 Switch (Media Size Switch) New 40X0729 (New) $46.60 40X0729 Switch (Media Size Switch) Fully refurbished with 90-day warranty 40X0729 $38.78 2 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 3 40X0728 Tray 4 Media Guide Kit New 40X0728 (New) $148.64 40X0728 Tray 4 Media Guide Kit Fully refurbished with 90-day warranty 40X0728 $142.90 - - Tray 4 upper media guide - - Tray 4 lower media guide 4 40X0727 Sensor (tray 4 feed-out) 5 40X0730 Tray 4 Feed-Out Sensor Cable Assembly New 40X0730 (New) $17.80 40X0730 Tray 4 feed-out sensor cable assembly Fully refurbished with 90-day warranty 40X0730 $21.40 6 40X0724 Tray 4 Media Transport Assembly New 40X0724 (New) $74.70 40X0724 Tray 4 media transport assembly Fully refurbished with 90-day warranty 40X0724 $60.94
Assembly 11: 2000-sheet dual input (TTM) -feed and transport 11-1 40X0692 Sensor (Tray 3 Feed-Out) Kit New 40X0692 (New) $52.92 40X0692 Sensor (Tray 3 Feed-Out) Kit Fully refurbished with 90-day warranty 40X0692 $43.16 - - Sensor (tray 3 feed-out) - - Sensor protector 2 40X0732 Upper Vertical Turn Guide Fully refurbished with 90-day warranty 40X0732 Contact for Details 40X0732 Upper Vertical Turn Guide New 40X0732 (New) $92.00 3 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 4 40X0572 Vertical Turn Guide New 40X0572 (New) $24.21 40X0572 Vertical turn guide Fully refurbished with 90-day warranty 40X0572 $19.71 5 40X0695 Media Transport Roll Assembly Kit New 40X0695 (New) $29.00 40X0695 Media transport roll assembly kit Fully refurbished with 90-day warranty 40X0695 $22.27 - - 2TM/TTM media transport roll assembly - - Bushing 8 mm 6 40X0693 Sensor Cable Kit New 40X0693 (New) $31.61 40X0693 Sensor cable kit Fully refurbished with 90-day warranty 40X0693 $39.76 - - Tray 3 feed-out sensor cable - - Tray 4 feed-out sensor cable
Assembly 12: 2000-sheet dual input (TTM) -media feed unit 12-1 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $95.00 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $51.71 2 40X0582 Media feed lift motor New 40X0582 (New) $35.23 40X0582 Media feed lift motor Fully refurbished with 90-day warranty 40X0582 $28.71 3 40X0585 Media Feed Drive Gear Kit New 40X0585 (New) $43.89 - - Media feed unit drive gear 13T - - Media feed unit drive gear 28/21T - - Media feed unit drive gear 29T - - Media feed unit drive gear 27T - - 2 mm washer (2) Note: The graphic shows two #3 callouts. These callouts are the items that make up the media feed drive gear kit. 4 40X0880 Bushing 6 mm 5 40X0967 Media tray lift one-way clutch and gear New 40X0967 (New) $36.19 40X0967 Media tray lift one-way clutch and gear Fully refurbished with 90-day warranty 40X0967 $29.48 - - Media tray lift one-way clutch - - Media tray lift one-way gear 6 40X0968 Media tray lift one-way shaft New 40X0968 (New) $33.60 40X0968 Media tray lift one-way shaft Fully refurbished with 90-day warranty 40X0968 $27.38 7 40X0583 Tray Lift Coupling Kit New 40X0583 (New) $35.73 40X0583 Tray Lift Coupling Kit Fully refurbished with 90-day warranty 40X0583 $29.11 kit includes: - - Tray lift coupling - - Tray lift coupling gear 31T - - Spring 8 40X0590 Pick Roll Assembly Spring New 40X0590 (New) $16.60 9 40X0593 Separation Roll Friction Clutch Kit New 40X0593 (New) $22.74 - - Separation roll one-way friction clutch - - Separation roll spacer 10 Sale40x0594 Feed Roll Kit (Qty 6) New 40x0594 (New) $94.71 $58.00 - - Feed roll (2) - - Pick roll (2) - - Separation roll (2) 11 40X0970 Pick roll drive gear 12 40X0969 Pick roll idler gear 13 40X0591 Feed Roll One-Way Clutch Kit New 40X0591 (New) $40.76 - - Feed roll one-way clutch - - Feed roll one-way gear 22T 14 40X0952 Bushing 6 mm 15 40X0586 Media Feed Unit Front Guide Kit New 40X0586 (New) $24.71 40X0586 Media Feed Unit Front Guide Kit Fully refurbished with 90-day warranty 40X0586 $25.00 - - Media feed unit front guide - - Media feed unit front guide rail 16 40X0587 Media Out Actuator New 40X0587 (New) $22.56 17 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 18 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 19 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) New 40X0589 (New) $27.00 Note: Assembly index items 17 and 18 are identical sensors with different functions; therefore, are the same part number with different descriptions.
Assembly 13: 2000-sheet dual input (TTM) -left door 13-1 40X0733 Left Door Assembly (Assembled) New 40X0733 (New) $62.03 40X0733 Left Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0733 Contact for Details 2 40X0696 Left Door Pinch Roll Assembly (Assembled) New 40X0696 (New) $46.00 40X0696 Left door pinch roll assembly (assembled) Fully refurbished with 90-day warranty 40X0696 $35.37 3 40X0697 2TM/TTM left door support strap 4 40X0610 Switch (2TM/TTM left door interlock)
Assembly 14: 2000-sheet dual input (TTM) -drive and electrical 14-1 40X0736 Drive Gear Kit New 40X0736 (New) $72.28 40X0736 Drive Gear Kit Fully refurbished with 90-day warranty 40X0736 $52.62 - - TTM drive gear 22/40T - - TTM drive gear 37T (2) - - TTM drive gear 32T - - TTM drive gear 60T (2) - - TTM drive gear 60T - - TTM drive gear bracket assembly 2 40X0734 Tray 3 Lift Gear Assembly New 40X0734 (New) $99.88 40X0734 Tray 3 Lift Gear Assembly Fully refurbished with 90-day warranty 40X0734 $32.26 3 40X0699 Clutch Kit New 40X0699 (New) $33.07 40X0699 Clutch kit Fully refurbished with 90-day warranty 40X0699 $26.96 - - 2TM/TTM clutch assembly - - Shaft - - Bushing 8 mm - - Clutch gear 38T - - Bushing 8 mm - - Washer Warning: When replacing the 2TM/TTM drive motor, the serial number must be verified inside the option drawer. 4 40X0700 Drive Motor New 40X0700 (New) $275.06 40X0700 Drive motor Fully refurbished with 90-day warranty 40X0700 $115.00 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -20-, then order this FRU. 4 40X3664 Drive motor New 40X3664 (New) $279.05 40X3664 Drive motor Fully refurbished with 90-day warranty 40X3664 $51.71 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -87-, then order this FRU. 5 40X0735 Tray 4 Lift Gear Assembly New 40X0735 (New) $60.00 40X0735 Tray 4 lift gear assembly Fully refurbished with 90-day warranty 40X0735 $41.00 Warning: When replacing the TTM main cable, the serial number must be verified inside the option drawer. 6 40X0737 Main Cable Assembly New 40X0737 (New) $168.00 40X0737 Main Cable Assembly Fully refurbished with 90-day warranty 40X0737 $116.59 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -20-, then order this FRU. 6 40X3666 Main cable assembly New 40X3666 (New) $63.12 40X3666 Main cable assembly Fully refurbished with 90-day warranty 40X3666 $63.41 1. Remove the media tray 2. 2. Fully open the media trays 3 and 4. 3. Verify the first two digits on the serial number label. 4. If the first two digits are -87-, then order this FRU. 7 40X2735 2x 500-Sheet Drawer Dual Input Controller Card Assembly New 40X2735 (New) $49.53 40X2735 2x 500-Sheet Drawer Dual Input Controller card assembly Fully refurbished with 90-day warranty 40X2735 $28.96
Assembly 15: High capacity feed (HCF) -covers and media tray 15-1 40X0738 Top cover New 40X0738 (New) $68.00 40X0738 Top cover Fully refurbished with 90-day warranty 40X0738 $52.57 2 40X0745 Docking Bracket Kit New 40X0745 (New) $74.28 - - HCF docking bracket - - HCF docking bracket screw (2) 3 40X0746 Inner Front Cover New 40X0746 (New) $24.50 4 40X0740 HCF docking latch kit includes: - - HCF docking latch - - Spring 5 40X0739 Sensor (HCF media tray set) 6 40X0741 Caster 7 40X0742 Left Cover New 40X0742 (New) $92.00 40X0742 Left cover Fully refurbished with 90-day warranty 40X0742 $71.39 8 40X0739 Sensor (HCF media size L) 9 40X0739 Sensor (HCF media size R) 10 40X0743 Rear Cover New 40X0743 (New) $89.70
Assembly 16: High capacity feed (HCF) -media tray 16-1 40X0747 Media Tray Front Cover (Assembled) New 40X0747 (New) $84.92 2 40X0740 HCF docking latch kit includes: - - HCF docking latch - - Spring 3 40X0749 Media Long Edge Guide Kit (Assembled) New 40X0749 (New) $198.04 - - HCF media long edge guide assembly - - Wave washer
Assembly 17: High capacity feed (HCF) -media tray lift 17-1 40X0750 Rear Media Guide Kit New 40X0750 (New) $117.00 - - HCF rear media guide - - Screw 2 40X0966 HCF media tray separation brush 3 40X0751 Front Media Edge Guide Kit New 40X0751 (New) $102.71 - - HCF front media guide - - Screw 4 40X0752 HCF separation pad 5 40X0757 Lift Cable Kit New 40X0757 (New) $23.54 - - HCF lift cable (4) - - HCF lift cable pulley (4) - - HCF lift cable guide (4) 6 40X0754 Media Tray Lift Shaft Kit New 40X0754 (New) $199.92 - - Bushing 8 mm front - - HCF media tray lift shaft - - Bushing 8 mm rear - - Washer - - HCF media tray lift shaft cable pulley - - HCF media tray lift shaft gear 10T - - HCF media tray lift shaft gear 51T 7 40X0753 Media Tray Lift Gear Bracket Assembly (Assembled) New 40X0753 (New) $59.35 8 40X0756 HCF lift cable large pulley kit includes: - - HCF lift cable large pulley - - HCF lift cable large guide
Assembly 18: High capacity feed (HCF) -media feed unit 18-1 40X0758 Feed Unit Assembly (Assembled) New 40X0758 (New) $214.00 2 40X0759 Feed Lift Motor New 40X0759 (New) $88.07 3 40X0760 Feed Lift Gear Bracket Assembly New 40X0760 (New) $85.59 4 40X0913 Ball bearing 6 mm 5 40X0761 Separation Drive Gear Kit New 40X0761 (New) $29.38 - - HCF separation drive gear 25T - - Bushing 6 mm - - HCF separation drive gear 19T 6 40X0762 Pick Solenoid Assembly New 40X0762 (New) $79.46 7 40X0763 Media Tray Lift Coupling Kit New 40X0763 (New) $31.22 - - HCF media tray lift coupling gear 40T - - Spring - - HCF media tray lift coupling 8 40X0771 Separation Roll Shaft Assembly (Assembled) New 40X0771 (New) $21.38 9 40X0766 Feed Unit Cable Assembly New 40X0766 (New) $65.84
Assembly 19: High capacity feed (HCF) -media feed unit 19-1 40X0758 Feed Unit Assembly (Assembled) New 40X0758 (New) $214.00 2 40X0764 Feed Unit Latch Kit New 40X0764 (New) $49.12 - - HCF feed unit latch (2) - - Spring - - HCF feed unit latch shaft - - HCF feed unit latch cover 3 40X0589 Sensor (pre-feed) 4 40X0765 HCF pick roll idler gear 5 40X0768 Sensor (media out) 6 40X0768 Sensor (media level) 7 40X0767 HCF media out actuator 8 40X0769 Pick Roll Shaft Kit New 40X0769 (New) $79.82 - - HCF pick roll shaft assembly - - Bushing 6 mm 9 40X0770 Feed Unit Roll Kit New 40X0770 (New) $39.00 - - HCF feed roll - - HCF pick roll - - HCF separation roll 10 40X0766 Feed Unit Cable Assembly New 40X0766 (New) $65.84
Assembly 20: High capacity feed (HCF) -top door and transport 20-1 40X0773 Top Door Kit New 40X0773 (New) $159.40 - - HCF top door - - HCF top door shaft - - HCF top door spring R - - HCF top door spring L 2 40X0553 Switch (HCF top door interlock) 3 40X0774 Sensor (tray 5 feed-out) 4 40X0775 Media Transport Roll Kit New 40X0775 (New) $45.57 - - HCF media transport roll assembly - - Ball bearing 8 mm 5 40X0777 Switch (Unit Docking Interlock) New 40X0777 (New) $28.36 6 40X0776 Transport Motor New 40X0776 (New) $84.14
Assembly 21: High capacity feed (HCF) -electrical 21-1 40X0779 Main Cable Assembly New 40X0779 (New) $151.31 2 40X0778 Controller Card Assembly New 40X0778 (New) $190.08

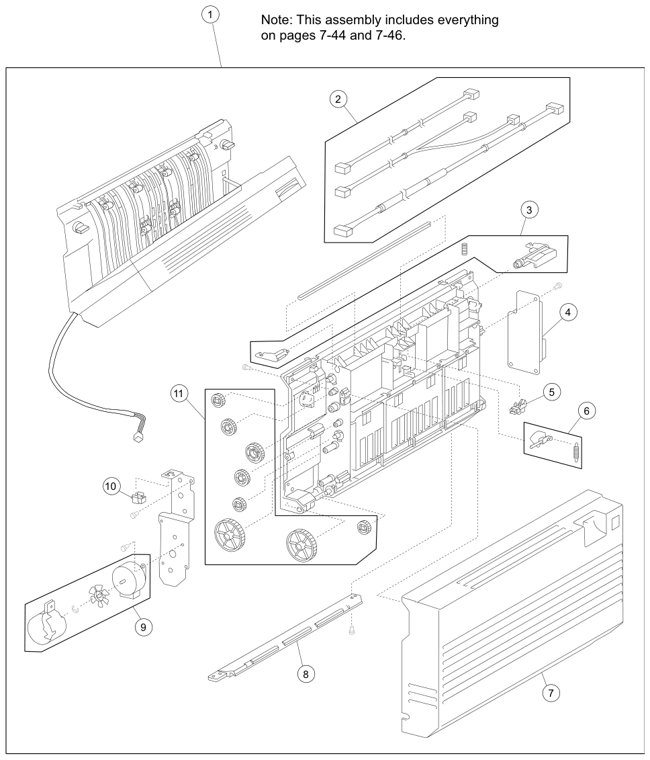

Assembly 22: Duplex outer 22-1 40X0780 Duplex Unit Assembly (Assembled) New 40X0780 (New) $97.21 40X0780 Duplex Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0780 $44.57 2 40X0788 Duplex Cable Kit New 40X0788 (New) $88.07 40X0788 Duplex Cable Kit Fully refurbished with 90-day warranty 40X0788 $71.84 - - Duplex sensor cable assembly - - Duplex motor cable assembly - - Duplex main cable assembly 3 40X0782 Duplex Left Door Handle Kit New 40X0782 (New) $153.03 40X0782 Duplex Left Door Handle Kit Fully refurbished with 90-day warranty 40X0782 $111.52 - - Duplex left door handle latch - - Duplex left door handle - - Spring 4 40X0786 Duplex Controller Card Assembly New 40X0786 (New) $608.24 40X0786 Duplex Controller Card Assembly Fully refurbished with 90-day warranty 40X0786 $467.81 5 40X0588 Sensor (duplex wait) 6 40X0784 Duplex wait actuator kit includes: - - Duplex wait actuator - - Spring 7 40X0787 Duplex Left Cover New 40X0787 (New) $84.73 40X0787 Duplex Left Cover Fully refurbished with 90-day warranty 40X0787 $69.10 8 40X0783 Duplex Lower Guide New 40X0783 (New) $22.98 40X0783 Duplex lower guide Fully refurbished with 90-day warranty 40X0783 $20.65 9 40X0785 Duplex Drive Motor Kit New 40X0785 (New) $188.95 40X0785 Duplex Drive Motor Kit Fully refurbished with 90-day warranty 40X0785 $137.70 - - Duplex drive motor - - Duplex drive motor cooling fan - - Duplex drive motor cooling fan shroud 10 40X0610 Switch (duplex left door interlock) 11 40X0781 Duplex Drive Gear Kit New 40X0781 (New) $236.89 40X0781 Duplex Drive Gear Kit Fully refurbished with 90-day warranty 40X0781 $182.15 - - Duplex drive gear 28T (3) - - Duplex drive gear 33/74T (2) - - Duplex drive gear 33T (2) - - Duplex drive gear 42T

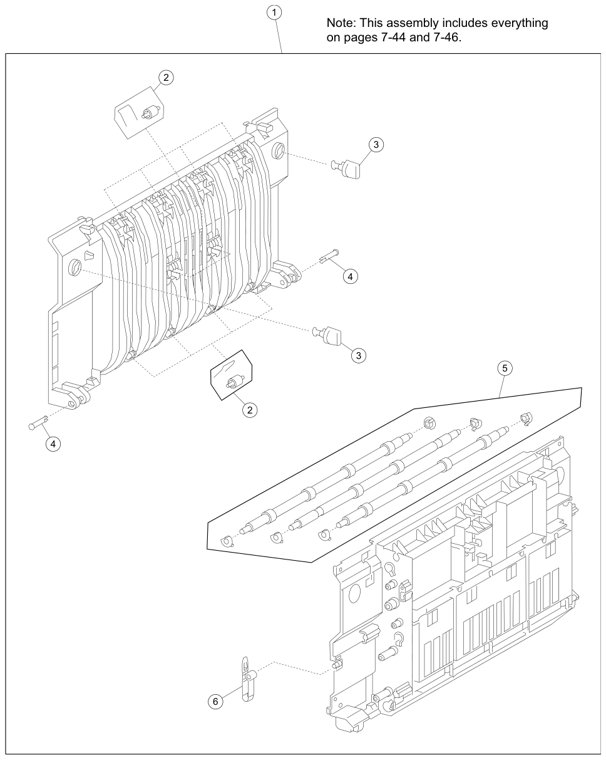

Assembly 23: Duplex inner 23-1 40X0780 Duplex Unit Assembly (Assembled) New 40X0780 (New) $97.21 40X0780 Duplex Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0780 $44.57 2 40X0792 Duplex Media Transport Pinch Roll Kit New 40X0792 (New) $57.00 40X0792 Duplex media transport pinch roll kit Fully refurbished with 90-day warranty 40X0792 Contact for Details - - Duplex media transport pinch roll (10) - - Spring (10) 3 40X0790 Docking Lock (2) New 40X0790 (New) $53.64 40X0790 Docking lock (2) Fully refurbished with 90-day warranty 40X0790 $43.73 4 40X0791 Hinge Pin (2) New 40X0791 (New) $69.59 40X0791 Hinge pin (2) Fully refurbished with 90-day warranty 40X0791 $56.76 5 40X0793 Duplex Media Transport Roll Kit New 40X0793 (New) $118.39 40X0793 Duplex media transport roll kit Fully refurbished with 90-day warranty 40X0793 $98.62 - - Bushing 6 mm (6) - - Duplex media transport roll (2) - - Duplex media center transport roll 6 40X0789 Duplex Left Door Support Strap New 40X0789 (New) $69.85 40X0789 Duplex left door support strap Fully refurbished with 90-day warranty 40X0789 $56.98
Assembly 24: Exit 2 outer 24-1 40X0794 Exit 2 Unit Assembly (Assembled) New 40X0794 (New) $182.93 40X0794 Exit 2 Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0794 $140.65 Make an Offer 2 40X0800 Rear Cover New 40X0800 (New) $18.72 40X0800 Rear cover Fully refurbished with 90-day warranty 40X0800 $23.60 3 40X0797 Exit 2 Left Door Support Strap New 40X0797 (New) $37.00 40X0797 Exit 2 left door support strap Fully refurbished with 90-day warranty 40X0797 $28.00 4 40X0795 Exit 2 Left Door Handle Kit New 40X0795 (New) $55.00 40X0795 Exit 2 Left Door Handle Kit Fully refurbished with 90-day warranty 40X0795 $44.00 - - Exit 2 left door handle - - Spring 5 40X0796 Media Diverter Gate Kit New 40X0796 (New) $93.00 40X0796 Media Diverter Gate Kit Fully refurbished with 90-day warranty 40X0796 $73.00 - - Media diverter gate - - Spring 6 40X0798 Left Cover New 40X0798 (New) $51.00 40X0798 Left Cover Fully refurbished with 90-day warranty 40X0798 $38.00 7 40X0799 Front Cover New 40X0799 (New) $23.79 40X0799 Front Cover Fully refurbished with 90-day warranty 40X0799 $21.38
Assembly 25: Exit 2 inner 25-1 40X0794 Exit 2 Unit Assembly (Assembled) New 40X0794 (New) $182.93 40X0794 Exit 2 Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40X0794 $140.65 Make an Offer 2 40X0807 Exit 2 Cooling Fan New 40X0807 (New) $20.98 40X0807 Exit 2 cooling fan Fully refurbished with 90-day warranty 40X0807 $26.44 3 40X0802 Docking Latch Kit New 40X0802 (New) $32.25 40X0802 Docking latch kit Fully refurbished with 90-day warranty 40X0802 $32.53 - - Exit 2 docking latch (2) - - Exit 2 docking latch spring front - - Exit 2 docking latch spring rear 4 40X0803 Exit 2 Media Shift Gear New 40X0803 (New) $17.27 40X0803 Exit 2 media shift gear Fully refurbished with 90-day warranty 40X0803 $21.75 5 40X0805 Media Diverter Solenoid Kit New 40X0805 (New) $51.69 40X0805 Media diverter solenoid kit Fully refurbished with 90-day warranty 40X0805 $64.99 - - Media diverter solenoid - - Media diverter link 6 40X2389 Output guide 7 40X0801 Right Cover Kit New 40X0801 (New) $68.64 40X0801 Right cover kit Fully refurbished with 90-day warranty 40X0801 $88.09 - - Right cover - - Right cover anti static brush - - Right cover grounding plate 8 40X0806 Pinch Roll Kit New 40X0806 (New) $27.77 40X0806 Pinch roll kit Fully refurbished with 90-day warranty 40X0806 $34.94 - - Spring (2) - - Exit 2 pinch roll (2) 9 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 10 40X0610 Switch (exit 2 left door interlock) 11 40X0809 Exit 2 Actuator Kit New 40X0809 (New) $24.21 40X0809 Exit 2 actuator kit Fully refurbished with 90-day warranty 40X0809 $21.75 - - Exit 2 actuator - - Roller - - Spring 12 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 13 40X0588 Sensor New 40X0588 (New) See also 41x3975 $16.33 14 40X0808 Bin Full Actuator Kit New 40X0808 (New) $18.30 40X0808 Bin full actuator kit Fully refurbished with 90-day warranty 40X0808 $23.05 - - Exit 2 bin full actuator inner - - Exit 2 bin full actuator outer - - Spring Note: Assembly index items 12 and 13 are identical sensors with different functions; therefore, are the same part number with different descriptions.
