Lexmark C736 Parts

-- select -- AMT Datasouth Parts Brother Printer Parts Canon imagePROGRAF iPF610 Parts Compuprint Parts Dascom Parts Dell Laser Printer Parts Epson Parts Fujitsu Printer Parts Genicom Parts Godex Printer Parts HP Parts for Printers, MFPs, & Scanners IBM Infoprint Parts Ithaca Parts Konica Parts Lexmark Parts for Printers and Scanners Oki Parts (Okidata Parts) Olivetti Parts OTC (Output Technology) Parts Printek Parts Printronix Parts PSI Parts Ricoh Parts Samsung Printer and MFP Parts Sato Parts Sharp Printer Parts Source Technologies Parts Tally Parts Tharo Parts Toshiba Parts TSC Parts Videojet Spare Parts Visioneer Parts Xerox Parts Zebra Parts

-- select -- Lexmark Color Laser Printer Parts Lexmark Impact Printer Parts Lexmark MFP Parts Lexmark Mono Laser Parts Lexmark Specialized Printer Parts

-- select -- Lexmark 5-Bin Mailbox (Color Laser) Parts Lexmark C3224 Parts Lexmark C500 Parts Lexmark C510 Parts Lexmark C520 Parts Lexmark C522 & C523 Parts Lexmark C524 Parts Lexmark C530 Parts Lexmark C532 Parts Lexmark C534 Parts Lexmark C540 Parts Lexmark C543 Parts Lexmark C544 Parts Lexmark C546 Parts Lexmark C710 Parts Lexmark C720 Parts Lexmark C734 Parts Lexmark C736 Parts Lexmark C746 & C748 Parts Lexmark C750 Parts Lexmark C752 Parts Lexmark C75x & C76x Options Parts Lexmark C760 & C762 Parts (5060) Lexmark C770 & C772 Parts Lexmark C780 & C782 Parts Lexmark C792 (c792 c795 cs796 cs797 cs798 cs799) Parts Lexmark C910 & C912 Parts Lexmark C920 Parts Lexmark C925 Parts Lexmark C935 Parts Lexmark C935 X940 X945 Finisher Parts Lexmark C950 Parts Lexmark CS310 CS410 CS510 Parts Lexmark CS331 CS431 CS439 C2326 C3224 C3326 C3426 Parts Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts Lexmark CS531 CS632 C2335 Parts Lexmark CS720 CS725 & C4150 Parts Lexmark CS730 CS735 C4342 C4352 Parts Lexmark CS737 Parts Lexmark CS820 C6160 Family Parts Lexmark CS921 C9235 CS927 Parts Lexmark CS923 Parts Lexmark CS943 Parts Lexmark Duplexer (Color Laser) Parts Lexmark Finisher (C77x, C78x) Parts Lexmark Hi-Cap Drawer Parts (Optra S and T) Lexmark Output Expander (Color Lasers) Parts

Please call for parts assistance

Looking for whole machines? Click here

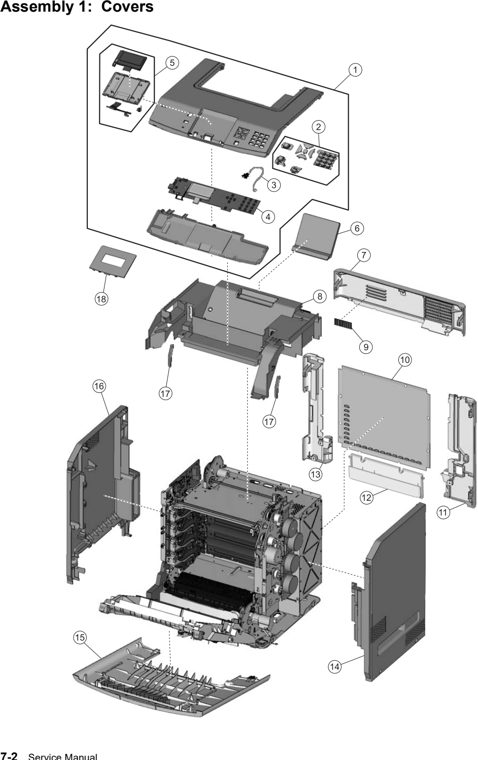

1-1 40X5114 Top Access Cover Assembly Fully refurbished with 90-day warranty 40X5114 $41.96 40X5114 Top Access Cover Assembly New 40X5114 (New) $61.46 2 40X5120 Operator panel buttons parts package, including: - - Back button - - Menu button - - Stop button - - Navigation select button - - Navigation up button - - Navigation down button - - Navigation left button - - Navigation right button - - Number pad buttons 3 40X5121 Bin full sensor with cable 4 40X5117 Operator Panel Assembly With Card New 40X5117 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $86.84 40X5117 Operator panel assembly with card Fully refurbished with 90-day warranty 40X5117 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $70.84 5 40X5118 Top access cover parts package, including - - Display detent spring - - Bin full flag - - Operator panel lens - - Display back bezel 6 40X5106 Output bin extension cover New 40X5106 (New) $10.08 7 40X5099 Top cover assembly New 40X5099 (New) $49.09 40X5099 Top cover assembly Fully refurbished with 90-day warranty 40X5099 $30.91 8 40X5103 Rear upper cover New 40X5103 (New) $14.72 40X5103 Rear upper cover Fully refurbished with 90-day warranty 40X5103 Contact for Details 9 40X5145 Rear frame cover New 40X5145 (New) $18.94 40X5145 Rear frame cover Fully refurbished with 90-day warranty 40X5145 $12.52 10 40X5287 Cooling fan filter 11 40X5105 Rear right cover New 40X5105 (New) $16.98 40X5105 Rear right cover Fully refurbished with 90-day warranty 40X5105 Contact for Details 12 40X5153 Dust cover assembly New 40X5153 (New) $26.00 40X5153 Dust cover assembly Fully refurbished with 90-day warranty 40X5153 Contact for Details 13 40X5104 Rear left cover New 40X5104 (New) $14.25 40X5104 Rear left cover Fully refurbished with 90-day warranty 40X5104 Contact for Details 14 40X5101 Right cover Fully refurbished with 90-day warranty 40X5101 $21.71 40X5101 Right Cover New 40X5101 (New) $24.71 15 40X5110 Front access door cover assembly Fully refurbished with 90-day warranty 40X5110 $36.85 40X5110 Front Access Door Cover Assembly New 40X5110 (New) $25.71 16 40X5102 Left cover Fully refurbished with 90-day warranty 40X5102 Contact for Details 40X5102 Left cover New 40X5102 (New) $25.16 17 40X5119 Top access cover links (slider cam) New 40X5119 (New) $10.25 (Note: The left link is also available in the top access cover assembly-40X5114, and the right link is also available in the EP drive assembly-40X5125) 18 40X5115 Operator panel bezel, 230, 280 18 40X5116 Operator panel bezel, 430 18 40X5286 Operator panel bezel, 439 18 40X5150 Operator panel bezel, 410 18 40X5151 Operator panel bezel, 210

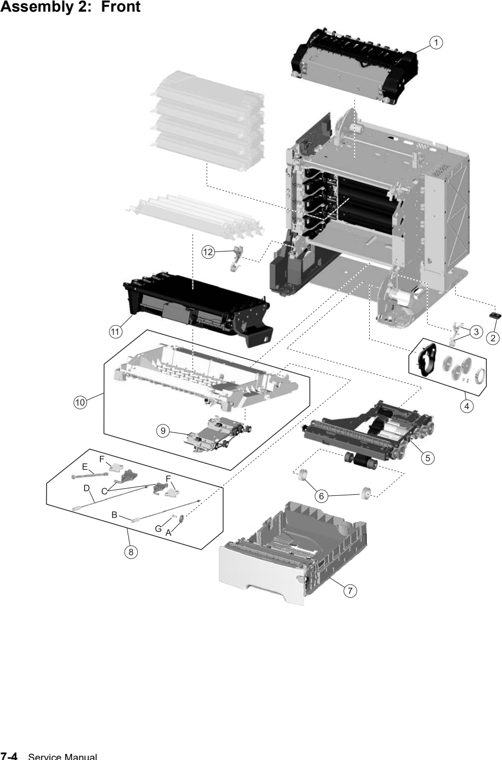

2-1 2 Printer pad, included in parts packet, screws (P/N 40X5136) 3 40X1446 Right bellcrank assembly, with spring 4 40X5132 MP feeder/duplex drive parts packet New 40X5132 (New) $24.61 including - - Retainer release arm - - Grease packet (Nyogel 744) - - Washer - - Duplex engagement gear - - MP feeder reduction gear - - MP feeder/duplex reduction gear - - MP feeder drive cover 5 40X5134 Paper Pick Assembly New 40X5223 40X5275 40x5134 (New) $88.59 40X5134 Paper Pick Assembly Fully refurbished with 90-day warranty 40X5223 40X5275 40x5134 $68.53 6 40X5152 Pick arm roll (Set of two) New 40X5152 (New) $11.89 40X5152 Pick arm roll Fully refurbished with 90-day warranty 40X5152 Contact for Details 7 40X5273 Paper Tray Assembly 550-Sheet Fully refurbished with 90-day warranty 40X5273 Contact for Details 40X5273 Paper Tray Assembly 550-Sheet New 40X5273 (New) Contact for Details 8 40X5111 Front door parts packet, including - - A-Front access door cap - - B-Right cable assembly - - C-Front access cover pivot - - D-Left cable assembly - - E-Front access door straps - - F-Front access door bracket - - G-Screw 9 40X5113 Duplex reference edge assembly Fully refurbished with 90-day warranty 40X5113 Contact for Details 40X5113 Duplex Reference Edge Assembly New 40X5113 (New) $22.47 10 40X5112 Front Access Door Assembly New 40X5112 (New) $24.71 40X5112 Front access door assembly Fully refurbished with 90-day warranty 40X5112 Contact for Details 11 40X5096 Transfer module Fully refurbished with 90-day warranty 40X5096 Contact for Details 40X5096 Transfer module Maintenance Kit New 40X5096 40X6401 40X8307 (New) Retired, no longer available: Contact for alternatives Contact for Details 12 40X1447 Left bellcrank assembly, with spring

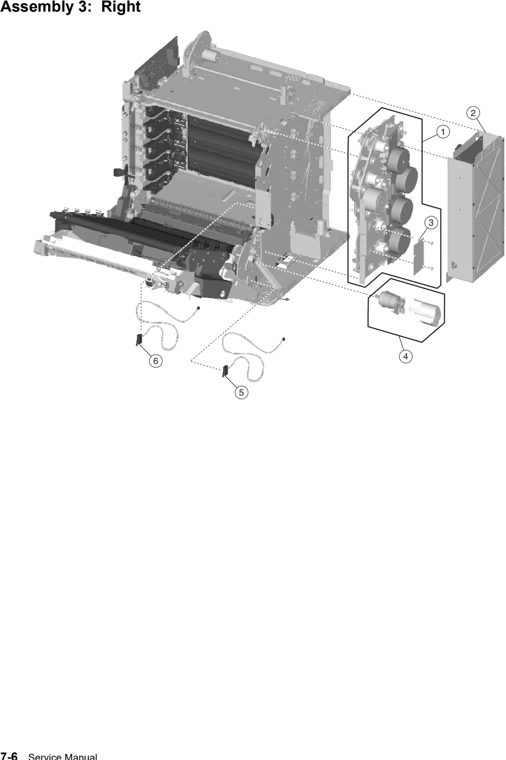

3-1 40X5125 EP Drive Assembly New 40X5125 40X5290 (New) $241.73 2 40X5124 Low-Voltage Power Supply LVPS New 40X5124 (New) $224.72 Sale40X5124 Low-Voltage Power Supply Fully refurbished with 90-day warranty 40X5124 $202.78 $145.00 Make an Offer 3 40X5126 Motor driver card Fully refurbished with 90-day warranty 40X5126 $14.95 40X5126 Motor Driver Card New 40X5126 (New) $16.64 4 40X5131 MP Feeder/Duplex Motor Fully refurbished with 90-day warranty 40X5131 $39.71 40X5131 MP Feeder/Duplex Motor New 40X5131 (New) $59.71 5 40X5128 24 V interlock switch 6 40X5127 5 V interlock switch

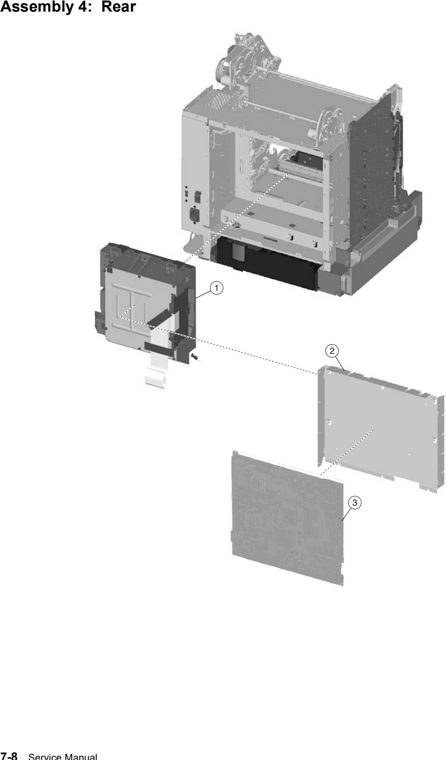

4-1 40X5123 Printhead Assembly Fully refurbished with 90-day warranty 40X5123 $109.71 40X5123 Printhead Assembly New 40X5123 (New) $174.72 2 40X5107 System board support shield New 40X5107 (New) $12.72 40X5107 System board support shield Fully refurbished with 90-day warranty 40X5107 Contact for Details 3 40X5160 System Board (Network) 210 230 280 New 40X5160 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X5160 System Board (Network) 210 230 280 Fully refurbished with 90-day warranty 40X5160 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 3 40X5154 L System Board (Network) 410, 430, 439 New 40X5154 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $448.03 410, 430, 439 NS 40X0269 Power cord-USA, Canada, Bolivia, Peru

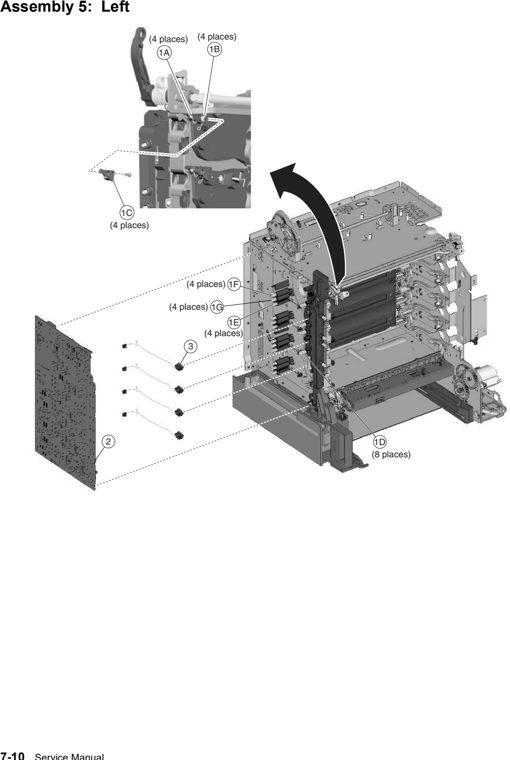

5-1 40X5137 Contact springs kit, including: - - A-Torsion PCD contact spring - - B-Torsion CR contact spring - - C-Contact spring cap - - D-Charge roll contact spring - - E-HVPS TAR contact spring - - F-HVPS doctor/developer contact spring - - G-HVPS Db contact spring - - Screw 2 40X5129 High-Voltage Power Supply Fully refurbished with 90-day warranty 40X5129 Contact for Details 40X5129 High-Voltage Power Supply HVPS New 40X5129 (New) $164.72 3 40X1416 Toner level sensor

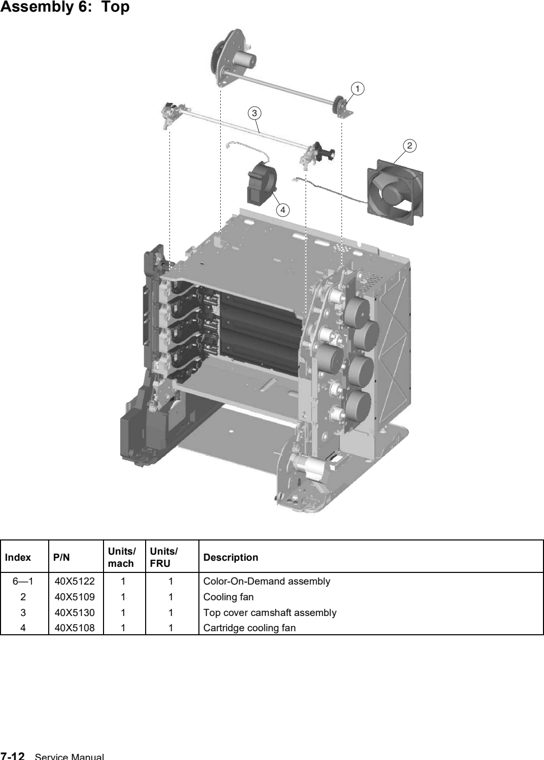

6-1 40X5122 Color-On-Demand Assembly New 40X5122 (New) $24.71 40X5122 Color-On-Demand assembly Fully refurbished with 90-day warranty 40X5122 Contact for Details 2 40X5109 Cooling Fan New 40X5109 (New) $24.71 40X5109 Cooling fan Fully refurbished with 90-day warranty 40X5109 Contact for Details 3 40X5130 Top cover camshaft assembly Fully refurbished with 90-day warranty 40X5130 Contact for Details 40X5130 Top Cover Camshaft Assembly New 40X5130 (New) $24.71 4 40X5108 Cartridge cooling fan Fully refurbished with 90-day warranty 40X5108 Contact for Details 40X5108 Cartridge cooling fan New 40X5108 (New) $20.44

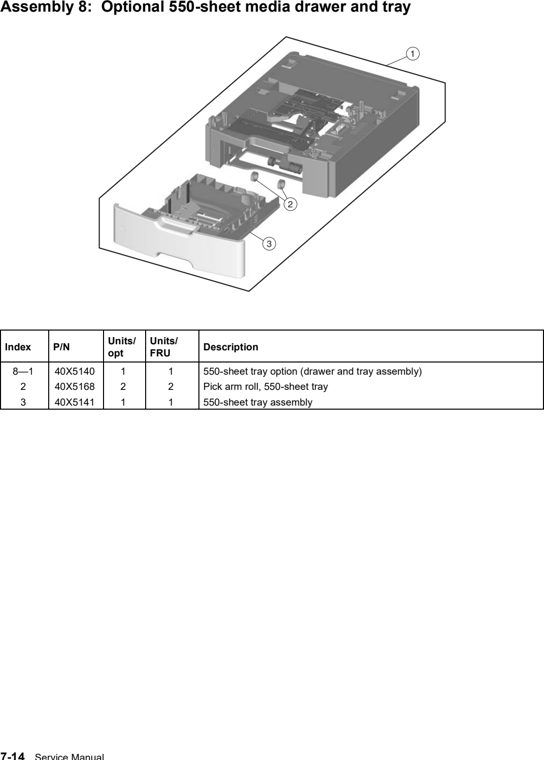

8-1 40X5140 550-Sheet Drawer (With Tray) Fully refurbished with 90-day warranty 40X5140 $179.72 40X5140 550-Sheet Drawer (With Tray) New 40X5140 (New) $244.72 2 40X5168 Pick Tire New 40X5168 (New) $11.57 3 40X5141 550-Sheet Tray Assembly New 40X5141 (New) $100.99 40X5141 550-Sheet Tray Assembly Fully refurbished with 90-day warranty 40X5141 $84.10

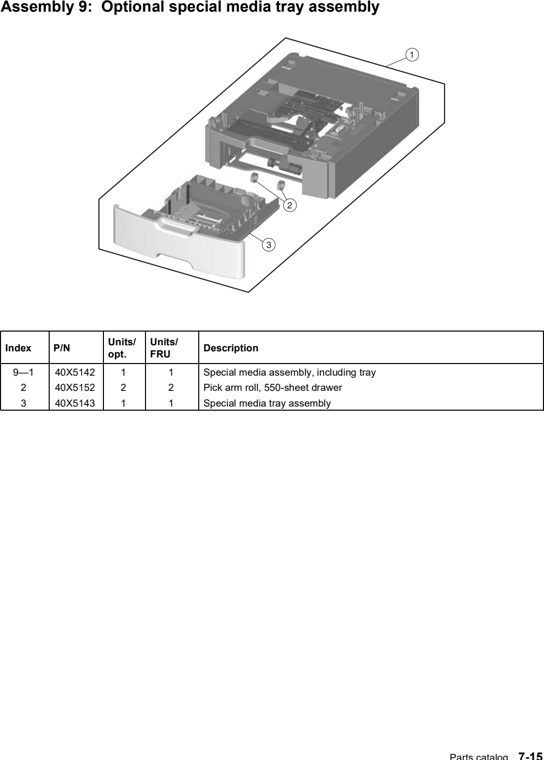

9-1 40X5142 Specialty Media Drawer (With Tray) New 40X5142 (New) $284.71 Retired, no longer available: Contact for alternatives 40X5142 Specialty Media Drawer (With Tray) Fully refurbished with 90-day warranty 40X5142 $285.00 2 40X5152 Pick arm roll (Set of two) New 40X5152 (New) $11.89 40X5152 Pick arm roll Fully refurbished with 90-day warranty 40X5152 Contact for Details 3 40X5143 Specialty Media Tray Fully refurbished with 90-day warranty 40X5143 $84.75 40X5143 Specialty Media Tray New 40X5143 (New) $101.77 Retired, no longer available: Contact for alternatives
