Please call for parts assistance

Looking for whole machines? Click here

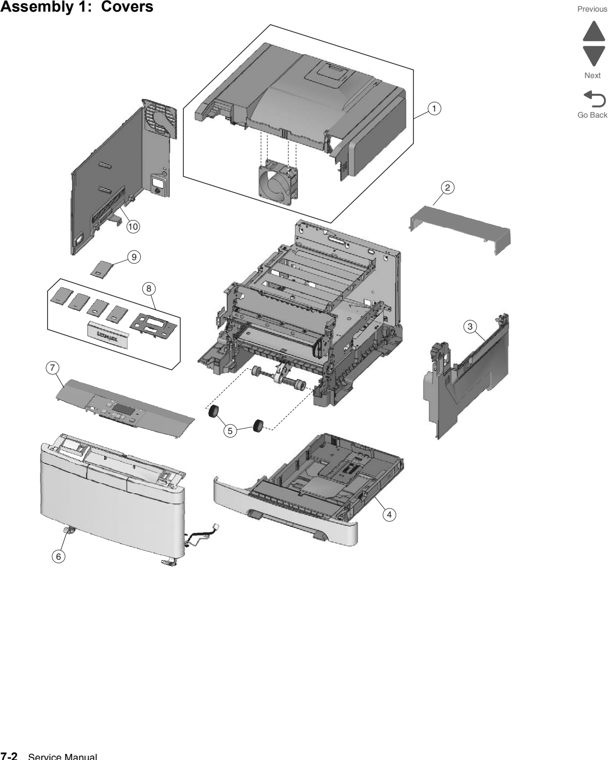

1 40X5418 Top Cover Assembly Fully refurbished with 90-day warranty 40X5418 $34.71 40X5418 Top Cover Assembly New 40X5418 (New) Contact for Details 2 40X5416 Right cover assembly Fully refurbished with 90-day warranty 40X5416 $13.81 40X5416 Right cover assembly New 40X5416 (New) $29.28 3 40X5419 250-sheet tray assembly New 40X5419 (New) $44.71 4 40X5430 Front cover assembly (including duplex and USB port cable) New 40X5430 (New) $43.32 5 40X5168 Pick Tire New 40X5168 (New) $11.57 6 40X5431 L Operator Panel And Display Assembly New 40X5431 L (New) $25.06 6 40X5436 Operator panel (DBCS) and display assembly New 40X5436 (New) $53.82 40X5436 Operator panel (DBCS) and display assembly Fully refurbished with 90-day warranty 40X5436 $43.87 7 40X5432 Operator panel bezel and name plates, including: - - Bezel (1) - - Name plates (4) - - Logo plate (1) 8 40X5417 Left cover assembly New 40X5417 (New) $24.08 40X5417 Left cover assembly Fully refurbished with 90-day warranty 40X5417 $24.57 NS 40X5441 Dust cover

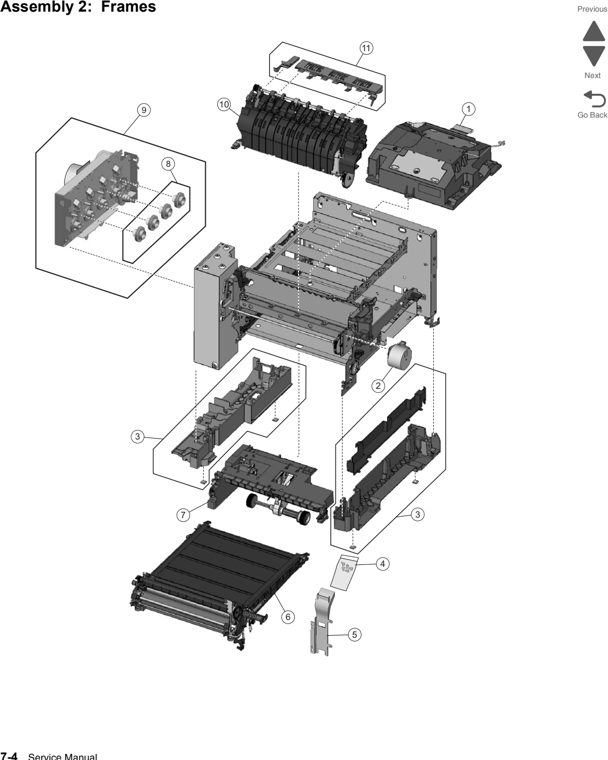

2-1 40X5411 Printhead Fully refurbished with 90-day warranty 40X5411 $59.71 40X5411 Printhead New 40X5411 (New) $119.71 2 40X5415 Fuser drive motor assembly New 40X5415 (New) $14.47 3 40X5422 Lower left frame and lower right frame with cable cover Fully refurbished with 90-day warranty 40X5422 $19.36 40X5422 Lower Left Frame And Lower Right Frame With Cable Cover New 40X5422 (New) $17.18 4 40X5424 Screw packet, miscellaneous screws - - TAPTITE M3 L6 PANHD(4) - - Tray Bias (2) - - Fuser Latch (2) - - ITU Front Hold Down (1) - - Front Cover Latch Spring (2) - - M3 x 6 Pan Head (2) - - M3 x 6 Shoulder (1) - - M3.5 X 5 Flat Head Plastite (1) - - METAL ROLN M3.5 8L (2) - - PLAST ROLN 2.9 8L (2) - - PLAST ROLN 3.5 6L (4) 5 Sale40X5403 Image Transfer Unit (ITU) Assembly New 40X5403 40X7610 (New) $318.00 $259.00 6 40X5410 Paper Pick Motor Drive Assembly New 40X5410 (New) $63.30 7 40X5412 Main drive gear assembly with motors Fully refurbished with 90-day warranty 40X5412 $35.46 40X5412 Main drive gear assembly, with motors New 40X5412 (New) $51.71 8 40x5437 Fuser Assembly C540 C543 C544 C546 New 40X5437 40X5406 40X7562 (New) $148.72 9 40X5433 Exit deflector and bin full sensor flag New 40X5433 (New) $12.98

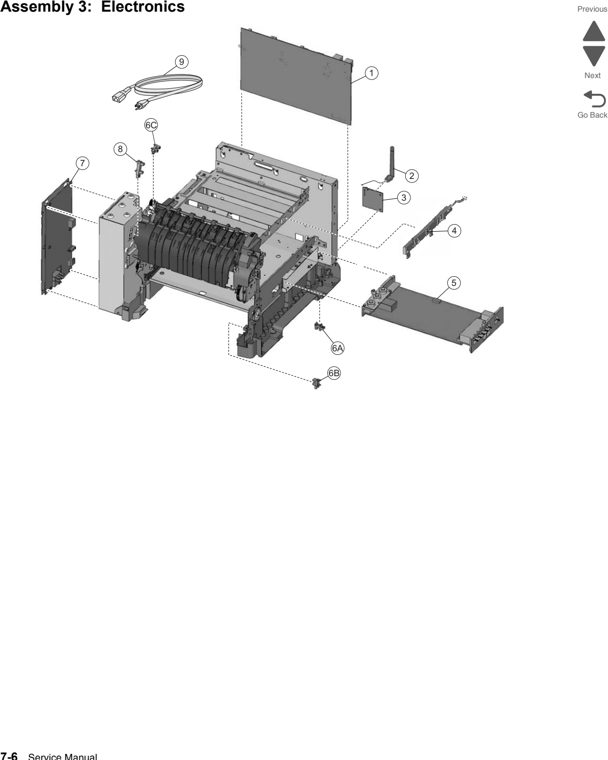

3 1 40X5428 Controller board, C540n, C543dn New 40X5428 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 4 40X5404 Toner Meter Cycle Card Assembly New 40X5404 (New) $27.63 40X5404 Toner meter cycle card assembly Fully refurbished with 90-day warranty 40X5404 $22.50 5 40X5405 High-Voltage Power Supply HVPS New 40X5405 40x8695 (New) $119.71 40X5405 High-voltage power supply HVPS Fully refurbished with 90-day warranty 40X5405 40X8395 $79.71 6 40X5426 Photo sensor (one per package) New 40X5426 (New) $10.62 B Duplex C Exit/Bin full/narrow media sensor 7 40X5409 Low-Voltage Power Supply (Universal Power Supply) New 40X5409 (New) Retired, no longer available: Contact for alternatives Contact for Details 40X5409 Low-voltage power supply (universal power supply) New 40X5409 Advanced Exchange (New) Retired, no longer available: Contact for alternatives Contact for Details 40X5409 Low-Voltage Power Supply (Universal Power Supply) Fully refurbished with 90-day warranty 40X5409 $115.66 8 40X5413 Fuser exit sensor New 40X5413 (New) $11.00 9 40X1766 Power cord, 2.5M (straight) USA, Canada, Bolivia, Peru

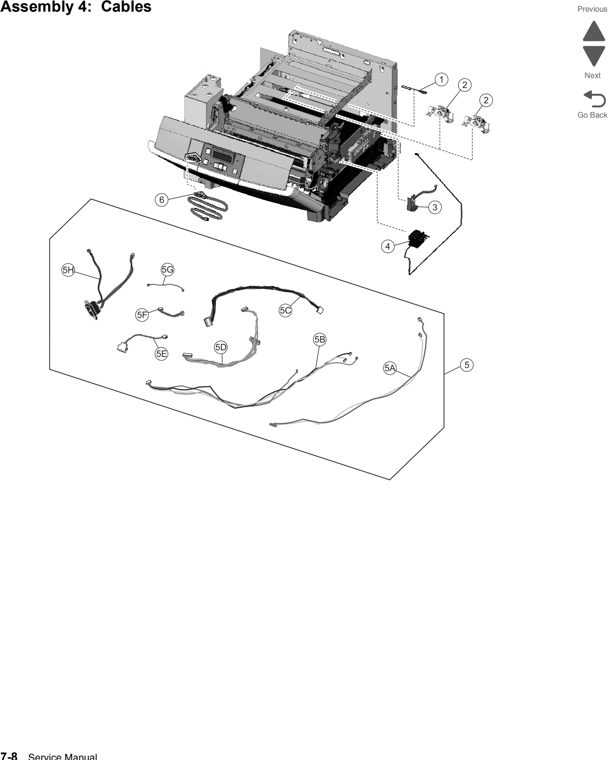

4-1 2 40X5414 Toner patch sensors, left or right (one in package) New 40X5414 (New) $15.75 3 40X5421 Toner cartridge contacts (Pogo pin) New 40X5421 (New) $15.97 Contact for Details 4 40X5423 Cable packet, used for: A AC power in B Low-voltage power supply C High-voltage power supply D Fuser / S1 E CYM / K motors F Option Tray G Fuser exit/narrow media/bin full H Wire tie 1.0mm I Tray present cable 5 40X5425 USB port and cable (for portable flash drive) New 40X5425 (New) $12.36

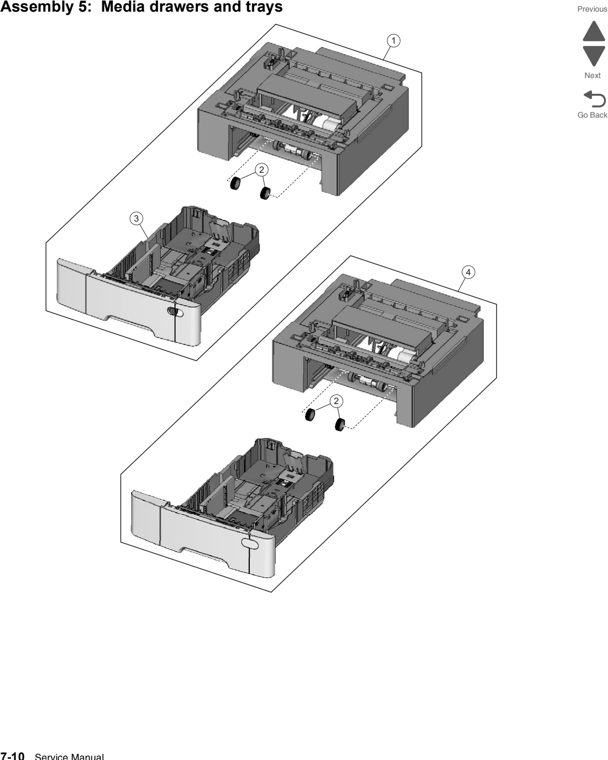

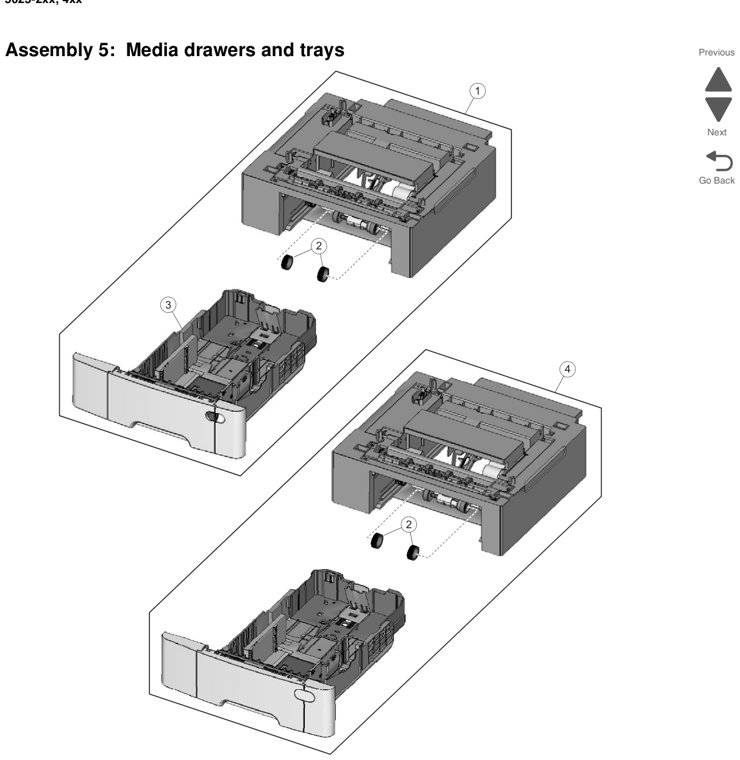

5-1 40X5434 550-Sheet Duo Drawer with 100-Sheet MPF Fully refurbished with 90-day warranty 40X5434 40x8341 $109.71 40X5434 550-Sheet Duo Drawer with 100-Sheet MPF New 40X5434 40X8341 (New) $189.00 2 40X5168 Pick Tire New 40X5168 (New) $11.57 3 40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544 Fully refurbished with 90-day warranty 40X5435 40X2285 $108.02 40X5435 Tray only for 550-sheet duo drawer with 100-sheet MPF tray assembly New 40X5435 40X2285 (New) $129.67
