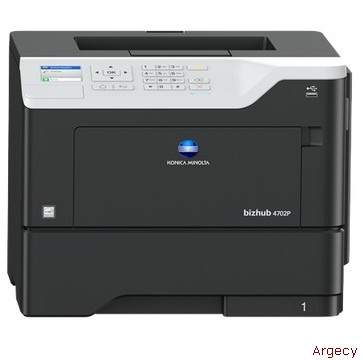

Konica BIZHUB 4702P Laser Printer
(Shown with extra drawers)
Looking for Konica 4702p Parts?
25K Toner Cartridge TNP53 |
|
AAE00Y1 Imaging Unit Black |
|
User Flash 256 MB User flash for storing fonts, forms and macros or to save job account log UK-P12 |
|
Barcode card Printer-based electronic barcode engine UK-P13 |
|
IPDS card IPDS card Provides compatibility for IPDS printing UK-P14
|
|
Wireless LAN Wireless LAN Wireless LAN to network connector NC-P05
|
|
Paper tray Paper tray A5 ??A4, 250 sheets, 60 ??120 g/m PF-P15 |
|
Paper tray Paper tray A5 ??A4, 550 sheets, 60 ??120 g/m PF-P16
|
|
USB printDirect printing of files in different formats stored on a connected USB device saves time and makes printer operation more convenient
Eco performance
Eco-friendly performance thanks to the integrated Eco Mode as well as programmable Hibernate Mode both reduce energy consumption, thus saving costs
Color LCD panel
Intuitive operation thanks to the 2.4-inch color LCD display containing animations, a status screen, multi-select menus, custom messages and programmable alerts that guide users smoothly through any job setting
Secure Print
To control unauthorized access to confidential prints, the secure print function holds print jobs until the intended recipient enters the appropriate PIN to allow the job being printed.
Paper managementVersatile paper input possibilities with a standard 250-sheet paper tray plus up to 3 additional paper cassettes for a maximum capacity of up to 2,000 sheets ensure completion of larger jobs without interruption. The simultaneous storing of different media additionally facilitates everyday work.
A networkable desktop printer that packs maximum power in minimum space, the bizhub 4702P delivers up to 50 ppm B&W output at 1,200 x 1,200 dpi resolution to make documents look more professional with 2,300-sheet maximum paper capacity, standard duplexing and wireless connection to speed operation.
Panel size/resolution
2.4 / 320 x 240
System memory (standard/max)
512 MB (standard)
Interface
10-Base-T/100-Base-TX/1,000-Base-T Ethernet; USB 2.0; Wi-Fi 802.11b/g/n (optional)
Network protocols
TCP/IP (IPv4 / IPv6); Appletalk; Bonjour; SMB; LPD; IPP; SNMP; HTTP/S
Printable paper size
A6-A4, customised paper sizes
Printable paper weight
60 - 216 g/m
Paper input capacity (standard/max)
650 sheets/2,300 sheets
Paper tray input (standard)
550 sheets; A6 - A4, 60 - 120 g/m
Paper tray input (optional)
3x 250/550 sheets; A5-A4; 60-120 g/m
Manual bypass
100 sheets, A6 - A4, custom sizes, 60 - 216 g/m
Automatic duplexing
A4; 60 - 90 g/m
Output capacity (standard)
Max.: 250 sheets
Copy/print volume (monthly)
Rec.: 7,000 pages Max.: 175,000 pages If the maximum volume is reached within a period of one year, then a maintenance cycle must be performed
Toner lifetime
Up to 25,000 pages
Imaging unit lifetime
Up to 60,000 pages
Power consumption
220 - 240 V/50/60 Hz; Less than 670 W
System dimension (WxDxH)
399 x 374 x 303 mm
System weight
Approx. 16 kg
Print resolution
1200 x 1200 dpi
Page description language
PCL 5/6; PostScript 3; XPS
Operating systems
Windows 7 (32/64); Windows 8/8.1 (32/64); Windows 10 (32/64);
Windows Server 2008 (32/64); Windows Server 2008 R2;
Windows Server 2012; Windows Server 2012 R2;
Windows Server 2016; Macintosh OS X 10.9 or later;
Linux; Citrix
Printer fonts
89 PCL Latin; 158 PostScript 3 Emulation Latin
Print functions
Duplex, n-up, watermark, electronic sorting, USB direct print (PDF v1.7; TIFF; JPEG; GIF; BMP; PNG; XPS; docx; xlsx; pptx)
Mobile printing
AirPrint (iOS), Mopria (Android), Google Cloud Print, Konica Minolta Mobile Print (iOS, Android and Windows 10 Mobile), Konica Minolta Print Service (Android) optional: Wifi Direct
Security
TCP/UDP port disabling; certificate management; SNMPv3; IPSec support; HTTPS; IP filtering and port blocking; IEEE 802.1x support; SMTP authentication; Secure print (print hold/PIN)
Software
PageScope Net Care Device Manager
All specifications refer to A4-size paper of 80 g/m2 quality.
The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (6% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that any specifications mentioned will be error-free.
All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
