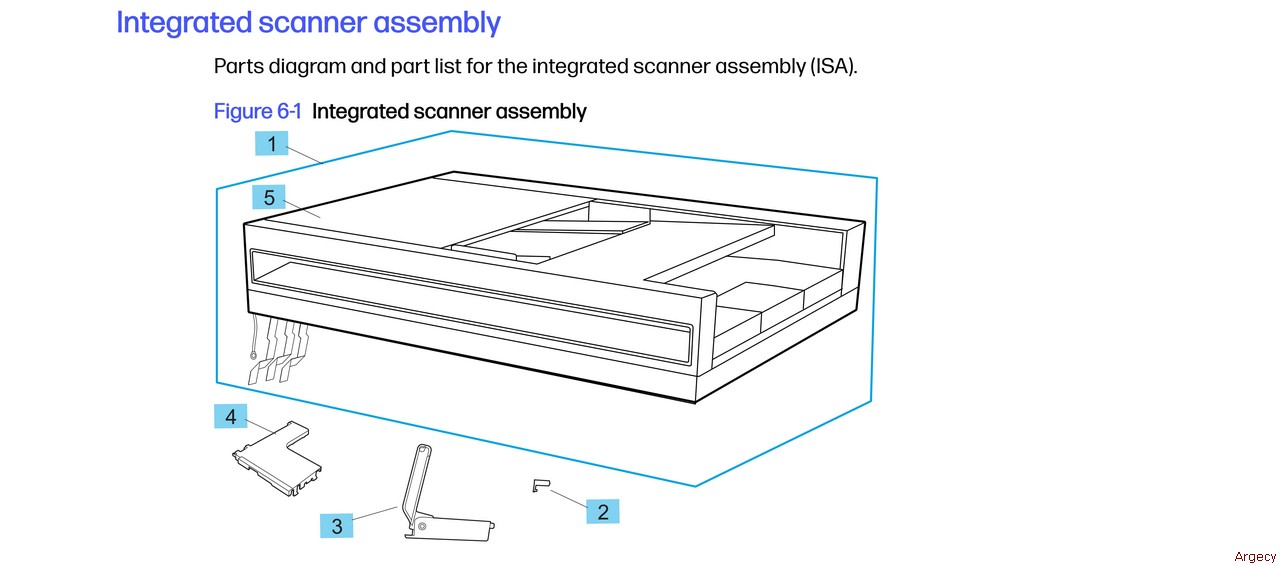

Table 6-1 Integrated scanner assembly 1 4RA80-67002 Scanner and ADF Assembly - ISA - Duplex New 4RA80-67002 (New) $236.25 1 4RA80-67004 ISA assembly duplex gray and folded FFC Fully refurbished with 90-day warranty 4RA80-67004 Contact for Details 4RA80-67004 ISA assembly duplex gray and folded FFC New 4RA80-67004 (New) Contact for Details 1 4RA80-67003 ISA assembly simplex blue and folded FFC Fully refurbished with 90-day warranty 4RA80-67003 Contact for Details 4RA80-67003 ISA assembly simplex blue and folded FFC New 4RA80-67003 (New) Contact for Details 1 4RA80-67005 ISA assembly simplex gray and folded FFC Fully refurbished with 90-day warranty 4RA80-67005 Contact for Details 4RA80-67005 ISA assembly simplex gray and folded FFC New 4RA80-67005 (New) Contact for Details 2 B3Q10-40041 ISA lift slider pin New B3Q10-40041 (New) Contact for Details B3Q10-40041 ISA lift slider pin Fully refurbished with 90-day warranty B3Q10-40041 Contact for Details 3 B3Q10-60128 ISA lift assembly New B3Q10-60128 (New) Contact for Details B3Q10-60128 ISA lift assembly Fully refurbished with 90-day warranty B3Q10-60128 Contact for Details 4 4RA80-40045 Cover FFC Fully refurbished with 90-day warranty 4RA80-40045 Contact for Details 4RA80-40045 Cover FFC New 4RA80-40045 (New) Contact for Details 5 4RA80-67006 ADF top cover assembly (includes rollers) Fully refurbished with 90-day warranty 4RA80-67006 Contact for Details 4RA80-67006 ADF top cover assembly (includes rollers) New 4RA80-67006 (New) Contact for Details

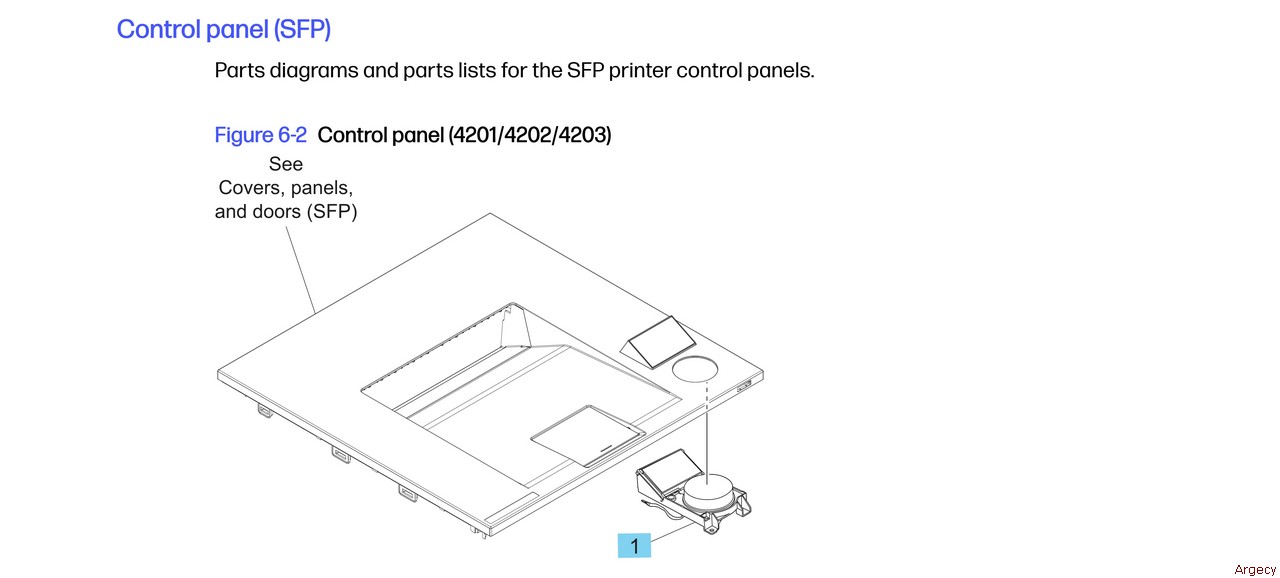

Figure 6-2 Control panel (4201/4202/4203) 1 4RA89-60101 Dial control panel with display New 4RA89-60101 (New) Contact for Details 4RA89-60101 Dial control panel with display Fully refurbished with 90-day warranty 4RA89-60101 Contact for Details NS RK3-0383-000CN Cable, flexible flat

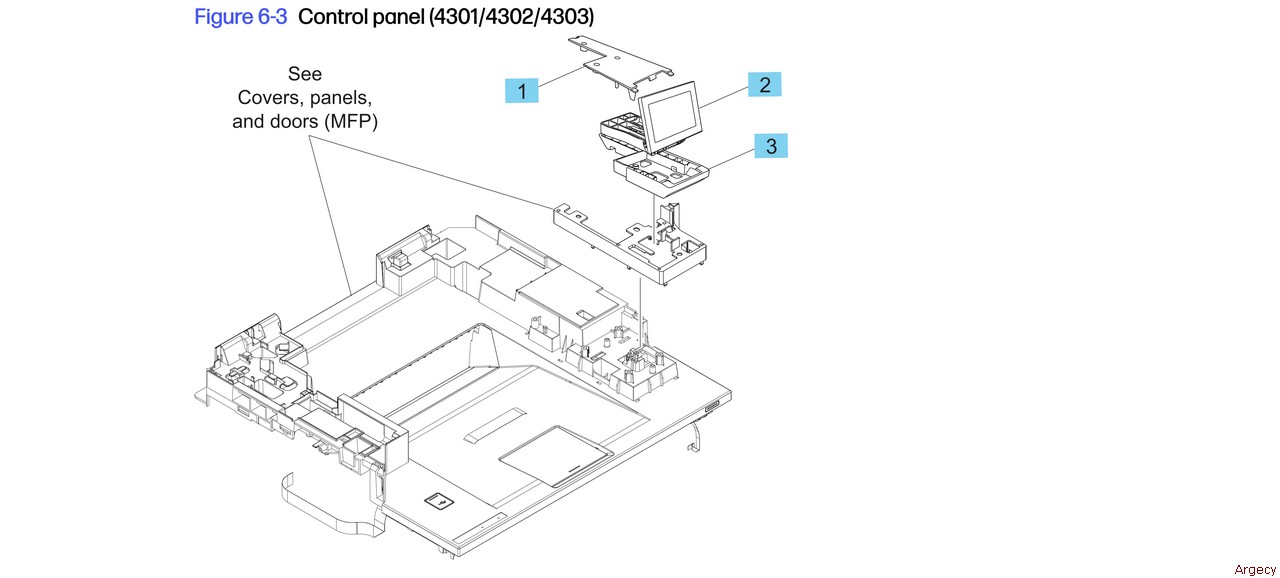

Figure 6-3 Control panel (4301/4302/4303) 1 4RA83-40006 Control panel base cover Fully refurbished with 90-day warranty 4RA83-40006 Contact for Details 4RA83-40006 Control panel base cover New 4RA83-40006 (New) Contact for Details 2 4RA83-60101 Control Panel Assembly - 4.3 Inch New 4RA83-60101 (New) $93.16 3 4RA83-40005 Control panel base Fully refurbished with 90-day warranty 4RA83-40005 Contact for Details 4RA83-40005 Control panel base New 4RA83-40005 (New) Contact for Details

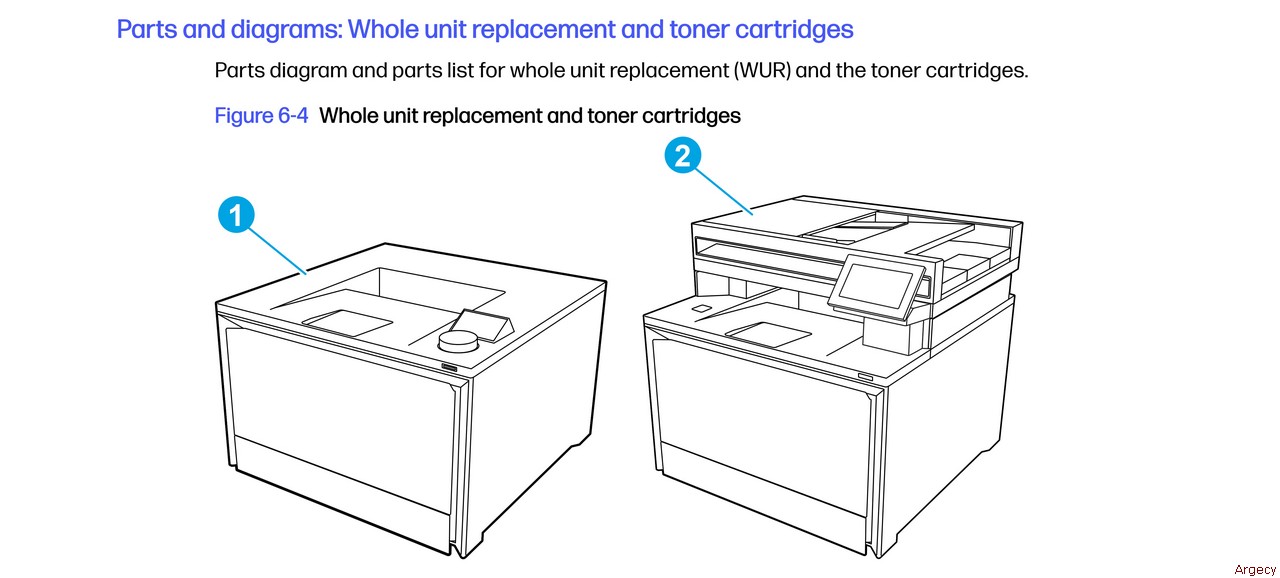

Table 6-4 Whole unit replacement and toner cartridges 1 4RA85-69002 Prod-Exchange 110V 4201dne WUR New 4RA85-69002 (New) Contact for Details 4RA85-69002 Prod-Exchange 110V 4201dne WUR Fully refurbished with 90-day warranty 4RA85-69002 Contact for Details 1 4RA85-69004 Prod-Exchange 110V 4201dn WUR New 4RA85-69004 (New) Contact for Details 4RA85-69004 Prod-Exchange 110V 4201dn WUR Fully refurbished with 90-day warranty 4RA85-69004 Contact for Details 1 4RA86-69002 Prod-Exchange 110V 4201dwe WUR New 4RA86-69002 (New) Contact for Details 4RA86-69002 Prod-Exchange 110V 4201dwe WUR Fully refurbished with 90-day warranty 4RA86-69002 Contact for Details 1 4RA86-69004 Prod-Exchange 110V 4201dw WUR New 4RA86-69004 (New) Contact for Details 4RA86-69004 Prod-Exchange 110V 4201dw WUR Fully refurbished with 90-day warranty 4RA86-69004 Contact for Details 1 5HH48-69002 Prod-Exchange 110V 4203dw WUR TW1 1 5HH48-69004 Prod-Exchange 110V 4203dw WUR LAR 1 5HH48-69005 Prod-Exchange 110V 4203dw WUR Brazil 2 4RA80-69002 Prod-Exchange 110V 4301dwe WUR Fully refurbished with 90-day warranty 4RA80-69002 Contact for Details 4RA80-69002 Prod-Exchange 110V 4301dwe WUR New 4RA80-69002 (New) Contact for Details 2 4RA80-69004 Prod-Exchange 110V 4301dw WUR Fully refurbished with 90-day warranty 4RA80-69004 Contact for Details 4RA80-69004 Prod-Exchange 110V 4301dw WUR New 4RA80-69004 (New) Contact for Details 2 4RA81-69002 Prod-Exchange 110V 4301fdne WUR Fully refurbished with 90-day warranty 4RA81-69002 Contact for Details 4RA81-69002 Prod-Exchange 110V 4301fdne WUR New 4RA81-69002 (New) Contact for Details 2 4RA81-69004 Prod-Exchange 110V 4301fdn WUR Fully refurbished with 90-day warranty 4RA81-69004 Contact for Details 4RA81-69004 Prod-Exchange 110V 4301fdn WUR New 4RA81-69004 (New) Contact for Details 2 4RA82-69002 Prod-Exchange 110V 4301fdwe WUR Fully refurbished with 90-day warranty 4RA82-69002 Contact for Details 4RA82-69002 Prod-Exchange 110V 4301fdwe WUR New 4RA82-69002 (New) Contact for Details 2 4RA82-69004 Prod-Exchange 110V 4301fdw WUR Fully refurbished with 90-day warranty 4RA82-69004 Contact for Details 4RA82-69004 Prod-Exchange 110V 4301fdw WUR New 4RA82-69004 (New) Contact for Details 2 5HH67-69006 Prod-Exchange 110V 4303fdw WUR New 5HH67-69006 (New) Contact for Details 5HH67-69006 Prod-Exchange 110V 4303fdw WUR Fully refurbished with 90-day warranty 5HH67-69006 Contact for Details NS W2100A 210A Black Toner Cartridge; standard (4201/4301) NS W2101A 210A Cyan Toner Cartridge; standard (4201/4301) NS W2102A 210A Yellow Toner Cartridge; standard (4201/4301) NS W2103A 210A Magenta Toner Cartridge; standard (4201/4301) NS W2100X 210X Black Toner Cartridge; high capacity (4201/4301) NS W2101X 210X Cyan Toner Cartridge; high capacity (4201/4301) NS W2102X 210X Yellow Toner Cartridge; high capacity (4201/4301) NS W2103X 210X Magenta Toner Cartridge; high capacity (4201/4301) NS W2200A 220A Black Toner Cartridge EMEA; standard (4202/4302) NS W2201A 220A Cyan Toner Cartridge EMEA; standard (4202/4302) NS W2202A 220A Yellow Toner Cartridge EMEA; standard (4202/4302) NS W2203A 220A Magenta Toner Cartridge EMEA; standard (4202/4302) NS W2200X 220X Black Toner Cartridge EMEA; high capacity (4202/4302) NS W2201X 220X Cyan Toner Cartridge EMEA; high capacity (4202/4302) NS W2202X 220X Yellow Toner Cartridge EMEA; high capacity (4202/4302) NS W2203X 220X Magenta Toner Cartridge EMEA; high capacity (4202/4302) NS W2300A 230A Black Toner Cartridge; standard (4203/4303) NS W2301A 230A Cyan Toner Cartridge; standard (4203/4303) NS W2302A 230A Yellow Toner Cartridge; standard (4203/4303) NS W2303A 230A Magenta Toner Cartridge; standard (4203/4303) NS W2300X 230X Black Toner Cartridge; high capacity (4203/4303) NS W2301X 230X Cyan Toner Cartridge; high capacity (4203/4303) NS W2302X 230X Yellow Toner Cartridge; high capacity (4203/4303) NS W2303X 230X Magenta Toner Cartridge; high capacity (4203/4303) NS W2150XC XC Black Contract Toner (all models) NS W2151XC XC Cyan Contract Toner (all models) NS W2152XC XC Yellow Contract Toner (all models) NS W2153XC XC Magenta Contract Toner (all models)

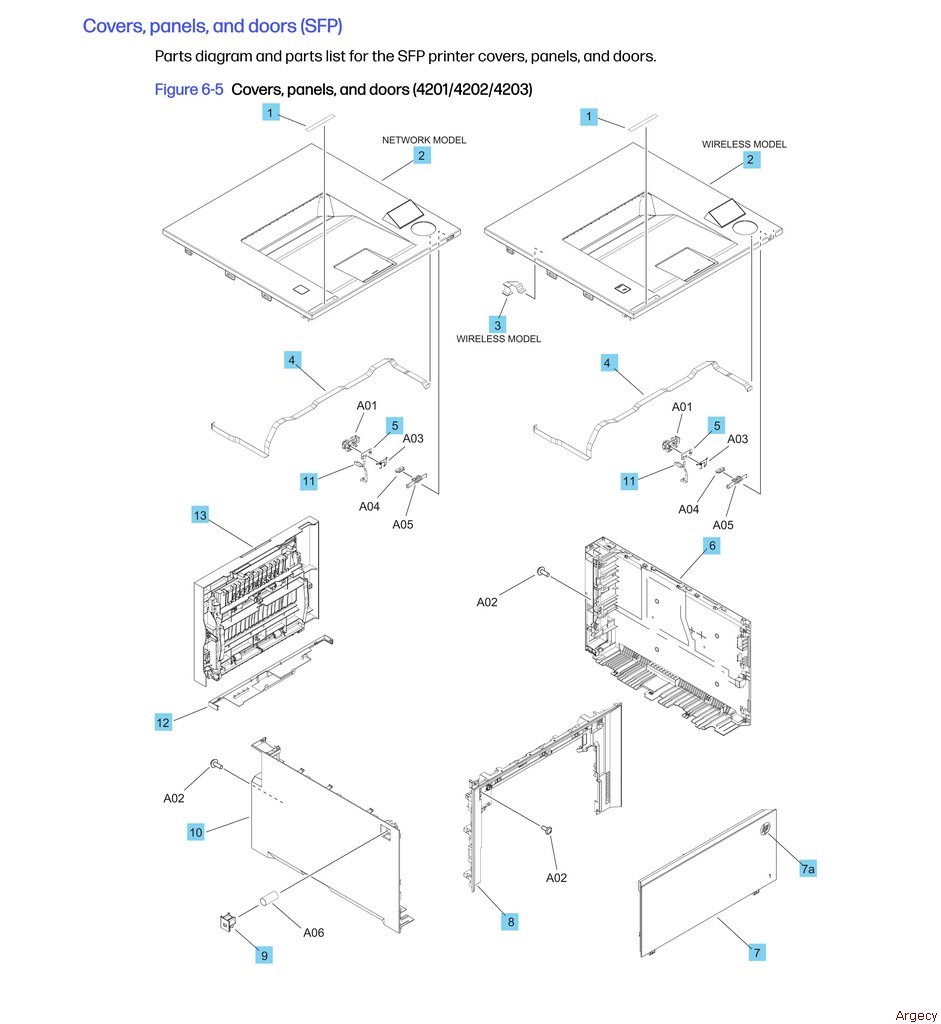

Figure 6-5 Covers, panels, and doors (4201/4202/4203) 1 RC5-5464-000CN Name plate 4201dwev 1 RC5-5465-000CN Name plate 4201dne 1 RC5-5486-000CN Name plate 4202dwe 1 RC5-5488-000CN Name plate 4203dw 1 RC5-5489-000CN Name plate 4203dn 1 RC5-5490-000CN Name plate 4203cdn 1 RC5-5491-000CN Name plate 4202dw 1 RC5-5492-000CN Name plate 4202de 1 RC5-5496-000CN Name plate 4201dw 1 RC5-5497-000CN Name plate 4201dn 2 RM2-2814-000CN Cover top assembly (SFP) (network model) New RM2-2814 (New) Contact for Details RM2-2814-000CN Cover top assembly (SFP) (network model) Fully refurbished with 90-day warranty RM2-2814 Contact for Details 2 RM2-2815-000CN Cover top assembly (SFP) (wireless model) New RM2-2815 (New) Contact for Details RM2-2815-000CN Cover top assembly (SFP) (wireless model) Fully refurbished with 90-day warranty RM2-2815 Contact for Details 3 RK3-0392-000CN Cable, flexible flat (SFP) (Wireless model) 4 RK3-0383-000CN Cable, flexible flat 5 RM3-7568-000CN Switch power supply PCA New RM3-7568 (New) Contact for Details RM3-7568-000CN Switch power supply PCA Fully refurbished with 90-day warranty RM3-7568 Contact for Details 6 RM2-2812-000CN Cover right (SFP) New RM2-2812 (New) Contact for Details RM2-2812-000CN Cover right (SFP) Fully refurbished with 90-day warranty RM2-2812 Contact for Details 7 RM2-2843-000CN Cartridge door assembly (blue) (SFP) New RM2-2843 (New) Contact for Details RM2-2843-000CN Cartridge door assembly (blue) (SFP) Fully refurbished with 90-day warranty RM2-2843 Contact for Details 7 RM2-2847-000CN Cartridge door assembly (gray) (SFP) New RM2-2847 (New) Contact for Details RM2-2847-000CN Cartridge door assembly (gray) (SFP) Fully refurbished with 90-day warranty RM2-2847 Contact for Details 7a 7122-0718 HP logo gem 8 RM2-2824-000CN Cover front assembly New RM2-2824 (New) Contact for Details RM2-2824-000CN Cover front assembly New RM2-2824 (New) Contact for Details 9 RC5-5411-000CN Button, cartridge door 10 RC5-5450-000CN Cover, left (SFP) 11 RK3-0377-000CN Cable, flexible flat 12 RC5-6129-000CN Cover, duplexing bottom 13 RM2-2754-000CN Rear door assembly New RM2-2754 (New) Contact for Details RM2-2754-000CN Rear door assembly New RM2-2754 (New) Contact for Details

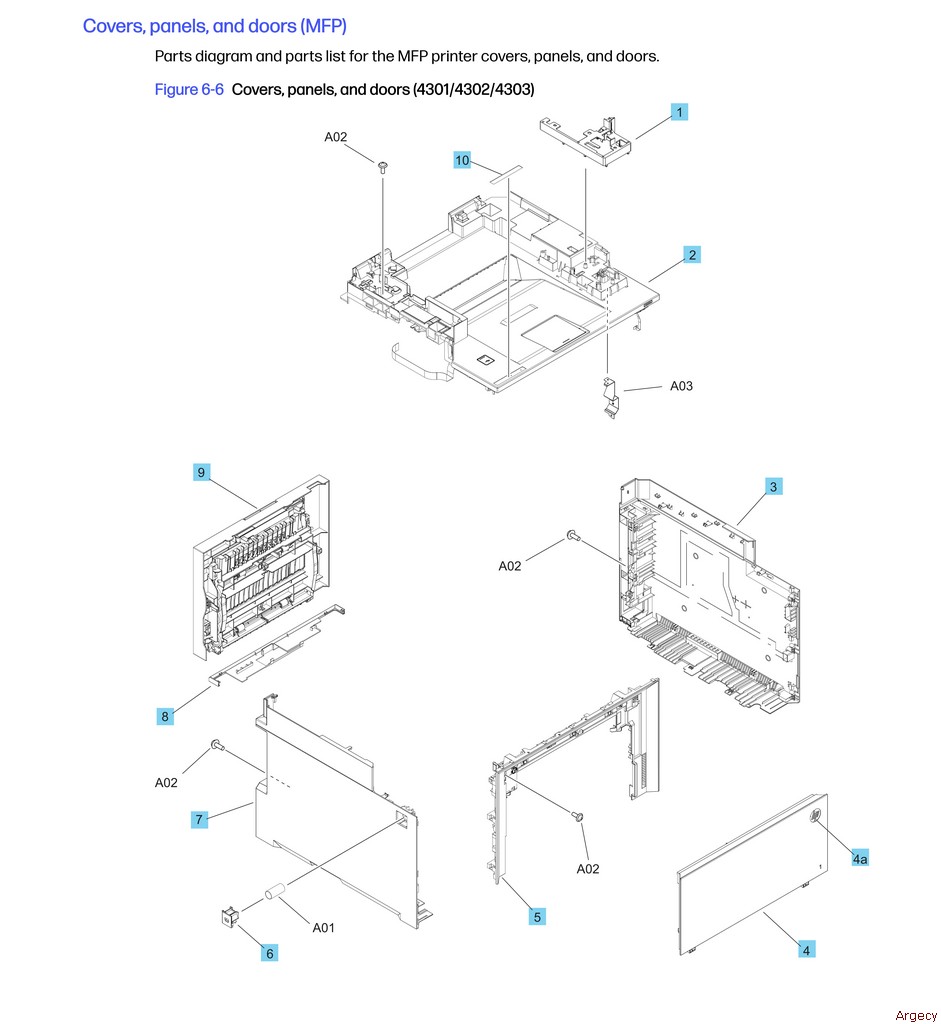

Table 6-6 Covers, panels, and doors (4301/4302/4303) 1 RC5-5444-000CN Cover, pillar (MFP) 2 RM2-2762-000CN Cover top assembly (MFP) New RM2-2762 (New) Contact for Details RM2-2762-000CN Cover top assembly (MFP) Fully refurbished with 90-day warranty RM2-2762 Contact for Details 3 RM2-2827-000CN Cover right (MFP) New RM2-2827 (New) Contact for Details RM2-2827-000CN Cover right (MFP) Fully refurbished with 90-day warranty RM2-2827 Contact for Details 4 RM2-2844-000CN Cartridge door assembly (blue) (MFP) New RM2-2844 (New) Contact for Details RM2-2844-000CN Cartridge door assembly (blue) (MFP) Fully refurbished with 90-day warranty RM2-2844 Contact for Details 4 RM2-2848-000CN Cartridge door assembly (gray) (MFP) New RM2-2848 (New) Contact for Details RM2-2848-000CN Cartridge door assembly (gray) (MFP) Fully refurbished with 90-day warranty RM2-2848 Contact for Details 4a 7122-0718 HP logo gem 5 RM2-2824-000CN Cover front assembly New RM2-2824 (New) Contact for Details RM2-2824-000CN Cover front assembly New RM2-2824 (New) Contact for Details 6 RC5-5411-000CN Button, cartridge door 7 RC5-5462-000CN Cover, left (MFP) 8 RC5-6129-000CN Cover, duplexing bottom 9 RM2-2754-000CN Rear door assembly New RM2-2754 (New) Contact for Details RM2-2754-000CN Rear door assembly New RM2-2754 (New) Contact for Details 10 4RA80-00012 Nameplate-Color LaserJet Pro MFP 4301dwe Fully refurbished with 90-day warranty 4RA80-00012 Contact for Details 4RA80-00012 Nameplate-Color LaserJet Pro MFP 4301dwe New 4RA80-00012 (New) Contact for Details 10 4RA80-00008 Nameplate-Color LaserJet Pro MFP 4301fdne Fully refurbished with 90-day warranty 4RA80-00008 Contact for Details 4RA80-00008 Nameplate-Color LaserJet Pro MFP 4301fdne New 4RA80-00008 (New) Contact for Details 10 4RA82-00012 Nameplate-Color LaserJet Pro MFP 4301fdwe Fully refurbished with 90-day warranty 4RA82-00012 Contact for Details 4RA82-00012 Nameplate-Color LaserJet Pro MFP 4301fdwe New 4RA82-00012 (New) Contact for Details 10 4RA83-00004 Nameplate-Color LaserJet Pro MFP 4302dwe Fully refurbished with 90-day warranty 4RA83-00004 Contact for Details 4RA83-00004 Nameplate-Color LaserJet Pro MFP 4302dwe New 4RA83-00004 (New) Contact for Details 10 5HH64-00004 Nameplate-Color LaserJet Pro MFP 4302fdwe New 5HH64-00004 (New) Contact for Details 5HH64-00004 Nameplate-Color LaserJet Pro MFP 4302fdwe Fully refurbished with 90-day warranty 5HH64-00004 Contact for Details 10 5HH65-00004 Nameplate-Color LaserJet Pro MFP 4303dw New 5HH65-00004 (New) Contact for Details 5HH65-00004 Nameplate-Color LaserJet Pro MFP 4303dw Fully refurbished with 90-day warranty 5HH65-00004 Contact for Details 10 5HH66-00002 Nameplate-Color LaserJet Pro MFP 4302fdn New 5HH66-00002 (New) Contact for Details 5HH66-00002 Nameplate-Color LaserJet Pro MFP 4302fdn Fully refurbished with 90-day warranty 5HH66-00002 Contact for Details 10 5HH67-00002 Nameplate-Color LaserJet Pro MFP 4302fdw New 5HH67-00002 (New) Contact for Details 5HH67-00002 Nameplate-Color LaserJet Pro MFP 4302fdw Fully refurbished with 90-day warranty 5HH67-00002 Contact for Details 10 4RA80-40048 Nameplate-Color LaserJet Pro MFP 4301dw Fully refurbished with 90-day warranty 4RA80-40048 Contact for Details 4RA80-40048 Nameplate-Color LaserJet Pro MFP 4301dw New 4RA80-40048 (New) Contact for Details 10 4RA81-40002 Nameplate-Color LaserJet Pro MFP 4301fdn Fully refurbished with 90-day warranty 4RA81-40002 Contact for Details 4RA81-40002 Nameplate-Color LaserJet Pro MFP 4301fdn New 4RA81-40002 (New) Contact for Details 10 4RA82-40004 Nameplate-Color LaserJet Pro MFP 4301fdw Fully refurbished with 90-day warranty 4RA82-40004 Contact for Details 4RA82-40004 Nameplate-Color LaserJet Pro MFP 4301fdw New 4RA82-40004 (New) Contact for Details 10 4RA83-40002 Nameplate-Color LaserJet Pro MFP 4302dw Fully refurbished with 90-day warranty 4RA83-40002 Contact for Details 4RA83-40002 Nameplate-Color LaserJet Pro MFP 4302dw New 4RA83-40002 (New) Contact for Details 10 4RA84-40012 Nameplate-Color LaserJet Pro MFP 4302fdn Fully refurbished with 90-day warranty 4RA84-40012 Contact for Details 4RA84-40012 Nameplate-Color LaserJet Pro MFP 4302fdn New 4RA84-40012 (New) Contact for Details 10 5HH64-40002 Nameplate-Color LaserJet Pro MFP 4302fdw New 5HH64-40002 (New) Contact for Details 5HH64-40002 Nameplate-Color LaserJet Pro MFP 4302fdw Fully refurbished with 90-day warranty 5HH64-40002 Contact for Details

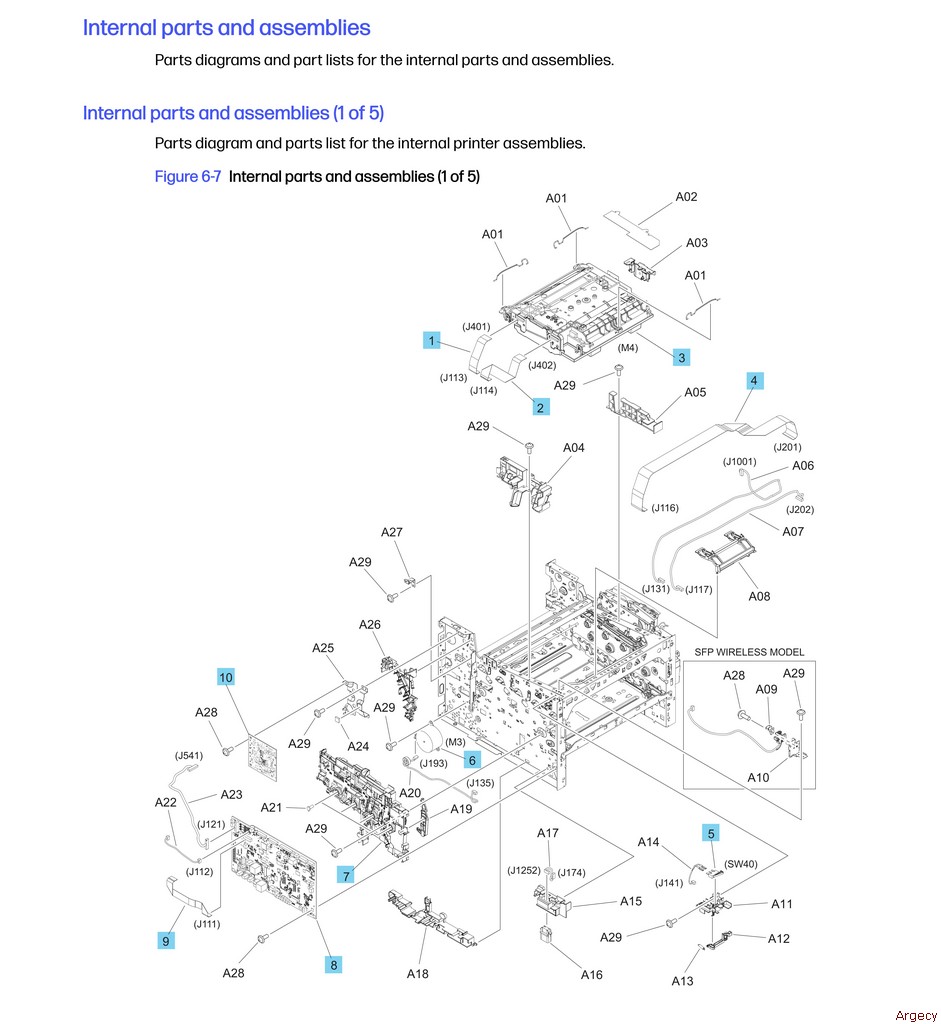

Table 6-7 Internal parts and assemblies (1 of 5) 1 RK3-0363-000CN Cable, flexible flat 2 RK3-0367-000CN Cable, flexible flat 3 RM2-2630-000CN Laser Scanner New RM2-2630 (New) $479.25 4 RK3-0373-000CN Cable, flexible flat 5 RK2-0534-000CN Microswitch 6 RK3-0335-000CN Motor, stepping DC 7 RM2-2819-000CN PCA holder assembly New RM2-2819 (New) Contact for Details RM2-2819-000CN PCA holder assembly Fully refurbished with 90-day warranty RM2-2819 Contact for Details 8 RM3-7577-010CN Engine Control PCB New RM3-7577 (New) $317.25 RM3-7577-010 Engine Control PCB New RM3-7577-010 (New) $317.25 RM3-7577-010CN Engine Control PCB New RM3-7577 (New) $317.25 9 RK3-0360-000CN Cable, flexible flat 10 4RA85-67001 Formatter PCA 4201dn and 4201dne New 4RA85-67001 (New) Contact for Details 4RA85-67001 Formatter PCA 4201dn and 4201dne Fully refurbished with 90-day warranty 4RA85-67001 Contact for Details 10 4RA86-67001 Formatter - Main Board - DW New 4RA86-67001 (New) $141.75 10 4RA87-67001 Formatter PCA 4202dn and 4202dne New 4RA87-67001 (New) Contact for Details 4RA87-67001 Formatter PCA 4202dn and 4202dne Fully refurbished with 90-day warranty 4RA87-67001 Contact for Details 10 4RA88-67001 Formatter PCA 4202dw and 4202dwe New 4RA88-67001 (New) Contact for Details 4RA88-67001 Formatter PCA 4202dw and 4202dwe Fully refurbished with 90-day warranty 4RA88-67001 Contact for Details 10 5HH48-67001 Formatter PCA 4203dw New 5HH48-67001 (New) Contact for Details 5HH48-67001 Formatter PCA 4203dw Fully refurbished with 90-day warranty 5HH48-67001 Contact for Details 10 5HH53-67001 Formatter PCA 4203cdn New 5HH53-67001 (New) Contact for Details 5HH53-67001 Formatter PCA 4203cdn Fully refurbished with 90-day warranty 5HH53-67001 Contact for Details 10 4RA80-67001 Formatter PCA 4301dw and 4301dwe Fully refurbished with 90-day warranty 4RA80-67001 Contact for Details 4RA80-67001 Formatter PCA 4301dw and 4301dwe New 4RA80-67001 (New) Contact for Details 10 4RA81-67001 Formatter PCA 4301fdn and 4301fdne Fully refurbished with 90-day warranty 4RA81-67001 Contact for Details 4RA81-67001 Formatter PCA 4301fdn and 4301fdne New 4RA81-67001 (New) Contact for Details 10 4RA82-67001 Formatter - Main Board - FDW New 4RA82-67001 (New) $141.75 10 4RA83-67001 Formatter PCA 4302dw and 4302dwe Fully refurbished with 90-day warranty 4RA83-67001 Contact for Details 4RA83-67001 Formatter PCA 4302dw and 4302dwe New 4RA83-67001 (New) Contact for Details 10 4RA84-67001 Formatter PCA 4302fdn and 4302fdne Fully refurbished with 90-day warranty 4RA84-67001 Contact for Details 4RA84-67001 Formatter PCA 4302fdn and 4302fdne New 4RA84-67001 (New) Contact for Details 10 5HH64-67001 Formatter PCA 4302fdw and 4302fdwe New 5HH64-67001 (New) Contact for Details 5HH64-67001 Formatter PCA 4302fdw and 4302fdwe Fully refurbished with 90-day warranty 5HH64-67001 Contact for Details 10 5HH65-67001 Formatter PCA 4303dw New 5HH65-67001 (New) Contact for Details 5HH65-67001 Formatter PCA 4303dw Fully refurbished with 90-day warranty 5HH65-67001 Contact for Details 10 5HH66-67001 Formatter PCA 4303fdn New 5HH66-67001 (New) Contact for Details 5HH66-67001 Formatter PCA 4303fdn Fully refurbished with 90-day warranty 5HH66-67001 Contact for Details 10 5HH67-67001 Formatter PCA 4303fdw New 5HH67-67001 (New) Contact for Details 5HH67-67001 Formatter PCA 4303fdw Fully refurbished with 90-day warranty 5HH67-67001 Contact for Details NS 0960-4630 WIFI PCA 802.11N Dual Band Radio NS W1A78-67906 Fax PCA kit (USA) NS W1A78-67907 Fax PCA kit (EURO) NS W1A78-67908 Fax PCA kit (Brazil) NS W1A78-67909 Fax PCA kit (Philippines) 1A replacement DC controller must be paired to the printer formatter using a special HP Android application. For more information, use WISE to see the DC controller remove and replacement procedure in the printer service manual or service web topic.

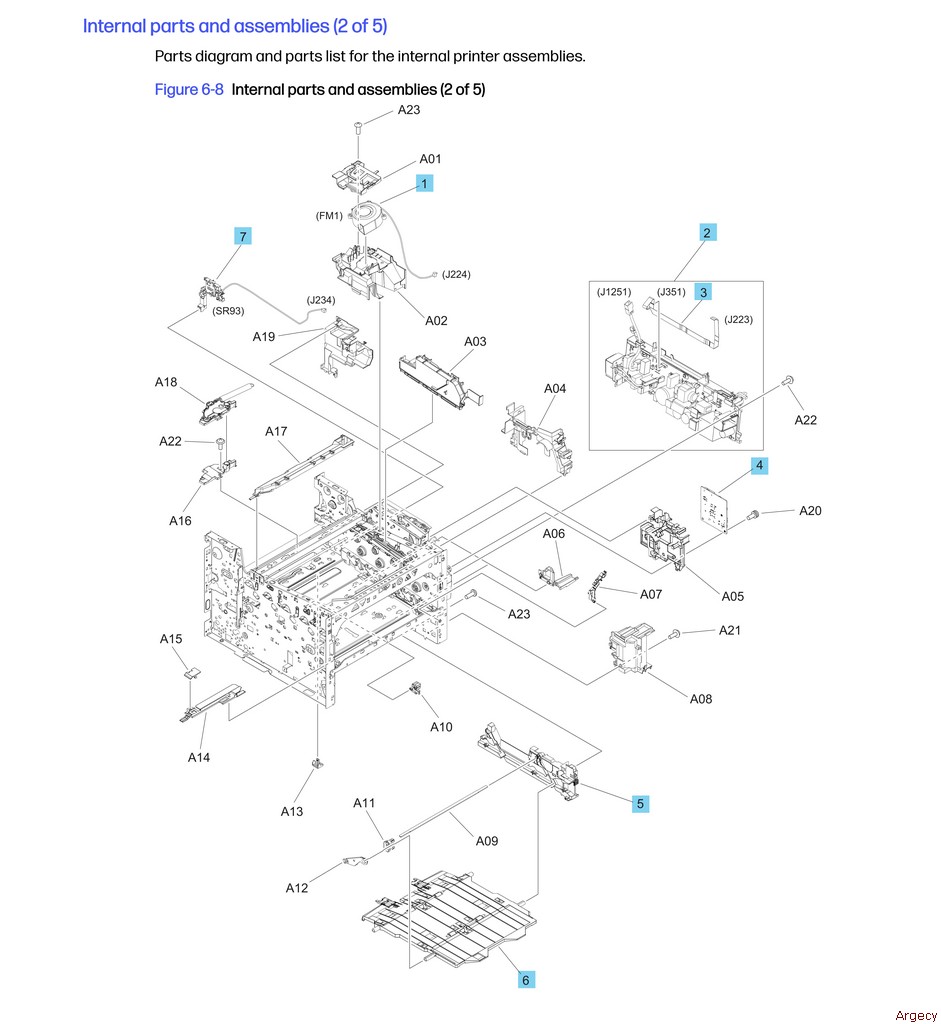

Table 6-8 Internal parts and assemblies (2 of 5) 1 RK3-0397-000CN Fan 2 RM2-2834-000CN Low Voltage Power Supply - LVPS - 110V New RM2-2834 (New) $371.25 2 RM2-2835-000CN Low-voltage power supply (220-240V) New RM2-2835 (New) Contact for Details RM2-2835-000CN Low-voltage power supply (220-240V) Fully refurbished with 90-day warranty RM2-2835 Contact for Details 3 RK3-0380-000CN Cable, flexible flat 4 RM3-7536-000CN Fixing motor control PCA New RM3-7536 (New) Contact for Details RM3-7536-000CN Fixing motor control PCA Fully refurbished with 90-day warranty RM3-7536 Contact for Details 5 RM2-2743-000CN Cassette rail assembly. right New RM2-2743 (New) Contact for Details RM2-2743-000CN Cassette rail assembly. right Fully refurbished with 90-day warranty RM2-2743 Contact for Details 6 RM2-2741-000 MP paper feed assembly New RM2-2741 (New) Contact for Details RM2-2741-000 MP paper feed assembly Fully refurbished with 90-day warranty RM2-2741 Contact for Details 7 RM2-2793-000 Sensor unit waste toner New RM2-2793 (New) Contact for Details RM2-2793-000 Sensor unit waste toner Fully refurbished with 90-day warranty RM2-2793 Contact for Details

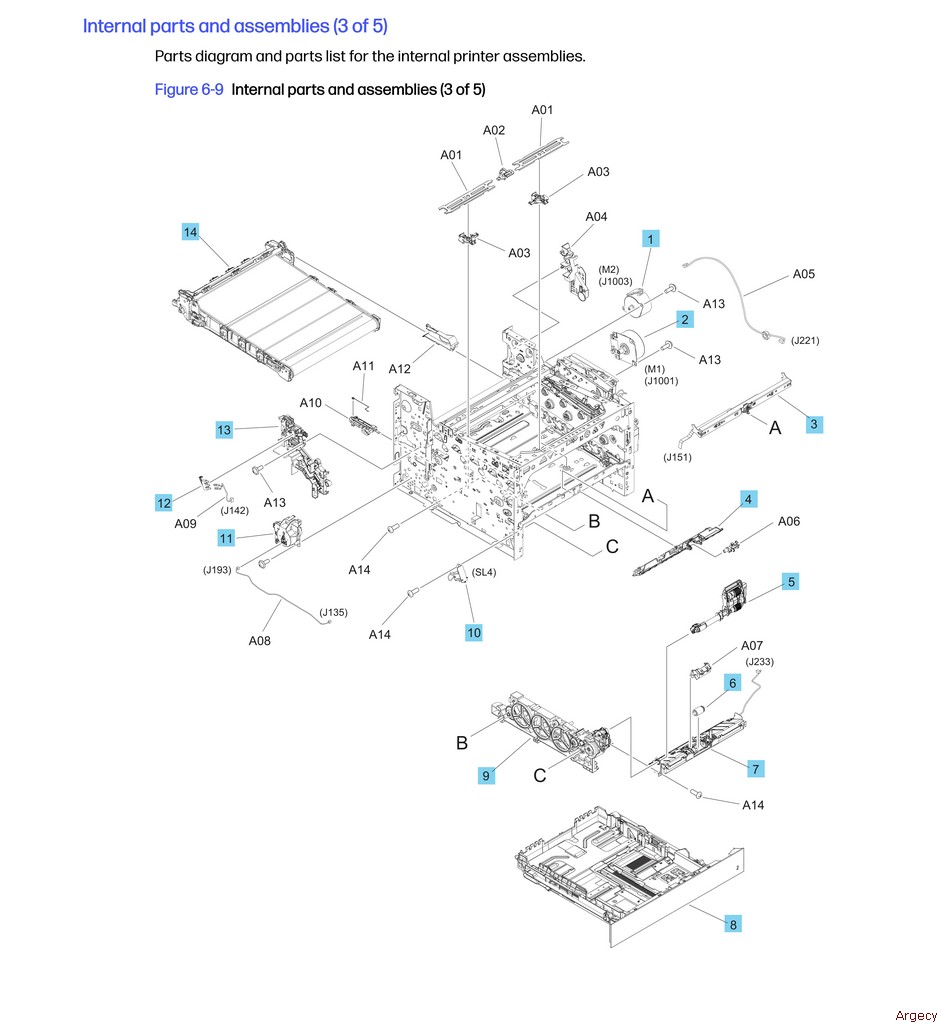

Table 6-9 Internal parts and assemblies (3 of 5) 1 RK3-0334-000CN Motor, stepping DC2 2   RM2-2779-000CN Main motor assembly New RM2-2779 (New) Contact for Details RM2-2779-000CN Main motor assembly Fully refurbished with 90-day warranty RM2-2779 Contact for Details 3 RM2-2710-000CN Density detect sensor assembly New RM2-2710 (New) Contact for Details RM2-2710-000CN Density detect sensor assembly Fully refurbished with 90-day warranty RM2-2710 Contact for Details 4 RM2-2790-000CN Multipurpose guide assembly upper New RM2-2790 (New) Contact for Details RM2-2790-000CN Multipurpose guide assembly upper Fully refurbished with 90-day warranty RM2-2790 Contact for Details 5 RM2-2758-000CN Multipurpose feed assembly New RM2-2758 (New) Contact for Details RM2-2758-000CN Multipurpose feed assembly Fully refurbished with 90-day warranty RM2-2758 Contact for Details 6 RM2-2692-000CN Separation roller assembly (Tray1/2/3) New RM2-2692 (New) Contact for Details RM2-2692-000CN Separation roller assembly (Tray1/2/3) New RM2-2692 (New) Contact for Details 7 RM2-2749-000CN Multipurpose guide assembly lower New RM2-2749 (New) Contact for Details RM2-2749-000CN Multipurpose guide assembly lower Fully refurbished with 90-day warranty RM2-2749 Contact for Details 8 RM2-2737-000CN Paper Cassette Tray - 250 Sheet New RM2-2737 (New) $120.16 8 RM2-2849-000CN Cassette assembly (Tray 2) (gray) New RM2-2849 (New) Contact for Details RM2-2849-000CN Cassette assembly (Tray 2) (gray) Fully refurbished with 90-day warranty RM2-2849 Contact for Details 9 RM2-2742-000CN Cassette rail assembly. left New RM2-2742 (New) Contact for Details RM2-2742-000CN Cassette rail assembly. left Fully refurbished with 90-day warranty RM2-2742 Contact for Details 10 RK3-0408-000CN Solenoid 11 RM2-2714-000CN Duplexing clutch assembly New RM2-2714 (New) Contact for Details RM2-2714-000CN Duplexing clutch assembly Fully refurbished with 90-day warranty RM2-2714 Contact for Details 12 RK2-0534-000CN Microswitch 13 RM2-2759-000CN Interlock holder assembly New RM2-2759 (New) Contact for Details RM2-2759-000CN Interlock holder assembly Fully refurbished with 90-day warranty RM2-2759 Contact for Details

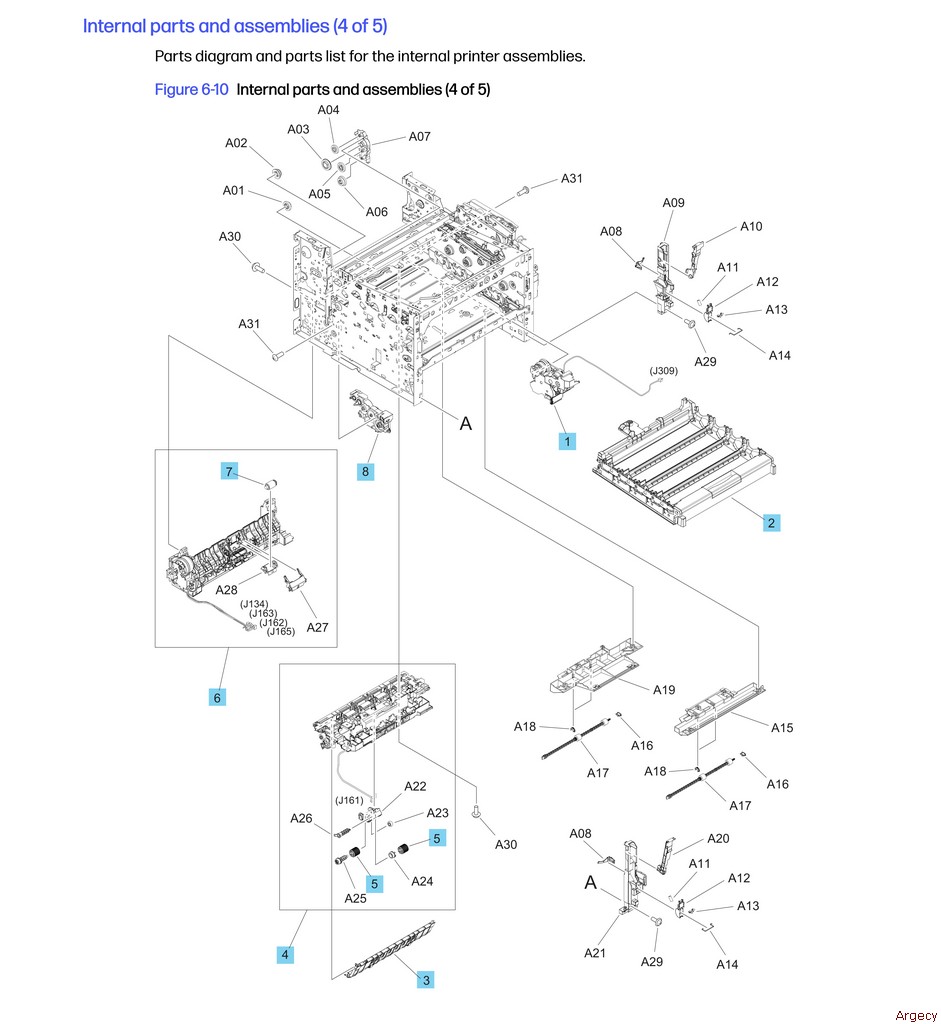

Table 6-10 Internal parts and assemblies (4 of 5) 1 RM2-2711-000CN Lifter drive assembly New RM2-2711 (New) Contact for Details RM2-2711-000CN Lifter drive assembly Fully refurbished with 90-day warranty RM2-2711 Contact for Details 2 RM2-2750-000CN Cartridge tray assembly New RM2-2750 (New) Contact for Details RM2-2750-000CN Cartridge tray assembly Fully refurbished with 90-day warranty RM2-2750 Contact for Details 3 RM2-2716-000CN Duplexing guide assembly upper New RM2-2716 (New) Contact for Details RM2-2716-000CN Duplexing guide assembly upper Fully refurbished with 90-day warranty RM2-2716 Contact for Details 4 RM2-2747-000CN Paper feed guide assembly upper New RM2-2747 (New) Contact for Details RM2-2747-000CN Paper feed guide assembly upper Fully refurbished with 90-day warranty RM2-2747 Contact for Details 5 RM2-2695-000CN Paper Pickup & Feed Roller - Cassette Tray New RM2-2695 (New) $28.36 6 RM2-2736-000CN Paper feed guide assembly lower New RM2-2736 (New) Contact for Details RM2-2736-000CN Paper feed guide assembly lower Fully refurbished with 90-day warranty RM2-2736 Contact for Details 7 RM2-2692-000CN Separation roller assembly (Tray1/2/3) New RM2-2692 (New) Contact for Details RM2-2692-000CN Separation roller assembly (Tray1/2/3) New RM2-2692 (New) Contact for Details 8 RM2-2763-000CN Paper pickup drive assembly New RM2-2763 (New) Contact for Details RM2-2763-000CN Paper pickup drive assembly Fully refurbished with 90-day warranty RM2-2763 Contact for Details

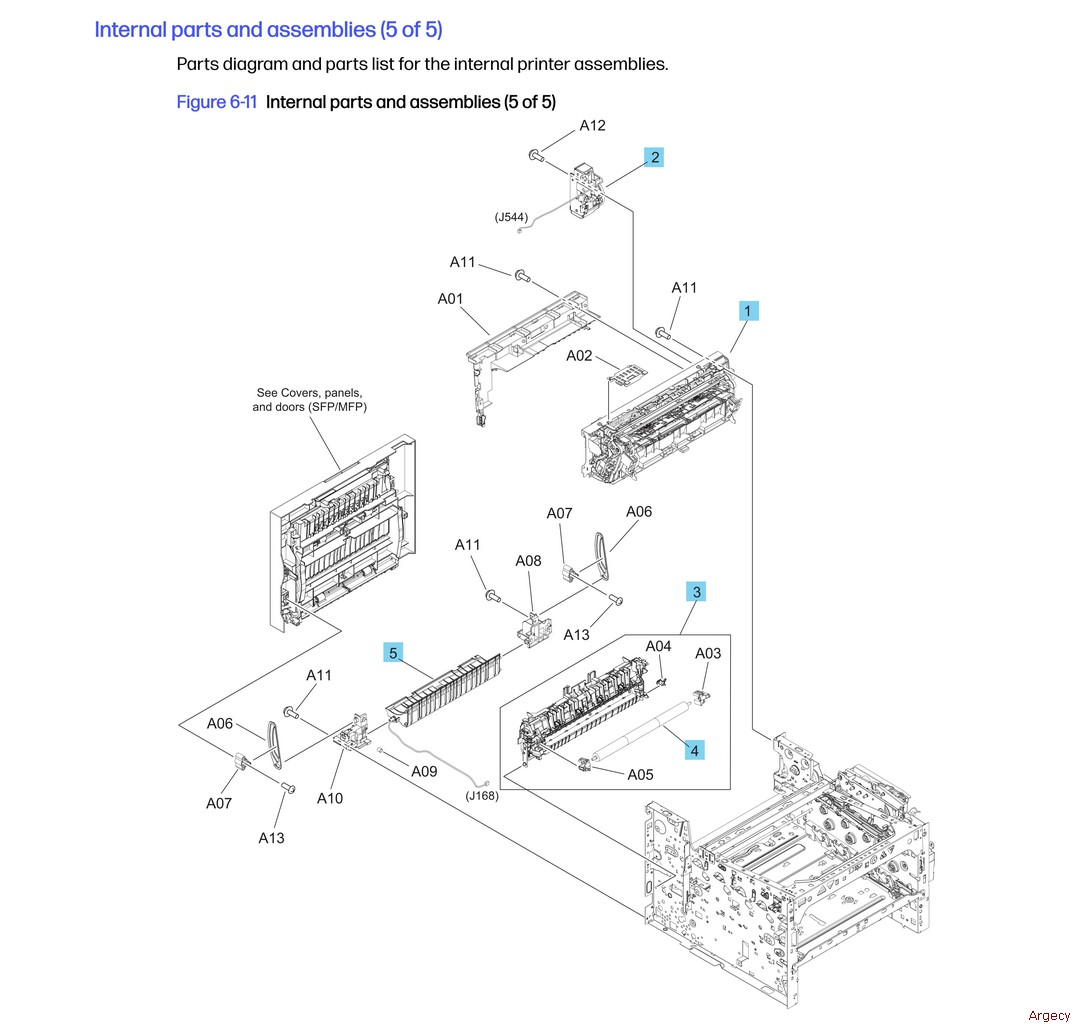

Table 6-11 Internal parts and assemblies (5 of 5) 1 RM2-2731-000CN Fuser - 110V New RM2-2731 (New) $438.75 RM2-2731-000 Fuser 110V New RM2-2731 (New Pull) $363.83 1 RM2-2732-000CN Fuser assembly (220-240V) New RM2-2732 (New) Contact for Details RM2-2732-000CN Fuser assembly (220-240V) Fully refurbished with 90-day warranty RM2-2732 Contact for Details 2 RM2-2841-000CN Duplex drive assembly (SFP) New RM2-2841 (New) Contact for Details RM2-2841-000CN Duplex drive assembly (SFP) Fully refurbished with 90-day warranty RM2-2841 Contact for Details 2 RM2-2842-000CN Duplex drive assembly (MFP) New RM2-2842 (New) Contact for Details RM2-2842-000CN Duplex drive assembly (MFP) Fully refurbished with 90-day warranty RM2-2842 Contact for Details 3 RM2-2755-000CN Secondary transfer feed assembly New RM2-2755 (New) Contact for Details RM2-2755-000CN Secondary transfer feed assembly Fully refurbished with 90-day warranty RM2-2755 Contact for Details 4 RM2-6455-000CN Secondary Transfer Roller New RM2-6455 (New) $43.21 RM2-6455-000CN Secondary Transfer Roller Fully refurbished with 90-day warranty RM2-6455 $32.41 5 RM2-2760-000CN Duplexing guide assembly New RM2-2760 (New) Contact for Details RM2-2760-000CN Duplexing guide assembly Fully refurbished with 90-day warranty RM2-2760 Contact for Details

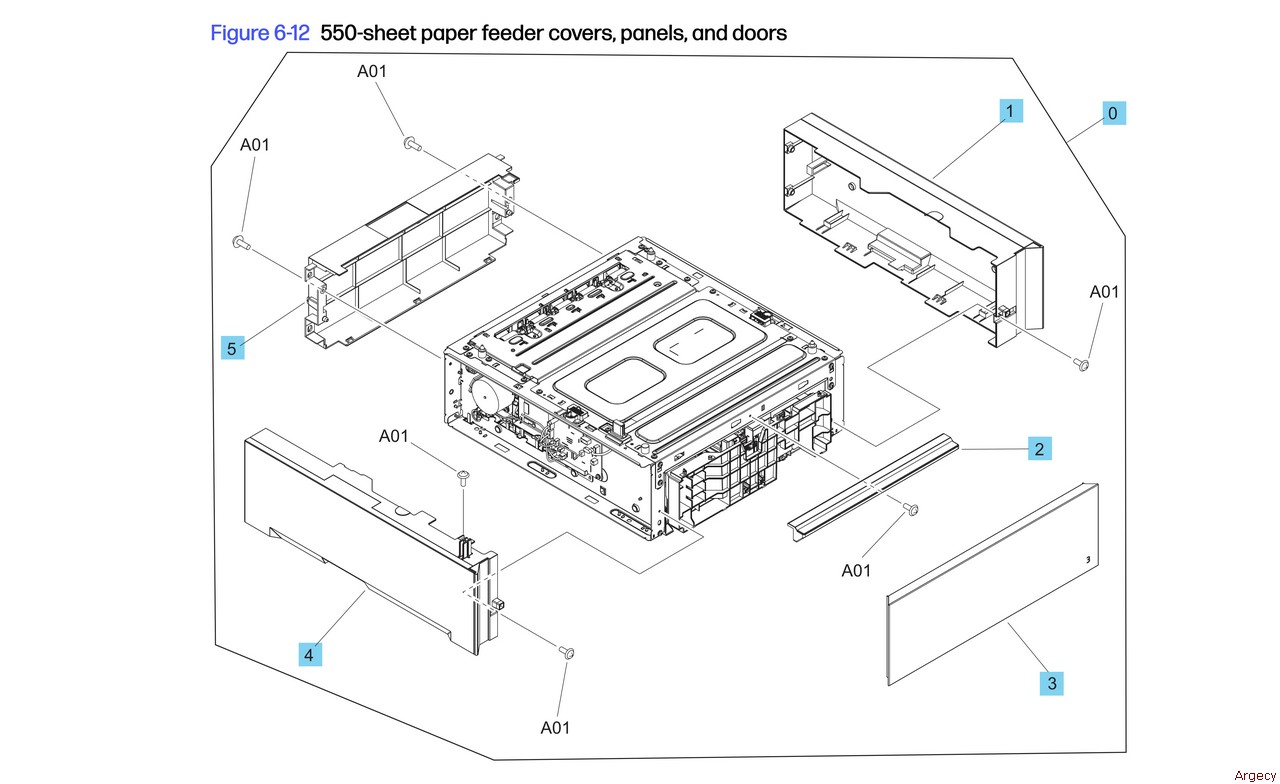

Figure 6-12 550-sheet paper feeder covers, panels, and doors 0 28N93A 550-sheet paper feeder New 28N93A (New) Contact for Details 28N93A 550-sheet paper feeder New 28N93A (New) Contact for Details 1 RM2-2771-000CN Right cover assembly New RM2-2771 (New) Contact for Details RM2-2771-000CN Right cover assembly Fully refurbished with 90-day warranty RM2-2771 Contact for Details 2 RC5-6742-000CN Cover, inner front 3 RC5-6738-000CN Cover, cassette 4 RM2-2770-000CN Left cover assembly New RM2-2770 (New) Contact for Details RM2-2770-000CN Left cover assembly Fully refurbished with 90-day warranty RM2-2770 Contact for Details 5 RC5-6741-000CN Cover, rear

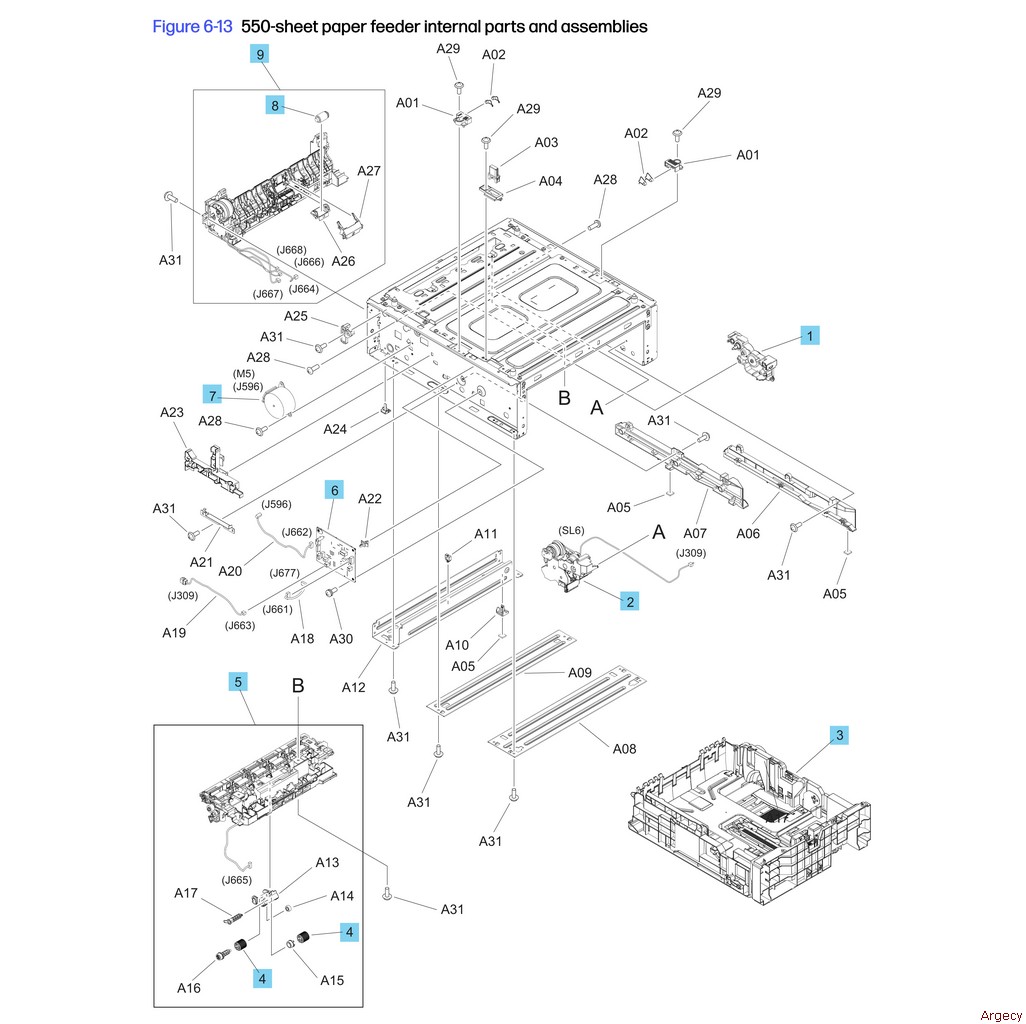

Table 6-13 550-sheet paper feeder internal parts and assemblies 1 RM2-2776-000CN Paper pickup drive assembly New RM2-2776 (New) Contact for Details RM2-2776-000CN Paper pickup drive assembly Fully refurbished with 90-day warranty RM2-2776 Contact for Details 2 RM2-2769-000CN Lift drive assembly New RM2-2769 (New) Contact for Details RM2-2769-000CN Lift drive assembly Fully refurbished with 90-day warranty RM2-2769 Contact for Details 3 RM2-2764-000CN Cassette assembly New RM2-2764 (New) Contact for Details RM2-2764-000CN Cassette assembly Fully refurbished with 90-day warranty RM2-2764 Contact for Details 4 RM2-2695-000CN Paper Pickup & Feed Roller - Cassette Tray New RM2-2695 (New) $28.36 5 RM2-2775-000CN Paper feed guide assembly upper New RM2-2775 (New) Contact for Details RM2-2775-000CN Paper feed guide assembly upper Fully refurbished with 90-day warranty RM2-2775 Contact for Details 6 RM3-7537-000CN Paper feeder driver PCA New RM3-7537 (New) Contact for Details RM3-7537-000CN Paper feeder driver PCA Fully refurbished with 90-day warranty RM3-7537 Contact for Details 7 RK3-0335-000CN Motor, stepping DC 8 RM2-2692-000CN Separation roller assembly (Tray1/2/3) New RM2-2692 (New) Contact for Details RM2-2692-000CN Separation roller assembly (Tray1/2/3) New RM2-2692 (New) Contact for Details 9 RM2-2774-000CN Paper feed guide assembly lower New RM2-2774 (New) Contact for Details RM2-2774-000CN Paper feed guide assembly lower Fully refurbished with 90-day warranty RM2-2774 Contact for Details
