Brother MFC9100C Parts

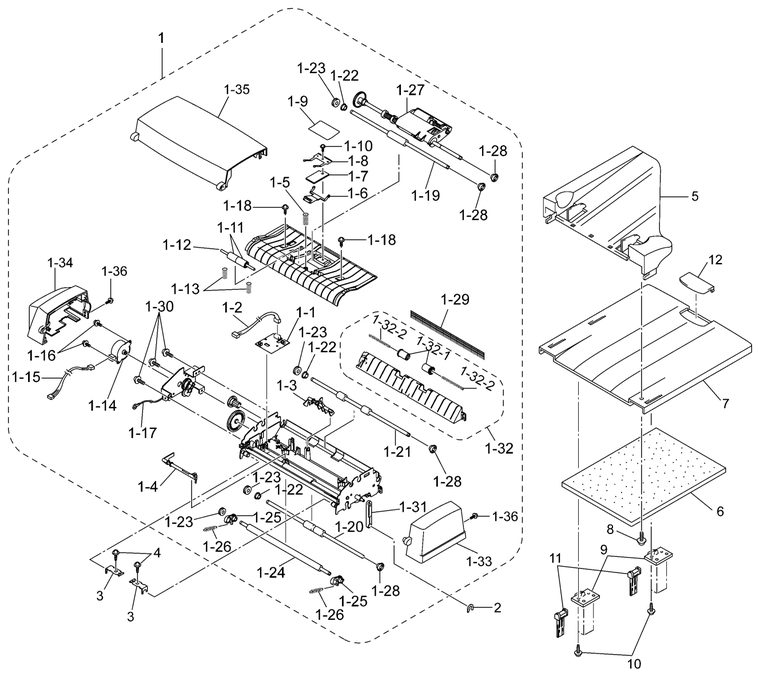

| List 1(ADF&TRAY) 1 LE2005001 1 ADF UNIT 1 UG6609001 1 DOCUMENT SENSOR PCB 2 LG2014001 1 DOCUMENT SENSOR HARNESS 3 UF7026001 1 DOCUMENT FRONT SENSOR ACTUATOR 4 LE2008001 1 DOCUMENT REAR SENSOR ACTUATOR 5 LE2011001 1 COMPRESSION SPRING 6 LE2551001 1 RUBBER HOLDER A 7 UU2055001 1 SEPARATION RUBBER 8 LE2550001 1 SPRING PLATE A 9 LE2470001 1 ADF FILM 10 UF6116001 1 TAPTITE, PAN B M3X6 11 UF9009001 2 PRESSURE ROLLER 12 LE2471001 1 PRESSURE ROLLER SHAFT 13 LE2472001 2 PRESSURE ROLLER SPRING 14 LE2566001 1 ADF MOTOR 15 LG2015001 1 ADF MOTOR HARNESS 16 0A4300605 2 SCREW, PAN (S/P WASHER) M3X6 17 LG2016001 1 GROUNDING WIRE 18 087310815 2 TAPTITE, CUP B M3X8 19 LE2026001 1 UPPER LF ROLLER (GRAY) 20 LE2029001 1 LOWER LF ROLLER (BLACK) 21 LE2028001 1 DOCUMENT EJECTION ROLLER 22 UF8105001 3 CONDUCTIVE BUSHING 23 UU7039001 4 LF ROLLER GEAR 27 24 LE2030001 1 WHITE ROLLER 25 LE2032001 2 WHITE ROLLER BUSHING 26 LE2033001 2 EXTENSION SPRING 27 LE2919001 1 DOCUMENT FEED ROLLER HOLDER ASSY 27 LE2037001 2 DOCUMENT FEED ROLLER (RUBBER) 28 UU1290001 4 CONDUCTIVE BUSHING 29 UU7505001 1 ANTI-STATIC BRUSH 30 087320616 3 TAPTITE, CUP S M3X6 31 UF0208001 1 ADF ARM 32 LE2048001 1 DOCUMENT EJECTION CHUTE ASSY 1 LE2582001 2 PINCH ROLLER 2 UU2009001 2 PINCH ROLLER SPRING 33 LE2050001 1 ADF SIDE COVER F, WHITE(1495) 34 LE2051001 1 ADF SIDE COVER R, WHITE(1495) 35 LE2534001 1 ADF COVER ASSY, WHITE(1495) 36 087320816 2 TAPTITE, CUP S M3X8 2 UF8088001 1 PLASTIC RETAINING RING 3 LE2053001 2 ADF SUPPORT 4 087310816 2 TAPTITE, CUP B M3X8 5 LE3426001 1 DOCUMENT CHUTE, WHITE(1495) 6 LE2487001 1 DOCUMENT SPONGE 7 LE2056001 1 DOCUMENT TRAY, WHITE(1495) 8 087320816 1 TAPTITE, CUP S M3X8 9 LE2567001 2 HINGE A 10 087311015 6 TAPTITE, CUP B M3X10 11 LE2568001 2 HINGE HOLDER A 12 LE2777001 1 DOCUMENT SUPPORT, WHITE(1495) MFC9100C | |

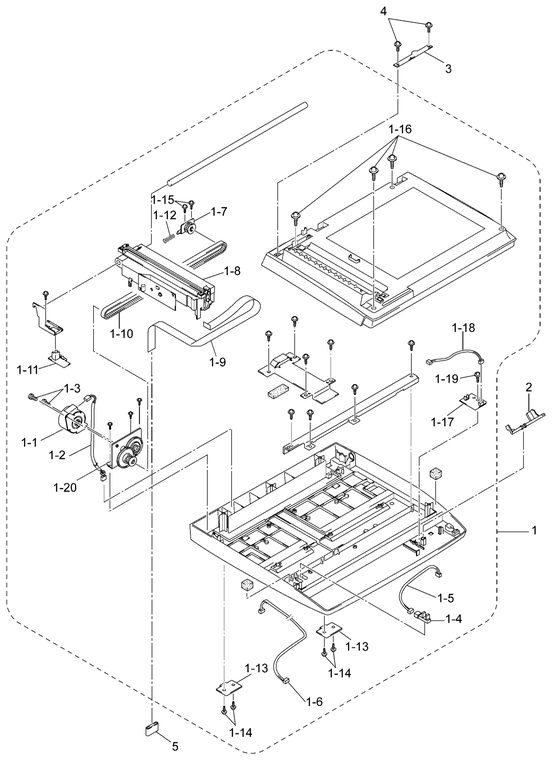

| List 2(SCANNER UNIT) 1 LE2883001 1SCANNER UNIT SUPPLY ASSY 1-1 UU7490001 1 CCD MOTOR 1-2 LG2017001 1 CCD MOTOR HARNESS 1-3 0A4300605 2 SCREW, PAN (S/P WASHER) M3X6 1-4 LG2239001 1 CCD HP SENSOR 1-5 LG2019001 1 CCD HP SENSOR HARNESS 1-6 LG2025001 1 PANEL-MAIN HARNESS 1-7 LE2074001 1 CCD IDLE PULLEY HOLDER ASSY 1-8 LE2884001 1 CCD UNIT SUPPLY ASSY 1-9 LG2196001 1 CCD FLAT CABLE 1-10 LE2297001 1 CCD DRIVE BELT 1-11 LE2082001 1 CCD LOCK 1-12 LE2079001 1 COMPRESSION SPRING 1-13 LE2098001 2 HINGE PLATE 1-14 085411216 4 TAPTITE, BIND B M4X12 1-15 LE2805001 2 TAPTITE, PAN B M3X10 1-16 087411216 4 TAPTITE, CUP B M4X12 1-17 LG2018001 1 COVER SENSOR PCB 1-18 LG2137001 1 COVER SENSOR HARNESS 1-19 087310815 1 TAPTITE, CUP B M3X8 1-20 LE1775001 1 MOTOR BRACKET 2 LE2095001 1 COVER SENSOR ACTUATOR 3 LE2092001 1 HARNESS SUPPORT 4 087310816 2 TAPTITE, CUP B M3X8 5 LG2020001 1 FLAT CORE (CCD) MFC9100C | |
|

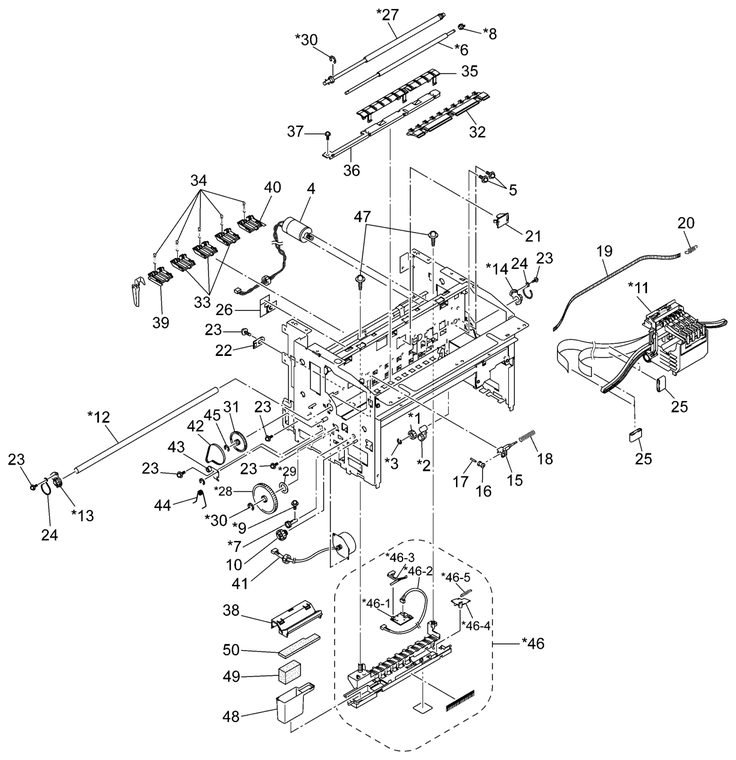

List 3(MAIN CHASIS) To replace part marked with an asterisk(*), you need the special adjustment jig set. If your service center has no special adjustment jig set, you cannot handle those parts as spare parts. *1 LE2110001 1 IDLE GEAR 23 *2 LE2111001 1 ARM 12.3 ASSY *3 048030345 1 RETAINING RING, E3 4 LE3940001 1 CARRIAGE MOTOR 5 0A5300605 2 SCREW, PAN (S/P WASHER) M3X6 *6 UU1047001 1 PAPER EJECTION ROLLER *7 UU1049001 1 PAPER EJECTION ROLLER GEAR *8 UU1290001 1 CONDUCTIVE BUSHING *9 0A5260805 1 TAPTITE, PAN 2.6X8DB 10 UU1050001 1 IDLE GEAR EJECTION *11 LE3079001 1 CARRIAGE ASSY (SUPPLY ASSY INCLUDING CR DRIVE BELT AND FLAT CABLES) 11-1 UU1454001 1 CARRIAGE TIMING BELT *12 UU1077001 1 CARRIAGE RAIL *13 UU1078001 1 ECCENTRIC BUSHING L *14 UU1079001 1 ECCENTRIC BUSHING R 15 UU1081001 1 IDLE PULLEY HOLDER 16 UD6023000 1 IDLE PULLEY 17 UD6025001 1 IDLE PULLEY SHAFT 18 LE0010001 1 TENSION SPRING 19 UD6014001 1 ENCODER STRIP 20 UD6012001 1 SPRING, EXTENSION 21 UU1088001 1 FFC HOLDER 22 UU1286001 1 IDLE PULLEY STOPPER 23 0A5300805 6 SCREW, PAN (S/P WASHER) M3X8 24 UU1476001 2 BUSHING LOCK 25 UG5569000 2 FLAT CORE 26 UU1459001 1 CORE SUPPORT *27 LE2933001 1 PAPER FEED ROLLER *28 UU1094001 1 PAPER FEED ROLLER GEAR L *29 UU1092001 1 SPACER *30 048080345 2 RETAINING RING, E8 31 UU1428001 1 IDLE GEAR P720 32 UU1108001 1 STAR WHEEL HOLDER ASSY 33 LE2759001 3 PAPER PRESSURE HOLDER ASSY 34 UU1115001 5 PRESSER ROLLER SPRING 35 UU1116001 1 PLATEN 36 UU1117001 1 PLATEN FRAME 37 087320616 1 TAPTITE, CUP S M3X6 38 UU1315001 1 FLUSHING FOAM GUTTER 39 LE2760001 1 PAPER PRESSURE HOLDER L 40 LE2761001 1 PAPER PRESSURE HOLDER R 41 LE2479001 1 PAPER FEED MOTOR 42 UU1446001 1 PF DRIVE BELT 43 UU1450001 1 TENSION PLATE ASSY 44 UU1444001 1 SPRING 45 048040345 1 RETAINING RING, E4 *46 LE2117001 1 LOWER CHUTE ASSY *46-1 UG6609001 1 PAPER EJECTION/CASSETTE SENSOR PCB *46-2 LG2021001 1 PAPER EJECTION/CASSETTE SENSOR HARNESS *46-3 LE2119001 1 PAPER EJECTION SENSOR ACTUATOR *46-4 LE2120001 1 CASSETTE SENSOR ACTUATOR *46-5 UD4336001 1 ACTUATOR SPRING 47 087411015 2 TAPTITE, CUP B M4X10 48 UU1449001 1 FLUSHING FOAMS PACK 49 UU1199001 2 LOWER FLUSHING FOAM 50 UU1200001 1 UPPER FLUSHING FOAM | |
|

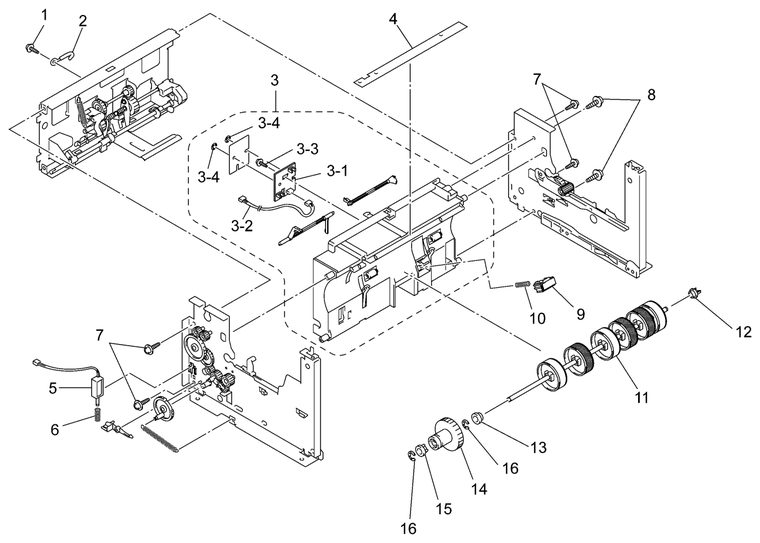

List 4(PAPER TRANSPORT) 1 087320616 1 TAPTITE, CUP S M3X6 2 LE2489001 1 CABLE CLIP 3 LE2157001 1 UPPER PAPER CHUTE ASSY 1 UG6609001 1 PAPER WIDTH/REGISTRATION SENSOR PCB 2 LG2022001 1 PAPER WIDTH/REGISTRATION SENSOR HARNESS 3 087270816 1 TAPTITE, CUP B M2.6X8 4 UF0250000 2 PUSH NUT 3 4 LE2169001 1 CHUTE FILM 5 LE2481001 1 SOLENOID 6 UD4319001 1 SOLENOID SPRING 7 087320616 4 TAPTITE, CUP S M3X6 8 087311016 2 TAPTITE, CUP B M3X10 9 LE2208001 1 SEPARATION PAD HOLDER ASSY 10 LE2211001 1 SEPARATION PAD SPRING 11 LE2213001 1 PAPER PICK-UP ROLLER ASSY 12 UU1290001 1 PAWLED BUSHING 13 UF8105001 1 CONDUCTIVE BUSHING 14 LE2220001 1 PAPER PICK-UP ROLLER GEAR ASSY 15 LE2482001 1 COLLAR STOPPER 16 048050346 2 RETAINING RING, E5 | |
|

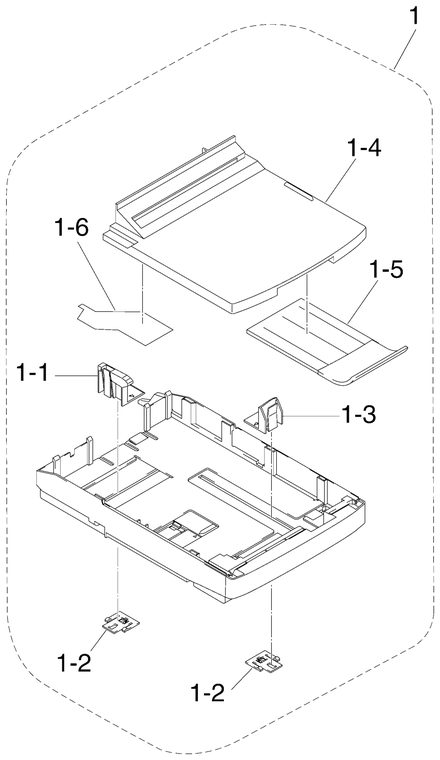

List 5(PAPER CASSETTE) 1 LE2228001 1 PAPER CASSETTE ASSY 1 LE2234001 1 SIDE PAPER GUIDE 2 LE2235001 2 GUIDE STOPPER1- 3 LE2236001 1 FRONT PAPER GUIDE1- 4 LE2239001 1 CASSETTE COVER1- 5 LE2856001 1 PAPER EJECT SUB TRAY ADD1- 6 LE2490001 1 CASSETTE GUIDE FILM ADD | |
|

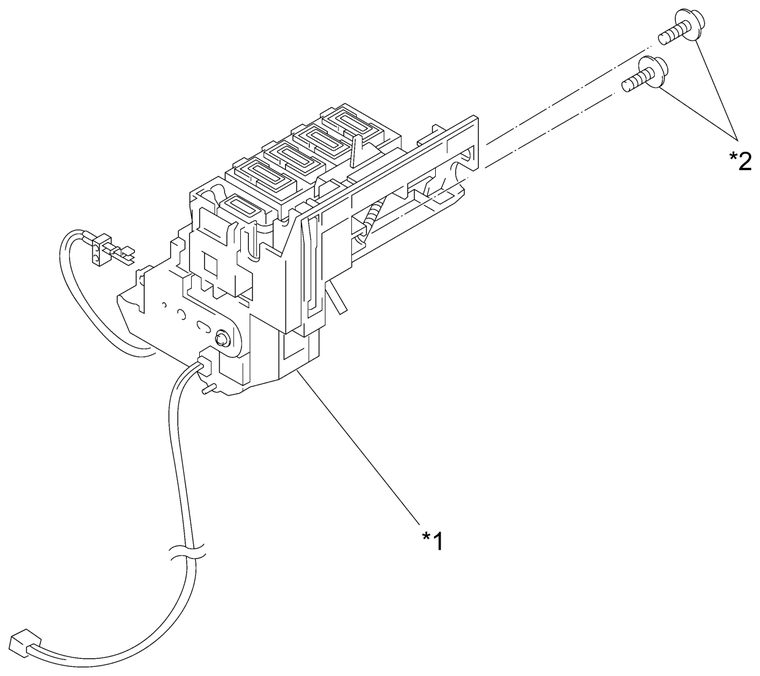

List 6(PURGE UNIT) To replace part marked with an asterisk(*), you need the special adjustment jig set. If your service center has no special adjustment jig set, you cannot handle those parts as spare parts. 1 LE2242001 1 PURGE UNIT ASSY 2 0A5300605 2 SCREW, PAN (S/P WASHER) M3X6 | |
|

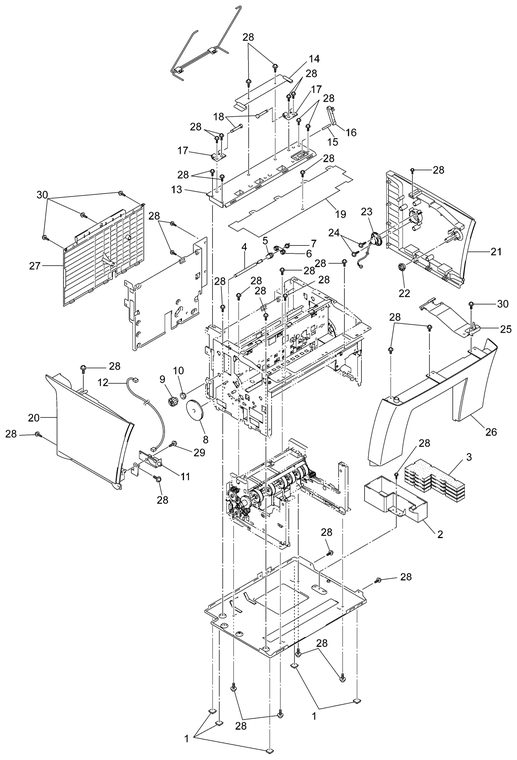

List 7(COVER) 1 UL5600001 5 RUBBER FOOT 2 LE2246001 1 DRAIN TANK 3 UU1198001 4 INK ABSORBER 4 LE2223001 1 PAPER FEED SHAFT ASSY 5 LE2225001 1 GEAR M0.5/25 6 LE2226001 1 ONE WAY ARM ASSY 7 UU1290001 1 CONDUCTIVE BUSHING 8 LE2221001 1 IDLE GEAR 9 LE2222001 1 GEAR M0.6/25 10 UF0022000 1 BUSHING 11 UG5717001 1 VC CONNECTOR PCB ASSY 12 LG2195001 1 VC HARNESS 13 LE2248001 1 REAR FRAME 14 LE2577001 1 TORSION BAR SUPPORT 15 LE2773001 1 LINK SHAFT 16 LE2758001 1 LINK 17 LE2252001 2 HINGE PLATE 18 LE2253001 2 PIVOT PIN 19 LE2545001 1 COVER SHEET 20 LE3427001 1 SIDE COVER L, WHITE(1495) 21 LE2263001 1 SIDE COVER R, WHITE(1495) 22 LE2264001 1 OPEN BUTTON 23 LG2187001 1 SPEAKER 24 UU1225001 2 TAPTITE, CUP B M4X10 25 LE2265001 1 INNER COVER, WHITE(1495) 26 LE3471001 1 FRONT COVER, WHITE(1495) 27 LE2267001 1 REAR COVER, WHITE(1495) FOR US/CAN 27 LE2499001 1 REAR COVER, WHITE(1495) FOR ARL/NZ/ASA 28 087320616 2 TAPTITE, CUP S M3X6 29 087310815 1 TAPTITE, CUP B M3X8 30 087321016 4 TAPTITE, CUP S M3X10 | |
|

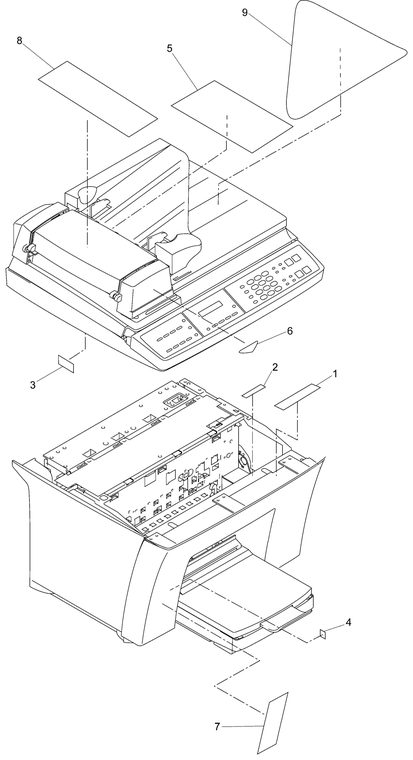

List 8(LABEL) 1 UU1235001 1 INK REPLACEMENT INSTRUCTION LABEL 2 UU1236001 1 HEAD GAP ADJUSTMENT INSTRUCTION LABEL 3 LE2807001 1 SCANNER LOCK EXPLANATION LABEL 4 LE2859001 1 PAPER JAM CLEARANCE INSTRUCTION LABEL 5 UU0456001 1 PROTECTION PAPER 6 UU1240001 1 COLOR MARK FOR US/CAN 6 LE2498001 1 COLOR MARK FOR ARL/NZ/ASA 7 LE2269001 1 MYLAR LABEL 9100-1 FOR US/CAN 8 LE2270001 1 MYLAR LABEL 9100-2 FOR US/CAN 8 LE2270006 1 MYLAR LABEL 9100-2 FOR ARL/NZ/ASA 9 LE2533001 1 MYLAR LABEL 9100-3 FOR US/CAN 9 LE2533006 1 MYLAR LABEL 9100-3 FOR ARL/NZ/ASA | |
|

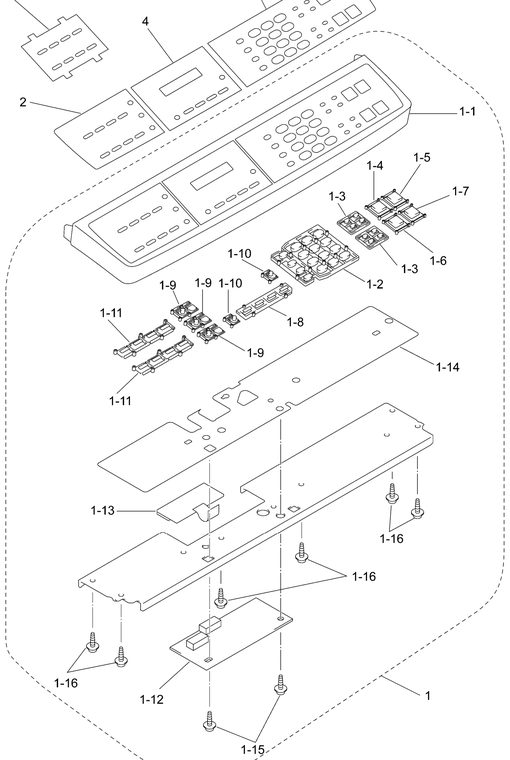

List 9(CONTROL PANEL) 1 LE2272001 1 CONTROL PANEL ASSY, WHITE(1495) 1 LE2273001 1 CONTROL PANEL, WHITE(1495) 2 UF4393007 1 KEY, TEN, WHITE(1495) 3 LE2274001 2 KEY, COPY/FAX AREA, WHITE(1495) 4 UF8174008 1 KEY, MONO COPY, WHITE(1495) 5 UF8174009 1 KEY, COLOR COPY, GREEN(5159) 6 UF8174010 1 KEY, STOP, PINK(2205) 7 UF8174011 1 KEY, START, PURPLE(6255) 8 UF8176009 1 KEY, FUNCTION4, GRAY(1509) 9 UF4576008 3 KEY, SHIFT, WHITE(1495) 10 UF4576010 2 KEY, SHIFT, GRAY(1509) 11 UF9118006 2 KEY, ONE TOUCH, WHITE(1495) 12 LG2138001 1 CONTROL PANEL PCB ASSY 13 UG4552000 1 LCD 14 LG2190001 1 FPC KEY ASSY 15 087270815 2 TAPTITE, CUP B M2.6X8 16 087310615 6 TAPTITE, CUP B M3X6 2 LE2277001 1 PANEL SHEET-1 3 LE2278001 1 PANEL SHEET-2 FOR US/CAN 3 LE2844001 1 PANEL SHEET-2 FOR ARL/NZ /ASA 3 LE3021001 1 PANEL SHEET-2 FOR ASA 4 LE2279001 1 LCD SHEET FOR US/CAN 4 LE2845001 1 LCD SHEET FOR ARL/NZ/ASA 5 LE2280001 1 ADDRESS LABEL | |
|

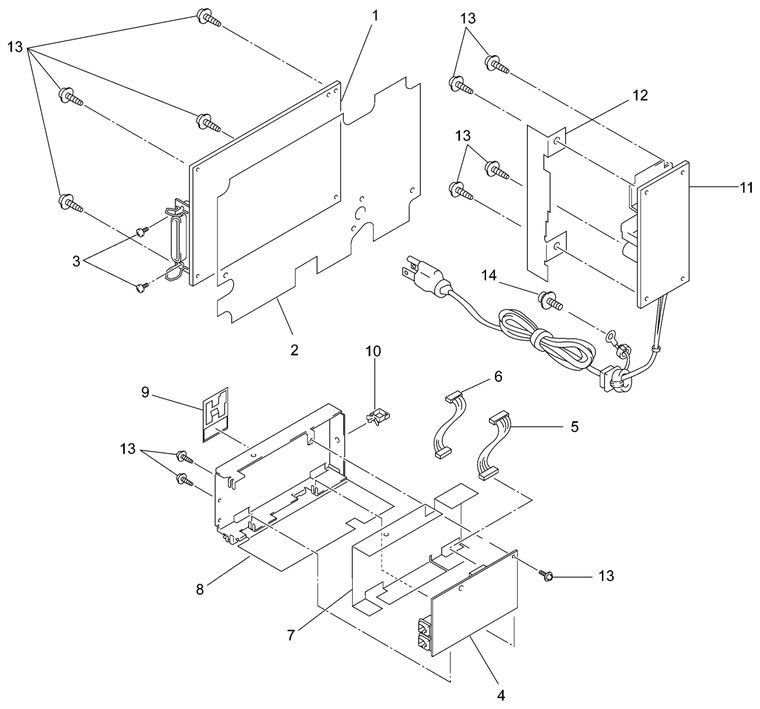

List 1 0(PCB ASSY) 1 LG2026001 1 MAIN PCB ASSY FOR US/CAN 1 LG2532001 1 MAIN PCB ASSY FOR US 1 LG2233001 1 MAIN PCB ASSY FOR ARL/NZ/ASA 2 LE2258001 1 INSULATION FILM (MAIN) 3 002300615 2 SCREW, PAN M3X6 4 LG2139001 1 NCU PCB ASSY FOR US/CAN 4 LG2311006 1 NCU PCB ASSY FOR ARL/NZ 4 LG2305040 1 NCU PCB ASSY FOR ASA 5 LG2140001 1 NCU MAIN HARNESS 6 LG2231001 1 NCU MAIN HARNESS 2 FOR ARL/NZ/ASA 7 LE2257001 1 INSULATION FILM (NCU) 8 LE2484001 1 INSULATION FILM 2 (NCU) 9 LE2543001 1 CORE SUPPORT 10 UG4163000 1 CABLE CLAMP 11 LE2878001 1 POWER SUPPLY PCB, 1 15V SUPPLY ASSY FOR US/CAN (INCLUDING AC CABLE) 11 UG5573001 1 POWER SUPPLY PCB, 230V FOR ARL/NZ (EXCLUDING AC CABLE) 11 UG5570001 1 POWER SUPPLY PCB, 230V FOR ASA (EXCLUDING AC CABLE) 12 LE2483001 1 INSULATION FILM (POWER SUPPLY) 13 087320616 1 TAPTITE, CUP S M3X6 14 UF6559001 1 SCREW, PAN (WASHER) M4X8DB | |
|

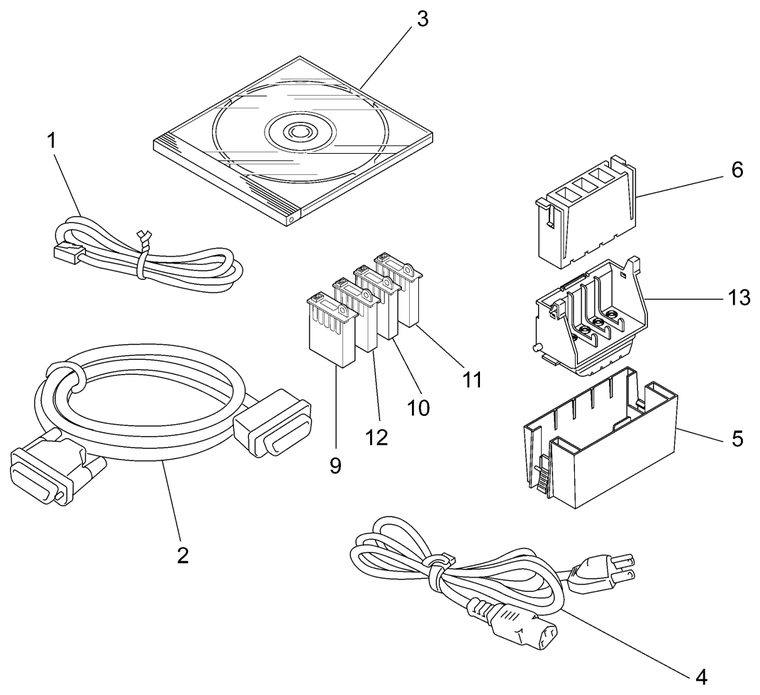

List 1 1(ACCESSORIES&OTHERS) 1 LG3077001 1 TELEPHONE LINE CORD FOR US/CAN 1 UG1570001 1 TELEPHONE LINE CORD FOR ASA 1 UG3628001 1 TELEPHONE LINE CORD FOR ARL 1 UG3290001 1 TELEPHONE LINE CORD FOR NZ 2 UG4558001 1 INTERFACE CABLE 3 LE2281001 1 CD-ROM ASSY FOR US/CAN 3 LE2846001 1 CD-ROM ASSY ARL/NZ/ASA 4 LG2162001 1 AC CORD FOR ARL/NZ 4 LG2086001 1 AC CORD FOR ASA 5 ZA0423001 1 HEAD NOZZLE SEALS (INCLUDING 1 0PCS) 6 ZA0424001 1 HEAD FILTER SEALS (INCLUDING 1 0PCS) (7) ZA0310001 1 HEAD CLEANER STICK ASSY (8) ZA0509001 1 INITIAL LIQUID CARTRIDGE ASSY (INCLUDING 4 EMPTY CARTRIDGES) 9 ZA0492001 1 BLACK INK CARTRIDGES (INCLUDING 1 00PCS) <Eliminated> 10 ZA0495001 1 CYAN INK CARTRIDGES (INCLUDING 1 00PCS) <Eliminated> 11 ZA0498001 1 MAGENTA INK CARTRIDGES (INCLUDING 1 00PCS) <Eliminated> 12 ZA0501001 1 YELLOW INK CARTRIDGES (INCLUDING 1 00PCS) <Eliminated> 13 LK0045001 1 PRINT HEADS HD002 (INCLUDING 1 0PCS) (14) ZA0304001 1 INITIAL LIQUID ASSY (INCLUDING INITIAL LIQUID (120CC) AND SYRINGE (25CC)) (15) LE0026001 1 FOAM EMPTY CARTRIDGE FOR INK SENSOR ADJUSTMENT (16) LE0025001 1 EMPTY CARTRIDGE FOR INK SENSOR ADJUSTMENT (17) UF9258001 1 COLOR TEST CHART CTC-001 (18) UF4600001 1 CONTRAST CHECK CHART TC-023 |
