Brother MFC8440 8840D 8840DN DCP8040 8045D 8045DN Parts
| LIST 1(FRAME L) 1 LF2680001 1 MAIN FRAME L UNIT, DCP8040/MFC8440 1 LF2685001 1 MAIN FRAME L UNIT, DCP8045D/MFC8640D/MFC8840D/MFC8840 D 1 LF2721001 1 MAIN FRAME L UNIT, MFC8840DN 1 LM2440001 1 MAIN MOTOR ASSY 2 3 4 LJ5014001 1 SOLENOID RELEASE SPRING P/R1 5 LJ9166001 1 TONER LED PCB UNIT ASSY1 6 LJ7403001 2 RUBBER FOOT1 7 LG3218001 1 DOCUMENT COVER SENSOR 8 LJ7784001 1 SENSOR CLIP 9 LJ7678001 1 REVERSING RELEASE SOLENOID, DCP8045D MFC8640D / MFC8840D / MFC8840DN / MFC8840DN 10 LG4518001 1 THERMISTOR ASSY1- 11 087320616 4 TAPTITE, CUP S M3X61- 12 LJ7377001 1 DEVELOP JOINT 13 LJ7376001 1 JOINT SPRING 14 UH3044000 1 GEAR, 40/54Y1- 15 UL6569000 2 GEAR 17 PLANETARY1- 16 UL8977001 1 GEAR 45 ARM F/R1- 17 LM2444001 1 GEAR 20 CENTER F/R 18 LJ7375001 1 DEV DRIVE GEAR ZL2 19 UL8958001 1 GEAR 25/130 20 LJ5051001 1 FUSER DRIVE GEAR 21 LJ5049001 1 PENDULUM GEAR 24/57 ADD1- 22 LM2439001 1 GEAR 54/100 E DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 2(FRAME R) 1 LM2733001 1 MAIN FRAME R UNIT 1 2 LJ7403001 2 RUBBER FOOT1- 3 LM2731001 1 TE FILM DCP8040 / DCP8045D/ MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST3 (FRAME UNIT) 1 LJ7490001 1 GROUND SPRING 2 LU0951001 1 FILTER T7 ASSY 3 LJ7496001 1 SPRING, EXTENSION P/R 4 LJ7501001 1 MIDDLE ROLLER GEAR 5 LJ7502001 1 IDLE GEAR 22 6 LJ7504001 1 GROUND WIRE 7 LM2473001 1 FAN MOTOR 60 UNIT LV 8 LM2474001 1 FAN MOTOR 60 UNIT 9 LJ7579001 1 MP SOLENOID HOLDER UNIT, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 10 LJ9237001 1 DX-SENSOR PCB ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 11 LG3218001 1 DOCUMENT COVER SENSOR, DCP8045D/MFC8640D/MFC8840D/MFC8840D N 12 LM2720001 1 SECTOR GEAR PR ASSY 13 UH2378000 1 SPRING HOOK DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 4(LASER UNIT) 1 LU0706001 1 LASER UNIT (SP) â 2 087320815 6 TAPTITE, CUP S M3X8 3 LJ0908001 1 LASER CAUTION LABE DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 5(PAPER FEEDER) 1 LJ7322001 1 REGIST FRONT ACTUATOR 2 LM2590001 1 REGIST FRONT ACTUATOR SPRING 3 LJ7324001 1 REGIST REAR ACTUATOR 4 LJ7325001 1 REGIST REAR ACTUATOR SPRING 5 6 LM2601001 1 PE ACTUATOR 7 LJ9235001 1 CASSETTE SENSOR PCB ASSY 8 LJ5155001 1 CA ACTUATOR 9 LJ5211001 1 PE SENSOR COVER 10 LM2033001 1 FRONT CHUTE GUIDE ASSY 11 LM2032001 1 FRONT TRAY CHUTE ASSY 12 LJ5021001 1 BUSHING R 13 LJ7730001 2 ROLLER COLLAR 14 LJ5020001 1 BUSHING L 15 LU0508001 1 ROLLER 6 GUIDE/ ROLLER (SP) 16 LJ7342001 1 FRONT CHUTE, DCP8040, MFC844 0 16 LM2558001 1 FRONT CHUTE, DCP8045D, MFC8640D / MFC8840D / 8840DN / DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|

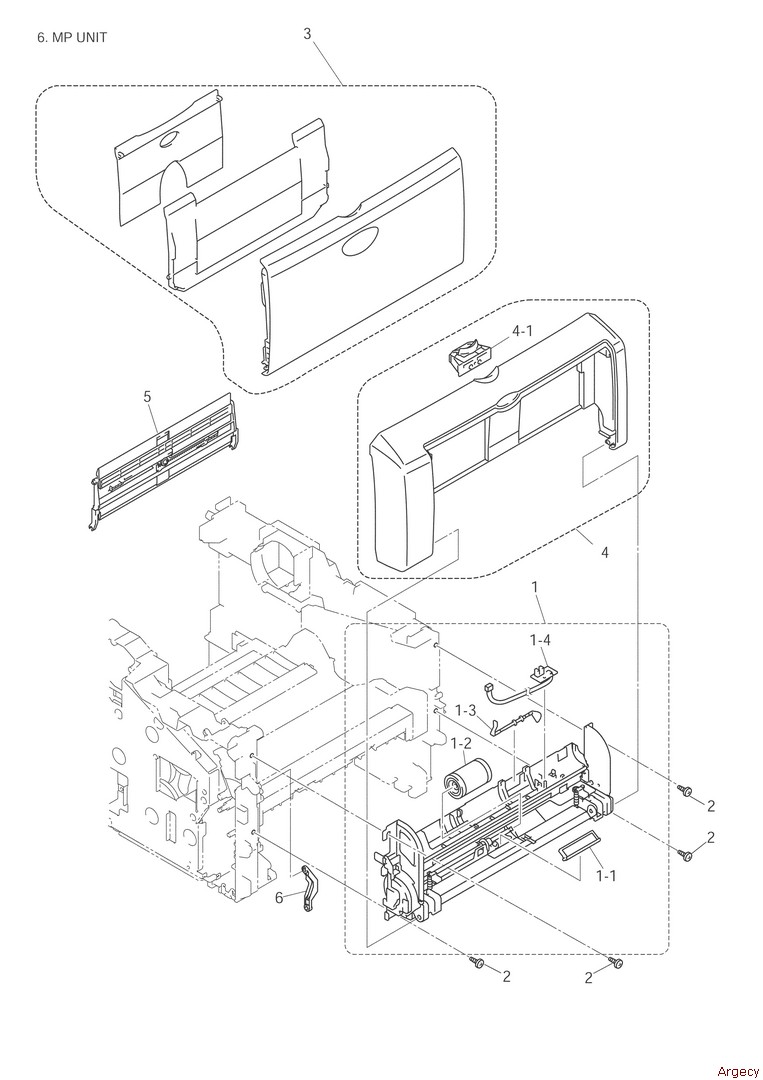

LIST 6(MP UNIT) 1 LJ7551001 1 MP UNIT ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 1 LJ7555001 1 SEPARATION PLATE ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 2 LM2050001 1 PAPER PICK-UP ROLLER ASSY (SP), DCP8045D / MFC8640D / MFC8840D / MFC8840DN 3 LJ7571001 1 MP-PE ACTUATOR, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 4 LJ9222001 1 MP-PE SENSOR PCB ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 2 085411216 4 TAPTITE, BIND B M4X12, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 3 LJ7587001 1 MP TRAY ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN (NOT INCLUDING A BROTHER EMBLEM. ) 4 LM2313001 1 MP FRONT COVER ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 1 LJ7800001 1 MP COVER RELEASE BUTTON, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 5 LJ7589001 1 MP PAPER GUIDE ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 6 LJ7600001 1 DRIVE RELEASE LINK MP, DCP8045D / MFC8640D / MFC8840D / MFC8840DN / DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 7(DUPLEX) 1 LJ7661001 1 DX FEED ASSY DCP8045D / MFC8640D / MFC8840D / MFC8840DN 1 LJ7663001 2 SIDE REGIST ROLLER, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 2 LJ7664001 1 DX FEED ROLLER, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 3 LJ5015001 1 T-BELT (S), DCP8045D / MFC8640D / MFC8840D / MFC8840DN 4 LJ5240001 1 T-BELT (L), DCP8045D / MFC8640D / MFC8840D / MFC8840DN 5 LJ5248001 1 GUIDE ACTUATOR, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 6 LJ7669001 1 GROUND WIRE, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 7 LJ7670001 1 DX ROLLER HOLDER, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 8 LJ7671001 3 PRESSURE ROLLER, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 9 LJ7672001 3 PRESSURE ROLLER SPRING, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 10 085310816 6 TAPTITE, BIND B M3X8, DCP8045D / MFC8640D / MFC8840D / MFC8840DN / DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST
8(PAPER TRAY) 1 LJ7607001 1 PAPER TRAY ASSY â 1 2 LJ5923001 1 SEPARATION PAD SPRING1- 3 LJ7608001 1 PAPER TRAY FRONT COVER1- 4 LJ7616001 1 PAPER TRAY COVER1- 5 085411216 4 TAPTITE, BIND B M4X121- 6 087311016 2 TAPTITE, CUP B M3X10 DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST9(FIXING UNIT) 1 1 LM2706001 1 HEAT ROLLER 25 2 LJ7417001 1 HALOGEN LAMP, 115V1- 3 LJ7877001 4 SEPARATE CLAW ASSY1- 4 LJ7419001 1 THERMISTOR ASSY1- 5 087311215 1 TAPTITE, CUP B M3X121- 6 LJ7428001 3 CLEANER PINCH ROLLER ASSY S1- 7 LJ7432001 1 CLEANER PINCH ROLLER ASSY L1- 8 LM2477001 1 PRESSURE ROLLER 251- 9 LJ9174001 1 THERMISTOR RELAY PCB ASSY 10 LJ5289001 1 PAPER EJECT ACTUATOR1- 11 LJ5066001 1 EJECT ACTUATOR SPRING1- 12 LJ9176001 1 EJECT SENSOR PCB ASSY1- 13 LJ7416001 1 HR GEAR 341- 14 LJ7414001 2 HR BEARING 251- 15 LM2254001 2 SCREW, PAN (S/P WASHER ) M26X8 16 LM2255001 2 WASHER, PLAIN 261- 17 LM2047001 2 IDLE GEAR 131- 18 LJ4118001 1 EJECT ROLLER ASSY 19 085411216 1 TAPTITE, BIND B M4X 20 LJ4740001 1 SHOULDER SCREW DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | Diagram placeholder |
| LIST10(COVERS) 1 LF2126001 1 JOINT COVER ASSY 1 LP2318001 1 JOINT COVER ASSY WITH RIB* 1 LE8599001 1 JOIN COVER, GRAY (1495 ) 2 LE8600001 1 JOINT COVER FRONT L, GRAY (1495 ) 3 LE8601001 1 JOINT COVER FRONT R, GRAY (1495 ) 4 085411216 8 TAPTITE, BIND B M4X12 5 LJ7445001 1 EJECTION ROLLER ASSY ZL2 ADD1- 6 LJ7912001 2 CORRUGATION PINCH ROLLER L 7 LJ7911001 2 CORRUGATION PINCH ROLLER R 2 LG2630001 1 SPEAKER ASSY 3 LG4377001 1 DRIVER PCB ASSY 4 LE8603001 1 DRIVER PCB ACCESS COVER, GRAY (1495 ) 5 LJ7453001 1 SIDE COVER R 6 LM2448001 1 SIDE COVER L 7 LM2724001 1 FRONT COVER ASSY, DCP8040 / MFC8440DCP8045D / MFC8640D / MFC8840D / MFC8840DN is listed in List 6 as a "MP TRAY ASSY" 1 LJ7463001 1 FRONT COVER RELEASE BUTTON, DCP8040 / MFC8440 8 LJ7465001 1 REAR COVER R, DCP8040 / MFC8440 8 LJ7617001 1 REAR COVER R MP, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 9 LJ7466001 1 REAR COVER L, DCP8040 9 LJ7618001 1 REAR COVER L MP, DCP8045D 9 LE8767001 1 REAR COVER L, MFC8440 9 LE8604001 1 REAR COVER L MFC MP, MFC8640D / MFC8840D / MFC8840DN 10 LJ7469001 1 OUTER CHUTE, DCP8040 / MFC8440 11 LJ7610001 1 REAR COVER MP, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 12 LJ7467001 1 REAR COVER C, DCP8040 / MFC8440 13 LJ7470001 1 OUTER CHUTE TRAY, DCP8040 / MFC-8440 14 LJ7613001 1 REAR COVER MP TRAY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 15 LJ7699001 1 OUTER CHUTE MP ASSY, DCP8045D / MFC8640D / MFC8840D / MFC8840DN 16 LF2455001 1 ACCESS COVER, GRAY (1495 ) 17 LJ7895001 1 SUPPORT FLAP 18 LJ7896001 1 SUPPORT FLAP S 19 LJ7353001 1 HEATER CAUTION LABEL 20 085411216 14 TAPTITE, BIND B M4X12 21 087311016 3 TAPTITE, BIND B M3X10 (22) ----- NOT USED 23 LE8812001 1 BROTHER EMBLEM, MFC8640D / MFC8840D / MFC8840DN 23 LE8890001 1 BROTHER EMBLEM, MFC8440 23 LE8891001 1 BROTHER EMBLEM, DCP8040 / DCP8045D 24 LM2978001 1 TOP COVER RIB ASSY (SP) 25 LM6340001 1 TOP COVER RIB ASSY2 (SP) 26 LJ7468001 1 LINK, DCP8040 / MFC8440 *JOINT COVER ASSY WITH RIB consists of JOINT COVER ASSY, 9 pieces of TOP COVER RIB and 2 pieces of TOP COVER RIB 2. DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 11(SCANNER) 1 LF2923001 1 SCANNER UNIT 1 LG2239001 1 PHOTO INTERRUPTER 2 LE8618001 1 FFC CABLE ASSY1- 3 LE8632001 1 SCANNING MOTOR FB1- 4 LE8634001 1 PULLEY ASSY1- 5 LE8640001 1 PULLEY SPRING1- 6 LF2037001 1 CCD MODULE (SP) 7 LE8642001 1 BELT1- 8 LE8646001 1 TOP COVER ASSY 1 LF2004001 1 LOCK LEVER ASSY1-8- 2 LE8649001 1 LOCK LEVER B1-8- 3 UF5034001 3 TAPTITE, B 3X6 9 087411216 6 TAPTITE, CUP B M4X12 10 LE2861001 4 TAPTITE, PAN B M3X81- 11 0A4300605 2 SCREW, PAN (S/P WASHER ) M3X6 12 UF5034001 1 TAPTITE, B 3X6 2 087412016 2 TAPTITE, CUP B M4X20 DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 12(ADF) 1 LP2422003 1 ADF UNIT (SP), DCP8040 / DCP8045D / MFC8440 / MFC8840D / MFC8840D 1 LP2422001 1 ADF UNIT (SP), MFC8640D â 1 LE8660001 1 DOCUMENT COVER LGL SUB ASSY 1 LE8663001 1 DOCUMENT EJECTION TRAY 2 LG3218001 1 DOCUMENT COVER SENSO R 3 LE6245001 1 HINGE ARM R1-1- 4 087311016 3 TAPTITE, CUP B M3X101-1- 5 LG4567001 1 DOCUMENT REAR SENSOR 6 LE8998001 1 REAR SENSOR FILM 2 LE8688001 1 ADF MOTOR 3 LG4376001 1 ADF RELAY PCB ASSY 1- 4 LE8704001 1 LF ROLLER2 ASSY1- 5 LE8711001 1 EJECTION ROLLER ASSY 6 LG2239001 1 PHOTO INTERRUPTER 7 LE8828001 1 FRONT SENSOR ACTUATOR ASSY1- 8 LE2011001 1 COMPRESSION SPRING 1- 9 LE2551001 1 RUBBER HOLDER 10 11 LE1513001 1 SPRING PLATE ADF FRONT A ASSY1- 12 LE2470001 1 ADF FILM 13 UF9009001 10 PRESSER ROLLER 14 LE8722001 1 LF ROLLER1 ASSY1- 15 16 UU1290001 4 CONDUCTIVE BUSHING1- 17 LE8727003 1 SIDE COVER F, GRAY (1623 ) 18 LE8728003 1 SIDE COVER R, GRAY (1623 ) 19 LE8729003 1 ADF COVER, GRAY (1623 ) 20 LE8834001 1 DOCUMENT HOLD ASSY 21 LF2026001 1 DOCUMENT HOLD SPRING 22 0A4300605 2 SCREW, PAN (S/P WASHER ) M3X6 23 087320616 1 TAPTITE, CUP S M3X61 24 087311016 6 TAPTITE, CUP B M3X10 2 3 LS7497001 1 HINGE BASE R 4 087311016 3 TAPTITE, CUP B M3X10 DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 13(PANEL) 1 LF2683001 1 PANEL UNIT, DCP8040 1 LF2686001 1 PANEL UNIT, DCP8045D 1 LE8732001 1 PANEL UNIT, MFC8440 1 LE8846001 1 PANEL UNIT , MFC8640D / MFC8840D / MFC8840DN 1 LE8939001 1 PANEL UNIT, MFC8840D FOR BRA 1 LG4383001 1 LCD 2 LG4411001 1 PANEL PCB ASSY, DCP8040 / DCP8045D 2 LG4384001 1 PANEL PCB ASSY, MFC8440 / MFC8640D / MFC8840D / MFC8840DN 3 LG4393001 1 FPC KEY ONE TOUCH1- 4 LG4392001 1 FPC KEY COPY1- 5 087310815 2 TAPTITE, CUP B M3X8 2 LE8771001 1 LCD SHEET, DCP8040/DCP8045D 3 LF2681001 1 LCD SHEET, MFC8440 3 LF9432001 1 LCD SHEET, MFC8640D 3 LF2688001 1 LCD SHEET, MFC8840D/MFC8840DN 4 087411215 4 TAPTITE, CUP B M4X 125 LE8752001 1 ADDRESS LABEL, MFC8440 / MFC8640D / MFC8840D / MFC8840DN / DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 14(PCB) 1 LG5374001 1 MAIN PCB ASSY, DCP8040 / DCP8045D B53K627 1 LG5378001 1 MAIN PCB ASSY, MFC8440 / MFC8640D / MFC8840D / MFC8840D B53K627 2 LG4823001 1 BATTERY, MFC8440 / MFC8640D / MFC8840D / MFC8840DN 3 LG4396002 1 NCU PCB ASSY, MFC8440 / MFC8640D / MFC8840D / MFC8840DN FOR US B53K664 3 LG4396001 1 NCU PCB ASSY, MFC8440 / MFC8840D / MFC8840DN FOR CAN B53K664 3 LG4520040 1 NCU PCB ASSY, MFC8840D FOR BRA B53K666 4 LG5329001 1 LOW-VOLTAGE PS PCB UNIT 115V FOR US / CAN DEL 4 LG5526001 1 LOW-VOLTAGE PS PCB UNIT 115V FOR BRA / DEL 4 LG6408001 1 LOW-VOLTAGE PS PCB UNIT 115V 5 085411216 1 TAPTITE, BIND B M4X 6 LG4401001 1 HIGH-VOLTAGE PS PCB ASSY 7 LG4404001 1 ENGINE PCB ASSY, DCP8040 / MFC8440 7 DCP8045D / MFC8640D / MFC8840D / MFC8840DN / DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN | |
|
LIST 15(ACCESSORIES) 1 LG4400001 1 AC CORD BAG ASSY FOR US/CAN 1 LG4715001 1 AC CORD BAG ASSY FOR BRA 2 LE8833003 1 DOCUMENT TRAY BAG ASSY, DCP8040 / DCP8045D / MFC8440 / MFC8840D / MFC8840DN, GRAY(1623) 2 LE8833001 1 DOCUMENT TRAY BAG ASSY, MFC8640D, GRAY(1495) 3 LF6284001 1 CD-ROM ASSY, DCP8040 / DCP8045D FOR US / CAN <Windows> 3 LF6657001 1 CD-ROM ASSY, MFC8440/MFC8840D/MFC8840DN FOR US / CAN <Windows> 3 LF9433001 1 CD-ROM ASSY, MFC8640D <Windows> <Macintosh> 3 LF6288001 1 CD-ROM ASSY, MFC8840D FOR BRA <Windows> 4 LF6655001 1 CD-ROM ASSY FOR US/CAN <Macintosh> 4 LF6299001 1 CD-ROM ASSY FOR BRA <Macintosh> 5 LG3077001 1 TELEPHONE LINE CORD, MFC8440 / MFC8640D / MFC8840D / MFC8840DN 6 1 2 7 LM2102001 1 FU LAMP ASSEMBLY JIG ASSY8 ---- NOT USED 9 ---- NOT USED 10 ---- NOT USED DCP8040 / DCP8045D / MFC8440 / MFC8640D / MFC8840D / MFC8840DN |
