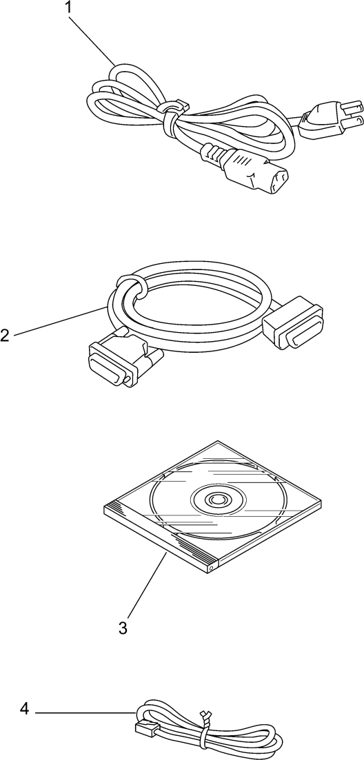

Brother MFC 9760 9860 9880 Parts

-- select -- AMT Datasouth Parts Brother Printer Parts Canon imagePROGRAF iPF610 Parts Compuprint Parts Dascom Parts Dell Laser Printer Parts Epson Parts Fujitsu Printer Parts Genicom Parts Godex Printer Parts HP Parts for Printers, MFPs, & Scanners IBM Infoprint Parts Ithaca Parts Konica Parts Lexmark Parts for Printers and Scanners Oki Parts (Okidata Parts) Olivetti Parts OTC (Output Technology) Parts Printek Parts Printronix Parts PSI Parts Ricoh Parts Samsung Printer and MFP Parts Sato Parts Sharp Printer Parts Source Technologies Parts Tally Parts Tharo Parts Toshiba Parts TSC Parts Videojet Spare Parts Visioneer Parts Xerox Parts Zebra Parts

-- select -- Bother HL 6050D 6050DN 6050DW Parts Brother DCP 9030CDN L3510CDW L3517CDW L3550CDW L3551CDW HL L3290CDW MFC 9150CDN 9350CDW L3710CW L3730CDN L3735CDN L3745CDW L3750CDW L3770CDW Parts Brother DCP L8410CDW MFC L8610CDW L8690CDW L8900CDW L9570CDW Parts Brother DCP-1200 MFC9600 MFC9750 MFC9850 MFC9870 Parts Brother DCP-1610W 1612W 1615NW 1616NW 1617NW 1618W 1622W MFC-1910W 1911W 1911NW 1912W 1915W 1916NW 1919NW Parts Brother DCP-7080 7080D 7180DN DCP-L2500D L2520D L2520DW DCP-L2540DN L2540DW L2541DW L2560DW HL-L2380DW MFC-7380 7480D 7880DN MFC-L2680W L2685DW L2700D L2700DN L2700DW MFC-L2701D L2701DW L2703DW L2705DW L2707DW MFC-L2720DW L2740DW Parts Brother DCP-8080DN DCP-8085DN MFC-8480DN MFC-8680DN MFC-8690DW MFC-8880DN MFC-8881DNHY MFC-8890DW Parts Brother DCP-9010CN MFC 9010CN 9120CN 9125CN 9320CW 9325CW Parts Brother DCP-9015 DCP-9017 DCP-9020 MFC-9130 MFC-9140 MFC-9330 MFC-9335 MFC-9340 Parts Brother DCP-9055CDN DCP-9270CDN MFC-9460CDN MFC-9465CDN MFC-9560CDW MFC-9970CDW Parts Brother DCP-L8400CDN L8450CDW MFC-L8600CDW L8650CDW MFC-L8850CDW L9550CDW Parts Brother HL-1210W 1211W 1212W 1218W 1222W Parts Brother HL-2600cn Parts Brother HL-3400 Parts Brother HL-4140CN HL-4150CDN HL-4570CDW HL-4570CDWT Parts Brother HL-5140 5150D 5150DLT 5170DN 5170DNLT EN 638 Parts Brother HL-5240 5240L 5250DN 5251DN Parts Brother HL-5340D 5340DL Parts Brother HL-5440 5450 5470 6180 Parts Brother HL-5580D 5585D 5590DN 5595DN L5000D L5100DN L5100DNT L5102DW L5200DW L5202DW L5200DWT L6250DN L6200DW L6202DW L6250DW L6200DWT L6300DW L6300DWT L6400DW L6402DW L6400DWT Parts Brother HL-720 HL-730 HL-730PLUS Parts Brother HL-820 HL-1020 HL-1040 HL-1050 Parts Brother HL-L8250CDN L8350CDW 8350CDWT L9200CDW L9200CDWT L9300CDW L9300CDWT Parts Brother HL-L8260CDW HL-L8260CDN HL-L8360CDW HL-L8360CDWT HL-L9310CDW Parts Brother HL-L8260CDW L8260CDN L8360CDW L8360CDWT L9310CDW Parts Brother HL-P2000 MFC-P2000 Parts Brother HL-S7000DN Parts Brother HLL2305W HLL2300D HLL2320D HLL2340DW HLL2360DN HLL2360DW HLL2365DW HL2260 HL2260D HL2560DN HLL2321D HLL2361DM HLL2366DW Parts Brother LT-2000 Parts Brother LT-400 Parts Brother MFC 9760 9860 9880 Parts Brother MFC-5490CN Parts Brother MFC-5890cn MFC-5895cw Parts Brother MFC-8870DW MFC8860DN Parts Brother MFC-L6900DW Parts Brother MFC8440 8840D 8840DN DCP8040 8045D 8045DN Parts Brother MFC9010CN MFC9120CN MFC9125CN MFC9320CW MFC9325CW Parts Brother MFC9100C Parts Brother PM HL3040CN HL3045CN HL3070CW HL3075CW PARTS

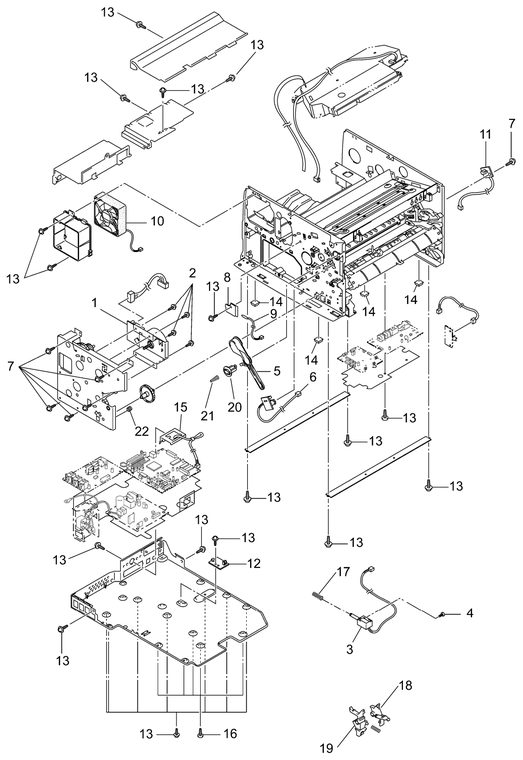

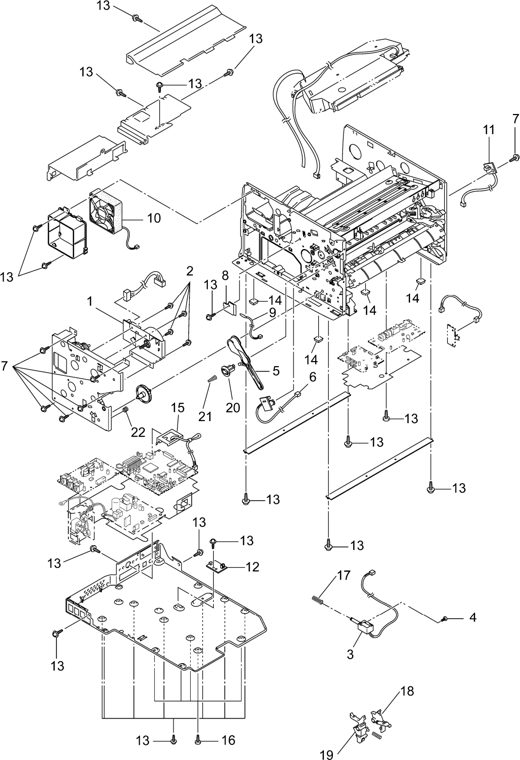

LIST 1(MAIN FRAME) 1 LE1744001 1 MAIN MOTOR ASSY 2 087320616 4 TAPTITE, CUP S M3X 3 LJ5701001 1 SOLENOID ASSY 4 000300415 1 SCREW, BIND M3X 5 UL8984001 1 FRONT COVER LINK 6 LJ5704001 1 TONER SENSOR (LED) PCB 7 087320616 6 TAPTITE, CUP S M3X 8 LE1166001 1 THERMISTOR FILM 9 LG2423001 1 IN CASING TEMPERATURE THERMISTOR 10 LJ4745001 1 FAN 11 UL9104001 1 TONER SENSOR (RECEIVER ) PCB 12 LG2438001 1 PAPER EJECTION SENSOR PCB 13 087320616 21 TAPTITE, CUP S M3X 14 LJ7403001 4 RUBBER FOOT 15 LJ8031001 1 2ND CASSETTE RELAY PCB 16 085411215 5 SCREW, BIND B TITE M4X 17 LJ5703001 1 SOLENOID RELEASE SPRING 18 UL8972001 1 P/R CLUTCH LEVER 19 UL8971001 1 F/R CLUTCH LEVER 20 UL8982001 1 DEVELOP JOINT 21 UL8983001 1 JOINT SPRING 22 UL8959001 1 FRICTION SPRING

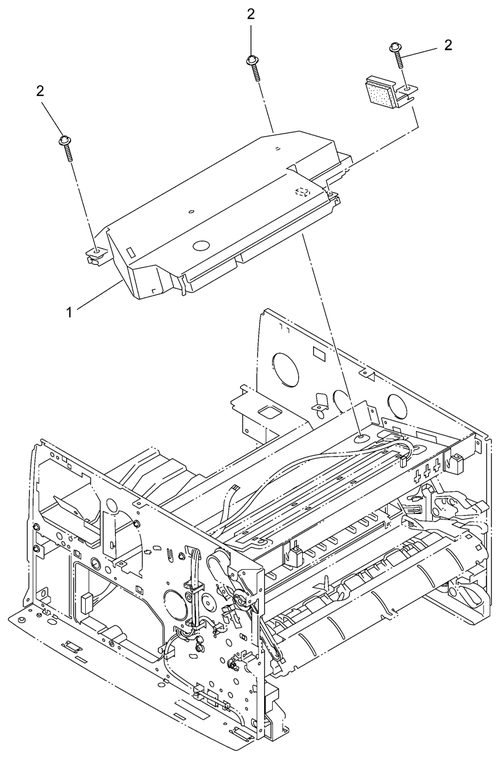

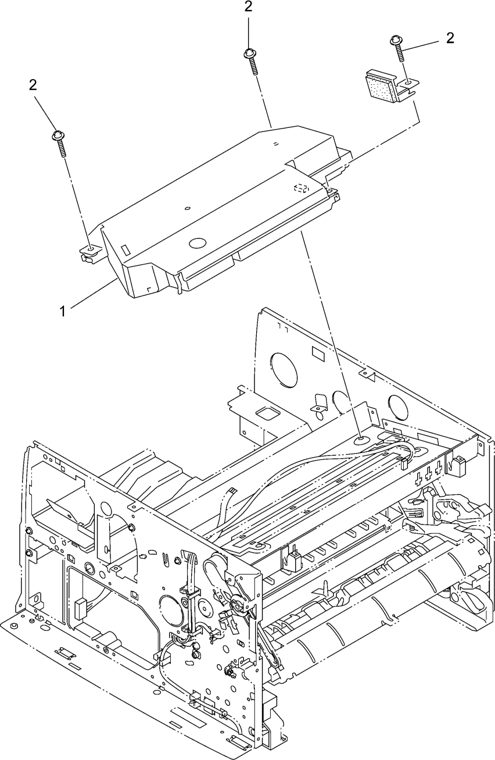

LIST 2(LASER UNIT) 1 LJ5828001 Laser Unit Assembly Fully refurbished with 90-day warranty LJ5828001 $93.16 2 087321615 3 TAPTITE, CUP S M3X16

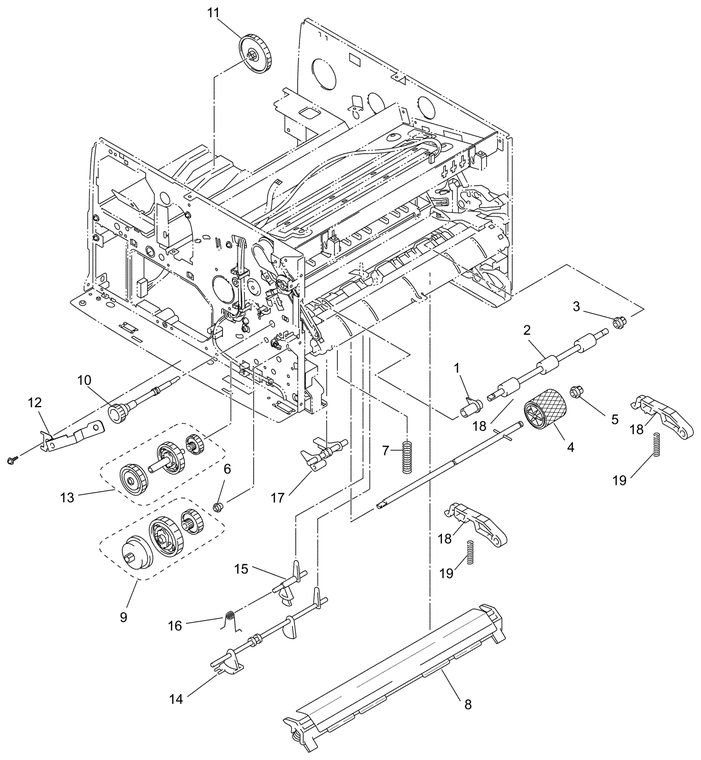

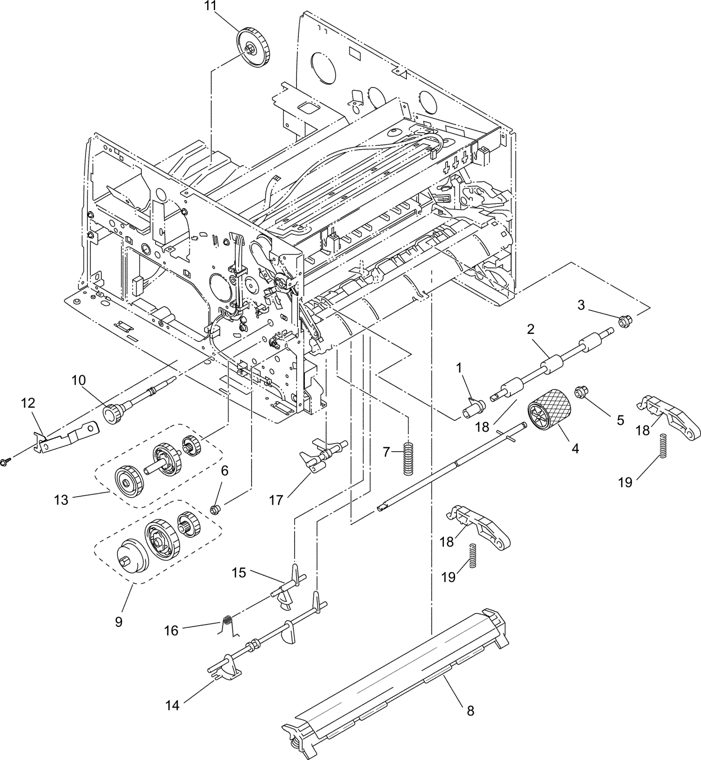

LIST 3(PAPER TRANSPORT) 1 UL9059001 1 JOINT 2 UL9060001 1 PAPER FEED ROLLER ASSY 3 UL9062001 1 PAWLED BUSHING 4 UL9066001 Pickup Roller New UL9066001 (New) $25.65 5 UL9062001 1 PAWLED BUSHING 6 UL9069001 1 CONDUCTOR BUSHING 7 LJ4499001 1 ELECTRODE SPRING 8 LJ4843001 1 OUTER CHUTE 1 (SP) 9 LJ5591001 1 PICKUP ROLLER PLANETARY GEAR ASSY (SP) 10 UL9070001 1 GEAR 11 UL8985001 1 GEAR 59 12 LJ5705001 1 GEAR 21 PRESSURE PLATE 13 LJ5838001 1 FEED ROLLER PLANETARY GEAR ASSY (SP) 14 UL9049001 1 MANUAL INSERTION SENSOR ACTUATOR 15 UL9050001 1 REGISTRATION SENSOR ACTUATOR 16 UL9051001 1 REGISTRATION SENSOR SPRING 17 UU2042001 1 CASSETTE SENSOR ACTUATOR 18 UL9053001 2 TRANSFER ARM 19 UL9052001 2 TRANSFER SPRING td>

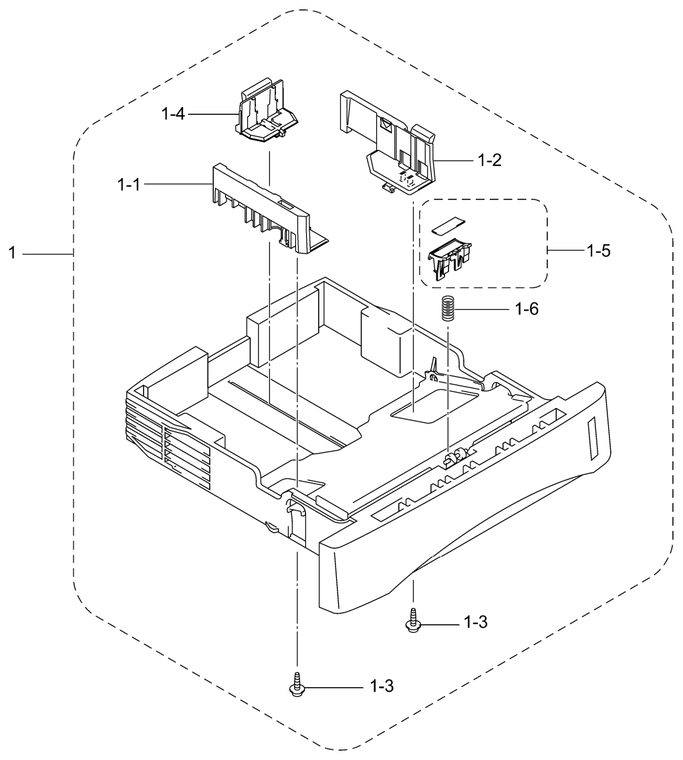

LIST 4(PAPER TRAY) 1 LJ4181001 1 PAPER TRAY ASSY (SP) 1 UL9078001 1 SIDE GUIDE L, BLUE (6155) 2 UL9079001 1 SIDE GUIDE R, BLUE (6155) 3 U73515001 2 SCREW, CUP B M2.6X5 4 UL9083001 1 PAPER REAR GUIDE, BLUE (6155) 5 UL9084001 Separation Pad - Cassette New UL9084001 (New) $28.36 6 UL9090001 1 SEPARATION PAD SPRING

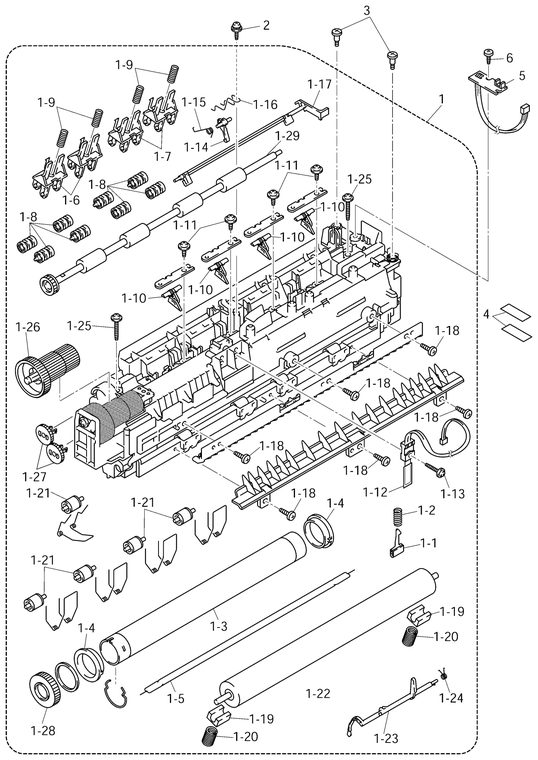

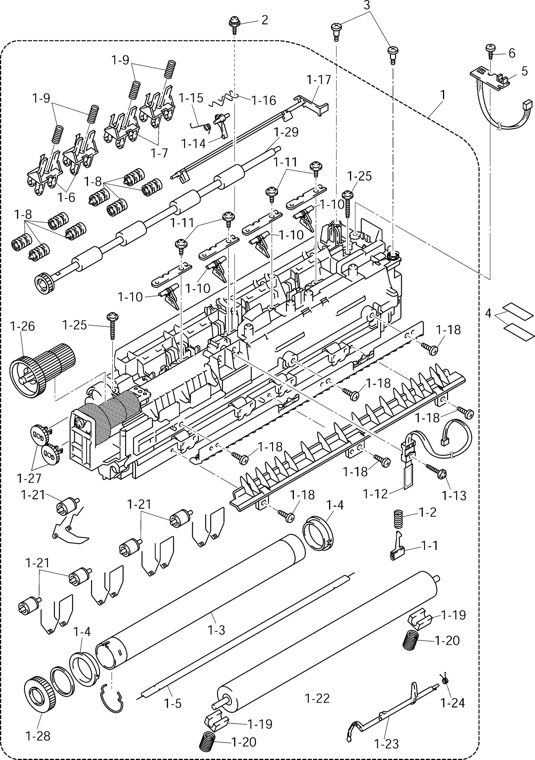

LIST 5(HEAT FIXING UNIT) 1 LJ5682001 1 CLEANER ASSY 2 UH3635001 1 CLEANER SPRING 301- 3 LJ5684001 1 HEAT ROLLER 251- 4 UL8908001 2 HR BEARING 251- 5 LJ5695001 1 HALOGEN LAMP, 230V1- 6 LJ5276001 2 EJECT PINCH ROLLER HOLDER L1- 7 LJ5277001 2 EJECT PINCH ROLLER HOLDER R1- 8 LJ5278001 8 EJECT PINCH ROLLER1- 9 LJ5279001 4 EJECT PINCH SPRING 10 LJ7877001 4 PICK OFF FINGER ASSY C 11 087310615 4 TAPTITE, CUP B M3X61- 12 LJ5686001 1 THERMISTOR ASSY1- 13 085311216 1 SCREW, BIND B TITE 3X121- 14 LJ5734001 1 EJECT ACTUATOR 21- 15 LJ5732001 1 EJECT ACTUATOR SPRING 21- 16 LJ5736001 1 ACTUATOR HOLDER 17 LJ5735001 1 EJECT ACTUATOR 31- 18 085311015 6 SCREW, BIND B TITE 3X101- 19 UL8916001 2 PR BUSHING1- 20 LJ5690001 2 PR SPRING1- 21 LJ5268001 5 CLEANER PINCH ROLLER ASSY1- 22 LJ5287001 1 PRESSURE ROLLER 251- 23 UL8920001 1 PAPER EJECT ACTUATOR1- 24 UL8921001 1 EJECT ACTUATOR SPRING1- 25 087312015 2 TAPTITE, CUP B M3X20 26 UL8923001 1 FU DRIVER GEAR 27 LM2047001 2 IDLE GEAR 13 chg1- 28 UL8910001 1 HR GEAR 34 add1- 29 LJ4118001 1 EJECT ROLLER ASSY 2 087320815 1 TAPTITE, CUP S M3X 3 LJ4740001 2 SHOULDER SCREW 4 LJ4432001 2 TAPE 32X 5 LJ8841001 1 JAM SENSOR PCB ASSY 6 085311015 1 SCREW, BIND B TITE 3X10

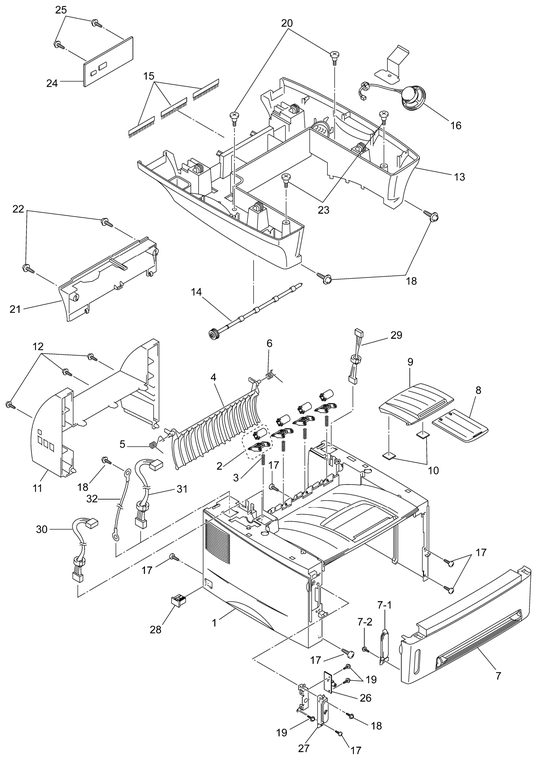

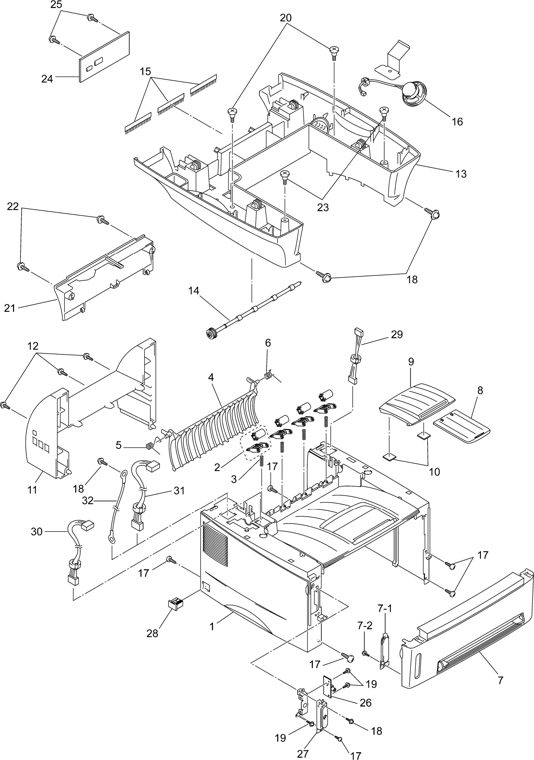

LIST 6(COVER) 1 LJ5751001 1 MAIN COVER ASSY, GRAY 2 UL9122001 4 PINCH ROLLER ASSY 3 UL9125001 4 PINCH ROLLER SPRING 4 LJ5763001 Outer Chute - Gray Fully refurbished with 90-day warranty LJ5763001 $20.25 5 UL9127001 1 CHUTE SPRING L 6 UL9128001 1 CHUTE SPRING R 7 UU2102003 1 FRONT COVER ASSY, GRAY 1 UU2094001 1 FRONT SUB COVER, GRAY (1495) 2 087310815 1 TAPTITE, CUP B M3X8 8 LE1197001 1 PAPER SUB TRAY, GRAY (1495) 9 LE1198001 1 PAPER SUB TRAY COVER, GRAY (1495) 10 LE1291001 1 TRAY COVER ADHESIVE TAPE 11 UU2002001 Rear Cover - Gray Fully refurbished with 90-day warranty UU2002001 $29.71 12 0A5401006 3 SCREW, PAN (S/P WASHER ) M4X10 13 LE1200001 1 SCANNER MOUNT, GRAY (1495) 14 UL9142001 Exit Roller Fully refurbished with 90-day warranty UL9142001 $31.05 15 LJ4125001 3 ANTI-STATIC BRUSH 16 LG2425001 1 SPEAKER UNIT 17 085320816 6 TAPTITE, BIND S M3X 18 087321015 4 TAPTITE, CUP S M3X10 19 ---- NOT USED 20 UF9823001 2 SHOULDER SCREW 21 LE1202001 1 UPPER REAR COVER 22 087411216 2 TAPTITE, CUP B M4X 23 LE1368001 2 SHOULDER SCREW BIND B M4X 24 LG3260001 1 RELAY PCB ASSY 25 087311016 2 TAPTITE, CUP B M3X10 26 ---- NOT USED 27 ---- NOT USED 28 UU2045001 1 SWITCH COVER, MFC9860/ 29 LG3360001 1 MAIN-PANEL HARNESS 30 LG3361001 1 MAIN-CCD HARNESS 31 LG3362001 1 MAIN-MOTOR HARNESS 32 ---- NOT USED 33 UF5745000 1 MJ COVER, MFC9860, MFC9880 FOR GER / UK / FRA / BEL / DEN / AUS / ITA / SWE 34 LE8190001 1 SUB BACK COVER, MFC9860 MFC9760, MFC9860, MFC9880

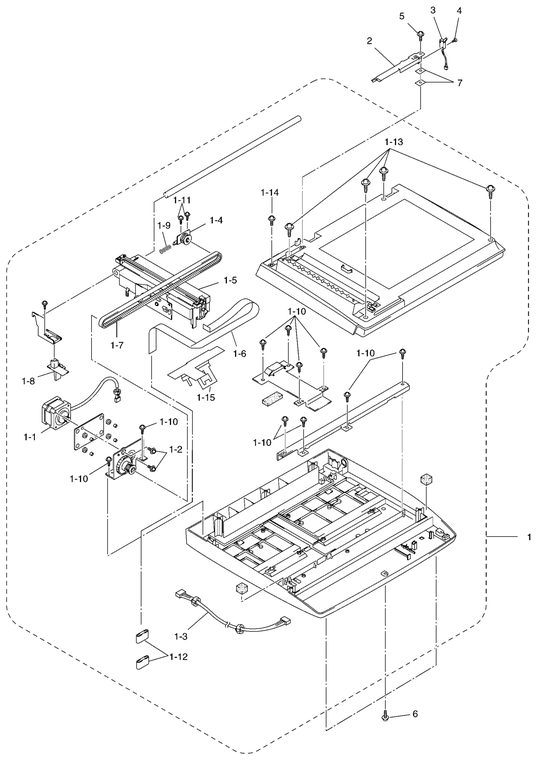

LIST 7(DOCUMENT SCANNER) 1 LE7574001 1 SCANNER UNIT (SP) 1 LE3338001 1 CCD MOTOR (INCLUDING HARNESS ) 2 0A4300605 2 SCREW, PAN (S/P WASHER ) M3X6 3 LG2025001 1 PANEL HARNESS 4 LE3417001 1 PULLEY ASSY1- 5 LE7777001 1 CCD UNIT ASSY(SP) 6 LE8487001 1 CCD FLAT CABLE ZLE1- 7 LE3423001 1 CCD DRIVE BELT1- 8 LE2082001 1 CCD LOCK 9 LE2079001 1 COMPRESSION SPRING 10 087310815 10 TAPTITE, CUP B M3X81- 11 LE2805001 2 TAPTITE, PAN B M3X101- 12 LG2020001 2 FLAT CORE (CCD) 13 087411216 4 TAPTITE, CUP B M4X121- 14 087310815 1 TAPTITE, CUP B M3X81- 15 LE2542001 1 FERRITE CORE SUPPORT 2 LE3500001 1 HARNESS SUPPORT CHG 3 LG2737001 1 DOCUMENT COVER SWITCH 4 LE0832001 1 TAPTITE, PAN P 1.6X8 5 087311016 1 TAPTITE, CUP B M3X10 6 087310815 3 TAPTITE, CUP B M3X8 7 LE7638001 2 SPACER

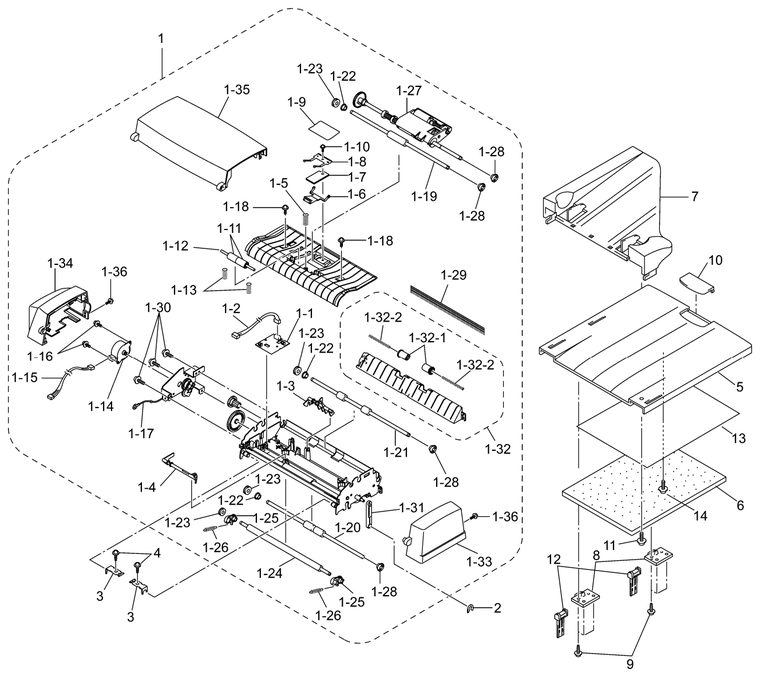

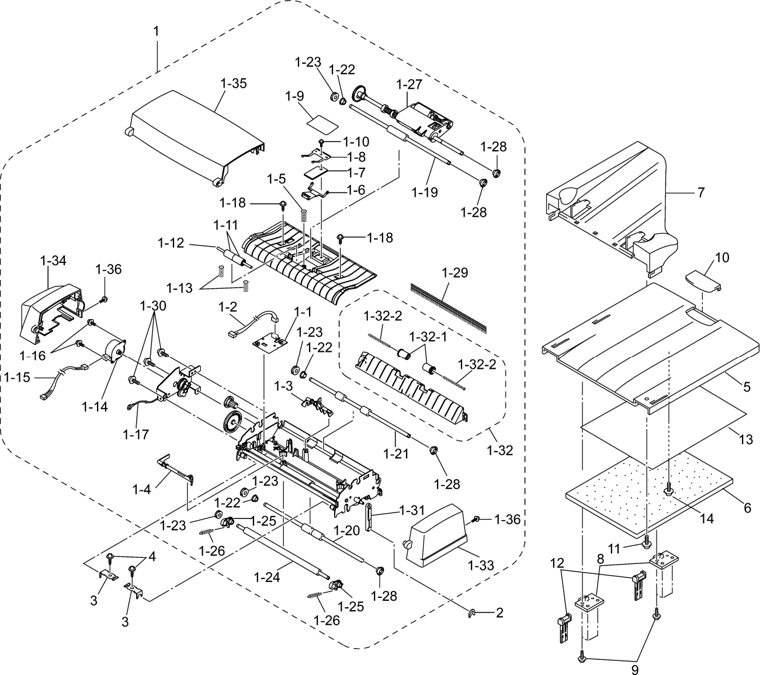

LIST 8(ADF&TRAY) 1 LE1525001 1 ADF UNIT (SP) 1 1 UG6609001 1 DOCUMENT SENSOR PCB 2 LG2014001 1 DOCUMENT SENSOR HARNESS1- 3 UF7026001 1 DOCUMENT FRONT SENSOR ACTUATOR 4 LE2008001 1 DOCUMENT REAR SENSOR ACTUATO R 5 LE2011001 1 COMPRESSION SPRING1- 6 LE2551001 1 RUBBER HOLDER 7 UU2055001 ADF Separation Pad New UU2055001 (New) $25.65 8 LE2550001 1 SPRING PLATE A ASSY1- 9 LE2470001 1 ADF FILM 10 UF6116001 1 TAPTITE, PAN B M3X61- 11 UF9009001 2 PRESSER ROLLER1- 12 LE2471001 1 PRESSURE ROLLER SHAFT1- 13 LE2472001 2 PRESSURE ROLLER SPRING1- 14 LE1215001 1 ADF MOTOR 15 LG2201001 1 ADF MOTOR HARNESS1- 16 0A4300605 2 SCREW, PAN (S/P WASHER ) M3X6 17 LG2016001 1 GROUNDING WIRE1- 18 087310815 2 TAPTITE, CUP B M3X81- 19 LE2026001 1 UPPER LF ROLLER (GRAY) 20 LE2029001 1 LOWER LF ROLLER ( BLACK ) 21 LE2028001 1 DOCUMENT EJECTION ROLLE R 22 UF8105001 3 CONDUCTIVE BUSHING1- 23 UU7039001 4 LF ROLLER GEAR 271- 24 LE2030001 1 WHITE ROLLER1- 25 LE2032001 2 WHITE ROLLER BUSHING1- 26 LE2033001 2 EXTENSION SPRING1- 27 LE2919001 ADF Pickup Roller Assy New LE2919001 (New) $66.16 27-1 LE2037001 2 DOCUMENT FEED ROLLER (RUBBER ) 28 UU1290001 4 CONDUCTIVE BUSHING1- 29 UU7505001 1 ANTI-STATIC BRUSH1- 30 087320616 3 TAPTITE, CUP S M3X61- 31 UF0208001 1 ADF ARM1- 32 LE2048001 1 DOCUMENT EJECTION CHUTE ASSY 32-1 LE2582001 2 PINCH ROLLER, GRAY 32-2 UU2009001 2 PINCH ROLLER SPRING 33 LE2050001 1 ADF SIDE COVER F, GRAY (1495) 34 LE2051001 1 ADF SIDE COVER R, GRAY (1495) 35 LE2534001 1 ADF COVER ASSY, GRAY (1495) 36 087320816 2 TAPTITE, CUP S M3X8 2 UF8088001 1 PLASTIC RETAINING RING 3 LE2053001 2 ADF SUPPORT 4 087310816 2 TAPTITE, CUP B M3X 5 LE2056001 1 DOCUMENT TRAY, GRAY 6 LE2487001 1 DOCUMENT SPONGE 7 LE3426001 1 DOCUMENT TRAY ASSY 8 LE2567001 2 HINGE A, BLACK 9 087311015 6 TAPTITE, CUP B M3X10 10 LE2777001 1 DOCUMENT SUPPORT, GRAY 11 087320816 1 TAPTITE, CUP S M3X 12 LE2568001 2 HINGE HOLDER 13 LE1568001 1 DOCUMENT TRAY REINFORCEMENT PLATE 14 UF6116001 1 TAPTITE, PAN B M3X6

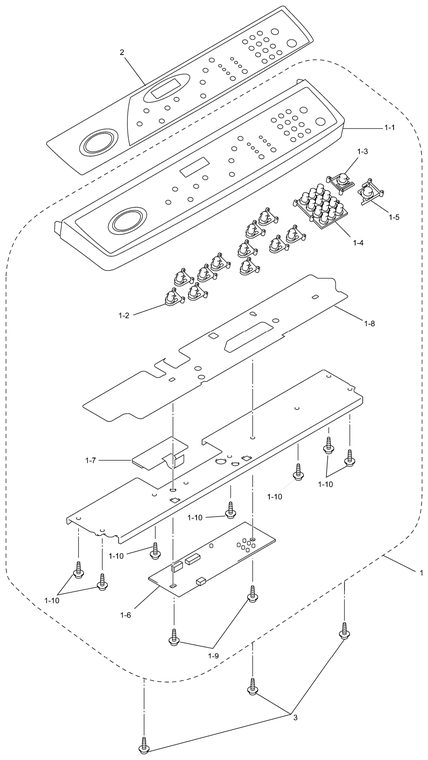

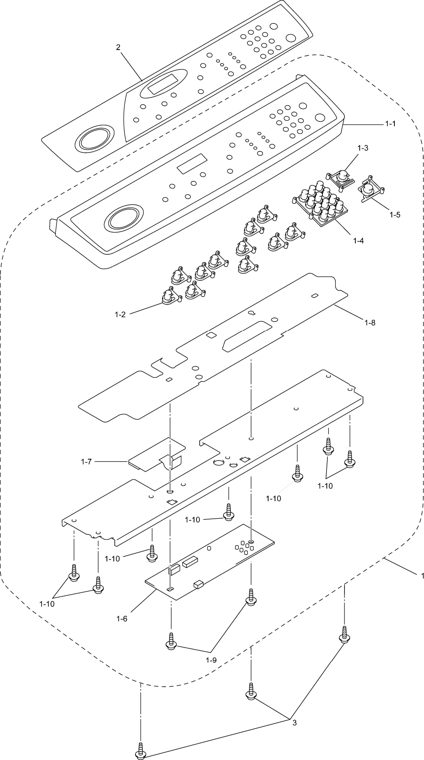

LIST 9A(CONTROL PANEL MFC9760) 1 LE1685001 1 CONTROL PANEL ASSY 1 LE1336001 1 PANEL COVER 2 LJ4283001 8 KEY, FUNCTION1- 3 LJ4231002 1 KEY, STOP, PINK 4 LJ4284001 1 KEY, TEN1- 5 LJ4285001 1 KEY, COPY, GREEN 6 LG2326001 1 PANEL PCB ASSY1- 7 UG4552000 1 LCD1- 8 LG5638001 1 FPC KEY CHG 9 087270815 2 TAPTITE, CUP B M2.6X8 10 087310815 7 TAPTITE, CUP B M3X8 2 LE7427001 1 PANEL SHEET, MFC9760 FOR GER 2 LE7434001 1 PANEL SHEET, MFC9760 FOR UK/BEL/NLD/CHE/GNR 2 LE7438001 1 PANEL SHEET, MFC9760 FOR FRA 2 LE8016001 1 PANEL SHEET, MFC9760 FOR DEN 2 LE8022001 1 PANEL SHEET, MFC9760 FOR ITA 3 087310815 3 TAPTITE, CUP B M3X8

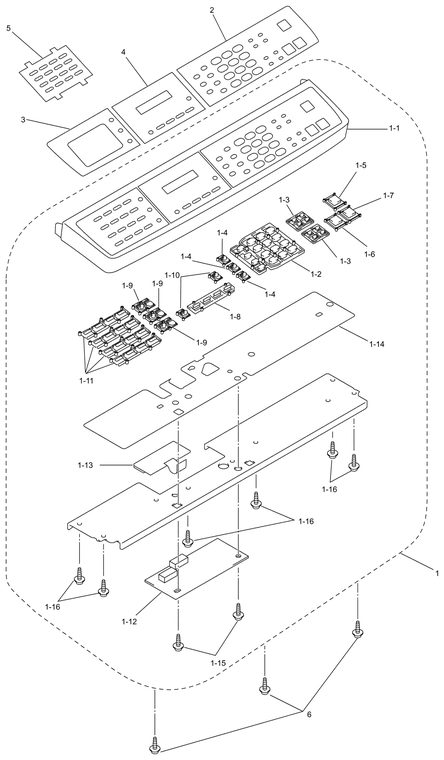

LIST 9B(CONT PANEL MFC9860 / 9880) 1 LE7080001 1 CONTROL PANEL ASSY, MFC9880, GRAY 1 LE8092001 1 CONTROL PANEL ASSY, MFC9860, GRAY 1 LE2273001 1 PANEL COVER, GRAY (1495) 2 UF4393007 1 KEY, TEN, MFC9880, GRAY (1495) 2 LE1537007 1 KEY, TEN, MFC9860, GRAY (1495) 3 LE2274001 2 KEY COPY/FAX AREA, GRAY (1495) 4 ---- NOT USED 5 UF8174009 1 KEY, COPY, GREEN (5159) 6 UF8174010 1 KEY, STOP, PINK (2205) 7 UF8174011 1 KEY, START, PURPLE (6255) 8 UF8176010 1 KEY, FUNCTION4, BLUE (6134) 9 UF4576008 3 KEY, SHIFT, GRAY (1495) 10 UF4576015 2 KEY, SHIFT, BLUE (6134) 11 UF9118006 4 KEY, ONE TOUCH, GRAY (1495) 12 LG2138001 1 PANEL PCB ASSY1- 13 UG4552000 1 LCD1- 14 LG5637001 1 FPC KEY CHG 15 087270815 2 TAPTITE, CUP B M2.6X81- 16 087310815 6 TAPTITE, CUP B M3X8 2 LE8093001 1 PANEL SHEET-1, MFC9860 FOR GER 2 LE7442001 1 PANEL SHEET-1, MFC9880 FOR GER / AUS 2 LE7458001 1 PANEL SHEET-1, MFC9880 FOR UK / BEL / NLD / CHE / IRE / GNR 2 LE7463001 1 PANEL SHEET-1, MFC9880 FOR FRA 2 LE7970001 1 PANEL SHEET-1, MFC9880 FOR NOR 2 LE7988001 1 PANEL SHEET-1, MFC9880 FOR DEN 2 LE7993001 1 PANEL SHEET-1, MFC9880 FOR SPA 2 LE7998001 1 PANEL SHEET-1, MFC9880 FOR ITA 2 LE8004001 1 PANEL SHEET-1, MFC9880 FOR SWE 2 LE7886001 1 PANEL SHEET-1, MFC9880 FOR ARL / NZ / ASA 3 LE7702001 1 PANEL SHEET-2, MFC9860 / MFC9880 FOR GER / AUS 3 LE7300001 1 PANEL SHEET-2, MFC9880 FOR UK / BEL / NLD / CHE / IRE / GNR / ARL / NZ / ASA 3 LE7703001 1 PANEL SHEET-2, MFC9880 FOR FRA 3 LE7969001 1 PANEL SHEET-2, MFC9880 FOR NOR 3 LE7987001 1 PANEL SHEET-2, MFC9880 FOR DEN 3 LE7992001 1 PANEL SHEET-2, MFC9880 FOR SPA 3 LE7997001 1 PANEL SHEET-2, MFC9880 FOR ITA 3 LE8003001 1 PANEL SHEET-2, MFC9880 FOR SWE 4 LE7443001 1 LCD SHEET, MFC9860 4 LE7452001 1 LCD SHEET, MFC9880 FOR GER / AUS 4 LE7462001 1 LCD SHEET, MFC9880 FOR UK / BEL / NLD / CHE / IRE / GNR / ARL / NZ / ASA 4 LE7464001 1 LCD SHEET, MFC9880 FOR FR A 4 LE7971001 1 LCD SHEET, MFC9880 FOR NO R 4 LE7989001 1 LCD SHEET, MFC9880 FOR DEN 4 LE7994001 1 LCD SHEET, MFC9880 FOR SP A 4 LE7999001 1 LCD SHEET, MFC9880 FOR IT A 4 LE8005001 1 LCD SHEET, MFC9880 FOR SWE 5 LE1341001 1 ADDRESS LABEL 6 087310815 3 TAPTITE, CUP B M3X8

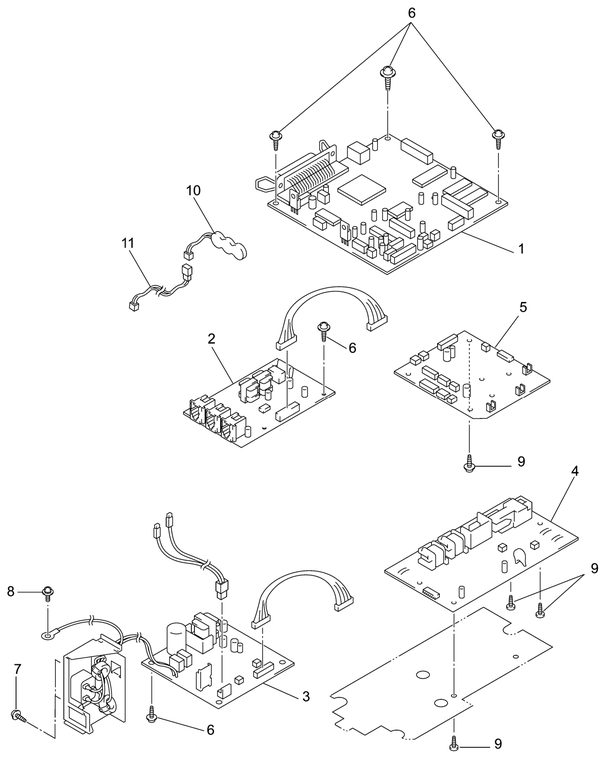

LIST 10(PCB) 1 LG3487002 1 MAIN PCB, MFC9760 1 LG3518001 1 MAIN PCB, MFC9860 / MFC9880 FOR ARL / NZ / ASA 1 LG3518002 1 MAIN PCB, MFC9880 EXCEPT FOR ARL / NZ / ASA 2 LG2295061 1 NCU PCB, MFC9860 / 9880 FOR GER / UK / FRA / NOR / BEL / NLD / CHE / IRE / DEN / AUS / SPA / ITA / SWE / 2 LG2819002 1 NCU PCB, MFC9880 FOR ARL / NZ 2 LG2821002 1 NCU PCB, MFC9880 FOR ASA 3 LG4016001 1 LOW VOLTAGE POWER SUPPLY PCB ASSY 3 LG4023001 1 LOW VOLTAGE POWER SUPPLY PCB ASSY FOR ASA 4 LF2609001 1 HIGH-VOLTAGE POWER SUPPLY PCB ASSY (SP) 5 LG3256001 Engine PCB Assembly Fully refurbished with 90-day warranty LG3256001 $35.10 6 087320616 4 TAPTITE, CUP S M3X6, MFC9760 6 087320616 5 TAPTITE, CUP S M3X6, MFC9860 / 9880 7 084320815 1 SCREW, FLAT S M3X8 8 LM2048001 1 SCREW, PAN (S/P WASHER ) M3.5X6 9 085411215 4 SCREW, BIND B TITE 4X12 10 LG3623001 1 BATTERY, MFC9860 / 9880 11 LG3624001 1 BATTERY HARNESS, MFC9860 / 9880	Diagram placeholder
