Brother MFC-5890cn MFC-5895cw Parts

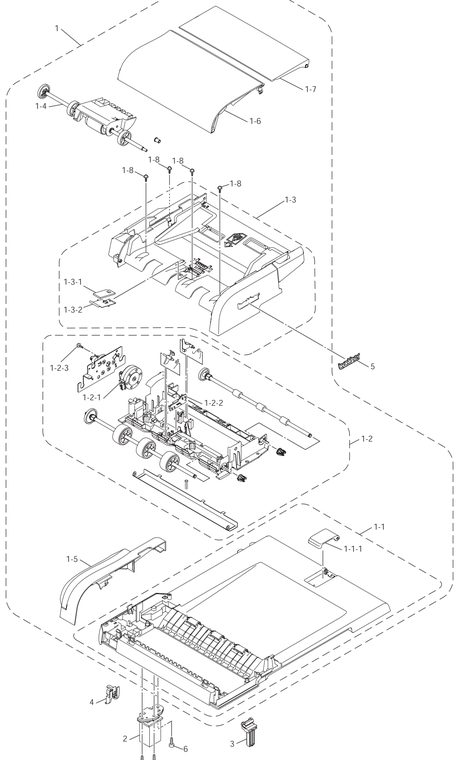

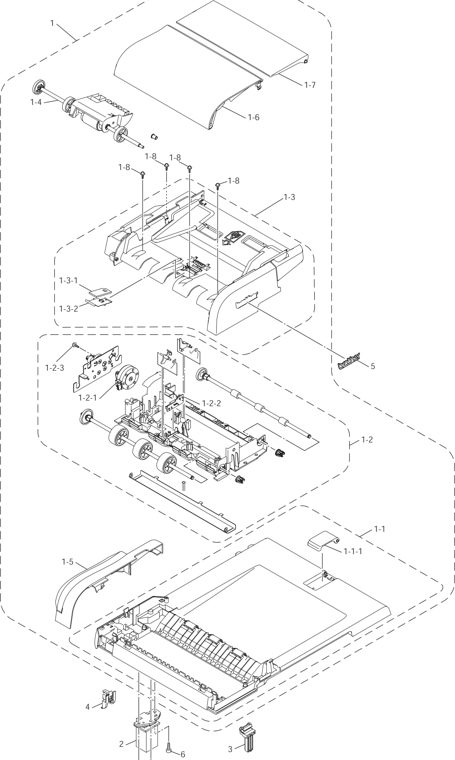

| List 1(ADF) 1 LS6481001 1 ADF UNIT L9 ASSY (SP) 1 LS4785001 1 DOCUMENT COVER ASSY 1 LS478700 5 1 DOCUMENT STOPPER 2 LS4788001 1 LOWER ADF CHUTE ASSY 1 LS4414001 1 ADF MOTOR 2 LT0293001 1 DOCUMENT SENSOR PCB ASSY B53K96 4 3 0A4300606 1 SCREW PAN (S / P WASHER ) M3X6 3 LS4801001 1 UPPER ADF CHUTE ASSY 1 LS4615001 1 SEPARATION RUBBER 2 LS4617001 1 SEPERATION PLATE 4 LS4805001 1 DOCUMENT PULL-IN / SEPERATION ROLLER ASSY 5 LS4808005 1 ADF REAR COVER 6 LS4809001 1 ADF COVER ASSY 7 LS4811004 1 DOCUMENT SUPPORT 8 087311016 4 TAPTITE CUP B M3X10 2 LS6745001 1 HINGE ARM L chg 3 LS4442005 1 HINGE ARM R 4 LP1628001 1 HARNESS SUPPORT 5 LX1347001 1 EMBLEM BROTHER CHG 6 085411216 3 TAPTITE BIND B M4X12 | |
|

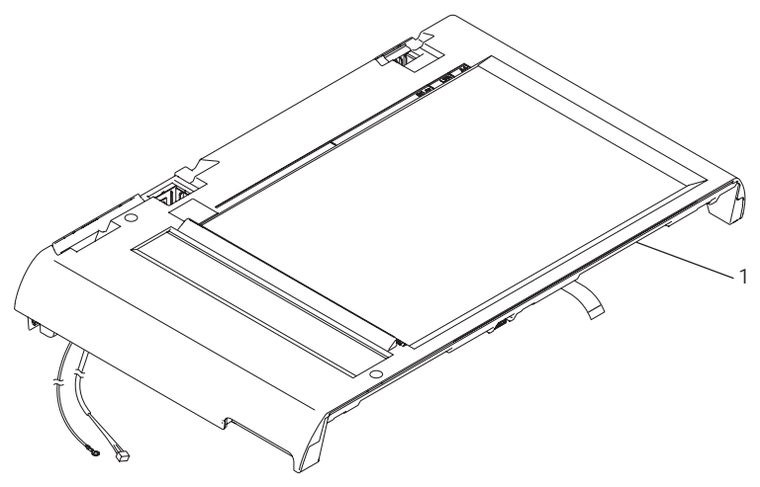

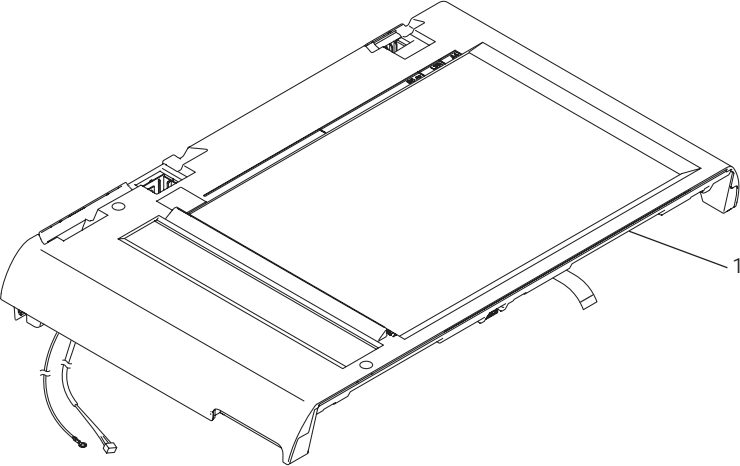

List 2(SCANNER) 1 LS6487001 1 SCANNER UNIT ASSY (SP) | |
|

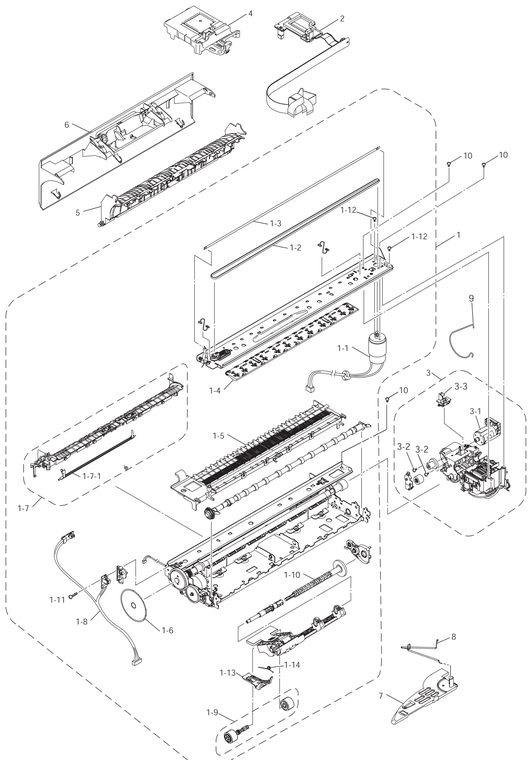

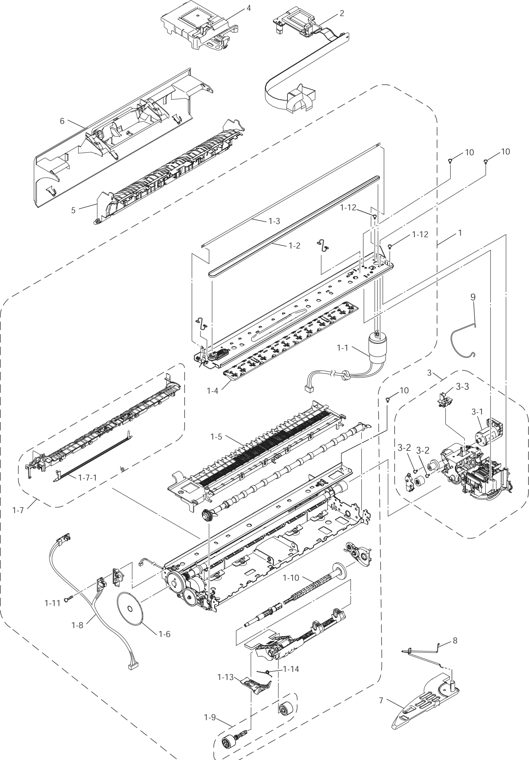

List 3(ENGINE) 1 LS6956001 1 ENGINE UNIT ASSY (SP) 1-1 LS4376001 1 CARRIAGE MOTOR ASSY 1-2 LS4001001 1 TIMING BELT1- 1-3 LS4379001 1 CR ENCODER STRIP1- 1-4 LS4302001 1 STAR WHEEL HOLDER ASSY 1- 1-5 LS4305001 1 PLATEN ASSY 1-6 LP1471001 1 PF ENCODER DISK 1- 1-7 LS4033001 1 INNER CHUTE ASSY 1-7-1 LS4036001 1 REGISTRATION SENSOR ACTUATOR 1-8 LT0350001 1 PF ENCODER / REGISTRATION SENSOR HARNESS1- 1-9 LX0126001 1 PAPER PULL-IN ROLLER ASSY 1-10 LS4060001 1 ASF GEAR SHAFT OUTER 1-11 000021206 1 SCREW BIND M2X12 1-12 000300606 2 SCREW BIND M3X6 1-13 LS4120001 1 PE ACTUATOR 9 ASSY ADD 1-14 LS4075001 1 PE ACTUATOR SPRING ADD 2 LS5946001 1 CR PCB ASSY (SP) 3 LS5945001 1 MAINTENANCE UNIT ASSY (SP) 1-1 LS4091001 1 ASF MOTOR ASSY 2 LS4375001 2 SCREW PAN (S / P WASHER ) M3X5 3 LS4098001 1 SWITCHING LEVER GUIDE 4 LS4383001 1 HEAD COVER ASSY 5 LS4040001 1 INNER BACK COVER 6 LS4295001 1 JAM CLEAR COVER 7 LS4386001 1 TUBE SUPPORT PLATE 8 LS4387001 1 TUBE SUPPORT WIRE 9 LS5775001 1 EARTH SPRING 10 08731101 TAPTITE CUP B M3X10 | |
|

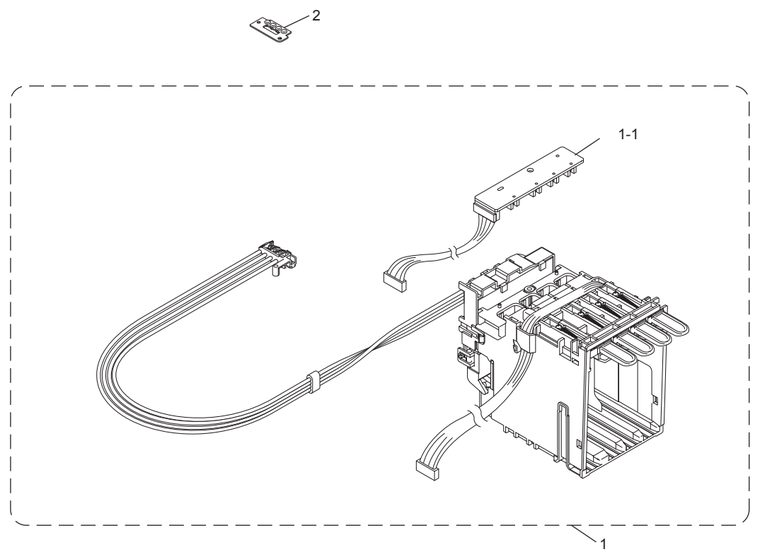

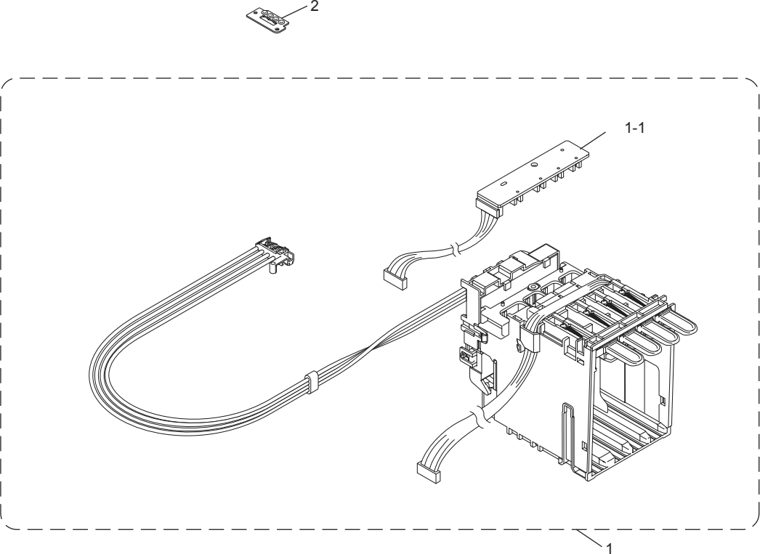

List 4(CARTRIDGE CASE) 1 LK3552001 1 INK REFILL ASSY (SP) 1 LK3329001 1 INK CARTRIDGE DETECTION SENSOR PCB B57C002 2 LK3555001 1 HEAD JOINT RUBBER (SP) | |
|

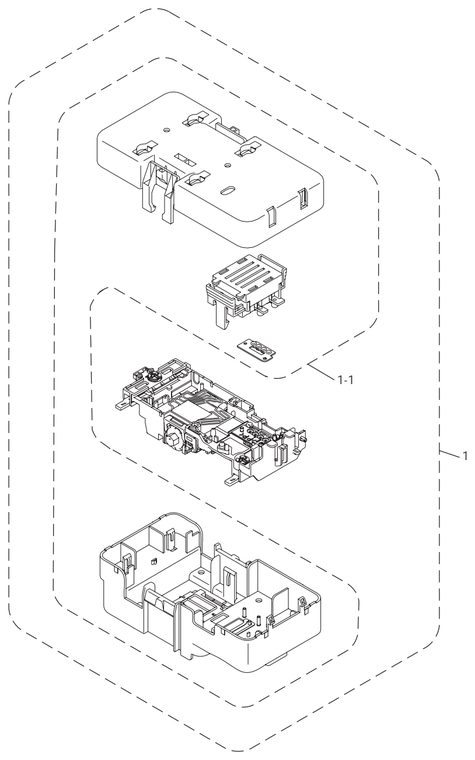

List 5(HEAD) 1 LK3197001 1 HEAD / CARRIAGE UNIT SUPPLY ASSY (without CARRIAGE PCB ASSY ) 1-1 LK3215001 1 PROTECTOR PARTS SUPPLY ASSY (SP) | |
|

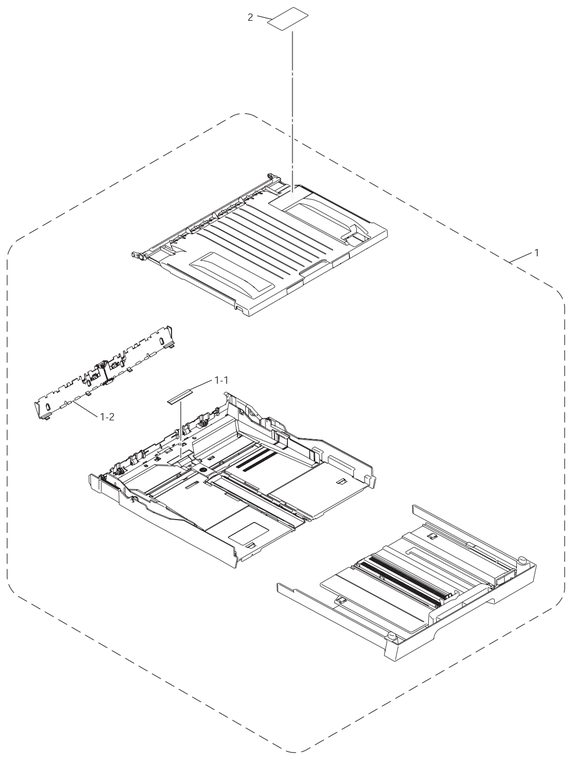

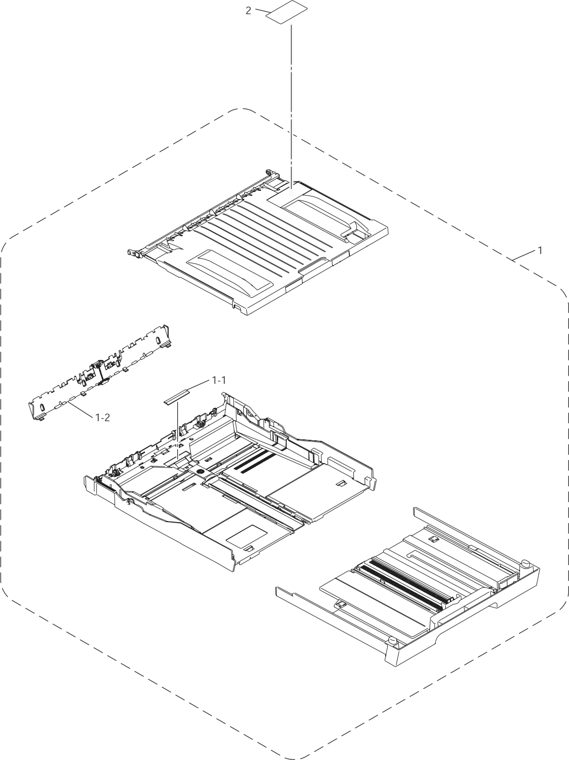

List 6(PAPER TRAY) 1 LS5890001 1 PAPER TRAY A3 ASSY (SP) 1 LP1575001 1 BASE PAD 2 LS4115001 1 BANK ASSY 2 LS5475001 1 EXIT INSTRUCTION LABEL | |
|

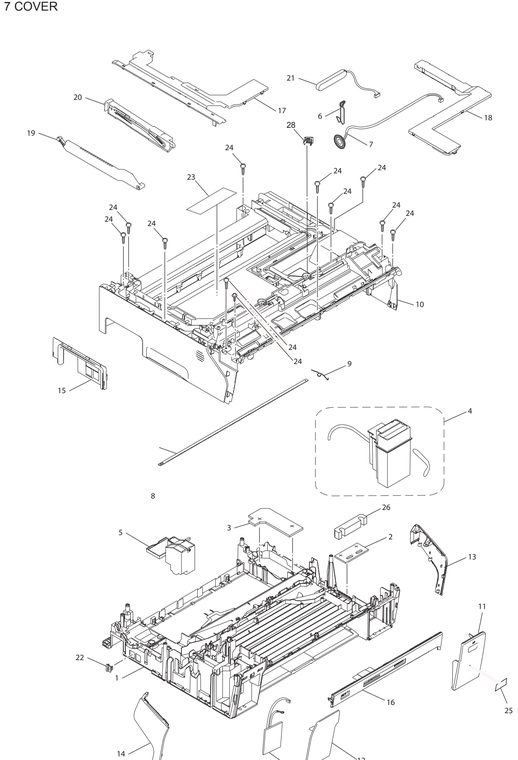

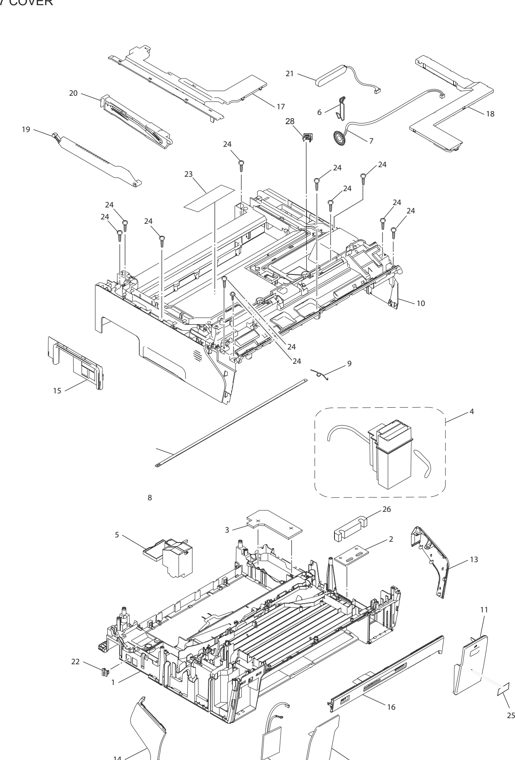

List 7(COVER) 1 LS5459001 1 LOWER COVER 2 LS4699001 1 INK ABSORBER FELT 3 LS4700001 1 INK FOAM M 4 LX1372001 1 INK ABSORBER TUBE ASSY (SP) 5 LS4707001 1 FLUSHING BOX ASSY ï 6 LS5462001 1 SPEAKER SPRING 7 LT0375001 1 SPEAKER UNIT 8 LS5901001 1 ENCODER GUARD FILM A 9 LS5902001 1 ENCODER GUARD SPRING 10 LS5463005 UPPER COVER 11 LS5464005 1 INK CARTRIDGE COVER 12 LS5465005 1 FRONT COVER 13 LS5466006 1 SIDE COVER R FOR MFC5890CN 13 LS5466007 1 SIDE COVER R FOR MFC5895CW 14 LS5467006 1 SIDE COVER L FOR MFC5890CN 14 LS5467007 1 SIDE COVER L FOR MFC5895CW 15 LS5468005 1 MJ SIDE COVER 16 LS5469005 1 MEDIA MODULE COVER 17 LS5471005 1 HARNESS COVER 18 LS5472005 1 CIS FLAT CABLE COVER 19 LS5455001 1 SCANNER COVER SUPPORT 20 LS5457001 1 SCANNER COVER DAMPER 21 LT0319001 1 BACKUP BATTERY EXCEPT FOR OCE 21 LT0319002 1 BACKUP BATTERY FOR OCE 22 LE8842001 1 EXT CAP FOR US / CAN / NLD / CHE / SPA / POR / CHN / ASA / GNR / OCE / PND 22 UF5745000 1 MJ COVER EXT FOR GER / UK / FRA / BEL / ITA 23 LS6466001 1 ENCODER CAUTION LABEL 24 085411216 11 TAPTITE BIND B M4X12 25 LS5371001 1 INNOBELLA LABEL , MFC5890CN FOR U S 25 LX3721001 1 INNOBELLA LABEL , MFC5895CW FOR US 25 LS5370001 1 INNOBELLA LABEL , MFC5890CN EXCEPT FOR U S 25 LX3722001 1 INNOBELLA LABEL , MFC5895CW EXCEPT FOR US 26 LX6286001 1 INK ABSORBER FELT (INK ABSORBER BOX UPPER ) ADD 27 LT0962001 1 W-LAN PCB FOR MFC5895CW 28 LY0872001 1 LAN PORT CAP | |
|

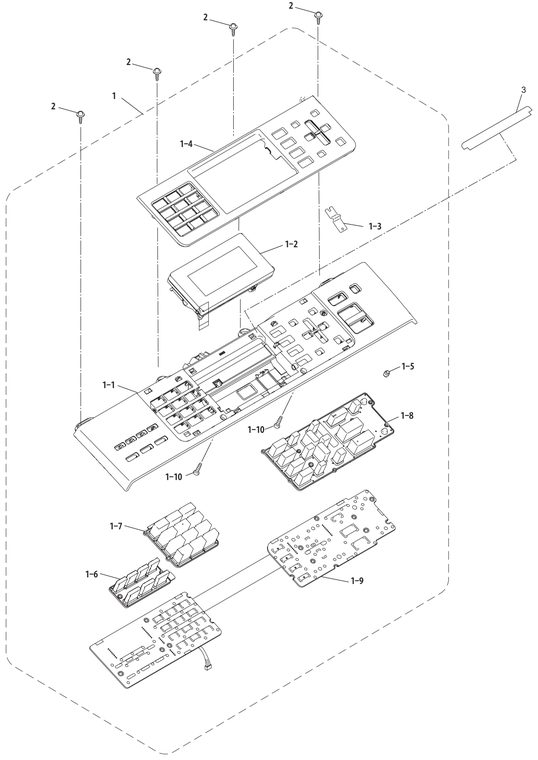

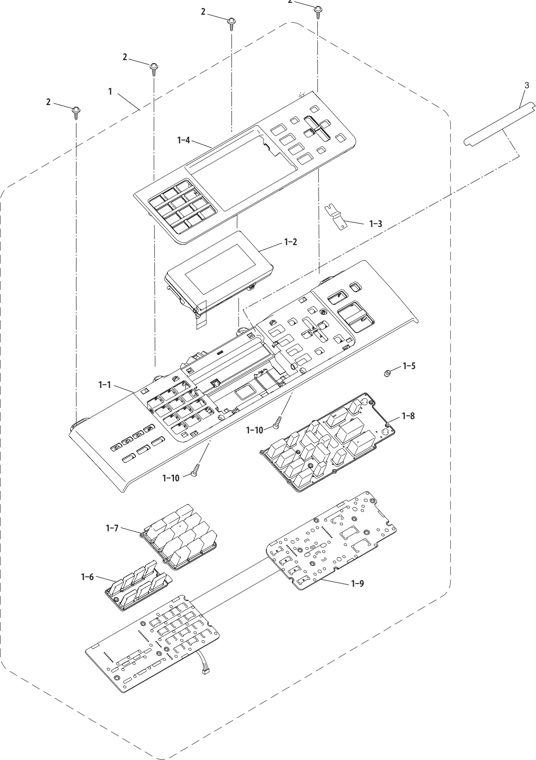

List 8(PANEL) 1 LS5641001 1 CONTROL PANEL ASSY , MFC5890CN FOR US / CAN 1 LX6857001 1 CONTROL PANEL ASSY , MFC5895CW FOR US / CAN 1 LS6700001 1 CONTROL PANEL ASSY , MFC5890CN FOR GE R 1 LX7182001 1 CONTROL PANEL ASSY , MFC5895CW FOR GER 1 LS5788001 1 CONTROL PANEL ASSY , MFC5890CN FOR UK / BEL / CH E 1 LX6863001 1 CONTROL PANEL ASSY , MFC5895CW FOR UK / BEL / CHE / GNRï 1 LS6703001 1 CONTROL PANEL ASSY , MFC5890CN FOR FRA 1 LX7185001 1 CONTROL PANEL ASSY , MFC5895CW FOR FRA 1 LS6715001 1 CONTROL PANEL ASSY , MFC5890CN FOR NLD 1 LX7506001 1 CONTROL PANEL ASSY , MFC5895CW FOR NLD 1 LS6709001 1 CONTROL PANEL ASSY , MFC5890CN FOR SPA 1 LX7188001 1 CONTROL PANEL ASSY , MFC5895CW FOR SPA 1 LS6706001 1 CONTROL PANEL ASSY , MFC5890CN FOR ITA 1 LX7191001 1 CONTROL PANEL ASSY , MFC5895CW FOR ITA 1 LS6712001 1 CONTROL PANEL ASSY , MFC5890CN FOR POR 1 LX7509001 1 CONTROL PANEL ASSY , MFC5895CW FOR POR 1 LX0480001 1 CONTROL PANEL ASSY FOR CHN 1 LX0318001 1 CONTROL PANEL ASSY FOR ASA / OCE 1 LS6718001 1 CONTROL PANEL ASSY , MFC5890CN FOR PND 1 LX7512001 1 CONTROL PANEL ASSY , MFC5895CW FOR PND 1 LS5642001 1 CONTROL PANEL BASE , MFC5890CN FOR US / CAN 1 LX6858001 1 CONTROL PANEL BASE , MFC5895CW FOR US / CAN 1 LS6701001 1 CONTROL PANEL BASE , MFC5890CN FOR GER 1 LX7183001 1 CONTROL PANEL BASE , MFC5895CW FOR GER 1 LS5789001 1 CONTROL PANEL BASE, MFC5890CN FOR UK / BEL / CHE / PND 1 LX6864001 1 CONTROL PANEL BASE, MFC5895CW FOR UK / BEL / CHE / GNR / PND 1 LS6704001 1 CONTROL PANEL BASE , MFC5890CN FOR FR A 1 LX7186001 1 CONTROL PANEL BASE , MFC5895CW FOR FRA 1 LS6716001 1 CONTROL PANEL BASE , MFC5890CN FOR NLD 1 LX7507001 1 CONTROL PANEL BASE , MFC5895CW FOR NLD 1 LS6710001 1 CONTROL PANEL BASE , MFC5890CN FOR SP A 1 LX7189001 1 CONTROL PANEL BASE , MFC5895CW FOR SPA 1 LS6707001 1 CONTROL PANEL BASE , MFC5890CN FOR IT A 1 LX7192001 1 CONTROL PANEL BASE , MFC5895CW FOR ITA 1 LX0481001 1 CONTROL PANEL BASE FOR CHN 1 LX0317001 1 CONTROL PANEL BASE FOR ASA / OCE1- 1 LS6713001 1 CONTROL PANEL BASE , MFC5890CN FOR POR 1 LX7510001 1 CONTROL PANEL BASE , MFC5895CW FOR POR 2 LS5643001 1 COLOR LCD UNIT FOR MFC5890CN1- 2 LX6859001 1 COLOR LCD UNIT FOR MFC5895CW1- 3 LS4760001 1 LATCH SPRING1- 4 LS5645001 1 PRINTED PANEL PLATE , MFC5890CN FOR US / CAN 4 LX6871001 1 PRINTED PANEL PLATE , MFC5895CW FOR US / CAN 4 LS6702001 1 PRINTED PANEL PLATE , MFC5890CN FOR GER 4 LX7184001 1 PRINTED PANEL PLATE , MFC5895CW FOR GER 4 LS5790001 1 PRINTED PANEL PLATE, MFC5890CN FOR UK / BEL / CHE / ASA / OCE 4 LX6872001 1 PRINTED PANEL PLATE, MFC5895CW FOR UK / BEL / CHE / GNR 4 LS6705001 1 PRINTED PANEL PLATE , MFC5890CN FOR FR A 4 LX7187001 1 PRINTED PANEL PLATE , MFC5895CW FOR FRA 4 LS6717001 1 PRINTED PANEL PLATE , MFC5890CN FOR NLD 4 LX7508001 1 PRINTED PANEL PLATE , MFC5895CW FOR NLD 4 LS6711001 1 PRINTED PANEL PLATE , MFC5890CN FOR SP A 4 LX7190001 1 PRINTED PANEL PLATE , MFC5895CW FOR SPA 4 LS6708001 1 PRINTED PANEL PLATE , MFC5890CN FOR IT A 4 LX7193001 1 PRINTED PANEL PLATE , MFC5895CW FOR ITA 4 LS6714001 1 PRINTED PANEL PLATE , MFC5890CN FOR POR 4 LX7511001 1 PRINTED PANEL PLATE , MFC5895CW FOR POR 4 LX0607001 1 PRINTED PANEL PLATE FOR CHN1- 4 LS6719001 1 PRINTED PANEL PLATE , MFC5890CN FOR PND 4 LX7513001 1 PRINTED PANEL PLATE , MFC5895CW FOR PND 5 LS5810001 1 FRONT COVER SENSOR RUBBER1- 6 LS4742001 1 PRINTED RUBBER KEY FUNCTION FOR MFC5890CN1- 6 LX6861001 1 PRINTED RUBBER KEY FUNCTION FOR MFC5895CW1- 7 LS4744001 1 PRINTED RUBBER KEY TEN FOR MFC5890CN 7 LS4744002 1 PRINTED RUBBER KEY TEN FOR MFC5895CW 8 LS5646001 1 PRINTED RUBBER KEY STEP FOR MFC5890CN 8 LS5646001 1 PRINTED RUBBER KEY STEP FOR MFC5890CN 8 LX6862001 1 PRINTED RUBBER KEY STEP FOR MFC5895CW- 9 LT0452001 1 CONTROL PANEL PCB ASSY B53K98 | |
| List 8(PANEL) 1 085310816 2 TAPTITE BIND B M3X8 2 087311016 4 TAPTITE CUP B M3X10 3 LS6303001 1 LCD BACK FILM FOR MFC5890CN | |

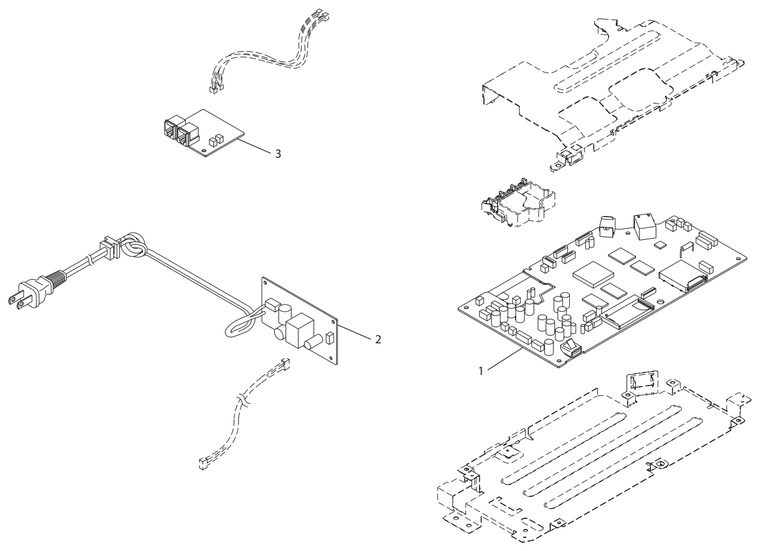

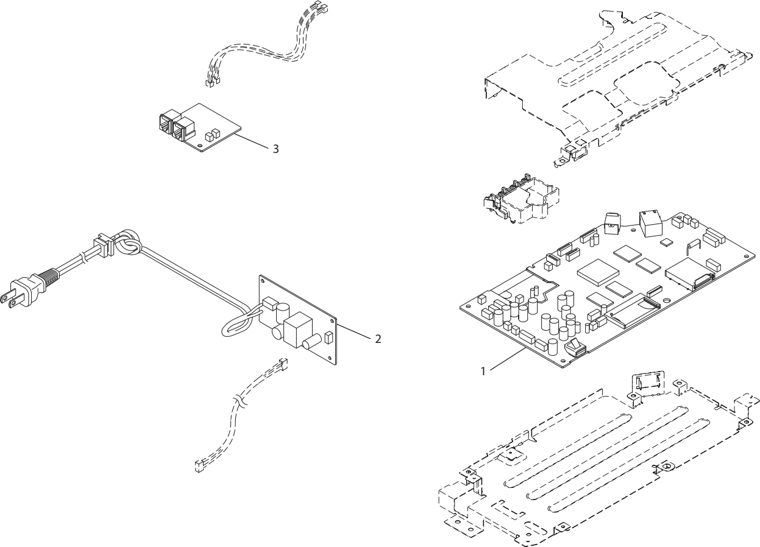

| List 9(PCB) 1 LT031301 2 1 MAIN PCB ASSY , MFC5890CN FOR US * B53K95 9 1 LT136305 2 1 MAIN PCB ASSY , MFC5895CW FOR US* B53K95 9 1 LT0313011 1 MAIN PCB ASSY , MFC5890CN FOR US / CAN / GER / UK / FRA / BEL / NLD / CHE / SPA / ITA / POR / CHN / ASA / OCE / PND B53K959 1 LT1363051 1 MAIN PCB ASSY FOR MFC5895C W B53K95 9 1 LT0313015 1 MAIN PCB ASSY , MFC5890CN FOR CHN B53K95 9 DEL 2 LT0416001 1 POWER SUPPLY PCB ASSY (INCLUDING AC CORD), FOR US / CAN 2 LT0485001 1 POWER SUPPLY PCB ASSY (EXCLUDING AC CORD), EXCEPT FOR US / CAN / CHN / ASA 2 LT0586001 1 POWER SUPPLY PCB ASSY (EXCLUDING AC CORD), FOR 2 LT0660001 1 POWER SUPPLY PCB ASSY (EXCLUDING AC CORD), FOR ASA 3 LT0405001 1 MJ PCB ASSY FOR US / CAN / CHN / ASA / OCE B53K96 7 3 LT0405004 1 MJ PCB ASSY EXCEPT FOR US / CAN / CHN / ASA / OCE B53K96 7 | Diagram placeholder |
