Brother MFC-5490CN Parts

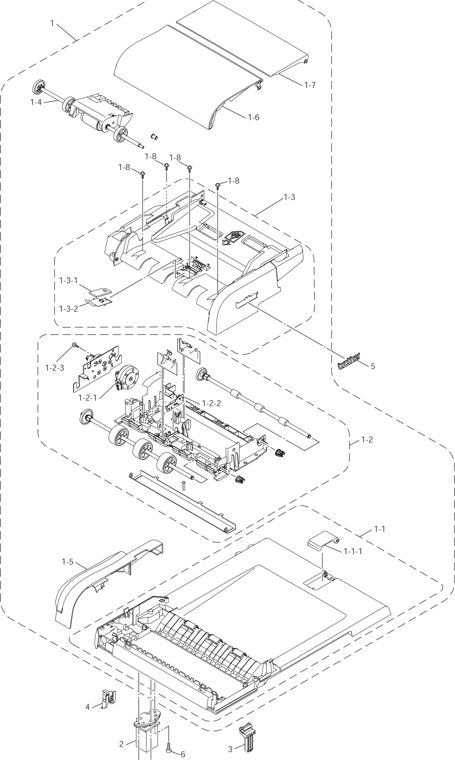

| List1(ADF) 1 LS6481001 ADF UNIT L9 ASSY(SP) 1-1 LS4785001 DOCUMENT COVER ASSY 1-1-1 LS4787005 DOCUMENT STOPPER 1-2 LS4788001 LOWER ADF CHUTE ASSY 1-2-1 LS4414001 ADF MOTOR 1-2-2 LT0293001 DOCUMENT SENSOR PCB ASSY B53K964 1-2-3 0A4300606 SCREW PAN (S/P WASHER) M3X6 1-3 LS4801001 UPPER ADF CHUTE ASSY 1-3-1 LS4615001 SEPARATION RUBBER 1-3-2 LS4617001 SEPERATION PLATE 1-4 LS4805001 DOCUMENT PULL-IN/SEPERATION ROLLER ASSY 1-5 LS4808005 ADF REAR COVER 1-6 LS4809001 ADF COVER ASSY 1-7 LS4811004 DOCUMENT SUPPORT 1-8 087311016 TAPTITE CUP B M3X10 2 LS6745001 HINGE ARM L 3 LS4442005 HINGE ARM R 4 LP1628001 HARNESS SUPPORT 5 LX1347001 EMBLEM BROTHER 6 085411216 TAPTITE BIND B M4X12 |  |

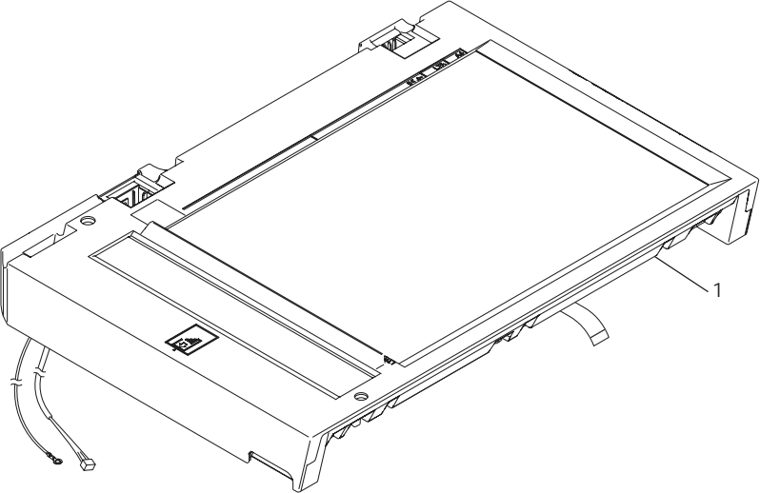

| List2(SCANNER) 1 LS6471001 SCANNER UNIT ASSY (SP) |  |

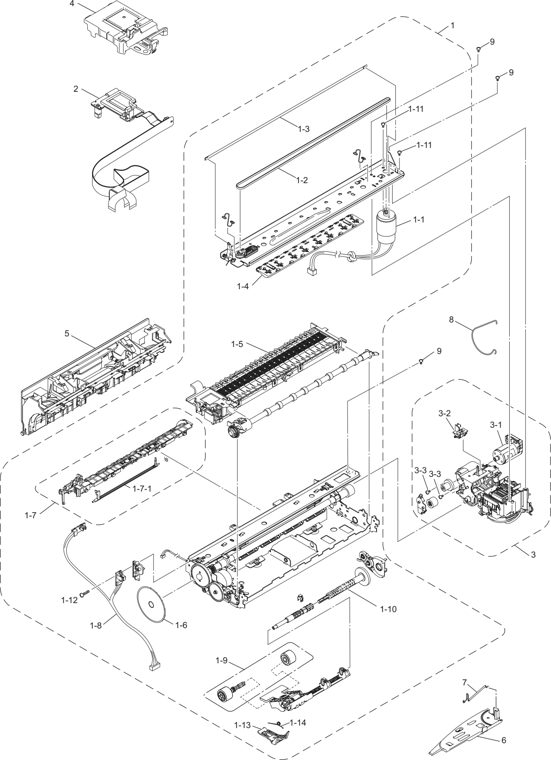

| List3(ENGINE) 1 LS6671001 ENGINE UNIT (SP) 1-1 LX3629001 CR MOTOR UNIT 1-2 LS4198001 TIMING BELT 1-3 LS4467001 ENCODER STRIP 1-4 LS4301001 STAR WHEEL HOLDER ASSY 1-5 LS4304001 PLATEN ASSY 1-6 LP1471001 PF ENCODER DISK 1-7 LS4249001 INNER CHUTE ASSY 1-7-1 LS4251001 REGISTRATION SENSOR ACTUATOR 1-8 LT0466001 PF ENCODER/REGISTRATION SENSOR HARNESS 1-9 LX0126001 PAPER PULL-IN ROLLER ASSY 1-10 LS4260001 ASF GEAR SHAFT OUTER 1-11 000300606 SCREW BIND M3X6 1-12 000021206 SCREW BIND M2X12 1-13 LS4120001 PE ACTUATOR 9 ASSY 1-14 LS4075001 PE ACTUATOR SPRING 2 LS6543001 CR PCB ASSY(SP) 3 LS6544001 MAINTENANCE UNIT(SP) 3-1 LS4091001 ASF MOTOR ASSY 3-2 LS4098001 SWITCHING LEVER GUIDE 3-3 LS4375001 SCREW PAN (S/P WASHER) M3X5 4 LS4383001 HEAD COVER ASSY 5 LS4253006 JAM CLEAR COVER 6 LX0376001 TUBE SUPPORT PLATE 7 LS4469001 TUBE SUPPORT WIRE 8 LS5775001 EARTH SPRING 9 087311016 TAPTITE CUP B M3X10 |  |

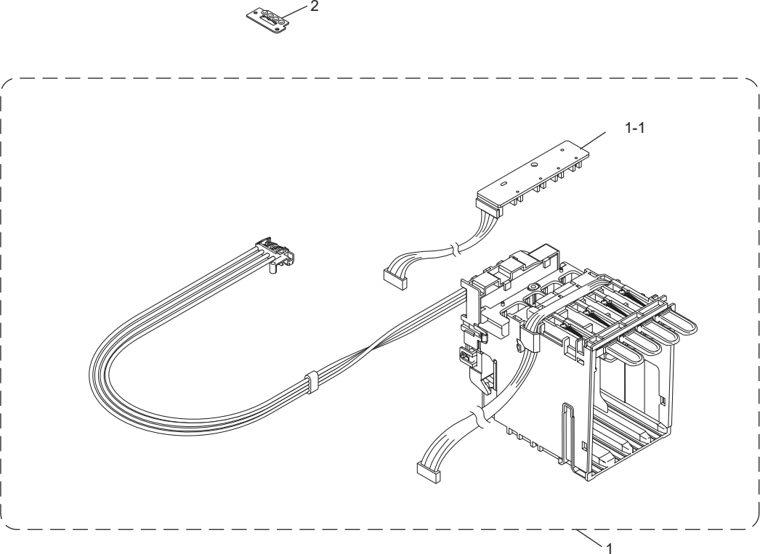

| List4(CARTRIDGE CASE) 1 LK3553001 INK REFILL ASSY (SP) 1-1 LK3329001 INK CARTRIDGE DETECTION SENSOR PCB B57C002 2 LK3555001 HEAD JOINT RUBBER (SP) |  |

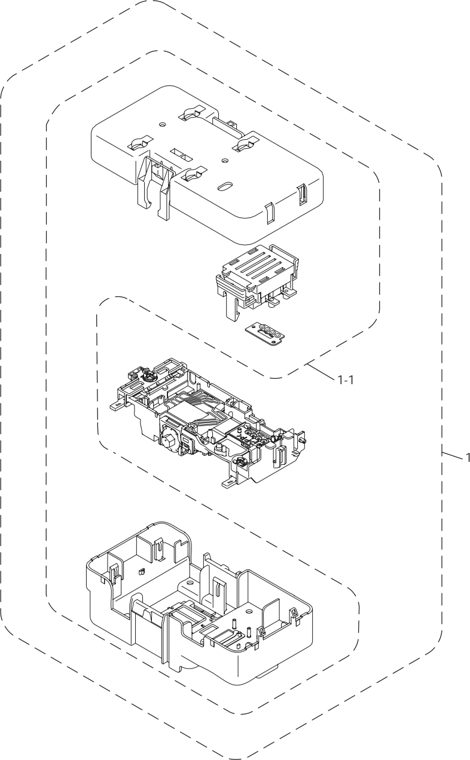

| List5(HEAD) 1 LK3211001 HEAD/CARRIAGE UNIT SUPPLY ASSY (without CARRIAGE PCB ASSY) 1-1 LK3216001 PROTECTOR PARTS SUPPLY ASSY(SP) |  |

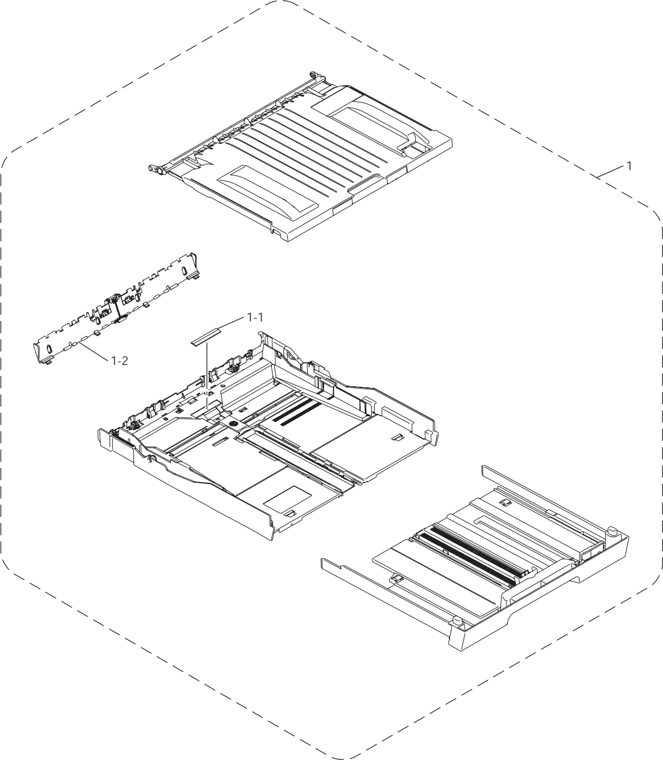

| List6(PAPER TRAY) 1 LS6966001 PAPER TRAY A4 ASSY(SP) 1-1 LP1575001 BASE PAD 1-2 LS4269001 BANK ASSY |  |

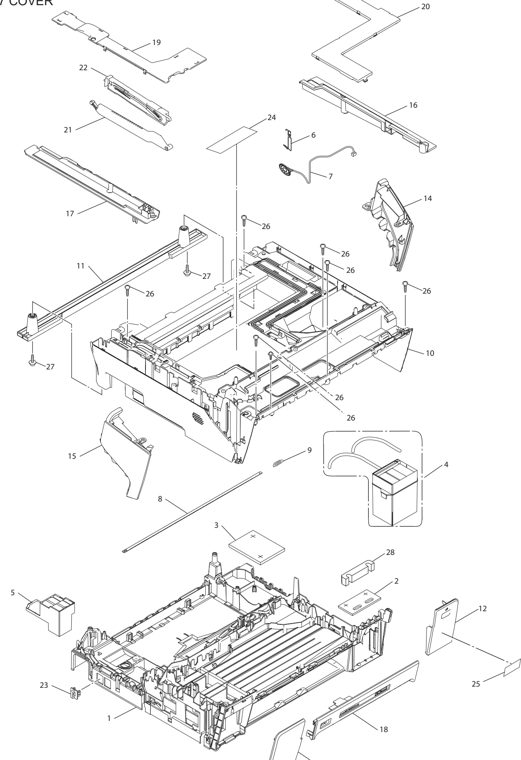

| List7(COVER) 1 LS5134001 LOWER COVER ASSY 2 LS4699001 INK ABSORBER FELT 3 LS5136001 INK FOAM 4 LS6967001 INK ABSOBER TUBE ASSY (SP) 5 LS5141001 FLUSHING CASE ASSY 6 LS5442001 SPEAKER SPRING 7 LT0375001 SPEAKER UNIT 8 LS6395001 ENCODER GUARD FILM 9 LS5902001 ENCODER GUARD SPRING 10 LS5443005 UPPER COVER 11 LS5444005 REAR UNDER COVER 12 LS5445005 INK CARTRIDGE COVER 13 LS5446005 FRONT COVER 14 LS5447006 SIDE COVER R 15 LS5448006 SIDE COVER L 16 LS5449005 EDGE COVER R 17 LS5450005 EDGE COVER L 18 LS5451005 PRINTED MEDIA COVER 19 LS5453005 HARNESS COVER 20 LS5454005 CIS FLAT CABLE COVER 21 LS5455001 SCANNER COVER SUPPORT 22 LS5457001 SCANNER COVER DAMPER 23 LE8842001 EXT CAP FOR US/CAN/NLD/SPA/ISR/POR/CHN/ARG/CHL/ASA/GNR/OCE/PND 23 UF5745000 MJ COVER EXT FOR GER/UK/FRA/BEL/ITA 24 LS6465001 ENCODER CAUTION LABEL 25 LS5371001 INNOBELLA LABEL FOR US 25 LS5370001 INNOBELLA LABEL EXCEPT FOR US 26 085411216 TAPTITE BIND B M4X12 27 087311016 TAPTITE CUP B M3X10 28 LX6286001 INK ABSORBER FELT (INK ABSORBER BOX UPPER) |  |

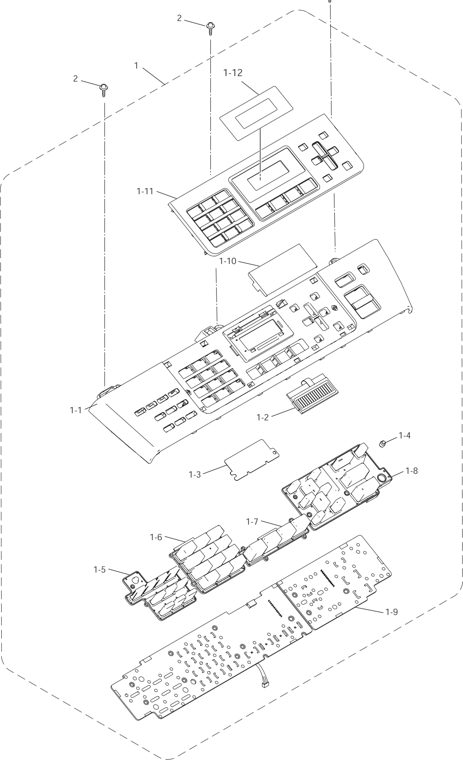

| List8(PANEL) 1 LS5634001 CONTROL PANEL ASSY FOR US/CAN 1 LS6680001 CONTROL PANEL ASSY FOR GER 1 LS5783001 CONTROL PANEL ASSY FOR UK/BEL/ISR/GNR 1 LS6683001 CONTROL PANEL ASSY FOR FRA 1 LS6695001 CONTROL PANEL ASSY FOR NLD 1 LS6689001 CONTROL PANEL ASSY FOR SPA 1 LS6686001 CONTROL PANEL ASSY FOR ITA 1 LS6692001 CONTROL PANEL ASSY FOR POR 1 LX0670001 CONTROL PANEL ASSY FOR CHN 1 LX0739001 CONTROL PANEL ASSY FOR ARG/CHL 1 LX0611001 CONTROL PANEL ASSY FOR ASA/OCE 1 LS6698001 CONTROL PANEL ASSY FOR PND 1-1 LS5635001 PRINTED PANEL COVER FOR US/CAN 1-1 LS6681001 PRINTED PANEL COVER FOR GER 1-1 LS5782001 PRINTED PANEL COVER FOR UK/BEL/ISR/GNR/PND 1-1 LS6684001 PRINTED PANEL COVER FOR FRA 1-1 LS6696001 PRINTED PANEL COVER FOR NLD 1-1 LS6690001 PRINTED PANEL COVER FOR SPA 1-1 LS6687001 PRINTED PANEL COVER FOR ITA 1-1 LS6693001 PRINTED PANEL COVER FOR POR 1-1 LX0612001 PRINTED PANEL COVER FOR ASA/OCE 1-1 LX0671001 PRINTED PANEL COVER FOR CHN 1-1 LX0740001 PRINTED PANEL COVER FOR ARG/CHL 1-2 LT0211001 MONOCHROME LCD, EXCEPT FOR CHN 1-2 A63016001 MONOCHROME LCD, FOR CHN 1-3 LP1542001 DIFFUSION FILM 1-4 LS5810001 FRONT C SENSOR ACTUATOR RUBBER 1-5 LS5636001 PRINTED RUBBER KEY FUNCTION 1-6 LS4744001 PRINTED RUBBER KEY TEN 1-7 LS5637001 PRINTED RUBBER KEY MODE 1-8 LS5638001 PRINTED RUBBER KEY BASE 1-9 LT0489001 PANEL PCB ASSY, EXCEPT FOR CHN B53K983 1-9 LT0489002 PANEL PCB ASSY, FOR CHN B53K983 1-10 LS4892001 LCD FILM MFC BASE 1-11 LS5639001 PRINTED PANEL PLATE FOR US/CAN 1-11 LS6682001 PRINTED PANEL PLATE FOR GER 1-11 LS5781001 PRINTED PANEL PLATE FOR UK/BEL/ISR/ASA/GNR/OCE 1-11 LS6685001 PRINTED PANEL PLATE FOR FRA 1-11 LS6697001 PRINTED PANEL PLATE FOR NLD 1-11 LS6691001 PRINTED PANEL PLATE FOR SPA/ARG/CHL 1-11 LS6688001 PRINTED PANEL PLATE FOR ITA 1-11 LS6694001 PRINTED PANEL PLATE FOR POR 1-11 LX0672001 PRINTED PANEL PLATE FOR CHN 1-11 LS6699001 PRINTED PANEL PLATE FOR PND 1-12 LS5640001 PRINTED LCD SHEET, EXCEPT FOR CHN 1-12 LX0673001 PRINTED LCD SHEET, FOR CHN 2 087311016 3 TAPTITE CUP B M3X10 |  |

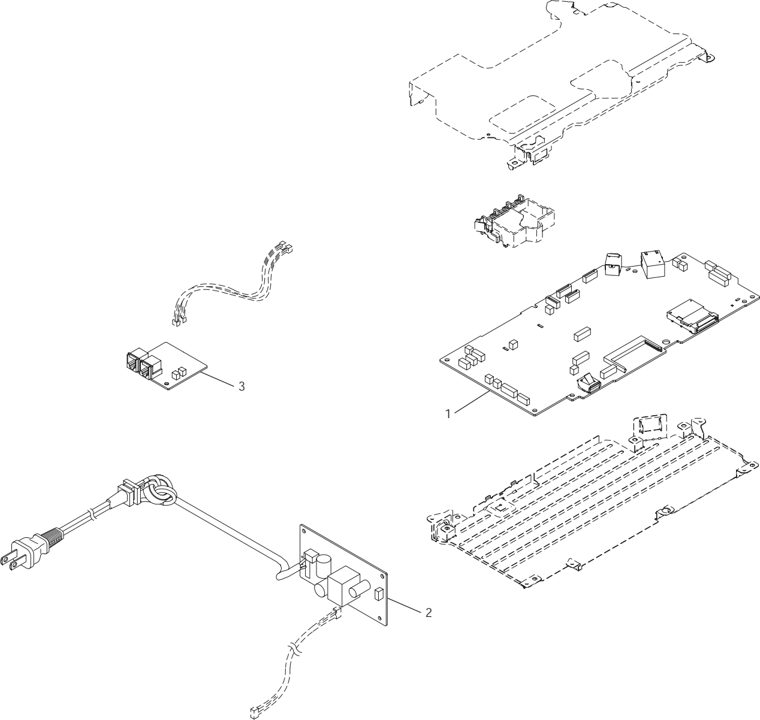

| List9(PCB) 1 LT0311051 MAIN PCB ASSY EXCEPT FOR CHN 1 LT0311055 MAIN PCB ASSY FOR CHN 2 LT0416001 POWER SUPPLY PCB ASSY (INCLUDING AC CORD)FOR US/CAN 2 LT0586001 POWER SUPPLY PCB ASSY FOR CHN 2 LT0485001 POWER SUPPLY PCB ASSY (INCLUDING AC CORD) EXCEPT FOR US/CAN/CHN 3 LT0405011 MJ PCB ASSY FOR US/CAN/CHN/ARG/CHL/ASA/OCE 3 LT0405014 MJ PCB ASSY EXCEPT FOR US/CAN/CHN/ARG/CHL/ASA/OCE |  |

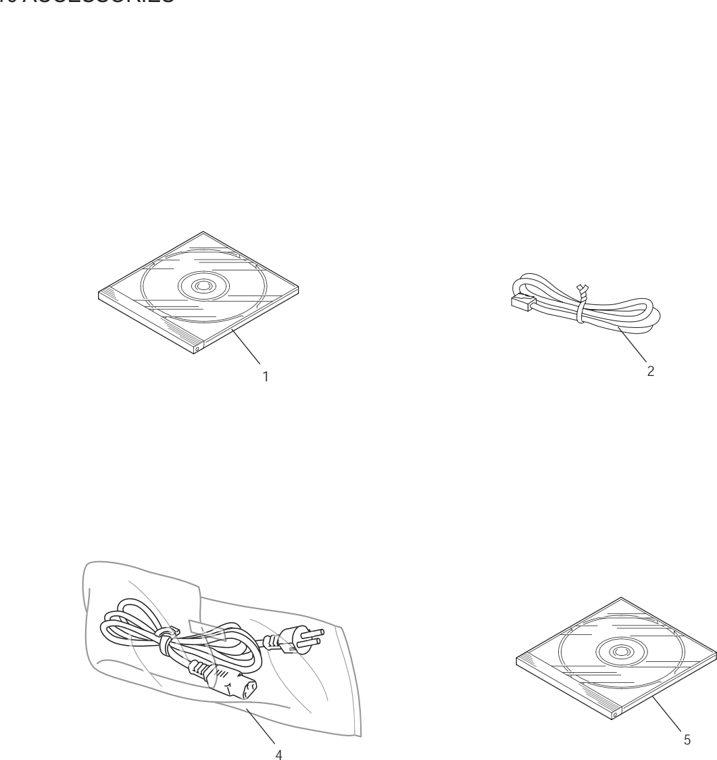

| 10 ACCESSORIES 1 LS5032001 CD-ROM ASSY FOR US/CAN 1 LS5090001 CD-ROM ASSY FOR GER/UK/FRA/ISR/ASA/GNR/OCE 1 LS5092001 CD-ROM ASSY FOR BEL/NLD 1 LS5091001 CD-ROM ASSY FOR SPA/ITA/POR/ARG/CHL 1 LS5302001 CD-ROM ASSY FOR CHN 1 LS5093001 CD-ROM ASSY FOR PND (Windows) 1 LS6119001 CD-ROM ASSY FOR PND (Macintosh) 2 LG3077001 TELEPHONE LINE CORD CSA FOR US/CAN/UK/NLD/SPA/ISR/POR/ CHN/ARG/CHL/ASA/GNR/OCE 2 UG3625001 TELEPHONE LINE CORD GER FOR GER 2 UG3626001 TELEPHONE LINE CORD UK6P FOR UK 2 UG3627001 TELEPHONE LINE CORD FRA FOR FRA 2 UG1575001 TELEPHONE LINE CORD BEL FOR BEL 2 UG3634001 TELEPHONE LINE CORD ITA FOR ITA 2 LG5827001 TELEPHONE LINE CORD RJ45 FOR PND 2 UG3290001 TELEPHONE LINE CORD NZ FOR OCE 3 LG3622001 TELEPHONE PLUG DUT FOR NLD 3 LG5830001 TELEPHONE PLUG SWE FOR PND 3 LG5829001 TELEPHONE PLUG FIN FOR PND 3 LG5828001 TELEPHONE PLUG DEN FOR PND 3 LG6573001 TELEPHONE PLUG ARL FOR OCE 4 LG5717001 AC CORD BAG ASSY LF VDE FOR GER/FRA/BEL/NLD/SPA/ITA/POR/ASA/GNR/PND 4 LG5692001 AC CORD BAG ASSY LF UK FOR UK/ASA 4 LG7005001 AC CORD BAG ASSY LF ISRAEL FOR ISR 4 LG5735001 AC CORD BAG ASSY LF CHN FOR CHN 4 LT0921001 AC CORD BAG ASSY LF ARG IRAM FOR ARG 4 LG6426001 AC CORD BAG ASSY LF CHILE FOR CHL 4 LG5734001 AC CORD BAG ASSY LF SAA FOR OCE 4 LG5736001 AC CORD BAG ASSY LF DEMKO FOR PND 5 LX3172001 CD-ROM ASSY FOR US/CAN (Windows7) 5 LX3173001 CD-ROM ASSY FOR GER/UK/FRA/ISR/ASA/GNR/OCE (Windows7) 5 LX3174001 CD-ROM ASSY FOR SPA/ITA/POR/ARG/CHL (Windows7) 5 LX3175001 CD-ROM ASSY FOR BEL/NLD (Windows7) 5 LX3176001 CD-ROM ASSY FOR PND (Windows7) 5 LX3178001 CD-ROM ASSY FOR CHN (Windows7) |  |
