Brother LT-2000 Parts

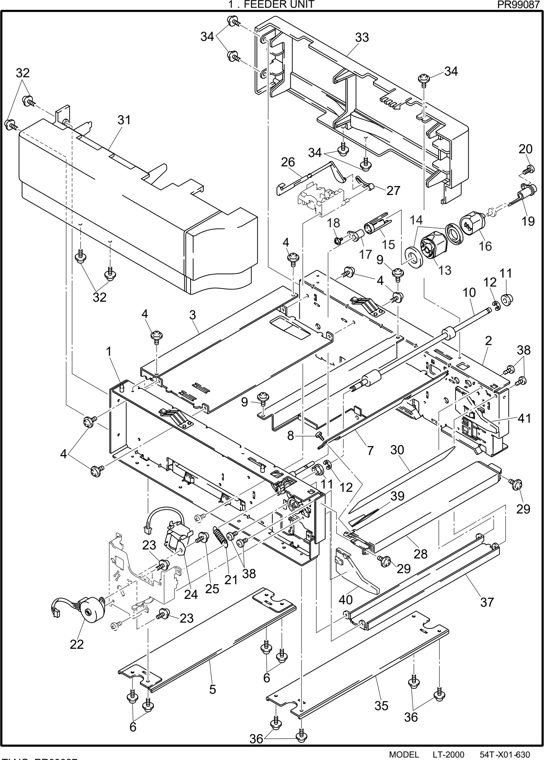

| <1. FEEDER UNIT PR99087 REF.NO. CODE Q'TY DESCRIPTION REMARK 1 UH2901001 1 FEEDER CHASSIS L ASSY 2 UH2952001 1 FEEDER CHASSIS R ASSY 3 UH2905000 1 STIFFENER PLATE UPPER 4 087320616 6 TAPTITE, CUP S M3X6 5 UH2906000 1 STIFFENER PLATE LOWER 6 087320616 4 TAPTITE, CUP S M3X6 7 UH1467000 1 FEEDER GUIDE OP 8 085310615 1 TAPTITE, BIND B M3X6 9 087320616 2 TAPTITE, CUP S M3X6 10 UH1466001 1 FEEDER ROLLER ASSY OP 11 UH2960000 2 BEARING S 12 048040346 2 RETAINING RING, E4 13 UH2821001 1 PAPER PICK-UP ROLLER ASSY 3 14 UH1487001 2 PAPER ROLLER COLLAR LOW 15 UH1477001 1 COLLAR STOPPER 16 UH1494001 1 PAPER PICK-UP ROLLER ASSY 5 17 UH2366000 1 BEARING 18 085320616 1 TAPTITE, BIND S M3X6 19 UH1497001 1 BEARING R 20 087320616 1 TAPTITE, CUP S M3X6 21 UH2967000 1 SPRING, EXTENSION 22 UH1565001 1 PAPER FEED MOTOR ASSY 23 087320616 2 TAPTITE, CUP S M3X6 24 UH2369001 1 PAPER PICK-UP SOLENOID 25 087320616 1 TAPTITE, CUP S M3X6 26 UH2911000 1 PAPER EMPTY SENSOR ACTUATOR 27 UH2381000 1 PE ACTUATOR LINK 28 UH2913000 1 FRONT COVER, GRAY1227 29 087320616 2 TAPTITE, CUP S M3X6 30 UH2918001 1 PAPER PATH FILM 31 UH2914000 1 SIDE COVER L, GRAY1227 32 087320616 4 TAPTITE, CUP S M3X6 33 UH2915000 1 SIDE COVER R, GRAY1227 34 087320616 5 TAPTITE, CUP S M3X6 35 UH2957000 1 FRONT STIFFENER CHASSIS 36 087320616 4 TAPTITE, CUP S M3X6 37 UH2958000 1 FRONT CHASSIS 38 087320616 4 TAPTITE, CUP S M3X6 39 UH2959000 1 GUIDE PLATE 40 UH2356000 1 RELEASE PLATE L ADD 41 UH2409000 1 RELEASE PLATE R ADD MODEL LT-2000 54T-X01-630 TI NO. PR99087 - 2 - 2 . PCB ASSEMBLY 3 . PAPER TRAY A4, LTR/LGL, UNIVERSAL MODEL LT-2000 54T-X01-650/651 14 5 23 33 MODEL LT-2000 54T-X01-100 -3-T/I No. PR99025 1 245 36 10 10981112 A4, LTR/LGL UNIVERSAL T/I No. PR99008 7 | Diagram placeholder |

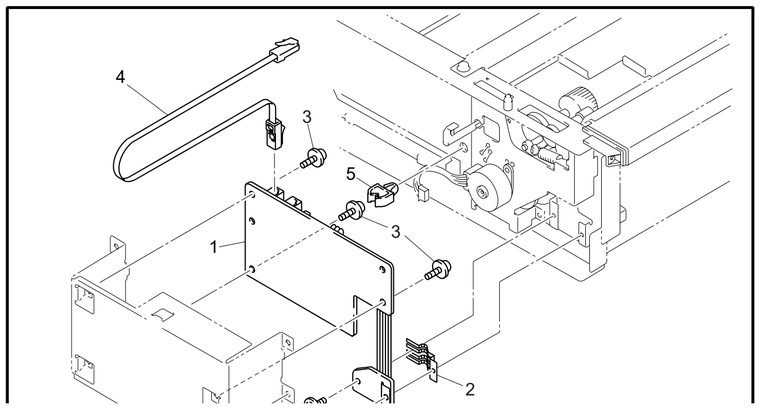

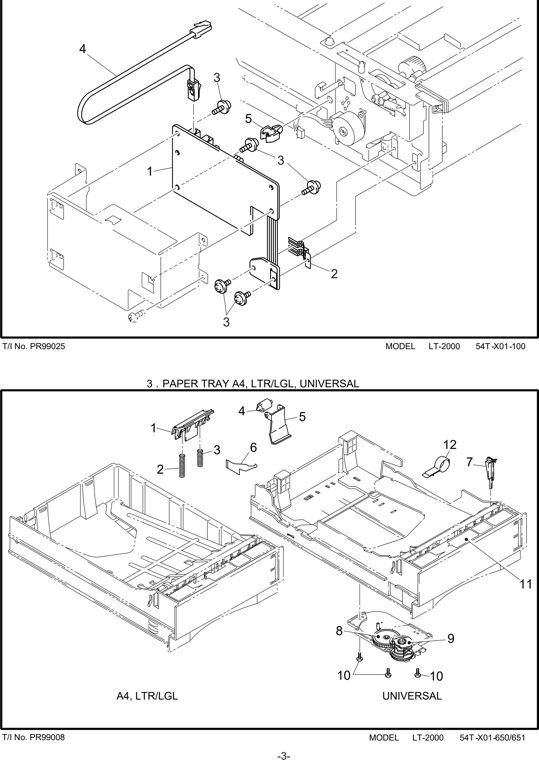

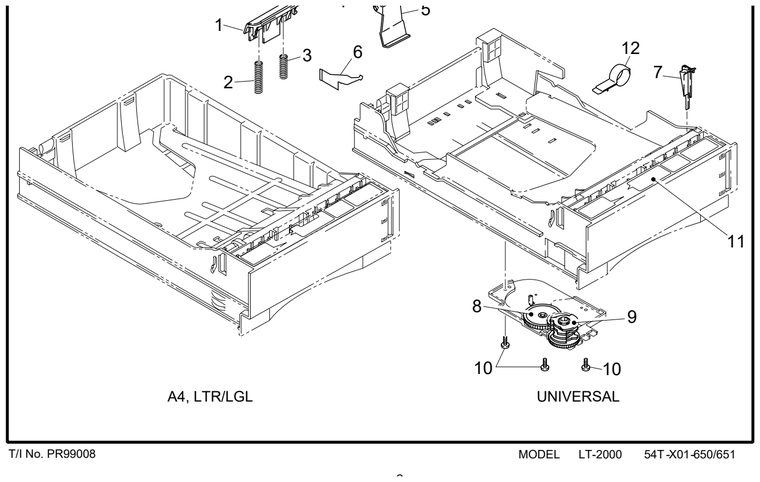

| 2. PCB ASSEMBLY PR99123 REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK 1 UK4117001 1 TRAY 2 PCB ASSY (SP) B48K167-202B CHG REV. 2 UH2410000 1 SIZE SWITCH SPRING 3 087320616 3 TAPTITE, CUP S M3X6 4 UK2540000 1 MODULAR CORD 8P 5 UH2962000 1 CLAMP:UAMS-05L-0 MODEL LT-2000 54T-X01-100 T/I NO. PR99025/PR99123 3 . PAPER TRAY A4, LTR/LGL, UNIVERSAL PR99008 REF.NO. CODE Q'TY DESCRIPTION REMARK 1 UH1500001 1 SEPARATION PAD ASSY W 1 UH3391001 1 SEPARATION PAD ASSY T/B (UNI) 2 UH1582001 1 SEPARATION PAD SPRING 100 2 UH2841001 1 SEPARATION PAD SPRING 200 (UNI) 3 UH1583001 1 SEPARATION PAD SPRING 50 4 UH2360000 1 ROLLER 5 UH2459000 1 ROLLER HOLDER 6 UH2472001 1 TRAY GUIDE PLATE 1 7 UH2469000 1 *PAPER FRONT GUIDE 8 UH2463001 1 *GEAR 56T LINK 9 UH1485001 1 *SIZE DRUM 10 085310815 3 *SCREW, BIND B TITE 3X8 11 UH2689001 1 *PAPER SETTING LABEL 12 UH2804000 1 *ADJUST KNOB STOPPER Note:Thepartsmarkedwith*canbeattachedtothe Universal cassette only. MODEL LT-2000 54T-X01-650 T/I NO. PR99008 - 4 - 4 . DOCUMENTS MODEL LT-2000 54T-X01-910 5 . PACKING MATERIALS MODEL LT-2000 54T-X01-930 1 2 245 631 2 -5- | Diagram placeholder |

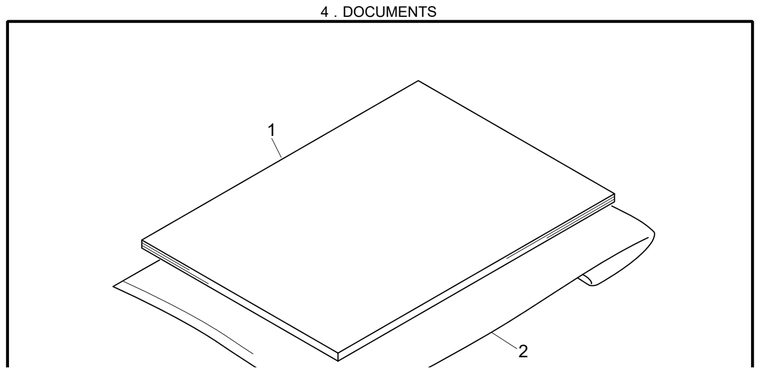

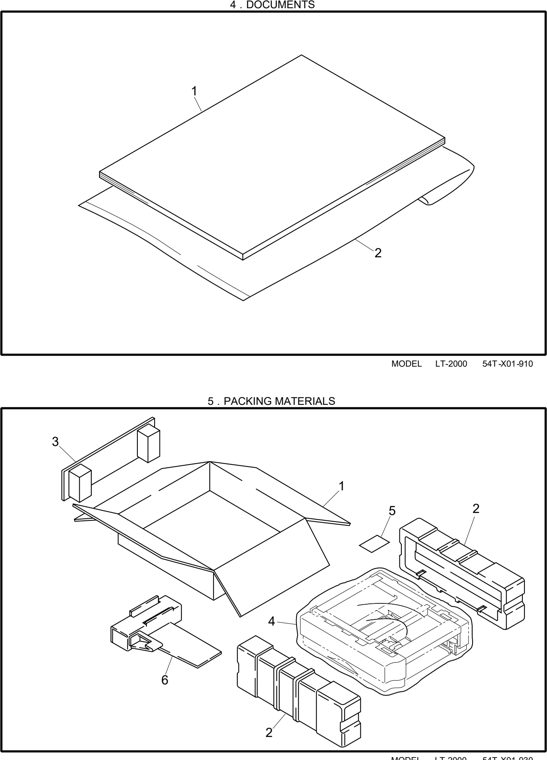

| 4. DOCUMENTS REF.NO. CODE Q'TY DESCRIPTION REMARK 1 UH1880001 1 USER'S GUIDE LT- 20002 UE0331001 1 BAG, 215X350H MODEL LT-2000 54T-X01-910 | Diagram placeholder |

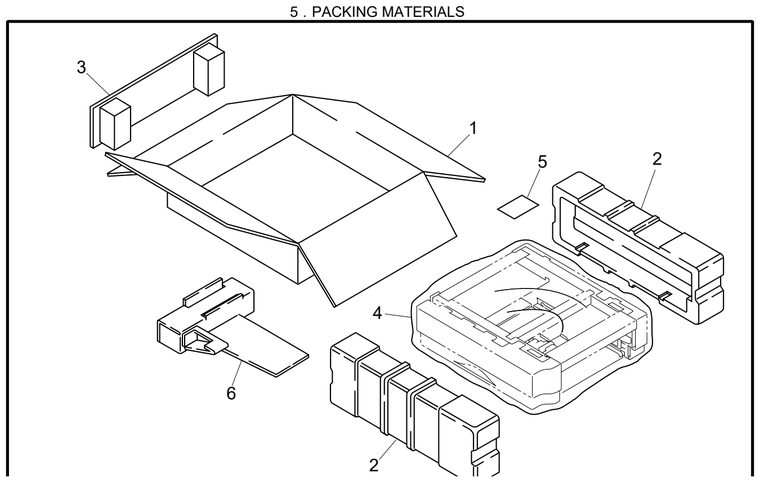

| 5. PACKING MATERIALS REF.NO. CODE Q'TY DESCRIPTION REMARK 1 UE0720001 1 CARTON, NO BRAND 1 UE0733001 1 CARTON, OTHER 1 UE0734001 1 CARTON, BROTHER 2 UE0389000 1 STYROFOAM LT- 20003 UE0721001 1 PAD 4 264808000 1 BAG, 650X600 4 UE0397000 1 BAG, 650X 600 H 5 U62092001 1 CAUTION LABEL 24 ,US 5 163528001 1 SUFFOCATION CAUTION LABEL ,BS 6 UE0713000 1 LTR HOLD PAD D 6 UE0714000 1 A4 HOLD PAD D MODEL LT-2000 54T-X01-930 - 6 - July, ’98 54T049NE0-LT-2000 | Diagram placeholder |
