Brother HLL2305W HLL2300D HLL2320D HLL2340DW HLL2360DN HLL2360DW HLL2365DW HL2260 HL2260D HL2560DN HLL2321D HLL2361DM HLL2366DW Parts

›Parts for Printers, MFPs, and Scanners›Brother Printer Parts

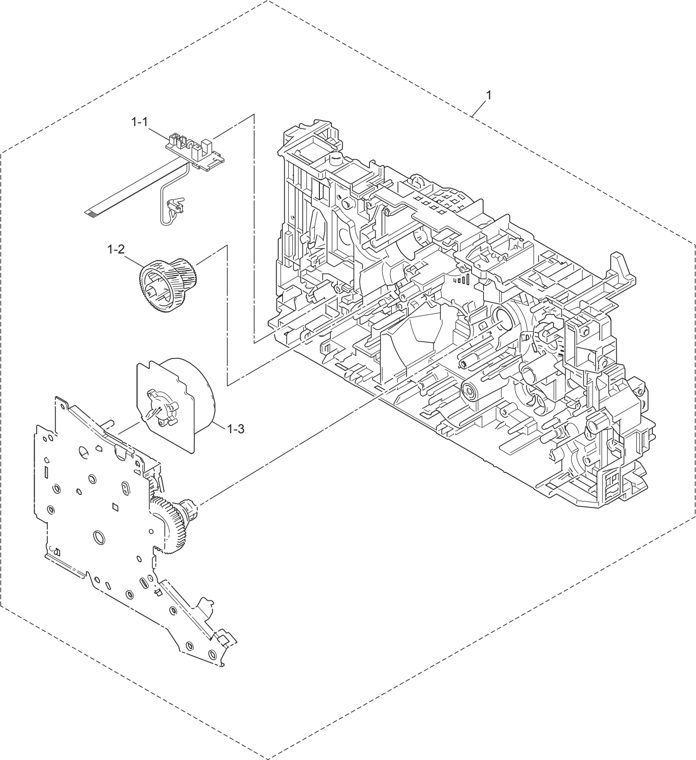

1. FRAME L & DRIVE UNIT
1 LJB630001 1 MAIN FRAME L ASSY (SP) HL-2260
1 LJB631001 1 MAIN FRAME L ASSY (SP) HL-2260D
1 LJB629001 1 MAIN FRAME L ASSY (SP) HL-2560DN
1 LJB627001 1 MAIN FRAME L ASSY (SP) HL-L2300D FOR US
1 LJB627001 1 MAIN FRAME L ASSY (SP) HL-L2300DR
1 LJB620001 1 MAIN FRAME L ASSY (SP) HL-L2305W
1 LJB627001 1 MAIN FRAME L ASSY (SP) HL-L2320D
1 LJB631001 1 MAIN FRAME L ASSY (SP) HL-L2321D
1 LJB627001 1 MAIN FRAME L ASSY (SP) HL-L2340DW FOR US
1 LJB627001 1 MAIN FRAME L ASSY (SP) HL-L2340DWR>
1 LJB628001 1 MAIN FRAME L ASSY (SP) HL-L2360DNR
1 LJB628001 1 MAIN FRAME L ASSY (SP) HL-L2360DW
1 LJB629001 1 MAIN FRAME L ASSY (SP) HL-L2361DN
1 LJB629001 1 MAIN FRAME L ASSY (SP) HL-L2365DW FOR IDN
1 LJB628001 1 MAIN FRAME L ASSY (SP) HL-L2365DWR
1 LJB629001 1 MAIN FRAME L ASSY (SP) HL-L2366DW
1
LV1288001 Eject Sensor PCB Assy
Fully refurbished with 90-day warranty
LV1288001
$33.75

2 LY9029001 FUSER GEAR 67R/40R1
3 LY9037001 1 MAIN MOTOR		Diagram placeholder

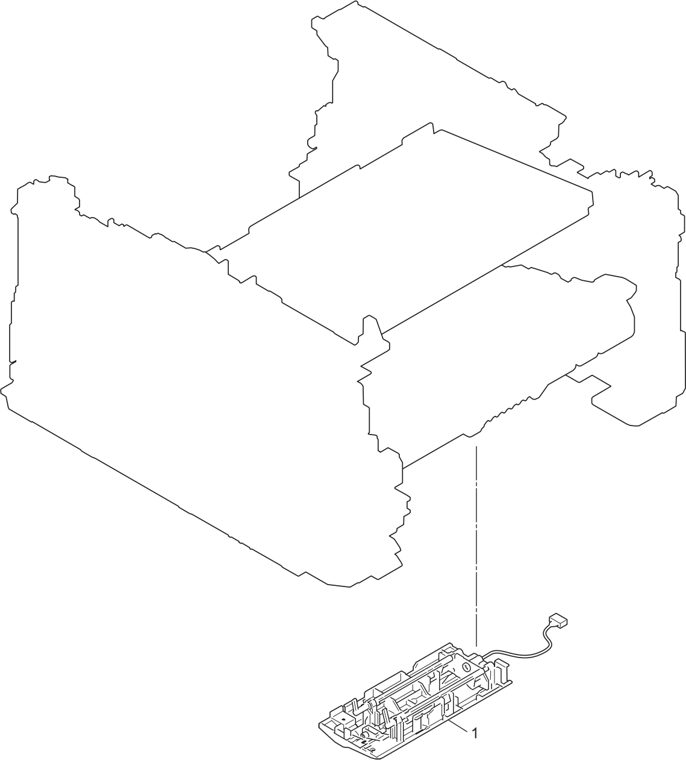

2. PAPER FEEDER
1 LY9527001 1 REGISTRATION FRONT / REAR ACTUATOR HOLDER ASSY HL-2260
1 LY9527001 1 REGISTRATION FRONT / REAR ACTUATOR HOLDER ASSY HL-L2305W
1
LY9326001 Registration Front/ Rear Actuator Holder Assy
Fully refurbished with 90-day warranty
LY9326001
$20.25

Diagram placeholder

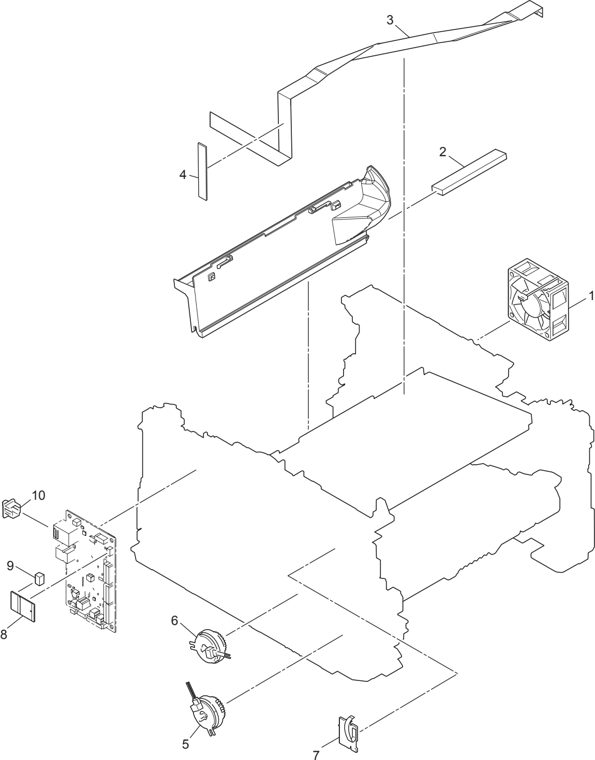

3.FRAME
1
LY9348001 Fan
Fully refurbished with 90-day warranty
LY9348001
$52.66

2 LY2141001 1 FILTER
3 LV1226001 1 HVPS FLAT CABLE
4 LY9721001 1 FLAT CABLE SPONGE
5
LY2144001 T1 Clutch
Fully refurbished with 90-day warranty
LY2144001
$31.05

6
LY2150001 Registration Clutch
New
LY2150001 (New)
$55.35

7 LV1143001 1 NEW TONER SENSOR PCB ASSY
8 LT3808001 1 WIREL ESS LAN PCB* HL-L2305W
8
LT3652001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LT3652001
$33.75

8 LT3808001 1 WIREL ESS LAN PCB* HL-L2340DW
8
LT3652001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LT3652001
$33.75

8 LT3808001 1 WIREL ESS LAN PCB* HL-L2340DWR
8
LT3652001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LT3652001
$33.75

8 LT3808001 1 WIREL ESS LAN PCB* HL-L2360DW
8
LT3652001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LT3652001
$33.75

8 LT3808001 1 WIREL ESS LAN PCB* HL-L2365DW
8
LT3652001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LT3652001
$33.75

8 LT3808001 1 WIREL ESS LAN PCB* HL-L2365DWR
8
LT3652001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LT3652001
$33.75

8 LT3808001 1 WIREL ESS LAN PCB HL-L2366DW
9 LV1394001 1 GASKET*
10 LY0872001 1 LAN PORT CAP
*When replacing the Wireless LAN PCB, please check the compatibility between Old and New and the combination of the Main PCB ASSY and the Wireless LAN PCB.
Regarding the how to distinguish between the Old and the New Main PCB ASSY and the Wireless LAN PCB, please contact us		Diagram placeholder

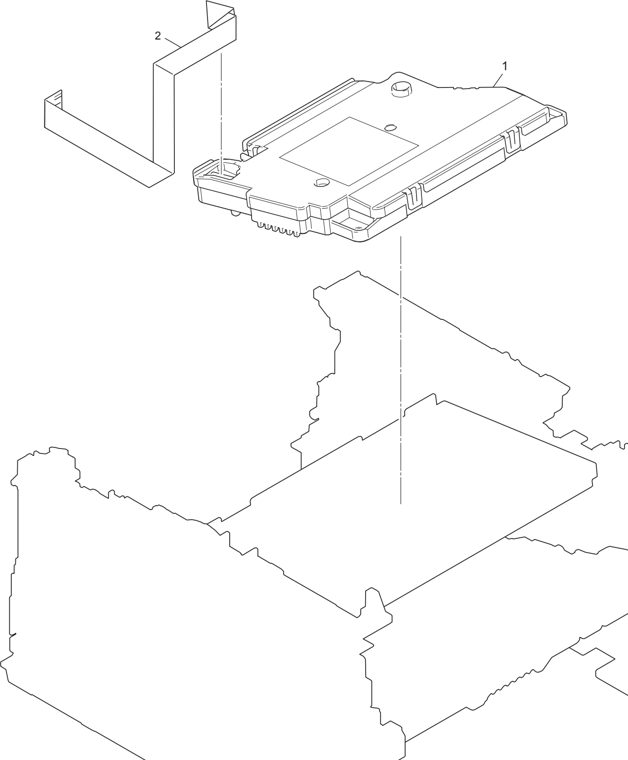

4. LASER UNIT
1
LY9282001 Laser Unit
Fully refurbished with 90-day warranty
LY9282001
$74.25

1
LY9955001 Laser Unit
Fully refurbished with 90-day warranty
LY9955001
$66.16

1
LY9955001 Laser Unit
Fully refurbished with 90-day warranty
LY9955001
$66.16

2
LV1232001 Laser Unit Flat Cable
Fully refurbished with 90-day warranty
LV1232001

Contact for Details


Diagram placeholder

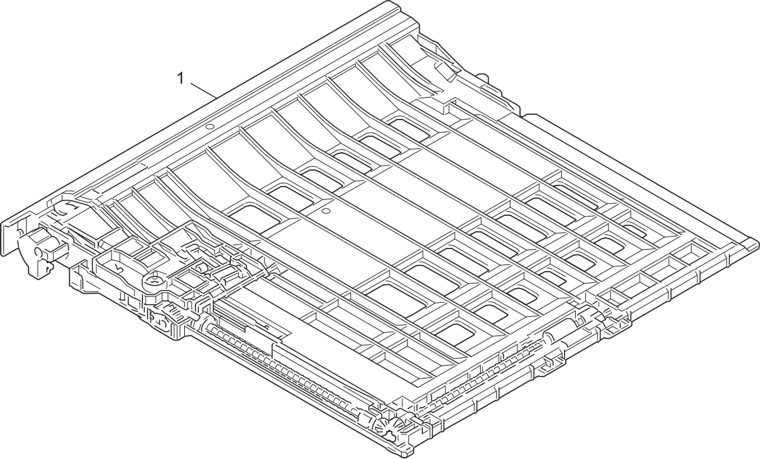

5. DX
1 LY2452011 1 DUPLEX TRAY
1 LY2452012 1 DUPLEX TRAY
1
LY2166011 Duplex Tray
Fully refurbished with 90-day warranty
LY2166011
$33.75

1
LY2166011 Duplex Tray
Fully refurbished with 90-day warranty
LY2166011
$33.75

1 LY2166012 1 DUPLEX TRAY 		Diagram placeholder

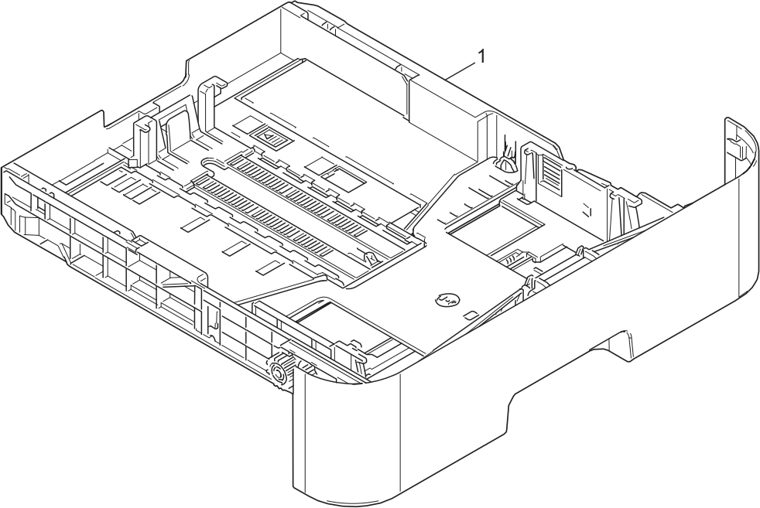

6. PAPER CASSETTE
1 LY9379012 1 PAPER TRAY
1 LY9379011 1 PAPER TRAY
1 LY9090012 1 PAPER TRAY 		Diagram placeholder

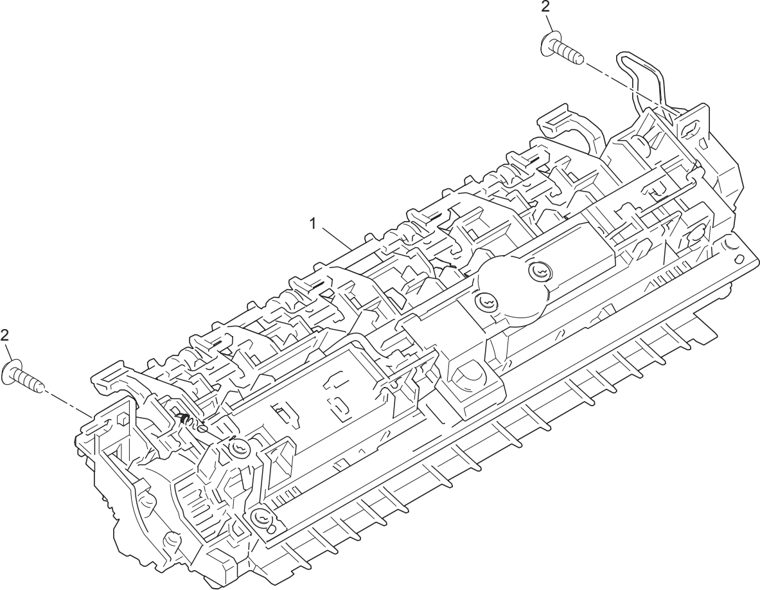

7. FIXING UNIT
1 LY9389001 1 FUSER UNIT
1
LY9388001 Fuser
Fully refurbished with 90-day warranty
LY9388001
$94.69

LY9388001 Fuser
New
LY9388001 (New)
$199.00

LY9388001 Fuser Unit - 110V
New
LY9388001 (New- Open box)
$153.90

2 LJ0395001 2 TAPTITE PAN B M4X14		Diagram placeholder

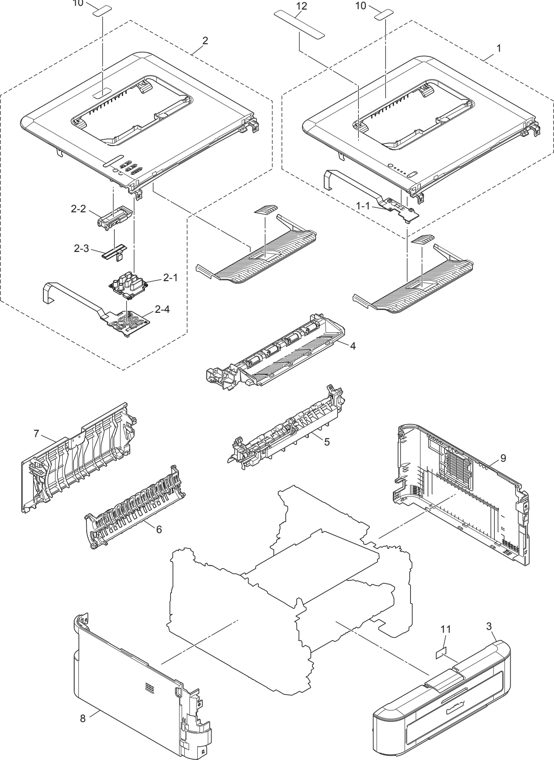

8. COVERS & LABELS
1 LY9958001 1 TOP COVER ASSY (SP)
1 LV1235001 1 PANEL PCB
2 LJB222001 1 TOP COVER ASSY
2 LY9960001 1 TOP COVER ASSY (SP)
1 LY9935001 1 RUBBER KEY
2 LY9298001 1 LCD COVER
3 A51456001 1 LCD
4 LV1234001 1 PANEL PCB ASSY
3 LY9483002 1 FRONT COVER ASSY		Diagram placeholder
8. COVERS & LABELS
3 LY9483001 1 FRONT COVER ASSY
3 LY9121001 1 FRONT COVER ASSY
3 LY9121002 1 FRONT COVER ASSY
3 LY9593001 1 FRONT COVER ASSY
3 LY9593002 1 FRONT COVER ASSY
3 LJB184001 1 FRONT COVER ASSY
3 LJB184002 1 FRONT COVER ASSY
4 LY9130001 1 INNER CHUTE ASSY
4 LY9130003 1 INNER CHUTE ASSY HL-L2300D
4 LY9130003 1 INNER CHUTE ASSY HL-L2300DR
4 LY9130003 1 INNER CHUTE ASSY HL-L2305W
5
LY9136001 Fuser Cover
Fully refurbished with 90-day warranty
LY9136001
$32.41

6
LY9146001 Outer Chute Assy
Fully refurbished with 90-day warranty
LY9146001
$22.96

7 LY9148001 1 BACK COVER
7
LY9148002 Back Cover
Fully refurbished with 90-day warranty
LY9148002
$29.71

7 LY9501002 1 BACK COVER HL-2260
7 LY9501001 1 BACK COVER HL-L2305W
8 LY9144002 1 SIDE COVER L
8 LY9144001 1 SIDE COVER L 		Diagram placeholder
8. COVERS & LABELS (Continued)
8 LY9144001 1 SIDE COVER L
8 LY9287002 1 SIDE COVER L
9 LY9145002 1 SIDE COVER R
9 LY9145001 1 SIDE COVER R
9 LY9288001 1 SIDE COVER R
9 LY9288002 1 SIDE COVER R
10 LY9548001 1 MODEL PLATE HL-L2300D
10 LJB165001 1 MODEL PLATE HL-L2300DR
10 LJB063001 1 MODEL PLATE HL-L2305W
10 LY9329001 1 MODEL PLATE HL-L2320D
10 LJB160001 1 MODEL PLATE HL-L2321D
10 LY9549001 1 MODEL PLATE HL-L2340DW
10 LJB169001 1 MODEL PLATE HL-L2340DWR
10 LY9550001 1 MODEL PLATE HL-L2360DN
10 LJB170001 1 MODEL PLATE HL-L2360DNR
10 LY9377001 1 MODEL PLATE HL-L2360DW
10 LJB140001 1 MODEL PLATE HL-L2361DN
10 LY9374001 1 MODEL PLATE HL-L2365DW
10 LJB171001 1 MODEL PLATE HL-L2365DWR
10 LJB142001 1 MODEL PLATE HL-L2366DW
10 LY9489001 1 MODEL PLATE HL-2260
10 LY9482001 1 MODEL PLATE HL-2260D
10 LY9490001 1 MODEL PLATE HL-2560DN
9.PCB
1 LV1420001 1 MAIN PCB ASSY HL-2260
1 LV1318001 1 MAIN PCB ASSY HL-2260D
1 LV1421001 1 MAIN PCB ASSY HL-2560DN
1
LV1362001 Main PCB Assy
Fully refurbished with 90-day warranty
LV1362001

Contact for Details

1 LV1437001 1 MAIN PCB ASSY* HL-L2305W
1 LV1493001 1 MAIN PCB ASSY* HL-L2305W
1 LV1327001 1 MAIN PCB ASSY* HL-L2340DW
1 LV1494001 1 MAIN PCB ASSY* HL-L2340DW
1 LV1327001 1 MAIN PCB ASSY* HL-L2340DWR
1 LV1494001 1 MAIN PCB ASSY* HL-L2340DWR
1 LV1324001 1 MAIN PCB ASSY HL-L2360DN
1 LV1324001 1 MAIN PCB ASSY HL-L2360DNR
1 LV1324001 1 MAIN PCB ASSY HL-L2361DN
1 LV1286001 1 MAIN PCB ASSY* HL-L2360DW
1 LV1495001 1 MAIN PCB ASSY* HL-L2360DW FOR US / CAN / ARG / CHL
1 LV1286001 1 MAIN PCB ASSY* HL- L2365DW
1 LV1286001 1 MAIN PCB ASSY* HL-L2365DWR
1 LV1495001 1 MAIN PCB ASSY* HL-L2365DWR
1 LV1286001 1 MAIN PCB ASSY HL-L2366DW
1
LV1388001 Main PCB Assy
Fully refurbished with 90-day warranty
LV1388001
$79.66

2 LV1319001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY
2 LV1436001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY
2
LV1229001 Low-Voltage Power Supply PCB Assy
Fully refurbished with 90-day warranty
LV1229001
$45.91


Diagram placeholder
9. PCB (Continued)
3
LV1243001 High-Voltage Power Supply PCB Assy
Fully refurbished with 90-day warranty
LV1243001
$33.75

*When replacing the Main PCB ASSY, please check the compatibility between Old and New and the combination of the Main PCB ASSY and the Wireless LAN PCB.
Regarding the how to distinguish between the Old and the New Main PCB ASSY and the Wireless LAN PCB, please contact us.		Diagram placeholder
