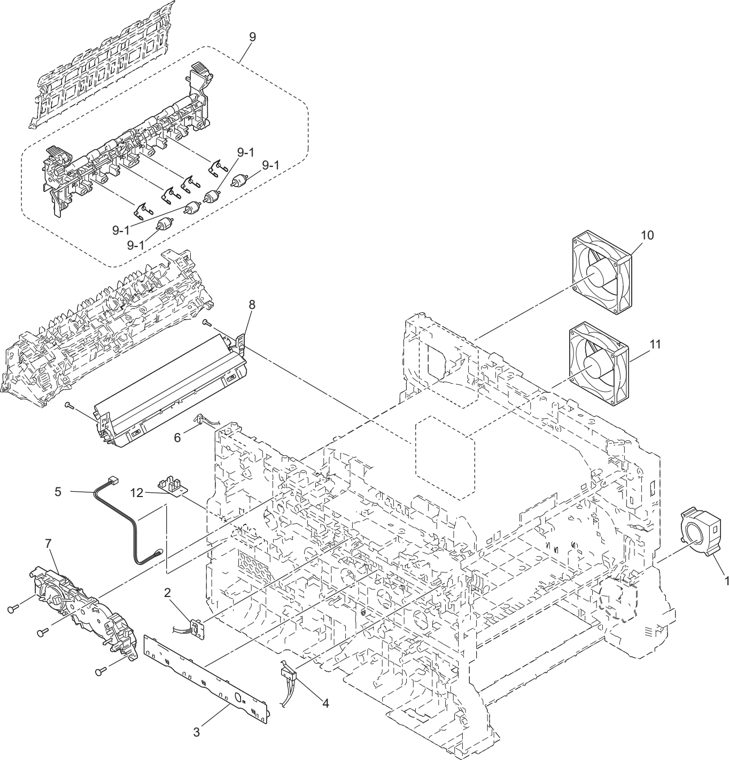

1. FRAME 1 D006V2001 Blower Fully refurbished with 90-day warranty D006V2001 $33.75 2 D006H1001 Develop Release Sensor PCB Fully refurbished with 90-day warranty D006H1001 $29.71 3 D006F6001 1 TONER / NEW SENSOR PCB ASSY 4 D006H5001 Front Cover Sensor Fully refurbished with 90-day warranty D006H5001 $29.71 5 D00A7S001 Internal Temparature Sensor Fully refurbished with 90-day warranty D00A7S001 $29.71 6 D006H6001 1 BACK COVER SENSOR ASSY 7 D006FA001 Develop Release Drive Unit Fully refurbished with 90-day warranty D006FA001 $33.75 8 LY7726001 1 REGISTRATION MARK SENSOR UNIT 9 LY7727002 Fuser Cover Assy New LY7727002 (New) $79.66 10 LY0634001 Cleaner Pinch Roller S Assy New LY0634001 (New) $25.65 10 D006FX001 Fuser Fan Fully refurbished with 90-day warranty D006FX001 $35.10 11 D006FY001 Power Fan Fully refurbished with 90-day warranty D006FY001 $35.10 12 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8260CDN 12 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8260CDW 12 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8260CDW 12 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8360CDW 12 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8360CDW 12 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8360CDWT 12 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9310CDW 12 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9310CDW FOR USA	Diagram placeholder

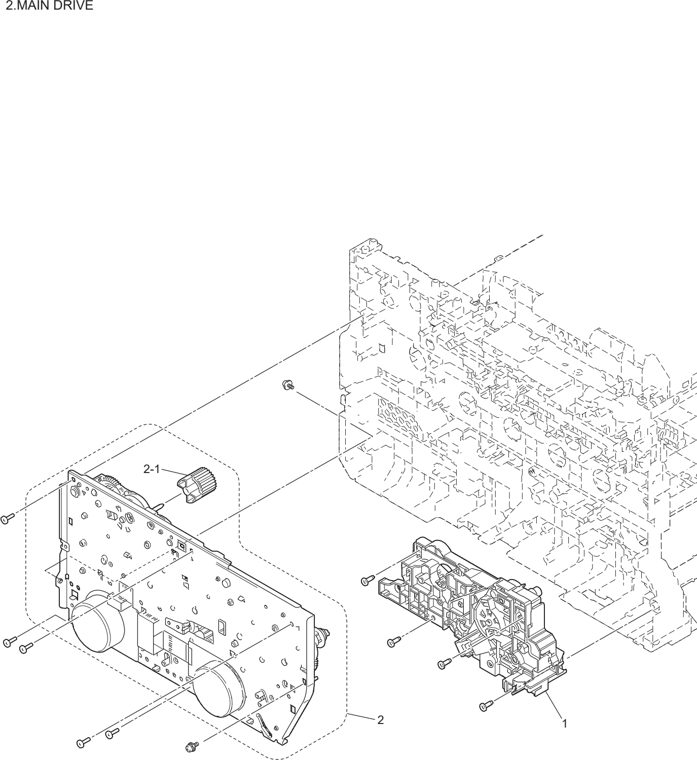

2. MAIN DRIVE 1 D0067E001 1 PAPER FEED DRIVE UNIT 2 D00H8V001 1 PROCESS DRIVE UNIT (SP) 1 LY0233001 1 FUSER DRIVE GEAR Z25	Diagram placeholder

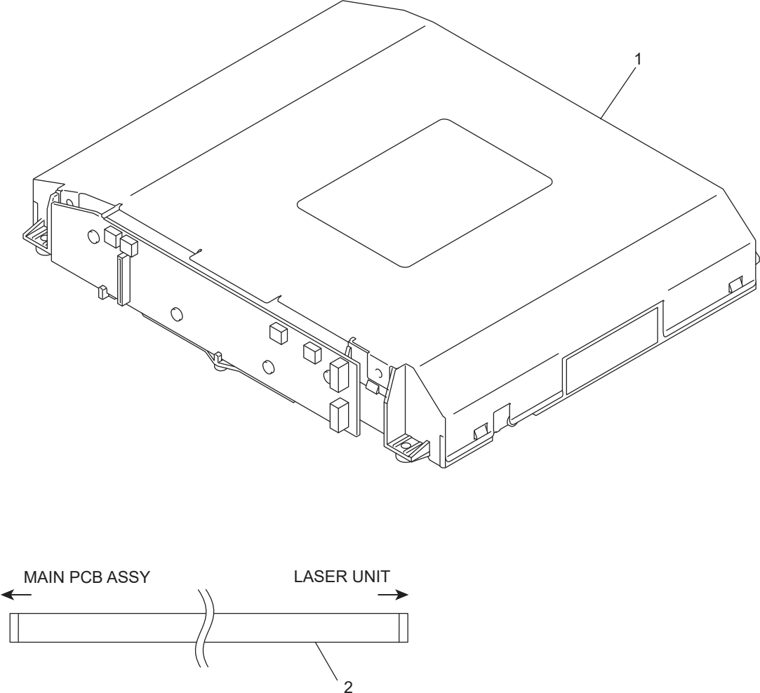

3. LASER UNIT 1 D00TGP001 1 LASER UNIT (SP) HL-L8260CD NFOR CHN 1 D009ML001 Laser Unit New D009ML001 (New) $330.75 1 D009ML001 Laser Unit Fully refurbished with 90-day warranty D009ML001 $222.75 1 D009ML001 Laser Unit New D009ML001 (New) $330.75 1 D009ML001 Laser Unit Fully refurbished with 90-day warranty D009ML001 $222.75 1 D009ML001 Laser Unit New D009ML001 (New) $330.75 1 D009ML001 Laser Unit Fully refurbished with 90-day warranty D009ML001 $222.75 1 D009ML001 Laser Unit New D009ML001 (New) $330.75 1 D009ML001 Laser Unit Fully refurbished with 90-day warranty D009ML001 $222.75 1 D009ML001 Laser Unit New D009ML001 (New) $330.75 1 D009ML001 Laser Unit Fully refurbished with 90-day warranty D009ML001 $222.75 1 D00TGP001 1 LASER UNIT (SP) HL-L9310CDW FOR CHN 2 LV1174001 1 LASER UNIT FLAT CABLE	Diagram placeholder

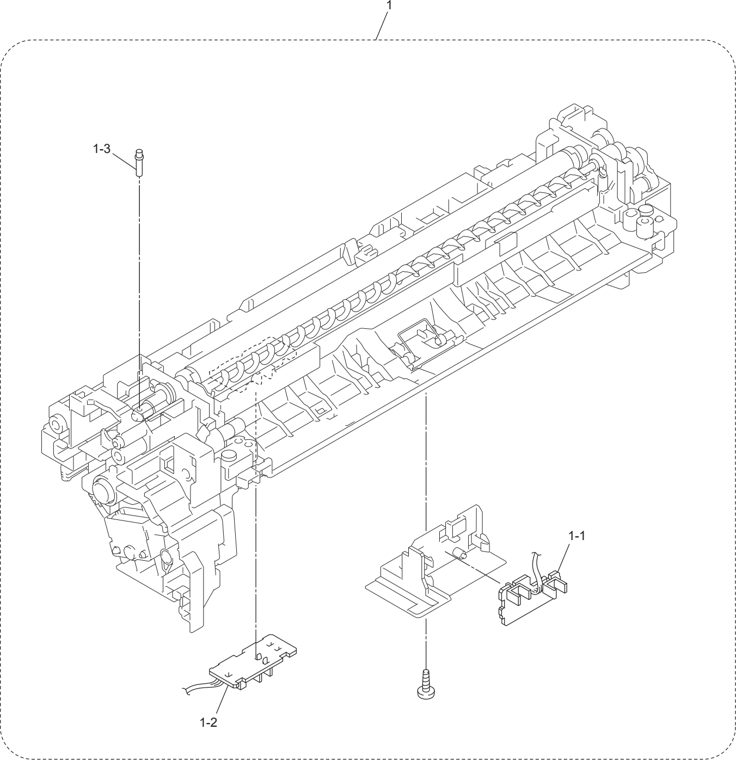

4. PAPER FEEDER 1 D00H8D001 Paper Feed Unit Fully refurbished with 90-day warranty D00H8D001 $41.85 1 D00H8D001 Paper Feed Unit Fully refurbished with 90-day warranty D00H8D001 $41.85 1 D00H8H001 1 PAPER FEED UNIT (SP) HL-L8360CDW 1 D00H8H001 1 PAPER FEED UNIT (SP) HL-L8360CDWT 1 D00H8H001 1 PAPER FEED UNIT (SP) HL-L9310CDW 1 D0077S001 1 REGISTRATION FRONT / REAR SENSOR PCB ASSY 2 D0077T001 1 T1 PAPER FEED SENSOR PCB ASSY HL-L8260CDN 2 D0077T001 1 T1 PAPER FEED SENSOR PCB ASSY HL-L8260CDW 2 D0077U001 T1 Paper Feed Sensor PCB New D0077U001 (New) $43.21 2 D0077U001 T1 Paper Feed Sensor PCB New D0077U001 (New) $43.21 2 D0077U001 T1 Paper Feed Sensor PCB New D0077U001 (New) $43.21 3 LY7136001 1 JOINT PIN	Diagram placeholder

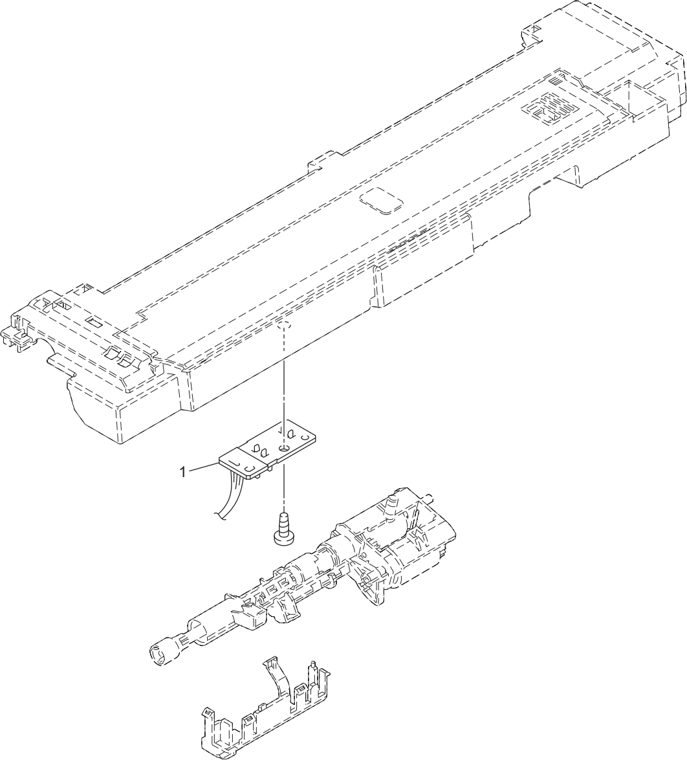

5. MP 1 D0077V001 1 MP PAPER EMPTY / REGISTRATION FRONT SENSOR PCB ASSY	Diagram placeholder

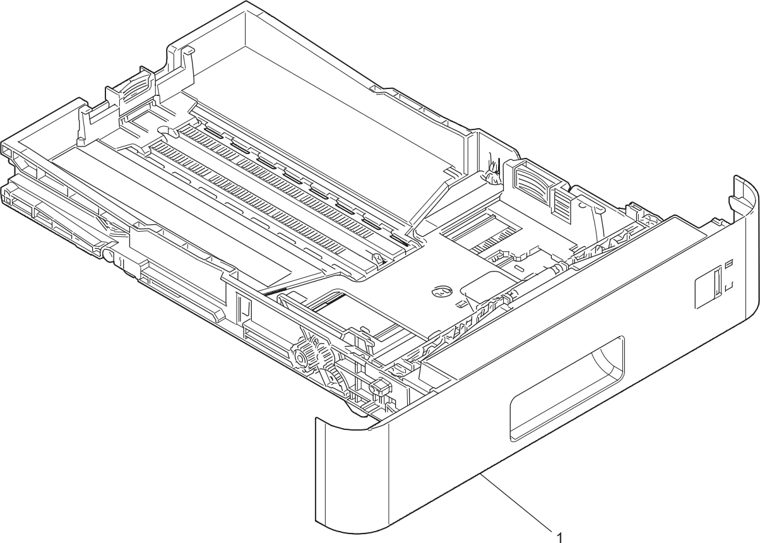

6. PAPER CASSETTE 1 D006GX001 1 PAPER TRAY	Diagram placeholder

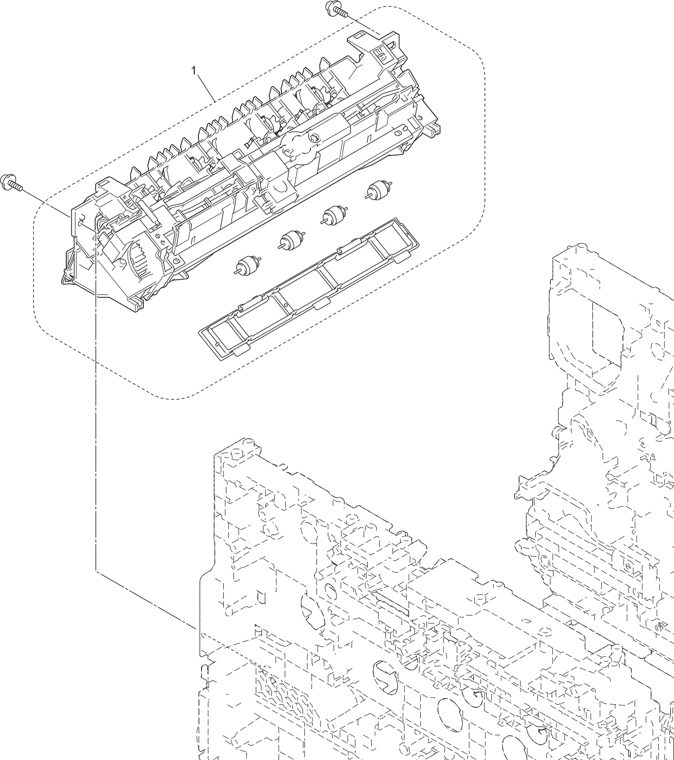

7. FUSER UNIT 1 D00C55001 1 FUSER UNIT 230V(SP) HL-L8260CDN 1 D00C54001 Fuser Unit 115V New D00C54001 (New) $330.75 1 D00C55001 1 FUSER UNIT 230V(SP) HL-L8260CDW 1 D00C54001 Fuser Unit 115V New D00C54001 (New) $330.75 1 D00C55001 1 FUSER UNIT 230V(SP) HL-L8360CDW 1 D00EBS001 1 FUSER UNIT 127V(SP) HL-L8360CDW 1 D00C54001 Fuser Unit 115V New D00C54001 (New) $330.75 1 D00C54001 Fuser Unit 115V New D00C54001 (New) $330.75 1 D00C55001 1 FUSER UNIT 230V(SP) HL-L9310CDW FOR USA	Diagram placeholder
8. PAPER EJECT 1 D00GN3001 Paper Eject Assy New D00GN3001 (New) $187.65 1 D00GN3001 Paper Eject Assy Fully refurbished with 90-day warranty D00GN3001 $63.46 1 D00GN3001 Paper Eject Assy New D00GN3001 (New) $187.65 1 D00GN3001 Paper Eject Assy Fully refurbished with 90-day warranty D00GN3001 $63.46 1 D00GN4001 Paper Eject Assy New D00GN4001 (New) Contact for Details 1 D00GN4001 Paper Eject Assy New D00GN4001 (New) Contact for Details 1 D00GN4002 1 PAPER EJECT ASSY (SP) HL-L9310CDW 1 LY7841001 1 TONER FILTER ASSY 2 D006A3001 1 PAPER EJECT ORIGIN SENSO RHL-L8360CDW 2 D006A3001 1 PAPER EJECT ORIGIN SENSO RHL-L8360CDWT 2 D006A3001 1 PAPER EJECT ORIGIN SENSO RHL-L9310CDW	Diagram placeholder

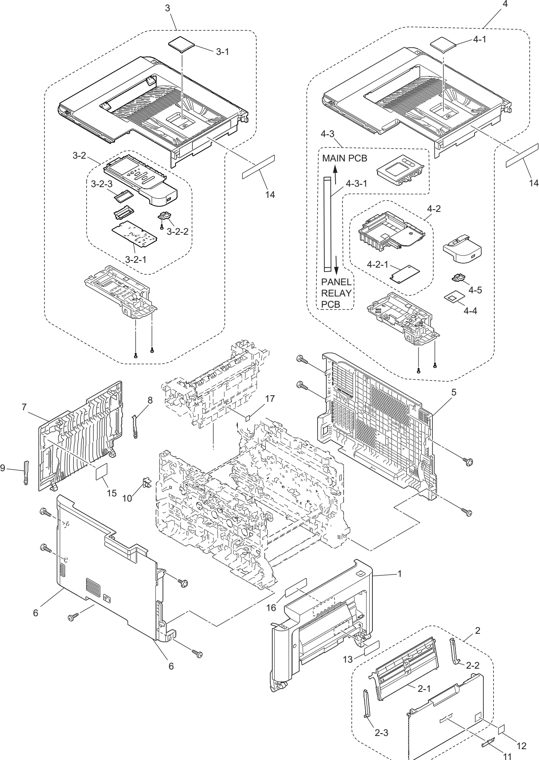

9.COVERS & LABELS 1 D006JZ001 1 FRONT COVE R 2 D006KD001 1 MP COVER ASSY 1 D006KP001 1 MP PAPER GUIDE ASSY 2 D006KV001 1 MP LINK R 3 D006KW001 1 MP LINK L 3 D00GL3001 1 TOP COVER ASSY (SP) HL-L8260CDN 3 D00GL6001 1 TOP COVER ASSY (SP) HL-L8260CDW 1 D006L0001 1 PAPER STOPPER HL-L8260CDN 1 D006L0001 1 PAPER STOPPE R HL-L8260CDW 2 D00D29001 1 PANEL COVER ASSY HL-L8260CDN3- 2 D006L1001 1 PANEL COVER ASSY HL-L8260CDW 1 D006LC001 1 PANEL PCB HL-L8260CDN3-2- 1 D006LC001 1 PANEL PCB HL-L8260CDW3-2- 2 D006LH001 1 USB HOST PCB ASSY HL-L8260CDN3-2- 2 D006LH001 1 USB HOST PCB ASSY HL-L8260CDW3-2- 3 A62009001 1 LCD HL-L8260CDN3-2- 3 A62009001 1 LCD HL-L8260CDW 4 D00GLY001 1 TOP COVER ASSY (SP) HL-L8360CDW 4 D00GLY001 1 TOP COVER ASSY (SP) HL-L8360CDWT 4 D00GLZ001 Top Cover Assy Fully refurbished with 90-day warranty D00GLZ001 $76.95 1 D006L0001 1 PAPER STOPPER HL-L8360CDW 1 D006L0001 1 PAPER STOPPE R HL-L8360CDWT 1 D006L0002 1 PAPER STOPPE R HL-L9310CDW 2 D006MR001 1 PANEL CASE ASSY HL-L8360CDW4 2 D006MR001 1 PANEL CASE ASSY HL-L8360CDWT4 2 D006MR002 1 PANEL CASE ASSY HL-L9310CDW 1 D006MT001 1 PANEL RELAY PCB HL-L8360CDW4 1 D006MT001 1 PANEL RELAY PCB HL-L8360CDWT4 1 D006MT001 1 PANEL RELAY PCB HL-L9310CDW 3 D006N7001 1 LCD PANEL ASSY HL-L8360CDW4 3 D006N7001 1 LCD PANEL ASSY HL-L8360CDWT4 3 D00C79001 1 LCD PANEL ASSY HL-L9310CDW 1 D006NL001 1 PANEL RELAY FLAT CABLE HL-L8360CDW4-3- 1 D006NL001 1 PANEL RELAY FLAT CABLE HL-L8360CDWT4-3- 1 D006NL001 1 PANEL RELAY FLAT CABLE HL-L9310CDW 4 D0000T001 1 NFC PCB ASSY HL-L8360CDW4- 4 D0000T001 1 NFC PCB ASSY HL-L8360CDWT4- 4 D0000T001 1 NFC PCB ASSY HL-L9310CDW4- 5 D006LH001 1 USB HOST PCB ASSY HL-L8360CDW4- 5 D006LH001 1 USB HOST PCB ASSY HL-L8360CDWT4- 5 D006LH001 1 USB HOST PCB ASSY HL-L9310CDW 5 D006LP001 1 SIDE COVER R 6 D006LV001 1 SIDE COVER L ASSY HL-L8260CDN 6 D006LV001 1 SIDE COVER L ASSY HL-L8260CDW 6 D0087C001 1 SIDE COVER L ASSY HL-L8360CDW 6 D0087C001 1 SIDE COVER L ASSY HL-L8360CDWT 6 D006WA001 1 SIDE COVER L ASSY HL-L9310CDW 7 D006LY001 1 BACK COVER 8 LY0451001 1 BACK COVER STOPPER ARM R 9 LY0450001 1 BACK COVER STOPPER ARM L 10 LY0872001 1 LAN PORT CAP 11 LY4852007 1 EMBLEM BROTHER SHEET 12 D009Y1001 1 COLOR LASER LABEL 13 D00A61001 1 MP SET INSTRUCTION LABEL 14 D00LS4001 1 LABEL DR OPERATION PRT 15 D00RZH001 1 LABEL H / SP CAUTION R 49X45 CHN HL-L8260CDN FOR CHN 15 D007A0001 1 LABEL H / SP CAUTION REAR 49X45 HL-L8260CDN FOR SGP 15 D007A0001 1 LABEL H / SP CAUTION REAR 49X45 HL-L8260CDW 15 D007A0001 1 LABEL H / SP CAUTION REAR 49X45 HL-L8360CDW 15 D007A0001 1 LABEL H / SP CAUTION REAR 49X45 HL-L8360CDWT 15 D007A0001 1 LABEL H / SP CAUTION REAR 49X45 HL-L9310CDW FOR USA / CAN / GER / UK / SWI / RUS / ARL / NZ / PND / EU 15 D00RZH001 1 LABEL H / SP CAUTION R 49X45 CHN HL-L9310CDW FOR CHN 16 D00EV6001 1 LABEL H / SP CAUTION F 135 CHN HL-L8260CDN FOR CHN 16 D00EV4001 1 LABEL H / SP CAUTION F 135 ASA HL-L8260CDN FOR SGP 16 D007A3001 1 LABEL H / SP CAUTION F 135 US HL-L8260CDW FOR USA 16 D00EH5001 1 LABEL H / SP CAUTION F 135 EU1 HL-L8260CDW FOR GER / UK / SWI / ITA / IBR / RUS / FRA / BEL / HOL / PND / CEE 16 D00EV1001 1 LABEL H / SP CAUTION F 135 OCE1 HL-L8260CDW FOR ARL / NZ 16 D00E9X001 1 LABEL H / SP CAUTION F 135 US2 HL-L8360CDW FOR USA / CAN 16 D00ELS001 1 LABEL H / SP CAUTION F 135 EU2 HL-L8360CDW FOR GER / UK / SWI / PND / rgEU 16 D00EV2001 1 LABEL H / SP CAUTION F 135 OCE2 HL-L8360CDW FOR ARL 16 D00EV4001 1 LABEL H / SP CAUTION F 135 ASA HL-L8360CDW FOR TWN / SGP / KOR 16 D00EV9001 1 LABEL H / SP CAUTION F 135 LTN HL-L8360CDW FOR ARG / CHL / BRZ 16 D00EV5001 1 LABEL H / SP CAUTION F 135 GULF HL-L8360CDW FOR GULF 16 D00E9X001 1 LABEL H / SP CAUTION F 135 US2 HL-L8360CDWT 16 D00EBK001 1 LABEL H / SP CAUTION F 135 US3 HL-L9310CDW FOR USA / CAN 16 D00ENC001 1 LABEL H / SP CAUTION F 135 EU3 HL-L9310CDW FOR GER / UK / SWI / RUS / PND / rgEU 16 D00EV6001 1 LABEL H / SP CAUTION F 135 CHN HL-L9310CDW FOR CHN 16 D00EV3001 1 LABEL H / SP CAUTION F 135 OCE3 HL-L9310CDW FOR ARL / NZ 17 D00RZJ001 1 LABEL HIGH TEMP 13.9X108 CHN HL-L8260CDN FOR CHN 17 D00CBH001 1 LABEL HIGH TEMP 13.9X108 HL-L8260CDN FOR SGP 17 D00CBH001 1 LABEL HIGH TEMP 13.9X108 HL-L8260CDW 17 D00CBH001 1 LABEL HIGH TEMP 13.9X108 HL-L8360CDW 17 D00CBH001 1 LABEL HIGH TEMP 13.9X108 HL-L8360CDWT 17 D00CBH001 1 LABEL HIGH TEMP 13.9X108 HL-L9310CDW FOR USA / CAN / GER / UK / SWI / RUS / ARL / NZ / PND / rgEU 17 D00RZJ001 1 LABEL HIGH TEMP 13.9X108 CHN HL-L9310CDW FOR CHN<	Diagram placeholder

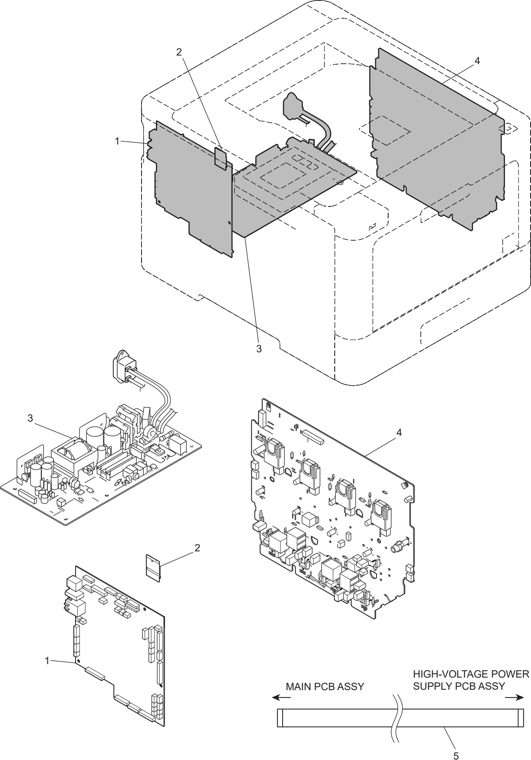

10. PCB 1 D00HDN005 1 MAIN PCB ASSY HL-L8260CDN 1 D00HDN001 Main PCB Assy New D00HDN001 (New) $174.15 1 D00HDN001 Main PCB Assy Fully refurbished with 90-day warranty D00HDN001 $106.66 1 D00HDP001 1 MAIN PCB ASSY HL-L8360CDW FOR USA / CAN / GER / UK / ARL / SWI / PND / rgEU 1 D00HDP005 1 MAIN PCB ASSY HL-L8360CDW FOR TWN / ARG / CHL / GULF / BRZ /SGP / KOR 1 D00HDP001 1 MAIN PCB ASSY HL-L8360CDWT 1 D00HDR001 1 MAIN PCB ASSY HL-L9310CDW FOR USA / CAN / GER / UK / SWI / RUS / ARL / NZ / PND / rgE U 1 D00HDR005 1 MAIN PCB ASSY HL-L9310CDWFOR CHN 2 LD1969001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LD1969001 $33.75 2 LD1969001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LD1969001 $33.75 2 LD1969001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LD1969001 $33.75 2 LD1969001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LD1969001 $33.75 3 D00ATS001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L8260CDN FOR CHN 3 D0094D001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L8260CDN FOR SGP 3 D006CJ001 Low Voltage Power Fully refurbished with 90-day warranty D006CJ001 $79.66 3 D0094D001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L8260CDW FOR GER / UK / SWI / ITA / IBR / FRA / BEL / HOL / ARL / NZ / PND / CE E 3 D00ATS001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L8260CDW FOR RUS 3 D006CJ001 Low Voltage Power Fully refurbished with 90-day warranty D006CJ001 $79.66 3 D0094D001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L8360CDW FOR GER / UK / ARL / SWI / ARG / CHL / GULF / SGP / KOR / PND / EU 3 D00CK7001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L8360CDW FOR BRZ 3 D006CJ001 Low Voltage Power Fully refurbished with 90-day warranty D006CJ001 $79.66 3 D006CJ001 Low Voltage Power Fully refurbished with 90-day warranty D006CJ001 $79.66 3 D0094D001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L9310CDW FOR GER / UK / SWI / ARL / NZ / PND / EU 3 D00ATS001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L9310CDW FOR CHN / RUS 4 D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D006PM001 $106.66 4 D00TV1001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D00TV1001 $106.66 4 D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D006PM001 $106.66 4 D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D006PM001 $106.66 4 D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D006PM001 $106.66 4 D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D006PM001 $106.66 4 D00TV1001 High Voltage Power Supply PCB - HVPS PCB Unit BC4 Fully refurbished with 90-day warranty D00TV1001 $106.66 5 D006H8001 High-Voltage Power Supply Flat Cable Fully refurbished with 90-day warranty D006H8001 $29.71	Diagram placeholder
