Brother HL-L8250CDN L8350CDW 8350CDWT L9200CDW L9200CDWT L9300CDW L9300CDWT Parts

›Parts for Printers, MFPs, and Scanners›Brother Printer Parts

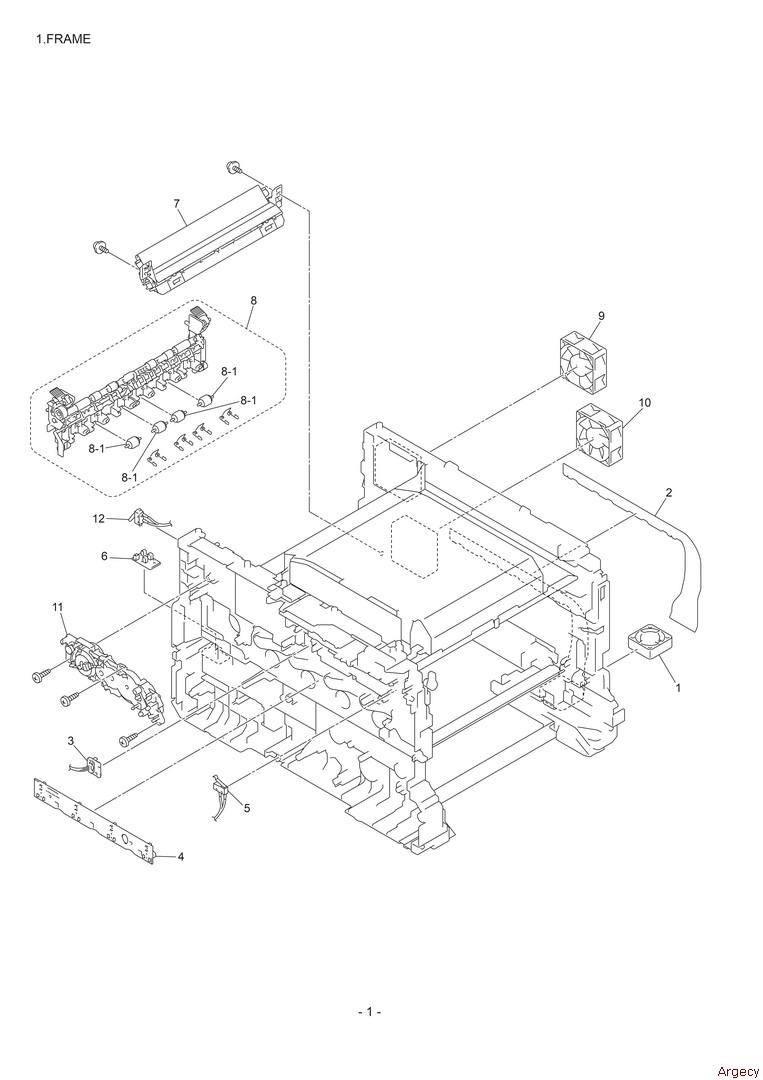

1.FRAME
- 1 -129
1087
8-1
8-1
8-1
8-1
311612
45
Diagram placeholder

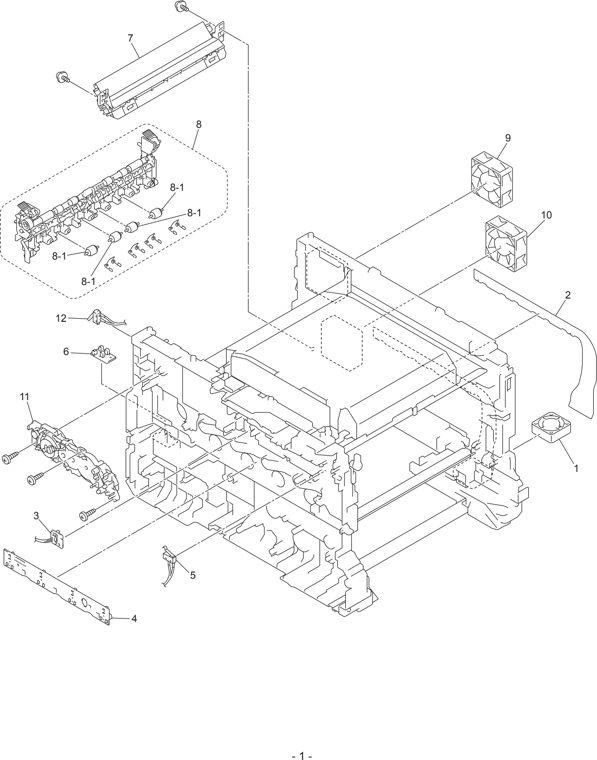

1. FRAME
Y DESCRIPTION MODEL SPEC REMARKS
1 LY0101001 1 BLOWER
2 LY7613001 1 AIR DUCT FILM
3 LV0489001 1 DEVELOP RELEASE SENSOR
PCB ASS
Y
4 LY7724001 1 TONER/NEW SENSOR PCB ASSY
5 LV1177001 1 FRONT COVER SENSOR
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8250CDN FOR US/US_FS
6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/
CHN/SGP/KOR/RUS/FRA/BEL/
NLD
/PND /CEE
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8350CDW FOR US/CAN/TWN/BRZ/US_FS
6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/
ARG/CHL/GUL/SGP/KOR/FRA/
BEL/NLD/PND /CEEADD
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8350CDWT
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9200CDW FOR US/CAN
6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9200CDW FOR ARL/CHN
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9200CDWT FOR US
6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9300CDW
6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9300CDWT FOR US
6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PND
7 LY7726001 1 REGISTRATION MARK SENSOR
UNIT
8
LY7727001 Fuser Cover Assy
New
LY7727001 (New)
$66.16

1
LY0634001 Cleaner Pinch Roller S Assy
New
LY0634001 (New)
$25.65

9 LY7625001 1 FUSER FAN
10 LY7719001 1 POWER FAN
11
LY7725001 Develop Release Drive Unit
Fully refurbished with 90-day warranty
LY7725001
$35.10

12 LV1176001 1 BACK COVER SENSOR ASSY
- 2 -
Diagram placeholder

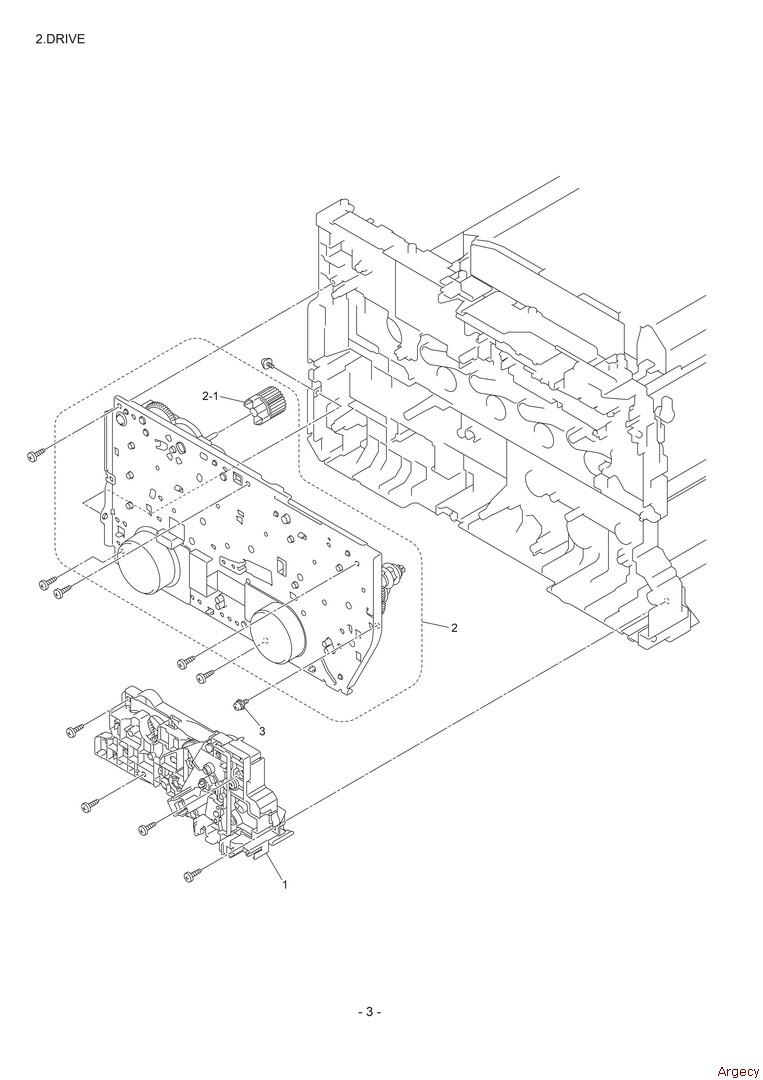

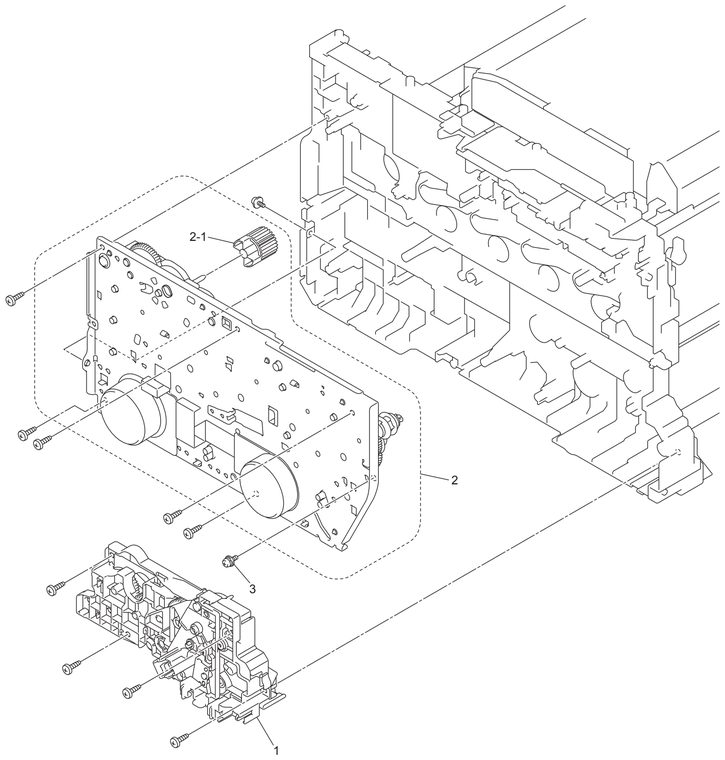

2.DRIVE
- 3 -1322-1
Diagram placeholder

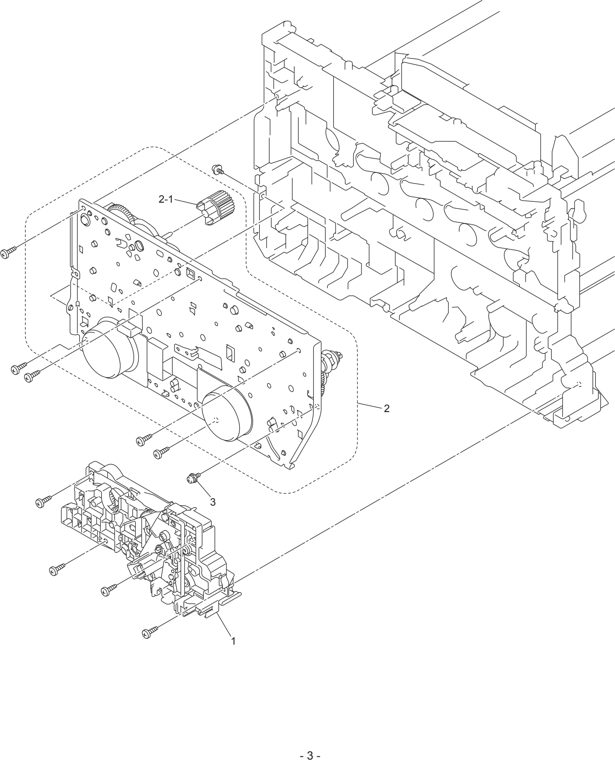

2. DRIVE
Y DESCRIPTION MODEL SPEC REMARKS
1 LY7731001 1 MAIN DRIVE UNIT
2
LU4923001 Process Drive Unit
Fully refurbished with 90-day warranty
LU4923001
$133.65

2
LU4923001 Process Drive Unit
Fully refurbished with 90-day warranty
LU4923001
$133.65

2
LU4923001 Process Drive Unit
Fully refurbished with 90-day warranty
LU4923001
$133.65

2
LU4923001 Process Drive Unit
Fully refurbished with 90-day warranty
LU4923001
$133.65

2
LU4923001 Process Drive Unit
Fully refurbished with 90-day warranty
LU4923001
$133.65

2 LR2159001 1 PROCESS DRIVE UNIT (SP) HL-L9300CDW
2 LR2159001 1 PROCESS DRIVE UNIT (SP) HL-L9300CDWT
1 LY0233001 1 FUSER DRIVE GEAR Z25
3 LU6109001 1 TAPTITE PAN (WASHER) B M4X12DA
- 4 -
Diagram placeholder

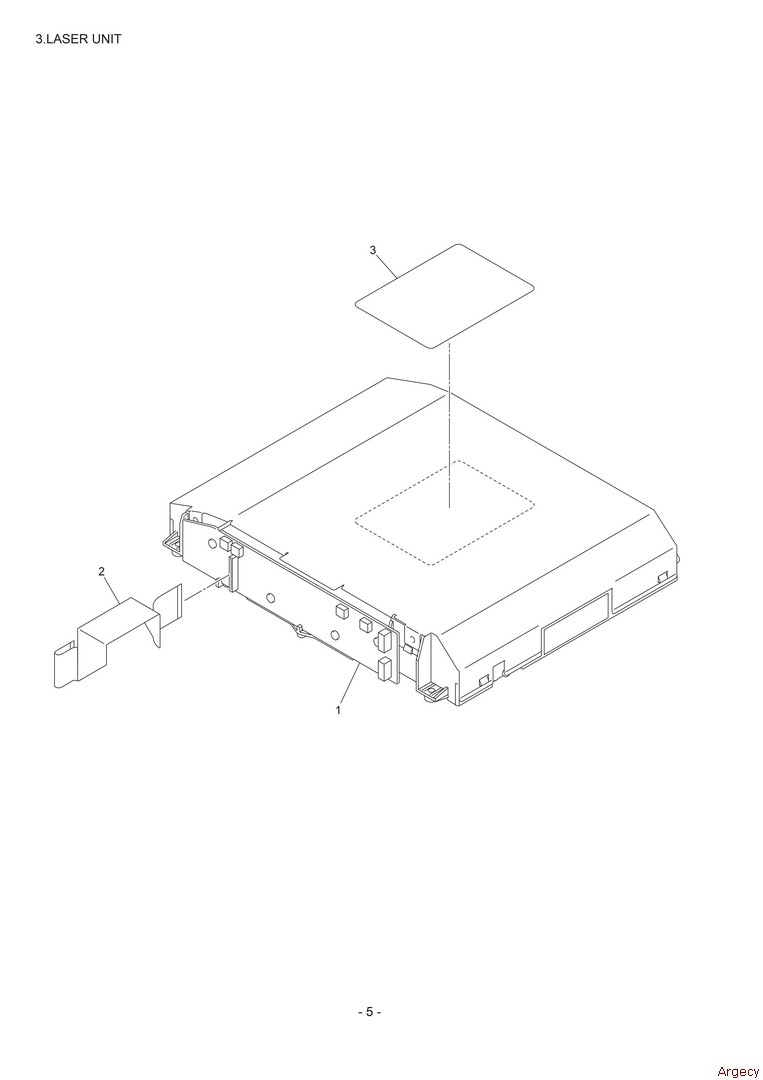

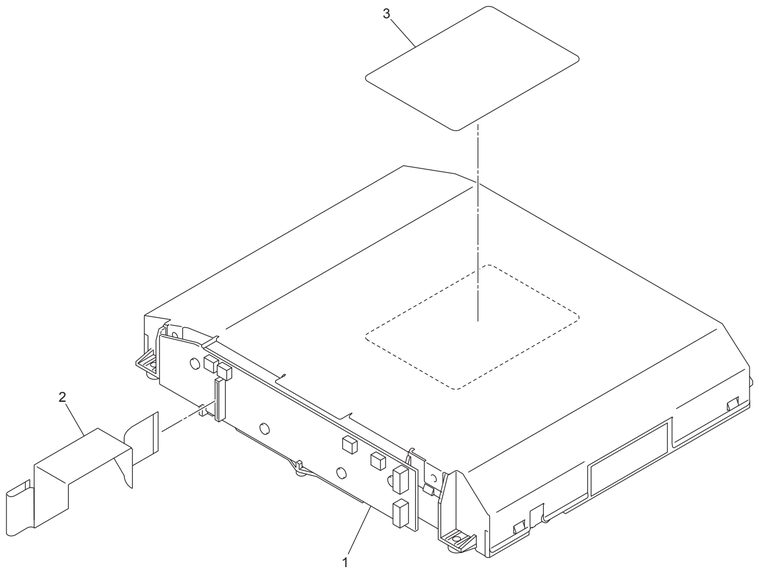

3.LASER UNIT
- 5 -123
Diagram placeholder

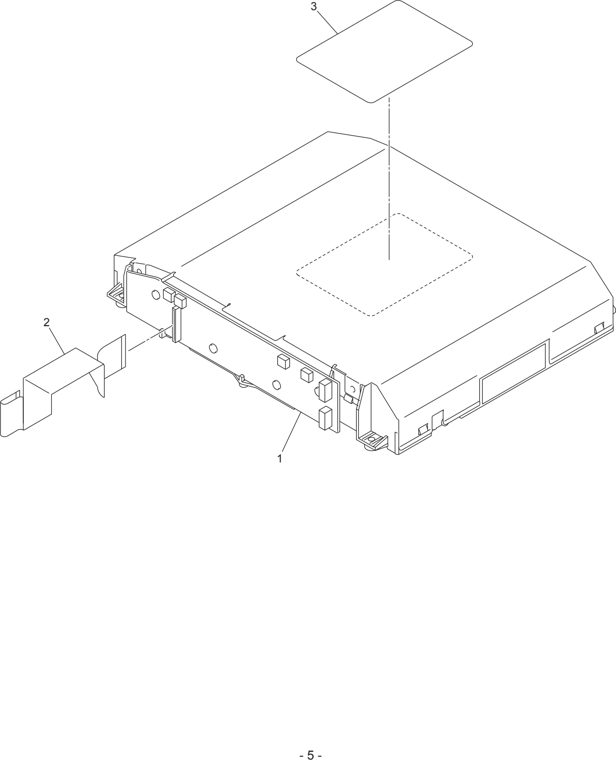

3. LASER UNIT
Y DESCRIPTION MODEL SPEC REMARKS
1
LU6918001 Laser Unit
New
LU6918001 (New)
$263.25

LU6918001 Laser Unit
Fully refurbished with 90-day warranty
LU6918001
$209.25

2 LV1174001 1 LASER UNIT FLAT CABLE
3 LU1259001 1 LABEL LASER CAUTION
- 6 -
Diagram placeholder

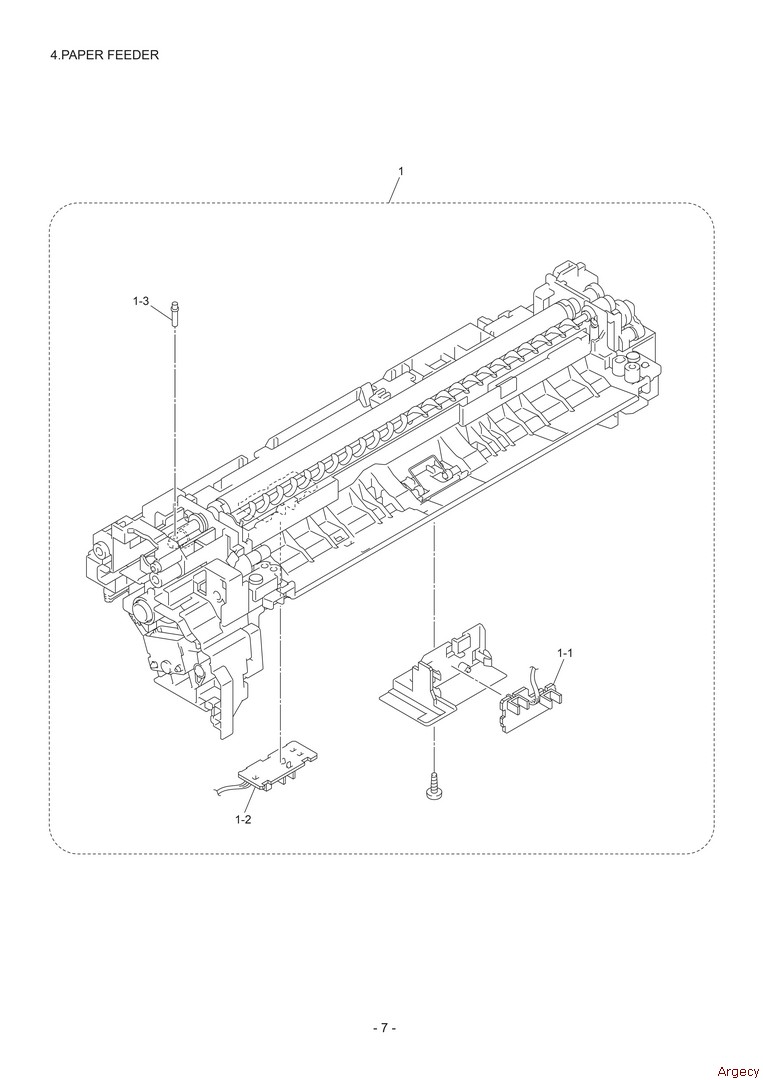

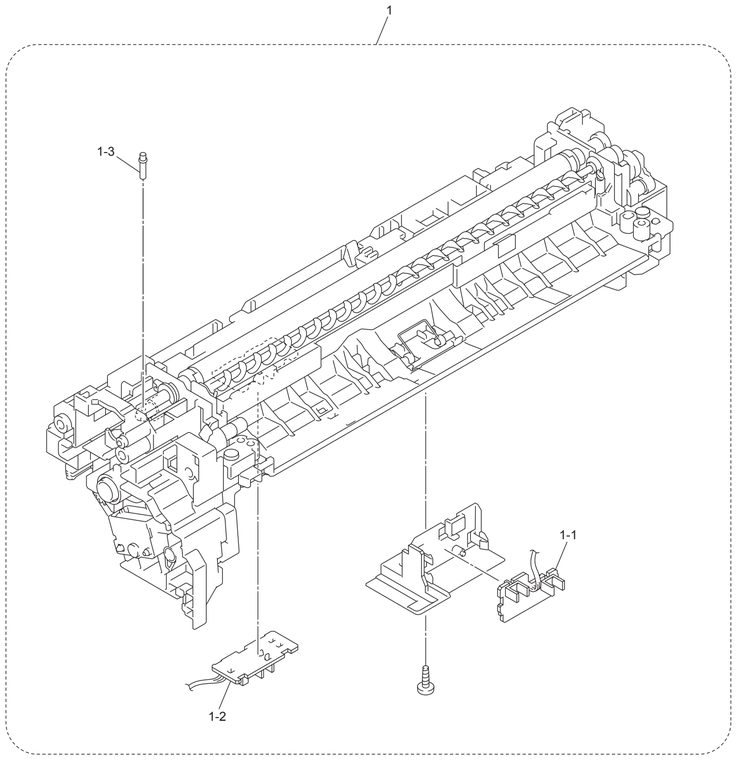

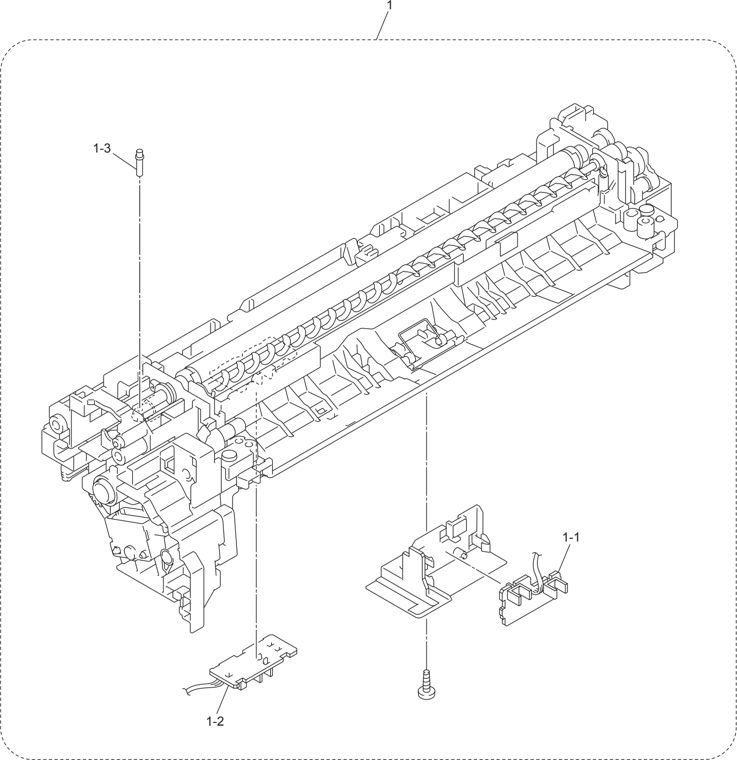

4.PAPER FEEDER
- 7 -1
1-1
1-21-3
Diagram placeholder
4. PAPER FEEDER
Y DESCRIPTION MODEL SPEC REMARKS
1
LR2190001 Paper Feed Unit
New
LR2190001 (New)
$120.16

1 LV1208001 1 REGISTRATION FRONT/REAR
SENSOR PCB ASS Y
2 LV1210001 1 T1 PAPER FEED SENSOR PCB
ASSY
3 LY7136001 1 JOINT PIN ADD
- 8 -
Diagram placeholder

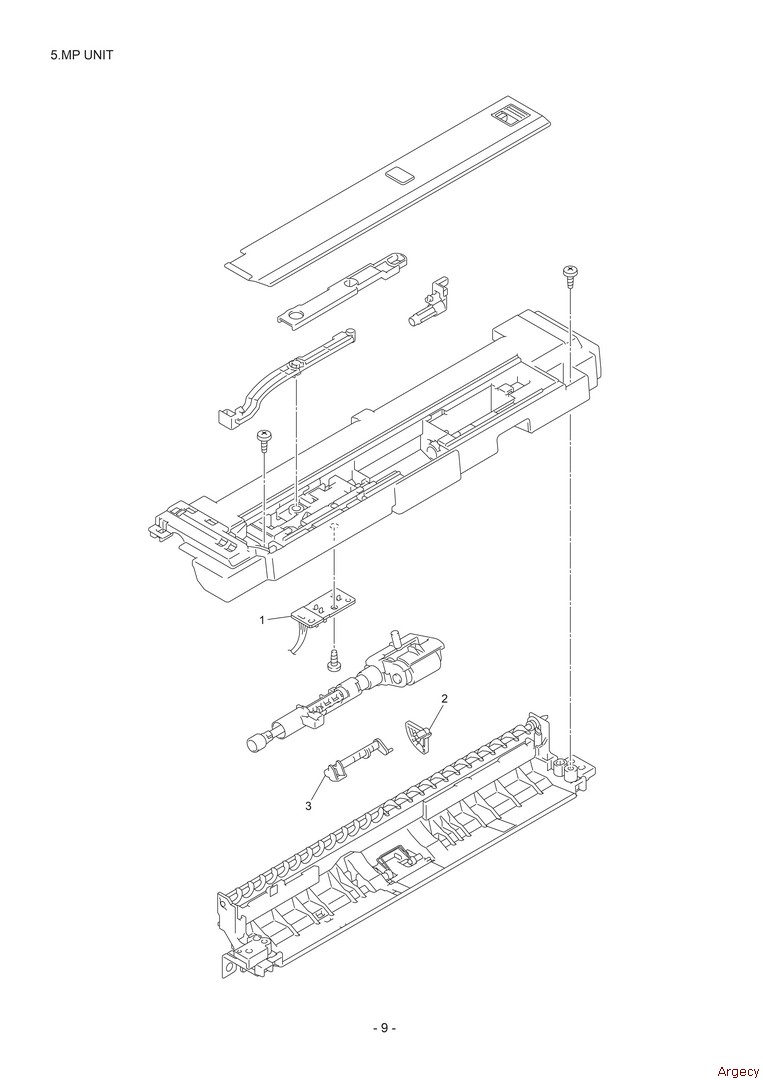

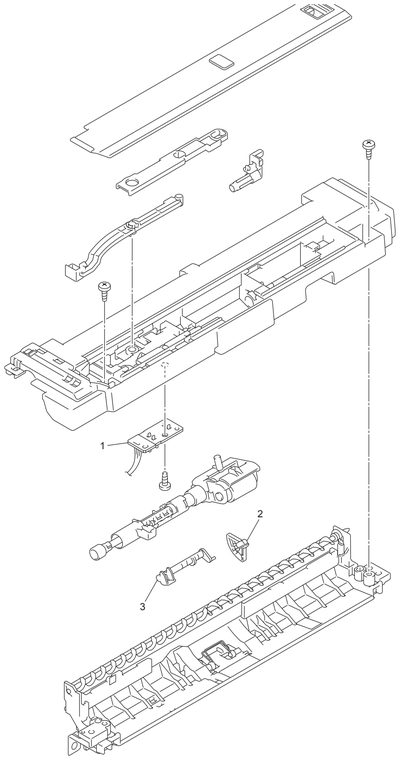

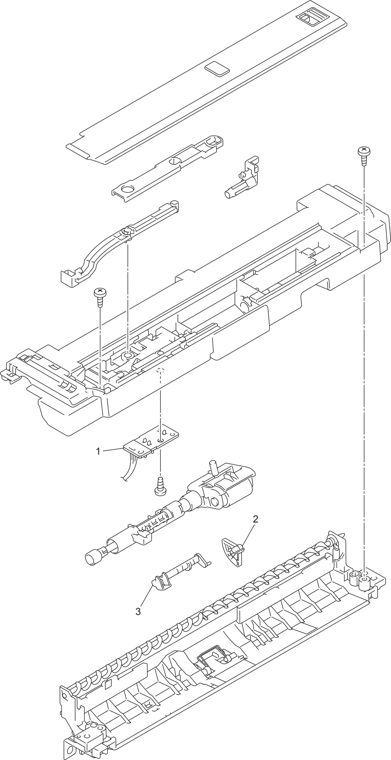

5.MP UNIT
- 9 -1
2
3
Diagram placeholder
5. MP UNIT
Y DESCRIPTION MODEL SPEC REMARKS
1 LV1212001 1 MP PAPER EMPTY/REGISTRATION
FRONT SENSOR PCB ASSY
2 LY0873001 1 MP PAPER EMPTY ACUTUATOR A
ASSY
3 LY0304001 1 MP PAPER EMPTY ACUTUATOR B
- 10 -
Diagram placeholder

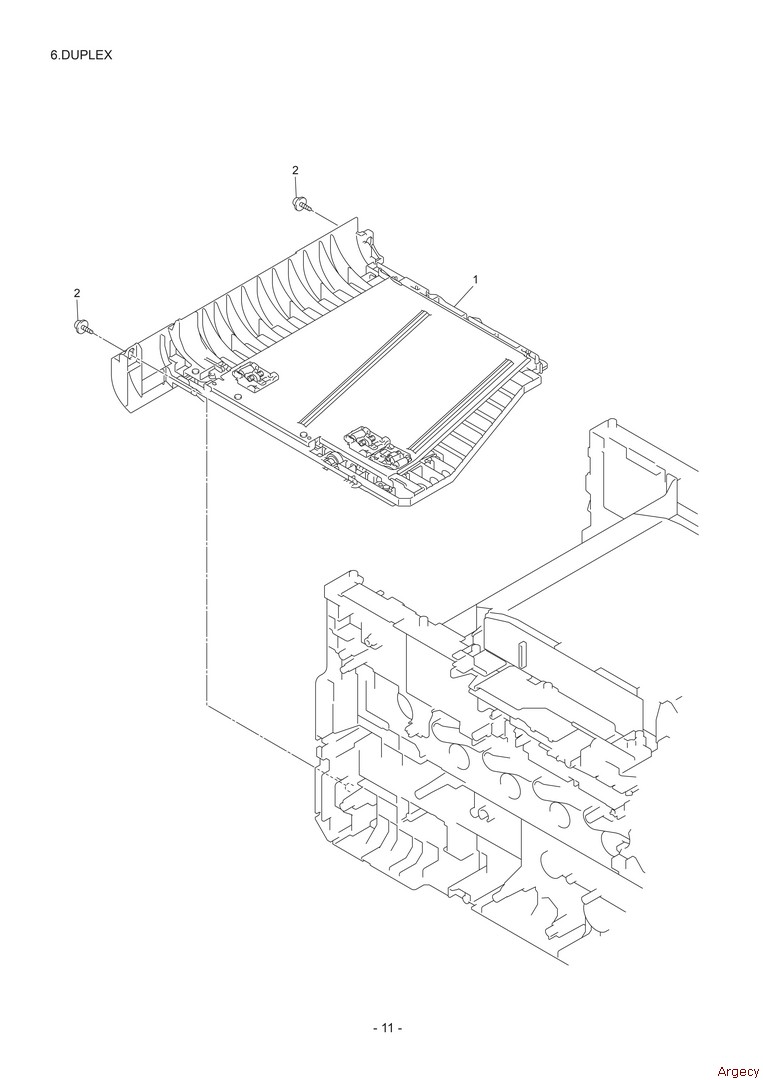

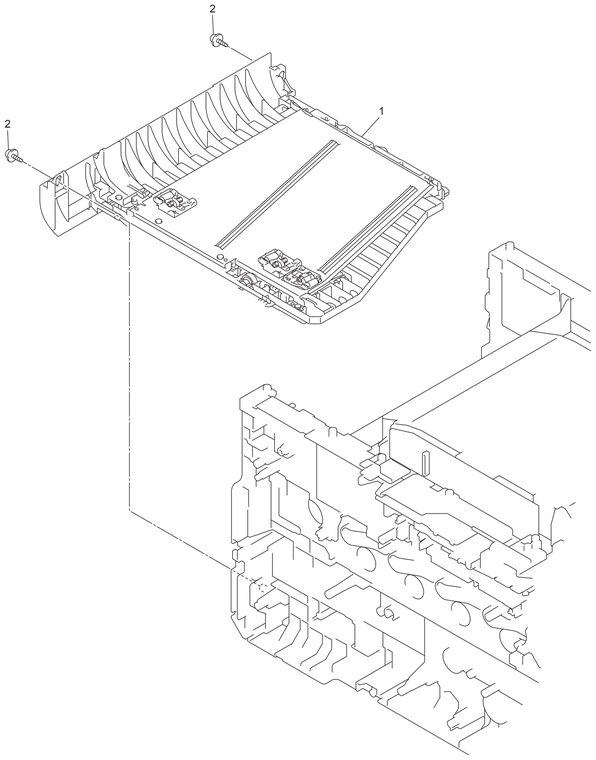

6.DUPLEX
- 11 -1
22
Diagram placeholder
6. DUPLEX
Y DESCRIPTION MODEL SPEC REMARKS
1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/
CHN/SGP/KOR/RUS/FRA/BEL/
NLD/PND /CEE
1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/
TWN/GUL/SGP/KOR/FRA/BEL/
NLD/PND /CEE
1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L9200CDW FOR ARL/CHN
1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1
LU4928001 Dx Feed Assy Ltr
Fully refurbished with 90-day warranty
LU4928001
$35.10

1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PND
2 LY1163001 2 TAPTITE CUP B M3X12
- 12 -
Diagram placeholder

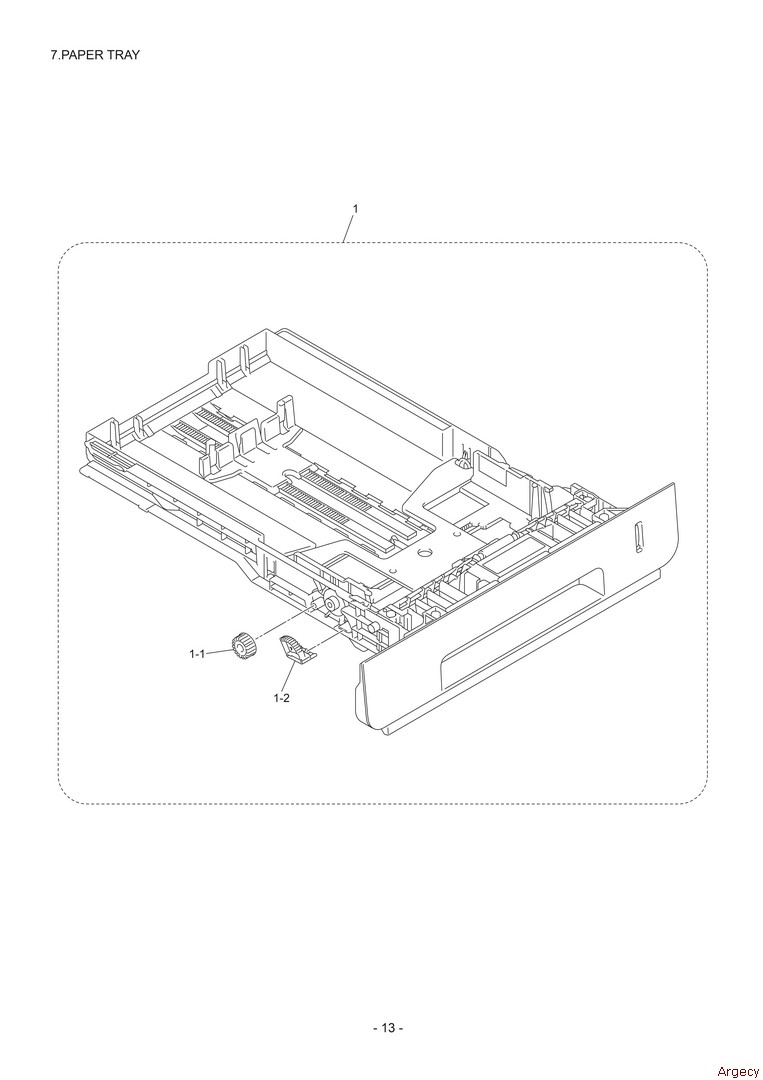

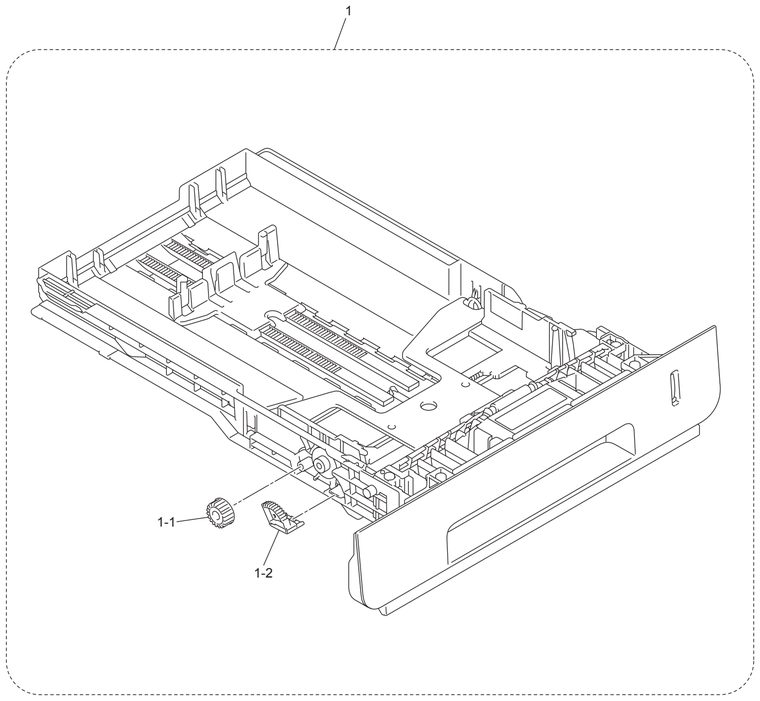

7.PAPER TRAY
- 13 -1
1-1
1-2
Diagram placeholder
7. PAPER TRAY
Y DESCRIPTION MODEL SPEC REMARKS
1
LY7750001 Paper Tray 1
Fully refurbished with 90-day warranty
LY7750001
$72.91

1
LY7750001 Paper Tray 1
Fully refurbished with 90-day warranty
LY7750001
$72.91

1
LY7750001 Paper Tray 1
Fully refurbished with 90-day warranty
LY7750001
$72.91

1 LY7750002 1 PAPER TRAY 1 HL-L9200CDW
1 LY7750002 1 PAPER TRAY 1 HL-L9200CDWT
1 LY7750002 1 PAPER TRAY 1 HL-L9300CDW
1 LY7750002 1 PAPER TRAY 1 HL-L9300CDWT
1 LR0252001 1 GEAR Z19M10
2 LY2202001 1 LIFT GEAR 46
- 14 -
Diagram placeholder

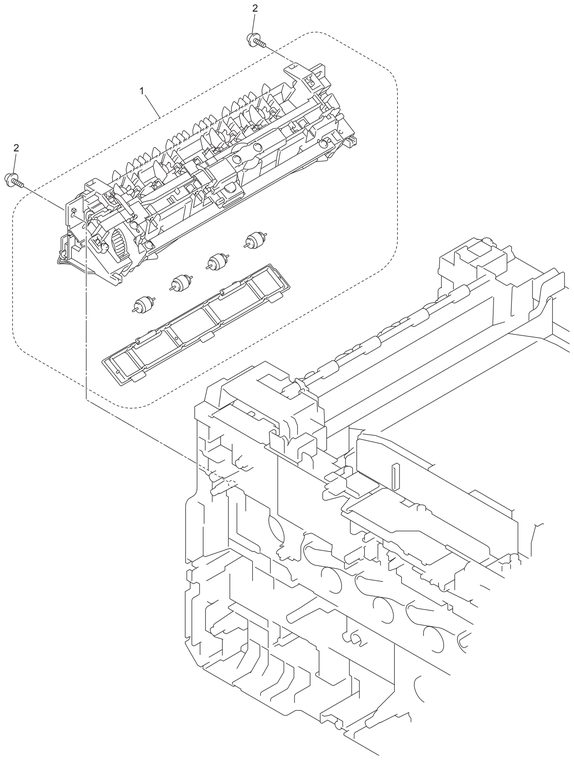

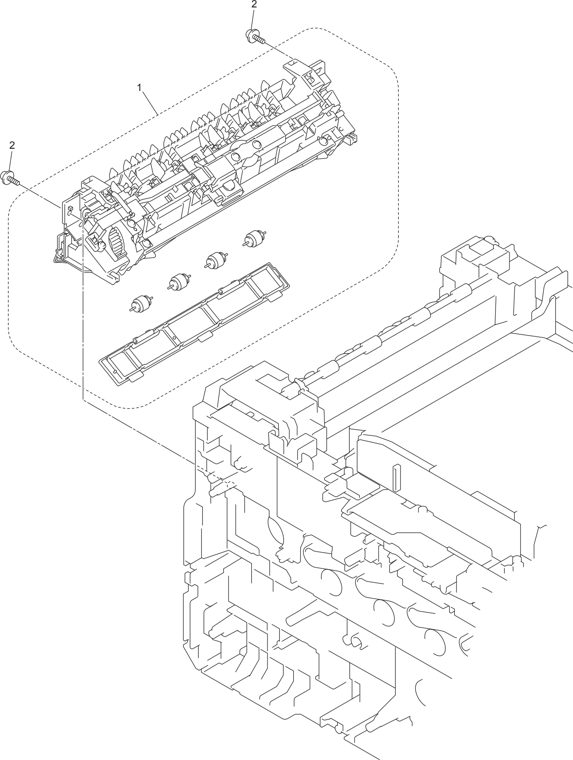

8.FUSER UNIT
- 15 -1
22
Diagram placeholder
8. FUSER UNIT
1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1 LR2242001 1 FUSER UNIT 230V(SP) HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/
CHN/SGP/KOR/RUS/FRA/BEL/
NLD/PND/CEECHG
1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1 LR2244001 1 FUSER UNIT 127V (SP) HL-L8350CDW FOR BRZ CHG
1 LR2242001 1 FUSER UNIT 230V(SP) HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/
ARG/CHL/GUL/SGP/KOR/FRA/
BEL/NLD/PND/CEECHG
1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1 LR2242001 1 FUSER UNIT 230V (SP) HL-L9200CDW FOR ARL/CHN CHG
1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1 LR2242001 1 FUSER UNIT 230V(SP) HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEECHG
1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1
LR2241001 Fuser Unit 115V
New
LR2241001 (New)
$317.25

1 LR2242001 1 FUSER UNIT 230V(SP) HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PNDCHG
2 LJ0395001 2 TAPTITE PAN B M4X14
- 16 -
Diagram placeholder

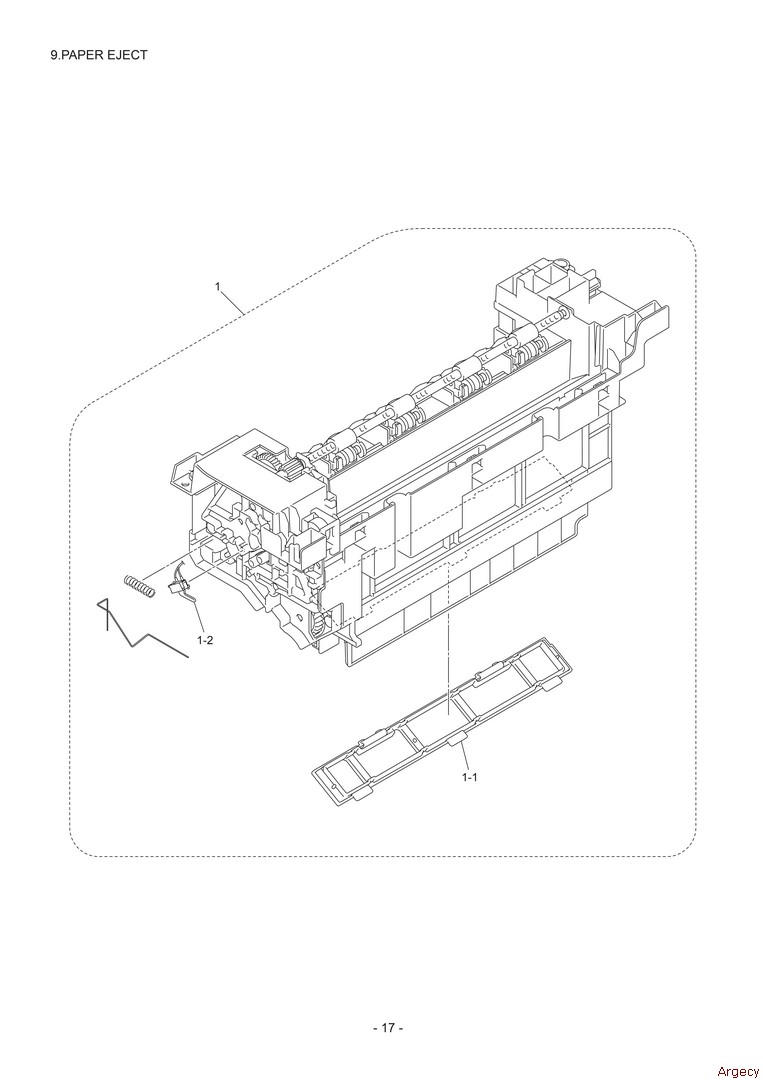

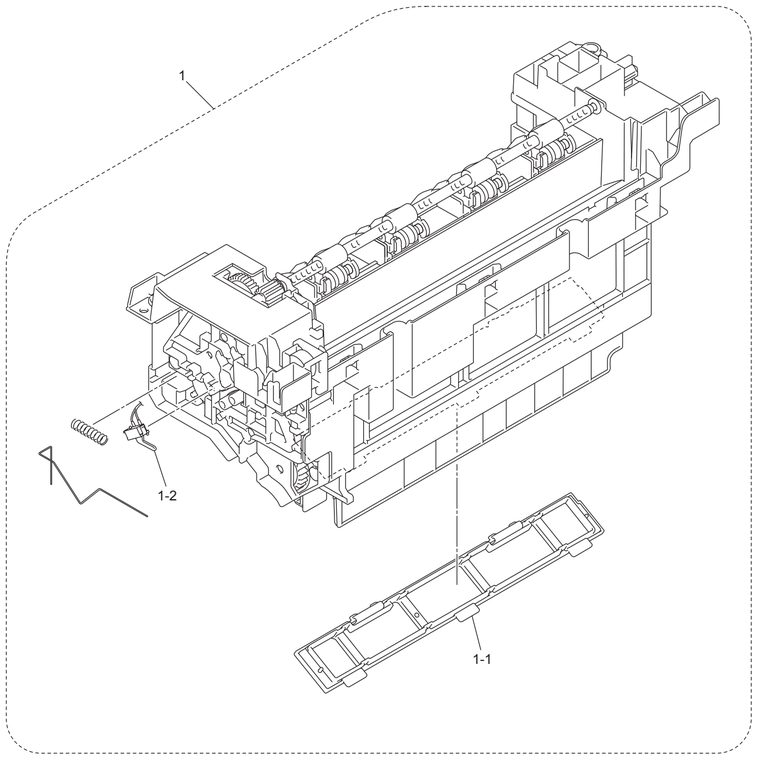

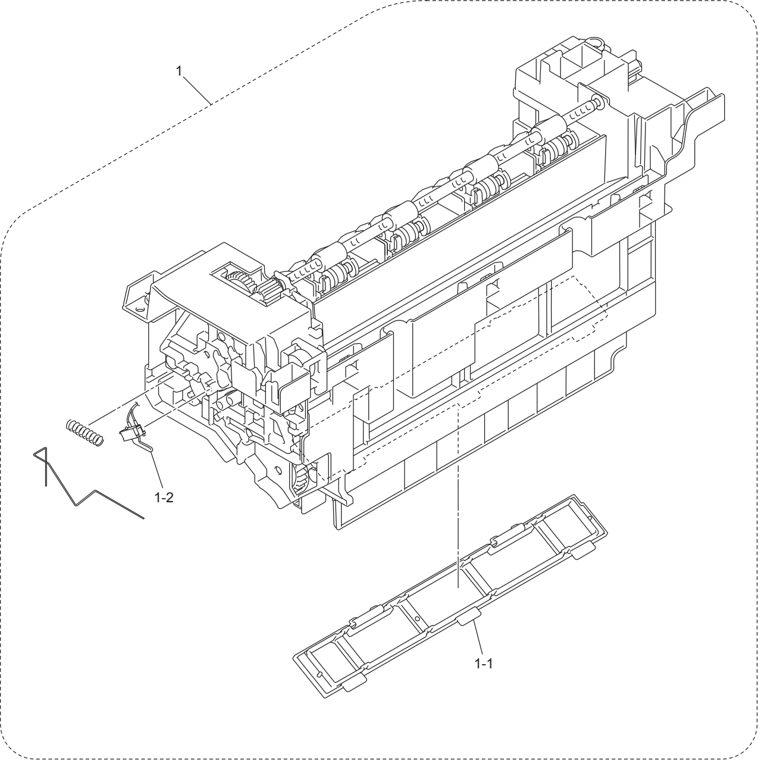

9.PAPER EJECT
- 17 -1-11-21
Diagram placeholder
9. PAPER EJECT
Y DESCRIPTION MODEL SPEC REMARKS
1
LU4924001 Paper Eject Assembly
Fully refurbished with 90-day warranty
LU4924001
$45.91

1 LY7841001 1 TONER FILTER ASSY
2 LV1282001 1 PAPER EJECT ORIGIN SENSOR
- 18 -
Diagram placeholder

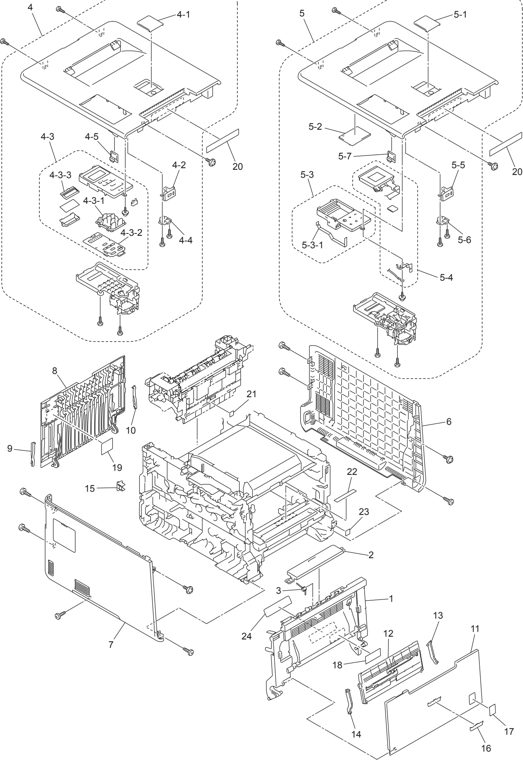

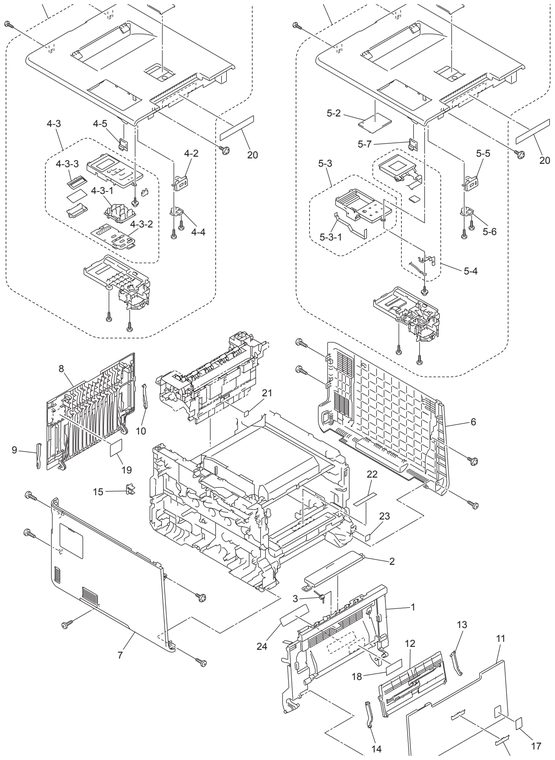

10.COVER&LABELS
- 19 -1
1112
18
14
16171326
78
199
151021
232244-1 5-1
5-2
5-7
5-3
5-45-3-14-2 2020
4-45-5
5-64-3 4-5
4-3-14-3-3
4-3-25
3
24
Diagram placeholder
10. COVERS & LABELS
1 LY1859001 1 FRONT COVER HL-L8250CDN
1 LY1859001 1 FRONT COVER HL-L8350CDW
1 LY1859001 1 FRONT COVER HL-L8350CDWT
1 LY1859002 1 FRONT COVER HL-L9200CDW
1 LY1859002 1 FRONT COVER HL-L9200CDWT
1 LY1859002 1 FRONT COVER HL-L9300CDW
1 LY1859002 1 FRONT COVER HL-L9300CDWT
2 LY1910001 1 FRONT COVER RELEASE BUTTON
3 LY1911001 1 FRONT COVER RELEASE BUTTON
SPRING
4 LU4925001 1 TOP COVER ASSY (SP) HL-L8250CDN
4 LU4926001 1 TOP COVER ASSY (SP) HL-L8350CDW
4 LU4926001 1 TOP COVER ASSY (SP) HL-L8350CDWT
1 LY0428003 1 SUPPORT FLAP HL-L8250CDN4-
1 LY0428003 1 SUPPORT FLAP HL-L8350CDW4-
1 LY0428003 1 SUPPORT FLAP HL-L8350CDWT4-
2 LY7765001 1 USB COVER PRINTED ASSY HL-L8250CDN4-
2 LY7765001 1 USB COVER PRINTED ASSY HL-L8350CDW4-
2 LY7765001 1 USB COVER PRINTED ASSY HL-L8350CDWT4-
3 LY7766001 1 PANEL COVER ASSY HL-L8250CDN4-
3 LY7912001 1 PANEL COVER ASSY HL-L8350CDW4-
3 LY7912001 1 PANEL COVER ASSY HL-L8350CDWT
1 LY1908001 1 RUBBER KEY PRINTED ASSY HL-L8250CDN4-3-
1 LY1908001 1 RUBBER KEY PRINTED ASSY HL-L8350CDW4-3-
1 LY1908001 1 RUBBER KEY PRINTED ASSY HL-L8350CDWT4-3-
2 LV1148001 1 PANEL PCB ASSY HL-L8250CDN4-3-
2 LV1148001 1 PANEL PCB ASSY HL-L8350CDW4-3-
2 LV1148001 1 PANEL PCB ASSY HL-L8350CDWT4-3-
3 A62009001 1 LCD HL-L8250CDN4-3-
3 A62009001 1 LCD HL-L8350CDW4-3-
3 A62009001 1 LCD HL-L8350CDWT
4 LV1391001 1 USB HOST RELAY PCB ASS
Y HL-L8250CDN
4 LV1391001 1 USB HOST RELAY PCB ASS Y HL-L8350CDW
4 LV1391001 1 USB HOST RELAY PCB ASS Y HL-L8350CDWT
5
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

5
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

4 LU4927001 1 TOP COVER ASSY
(SP) HL-L9200CDW
5 LU4927001 1 TOP COVER ASSY (SP) HL-L9200CDWT
5 LR2209001 1 TOP COVER ASSY (SP) HL-L9300CDW
5 LR2209001 1 TOP COVER ASSY (SP) HL-L9300CDWT
1 LY0428003 1 SUPPORT FLAP HL-L9200CDW5-
1 LY0428003 1 SUPPORT FLAP HL-L9200CDWT5-
1 LY0428003 1 SUPPORT FLAP HL-L9300CDW5-
1 LY0428003 1 SUPPORT FLAP HL-L9300CDWT5-
2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9200CDW5-
2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9200CDWT5-
2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9300CDW5-
2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9300CDWT5-
3 LY7862001 1 PANEL CASE ASSY HL-L9200CDW5-
3 LY7862001 1 PANEL CASE ASSY HL-L9200CDWT5-
3 LY7862001 1 PANEL CASE ASSY HL-L9300CDW5-
3 LY7862001 1 PANEL CASE ASSY HL-L9300CDWT
1 LV1169001 1 KEY PCB FLAT CABLE HL-L9200CDW5-3-
1 LV1169001 1 KEY PCB FLAT CABLE HL-L9200CDWT5-3-
1 LV1169001 1 KEY PCB FLAT CABLE HL-L9300CDW5-3-
1 LV1169001 1 KEY PCB FLAT CABLE HL-L9300CDWT
4 LY7793001 1 LCD PANEL ASSY HL-L9200CDW5-
4 LY7793001 1 LCD PANEL ASSY HL-L9200CDWT5-
4 LR2013001 1 LCD PANEL ASSY HL-L9300CDW5-
4 LR2013001 1 LCD PANEL ASSY HL-L9300CDWT5-
5 LY7765002 1 USB COVER PRINTED ASSY HL-L9200CDW5-
5 LY7765002 1 USB COVER PRINTED ASSY HL-L9200CDWT5-
5 LY7765002 1 USB COVER PRINTED ASSY HL-L9300CDW5-
5 LY7765002 1 USB COVER PRINTED ASSY HL-L9300CDWT5-
6 LV1391001 1 USB HOST RELAY PCB ASS
Y HL-L9200CDW
6 LV1391001 1 USB HOST RELAY PCB ASS Y HL-L9200CDWT
6 LV1391001 1 USB HOST RELAY PCB ASS Y HL-L9300CDW
6 LV1391001 1 USB HOST RELAY PCB ASS Y HL-L9300CDWT
7
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

7
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

7
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

7
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

6 LY1866001 1 SIDE COVER R
- 20 -
Diagram placeholder
10. COVERS & LABELS
7 LY7768001 1 SIDE COVER L ASSY
8 LY1868001 1 REAR COVER
9 LY0450001 1 REAR COVER STOPPER ARM L
10 LY0451001 1 REAR COVER STOPPER ARM R
11
LY0452003 Mp Cover Assy
New
LY0452003 (New)
$32.41

11
LY0452003 Mp Cover Assy
New
LY0452003 (New)
$32.41

11
LY0452003 Mp Cover Assy
New
LY0452003 (New)
$32.41

11 LY0452004 1 MP COVER ASSY HL-L9200CDW
11 LY0452004 1 MP COVER ASSY HL-L9200CDWT
11 LY0452004 1 MP COVER ASSY HL-L9300CDW
11 LY0452004 1 MP COVER ASSY HL-L9300CDWT
12 LY0456003 1 MP PAPER GUIDE ASSY HL-L8250CDN
12 LY0456003 1 MP PAPER GUIDE ASSY HL-L8350CDW
12 LY0456003 1 MP PAPER GUIDE ASSY HL-L8350CDWT
12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9200CDW
12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9200CDWT
12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9300CDW
12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9300CDWT
13 LY1929003 1 MP LINK R HL-L8250CDN
13 LY1929003 1 MP LINK R HL-L8350CDW
13 LY1929003 1 MP LINK R HL-L8350CDWT
13 LY1929004 1 MP LINK R HL-L9200CDW
13 LY1929004 1 MP LINK R HL-L9200CDWT
13 LY1929004 1 MP LINK R HL-L9300CDW
13 LY1929004 1 MP LINK R HL-L9300CDWT
14 LY0460003 1 MP LINK L HL-L8250CDN
14 LY0460003 1 MP LINK L HL-L8350CDW
14 LY0460003 1 MP LINK L HL-L8350CDWT
14 LY0460004 1 MP LINK L HL-L9200CDW
14 LY0460004 1 MP LINK L HL-L9200CDWT
14 LY0460004 1 MP LINK L HL-L9300CDW
14 LY0460004 1 MP LINK L HL-L9300CDWT
15 LY0872001 1 LAN PORT CAP
16 LY4852002 1 EMBLEM BROTHER SHEET HL-L8250CDN
16 LY4852002 1 EMBLEM BROTHER SHEET HL-L8350CDW
16 LY4852002 1 EMBLEM BROTHER SHEET HL-L8350CDWT
16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9200CDW
16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9200CDWT
16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9300CDW
16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9300CDWT
17 LY7850001 1 COLOR LASER LABEL HL-L8250CDN
17 LY7850001 1 COLOR LASER LABEL HL-L8350CDW
17 LY7850001 1 COLOR LASER LABEL HL-L8350CDWT
17 LY7850002 1 COLOR LASER LABEL HL-L9200CDW
17 LY7850002 1 COLOR LASER LABEL HL-L9200CDWT
17 LY7850002 1 COLOR LASER LABEL HL-L9300CDW
17 LY7850002 1 COLOR LASER LABEL HL-L9300CDWT
18 LY7886001 1 MP SET INSTRUCTION LABEL
19 LY7888001 1 LABEL H/SP CAUTION REAR 49X
4520 LY7889001 1 LABEL DR OPERATION PRN
21 LY1430001 1 LABEL HIGH TEMP 13.9X13.
422 LY7894001 1 BELT OPERATION LABEL
23 LY1160001 1 LABEL FRONT JAM 18X
1624 LY7987001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR CHN
24 LY7891001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR US/US FS
24 LY7984001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR ARL
24 LY7986001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR SGP/KOR
24 LY7892001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
24 LY7891001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR US/CAN/US FS
24 LY7984001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR ARL
24 LY7982001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR ARG/CHL/BRZ
24 LU6853001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR GUL
24 LY7986001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR TWN/SGP/KOR
24 LY7893001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PND/CEE
24 LY7891001 1 LABEL H/SP CAUTION F HL-L8350CDWT
24 LY7987001 1 LABEL H/SP CAUTION F HL-L9200CDW FOR CHN
24 LY7981001 1 LABEL H/SP CAUTION F HL-L9200CDW FOR US/CAN
24 LY7985001 1 LABEL H/SP CAUTION F HL-L9200CDW FOR ARL
24 LY7981001 1 LABEL H/SP CAUTION F HL-L9200CDWT FOR US
24 LY7983001 1 LABEL H/SP CAUTION F HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
- 21 -
Diagram placeholder
10. COVERS & LABELS
24 LY7981001 1 LABEL H/SP CAUTION F HL-L9300CDW
24 LY7981001 1 LABEL H/SP CAUTION F HL-L9300CDWT FOR US
24 LY7983001 1 LABEL H/SP CAUTION F HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PND
- 22 -
Diagram placeholder

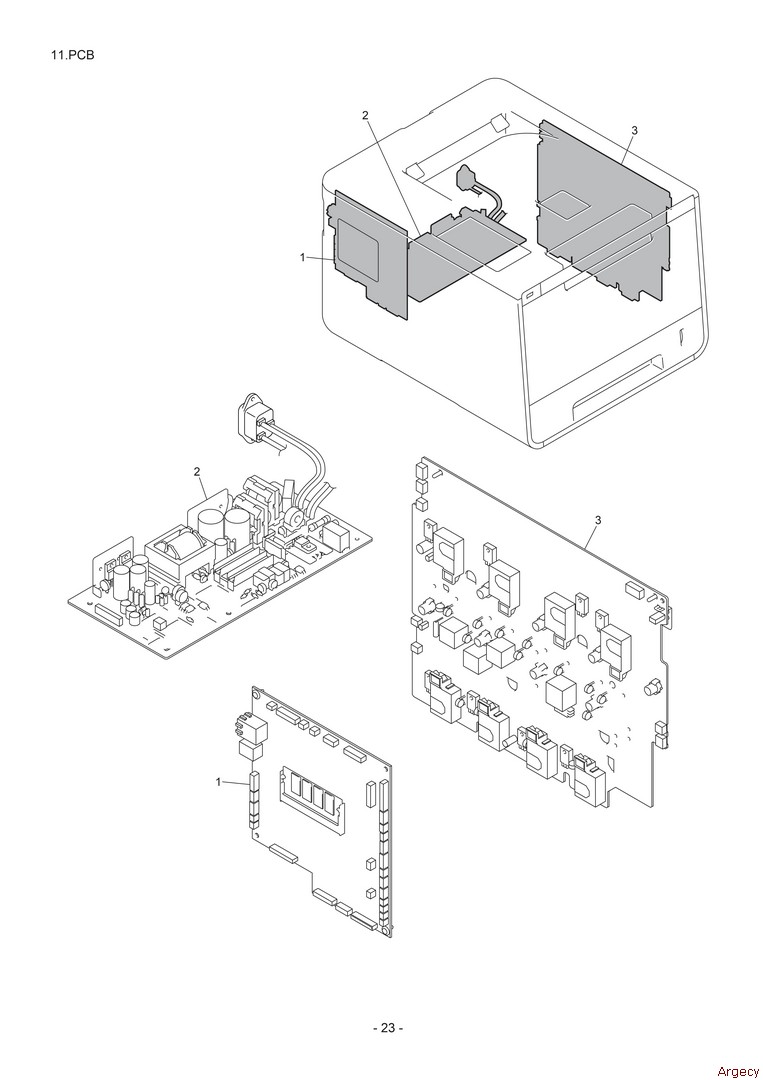

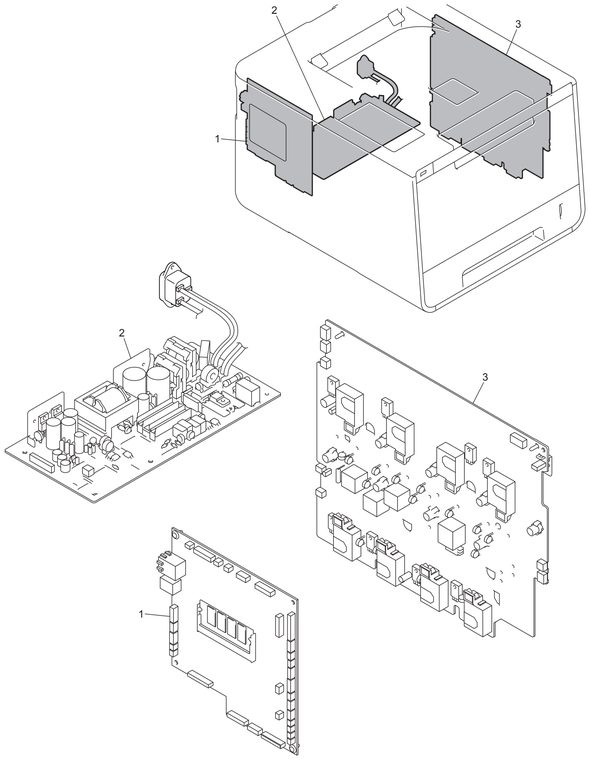

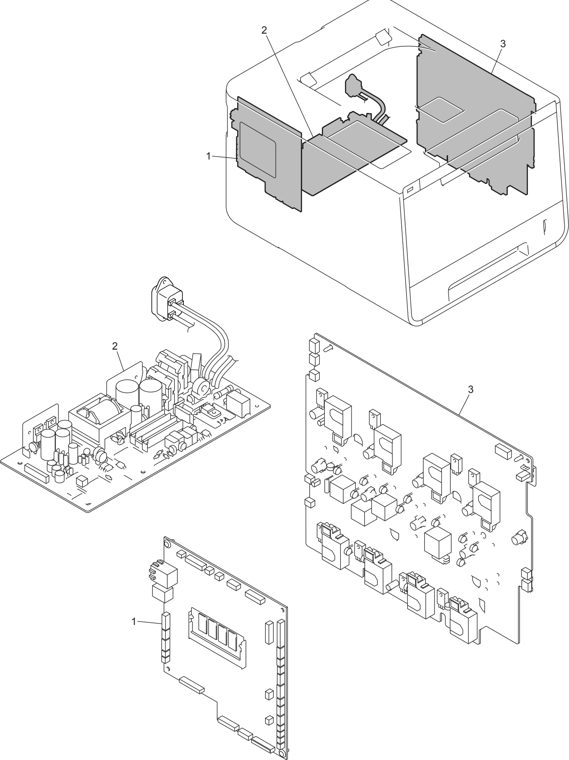

11.PCB
- 23 -11
22
33
Diagram placeholder
11. PCB
Y DESCRIPTION MODEL SPEC REMARKS
1
LV1254001 Main PCB Assy
New
LV1254001 (New)
$174.15

IBR/CHN/SGP/KOR/RUS/FRA/
BEL/NLD/PND /CEE
1
LV1254002 Main PCB Assy
New
LV1254002 (New)
$174.15

1
LV1253001 Main PCB Assy
New
LV1253001 (New)
$228.15

ITA/IBR/TWN/ARG/CHL/GUL/BRZ/
SGP/KOR/FRA/BEL/NLD/PND /CEE
1
LV1253002 Main PCB Assy
New
LV1253002 (New)
$228.15

LV1253002 Main PCB Assy
Fully refurbished with 90-day warranty
LV1253002
$128.25

1
LV1253001 Main PCB Assy
New
LV1253001 (New)
$228.15

1 LV1147001 1 MAIN PCB B512380 ASSY1 BC2P HL-L9200CDW
1 LV1147001 1 MAIN PCB B512380 ASSY1 BC2P HL-L9200CDWT
1 LV1451001 1 MAIN PCB ASSY HL-L9300CDW
1 LV1451001 1 MAIN PCB ASSY HL-L9300CDWT
2
LV1216001 Low-Voltage Power Supply PCB Unit
Fully refurbished with 90-day warranty
LV1216001
$129.61

PCB UNITHL-L8250CDN FOR US/US_FS
2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/
SGP/KOR/FRA/BEL/NLD/PND/CEE
2 LV1161001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L8250CDN FOR CHN/RUS
2
LV1216001 Low-Voltage Power Supply PCB Unit
Fully refurbished with 90-day warranty
LV1216001
$129.61

PCB UNITHL-L8350CDW FOR US/CAN/TWN/US_FS
2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/
ARG/CHL/GUL/SGP/KOR/FRA/
BEL
/NLD/PND /CEE
2 LV1306001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L8350CDW FOR BRZ
2
LV1216001 Low-Voltage Power Supply PCB Unit
Fully refurbished with 90-day warranty
LV1216001
$129.61

PCB UNITHL-L8350CDWT
2
LV1216001 Low-Voltage Power Supply PCB Unit
Fully refurbished with 90-day warranty
LV1216001
$129.61

PCB UNITHL-L9200CDW FOR US/CAN
2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L9200CDW FOR ARL
2 LV1161001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L9200CDW FOR CHN
2
LV1216001 Low-Voltage Power Supply PCB Unit
Fully refurbished with 90-day warranty
LV1216001
$129.61

PCB UNITHL-L9200CDWT FOR US
2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PND/CEE
2 LV1161001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L9200CDWT FOR RUS
2
LT2763001 Low-Voltage Power Supply PCB Unit
New
LT2763001 (New)
$241.65

PCB UNITHL-L9300CDW
2
LT2763001 Low-Voltage Power Supply PCB Unit
New
LT2763001 (New)
$241.65

PCB UNITHL-L9300CDWT FOR US
2 LT2764001 1 LOW-VOLTAGE POWER SUPPLY
PCB UNITHL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/
BEL/NLD/PND
3
LY7790001 High Voltage Power Supply (HVPS) PCB Assy
Fully refurbished with 90-day warranty
LY7790001
$87.75

PCB ASS Y
(*) First 3-months production only
- 24 -
Diagram placeholder

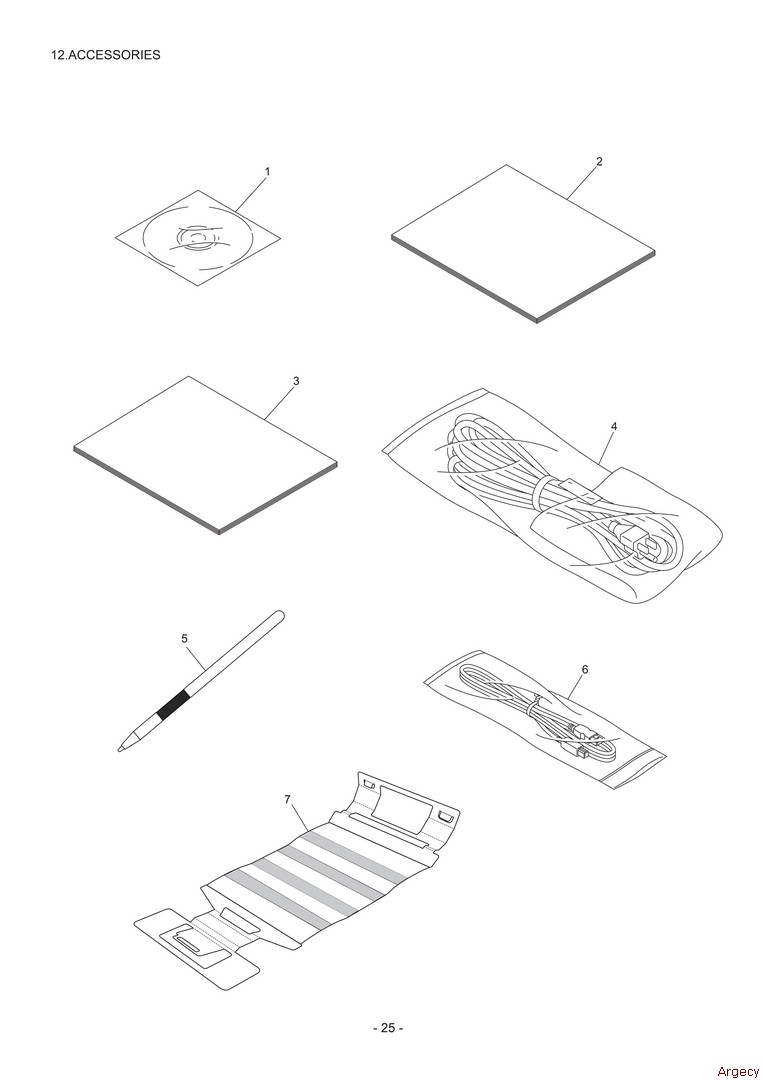

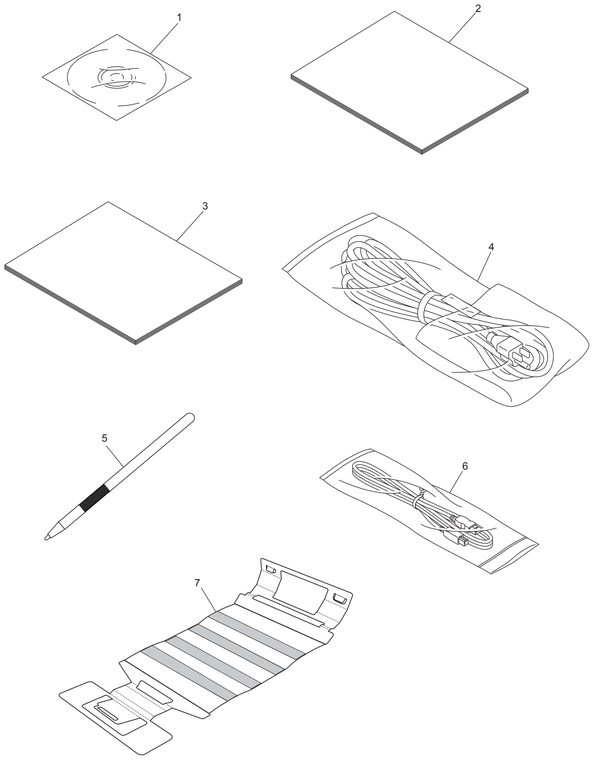

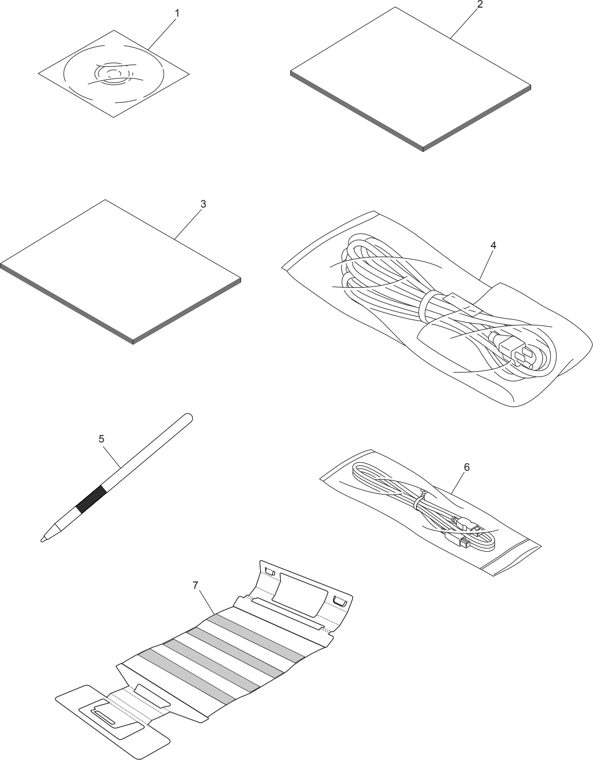

12.ACCESSORIES
- 25 -71
32
4
65
Diagram placeholder
12. ACCESSORIES
Y DESCRIPTION MODEL SPEC REMARKS
1 LR2073001 1 CDROM ASSY HL-L9300CDW
1 LR2073001 1 CDROM ASSY HL-L9300CDWT FOR US
1 LY7905001 1 CDROM ASSY HL-L8250CDN FOR US/US_FS
1 LY7905001 1 CDROM ASSY HL-L8350CDW FOR US/US_FS
1 LY7905001 1 CDROM ASSY HL-L8350CDWT
1 LY7905001 1 CDROM ASSY HL-L9200CDW FOR US
1 LY7905001 1 CDROM ASSY HL-L9200CDWT FOR US
1 LY7910001 1 CDROM ASSY HL-L8350CDW FOR CAN
1 LU4899001 1 CDROM ASSY HL-L9200CDW FOR CAN
1 LY7903001 1 CDROM ASSY HL-L8250CDN FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND
1 LY7903001 1 CDROM ASSY HL-L8350CDW FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND
1 LU4521001 1 CDROM ASSY HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND
1 LR2074001 1 CDROM ASSY HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND
1 LY7911001 1 CDROM ASSY HL-L8250CDN FOR ARL/SGP
1 LY7911001 1 CDROM ASSY HL-L8350CDW FOR ARL/ARG/CHL/GUL/BRZ/SGP
1 LU4900001 1 CDROM ASSY HL-L9200CDW FOR ARL
1 LY7908001 1 CDROM ASSY HL-L8250CDN FOR CHN
1 LY7908001 1 CDROM ASSY HL-L9200CDW FOR CHN
1 LR2065001 1 CDROM ASSY HL-L8350CDW FOR TWN
1 LY7909001 1 CDROM ASSY HL-L8250CDN FOR KOR
1 LY7909001 1 CDROM ASSY HL-L8350CDW FOR KOR
1 LY7906001 1 CDROM ASSY HL-L8250CDN FOR RUS/CEE
1 LY7906001 1 CDROM ASSY HL-L8350CDW FOR CEE
1 LU4901001 1 CDROM ASSY HL-L9200CDWT FOR RUS/CEE
2 LU4808001 1 SETUP GUIDE (GERMAN) HL-L8250CDN FOR GER/CHE
2 LU4808001 1 SETUP GUIDE (GERMAN) HL-L8350CDW FOR GER/CHE
2 LR2111001 1 SETUP GUIDE (GERMAN) HL-L9200CDWT FOR GER/CHE CHG
2 LR2111001 1 SETUP GUIDE (GERMAN) HL-L9300CDWT FOR GER/CHE
2 LU4807001 1 SETUP GUIDE (PORTUGUESE) HL-L8350CDW FOR BRZ
2 LU4832001 1 SETUP GUIDE (KOREAN) HL-L8250CDN FOR KOR
2 LU4832001 1 SETUP GUIDE (KOREAN) HL-L8350CDW FOR KOR
2 LR2092001 1 SETUP GUIDE (TAIWANESE) HL-L8350CDW FOR TWN
2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9300CDW
2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9300CDWT FOR US/UK
2 LU4805001 1 SETUP GUIDE (ENGLISH) HL-L8250CDN FOR US/UK/ARL/SGP/US_FS/CEE
2 LU4805001 1 SETUP GUIDE (ENGLISH) HL-L8350CDW FOR US/CAN/UK/ARL/GUL/SGP/
US FS/CEE
2 LU4805001 1 SETUP GUIDE (ENGLISH) HL-L8350CDWT
2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9200CDW FOR US/CAN/ARL CHG
2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9200CDWT FOR US/UK/CEE CHG
2 LU4833001 1 SETUP GUIDE (CHINESE) HL-L8250CDN FOR CHN
2 LU4856001 1 SETUP GUIDE (CHINESE) HL-L9200CDW FOR CHN
2 LU4829001 1 SETUP GUIDE (INDONESIAN) HL-L8250CDN FOR SGP
2 LU4829001 1 SETUP GUIDE (INDONESIAN) HL-L8350CDW FOR SGP
2 LU4818001 1 SETUP GUIDE
(RUSSIAN ) HL-L8250CDN FOR RUS
2 LU4847001 1 SETUP GUIDE (RUSSIAN ) HL-L9200CDWT FOR RUS
2 LU4814001 1 SETUP GUIDE (FINNISH) HL-L8250CDN FOR PND
2 LU4814001 1 SETUP GUIDE (FINNISH) HL-L8350CDW FOR PND
2 LR2117001 1 SETUP GUIDE (FINNISH) HL-L9200CDWT FOR PND CHG
2 LR2117001 1 SETUP GUIDE (FINNISH) HL-L9300CDWT FOR PND
2 LU4821001 1 SETUP GUIDE (CZECH) HL-L8250CDN FOR CEE
2 LU4821001 1 SETUP GUIDE (CZECH) HL-L8350CDW FOR CEE
2 LU4850001 1 SETUP GUIDE (CZECH) HL-L9200CDWT FOR CEE
2 LU4809001 1 SETUP GUIDE (FRENCH) HL-L8250CDN FOR CHE/FRA/BEL/NLD
2 LU4809001 1 SETUP GUIDE (FRENCH) HL-L8350CDW FOR CHE/FRA/BEL/NLD
2 LR2112001 1 SETUP GUIDE (FRENCH) HL-L9200CDWT FOR CHE/FRA/BEL/NLD CHG
2 LR2112001 1 SETUP GUIDE (FRENCH) HL-L9300CDWT FOR CHE/FRA/BEL/NLD
2 LU4827001 1 SETUP GUIDE (TURKISH) HL-L8350CDW FOR GUL
2 LU4830001 1 SETUP GUIDE (VIETNAMESE) HL-L8250CDN FOR SGP
2 LU4830001 1 SETUP GUIDE (VIETNAMESE) HL-L8350CDW FOR SGP
2 LU4819001 1 SETUP GUIDE (BELARUSIAN) HL-L8250CDN FOR RUS
2 LU4848001 1 SETUP GUIDE (BELARUSIAN) HL-L9200CDWT FOR RUS
2 LU4813001 1 SETUP GUIDE (DUTCH) HL-L8250CDN FOR FRA/BEL/NLD
2 LU4813001 1 SETUP GUIDE (DUTCH) HL-L8350CDW FOR FRA/BEL/NLD
2 LR2116001 1 SETUP GUIDE (DUTCH) HL-L9200CDWT FOR FRA/BEL/NLD CHG
2 LR2116001 1 SETUP GUIDE (DUTCH) HL-L9300CDWT FOR FRA/BEL/NLD
2 LU4815001 1 SETUP GUIDE (DANISH) HL-L8250CDN FOR PND
2 LU4815001 1 SETUP GUIDE (DANISH) HL-L8350CDW FOR PND
- 26 -
Diagram placeholder
12. ACCESSORIES
Y DESCRIPTION MODEL SPEC REMARKS
2 LR2118001 1 SETUP GUIDE (DANISH) HL-L9200CDWT FOR PND CHG
2 LR2118001 1 SETUP GUIDE (DANISH) HL-L9300CDWT FOR PND
2 LU4822001 1 SETUP GUIDE (HUNGARIAN) HL-L8250CDN FOR CEE
2 LU4822001 1 SETUP GUIDE (HUNGARIAN) HL-L8350CDW FOR CEE
2 LU4851001 1 SETUP GUIDE (HUNGARIAN) HL-L9200CDWT FOR CEE
2 LU4806001 1 SETUP GUIDE (FRENCH) HL-L8350CDW FOR CAN
2 LU4836001 1 SETUP GUIDE (FRENCH) HL-L9200CDW FOR CAN
2 LU4810001 1 SETUP GUIDE (ITALIAN) HL-L8250CDN FOR CHE/ITA/IBR
2 LU4810001 1 SETUP GUIDE (ITALIAN) HL-L8350CDW FOR CHE/ITA/IBR
2 LR2113001 1 SETUP GUIDE (ITALIAN) HL-L9200CDWT FOR CHE/ITA/IBR CHG
2 LR2113001 1 SETUP GUIDE (ITALIAN) HL-L9300CDWT FOR CHE/ITA/IBR
2 LU4828001 1 SETUP GUIDE (ARABIC) HL-L8350CDW FOR GUL
2 LU4831001 1 SETUP GUIDE (THAI) HL-L8250CDN FOR SGP
2 LU4831001 1 SETUP GUIDE (THAI) HL-L8350CDW FOR SGP
2 LU4820001 1 SETUP GUIDE (KAZAKH) HL-L8250CDN FOR RUS
2 LU4849001 1 SETUP GUIDE (KAZAKH) HL-L9200CDWT FOR RUS
2 LU4816001 1 SETUP GUIDE (NORWEGIAN) HL-L8250CDN FOR PND
2 LU4816001 1 SETUP GUIDE (NORWEGIAN) HL-L8350CDW FOR PND
2 LR2119001 1 SETUP GUIDE (NORWEGIAN) HL-L9200CDWT FOR PND CHG
2 LR2119001 1 SETUP GUIDE (NORWEGIAN) HL-L9300CDWT FOR PND
2 LU4823001 1 SETUP GUIDE (POLISH) HL-L8250CDN FOR CEE
2 LU4823001 1 SETUP GUIDE (POLISH) HL-L8350CDW FOR CEE
2 LU4852001 1 SETUP GUIDE (POLISH) HL-L9200CDWT FOR CEE
2 LU4811001 1 SETUP GUIDE (SPANISH) HL-L8250CDN FOR ITA/IBR
2 LU4811001 1 SETUP GUIDE (SPANISH) HL-L8350CDW FOR ITA/IBR/ARG/CHL
2 LR2114001 1 SETUP GUIDE (SPANISH) HL-L9200CDWT FOR ITA/IBR CHG
2 LR2114001 1 SETUP GUIDE (SPANISH) HL-L9300CDWT FOR ITA/IBR
2 LU4817001 1 SETUP GUIDE (SWEDISH) HL-L8250CDN FOR PND
2 LU4817001 1 SETUP GUIDE (SWEDISH) HL-L8350CDW FOR PND
2 LR2120001 1 SETUP GUIDE (SWEDISH) HL-L9200CDWT FOR PND CHG
2 LR2120001 1 SETUP GUIDE (SWEDISH) HL-L9300CDWT FOR PND
2 LU4824001 1 SETUP GUIDE (BULGARIAN) HL-L8250CDN FOR CEE
2 LU4824001 1 SETUP GUIDE (BULGARIAN) HL-L8350CDW FOR CEE
2 LU4853001 1 SETUP GUIDE (BULGARIAN) HL-L9200CDWT FOR CEE
2 LU4812001 1 SETUP GUIDE (PORTUGUESE) HL-L8250CDN FOR ITA/IBR
2 LU4812001 1 SETUP GUIDE (PORTUGUESE) HL-L8350CDW FOR ITA/IBR
2 LR2115001 1 SETUP GUIDE (PORTUGUESE) HL-L9200CDWT FOR ITA/IBR CHG
2 LR2115001 1 SETUP GUIDE (PORTUGUESE) HL-L9300CDWT FOR ITA/IBR
2 LU4825001 1 SETUP GUIDE (ROMANIAN) HL-L8250CDN FOR CEE
2 LU4825001 1 SETUP GUIDE (ROMANIAN) HL-L8350CDW FOR CEE
2 LU4854001 1 SETUP GUIDE (ROMANIAN) HL-L9200CDWT FOR CEE
2 LU4826001 1 SETUP GUIDE (SLOVAK) HL-L8250CDN FOR CEE
2 LU4826001 1 SETUP GUIDE (SLOVAK) HL-L8350CDW FOR CEE
2 LU4855001 1 SETUP GUIDE (SLOVAK) HL-L9200CDWT FOR CEE
3 LU4976001 1 SETUP GUIDE LT HL-L8350CDWT chg
3 LU4976001 1 SETUP GUIDE LT HL-L9200CDWT chg
3 LU4976001 1 SETUP GUIDE LT HL-L9300CDWT
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13
AHL-L8250CDN FOR US/US_FS
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13 AHL-L8350CDW FOR US/CAN/US_FS
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13 AHL-L8350CDWT
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13 AHL-L9200CDW FOR US/CAN
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13 AHL-L9200CDWT FOR US
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13 AHL-L9300CDW
4 LM9362001 1 AC CORD BAG ASSY LF
UL/CSA 13 AHL-L9300CDWT FOR US
4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L8250CDN FOR GER/ITA/IBR/SGP/RUS/
FRA/BEL/NLD/PND/CEE
4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L8350CDW FOR GER/ITA/IBR/GUL/SGP/
FRA/BEL/NLD/PND/CEE
4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L9200CDWT FOR GER/ITA/IBR/RUS/FRA/
BEL/NLD/PND/CEE
4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L9300CDWT FOR GER/ITA/IBR/FRA/BEL/
NLD/PND
4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L8250CDN FOR UK/SGP
4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L8350CDW FOR UK/GUL/SGP
4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L9200CDWT FOR UK
- 2 -
Diagram placeholder
12. ACCESSORIES
Y DESCRIPTION MODEL SPEC REMARKS
4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L9300CDWT FOR UK
4 LV0366001 1 AC CORD BAG ASSY LF SAA S HL-L8250CDN FOR ARL
4 LV0366001 1 AC CORD BAG ASSY LF SAA S HL-L8350CDW FOR ARL
4 LV0366001 1 AC CORD BAG ASSY LF SAA S HL-L9200CDW FOR ARL
4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L8250CDN FOR CHE
4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L8350CDW FOR CHE
4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L9200CDWT FOR CHE
4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L9300CDWT FOR CHE
4 LV1093001 1 AC CORD BAG ASSY LF
CHN S/BROHL-L8250CDN FOR CHN
4 LV1093001 1 AC CORD BAG ASSY LF
CHN S/BROHL-L9200CDW FOR CHN
4 LT1833001 1 AC CORD BAG ASSY LF TWN HL-L8350CDW FOR TWN
4 LT0925001 1 AC CORD BAG ASSY LF IRAM HL-L8350CDW FOR ARG
4 LG6207001 1 AC CORD BAG ASSY LF CHILE HL-L8350CDW FOR CHL
4 LV1465001 1 AC CORD BAG ASSY LF INMETRO HL-L8350CDW FOR BRZ chg
4 LT0935001 1 AC CORD BAG ASSY LF KOR S HL-L8250CDN FOR KOR
4 LT0935001 1 AC CORD BAG ASSY LF KOR S HL-L8350CDW FOR KOR
4 LV0388001 1 AC CORD BAG ASSY LF PERU HL-L8350CDW FOR CHL add
4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L8250CDN FOR PND
4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L8350CDW FOR PND
4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L9200CDWT FOR PND
4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L9300CDWT FOR PND
4 LG6404001 1 AC CORD BAG ASSY LF SAF HL-L8350CDW FOR GUL
5 LJ9803001 1 USB CABLE 2.
06 XA9940051 1 TOUCH PEN
7 LU6915001 1 DRUM CLEANING SHEET KIT add
(8) LU4904001 1 FRENCH PANEL STICKER HL-L8350CDW FOR CAN ADD
(8) LU4905001 1 FRENCH PANEL STICKER HL-L9200CDW FOR CAN ADD
- 28 -
Diagram placeholder

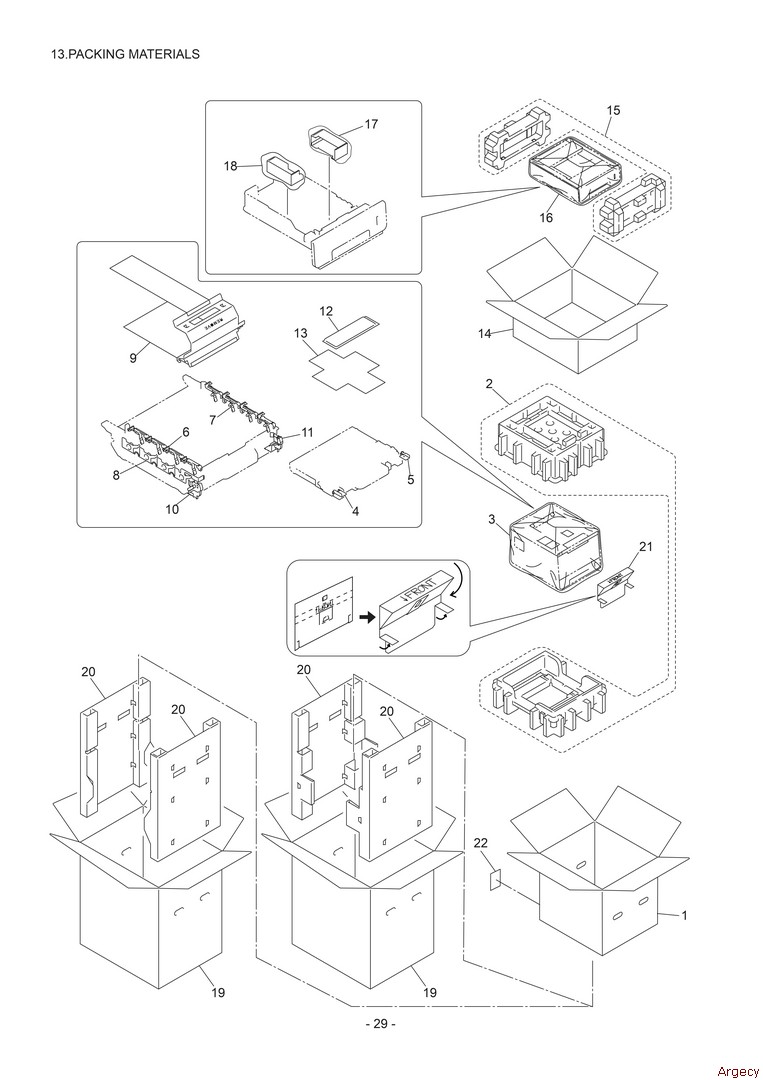

13.PACKING MATERIALS
- 29 -13
1
19 1920
2020
202
34567
816
9
101112
1415
1817
21
22
Diagram placeholder
13. PACKING MATERIALS
Y DESCRIPTION MODEL SPEC REMARKS
1 LU4778001 1 CARTON HL-L8250CDN FOR US/US_FS
1 LU4750001 1 CARTON HL-L8250CDN FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
1 LU4756001 1 CARTON HL-L8250CDN FOR ARL
1 LU4760001 1 CARTON HL-L8250CDN FOR CHN
1 LU4754001 1 CARTON HL-L8250CDN FOR SGP/KOR
1 LU4767001 1 CARTON HL-L8350CDW FOR US/US_FS
1 LU4771001 1 CARTON HL-L8350CDW FOR CAN
1 LU4751001 1 CARTON HL-L8350CDW FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND/CEE
1 LU4757001 1 CARTON HL-L8350CDW FOR ARL
1 LU4755001 1 CARTON HL-L8350CDW FOR TWN/SGP/KOR
1 LU4777001 1 CARTON HL-L8350CDW FOR ARG/CHL
1 LU6881001 1 CARTON HL-L8350CDW FOR GUL
1 LU4774001 1 CARTON HL-L8350CDW FOR BRZ
1 LU4784001 1 CARTON HL-L8350CDWT
1 LU4782001 1 CARTON HL-L9200CDW FOR US/CAN
1 LU4758001 1 CARTON HL-L9200CDW FOR ARL
1 LU4761001 1 CARTON HL-L9200CDW FOR CHN
1 LU4782001 1 CARTON HL-L9200CDWT FOR US
1 LR2139001 1 CARTON HL-L9300CDW
1 LR2139001 1 CARTON HL-L9300CDWT FOR US
2 LY7881001 1 POLYSTYRENE PAD ASSY HL-L8250CDN FOR US/GER/UK/ARL/CHE/ITA/
IBR/SGP/KOR/RUS/US_FS/
FRA/BEL/NLD/PND /CEE
2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L8250CDN FOR CHN
2 LY7881001 1 POLYSTYRENE PAD ASSY HL-L8350CDW
2 LY7881001 1 POLYSTYRENE PAD ASSY HL-L8350CDWT
2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9200CDW
2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9200CDWT
2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9300CDW
2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9300CDWT
3 LY1721001 1 PE BAG 1000X
10004 LY0908001 1 CLEANER LOCK L
5 LY0909001 1 CLEANER LOCK R
6 LY0896001 1 DEVELOP SPACER L
7 LY0897001 1 DEVELOP SPACER R
8 LY0898001 1 DEVELOP STOPPER
9 LY7999001 1 REMOVE SHEET ASSY
10 LY0903001 1 DRM STOPPER L
11 LU6891001 1 DRM STOPPER R chg
12 LY1678001 1 SILICA GEL HL-L8250CDN FOR US/US_FS
12 LY1679001 1 SILICA GEL HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/
CHN/SGP/KOR/RUS/FRA/BEL/
NLD
/PND /CEE
12 LY1678001 1 SILICA GEL HL-L8350CDW FOR US/CAN/ARG/CHL/BRZ/US_FS
12 LY1679001 1 SILICA GEL HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/
TWN/GUL/SGP/KOR/FRA/BEL/
NLD/PND /CEE
12 LY1678001 1 SILICA GEL HL-L8350CDWT
12 LY1678001 1 SILICA GEL HL-L9200CDW FOR US/CAN
12 LY1679001 1 SILICA GEL HL-L9200CDW FOR ARL/CHN
12 LY1678001 1 SILICA GEL HL-L9200CDWT FOR US
12 LY1679001 1 SILICA GEL HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
12 LY1678001 1 SILICA GEL HL-L9300CDW
12 LY1678001 1 SILICA GEL HL-L9300CDWT FOR US
12 LY1679001 1 SILICA GEL HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND
13 LY1395001 1 SILICA GEL SHEET
14 LU4589001 1 CARTON LT HL-L8350CDWT
14 LU4590001 1 CARTON LT HL-L9200CDWT
15 LY0690001 1 STYROFOAM PAD ASSY LT HL-L8350CDWT
15 LY0690001 1 STYROFOAM PAD ASSY LT HL-L9200CDWT
15 LU6979001 1 STYROFOAM PAD ASSY LT HL-L9300CDWT
16 LJ5584001 1 BAG 700X800H HL-L8350CDWT
16 LJ5584001 1 BAG 700X800H HL-L9200CDWT
16 LJ5584001 1 BAG 700X800H HL-L9300CDWT
17 LU6727001 1 P-TRAY HOLD PAD L ASSY HL-L8350CDWT
17 LU6727001 1 P-TRAY HOLD PAD L ASSY HL-L9200CDWT
17 LU6727001 1 P-TRAY HOLD PAD L ASSY HL-L9300CDWT
18 LY5864001 1 P-TRAY HOLD PAD S ASSY HL-L8350CDWT
- 30 -
Diagram placeholder
13. PACKING MATERIALS
Y DESCRIPTION MODEL SPEC REMARKS
18 LY5864001 1 P-TRAY HOLD PAD S ASSY HL-L9200CDWT
18 LY5864001 1 P-TRAY HOLD PAD S ASSY HL-L9300CDWT
19 LU4783001 1 CARTON OUTER HL-L8350CDWT
19 LU4785001 1 CARTON OUTER HL-L9200CDWT FOR US
19 LU4752001 1 CARTON OUTER HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/
FRA/BEL/NLD/PND/CEE
19 LR2145001 1 CARTON OUTER HL-L9300CDWT FOR US
19 LR2147001 1 CARTON OUTER HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/
FRA/BEL/NLD/PND
20 LU4707001 2 CARTON SPACER HL-L8350CDWT
20 LY7915001 2 CARTON SPACER HL-L9200CDWT
20 LY7915001 2 CARTON SPACER HL-L9300CDWT
21 LU6883001 1 CARTON SPACER A HL-L8250CDN FOR CHN
21 LU6883001 1 CARTON SPACER A HL-L9200CDW add
21 LU6883001 1 CARTON SPACER A HL-L9200CDWT add
21 LU6883001 1 CARTON SPACER A HL-L9300CDW
21 LU6883001 1 CARTON SPACER A HL-L9300CDWT
22 LR2174001 1 CHINA ENERGY LABEL HL-L8250CDN FOR CHN CHG
22 LR2175001 1 CHINA ENERGY LABEL HL-L9200CDW FOR CHN CHG
- 31 -
Diagram placeholder

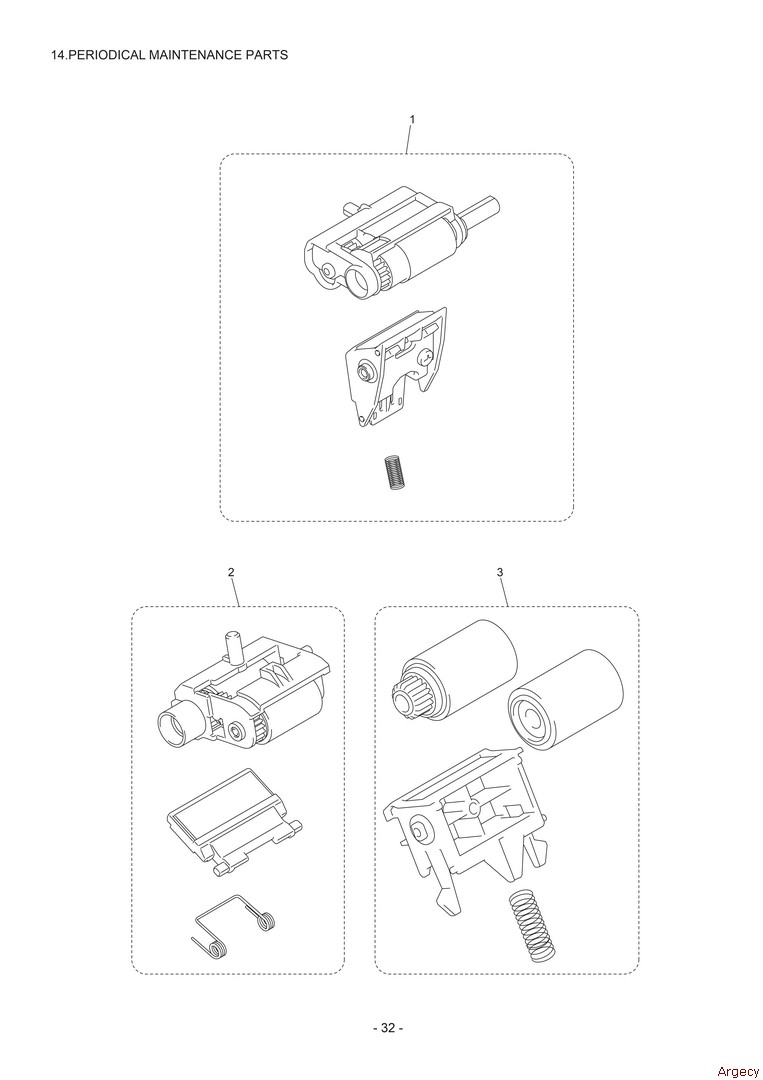

14.PERIODICAL MAINTENANCE PARTS
- 32 -3 21
Diagram placeholder

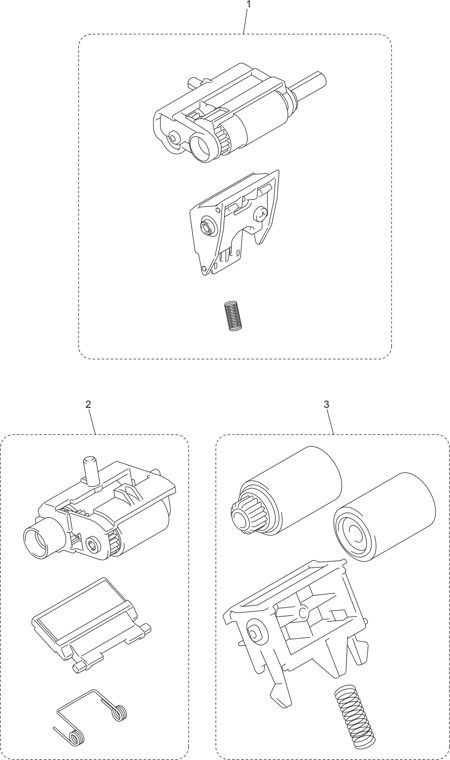

14.PERIODICAL MAINTENANCE PARTS
Y DESCRIPTION MODEL SPEC REMARKS
1
LU4978001 Paper Feeding Kit 1
New
LU4978001 (New)
$59.41

2
LU4979001 Mp Paper Feeding Kit
New
LU4979001 (New)
$36.46

3
LY1548001 Paper Feeding Kit 2
New
LY1548001 (New)
$93.16

3
LY1548001 Paper Feeding Kit 2
New
LY1548001 (New)
$93.16

3 LR2210001 1 PAPER FEEDING KIT 2 (SP) HL-L9300CDWT
3 LR2210001 1 PAPER FEEDING KIT 3 (SP) HL-L9300CDWT
- 33 -
Diagram placeholder

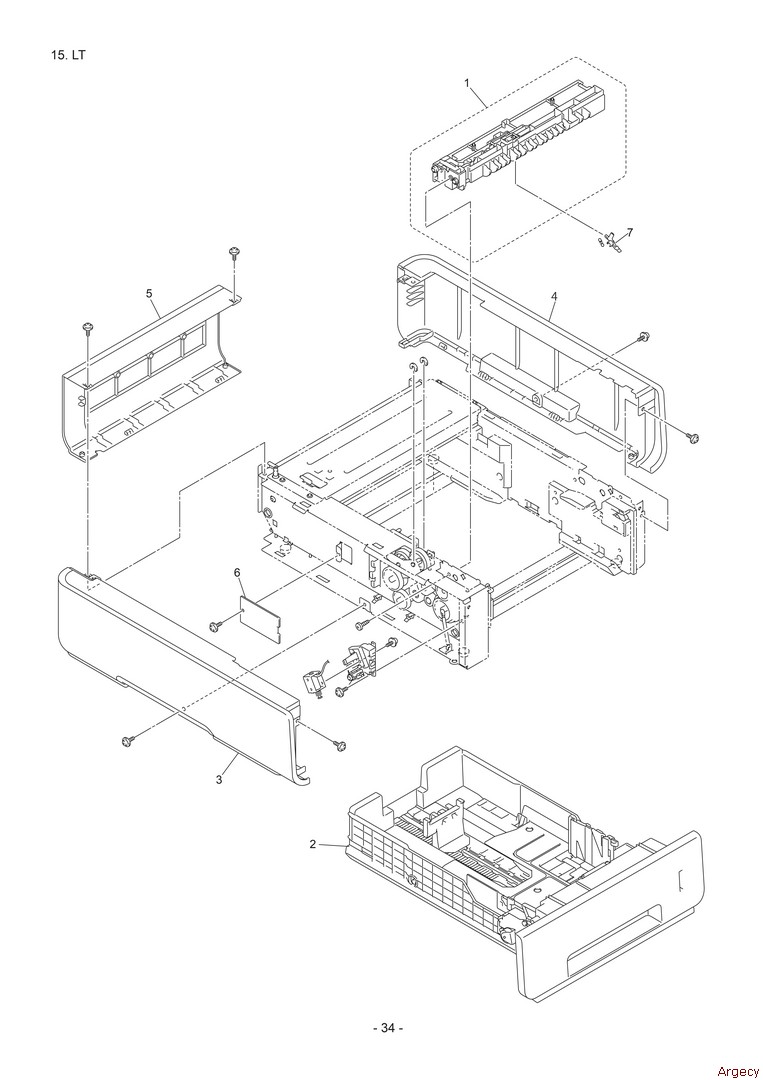

15. LT
- 34 -231

6 57
Diagram placeholder

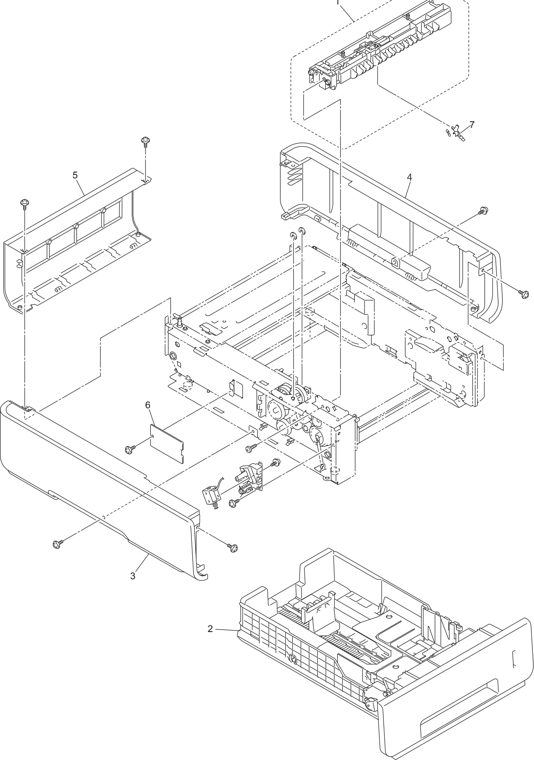

15. LT
1 LY0669001 1 LT PAPER FEED FRAME UNIT HL-L8350CDWT
1 LY0669001 1 LT PAPER FEED FRAME UNIT HL-L9200CDWT
1 LY0669001 1 LT PAPER FEED FRAME UNIT HL-L9300CDWT
2 LY7866001 1 LT PAPER TRAY UNIT HL-L8350CDWT
2 LY7866002 1 LT PAPER TRAY UNIT HL-L9200CDWT
2 LU6969001 1 LT PAPER TRAY UNIT HL-L9300CDWT
3 LY0686001 1 LT COVER LEFT HL-L8350CDWT
3 LY0686001 1 LT COVER LEFT HL-L9200CDWT
3 LU6974001 1 LT COVER LEFT HL-L9300CDWT
4 LY0687001 1 LT COVER RIGHT HL-L8350CDWT
4 LY0687001 1 LT COVER RIGHT HL-L9200CDWT
4 LU6975001 1 LT COVER RIGHT HL-L9300CDWT
5 LY0688001 1 LT COVER REAR HL-L8350CDWT
5 LY0688001 1 LT COVER REAR HL-L9200CDWT
5 LY0688001 1 LT COVER REAR HL-L9300CDWT
6 LV1345001 1 LT RELAY PCB ASS
Y HL-L8350CDWT
6 LV1345001 1 LT RELAY PCB ASS Y HL-L9200CDWT
6 LV1345001 1 LT RELAY PCB ASS Y HL-L9300CDWT
7 LY0667001 1 LT EDGE ACTUATOR HL-L8350CDWT
7 LY0667001 1 LT EDGE ACTUATOR HL-L9200CDWT
7 LY0667001 1 LT EDGE ACTUATOR HL-L9300CDWT
- 35 -
Diagram placeholder
