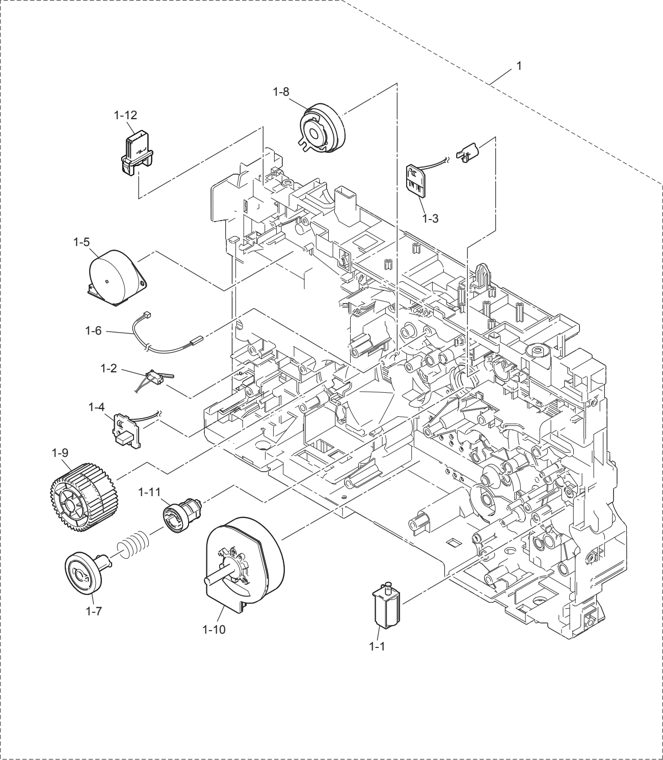

1. FRAME L & DRIVE UNIT 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-5580D 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-5585D 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-5590DN 1 D00923001 1 MAIN FRAME L ASSY (SP) HL-5595DN 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5000D FOR GER / UK / CHE / ITA / IBR / ISR / RUS / FRA / BEL / HOL / PND / CEE 1 D0077C001 Main Frame L Assy Fully refurbished with 90-day warranty D0077C001 $129.61 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5100DN FOR GER / UK / CHE / ITA / IBR / ISR / RUS / FRA / BEL / HOL / PND / CEE 1 D0077C001 Main Frame L Assy Fully refurbished with 90-day warranty D0077C001 $129.61 SGP / KOR / IND 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5100DNT 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5102DW 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5200DW FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / HOL / PND / CEE 1 D0077C001 Main Frame L Assy Fully refurbished with 90-day warranty D0077C001 $129.61 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 1 D0077C001 Main Frame L Assy Fully refurbished with 90-day warranty D0077C001 $129.61 1 D0091A001 1 MAIN FRAME L ASSY (SP) HL-L5202DW 1 D0091E001 1 MAIN FRAME L ASSY (SP) HL-L6200DW 1 D0091E001 1 MAIN FRAME L ASSY (SP) HL-L6200DWT 1 D00923001 1 MAIN FRAME L ASSY (SP) HL-L6202DW 1 D00923001 1 MAIN FRAME L ASSY (SP) HL-L6250DN 1 D0091E001 1 MAIN FRAME L ASSY (SP) HL-L6250DW 1 D0077H001 1 MAIN FRAME L ASSY (SP) HL-L6300DW FOR USA / ISR 1 D00925001 1 MAIN FRAME L ASSY (SP) HL-L6300DW FOR GER / UK / CHE / RUS / PND / GEN 1 D00925001 1 MAIN FRAME L ASSY (SP) HL-L6300DWT 1 D0077H001 1 MAIN FRAME L ASSY (SP) HL-L6400DW FOR USA / CAN / ARL / ISR / TWN / NZ / ARG / CHL / GULF / SGP / KOR 1 D00925001 1 MAIN FRAME L ASSY (SP) HL-L6400DW FOR GER / UK / CHE / RUS / PND / GEN 1 D0077H001 1 MAIN FRAME L ASSY (SP) HL-L6400DWT FOR USA 1 D00925001 1 MAIN FRAME L ASSY (SP) HL-L6400DWT FOR UK / CHE / RUS / PND / GEN 1 D00925001 1 MAIN FRAME L ASSY (SP) HL-L6402DW 1 D00348001 1 MP SOLENOID 2 D000YK001 1 BACK COVER / DUPLEX TRAY SENSOR HARNESS 3 D0000L001 Toner Sensor PCB Assy Fully refurbished with 90-day warranty D0000L001 $28.36 4 D0001C001 1 EXTERNAL TEMPERATURE / HUMIDITY 5 D00054001 1 EJECT MOTOR 6 D001BA001 1 INTERNAL TEMPERATURE SENSOR 7 LY4382001 1 DEVELOP JOINT GEAR 37 8 LY4408001 Develop Clutch 51R Fully refurbished with 90-day warranty LY4408001 $31.05 9 LY4450001 Fuser Drive Gear 39T New LY4450001 (New) $25.65 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 D000TC001 1 PAPER FEED MOTOR HL-5595DN 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 LY4378001 Paper Feed Motor Fully refurbished with 90-day warranty LY4378001 $33.75 10 D000TC001 1 PAPER FEED MOTOR HL-L6200DW 10 D000TC001 1 PAPER FEED MOTOR HL-L6200DWT 10 D000TC001 1 PAPER FEED MOTOR HL-L6202DW 10 D000TC001 1 PAPER FEED MOTOR HL-L6250DN 10 D000TC001 1 PAPER FEED MOTOR HL-L6250DW 10 D000TC001 1 PAPER FEED MOTOR HL-L6300DW 10 D000TC001 1 PAPER FEED MOTOR HL-L6300DWT 10 D000TC001 1 PAPER FEED MOTOR HL-L6400DW 10 D000TC001 1 PAPER FEED MOTOR HL-L6400DWT 10 D000TC001 1 PAPER FEED MOTOR HL-L6402DW 11 D001Y5001 1 DEVELOP JOINT HL-5580D 11 D001Y5001 1 DEVELOP JOINT HL-5585D 11 D001Y5001 1 DEVELOP JOINT HL-5590DN 11 D001Y5001 1 DEVELOP JOINT HL-5595DN 11 LY4380001 1 DEVELOP JOINT HL-L5000D FOR USA / CAN / IRN / SGP / IND 11 D001Y5001 1 DEVELOP JOINT HL-L5000D FOR GER / UK / CHE / ITA / IBR / ISR / RUS / FRA / BEL / HOL / PND / CEE 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 SGP / KOR / IND 11 D001Y5001 1 DEVELOP JOINT HL-L5100DN FOR GER / UK / CHE / ITA / IBR / ISR / RUS / FRA / BEL / HOL / PND / CEE 11 D001Y5001 1 DEVELOP JOINT HL-L5100DNT 11 D001Y5001 1 DEVELOP JOINT HL-L5102DW 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 D001Y5001 1 DEVELOP JOINT HL-L5200DW FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / HOL / PND / CEE 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 D001Y5001 1 DEVELOP JOINT HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 11 D001Y5001 1 DEVELOP JOINT HL-L5202DW 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 D001Y5001 1 DEVELOP JOINT HL-L6202DW 11 D001Y5001 1 DEVELOP JOINT HL-L6250DN 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 D001Y5001 1 DEVELOP JOINT HL-L6300DW FOR GER / UK / CHE / RUS / PND / GEN 11 D001Y5001 1 DEVELOP JOINT HL-L6300DWT 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 ARG / CHL / GULF / SGP / KOR 11 D001Y5001 1 DEVELOP JOINT HL-L6400DW FOR GER / UK / CHE / RUS / PND / GEN 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 11 D001Y5001 1 DEVELOP JOINT HL-L6400DWT FOR UK / CHE / RUS / PND / GEN 11 D001Y5001 1 DEVELOP JOINT HL-L6402DW 12 D000WD001 1 MX CONNECTOR (MACHINE SIDE )HL-L6300DW 12 D000WD001 1 MX CONNECTOR (MACHINE SIDE )HL-L6300DWT 12 D000WD001 1 MX CONNECTOR (MACHINE SIDE )HL-L6400DW 12 D000WD001 1 MX CONNECTOR (MACHINE SIDE )HL-L6400DWT 12 D000WD001 1 MX CONNECTOR (MACHINE SIDE )HL-L6402DW	Diagram placeholder

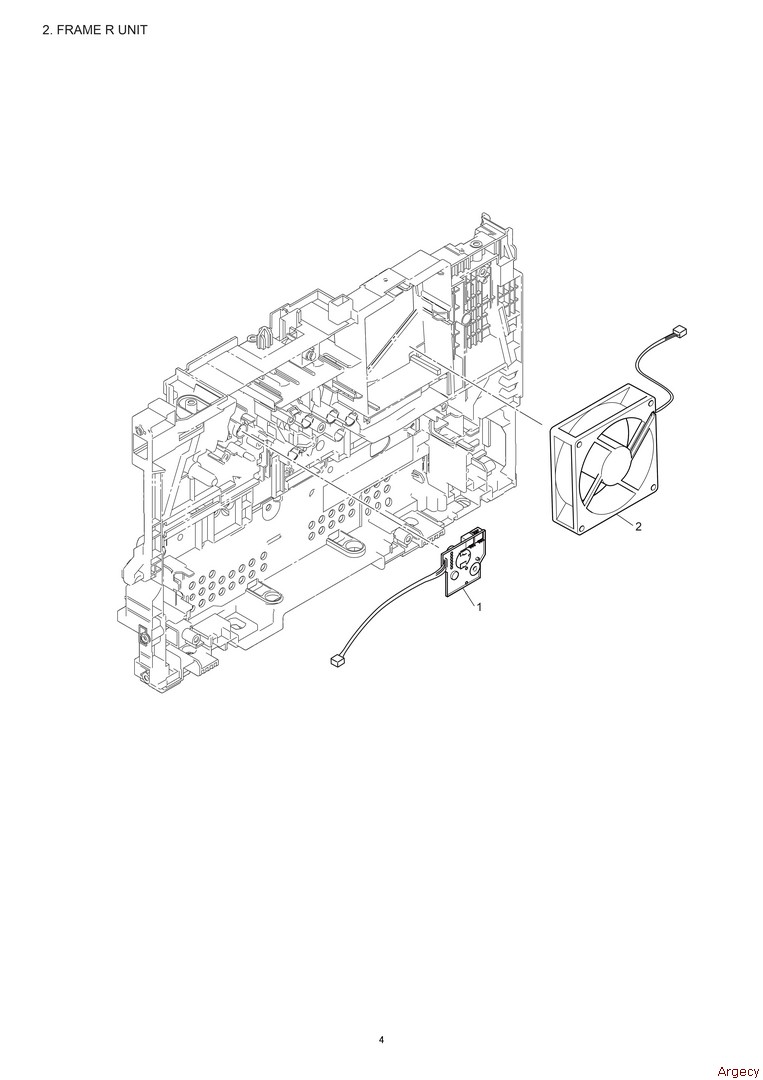

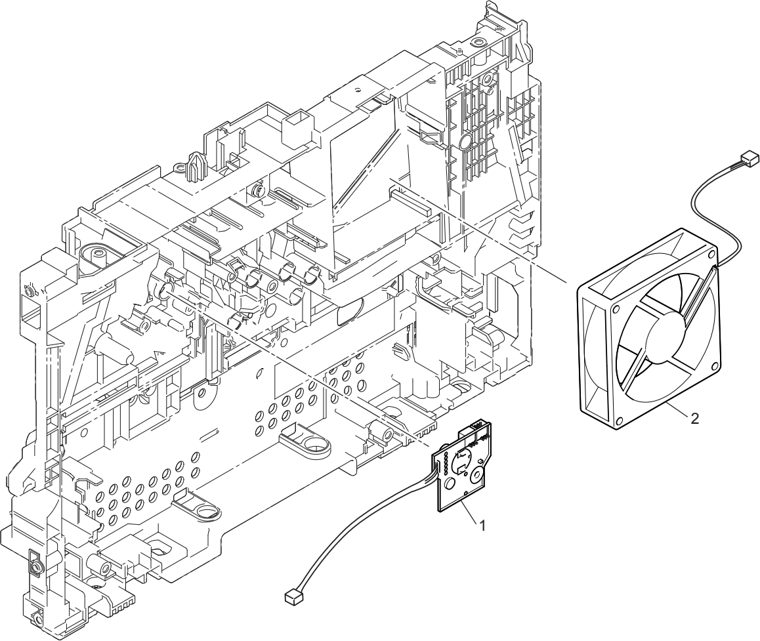

2. FRAME R UNIT 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M001 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M001 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 1 D0000M002 Toner LED PCB Assy Fully refurbished with 90-day warranty D0000M002 $29.71 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 D000BE001 1 MAIN FAN HL-5595DN 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 D000BE001 1 MAIN FAN HL-L6200DW 2 D000BE001 1 MAIN FAN HL-L6200DWT 2 D000BE001 1 MAIN FAN HL-L6202DW 2 D000BE001 1 MAIN FAN HL-L6250DN 2 D000BE001 1 MAIN FAN HL-L6250DW 2 D000BE001 1 MAIN FAN HL-L6300DW 2 D000BE001 1 MAIN FAN HL-L6300DWT 2 D000BE001 1 MAIN FAN HL-L6400DW 2 D000BE001 1 MAIN FAN HL-L6400DWT 2 D000BE001 1 MAIN FAN HL-L6402DW	Diagram placeholder

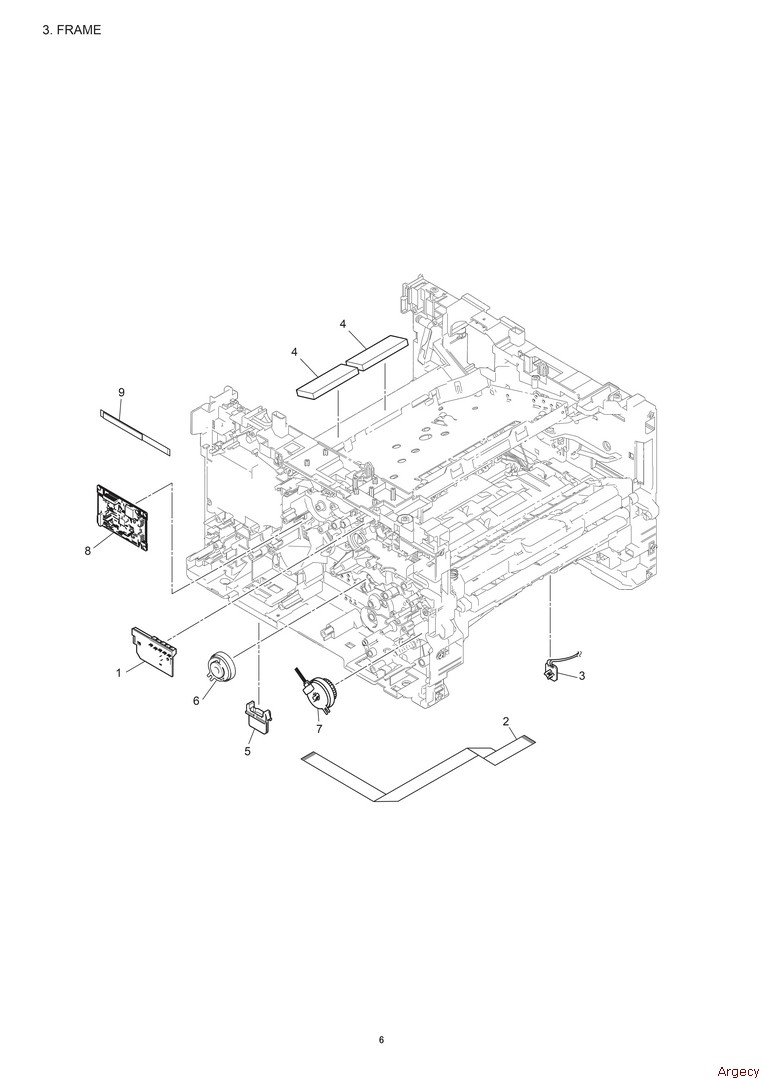

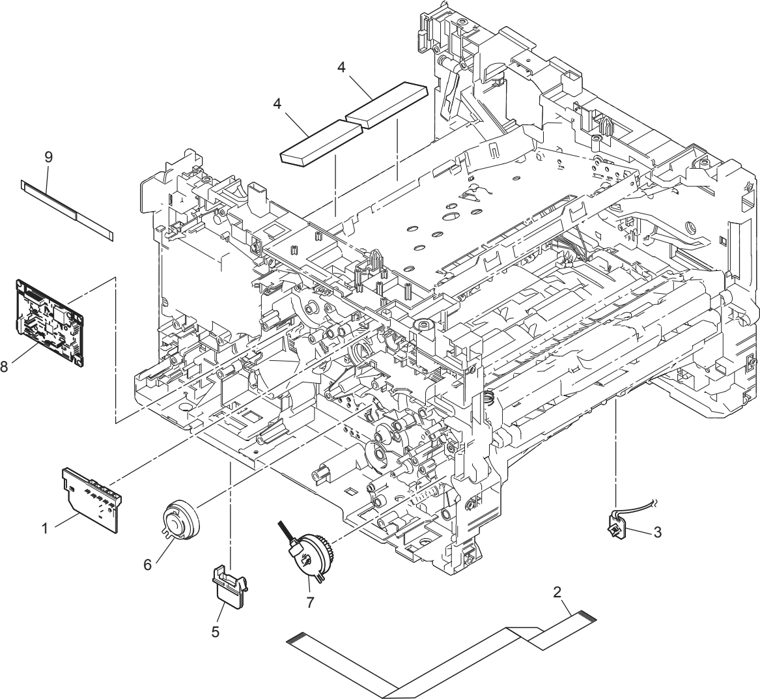

3. FRAME 1 D0000N001 Front Relay PCB Fully refurbished with 90-day warranty D0000N001 $25.65 2 D0000U001 1 MAIN HVPS FLAT CABLE 3 D0050V001 Tray 1 Paper Feed Sensor PCB New D0050V001 (New) $97.20 4 D000BD001 2 FILTER 5 LM9266001 1 LT / TT CONNECTO R 6 LY4332001 Registration Clutch Fully refurbished with 90-day warranty LY4332001 $31.05 7 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 8 D000CY001 Panel PCB Assy Fully refurbished with 90-day warranty D000CY001 $31.05 8 D000CY001 Panel PCB Assy Fully refurbished with 90-day warranty D000CY001 $31.05 8 D000CY001 Panel PCB Assy Fully refurbished with 90-day warranty D000CY001 $31.05 8 D000CY001 Panel PCB Assy Fully refurbished with 90-day warranty D000CY001 $31.05 8 D000CY001 Panel PCB Assy Fully refurbished with 90-day warranty D000CY001 $31.05 9 D00515001 1 PANEL FLAT CABLE HL-L6300DW 9 D00515001 1 PANEL FLAT CABLE HL-L6300DWT 9 D00515001 1 PANEL FLAT CABLE HL-L6400DW 9 D00515001 1 PANEL FLAT CABLE HL-L6400DWT 9 D00515001 1 PANEL FLAT CABLE HL-L6402DW	Diagram placeholder

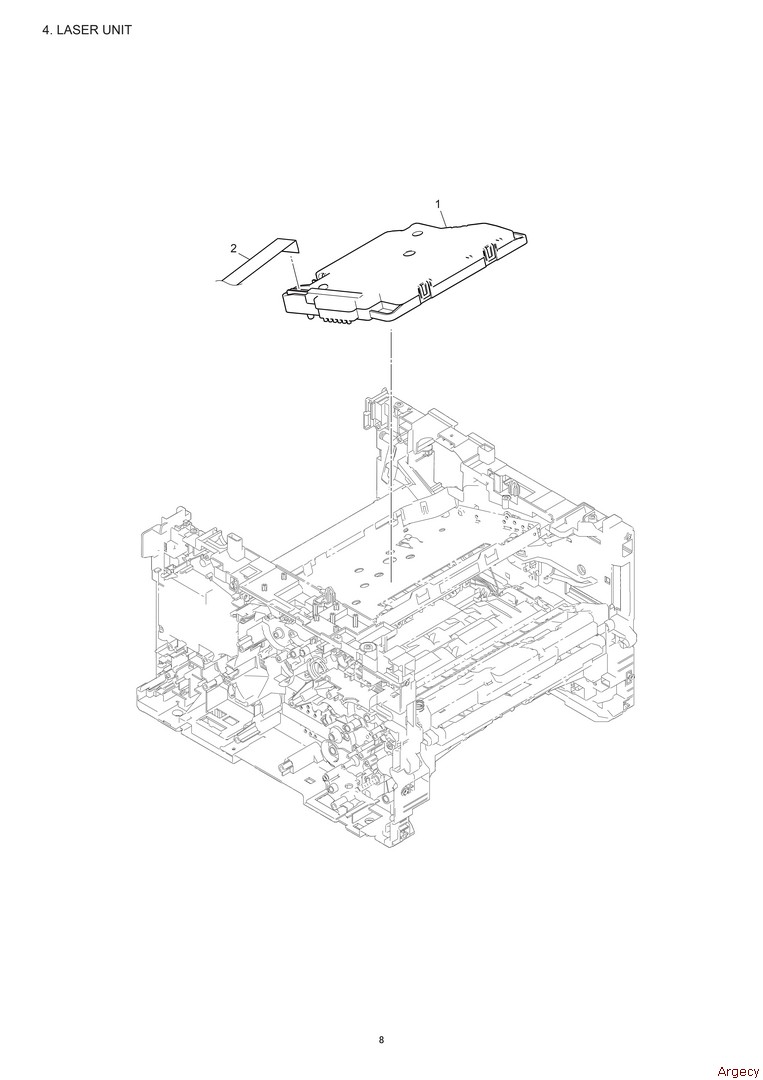

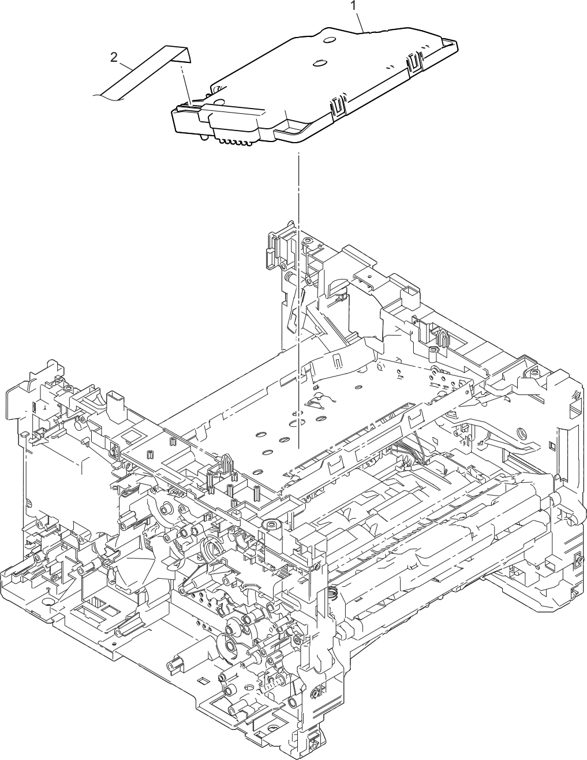

4. LASER UNIT 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZG001 1 LASER UNIT (SP) HL-5595DN 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZC001 Laser Unit New D002ZC001 (New) $156.61 D002ZC001 Laser Unit Fully refurbished with 90-day warranty D002ZC001 $74.25 1 D002ZG001 1 LASER UNIT (SP) HL-L6200DW 1 D002ZG001 1 LASER UNIT (SP) HL-L6200DWT 1 D002ZG001 1 LASER UNIT (SP) HL-L6202DW 1 D002ZG001 1 LASER UNIT (SP) HL-L6250DN 1 D002ZG001 1 LASER UNIT (SP) HL-L6250DW 1 D002ZG001 1 LASER UNIT (SP) HL-L6300DW 1 D002ZG001 1 LASER UNIT (SP) HL-L6300DWT 1 D002ZG001 1 LASER UNIT (SP) HL-L6400DW 1 D002ZG001 1 LASER UNIT (SP) HL-L6400DWT 1 D002ZG001 1 LASER UNIT (SP) HL-L6402DW 2 D00010001 1 LASER UNIT FLAT CABLE	Diagram placeholder

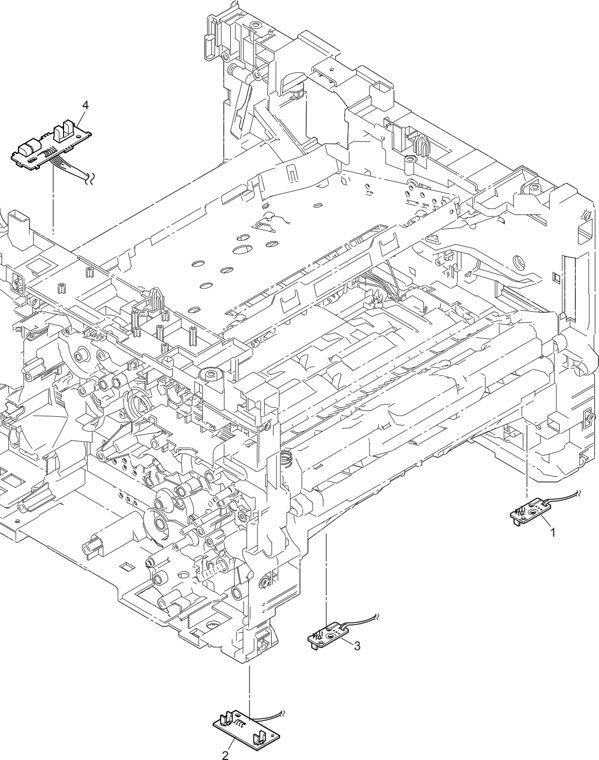

5. PAPER FEEDER 1 LV0789001 MP Paper Empty Sensor PCB Assy Fully refurbished with 90-day warranty LV0789001 $31.05 PCB ASSY 2 D00510001 Registration Sensor PCB New D00510001 (New) $67.50 SENSOR PCB ASSY 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-5580D 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-5590DN 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-5595DN 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-L6300DW 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-L6300DWT 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-L6400DW 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-L6400DWT 3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY HL-L6402DW 4 D005KT001 1 EJECT SENSOR PCB ASSY	Diagram placeholder

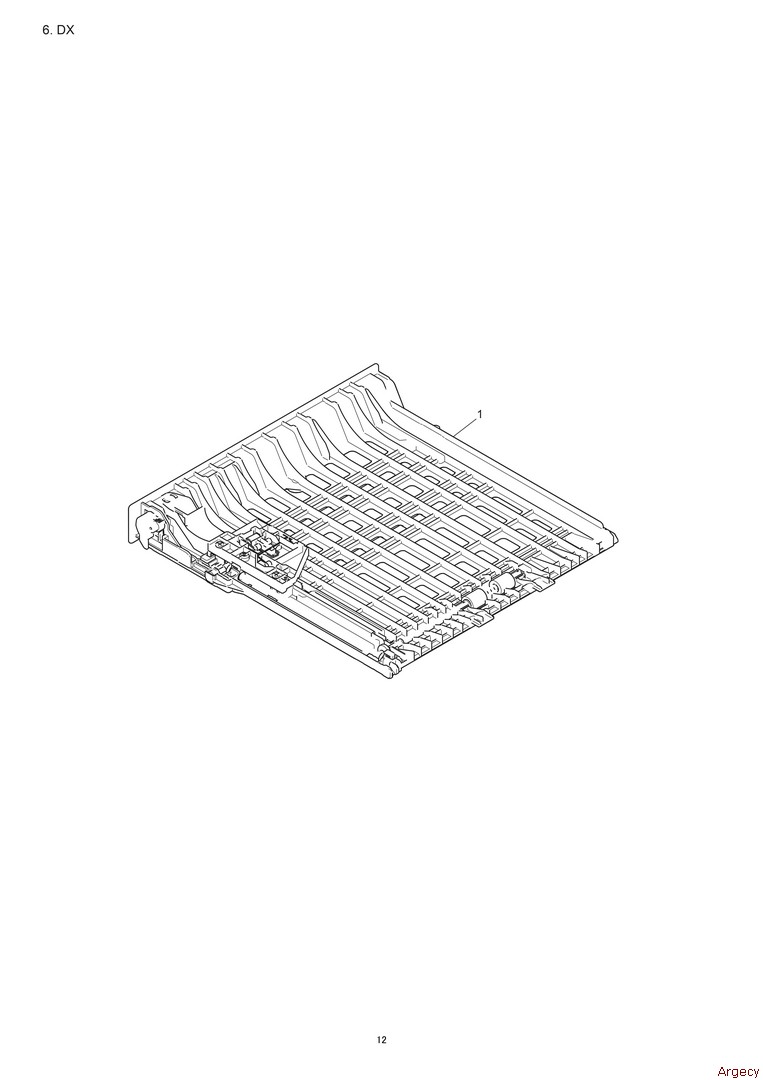

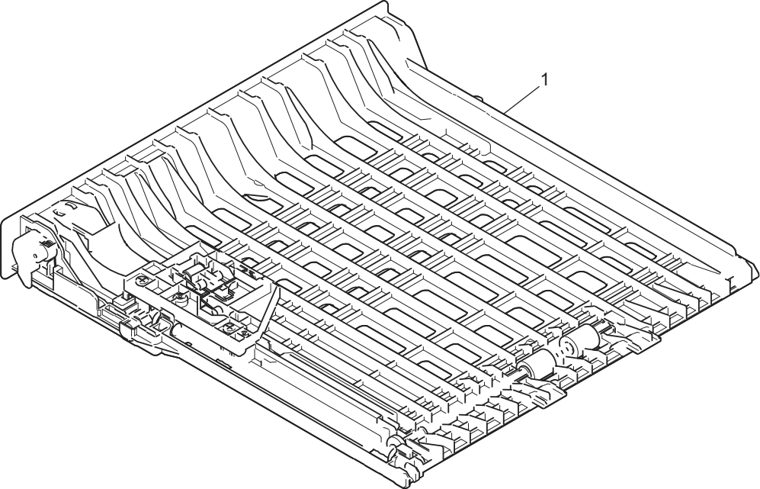

6. DX 1 D008UH001 1 DUPLEX TRAY (SP) HL-5580D 1 D008UH001 1 DUPLEX TRAY (SP) HL-5585D 1 D008UH001 1 DUPLEX TRAY (SP) HL-5590DN 1 D008UH001 1 DUPLEX TRAY (SP) HL-5595DN 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L5000D FOR USA / CAN 1 D008UG001 1 DUPLEX TRAY (SP) HL-L5000D FOR GER / UK / CHE / ITA / IBR / ISR / RUS / FRA / BEL / HOL / PND / CEE 1 D008UK001 1 DUPLEX TRAY (SP) HL-L5000D FOR IRN / SGP / IND 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L5100DN FOR USA 1 D008UG001 1 DUPLEX TRAY (SP) HL-L5100DN FOR GER / UK / ARL / CHE / ITA / IBR / ISR / TWN / NZ / KOR / RUS / FRA / BEL / HOL / PND / CEE 1 D008UK001 1 DUPLEX TRAY (SP) HL-L5100DN FOR ARG / CHL / SGP / IND 1 D008UG001 1 DUPLEX TRAY (SP) HL-L5100DNT 1 D008UK001 1 DUPLEX TRAY (SP) HL-L5102DW 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L5200DW FOR USA / CAN 1 D008UG001 1 DUPLEX TRAY (SP) HL-L5200DW FOR GER / UK / ARL / CHE / ITA / IBR / NZ / RUS / FRA / BEL / HOL / PND / CEE 1 D008UK001 1 DUPLEX TRAY (SP) HL-L5200DW FOR GULF 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L5200DWT FOR USA 1 D008UG001 1 DUPLEX TRAY (SP) HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 1 D008UK001 1 DUPLEX TRAY (SP) HL-L5202DW 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L6200DW FOR USA / CAN 1 D008UG001 1 DUPLEX TRAY (SP) HL-L6200DW FOR ARL / NZ 1 D008UK001 1 DUPLEX TRAY (SP) HL-L6200DW FOR ARG / GULF / SGP / IND 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L6200DWT 1 D008UK001 1 DUPLEX TRAY (SP) HL-L6202DW 1 D008UG001 1 DUPLEX TRAY (SP) HL-L6250DN 1 D008UJ002 1 DUPLEX TRAY (SP) HL-L6250DW 1 D008UJ001 1 DUPLEX TRAY (SP) HL-L6300DW FOR USA 1 D008UG002 1 DUPLEX TRAY (SP) HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 1 D008UG002 1 DUPLEX TRAY (SP) HL-L6300DWT 1 D008UJ002 1 DUPLEX TRAY (SP) HL-L6400DW FOR USA / CAN 1 D008UG002 1 DUPLEX TRAY (SP) HL-L6400DW FOR GER / UK / ARL / CHE / ISR / TWN / NZ / KOR / RUS / PND / GEN 1 D008UK002 1 DUPLEX TRAY (SP) HL-L6400DW FOR ARG / CHL / GULF / SGP 1 D008UJ002 1 DUPLEX TRAY (SP) HL-L6400DWT FOR USA 1 D008UG002 1 DUPLEX TRAY (SP) HL-L6400DWT FOR UK / CHE / RUS / PND / GEN 1 D008UK002 1 DUPLEX TRAY (SP) HL-L6402DW	Diagram placeholder

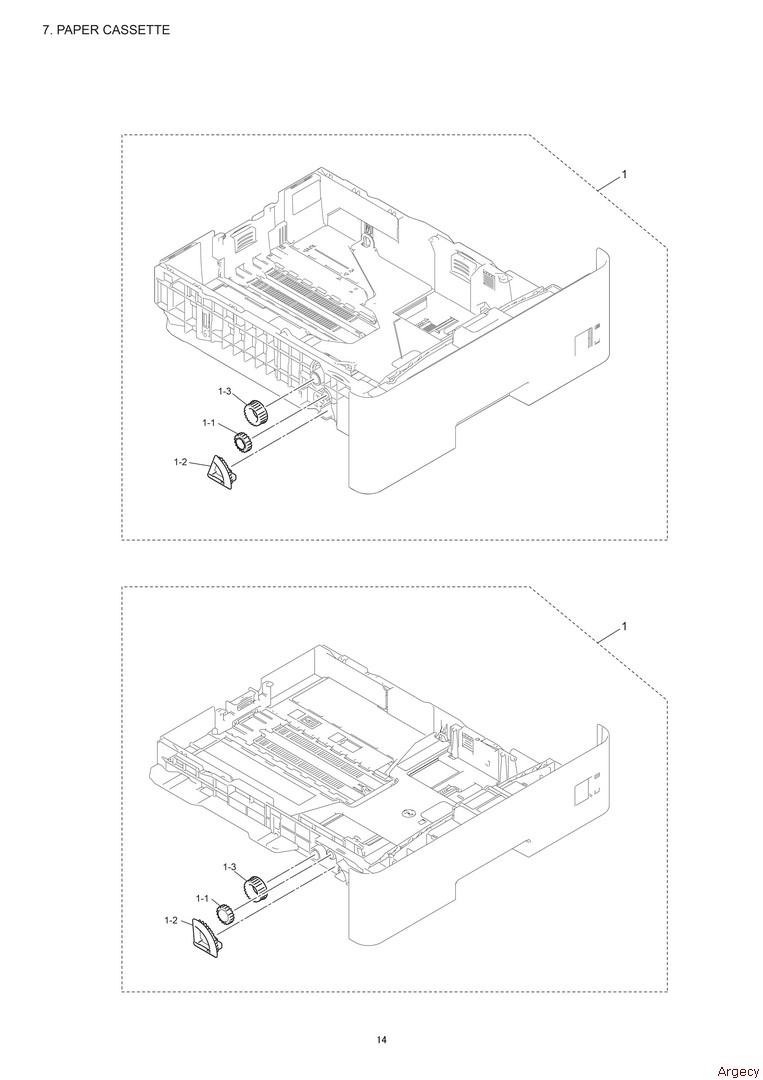

7. PAPER CASSETTE 1 D008XD001 1 PAPER TRAY (SP) HL-5580D 1 D008XD001 1 PAPER TRAY (SP) HL-5585D 1 D008XD001 1 PAPER TRAY (SP) HL-5590DN 1 D008XE001 1 PAPER TRAY (SP) HL-5595DN 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00551001 Paper Tray New D00551001 (New) $99.91 D00551001 Paper Tray Fully refurbished with 90-day warranty D00551001 $52.66 1 D00690001 Paper Tray - 520 Sheets New D00690001 (New) $126.91 1 D00690001 Paper Tray - 520 Sheets New D00690001 (New) $126.91 1 D00690001 Paper Tray - 520 Sheets New D00690001 (New) $126.91 1 D00690001 Paper Tray - 520 Sheets New D00690001 (New) $126.91 1 D00690002 Paper Tray New D00690002 (New) $140.40 1 D00690001 Paper Tray - 520 Sheets New D00690001 (New) $126.91 1 D00690002 Paper Tray New D00690002 (New) $140.40 GEN 1 D00690002 Paper Tray New D00690002 (New) $140.40 1 D00690002 Paper Tray New D00690002 (New) $140.40 1 D00690002 Paper Tray New D00690002 (New) $140.40 1 D00690002 Paper Tray New D00690002 (New) $140.40 1 LY4242001 1 IDLE GEAR Z18M10 HL-5580D 1 LY4242001 1 IDLE GEAR Z18M10 HL-5585D 1 LY4242001 1 IDLE GEAR Z18M10 HL-5590DN 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-5595DN 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5000D 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5100DN 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5100DNT 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5102DW 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5200DW 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5200DWT 1 LY4242001 1 IDLE GEAR Z18M10 HL-L5202DW 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6200DW 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6200DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6202DW 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6250DN 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6250DW 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6300DW 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6300DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6400DW 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6400DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6402DW 2 LY4241001 1 LIFT GEAR Z27M10 HL-5580D 2 LY4241001 1 LIFT GEAR Z27M10 HL-5585D 2 LY4241001 1 LIFT GEAR Z27M10 HL-5590DN 2 LY4516001 1 LIFT GEAR Z48M10 HL-5595DN 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5000D 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5100DN 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5100DNT 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5102DW 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5200DW 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5200DWT 2 LY4241001 1 LIFT GEAR Z27M10 HL-L5202DW 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6200DW 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6200DWT 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6202DW 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6250DN 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6250DW 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6300DW 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6300DWT 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6400DW 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6400DWT 2 LY4516001 1 LIFT GEAR Z48M10 HL-L6402DW 3 LY4243001 1 GEAR Z22M10	Diagram placeholder

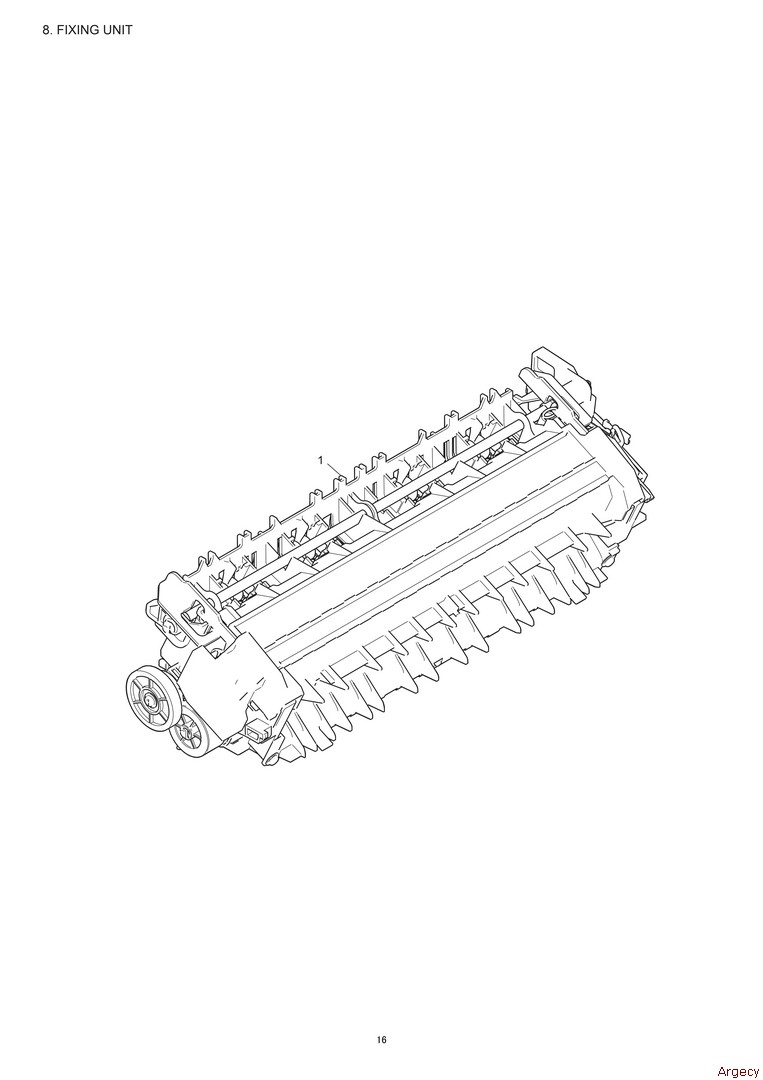

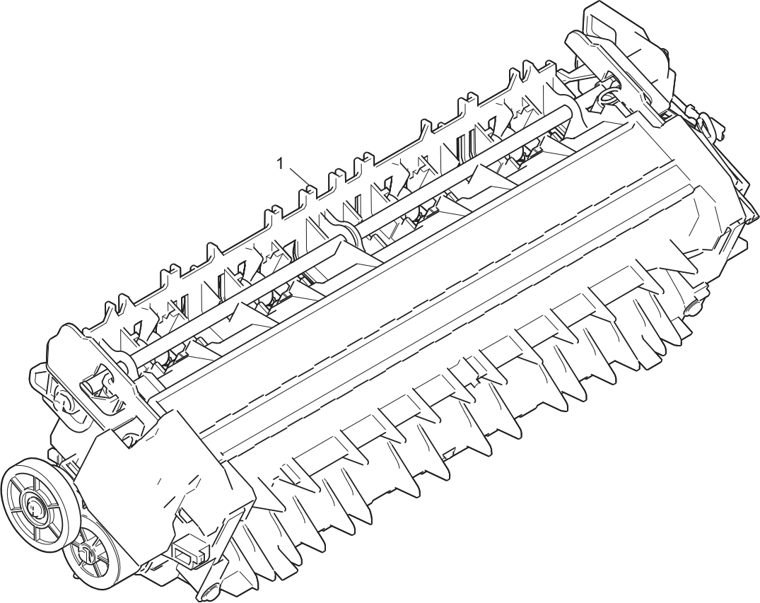

8. FIXING UNIT 1 D008AE001 1 FUSER UNIT (SP) HL-5580D 1 D008AE001 1 FUSER UNIT (SP) HL-5585D 1 D008AE001 1 FUSER UNIT (SP) HL-5590DN 1 D008AL001 1 FUSER UNIT (SP) HL-5595DN 1 D008AE001 1 FUSER UNIT (SP) HL-L5000D FOR GER / UK / CHE / ITA / IBR / ISR / IRN / SGP / IND / RUS / FRA / BEL / HOL / PND / CEE 1 D005WR001 Fuser Assembly 110V Fully refurbished with 90-day warranty D005WR001 $126.91 D005WR001 Fuser Assembly 110V New D005WR001 (New) $263.25 1 D008AE001 1 FUSER UNIT (SP) HL-L5100DN FOR GER / UK / ARL / CHE / ITA / IBR / ISR / NZ / ARG / CHL / SGP / KOR / IND / RUS / FRA / BEL / HOL / PND / CEE 1 D005WR001 Fuser Assembly 110V Fully refurbished with 90-day warranty D005WR001 $126.91 D005WR001 Fuser Assembly 110V New D005WR001 (New) $263.25 1 D008AE001 1 FUSER UNIT (SP) HL-L5100DNT 1 D008AH001 1 FUSER UNIT (SP) HL-L5102DW 1 D008AE001 1 FUSER UNIT (SP) HL-L5200DW FOR GER / UK / ARL / CHE / ITA / IBR / NZ / GULF / RUS / FRA / BEL / HOL / PND / CEE 1 D005WR001 Fuser Assembly 110V Fully refurbished with 90-day warranty D005WR001 $126.91 D005WR001 Fuser Assembly 110V New D005WR001 (New) $263.25 1 D008AE001 1 FUSER UNIT (SP) HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 1 D005WR001 Fuser Assembly 110V Fully refurbished with 90-day warranty D005WR001 $126.91 D005WR001 Fuser Assembly 110V New D005WR001 (New) $263.25 1 D008AH001 1 FUSER UNIT (SP) HL-L5202DW 1 D008AL001 1 FUSER UNIT (SP) HL-L6200DW FOR ARL / NZ / ARG / GULF / SGP / IND 1 D008AK001 Fuser Assembly 110V New D008AK001 (New) $268.65 1 D008AK001 Fuser Assembly 110V New D008AK001 (New) $268.65 1 D008AM001 1 FUSER UNIT (SP) HL-L6202DW 1 D0096U001 1 FUSER UNIT (SP) HL-L6250DN 1 D008AK001 Fuser Assembly 110V New D008AK001 (New) $268.65 1 D0096U001 1 FUSER UNIT (SP) HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 1 D008AK001 Fuser Assembly 110V New D008AK001 (New) $268.65 1 D0096U001 1 FUSER UNIT (SP) HL-L6300DWT 1 D008AL001 1 FUSER UNIT (SP) HL-L6400DW FOR ARL / NZ / ARG / CHL / GULF / SGP / KOR 1 D0096U001 1 FUSER UNIT (SP) HL-L6400DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 1 D008AK001 Fuser Assembly 110V New D008AK001 (New) $268.65 1 D0096U001 1 FUSER UNIT (SP) HL-L6400DWT FOR UK / CHE / RUS / PND / GEN 1 D008AK001 Fuser Assembly 110V New D008AK001 (New) $268.65 1 D008AM001 1 FUSER UNIT (SP) HL-L6402DW	Diagram placeholder

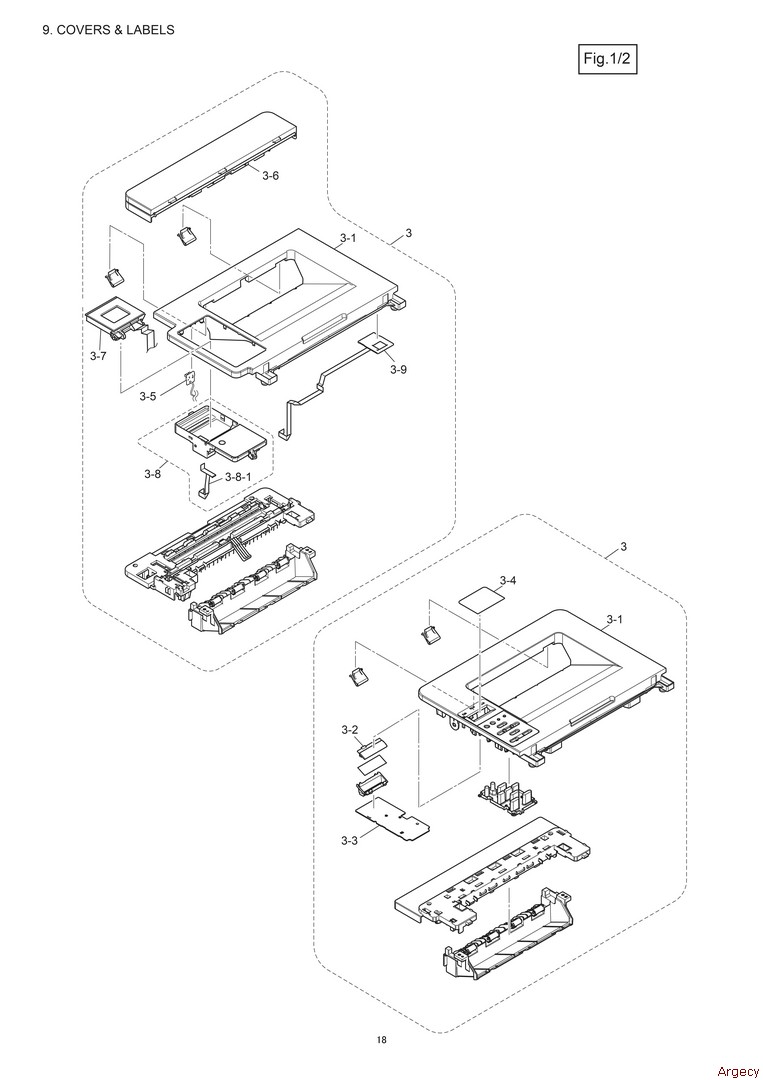

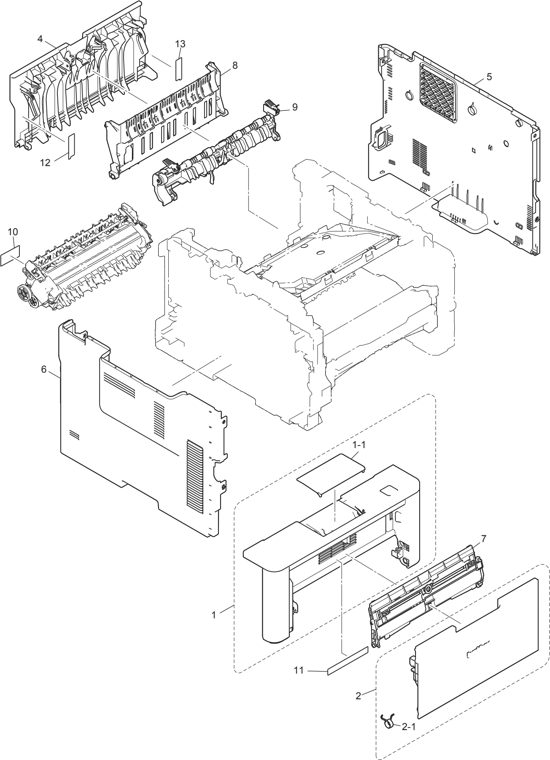

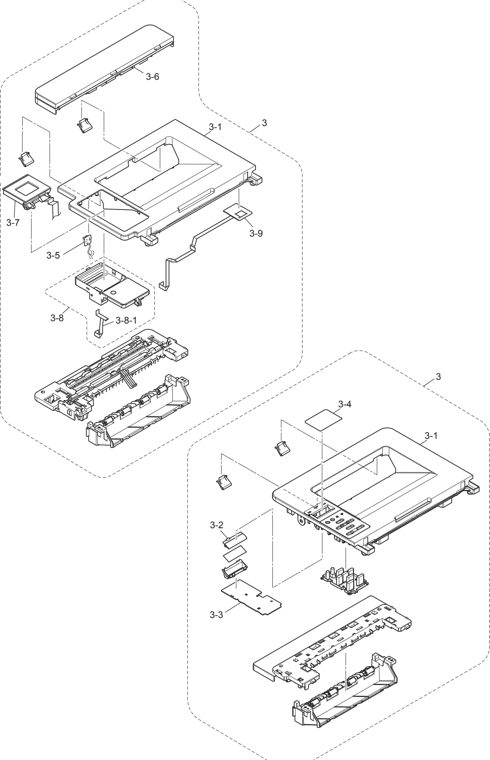

9. COVERS & LABELS 1 D003F2001 1 FRONT COVER ASSY HL-5580D 1 D003F2001 1 FRONT COVER ASSY HL-5585D 1 D003F2001 1 FRONT COVER ASSY HL-5590DN 1 D003F2001 1 FRONT COVER ASSY HL-5595DN 1 D008G1001 Front Cover Assy Fully refurbished with 90-day warranty D008G1001 $33.75 1 D00056001 1 FRONT COVER ASSY HL-L5000D FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / HOL / PND / CEE 1 D005LY001 1 FRONT COVER ASSY HL-L5000D FOR ISR 1 D006WJ001 1 FRONT COVER ASSY HL-L5000D FOR IRN 1 D003KL001 1 FRONT COVER ASSY HL-L5000D FOR SGP / IND 1 D008G1001 Front Cover Assy Fully refurbished with 90-day warranty D008G1001 $33.75 1 D00056001 1 FRONT COVER ASSY HL-L5100DN FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / HOL / PND / CEE 1 D005NK001 1 FRONT COVER ASSY HL-L5100DN FOR ARL 1 D005LY001 1 FRONT COVER ASSY HL-L5100DN FOR ISR 1 D005NL001 1 FRONT COVER ASSY HL-L5100DN FOR NZ 1 D005Y9001 1 FRONT COVER ASSY HL-L5100DN FOR ARG / CHL 1 D003KL001 1 FRONT COVER ASSY HL-L5100DN FOR TWN / SGP / KOR / IND 1 D00056001 1 FRONT COVER ASSY HL-L5100DNT 1 D003KB001 1 FRONT COVER ASSY HL-L5102DW 1 D008G1001 Front Cover Assy Fully refurbished with 90-day warranty D008G1001 $33.75 1 D00056001 1 FRONT COVER ASSY HL-L5200DW FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / HOL / PND / CEE 1 D005NK001 1 FRONT COVER ASSY HL-L5200DW FOR ARL 1 D005NL001 1 FRONT COVER ASSY HL-L5200DW FOR NZ 1 D006WJ001 1 FRONT COVER ASSY HL-L5200DW FOR GULF 1 D008G1001 Front Cover Assy Fully refurbished with 90-day warranty D008G1001 $33.75 1 D00056001 1 FRONT COVER ASSY HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 1 D003KB001 1 FRONT COVER ASSY HL-L5202DW 1 D003R8001 1 FRONT COVER ASSY HL-L6200DW FOR USA / CAN 1 D005MY001 1 FRONT COVER ASSY HL-L6200DW FOR ARL 1 D005MZ001 1 FRONT COVER ASSY HL-L6200DW FOR NZ 1 D005Y9001 1 FRONT COVER ASSY HL-L6200DW FOR ARG 1 D006WJ001 1 FRONT COVER ASSY HL-L6200DW FOR GULF 1 D003KL001 1 FRONT COVER ASSY HL-L6200DW FOR SGP / IND 1 D003R8001 1 FRONT COVER ASSY HL-L6200DWT 1 D003KB001 1 FRONT COVER ASSY HL-L6202DW 1 D004VF001 1 FRONT COVER ASSY HL-L6250DN 1 D003R8002 1 FRONT COVER ASSY HL-L6250DW 1 D004NP002 1 FRONT COVER ASSY HL-L6300DW FOR USA 1 D000DW001 1 FRONT COVER ASSY HL-L6300DW FOR GER / UK / CHE / RUS / PND / GEN 1 D0067A001 1 FRONT COVER ASSY HL-L6300DW FOR ISR 1 D000DW001 1 FRONT COVER ASSY HL-L6300DWT 1 D004NP003 Front Cover Assy Fully refurbished with 90-day warranty D004NP003 $33.75 1 D000DW001 1 FRONT COVER ASSY HL-L6400DW FOR GER / UK / CHE / RUS / PND / GEN 1 D00655001 1 FRONT COVER ASSY HL-L6400DW FOR ARL 1 D00651001 1 FRONT COVER ASSY HL-L6400DW FOR ISR 1 D006RN001 1 FRONT COVER ASSY HL-L6400DW FOR TWN / SGP / KOR 1 D00653001 1 FRONT COVER ASSY HL-L6400DW FOR NZ 1 D005YM001 1 FRONT COVER ASSY HL-L6400DW FOR ARG / CHL 1 D006X6001 1 FRONT COVER ASSY HL-L6400DW FOR GULF 1 D004NP003 Front Cover Assy Fully refurbished with 90-day warranty D004NP003 $33.75 1 D000DW001 1 FRONT COVER ASSY HL-L6400DWT FOR UK / CHE / RUS / PND / GEN 1 D003KU001 1 FRONT COVER ASSY HL-L6402DW 1 D0005D001 1 PAPER STOPPER HL-5580D 1 D0005D001 1 PAPER STOPPER HL-5585D 1 D0005D001 1 PAPER STOPPER HL-5590DN 1 D0005D001 1 PAPER STOPPER HL-5595DN 1 D0005D001 1 PAPER STOPPER HL-L5000D 1 D0005D001 1 PAPER STOPPER HL-L5100DN 1 D0005D001 1 PAPER STOPPER HL-L5100DNT 1 D0005D001 1 PAPER STOPPER HL-L5102DW 1 D0005D001 1 PAPER STOPPER HL-L5200DW 1 D0005D001 1 PAPER STOPPER HL-L5200DWT 1 D0005D001 1 PAPER STOPPER HL-L5202DW 1 D0005D001 1 PAPER STOPPER HL-L6200DW 1 D0005D001 1 PAPER STOPPER HL-L6200DWT 1 D0005D001 1 PAPER STOPPER HL-L6202DW 1 D0005D002 1 PAPER STOPPER HL-L6250DN 1 D0005D002 1 PAPER STOPPER HL-L6250DW 1 D0005D001 1 PAPER STOPPER HL-L6300DW FOR USA	Diagram placeholder
9. COVERS & LABELS 1 D0005D002 1 PAPER STOPPER HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 1 D0005D002 1 PAPER STOPPER HL-L6300DWT 1 D0005D002 1 PAPER STOPPER HL-L6400DW 1 D0005D002 1 PAPER STOPPER HL-L6400DWT 1 D0005D002 1 PAPER STOPPER HL-L6402DW 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GF001 $29.71 2 D008GF002 1 MP TRAY COVER ASSY SP HL-L6250DW 2 D008GG001 MP Tray Cover Assy Fully refurbished with 90-day warranty D008GG001 $31.05 2 D008GG002 1 MP TRAY COVER ASSY SP HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 2 D008GG002 1 MP TRAY COVER ASSY SP HL-L6300DWT 2 D008GG002 1 MP TRAY COVER ASSY SP HL-L6400DW 2 D008GG002 1 MP TRAY COVER ASSY SP HL-L6400DWT 2 D008GG002 1 MP TRAY COVER ASSY SP HL-L6402DW 1 D000TH001 1 MP DAMPER SPRING HL-5580D 1 D000TH001 1 MP DAMPER SPRING HL-5585D 1 D000TH001 1 MP DAMPER SPRING HL-5590DN 1 D000TH001 1 MP DAMPER SPRING HL-5595DN 1 D000TH001 1 MP DAMPER SPRING HL-L5000D 1 D000TH001 1 MP DAMPER SPRING HL-L5100DN 1 D000TH001 1 MP DAMPER SPRING HL-L5100DNT 1 D000TH001 1 MP DAMPER SPRING HL-L5102DW 1 D000TH001 1 MP DAMPER SPRING HL-L5200DW 1 D000TH001 1 MP DAMPER SPRING HL-L5200DWT 1 D000TH001 1 MP DAMPER SPRING HL-L5202DW 1 D000TH001 1 MP DAMPER SPRING HL-L6200DW 1 D000TH001 1 MP DAMPER SPRING HL-L6200DWT 1 D000TH001 1 MP DAMPER SPRING HL-L6202DW 1 D000TH001 1 MP DAMPER SPRING HL-L6250DN 1 D000TH001 1 MP DAMPER SPRING HL-L6250DW 1 D007PP001 1 MP DAMPER SPRING HL-L6300DW 1 D007PP001 1 MP DAMPER SPRING HL-L6300DWT 1 D007PP001 1 MP DAMPER SPRING HL-L6400DW 1 D007PP001 1 MP DAMPER SPRING HL-L6400DWT 1 D007PP001 1 MP DAMPER SPRING HL-L6402DW 3 D0091R001 1 TOP COVER ASSY (SP) HL-5580D 3 D0091P001 1 TOP COVER ASSY (SP) HL-5585D 3 D0091D001 1 TOP COVER ASSY (SP) HL-5590DN 3 D0091C001 1 TOP COVER ASSY (SP) HL-5595DN 3 D0091V001 1 TOP COVER ASSY (SP) HL-L5000D 3 D0091X001 1 TOP COVER ASSY (SP) HL-L5100DN 3 D0091X001 1 TOP COVER ASSY (SP) HL-L5100DNT 3 D0091H001 1 TOP COVER ASSY (SP) HL-L5102DW 3 D006TE001 1 TOP COVER ASSY (SP) HL-L5200DW 3 D006TE001 1 TOP COVER ASSY (SP) HL-L5200DWT 3 D0091F001 1 TOP COVER ASSY (SP) HL-L5202DW 3 D0091B001 Top Cover Assy Fully refurbished with 90-day warranty D0091B001 $56.71 3 D0091B001 Top Cover Assy Fully refurbished with 90-day warranty D0091B001 $56.71 3 D0091L001 1 TOP COVER ASSY (SP) HL-L6202DW 3 D0091W001 1 TOP COVER ASSY (SP) HL-L6250DN 3 D0091N001 Top Cover Assembly Fully refurbished with 90-day warranty D0091N001 $93.16 3 D00920001 1 TOP COVER ASSY (SP) HL-L6300DW FOR USA 3 D00920002 1 TOP COVER ASSY (SP) HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 3 D00920002 1 TOP COVER ASSY (SP) HL-L6300DWT 3 D006XD001 1 TOP COVER ASSY (SP) HL-L6400DW	Diagram placeholder
9. COVERS & LABELS 3 D006XD001 1 TOP COVER ASSY (SP) HL-L6400DWT 3 D0091J001 1 TOP COVER ASSY (SP) HL-L6402DW 1 D004RZ001 1 TOP COVER PRINTED ASSY HL-5580D 1 D004RZ001 1 TOP COVER PRINTED ASSY HL-5585D 1 D004X1001 1 TOP COVER PRINTED ASSY HL-5590DN 1 D004X1001 1 TOP COVER PRINTED ASSY HL-5595DN 1 D004RZ001 1 TOP COVER PRINTED ASSY HL-L5000D 1 D004X1001 1 TOP COVER PRINTED ASSY HL-L5100DN 1 D004X1001 1 TOP COVER PRINTED ASSY HL-L5100DNT 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L5102DW 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L5200DW 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L5200DWT 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L5202DW 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L6200DW 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L6200DWT 1 D0005Z001 1 TOP COVER PRINTED ASSY HL-L6202DW 1 D004X1002 1 TOP COVER PRINTED ASSY HL-L6250DN 1 D0005Z002 1 TOP COVER PRINTED ASSY HL-L6250DW 1 D0053B001 1 TOP COVER PRINTED ASSY HL-L6300DW FOR USA 1 D0053B002 1 TOP COVER PRINTED ASSY HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 1 D0053B002 1 TOP COVER PRINTED ASSY HL-L6300DWT 1 D001X6001 1 TOP COVER PRINTED ASSY HL-L6400DW 1 D001X6001 1 TOP COVER PRINTED ASSY HL-L6400DWT 1 D001X6001 1 TOP COVER PRINTED ASSY HL-L6402DW 2 A51299001 1 LCD HL-5580D 2 A51299001 1 LCD HL-5585D 2 A51299001 1 LCD HL-5590DN 2 A51299001 1 LCD HL-5595DN 2 A51299001 1 LCD HL-L5000D 2 A51299001 1 LCD HL-L5100DN 2 A51299001 1 LCD HL-L5100DNT 2 A51299001 1 LCD HL-L5102DW 2 A51299001 1 LCD HL-L5200DW 2 A51299001 1 LCD HL-L5200DWT 2 A51299001 1 LCD HL-L5202DW 2 A51299001 1 LCD HL-L6200DW 2 A51299001 1 LCD HL-L6200DWT 2 A51299001 1 LCD HL-L6202DW 2 A51299001 1 LCD HL-L6250DN 2 A51299001 1 LCD HL-L6250DW 3 D0000P001 1 PANEL PCB ASSY HL-5580D 3 D0000P001 1 PANEL PCB ASSY HL-5585D 3 D0000P001 1 PANEL PCB ASSY HL-5590DN 3 D0000P001 1 PANEL PCB ASSY HL-5595DN 3 D0000P001 1 PANEL PCB ASSY HL-L5000D 3 D0000P001 1 PANEL PCB ASSY HL-L5100DN 3 D0000P001 1 PANEL PCB ASSY HL-L5100DNT 3 D0000P001 1 PANEL PCB ASSY HL-L5102DW 3 D0000P001 1 PANEL PCB ASSY HL-L5200DW 3 D0000P001 1 PANEL PCB ASSY HL-L5200DWT 3 D0000P001 1 PANEL PCB ASSY HL-L5202DW 3 D0000P001 1 PANEL PCB ASSY HL-L6200DW 3 D0000P001 1 PANEL PCB ASSY HL-L6200DWT 3 D0000P001 1 PANEL PCB ASSY HL-L6202DW 3 D0000P001 1 PANEL PCB ASSY HL-L6250DN 3 D0000P001 1 PANEL PCB ASSY HL-L6250DW 4 D003RS001 1 LCD SHEET HL-5580D 4 D003RK001 1 LCD SHEET HL-5585D 4 D003J6001 1 LCD SHEET HL-5590DN 4 D003FA001 1 LCD SHEET HL-5595DN 4 D004R7001 1 LCD SHEET HL-L5000D 4 D003EU001 1 LCD SHEET HL-L5100DN 4 D003EU001 1 LCD SHEET HL-L5100DNT 4 D003KS001 1 LCD SHEET HL-L5102DW 4 D0005R001 1 LCD SHEET HL-L5200DW 4 D0005R001 1 LCD SHEET HL-L5200DWT 4 D003KD001 1 LCD SHEET HL-L5202DW 4 D001X5001 1 LCD SHEET HL-L6200DW 4 D001X5001 1 LCD SHEET HL-L6200DWT 4 D003LU001 1 LCD SHEET HL-L6202DW	Diagram placeholder
9. COVERS & LABELS 5 D000CX001 1 STACK SENSOR PCB ASSY HL-L6300DW 5 D000CX001 1 STACK SENSOR PCB ASSY HL-L6300DWT 5 D000CX001 1 STACK SENSOR PCB ASSY HL-L6400DW 5 D000CX001 1 STACK SENSOR PCB ASSY HL-L6400DWT 5 D000CX001 1 STACK SENSOR PCB ASSY HL-L6402DW 6 D001BE004 1 MX COVER ASSY HL-L6300DW FOR USA 6 D001BE002 1 MX COVER ASSY HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 6 D001BE002 1 MX COVER ASSY HL-L6300DWT 6 D001BE002 1 MX COVER ASSY HL-L6400DW 6 D001BE002 1 MX COVER ASSY HL-L6400DWT 6 D001BE002 1 MX COVER ASSY HL-L6402DW 7 D0053F001 1 LCD PANEL ASSY HL-L6300DW FOR USA 7 D0053F002 1 LCD PANEL ASSY HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 7 D0053F002 1 LCD PANEL ASSY HL-L6300DWT 7 D001UB001 1 LCD PANEL ASSY HL-L6400DW 7 D001UB001 1 LCD PANEL ASSY HL-L6400DWT 7 D003L1001 1 LCD PANEL ASSY HL-L6402DW 8 D0077L002 1 PANEL COVER CASE UPPER (SP) HL-L6300DW FOR USA 8 D0077L001 1 PANEL COVER CASE UPPER (SP) HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 8 D0077L001 1 PANEL COVER CASE UPPER (SP) HL-L6300DWT 8 D0077L001 1 PANEL COVER CASE UPPER (SP) HL-L6400DW 8 D0077L001 1 PANEL COVER CASE UPPER (SP) HL-L6400DWT 8 D0077L001 1 PANEL COVER CASE UPPER (SP) HL-L6402DW 1 D000D3001 1 KEY PCB FLAT CABLE HL-L6300DW 1 D000D3001 1 KEY PCB FLAT CABLE HL-L6300DWT 1 D000D3001 1 KEY PCB FLAT CABLE HL-L6400DW 1 D000D3001 1 KEY PCB FLAT CABLE HL-L6400DWT 1 D000D3001 1 KEY PCB FLAT CABLE HL-L6402DW 9 D0000T002 1 NFC PCB ASSY HL-L6300DW 9 D0000T002 1 NFC PCB ASSY HL-L6300DWT 9 D0000T002 1 NFC PCB ASSY HL-L6400DW 9 D0000T002 1 NFC PCB ASSY HL-L6400DWT 9 D0000T002 1 NFC PCB ASSY HL-L6402DW 4 D0021L001 1 BACK COVER HL-5580D 4 D0021L001 1 BACK COVER HL-5585D 4 D0021L001 1 BACK COVER HL-5590DN 4 D0021L001 1 BACK COVER HL-5595DN 4 D0005J001 1 BACK COVER HL-L5000D 4 D0005J001 1 BACK COVER HL-L5100DN 4 D0005J001 1 BACK COVER HL-L5100DNT 4 D0005J001 1 BACK COVER HL-L5102DW 4 D0005J001 1 BACK COVER HL-L5200DW 4 D0005J001 1 BACK COVER HL-L5200DWT 4 D0005J001 1 BACK COVER HL-L5202DW 4 D0005J001 1 BACK COVER HL-L6200DW 4 D0005J001 1 BACK COVER HL-L6200DWT 4 D0005J001 1 BACK COVER HL-L6202DW 4 D0005J001 1 BACK COVER HL-L6250DN 4 D0005J002 1 BACK COVER HL-L6250DW 4 D0014D001 Back Cover Fully refurbished with 90-day warranty D0014D001 $33.75 4 D0014D002 1 BACK COVER HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 4 D0014D002 1 BACK COVER HL-L6300DWT 4 D0014D002 1 BACK COVER HL-L6400DW 4 D0014D002 1 BACK COVER HL-L6400DWT 4 D0014D002 1 BACK COVER HL-L6402DW 5 D0021H001 1 SIDE COVER R HL-5580D 5 D0021H001 1 SIDE COVER R HL-5585D 5 D0021H001 1 SIDE COVER R HL-5590DN 5 D00300001 1 SIDE COVER R HL-5595DN 5 D0005U001 1 SIDE COVER R HL-L5000D 5 D0005U001 1 SIDE COVER R HL-L5100DN 5 D0005U001 1 SIDE COVER R HL-L5100DNT 5 D0005U001 1 SIDE COVER R HL-L5102DW 5 D0005U001 1 SIDE COVER R HL-L5200DW 5 D0005U001 1 SIDE COVER R HL-L5200DWT 5 D0005U001 1 SIDE COVER R HL-L5202DW 5 D001VF001 1 SIDE COVER R HL-L6200DW	Diagram placeholder
9. COVERS & LABELS 5 D001VF001 1 SIDE COVER R HL-L6200DWT 5 D001VF001 1 SIDE COVER R HL-L6202DW 5 D001VF001 1 SIDE COVER R HL-L6250DN 5 D001VF002 1 SIDE COVER R HL-L6250DW 5 D000DT001 1 SIDE COVER R HL-L6300DW FOR USA 5 D000DT002 1 SIDE COVER R HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 5 D000DT002 1 SIDE COVER R HL-L6300DWT 5 D000DT002 1 SIDE COVER R HL-L6400DW 5 D000DT002 1 SIDE COVER R HL-L6400DWT 5 D000DT002 1 SIDE COVER R HL-L6402DW 6 D0039X001 1 SIDE COVER L HL-5580D 6 D0039K001 1 SIDE COVER L HL-5585D 6 D0005Y001 1 SIDE COVER L HL-5590DN 6 D001VG001 1 SIDE COVER L HL-5595DN 6 D0039X001 1 SIDE COVER L HL-L5000D 6 D0005Y001 1 SIDE COVER L HL-L5100DN 6 D0005Y001 1 SIDE COVER L HL-L5100DNT 6 D0039K001 1 SIDE COVER L HL-L5102DW 6 D0005Y001 1 SIDE COVER L HL-L5200DW 6 D0005Y001 1 SIDE COVER L HL-L5200DWT 6 D0005Y001 1 SIDE COVER L HL-L5202DW 6 D001VG001 1 SIDE COVER L HL-L6200DW 6 D001VG001 1 SIDE COVER L HL-L6200DWT 6 D001VG001 1 SIDE COVER L HL-L6202DW 6 D001VG001 1 SIDE COVER L HL-L6250DN 6 D001VG002 1 SIDE COVER L HL-L6250DW 6 D000DY001 1 SIDE COVER L HL-L6300DW FOR USA 6 D000DY002 1 SIDE COVER L HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 6 D000DY002 1 SIDE COVER L HL-L6300DWT 6 D000DY002 1 SIDE COVER L HL-L6400DW 6 D000DY002 1 SIDE COVER L HL-L6400DWT 6 D000DY002 1 SIDE COVER L HL-L6402DW 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174006 MP Paper Guide Assy Fully refurbished with 90-day warranty LY4174006 $29.71 7 LY4174007 1 MP PAPER GUIDE ASSY HL-L6250DW 7 D001DW001 MP Paper Guide Assy Fully refurbished with 90-day warranty D001DW001 $29.71 7 D001DW002 1 MP PAPER GUIDE ASSY HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 7 D001DW002 1 MP PAPER GUIDE ASSY HL-L6300DWT 7 D001DW002 1 MP PAPER GUIDE ASSY HL-L6400DW 7 D001DW002 1 MP PAPER GUIDE ASSY HL-L6400DWT 7 D001DW002 1 MP PAPER GUIDE ASSY HL-L6402DW 8 LY4175001 1 OUTER CHUTE 9 D005WD001 1 FUSER COVER 10 D004VK001 1 LABEL REAR JAM 17X55 HL-5580D 10 D004VK001 1 LABEL REAR JAM 17X55 HL-5585D 10 D004VK001 1 LABEL REAR JAM 17X55 HL-5590DN 10 D004VK001 1 LABEL REAR JAM 17X55 HL-5595DN 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5000D 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5100DN 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5100DNT 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5102DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5200DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5200DWT 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L5202DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6200DW	Diagram placeholder
9. COVERS & LABELS 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6200DWT 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6202DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6250DN 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6250DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6300DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6300DWT 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6400DW 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6400DWT 10 D004VK001 1 LABEL REAR JAM 17X55 HL-L6402DW 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-5580D 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-5585D 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-5590DN 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-5595DN 11 D003JD001 1 LABEL CAUTION FRONT 14X130 HL-L5000D FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5000D FOR CAN / GER / UK / CHE / ITA / IBR / ISR / IRN / SGP / IND / RUS / FRA / BEL / HOL / PND / CEE 11 D003JD001 1 LABEL CAUTION FRONT 14X130 HL-L5100DN FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5100DN FOR GER / UK / ARL / CHE / ITA / IBR / ISR / TWN / NZ / ARG / CHL / SGP / KOR / IND / RUS / FRA / BEL / HOL / PND / CEE 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5100DNT 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5102DW 11 D003JD001 1 LABEL CAUTION FRONT 14X130 HL-L5200DW FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5200DW FOR CAN / GER / UK / ARL / CHE / ITA / IBR / NZ / GULF / RUS / FRA / BEL / HOL / PND / CEE 11 D003JD001 1 LABEL CAUTION FRONT 14X130 HL-L5200DWT FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L5202DW 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6200DW FOR CAN / ARL / NZ / ARG / GULF / SGP / IND 11 D003JC001 1 LABEL CAUTION FRONT 14X130 HL-L6200DW FOR USA 11 D003JC001 1 LABEL CAUTION FRONT 14X130 HL-L6200DWT 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6202DW 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6250DN 11 D003JC001 1 LABEL CAUTION FRONT 14X130 HL-L6250DW 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6300DW FOR GER / UK / CHE / ISR / RUS / PND / GEN 11 D003JC001 1 LABEL CAUTION FRONT 14X130 HL-L6300DW FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6300DWT 11 D002RV001 1 LABEL CAUTION FRONT 14X130 HL-L6400DW FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6400DW FOR CAN / GER / UK / ARL / CHE / ISR / TWN / NZ / ARG / CHL / GULF / SGP / KOR / RUS / PND / GEN 11 D002RV001 1 LABEL CAUTION FRONT 14X130 HL-L6400DWT FOR USA 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6400DWT FOR UK / CHE / RUS / PND / GEN 11 D003JF001 1 LABEL CAUTION FRONT 14X130 HL-L6402DW 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-5580D 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-5585D 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-5590DN 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-5595DN 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5000D 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5100DN 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5100DNT 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5102DW 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5200DW 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5200DWT 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L5202DW 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L6200DW 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L6200DWT	Diagram placeholder
9. COVERS & LABELS 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L6202DW 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L6250DN 12 LY4574001 1 LABEL H CAUTION REAR 14X72 HL-L6250DW 12 D0030F001 1 LABEL H CAUTION REAR 14X42 HL-L6300DW 12 D0030F001 1 LABEL H CAUTION REAR 14X42 HL-L6300DWT 12 D0030F001 1 LABEL H CAUTION REAR 14X42 HL-L6400DW FOR USA / CAN / GER / UK / ARL / CHE / ISR / TWN / NZ / GULF / SGP / KOR / RUS / PND / GEN 12 D0030F001 1 LABEL H CAUTION REAR 14X42 HL-L6400DWT 12 D0030F001 1 LABEL H CAUTION REAR 14X42 HL-L6402DW 13 D0030G001 1 LABEL S CAUTION REAR 14X42 HL-L6300DW 13 D0030G001 1 LABEL S CAUTION REAR 14X42 HL-L6300DWT 13 D0030G001 1 LABEL S CAUTION REAR 14X42 HL-L6400DW 13 D0030G001 1 LABEL S CAUTION REAR 14X42 HL-L6400DWT 13 D0030G001 1 LABEL S CAUTION REAR 14X42 HL-L6402DW	Diagram placeholder

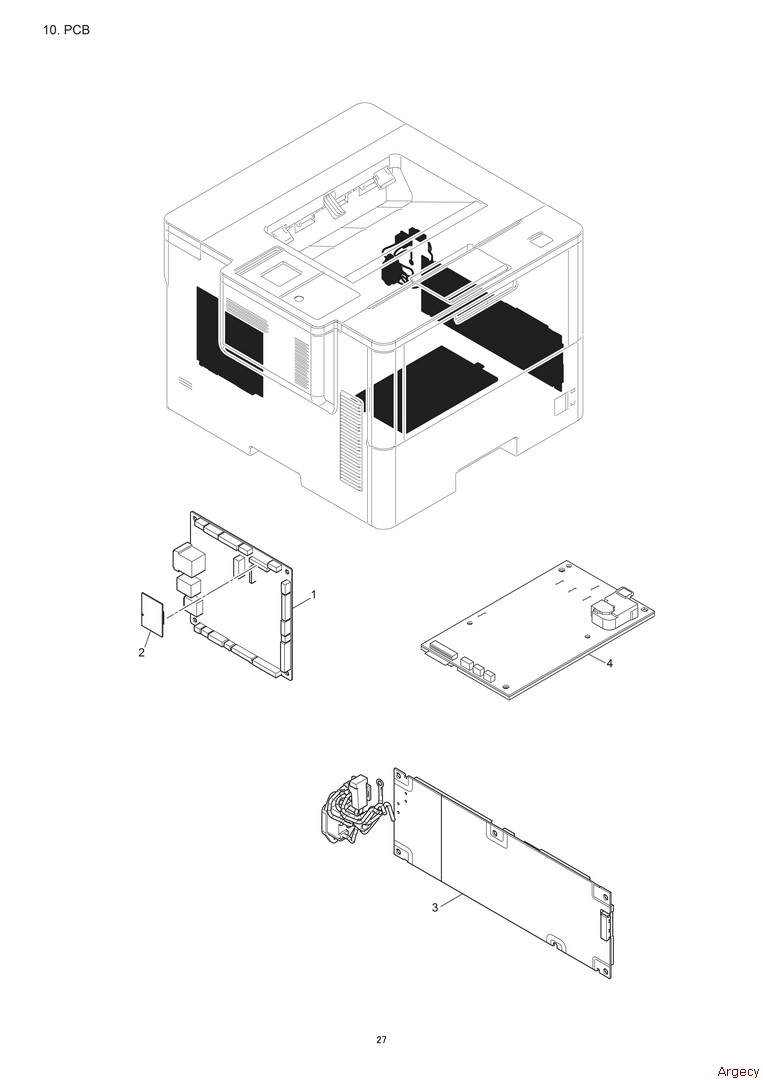

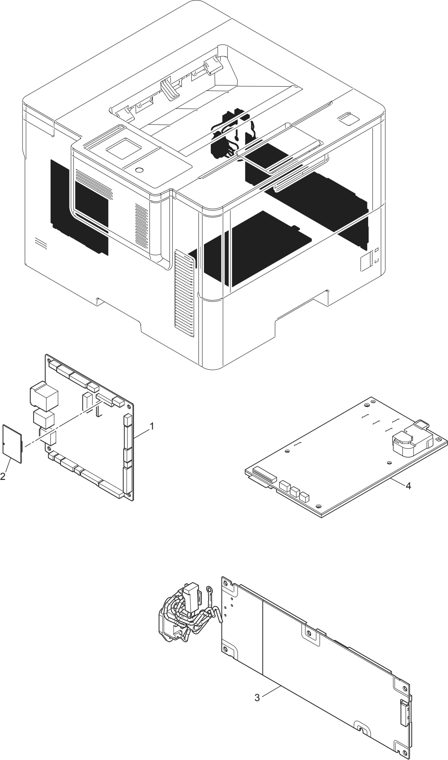

10. PCB 1 D000VD020 1 MAIN PCB ASSY HL-5580D 1 D001PE020 1 MAIN PCB ASSY HL-5585D 1 D000D1020 1 MAIN PCB ASSY HL-5590DN 1 D000VH020 1 MAIN PCB ASSY HL-5595DN 1 D000VD001 1 MAIN PCB ASSY HL-L5000D FOR USA / CAN / GER / UK / CHE / ITA / IBR 1 D000VD040 1 MAIN PCB ASSY HL-L5000D FOR IRN / SGP / IND 1 D000D1001 Main PCB Assy Fully refurbished with 90-day warranty D000D1001 $106.66 1 D000D1040 1 MAIN PCB ASSY HL-L5100DN FOR TWN / SGP / KOR / IND 1 D000D1001 Main PCB Assy Fully refurbished with 90-day warranty D000D1001 $106.66 1 D000VJ042 1 MAIN PCB ASSY HL-L5102DW 1 D000VG001 1 MAIN PCB ASSY HL-L5200DW FOR USA / CAN / GER / UK / ARL / CHE / ITA / IBR / NZ / RUS / FRA / BEL / HOL / PND / CEE 1 D000VG041 1 MAIN PCB ASSY HL-L5200DW FOR GULF 1 D000VG001 1 MAIN PCB ASSY HL-L5200DWT 1 D000VG001 1 MAIN PCB ASSY HL-L5202DW 1 D000VF001 1 MAIN PCB ASSY HL-L6200DW FOR USA / CAN / ARL / NZ / ARG 1 D000VF040 1 MAIN PCB ASSY HL-L6200DW FOR GULF / SGP / IND 1 D000VF001 1 MAIN PCB ASSY HL-L6200DWT 1 D000VF001 1 MAIN PCB ASSY HL-L6202DW 1 D000VH003 1 MAIN PCB ASSY HL-L6250DN 1 D000VF001 1 MAIN PCB ASSY HL-L6250DW 1 D001PJ001 Main PCB Assy Fully refurbished with 90-day warranty D001PJ001 $87.75 1 D001PJ001 Main PCB Assy Fully refurbished with 90-day warranty D001PJ001 $87.75 1 D0000S001 1 MAIN PCB ASSY HL-L6400DW FOR USA / CAN / GER / UK / ARL / CHE / ISR / NZ / ARG / CHL / RUS / PND / GEN 1 D0000S040 1 MAIN PCB ASSY HL-L6400DW FOR TWN / GULF / SGP / KOR 1 D0000S001 1 MAIN PCB ASSY HL-L6400DWT 1 D0000S001 1 MAIN PCB ASSY HL-L6402DW 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 2 LT3652001 Wireless Lan PCB Assy Fully refurbished with 90-day warranty LT3652001 $33.75 3 D0013K001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-5580D 3 D0013K001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-5585D 3 D0013K001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-5590DN 3 D000WM001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-5595DN 3 D003DH001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5000D FOR IND / RUS 3 D0001B001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5000D FOR USA / CAN 3 D000J7001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5000D FOR GER / UK / CHE / ITA / IBR / ISR / IRN / SGP / FRA / BEL / HOL / PND / CEE 3 D003DH001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5100DN FOR IND / RUS 3 D0001B001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5100DN FOR USA / TWN 3 D000J7001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5100DN FOR GER / UK / ARL / CHE / ITA / IBR / ISR / NZ / ARG / CHL / SGP / KOR / FRA / BEL / HOL / PND / CEE 3 D000J7001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5100DNT	Diagram placeholder
10. PCB 3 D000J9001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5102DW 3 D003DH001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5200DW FOR GULF / RUS 3 D0001B001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5200DW FOR USA / CAN 3 D000J7001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5200DW FOR GER / UK / ARL / CHE / ITA / IBR / NZ / FRA / BEL / HOL / PND / CEE 3 D0001B001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5200DWT FOR USA 3 D000J7001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L5200DWT FOR UK / FRA / BEL / HOL / PND 3 D000JY001 LVPS PCB Assy New D000JY001 (New) $141.75 3 D003DK001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6200DW FOR GULF / IND 3 D000K0001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6200DW FOR ARL / NZ / ARG / SGP 3 D000JY001 LVPS PCB Assy New D000JY001 (New) $141.75 3 D003DJ001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6202DW 3 D000K0001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6250DN 3 D000JY001 LVPS PCB Assy New D000JY001 (New) $141.75 3 D000JY001 LVPS PCB Assy New D000JY001 (New) $141.75 3 D000K0001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6300DWT 3 D000JY001 LVPS PCB Assy New D000JY001 (New) $141.75 SUPPLY PCB ASSY HL-L6400DW FOR USA / CAN / TWN 3 D003DK001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6400DW FOR GULF / RUS 3 D000K0001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6400DW FOR GER / UK / ARL / CHE / ISR / NZ / ARG / CHL / SGP / KOR / PND / GEN 3 D000JY001 LVPS PCB Assy New D000JY001 (New) $141.75 3 D003DK001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6400DWT FOR RUS 3 D000K0001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6400DWT FOR UK / CHE / PND / GEN 3 D003DJ001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY HL-L6402DW 4 D0000V001 HVPS Fully refurbished with 90-day warranty D0000V001 $128.25 SUPPLY PCB ASSY	Diagram placeholder

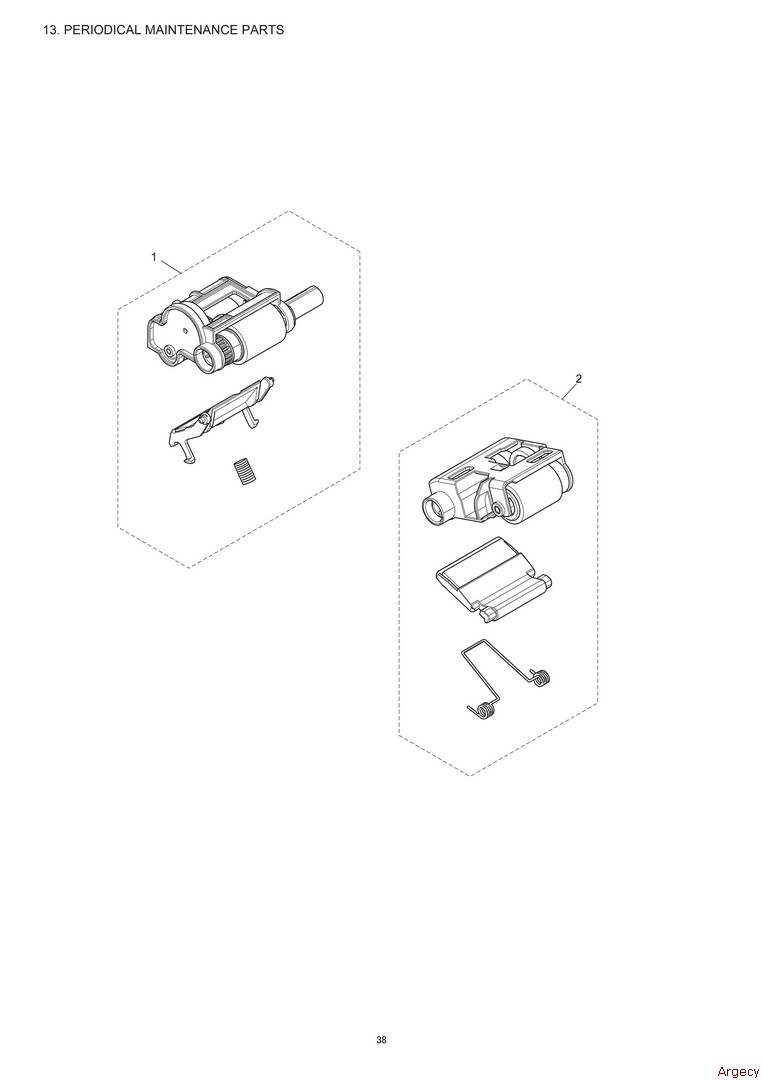

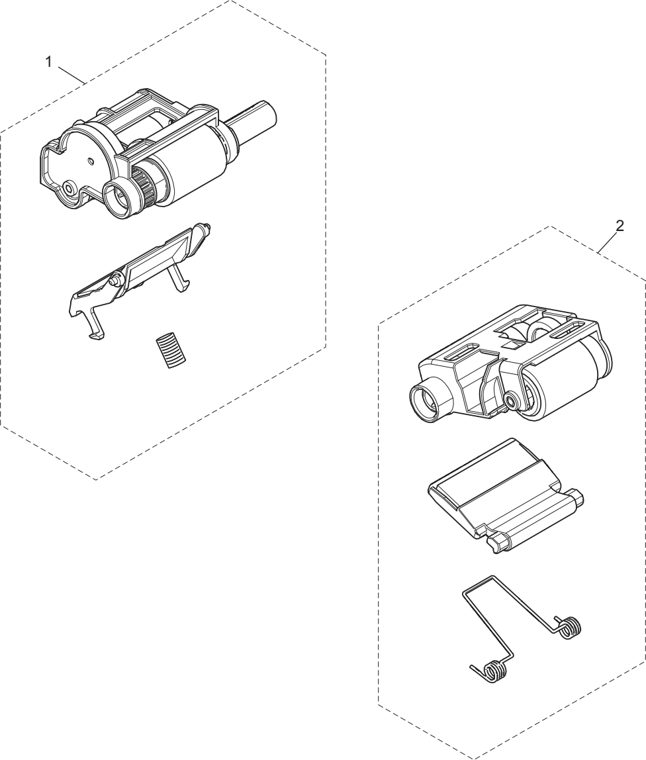

13.PERIODICAL MAINTENANCE PARTS 1 D008GE001 Paper Feeding Kit New D008GE001 (New) $33.75 2 D008GD001 Manual Feed Kit New D008GD001 (New) $25.65	Diagram placeholder

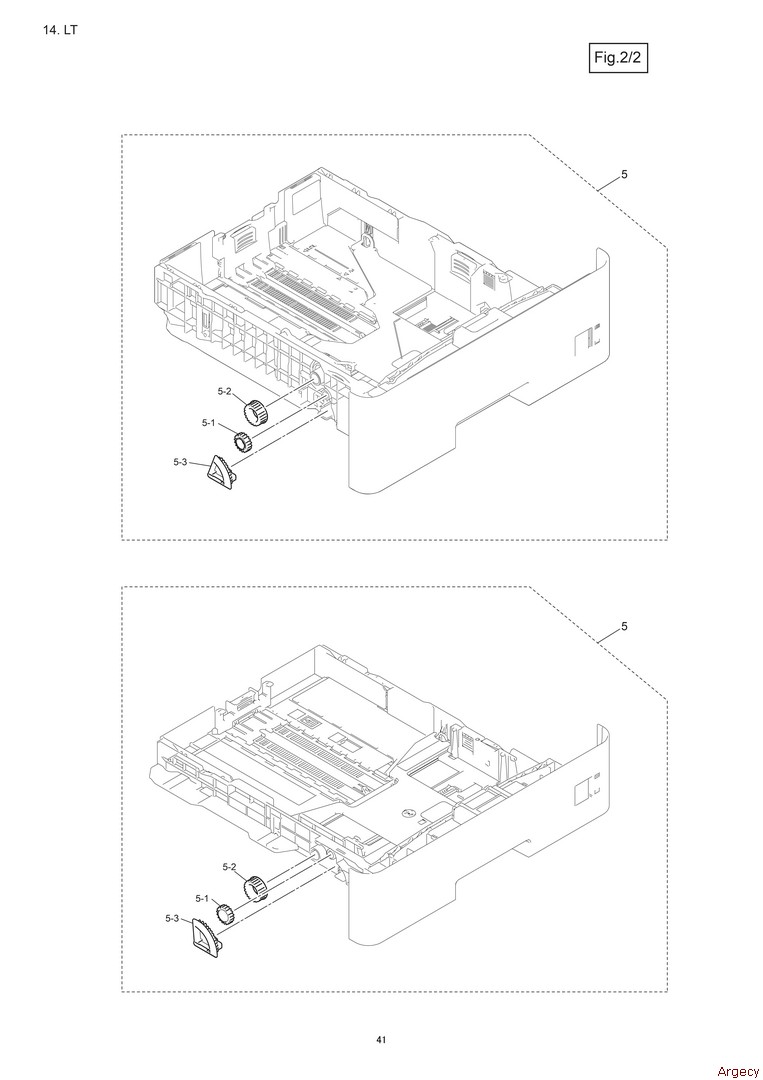

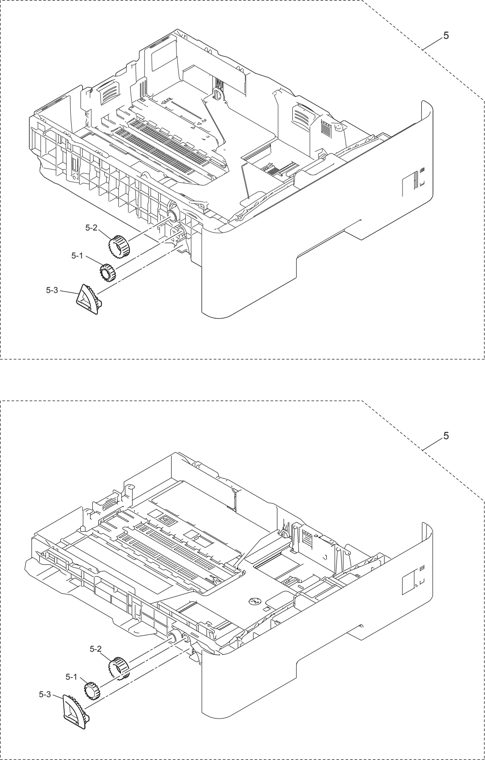

14. LT 1 D001BT001 1 LT RELEASE CLUTCH HL-L5100DNT 1 D001BT001 1 LT RELEASE CLUTCH HL-L5200DWT 1 D001BT001 1 LT RELEASE CLUTCH HL-L6200DWT 1 D001BT001 1 LT RELEASE CLUTCH HL-L6300DWT 1 D001BT001 1 LT RELEASE CLUTCH HL-L6400DWT 2 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 2 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 2 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 2 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 2 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 3 D001C8001 1 LT PAPER EMPTY SENSOR PCB ASSY HL-L5100DNT 3 D001C8001 1 LT PAPER EMPTY SENSOR PCB ASSY HL-L5200DWT 3 D001C8001 1 LT PAPER EMPTY SENSOR PCB ASSY HL-L6200DWT 3 D001C8001 1 LT PAPER EMPTY SENSOR PCB ASSY HL-L6300DWT 3 D001C8001 1 LT PAPER EMPTY SENSOR PCB ASSY HL-L6400DWT 4 D001CJ001 1 LT PAPER FEED SENSOR PCB ASSY HL-L5100DNT 4 D001CJ001 1 LT PAPER FEED SENSOR PCB ASSY HL-L5200DWT 4 D001CJ001 1 LT PAPER FEED SENSOR PCB ASSY HL-L6200DWT 4 D001CJ001 1 LT PAPER FEED SENSOR PCB ASSY HL-L6300DWT 4 D001CJ001 1 LT PAPER FEED SENSOR PCB ASSY HL-L6400DWT 5 D0096W001 Replacement Paper Tray (520-sheet capacity) New D0096W001 (New) Contact for Details 5 D0096W001 Replacement Paper Tray (520-sheet capacity) New D0096W001 (New) Contact for Details 5 D0096W001 Replacement Paper Tray (520-sheet capacity) New D0096W001 (New) Contact for Details 5 D0096W002 1 LT PAPER TRAY UNIT (SP) HL-L6300DWT 5 D0096W002 1 LT PAPER TRAY UNIT (SP) HL-L6400DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L5100DNT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L5200DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6200DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6300DWT 1 LU9365001 1 IDLE GEAR 50 Z18M10 HL-L6400DWT 2 LY4243001 1 GEAR Z22M10 HL-L5100DNT 2 LY4243001 1 GEAR Z22M10 HL-L5200DWT 2 LY4243001 1 GEAR Z22M10 HL-L6200DWT 2 LY4243001 1 GEAR Z22M10 HL-L6300DWT 2 LY4243001 1 GEAR Z22M10 HL-L6400DWT 3 LY4516001 1 LIFT GEAR Z48M10 HL-L5100DNT 3 LY4516001 1 LIFT GEAR Z48M10 HL-L5200DWT 3 LY4516001 1 LIFT GEAR Z48M10 HL-L6200DWT 3 LY4516001 1 LIFT GEAR Z48M10 HL-L6300DWT 3 LY4516001 1 LIFT GEAR Z48M10 HL-L6400DWT 6 D001HD001 1 LT CONTROL PCB ASSY HL-L5100DNT 6 D001HD001 1 LT CONTROL PCB ASSY HL-L5200DWT 6 D001HD001 1 LT CONTROL PCB ASSY HL-L6200DWT 6 D001HD001 1 LT CONTROL PCB ASSY HL-L6300DWT 6 D001HD001 1 LT CONTROL PCB ASSY HL-L6400DWT 7 LM9266001 1 LT / TT CONNECTO R HL-L5100DNT 7 LM9266001 1 LT / TT CONNECTO R HL-L5200DWT 7 LM9266001 1 LT / TT CONNECTO R HL-L6200DWT 7 LM9266001 1 LT / TT CONNECTO R HL-L6300DWT 7 LM9266001 1 LT / TT CONNECTO R HL-L6400DWT 8 LY5498001 1 LT CONNECTOR ASSY HL-L5100DNT 8 LY5498001 1 LT CONNECTOR ASSY HL-L5200DWT 8 LY5498001 1 LT CONNECTOR ASSY HL-L6200DWT 8 LY5498001 1 LT CONNECTOR ASSY HL-L6300DWT 8 LY5498001 1 LT CONNECTOR ASSY HL-L6400DWT	Diagram placeholder
