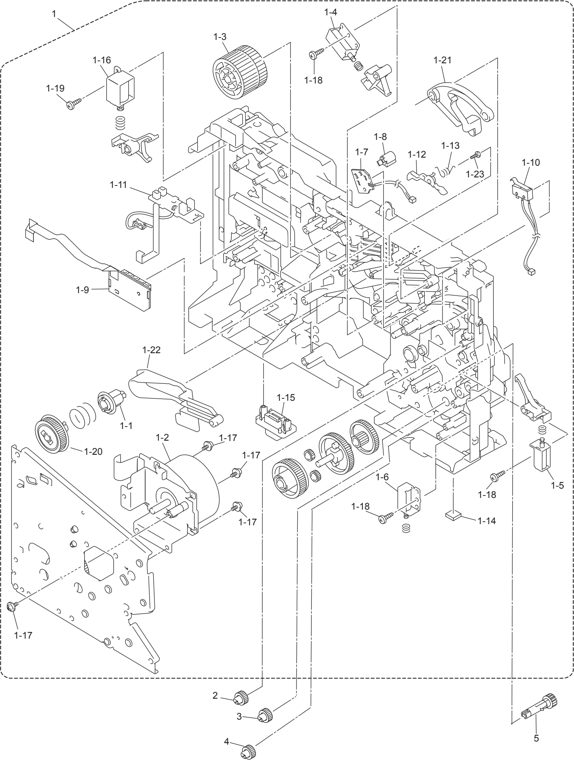

1. FRAME L&DRIVE UNIT 1 LU8068001 1 MAIN FRAME L UNIT, HL-5340D / 5340DL, HL-5340D RUS TENDE R CHG 1 LU8070001 Main Frame L Unit 70 Fully refurbished with 90-day warranty LU8070001 $62.10 1 LU8069001 1 MAIN FRAME L UNIT 80, HL-5350DN / 5350DNLT / 5380DN / 5380DN-MO F CHG 1 LU7214001 1 DEVELOP JOINT1- 2 LM5047001 Main Motor Fully refurbished with 90-day warranty LM5047001 $36.46 3 LM5048001 1 FUSER GEAR 39 H / R DRIVE1- 4 LM5058001 Refubished Register Solenoid Assy Fully refurbished with 90-day warranty LM5058001 $33.75 5 LM5062001 1 MP SOLENOID ASSY1- 6 LM5067001 1 T1 SOLENOID ASSY1- 7 LJ9935001 Toner Sensor PWB Fully refurbished with 90-day warranty LJ9935001 $31.05 8 UL9037001 1 PT SENSOR HOLDER1- 9 LV0690001 1 RELAY FRONT PCB ASSY CHG 10 LJ9940001 1 INTERLOCK SW ASSY 1- 11 LJ9942001 1 RELAY REAR PCB ASSY1- 12 LM5085001 1 NEW TONER ACTUATOR1- 13 LM5086001 1 NEW TONER ACTUATOR SPRING1- 14 LJ7403001 1 RUBBER FOOT1- 15 LJ9945001 1 CONNECTOR 16 LM5011001 1 EJECTOR SOLENOID1- 17 087320616 4 TAPTITE CUP S M3x61- 18 085311016 3 TAPTITE BIND B M3x101- 19 085311016 1 TAPTITE BIND B M3x101- 20 LM5043001 1 DEV GEAR 37R JOINT DRIVE 21 LM5080001 Drive Release Link Fully refurbished with 90-day warranty LM5080001 $33.75 22 LM5079001 1 DRIVE RELEASE CAM 23 087210616 1 TAPTITE CUP B M2X6 2 LM5104001 1 GEAR 17 MP ROLLER DRIVE 3 LM5103001 1 GEAR 20 T1 ROLLER DRIVE 4 LM5102001 1 GEAR 17 FEED ROLLER DRIVE 5 LM5051001 1 DX GEAR 15 TRAY DRIVE	Diagram placeholder

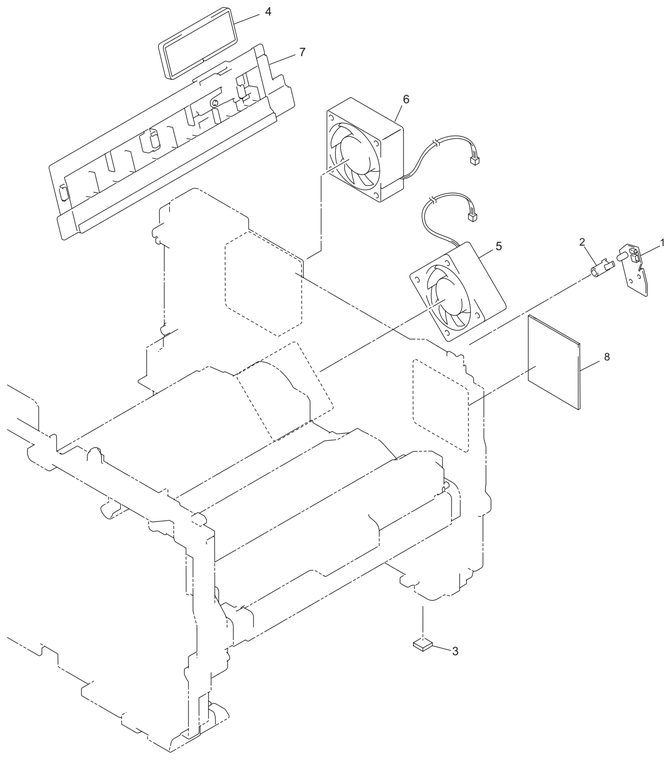

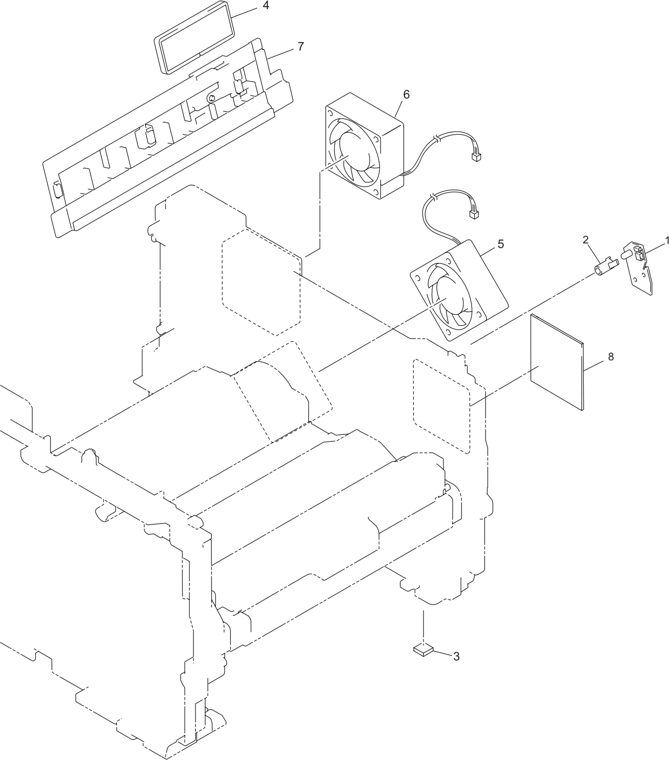

2. FRAME UNIT 1 LV0282001 Toner LED PCB Assy Fully refurbished with 90-day warranty LV0282001 $32.41 2 LM4267001 1 LED HOLDE R 3 LJ7403001 1 RUBBER FOOT 4 LU7141001 1 FILTER 5 LM5114001 1 FAN MOTOR 60 UNIT LV 6 LU7032001 1 FAN MOTOR 60 UNIT 7 LM6655001 1 AIR DUCT JPN ASSY AL 8 LT0963001 1 PCB T60H989.	Diagram placeholder

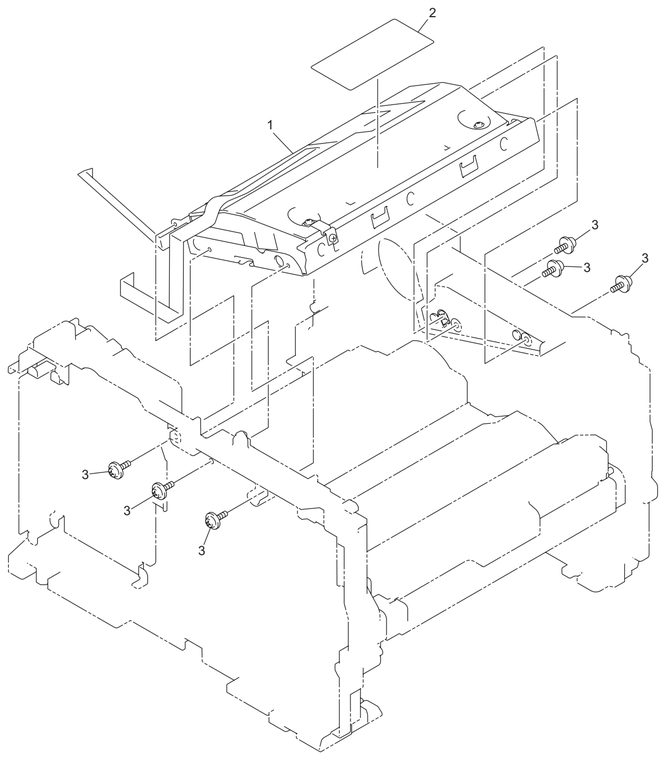

3. LASER UNIT 1 LU7176001 Laser Scanner New LU7176001 (New) $384.75 LU7176001 Laser Scanner Fully refurbished with 90-day warranty LU7176001 $93.16 2 LJ0908001 1 LASER CAUTION LABEL B EXCEPT FOR CHN 2 UL7931001 1 LASER CAUTION LABEL FOR CHN 3 087320616 6 TAPTITE CUP S M3x6	Diagram placeholder

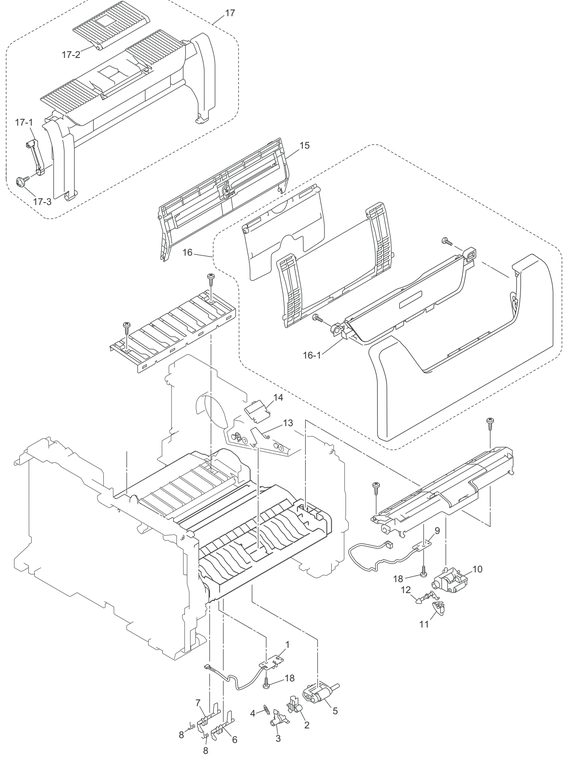

4. PAPER FEEDER 1 LM9001001 1 PE EG SENSOR ASSY 2 LU7935001 1 PE ACTUATOR ASSY CHG 3 LM5132001 1 EDGE ACTUATOR 4 LM5133001 1 EDGE ACTUATOR SPRING 5 LU7179001 Pickup Roller Assembly New LU7179001 (New) $32.41 6 LM5150001 1 REGIST ACTUATOR FRONT 7 LM5151001 Regist Actuator Rear Fully refurbished with 90-day warranty LM5151001 $33.75 8 LM5152001 2 REGIST ACTUATOR SPRING 9 LJ9999001 1 MP PE SENSOR ASSY 10 LU7184001 1 MP ROLLER HOLDER ASSY 11 LM5171001 1 PE ACTUATOR MP 12 LU0027001 Pe Actuator Mp B 2 Fully refurbished with 90-day warranty LU0027001 $33.75 13 LM6490001 1 MP SEPARATION SPRING A 14 LM6752001 MP Separation Pad Fully refurbished with 90-day warranty LM6752001 $33.75 15 LM5196005 TRAY MP ASSY 16 LU7147001 1 MP TRAY COVER ASSY, HL-5340D / 5340DL, HL-5340D 16 LU7035001 1 MP TRAY COVER ASSY, HL-5350DN / 5350DNLT / 5370DW / 5370DWT / 5380DN / 5380DN 17 LU7319001 1 EMBLEM COVER ASSY, HL-5340D / 5340DL, HL-5340D 17 LU7206001 1 EMBLEM COVER ASSY,HL-5350DN / 5350DNLT / 5370DW / 5370DWT / 5380DN / 5380DN 17 LU7037001 Front/Process Cover Fully refurbished with 90-day warranty LU7037001 $45.91 17 LU7527001 1 PROCESS COVER ASSY FOR CHN 17 LU7689001 1 PROCESS COVER ASSY FOR IND 1 LM5124001 1 PROCESS COVER STOPPER17- 2 LU7039001 1 SUPPORT FLAP 117- 3 087411016 1 TAPTITE CUP B M4X10 18 085310816 2 TAPTITE BIND B M3x8	Diagram placeholder

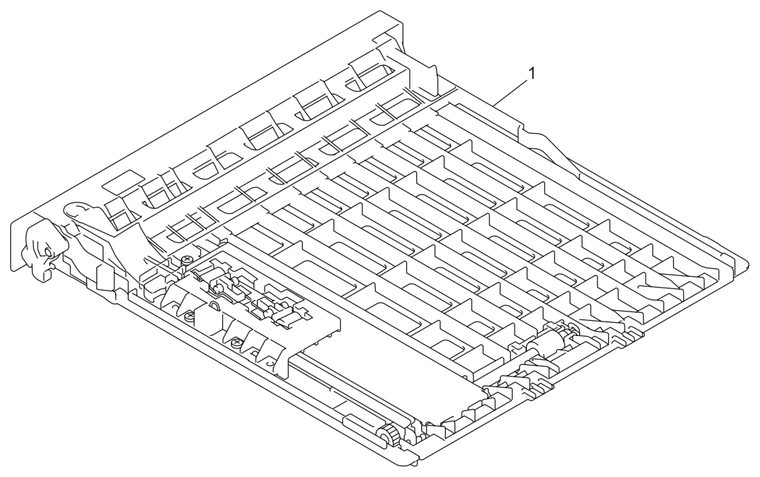

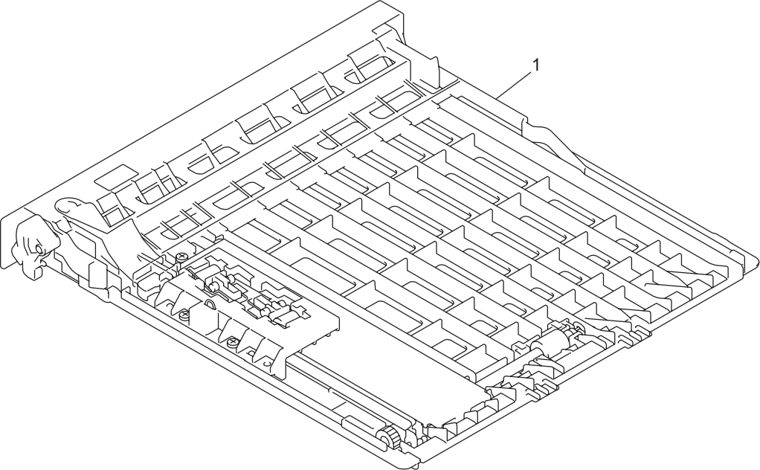

5. DX 1 LM5209001 Duplex Feed Guide Fully refurbished with 90-day warranty LM5209001 $32.41 1 LU7503001 1 DX FEED ASSY A4 ALE EXCEPT FOR US / CAN / PHL / ARG / CHI / BRZ	Diagram placeholder

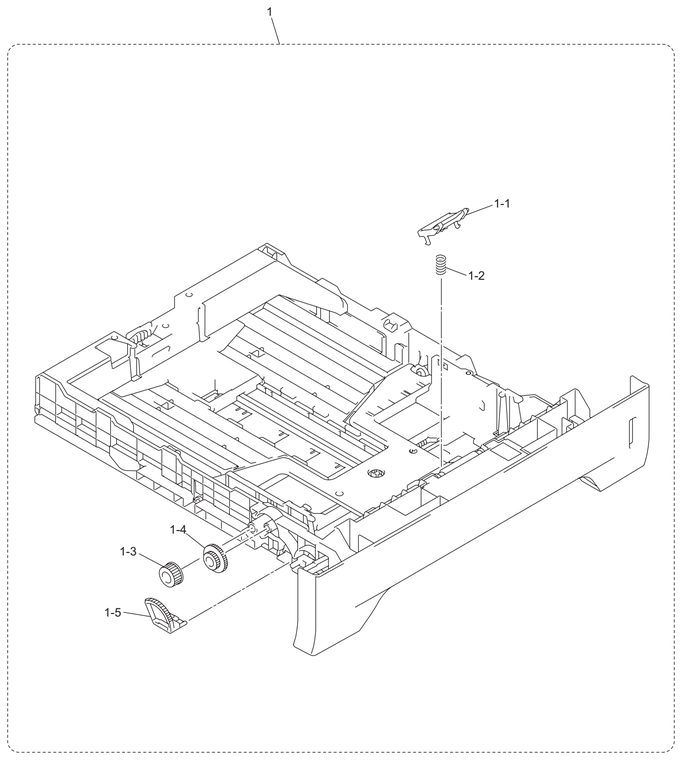

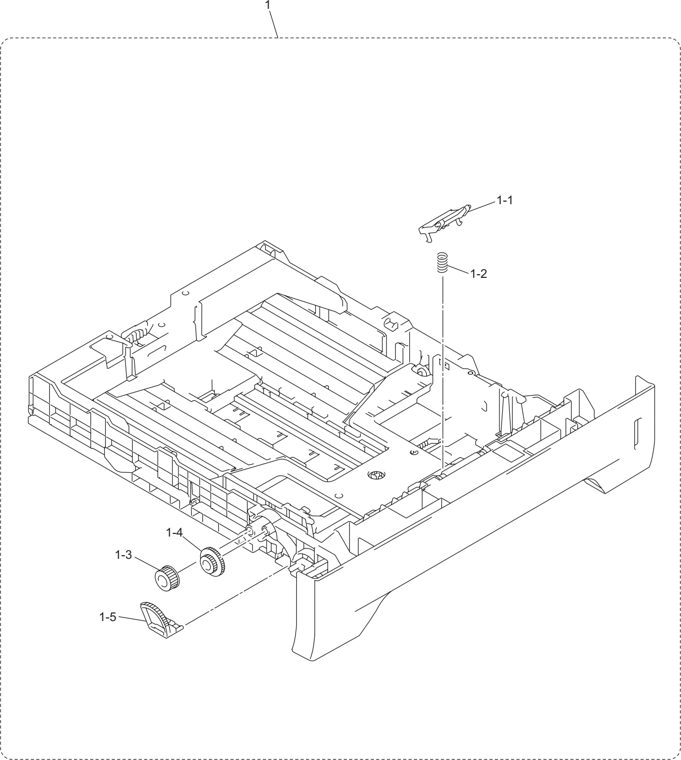

6. PAPER TRAY 1 LU7198001 1 PAPER TRAY UNIT UNIV ALE, HL-5340D / 5350DN / 5370DW / 5370DWT / 5380DN FOR US / CAN / PHL / ARG / CHI / BRZ / IND 1 LU7203001 1 PAPER TRAY UNIT A4 ALE, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5380DN EXCEPT FOR US / CAN / PHL / ARG / CHI / BRZ / IND 1 LM5237001 Separation Pad New LM5237001 (New) $31.05 2 LM5239001 1 SEPARATION PAD SPRING1- 3 LM5245001 1 GEAR 151- 4 LM5246001 1 GEAR 21-161- 5 LM5247001 1 LIFT GEAR 46	Diagram placeholder

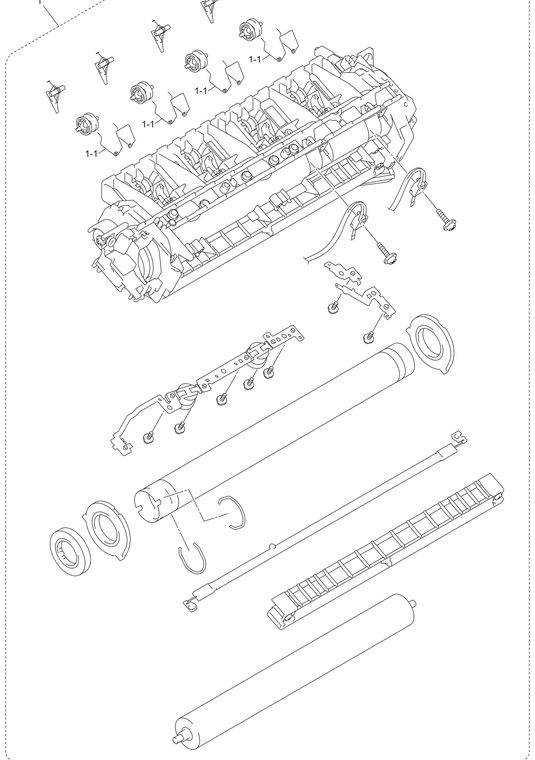

7. FUSER UNIT 1 LU8233001 Fuser Unit 115V New LU8233001 Compatible (New) $99.00 LU8233001 Fuser Assembly 110V New LU8233001 (New) $145.00 1 LU8236001 1 FUSER UNIT 230V (SP) 1 LU7078001 4 PRESSURE SPRING 2 LU7154001 4 EJECT PINCH ROLLER M	Diagram placeholder

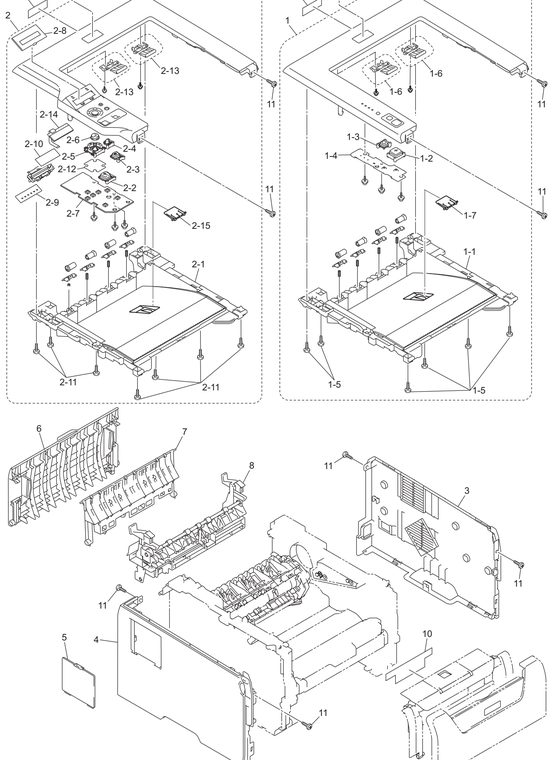

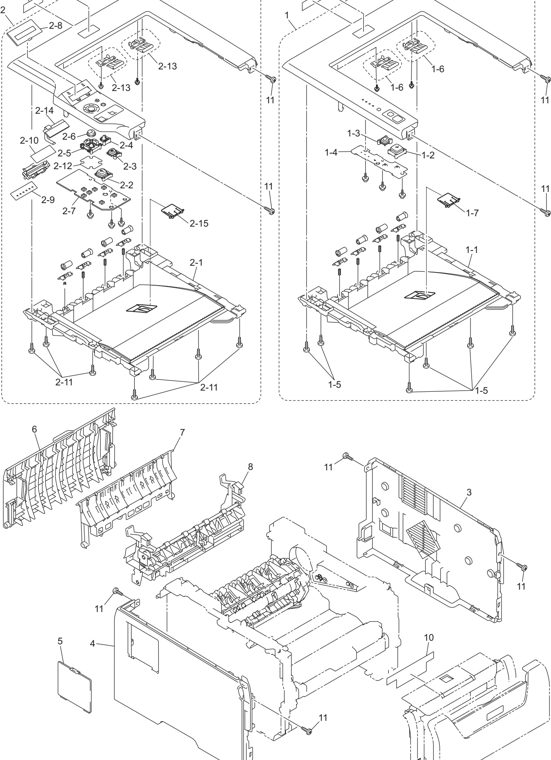

8. COVERS&LABELS 1 LU7040001 1 TOP COVER ASSY, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5370DWT, HL-5340D RUS TENDE R 1 LU7044001 1 INNER CHUTE 2 LM5083001 1 SW KEY A, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5370DWT, HL-5340D RUS TENDE R 3 LM5084001 1 SW KEY B, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5370DWT, HL-5340D RUS TENDE R 4 LV0286001 1 PANEL PCB ASSY, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5370DWT, HL-5340D RUS TENDER 5 085411216 6 TAPTITE BIND B M4x12 6 LU7312001 2 PAPER STACK LEVER SP ASSY, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5370DWT, HL-5340D RUS TENDER 7 LU7118001 1 SUPPORT FLAP 2 2 LU7148001 1 TOP COVER ASSY ALE LCD, HL-5380DN / 5380DN-MOF 1 LU7044001 1 INNER CHUTE 2 LM5530001 1 SW KEY A, HL-5380DN / 5380DN-MOF 3 LM5531001 1 SW KEY B, HL-5380DN / 5380DN-MOF 4 LM5532001 1 SW KEY C, HL-5380DN / 5380DN-MOF 5 LM5635001 1 SET KEY PRINTED ASSY, HL-5380DN / 5380DN-MOF 6 LM5534001 1 KEY TOP, HL-5380DN / 5380DN-MOF 7 LM9041001 1 LCD PANEL PCB ASSY, HL-5380DN / 5380DN-MOF 8 LU7153001 1 PANEL PLATE PRINTED ASSY 5380, HL-5380DN / 5380DN-MOF 9 LM9043001 1 BACK LIGHT PCB ASSY, HL-5380DN / 5380DN-MOF 10 LE7130001 1 BACK LIGHT FILM, HL-5380DN / 5380DN-MO F 11 085411216 7 TAPTITE BIND B M4x12 12 LM5882001 1 SET KEY FILM, HL-5380DN / 5380DN-MOF 13 LU7312001 2 PAPER STACK LEVER SP ASSY, HL-5380DN / 5380DN-MOF 14 LG6059001 1 LCD, HL-5380DN / 5380DN-MO F 15 LU7118001 1 SUPPORT FLAP 2 3 LM5778001 1 SIDE COVER R ASSY 4 LM5780001 1 SIDE COVER L ASSY, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW / 5370DWT,HL-5340D RUS TENDER 4 LM5779001 1 SIDE COVER L 2 ASSY, HL-5380DN 4 LU7820001 1 SIDE COVER L ASSY, HL-5380DN-MOF 5 LM5273001 1 ACCESS COVER 6 LU7046001 1 BACK COVER 7 LU7047001 1 OUTER CHUTE ASSY 8 LU7126001 Rear Chute Assembly Fully refurbished with 90-day warranty LU7126001 $32.41 9 LU7100001 1 MODEL PLATE 5340D 9 LU8288001 1 MODEL PLATE 5340DL 9 LU7299001 1 MODEL PLATE 5350DN 9 LU7131001 1 MODEL PLATE 5370DW / 5370DWT 9 LU7132001 1 MODEL PLATE 5380DN / 5380DN-MO F 10 LU7108001 1 PROCESS UNIT OP LABEL US, HL-5340D / 5350DN / 5370DW / 5370DWT FOR US / CAN / TWN / ARG / CHI / BRZ 10 LU7301001 1 PROCESS UNIT OP LABEL EUR, HL-5340D / 5340DL / 5350DN / 5350DNLT / 5370DW FOR GER / UK / SWI / ITA / SPA / ISR / RUS / PAN-NOR / FRA / IBERIA / CEE-GENERAL, HL-5340D RUS TENDER 10 LU7497001 1 PROCESS UNIT OP LABEL AP, HL-5340D / 5350DN / 5370DWFOR ARL / PHL / TUR / GULF / SGP / KOR / IND 10 LU7525001 1 PROCESS UNIT OP LABEL CHN, FOR CHN 10 LU7341001 1 PROCESS UNIT OP LABEL 5380 EUR, HL-5380DNFOR GER / UK / SWI / ITA / ISR / PAN-NOR / FRA / IBERIA / CEE-GENERAL,HL-5380DN-MOF 10 LU7496001 1 PROCESS UNIT OP LABEL 5380 AP, HL-5380DNFOR ARL / PHL / TUR / GULF / SGP / KOR 11 085411216 6 TAPTITE BIND B M4x12 12 LU7303001 1 FUSER CAUTION LABEL	Diagram placeholder

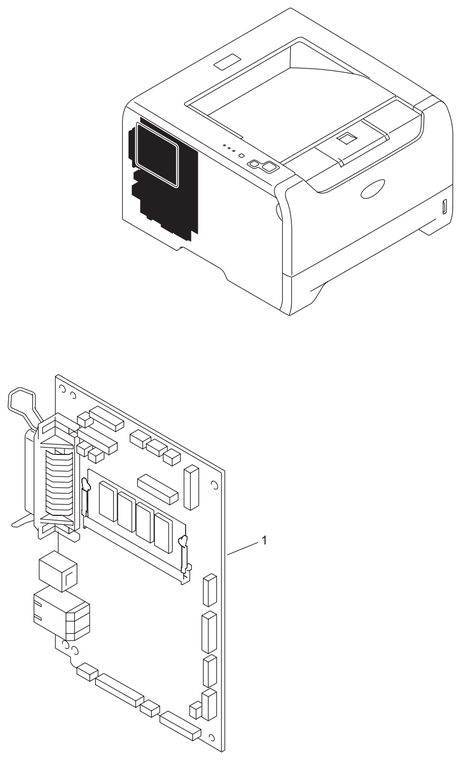

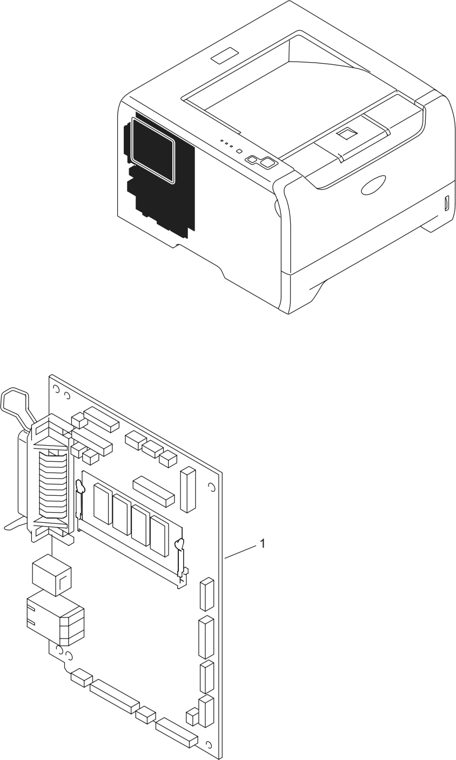

9. MAIN PCB 1 LV0226001 1 MAIN PCB ASSY 5340D / 5340DL EXCEPT FOR CHN / IND, HL-5340D RUS TENDE RB512291 1 LV0390001 1 MAIN PCB ASSY 5340D FOR CHN B512291 1 LV0448001 1 MAIN PCB ASSY 5340D FOR IND B512291 ADD 1 LV0344001 1 MAIN PCB ASSY 5350DN / 5350DNTL EXCEPT FOR CHN / INDB512291 1 LV0391001 1 MAIN PCB ASSY 5350DN FOR CHN B 1 LV0449001 1 MAIN PCB ASSY 5350DN FOR IND B512291 ADD 1 LV0313001 Main PCB Assembly Fully refurbished with 90-day warranty LV0313001 $236.25 FOR US / CAN / BRZB 1 LV0359001 1 MAIN PCB ASSY 5370DW EXCEPT FOR US / CAN / CHN / BRZB512291 1 LV0424001 1 MAIN PCB ASSY 5370DW FOR CHN B512291 1 LV0314001 1 MAIN PCB ASSY 5380DN / 5380DN	Diagram placeholder

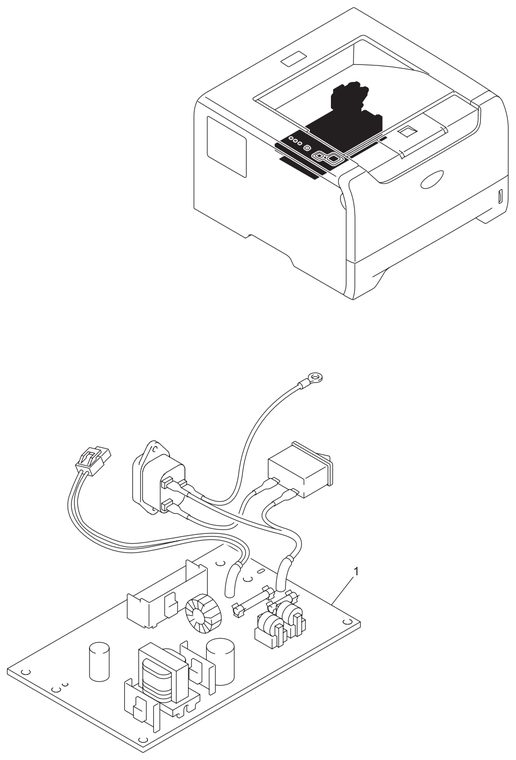

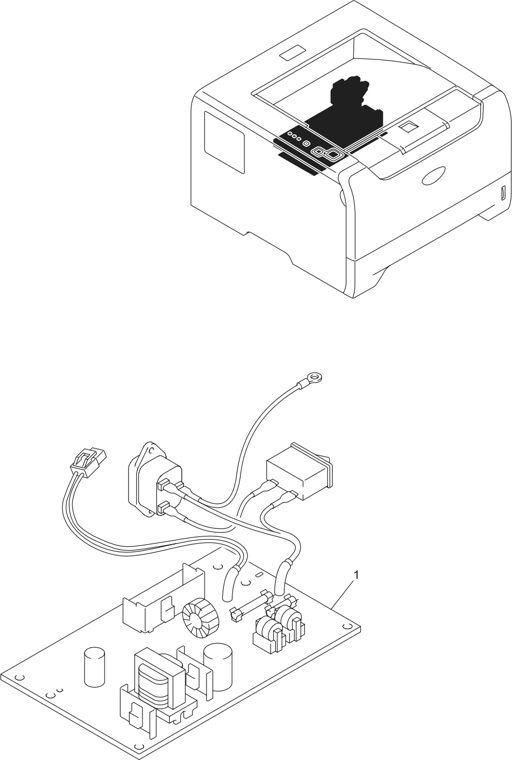

10. LVPS 1 LV0292001 Power Supply - 115V Fully refurbished with 90-day warranty LV0292001 $45.91 1 LV0551001 1 PS PCB UNIT 115V FOR TWN ADD 1 LV0328001 1 PS PCB UNIT 230V EXCEPT FOR CHN / IND / KOR / RUS 1 LU7519001 1 PS PCB UNIT 230V FOR CHN / IND / RUS 1 LV0437001 1 PS PCB UNIT 230V FOR KOR	Diagram placeholder

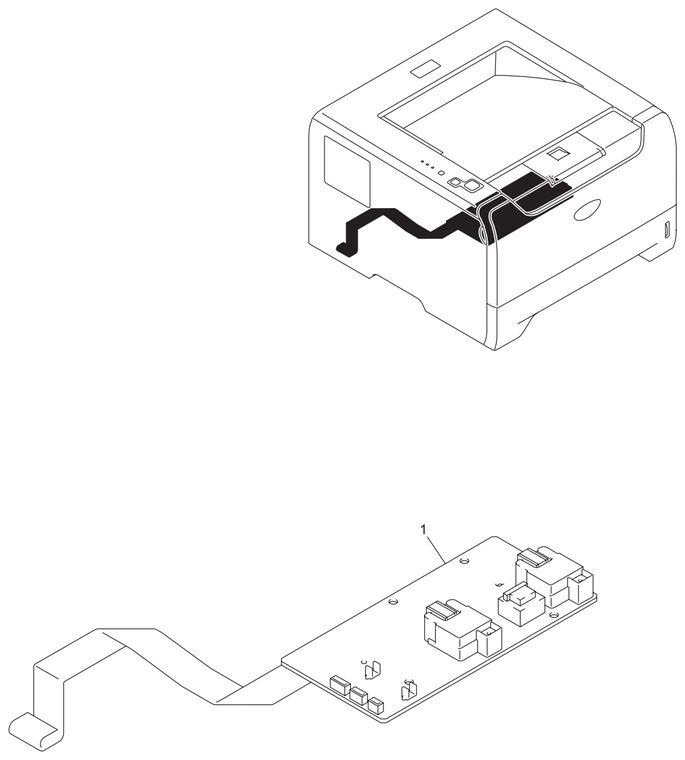

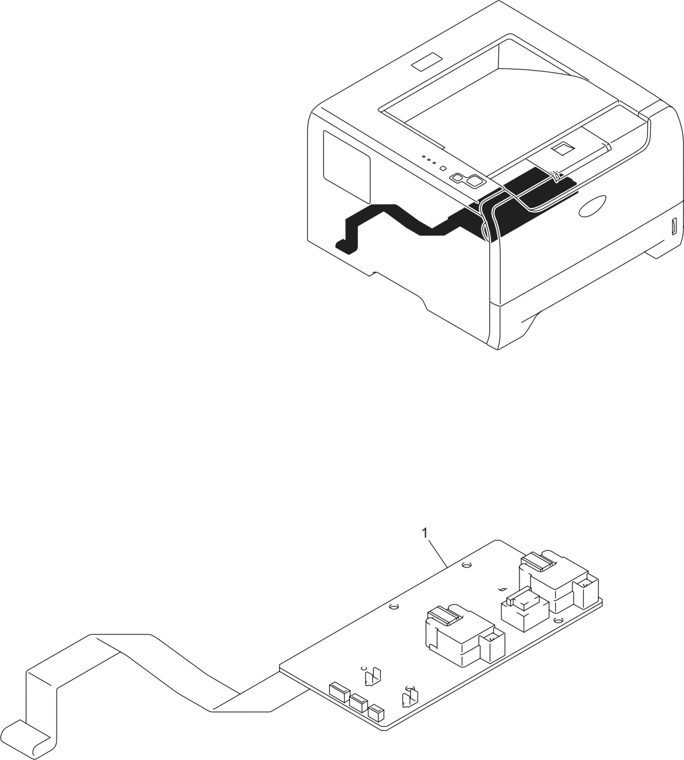

11. HVPS 1 LJ9978001 High-Voltage Ps PCB Assy Fully refurbished with 90-day warranty LJ9978001 $70.20	Diagram placeholder

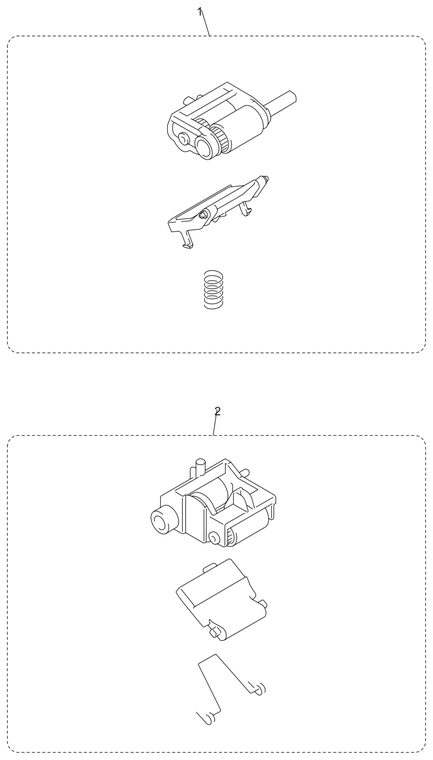

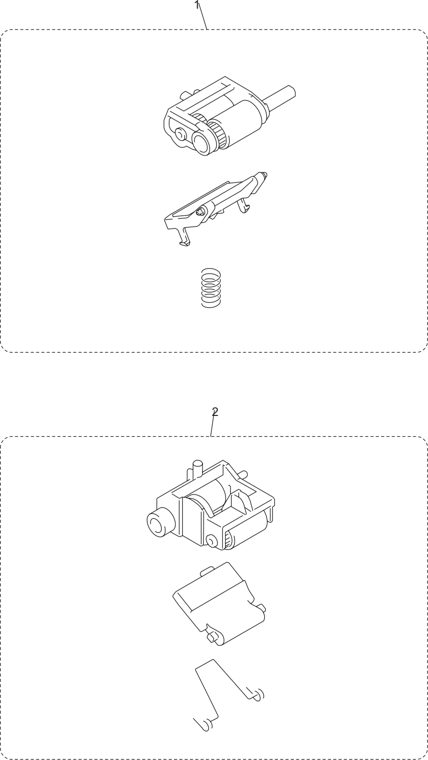

15. PERIODICAL MAITENANCE PARTS 1 LU7338001 Paper Feed Kit - Pick Roll Separation Roller Paper Feed Kit - Main Tray New LU7338001 (New) $43.21 2 LU7339001 1 MP ROLLER HOLDER ALE SP ASSY	Diagram placeholder

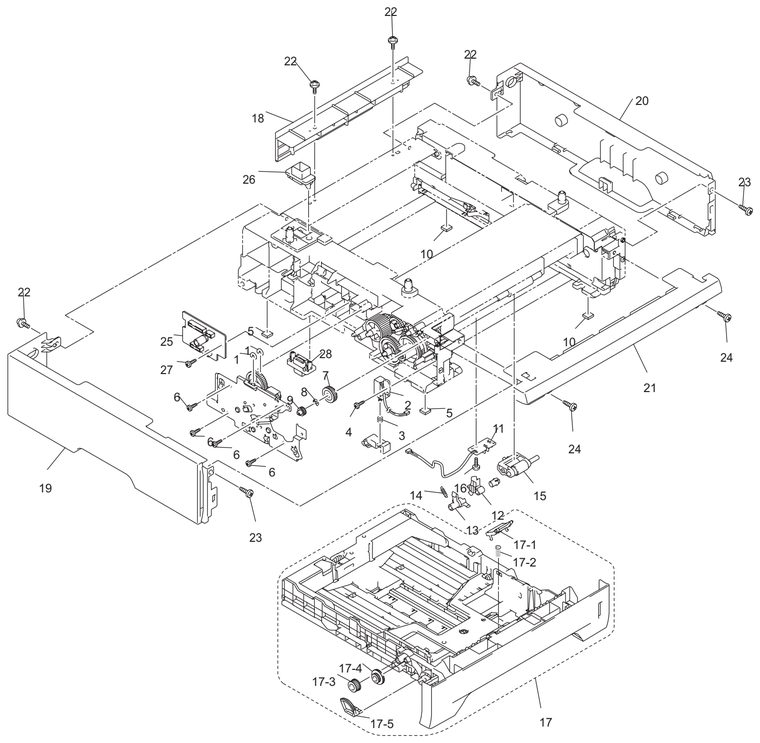

16. LT 1 LJ1175001 2 COLLAR 6 2 LM5509001 1 LT SOLENOID ASS Y 3 LJ5014001 1 SOLENOID RELEASE SPRING P / R 4 085311016 1 TAPTITE BIND B M3x 5 LJ7403001 2 RUBBER FOOT 6 085411216 4 TAPTITE BIND B M4x 7 LM3740001 1 GEAR 24 LT 8 048040346 1 RETAINING RING E4 9 LM5103001 1 GEAR 20 T1 ROLLER DRIVE 10 LJ7403001 2 RUBBER FOOT 11 LM9010001 1 LT SENSOR PCB ASSY 12 LU0684001 1 PE ACTUATOR 13 LM5132001 1 EDGE ACTUATOR 14 LM5133001 1 EDGE ACTUATOR SPRING 15 LM5140001 Pickup Roller Assembly New LM5140001 (New) $32.41 16 085310816 1 TAPTITE BIND B M3x 17 LU7264001 1 PAPER TRAY UNIT A4 ALE LT FOR EUR, HL-5350DNLT 17 LU7198001 1 PAPER TRAY UNIT UNIV ALE, HL-5370DWT 1 LM5237001 Separation Pad New LM5237001 (New) $31.05 2 LM5239001 1 SEPARATION PAD SPRING17- 3 LM5245001 1 GEAR 1517- 4 LM5246001 1 GEAR 21-1617- 5 LM5247001 1 LIFT GEAR 46 18 LM5452001 1 LT REAR COVER 19 LM5453001 1 LT SIDE COVER L 20 LM5454001 1 LT SIDE COVER R 21 LM5455001 1 LT FRONT COVER 22 LM5867001 4 TAPTITE CUP S M3x 6 SR 23 085411216 2 TAPTITE BIND B M4X12 24 087411216 2 TAPTITE CUP B M4X12 25 LJ9957001 1 LT PCB ASSY AL 26 LJ9955001 1 CONNECTOR: 27 085411216 1 TAPTITE BIND B M4x 28 LJ9945001 1 CONNECTOR:	Diagram placeholder
