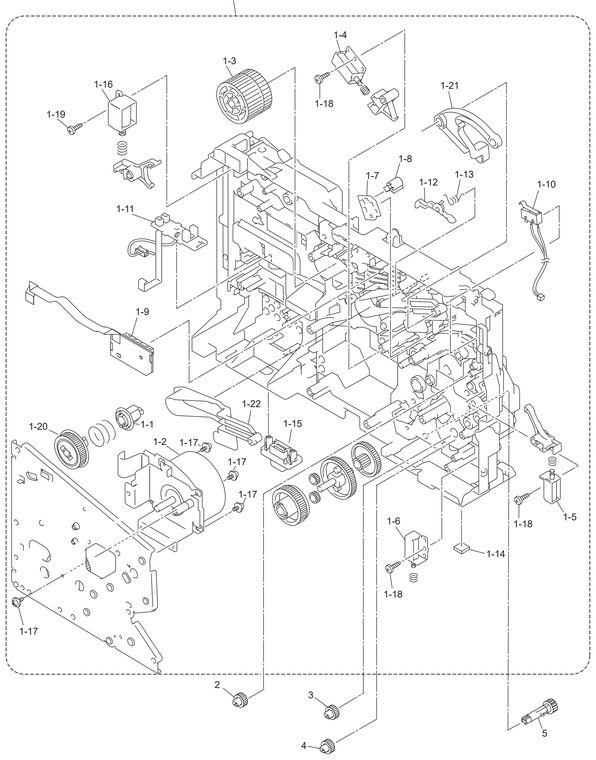

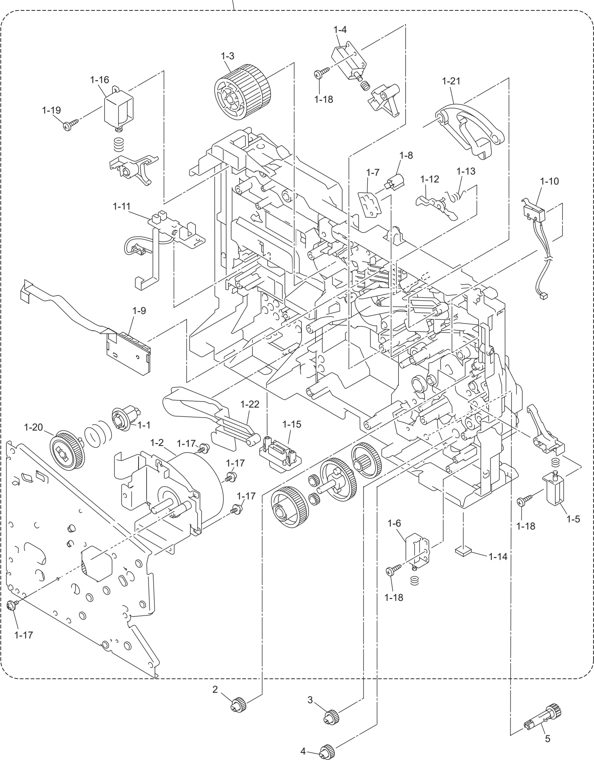

1. FRAME L&DRIVE UNIT 1 LU1343001 Main Frame L Unit Fully refurbished with 90-day warranty LU1343001 $52.66 1 LU1344001 1 MAIN FRAME L UNIT 40 (HL-5240 / 5240L ) 1 LU7214001 1 DEVELOP JOINT 2 LM5047001 Main Motor Fully refurbished with 90-day warranty LM5047001 $36.46 3 LM5048001 1 FUSER GEAR 39 H / R DRIVE 4 LM5058001 Refubished Register Solenoid Assy Fully refurbished with 90-day warranty LM5058001 $33.75 5 LM5062001 1 MP SOLENOID ASS Y 6 LM5067001 1 T1 SOLENOID ASS Y 7 LJ9935001 Toner Sensor PWB Fully refurbished with 90-day warranty LJ9935001 $31.05 8 UL9037001 1 PT SENSOR HOLDER 9 LV0690001 1 RELAY FRONT PCB ASSY AL 10 LJ9940001 1 INTERLOCK SW ASSY AL1- 11 LJ9942001 1 RELAY REAR PCB ASSY AL (HL-5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 11 LM9168001 1 RELAY REAR PCB 2 ASSY AL (HL-5240 / 5240L ) chg 12 LM5085001 1 NEW TONER ACTUATOR1- 13 LM5086001 1 NEW TONER ACTUATOR SPRING1- 14 LJ7403001 1 RUBBER FOOT 15 LJ9945001 1 CONNECTOR 54702-12191- 16 LM5011001 1 EJECTOR SOLENOID (HL-5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 17 087320616 4 TAPTITE CUP S M3x6 18 085311016 3 TAPTITE BIND B M3x1 0 19 085311016 1 TAPTITE BIND B M3x10 (HL-5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 20 LM5043001 1 DEV GEAR 37R JOINT DRIVE 21 LM5080001 Drive Release Link Fully refurbished with 90-day warranty LM5080001 $33.75 22 LM5079001 1 DRIVE RELEASE CAM 2 LM5104001 1 GEAR 17 MP ROLLER DRIVE 3 LM5103001 1 GEAR 20 T1 ROLLER DRIVE 4 LM5102001 1 GEAR 17 FEED ROLLER DRIVE 5 LM5051001 1 DX GEAR 15 TRAY DRIVE (EXCEPT HL-5240 / 5240L)	Diagram placeholder

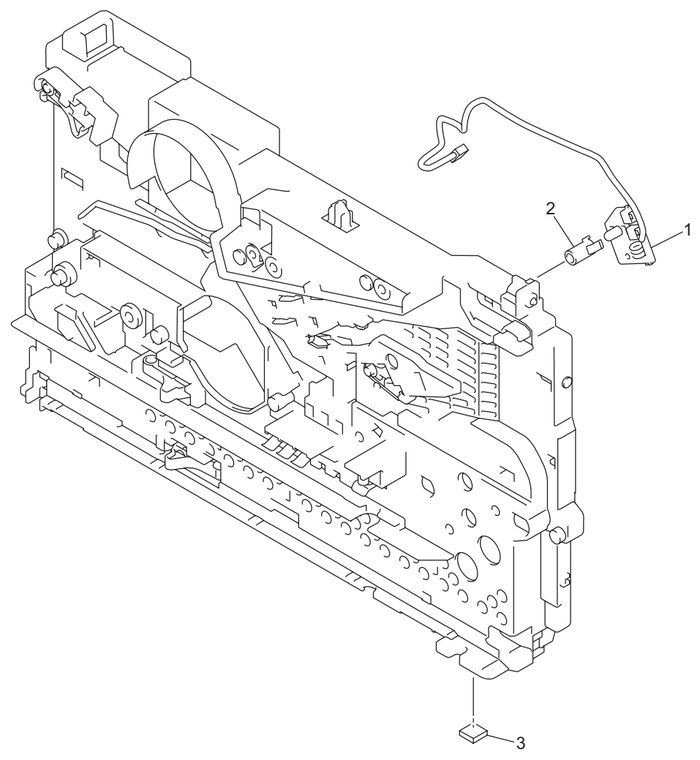

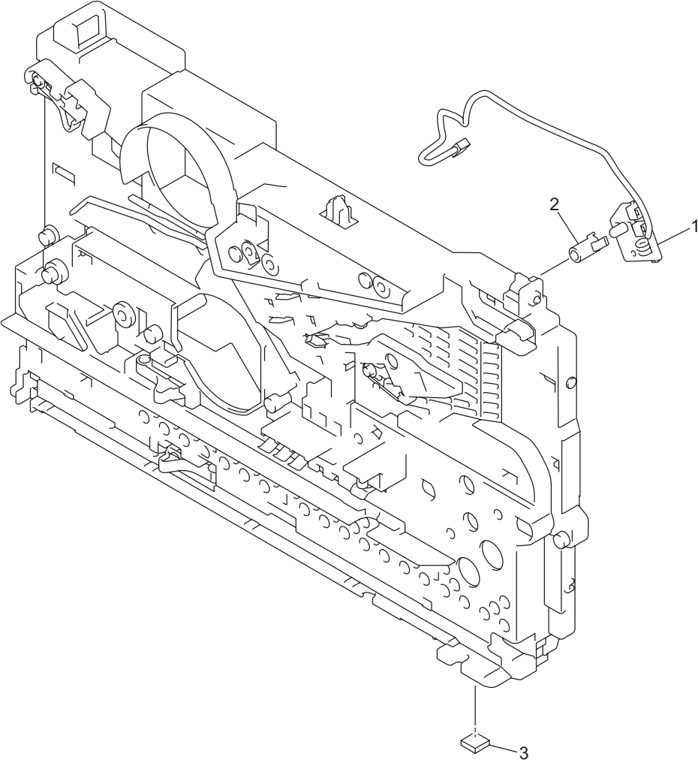

2. FRAME R UNIT 1 LM9022001 Toner LED PCB Fully refurbished with 90-day warranty LM9022001 $31.05 2 LM4267001 1 LED HOLDER 3 LJ7403001 1 RUBBER FOOT	Diagram placeholder

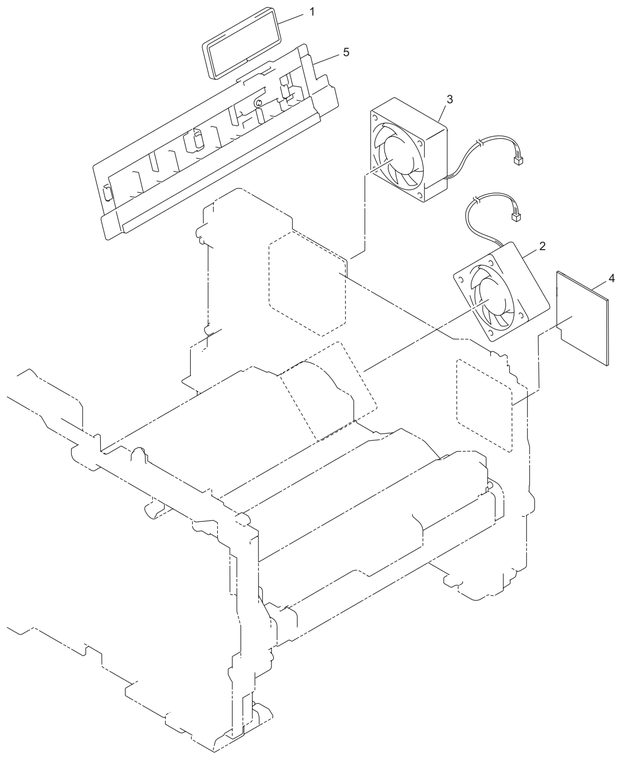

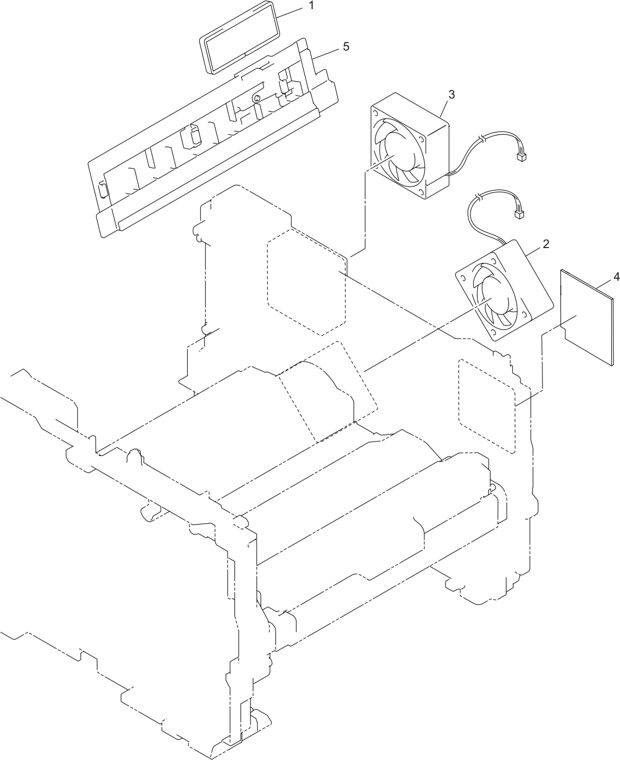

3. FRAME UNIT 1 LU0951001 1 FILTER T7 ASS Y 2 LM5114001 1 FAN MOTOR 60 UNIT L V 3 LM5116001 1 FAN MOTOR 60 UNI T 4 LG6846001 1 PCB T60H929. Brazil) / GER / UK / SWI / GENERAL / PAN-NORDIC 4 LG7359001 1 WIRELESS PCB (HL-5280DW ) 5 LM6655001 1 AIR DUCT ASSY AL	Diagram placeholder

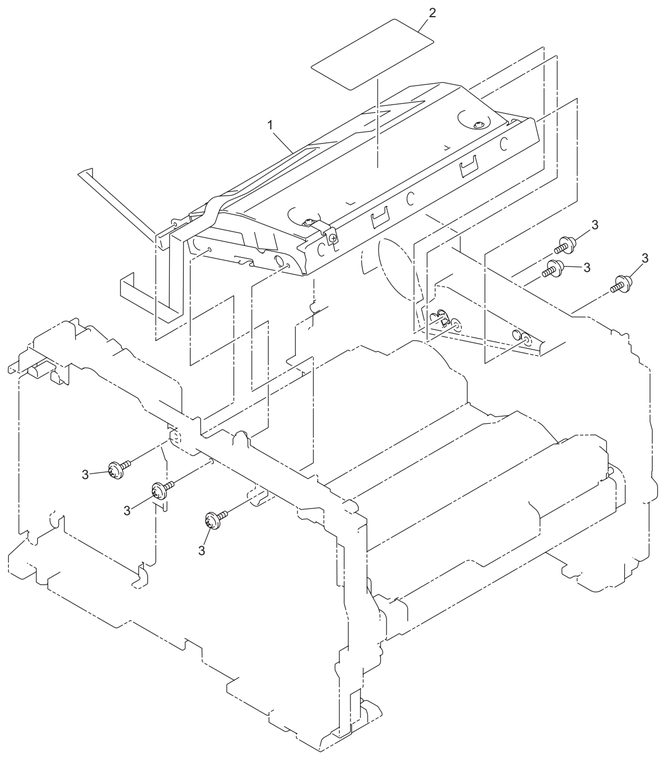

4. LASER UNIT 1 LM5750001 Laser Unit Fully refurbished with 90-day warranty LM5750001 $86.41 2 LJ0908001 1 LASER CAUTION LABEL B (EXCEPT CHN) 2 UL7931001 1 LASER CAUTION LABEL (CHN) 3 087320616 6 TAPTAITE CUP S M3x6	Diagram placeholder

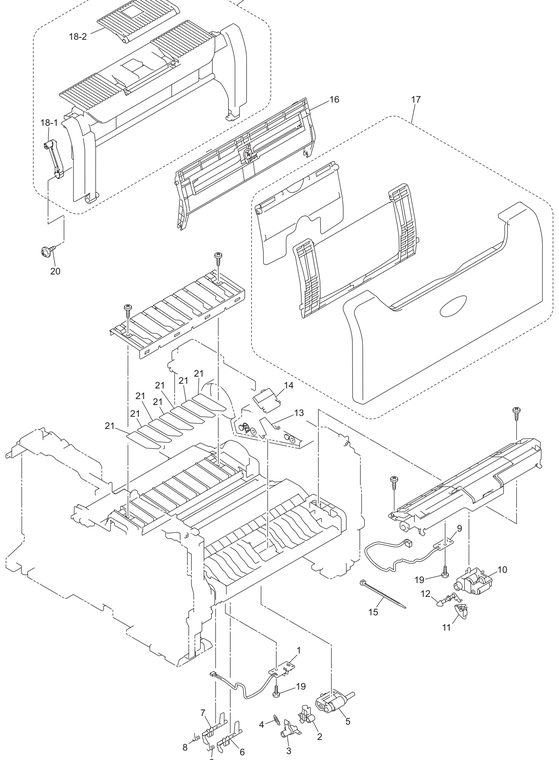

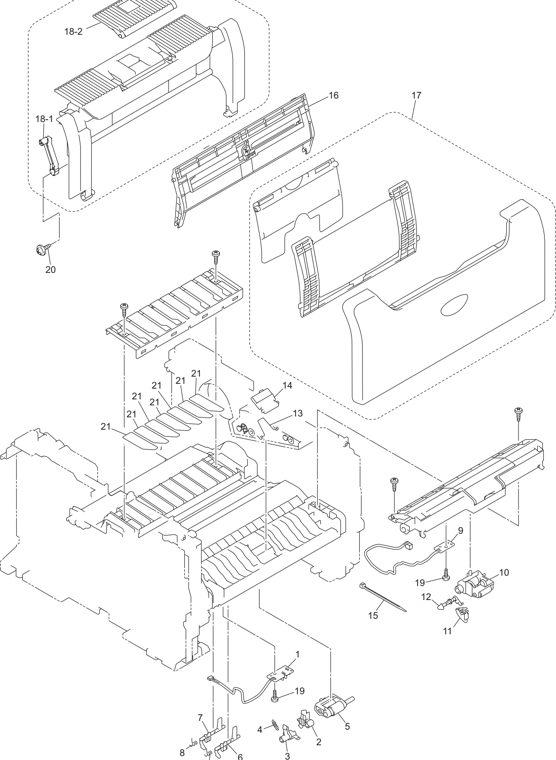

5. PAPER FEEDER 1 LM9001001 1 PE EG SENSOR ASS Y 2 LU7935001 1 PE ACTUATOR ASS Y CHG 3 LM5132001 1 EDGE ACTUATOR 4 LM5133001 1 EDGE ACTUATOR SPRING 5 LM5140001 Pickup Roller Assembly New LM5140001 (New) $32.41 6 LM5150001 1 REGIST ACTUATOR FRONT 7 LM5151001 Regist Actuator Rear Fully refurbished with 90-day warranty LM5151001 $33.75 8 LM5152001 2 REGIST ACTUATOR SPRING 9 LJ9999001 1 MP PE SENSOR ASSY 10 LM5165001 1 MP ROLLLER HOLDER ASSY 11 LM5171001 1 PE ACTUATOR M P 12 LU0027001 Pe Actuator Mp B 2 Fully refurbished with 90-day warranty LU0027001 $33.75 13 LM6490001 1 MP SEPARATION SPRING A chg 14 LM6752001 MP Separation Pad Fully refurbished with 90-day warranty LM6752001 $33.75 15 LJ8657001 1 BINDER 2.3X7. 16 LM5196001 Tray Mp Assy Fully refurbished with 90-day warranty LM5196001 $33.75 17 LM5201001 Mp Tray Cover Assy Fully refurbished with 90-day warranty LM5201001 $31.05 18 LM5205001 1 PROCESS COVER ASSY AL (HL-5240 / 5250DN EXCEPT CHN / IND, HL-5250DNT / 5270DN / 5280DW) 18 LM5205002 1 PROCESS COVER ASSY AL (HL-5240L ) 18 LM5962001 1 PROCESS COVER ASSY AL CHN (CHN ) 18 LM6964001 1 PROCESS COVER ASSY AL IND (IND) 18 LM7031001 1 PROCESS COVER ASSY (HL-5251DN ) 1 LM5124001 1 PROCESS COVER STOPPE R 2 LM5208001 1 SUPPORT FLAP AL (HL-5240 / 5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 2 LM5208002 1 SUPPORT FLAP AL (HL-5240L ) 19 085310816 2 TAPTITE BIND B M3x 8 20 087411016 1 TAPTITE CUP B M4X1 0 21 LM6584001 7 ANTISTATIC FILM SWI (SWI)	Diagram placeholder

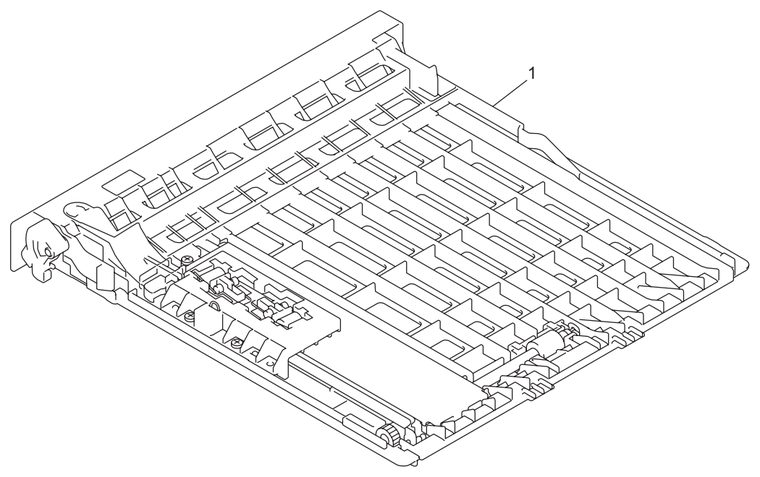

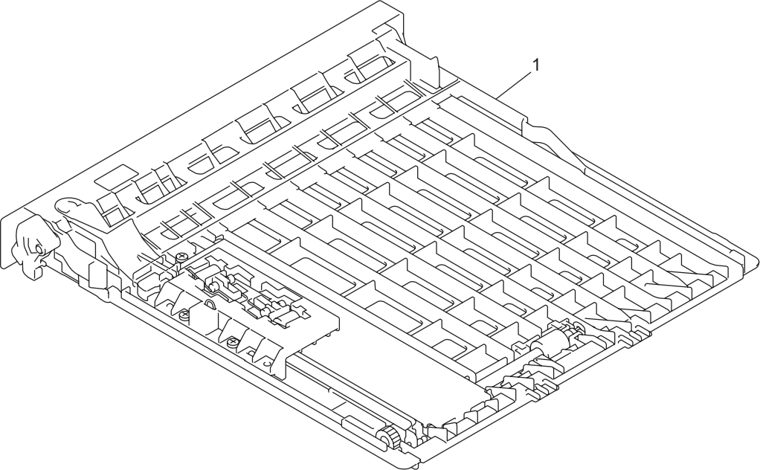

6. DX 1 LM5209001 Duplex Feed Guide Fully refurbished with 90-day warranty LM5209001 $32.41 (HL-5250DN / 5270DN / 5280DW / 5250DNT US / CAN / PHL / ARG / CHI ) 1 LU7503001 1 DX FEED ASSY A4 AL (HL-5250DN / 5251DN / 5270DN / 5280DW EXCEPT US / CAN / PHL / ARG / CHI )	Diagram placeholder

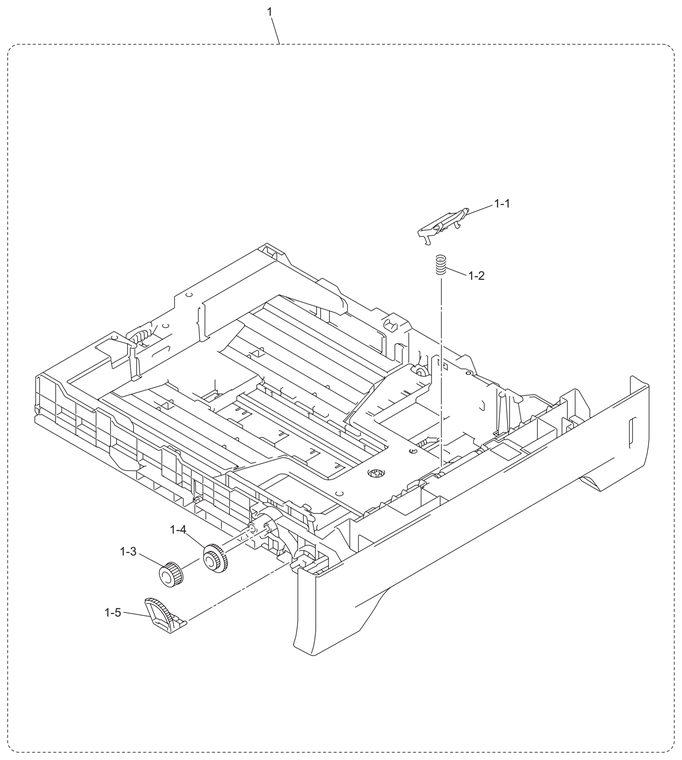

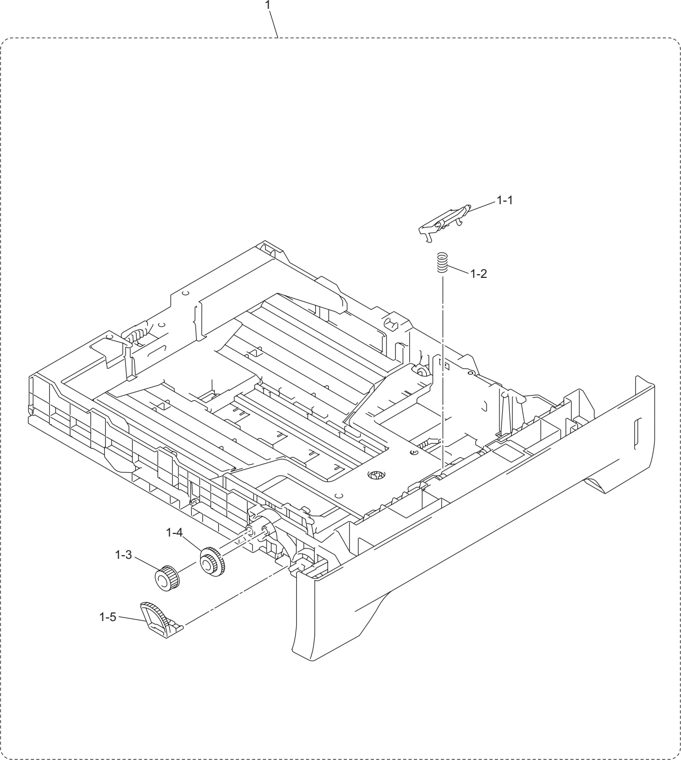

7. PAPER TRAY 1 LU0691001 1 PAPER TRAY UNIT US 2 1 LM5739001 1 PAPER TRAY UNIT EU R 1 LM6568001 1 PAPER TRAY UNIT A4 S 1 LU0698001 1 PAPER TRAY UNIT UNIV IND 2 1 LU0629001 1 PAPER TRAY UNIT 5240L 1 LM5237001 Separation Pad New LM5237001 (New) $31.05 2 LM5239001 1 SEPARATION PAD SPRING1- 3 LM5245001 1 GEAR 151- 4 LM5246001 1 GEAR 21-161- 5 LM5247001 1 LIFT GEAR 46	Diagram placeholder

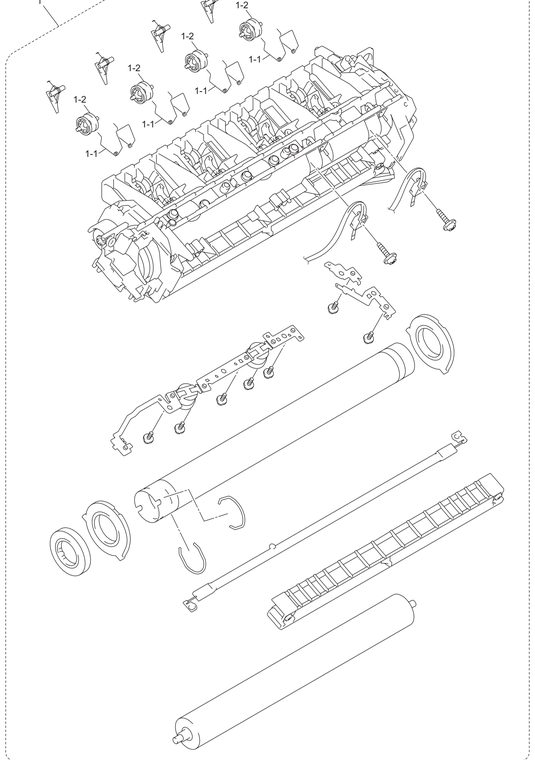

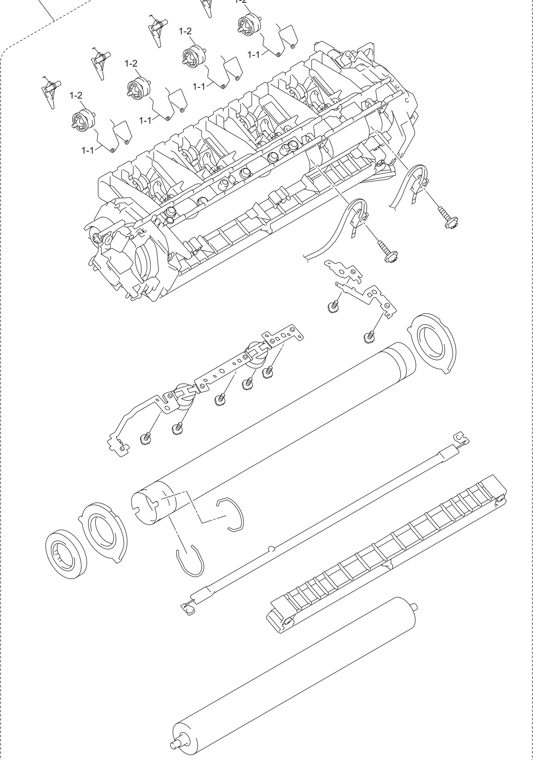

8. FUSER UNIT 1 LU1390001 Fuser - 110V Fully refurbished with 90-day warranty LU1390001 $93.16 LU1390001 Fuser - 110V New LU1390001 (New) $201.15 1 LU1399001 1 FUSER UNIT 230V (SP) (AP / CHN / ARG / CHI ) 1 LU1397001 1 FUSER UNIT 230V (SP) (EUR / SAF ) 1 LU1395001 1 FUSER UNIT 230V (SP) (IND) 1 LU0112001 1 FUSER UNIT 230V SNG (SP) del 1 LM5408001 4 PRESSURE SPRING 2 LM5513001 4 EJECT PINCH ROLLER M	Diagram placeholder

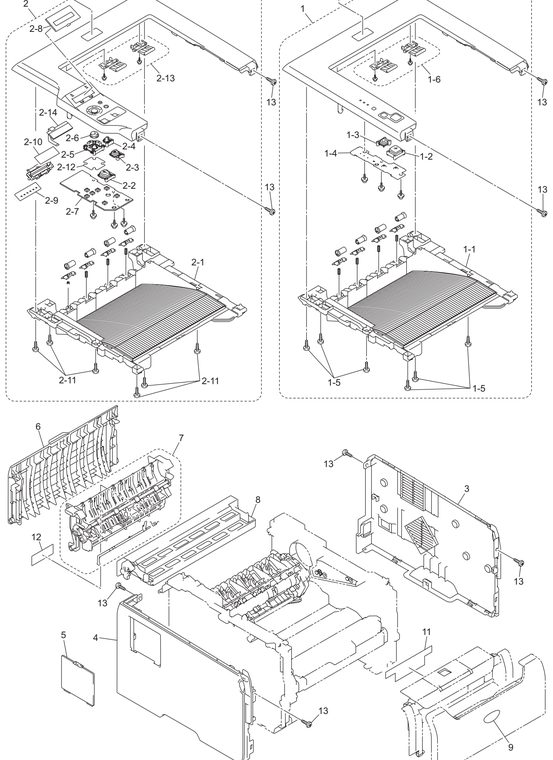

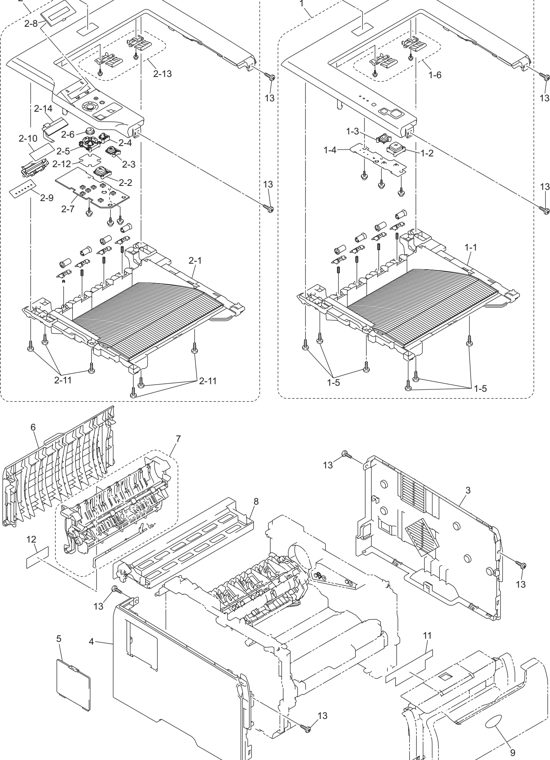

9. COVERS&LABELS 1 LM5262001 1 TOP COVER ASSY AL (HL-5240 US / CAN, HL-5250DN US / CAN, HL-5250DNT US ) 1 LU0126002 1 TOP COVER ASSY AL PSL (HL-5240L ) 1 LU0231001 1 TOP COVER ASSY AL MOF BEL PSL (HL-5240 MOF BEL ) del 1 LM5269001 1 INNER CHUTE AL (HL-5240 / 5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 1 LM5269005 1 INNER CHUTE AL (HL-5240L ) 2 LM5083001 1 SW KEY A 3 LM5084001 1 SW KEY B 1- 4 LJ9933001 1 PANEL PCB ASSY AL 1- 5 085411216 6 TAPTITE BIND B M4x12 PAPER STACK LEVER ASSY AL (HL-5240 GER / UK / ARL / SWI / SPA / POR / ITA / ISR / CHN / PHL / SAF / ARG / CHI / SGP / GULF / KOR / IND / RUS / PAN-NORDIC / BEL / FRA / NL / EEU GENERAL / MOF BEL / CONSIP ITA, HL-5250DN GER / UK / ARL / SWI / SPA / POR / ITA / ISR / CHN / PHL / SAF / ARG / CHI / SGP / GULF / KOR / IND / RUS / PAN-NORDIC / BEL / FRA / NL / EEU GENERAL / HY GER / CONSIP ITA,HL-5251DN CONSIP ITA) 2 LU0125001 1 TOP COVER 2 ASSY 5270 PSL 2 LU0232001 1 TOP COVER 2 ASSY 5280 PSL (GER / UK / SWI / GENERAL / PAN-NORDIC ) 2 LM5769001 1 TOP COVER ASSY 5280 (US / CAN ) 1 LM5269001 1 INNER CHUTE AL 2 LM5530001 1 SW KEY A 3 LM5531001 1 SW KEY B 4 LM5532001 1 SW KEY C 5 LM5635001 1 SET KEY PRINTED ASSY 6 LM5534001 1 KEY TOP 7 LM9041001 1 LCD PANEL PCB ASSY AL 8 LM5535001 1 PANEL PLATE PRINTED ASSY 5270 8 LM5768001 1 PANEL PLATE PRINTED ASSY 5280 9 LM9043001 1 BACK LIGHT PCB ASSY AL 10 LE7130001 1 BACK LIGHT FILM 11 085411216 7 TAPTITE BIND B M4x1 2 12 LM5882001 1 SET KEY FILM 13 LU0160001 1 PAPER STACK LEVER ASSY AL (GER / UK / SWI / GENERAL / PAN-NORDIC ) 14 LG6059001 1 LCD 3 LM5778001 1 SIDE COVER R ASSY AL (HL-5240 / 5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 3 LM5778005 1 SIDE COVER R ASSY AL (HL-5240L) 4 LM5780001 1 SIDE COVER L ASSY AL (HL-5240 / 5250DN / 5250DNT / 5251DN) 4 LM5779001 1 SIDE COVER L 2 ASSY AL (HL-5270DN / 5280DW) 4 LU0282001 1 SIDE COVER L ASSY AL MOF (HL-5240 MOF BEL) 4 LU0634001 1 SIDE COVER L ASSY 5240L (HL-5240L) 5 LM5273001 1 ACCESS COVER AL (HL-5240 / 5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 5 LM5273005 1 ACCESS COVER AL (HL-5240L) 6 LU0160001 1	Diagram placeholder
9. COVERS&LABELS 6 LM5274001 1 REAR COVER AL (HL-5240 / 5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 6 LM5274005 1 REAR COVER AL (HL-5240L) 7 LU0278001 1 OUTER CHUTE ASSY2 EL20 (EXCEPT US / CAN ) 7 LU0277001 1 OUTER CHUTE ASSY2 EL25 (US / CAN) 8 LM5424001 1 DX COVER (HL-5240) 8 LM5424005 1 DX COVER (HL-5240L) 9 LM5771001 1 BROTHER EMBLEM AL (HL-5240 / 5250DN / 5250DNT / 5251DN / 5270DN / 5280DW) 9 LM5771002 1 BROTHER EMBLEM AL (HL-5240L) 10 LM5521001 1 MODEL PLATE 5240 10 LU0524001 1 MODEL PLATE 5240L 10 LM5284001 1 MODEL PLATE 5250 10 LM5537001 1 MODEL PLATE 5270 10 LM5604001 1 MODEL PLATE 5280 10 LU0059001 1 MODEL PLATE 5251 11 LM5542001 1 PROCESS UNIT OP LABEL AL US 11 LM5834001 1 PROCESS UNIT OP LABEL AL EUR 11 LM5835001 1 PROCESS UNIT OP LABEL AL AP 11 LM5836001 1 PROCESS UNIT OP LABEL AL CHN 11 LU0060001 1 PROCESS UNIT OP LABEL AL ITA (HL-5251DN) 12 LM5758001 1 RELEASE LABEL 13 085411216 6 TAPTITE BIND B M4x12	Diagram placeholder

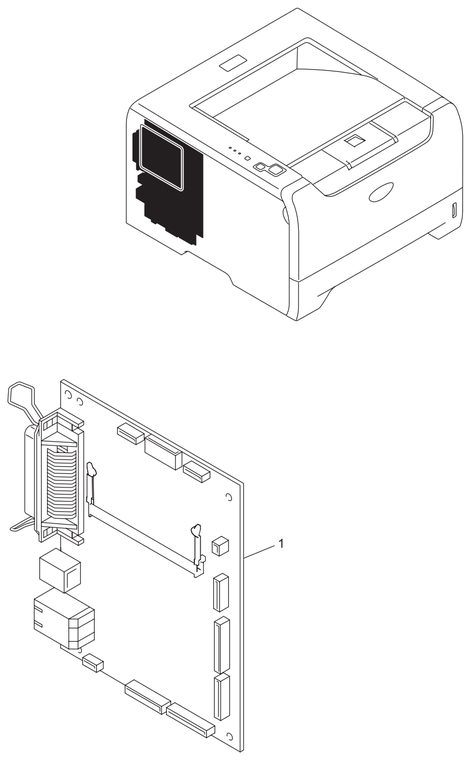

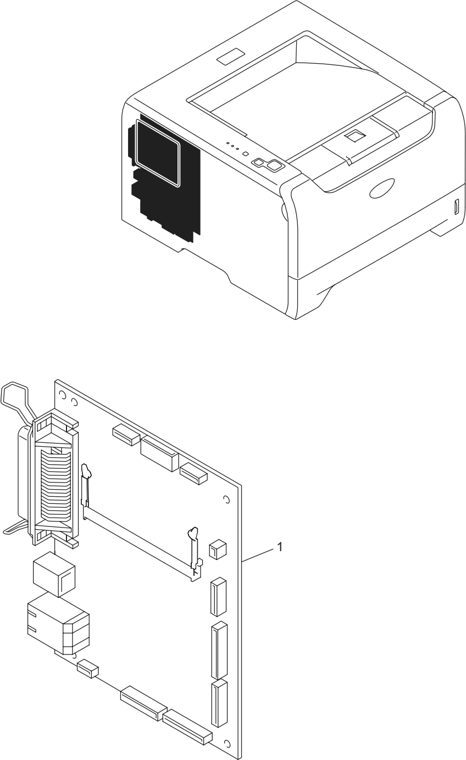

10. MAIN PCB 1 LM9076001 1 MAIN PCB ASSY 5240 1 LV0119001 1 MAIN PCB ASSY 5240L 1 LM9077001 Main Board PCB Fully refurbished with 90-day warranty LM9077001 $132.31 52501 LM9110001 1 MAIN PCB ASSY 5270 1 LM9064001 1 MAIN PCB ASSY 5280DW US 1 LM9138001 1 MAIN PCB ASSY 5280DW EU 1 LM9169001 1 MAIN PCB ASSY 5240 CHN add 1 LM9170001 1 MAIN PCB ASSY 5250 CHN add 1 LM9429001 1 MAIN PCB ASSY 5240 IND add 1 LM9430001 1 MAIN PCB ASSY 5250 IND add 1 LV0048001 1 MAIN PCB ASSY 5250 KOR add	Diagram placeholder

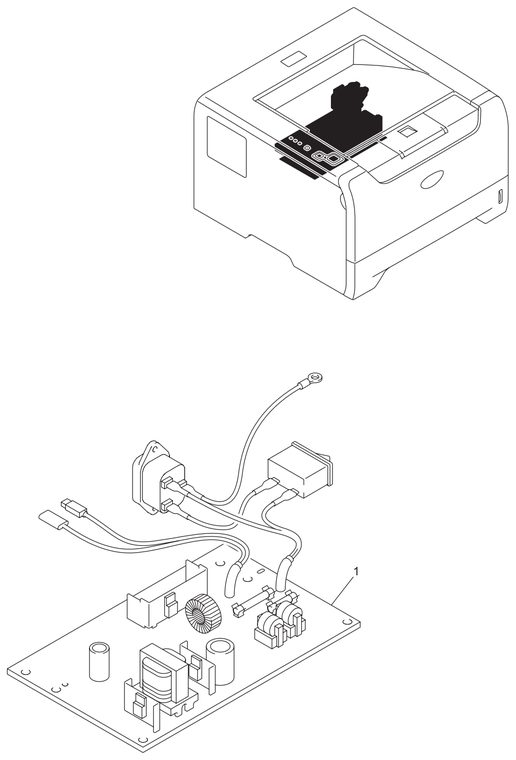

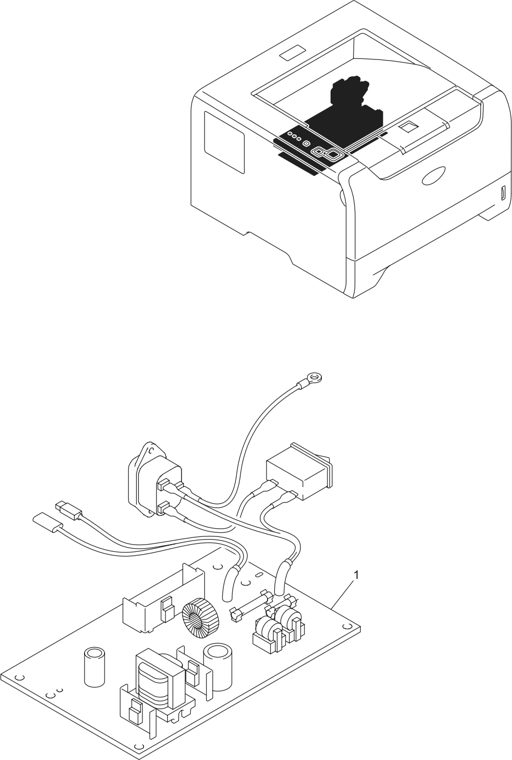

11. LVPS 1 LJ9979001 PS PCB Unit Fully refurbished with 90-day warranty LJ9979001 $90.45 1 LJ9983001 1 PS PCB UNIT AL 230V FOR ARL / ISR / PHI / SAF / ARG / CHI / SGP / GULF / KOR 1 LV0739001 1 PS PCB UNIT AL 230V FOR GER / UK / SWI / IBERIA / ITA / PAN-NOR / BEL / FRA / HOL / EEU / GENERAL / ARL / ISR / PHI / SAF / ARG / CHI / SGP / GULF / KOR / MOF BEL / CONSIP ITA / HY GER 1 LM9088001 1 PS PCB UNIT AL CHN (CHN / IND / RUS )	Diagram placeholder

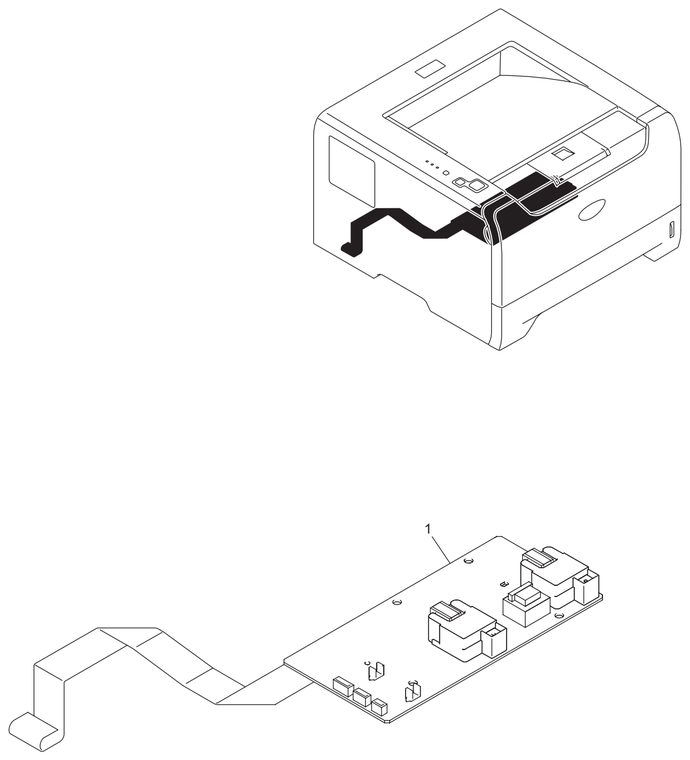

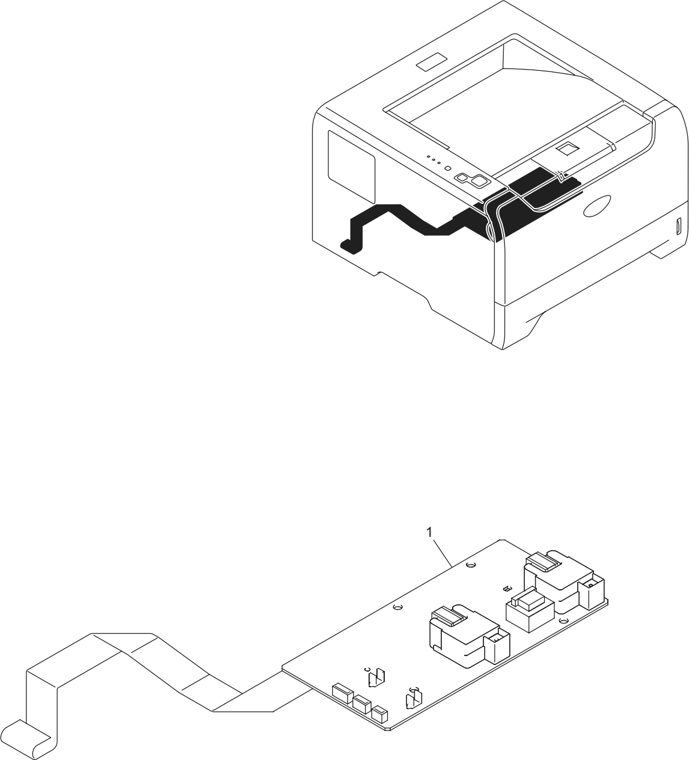

12. HVPS 1 LJ9978001 High-Voltage Ps PCB Assy Fully refurbished with 90-day warranty LJ9978001 $70.20	Diagram placeholder
