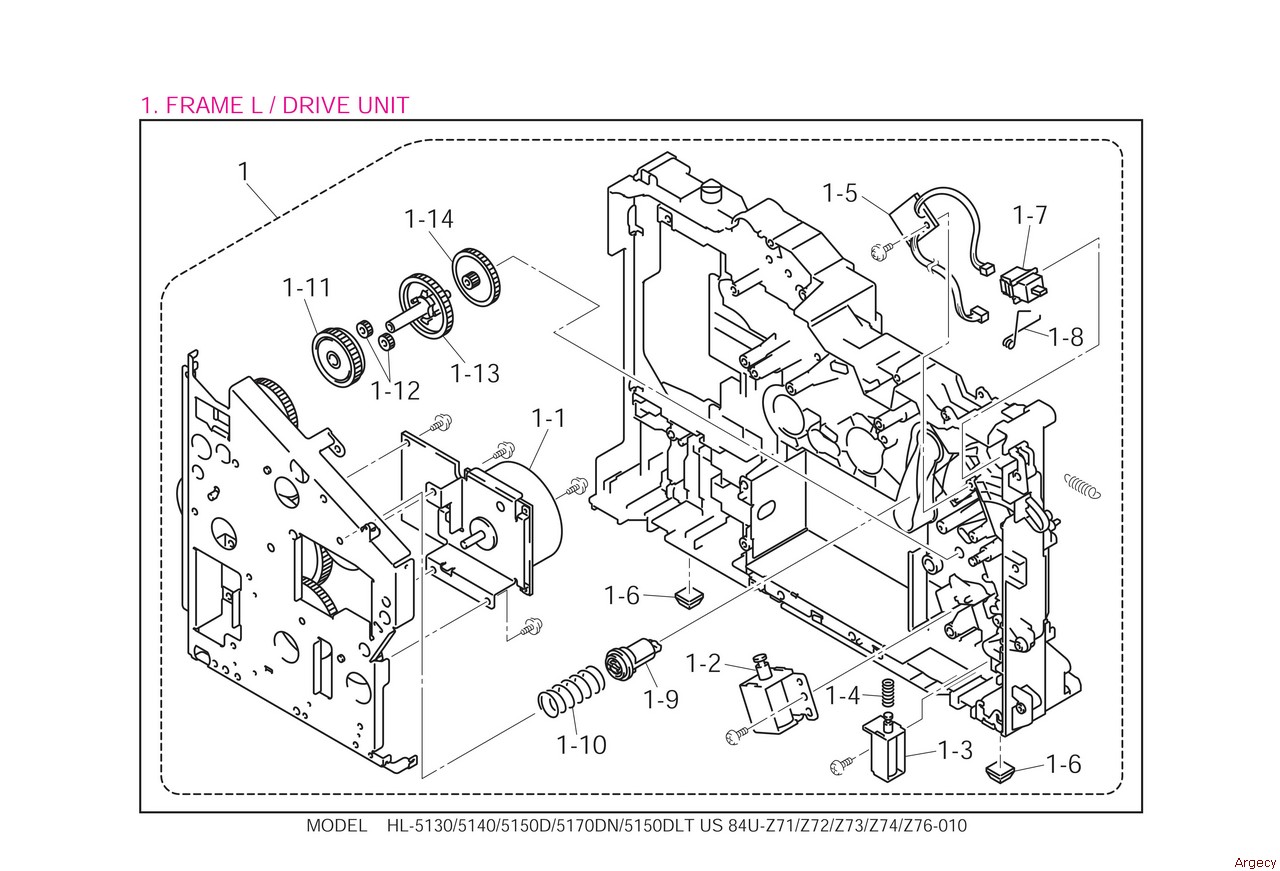

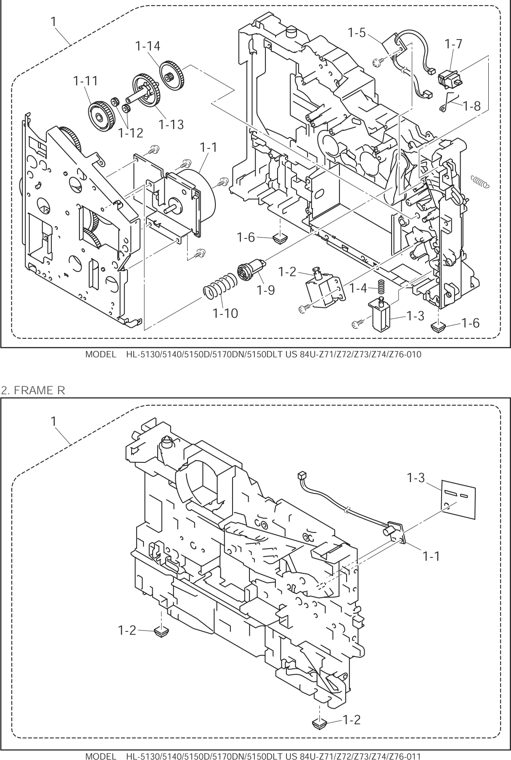

1. FRAME L / DRIVE UNIT MODEL HL-5130 / 5140 / 5150D / 5170DN / 5150DLT 1 LM2495001 1 MAIN FRAME L UNIT 30 E 1 LM2434001 1 MAIN FRAME L UNIT 40 E 1 LM2490001 1 MAIN FRAME L UNIT 50D E 1 LM2488001 1 MAIN FRAME L UNIT 70DN E1- 1 LM2440001 1 MAIN MOTOR ASSY ZL2E1- 2 LJ7386001 FR Solenoid New LJ7386001 (New) $28.36 3 LJ7391001 P/R Solenoid Assy New LJ7391001 (New) $52.66 4 LJ5014001 1 SOLENOID RELEASE SPRING P / R 1- 5 LJ9166001 1 TONER LED PCB UNIT ASSY ZL 6 LJ7403001 2 RUBBER FOOT1- 7 LG3218001 1 DOCUMENT COVER SENSOR1- 8 LJ7784001 1 SENSOR CLIP1- 9 LJ7377001 1 DEVELOP JOINT 1- 10 LJ7376001 1 JOINT SPRING 1- 11 UH3044000 1 GEAR, 40 / 54Y 1- 12 UL6569000 2 GEAR 13 UL8977001 1 GEAR 45 ARM F / R 1- 14 LM2444001 1 GEAR 20 CENTER F / R	Diagram placeholder

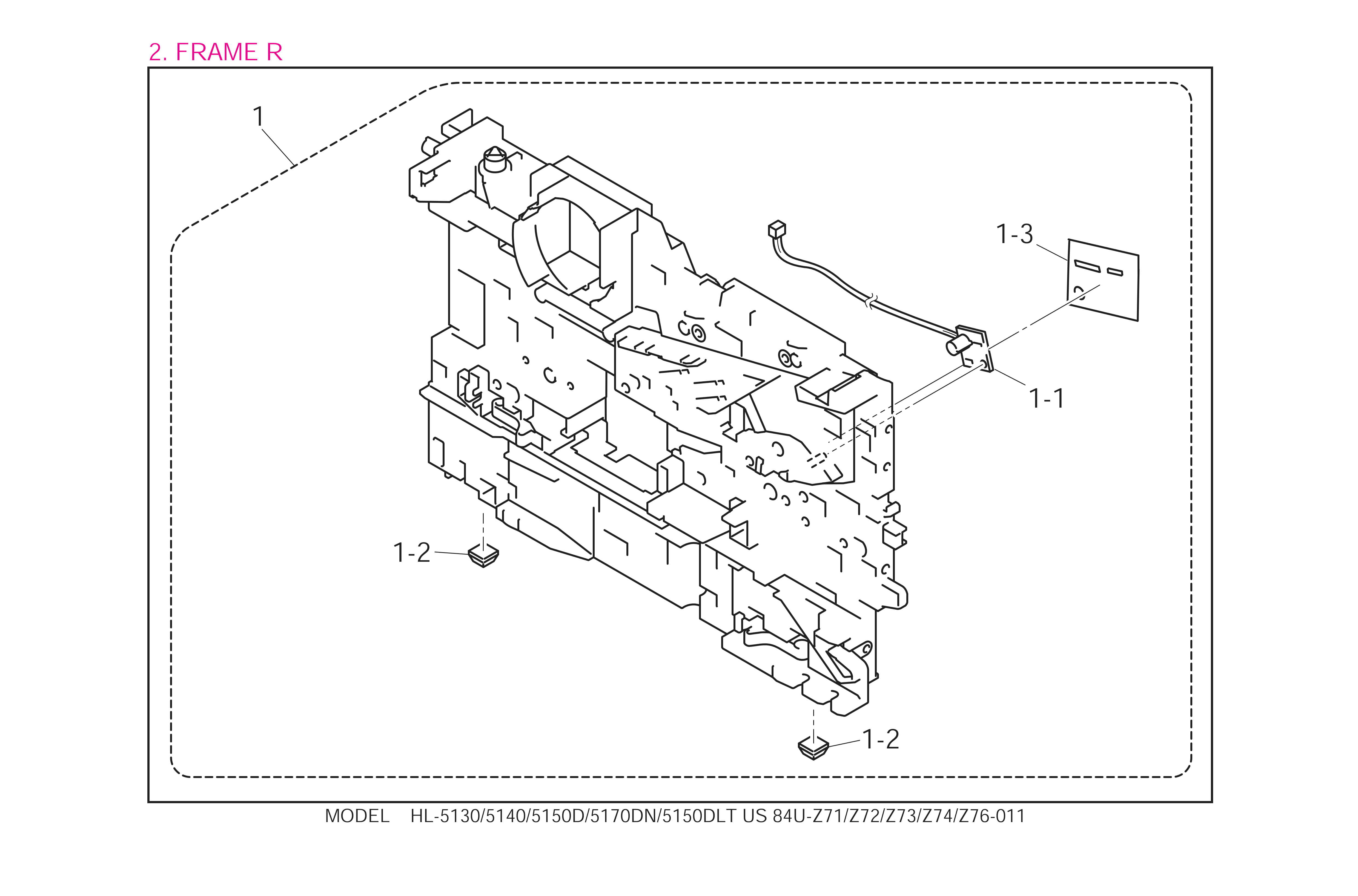

2. FRAME R UNIT 1 LM2733001 1 MAIN FRAME R UNIT E CHG 1 LJ9612001 1 TONER SENSOR PCB UNIT ZL2 B512187 2 LJ7403001 2 RUBBER FOOT 3 LM2731001 1 TE FILM ADD
3. FRAME UNIT 1 LJ7490001 1 GROUND SPRING 2 LM2445001 1 FILTER 3 LJ7496001 1 SPRING, EXTENSION P / R 4 LJ7501001 1 MIDDLE ROLLER GEAR 5 LJ7502001 1 IDLE GEAR 6 LJ7504001 1 GROUND WIRE 7 LM2473001 1 FAN MOTOR 60 UNIT LV 8 LM2474001 1 FAN MOTOR 9 LJ7579001 1 MP SOLENOID HOLDER UNIT 10 LM2720001 1 SECTOR GEAR PR ASSY E 11 UH2378000 1 SPRING HOOK	Diagram placeholder

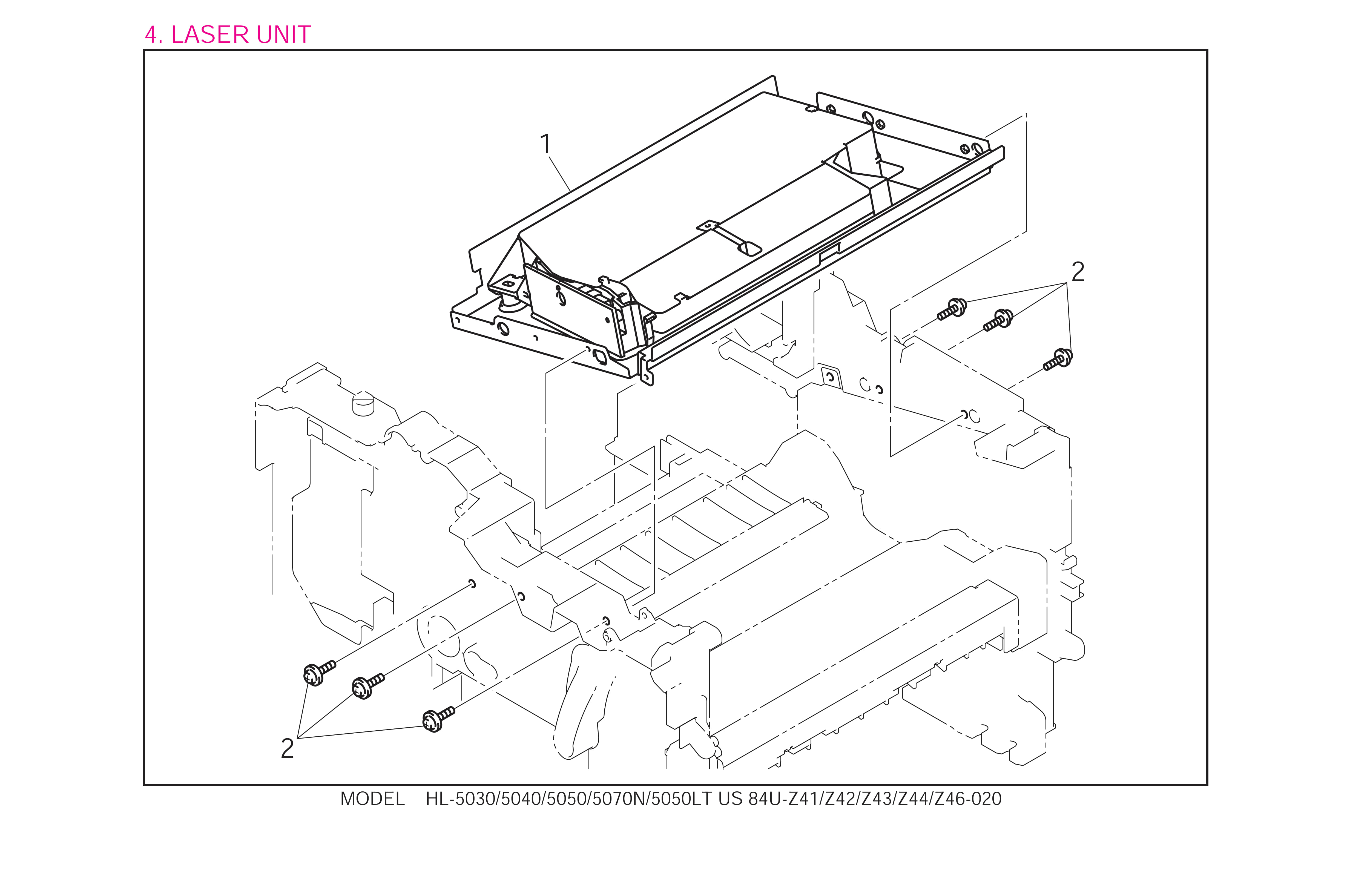

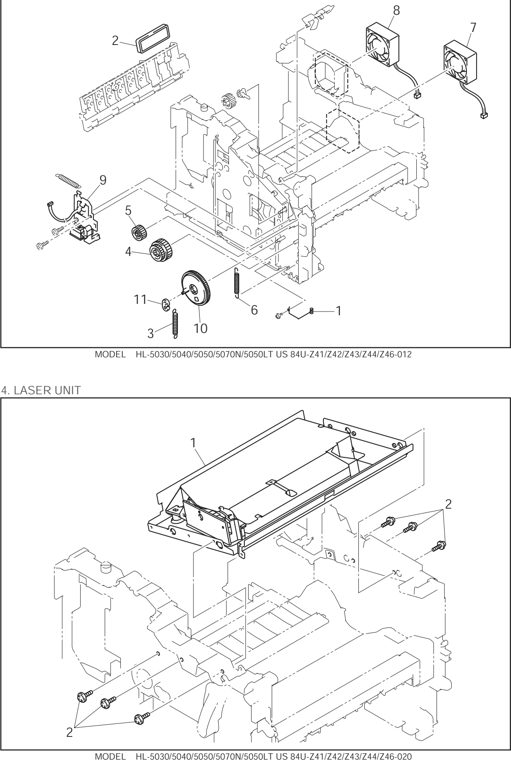

4. LASER UNIT 1 LM2835001 1 LASER UNIT (SP) 2 085310815 6 TAPTITE, BIND B M3X8	Diagram placeholder

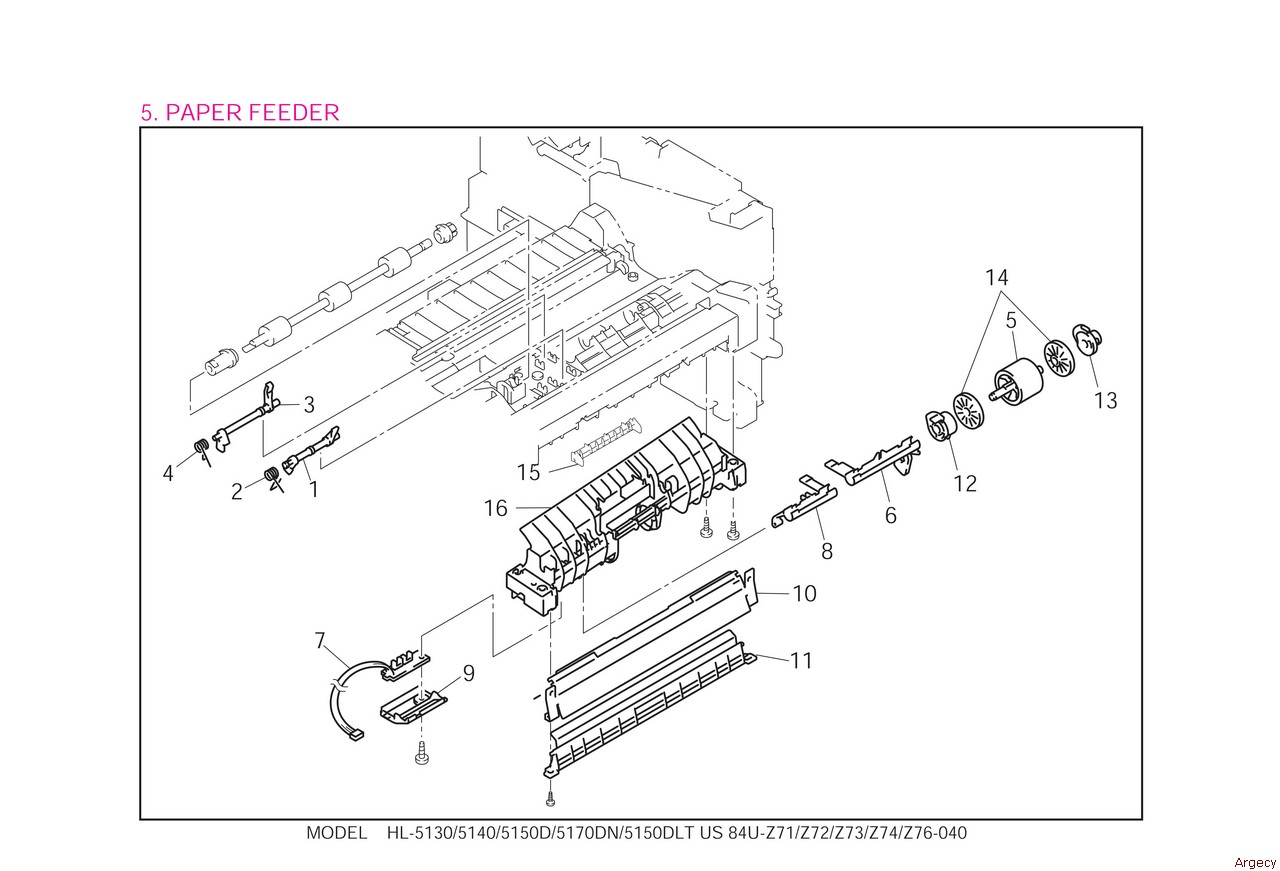

5. PAPER FEEDER 1 LJ7322001 1 REGIST FRONT ACTUATOR 2 LM2590001 1 REGIST FRONT ACTUATOR SPRING 3 LJ7324001 1 REGIST REAR ACTUATOR 4 LJ7325001 1 REGIST REAR ACTUATOR SPRING 5 LJ7703001 Paper Feed Roller New LJ7703001 (New) $43.21 6 LM2601001 1 PE ACTUATOR ZL2 (HL-5140 / 5150D / 5170DN) 7 LJ9235001 1 CASSETTE SENSOR PCB ASSY ZL2 (HL-5140 / 5150D / 5170DN) 8 LJ5155001 1 CA ACTUATOR (HL-5140 / 5150D / 5170DN) 9 LJ5211001 1 PE SENSOR COVER (HL-5140 / 5150D / 5170DN) 10 LM2033001 1 FRONT CHUTE GUIDE ASSY ZL2 11 LM2032001 1 FRONT TRAY CHUTE ASSY ZL2 12 LJ5020001 1 BUSH L 13 LJ5021001 1 BUSH R 14 LJ7730001 2 ROLLER COLLAR ZL2 15 16 LJ7342001 1 FRONT CHUTE (HL-5130 / 5140) ADD 16 LM2558001 1 FRONT CHUTE (HL-5150D / 5170DN / 5150DLT)	Diagram placeholder

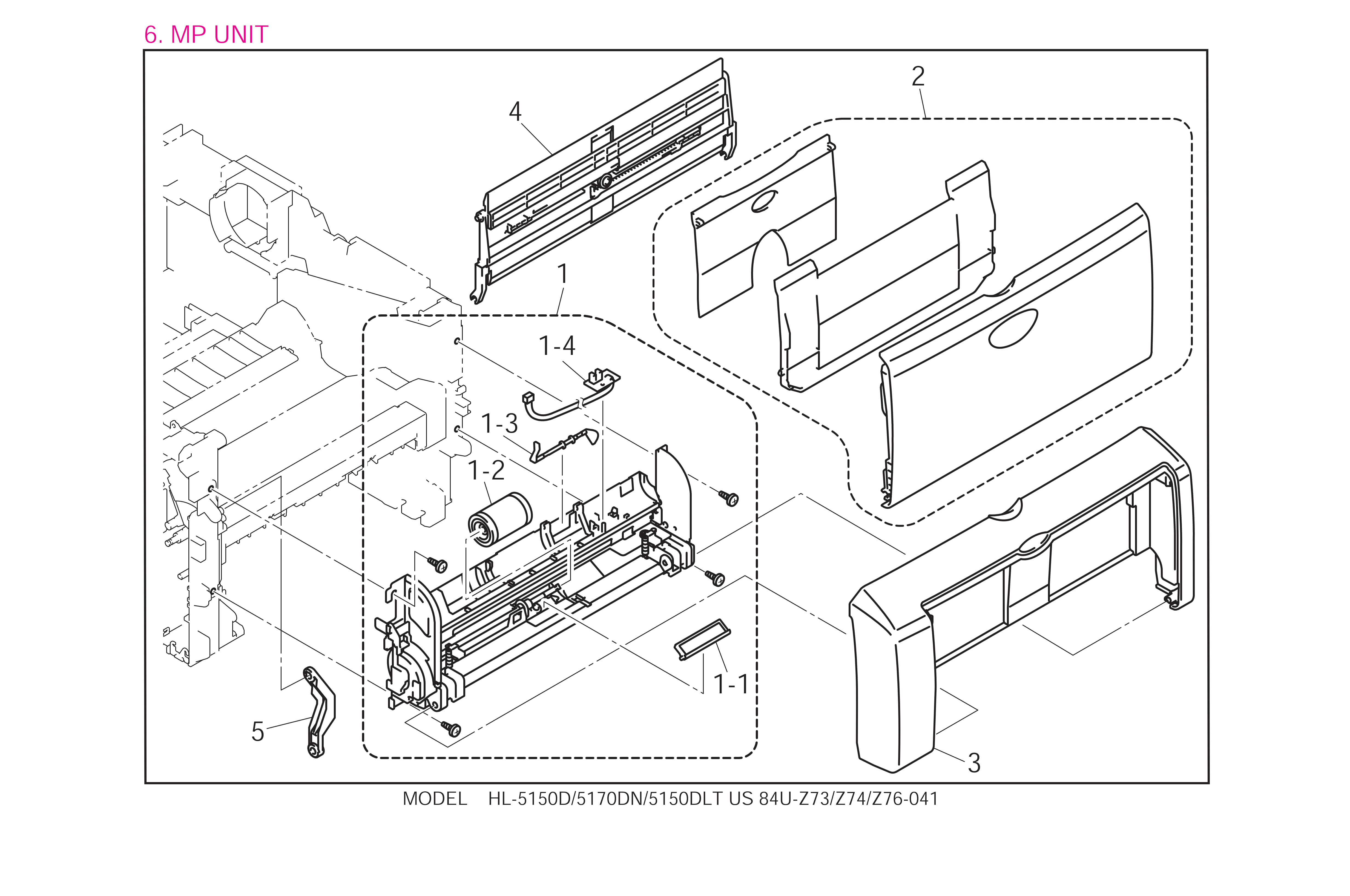

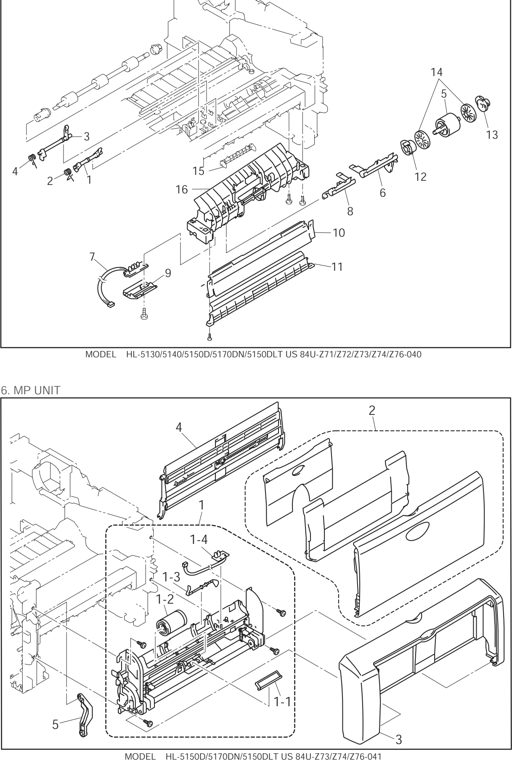

6. MP UNIT (HL-5150D / 5170DN ONLY) 1 LJ7551001 1 MP UNIT ASSY 1 LJ7555001 1 SEPARATION PLATE ASSY 2 LM2050001 1 PAPER PICK-UP ROLLER ASSY (SP) 3 LJ7571001 1 MP-PE ACTUATOR 1- 4 LJ9222001 1 MP-PE SENSOR PCB ASSY ZL 2 B512107 2 LJ7587001 1 MP TRAY ASSY 3 LM2313001 1 MP FRONT COVER ASSY ZL2E 4 LJ7589001 1 MP PAPER GUIDE ASSY 5 LJ7600001 1 DRIVE RELEASE LINK MP (HL-5150D / 5170DN)	Diagram placeholder

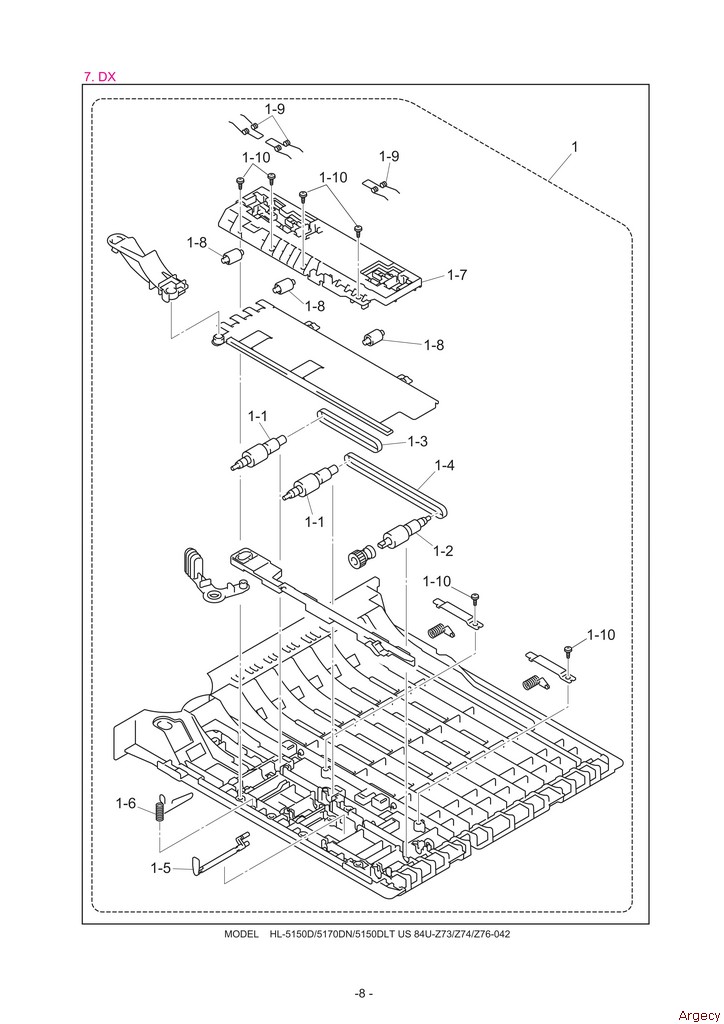

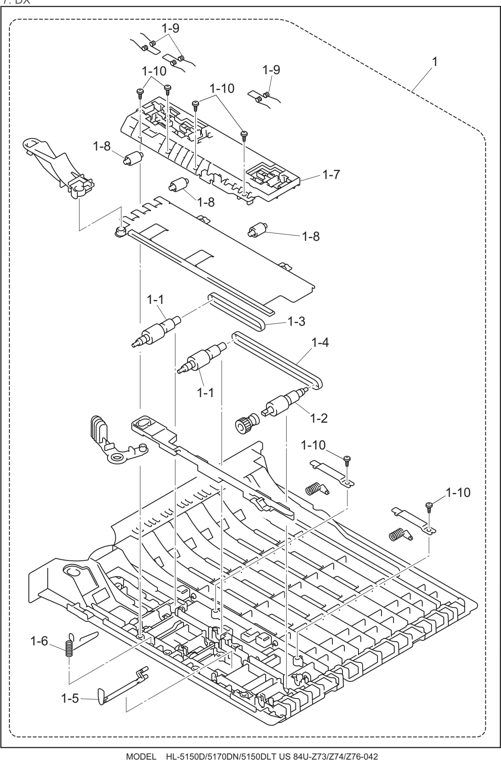

7. DX (HL-5150D / 5170DN ONLY) 1 LJ7661001 1 DX FEED ASSY 1- 1 LJ7663001 2 SIDE REGIST ROLLER ZL21- 2 LJ7664001 1 DX FEED ROLLER1- 3 LJ5015001 1 T-BELT (S) 1- 4 LJ5240001 1 T-BELT (L)1- 5 LJ5248001 1 GUIDE ACTUATOR1- 6 LJ7669001 1 GROUND WIRE 1- 7 LJ7670001 1 DX ROLLER HOLDER1- 8 LJ7671001 3 PRESSURE ROLLER1- 9 LJ7672001 3 PRESSURE ROLLER SPRING1- 10 085310816 6 TAPTITE, BIND B M3x8	Diagram placeholder

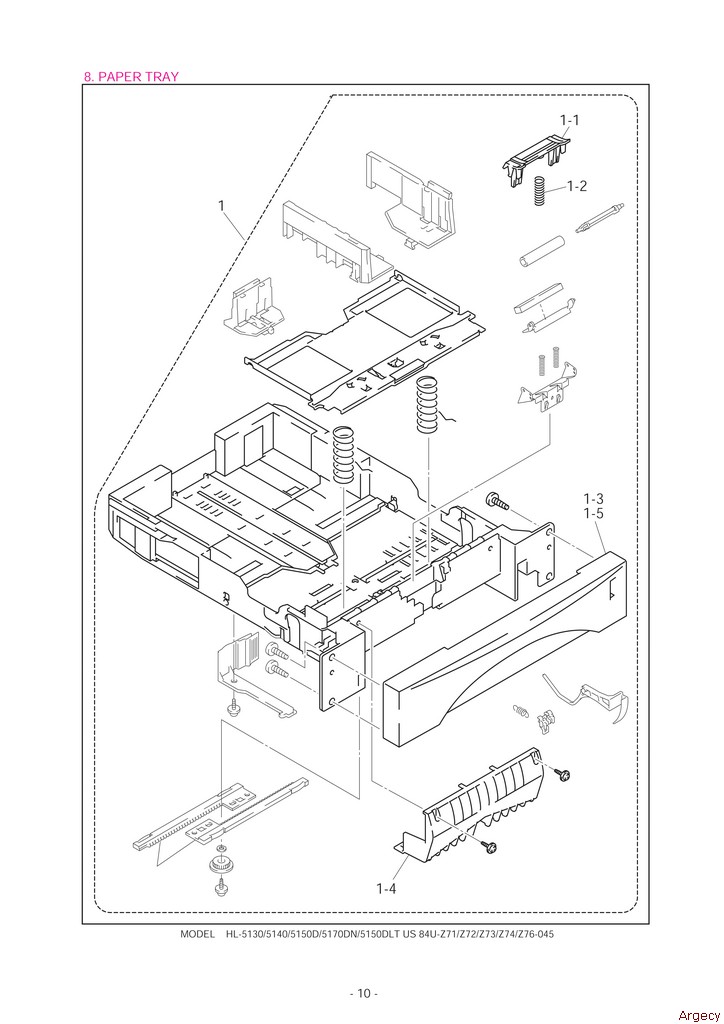

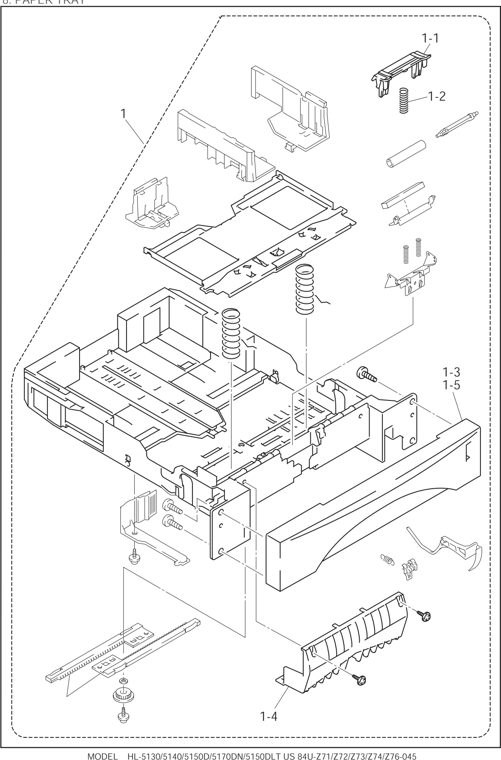

8. PAPER TRAY 1 LJ7607001 1 PAPER TRAY ASSY ZL 1 LJ7307001 Pad Holder New LJ7307001 (New) $43.21 2 LJ5923001 1 SEPARATION PAD SPRING 3501- 3 LJ7315001 1 PAPER TRAY FRONT COVER 1- 4 LJ7616001 1 PAPER TRAY COVER1- 5 LJ7608001 1 PAPER TRAY FRONT COVER LT	Diagram placeholder

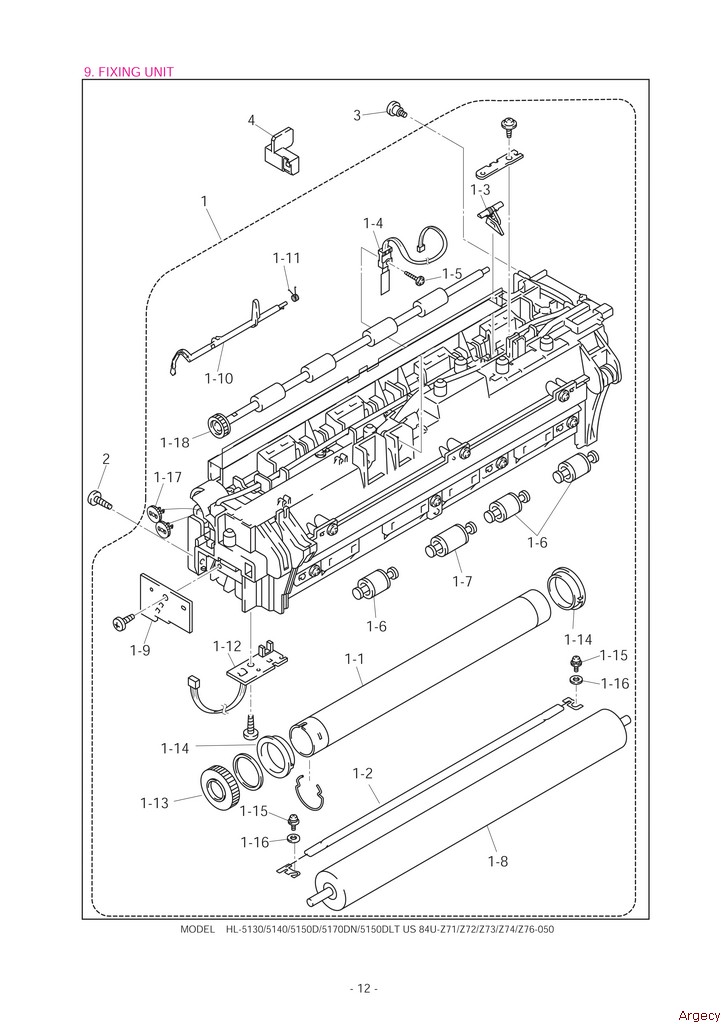

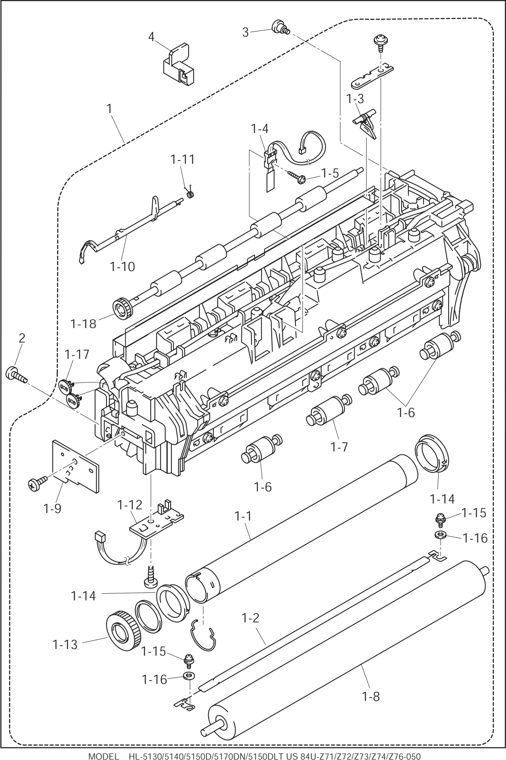

9. FIXING UNIT 1 LM2578001 1 FIXING UNIT, 230V(SP) 1 LM2579001 Fuser Unit- 110V New LM2579001 (New) $398.25 1 LM2706001 1 HEAT ROLLER 2 LJ7539001 1 HALOGEN LAMP, 230V1- 2 LJ7417001 1 HALOGEN LAMP, 115V1- 3 LJ7877001 4 SEPARATE CLAW ASSY C1- 4 LJ7419001 1 THERMISTOR ASSY 1- 5 087311215 1 TAPTITE, CUP B M3X12 1- 6 LJ7428001 3 CLEANER PINCH ROLLER ASSY S1- 7 LJ7432001 1 CLEANER PINCH ROLLER ASSY L1- 8 LM2477001 1 PRESSURE ROLLER 251- 9 LJ9174001 1 THERMISTOR RELAY PCB ASSY ZL2 B5121611- 10 LJ5289001 1 PAPER EJECT ACTUATOR1- 11 LJ5066001 1 EJECT ACTUATOR SPRING1- 12 LJ9176001 1 EJECT SENSOR PCB ASSY ZL2 B5121631- 13 LJ7416001 1 HR GEAR 34 14 LJ7414001 2 HR BEARING 25 1- 15 LM2254001 2 SCREW, PAN (S / P WASHER) M26x8 1- 16 LM2255001 2 WASHER, PLAIN 26 1- 17 LM2047001 2 IDLE GEAR 13 1- 18 LJ4118001 1 EJECT ROLLER ASSY 2 085411216 1 TAPTITE, BIND B M4X12 3 LJ4740001 1 SHOULDER SCREW 4 LM2102001 1 FU LAMP ASSEMBLY JIG ASSY	Diagram placeholder

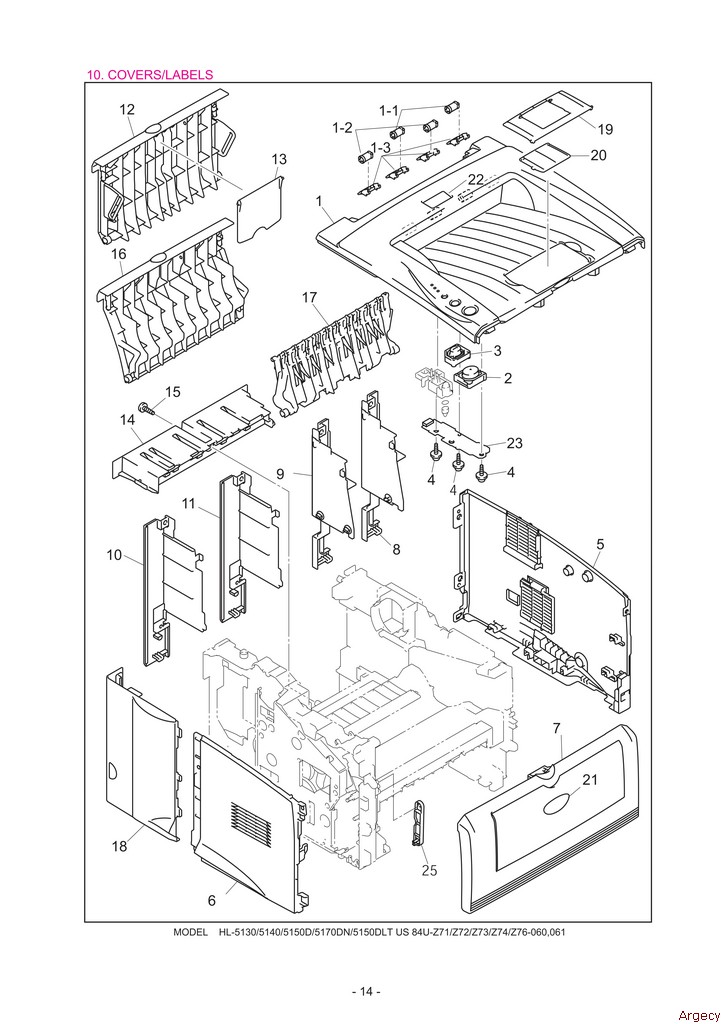

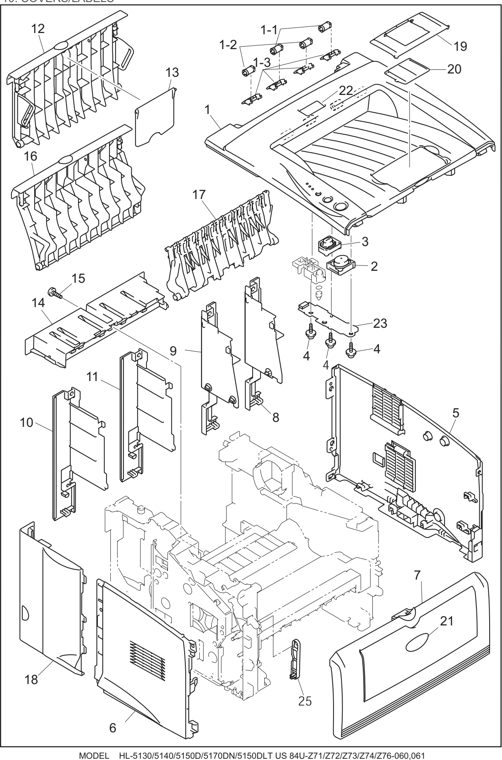

10. COVERS / LABELS 1 LM2273001 1 TOP COVER ASSY ZL2E 1 LJ7911001 2 CORRUGATION PINCH ROLLER R 1- 2 LJ7912001 2 CORRUGATION PINCH ROLLER L 1- 3 UL9123001 4 PINCH ROLLER HOLDER 2 LJ7451001 1 SW KEY A 3 LJ7452001 1 SW KEY B 4 087310815 3 TAPTITE, CUP B M3X8 chg 5 LM2713001 1 SIDE COVER R ASSY chg 6 LM2714001 1 SIDE COVER L ASSY chg 7 LM2724001 1 FRONT COVER ASSY ZL2E (HL-5130 / 5140) 8 LJ7465001 1 REAR COVER R 8 LM2760001 1 REAR COVER R MOF (With MIN FIN logo) add 9 LJ7617001 1 REAR COVER R MP 10 LJ7466001 1 REAR COVER L 11 LJ7618001 1 REAR COVER L MP 12 LJ7610001 1 REAR COVER MP 13 LJ7613001 1 REAR COVER MP TRAY 14 LJ7467001 1 REAR COVER C 15 085411216 1 TAPTITE, BIND B M4X12 16 LJ7469001 1 OUTER CHUTE 17 LJ7699001 1 OUTER CHUTE DX ASSY 18 LM2715001 1 ACCESS COVER ASSY chg 19 LJ7895001 1 SUPPORT FLAP 20 LJ7896001 1 SUPPORT FLAP S 21 LJ7350001 1 BROTHER EMBLEM 22 LM2507001 1 MODEL PLATE 513022 LM2504001 1 MODEL PLATE 514022 LM2505001 1 MODEL PLATE 5150D 22 LM2506001 1 MODEL PLATE 5170DN 23 LJ9180001 1 PANEL PCB ASSY B 51216524 LJ0908001 1 LASER CAUTION LABEL B 25 LJ7468001 1 LINK (HL-5130 / 5140)	Diagram placeholder

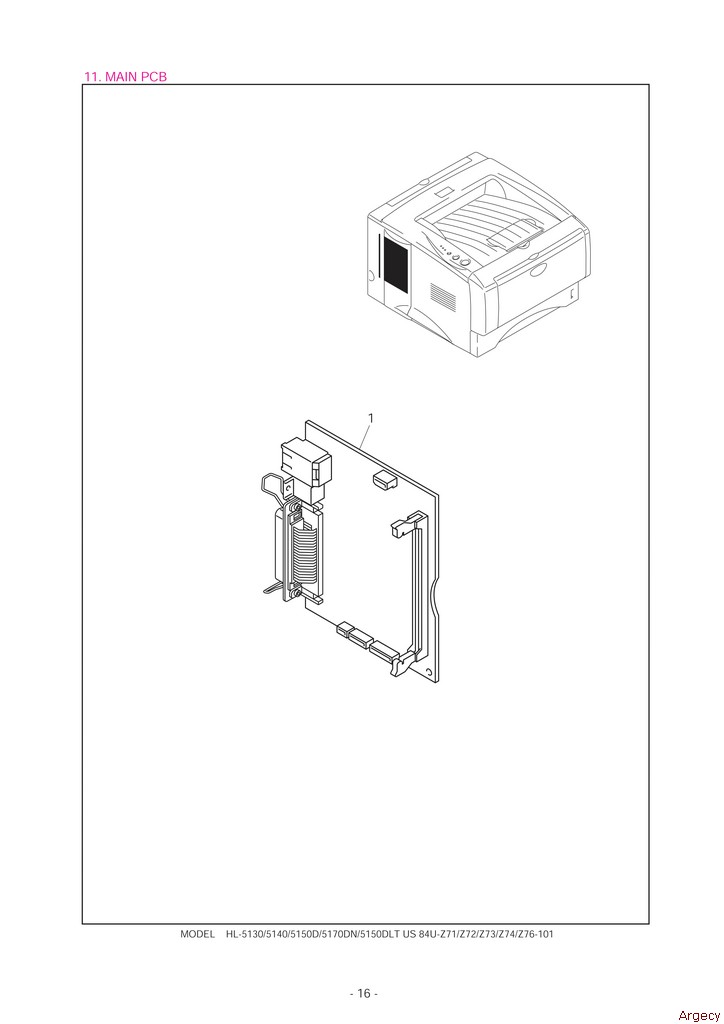

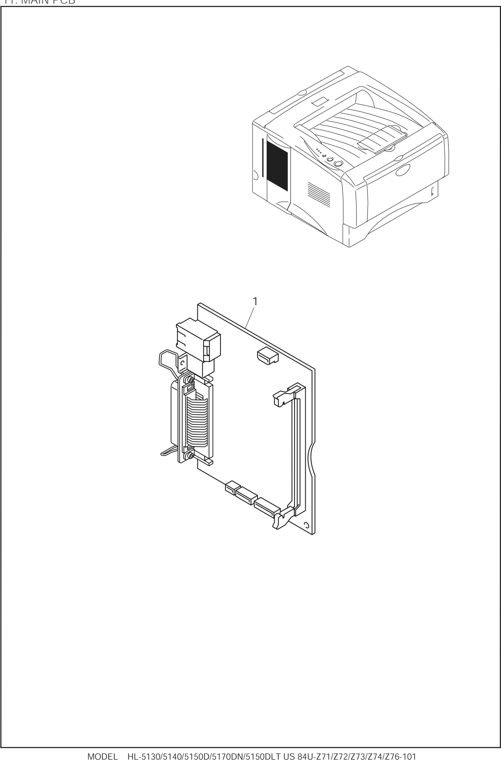

11. MAIN PCB 1 LJ9901001 1 MAIN PCB ASSY 5130 FLASH B512208 CHG 1 LJ9902001 1 MAIN PCB ASSY 5140 FLASH B512208 CHG 1 LJ9903001 1 MAIN PCB ASSY 5150D FLASH B512208 CHG 1 LJ9567001 1 MAIN PCB ASSY 5170DN FLASH B512185 1 LJ9904001 1 MAIN PCB ASSY 5150D KOR FLASH (For HL-5150D KOR)	Diagram placeholder

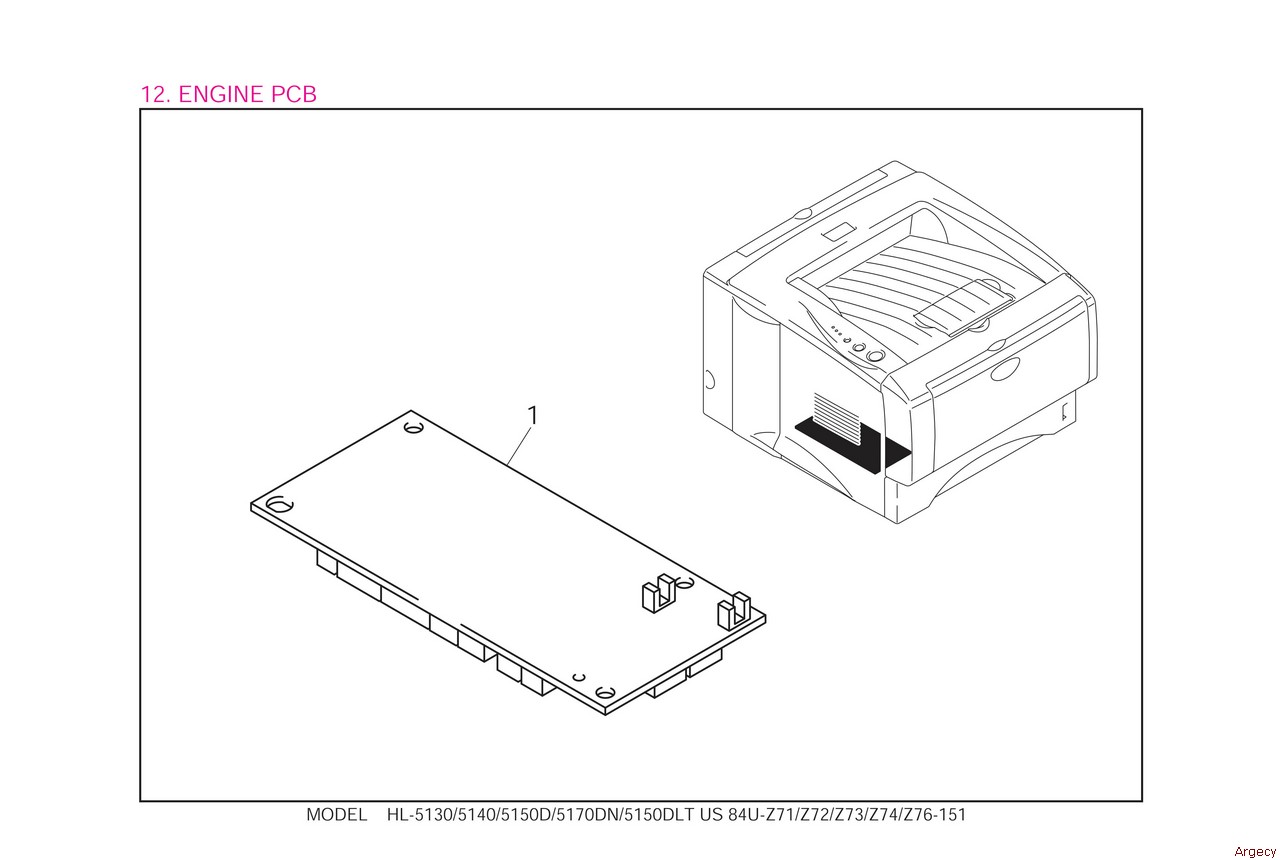

12. ENGINE PCB 1 LJ9188001 1 ZL2 ENGINE PCB ASSY 1 (HL-5130) B512153 1 LJ9274001 Main Board Fully refurbished with 90-day warranty LJ9274001 $41.85 5150D / 70DN) 1 LG4404001 1 ZL2 ENGINE PCB ASSY 4 (HL-5140)	Diagram placeholder

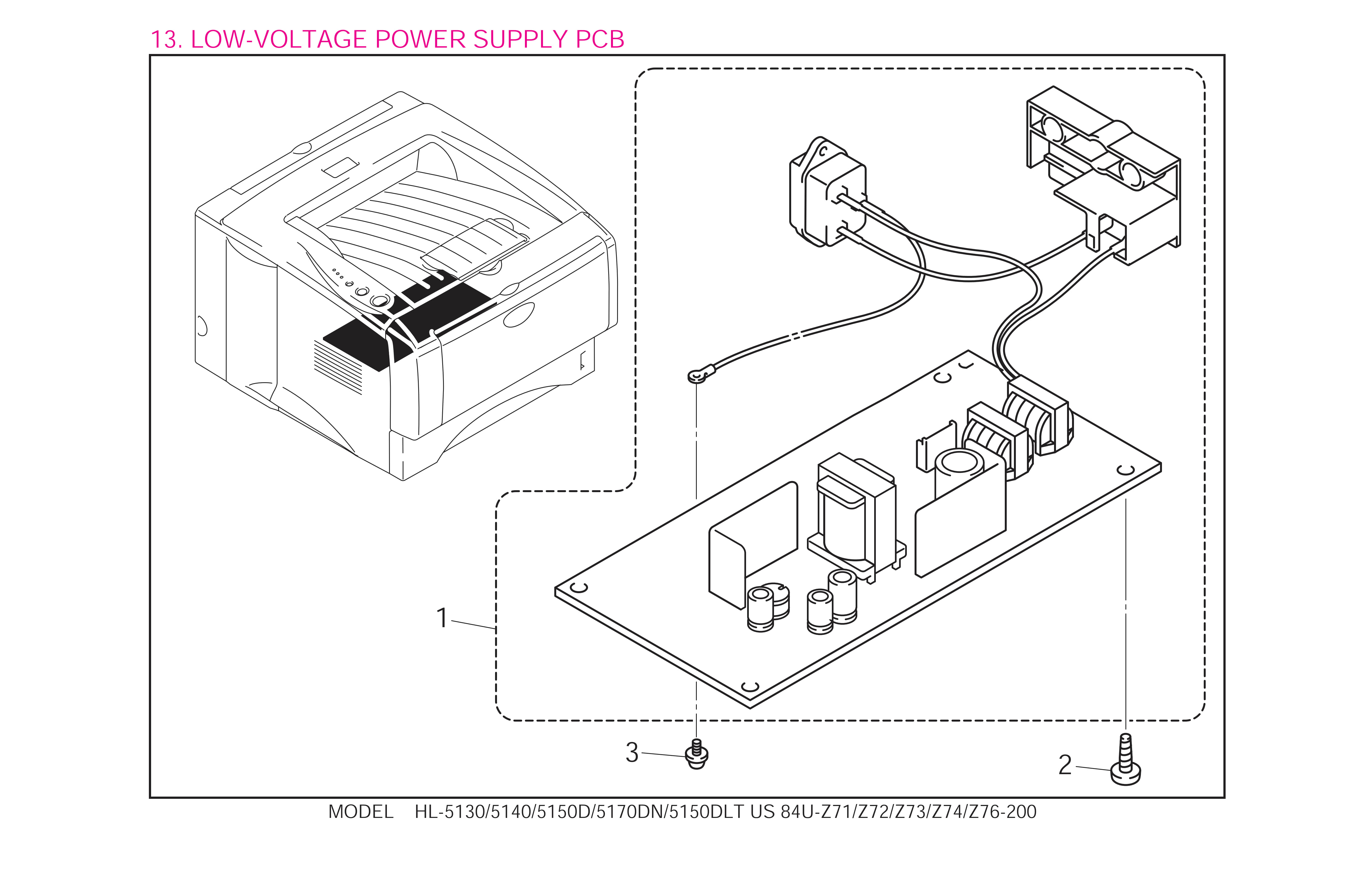

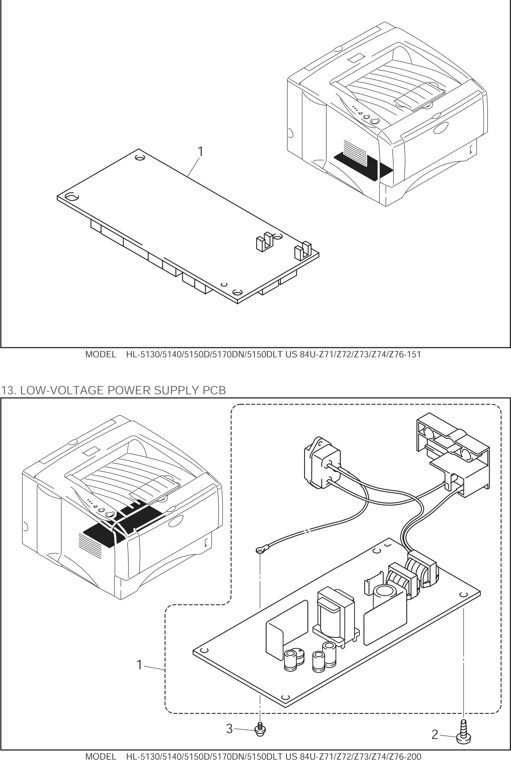

13. LOW-VOLTAGE POWER SUPPLY PCB 1 LJ9620001 1 PS PCB UNIT 230V MPW5706 1 LJ9621001 1 PS PCB UNIT 115V MPW5806 2 085411216 1 TAPTITE, BIND B M4X12 3 LM2048001 1 SCREW, PAN (S / P WASHER) M3.5X6	Diagram placeholder

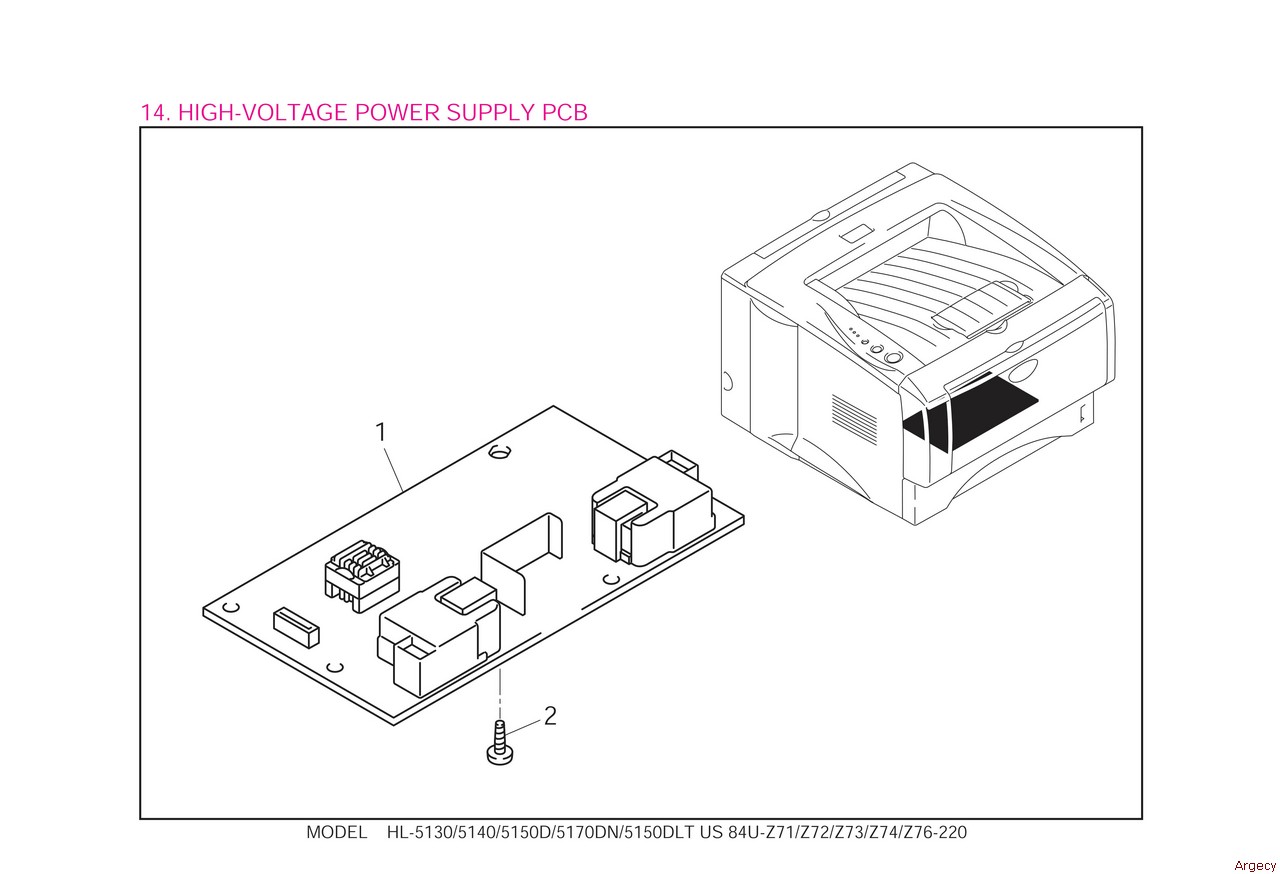

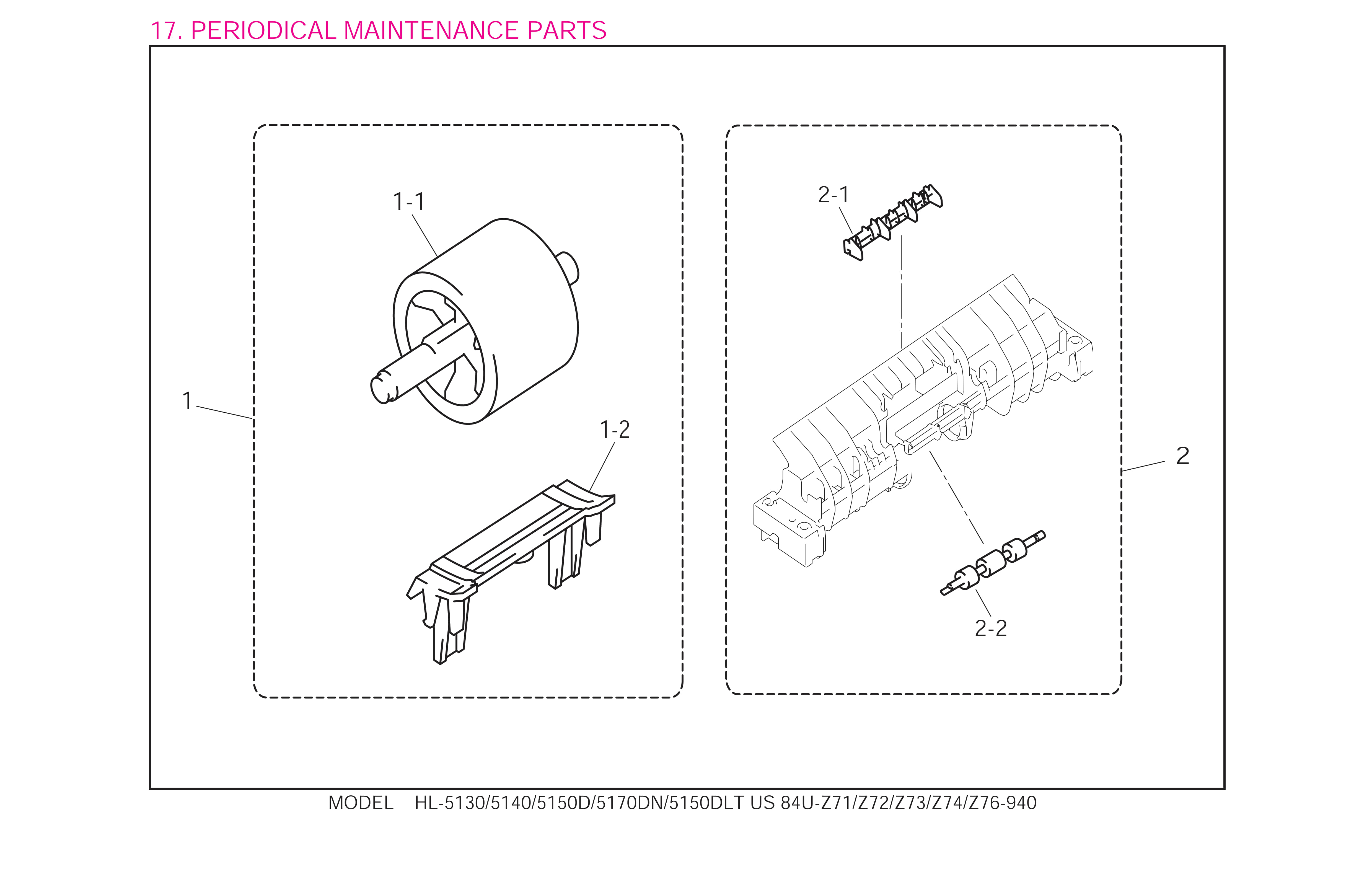

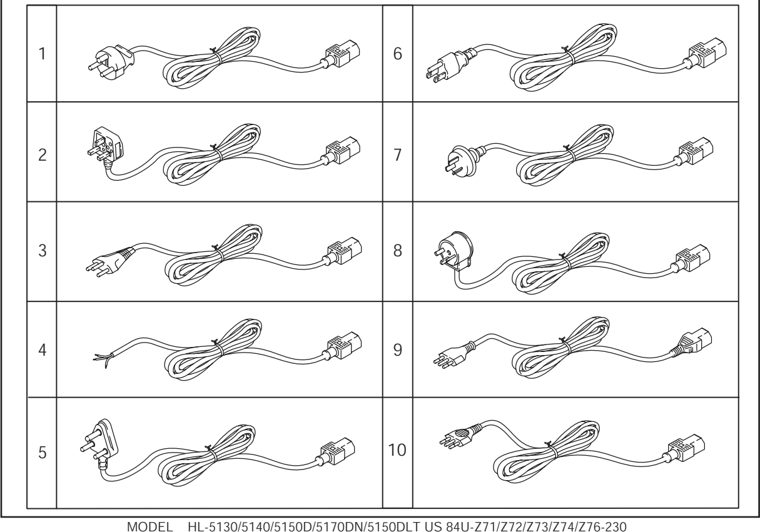

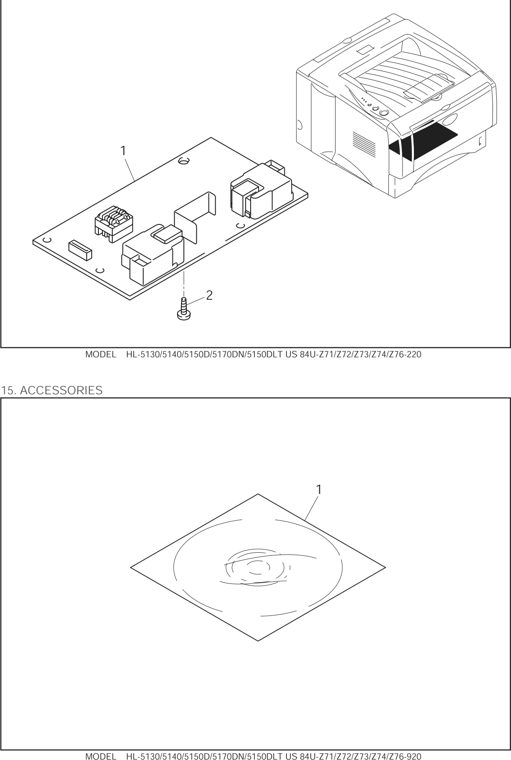

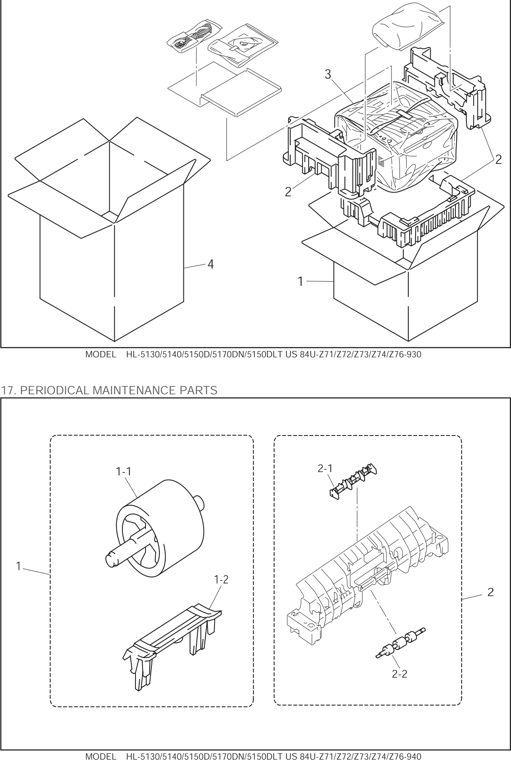

14. HIGH-VOLTAGE POWER SUPPLY PCB 1 LJ9200001 1 HIGH-VOLTAGE PS PCB ASSY ZL2 MPH3237 2 085411216 1 TAPTITE, BIND B M4X12	Diagram placeholder
