Brother HL-4140CN HL-4150CDN HL-4570CDW HL-4570CDWT Parts

›Parts for Printers, MFPs, and Scanners›Brother Printer Parts

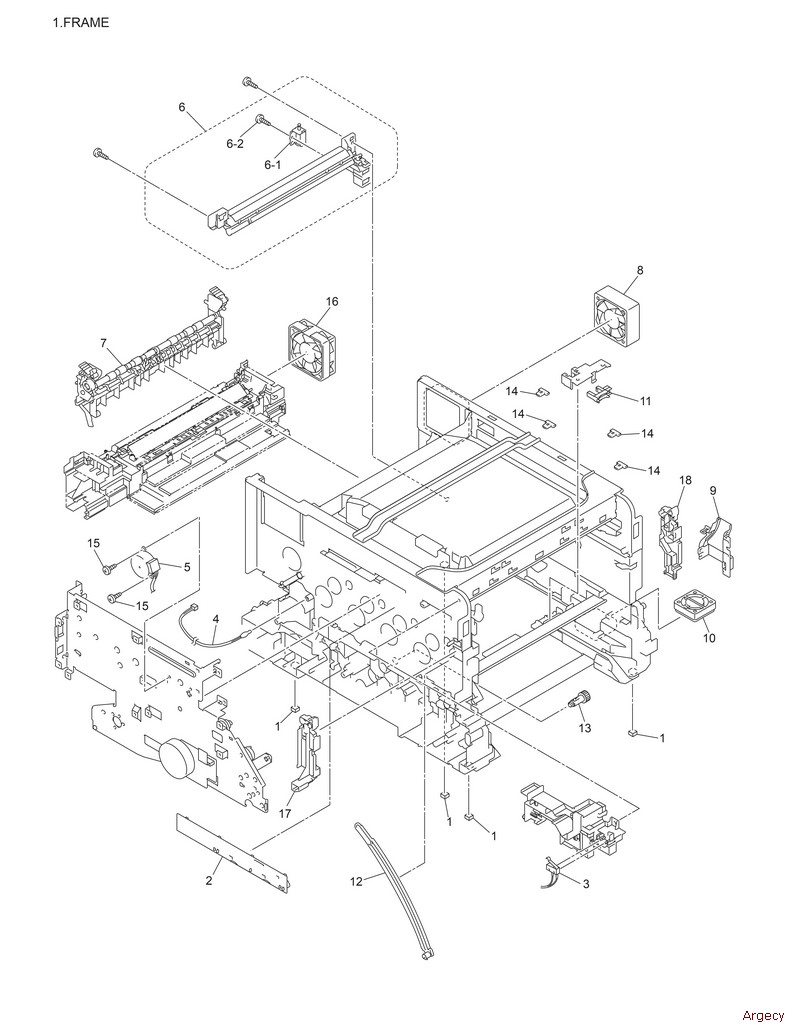

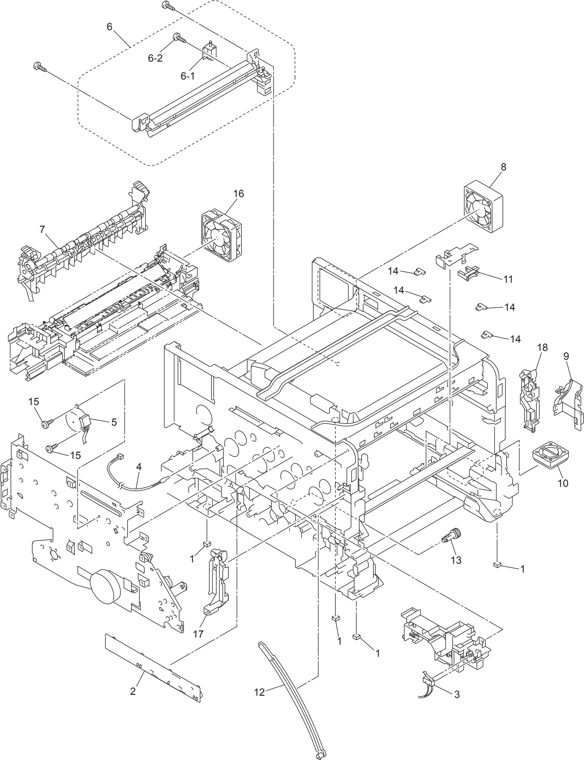

1. FRAME HL-4140CN / 4150CDN / 4570CDW / 4570CDWT
1 LR1352001 4 RUBBER FOOT
2
LY0061001 Toner/Sensor PCB Assembly
Fully refurbished with 90-day warranty
LY0061001
$35.10

3 LV0470001 1 FRONT COVER SENSOR
4 LV0472001 1 INTERNAL TEMPERATURE THERMISTOR
5 LY0722001 1 DEVELOP RELEASE MOTOR
6
LY0070001 Registration Mark Sensor Holder Assy
Fully refurbished with 90-day warranty
LY0070001
$52.66

1 LY0077001 1 SHUTTER SOLENOID6-
2 LU5694001 1 TAPTITE BIND B M3X10
7 LY0080001 1 FUSER COVER
8 LY0095001 1 FUSER FAN
9 LY0099001 1 AIR DUCT COVER
10 LY0100001 1 BLOWER
11
LM9221001 Waste Toner Sensor
Fully refurbished with 90-day warranty
LM9221001
$29.71

12 LY0115001 1 FORCED D EVELOP RELEASE LINK
13 LY0050001 1 CLEANER DRIVE GEAR
14 LU6330001 4 SPACER
15 085320616 2 TAPTITE BIND S M3X
16 LY0630001 1 POWER FAN
17 LY0112001 1 DRUM LOCK L ADD
18
LY0114001 Drum Lock R
Fully refurbished with 90-day warranty
LY0114001
$29.71

Diagram placeholder

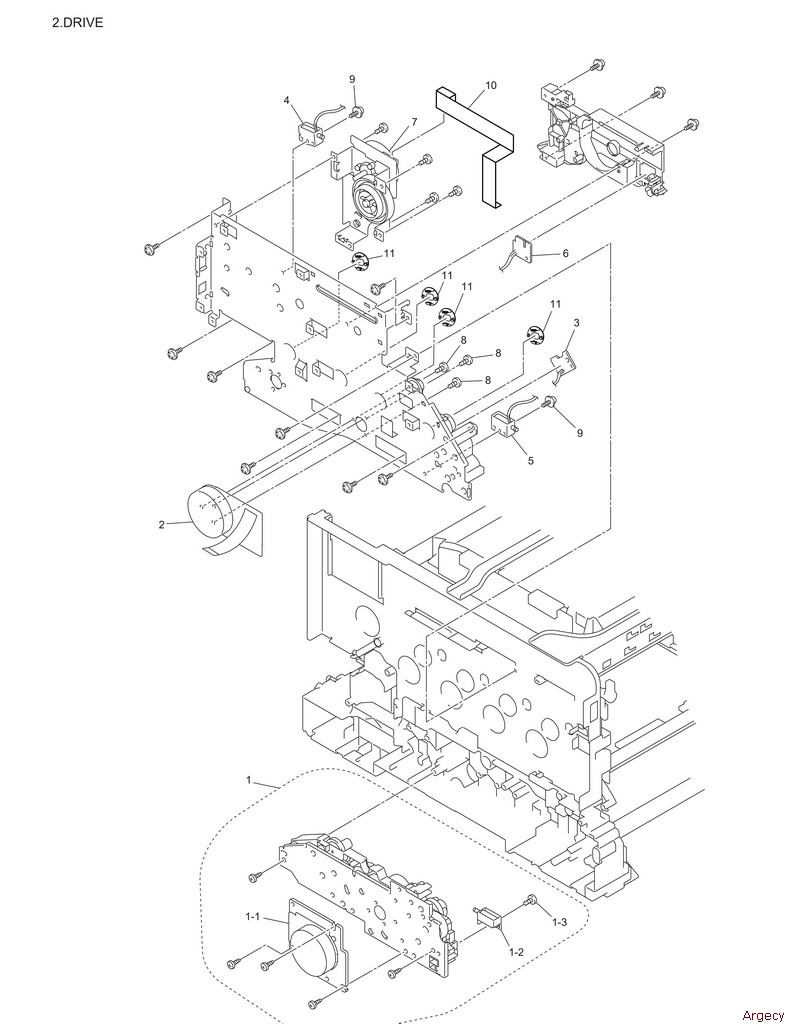

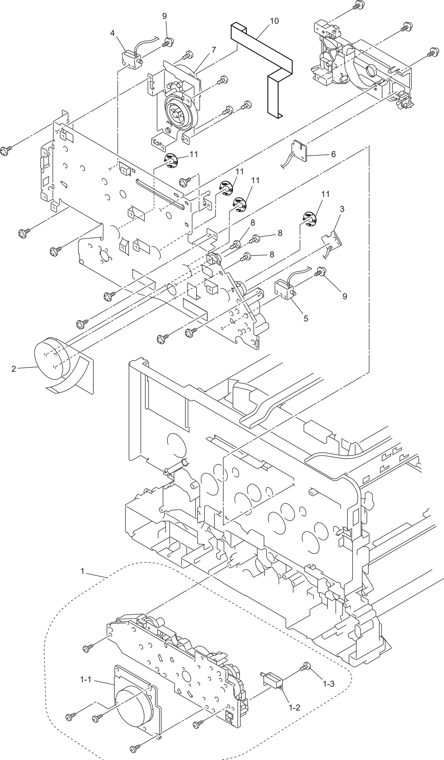

2. DRIVE
1 LY0116001 1 PF CLN DRIVE ASSY ADD
1 LY0117001 1 PF PLATE ASSY
2 LY0133001 1 T1 SOLENOID ASSY1-
3 085310816 1 TAPTITE BIND B M3X8
2 LY0723001 1 DRUM DRIVE MOTOR
3 LV0488001 1 DRUM POSITION SENSOR PCB ASSY
4 LY0208001 1 MONO SOLENOID ASSY
5 LY0221001 1 REGISTRATION SOLENOID ASSY
6 LV0489001 1 DEVELOP RELEASE SENSOR PCB ASSY
7 LY0227001 1 FUSER DEVELOP MOTOR ASSY
8 000300416 3 SCREW BIND M3X
49 LU5691001 2 TAPTITE CUP S M3X6 SR
10 LV0471001 1 FUSER DEVELOP MOTOR FLAT CABLE add
11 LY0205001 4 DRUM JOINT 		Diagram placeholder

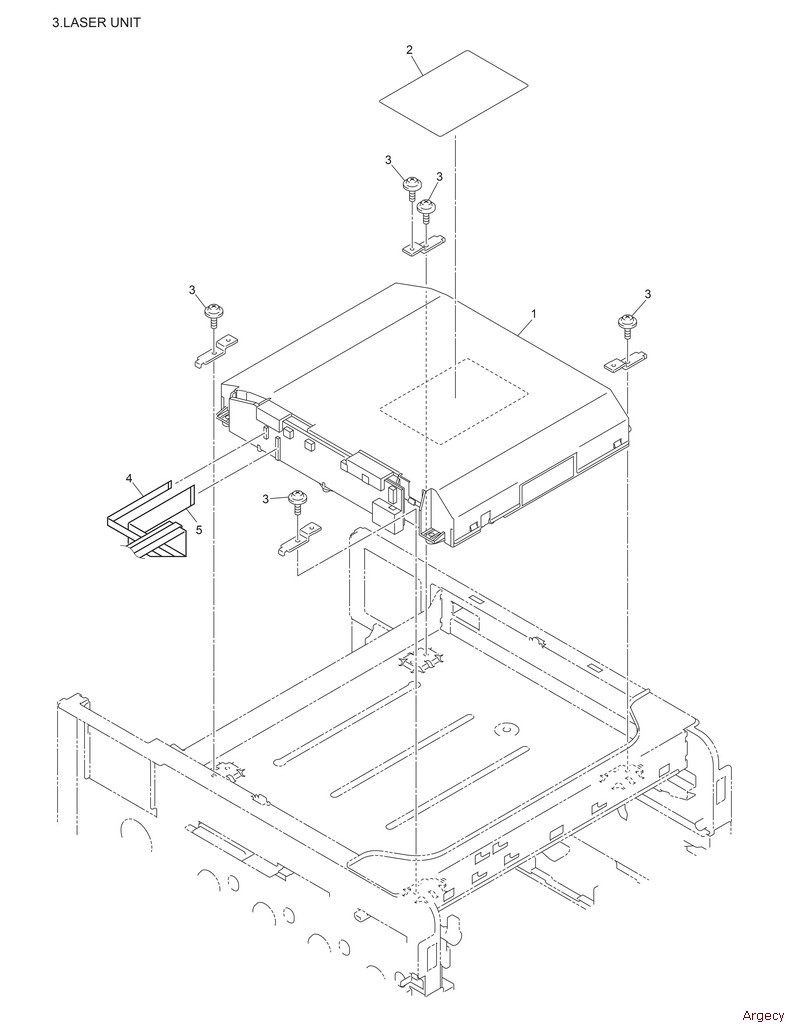

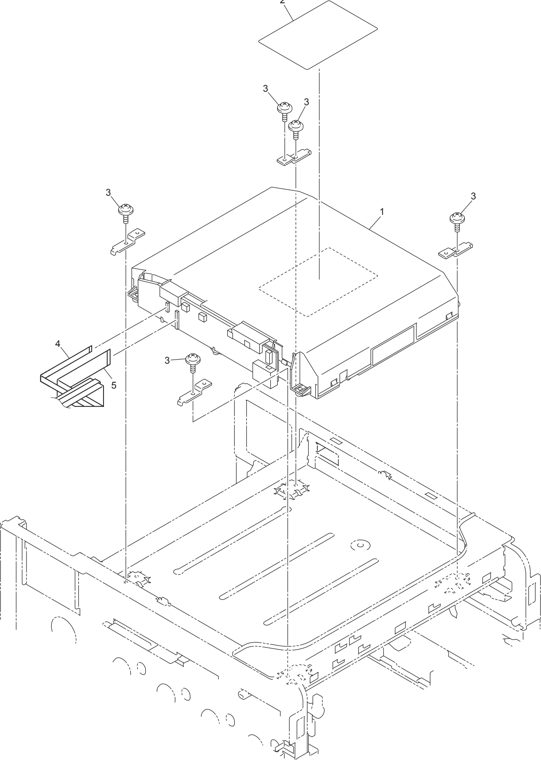

3. LASER UNIT
1 LY0737001 1 LASER UNIT (SP)
2 LU1259001 1 LABEL LASER CAUTION 75X100
3 LU5691001 5 TAPTITE CUP S M3X6 SR
4 LV0461001 1 LASER UNIT-ENGINE FLAT CABLE ADD
5 LV0462001 1 LASER UNIT-MAIN FLAT CABLE ADD 		Diagram placeholder

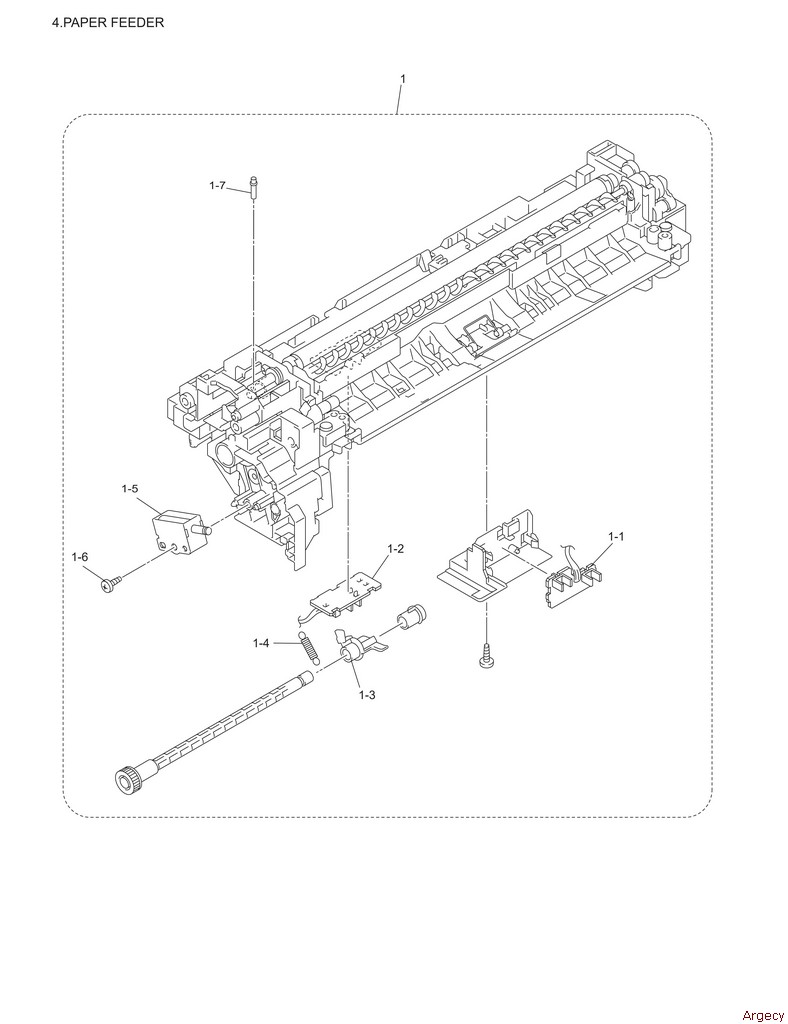

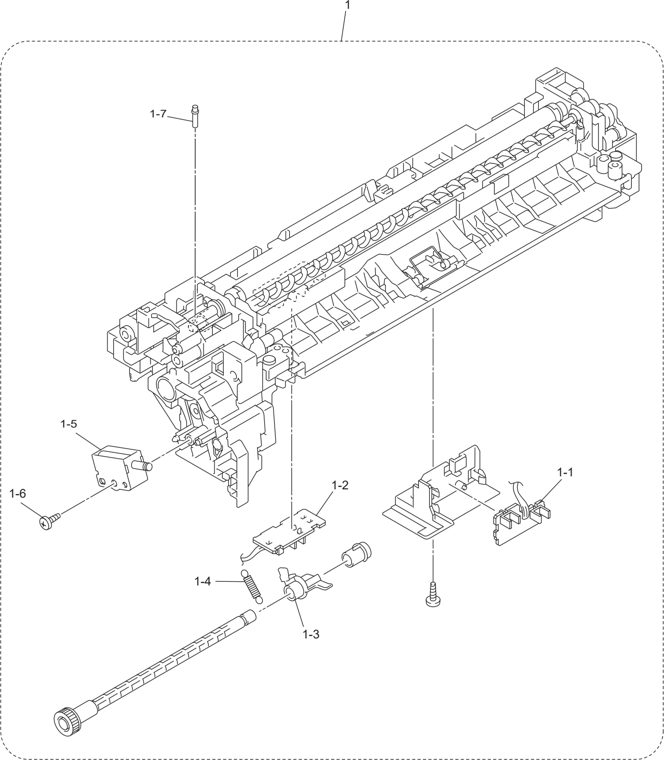

4. PAPER FEEDER
1 LR2173001 1 PF ASSY (SP) CHG
1 LV0491001 1 T1 REGISTRATION FRONT / REAR SENSOR PCB ASSY
2 LV0494001 1 T1 PAPER EDGE SENSOR PCB ASSY
3 LY0248001 1 T 1 PAPER EDGE ACTUATOR
4 LR0914001 1 T 1 PAPER EDGE ACTUATOR SPRING
5 LY0294001 1 MP SECTOR SOLENOID
6 085310816 1 TAPTITE BIND B M3X81-
7 LR0762001 1 JOINT PIN ADD 		Diagram placeholder

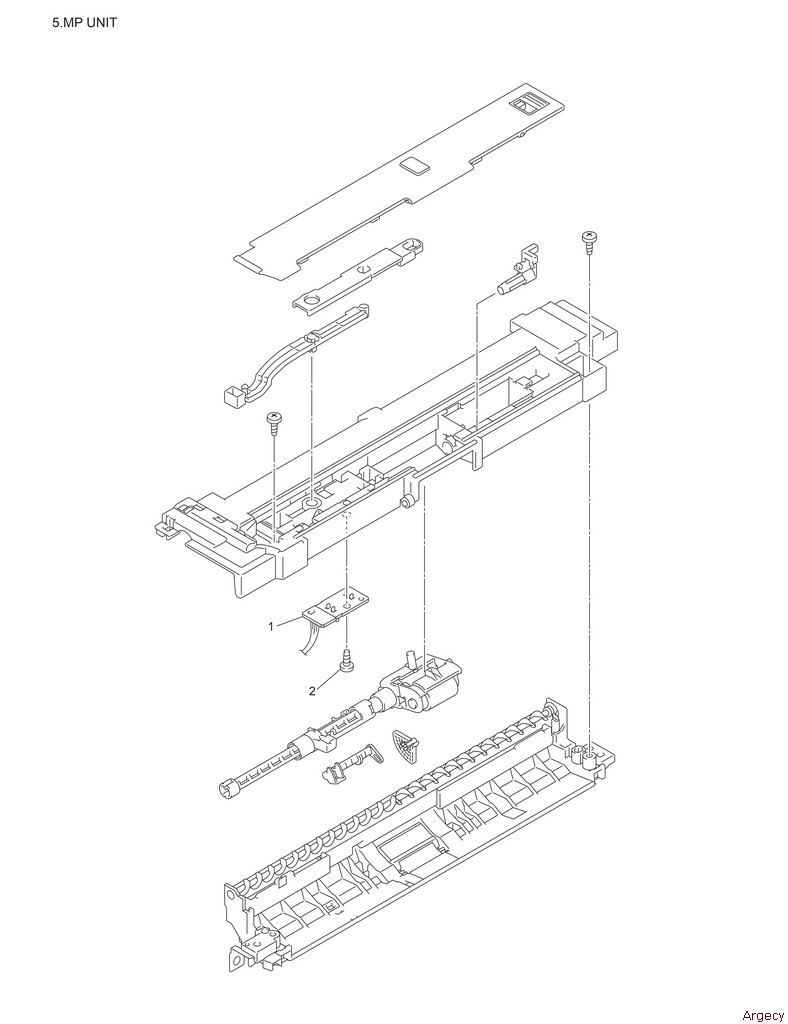

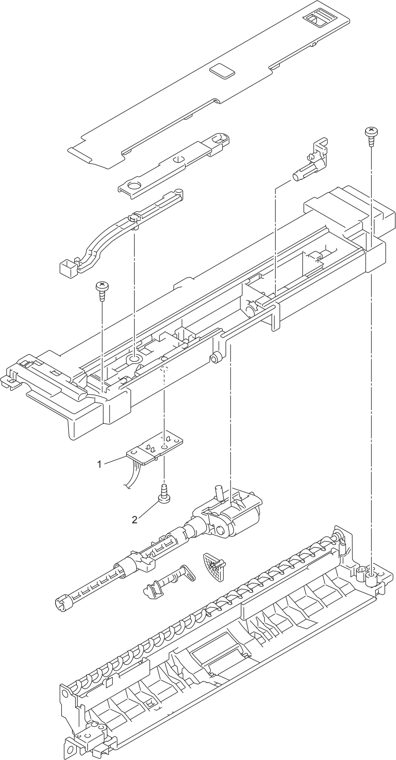

5. MP UNIT
1 LV0500001 1 MP PAPER EMPTY / REGISTRATION FRONT SENSOR PCB ASSY
2 085310816 1 TAPTITE BIND B M3X8 		Diagram placeholder

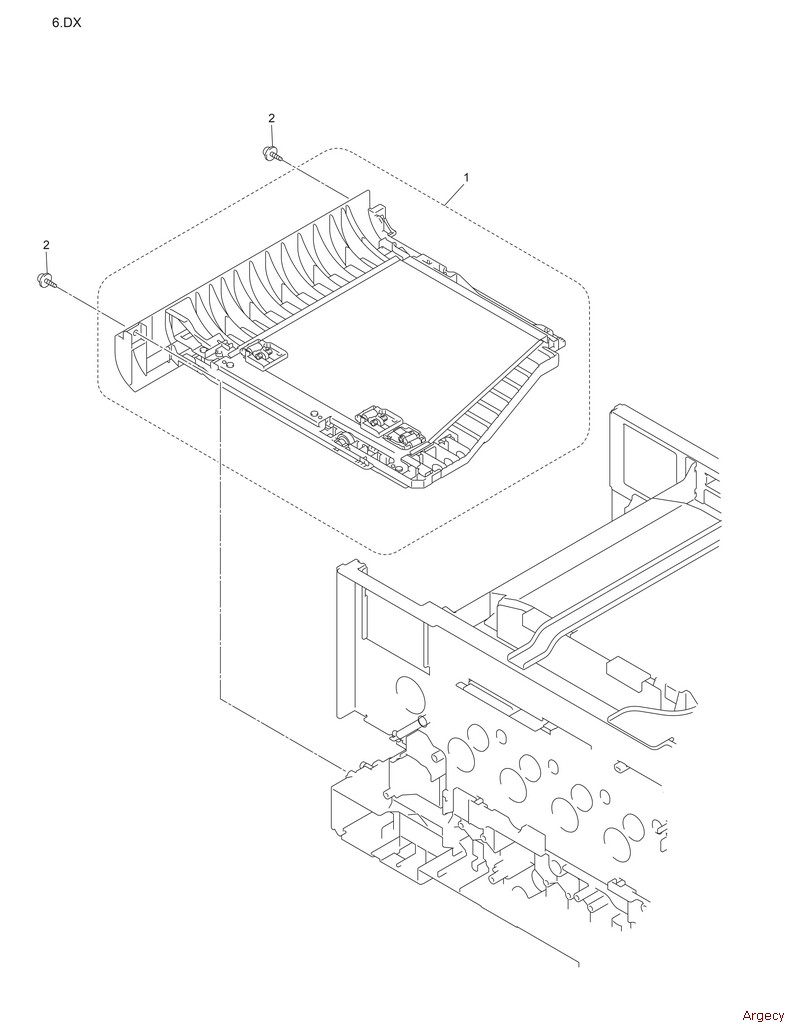

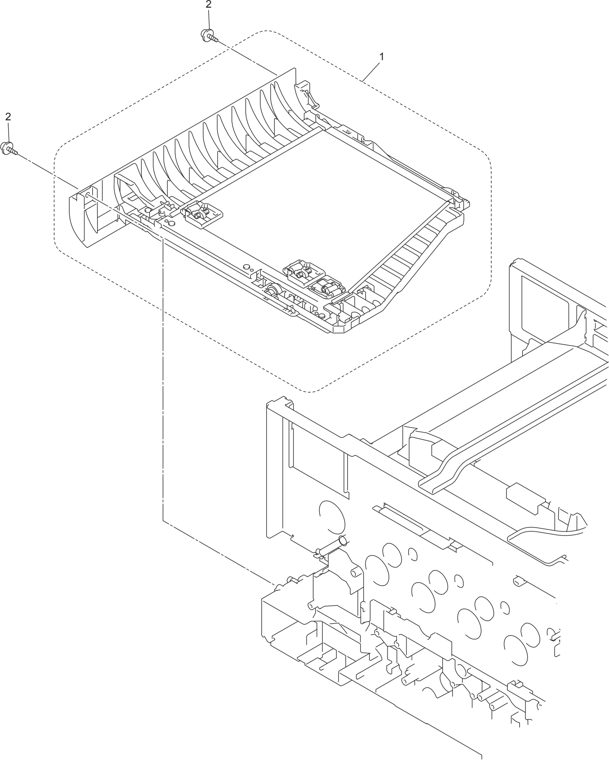

6. DX
1 LY0700001 1 DUPLEX TRAY FEED A4, HL-4140CN
1 LY1666001 1 DUPLEX FEED ASSY LTR (SP), HL-4150CDN / 4570CDW / 4570CDWT FOR US / CAN / ARG / CHL / BRA
2 LY1163001 2 TAPTITE CUP B M3X12 		Diagram placeholder

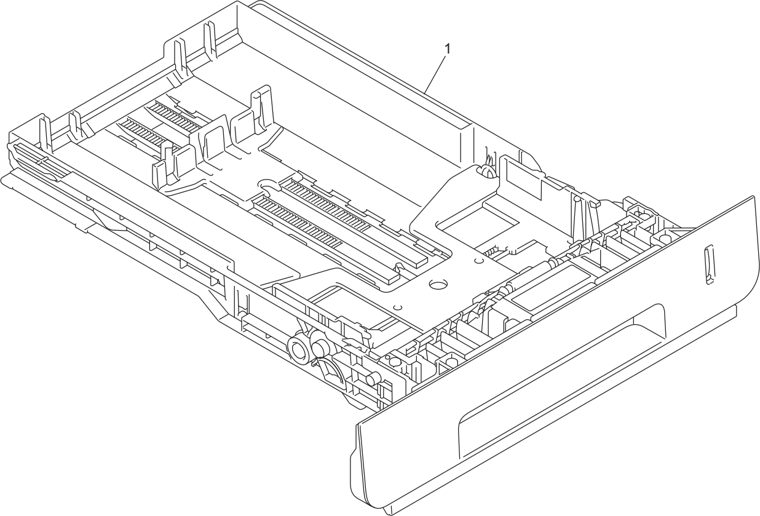

7. PAPER TRAY
1 LY1671001 1 PAPER TRAY (SP) 		Diagram placeholder

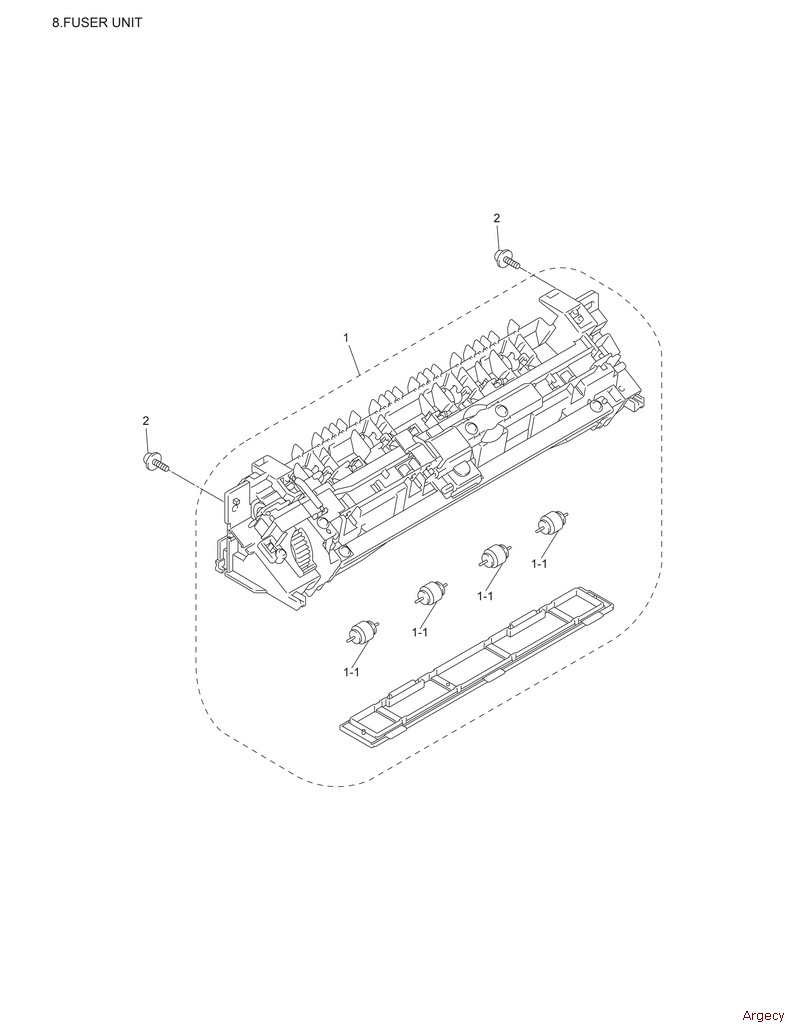

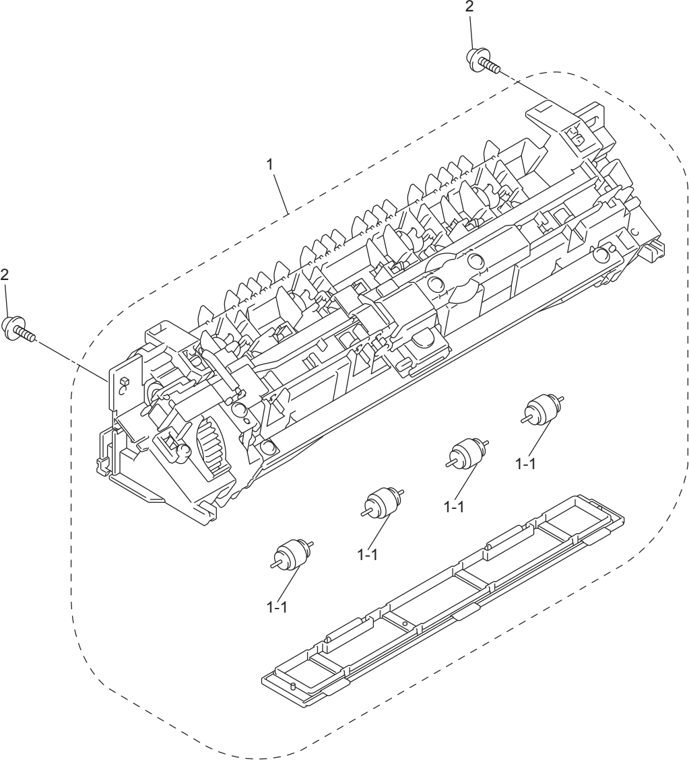

8. FUSER UNIT
1
LY0748001 Fuser - 115V
Fully refurbished with 90-day warranty
LY0748001
$195.75

1 LY0749001 1 FUSER UNIT 230V (SP)
1
LY0634001 Cleaner Pinch Roller S Assy
New
LY0634001 (New)
$25.65

2 LJ0395001 2 TAPTITE PAN B M4X14 		Diagram placeholder

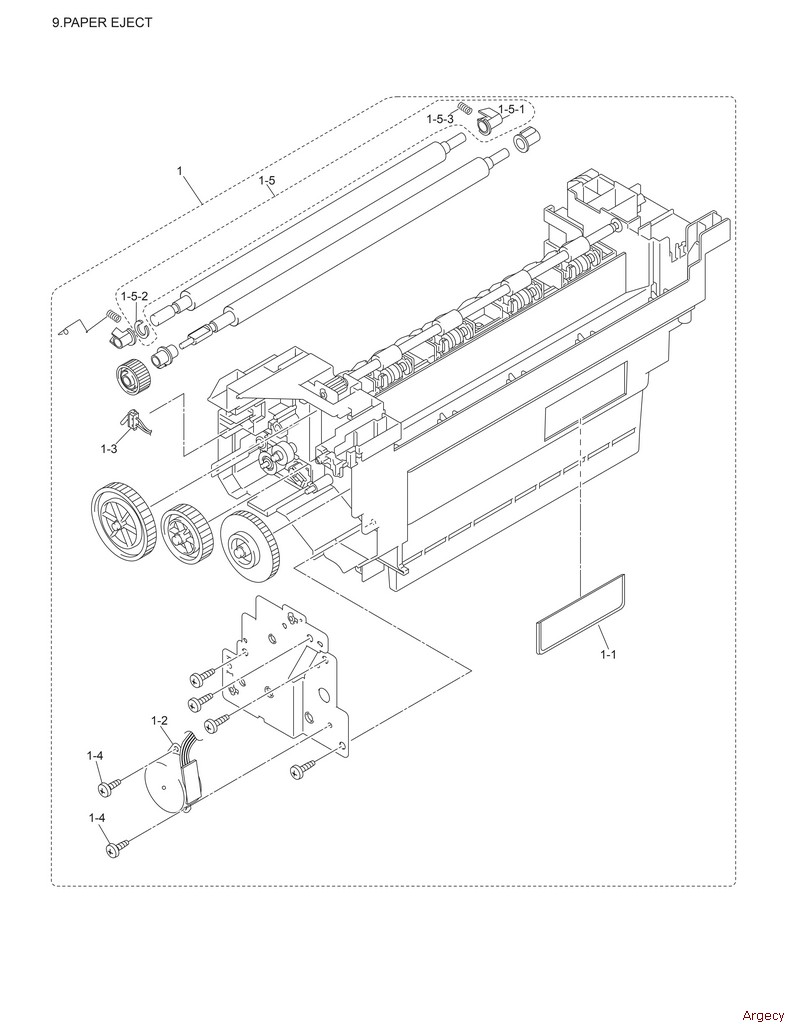

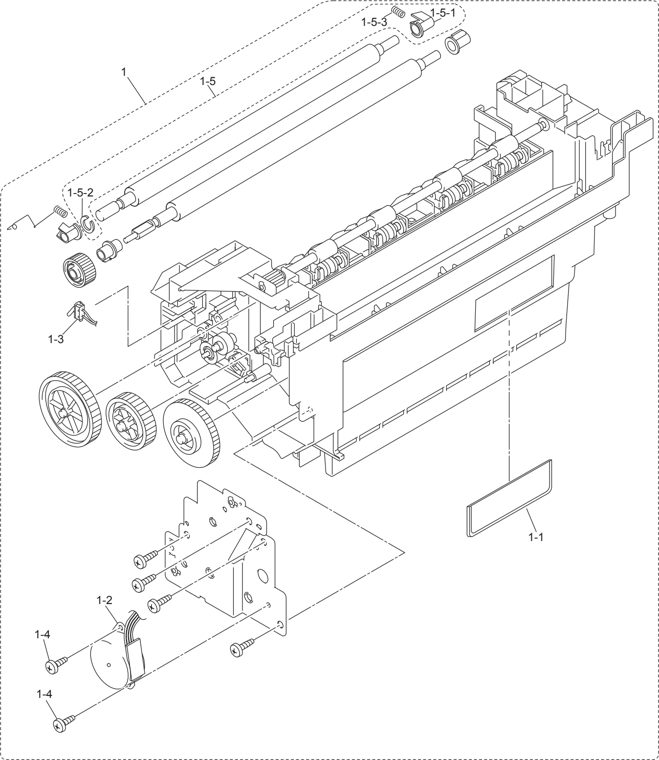

9. PAPER EJECT
1 LY1735002 1 PAPER EJECT ASSY (SP), HL-4140CN / 4150CDN
1 LY1735001 1 PAPER EJECT ASSY (SP), HL-4570CDW / 4570CDWT
1 LY1245001 1 F ILTER ASSY
2 LY0408001 1 PAPER EJECT MOTOR
3 LV0538001 1 BACK COVER SENSOR ASSY
4 085320616 2 TAPTITE BIND S M3X6
5 LY7959001 1 EJE CT PAPER KIT (SP) ADD
1 LY0391002 1 EJECT MIDDLE BEARING add
2 LY0719001 1 COLLAR 6 add
3 LY0393001 1 MIDDLE ROLLER SPRING add
Diagram placeholder

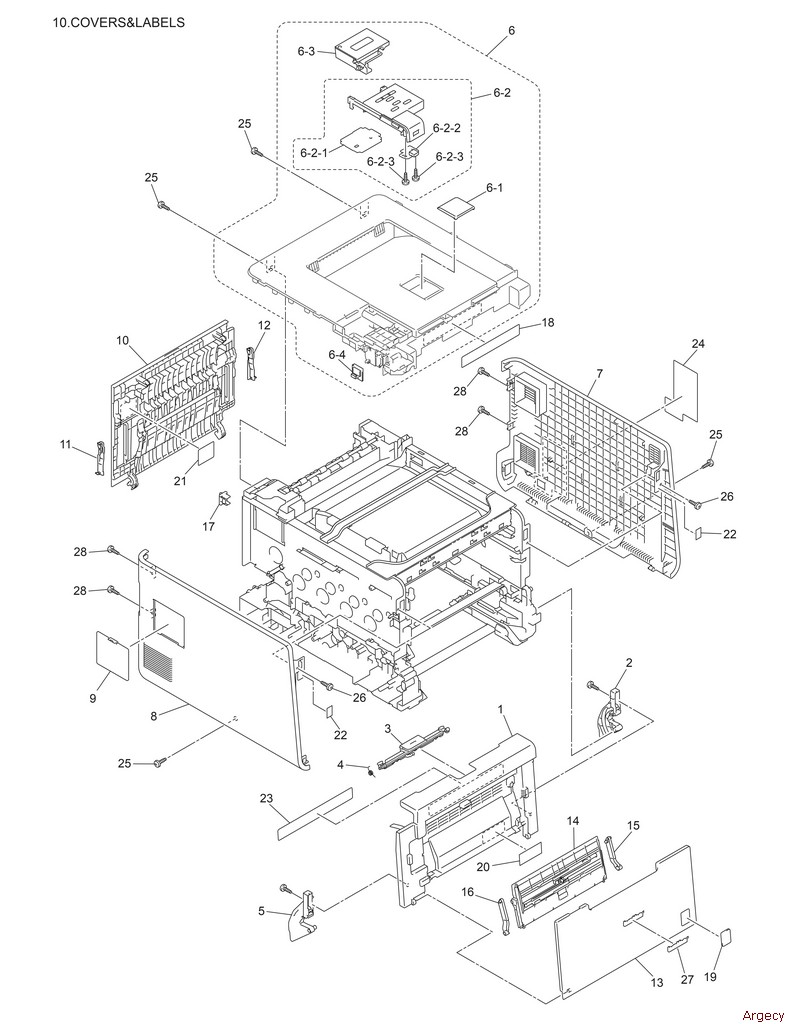

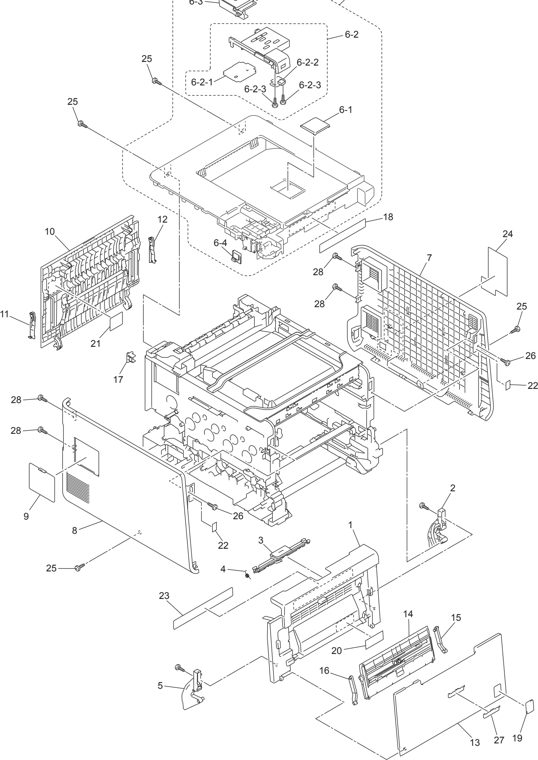

10. COVERS&LABELS
YDESCRIPTION REMARKS
1 LY0416001 1 FRONT COVER
2 LY0417001 1 FRONT COVER ARM R
3 LY0419001 1 FRONT COVER RELEASE BUTTON
4 LY0420001 1 FRONT COVER RELEASE BUTTON SPRING
5 LY0418001 1 FRONT COVER ARM L
6 LY1667001 1 TOP COVER ASSY (SP), HL-4140CN chg
6 LY1629001 1 TOP COVER ASSY (SP), HL-4150CDN chg
6 LY1632001 1 TOP COVER ASSY (SP), HL-4570CDW / 4570CDWT chg
1 LY0428002 1 PAPER STOPPER, HL-4140CN / 4150CDN
1 LY0428001 1 PAPER STOPPER, HL-4570CDW / 4570CDWT
2 LY0430001 1 PANEL COVER ASSY, HL-4140CN / 4150CDN
2
LY0708001 Panel Cover Assy
Fully refurbished with 90-day warranty
LY0708001
$35.10

1 LV0539001 1 PANEL PCB ASSY
2 LV0531001 1 USB HOST RELAY PCB ASSY
3 LU5693001 2 TAPTITE BIND B M4X12
3 LY1550001 1 LCD ASSY, HL-4140DN
3 LY0436001 1 LCD ASSY, HL-4150CDN
3
LY0712001 LCD Assy
Fully refurbished with 90-day warranty
LY0712001
$35.10

4
LT2155001 Wireless Lan PCB
Fully refurbished with 90-day warranty
LT2155001
$31.05

7 LY0443001 1 SIDE COVER R ASSY
8 LY0448001 1 SIDE COVER L
9 LR0516003 1 ACCESS COVER
10 LY0449001 1 BACK COVER
11 LY0450001 1 BACK COVER STOPPER ARM L
12 LY0451001 1 BACK COVER STOPPER ARM R
13
LY0452001 MP Cover Assy
New
LY0452001 (New)
$49.96

14 LY0456001 1 MP PAPER GUIDE ASSY
15
LY0459001 MP Link Right
New
LY0459001 (New)
$25.65

16
LY0460001 MP Link Left
New
LY0460001 (New)
$25.65

17 LY0872001 1 LAN PORT CAP
18 LY0465001 1 LABEL DR OPERATION
19 LY0837001 1 COLOR LASER LABEL
20 LY0838001 1 MP SET INSTRUCTION LABEL
21 LY0920001 1 LABEL H / SP CAUTION REAR 49X45
22 LY0917001 2 LABEL DR TARGET L / R
23 LY0919001 1 LABEL H / SP CAUTION FOR US / CAN / ARG / CHL / BRA
23 LY0939001 1 LABEL H / SP CAUTION, HL-4140CN FOR ALL COUNTRIES, HL-4150CDN EXCEPT FOR US / CAN / ARL / NZ / CHN / ARG / GUL / BRA / SGP / KOR / IND
23 LY1419001 1 LABEL H / SP CAUTION, HL-4150CDN / 4570CDW FOR ARL / NZ / GUL / SGP / KOR / IND
23 LY0940001 1 LABEL H / SP CAUTION, HL-4570CDW / 4570CDWT EXCEPT FOR US / CAN / ARL / NZ / CHN / CHL / GUL / SGP
23 LY1496001 1 LABEL H / SP CAUTION F 210 FOR CHN
24 LY1306001 1 SWITCH STICKER
25 LU5693001 4 TAPTITE BIND B M4X
26 085320816 2 TAPTITE BIND S M3X
27 LX7150003 1 EMBLEM BROTHER SHEET L
28 087320816 4 TAPTITE CUP S M3X8 add 		Diagram placeholder

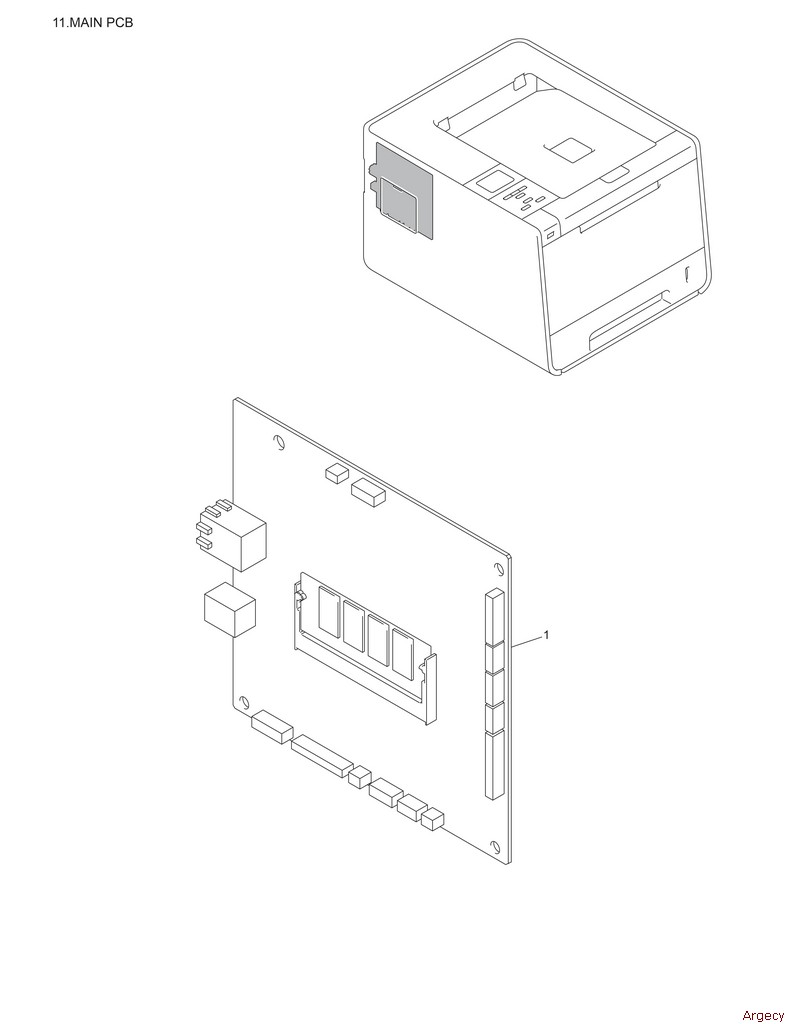

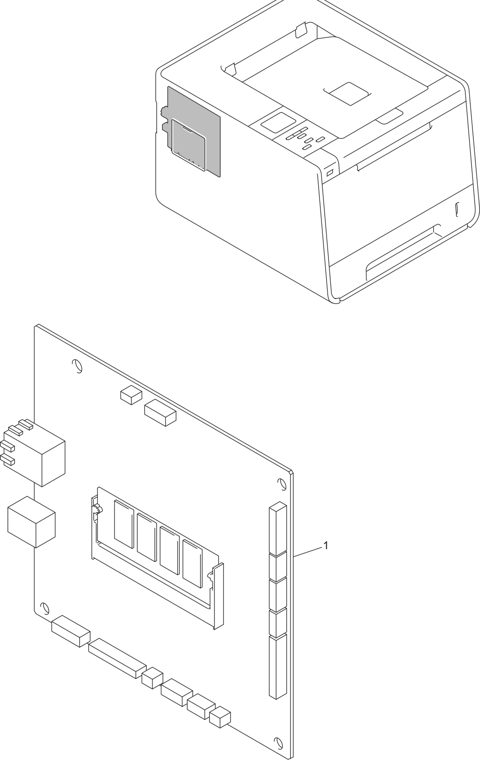

11. MAIN PCB
YDESCRIPTION SYMBOL REMARKS
1 LV0534003 1 MAIN PCB ASSY, HL-4140CN B512308
1 LV0534002 1 MAIN PCB ASSY, HL-4150CDN B512308
1
LV0534001 Main PCB Assy
Fully refurbished with 90-day warranty
LV0534001
$133.65

Diagram placeholder

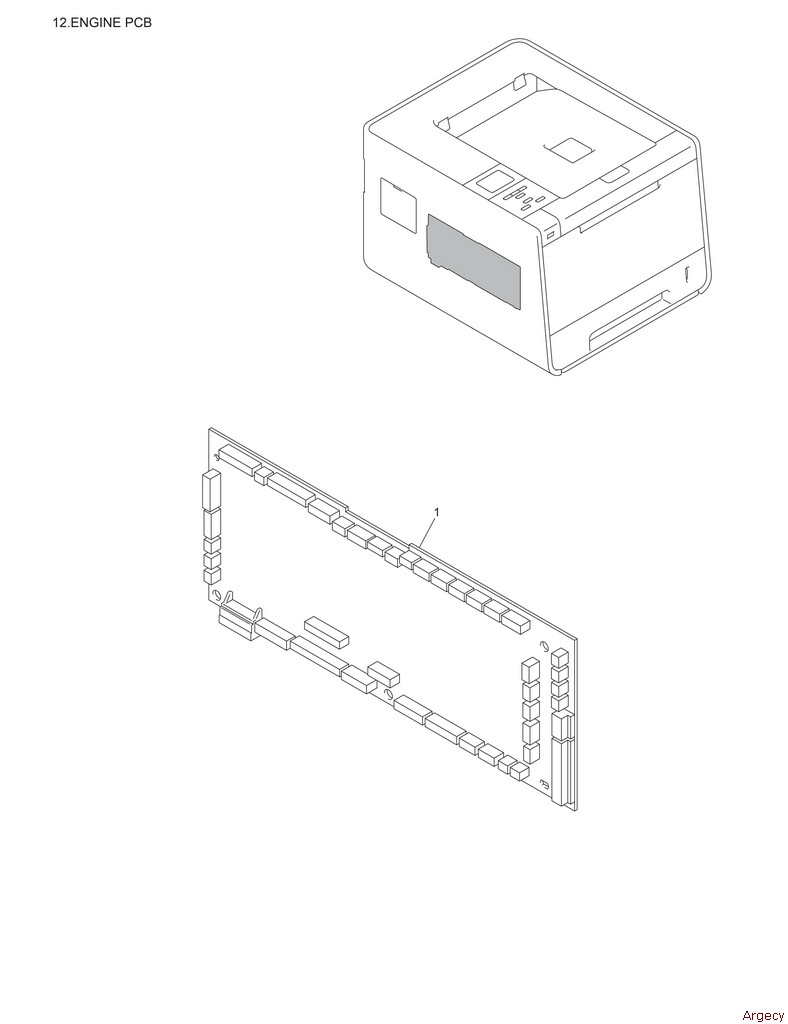

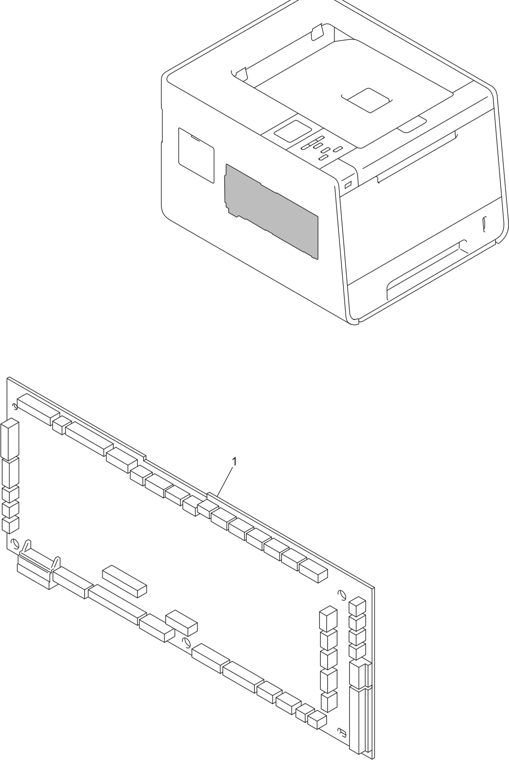

12. ENGINE PCB
1
LV0535001 Engine PCB Assy
Fully refurbished with 90-day warranty
LV0535001
$45.91

Diagram placeholder

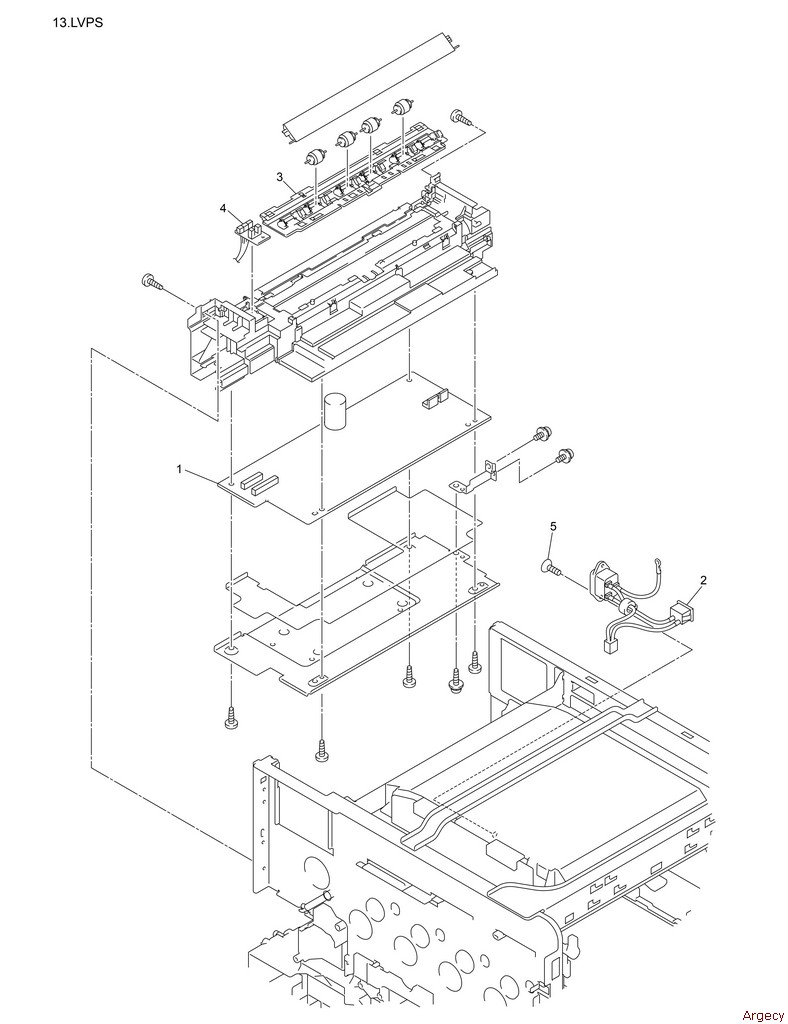

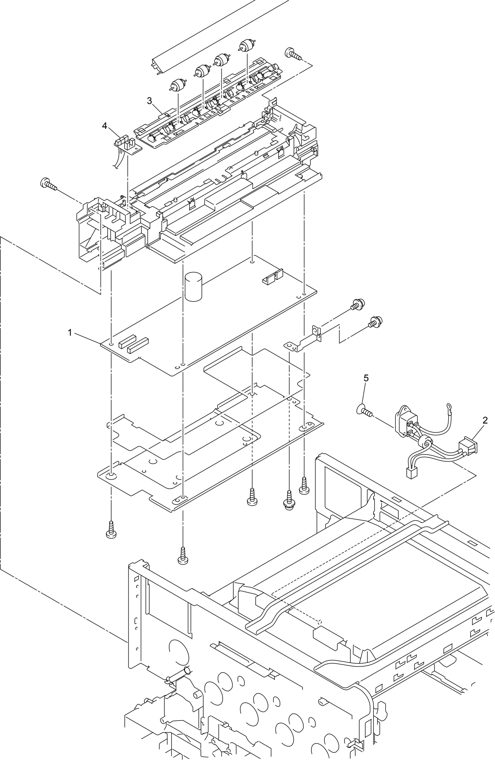

13. LVPS
1
LV0524001 Low-Voltage Power Supply PCB Assy 115V
Fully refurbished with 90-day warranty
LV0524001
$79.66

FOR US / CAN / BRA
1 LV0511001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY 230V EXCEPT FOR US / CAN / CHN / BRA / IND / RUS
1 LT1359001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY 230V FOR CHN / IND / RUS
2 LV0528001 1 INLET HARNESS ASSY
3 LY0954001 1 CLEANER PINCH ROLLER HOLDER
4 LV0529001 1 PAPER EJECT SENSOR PCB ASSY
5 084311016 1 TAPTITE FLAT B M3X10 		Diagram placeholder

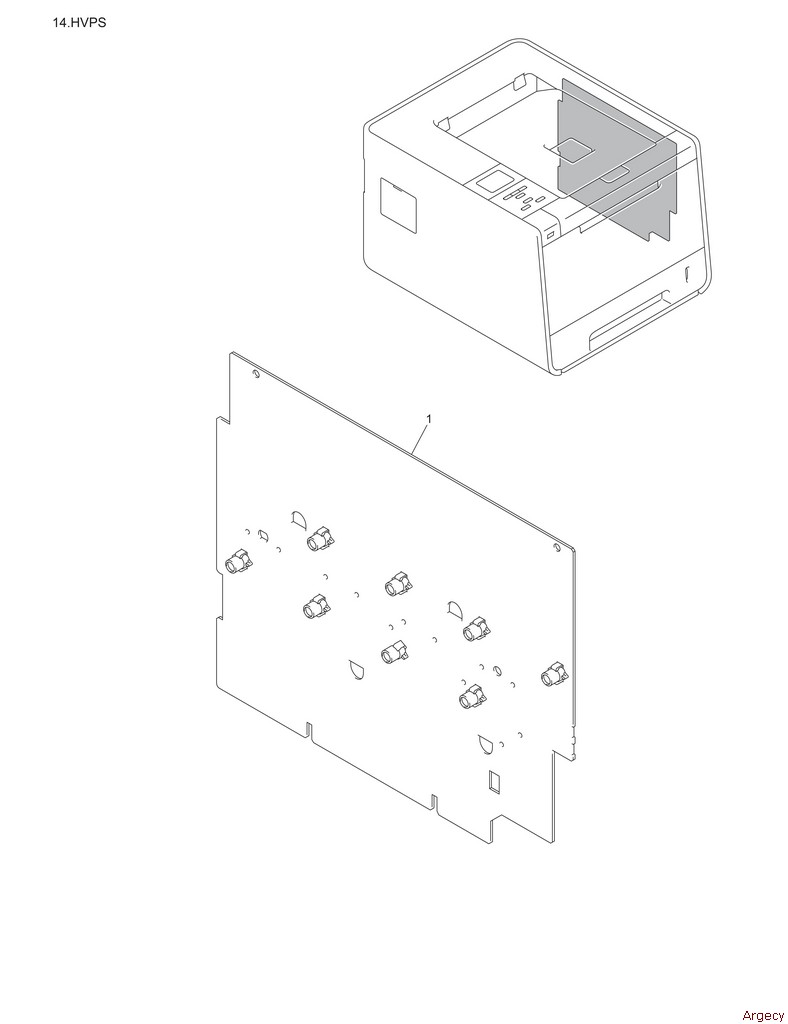

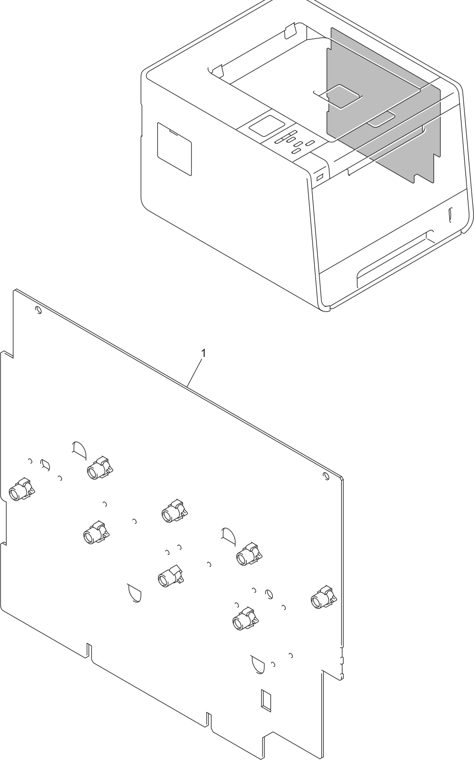

14. HVPS
1
LY0641001 High-Voltage Power Supply PCB Assy
Fully refurbished with 90-day warranty
LY0641001
$45.91

Diagram placeholder

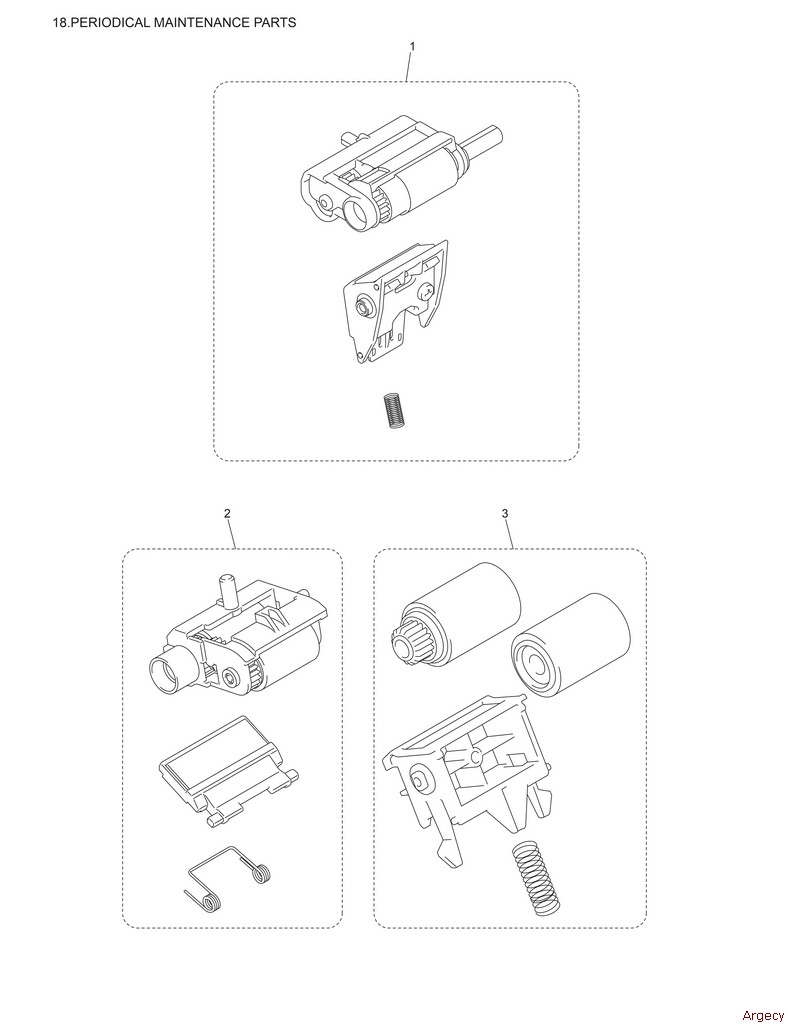

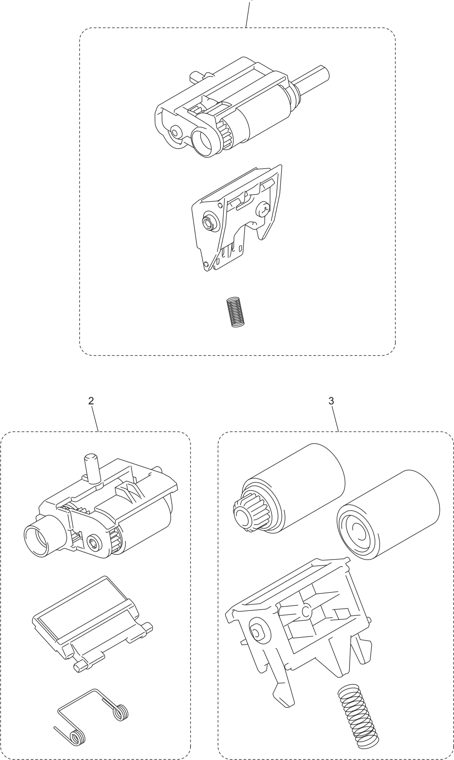

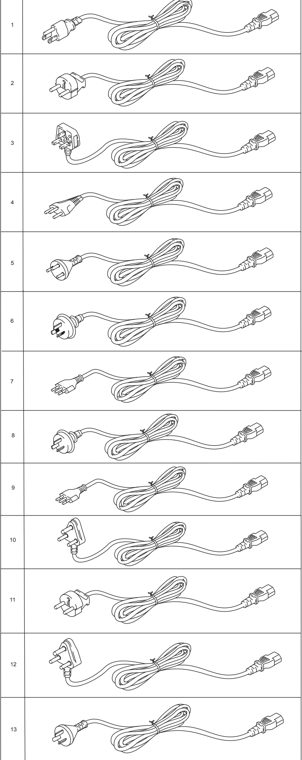

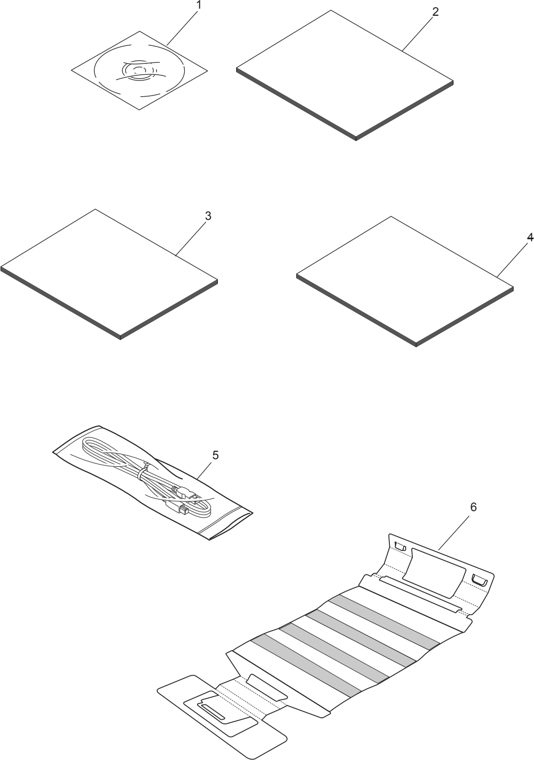

18.PERIODICAL MAINTENANCE PARTS
1
LY1257001 Paper Feeding Kit
New
LY1257001 (New)
$52.66

2
LY1260001 MP Paper Feeding Kit
New
LY1260001 (New)
$52.66

3
LY1548001 Paper Feeding Kit 2
New
LY1548001 (New)
$93.16

Diagram placeholder

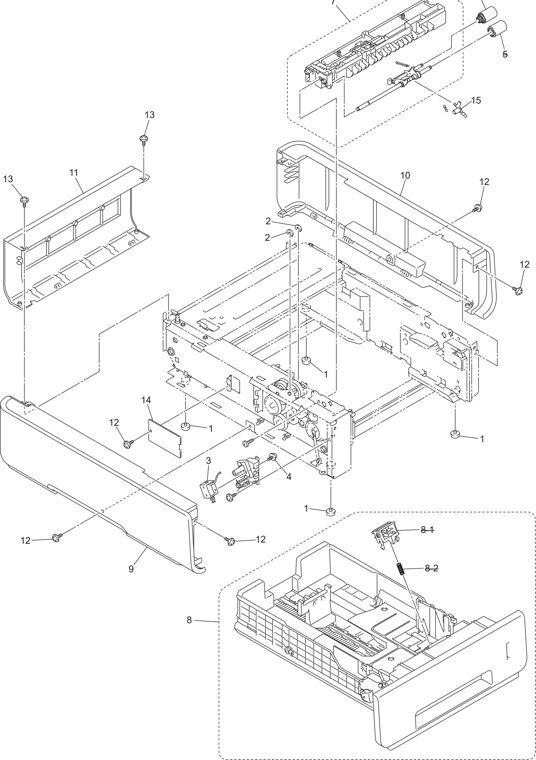

19.LT
1 UH2208001 4 RUBBER FOOT, HL-4570CDWT
2 LJ1175001 2 COLLAR 6, HL-4570CDWT
3 LJ9503001 1 T2 SOLENOID ASSY, HL-4570CDWT
4 U11776001 1 SCREW FLANGED M3X3.5
5 LM3454002 1 T2 SEPARATION ROLLER ASSY, HL-4570CDWT*
6 LU0496002 1 T2 PAPER FEED ROLLER ASSY 1, HL-4570CDWT*
7 LY0669001 1 T2 PAPER FEED FRAME UNIT, HL-4570CDWT
8 LY1674001 1 T2 PAPER TRAY UNIT (SP), HL-4570CDWT chg
8-1 LY0952001 1 T2 SEPARATION PAD ASSY, HL-4570CDWT*
8-2 LY0679001 1 T2 SEPARATION PAD SPRING, HL-4570CDWT*
9 LY0686001 1 T2 COVER LEFT, HL-4570CDWT
10 LY0687001 1 T2 COVER RIGHT, HL-4570CDWT
11 LY0688001 1 T2 COVER REAR, HL-4570CDWT
12 LU5691001 5 TAPTITE CUP S M3X6 SR
13 LY0811001 2 TAPTITE CUP S M3X10 SR
14 LM9024001 1 T2 RELAY PCB ASSY, HL-4570CDWT B512183
15 LY0667001 1 EDGE ACTUATOR BC
*REF No. 5, 6, 8-1 and 8-2 were assembled as PAPER FEEDING KIT 2 (SP)(LY1548001) listed on "18 PERIODICAL MAINTENANCE PARTS".When ordering these parts, please order LY1548001.
Diagram placeholder
