Brother HL-2600cn Parts
| 1. INSIDE FRAME UNIT | Diagram placeholder |
| 2. OUTSIDE FRAME UNIT MODEL DX-2000 54T-X10-510 | Diagram placeholder |

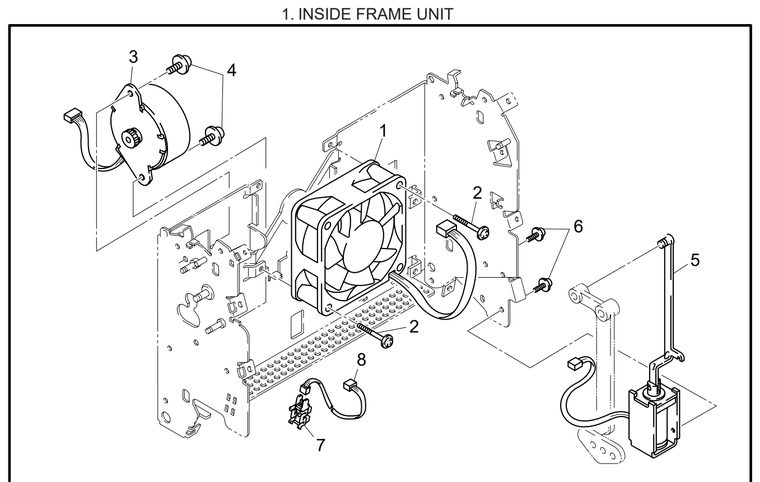

| 1. INSIDE FRAME UNIT 1 UH2124001 1 DC FAN MOTOR 2 UJ3415001 2 SCREW, PAN(P WASHER) M3X29.5 3 UH3726001 1 REVERSING MOTOR 4 UF4444001 2 SCREW, PAN(P WASHER) M4X6 5 UH1707001 1 SOLENOID ASSY 6 U50553001 2 SCREW, CUP M3X5 7 UJ4232000 1 PHOTO INTERRUPTER:1240 8 UH1732001 1 REVERSE SENSOR HARNESS ASSY | Diagram placeholder |

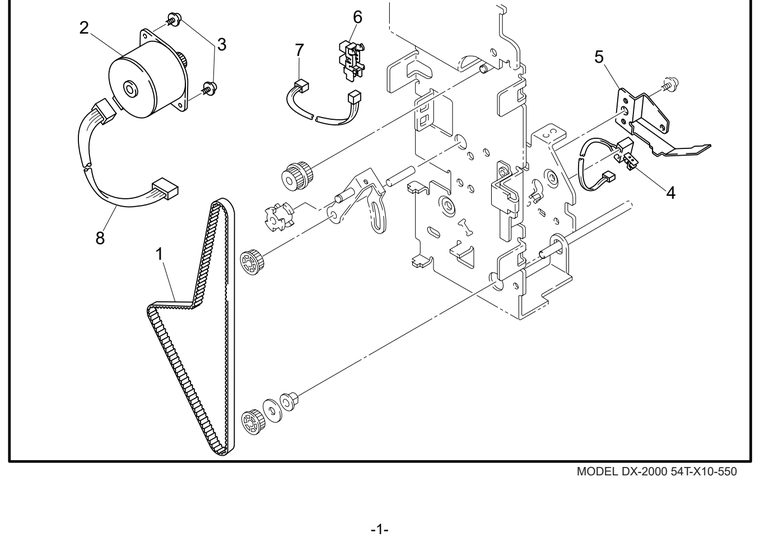

| 2. OUTSIDE FRAME UNIT 1 UH1655001 1 T BELT, B40S2M396 2 Z25996001 1 MOTOR, BP484223LM31-FD 3 085320515 2 TAPTITE, BIND S M3X5 4 UH1734001 1 CASSETTE SENSOR ASSY 5 UH1751000 1 CASSETTE SENSOR LEVER 6 UJ4232000 1 PHOTO INTERRUPTER:1240 7 UH1733001 1 COVER SENSOR HARNESS ASSY 8 UH1786001 1 P PRESSURE MOTOR HARNESS ASSY | Diagram placeholder |

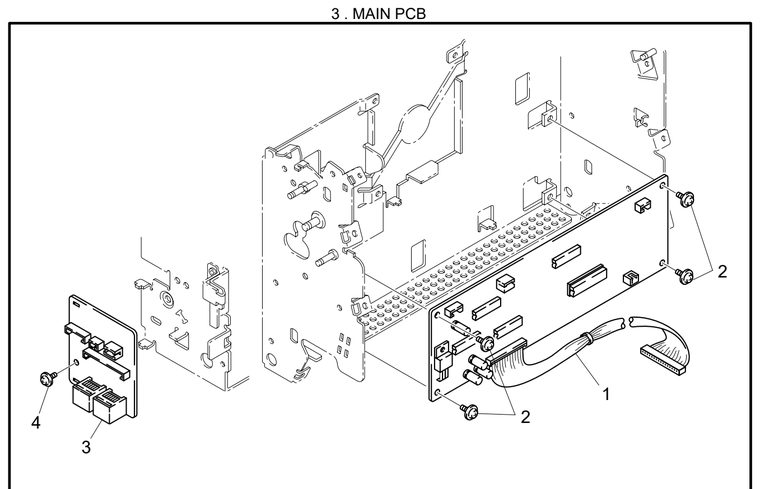

| 3. MAIN PCB PR99027 1 UK4106001 1 MAIN PCB ASSY, DX-2000 B48K264-2A CHG REV. 2 087320516 4 TAPTITE, CUP S M3X5 3 UK4108001 1 DUPLEX IF PCB ASSY, DX-2000 B48K265- 14 087320516 1 TAPTITE, CUP S M3X5 | Diagram placeholder |

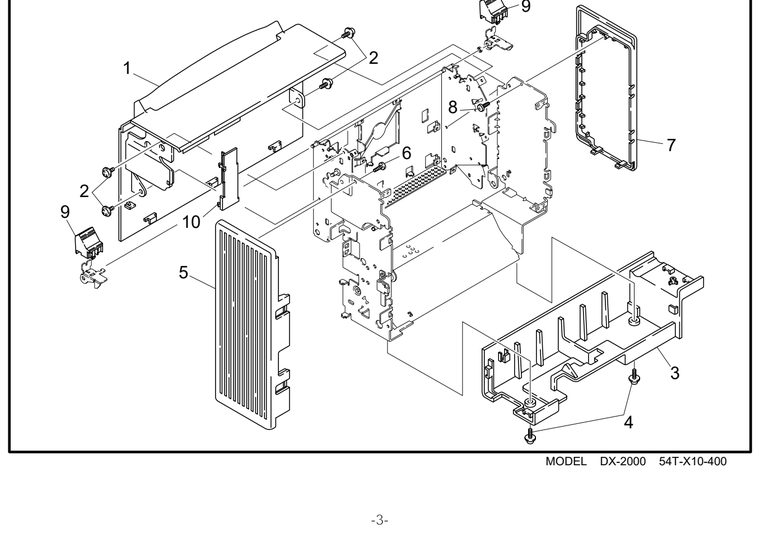

| 4. COVERS 1 UH1667001 1 TOP COVER 2 087320616 4 TAPTITE, CUP S M3X6 3 UH1668001 1 BOTTOM COVER 4 087320616 2 TAPTITE, CUP S M3X6 5 UH1669001 1 SIDE COVER L 6 085310616 1 TAPTITE, BIND B M3X6 7 UH1670001 1 SIDE COVER R 8 085310616 1 TAPTITE, BIND B M3X6 9 UH1671001 2 LOCK LEVER COVER 10 UH1770001 1 GEAR COVER | Diagram placeholder |

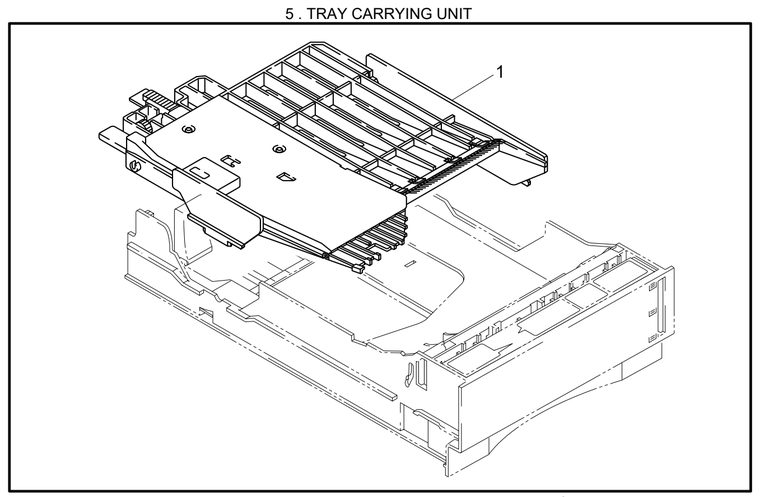

| 5. TRAY CARRYING UNIT 1 UH2035001 1 DU TRAY CARRYING WAY UNIT 2 | Diagram placeholder |

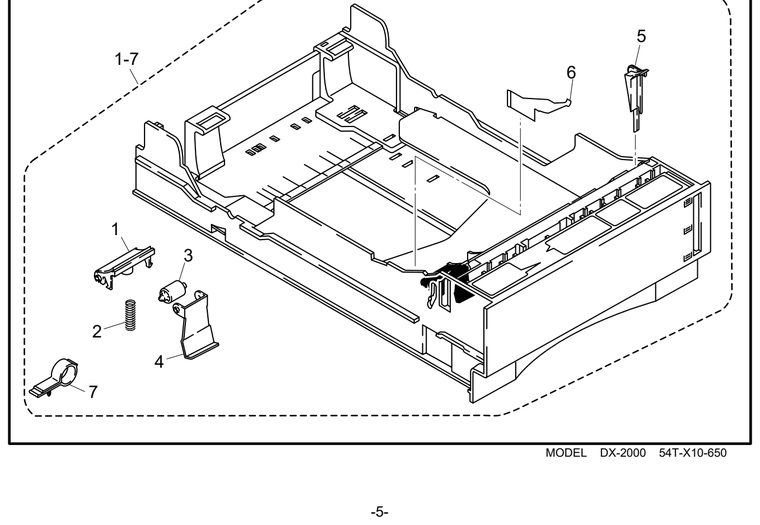

| 6. PAPER TRAY 7 UH3162001 1 PAPER TRAY S UNIT DX3 (SP) 1 UH2487001 1 SEPARATION PAD ASSY T 2 UH2841001 1 SEPARATION PAD SPRING 200 3 UH2360000 1 ROLLER 4 UH2459000 1 ROLLER HOLDER 5 UH1776001 1 PAPER FRONT GUIDE DU, BLUE 6 UH2472001 1 TRAY GUIDE PLATE 1 7 UH2804001 1 ADJUST KNOB STOPPER | Diagram placeholder |
