Brother HL-1210W 1211W 1212W 1218W 1222W Parts

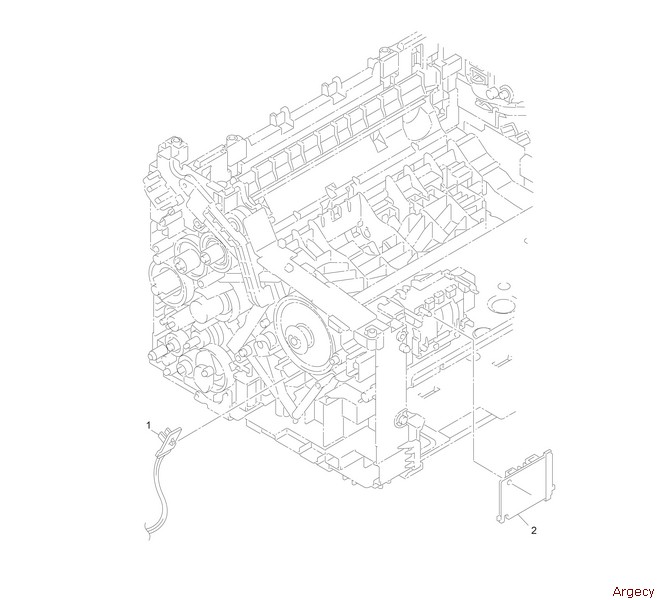

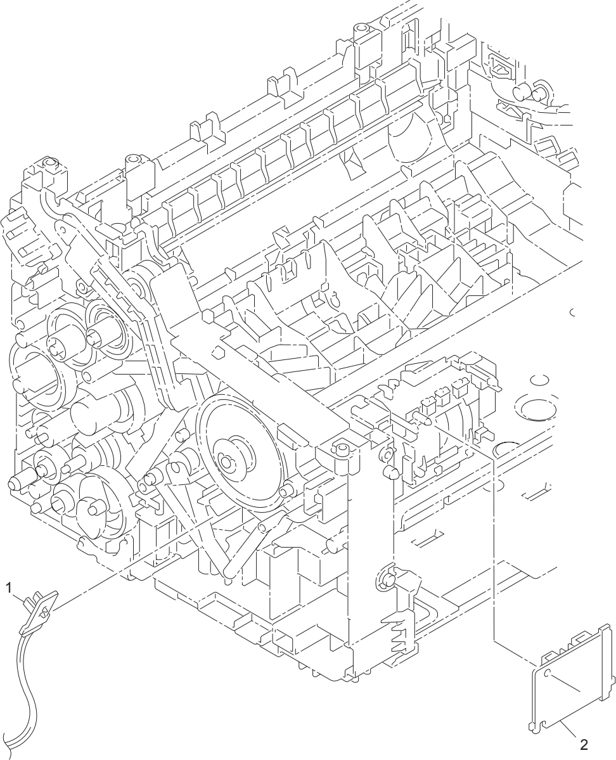

| 1. FRAME L & DRIVE UNIT 1 LV1004001 1 NEW TONER SENSOR PCB ASSY 2 LV1481001 1 MOTOR ENCODER PCB ASSY | Diagram placeholder |

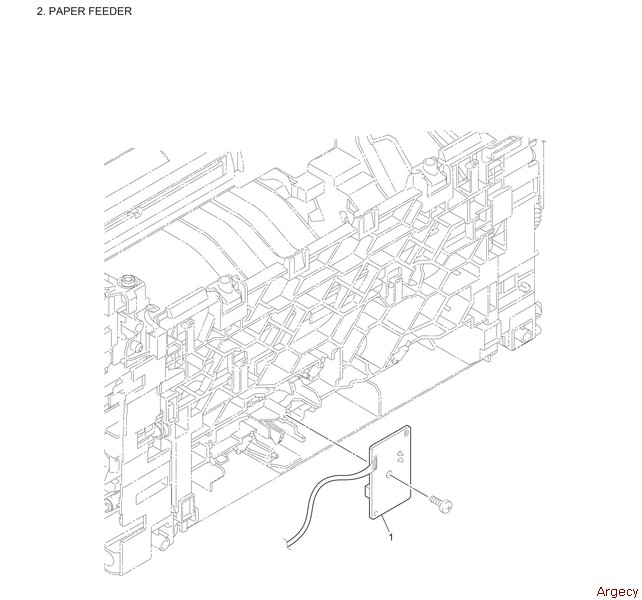

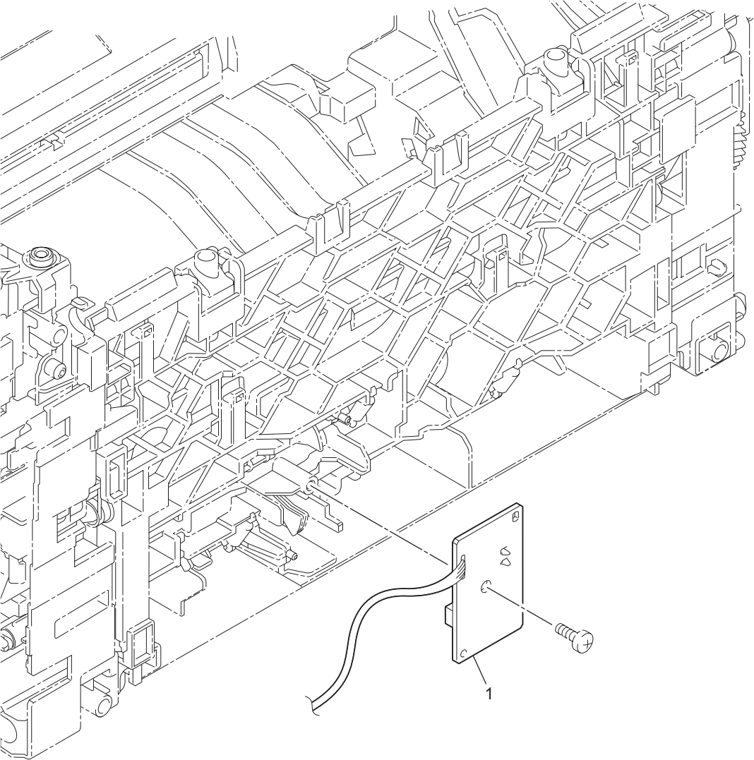

| 2. PAPER FEEDER 1 LV1002001 1 PAPER FEED / PAPER PRINTING POSITION SENSOR PCB ASSY< | Diagram placeholder |

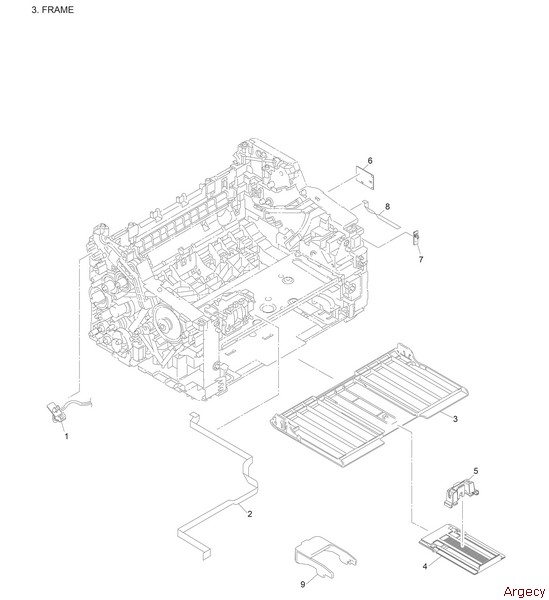

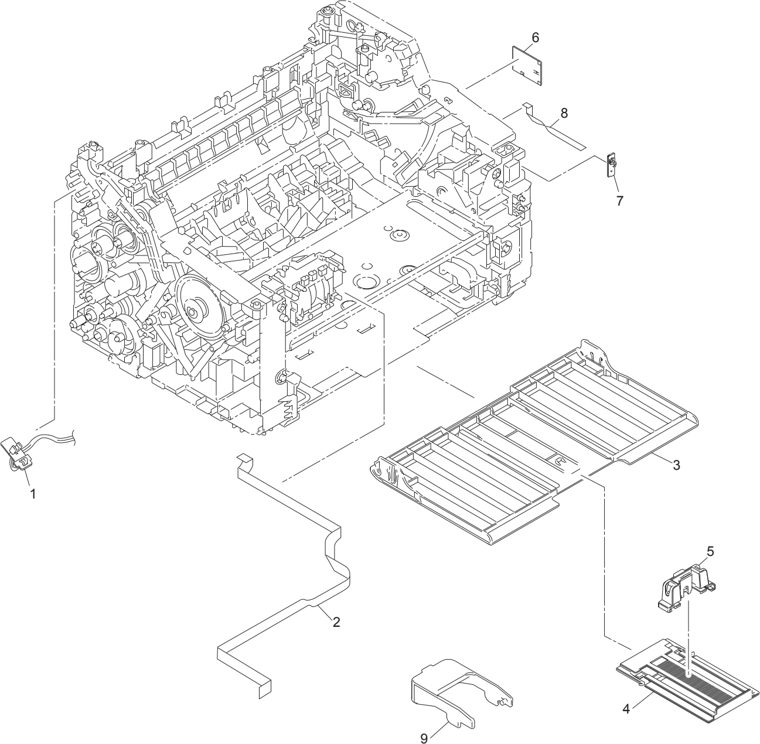

| 3. FRAME 1 LV0996001 1 EJECT SENSOR PCB ASSY 2 LV1311001 1 MOTOR ENCODER PCB FLATCABLE 3 LJA036001 1 TRAY COVER ASSY HL-1210W FOR GER / UK / SWI / ITA / ISR / FRA / BEL / NLD / ARL / NZ / PND / IBR 3 LJA079001 1 TRAY COVER ASSY HL-1210W FOR TWN / SAF / THA / KOR / MYS / UAE / MEN A 3 LJA146001 1 TRAY COVER ASSY HL-1210WE 3 LJA147001 1 TRAY COVER ASSY HL-1210WR 3 LJA144001 1 TRAY COVER ASSY HL-1211W 3 LJA037001 1 TRAY COVER ASSY HL-1212W FOR ARG / CHL / BRA / MEX / PER 3 LJA082001 1 TRAY COVER ASSY HL-1212W FOR CAN / GER / UK / ITA / FRA / BEL / NLD / PND / IBR 3 LJA523001 1 TRAY COVER ASSY HL-1212WE 3 LJA148001 1 TRAY COVER ASSY HL-1212WR 3 LJA009001 1 TRAY COVER ASSY HL-1218W 3 LJA526001 1 TRAY COVER ASSY HL-1222WE 4 LJA011001 1 PAPER REAR GUIDE 5 LJA012001 1 PAPER REAR GUIDE 6 LD1969001 1 WIRELESS LAN PCB 7 LV1358001 1 SWITCH PCB 8 LV1316001 1 SWITCH PCB FLAT CABLE 9 LJA069001 1 PAPER REAR GUIDE 3 ASSY | Diagram placeholder |

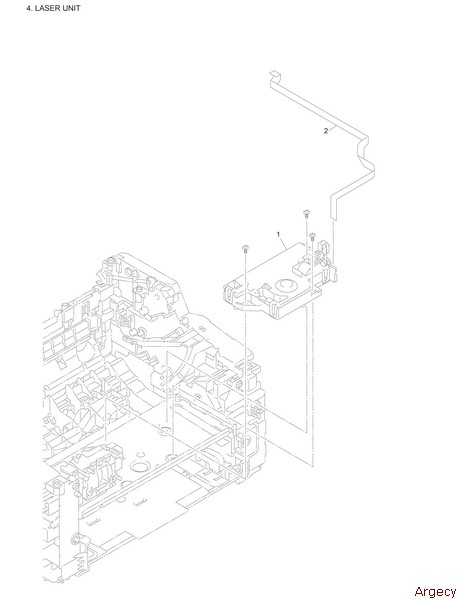

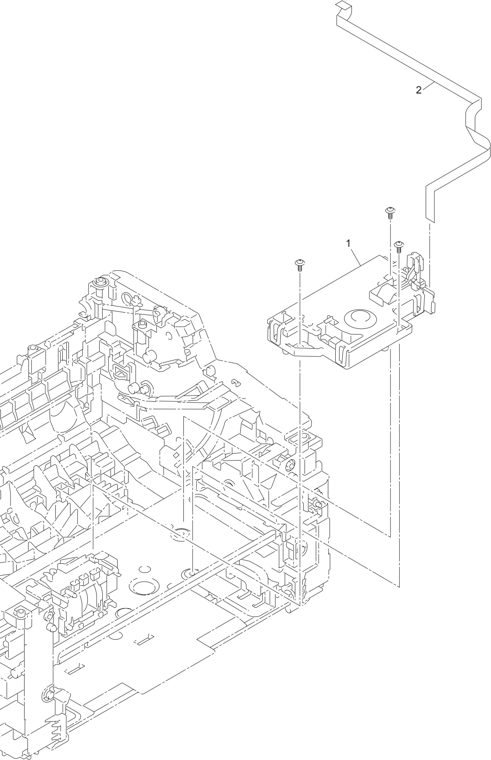

| 4. LASER UNIT 1 LJA440001 1 LASER UNIT (SP) 2 LV1313001 1 LASER UNIT FLAT CABLE | Diagram placeholder |

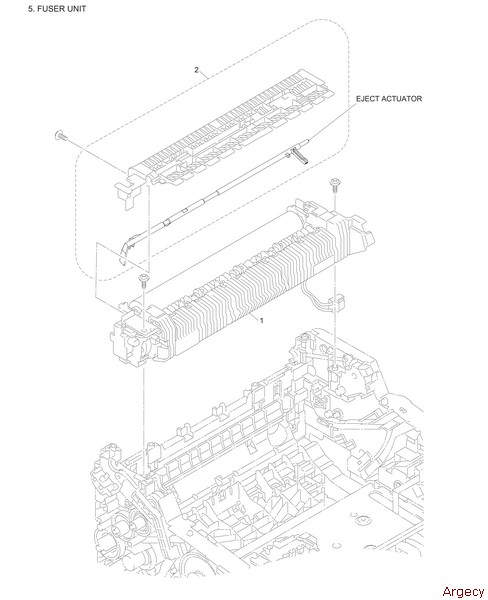

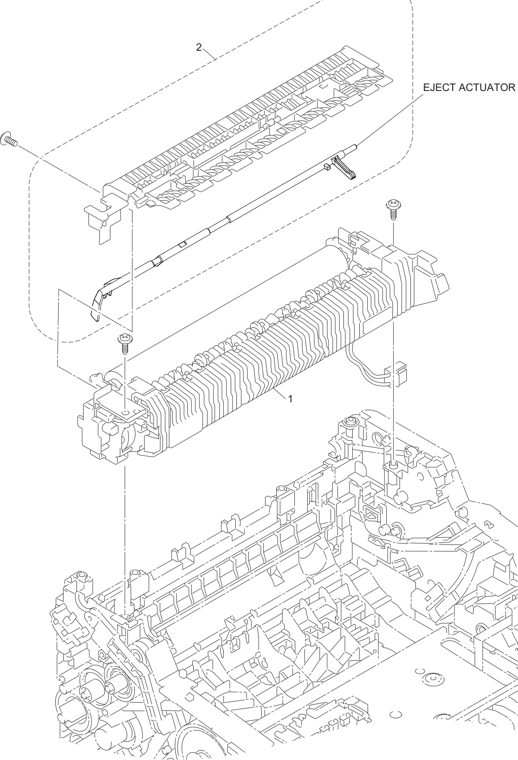

| 5. FUSER UNIT 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1210W FOR GER / UK / SWI / ITA / ISR / SAF / THA / KOR / FRA / BEL / NLD / ARL / NZ / PND / IBR / MYS / UAE / MENA 1 LJA487001 1 FUSER UNIT 115V (SP) HL-1210W FOR TWN 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1210WE 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1210WR 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1211W FOR TUR / IDN 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1211W FOR VNM / IND 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1212W FOR GER / UK / ITA / ARG / CHL / FRA / BEL / NLD / PND / IBR / PER 1 LJA487001 1 FUSER UNIT 115V (SP) HL-1212W FOR CAN / BRA / MEX 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1212WE 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1212WR 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1218W 1 LJA486001 1 FUSER UNIT 230V (SP) HL-1222WE 2 LEH826001 1 INSULATION ROOF ASSY (SP) | Diagram placeholder |

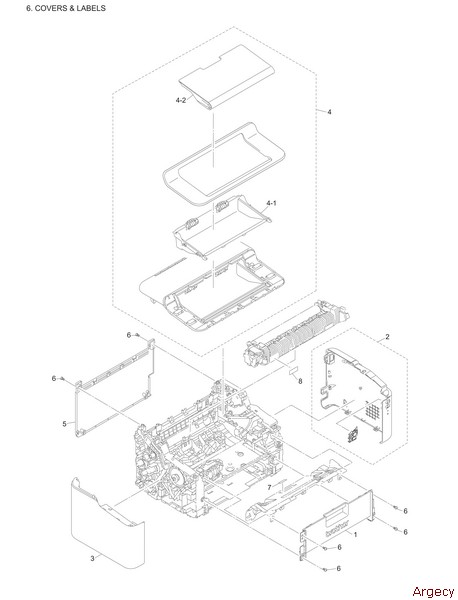

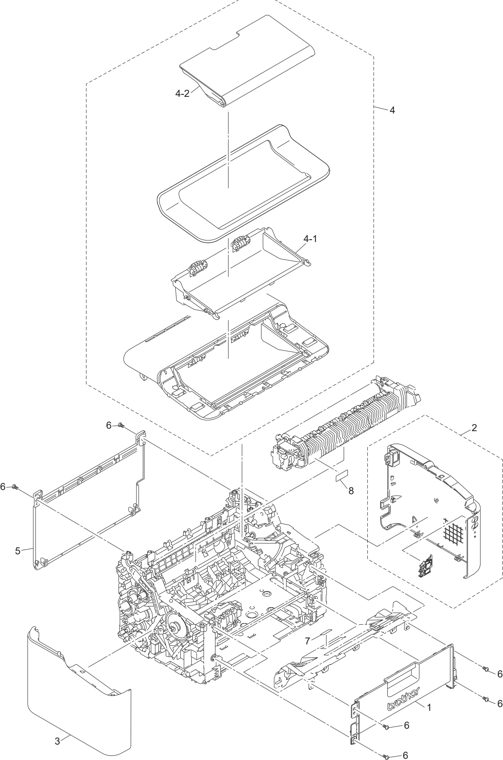

| 6. COVERS & LABELS 1 LY8028001 1 FRONT COVER HL-1210W 1 LY8028001 1 FRONT COVER HL-1210WE 1 LY8028001 1 FRONT COVER HL-1210WR 1 LY8028001 1 FRONT COVER HL-1211W 1 LY8028002 1 FRONT COVER HL-1212W 1 LY8028002 1 FRONT COVER HL-1212WE 1 LY8028002 1 FRONT COVER HL-1212WR 1 LY8028002 1 FRONT COVER HL-1218W 1 LY8028002 1 FRONT COVER HL-1222WE 2 LJA018001 1 SIDE COVER R ASSY HL-1210W 2 LJA018001 1 SIDE COVER R ASSY HL-1210WE 2 LJA018001 1 SIDE COVER R ASSY HL-1210WR 2 LJA018001 1 SIDE COVER R ASSY HL-1211W 2 LJA018002 1 SIDE COVER R ASSY HL-1212W 2 LJA018002 1 SIDE COVER R ASSY HL-1212WE 2 LJA018002 1 SIDE COVER R ASSY HL-1212WR 2 LJA416002 1 SIDE COVER R ASSY HL-1218W 2 LJA018002 1 SIDE COVER R ASSY HL-1222WE 3 LY8029001 1 SIDE COVER L HL-1210W 3 LY8029001 1 SIDE COVER L HL-1210WE 3 LY8029001 1 SIDE COVER L HL-1210WR 3 LY8029001 1 SIDE COVER L HL-1211W 3 LY8029002 1 SIDE COVER L HL-1212W 3 LY8029002 1 SIDE COVER L HL-1212WE 3 LY8029002 1 SIDE COVER L HL-1212WR 3 LY8029002 1 SIDE COVER L HL-1218W 3 LY8029002 1 SIDE COVER L HL-1222WE 4 LJA014001 1 TOP COVER ASSY HL-1210W 4 LJA014001 1 TOP COVER ASSY HL-1210WE 4 LJA014001 1 TOP COVER ASSY HL-1210WR 4 LJA014001 1 TOP COVER ASSY HL-1211W 4 LJA014002 1 TOP COVER ASSY HL-1212W 4 LJA014002 1 TOP COVER ASSY HL-1212WE 4 LJA014002 1 TOP COVER ASSY HL-1212WR 4 LJA014002 1 TOP COVER ASSY HL-1218W 1 LY8303001 1 PROCESS COVER ASSY HL-1210W 1 LY8303001 1 PROCESS COVER ASSY HL-1210WE 1 LY8303001 1 PROCESS COVER ASSY HL-1210WR 1 LY8303001 1 PROCESS COVER ASSY HL-1211W 1 LY8303006 1 PROCESS COVER ASSY HL-1212W 1 LY8303006 1 PROCESS COVER ASSY HL-1212WE 1 LY8303006 1 PROCESS COVER ASSY HL-1212WR 1 LY8303006 1 PROCESS COVER ASSY HL-1218W 1 LY8303001 1 PROCESS COVER ASSY HL-1222WE 2 LJA017001 1 PAPER STOPPER HL-1210W 2 LJA017001 1 PAPER STOPPER HL-1210WE 2 LJA017001 1 PAPER STOPPER HL-1210WR 2 LJA017001 1 PAPER STOPPER HL-1211W 2 LJA017002 1 PAPER STOPPER HL-1212W 2 LJA017002 1 PAPER STOPPER HL-1212WE 2 LJA017002 1 PAPER STOPPER HL-1212WR 2 LJA017002 1 PAPER STOPPER HL-1218W 2 LJA017001 1 PAPER STOPPER HL-1222WE 5 LY8034001 1 BACK COVER HL-1210W 5 LY8034001 1 BACK COVER HL-1210WE 5 LY8034001 1 BACK COVER HL-1210WR 5 LY8034001 1 BACK COVER HL-1211W 5 LY8034002 1 BACK COVER HL-1212W 5 LY8034002 1 BACK COVER HL-1212WE 5 LY8034002 1 BACK COVER HL-1212WR 5 LJA236002 1 BACK COVER HL-1218W 5 LY8034002 1 BACK COVER HL-1222WE 6 LU5693001 6 TAPTITE BIND B M4X12 7 LU7320001 1 CAUTION LABEL SPRAY 13X 8 LY8178001 1 LABEL H CAUTION 13X30 | Diagram placeholder |

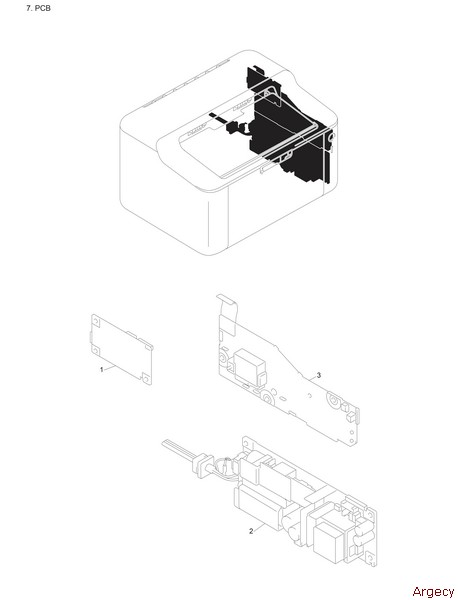

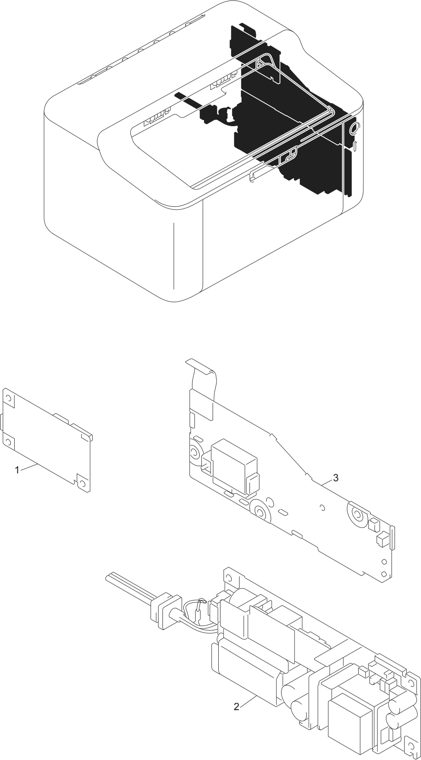

| 7. PCB 1 LV1359001 1 MAIN PCB ASSY 2 LV1083001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR UK / MYS 2 LV1088001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR GER / ITA / THA / FRA / BEL / NLD / PND / IBR 2 LV1097001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 115VHL-1210W FOR TWN 2 LV1124001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR UAE 2 LV1131001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR SWI 2 LV1133001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR ARL / NZ 2 LV1134001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR KOR 2 LV1136001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR MENA 2 LV1366001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR ISR 2 LV1486001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210W FOR SAF 2 LV1088001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210WE 2 LV1136001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1210WR 2 LV1088001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1211W FOR VNM / TUR / IDN 2 LV1519001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230V 1.8M LONGHL-1211W FOR IND 2 LV1017001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 115VHL-1212W FOR MEX 2 LV1083001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212W FOR UK 2 LV1088001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212W FOR GER / ITA / FRA / BEL / NLD / PND / IBR 2 LV1128001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212W FOR ARG 2 LV1129001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212W FOR CHL 2 LV1130001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212W FOR PER 2 LV1509001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 115VHL-1212W FOR BRA 2 LV1468001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 115VHL-1212W FOR CAN 2 LV1088001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212WE 2 LV1136001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1212WR 2 LV0994001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1218W 2 LV1088001 1 LOW VOLTAGE POWER SUPPLY PCB UNIT 230VHL-1222WE 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1210W 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1210WE 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1210WR 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1211W 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1212W 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1212WE 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1212WR 3 LV0995001 1 HIGH VOLTAGE POWER SUPPLY PCB ASS YHL-1218W 3 LV1040001 1 HIGH VOLTAGE POWER SUPPLY PCBHL-1222WE | Diagram placeholder |
