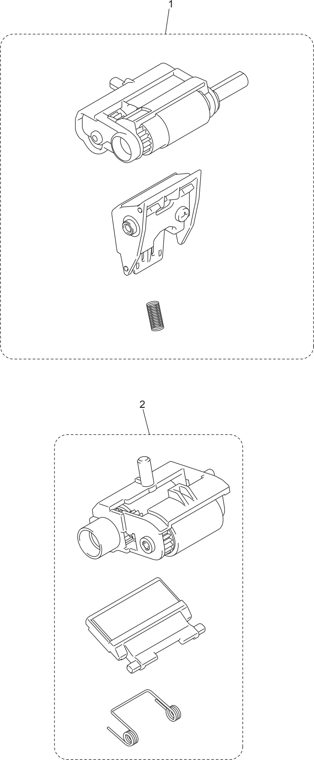

Brother DCP-L8400CDN L8450CDW MFC-L8600CDW L8650CDW MFC-L8850CDW L9550CDW Parts

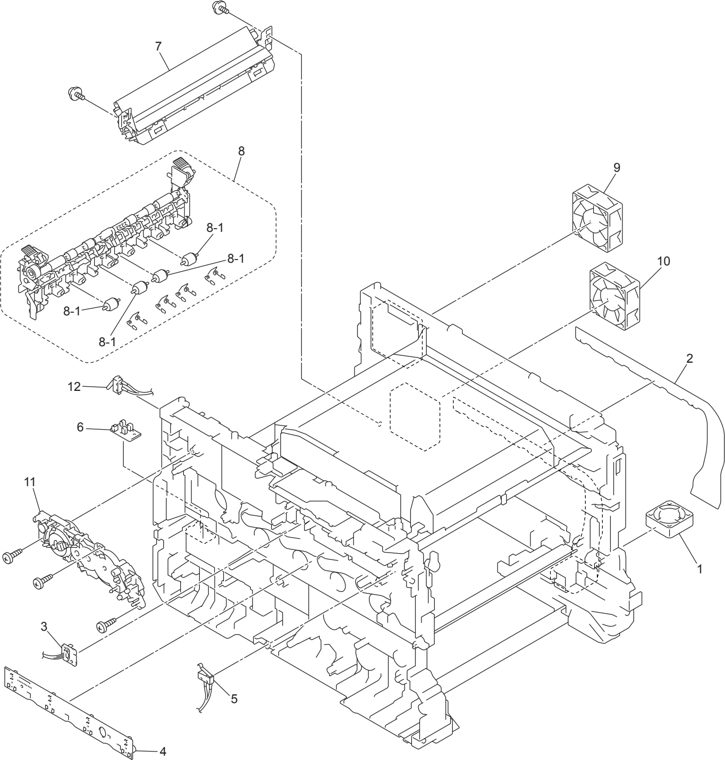

| 1. FRAME 1 LY0101001 1 BLOWER 2 LY7613001 1 AIR DUCT FILM 3 LV0489001 1 DEVELOP RELEASE SENSOR PCB ASSY 4 LY7724001 1 TONER / NEW SENSOR PCB ASSY 5 LV1177001 1 FRONT COVER SENSOR 6 LV1412001 1 EJECT SENSOR PCB ASSY DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / CHN / FRA / BEL / NLD / PND / CEE 6 LV1201001 1 EJECT SENSOR PCB ASSY DCP-L8400CDN FOR BRZ 6 LV1412001 1 EJECT SENSOR PCB ASSY DCP-L8450CDW 6 LV1412001 1 EJECT SENSOR PCB ASSY MFC-L8600CDW FOR GUL / KOR / ARL / NZ 6 LV1201001 1 EJECT SENSOR PCB ASSY MFC-L8600CDW FOR US / CAN / TWN / BRZ / US_FS 6 LV1412001 1 EJECT SENSOR PCB ASSY MFC-L8650CDW 6 LV1412001 1 EJECT SENSOR PCB ASSY MFC-L8850CDW FOR GER / UK / CHE / ITA / IBR / ARG / CHL / ASA / GUL / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CON SIP 6 LV1201001 1 EJECT SENSOR PCB ASSY MFC-L8850CDW FOR US / CAN / TWN / BRZ / US_FS 6 LV1412001 1 EJECT SENSOR PCB ASSY MFC-L9550CDW FOR GER / UK / CHE / ITA / IBR / ASA / RUS / FRA / BEL / NLD / ARL / NZ / PND / CEE 6 LV1201001 1 EJECT SENSOR PCB ASSY MFC-L9550CDW FOR US / CAN 7 LY7726001 1 REGISTRATION MARK SENSOR 8 LY7727001 1 FUSER COVER ASSY 1 LY0634001 4 CLEANER PINCH ROLLER S ASSY 9 LY7625001 1 FUSER FAN 10 LY7719001 1 POWER FAN 11 LEN019001 1 DEVELOP RELEASE DRIVE UNIT 12 LT2941001 1 BACK COVER SENSOR ASSY | Diagram placeholder |

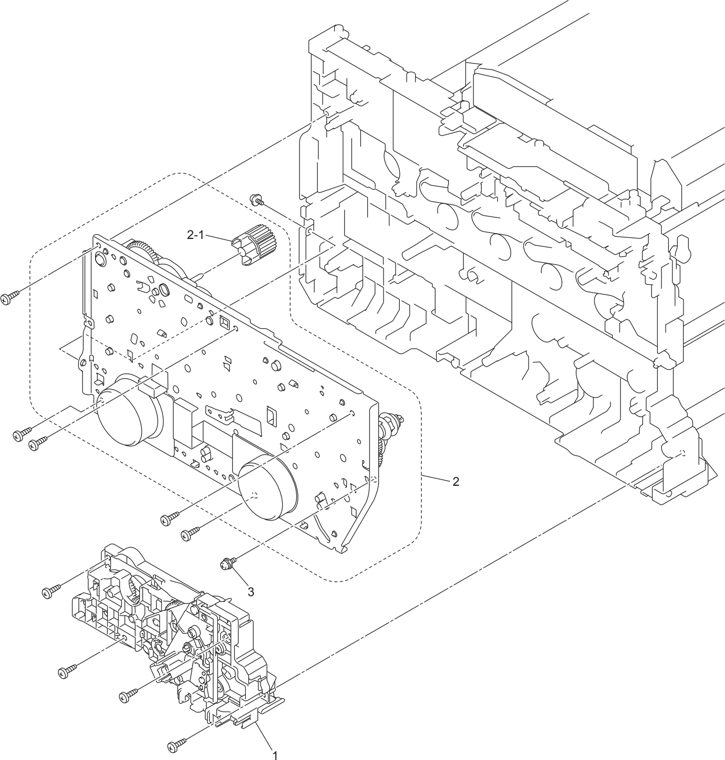

| 2. DRIVE 1 LY7731001 1 MAIN DRIVE UNIT 2 LU4923001 1 PROCESS DRIVE UNIT (SP) 1 LY0233001 1 FUSER DRIVE GEAR Z25 3 LU6109001 1 TAPTITE PAN(WASHER)B M4X12DA | Diagram placeholder |

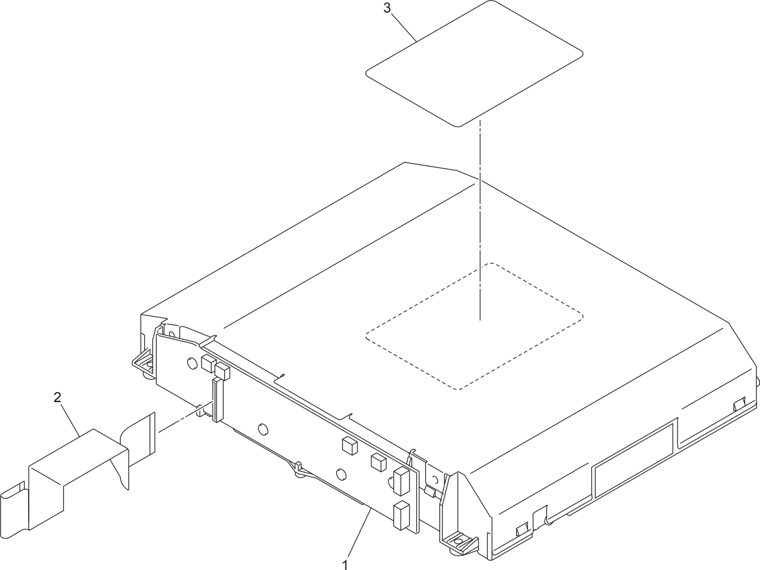

| 3. LASER UNIT 1 LU6918001 1 LASER UNIT (SP) 2 LV1174001 1 LASER UNIT FLAT CABLE 3 LU1259001 1 LABEL LASER CAUTION< | Diagram placeholder |

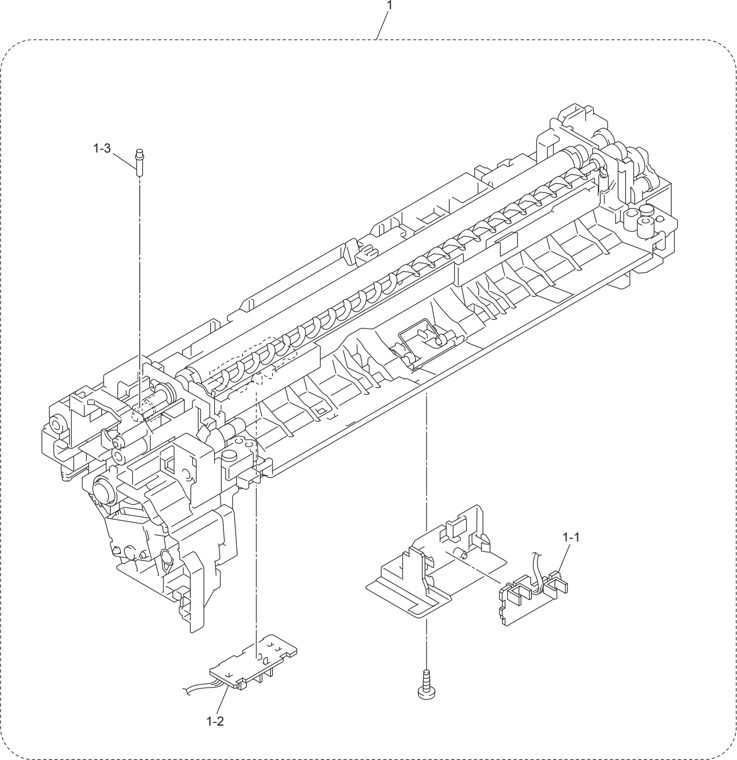

| 4. PAPER FEEDER 1 LR2190001 1 PAPER FEED UNIT (SP) 1 LV1208001 1 REGISTRATION FRONT / REAR SENSOR PCB ASSY 2 LV1210001 1 T1 PAPER FEED SENSOR PCB ASSY 3 LY7136001 1 JOINT PIN ADD | Diagram placeholder |

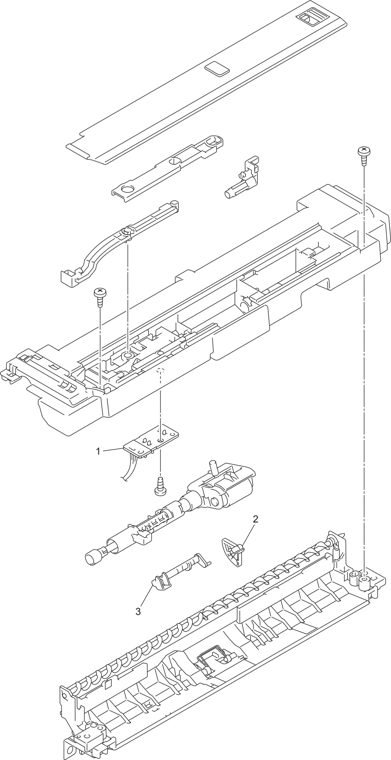

| 5. MP UNIT 1 LV1212001 1 MP PAPER EMPTY / REGISTRATION FRONT SENSOR PCB ASSY 2 LY0873001 1 MP PAPER EMPTY ACUTUATOR A ASSY 3 LY0304001 1 MP PAPER EMPTY ACUTUATOR B | Diagram placeholder |

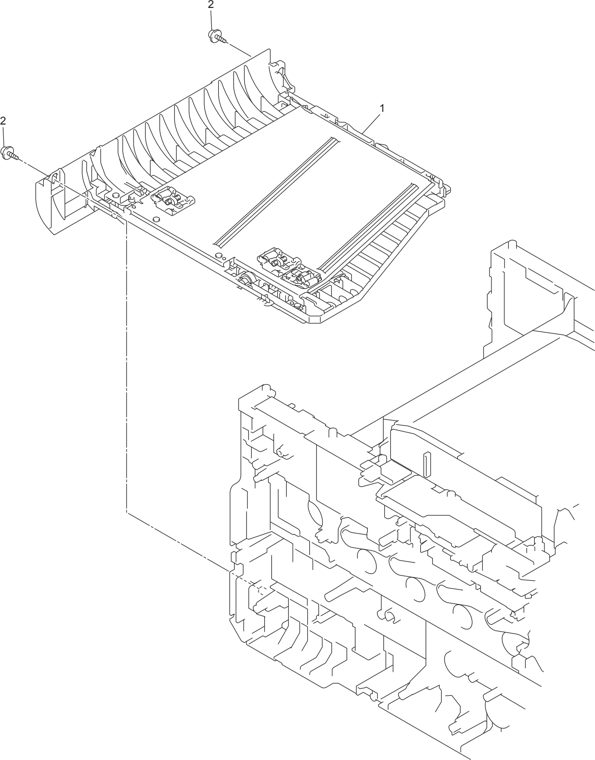

| 6. DUPLEX 1 LU4929001 1 DX FEED ASSY A4 (SP) DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / CHN / FRA / BEL / NLD / PND / CEE 1 LU4928001 1 DX FEED ASSY LTR (SP) DCP-L8400CDN FOR BRZ 1 LU4929001 1 DX FEED ASSY A4 (SP) DCP-L8450CDW 1 LU4929001 1 DX FEED ASSY A4 (SP) MFC-L8600CDW FOR TWN / GUL / KOR / ARL / NZ 1 LU4928001 1 DX FEED ASSY LTR (SP) MFC-L8600CDW FOR US / CAN / BRZ / US FS 1 LU4929001 1 DX FEED ASSY A4 (SP) MFC-L8650CDW 1 LU4928001 1 DX FEED ASSY LTR (SP) MFC-L8850CDW 1 LU4929001 1 DX FEED ASSY A4 (SP) MFC-L8850CDW 1 LU4928001 1 DX FEED ASSY LTR (SP) MFC-L9550CDW 1 LU4929001 1 DX FEED ASSY A4 (SP) MFC-L9550CDWFOR US / CAN / ARG / CHL / BRZ / US_FS FOR GER / UK / CHE / ITA / IBR / TWN / ASA / GUL / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP FOR US / CAN FOR GER / UK / CHE / ITA / IBR / ASA / RUS / FRA / BEL / NLD / ARL / NZ / PND / CEE 2 LY1163001 2 TAPTITE CUP B M3X12 | Diagram placeholder |

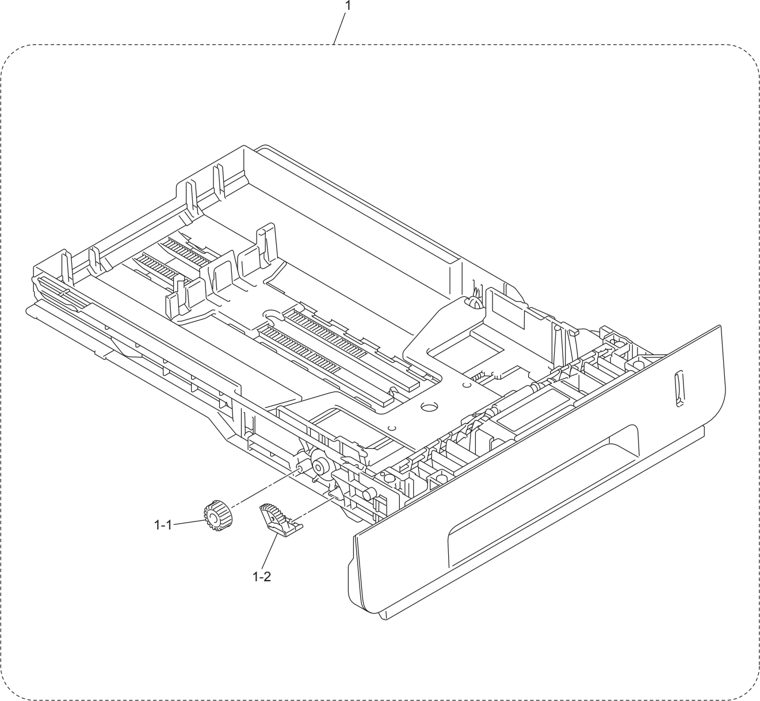

| 7.PAPER TRAY 1 LY7750001 1 PAPER TRAY 1 DCP-L8400CDN 1 LY7750001 1 PAPER TRAY 1 DCP-L8450CDW 1 LY7750001 1 PAPER TRAY 1 MFC-L8600CDW 1 LY7750001 1 PAPER TRAY 1 MFC-L8650CDW 1 LY7750001 1 PAPER TRAY 1 MFC-L8850CDW 1 LY7750002 1 PAPER TRAY 1 MFC-L9550CDW 1 LR0252001 1 GEAR Z19M10 2 LY2202001 1 LIFT GEAR 46 | Diagram placeholder |

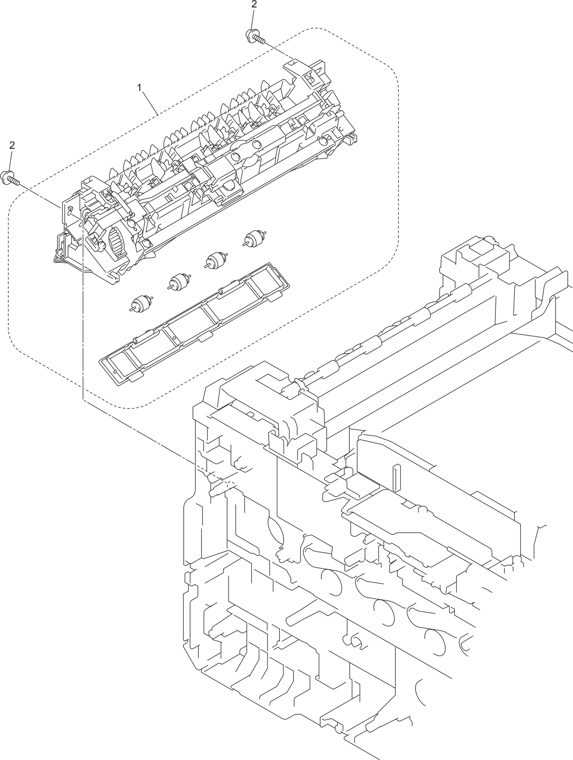

| 8.FUSER UNIT 1 LR2242001 1 FUSER UNIT 230V(SP) DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / CHN / FRA / BEL / NLD / PND / CEE 1 LR2244001 1 FUSER UNIT 127V(SP) DCP-L8400CDN FOR BRZ 1 LR2242001 1 FUSER UNIT 230V(SP) DCP-L8450CDW 1 LR2241001 1 FUSER UNIT 115V(SP) MFC-L8600CDW 1 LR2242001 1 FUSER UNIT 230V(SP) MFC-L8600CDW 1 LR2244001 1 FUSER UNIT 127V(SP) MFC-L8600CDWFOR US / CAN / TWN / US_FS FOR GUL / KOR / ARL / NZ FOR BRZ 1 LR2242001 1 FUSER UNIT 230V(SP) MFC-L8650CDW 1 LR2241001 1 FUSER UNIT 115V(SP) MFC-L8850CDW 1 LR2242001 1 FUSER UNIT 230V(SP) MFC-L8850CDW 1 LR2244001 1 FUSER UNIT 127V(SP) MFC-L8850CDW 1 LR2241001 1 FUSER UNIT 115V(SP) MFC-L9550CDW 1 LR2242001 1 FUSER UNIT 230V(SP) MFC-L9550CDWFOR US / CAN / TWN / US_FS FOR GER / UK / CHE / ITA / IBR / ARG / CHL / ASA / GUL / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP FOR BRZ FOR US / CAN FOR GER / UK / CHE / ITA / IBR / ASA / RUS / FRA / BEL / NLD / ARL / NZ / PND / CEE 2 LJ0395001 2 TAPTITE PAN B M4X14 | Diagram placeholder |

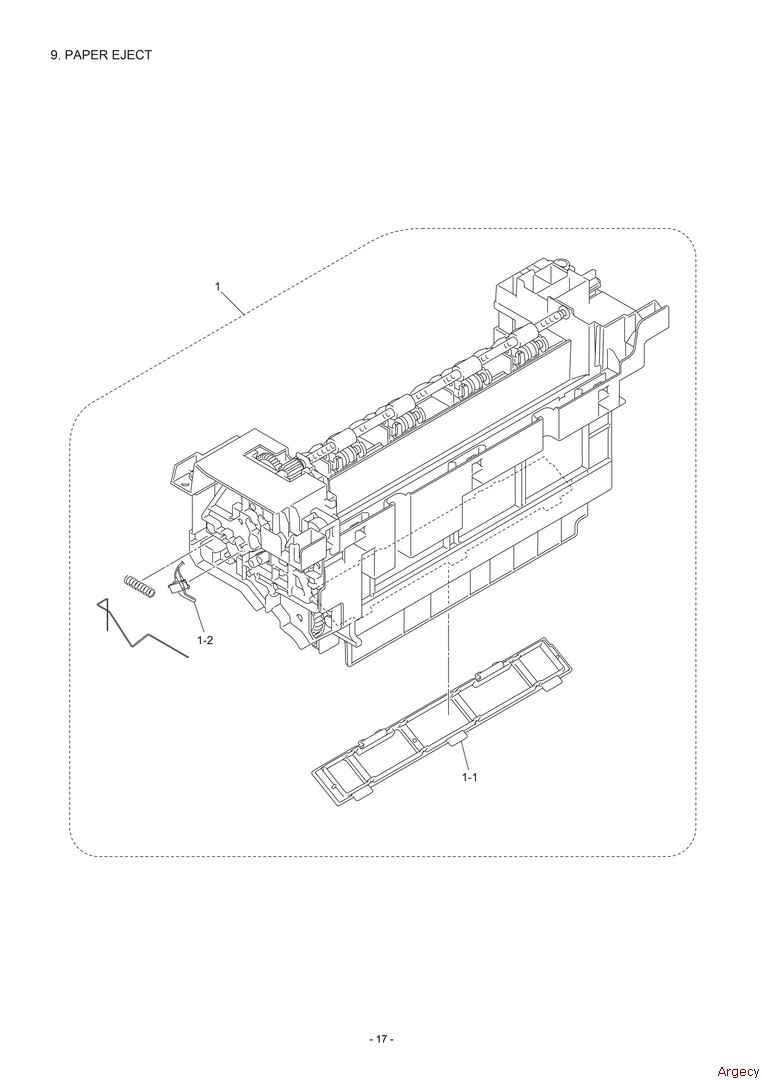

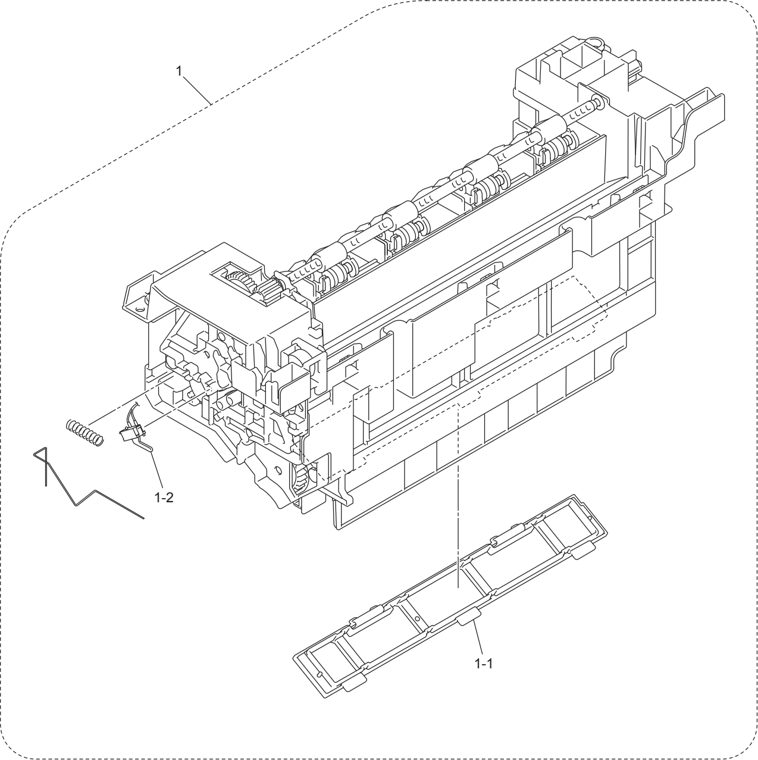

| 9. PAPER EJECT 1 LEN207001 1 PAPER EJECT BC2FB ASSY (SP) 1 LY7841001 1 TONER FILTER ASSY 2 LV1281001 1 PAPER EJECT ORIGIN SENSOR | Diagram placeholder |

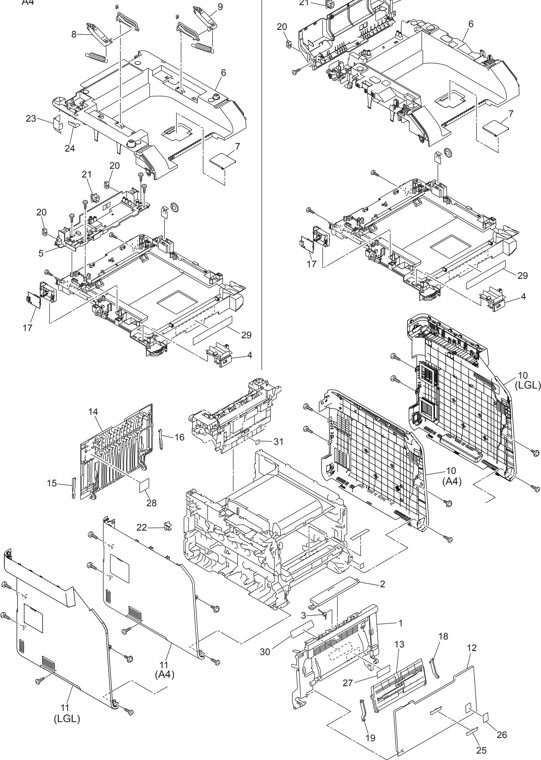

| 10. COVERS & LABELS 1 LX4924001 1 FRONT COVER DCP-L8400CDN 1 LX4924001 1 FRONT COVER DCP-L8450CDW 1 LX4924001 1 FRONT COVER MFC-L8600CDW 1 LX4924001 1 FRONT COVER MFC-L8650CDW 1 LX4924001 1 FRONT COVER MFC-L8850CDW 1 LX4924002 1 FRONT COVER MFC-L9550CDW 2 LY1910002 1 FRONT COVER RELEASE BUTTON DCP-L8400CDN 2 LY1910002 1 FRONT COVER RELEASE BUTTON DCP-L8450CDW 2 LY1910002 1 FRONT COVER RELEASE BUTTON MFC-L8600CDW 2 LY1910002 1 FRONT COVER RELEASE BUTTON MFC-L8650CDW 2 LY1910002 1 FRONT COVER RELEASE BUTTON MFC-L8850CDW 2 LY1910003 1 FRONT COVER RELEASE BUTTON MFC-L9550CDW 3 LY1911001 1 FRONT COVER RELEASE BUTTON SPRING 4 LX4925001 1 JOINT COVER USB ASSY DCP-L8400CDN 4 LX4925001 1 JOINT COVER USB ASSY DCP-L8450CDW 4 LX4925001 1 JOINT COVER USB ASSY MFC-L8600CDW 4 LX4925001 1 JOINT COVER USB ASSY MFC-L8650CDW 4 LX4925001 1 JOINT COVER USB ASSY MFC-L8850CDW 4 LX4925002 1 JOINT COVER USB ASSY MFC-L9550CDW 5 LEN004001 1 BACK COVER UPPER DCP-L8400CDN 5 LEN005001 1 BACK COVER UPPER DCP-L8450CDW 5 LX4928001 1 BACK COVER UPPER MFC-L8600CDW 5 LX4928001 1 BACK COVER UPPER MFC-L8650CDW 5 LX4946001 1 BACK COVER UPPER MFC-L8850CDW 5 LX4946001 1 BACK COVER UPPER MFC-L9550CDW 6 LX4929001 1 JOINT COVER TOP DCP-L8400CDN 6 LX4947001 1 JOINT COVER TOP DCP-L8450CDW 6 LX4929001 1 JOINT COVER TOP MFC-L8600CDW 6 LX4929001 1 JOINT COVER TOP MFC-L8650CDW 6 LX4947001 1 JOINT COVER TOP MFC-L8850CDW 6 LX4947002 1 JOINT COVER TOP MFC-L9550CDW 7 LY0428001 1 SUPPORT FLAP DCP-L8400CDN 7 LY0428001 1 SUPPORT FLAP DCP-L8450CDW 7 LY0428001 1 SUPPORT FLAP MFC-L8600CDW 7 LY0428001 1 SUPPORT FLAP MFC-L8650CDW 7 LY0428001 1 SUPPORT FLAP MFC-L8850CDW 7 LY0428004 1 SUPPORT FLAP MFC-L9550CDW 8 LP2727001 1 PULL ARM L DCP-L8400CDN 8 LP2727001 1 PULL ARM L MFC-L8600CDW 8 LP2727001 1 PULL ARM L MFC-L8650CDW 9 LP2728001 1 PULL ARM R DCP-L8400CDN 9 LP2728001 1 PULL ARM R MFC-L8600CDW 9 LP2728001 1 PULL ARM R MFC-L8650CDW 10 LEN006001 1 SIDE COVER R DCP-L8400CDN 10 LX4948001 1 SIDE COVER R DCP-L8450CDW 10 LX4948001 1 SIDE COVER R MFC-L8850CDW 10 LX4948001 1 SIDE COVER R MFC-L9550CDW 10 LX4931001 1 SIDE COVER R MFC-L8600CDW 10 LX4931001 1 SIDE COVER R MFC-L8650CDW 11 LEN119001 1 SIDE COVER L DCP-L8400CDN 11 LX4952001 1 SIDE COVER L DCP-L8450CDW 11 LX4932001 1 SIDE COVER L MFC-L8600CDW 11 LX4932001 1 SIDE COVER L MFC-L8650CDW 11 LX4952001 1 SIDE COVER L MFC-L8850CDW 11 LX4952001 1 SIDE COVER L MFC-L9550CDW 12 LY0452003 1 MP COVER ASSY DCP-L8400CDN 12 LY0452003 1 MP COVER ASSY DCP-L8450CDW 12 LY0452003 1 MP COVER ASSY MFC-L8600CDW 12 LY0452003 1 MP COVER ASSY MFC-L8650CDW 12 LY0452003 1 MP COVER ASSY MFC-L8850CDW 12 LY0452004 1 MP COVER ASSY MFC-L9550CDW 13 LY0456003 1 MP PAPER GUIDE ASSY DCP-L8400CDN 13 LY0456003 1 MP PAPER GUIDE ASSY DCP-L8450CDW 13 LY0456003 1 MP PAPER GUIDE ASSY MFC-L8600CDW 13 LY0456003 1 MP PAPER GUIDE ASSY MFC-L8650CDW 13 LY0456003 1 MP PAPER GUIDE ASSY MFC-L8850CDW 13 LY0456004 1 MP PAPER GUIDE ASSY MFC-L9550CDW 14 LY1868001 1 BACK COVER 15 LY0450001 1 BACK COVER STOPPER ARM L 16 LY0451001 1 BACK COVER STOPPER ARM R - 20 - | Diagram placeholder |
| 10. COVERS & LABELS 17 LT2155001 1 WIRELESS LAN PCB DCP-L8450CDW 17 LT2155001 1 WIRELESS LAN PCB MFC-L8600CDW 17 LT2155001 1 WIRELESS LAN PCB MFC-L8650CDW 17 LT2155001 1 WIRELESS LAN PCB MFC-L8850CDW 17 LT2155001 1 WIRELESS LAN PCB MFC-L9550CDW 18 LY1929003 1 MP LINK R DCP-L8400CDN 18 LY1929003 1 MP LINK R DCP-L8450CDW 18 LY1929003 1 MP LINK R MFC-L8600CDW 18 LY1929003 1 MP LINK R MFC-L8650CDW 18 LY1929003 1 MP LINK R MFC-L8850CDW 18 LY1929004 1 MP LINK R MFC-L9550CDW 19 LY0460003 1 MP LINK L DCP-L8400CDN 19 LY0460003 1 MP LINK L DCP-L8450CDW 19 LY0460003 1 MP LINK L MFC-L8600CDW 19 LY0460003 1 MP LINK L MFC-L8650CDW 19 LY0460003 1 MP LINK L MFC-L8850CDW 19 LY0460004 1 MP LINK L MFC-L9550CDW 20 LX9044003 2 CODE HOOK MFC-L8600CDW 20 LX9044003 2 CODE HOOK MFC-L8650CDW 20 LX9044003 2 CODE HOOK MFC-L8850CDW 20 LX9044003 2 CODE HOOK MFC-L9550CDW 21 LE8842001 1 EXT CAP MFC-L8600CDW 21 LE8842001 1 EXT CAP MFC-L8650CDW 21 UF5745000 1 MJ COVER EXT MFC-L8650CDW 21 LE8842001 1 EXT CAP MFC-L8850CDW 21 UF5745000 1 MJ COVER EXT MFC-L8850CDW 21 LE8842001 1 EXT CAP MFC-L9550CDW 21 UF5745000 1 MJ COVER EXT MFC-L9550CDWFOR CHE / ITA / IBR / RUS / PND / CEE FOR GER / UK / CHN / FRA / BEL / NLD FOR US / CAN / CHE / ITA / IBR / TWN / ARG / CHL / ASA / GUL / BRZ / US_FS / ARL / NZ / PND / CEE / ITA CONSIP FOR GER / UK / FRA / BEL / NLD FOR US / CAN / CHE / ITA / IBR / ASA / RUS / ARL / NZ / PND / CEE FOR GER / UK / FRA / BEL / NLD 22 LY0872001 1 LAN PORT CAP 23 LX4971001 1 JOINT FILM DCP-L8400CDN 23 LX4971001 1 JOINT FILM MFC-L8600CDW 23 LX4971001 1 JOINT FILM MFC-L8650CDW 24 LEN065001 1 JOINT FILM2 DCP-L8400CDN 24 LEN065001 1 JOINT FILM2 MFC-L8600CDW 25 LY4852002 1 EMBLEM BROTHER SHEET DCP-L8400CDN 25 LY4852002 1 EMBLEM BROTHER SHEET DCP-L8450CDW 25 LY4852002 1 EMBLEM BROTHER SHEET MFC-L8600CDW 25 LY4852002 1 EMBLEM BROTHER SHEET MFC-L8650CDW 25 LY4852002 1 EMBLEM BROTHER SHEET MFC-L8850CDW 25 LY4852005 1 EMBLEM BROTHER SHEET MFC-L9550CDW 26 LY7850001 1 COLOR LASER LABEL DCP-L8400CDN 26 LY7850001 1 COLOR LASER LABEL DCP-L8450CDW 26 LY7850001 1 COLOR LASER LABEL MFC-L8600CDW 26 LY7850001 1 COLOR LASER LABEL MFC-L8650CDW 26 LY7850001 1 COLOR LASER LABEL MFC-L8850CDW 26 LY7850002 1 COLOR LASER LABEL MFC-L9550CDW 27 LY7886001 1 MP SET INSTRUCTION LABEL 28 LY7888001 1 LABEL H / SP CAUTION REAR 49X 29 LY7889001 1 LABEL DR OPERATION 30 LY7892001 1 LABEL H / SP CAUTION DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / FRA / BEL / NLD / PND / CEE 30 LY7987001 1 LABEL H / SP CAUTION DCP-L8400CDN FOR CHN 30 LY7982001 1 LABEL H / SP CAUTION DCP-L8400CDN FOR BRZ 30 LY7893001 1 LABEL H / SP CAUTION DCP-L8450CDW 30 LY7891001 1 LABEL H / SP CAUTION MFC-L8600CDW 30 LY7986001 1 LABEL H / SP CAUTION MFC-L8600CDW 30 LU6853001 1 LABEL H / SP CAUTION MFC-L8600CDW 30 LY7982001 1 LABEL H / SP CAUTION MFC-L8600CDW 30 LY7984001 1 LABEL H / SP CAUTION MFC-L8600CDW 30 LY7892001 1 LABEL H / SP CAUTION MFC-L8650CDWFOR US / CAN / US _FS FOR TWN / KOR FOR GUL FOR BRZ FOR ARL / NZ FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE 30 LY7987001 1 LABEL H / SP CAUTION MFC-L8650CDW 30 LY7891001 1 LABEL H / SP CAUTION MFC-L8850CDW 30 LY7893001 1 LABEL H / SP CAUTION MFC-L8850CDW FOR CHN FOR US / CAN / US_FS FOR GER / UK / CHE / ITA / IBR / FRA / BEL / NLD / PND / CEE / ITA CONSIP 30 LY7986001 1 LABEL H / SP CAUTION MFC-L8850CDW FOR TWN / ASA 30 LY7982001 1 LABEL H / SP CAUTION MFC-L8850CDW FOR ARG / CHL / BRZ 30 LU6853001 1 LABEL H / SP CAUTION MFC-L8850CDW FOR GUL 30 LY7984001 1 LABEL H / SP CAUTION MFC-L8850CDW 30 LY7981001 1 LABEL H / SP CAUTION MFC-L9550CDW 30 LY7983001 1 LABEL H / SP CAUTION MFC-L9550CDW 30 LY7986001 1 LABEL H / SP CAUTION MFC-L9550CDW 30 LY7985001 1 LABEL H / SP CAUTION MFC-L9550CDW FOR ARL / NZ FOR US / CAN FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE FOR ASA FOR ARL / NZ 31 LY1430001 1 LABEL HIGH TEMP 13.9X13.4 | Diagram placeholder |

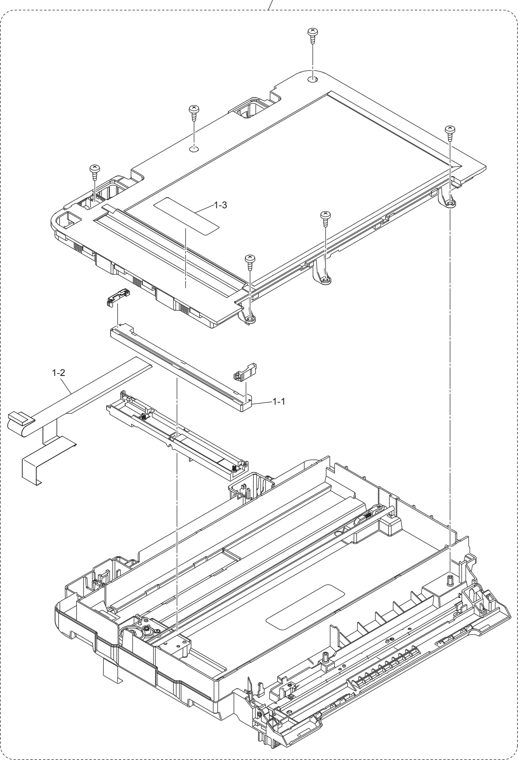

| 11. DOCUMENT SCANNER 1 LEN205001 1 DOCUMENT SCANNER UNIT(SP) DCP-L8400CDN 1 LEN206001 1 DOCUMENT SCANNER UNIT(SP) DCP-L8450CDW 1 LEN205001 1 DOCUMENT SCANNER UNIT(SP) MFC-L8600CDW 1 LEN205001 1 DOCUMENT SCANNER UNIT(SP) MFC-L8650CDW 1 LEN206001 1 DOCUMENT SCANNER UNIT(SP) MFC-L8850CDW 1 LEN206002 1 DOCUMENT SCANNER UNIT(SP) MFC-L9550CDW 1 LT3225001 1 FIRST SIDE CIS UNIT1- 2 LT2944001 1 FIRST SIDE CIS FLAT CABLE DCP-L8400CDN1- 2 LT2946001 1 FIRST SIDE CIS FLAT CABLE DCP-L8450CDW1- 2 LT2944001 1 FIRST SIDE CIS FLAT CABLE MFC-L8600CDW1- 2 LT2944001 1 FIRST SIDE CIS FLAT CABLE MFC-L8650CDW1- 2 LT2946001 1 FIRST SIDE CIS FLAT CABLE MFC-L8850CDW1- 2 LT2946001 1 FIRST SIDE CIS FLAT CABLE MFC-L9550CDW1- 3 LX5186001 1 ADF CLEAN UP LABEL DCP-L8400CDN 3 LX7422001 1 ADF CLEAN UP LABEL DCP-L8450CDW 3 LX5186001 1 ADF CLEAN UP LABEL MFC-L8600CDW 3 LX7422001 1 ADF CLEAN UP LABEL MFC-L8650CDW 3 LX7422001 1 ADF CLEAN UP LABEL MFC-L8850CDW 3 LX7422001 1 ADF CLEAN UP LABEL MFC-L9550CDW | Diagram placeholder |

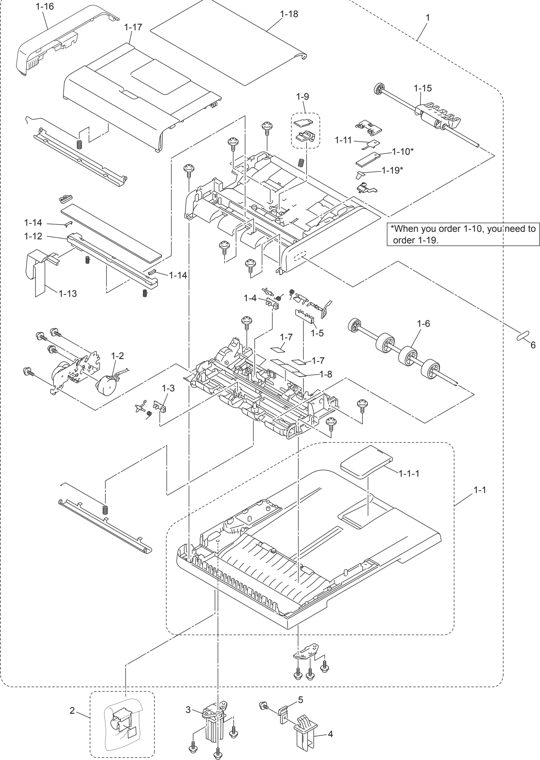

| 12. ADF 1 LEN202001 1 ADF UNIT (SP) DCP-L8400CDN 1 LEN204001 1 ADF UNIT (SP) DCP-L8450CDW 1 LEN202001 1 ADF UNIT (SP) MFC-L8600CDW 1 LEN203001 1 ADF UNIT (SP) MFC-L8650CDW 1 LEN204001 1 ADF UNIT (SP) MFC-L8850CDW 1 LEN204001 1 ADF UNIT (SP) MFC-L9550CDW 1 LX4939001 1 DOCUMENT COVER ASSY DCP-L8400CDN 1 LX4959001 1 DOCUMENT COVER ASSY DCP-L8450CDW 1 LX4939001 1 DOCUMENT COVER ASSY MFC-L8600CDW 1 LX4939001 1 DOCUMENT COVER ASSY MFC-L8650CDW 1 LX4959001 1 DOCUMENT COVER ASSY MFC-L8850CDW 1 LX4959001 1 DOCUMENT COVER ASSY MFC-L9550CDW 1 LX4184001 1 ADF DOCUMENT OUTPUT STOPPER FLAP DCP-L8400CDN 1 LX4267001 1 ADF DOCUMENT OUTPUT STOPPER FLAP DCP-L8450CDW 1 LX4184001 1 ADF DOCUMENT OUTPUT STOPPER FLAP MFC-L8600CDW 1 LX4184001 1 ADF DOCUMENT OUTPUT STOPPER FLAP MFC-L8650CDW 1 LX4267001 1 ADF DOCUMENT OUTPUT STOPPER FLAP MFC-L8850CDW 1 LX4267001 1 ADF DOCUMENT OUTPUT STOPPER FLAP MFC-L9550CDW 2 LX4977001 1 ADF MOTOR DCP-L8400CDN 2 LX9215001 1 ADF MOTOR DCP-L8450CDW 2 LX4977001 1 ADF MOTOR MFC-L8600CDW 2 LX4977001 1 ADF MOTOR MFC-L8650CDW 2 LX9215001 1 ADF MOTOR MFC-L8850CDW 2 LX9215001 1 ADF MOTOR MFC-L9550CDW 3 LG6753001 1 FIRST SIDE DOCUMENT SCANNING POSITION SENSOR PCB ASSY 4 LG6753001 1 SECOND SIDE DOCUMENT SCANNING POSITION SENSOR PCBDCP-L8450CDW 4 LG6753001 1 SECOND SIDE DOCUMENT SCANNING POSITION SENSOR PCBMFC-L8650CDW 4 LG6753001 1 SECOND SIDE DOCUMENT SCANNING POSITION SENSOR PCBMFC-L8850CDW 4 LG6753001 1 SECOND SIDE DOCUMENT SCANNING POSITION SENSOR PCBMFC-L9550CDW 5 LT1120001 1 ADF COVER / DOCUMENT DETECTION SENSOR PCB ASSY 6 LX4080001 1 DOCUMENT FEED ROLLER ASSY 2 DCP-L8400CDN 6 LX4241001 1 DOCUMENT FEED ROLLER ASSY 2 DCP-L8450CDW1- 6 LX4080001 1 DOCUMENT FEED ROLLER ASSY 2 MFC-L8600CDW1- 6 LX4080001 1 DOCUMENT FEED ROLLER ASSY 2 MFC-L8650CDW1- 6 LX4241001 1 DOCUMENT FEED ROLLER ASSY 2 MFC-L8850CDW1- 6 LX4241001 1 DOCUMENT FEED ROLLER ASSY 2 MFC-L9550CDW1- 7 LX5477001 2 EJECTION FILM DCP-L8400CDN 7 LX5477001 2 EJECTION FILM MFC-L8600CDW 7 LX5477001 2 EJECTION FILM MFC-L8650CDW 8 LX4363001 1 EJECTION FILM DCP-L8450CDW 8 LX4363001 1 EJECTION FILM MFC-L8850CDW 8 LX4363001 1 EJECTION FILM MFC-L9550CDW 9 LX9751001 1 ADF SEPARATION PAD HOLDER DCP-L8400CDN 9 LX9751001 1 ADF SEPARATION PAD HOLDER MFC-L8600CDW 9 LX9751001 1 ADF SEPARATION PAD HOLDER MFC-L8650CDW 10 LX9748001 1 ADF SEPARATION PAD DCP-L8450CDW1- 10 LX9748001 1 ADF SEPARATION PAD MFC-L8850CDW1- 10 LX9748001 1 ADF SEPARATION PAD MFC-L9550CDW1- 11 LX4777001 1 SEPARATION SUPPORT FILM DCP-L8450CDW1- 11 LX4777001 1 SEPARATION SUPPORT FILM MFC-L8850CDW1- 11 LX4777001 1 SEPARATION SUPPORT FILM MFC-L9550CDW1- 12 LT3225001 1 SECOND SIDE CIS UNIT DCP-L8450CDW1- 12 LT3225001 1 SECOND SIDE CIS UNIT MFC-L8650CDW1- 12 LT3225001 1 SECOND SIDE CIS UNIT MFC-L8850CDW1- 12 LT3225001 1 SECOND SIDE CIS UNIT MFC-L9550CDW1- 13 LT2947001 1 SECOND SIDE CIS FLAT CABLE DCP-L8450CDW1- 13 LT2945001 1 SECOND SIDE CIS FLAT CABLE MFC-L8650CDW1- 13 LT2947001 1 SECOND SIDE CIS FLAT CABLE MFC-L8850CDW1- 13 LT2947001 1 SECOND SIDE CIS FLAT CABLE MFC-L9550CDW1- 14 LX4100001 2 CIS SPACER DCP-L8450CDW 14 LX4100001 2 CIS SPACER MFC-L8650CDW 14 LX4100001 2 CIS SPACER MFC-L8850CDW 14 LX4100001 2 CIS SPACER MFC-L9550CDW 15 LX4994001 1 DOCUMENT SEPARATE ROLLER DCP-L8400CDN 15 LX4256001 1 DOCUMENT SEPARATE ROLLER DCP-L8450CDW1- 15 LX4994001 1 DOCUMENT SEPARATE ROLLER MFC-L8600CDW1- 15 LX4109001 1 DOCUMENT SEPARATE ROLLER MFC-L8650CDW1- 15 LX4256001 1 DOCUMENT SEPARATE ROLLER MFC-L8850CDW1- 15 LX4256001 1 DOCUMENT SEPARATE ROLLER MFC-L9550CDW1- 16 LX4117001 1 GEAR COVER DCP-L8400CDN 16 LX4264001 1 GEAR COVER DCP-L8450CDW 16 LX4117001 1 GEAR COVER MFC-L8600CDW 16 LX4117001 1 GEAR COVER MFC-L8650CDW 16 LX4264001 1 GEAR COVER MFC-L8850CDW 16 LX4264001 1 GEAR COVER MFC-L9550CDW 17 LX5042002 1 ADF COVER ASSY DCP-L8400CDN 17 LEN001001 1 ADF COVER ASSY DCP-L8450CDW 17 LX5042002 1 ADF COVER ASSY MFC-L8600CDW 17 LEF144001 1 ADF COVER ASSY DX MFC-L8650CDW 17 LEN001001 1 ADF COVER ASSY MFC-L8850CDW 17 LEN001001 1 ADF COVER ASSY MFC-L9550CDW 18 LX5371001 1 ADF DOCUMENT SUPPORT DCP-L8400CDN 18 LX4268001 1 ADF DOCUMENT SUPPORT DCP-L8450CDW 18 LX5371001 1 ADF DOCUMENT SUPPORT MFC-L8600CDW 18 LX5371001 1 ADF DOCUMENT SUPPORT MFC-L8650CDW 18 LX4268001 1 ADF DOCUMENT SUPPORT MFC-L8850CDW 18 LX4268001 1 ADF DOCUMENT SUPPORT MFC-L9550CDW 19 LX4652001 1 SEPARATE SUPPORT FILM DCP-L8450CDW 19 LX4652001 1 SEPARATE SUPPORT FILM MFC-L8850CDW 19 LX4652001 1 SEPARATE SUPPORT FILM MFC-L9550CDW 2 LX4649001 1 FFC HOLDER ASSY (SP) 3 LX5255003 1 HINGE ASSY L DCP-L8400CDN 3 LX4269001 1 HINGE ASSY L DCP-L8450CDW 3 LX5255003 1 HINGE ASSY L MFC-L8600CDW 3 LX4126001 1 HINGE ASSY L MFC-L8650CDW 3 LX4269001 1 HINGE ASSY L MFC-L8850CDW 3 LX4269001 1 HINGE ASSY L MFC-L9550CDW 4 LS8154001 1 HINGE R 5 LS8155001 1 HINGE R SUPPORT 6 LX4197001 1 DCP EMBLEM DCP-L8400CDN 6 LX4197001 1 DCP EMBLEM DCP-L8450CDW 6 LX4202001 1 MFC EMBLEM MFC-L8600CDW 6 LX4196001 1 MFC EMBLEM MFC-L8600CDW FOR US / CAN / BRZ / US_FS FOR TWN / GUL / KOR / ARL / NZ 6 LX4196001 1 MFC EMBLEM MFC-L8650CDW 6 LX4202001 1 MFC EMBLEM MFC-L8850CDW 6 LX4196001 1 MFC EMBLEM MFC-L8850CDW 6 LX4202004 1 MFC EMBLEM MFC-L9550CDW 6 LX4196005 1 MFC EMBLEM MFC-L9550CDW FOR US / CAN / ARG / CHL / BRZ / US_FS FOR GER / UK / CHE / ITA / IBR / TWN / ASA / GUL / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP FOR US / CAN FOR GER / UK / CHE / ITA / IBR / ASA / RUS / FRA / BEL / NLD / ARL / NZ / PND / CEE | Diagram placeholder |

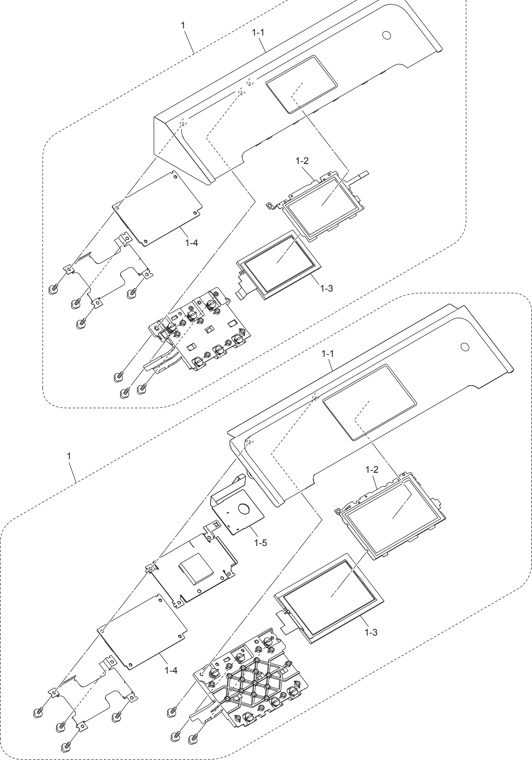

| 13. PANEL 1 LEN066001 1 CONTROL PANEL ASSY DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / BRZ / FRA / BEL / NLD / PND / CEE 1 LEN129001 1 CONTROL PANEL ASSY DCP-L8400CDN FOR CHN 1 LEN067001 1 CONTROL PANEL ASSY DCP-L8450CDW 1 LX4941001 1 CONTROL PANEL ASSY MFC-L8600CDW 1 LEN325001 1 CONTROL PANEL ASSY MFC-L8600CDW 1 LEN056001 1 CONTROL PANEL ASSY MFC-L8650CDW 1 LEN121001 1 CONTROL PANEL ASSY MFC-L8650CDW 1 LX4961001 1 CONTROL PANEL ASSY MFC-L8850CDW 1 LEN326001 1 CONTROL PANEL ASSY MFC-L8850CDW FOR US / CAN / GUL / BRZ / KOR / US_FS / ARL / NZ FOR TWN FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE FOR CHN FOR US / CAN / GER / UK / CHE / ITA / IBR / ARG / CHL / ASA / GUL / BRZ / US_FS / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP FOR TWN 1 LEN038001 1 CONTROL PANEL ASSY MFC-L9550CDW 1 LEN158001 1 PANEL COVER ASSY (SP) DCP-L8400CDN 1 LEN159001 1 PANEL COVER ASSY (SP) DCP-L8450CDW 1 LEN160001 1 PANEL COVER ASSY (SP) MFC-L8600CDW 1 LEN161001 1 PANEL COVER ASSY (SP) MFC-L8650CDW 1 LEN162001 1 PANEL COVER ASSY (SP) MFC-L8850CDW 1 LEN163001 1 PANEL COVER ASSY (SP) MFC-L9550CDW 2 LX4984001 1 TOUCH PANEL ASSY DCP-L8400CDN 2 LX4966001 1 TOUCH PANEL ASSY DCP-L8450CDW 2 LX4984001 1 TOUCH PANEL ASSY MFC-L8600CDW 2 LX4984001 1 TOUCH PANEL ASSY MFC-L8650CDW 2 LX4966001 1 TOUCH PANEL ASSY MFC-L8850CDW 2 LX4966001 1 TOUCH PANEL ASSY MFC-L9550CDW 3 A63291001 1 LCD DCP-L8400CDN 3 A62293001 1 LCD DCP-L8450CDW 3 A63291001 1 LCD MFC-L8600CDW 3 A63291001 1 LCD MFC-L8650CDW 3 A62293001 1 LCD MFC-L8850CDW 3 A62293001 1 LCD MFC-L9550CDW 4 LT3084003 1 PANEL PCB UNIT DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / BRZ / FRA / BEL / NLD / PND / CEE 4 LT3247003 1 PANEL PCB UNIT DCP-L8400CDN FOR CHN 4 LT3084002 1 PANEL PCB UNIT DCP-L8450CDW 4 LT3084003 1 PANEL PCB UNIT MFC-L8600CDW 4 LT3247003 1 PANEL PCB UNIT MFC-L8600CDW 4 LT3084003 1 PANEL PCB UNIT MFC-L8650CDW 4 LT3247003 1 PANEL PCB UNIT MFC-L8650CDW 4 LT3084002 1 PANEL PCB UNIT MFC-L8850CDW 4 LT3247002 1 PANEL PCB UNIT MFC-L8850CDW FOR US / CAN / GUL / BRZ / KOR / US_FS / ARL / NZ FOR TWN FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE FOR CHN FOR US / CAN / GER / UK / CHE / ITA / IBR / ARG / CHL / ASA / GUL / BRZ / US_FS / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP FOR TWN 4 LT3084001 1 PANEL PCB UNIT MFC-L9550CDW 5 LT2354004 1 NFC PCB ASSY MFC-L9550CDW | Diagram placeholder |

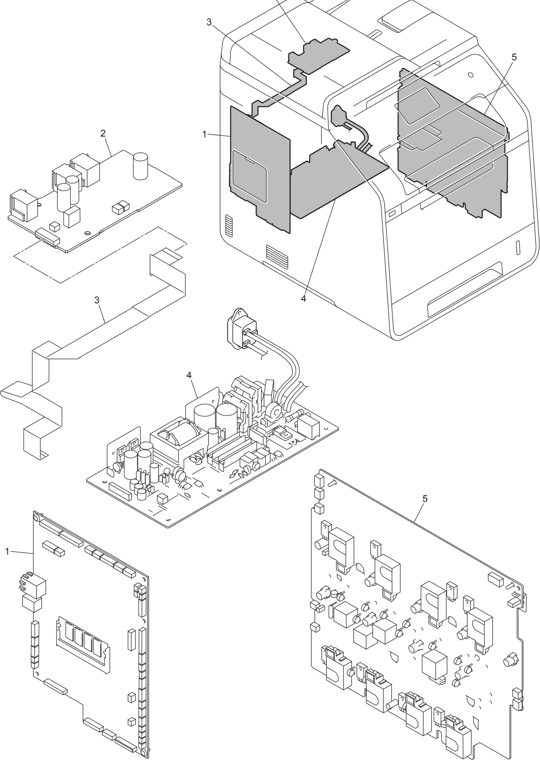

| 14. PCB 1 LT3242001 1 MAIN PCB ASSY DCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / BRZ / FRA / BEL / NLD / PND / CEE 1 LT3242020 1 MAIN PCB ASSY DCP-L8400CDN FOR CHN 1 LT3241001 1 MAIN PCB ASSY DCP-L8450CDW 1 LT2993001 1 MAIN PCB ASSY MFC-L8600CDW 1 LT2993051 1 MAIN PCB ASSY MFC-L8600CDW 1 LT2993020 1 MAIN PCB ASSY MFC-L8600CDW 1 LT3060001 1 MAIN PCB ASSY MFC-L8650CDW 1 LT3060020 1 MAIN PCB ASSY MFC-L8650CDW 1 LT2997001 1 MAIN PCB ASSY MFC-L8850CDW 1 LT2997051 1 MAIN PCB ASSY MFC-L8850CDW 1 LT2997020 1 MAIN PCB ASSY MFC-L8850CDWFOR US / CAN / GUL / BRZ / KOR / ARL / NZ FOR US_FS FOR TWN FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE FOR CHN FOR US / CAN / GER / UK / CHE / ITA / IBR / ARG / CHL / ASA / GUL / BRZ / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP FOR US_FS FOR TWN 1 LT2997001 1 MAIN PCB ASSY MFC-L9550CDW 2 LT3296041 1 MODEM PCB ASSY MFC-L8600CDW 2 LT3297042 1 MODEM PCB ASSY MFC-L8600CDW 2 LT3298043 1 MODEM PCB ASSY MFC-L8600CDW 2 LT3297042 1 MODEM PCB ASSY MFC-L8650CDW 2 LT3296041 1 MODEM PCB ASSY MFC-L8650CDW 2 LT3296041 1 MODEM PCB ASSY MFC-L8850CDW 2 LT3297042 1 MODEM PCB ASSY MFC-L8850CDW 2 LT3298043 1 MODEM PCB ASSY MFC-L8850CDW 2 LT3296041 1 MODEM PCB ASSY MFC-L9550CDW 2 LT3297042 1 MODEM PCB ASSY MFC-L9550CDW 2 LT3298043 1 MODEM PCB ASSY MFC-L9550CDWFOR US / CAN / TWN / BRZ / KOR / US _FS FOR GUL FOR ARL / NZ FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE FOR CHN FOR US / CAN / TWN / ARG / CHL / ASA / BRZ / US_FS FOR GER / UK / CHE / ITA / IBR / GUL / FRA / BEL / NLD / PND / CEE / ITA CONSIP FOR ARL / NZ FOR US / CAN / ASA FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE FOR ARL / NZ 3 LT2973001 1 MODEM FLAT CABLE MFC-L8600CDW 3 LT2973001 1 MODEM FLAT CABLE MFC-L8650CDW 3 LT2973001 1 MODEM FLAT CABLE MFC-L8850CDW 3 LT2973001 1 MODEM FLAT CABLE MFC-L9550CDW 4 LT2764001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITDCP-L8400CDN FOR GER / UK / CHE / ITA / IBR / FRA / BEL / NLD / PND / CEE 4 LT3250001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITDCP-L8400CDN FOR BRZ 4 LT3083001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITDCP-L8400CDN FOR CHN 4 LT2764001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITDCP-L8450CDW 4 LT2764001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8600CDW FOR GUL / KOR / ARL / NZ 4 LT2763001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8600CDW FOR US / CAN / TWN / US_FS 4 LT3250001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8600CDW FOR BRZ 4 LT2764001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8650CDW FOR GER / UK / CHE / ITA / IBR / FRA / BEL / NLD / PND / CEE 4 LT3083001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8650CDW FOR CHN / RUS 4 LT2764001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8850CDW FOR GER / UK / CHE / ITA / IBR / ARG / CHL / ASA / GUL / FRA / BEL / NLD / ARL / NZ / PND / CEE / ITA CONSIP 4 LT2763001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8850CDW FOR US / CAN / TWN / US_FS 4 LT3250001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L8850CDW FOR BRZ 4 LT2764001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L9550CDW FOR GER / UK / CHE / ITA / IBR / ASA / FRA / BEL / NLD / ARL / NZ / PND / CEE 4 LT2763001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L9550CDW FOR US / CAN 4 LT3083001 1 LOWP-VOLTAGE POWER SUPPLY PCB UNITMFC-L9550CDW FOR RUS 5 LY7790001 1 HIGH-VOLTAGE POWER SUPPLY PCB UNIT | Diagram placeholder |

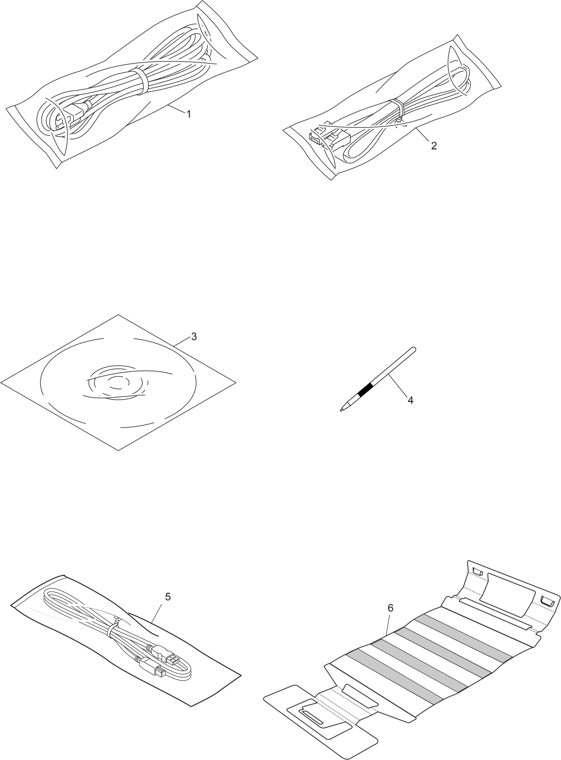

| 15. ACCESSORIES 1 LV0364001 1 AC CORD BAG ASSY LF VDE S DCP-L8400CDN FOR GER / ITA / IBR / FRA / BEL / NLD / PND / CEE 1 LV0368001 1 AC CORD BAG ASSY LF BS / PSB S DCP-L8400CDN FOR U K 1 LT2259001 1 AC CORD BAG ASSY LF SEV DCP-L8400CDN FOR CHE 1 LG4720001 1 AC CORD BAG ASSY LF DEMKO DCP-L8400CDN FOR PND 1 LV1093001 1 AC CORD BAG ASSY LF CHN S / BR O DCP-L8400CDN FOR CHN 1 LV1465001 1 AC CORD BAG ASSY LF INMETRO DCP-L8400CDN FOR BRZ 1 LV0364001 1 AC CORD BAG ASSY LF VDE S DCP-L8450CDW FOR GER / ITA / IBR / FRA / BEL / NLD / PND / CEE / ITA CONSIP 1 LV0368001 1 AC CORD BAG ASSY LF BS / PSB S DCP-L8450CDW FOR UK 1 LT2259001 1 AC CORD BAG ASSY LF SEV DCP-L8450CDW FOR CHE 1 LG4720001 1 AC CORD BAG ASSY LF DEMKO DCP-L8450CDW FOR PND 1 LM9362001 1 AC CORD BAG ASSY LF UL / CSA 13 AMFC-L8600CDW FOR US / CAN / US FS 1 LV0364001 1 AC CORD BAG ASSY LF VDE S MFC-L8600CDW FOR GUL 1 LV0368001 1 AC CORD BAG ASSY LF BS / PSB S MFC-L8600CDW FOR GUL 1 LG6404001 1 AC CORD BAG ASSY LF SAF MFC-L8600CDW FOR GUL 1 LV0366001 1 AC CORD BAG ASSY LF SAA S MFC-L8600CDW FOR ARL / NZ 1 LT1833001 1 AC CORD BAG ASSY LF TWN MFC-L8600CDW FOR TWN 1 LV1465001 1 AC CORD BAG ASSY LF INMETRO MFC-L8600CDW FOR BRZ 1 LV1520001 1 AC CORD BAG ASSY LF KOR S MFC-L8600CDW FOR KO R 1 LV0364001 1 AC CORD BAG ASSY LF VDE S MFC-L8650CDW FOR GER / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEE 1 LV0368001 1 AC CORD BAG ASSY LF BS / PSB S MFC-L8650CDW FOR UK 1 LT2259001 1 AC CORD BAG ASSY LF SEV MFC-L8650CDW FOR CHE 1 LG4720001 1 AC CORD BAG ASSY LF DEMKO MFC-L8650CDW FOR PND 1 LV1093001 1 AC CORD BAG ASSY LF CHN S / BR O MFC-L8650CDW FOR CHN 1 LV0364001 1 AC CORD BAG ASSY LF VDE S MFC-L8850CDW FOR GER / ITA / IBR / ASA / GUL / FRA / BEL / NLD / PND / CEE / ITA CONSIP 1 LM9362001 1 AC CORD BAG ASSY LF UL / CSA 13 AMFC-L8850CDW FOR US / CAN / US FS 1 LV0368001 1 AC CORD BAG ASSY LF BS / PSB S MFC-L8850CDW FOR UK / ASA / GUL 1 LT0925001 1 AC CORD BAG ASSY LF IRAM MFC-L8850CDW FOR ARG 1 LV1465001 1 AC CORD BAG ASSY LF INMETRO MFC-L8850CDW FOR BRZ 1 LG6207001 1 AC CORD BAG ASSY LF CHILE MFC-L8850CDW FOR CHL 1 LT2259001 1 AC CORD BAG ASSY LF SEV MFC-L8850CDW FOR CHE 1 LV0388001 1 AC CORD BAG ASSY LF PERU MFC-L8850CDW FOR CHL 1 LG6404001 1 AC CORD BAG ASSY LF SAF MFC-L8850CDW FOR GUL 1 LV0366001 1 AC CORD BAG ASSY LF SAA S MFC-L8850CDW FOR ARL / NZ 1 LG4720001 1 AC CORD BAG ASSY LF DEMKO MFC-L8850CDW FOR PND 1 LT1833001 1 AC CORD BAG ASSY LF TWN MFC-L8850CDW FOR TWN 1 LV0364001 1 AC CORD BAG ASSY LF VDE S MFC-L9550CDW FOR GER / ITA / IBR / ASA / RUS / FRA / BEL / NLD / PND / CEE 1 LM9362001 1 AC CORD BAG ASSY LF UL / CSA 13 AMFC-L9550CDW FOR US / CAN 1 LV0368001 1 AC CORD BAG ASSY LF BS / PSB S MFC-L9550CDW FOR UK / AS A 1 LT2259001 1 AC CORD BAG ASSY LF SEV MFC-L9550CDW FOR CHE 1 LG4720001 1 AC CORD BAG ASSY LF DEMKO MFC-L9550CDW FOR PND 1 LV0366001 1 AC CORD BAG ASSY LF SAA S MFC-L9550CDW FOR ARL / NZ 2 LG3077001 1 TELEPHONE LINE CORD CS A MFC-L8600CDW FOR US / CAN / TWN / GUL / BRZ / KOR / US_FS 2 LT3878001 1 TELEPHONE LINE CORD KO R MFC-L8600CDW FOR KO R 2 LT3317001 1 TELEPHONE LINE CORD CSA2 MFC-L8600CDW FOR ARL / NZ 2 LG3077001 1 TELEPHONE LINE CORD CS A MFC-L8650CDW FOR UK / CHN / RUS / FRA / BEL / NLD / CE E 2 UG3625001 1 TELEPHONE LINE CORD GE R MFC-L8650CDW FOR GE R 2 UG4205001 1 TELEPHONE LINE CORD AUS MFC-L8650CDW FOR GE R 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L8650CDW FOR U K 2 LG7202001 1 TELEPHONE LINE CORD SWI MFC-L8650CDW FOR CHE 2 LT2144001 1 TELEPHONE LINE CORD ITA MFC-L8650CDW FOR ITA / IBR 2 UG1575001 1 TELEPHONE LINE CORD BEL MFC-L8650CDW FOR FRA / BEL / NLD 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L8650CDW FOR FRA / BEL / NLD 2 UG1574001 1 TELEPHONE LINE CORD 4P MFC-L8650CDW FOR FRA / BEL / NLD 2 LG5827001 1 TELEPHONE LINE CORD RJ45 MFC-L8650CDW FOR PND 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L8850CDW FOR US / CAN / UK / TWN / ARG / CHL / ASA / GUL / BRZ / US_FS / FRA / BEL / NLD / CEE 2 UG3625001 1 TELEPHONE LINE CORD GER MFC-L8850CDW FOR GE R 2 UG4205001 1 TELEPHONE LINE CORD AUS MFC-L8850CDW FOR GE R 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L8850CDW FOR U K 2 LG7202001 1 TELEPHONE LINE CORD SWI MFC-L8850CDW FOR CHE 2 LT2144001 1 TELEPHONE LINE CORD IT A MFC-L8850CDW FOR ITA / IBR / ITA CONSIP 2 UG1575001 1 TELEPHONE LINE CORD BEL MFC-L8850CDW FOR FRA / BEL / NLD 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L8850CDW FOR FRA / BEL / NLD 2 UG1574001 1 TELEPHONE LINE CORD 4P MFC-L8850CDW FOR FRA / BEL / NLD 2 LT3317001 1 TELEPHONE LINE CORD CSA2 MFC-L8850CDW FOR ARL / NZ 2 UG3290001 1 TELEPHONE LINE CORD NZ MFC-L8850CDW FOR ARL / NZ 2 LG5827001 1 TELEPHONE LINE CORD RJ45 MFC-L8850CDW FOR PND 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L9550CDW FOR US / CAN / UK / ASA / RUS / FRA / BEL / NLD / CEE 2 UG3625001 1 TELEPHONE LINE CORD GER MFC-L9550CDW FOR GER 2 UG4205001 1 TELEPHONE LINE CORD AUS MFC-L9550CDW FOR GER 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L9550CDW FOR UK - 33 - | Diagram placeholder |
| 15. ACCESSORIES 2 LG7202001 1 TELEPHONE LINE CORD SWI MFC-L9550CDW FOR CHE 2 LT2144001 1 TELEPHONE LINE CORD IT A MFC-L9550CDW FOR ITA / IBR 2 UG1575001 1 TELEPHONE LINE CORD BEL MFC-L9550CDW FOR FRA / BEL / NLD 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L9550CDW FOR FRA / BEL / NLD 2 UG1574001 1 TELEPHONE LINE CORD 4P MFC-L9550CDW FOR FRA / BEL / NLD 2 LG5827001 1 TELEPHONE LINE CORD RJ45 MFC-L9550CDW FOR PND 2 LT3317001 1 TELEPHONE LINE CORD CSA2 MFC-L9550CDW FOR ARL / NZ 2 UG3290001 1 TELEPHONE LINE CORD NZ MFC-L9550CDW FOR ARL / NZ 3 LEN043001 1 CDROM ASSY DCP-L8400CDN FOR GER / UK / CHE / FRA / BEL / NLD 3 LEN132001 1 CDROM ASSY DCP-L8400CDN FOR ITA / IBR 3 LEN045001 1 CDROM ASSY DCP-L8400CDN FOR PND 3 LEN048001 1 CDROM ASSY DCP-L8400CDN FOR CEE 3 LEN051001 1 CDROM ASSY DCP-L8400CDN FOR CHN 3 LEN059001 1 CDROM ASSY DCP-L8400CDN FOR BRZ 3 LEN043001 1 CDROM ASSY DCP-L8450CDW FOR GER / UK / CHE / FRA / BEL / NLD 3 LEN132001 1 CDROM ASSY DCP-L8450CDW FOR ITA / IBR / ITA CONSIP 3 LEN045001 1 CDROM ASSY DCP-L8450CDW FOR PND 3 LEN048001 1 CDROM ASSY DCP-L8450CDW FOR CEE 3 LEN040001 1 CDROM ASSY MFC-L8600CDW FOR US / US FS 3 LEN041001 1 CDROM ASSY MFC-L8600CDW FOR CAN / BRZ 3 LEN055001 1 CDROM ASSY MFC-L8600CDW FOR GUL / ARL / NZ 3 LEN052001 1 CDROM ASSY MFC-L8600CDW FOR TWN / KOR 3 LEN044001 1 CDROM ASSY MFC-L8650CDW FOR GER / UK / CHE / FRA / BEL / NLD 3 LEN133001 1 CDROM ASSY MFC-L8650CDW FOR ITA / IBR 3 LEN047001 1 CDROM ASSY MFC-L8650CDW FOR RUS 3 LEN046001 1 CDROM ASSY MFC-L8650CDW FOR PND 3 LEN049001 1 CDROM ASSY MFC-L8650CDW FOR CEE 3 LEN051001 1 CDROM ASSY MFC-L8650CDW FOR CHN 3 LEN040001 1 CDROM ASSY MFC-L8850CDW FOR US / US FS 3 LEN041001 1 CDROM ASSY MFC-L8850CDW FOR CAN / ARG / CHL / Z 3 LEN044001 1 CDROM ASSY MFC-L8850CDW FOR GER / UK / CHE / FRA / BEL / NLD 3 LEN133001 1 CDROM ASSY MFC-L8850CDW FOR ITA / IBR / ITA CONSIP 3 LEN054001 1 CDROM ASSY MFC-L8850CDW FOR AS A 3 LEN055001 1 CDROM ASSY MFC-L8850CDW FOR GUL / ARL / NZ 3 LEN046001 1 CDROM ASSY MFC-L8850CDW FOR PND 3 LEN049001 1 CDROM ASSY MFC-L8850CDW FOR CEE 3 LEN052001 1 CDROM ASSY MFC-L8850CDW FOR TWN 3 LEN040001 1 CDROM ASSY MFC-L9550CDW FOR US 3 LEN041001 1 CDROM ASSY MFC-L9550CDW FOR CAN 3 LEN044001 1 CDROM ASSY MFC-L9550CDW FOR GER / UK / CHE / FRA / BEL / NLD 3 LEN133001 1 CDROM ASSY MFC-L9550CDW FOR ITA / IBR 3 LEN047001 1 CDROM ASSY MFC-L9550CDW FOR RUS 3 LEN046001 1 CDROM ASSY MFC-L9550CDW FOR PND 3 LEN049001 1 CDROM ASSY MFC-L9550CDW FOR CEE 3 LEN055001 1 CDROM ASSY MFC-L9550CDW FOR ARL / NZ 3 LEN054001 1 CDROM ASSY MFC-L9550CDW FOR AS A4 XA99400 5 1 TOUCH PEN 5 LJ9803001 1 USB CABLE 2.0 FOR US / CAN / GER / UK / CHE / ITA / CHN / PHL / TWN / ARG / IRN / CHL / ASA / GUL / BRA / IND / RUS / FRA / BEL / NLD / OCE / PND / IBR / CEE / ITA CONSIP 5 LV1518001 1 USB CABLE 2.0 KOR FOR KOR 6 LU6915001 1 DRM CLN SHEET KIT (SP) (7) LG6573001 1 TELEPHONE PLUG ARL MFC-L8600CDW FOR ARL / NZ (7) LG5828001 1 TELEPHONE PLUG DEN MFC-L8650CDW FOR PND (7) LG5829001 1 TELEPHONE PLUG FIN MFC-L8650CDW FOR PND (7) LG5830001 1 TELEPHONE PLUG SWE MFC-L8650CDW FOR PND (7) LG6573001 1 TELEPHONE PLUG ARL MFC-L8850CDW FOR ARL / NZ (7) LG5828001 1 TELEPHONE PLUG DEN MFC-L8850CDW FOR PND (7) LG5829001 1 TELEPHONE PLUG FIN MFC-L8850CDW FOR PND (7) LG5830001 1 TELEPHONE PLUG SWE MFC-L8850CDW FOR PND (7) LG5828001 1 TELEPHONE PLUG DEN MFC-L9550CDW FOR PND (7) LG5829001 1 TELEPHONE PLUG FIN MFC-L9550CDW FOR PND (7) LG5830001 1 TELEPHONE PLUG SWE MFC-L9550CDW FOR PND (7) LG6573001 1 TELEPHONE PLUG ARL MFC-L9550CDW FOR ARL / NZ (7) UG1573000 1 TELEPHONE PLUG BEL MFC-L8650CDW FOR FRA / BEL / NLD (7) UG1573000 1 TELEPHONE PLUG BEL MFC-L8850CDW FOR FRA / BEL / NLD (7) UG1573000 1 TELEPHONE PLUG BEL MFC-L9550CDW FOR FRA / BEL / NLD - 34 - | Diagram placeholder |
