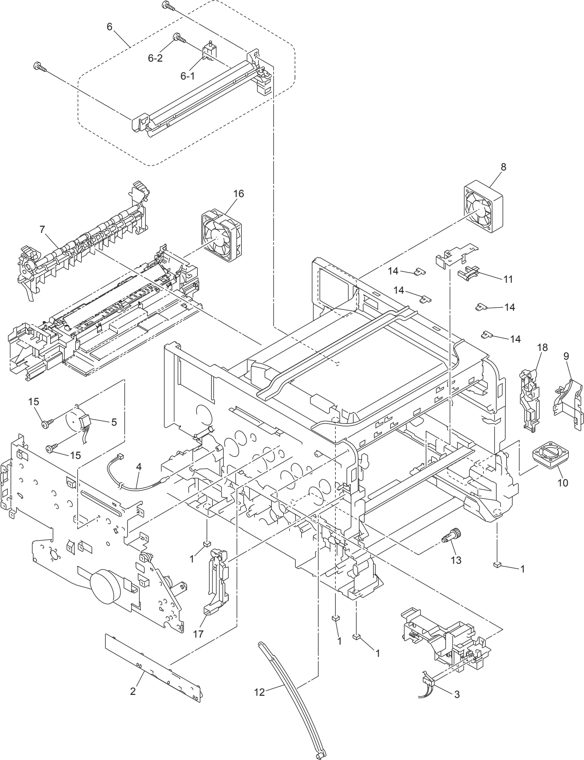

1. FRAME 1 LR1352001 4 RUBBER FOOT 2 LY0061001 Toner/Sensor PCB Assembly Fully refurbished with 90-day warranty LY0061001 $35.10 3 LV0470001 1 FRONT COVER SENSOR 4 LV0472001 1 INTERNAL TEMPERATURE THERMISTOR 5 LY0722001 1 DEVELOP RELEASE MOTOR 6 LY0070001 Registration Mark Sensor Holder Assy Fully refurbished with 90-day warranty LY0070001 $52.66 1 LY0077001 1 SHUTTER SOLENOID6- 2 LU5694001 1 TAPTITE BIND B M3X10 7 LY0080001 1 FUSER COVER 8 LY0095001 1 FUSER FAN 9 LY0099001 1 AIR DUCT COVER 10 LY0100001 1 BLOWER 11 LM9221001 Waste Toner Sensor Fully refurbished with 90-day warranty LM9221001 $29.71 12 LY0115001 1 FORCED D EVELOP RELEASE LINK 13 LY0050001 1 CLEANER DRIVE GEAR 14 LU6330001 4 SPACER 15 085320616 2 TAPTITE BIND S M3X 16 LY0630001 1 POWER FAN 17 LY0112001 1 DRUM LOCK L 18 LY0114001 Drum Lock R Fully refurbished with 90-day warranty LY0114001 $29.71 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

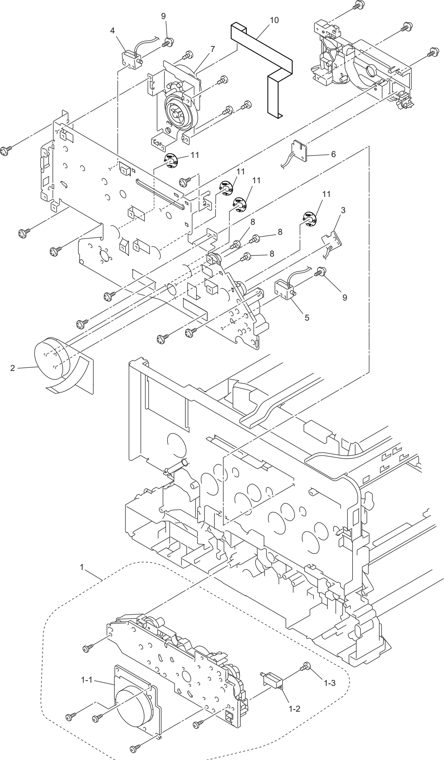

2. DRIVE 1 LY0116001 1 PF CLN DRIVE ASSY 1 LY0117001 1 PF PLATE ASSY 2 LY0133001 1 T1 SOLENOIDO ASSY1- 3 085310816 1 TAPTITE BIND B M3X8 2 LY0723001 1 DRUM DRIVE MOTOR 3 LV0488001 1 DRUM POSITION SENSOR PCB ASSY 4 LY0208001 1 MONO SOLENOID ASSY 5 LY0221001 1 REGISTRATION SOLENOID ASSY 6 LV0489001 1 DEVELOP RELEASE SENSOR PCB ASSY 7 LY0227001 1 FUSER DEVELOP MOTOR ASSY 8 000300416 3 SCREW BIND M3X 9 LU5691001 2 TAPTITE CUP S M3X6 SR 10 LV0471001 1 FUSER DEVELOP MOTOR FLAT CABLE 11 LY0205001 4 DRM JOINT A DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

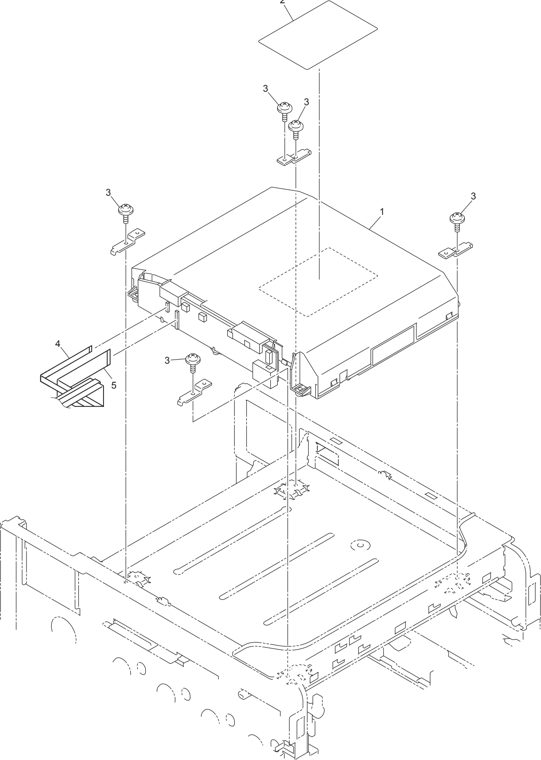

3. LASER UNIT 1 LY0737001 1 LASER UNIT (SP) 2 LU1259001 1 LABEL LASER CAUTION 75X100 3 LU5691001 5 TAPTITE CUP S M3X6 SR 4 LV0461001 1 LASER UNIT-ENGINE FLAT CABLE 5 LV0462001 1 LASER UNIT-MAIN FLAT CABLE DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

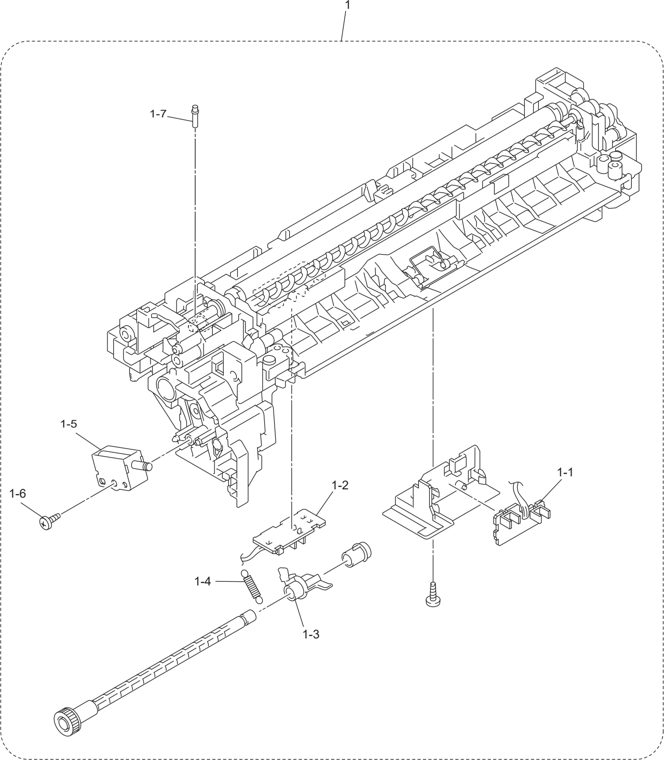

4. PAPER FEEDER 1 LR2173001 1 PF ASSY (SP) 1 LV0491001 1 T1 REGISTRATION FRONT / REAR SENSOR PCB ASSY 2 LV0494001 1 T1 PAPER EDGE SENSOR PCB ASSY 3 LY0248001 1 T 1 PAPER EDGE ACTUATOR 4 LR0914001 1 T 1 PAPER EDGE ACTUATOR SPRING 5 LY0294001 1 MP SECTOR SOLENOID 6 085310816 1 TAPTITE BIND B M3X81- 7 LR0762001 1 JOINT PIN DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

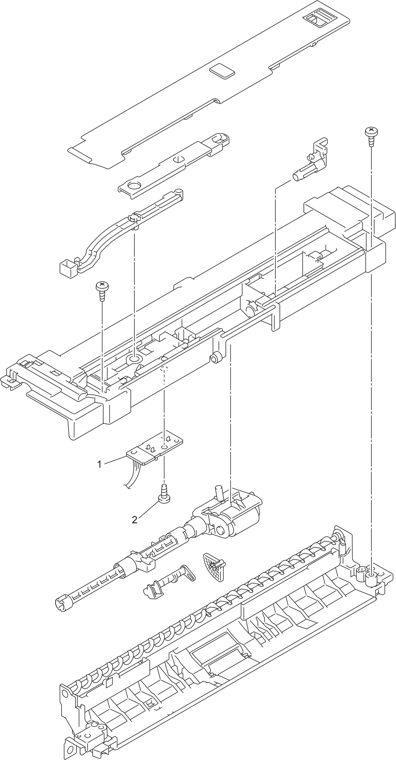

5. MP UNIT 1 LV0500001 1 MP PAPER EMPTY / REGISTRATION FRONT SENSOR PCB ASSY 2 085310816 1 TAPTITE BIND B M3X8 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

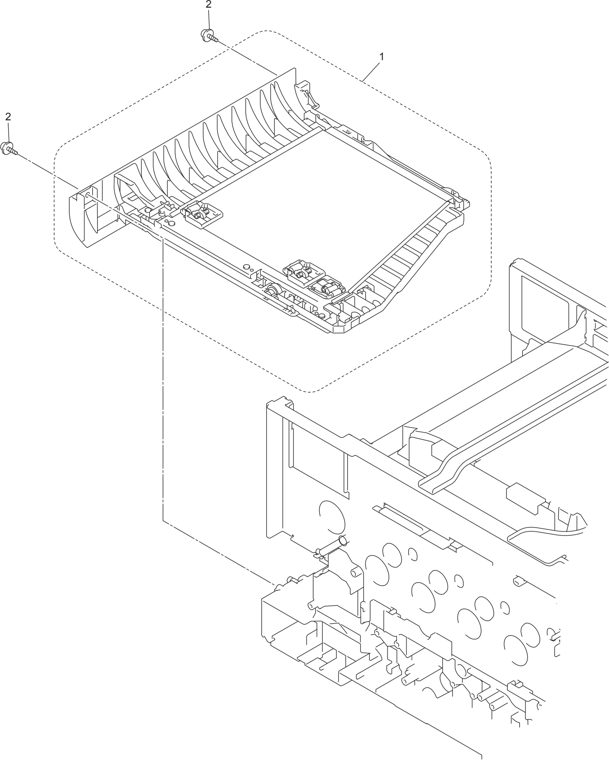

6. DX 1 LY1666001 1 DUPLEX FEED ASSY LTR (SP) FOR US / CAN / BRA / ARG / CHL 1 LY1626001 1 DUPLEX FEED ASSY A4 (SP) EXCEPT FOR US / CAN / BRA / ARG / CHL 2 LY1163001 2 TAPTITE CUP B M3X12 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

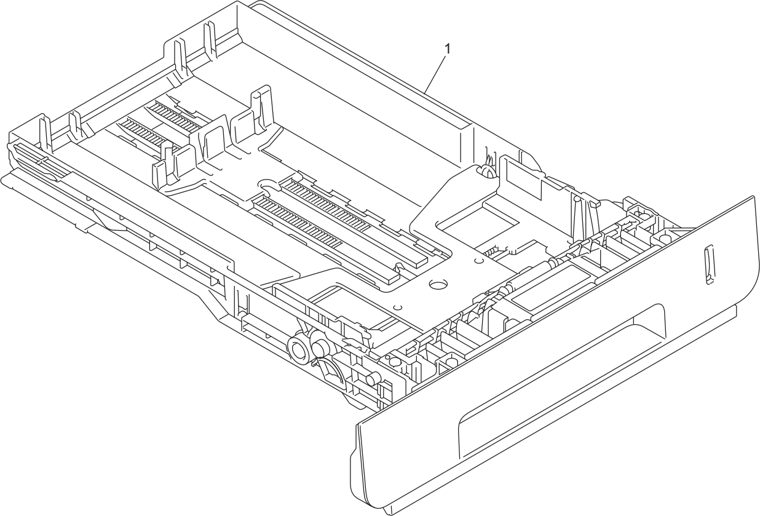

7. PAPER TRAY 1 LY1671001 1 PAPER TRAY UNIT (SP) DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

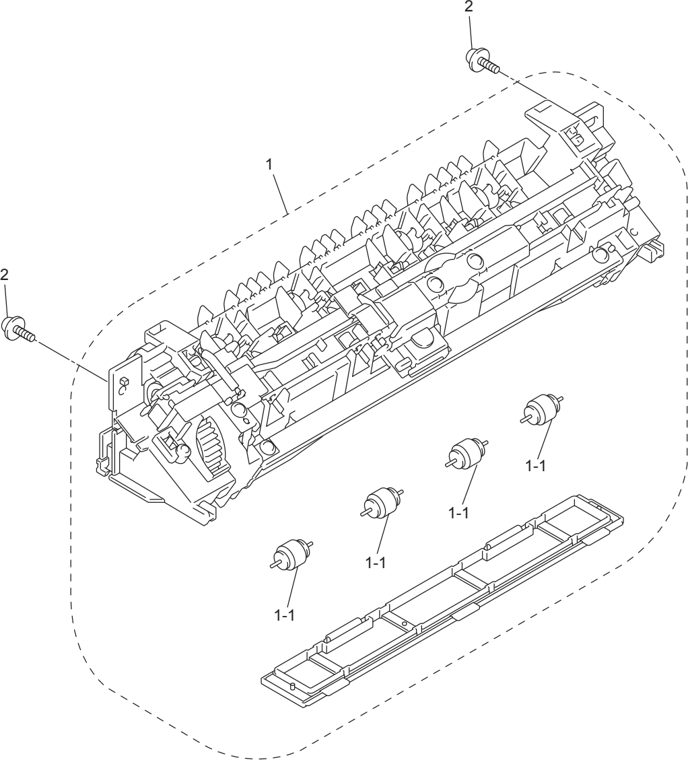

8. FUSER UNIT 1 LY0748001 Fuser - 115V Fully refurbished with 90-day warranty LY0748001 $195.75 1 LY0749001 1 FUSER UNIT 230V (SP) EXCEPT FOR US / CAN / BRA 1 LY0634001 Cleaner Pinch Roller S Assy New LY0634001 (New) $25.65 2 LJ0395001 2 TAPTITE PAN B M4X14 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

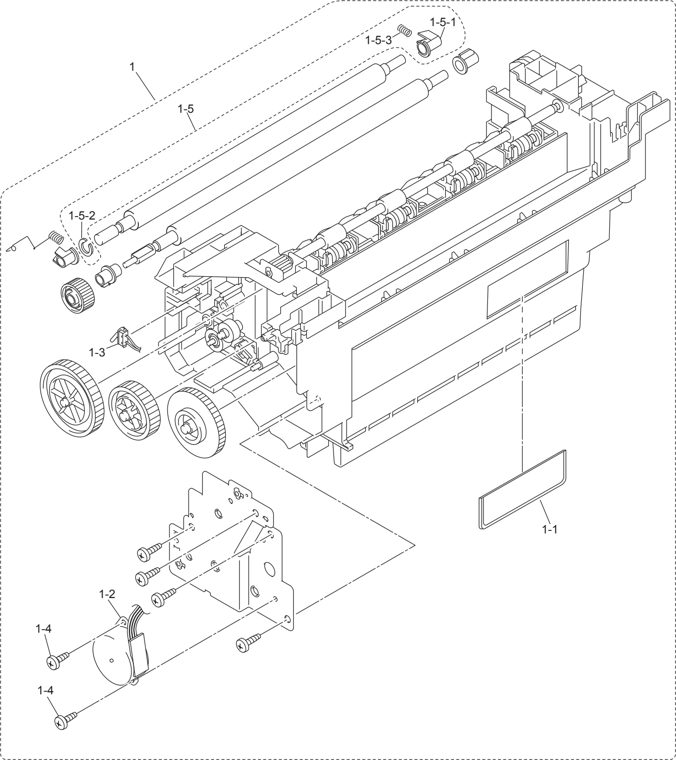

9. PAPER EJECT 1 LY1735002 1 PAPER EJECT ASSY (SP) 1 LY1245001 1 FILTER ASSY 2 LY0408001 1 PAPER EJECT MOTOR1- 3 LV0538001 1 BACK COVER SENSOR ASSY1- 4 085320616 2 TAPTITE BIND S M3X61- 5 LY7959001 1 EJECT PAPER KIT (SP) 1 LY0391002 1 EJECT MIDDLE BEARING 2 LY0719001 1 COLLAR 6 3 LY0393001 1 MIDDLE ROLLER SPRING DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

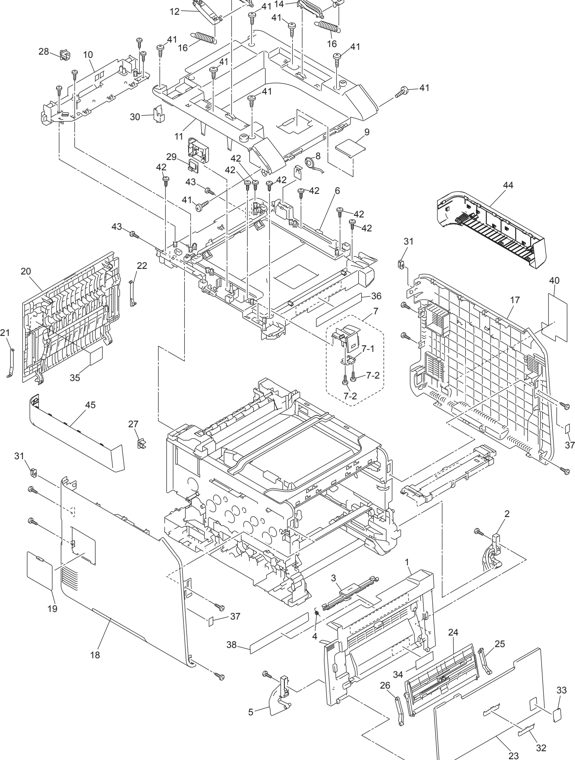

10. COVERS & LABELS 1 LX4013001 1 FRONT COVER 2 LY0417001 1 FRONT COVER ARM R 3 LY0419001 1 FRONT COVER RELEASE BUTTON 4 LY0420001 1 FRONT COVER RELEASE BUTTON SPRING 5 LY0418001 1 FRONT COVER ARM L 6 LX4014001 1 JOINT COVER BASE ASSY 7 LX4160001 1 JOINT COVER FL, DCP9055CDN 7 LX4016001 1 JOINT COVER FL USB ASSY, DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 1 LV0531001 1 USB HOST RELAY PCB ASSY, DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 2 LU5693001 2 TAPTITE BIND B M4X12 8 LT1179001 1 SPEAKER UNIT 9 LY0428002 1 PAPER STOPPER 10 LX4161001 1 BACK COVER UPPER, DCP9055CDN 10 LX4203001 1 BACK COVER UPPER, DCP9270CDN, DCP9270CDN ITA CONSIP 10 LX4018001 1 BACK COVER UPPER, MFC9460CDN / MFC9465CDN / MFC9560CDW 10 LX4291001 1 BACK COVER UPPER, MFC9970CDW 11 LX4019001 1 JOINT COVER TOP, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 11 LX4204001 1 JOINT COVER TOP, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 12 LP2727001 1 PULL ARM L, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 13 LP2728001 1 PULL ARM R, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 14 LS7023001 2 PULL ARM GUIDE, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 15 LF6148001 2 LOCK CLAW, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 16 LX4020001 Pull Arm Spring Fully refurbished with 90-day warranty LX4020001 $29.71 17 LX4162001 1 SIDE COVER R ASSY, DCP9055CDN 17 LX4021001 1 SIDE COVER R ASSY, MFC9460CDN / MFC9465CDN / MFC9560CDW 17 LX4816001 1 SIDE COVER R ASSY, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 18 LX4165001 1 SIDE COVER L, DCP9055CDN 18 LX4024001 1 SIDE COVER L, MFC9460CDN / MFC9465CDN / MFC9560CDW 18 LX4295001 1 SIDE COVER L, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 19 LR0516003 1 ACCESS COVER 20 LY0449001 1 BACK COVER 21 LY0450001 1 BACK COVER STOPPER ARM L 22 LY0451001 1 BACK COVER STOPPER ARM R 23 LY0452001 MP Cover Assy New LY0452001 (New) $49.96 24 LY0456001 1 MP PAPER GUIDE ASSY 25 LY0459001 MP Link Right New LY0459001 (New) $25.65 26 LY0460001 MP Link Left New LY0460001 (New) $25.65 27 LY0872001 1 LAN PORT CAP 28 LE8842001 1 EXT CAP, MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDWFOR US / CAN / CHE / CHN / ARG / CHL / ASA / GUL / KOR / RUS / ARL / NZ / PND / IBR / CEE 28 UF5745000 1 MJ COVER EXT,MFC9460CDN / MFC9465CDN / MFC9970CDW FOR GER / UK / FRA / BEL / NLD / ITA 29 LT2155001 Wireless Lan PCB Fully refurbished with 90-day warranty LT2155001 $31.05 30 LX4318001 1 JOINT FILM, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 31 LP2612002 2 CORD HOOK, MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW 32 LX7150003 1 EMBLEM BROTHER SHEET 33 LY0837001 1 COLOR LASER LABEL 34 LY0838001 1 MP SET INSTRUCTION LABEL 35 LY0920001 1 LABEL H / SP CAUTION REAR 49X45 36 LX4194001 1 LABEL DR OPERATION 37 LY0917001 2 LABEL DR TARGET L / R 38 LY0919001 1 LABEL H / SP CAUTION FOR US / CAN / ARG / CHL / BRA 38 LY1496001 1 LABEL H / SP CAUTION FOR CHN 38 LY1419001 1 LABEL H / SP CAUTION FOR ARL / NZ / HK / ASA / GUL / KOR 38 LY0939001 1 LABEL H / SP CAUTION,DCP9055CDN / MFC9460CDN FOR GER / UK / CHE / FRA / BEL / NLD / ITA / IBR / PND / CEE,MFC9465CDN FOR GER / UK / CHE / ITA / RUS / FRA / BEL / NLD / PND / IBR 38 LY0940001 1 LABEL H / SP CAUTION, DCP9270CDN / MFC9970CDW FOR GER / UK / CHE / ITA / IBR / FRA / BEL / NLD / PND / CEE, DCP9270CDN ITA CONSIP 40 LY1306001 1 SWITCH STICKER 41 LU5693001 8 TAPTITE BIND B M4X12 42 087320816 7 TAPTITE BIND S M3X8 43 LU5693001 2 TAPTITE BIND B M4X12 44 LX4313001 1 SIDE COVER R UPPER, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 45 LX4314001 1 SIDE COVER L UPPER, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

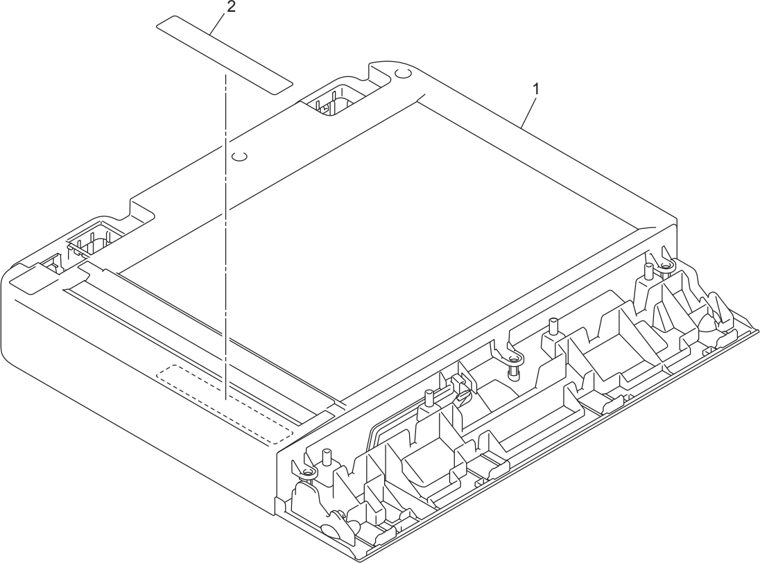

11. DOCUMENT SCANNER 1 LX4566001 1 DOCUMENT SCANNER UNIT (SP), DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 1 LX4824001 Document Scanner Unit Fully refurbished with 90-day warranty LX4824001 $214.65 2 LX5186001 1 ADF CLEAN UP LABEL, DCP9055CDN / MFC9460CDN 2 LX7422001 1 ADF CLEAN UP LABEL, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

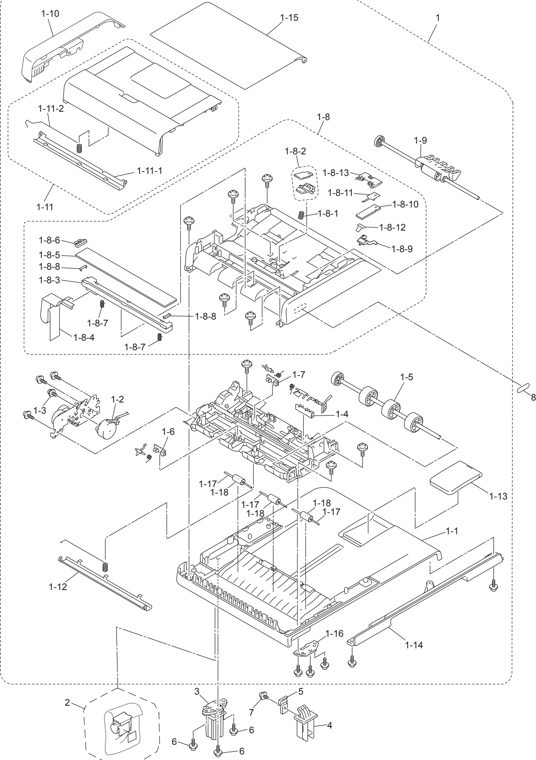

12. ADF 1 LX4561001 1 ADF UNIT (SP), DCP9055CDN / MFC9460CDN 1 LX4565001 1 ADF UNIT (SP), MFC9465CDN / MFC9560CDW 1 LX4819001 1 ADF UNIT (SP), DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 1 LX4051001 1 DOCUMEN T COVER ASSY, DCP9055 CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 1 LX4228001 1 DOCUMEN T COVER ASSY, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 2 LX4064001 1 ADF MOTOR, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 2 LX4236001 1 ADF MOTOR, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP1- 3 0A4300606 1 SCREW PAN (S / P WASHER ) M3X6 4 LT1120001 1 DOCUMENT FRONT / ADF OPEN SENSOR B57U063 5 LX4080001 1 DOCUMEN T FEED ROLLER ASSY, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 5 LX4241001 1 DOCUMEN T FEED ROLLER ASSY, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 6 LG6753001 1 DOCUMENT FIRST SIDE REAR SENSOR B53K928 7 LG6753001 1 DOCUMENT SECOND SIDE REAR SENSOR, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP B53K928 8 LX4168001 1 UPPER DOCUMENT CHUTE ASSY, DCP9055 CDN / MFC9460CDN 8 LX4090001 1 UPPER DOCUMENT CHUTE ASSY, MFC9465 CDN / MFC9560CDW 8 LX4245001 1 UPPER DOCUMENT CHUTE ASSY, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 1 LX4095001 1 ADF SPRING, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW1-8- 1 LX4365001 1 ADF SPRING, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP1-8- 2 LX4749001 ADF Separation Pad New LX4749001 (New) $36.46 3 LT0725001 1 SECOND SIDE SCANNING CIS, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 4 LT1195001 1 SECOND SIDE SCANNING CIS FLAT CABLE, MFC9465CDN / MFC9560CDW 4 LT1305001 1 SECOND SIDE SCANNING CIS FLAT CABLE, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 5 LX4097001 1 COVER GLASS, MFC9465 CDN / MFC9560CDW 5 LX4368001 1 CO VER GLASS, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 6 LX4098001 1 COVER GLASS STOPPER, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 7 LX4099001 2 CIS SPRING, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 8 LX4100001 2 CIS SPACER , DCP9270 CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 9 LX4252001 1 ADF SPRING HOLDER , DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 10 LX4249001 ADF Separation Pad New LX4249001 (New) $25.65 11 LX4777001 1 SEPARATE SUPPORT FILM, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 12 LX4652001 1 SUPPORT FILM, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 13 LX4320001 1 SEPARATION RUBBER HOLDER, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 9 LX4109001 ADF Pick Roller Assembly New LX4109001 (New) $45.91 9 LX4256001 ADF Pick Roller Assy New LX4256001 (New) $74.25 10 LX4117001 1 GEAR COVER, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW1- 10 LX4264001 1 GEAR COVER, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP1- 11 LX4170001 1 ADF COVER ASSY, DCP9055 CDN / MFC9460CDN 11 LX4118001 1 ADF CO VER ASSY, MFC9465CDN / MFC9560CDW 11 LX4265001 1 ADF COVER ASSY, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 1 LS0977001 1 DO CUMENT HOLD ASSY, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 2 LX4120001 1 EARTH SPRING DH ADF, DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 12 LS0977001 1 DOCUM ENT HOLD ASSY 13 LX4184001 Document Stopper New LX4184001 (New) $43.21 13 LX4267001 1 DOCUMEN T STOPPER, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 14 LX4128001 1 G RIP COVER 15 LX5371001 1 DOCUMENT SUB TRAY, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 15 LX4268001 1 DOCUMENT SUB TRAY, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP1- 16 LS8141001 1 HINGE ARM R1- 17 LX4127001 3 LF2 SPRING SHAFT1- 18 LX4779001 3 LF2 PINCH ROLLER, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 18 LS4567002 3 LF2 PINCH ROLLER, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 2 LX4649001 1 FFC HOLDER ASSY (SP), DCP9270CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW, DCP9270CDN ITA CONSIP 3 LX4126001 1 HINGE ASSY L, DCP9055 CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 3 LX4269001 1 HINGE ASSY L, DCP9270 CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 4 LS8154001 1 HINGE R 5 LS8155001 1 HINGE R SUPPORT 6 087321216 3 TAPTITE CUP S M3X12 7 087311016 1 TAPTITE CUP B M3X 8 LX4197001 1 ADF EMBLEM, DCP9055CDN / DCP9270CDN, DCP9270CDN ITA CONSIP 8 LX4202001 1 ADF EMBLEM, MFC9460CDN / MFC9560CDW / MFC9970CDW FOR US / CAN / BRA / ARG / CHL 8 LX4196001 1 ADF EMBLEM, MFC9460CDN / MFC9465CDN / MFC9970CDW FOR EXCEPT FOR US / CAN / BRA / ARG / CHL DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

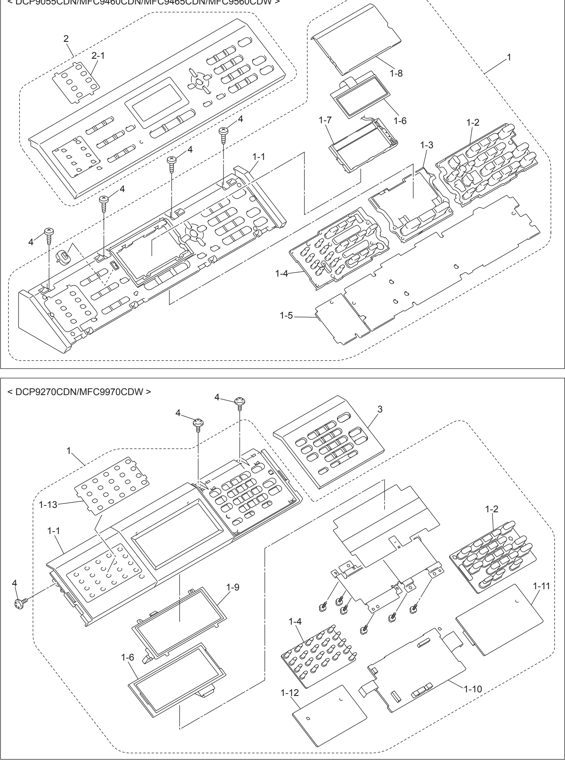

13. PANEL 1 LX4172001 1 PANEL UNIT, DCP9055CDN EXCEPT FOR CHN 1 LX4791001 1 PANEL UNIT, DCP9055CDN FOR CHN 1 LX4270001 1 PANEL UNIT, DCP9270CDN, DCP9270CDN ITA CONSIP 1 LX4129001 1 PANEL UNIT, MFC9460CDN / MFC9465CDN / MFC9560CDW EXCEPT FOR CHN 1 LX4322001 1 PANEL UNIT, MFC9465CDN FOR CHN 1 LX4296001 1 PANEL UNIT, MFC9970CDW 1 LX4173001 1 PANEL COVER, DCP9055CDN1- 1 LX4271001 1 PANEL COVER, DCP9270CDN, DCP9270CDN ITA CONSIP 1 LX4130001 1 PANEL COVER, MFC9460CDN / MFC9465CDN / MFC9560CDW 1 LX4297001 1 PANEL COVER, MFC9970CDW 2 LX4131001 1 RUBBER KEY R, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CD W 2 LX4273001 1 RUBBER KEY R, DCP9270CDN, DCP9270CDN ITA CONSIP1- 2 LX4299001 1 RUBBER KEY R, MFC9970CDW1- 3 LX4174001 1 RUBBER KEY C, DCP9055CDN1- 3 LX4133001 1 RUBBER KEY C, MFC9460CDN / MFC9465CDN / MFC9560CDW 4 LX4176001 1 RUBBER KEY L, DCP9055CDN1- 4 LX4135001 1 RUBBER KEY L, MFC9460CDN / MFC9465CDN / MFC9560CDW 4 LX4301001 1 RUBBER KEY L, MFC9970CDW1- 5 LT1198002 1 PANEL PCB ASSY, DCP9055CDN EXCEPT FOR CHN1- 5 LT1355002 1 PANEL PCB ASSY, DCP9055CDN FOR CHN1- 5 LT1198001 1 PANEL PCB ASSY, MFC9460CDN / MFC9465CDN / MFC9560CDW EXCEPT FOR CHN1- 5 LT1355001 1 PANEL PCB ASSY, MFC9465CDN FOR CHN1- 6 A62006001 1 LCD, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW EXCEPT FOR CHN 6 A62027001 1 LCD, DCP9055CDN / MFC9465CDN FOR CH N 6 A62122001 1 LCD, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSI P 7 LG6550001 1 BACK LIGHT MODULE, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CD W 8 LX4137001 1 LCD COVER, DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CD W 9 LX4277001 1 TOUCH PANEL ASSY, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 10 LT1308002 1 TOUCH PANEL PCB ASSY, DCP9270CDN1- 10 LT2276002 1 TOUCH PANEL PCB ASSY, DCP9270CDN, DCP9270CDN ITA CONSIP ADD1- 10 LT1308001 1 TOUCH PANEL PCB ASSY, MFC9970CDW1- 10 LT2276001 1 TOUCH PANEL PCB ASSY, MFC9970CDW ADD1- 11 LT1310002 1 TOUCH PANEL PCB ASSY R, DCP9270CDN, DCP9270CDN ITA CONSIP1- 11 LT1310001 1 TOUCH PANEL PCB ASSY R, MFC9970CDW1- 12 LT1313001 1 TOUCH PANEL PCB ASSY L, MFC9970CDW1- 13 LX4303001 1 ADDRESS LABEL, MFC9970CDW 2 LX4325001 1 PANEL COVER ASSY, MFC9460CDN FOR US / CAN 2 LX4140001 1 PANEL COVER ASSY, MFC9560CDW FOR US / CAN 2 LX4495001 1 PANEL COVER ASSY, DCP9055CDN FOR GER / CHE (GERMAN) 2 LX4534001 1 PANEL COVER ASSY, MFC9460CDN FOR GER / CHE (GERMAN) 2 LX4593001 1 PANEL COVER ASSY, MFC9465CDN FOR GER / CHE (GERMAN) 2 LX4473001 1 PANEL COVER ASSY, DCP9055CDN FOR UK / FRA / BEL / NLD / CEE (ENGLISH) 2 LX4508001 1 PANEL COVER ASSY, MFC9460CDN FOR UK / FRA / BEL / NLD / GUL / CEE (ENGLISH) 2 LX4575001 1 PANEL COVER ASSY, MFC9465CDN FOR UK / FRA / BEL / NLD (ENGLISH) 2 LX4474001 1 PANEL COVER ASSY, DCP9055CDN FOR FRA / BEL / NLD / CHE (FRENCH) 2 LX4509001 1 PANEL COVER ASSY, MFC9460CDN FOR FRA / BEL / NLD / CHE (FRENCH) 2 LX4576001 1 PANEL COVER ASSY, MFC9465CDN FOR FRA / BEL / NLD / CHE (FRENCH) 2 LX4475001 1 PANEL COVER ASSY, DCP9055CDN FOR FRA / BEL / NLD (DUTCH) 2 LX4510001 1 PANEL COVER ASSY, MFC9460CDN FOR FRA / BEL / NLD (DUTCH) 2 LX4577001 1 PANEL COVER ASSY, MFC9465CDN FOR FRA / BEL / NLD (DUTCH) 2 LX4522001 1 PANEL COVER ASSY, MFC9460CDN FOR ITA 2 LX4583001 1 PANEL COVER ASSY, MFC9465CDN FOR ITA 2 LX4483001 1 PANEL COVER ASSY, DCP9055CDN FOR ITA / IBR (SPANISH) 2 LX4482001 1 PANEL COVER ASSY, DCP9055CDN FOR ITA / IBR (ITALIAN) 2 LX4484001 1 PANEL COVER ASSY, DCP9055CDN FOR ITA / IBR (PORTUGUESE) 2 LX4789001 1 PANEL COVER ASSY, DCP9055CDN FOR CHN 2 LX4323001 1 PANEL COVER ASSY, MFC9465CDN FOR CHN 2 LX4799001 1 PANEL COVER ASSY, MFC9460CDN FOR GUL (TURKISH) 2 LX4800001 1 PANEL COVER ASSY, MFC9460CDN FOR GUL (ARABIC) 2 LX4729001 1 PANEL COVER ASSY, MFC9460CDN FOR BRA 2 LX4806001 1 PANEL COVER ASSY, MFC9460CDN FOR KOR 2 LX4627001 1 PANEL COVER ASSY, DCP9055CDN FOR ARL / NZ / HK 2 LX4637001 1 PANEL COVER ASSY, MFC9460CDN FOR ARL / NZ 2 LX4526001 1 PANEL COVER ASSY, MFC9460CDN FOR IBR (SPANISH) 2 LX4586001 1 PANEL COVER ASSY, MFC9465CDN FOR IBR (SPANISH) 2 LX4527001 1 PANEL COVER ASSY, MFC9460CDN FOR IBR (PORTUGUESE) 2 LX4587001 1 PANEL COVER ASSY, MFC9465CDN FOR IBR (PORTUGUESE) 2 LX4780001 1 PANEL COVER ASSY, MFC9465CDN FOR RUS 2 LX4595001 1 PANEL COVER ASSY, DCP9055CDN FOR PND 2 LX4603001 1 PANEL COVER ASSY, MFC9460CDN FOR PND 2 LX4644001 1 PANEL COVER ASSY, MFC9465CDN FOR PND 2 LX4742001 1 PANEL COVER ASSY, DCP9055CDN FOR CEE (POLISH) 2 LX4735001 1 PANEL COVER ASSY, MFC9460CDN FOR CEE (POLISH) 1 LX4145001 1 ADDRESS LABEL, MFC9460CDN / MFC9465CDN / MFC9560CDW 3 LX4304001 1 PRINTED PANEL COVER , MFC9970CDW FOR US / CAN (ENGLISH) 3 LX4665001 1 PRINTED PANEL COVER, DCP9270CDN FOR GER / CHE (GERMAN) 3 LX4698001 1 PRINTED PANEL COVER, MFC9970CDW FOR GER / CHE (GERMAN) 3 LX4682001 1 PRINTED PANEL COVER, DCP9270CDN FOR UK / FRA / BEL / NLD / CEE (ENGLISH) 3 LX4712001 1 PRINTED PANEL COVER, MFC9970CDW FOR UK / FRA / BEL / NLD / GUL / CEE (ENGLISH) 3 LX4666001 1 PRINTED PANEL COVER, DCP9270CDN FOR FRA / BEL / NLD / CHE (FRENCH) 3 LX4699001 1 PRINTED PANEL COVER, MFC9970CDW FOR FRA / BEL / NLD / CHE (FRENCH) 3 LX4683001 1 PRINTED PANEL COVER, DCP9270CDN FOR FRA / BEL / NLD (DUTCH) 3 LX4713001 1 PRINTED PANEL COVER, MFC9970CDW FOR FRA / BEL / NLD (DUTCH) 3 LX4672001 1 PRINTED PANEL COVER, DCP9270CDN FOR ITA / IBR (SPANISH) 3 LX4705001 1 PRINTED PANEL COVER, MFC9970CDW FOR ITA / IBR (SPANISH) 3 LX4674001 1 PRINTED PANEL COVER, DCP9270CDN ITA CONSIP (ITALIAN) 3 LX4671001 1 PRINTED PANEL COVER, DCP9270CDN FOR ITA / IBR (ITALIAN) 3 LX4704001 1 PRINTED PANEL COVER, MFC9970CDW FOR ITA / IBR (ITALIAN) 3 LX4673001 1 PRINTED PANEL COVER, DCP9270CDN FOR ITA / IBR (PORTUGUESE) 3 LX4706001 1 PRINTED PANEL COVER, MFC9970CDW FOR ITA / IBR (PORTUGUESE) 3 LX4841001 1 PRINTED PANEL COVER, MFC9970CDW FOR GUL (ARABIC) 3 LX4842001 1 PRINTED PANEL COVER, MFC9970CDW FOR GUL (TURKISH) 3 LX4858001 1 PRINTED PANEL COVER, MFC9970CDW FOR ARG / CHL 3 LX4835001 1 PRINTED PANEL COVER, MFC9970CDW FOR ASA / ARL / NZ 3 LX4762001 1 PRINTED PANEL COVER, DCP9270CDN FOR PND 3 LX4766001 1 PRINTED PANEL COVER, MFC9970CDW FOR PND 3 LX4861001 1 PRINTED PANEL COVER, DCP9270CDN FOR CEE (POLISH) 3 LX4833001 1 PRINTED PANEL COVER, MFC9970CDW FOR CEE (POLISH) 4 087311016 *1TAPTITE CUP B M3x10 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

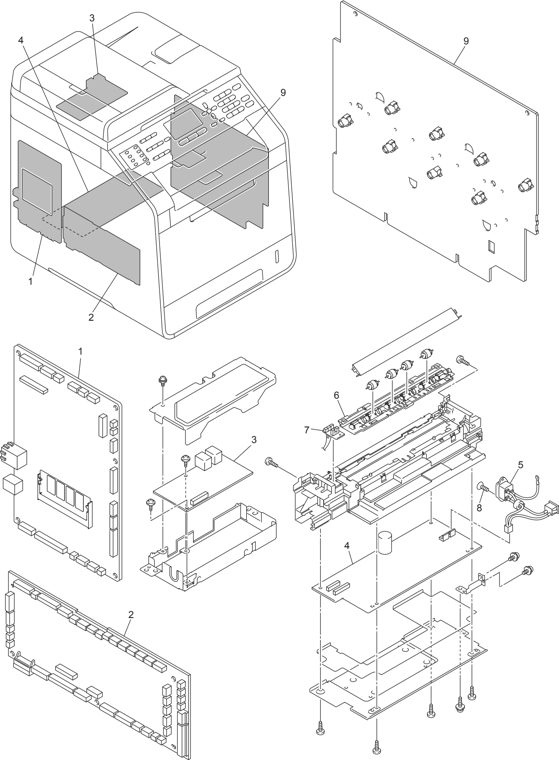

14. PCB 1 LT1203004 1 MAIN PCB ASSY, DCP9055CDN EXCEPT FOR CHN B57T022 1 LT1203020 1 MAIN PCB ASSY, DCP9055CDN FOR CHN B57T 1 LT1205004 1 MAIN PCB ASSY, DCP9270CDN, DCP9270CDN ITA CONSIP B57T 1 LT1202001 Main PCB w/ Network Port Fully refurbished with 90-day warranty LT1202001 Contact for Details 1 LT1202004 1 MAIN PCB ASSY, MFC9460CDN EXCEPT FOR US / CAN B57T 1 LT1201004 1 MAIN PCB ASSY, MFC9465CDN EXCEPT FOR CHN B57T 1 LT1201020 1 MAIN PCB ASSY, MFC9465CDN FOR CHN B57T 1 LT1200001 1 MAIN PCB ASSY, MFC9560CDW FOR ALL COUNTRIES B57T 1 LT1204001 Main PCB Assy New LT1204001 (New) $275.40 1 LT1204004 1 MAIN PCB ASSY, MFC9970CDW EXCEPT FOR US / CAN B57T 2 LV0535001 Engine PCB Assy Fully refurbished with 90-day warranty LV0535001 $45.91 3 LT0867001 NCU PWB Fully refurbished with 90-day warranty LT0867001 $37.80 3 LT0867003 1 NCU PCB ASSY, MFC9460CDN / MFC9560CDW / MFC9970CDW FOR CAN B57T013 3 LT1168001 1 NCU PCB ASSY, MFC9460CDN / MFC9465CDN / MFC9970CDW FOR GER / UK / CHE / ITA / IBR / RUS / FRA / BEL / NLD / PND / CEEB 3 LT1324001 1 NCU PCB ASSY, MFC9465CDN FOR CHN B57T037 3 LT1326001 1 NCU PCB ASSY, MFC9460CDN / MFC9970CDW FOR GUL B57T037 3 LT1328001 1 NCU PCB ASSY, MFC9460CDN FOR BRA / KOR, MFC9970CDW FOR ARG / CHL / ASA B57T037 3 LT1169001 1 NCU PCB ASSY, MFC9460CDN / MFC9970CDW FOR ARL / NZ B57T027 4 LV0524001 Low-Voltage Power Supply PCB Assy 115V Fully refurbished with 90-day warranty LV0524001 $79.66 4 LT1359001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY 230V FOR CHN / RUS 4 LV0511001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY 230V,EXCEPT FOR US / CAN / CHN / BRA / RUS 5 LT1522001 1 INLET HARNESS ASSY,DCP9055CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW 5 LT1700001 1 INLET HARNESS ASSY, DCP9270CDN / MFC9970CDW, DCP9270CDN ITA CONSIP 6 LY0954001 1 CLEANER PINCH ROLLER HOLDER 7 LV0529001 1 PAPER EJECT SENSOR PCB ASSY 8 084311016 1 TAPTITE FLAT B M3X10 9 LY0641001 High-Voltage Power Supply PCB Assy Fully refurbished with 90-day warranty LY0641001 $45.91 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder

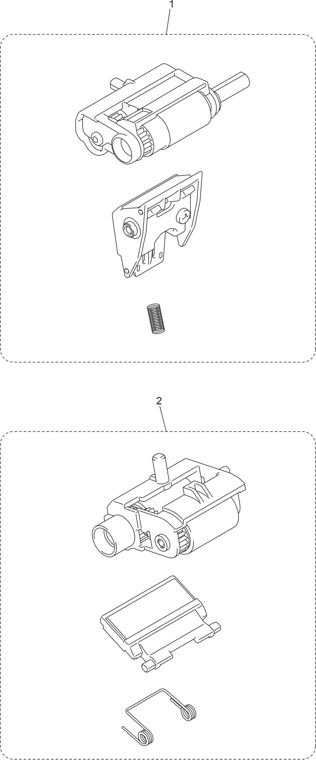

18.PERIODICAL MAINTENANCE PARTS 1 LY1257001 Paper Feeding Kit New LY1257001 (New) $52.66 2 LY1260001 MP Paper Feeding Kit New LY1260001 (New) $52.66 DCP9055CDN / DCP9270CDN / MFC9460CDN / MFC9465CDN / MFC9560CDW / MFC9970CDW	Diagram placeholder
