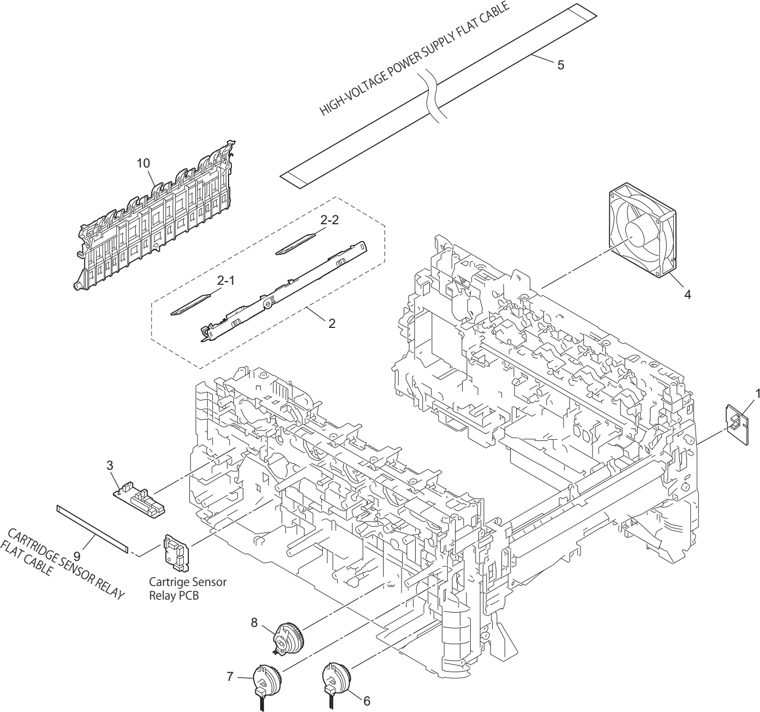

| 1. FRAME 1 D00WDU001 1 DEVELOP RELEASE SENSOR PCB 2 D00N5A001 1 REGISTRATION MARK SENSOR ASSY 1 D00M1U001 1 REGISTRATION MARK SENSOR L 2 D00M1T001 1 REGISTRATION MARK SENSOR R 3 D00L36001 1 EJECT SENSOR PCB 4 D00KBX001 1 FAN 5 D007GT001 1 HIGH-VOLTAGE POWER SUPPLY FLAT CABLE 6 7 8 LR2302001 1 DEVELOP RELEASE CLUTCH 9 D00HND001 1 CARTRIDGE SENSOR RELAY FLAT CABLE FOR GER / UK / ARL / SWI / FRA / BEL / NLD / IBE / CEE / PND / USA / CAN / ITA / NZ 10 D011XL001 1 REAR FLAPPER SUB ASSY SP DCP-9030CDN 10 D011XL001 1 REAR FLAPPER SUB ASSY SP DCP-L3510CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP DCP-L3517CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP DCP-L3550CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP DCP-L3551CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP HL-L3290CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-9150CDN 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-9350CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-L3730CDN 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-L3735CDN 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-L3745CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-L3750CDW 10 D011XL001 1 REAR FLAPPER SUB ASSY SP MFC-L3770CDW | Diagram placeholder |

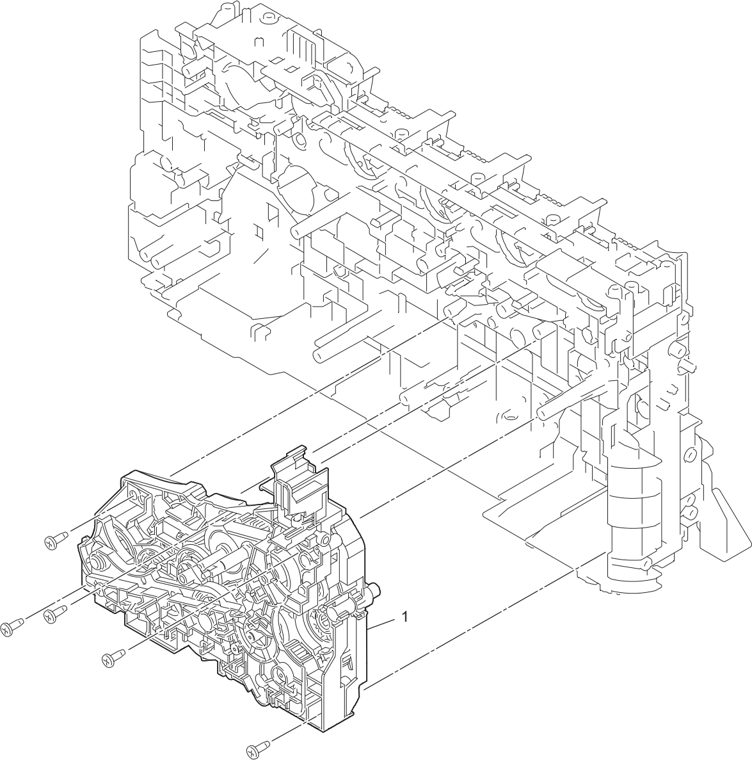

| 2. MAIN DRIVE 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP DCP-9030CDN 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP DCP-L3510CDW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP DCP-L3517CDW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP DCP-L3550CDW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP DCP-L3551CDW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP HL-L3290CDW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP MFC-9150CDN 1 D011XP001 1 PAPER FEED DRIVE UNIT DX SP MFC-9350CDW 1 D011XM001 1 PAPER FEED DRIVE UNIT SX SP MFC-L3710CW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP MFC-L3730CDN 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP MFC-L3735CDN 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP MFC-L3745CDW 1 D011XN001 1 PAPER FEED DRIVE UNIT DX SP MFC-L3750CDW 1 D011XP001 1 PAPER FEED DRIVE UNIT DX SP MFC-L3770CDW | Diagram placeholder |

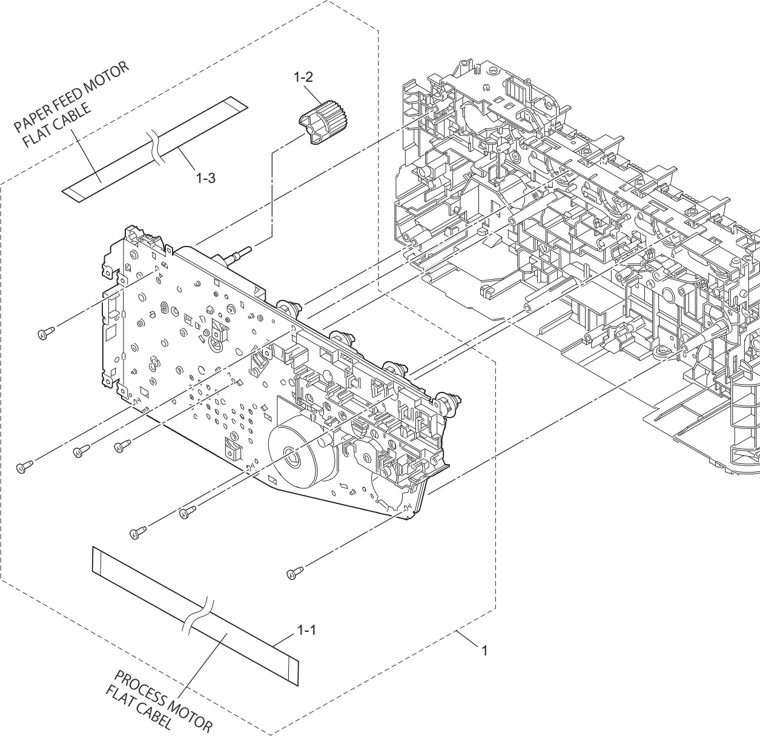

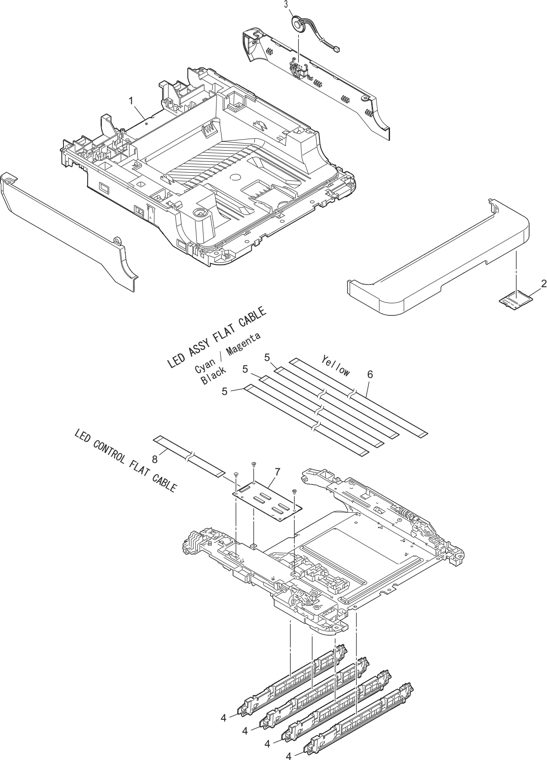

| 3. PROCESS DRIVE 1 D011XT001 1 PROCESS DRIVE UNIT SP 1 D00HYF001 1 PROCESS MOTOR FLAT CABLE 2 LY0233001 1 FUSER DRIVE GEAR Z25 3 D00HYG001 1 PAPER FEED MOTOR FLAT CABLE | Diagram placeholder |
| 4. LED JOINT COVER 1 D011YG002 1 JOINT COVER ASSY 002 SP DCP-9030CDN 1 D011YG002 1 JOINT COVER ASSY 002 SP DCP-L3510CDW 1 D011YG002 1 JOINT COVER ASSY 002 SP DCP-L3517CDW 1 D011YG002 1 JOINT COVER ASSY 002 SP DCP-L3550CDW 1 D011YG002 1 JOINT COVER ASSY 002 SP DCP-L3551CDW 1 D011YE001 1 JOINT COVER ASSY 001 SP HL-L3290CDW 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-9150CDN 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-9350CDW 1 D011YG002 1 JOINT COVER ASSY 002 SP MFC-L3710CW FOR USA/CAN 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-L3710CW FOR GER / UK / NZ / FRA / BEL/ NLD / IBE 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-L3730CDN 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-L3735CDN 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-L3745CDW 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-L3750CDW 1 D011YE001 1 JOINT COVER ASSY 001 SP MFC-L3770CDW 2 D00XAJ001 1 NFC PCB MFC-9350CDW 2 D00XAJ001 1 NFC PCB MFC-L3770CDW 3 D00J9P001 1 SPEAKER UNIT 4 D011XU001 4 LED ASSY SP 5 D009KY001 3 LED ASSY FLAT CABLE BK/C/M 6 D00FVE001 1 LED ASSY FLAT CABLE Y 7 D00CC8001 1 LED CONTROL PCB 8 D009UY001 1 LED CONTROL FLAT CABLE | Diagram placeholder |

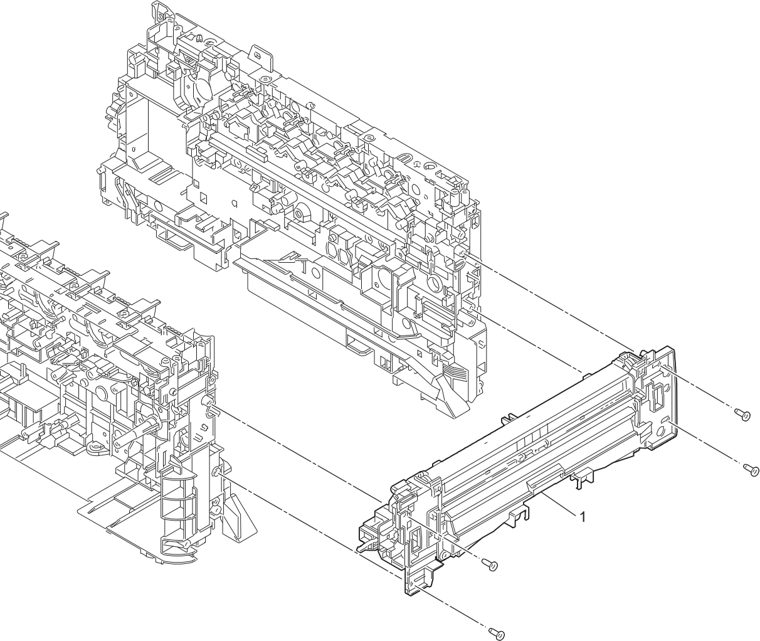

| 5. PAPER FEEDER Y 1 1 1 1 1 1 1 1 D007DG001 1 PAPER FEED UNIT MFC-9350CDW 1 1 1 1 1 1 D007DG001 1 PAPER FEED UNIT MFC-L3770CDW | Diagram placeholder |

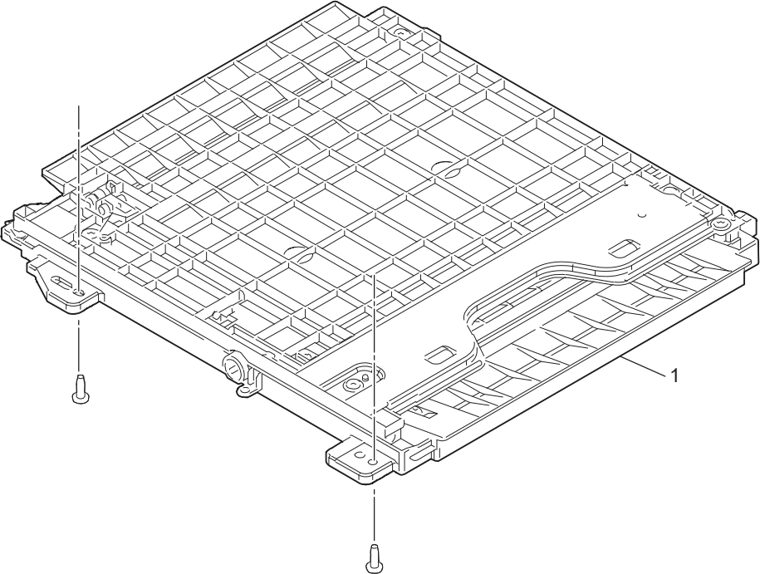

| 6. DX 1 D00DXT001 1 DUPLEX TRAY A4 DCP-9030CDN 1 D00DXT001 1 DUPLEX TRAY A4 DCP-L3510CDW 1 D00DXT001 1 DUPLEX TRAY A4 DCP-L3517CDW 1 D00DXT001 1 DUPLEX TRAY A4 DCP-L3550CDW 1 D00DXT001 1 DUPLEX TRAY A4 DCP-L3551CDW FOR NZ / ASA / GULF / IND 1 D007FE001 1 DUPLEX TRAY LTR DCP-L3551CDW FOR CHL / BRA 1 D007FE001 1 DUPLEX TRAY LTR HL-L3290CDW 1 D00DXT001 1 DUPLEX TRAY A4 MFC-9150CDN 1 D00DXT001 1 DUPLEX TRAY A4 MFC-9350CDW 1 D00DXT001 1 DUPLEX TRAY A4 MFC-L3730CDN 1 D00DXT001 1 DUPLEX TRAY A4 MFC-L3735CDN 1 D00DXT001 1 DUPLEX TRAY A4 MFC-L3745CDW 1 D007FE001 1 DUPLEX TRAY LTR MFC-L3750CDW FOR USA / CAN / CHL / BRA 1 D00DXT001 1 DUPLEX TRAY A4 MFC-L3750CDW FOR GER / UK / ARL / SWI / ITA / IBE / FRA / BEL / NLD / PND / TWN / ASA / GULF / KOR 1 D007FE001 1 DUPLEX TRAY LTR MFC-L3770CDW FOR USA / CAN / PHL 1 D00DXT001 1 DUPLEX TRAY A4 MFC-L3770CDW FOR GER / UK / ARL / SWI / ITA / IBE / NZ / FRA / BEL / NLD / CEE / ASA / RUS | Diagram placeholder |

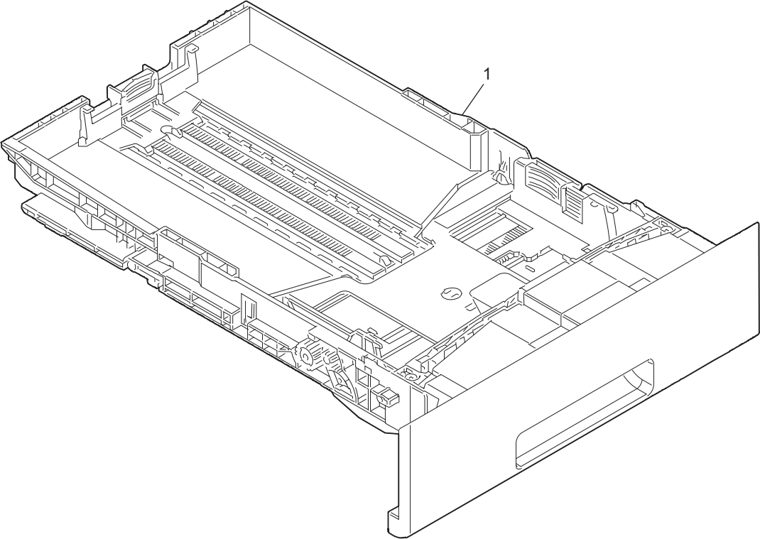

| 7. PAPER CASSETTE 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D0094P001 1 PAPER TRAY FLAGSHIP MFC-9350CDW 1 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D007DK001 Replacement Paper Tray (250 sheet capacity) Fully refurbished with 90-day warranty D007DK001 $49.00 1 D0094P001 1 PAPER TRAY FLAGSHIP MFC-L3770CDW | Diagram placeholder |

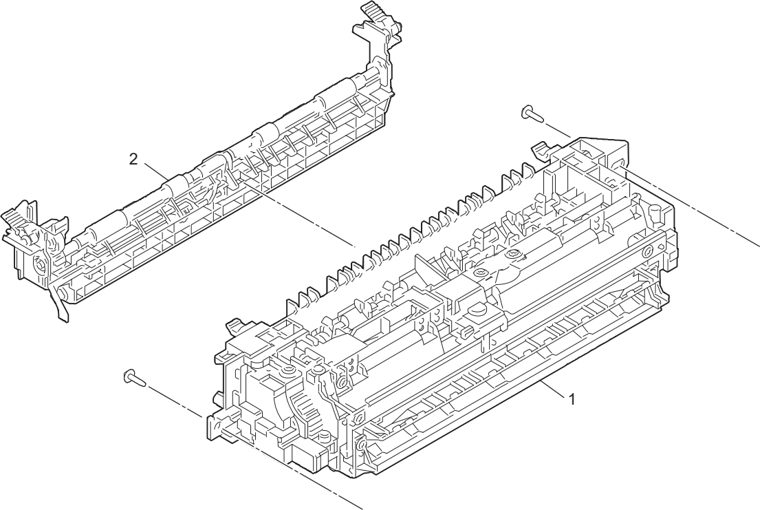

| 8. FUSER UNIT 1 D010R4001 1 FUSER UNIT B 230T (SP) DCP-9030CDN 1 D0135X001 1 FUSER UNIT 230S E (SP) DCP-L3510CDW FOR GER / UK/ ARL / SWI / FRA / BEL / NLD / IBE / CEE 1 D010R1001 1 FUSER UNIT B 230S (SP) DCP-L3510CDW FOR GULF 1 D0135X001 1 FUSER UNIT 230S E (SP) DCP-L3517CDW 1 D0135X001 1 FUSER UNIT 230S E (SP) DCP-L3550CDW 1 D0135X001 1 FUSER UNIT 230S E (SP) DCP-L3551CDW FOR NZ 1 D010R1001 1 FUSER UNIT B 230S (SP) DCP-L3551CDW FOR CHL / ASA / GULF / IND 1 D010R2001 1 FUSER UNIT B 127S (SP) DCP-L3551CDW FOR BRA 1 1 D010R4001 1 FUSER UNIT B 230T (SP) MFC-9150CDN 1 D010R4001 1 FUSER UNIT B 230T (SP) MFC-9350CDW 1 1 D0135X001 1 FUSER UNIT 230S E (SP) MFC-L3710CW FOR GER / UK / NZ / FRA / BEL / NLD / IBE 1 D0135X001 1 FUSER UNIT 230S E (SP) MFC-L3730CDN 1 D010R4001 1 FUSER UNIT B 230T (SP) MFC-L3735CDN 1 D0135Y001 1 FUSER UNIT 230T E (SP) MFC-L3745CDW 1 1 D0135Y001 1 FUSER UNIT 230T E (SP) MFC-L3750CDW FOR GER / UK / ARL / SWI / ITA / IBE / FRA / BEL / NLD / PND 1 D010R3001 1 FUSER UNIT B 115T (SP) MFC-L3750CDW FOR TWN 1 D010R4001 1 FUSER UNIT B 230T (SP) MFC-L3750CDW FOR CHL / ASA / GULF / KOR 1 D010R6001 1 FUSER UNIT B 127T (SP) MFC-L3750CDW FOR BRA 1 1 D0135Y001 1 FUSER UNIT 230T E (SP) MFC-L3770CDW FOR GER / UK / ARL / SWI / ITA/ IBE / NZ / FRA / BEL / NLD / CEE 1 D010R4001 1 FUSER UNIT B 230T (SP) MFC-L3770CDW FOR PHL / ASA / RUS 2 D007H5001 1 FUSER COVER ASSY | Diagram placeholder |

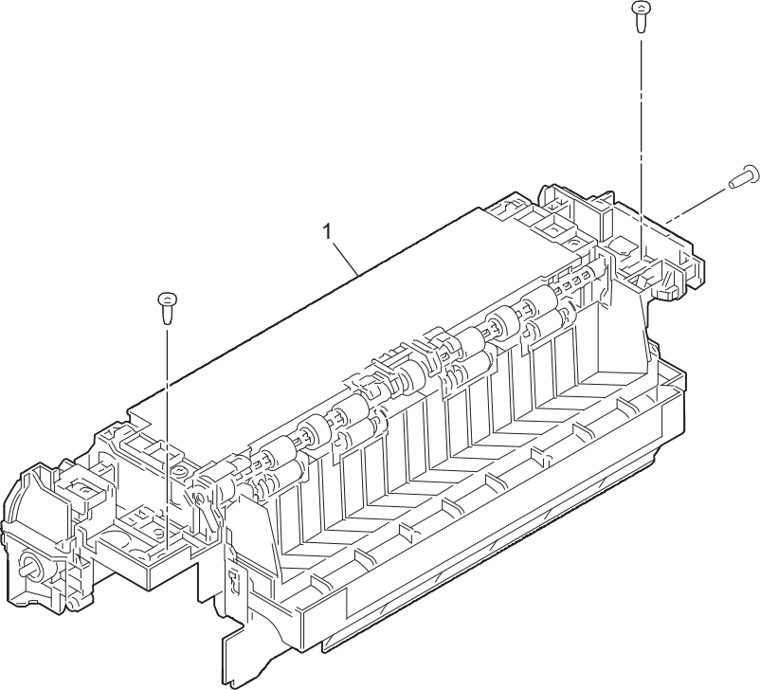

| 9. PAPER EJECT 1 D00KNR002 1 PAPER EJECT ASSY DX FB DCP-9030CDN 1 D00KNR002 1 PAPER EJECT ASSY DX FB DCP-L3510CDW 1 D00KNR002 1 PAPER EJECT ASSY DX FB DCP-L3517CDW 1 D00KNR002 1 PAPER EJECT ASSY DX FB DCP-L3550CDW 1 D00KNR002 1 PAPER EJECT ASSY DX FB DCP-L3551CDW 1 D00KNR001 1 PAPER EJECT ASSY DX FB HL-L3290CDW 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-9150CDN 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-9350CDW 1 D00KNV002 1 PAPER EJECT ASSY SX FB MFC-L3710CW FOR USA / CAN 1 D00KNV001 1 PAPER EJECT ASSY SX FB MFC-L3710CW FOR GER / UK / NZ / FRA / BEL / NLD / IBE 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-L3730CDN 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-L3735CDN 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-L3745CDW 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-L3750CDW 1 D00KNR001 1 PAPER EJECT ASSY DX FB MFC-L3770CDW | Diagram placeholder |

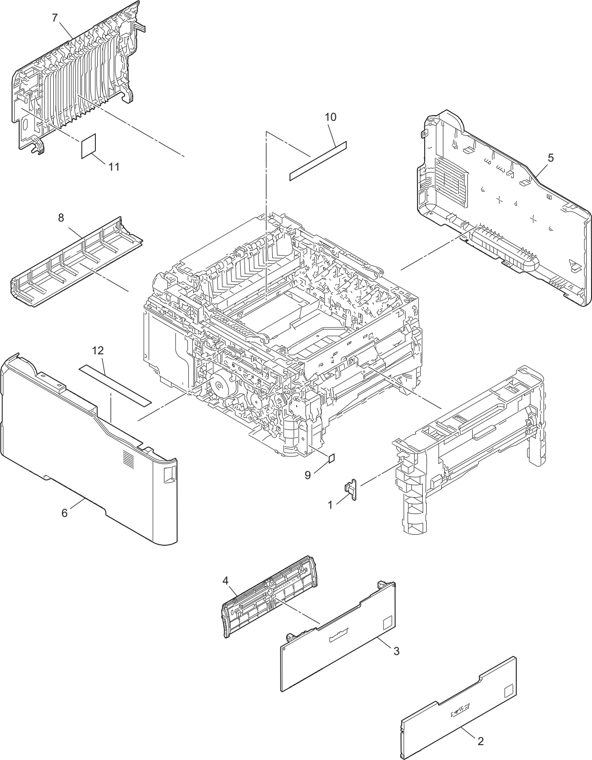

| 10. COVERS & LABELS 1 D00NFG001 1 USB HOST PCB MFC-9350CDW 1 D00NFG001 1 USB HOST PCB MFC-L3745CDW 1 D00NFG001 1 USB HOST PCB MFC-L3750CDW 1 D00NFG001 1 USB HOST PCB MFC-L3770CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY DCP-9030CDN 2 D00C2K001 1 MANUAL FEED COVER ASSY DCP-L3510CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY DCP-L3517CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY DCP-L3550CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY DCP-L3551CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY HL-L3290CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY MFC-9150CDN 2 D00C2K001 1 MANUAL FEED COVER ASSY MFC-L3710CW 2 D00C2K001 1 MANUAL FEED COVER ASSY MFC-L3730CDN 2 D00C2K001 1 MANUAL FEED COVER ASSY MFC-L3735CDN 2 D00C2K001 1 MANUAL FEED COVER ASSY MFC-L3745CDW 2 D00C2K001 1 MANUAL FEED COVER ASSY MFC-L3750CDW 3 D00C2X001 1 MP COVER ASSY MFC-9350CDW 3 D00C2X001 1 MP COVER ASSY MFC-L3770CDW 4 D00C38001 1 MP PAPER GUIDE ASSY MFC-9350CDW 4 D00C38001 1 MP PAPER GUIDE ASSY MFC-L3770CDW 5 D009V7001 1 SIDE COVER R DCP-9030CDN 5 D009V7001 1 SIDE COVER R DCP-L3510CDW 5 D009V7001 1 SIDE COVER R DCP-L3517CDW 5 D009V7001 1 SIDE COVER R DCP-L3550CDW 5 D009V7001 1 SIDE COVER R DCP-L3551CDW 5 D009V7001 1 SIDE COVER R HL-L3290CDW 5 D009V7001 1 SIDE COVER R MFC-9150CDN 5 D00C44001 1 SIDE COVER R MFC-9350CDW 5 D009V7001 1 SIDE COVER R MFC-L3710CW 5 D009V7001 1 SIDE COVER R MFC-L3730CDN 5 D009V7001 1 SIDE COVER R MFC-L3735CDN 5 D009V7001 1 SIDE COVER R MFC-L3745CDW 5 D009V7001 1 SIDE COVER R MFC-L3750CDW 5 D00C44001 1 SIDE COVER R MFC-L3770CDW 6 D009V8001 1 SIDE COVER L DCP-9030CDN 6 D00DT9001 1 SIDE COVER L DCP-L3510CDW 6 D00DT9001 1 SIDE COVER L DCP-L3517CDW 6 D009V8001 1 SIDE COVER L DCP-L3550CDW 6 D009V8001 1 SIDE COVER L DCP-L3551CDW 6 D00DT9001 1 SIDE COVER L HL-L3290CDW 6 D009V8001 1 SIDE COVER L MFC-9150CDN 6 D00C45001 1 SIDE COVER L MFC-9350CDW 6 D00DT9001 1 SIDE COVER L MFC-L3710CW 6 D009V8001 1 SIDE COVER L MFC-L3730CDN 6 D009V8001 1 SIDE COVER L MFC-L3735CDN 6 D00DSD001 1 SIDE COVER L MFC-L3745CDW 6 D00DSD001 1 SIDE COVER L MFC-L3750CDW 6 D00C45001 1 SIDE COVER L MFC-L3770CDW 7 D009S8001 1 BACK COVER DX DCP-9030CDN 7 D009S8001 1 BACK COVER DX DCP-L3510CDW 7 D009S8001 1 BACK COVER DX DCP-L3517CDW 7 D009S8001 1 BACK COVER DX DCP-L3550CDW 7 D009S8001 1 BACK COVER DX DCP-L3551CDW 7 D009S8001 1 BACK COVER DX HL-L3290CDW 7 D009S8001 1 BACK COVER DX MFC-9150CDN 7 D009S8001 1 BACK COVER DX MFC-9350CDW 7 D009SH001 1 BACK COVER SX MFC-L3710CW 7 D009S8001 1 BACK COVER DX MFC-L3730CDN 7 D009S8001 1 BACK COVER DX MFC-L3735CDN 7 D009S8001 1 BACK COVER DX MFC-L3745CDW 7 D009S8001 1 BACK COVER DX MFC-L3750CDW 7 D009S8001 1 BACK COVER DX MFC-L3770CDW 8 D00DSG001 1 BACK COVER LOWER 9 D00KXT001 1 LABEL FRONT JAM ECL 10 D00VU6001 1 LABEL HEAT CAUTION OC2 FOR ARL 10 D00TVG001 1 LABEL HEAT CAUTION AS FOR ASA / IND / TWN / KOR / PHL 10 D00UU8001 1 LABEL HEAT CAUTION BR FOR CHL / BRA 10 D00TWN001 1 LABEL HEAT CAUTION CN FOR CHN 10 D00KXX001 1 LABEL HEAT CAUTION EU1 FOR GER / UK / SWI / FRA / BEL / NLD 10 D00VU7001 1 LABEL HEAT CAUTION GU FOR GULF 10 D00VU5001 1 LABEL HEAT CAUTION OC1 FOR NZ 10 D00VU4001 1 LABEL HEAT CAUTION EU2 FOR RUS 10 D00KXV001 1 LABEL HEAT CAUTION US FOR USA / CAN 11 D00TWM001 1 LABEL H/SP CAUTION CN FOR CHN 11 D00KXU001 1 LABEL H/SP CAUTION FOR GER / UK / ARL / SWI / FRA / BEL / NLD / IBE / CEE / PND / GULF / USA / CAN / ITA / RUS / NZ / ASA / IND / TWN / CHL / BRA / KOR / PHL 12 D00UJZ001 1 LABEL SPRAY CAUTION CN FOR CHN 12 D00KY0001 1 LABEL SPRAY CAUTION FOR GER / UK / ARL / SWI / FRA / BEL / NLD / IBE / CEE / PND / GULF / USA / CAN / ITA / RUS / NZ / ASA / IND / TWN / CHL / BRA / KOR / PHLz | Diagram placeholder |

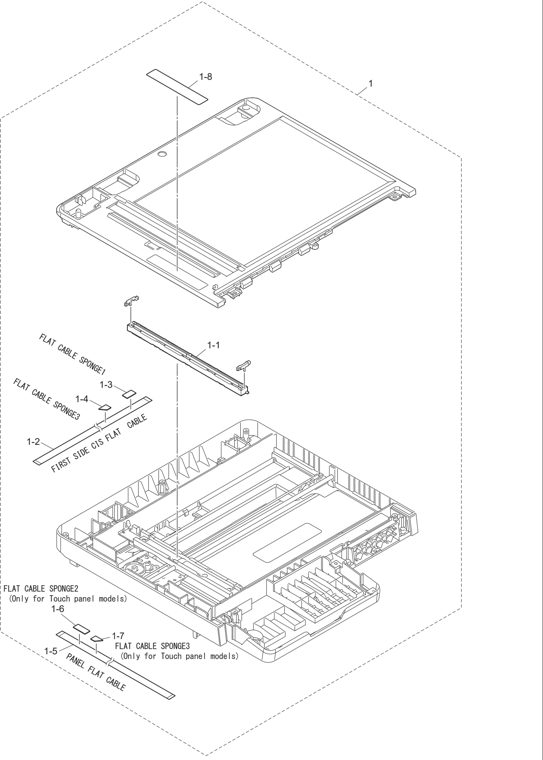

| 11. DOCUMENT SCANNER 1 D0115G001 1 DOCUMENT SCANNER SX B002 SP DCP-9030CDN 1 D0115C001 1 DOCUMENT SCANNER DCP A002 SP DCP-L3510CDW 1 D0115C001 1 DOCUMENT SCANNER DCP A002 SP DCP-L3517CDW 1 D0115G001 1 DOCUMENT SCANNER SX B002 SP DCP-L3550CDW 1 D0115D001 1 DOCUMENT SCANNER SX A002 SP DCP-L3551CDW 1 D0115F001 1 DOCUMENT SCANNER DCP A001 SP HL-L3290CDW 1 D0115J001 1 DOCUMENT SCANNER SX B001 SP MFC-9150CDN 1 D0115K001 1 DOCUMENT SCANNER DX B001 SP MFC-9350CDW 1 D0115J001 1 DOCUMENT SCANNER SX B001 SP MFC-L3710CW 1 D0115J001 1 DOCUMENT SCANNER SX B001 SP MFC-L3730CDN 1 D0115J001 1 DOCUMENT SCANNER SX B001 SP MFC-L3735CDN 1 D0115J001 1 DOCUMENT SCANNER SX B001 SP MFC-L3745CDW 1 D0115J001 1 DOCUMENT SCANNER SX B001 SP MFC-L3750CDW 1 D0115K001 1 DOCUMENT SCANNER DX B001 SP MFC-L3770CDW 1 D009ZH001 1 FIRST SIDE CIS UNIT 2 D00939001 1 FIRST SIDE CIS FLAT CABLE 3 D00HTZ001 1 FLAT CABLE SPONGE1 4 D00KJH001 1 FLAT CABLE SPONGE3 5 D0090Z001 1 PANEL FLAT CABLE TP DCP-9030CDN 5 D0090Z001 1 PANEL FLAT CABLE TP DCP-L3550CDW 5 D00FYF001 1 PANEL FLAT CABLE LCD DCP-L3510CDW 5 D00FYF001 1 PANEL FLAT CABLE LCD DCP-L3517CDW 5 D00FYF001 1 PANEL FLAT CABLE LCD DCP-L3551CDW 5 D00FYF001 1 PANEL FLAT CABLE LCD HL-L3290CDW 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-9150CDN 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-9350CDW 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-L3710CW 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-L3730CDN 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-L3735CDN 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-L3745CDW 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-L3750CDW 5 D0090Z001 1 PANEL FLAT CABLE TP MFC-L3770CDW 6 D00HTY001 1 FLAT CABLE SPONGE2 DCP-L3510CDW 6 D00HTY001 1 FLAT CABLE SPONGE2 DCP-L3517CDW 6 D00HTY001 1 FLAT CABLE SPONGE2 DCP-L3551CDW 6 D00HTY001 1 FLAT CABLE SPONGE2 HL-L3290CDW 7 D00KJH001 1 FLAT CABLE SPONGE3 DCP-9030CDN 7 D00KJH001 1 FLAT CABLE SPONGE3 DCP-L3550CDW 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-9150CDN 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-9350CDW 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-L3710CW 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-L3730CDN 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-L3735CDN 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-L3745CDW 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-L3750CDW 7 D00KJH001 1 FLAT CABLE SPONGE3 MFC-L3770CDW 8 D00KYA001 1 ADF CLEAN UP LABEL SX DCP-9030CDN 8 D00KYA001 1 ADF CLEAN UP LABEL SX DCP-L3550CDW 8 D00KYA001 1 ADF CLEAN UP LABEL SX DCP-L3551CDW 8 D00KYA001 1 ADF CLEAN UP LABEL SX MFC-9150CDN 8 D00KY2001 1 ADF CLEAN UP LABEL DX2 MFC-9350CDW 8 D00KYA001 1 ADF CLEAN UP LABEL SX MFC-L3710CW 8 D00KYA001 1 ADF CLEAN UP LABEL SX MFC-L3730CDN 8 D00KYA001 1 ADF CLEAN UP LABEL SX MFC-L3735CDN 8 D00KYA001 1 ADF CLEAN UP LABEL SX MFC-L3745CDW 8 D00KYA001 1 ADF CLEAN UP LABEL SX MFC-L3750CDW 8 D00KY2001 1 ADF CLEAN UP LABEL DX2 MFC-L3770CDW | Diagram placeholder |

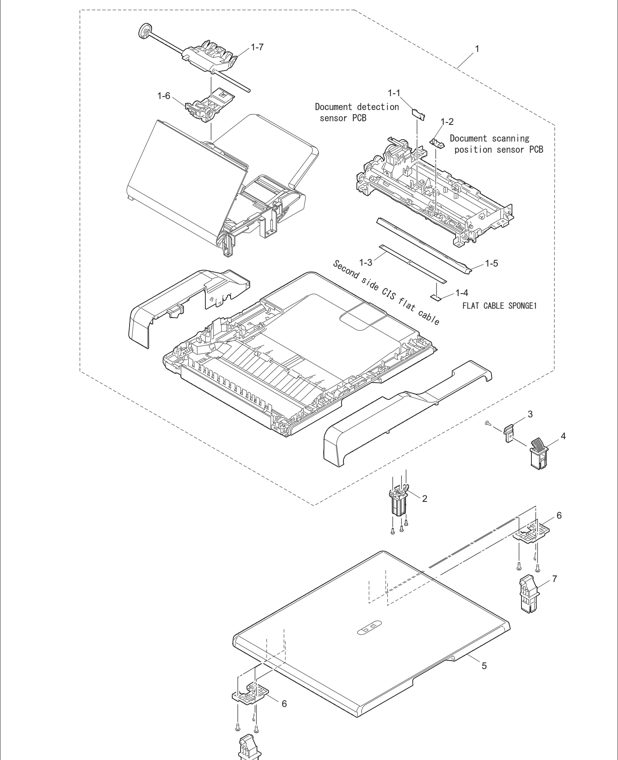

| 12. ADF 1 D01157001 1 ADF UNIT ECL SX 002 SP DCP-9030CDN 1 D01157001 1 ADF UNIT ECL SX 002 SP DCP-L3550CDW 1 D01157001 1 ADF UNIT ECL SX 002 SP DCP-L3551CDW 1 D01159001 1 ADF UNIT ECL SX 001 SP MFC-9150CDN 1 D0115A001 1 ADF UNIT ECL DX 001 SP MFC-9350CDW 1 D01157001 1 ADF UNIT ECL SX 002 SP MFC-L3710CW FOR USA / CAN 1 D01159001 1 ADF UNIT ECL SX 001 SP MFC-L3710CW FOR GER / UK / NZ / FRA / BEL / NLD / IBE 1 D01159001 1 ADF UNIT ECL SX 001 SP MFC-L3730CDN 1 D01159001 1 ADF UNIT ECL SX 001 SP MFC-L3735CDN 1 D01159001 1 ADF UNIT ECL SX 001 SP MFC-L3745CDW 1 D01159001 1 ADF UNIT ECL SX 001 SP MFC-L3750CDW 1 D0115A001 1 ADF UNIT ECL DX 001 SP MFC-L3770CDW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB DCP-9030CDN 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB DCP-L3550CDW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB DCP-L3551CDW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-9150CDN 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-9350CDW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-L3710CW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-L3730CDN 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-L3735CDN 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-L3745CDW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-L3750CDW 1 LG6753001 1 DOCUMENT DETECTION SENSOR PCB MFC-L3770CDW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBDCP-9030CDN 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBDCP-L3550CDW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBDCP-L3551CDW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-9150CDN 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-9350CDW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-L3710CW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-L3730CDN 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-L3735CDN 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-L3745CDW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-L3750CDW 2 LG6753001 1 DOCUMENT SCANNING POSITION SENSOR PCBMFC-L3770CDW 3 D0095W001 1 SECOND SIDE CIS FLAT CABLE MFC-9350CDW 3 D0095W001 1 SECOND SIDE CIS FLAT CABLE MFC-L3770CDW 4 D00HTZ001 1 FLAT CABLE SPONGE1 MFC-9350CDW 4 D00HTZ001 1 FLAT CABLE SPONGE1 MFC-L3770CDW 5 D009ZH001 1 SECOND SIDE CIS UNIT MFC-9350CDW 5 D009ZH001 1 SECOND SIDE CIS UNIT MFC-L3770CDW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY DCP-9030CDN 6 D008V0001 1 ADF SEPARATION HOLDER ASSY DCP-L3550CDW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY DCP-L3551CDW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-9150CDN 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-9350CDW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-L3710CW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-L3730CDN 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-L3735CDN 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-L3745CDW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-L3750CDW 6 D008V0001 1 ADF SEPARATION HOLDER ASSY MFC-L3770CDW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER DCP-9030CDN 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER DCP-L3550CDW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER DCP-L3551CDW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-9150CDN< | Diagram placeholder |
| 12. ADF 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-9350CDW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-L3710CW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-L3730CDN 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-L3735CDN 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-L3745CDW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-L3750CDW 7 D008UZ001 1 DOCUMENT SEPARATION ROLLER MFC-L3770CDW 2 D00RCM006 1 HINGE ASSY L DCP-9030CDN 2 D00RCM006 1 HINGE ASSY L DCP-L3550CDW 2 D00RCM006 1 HINGE ASSY L DCP-L3551CDW 2 D00RCM006 1 HINGE ASSY L MFC-9150CDN 2 D00RCM006 1 HINGE ASSY L MFC-L3710CW 2 D00RCM006 1 HINGE ASSY L MFC-L3730CDN 2 D00RCM006 1 HINGE ASSY L MFC-L3735CDN 2 D00RCM006 1 HINGE ASSY L MFC-L3745CDW 2 D00RCM006 1 HINGE ASSY L MFC-L3750CDW 2 D00M4H003 1 HINGE ASSY L FS MFC-9350CDW 2 D00M4H003 1 HINGE ASSY L FS MFC-L3770CDW 3 LS8155001 1 HINGE R SUPPORT DCP-9030CDN 3 LS8155001 1 HINGE R SUPPORT DCP-L3550CDW 3 LS8155001 1 HINGE R SUPPORT DCP-L3551CDW 3 LS8155001 1 HINGE R SUPPORT MFC-9150CDN 3 LS8155001 1 HINGE R SUPPORT MFC-9350CDW 3 LS8155001 1 HINGE R SUPPORT MFC-L3710CW 3 LS8155001 1 HINGE R SUPPORT MFC-L3730CDN 3 LS8155001 1 HINGE R SUPPORT MFC-L3735CDN 3 LS8155001 1 HINGE R SUPPORT MFC-L3745CDW 3 LS8155001 1 HINGE R SUPPORT MFC-L3750CDW 3 LS8155001 1 HINGE R SUPPORT MFC-L3770CDW 4 LX5180010 1 HINGE R DCP-9030CDN 4 LX5180010 1 HINGE R DCP-L3550CDW 4 LX5180010 1 HINGE R DCP-L3551CDW 4 LX5180010 1 HINGE R MFC-9150CDN 4 LX5180010 1 HINGE R MFC-9350CDW 4 LX5180010 1 HINGE R MFC-L3710CW 4 LX5180010 1 HINGE R MFC-L3730CDN 4 LX5180010 1 HINGE R MFC-L3735CDN 4 LX5180010 1 HINGE R MFC-L3745CDW 4 LX5180010 1 HINGE R MFC-L3750CDW 4 LX5180010 1 HINGE R MFC-L3770CDW 5 D011XX002 1 DOCUMENT COVER 002 SP DCP-L3510CDW 5 D011XX002 1 DOCUMENT COVER 002 SP DCP-L3517CDW 5 D011XW001 1 DOCUMENT COVER 001 SP HL-L3290CDW 6 D00G17011 2 HINGE ARM DCP DCP-L3510CDW 6 D00G17011 2 HINGE ARM DCP DCP-L3517CDW 6 D00G17011 2 HINGE ARM DCP HL-L3290CDW 7 D00G18011 1 HINGE R DCP DCP-L3510CDW 7 D00G18011 1 HINGE R DCP DCP-L3517CDW 7 D00G18011 1 HINGE R DCP HL-L3290CDW 8 D00G19011 1 HINGE L DCP DCP-L3510CDW 8 D00G19011 1 HINGE L DCP DCP-L3517CDW 8 D00G19011 1 HINGE L DCP HL-L3290CDW | Diagram placeholder |

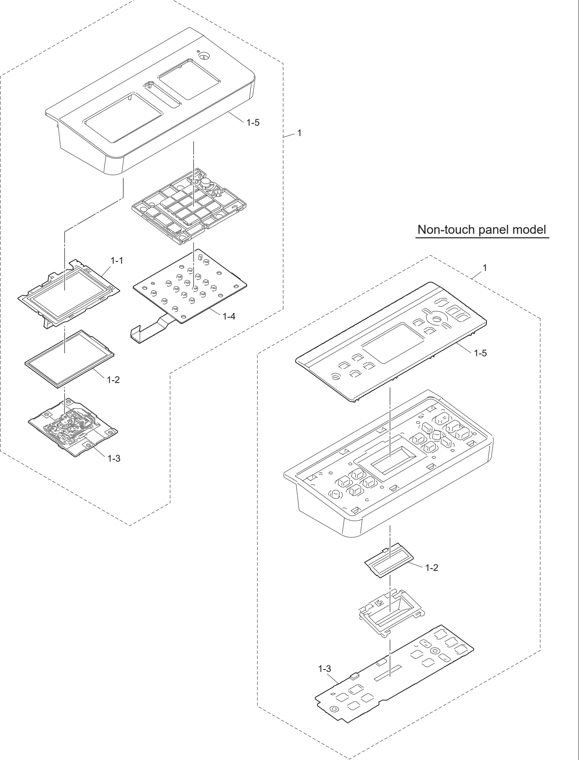

| 13. PANEL 1 D00UK0001 1 PANEL UNIT 9030CDN DCP-9030CDN 1 D00XKJ001 1 PANEL UNIT 3510CDW GER DCP-L3510CDW FOR GER 1 D00NC0001 1 PANEL UNIT 3510CDW DCP-L3510CDW FOR UK / ARL / GULF 1 D00XK5001 1 PANEL UNIT 3510CDW NON-PRINT DCP-L3510CDW FOR SWI / FRA / BEL / NLD / CEE 1 D00XKU001 1 PANEL UNIT 3510CDW IBE DCP-L3510CDW FOR IBE 1 D00XKZ001 1 PANEL UNIT 3517CDW PAN-ENG DCP-L3517CDW 1 D00ULR001 1 PANEL UNIT 3550CDW DCP-L3550CDW 1 D010CT001 1 PANEL UNIT 3551CDW BRZ DCP-L3551CDW FOR BRA 1 D00UN4001 1 PANEL UNIT 3551CDW DCP-L3551CDW FOR NZ / ASA / GULF / IND 1 D010G3001 1 PANEL UNIT 3551CDW CHL DCP-L3551CDW FOR CHL 1 D00UJT001 1 PANEL UNIT 3290CDW HL-L3290CDW 1 D00UR8001 1 PANEL UNIT 9150CDN MFC-9150CDN 1 D00UY3001 1 PANEL UNIT 9350CDW MFC-9350CDW 1 D0080A002 1 PANEL UNIT 3710CW MFC-L3710CW FOR USA / CAN 1 D0080A001 1 PANEL UNIT 3710CW MFC-L3710CW FOR GER / UK / NZ / FRA / BEL / NLD / IBE 1 D00UP4001 1 PANEL UNIT 3730CDN MFC-L3730CDN 1 D00USD001 1 PANEL UNIT 3735CDN MFC-L3735CDN 1 D00XU7001 1 PANEL UNIT 3745CDW MFC-L3745CDW 1 D00L6Y001 1 PANEL UNIT 3750CDW MFC-L3750CDW 1 D00809001 1 PANEL UNIT 3770CDW MFC-L3770CDW 1 D00PK7001 1 TOUCH PANEL ASSY DCP-9030CDN 1 D00PK7001 1 TOUCH PANEL ASSY DCP-L3550CDW 1 D00PK7001 1 TOUCH PANEL ASSY MFC-9150CDN 1 D00PK7001 1 TOUCH PANEL ASSY MFC-9350CDW 1 D00PK7001 1 TOUCH PANEL ASSY MFC-L3710CW 1 D00PK7001 1 TOUCH PANEL ASSY MFC-L3730CDN 1 D00PK7001 1 TOUCH PANEL ASSY MFC-L3735CDN 1 D00PK7001 1 TOUCH PANEL ASSY MFC-L3745CDW 1 D00PK7001 1 TOUCH PANEL ASSY MFC-L3750CDW 1 D00PK7001 1 TOUCH PANEL ASSY MFC-L3770CDW 2 A62009001 1 LCD DCP-L3510CDW 2 A62009001 1 LCD DCP-L3517CDW 2 A62009001 1 LCD DCP-L3551CDW 2 A62009001 1 LCD HL-L3290CDW 2 D00N32001 1 LCD DCP-9030CDN 2 D00N32001 1 LCD DCP-L3550CDW 2 D00N32001 1 LCD MFC-9150CDN 2 D00N32001 1 LCD MFC-9350CDW 2 D00N32001 1 LCD MFC-L3710CW 2 D00N32001 1 LCD MFC-L3730CDN 2 D00N32001 1 LCD MFC-L3735CDN 2 D00N32001 1 LCD MFC-L3745CDW 2 D00N32001 1 LCD MFC-L3750CDW 2 D00N32001 1 LCD MFC-L3770CDW 3 D00EBN001 1 PANEL PCB LCD DCP-L3510CDW 3 D00EBN001 1 PANEL PCB LCD DCP-L3517CDW 3 D00EBN001 1 PANEL PCB LCD DCP-L3551CDW 3 D00EBN001 1 PANEL PCB LCD HL-L3290CDW 3 D00PUT001 1 PANEL PCB TP DCP-9030CDN 3 D00PUT001 1 PANEL PCB TP DCP-L3550CDW 3 D00PUT001 1 PANEL PCB TP MFC-9150CDN 3 D00PUT001 1 PANEL PCB TP MFC-9350CDW 3 D00PUT001 1 PANEL PCB TP MFC-L3710CW 3 D00PUT001 1 PANEL PCB TP MFC-L3730CDN 3 D00PUT001 1 PANEL PCB TP MFC-L3735CDN 3 D00PUT001 1 PANEL PCB TP MFC-L3745CDW 3 D00PUT001 1 PANEL PCB TP MFC-L3750CDW 3 D00PUT001 1 PANEL PCB TP MFC-L3770CDW 4 D00P5W001 1 KEY PCB DCP-9030CDN 4 D00P5W001 1 KEY PCB DCP-L3550CDW 4 D00P5W001 1 KEY PCB MFC-9150CDN 4 D00P5W001 1 KEY PCB MFC-9350CDW 4 D00P5W001 1 KEY PCB MFC-L3710CW 4 D00P5W001 1 KEY PCB MFC-L3730CDN 4 D00P5W001 1 KEY PCB MFC-L3735CDN 4 D00P5W001 1 KEY PCB MFC-L3745CDW | Diagram placeholder |
| 13. PANEL 4 D00P5W001 1 KEY PCB MFC-L3750CDW 4 D00P5W001 1 KEY PCB MFC-L3770CDW 5 D00U0J001 1 PRINTED PANEL COVER 9030CDN DCP-9030CDN 5 D00XKL001 1 PRINTED PANEL COVER DCP GER DCP-L3510CDW FOR GER / SWI 5 D00DU8002 1 PRINTED PANEL COVER DCP DCP-L3510CDW FOR UK / ARL / FRA / BEL / NLD / CEE / GULF 5 D00XKY001 1 PRINTED PANEL COVER DCP FRA DCP-L3510CDW FOR SWI / FRA / BEL / NLD 5 D00XKX001 1 PRINTED PANEL COVER DCP DUT DCP-L3510CDW FOR FRA / BEL / NLD 5 D00XKV001 1 PRINTED PANEL COVER DCP IBE DCP-L3510CDW FOR IBE 5 D00Z94001 1 PRINTED PANEL COVER DCP POL DCP-L3510CDW FOR CEE 5 D00DU8002 1 PRINTED PANEL COVER DCP DCP-L3517CDW 5 D00U0K001 1 PRINTED PANEL COVER 3550CDW DCP-L3550CDW 5 D010DA001 1 PRINTED PANEL COVER L3551 BRZ DCP-L3551CDW FOR BRA 5 D00U0L001 1 PRINTED PANEL COVER 3551CDW DCP-L3551CDW FOR NZ / ASA / GULF / IND 5 D010G4001 1 PRINTED PANEL COVER L3551 CHL DCP-L3551CDW FOR CHL 5 D00U0G001 1 PRINTED PANEL COVER DCP US HL-L3290CDW 5 D00U0N001 1 PRINTED PANEL COVER 9150CDN MFC-9150CDN 5 D00U0R001 1 PRINTED PANEL COVER 9350CDW MFC-9350CDW 5 D0090X002 1 PRINTED PANEL COVER 3710CW MFC-L3710CW FOR USA / CAN 5 D0090X001 1 PRINTED PANEL COVER 3710CW MFC-L3710CW FOR GER / UK / NZ / FRA / BEL / NLD / IBE 5 D00U0M001 1 PRINTED PANEL COVER 3730CDN MFC-L3730CDN 5 D00U0P001 1 PRINTED PANEL COVER 3735CDN MFC-L3735CDN 5 D00XPU001 1 PRINTED PANEL COVER 3745CDW MFC-L3745CDW 5 D00L6Z001 1 PRINTED PANEL COVER 3750CDW MFC-L3750CDW 5 D0090J001 1 PRINTED PANEL COVER 3770CDW MFC-L3770CDW | Diagram placeholder |

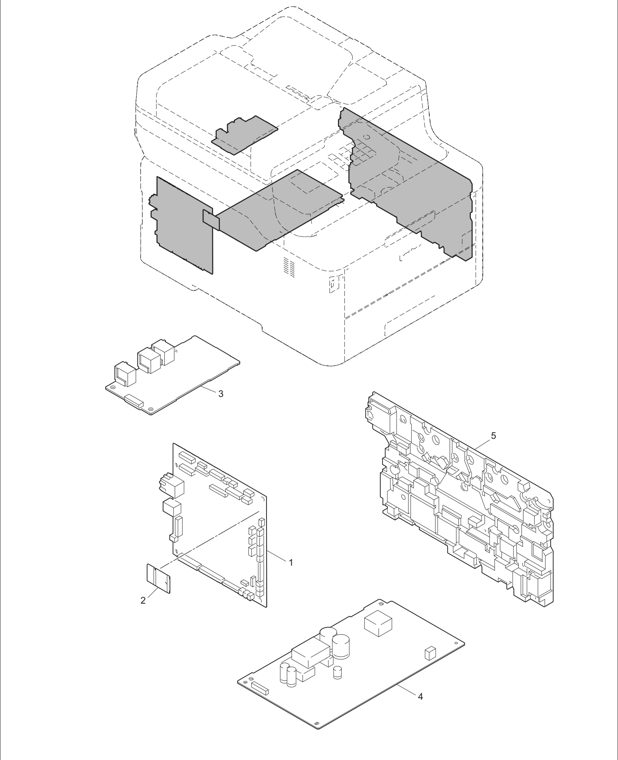

| 14. PCB 1 D00KKB009 1 MAIN PCB ASSY DCP-9030CDN 1 D00KL000C 1 MAIN PCB ASSY DCP-L3510CDW FOR GER 1 D00KL0003 1 MAIN PCB ASSY DCP-L3510CDW FOR UK / SWI / FRA / BEL / NLD / IBE / CEE 1 D00KL0004 1 MAIN PCB ASSY DCP-L3510CDW FOR ARL 1 D00782005 1 MAIN PCB ASSY DCP-L3510CDW FOR GULF 1 D00KL000C 1 MAIN PCB ASSY DCP-L3517CDW 1 D00KL100C 1 MAIN PCB ASSY DCP-L3550CDW FOR GER / PND 1 D00KL1003 1 MAIN PCB ASSY DCP-L3550CDW FOR UK / SWI / ITA / IBE / FRA / BEL / NLD / CEE 1 D00KKB006 1 MAIN PCB ASSY DCP-L3550CDW FOR RUS 1 D00KKB005 1 MAIN PCB ASSY DCP-L3551CDW FOR CHL / ASA / GULF / BRA / IND 1 D00KL1008 1 MAIN PCB ASSY DCP-L3551CDW FOR NZ 1 D00KL0001 1 MAIN PCB ASSY HL-L3290CDW 1 D00KKC009 1 MAIN PCB ASSY MFC-9150CDN 1 D00783009 1 MAIN PCB ASSY MFC-9350CDW 1 D00KL2001 1 MAIN PCB ASSY MFC-L3710CW FOR USA / CAN 1 D00KL200C 1 MAIN PCB ASSY MFC-L3710CW FOR GER 1 D00KL2003 1 MAIN PCB ASSY MFC-L3710CW FOR UK / NZ / FRA / BEL / NLD / IBE 1 D00KL300C 1 MAIN PCB ASSY MFC-L3730CDN FOR GER / PND 1 D00KL3003 1 MAIN PCB ASSY MFC-L3730CDN FOR UK / SWI / ITA / FRA / BEL / NLD / CEE 1 D00KKC005 1 MAIN PCB ASSY MFC-L3735CDN 1 D00KL4002 1 MAIN PCB ASSY MFC-L3745CDW 1 D00KL4001 1 MAIN PCB ASSY MFC-L3750CDW FOR USA / CAN 1 D00KL4003 1 MAIN PCB ASSY MFC-L3750CDW FOR GER / UK / SWI / ITA / IBE / FRA / BEL / NLD / PND 1 D00KL4004 1 MAIN PCB ASSY MFC-L3750CDW FOR ARL 1 D00KKD005 1 MAIN PCB ASSY MFC-L3750CDW FOR TWN / CHL / ASA / GULF / BRA / KOR 1 D00KL5001 1 MAIN PCB ASSY MFC-L3770CDW FOR USA / CAN 1 D00KL5003 1 MAIN PCB ASSY MFC-L3770CDW FOR GER / UK / SWI / ITA / IBE / NZ / FRA / BEL / NLD / CEE 1 D00KL5004 1 MAIN PCB ASSY MFC-L3770CDW FOR ARL 1 D00783005 1 MAIN PCB ASSY MFC-L3770CDW FOR PHL / ASA / RUS 2 2 2 2 2 2 2 2 2 2 3 D0092S001 1 MODEM PCB MFC-9150CDN 3 D0092S001 1 MODEM PCB MFC-9350CDW 3 D0092S001 1 MODEM PCB MFC-L3710CW 3 D0092S001 1 MODEM PCB MFC-L3730CDN 3 D0092S001 1 MODEM PCB MFC-L3735CDN 3 D0092S001 1 MODEM PCB MFC-L3745CDW 3 D0092S001 1 MODEM PCB MFC-L3750CDW 3 D0092S001 1 MODEM PCB MFC-L3770CDW 4 D00K5G001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN TWINDCP-9030CDN 4 D00CTB001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V SINGLEDCP-L3510CDW 4 D00CTB001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V SINGLEDCP-L3517CDW 4 D00CTB001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V SINGLEDCP-L3550CDW FOR GER / UK / SWI / ITA / IBE /FRA / BEL / NLD / PND / CEE 4 D00K5J001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN SINGLEDCP-L3550CDW FOR RUS 4 D00K5J001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN SINGLEDCP-L3551CDW FOR IND 4 D00U2U001 1 LOW-VOLTAGE POWER SUPPLY PCB 127V SINGLEDCP-L3551CDW FOR BRA 4 D00CTB001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V SINGLEDCP-L3551CDW FOR NZ / CHL / ASA / GULF 4 D008E4001 1 LOW-VOLTAGE POWER SUPPLY PCB 115V TWINHL-L3290CDW 4 D00K5G001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN TWINMFC-9150CDN 4 D00K5G001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN TWINMFC-9350CDW 4 D008DS001 1 LOW-VOLTAGE POWER SUPPLY PCB 115V SINGLEMFC-L3710CW FOR USA / CAN 4 D00CTB001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V SINGLEMFC-L3710CW FOR GER / UK / NZ / FRA / BEL / NLD / IBE 4 D00CTB001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V SINGLEMFC-L3730CDN 4 D00CTD001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V TWINMFC-L3735CDN FOR ASA 4 D00K5G001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN TWINMFC-L3735CDN FOR IND 4 D00CTD001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V TWINMFC-L3745CDW 4 D008E4001 1 LOW-VOLTAGE POWER SUPPLY PCB 115V TWINMFC-L3750CDW FOR USA / CAN / TWN 4 D00CTD001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V TWINMFC-L3750CDW FOR GER / UK / ARL / SWI / ITA / IBE / FRA / BEL / NLD / PND / CHL / ASA / GULF / KOR 4 D00U2T001 1 LOW-VOLTAGE POWER SUPPLY PCB 127V TWINMFC-L3750CDW FOR BRA 4 D008E4001 1 LOW-VOLTAGE POWER SUPPLY PCB 115V TWINMFC-L3770CDW FOR USA / CAN 4 D00CTD001 1 LOW-VOLTAGE POWER SUPPLY PCB 230V TWINMFC-L3770CDW FOR GER / UK / ARL / SWI / ITA / IBE / NZ / FRA / BEL / NLD / CEE / PHL / ASA 4 D00K5G001 1 LOW-VOLTAGE POWER SUPPLY PCB CHN TWINMFC-L3770CDW FOR RUS 5 D00896001 1 HIGH-VOLTAGE POWER SUPPLY PCB | Diagram placeholder |

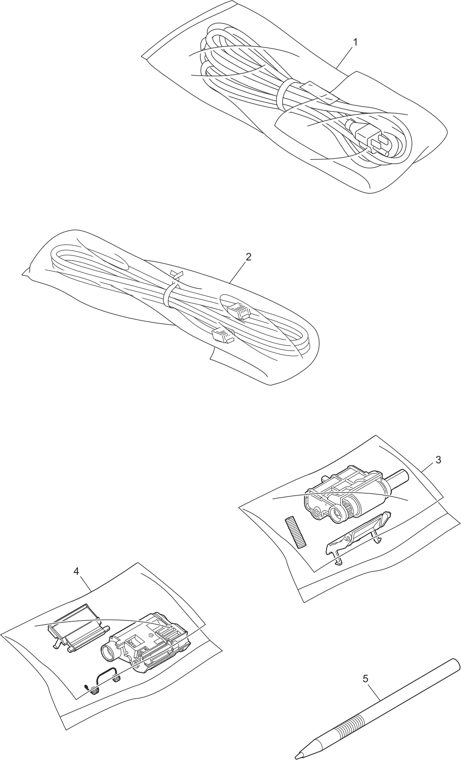

| 15. OPTION 1 LV0366001 1 AC CORD BAG ASSY LF SAA S FOR ARL/NZ 1 LV1465001 1 AC CORD BAG ASSY LF INMETRO FOR BRA 1 LG6207001 1 AC CORD BAG ASSY LF CHILE FOR CHL 1 LV1093001 1 AC CORD BAG ASSY LF CHN S/BRO FOR CHN 1 LV0364001 1 AC CORD BAG ASSY LF VDE S FOR GER / FRA / BEL / NLD / IBE / CEE / PND / GULF / ITA / RUS / ASA 1 LT0613001 1 AC CORD BAG ASSY LF IND FOR IND 1 LT2259001 1 AC CORD BAG ASSY LF SEV FOR SWI 1 LM9362001 1 AC CORD BAG ASSY LF UL/CSA FOR USA/CAN 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S DCP-L3510CDW FOR UK / GULF 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S DCP-L3550CDW FOR UK 1 LV1381001 1 AC CORD BAG ASSY LF PERU V DCP-L3551CDW FOR CHL 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S DCP-L3551CDW FOR ASA / GULF 1 LG6404001 1 AC CORD BAG ASSY LF SAF DCP-L3551CDW FOR GULF 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S MFC-L3710CW FOR UK 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S MFC-L3730CDN FOR UK 1 LV1381001 1 AC CORD BAG ASSY LF PERU V MFC-L3735CDN FOR ASA 1 D00ZF5001 1 AC CORD BAG ASSY LF TWN 13A MFC-L3750CDW FOR TWN 1 LV1381001 1 AC CORD BAG ASSY LF PERU V MFC-L3750CDW FOR CHL 1 LG6404001 1 AC CORD BAG ASSY LF SAF MFC-L3750CDW FOR GULF 1 LT0935001 1 AC CORD BAG ASSY LF KOR S MFC-L3750CDW FOR KOR 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S MFC-L3750CDW FOR UK / ASA / GULF 1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S MFC-L3770CDW FOR UK / ASA 1 LV1381001 1 AC CORD BAG ASSY LF PERU V MFC-L3770CDW FOR PHL 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-9150CDN 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-9350CDW 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L3710CW FOR USA / CAN / UK / FRA / BEL / NLD / IBE 2 UG3625001 1 TELEPHONE LINE CORD GER MFC-L3710CW FOR GER 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L3710CW FOR UK 2 UG3290001 1 TELEPHONE LINE CORD NZ MFC-L3710CW FOR NZ 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L3710CW FOR FRA / BEL / NLD 2 UG3625001 1 TELEPHONE LINE CORD GER MFC-L3730CDN FOR GER 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L3730CDN FOR UK / FRA / BEL / NLD / CEE 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L3730CDN FOR UK 2 LG7202001 1 TELEPHONE LINE CORD SWI MFC-L3730CDN FOR SWI 2 LT2144001 1 TELEPHONE LINE CORD ITA MFC-L3730CDN FOR ITA 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L3730CDN FOR FRA / BEL / NLD 2 LG5827001 1 TELEPHONE LINE CORD RJ45 MFC-L3730CDN FOR PND 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L3735CDN 2 LT3317001 1 TELEPHONE LINE CORD CSA2 MFC-L3745CDW 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L3750CDW FOR USA / CAN / UK / ITA / IBE / FRA / BEL / NLD / TWN / CHL / ASA / GULF / BRA / KOR 2 UG3625001 1 TELEPHONE LINE CORD GER MFC-L3750CDW FOR GER 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L3750CDW FOR UK 2 LT3317001 1 TELEPHONE LINE CORD CSA2 MFC-L3750CDW FOR ARL 2 LG7202001 1 TELEPHONE LINE CORD SWI MFC-L3750CDW FOR SWI 2 LT2144001 1 TELEPHONE LINE CORD ITA MFC-L3750CDW FOR ITA / IBE 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L3750CDW FOR FRA / BEL / NLD 2 LG5827001 1 TELEPHONE LINE CORD RJ45 MFC-L3750CDW FOR PND 2 UG3290001 1 TELEPHONE LINE CORD NZ MFC-L3750CDW FOR ASA 2 LG3077001 1 TELEPHONE LINE CORD CSA MFC-L3770CDW FOR USA / CAN / UK / ITA / IBE / FRA / BEL / NLD / CEE / PHL / ASA / RUS 2 UG3625001 1 TELEPHONE LINE CORD GER MFC-L3770CDW FOR GER 2 UG3626001 1 TELEPHONE LINE CORD UK6P MFC-L3770CDW FOR UK 2 LT3317001 1 TELEPHONE LINE CORD CSA2 MFC-L3770CDW FOR ARL 2 LG7202001 1 TELEPHONE LINE CORD SWI MFC-L3770CDW FOR SWI 2 LT2144001 1 TELEPHONE LINE CORD ITA MFC-L3770CDW FOR ITA / IBE 2 UG3290001 1 TELEPHONE LINE CORD NZ MFC-L3770CDW FOR NZ / ASA 2 UG3627001 1 TELEPHONE LINE CORD FRA MFC-L3770CDW FOR FRA / BEL / NLD 3 4 D011XZ001 1 PF KIT MP SP MFC-9350CDW 4 D011XZ001 1 PF KIT MP SP MFC-L3770CDW 5 XA9940051 1 TOUCH PEN (6) LJ9803001 1 USB CABLE 2.0 (1.8 METER) | Diagram placeholder |
