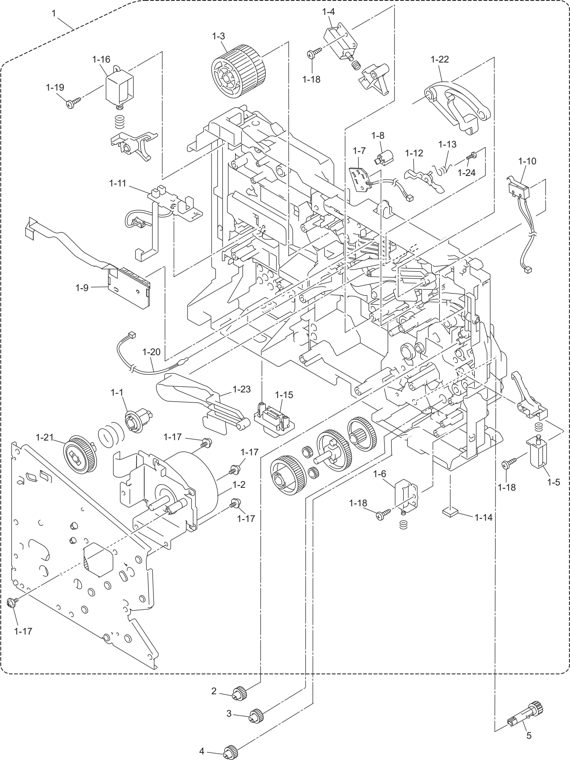

LIST1(FRAME L&DRIVE UNIT)
1 LX2517001 1 MAIN FRAME L UNI T CHG
1 LU7214001 1 DEVELOP JOINT
2 LM5047001 1 MAIN MOTOR ASSY A L
3 LM5048001 1 FUSER GEAR 39 H/R DRIVE1-
4 LM5058001 1 REGISTER SOLENOID ASSY1-
5 LM5062001 1 MP SOLENOID ASS
Y
6 LM5067001 1 T1 SOLENOID ASS Y
7 LJ9935001 1 TONER SENSOR PCB ASSY1-
8 UL9037001 1 PT SENSOR HOLDER1-9 LV069000
2 1 RELAY FRONT PCB ASS Y CHG
10 LJ9940001 1 FRONT COVER SW ASSY1-
11 LJ9942001 1 RELAY REAR PCB ASS
Y
12 LM5085001 1 NEW TONER ACTUATOR1-
13 LM5086001 1 NEW TONER ACTUATOR SPRING1-
14 LJ7403001 1 RUBBER FOOT1-
15 LJ9945001 1 CONNECTOR1-
16 LM5011001 1 EJECTOR SOLENOID1-17 08732061
6 4 TAPTITE CUP S M3x6
18 08531101 6 3 TAPTITE BIND B M3x10
19 08531101 6 1 TAPTITE BIND B M3x10
20 LG4518001 1 THERMISTOR ASSY 1-
21 LM5043001 1 DEV GEAR 37R JOINT DRIVE 1-
22 LM5080001 1 DRIVE RELEASE LINK1-
23 LM5079001 1 DRIVE RELEASE CAM add1-24 08721061
6 1 TAPTITE CUP B M2X6 add
2 LM5104001 1 GEAR 17 MP ROLLER DRIVE
3 LM5103001 1 GEAR 20 T1 ROLLER DRIVE
4 LM5102001 1 GEAR 17 FEED ROLLER DRIVE add
5 LM5051001 1 DX GEAR 15 TRAY DRIVE add
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW

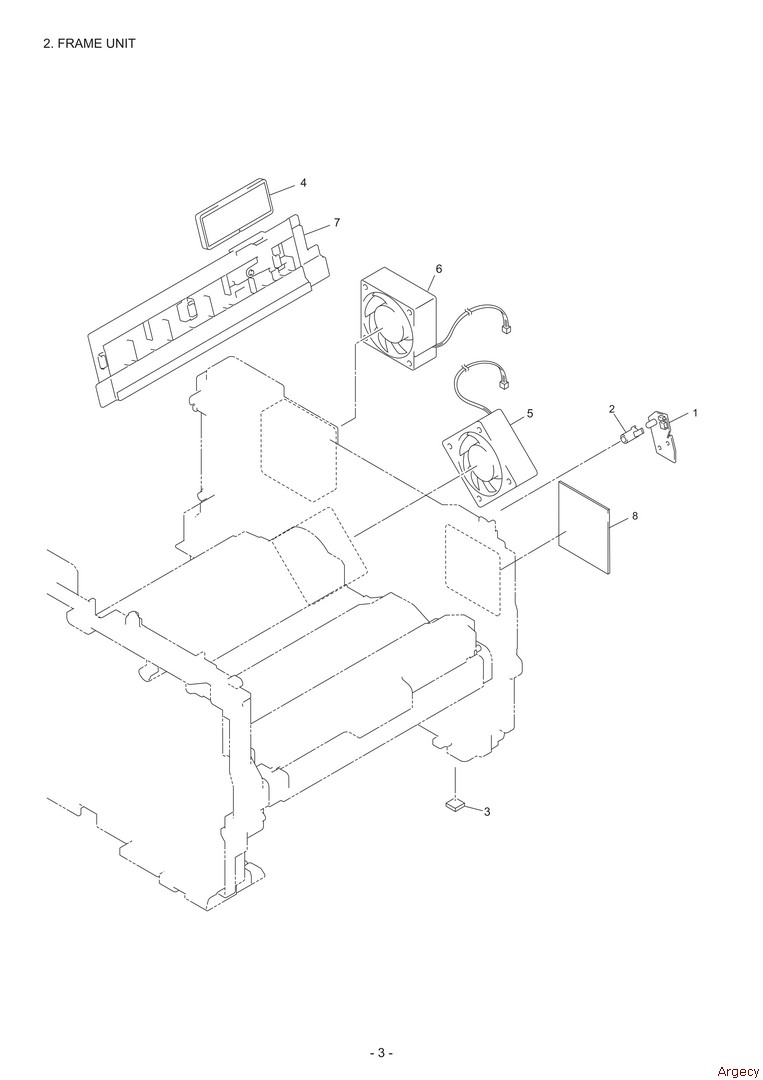

- 2 -Diagram placeholder2. FRAME UNIT

- 3 -12
34
6
57
8

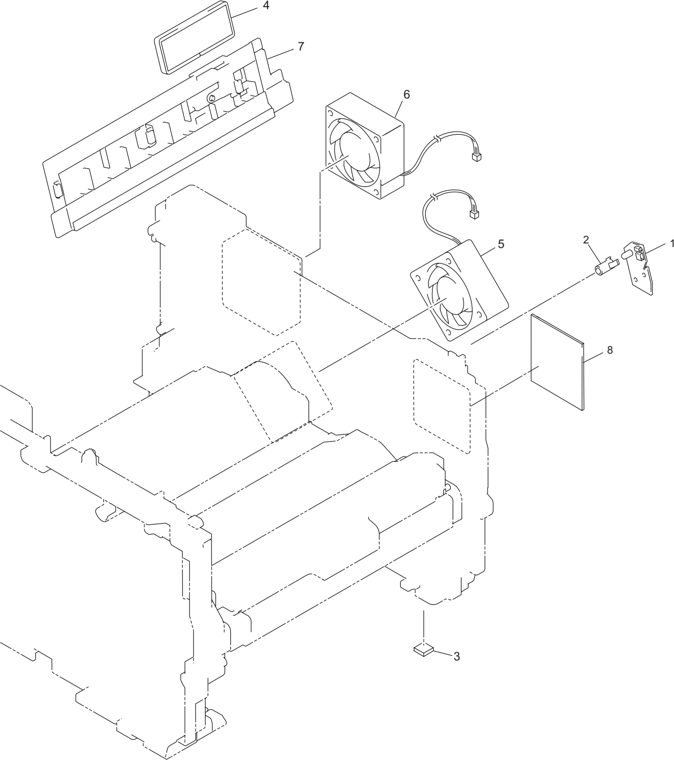

LIST2(FRAME UNIT)
1 LV0282001 1 TONER LED PCB ASSY
2 LM4267001 1 LED HOLDER
3 LJ7403001 1 RUBBER FOOT
4 LU7141001 1 FILTER ASSY
5 LM5114001 1 FAN MOTOR 60 UNIT LV
6 LU7032001 1 FAN MOTOR 60 UNIT
7 LM6655001 1 AIR DUCT ASSY AL
8 LT0963001 1 WIRELESS PCB, MFC8690DW/MFC8890DW  CHG
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 4 -Diagram placeholder3. LASER UNIT

- 5 -13
22
22
22

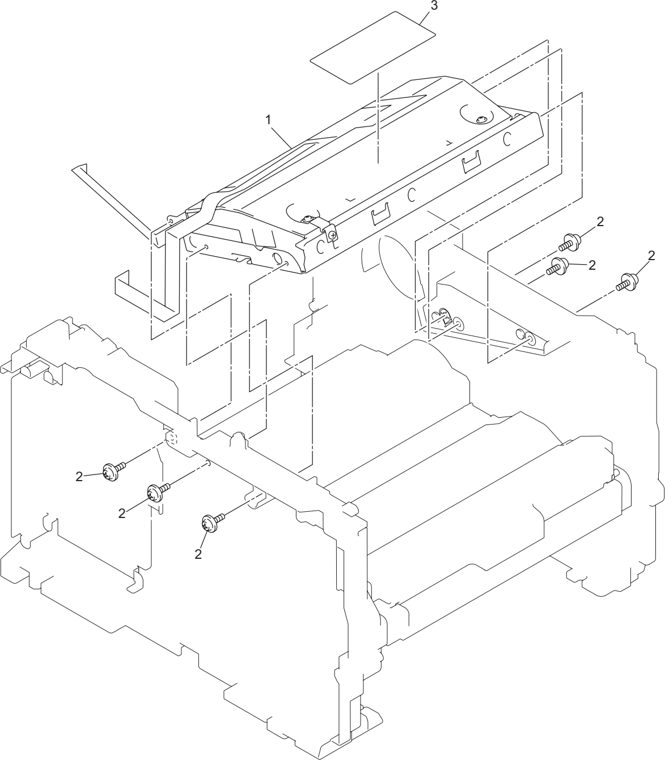

LIST3(LASER UNIT)
1 LU7176001 1 LASER UNIT (SP) 
2 08732061 6 6 TAPTITE, CUP S M3X6
3 LJ0908001 1 LASER CAUTION LABEL EXCEPT FOR CHN
3 UL7931001 1 LASER CAUTION LABEL FOR CHN
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 6 -

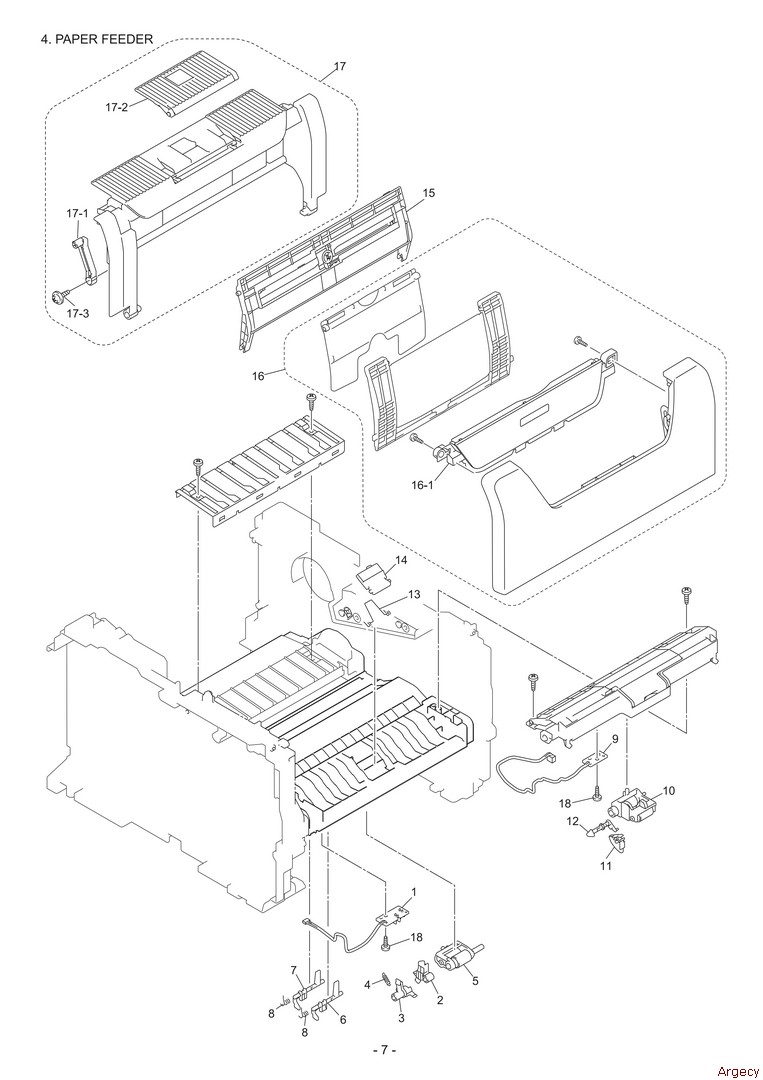

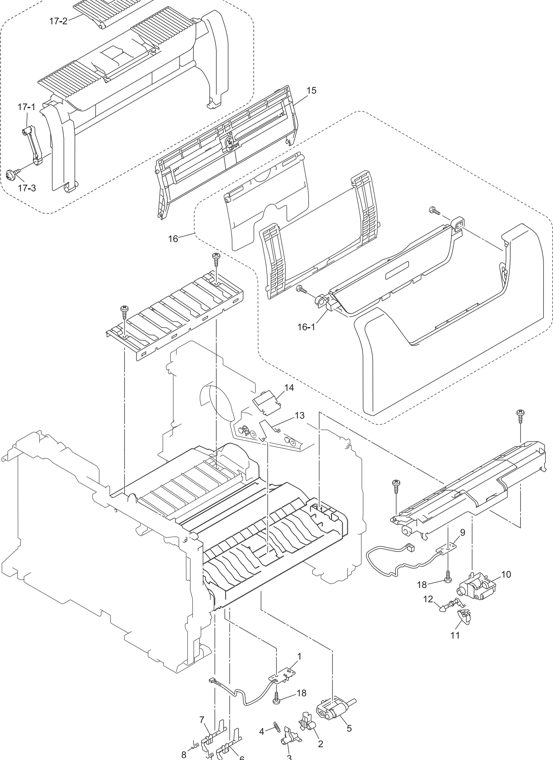

LIST4(PAPER FEEDER)
1 LM9001001 1 PE EG SENSOR ASS Y
2 LU7935001 1 PE ACTUATOR ASSY CHG
3 LM5132001 1 EDGE ACTUATOR
4 LM5133001 1 EDGE ACTUATOR SPRING
5 LU7179001 1 ROLLER HOLDER ASSY
6 LM5150001 1 REGIST ACTUATOR FRONT
7 LM5151001 1 REGIST ACTUATOR REAR
8 LM5152001 2 REGIST ACTUATOR SPRING
9 LJ9999001 1 MP PE SENSOR ASS
Y
10 LU7184001 1 MP ROLLER HOLDER ASS Y
11 LM5171001 1 PE ACTUATOR MP
12 LU0027001 1 PE ACTUATOR MP B
213 LM6490001 1 MP SEPARATION SPRING
14 LM6752001 1 SEPARATION PAD ASSY MP15 LM519600
5 1 TRAY MP ASS Y
16 LS7305001 1 MP TRAY COVER ASSY,
DCP8080DN/DCP8085DN/MFC8480DN/MFC8680D N
16 LS7004001 1 MP TRAY COVER ASSY,
MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW,
MFC8880DN RUS TENDER
1 LS7306001 1 BROTHER EMBLEM COVER ASSY,
DCP8080DN/DCP8085DN/MFC8480DN/MFC8680D N
1 LS7283001 1 BROTHER EMBLEM COVER ASSY,
MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW,MFC8880DN RUS TENDER
17 LU7037001 1 PROCESS COVER ASSY EXCEPT FOR CHN/IND,
EXCEPT FOR MFC8881DNHY, MFC8880DN RUS TENDE
R
17 LU7527001 1 PROCESS COVER ASSY FOR CHN, MFC8881DNH Y
17 LU7689001 1 PROCESS COVER ASSY FOR IND
1 LM5124001 1 PROCESS COVER STOPPER
2 LU7039001 1 SUPPORT FLAP 1
3 087411016 1 TAPTITE CUP B M4X10
18 08531081 6 2 TAPTITE BIND B M3x8
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 8 -Diagram placeholder5. DUPLEX

- 9 -1

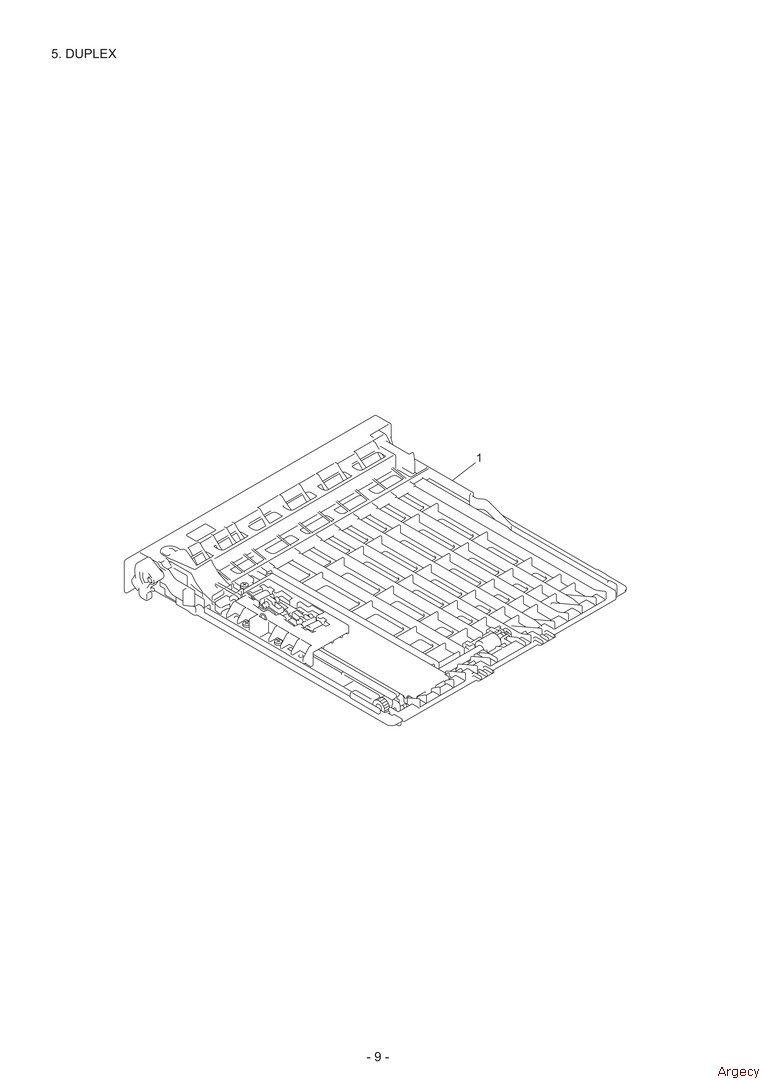

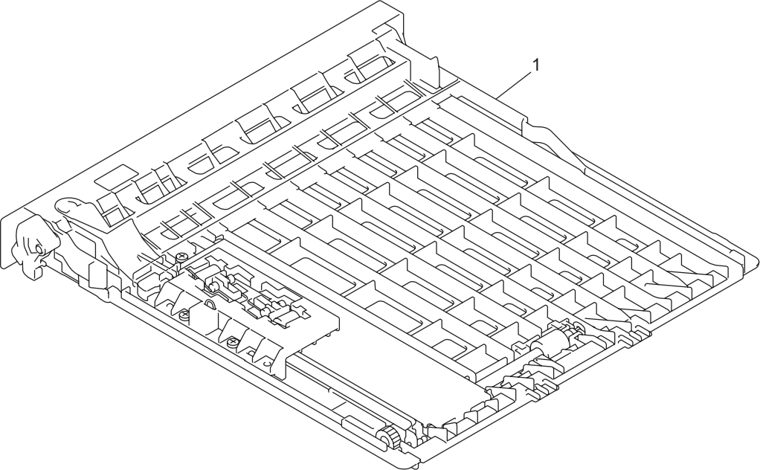

LIST5(DUPLEX)
1 LM5209001 1 DX FEED ASSY LTR FOR US/CAN/PHL/ARG/CHL/BR A
1 LU7503001 1 DX FEED ASSY A4 FOR GER/UK/FRA/BEL/NLD/CHE/AUS/ITA/
CHN/TUR/POL/ASA/GUL/KOR/IND/RUS/ARL/NZ/PND/IBR/EEU
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 10 -Diagram placeholder6. PAPER TRAY

- 11 -1
1-1
1-2
1-31-4
1-5

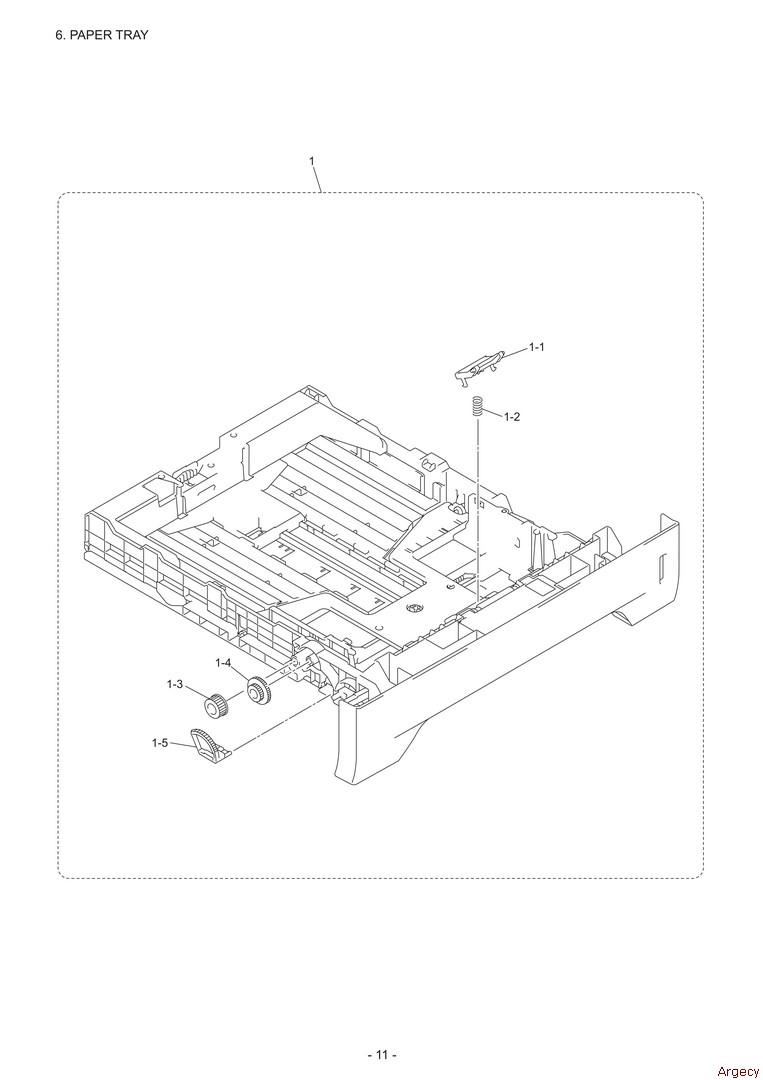

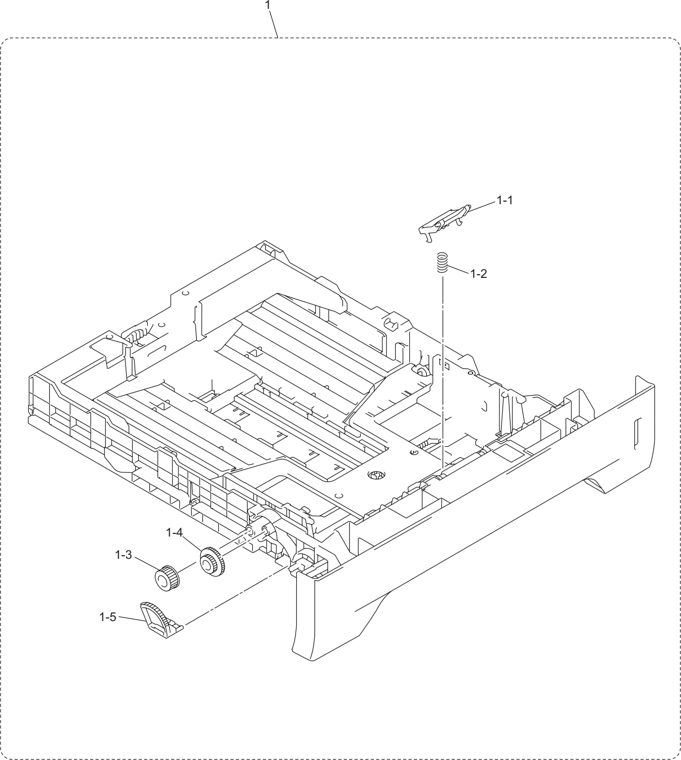

LIST6(PAPER TRAY)
1 LU7198001 1 PAPER TRAY UNIT FOR US/CAN/PHL/ARG/CHL/BRA/IND
1 LU7203001 1 PAPER TRAY UNIT FOR GER/UK/FRA/BEL/NLD/CHE/AUS/
ITA/CHN/TUR/POL/ASA/GUL/KOR/RUS/ARL/NZ/PND/IBR/EEU
1 LM5237001 1 SEPARATION PAD ASSY1-
2 LM5239001 1 SEPARATION PAD SPRING1-
3 LM5245001 1 GEAR 151-
4 LM5246001 1 GEAR 21-161-
5 LM5247001 1 LIFT GEAR 46
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 12 -

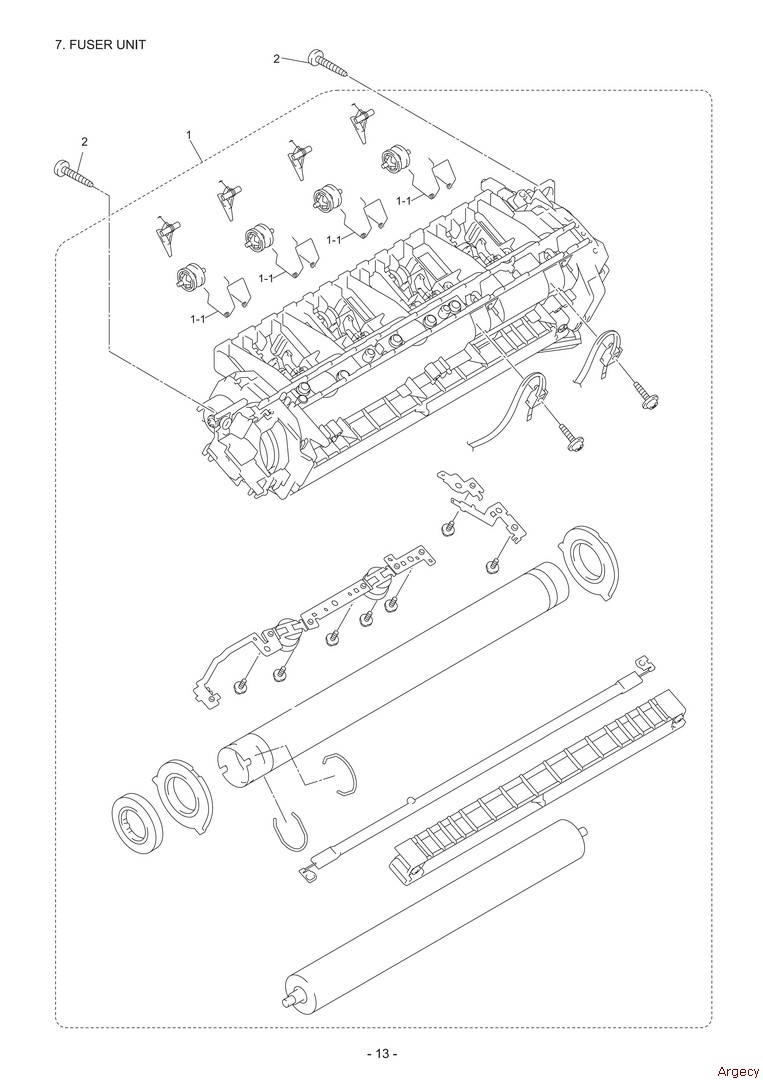

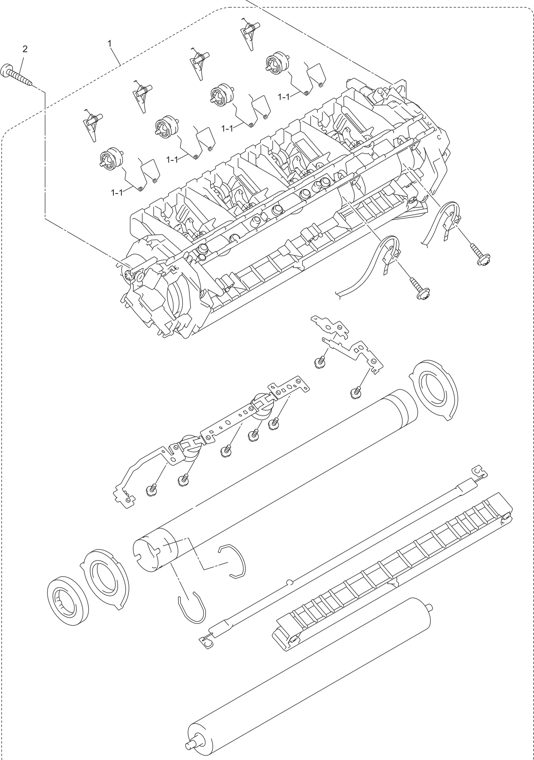

LIST7(FUSER UNIT)
1 LU8233001 1 FUSER UNIT 115V (SP) FOR US/CAN/BR A  CHG
1 LU8236001 1 FUSER UNIT 230V (SP) FOR GER/UK/FRA/BEL/NLD/CHE/AUS/
ITA/CHN/PHL/TUR/ARG/CHL/POL/ASA/GUL/KOR/IND/RUS/ARL/NZ/
PND/IBR/EEU CHG
1 LU7078001 4 PRESSURE SPRING
2 LU7154001 4 EJECT PINCH ROLLER M del
2 LU7164001 2 TAPTITE PAN B M4X20
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 14 -

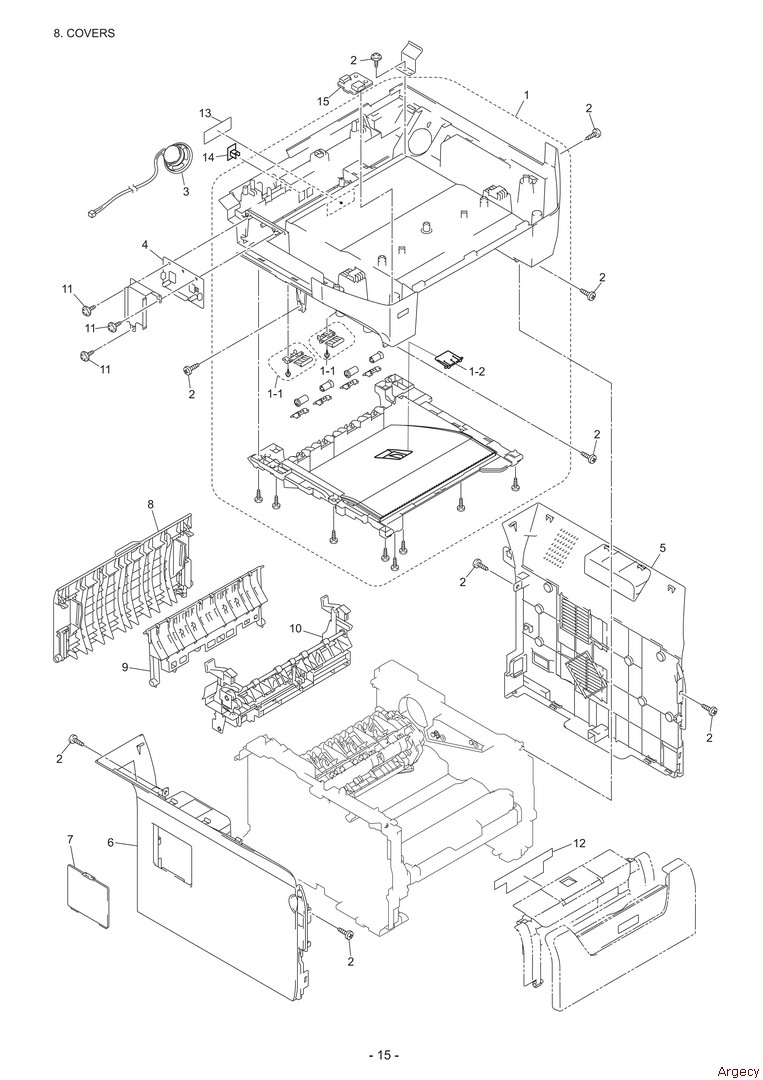

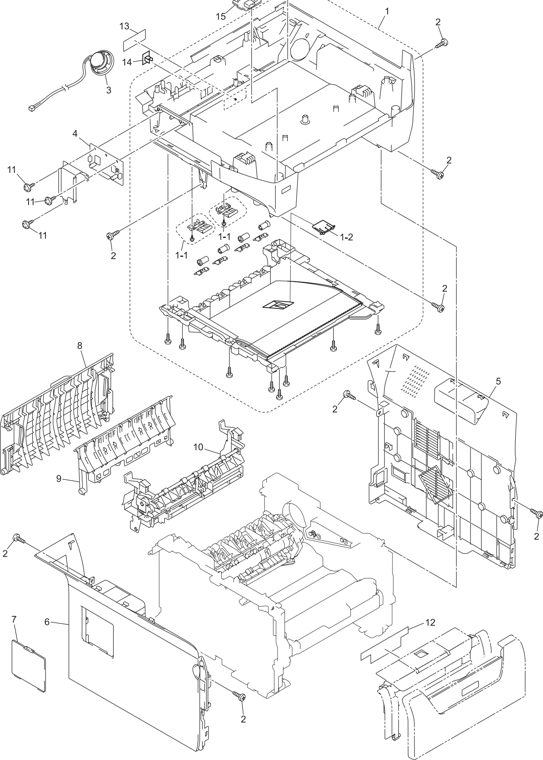

LIST8(COVERS)
Y DESCRIPTION RECOMMEND SYMBO L REMARKS
1 LS7307001 1 JOINT COVER ASSY, GRAY(1581),
DCP8080DN/DCP8085DN
1 LS7239001 1 JOINT COVER ASSY, GRAY(1581),
MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/ MFC8890DW , MFC8880DN RUS TENDE R
1 LU7312001 2 PAPER STACK LEVER SP ASS Y
2 LU7118001 1 SUPPORT FLAP 2
2 08541121 6 9 TAPTITE, BIND B M4X12
3 LG6529001 1 SPEAKER ASS Y
4 LG6531001 1 DRIVER PCB ASS Y B53K85 0
5 LF9624001 1 SIDE COVER R, GRAY (1736 )
6 LF9625001 1 SIDE COVER L, GRAY (1736 )
7 LM5273001 1 ACCESS COVER, GRAY (1736 )
8 LU7046001 1 BACK COVER
9 LU7047001 1 OUTER CHUTE ASSY
10 LU7126001 1 REAR CHUTE ASSY
11 08731081 6 3 TAPTITE CUP B M3X8
12 LS7388001 1 PROCESS UNIT OP LABEL FOR US/CAN/ARG/CHL/BRA
12 LU7341001 1 PROCESS UNIT OP LABEL FOR GER/UK/FRA/BEL/NLD/CHE/
AUS/ITA/POL/RUS/PND/IBR/EEU, EXCEPT FOR MFC8881DNH Y
12 LS7919001 1 PROCESS UNIT OP LABEL FOR CHN
12 LU7496001 1 PROCESS UNIT OP LABEL
FOR PHL/TUR/ASA/GUL/KOR/IND/ARL/NZ
12 LX2209001 1 PROCESS UNIT OP LABEL, MFC8881DNH
Y
13 LU7303001 1 FUSER CAUTION LABEL
14 LE8842001 1 EXT CAP,
MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8890DW
FOR US/CAN/CHE/CHN/PHL/TUR/POL/ARG/CHL/ASA/GUL/BRA/KOR/IND/RUS/ARL/NZ/PND/IBR/EEU
, MFC8880DN RUS TENDE R
14 UF5745000 1 MJ COVER EXT, MFC8880DN/MFC8881DNHY/MFC8890DW
FOR GER/UK/FRA/BEL/NLD/AUS/ITA
15 LT0668001 1 USB HOST PCB
8C5D11/8C5D16/8C5D41/8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 16 -Diagram placeholder9. SCANNER

- 17 -1-3
1-10
1-10
1-111-10
1-10
1-111-41-121-12
1-2
1-51-8 1-91-91-9
1-91-922
1-71-61-8-1
1-8-3
1-8-31-8-2
1-11
1-9
1-8-3

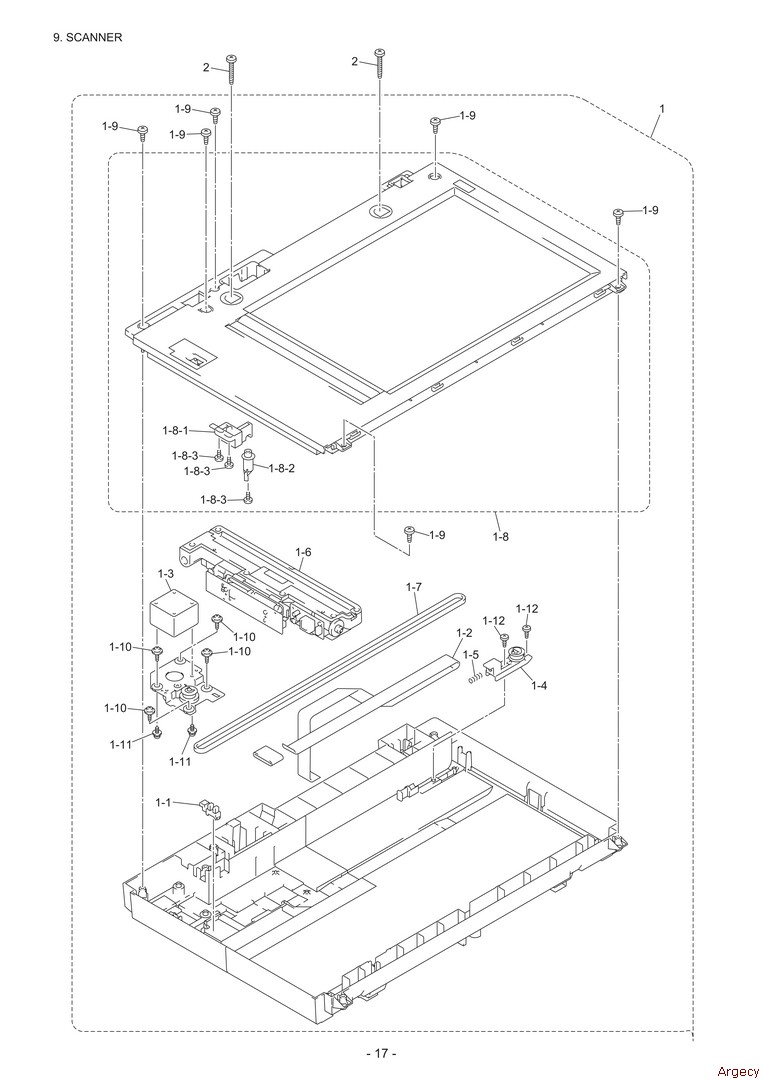

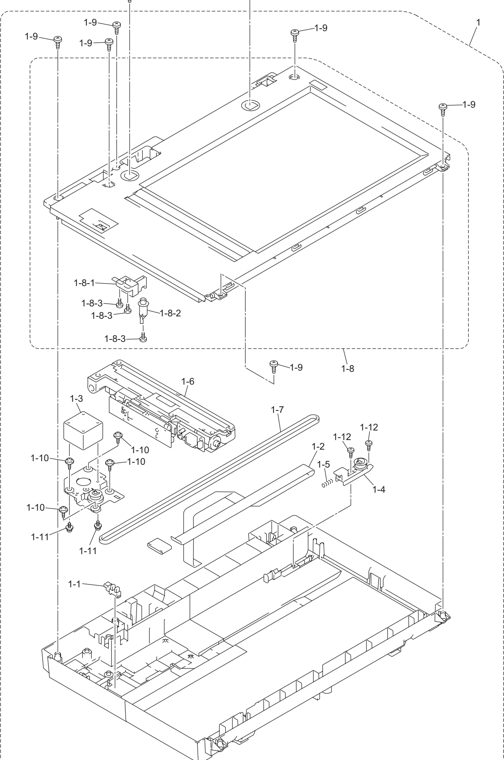

List9(SCANNER)
1 LP2357001 1 ALFB UNIT ASSY (SP) 
1 LG2239001 1 PHOTO INTERRUPTER
2 LF9629001 1 FFC CABLE ASS Y
3 LE8632001 1 SCANNING MOTOR FB1-
4 LF9637001 1 PULLEY ASS
Y
5 LE8640001 1 PULLEY SPRING1-
6 LF2037001 1 CCD MODULE
(SP) 
7 LE8642001 1 BELT1-
8 LF9641001 1 TOP COVER ASSY
1 LF2004001 1 LOCK LEVER ASS
Y
2 LE8649001 1 LOCK LEVER B1-8-
3 UF5034001 3 TAPTITE, B 3X6
1-9 08741121
6 6 TAPTITE, CUP B M4X12
10 LE2861001 4 TAPTITE, PAN B M3X81-11 0A430060
6 2 SCREW, PAN (S/P WASHER ) M3X6
12 UF5034001 2 TAPTITE, B 3X6
2 08741201 6 2 TAPTITE, CUP B M4X20
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 18 -Diagram placeholder10. ADF1

See ADF2
- 19 -1
1-1-4
1-1-4
1-1-4
1-1-4
1-1-3
1-1-31-1-3
1-1-3
1-1-21-1
1-1-1
2
36
6
4351-1-5
1-1-61-1-6
1-101-1-61-9
1-81-2
1-61-6
1-6
1-61-31-4
1-61-31-61-5
1-7
1-117

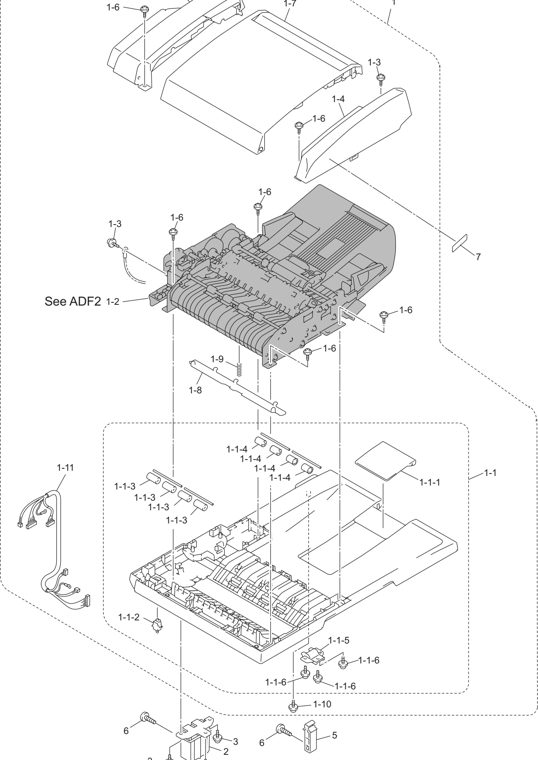

LIST10(ADF1)
Y DESCRIPTION RECOMMEND SYMBO LREMARKS
1 LS7634001 1 ADF UNIT LGL SX (SP), DCP8080DN/MFC8480D N 
1 LS7633001 1 ADF UNIT LGL DX (SP),
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
1 LS7294001 1 DOCUMENT COVER LGL SUB ASSY
1 LF9647001 1 DOCUMENT EJECTION TRAY
2 LG3218001 1 DOCUMENT COVER SENSOR1-1-
3 UF9009001 4 PRESSURE ROLLER1-1-4 UL624400
2 4 EJECTION ROLLER B4
5 LE6245001 1 HINGE BASE R1-1-6 08731101
6 3 TAPTITE, CUP B M3X10
3 LP2378001 2 TAPTITE, CUP S M3X8 SR1-
ADF SIDE COVER F
5 LF9697001 1 ADF SIDE COVER R
6 08731101 6 6 TAPTITE CUP B M3X10
7 LF9700001 1 ADF COVER ASSY SX, DCP8080DN/MFC8480D N
7 LF9754001 1 ADF COVER ASSY DX,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
8 LE8834001 1 DOCUMENT HOLD ASSY
9 LF2026001 1 DOCUMENT HOLD SPRING
10 LP2320001 1 TAPTITE, CUP B M3X101-
ADF HARNESS ASSY ALEFB SX, DCP8080DN/MFC8480D N CHG
11 LT0946001 1 ADF HARNESS ASSY ALEFB DX, DCP8085DN/MFC8680DN/
MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890CW,
MFC8880DN RUS TENDERCHG
2 LF9703001 1 HINGE ASSY L
3 08731101 6 2 TAPTITE CUP B M3X10
4 08732121 7 1 TAPTITE CUP S M3X12
5 LS7497001 1 HINGE ARM R
6 08541121 6 2 TAPTITE BIND B M4X12
7 LS7326001 1 ADF EMBLEM, DCP8080DN/DCP8085D N
7 LS7325001 1 ADF EMBLEM,
MFC8480DN/MFC8680DN/MFC8880DN/MFC8881DNHY,
MFC8880DN RUS TENDER
7 LS7323001 1 ADF EMBLEM, MFC8690DW/MFC8890DW
8C5D11/8C5D16/8C5D41/8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 20 -
- 21 -11. ADF2
1-2-1
1-2-2
1-2-171-2-211-2-17
1-2-171-2-21
1-2-181-2-18
1-2-181-2
1-2-17
1-2-3
1-2-4
1-2-5
1-2-6
1-2-8
1-2-91-2-101-2-12
1-2-18
1-2-181-2-181-2-18
1-2-18
1-2-18
1-2-181-2-18
1-2-181-2-181-2-16
1-2-151-2-131-2-11
1-2-141-2-11-1
1-2-11-3
1-2-11-21-2-17
1-2-71-2-171-2-19
1-2-11-41-2-171-2-171-2-11-51-2-11-10
1-2-11-111-2-11-111-2-11-10
1-2-11-61-2-11-71-2-11-81-2-11-9
1-2-22
1-2-6-1
1-2-201-2-201-2-20
1-2-201-2-6-2
1-2-6-4
1-2-6-31-2-181-2-17
1-2-17
1-2-17
1-2-171-2-11-12

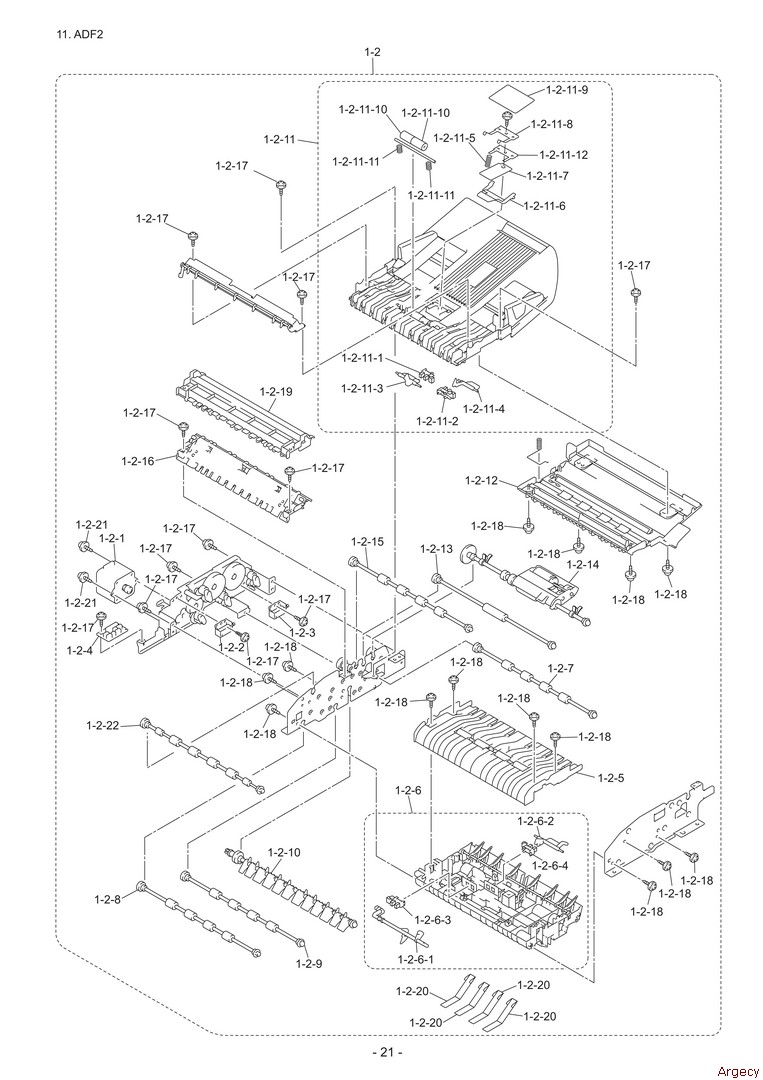

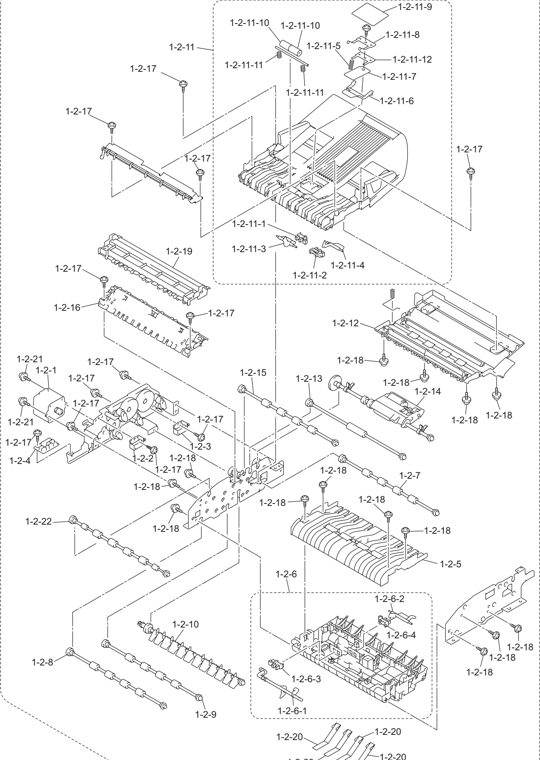

LIST11(ADF2)
Y DESCRIPTION RECOMMEND SYMBO LREMARKS
2 LS7296001 1 ADF CHUTE ASSY SX, DCP8080DN/MFC8480D N
2 LS7297001 1 ADF CHUTE ASSY DX,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
1 LE8688001 1 ADF MOTOR
2 LP2353001 1 S/B SOLENOID ASSY,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE R
3 LP2354001 1 PF SOLENOID ASSY,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE R
4 LG6537001 1 ADF RELAY PCB, DCP8080DN/MFC8480D N B53K84 7
4 LG6537002 1 ADF RELAY PCB,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE RB53K847
5 LF9666001 1 UPPER MAIN CHUTE ASS Y
6 LF9669001 1 LOWER MAIN CHUTE ASSY, DCP8080DN/MFC8480DN
6 LF9741001 1 LOWER MAIN CHUTE ASSY,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
1 LF9671001 1 ACTUATOR R
2 LF9742001 1 ACTUATOR SB,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/ MFC8890DW
, MFC8880DN RUS TENDE R
3 LG2239001 1 PHOTO INTERRUPTER
4 LG2239001 1 PHOTO INTERRUPTER,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
7 LF9673001 1 EXIT ROLLER ASS Y
8 LF9675001 1 LF ROLLER3 ASS Y
9 LF9677001 1 LF ROLLER4 ASS Y
10 LF9743001 1 FLAP ASSY, DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/ MFC8890DW, MFC8880DN RUS TENDE R
11 LF9681001 1 PAPER FEED CHUTE ASSY, DCP8080DN/MFC8480D N
11 LF9747001 1 PAPER FEED CHUTE ASSY,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE R
1 LG2239001 1 PHOTO INTERRUPTER
2 LG2239001 1 PHOTO INTERRUPTER,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
1-2-11- 3LF9683001 1 ACTUATOR FRONT1
4 LF9748001 1 ACTUATOR FRONT2,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE R
1-2-11- 5LF9684001 1 SEPARATION SPRING
1-2-11- 6LF9685001 1 RUBBER HOLDER
1-2-11- 7LF9686001 1 SEPARATION RUBBER
1-2-11- 8LE1513001 1 SPRING PLATE ADF FRONT A ASSY
1-2-11- 9LE2470001 1 ADF FILM
1 0LP2159001 2 PRESSURE ROLLER
11 LE2472001 2 LF SPRING
1 2LP2907001 1 BACK SHEET ADF
12 LF9692001 1 EXIT CHUTE COVER ASSY1-2-
13 LP2448001 1 LF ROLLER1 ASS
Y
14 LS1030001 1 PF ROLLER HOLDER ASS Y
15 LF9749001 1 SB ROLLER ASSY,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW , MFC8880DN RUS TENDE R
16 LF9751001 1 SB CHUTE ASSY,
DCP8085DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE R
17 LP2378001 12 TAPTITE CUP S M3X8 SR
18 08731101 6 14 TAPTITE CUP B M3X10
19 LF9850001 1 SX CHUTE, DCP8080DN/MFC8480DN1-2-
20 LP2347001 4 LF4 FILM1-2-21 0A430060
6 2 SCREW PAN (S/P WASHER ) M3X6
22 LS0761001 1 LF ROLLER2 ASS Y
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 22 -

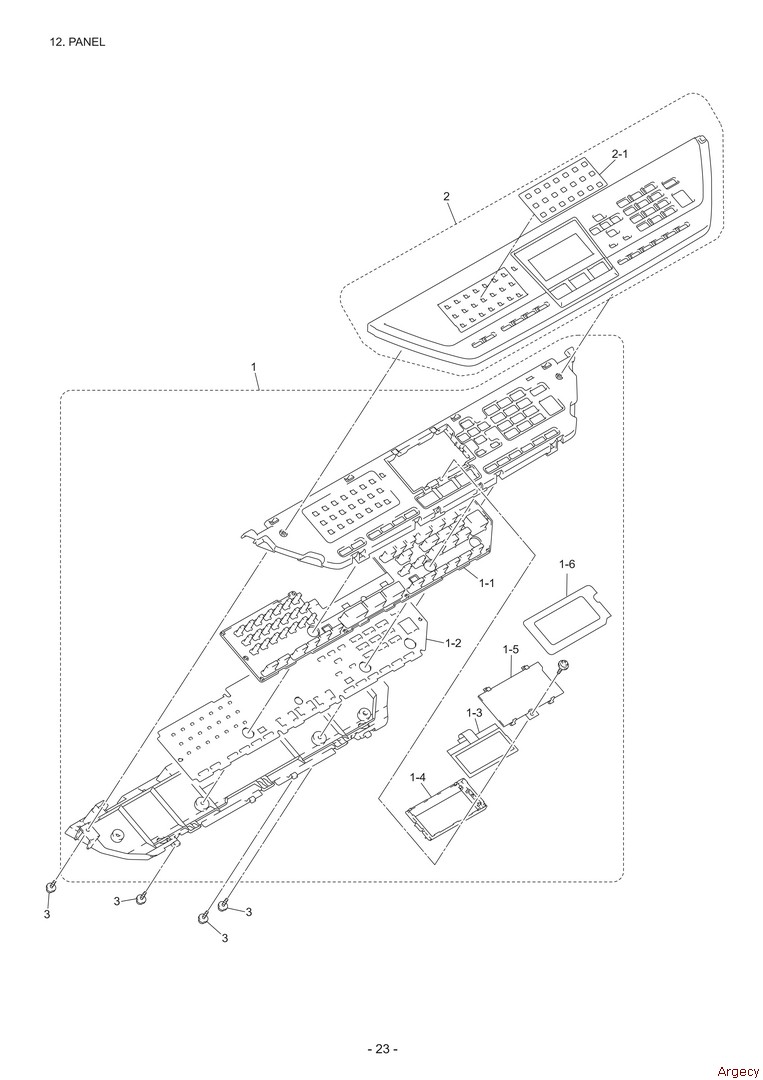

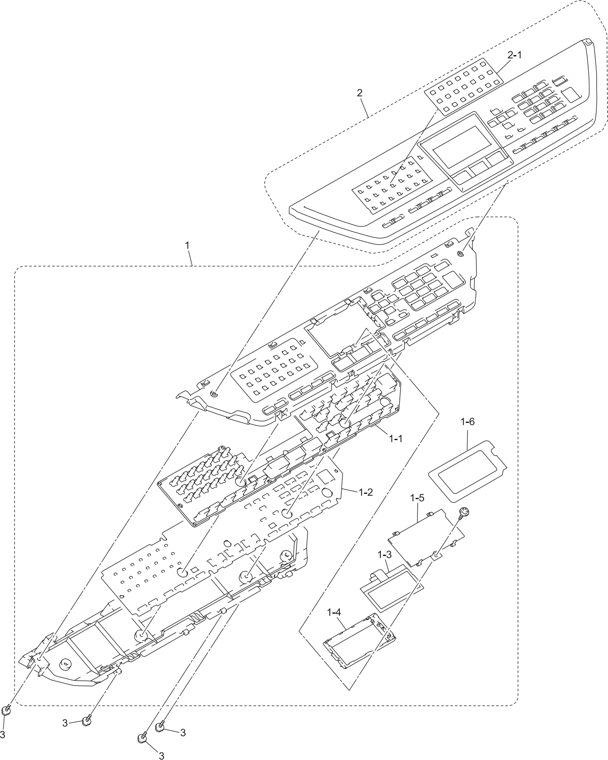

LIST12(PANEL)
Y DESCRIPTION RECOMMEND SYMBO L REMARKS
1 LS7312001 1 PANEL UNIT, DCP8080DN/DCP8085DN EXCEPT FOR CHN
1 LS7247001 1 PANEL UNIT,
MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8881DNHY/
MFC8890DW EXCEPT FOR CHN , MFC8880DN RUS TENDER
1 LX2064001 1 PANEL UNIT, DCP8085DN FOR CHN
1 LS7929001 1 PANEL UNIT, MFC8880DN FOR CHN
1 LS7313001 1 PRINTED RUBBER KEY, DCP8080DN/DCP8085DN1-
1 LS7272001 1 PRINTED RUBBER KEY,
MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
, MFC8880DN RUS TENDE R
2 LT069500 2 1 PANEL PCB ASSY, DCP8080DN/DCP8085DN EXCEPT FOR CH N B57T005
2 LT0695001 1 PANEL PCB ASSY, MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW EXCEPT FOR CHN,MFC8880DN RUS TENDERB53K852
1-2 LT096400
2 1 PANEL PCB ASSY, DCP8085DN FOR CHN B57T001 ADD
2 LT0964001 1 PANEL PCB ASSY, MFC8880DN FOR CH N B57T001
3 A62006001 1 LCD EXCEPT FOR CHN
3 A62027001 1 LCD FOR CHN
4 LG6550001 1 BACK LIGHT MODULE
5 LF9709001 1 LCD COVER1-
6 LX2082001 1 PANEL INSULATION SHEET add
2 LS7309001 1 PANEL COVER ASSY, DCP8080DN FOR US/CAN
2 LS7608001 1 PANEL COVER ASSY,
DCP8085DN FOR US/UK/FRA/BEL/NLD/ARL/NZ/ PND/EEU
(ENGLISH )
2 LS7316001 1 PANEL COVER ASSY, MFC8480DN FOR US/CAN
2 LX2013001 1 PANEL COVER ASSY, MFC8680DN FOR U
S
2 LX2701001 1 PANEL COVER ASSY, MFC8690DW FOR US
2 LS7248001 1 PANEL COVER ASSY, MFC8890DW FOR US/CAN/ARL/NZ
2 LS7674001 1 PANEL COVER ASSY, DCP8085DN FOR GER/CHE
2 LS7667001 1 PANEL COVER ASSY, MFC8880DN FOR GER/CHE/AU
S
2 LS7679001 1 PANEL COVER ASSY, MFC8890DW FOR GER/CHE/AUS
2 LS7563001 1 PANEL COVER ASSY,
MFC8880DN FOR UK/FRA/BEL/NLD/GUL/EEU
(ENGLISH )
2 LS7640001 1 PANEL COVER ASSY, MFC8890DW FOR UK/FRA/BEL/NLD (ENGLISH )
2 LS7609001 1 PANEL COVER ASSY, DCP8085DN FOR FRA/BEL/NLD/CHE (FRENCH )
2 LS7564001 1 PANEL COVER ASSY, MFC8880DN FOR FRA/BEL/NLD/CHE (FRENCH )
2 LS7641001 1 PANEL COVER ASSY, MFC8890DW FOR FRA/BEL/NLD/CHE (FRENCH )
2 LS7610001 1 PANEL COVER ASSY, DCP8085DN FOR FRA/BEL/NLD (DUTCH )
2 LS7565001 1 PANEL COVER ASSY, MFC8880DN FOR FRA/BEL/NLD (DUTCH )
2 LS7642001 1 PANEL COVER ASSY, MFC8890DW FOR FRA/BEL/NLD (DUTCH )
2 LS7604001 1 PANEL COVER ASSY, DCP8085DN FOR IT A
2 LS7558001 1 PANEL COVER ASSY, MFC8880DN FOR IT A
2 LX2211001 1 PANEL COVER ASSY, MFC8881DNHY FOR IT A
2 LS7638001 1 PANEL COVER ASSY, MFC8890DW FOR ITA
2 LX2026001 1 PANEL COVER ASSY, DCP8085DN FOR CHN
2 LS7920001 1 PANEL COVER ASSY, MFC8880DN FOR CHN
2 LS7994001 1 PANEL COVER ASSY, MFC8880DN FOR PHL/ASA/IND/ARL/N
Z
2 LS7939001 1 PANEL COVER ASSY, DCP8085DN FOR TU R
2 LS7981001 1 PANEL COVER ASSY, MFC8880DN FOR TU R
2 LS7930001 1 PANEL COVER ASSY, DCP8080DN FOR ARG
2 LS7952001 1 PANEL COVER ASSY, MFC8480DN FOR ARG/CH
L
2 LX2008001 1 PANEL COVER ASSY, MFC8890DW FOR ARG/CHL
2 LS7983001 1 PANEL COVER ASSY, MFC8880DN FOR PO
L
2 LX2084001 1 PANEL COVER ASSY, DCP8080DN FOR BR A
2 LX2074001 1 PANEL COVER ASSY, DCP8085DN FOR BR A
2 LX2077001 1 PANEL COVER ASSY, MFC8480DN FOR BR A
2 LX2080001 1 PANEL COVER ASSY, MFC8890DW FOR BR A
2 LX2054001 1 PANEL COVER ASSY, MFC8880DN FOR KO R
2 LS7943001 1 PANEL COVER ASSY, DCP8085DN FOR RUS
2 LS7990001 1 PANEL COVER ASSY, MFC8880DN FOR RUS, MFC8880DN RUS TENDE
R
2 LS7664001 1 PANEL COVER ASSY, MFC8880DN FOR PN D
2 LS7682001 1 PANEL COVER ASSY, MFC8890DW FOR PND
2 LS7614001 1 PANEL COVER ASSY, DCP8085DN FOR ARG/CHL/IBR
(SPANISH )
2 LS7566001 1 PANEL COVER ASSY, MFC8880DN FOR IBR (SPANISH )
2 LS7645001 1 PANEL COVER ASSY, MFC8890DW FOR IBR (SPANISH )
2 LS7615001 1 PANEL COVER ASSY, DCP8085DN FOR IBR (PORTUGUESE )
2 LS7567001 1 PANEL COVER ASSY, MFC8880DN FOR IBR (PORTUGUESE )
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 24 -
LIST12(PANEL)
Y DESCRIPTION RECOMMEND SYMBO L REMARKS
2 LS7646001 1 PANEL COVER ASSY, MFC8890DW FOR IBR (PORTUGUESE )
2 LX2051001 1 PANEL COVER ASSY, DCP8085DN FOR EEU
1 LF9717002 1 ADDRESS LABEL, MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW EXCEPT FOR CHN,
MFC8880DN RUS TENDER
1 LP263700 3 1 ADDRESS LABEL, MFC8880DN FOR CHN
1 LP218900 2 1 ADDRESS LABEL, MFC8880DN/MFC8890DW FOR IB R
3 08741121 6 4 TAPTITE CUP B M4X12
8C5D11/8C5D16/8C5D41/8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 25 -Diagram placeholder13. PCB

- 26 -1
5
3246555

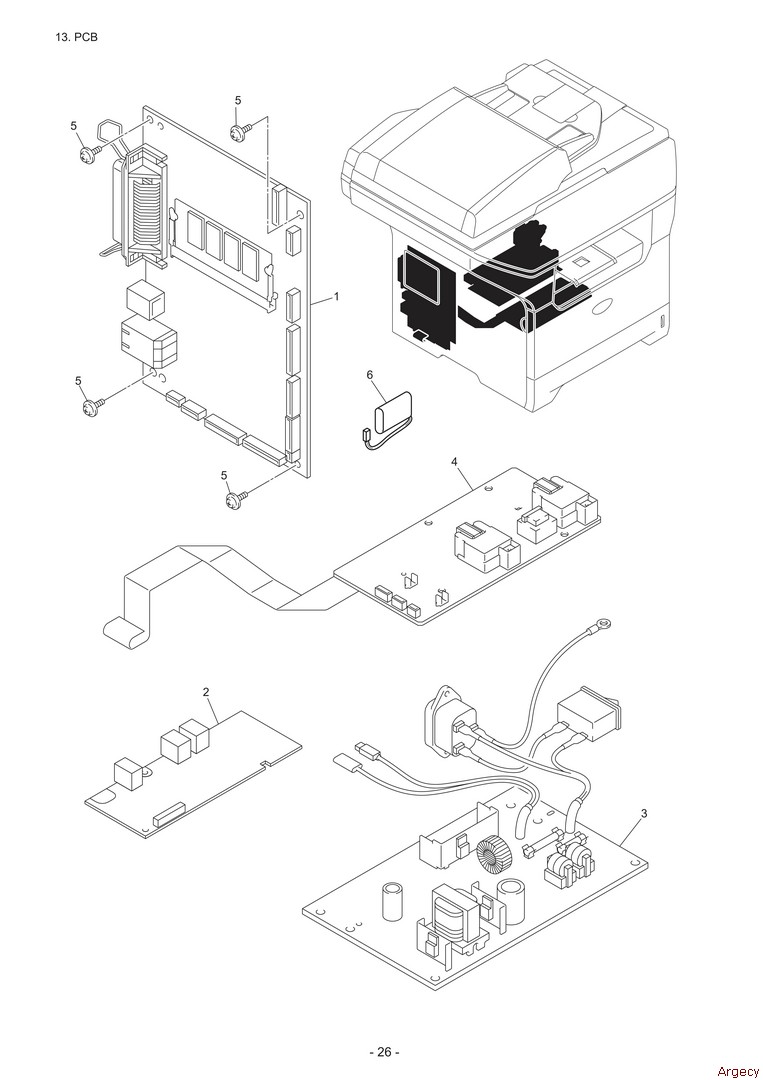

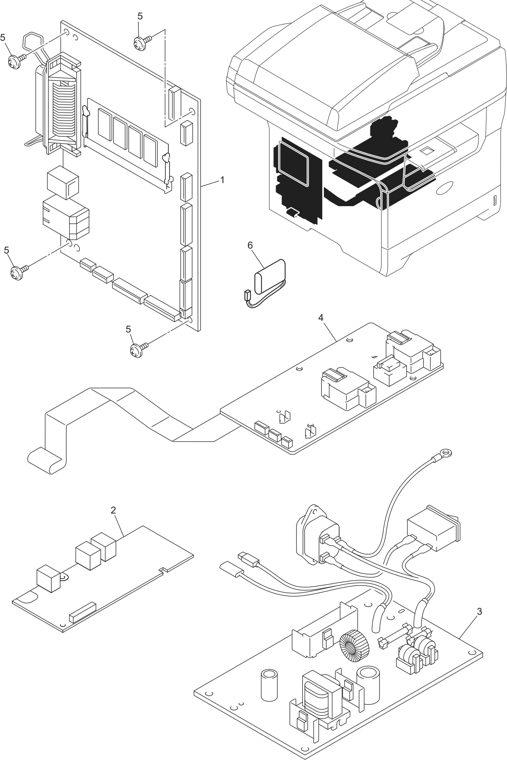

LIST13(PCB)
Y DESCRIPTION RECOMMEND SYMBO LREMARKS
1 LT0755001 1 MAIN PCB ASSY, DCP8080DN  B53K992
1 LT0839001 1 MAIN PCB ASSY, DCP8085DN EXCEPT FOR CHN  B53K992
1 LT0754001 1 MAIN PCB ASSY, MFC8480DN FOR US/CAN  B53K992
1 LT0753001 1 MAIN PCB ASSY, MFC8680DN  B53K992
1 LT0753004 1 MAIN PCB ASSY, MFC8880DN/MFC8881DNHY EXCEPT FOR CHN,
MFC8880DN RUS TENDER B53K992
1 LT0673001 1 MAIN PCB ASSY, MFC8690DW/MFC8890DW FOR US/CAN  B53K992
1 LT0754004 1 MAIN PCB ASSY, MFC8480DN FOR ARG/CHL/BRA  B53K992
1 LT0673004 1 MAIN PCB ASSY, MFC8890DW EXCEPT FOR US/CAN  B53K992
1 LT0839020 1 MAIN PCB ASSY, DCP8085DN FOR CHN  B53K992
1 LT0753020 1 MAIN PCB ASSY, MFC8880DN FOR CHN  B53K992
2 LT0867001 1 NCU PCB ASSY,
MFC8480DN/MFC8680DN/MFC8690DW/MFC8890DW FOR US B57T013 CHG
2 LT0867003 1 NCU PCB ASSY, MFC8480DN/MFC8890DW FOR CAN  B57T013 CHG
2 LG5923054 1 NCU PCB ASSY, MFC8880DN/MFC8890DW FOR GER/AUS/POL/EEU  B53K786
2 LG5923065 1 NCU PCB ASSY, MFC8880DN/MFC8881DNHY/MFC8890DW FOR
UK/FRA/BEL/NLD/ITA/TUR/RUS/PND/IBR, MFC8880DN RUS TENDER B53K786
2 LG5923056 1 NCU PCB ASSY, MFC8880DN/MFC8890DW FOR CHE  B53K786
2 LG6190005 1 NCU PCB ASSY, MFC8480DN/MFC8890CW FOR ARG/CHL,
MFC8880DN FOR CHN/PHL/ASA/IND B53K786
2 LG6872003 1 NCU PCB ASSY, MFC8880DN FOR GUL  B53K896
2 LG6190006 1 NCU PCB ASSY, MFC8480DN/8890DW FOR BRA  B53K786
2 LG6190009 1 NCU PCB ASSY, MFC8880DN FOR KOR  B53K786
2 LG6198003 1 NCU PCB ASSY, MFC8880DN/MFC8890CW FOR ARL/NZ  B53K786
3 LV0292001 1 PS PCB UNIT, DCP8080DN/DCP8085DN/MFC8480DN/MFC8680DN/
MFC8690DW/MFC8890DW FOR US/CAN/BRA
3 LV0328001 1 PS PCB UNIT, DCP8080DN/DCP8085DN/MFC8480DN/MFC8880DN/
MFC8881DNHY/MFC8890DW FOR GER/UK/FRA/BEL/NLD/CHE/AUS/
ITA/PHL/TUR/ ARG/CHL/POL/ASA/GUL/ARL/NZ/PND/IBR/EEU
3 LU7519001 1 PS PCB UNIT, DCP8085DN/MFC8880DN FOR CHN/IND/RUS,
MFC8880DN RUS TENDER
3 LV0437001 1 PS PCB UNIT, MFC8880DN FOR KOR
4 LJ9978001 1 HIGH-VOLTAGE PS PCB ASSY
5 LM5867001 4 TAPTITE CUP S M3X6 SR
6 LG5921001 1 BATTERY ASSY
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 27 -Diagram placeholder14. ACCESSORIES

- 28 -12
3
45 67 8
109
1112

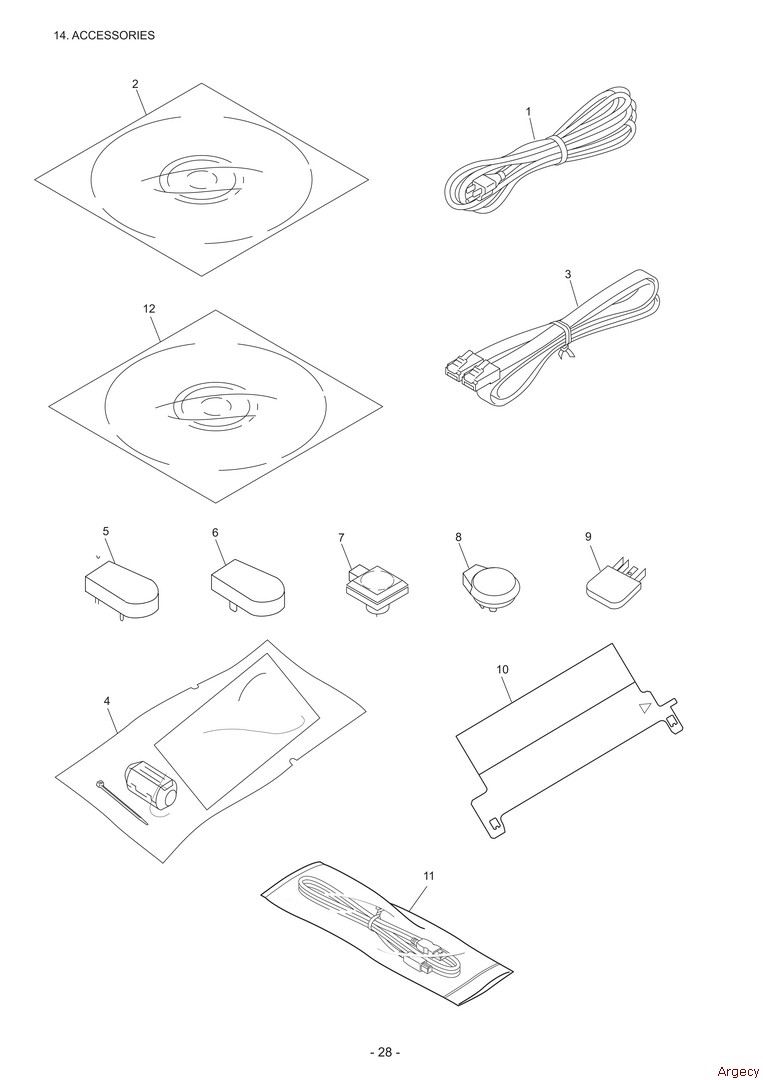

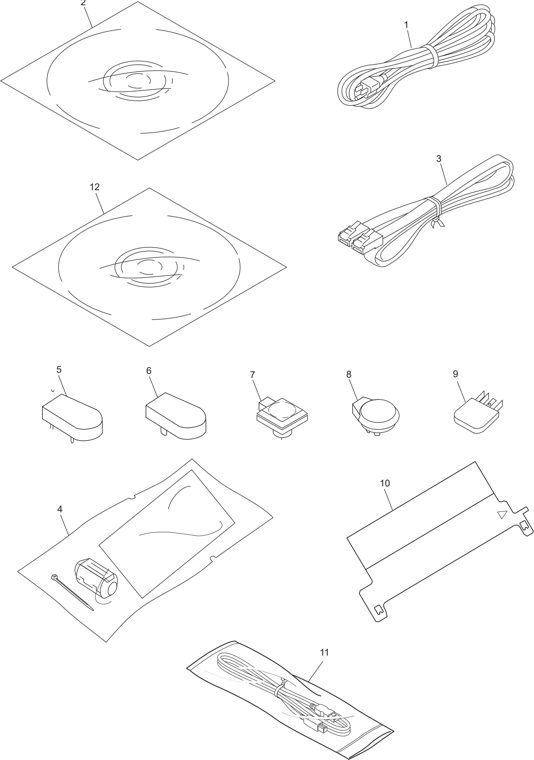

LIST14(ACCESSORIES)
1 LG4400001 1 AC CORD BAG ASSY LF UL/CSA, DCP8080DN/DCP8085DN/MFC8480DN/ MFC8680DN
FOR US/CAN
1 LV0421001 1 AC CORD BAG ASSY LF UL/CSA, MFC8690DW/MFC8890DW FOR US/CAN
1 LV0364001 1 AC CORD BAG ASSY LF VDE, DCP8085DN/MFC8880DN/MFC8881DNHY/
MFC8890DW FOR GER/ FRA/BEL/NLD/AUS/ITA/PHL/TUR/POL/ASA/GUL/RUS/
PND/IBR/EEU , DCP-8085DN FOR ARL/NZ , MFC8880DN RUS TENDE Rchg
1 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S,
DCP8085DN/MFC8880DN/MFC8890DW FOR UK/ASA/GUL,DCP-8085DN FOR ARL/N
Zchg
1 LT2259001 1 AC CORD BAG ASSY LF SEV, DCP8085DN/MFC8880DN/MFC8890DW FOR CHE chg
1 LV1093001 1 AC CORD BAG ASSY LF CHN S, DCP8085DN/MFC8880DN FOR CHN chg
1 LT0925001 1 AC CORD BAG ASSY LF IRAM,
DCP8080DN/DCP8085DN/MFC8480DN/MFC8890DW FOR AR
G
1 LG6207001 1 AC CORD BAG ASSY LF CHILE, DCP8085DN/MFC8480DN/MFC8890DW FOR CHL
1 LG6404001 1 AC CORD BAG ASSY LF SAF, MFC8880DN FOR GUL
1 LT2346001 1 AC CORD BAG ASSY LF BRA,
DCP8080DN/DCP8085DN/MFC8480DN/MFC8890DW FOR BR
Achg
1 LT0935001 1 AC CORD BAG ASSY LF KOR, MFC8880DN FOR KOR CHG
1 LT0613001 1 AC CORD BAG ASSY LF IND, MFC8880DN FOR IND
1 LV0366001 1 AC CORD BAG ASSY LF SAA S,
DCP8085DN/MFC8880DN/MFC8890DW FOR ARL/N
Zchg
1 LG4720001 1 AC CORD BAG ASSY LF DEMKO,
DCP8085DN/MFC8880DN/MFC8890DW FOR PND
2 LX2286001 1 CD-ROM ASSY, DCP8080DN FOR US/CAN/ARG/BRA (Windows/Macintosh) chg
2 LS7421001 1 CD-ROM ASSY,
DCP8080DN/DCP8085DN
/MFC8480DN FOR US/CAN/ARG/CHL/BRA (Macintosh )
2 LX2287001 1 CD-ROM ASSY, DCP8085DN FOR US/ARG/CHL/BRA (Windows/Macintosh) chg
2 LS7333001 1 CD-ROM ASSY, MFC8480DN FOR US/CAN/ARG/CHL/BRA (Windows)
2 LS7998001 1 CD-ROM ASSY, MFC8680DN FOR US (Windows)
2 LS7999001 1 CD-ROM ASSY, MFC8680DN FOR US (Macintosh)
2 LX2699001 1 CD-ROM ASSY, MFC8690DW FOR US (Windows/Macintosh)
2 LS7332001 1 CD-ROM ASSY, MFC8890DW FOR US/CAN/ARG/CHL/BRA (Windows)
2 LS7423001 1 CD-ROM ASSY, MFC8890DW FOR US/CAN/ARG/CHL/BRA (Macintosh)
2 LX2288001 1 CD-ROM ASSY, DCP8085DN FOR GER/UK/CHE/ARL/NZ (Windows/Macintosh) chg
2
LS7509001 1 CD-ROM ASSY,
DCP8085DN FOR GER/UK/FRA/BEL/NLD/CHE/ITA/ARL/NZ/IBR (Macintosh )del
2 LS7344001 1 CD-ROM ASSY, MFC8880DN FOR GER/UK/CHE/AUS/PHL/ASA/GUL/KOR/IND/ARL/NZ
(Windows )
2 LS7505001 1 CD-ROM ASSY, MFC8880DN/MFC8881DNHY FOR GER/UK/FRA/BEL/NLD/CHE/
AUS/ITA/PHL/ASA/GUL/KOR/ARL/NZ/IBR (Macintosh )
2 LS7337001 1 CD-ROM ASSY, MFC8890DW FOR GER/UK/CHE/AUS/ARL/NZ (Windows)
2 LS7502001 1 CD-ROM ASSY,
MFC8890DW FOR GER/UK/FRA/BEL/NLD/CHE/AUS/ITA/ARL/NZ /IBR
(Macintosh )
2 LX2290001 1 CD-ROM ASSY, DCP8085DN FOR FRA/BEL/NLD (Windows/Macintosh) chg
2 LS7346001 1 CD-ROM ASSY, MFC8880DN FOR FRA/BEL/NLD (Windows)
2 LS7339001 1 CD-ROM ASSY, MFC8890DW FOR FRA/BEL/NLD (Windows)
2 LX2289001 1 CD-ROM ASSY, DCP8085DN FOR CHE/ITA/IBR (Windows/Macintosh) chg
2 LS7345001 1 CD-ROM ASSY, MFC8880DN/MFC8881DNHY FOR ITA/IBR (Windows)
2 LS7338001 1 CD-ROM ASSY, MFC8890DW FOR ITA/IBR (Windows)
2 LX2296001 1 CD-ROM ASSY, DCP8085DN FOR CHN (Windows/Macintosh) chg
2 LS7381001 1 CD-ROM ASSY, MFC8880DN FOR CHN (Windows)
2 LS7955001 1 CD-ROM ASSY, DCP8085DN/
MFC8880DN FOR CHN (Macintosh)
2 LX2295001 1 CD-ROM ASSY, DCP8085DN FOR TUR/RUS (Windows/Macintosh) chg
2 LS7350001 1 CD-ROM ASSY, MFC8880DN FOR TUR/RUS, MFC8880DN RUS TENDER (Windows)2
LS7511001 1 CD-ROM ASSY, DCP8085DN FOR GER/UK/FRA/BEL/NLD/CHE/ITA/TUR/RUS/
ARL/NZ/PND/IBR/EEU (Macintosh )del
2 LS7507001 1 CD-ROM ASSY, MFC8880DN FOR TUR/POL/IND/RUS/EEU,
MFC8880DN RUS TENDER (Macintosh )
2 LS7348001 1 CD-ROM ASSY,
MFC8880DN FOR POL/EEU (Windows ) [CZECH/HUNGARIAN/ POLISH/ENGLISH ]
2 LX2291001 1 CD-ROM ASSY, DCP8085DN FOR PND (Windows/Macintosh) chg
2 LS7347001 1 CD-ROM ASSY, MFC8880DN FOR PND (Windows)
2 LS7340001 1 CD-ROM ASSY, MFC8890DW FOR PND (Windows)2
LS7510001 1 CD-ROM ASSY, DCP8085DN FOR PND (Macintosh) del
2 LS7506001 1 CD-ROM ASSY, MFC8880DN FOR PND (Macintosh)
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 29 -
LIST14(ACCESSORIES)
2 LS7503001 1 CD-ROM ASSY, MFC8890DW FOR PND (Macintosh)
2 LX2293001 1 CD-ROM ASSY, DCP8085DN FOR EEU (Windows/Macintosh)
[CZECH/HUNGARIAN/POLISH/ENGLISH ]chg
2 LS7356001 1 CD-ROM ASSY, DCP8085DN FOR EEU (Windows)
[BULGARIAN/ROMANIAN/ SLOVAK/GERMAN ]
2 LS7349001 1 CD-ROM ASSY, MFC8880DN FOR EEU (Windows)
[BULGARIAN/ROMANIAN/ SLOVAK/GERMAN ]
3 LG3077001 1 TELEPHONE LINE CORD,
MFC8480DN/MFC8680DN/MFC8690DW/MFC8880DN/MFC8890DW FOR
US/CAN/UK/FRA/BEL/NLD/CHN/PHL/TUR/ARG/CHL/POL/ASA/GUL/BRA/KOR/
IND/RUS/ARL/NZ/IBR/EEU , MFC8880DN RUS TENDE R
3 LT3878001 1 TELEPHONE LINE CORD KOR, MFC8880DN FOR KOR add
3 UG3625001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR GER
3 LG7179001 1 TELEPHONE LINE CORD UK6P, MFC8880DN/MFC8890DW FOR UK
3 UG3627001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR FRA/NLD
3 UG1575001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR BEL
3 LG7202001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR CHE
3 UG4205001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR AUS
3 UG3634001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8881DNHY/MFC8890DW FOR IT A
3 UG3290001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR ARL/NZ
3 LG5827001 1 TELEPHONE LINE CORD, MFC8880DN/MFC8890DW FOR PND
4 LS7734001 1 FERRITE CORE BAG ASSY, DCP8085DN/MFC8880DN/MFC8890DW FOR GER/
UK/FRA/BEL/NLD/CHE/AUS/ITA/PHL/TUR/CHL/POL/ASA/GUL/IND/ARL/NZ/PND/
IBR/EEU , MFC8890DW FOR ARG , MFC8881DNH Y
5 LG3622001 1 TELEPHONE PLUG DUT, MFC8880DN/MFC8890DW FOR NLD
6 LG5828001 1 TELEPHONE PLUG DEN, MFC8880DN/MFC8890DW FOR PND
7 LG5829001 1 TELEPHONE PLUG FIN, MFC8880DN/MFC8890DW FOR PND
8 LG5830001 1 TELEPHONE PLUG SWE, MFC8880DN/MFC8890DW FOR PND
9 LG6573001 1 TELEPHONE PLUG ARL, MFC8880DN/MFC8890DW FOR ARL/NZ
10 LU7653001 1 DRUM CLEANING SHEET KIT add
11 LJ9803001 1 USB CABLE EXCEPT FOR KOR
11 LV1518001 1 USB CABLE FOR KOR add
12 LX2235001 1 CD-ROM ASSY,
DCP8080DN/DCP8085DN/MFC8480DN/MFC8680DN/MFC8690DW/MFC8890DW
FOR US/CAN/ARG/CHL/BRA (Windows7 )add
12 LX2236001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN/MFC8890DW
FOR GER/UK/CHE/AUS/ PHL/ASA/GUL/KOR/IND/ARL/NZ (Windows7 )add
12 LX2237001 1 CD-ROM ASSY,
DCP8085DN/MFC8880DN/MFC8881DNHY/MFC8890DWFOR CHE/ITA/IBR
(Windows7 )add
12 LX2243001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN FOR CHN (Windows7 ) add
12 LX2242001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN FOR TUR/RUS,
MFC8880DN RUS TENDER (Windows7 ) add
12 LX2240001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN FOR POL/EEU (Windows7 ) add
12 LX2238001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN/MFC8890DW
FOR FRA/BEL/NLD (Windows7 )add
12 LX2239001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN/MFC8890DW FOR PND (Windows7 ) add
12 LX2241001 1 CD-ROM ASSY, DCP8085DN/MFC8880DN FOR EEU (Windows7 ) add
8C5D11/8C5D16/8C5D41/8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 30 -Diagram placeholder15. PRINTED MATERIALS

- 31 -1
2
LIST15(PRINTED MATERIALS)
1 LS7435001 1 USER'S GUIDE, DCP8080DN/DCP8085DN FOR US/CAN
1 LS7435002 1 USER'S GUIDE, DCP8080DN FOR CAN (FRENCH)
1 LX2704001 1 USER'S GUIDE,
MFC8480DN/MFC8680DN/MFC8690DW/MFC8890DW FOR US/CANCHG
1 LS7438002 1 USER'S GUIDE, MFC8480DN/MFC8890DW FOR CAN (FRENCH)
1 LS7548003 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR GER/CHE/AUS
1 LS7548004 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR UK
1 LS7548005 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR FRA/BEL/NLD/CHE
(FRENCH )
1 LS7548009 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR FRA/BEL/NLD (DUTCH)
1 LS7548016 1 USER'S GUIDE, MFC8880DN/MFC8881DNHY/MFC8890DW FOR CHE/ITA
(ITALIAN )
1 LX2031020 1 USER'S GUIDE, DCP8085DN FOR CHN
1 LS7924020 1 USER'S GUIDE, MFC8880DN FOR CHN
1 LS7548056 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR PHL/ASA/IND/ARL/NZ
1 LS7941025 1 USER'S GUIDE, DCP8085DN FOR TUR
1 LS7548025 1 USER'S GUIDE, MFC8880DN FOR TUR
1 LS7435031 1 USER'S GUIDE, DCP8080DN/DCP8085DN FOR ARG/CHL
1 LS7438031 1 USER'S GUIDE, MFC8480DN/MFC8890DW FOR ARG/CHL
1 LS7548041 1 USER'S GUIDE, MFC8880DN FOR GUL
1 LS7435042 1 USER'S GUIDE, DCP8080DN/DCP8085DN FOR BRA
1 LS7438042 1 USER'S GUIDE, MFC8480DN/MFC8890DW FOR BRA
1 LS7548048 1 USER'S GUIDE, MFC8880DN FOR RUS, MFC8880DN RUS TENDER
1 LS7941056 1 USER'S GUIDE, DCP8085DN FOR ARL/NZ
1 LS7666007 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR PND
(NORWEGIAN/SWEDISH )
1 LS7666013 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR PND (DANISH/FINNISH)
1 LS7548015 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR IBR (SPANISH)
1 LS7548018 1 USER'S GUIDE, MFC8880DN/MFC8890DW FOR IBR (PORTUGUESE)
2 LS7417001 1 FRENCH SEAL, DCP8080DN FOR CAN
2 LS7418001 1 FRENCH SEAL, MFC8480DN/MFC8890DW FOR CAN
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 32 -

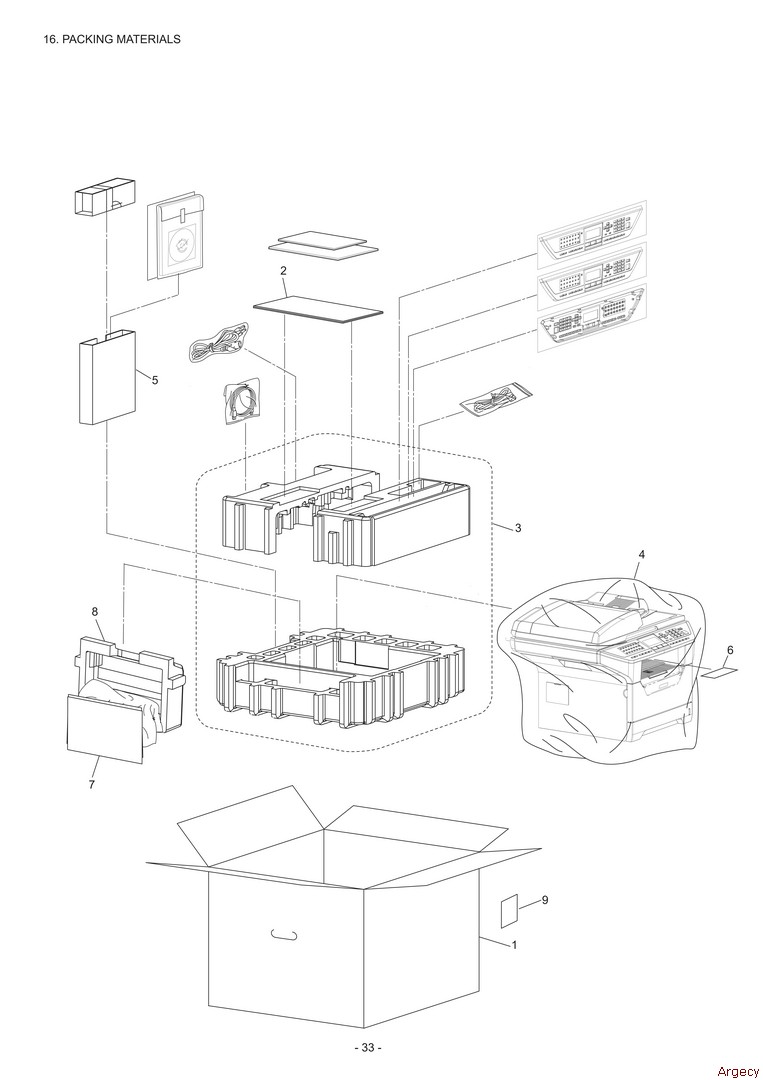

- 33 -16. PACKING MATERIALS
32
5
74
6
18
9
LIST16(PACKING MATERIALS)
1 LS7444001 1 CARTON BROTHER, DCP8080DN FOR US 
1 LS7453001 1 CARTON BROTHER, DCP8085DN FOR US 
1 LS7489001 1 CARTON BROTHER, MFC8480DN FOR US 
1 LX2017001 1 CARTON BROTHER, MFC8680DN FOR US 
1 LX2695001 1 CARTON BROTHER, MFC8690DW FOR US 
1 LS7480001 1 CARTON BROTHER, MFC8890DW FOR US 
1 LS7448001 1 CARTON BROTHER, DCP8080DN FOR CAN 
1 LS7494001 1 CARTON BROTHER, MFC8480DN FOR CAN 
1 LS7484001 1 CARTON BROTHER, MFC8890DW FOR CAN 
1 LS7587001 1 CARTON BROTHER, DCP8085DN FOR
GER/UK/FRA/BEL/NLD/CHE/ITA/RUS/PND/IBR/EEU
1 LS7549001 1 CARTON BROTHER, MFC8880DN FOR
GER/UK/FRA/BEL/NLD/CHE/AUS/ITA/POL/RUS/PND/IBR/EEU,
MFC8880DN RUS TENDER
1 LS7624001 1 CARTON BROTHER, MFC8890DW FOR
GER/UK/FRA/BEL/NLD/CHE/AUS/ITA/PND/IBR
1 LX2199001 1 CARTON BROTHER, MFC8881DNHY 
1 LS7906001 1 CARTON BROTHER, DCP8085DN FOR CHN 
1 LS7909001 1 CARTON BROTHER, MFC8880DN FOR CHN 
1 LX2501001 1 CARTON BROTHER, MFC8880DN FOR PHL/ASA/GUL  add
1 LS7883001 1 CARTON BROTHER, DCP8085DN FOR TUR 
1 LS7903001 1 CARTON BROTHER, MFC8880DN FOR TUR 
1 LS7835001 1 CARTON BROTHER, DCP8080DN FOR ARG 
1 LS7836001 1 CARTON BROTHER, DCP8085DN FOR ARG/CHL 
1 LS7834001 1 CARTON BROTHER, MFC8480DN FOR ARG/CHL 
1 LS7833001 1 CARTON BROTHER, MFC8890DW FOR ARG/CHL 
1 LS7530001 1 CARTON BROTHER, DCP8080DN FOR BRA 
1 LS7531001 1 CARTON BROTHER, DCP8085DN FOR BRA 
1 LS7533001 1 CARTON BROTHER, MFC8480DN FOR BRA 
1 LS7535001 1 CARTON BROTHER, MFC8890DW FOR BRA 
1 LX2826001 1 CARTON BROTHER, MFC8880DN FOR KOR  chg
1 LS7904001 1 CARTON BROTHER, MFC8880DN FOR IND 
1 LS7882001 1 CARTON BROTHER, DCP8085DN FOR ARL/NZ 
1 LS7902001 1 CARTON BROTHER, MFC8880DN FOR ARL/NZ 
1 LS7905001 1 CARTON BROTHER, MFC8890DW FOR ARL/NZ 
2 LS7449001 1 QUICK SETUP GUIDE, DCP8080DN/DCP8085DN FOR US/CAN (ENGLISH)
2 LX2021001 1 QUICK SETUP GUIDE, MFC8480DN/MFC8680DN FOR US/CAN (ENGLISH) chg
2 LX2702001 1 QUICK SETUP GUIDE, MFC8690DW/MFC8890DW FOR US/CAN (ENGLISH) chg
2 LS7449002 1 QUICK SETUP GUIDE, DCP8080DN FOR CAN (FRENCH)
2 LS7493002 1 QUICK SETUP GUIDE, MFC8480DN FOR CAN (FRENCH)
2 LS7450002 1 QUICK SETUP GUIDE, MFC8890DW FOR CAN (FRENCH)
2 LS7588003 1 QUICK SETUP GUIDE, DCP8085DN FOR GER/CHE
2 LS7550003 1 QUICK SETUP GUIDE, MFC8880DN FOR GER/CHE/AUS
2 LS7626003 1 QUICK SETUP GUIDE, MFC8890DW FOR GER/CHE/AUS
2 LS7588004 1 QUICK SETUP GUIDE, DCP8085DN FOR UK
2 LS7550004 1 QUICK SETUP GUIDE, MFC8880DN FOR UK
2 LS7626004 1 QUICK SETUP GUIDE, MFC8890DW FOR UK
2 LS7588005 1 QUICK SETUP GUIDE, DCP8085DN FOR FRA/BEL/NLD/CHE (FRENCH)
2 LS7550005 1 QUICK SETUP GUIDE, MFC8880DN FOR FRA/BEL/NLD/CHE (FRENCH)
2 LS7626005 1 QUICK SETUP GUIDE, MFC8890DW FOR FRA/BEL/NLD/CHE (FRENCH)
2 LS7588009 1 QUICK SETUP GUIDE, DCP8085DN FOR FRA/BEL/NLD (DUTCH)
2 LS7550009 1 QUICK SETUP GUIDE, MFC8880DN FOR FRA/BEL/NLD (DUTCH)
2 LS7626009 1 QUICK SETUP GUIDE, MFC8890DW FOR FRA/BEL/NLD (DUTCH)
2 LS7588016 1 QUICK SETUP GUIDE, DCP8085DN FOR CHE/ITA(ITALIAN)
2 LS7550016 1 QUICK SETUP GUIDE, MFC8880DN/MFC8881DNHY FOR CHE/ITA (ITALIAN)
2 LS7626016 1 QUICK SETUP GUIDE, MFC8890DW FOR CHE/ITA (ITALIAN)
2 LX2041020 1 QUICK SETUP GUIDE, DCP8085DN FOR CHN
2 LS7925020 1 QUICK SETUP GUIDE, MFC8880DN FOR CHN
2 LS7550045 1 QUICK SETUP GUIDE, MFC8880DN FOR PHL/ASA/IND/ARL/NZ
2 LS7588025 1 QUICK SETUP GUIDE, DCP8085DN FOR TUR
2 LS7550025 1 QUICK SETUP GUIDE, MFC8880DN FOR TUR
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 34 -
LIST16(PACKING MATERIALS)
2 LS7449031 1 QUICK SETUP GUIDE, DCP8080DN/DCP8085DN FOR ARG/CHL
2 LS7493031 1 QUICK SETUP GUIDE, MFC8480DN FOR ARG/CHL
2 LS7450031 1 QUICK SETUP GUIDE, MFC8890DW FOR ARG/CHL
2 LS7550039 1 QUICK SETUP GUIDE, MFC8880DN FOR POL
2 LS7550041 1 QUICK SETUP GUIDE, MFC8880DN FOR GUL
2 LS7449042 1 QUICK SETUP GUIDE, DCP8080DN/DCP8085DN FOR BRA
2 LS7493042 1 QUICK SETUP GUIDE, MFC8480DN FOR BRA
2 LS7450042 1 QUICK SETUP GUIDE, MFC8890DW FOR BRA
2 LS7588048 1 QUICK SETUP GUIDE, DCP8085DN FOR RUS
2 LS7550048 1 QUICK SETUP GUIDE, MFC8880DN FOR RUS, MFC8880DN RUS TENDER
2 LS7588056 1 QUICK SETUP GUIDE, DCP8085DN FOR ARL/NZ
2 LS7626056 1 QUICK SETUP GUIDE, MFC8890DW FOR ARL/NZ
2 LS7588007 1 QUICK SETUP GUIDE, DCP8085DN FOR PND (NORWEGIAN)
2 LS7588012 1 QUICK SETUP GUIDE, DCP8085DN FOR PND (FINNISH)
2 LS7588013 1 QUICK SETUP GUIDE, DCP8085DN FOR PND (DANISH)
2 LS7588026 1 QUICK SETUP GUIDE, DCP8085DN FOR PND (SWEDISH)
2 LS7550007 1 QUICK SETUP GUIDE, MFC8880DN FOR PND (NORWEGIAN)
2 LS7550012 1 QUICK SETUP GUIDE, MFC8880DN FOR PND (FINNISH)
2 LS7550013 1 QUICK SETUP GUIDE, MFC8880DN FOR PND (DANISH)
2 LS7550026 1 QUICK SETUP GUIDE, MFC8880DN FOR PND (SWEDISH)
2 LS7626007 1 QUICK SETUP GUIDE, MFC8890DW FOR PND (NORWEGIAN)
2 LS7626012 1 QUICK SETUP GUIDE, MFC8890DW FOR PND (FINNISH)
2 LS7626013 1 QUICK SETUP GUIDE, MFC8890DW FOR PND (DANISH)
2 LS7626026 1 QUICK SETUP GUIDE, MFC8890DW FOR PND (SWEDISH)
2 LS7588015 1 QUICK SETUP GUIDE, DCP8085DN FOR IBR (SPANISH)
2 LS7550015 1 QUICK SETUP GUIDE, MFC8880DN FOR IBR (SPANISH)
2 LS7626015 1 QUICK SETUP GUIDE, MFC8890DW FOR IBR (SPANISH)
2 LS7588018 1 QUICK SETUP GUIDE, DCP8085DN FOR IBR (PORTUGUESE)
2 LS7550018 1 QUICK SETUP GUIDE, MFC8880DN FOR IBR (PORTUGUESE)
2 LS7626018 1 QUICK SETUP GUIDE, MFC8890DW FOR IBR (PORTUGUESE)
2 LS7588037 1 QUICK SETUP GUIDE, DCP8085DN FOR EEU (CZECH/HUNGARIAN/POLISH)
2 LS7588059 1 QUICK SETUP GUIDE, DCP8085DN FOR EEU
(ENGLISH/BULGARIAN/ ROMANIAN/SLOVAK )
2 LS7550037 1 QUICK SETUP GUIDE, MFC8880DN FOR EEU (CZECH/HUNGARIAN/POLISH)
2 LS7550059 1 QUICK SETUP GUIDE, MFC8880DN FOR EEU
(ENGLISH/BULGARIAN/ ROMANIAN/SLOVAK )
3 LP2456001 1 POLYSTYRENE FORM PAD ASSY
4 UE1688001 1 PE BAG 1000X1000H
5 LF9725001 1 CARTON OPTION
6 LL0696001 1 SHEET 70X
1107 LX2368001 1 DRUM UNIT SPONGE ASSY chg
8 LP2460001 1 POLYSTYRENE FOAM PAD DRUM
9 LX2768001 1 CHINA ENERGY LABEL, DCP8085DN FOR CHN ADD
9 LX2770001 1 CHINA ENERGY LABEL, MFC8880DN FOR CHN ADD
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW

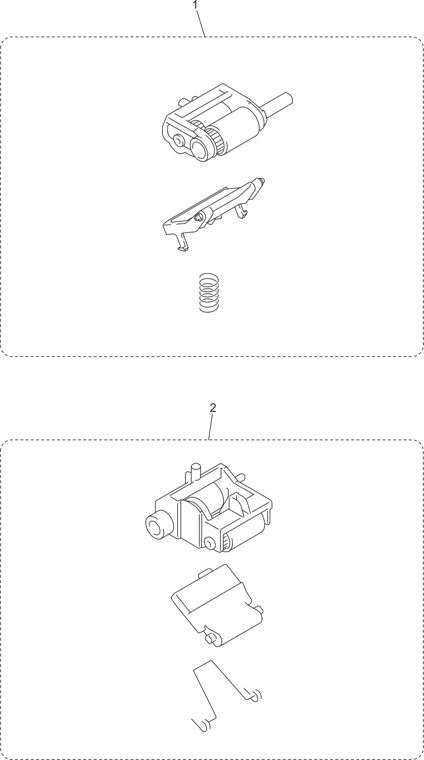

- 35 -Diagram placeholder17. OTHERS

- 36 -1
2
LIST17(OTHERS)
1 LU7338001 1 ROLLER HOLDER SP ASS Y
2 LU7339001 1 MP ROLLER HOLDER SP ASS Y
8C5D11/8C5D16/8C5D41/
8C5D51/8C5D56/8C5D57/8C5D61DCP8080DN/DCP8085DN/MFC8480DN/
MFC8680DN/MFC8690DW/MFC8880DN/
MFC8881DNHY/MFC8890DW
- 37 -
Diagram placeholder
