Brother DCP-1200 MFC9600 MFC9750 MFC9850 MFC9870 Parts

›Parts for Printers, MFPs, and Scanners›Brother Printer Parts





Please call for help. There are two sections, based on which model

List 1(MAIN FRAME) MFC9750, MFC9850, MFC9870
1 UL9311001 1 MAIN MOTOR ASSY
2 087320616 4 TAPTITE, CUP S M3X6
3 LJ4069001 1 SOLENOID
4 000300415 1 SCREW, BIND M3X4
5 UL8984001 1 FRONT COVER LINK
6 UL9099001 1 TONER SENSOR (LED) PCB
7 087320616 6 TAPTITE, CUP S M3X6
8 LE1166001 1 THERMISTOR FILM
9 LG2423001 1 IN CASING TEMPERATURE THERMISTOR
10 LJ4745001 1 FAN
11 UL9104001 1 TONER SENSOR (RECEIVER) PCB
12 LG2438001 1 PAPER EJECTION SENSOR PCB
13 087320616 2 TAPTITE, CUP S M3X6
14 UL8507001 4 RUBBER FOOT
15 LJ8031001 2ND CASSETTE RELAY PCB
16 085411215 5 TAPTITE, BIND B M4X12
17 UL8970001 1 SOLENOID RELEASE SPRING

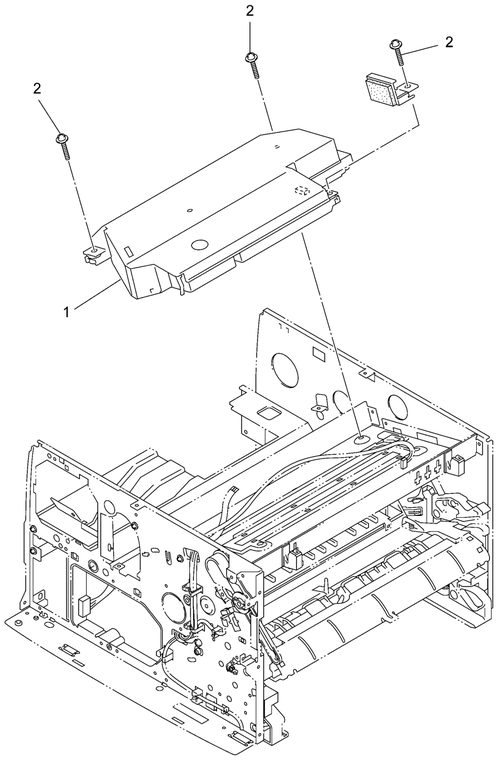

List 2(LASER UNIT) MFC9750, MFC9850, MFC9870
1 LJ4157001 1 LASER UNIT SUPPLY ASSY
2 087321615 3 TAPTITE, CUP S M3X16

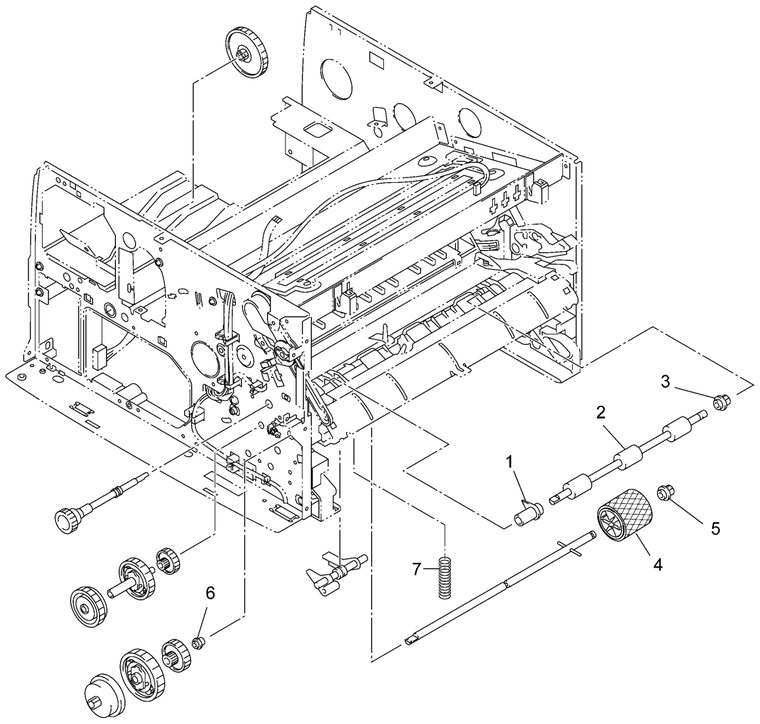

List 3(PAPER TRANSPORT) MFC9750, MFC9850, MFC9870
1 UL9059001 1 JOINT
2 UL9060001 1 PAPER FEED ROLLER ASSY
3 UL9062001 1 PAWLED BUSHING
4
UL9066001 Pickup Roller
New
UL9066001 (New)
$25.65

5 UL9062001 1 PAWLED BUSHING
6 UL9069001 1 CONDUCTIVE BUSHING
7 LJ4499001 1 ELECTRODE SPRING
8 LJ4843001 1 OUTER CHUTE 1 SUPPLY ASSY
List 4(PAPER CASSETTE) MFC9750, MFC9850, MFC9870
1 LJ4181001 1 PAPER CASSETTE, A4 SUPPLY ASSY
1-1 UL9078001 1 SIDE GUIDE L
1-2 UL9079001 1 SIDE GUIDE R
1-3 U73515001 2 SCREW, PAN CUP B M2.6X5
1-4 UL9083001 1 PAPER REAR GUIDE
1-5
UL9084001 Separation Pad - Cassette
New
UL9084001 (New)
$28.36

1-6 UL9090001 1 SEPARATION PAD SPRING MFC9750, MFC9850, MFC9870

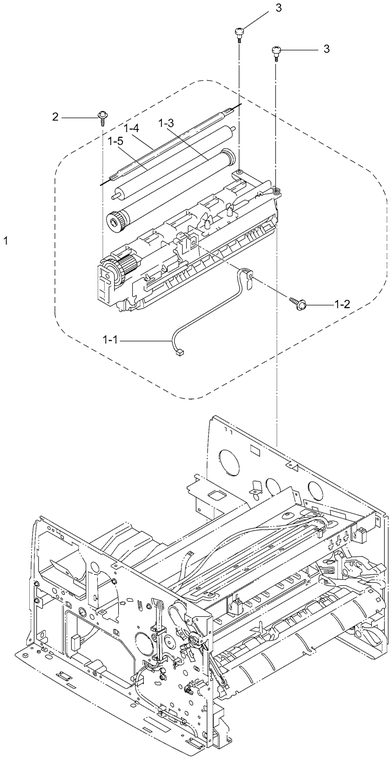

List 5(HEAT FIXING UNIT) MFC9750, MFC9850, MFC9870
1 LJ4168001 1 HEAT FIXING UNIT, 230V SUPPLY ASSY
1-1 UL8902001 1 THERMISTOR ASSY
1-2 087311215 1 TAPTITE, CUP B M3X12
1-3 LJ4169001 1 HEAT ROLLER SUPPLY ASSY
1-4 LJ4163001 1 FUSER LAMP, 230V SUPPLY ASSY
1-5 UL8918001 1 PRESSURE ROLLER
2 087320815 1 TAPTITE, CUP S M3X8
3 LJ4740001 2 SHOULDER SCREW MFC9750, MFC9850, MFC9870

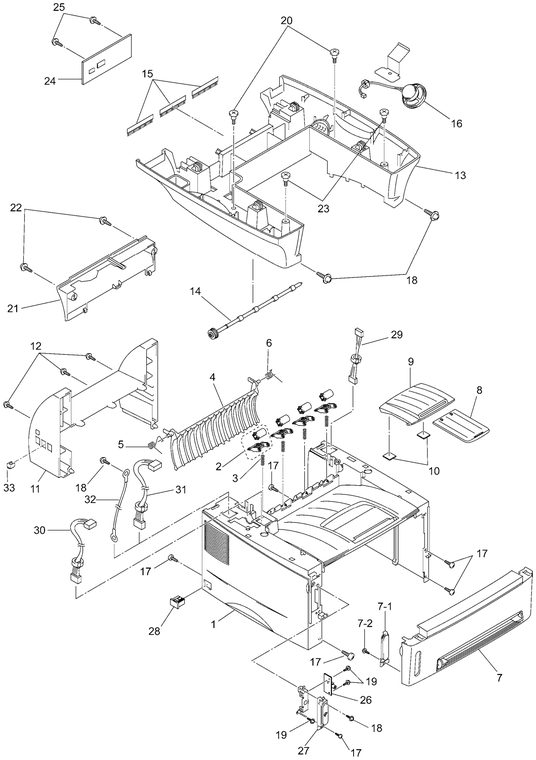

List 6(COVER) MFC9750, MFC9850, MFC9870
1 LJ4122001 1 MAIN COVER ASSY, WHITE(1495)
2 UL9122001 4 PINCH ROLLER ASSY
3 UL9125001 4 PINCH ROLLER SPRING
4
UL9126001 Outer Chute - Gray
Fully refurbished with 90-day warranty
UL9126001
$20.25

5 UL9127001 1 CHUTE SPRING L
6 UL9128001 1 CHUTE SPRING R
7 UU2102001 1 FRONT COVER ASSY, WHITE(1495)
7-1 UU2094001 1 FRONT SUB COVER, WHITE(1495)
7-2 087310815 1 TAPTITE, CUP B M3X8
8 LE1197001 1 PAPER SUB TRAY, WHITE(1495)
9 LE1198001 1 PAPER SUB TRAY COVER, WHITE(1495)
10 LE1291001 2 TRAY COVER ADHESIVE TAPE
11
UU2002001 Rear Cover - Gray
Fully refurbished with 90-day warranty
UU2002001
$29.71

12 0A5401006 3 SCREW, PAN (S / P WASHER) M4X10
13 LE1200001 1 SCANNER MOUNT, WHITE(1495)
14
UL9142001 Exit Roller
Fully refurbished with 90-day warranty
UL9142001
$31.05

15 LJ4125001 1 ANTI-STATIC BRUSH ZL
16 LG2425001 1 SPEAKER UNIT
17 085320816 6 TAPTITE, BIND S M3X8
18 087321015 4 TAPTITE, CUP S M3X10
19 --- NOT USED
20 UF9823001 2 SHOULDER SCREW
21 LE1202001 1 UPPER REAR COVER
22 087411216 2 TAPTITE, CUP B M4X12
23 LE1368001 2 SHOULDER SCREW BIND B M4X8
24 LE1523001 1 RELAY PCB SUPPLY ASSY
25 087311016 2 TAPTITE, CUP B M3X10
26 --- NOT USE
27 --- NOT USE
28 --- NOT USE
29 LG2221001 1 MAIN-RELAY(PANEL) HARNESS
30 LG2499001 1 MAIN-RELAY(CCD) HARNESS
31 LG2223001 1 MAIN-RELAY(MOTORS) HARNESS
32 LG2418001 1 CHASIS GROUNDING WIRE, MFC9850 / 9870
33 UF5745000 1 MJ COVER, EXT, MFC9850 / 9870 FOR GER / UK / FRA / BEL / NLD / DEN / AUT / ITA / SWE MFC9750, MFC9850, MFC9870

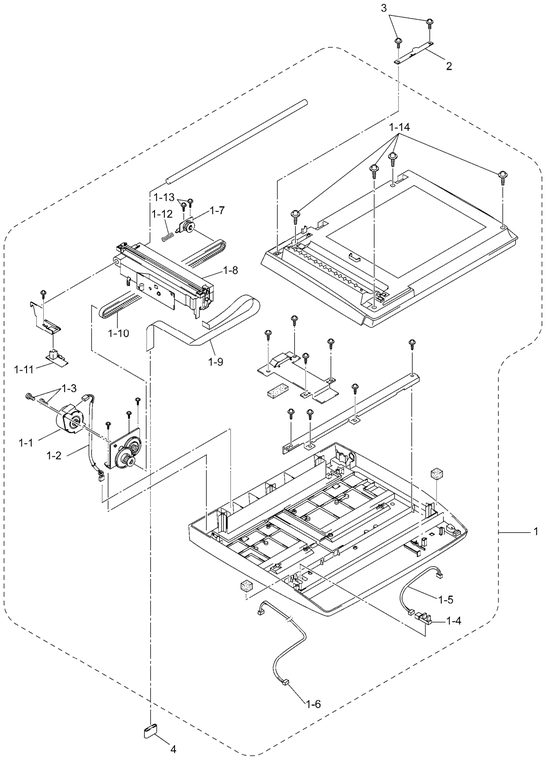

List 7(SCANNER UNIT) MFC9750, MFC9850, MFC9870
1 LE1524001 1 SCANNER UNIT SUPPLY ASSY
1-1 UU7490001 1 CCD MOTOR
1-2 LG2017001 1 CCD MOTOR HARNESS
1-3 0A4300605 2 SCREW, PAN (S / P WASHER) M3X6
1-4 LG2239001 1 CCD HP SENSOR
1-5 LG2019001 1 CCD HP SENSOR HARNESS
1-6 LG2025001 1 PANEL-MAIN HARNESS
1-7 LE2074001 1 CCD IDLE PULLEY HOLDER ASSY
1-8 LE1552001 1 CCD UNIT SUPPLY ASSY
1-9 LG2196001 1 CCD FLAT CABLE
1-10 LE2297001 1 CCD DRIVE BELT
1-11 LE2082001 1 CCD LOCK
1-12 LE2079001 1 COMPRESSION SPRING
1-13 LE2805001 2 TAPTITE, PAN B M3X10
1-14 087411216 4 TAPTITE, CUP B M4X12
2 LE2092001 1 HARNESS SUPPORT
3 087310816 2 TAPTITE, CUP B M3X8
4 LG2020001 1 FLAT CORE (CCD) MFC9750, MFC9850, MFC9870

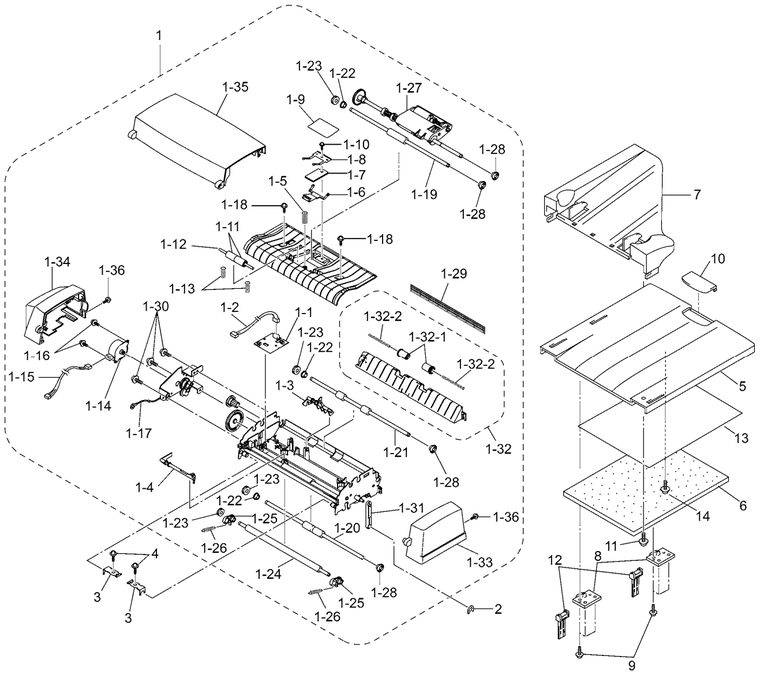

List 8(ADF&TRAY) MFC9750, MFC9850, MFC9870
1 LE1525001 1 ADF UNIT SUPPLY ASSY
1-1 UG6609001 1 DOCUMENT SENSOR PCB
1-2 LG2014001 1 DOCUMENT SENSOR HARNESS
1-3 UF7026001 1 DOCUMENT FRONT SENSOR ACTUATOR
1-4 LE2008001 1 DOCUMENT REAR SENSOR ACTUATOR
1-5 LE2011001 1 COMPRESSION SPRING
1-6 LE2551001 1 RUBBER HOLDER A
1-7
UU2055001 ADF Separation Pad
New
UU2055001 (New)
$25.65

1-8 LE1513001 1 SPRING PLATE A ASSY
1-9 LE2470001 1 ADF FILM
1-10 UF6116001 1 TAPTITE, PAN B M3X6
1-11 UF9009001 2 PRESSURE ROLLER
1-12 LE2471001 1 PRESSURE ROLLER SHAFT
1-13 LE2472001 2 PRESSURE ROLLER SPRING
1-14 LE1215001 1 ADF MOTOR
1-15 LG2201001 1 ADF MOTOR HARNESS
1-16 0A4300605 2 SCREW, PAN (S / P WASHER) M3X6
1-17 LG2016001 1 GROUNDING WIRE
1-18 087310815 2 TAPTITE, CUP B M3X8
1-19 LE2026001 1 UPPER LF ROLLER (GRAY)
1-20 LE2029001 1 LOWER LF ROLLER (BLACK)
1-21 LE2028001 1 DOCUMENT EJECTION ROLLER
1-22 UF8105001 3 CONDUCTIVE BUSHING
1-23 UU7039001 4 LF ROLLER GEAR 27
1-24 LE2030001 1 WHITE ROLLER
1-25 LE2032001 2 WHITE ROLLER BUSHING
1-26 LE2033001 2 EXTENSION SPRING
1-27
LE2919001 ADF Pickup Roller Assy
New
LE2919001 (New)
$66.16

1-27-1 LE2037001 2 DOCUMENT FEED ROLLER (RUBBER)
1-28 UU1290001 4 CONDUCTIVE BUSHING
1-29 UU7505001 1 ANTI-STATIC BRUSH
1-30 087320616 3 TAPTITE, CUP S M3X6
1-31 UF0208001 1 ADF ARM
1-32 LE2048001 1 DOCUMENT EJECTION CHUTE ASSY
1-32-1 LE2582001 2 PINCH ROLLER
1-32-2 UU2009001 2 PINCH ROLLER SPRING
1-33 LE2050001 1 ADF SIDE COVER F, WHITE(1495)
1-34 LE2051001 1 ADF SIDE COVER R, WHITE(1495)
1-35 LE2534001 1 ADF COVER ASSY, WHITE(1495)
1-36 087320816 2 TAPTITE, CUP S M3X8
2 UF8088001 1 PLASTIC RETAINING RING
3 LE2053001 2 ADF SUPPORT
4 087310816 2 TAPTITE, CUP B M3X8
5 LE2056001 1 DOCUMENT TRAY, WHITE(1495)
6 LE2487001 1 DOCUMENT SPONGE
7 LE2059001 1 DOCUMENT CHUTE, WHITE(1495)
8 LE2567001 2 HINGE A
9 087311015 6 TAPTITE, CUP B M3X10
10 LE2777001 1 DOCUMENT SUPPORT, WHITE(1495)
11 087320816 1 TAPTITE, CUP S M3X8
12 LE2568001 2 HINGE HOLDER A
13 LE1568001 1 DOCUMENT TRAY REINFORCEMENT PLATE
14 UF6116001 1 TAPTITE, PAN B M3X6

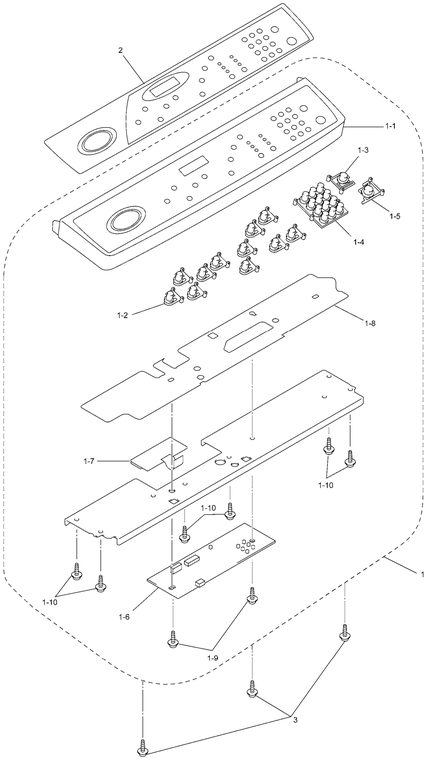

List 9(CONTROL PANEL MFC9750)
1 LE1686001 1CONTROL PANEL SUPPLY ASSY
1-1 LE1336001 1 CONTROL PANEL, WHITE(1495)
1-2 LJ4283001 8 KEY, FUNCTION, WHITE(1496)
1-3 LJ4231002 1 KEY, STOP, PINK(2205)
1-4 LJ4284001 1 KEY, TEN, WHITE(1495)
1-5 LJ4285001 1 KEY, START, GREEN(5159)
1-6 LE1577001 1 CONTROL PANEL PCB SUPPLY ASSY
1-7 UG4552000 1 LCD
1-8 LE1556001 1 FPC KEY SUPPLY ASSY
1-9 087270815 2 TAPTITE, CUP B M2.6X8
1-10 087310615 6 TAPTITE, CUP B M3X6
2 LE1483001 1 PANEL SHEET, MFC9750 FOR GER
2 LE1490001 1 PANEL SHEET, MFC9750 FOR UK / BEL / NLD / CHE
2 LE1493001 1 PANEL SHEET, MFC9750 FOR FRA
2 LE1494001 1 PANEL SHEET, MFC9750 FOR NOR
2 LE1501001 1 PANEL SHEET, MFC9750 FOR SPA
2 LE1499001 1 PANEL SHEET, MFC9750 FOR ITA
2 LE1503001 1 PANEL SHEET, MFC9750 FOR SWE
3 087310615 3 TAPTITE, CUP B M3X6 MFC9750

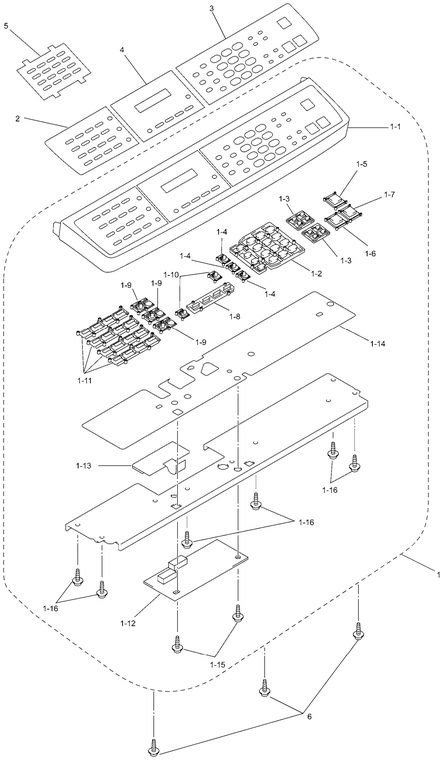

List 9 (CONTROL PANEL MFC9850 9870)
1 LE1611001 1 CONTROL PANEL SUPPLY ASSY, WHITE(1495)
1-1 LE2273001 1 CONTROL PANEL, WHITE(1495)
1-2 UF4393007 1 KEY, TEN, WHITE(1495)
1-3 LE2274001 2 KEY, COPY / FAX AREA, WHITE(1495)
1-4 LE1340001 3 KEY, SCANNER, WHITE(1495)
1-5 UF8174008 1 KEY, COPY, WHITE(1495)
1-6 UF8174010 1 KEY, STOP, PINK(2205)
1-7 UF8174011 1 KEY, START, PURPLE(6255)
1-8 UF8176009 1 KEY, FUNCTION4, GRAY(1509)
1-9 UF4576008 3 KEY, SHIFT, WHITE(1495)
1-10 UF4576010 2 KEY, SHIFT, GRAY(1509)
1-11 UF9118006 4 KEY, ONE TOUCH, WHITE(1495)
1-12 LG2138001 1 CONTROL PANEL PCB ASSY
1-13 UG4552000 1 LCD
1-14 LG2190001 1 FPC KEY ASSY
1-15 087270815 2 TAPTITE, CUP B M2.6X8
1-16 087310615 6 TAPTITE, CUP B M3X6
2 LE2508001 1 PANEL SHEET-1, MFC9850 / 9870 FOR GER / AUS
2 LE2514001 1 PANEL SHEET-1, MFC9850 / 9870 FOR FRA
2 LE2277001 1 PANEL SHEET-1, MFC9870 FOR UK / BEL / NLD / CHE / IRE
2 LE2811001 1 PANEL SHEET-1, MFC9870 FOR NOR
2 LE2814001 1 PANEL SHEET-1, MFC9870 FOR DEN
2 LE2817001 1 PANEL SHEET-1, MFC9870 FOR SPA
2 LE2820001 1 PANEL SHEET-1, MFC9870 FOR ITA
2 LE2823001 1 PANEL SHEET-1, MFC9870 FOR SWE
3 LE1391001 1 PANEL SHEET-2, MFC9850 / 9870 FOR GER / AUS
3 LE1404001 1 PANEL SHEET-2, MFC9850 / 9870 FOR FRA
3 LE1401001 1 PANEL SHEET-2, MFC9870 FOR UK / BEL / NLD / CHE / IRE
3 LE1421001 1 PANEL SHEET-2, MFC9870 FOR NOR
3 LE1428001 1 PANEL SHEET-2, MFC9870 FOR DEN
3 LE1432001 1 PANEL SHEET-2, MFC9870 FOR SPA
3 LE1436001 1 PANEL SHEET-2, MFC9870 FOR ITA
3 LE1439001 1 PANEL SHEET-2, MFC9870 FOR SWE
4 LE1558001 1 LCD SHEET MFC9850 FOR GER
4 LE1587001 1 LCD SHEET MFC9850 FOR FRA
4 LE1392001 1 LCD SHEET MFC9870 FOR GER / AUS
4 LE1402001 1 LCD SHEET MFC9870 FOR UK / BEL / NLD / CHE / IRE
4 LE1405001 1 LCD SHEET MFC9870 FOR FRA
4 LE1422001 1 LCD SHEET MFC9870 FOR NOR
4 LE1429001 1 LCD SHEET MFC9870 FOR DEN
4 LE1433001 1 LCD SHEET MFC9870 FOR SPA
4 LE1437001 1 LCD SHEET MFC9870 FOR ITA
4 LE1440001 1 LCD SHEET MFC9870 FOR SWE
5 LE1341001 1 ADDRESS LABEL
6 087310816 3 TAPTITE, CUP B M3xX8 MFC9850, MFC9870

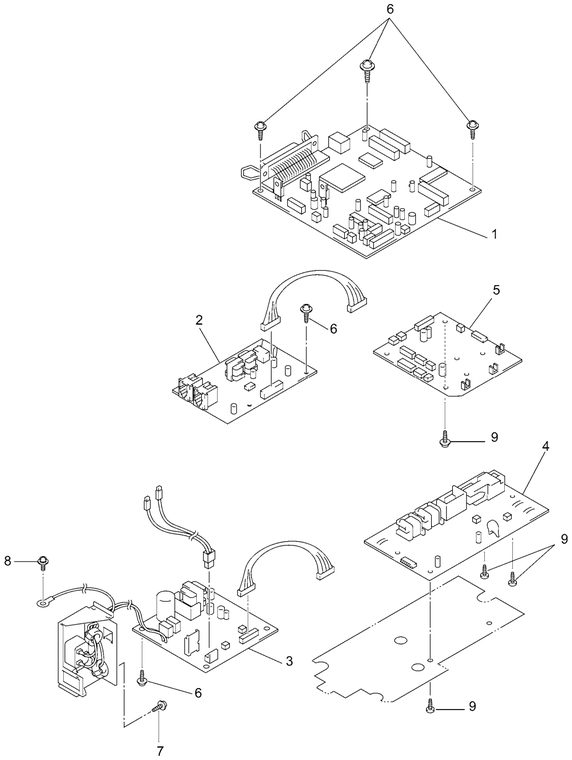

List 10 (PCB ASSY) MFC9750, MFC9850, MFC9870
1 LE1627011 1 MAIN PCB SUPPLY ASSY, MFC9870
1 LE1627012 1 MAIN PCB SUPPLY ASSY, MFC9850
1 LE1628001 1 MAIN PCB SUPPLY ASSY, MFC9750
2 LG2295001 1 NCU PCB ASSY, MFC9850 / 9870
3 LJ4175001 1 LOW VOLTAGE POWER SUPPLY PCB, 230V
4 LE1364001 1 HIGH VOLTAGE POWER SUPPLY PCB, SUPPLY ASSY
5 LE1365001 1 ENGINE PCB SUPPLY ASSY
6 087320616 5 TAPTITE, CUP S M3X6
7 084320815 1 SCREW, FLAT S M3X8
8 0A5350606 1 SCREW, PAN (WASHER) M3.5X6
9 085411215 4 TAPTITE, BIND B M4X12

Other models

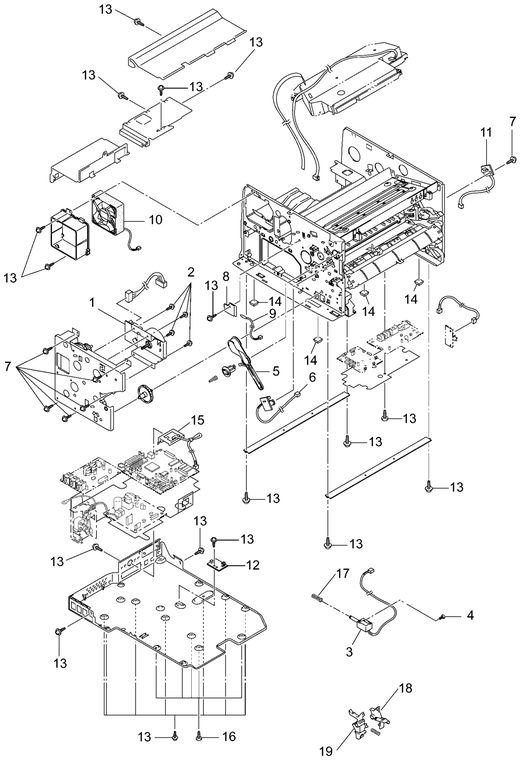

List 1(MAIN FRAME) MFC9600, DCP1200
1 UL9311001 1 MAIN MOTOR ASSY
2 087320616 4 TAPTITE, CUP S M3X6
3 LJ4069001 1 SOLENOID
4 000300415 1 SCREW, BIND M3X4
5 UL8984001 1 FRONT COVER LINK
6 UL9099001 1 TONER SENSOR (LED) PCB
7 087320616 6 TAPTITE, CUP S M3X6
8 LE1166001 1 THERMISTOR FILM
9 LG2423001 1 IN CASING TEMPERATURE THERMISTOR
10 LJ4745001 1 FAN
11 UL9104001 1 TONER SENSOR (RECEIVER) PCB
12 LG2438001 1 PAPER EJECTION SENSOR PCB
13 087320616 2 2TAPTITE, CUP S M3X6
14 UL8507001 4 RUBBER FOOT
15 LJ8031001 1 2ND CASSETTE RELAY PCB
16 085411215 5 TAPTITE, BIND B M4X12
17 UL8970001 1 SOLENOID RELEASE SPRING
18 UL8972001 1 P / R CLUTCH LEVER
19 UL8971001 1 F / R CLUTCH LEVER
List 2 (LASER UNIT) MFC9600, DCP1200
1 LJ4157001 1 LASER UNIT (SP)
2 087321615 3 TAPTITE, CUP S M3X16

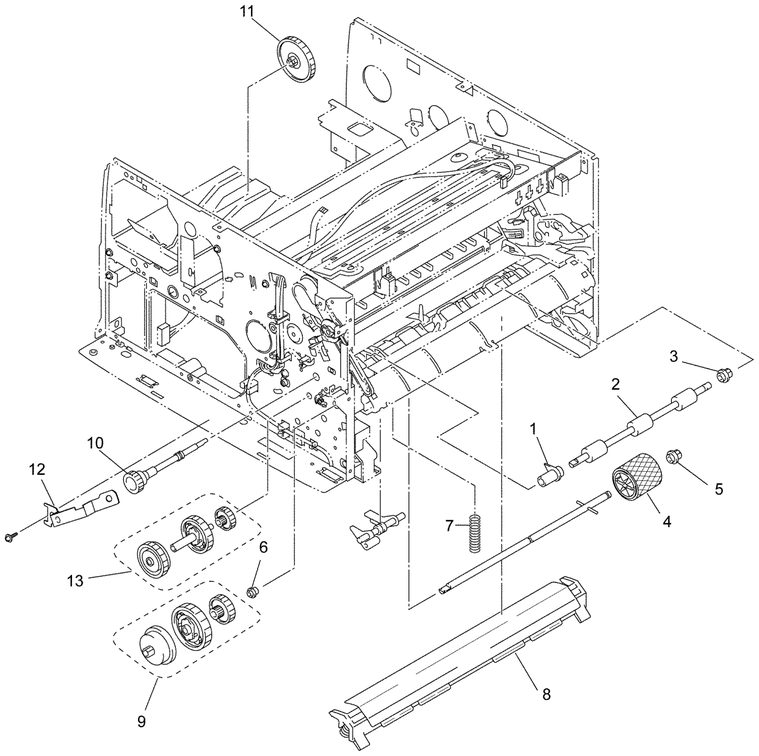

List 3 (PAPER TRANSPORT) MFC9600, DCP1200
1 UL9059001 1 JOINT
2 UL9060001 1 PAPER FEED ROLLER ASSY
3 UL9062001 1 PAWLED BUSHING
4
UL9066001 Pickup Roller
New
UL9066001 (New)
$25.65

5 UL9062001 1 PAWLED BUSHING
6 UL9069001 1 CONDUCTIVE BUSHING
7 LJ4499001 1 ELECTRODE SPRING
8 LJ4843001 1 OUTER CHUTE 1 (SP)
9 LJ5591001 1 PLANETARY GEAR ASSY (SP)
10 UL9070001 1 GEAR 21
11 UL8985001 1 GEAR 59
5705001 1 GEAR 2 1 PRESSURE PLATE
13 UL8985001 1FEED ROLLER PLANETARY GEAR ASSY (SP)

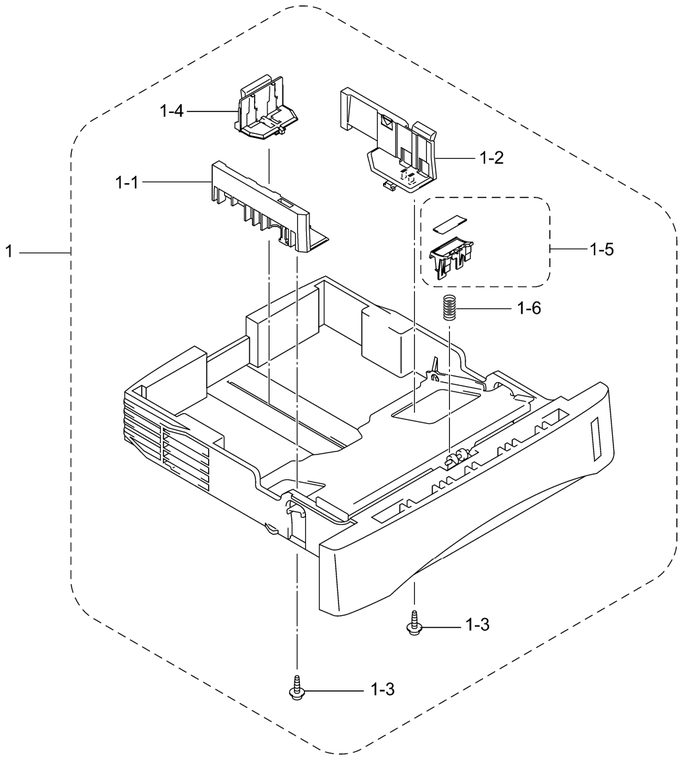

List 4 (PAPER CASSETTE) MFC9600, DCP1200
1 LE1162001 1 PAPER CASSETTE ASSY, LEGAL FOR US / CSA (SP)
1 LJ4181001 1 PAPER CASSETTE ASSY, A4 FOR ARL / NZ / ASA / GUL (SP)
1-1 UL9078001 1 SIDE GUIDE L
1-2 UL9079001 1 SIDE GUIDE R
1-3 U73515001 2 SCREW, PAN CUP B M2.6X5
1-4 UL9083001 1 PAPER REAR GUIDE
1-5
UL9084001 Separation Pad - Cassette
New
UL9084001 (New)
$28.36

1-6 UL9090001 1 SEPARATION PAD SPRING

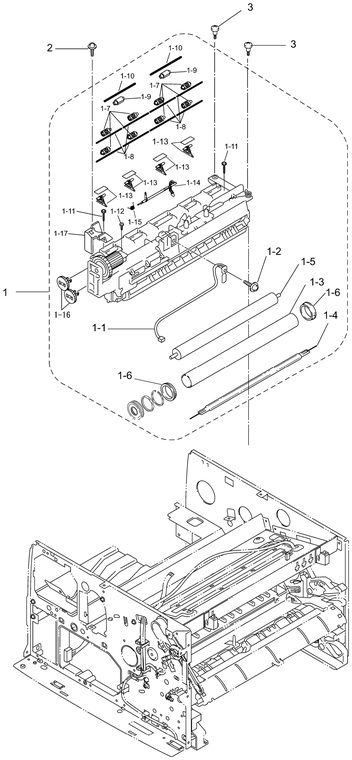

List 5 (HEAT FIXING UNIT) MFC9600, DCP1200
1 LJ4164001 1 HEAT FIXING UNIT, 115V FOR US / CAN (SP)
1 LJ4168001 1 HEAT FIXING UNIT, 230V FOR ARL / NZ / ASA / GUL (SP)
1-1 UL8902001 1 THERMISTOR ASSY
1-2 087311215 1 TAPTITE, CUP B M3X12
1-3 LJ4169001 1 HEAT ROLLER SUPPLY ASSY
1-4 LJ4160001 1 FUSER LAMP, 115V FOR US / CAN (SP)
1-4 LJ4163001 1 FUSER LAMP, 230V FOR ARL / NZ / ASA / GUL (SP)
1-5 LJ4853001 1 PRESSURE ROLLER (SP)
1-6 UL8908001 2 HR BEARING 25
1-7 UL8929001 8 EJECT PINCH ROLLER
1-8 LJ4431001 8 PINCH SPRING
1-9 LJ4407001 2 CLEANER ROLLER ASSY
1-10 LJ4409001 2 CLEANER SPRING
1-11 087312015 2 TAPTITE, CUP B M3X20
1-12 Z07200001 1 TAPTITE, PAN B M3X10
1-13 LJ4845001 4 PICK OFF FINGER (SP)
1-14 UL8920001 1 PAPER EJECT ACTUATOR
1-15 UL8921001 1 EJECT ACTUATOR SPRING
1-16 UL8914001 2 IDLE GEAR 13
1-17 LJ5871001 1 IDLE GEAR HOLDER
2 087320815 1 TAPTITE, CUP S M3X8
3 LJ4740001 2 SHOULDER SCREW

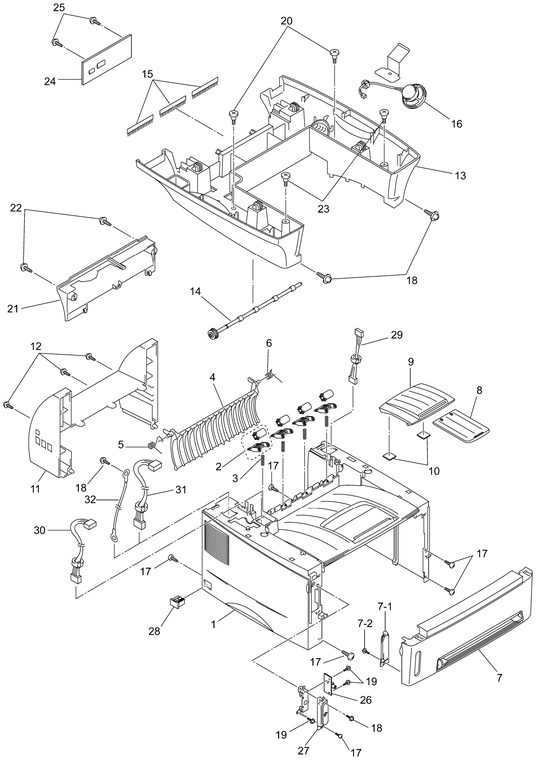

List 6 (COVER) MFC9600, DCP1200
1 LE7282001 1 MAIN COVER ASSY, WHITE(1495), MFC9600 FOR US / CAN
1 LJ5753001 1 MAIN COVER ASSY, WHITE(1495), MFC9600 FOR ARL / NZ / ASA, DCP1200
2 UL9122001 4 PINCH ROLLER ASSY
3 UL9125001 4 PINCH ROLLER SPRING
4
LJ5763001 Outer Chute - Gray
Fully refurbished with 90-day warranty
LJ5763001
$20.25

5 UL9127001 1 CHUTE SPRING L
6 UL9128001 1 CHUTE SPRING R
7 UU2074001 1 FRONT COVER ASSY, WHITE(1495), MFC9600 FOR US / CAN
7 UU2102001 1 FRONT COVER ASSY, WHITE(1495),MFC9600 FOR ARL / NZ / ASA, DCP1200
7-1 UU2094001 1 FRONT SUB COVER, WHITE(1495), MFC9600 FOR ARL / NZ / ASA, DCP1200
7-2 087310815 1 TAPTITE, CUP B M3X8
8 LE1197001 1 PAPER SUB TRAY, WHITE(1495)
9 LE1198001 1 PAPER SUB TRAY COVER, WHITE(1495)
10 LE1291001 2 TRAY COVER ADHESIVE TAPE
11
UU2002001 Rear Cover - Gray
Fully refurbished with 90-day warranty
UU2002001
$29.71

12 0A5401006 3 SCREW, PAN (S / P WASHER) M4X10
13 LE1200001 1 SCANNER MOUNT, WHITE(1495)
14
UL9142001 Exit Roller
Fully refurbished with 90-day warranty
UL9142001
$31.05

15 LJ4125001 3 ANTI-STATIC BRUSH
16 LG2425001 1 SPEAKER UNIT
17 085320816 6 TAPTITE, BIND S M3X8
18 087321015 4 TAPTITE, CUP S M3X10
19 087320616 3 TAPTITE, CUP S M3X6, MFC9600 FOR US / CAN
20 UF9823001 2 SHOULDER SCREW
21 LE1202001 1 UPPER REAR COVER
22 087411216 2 TAPTITE, CUP B M4X12
23 LE1368001 2 SHOULDER SCREW BIND B M4X8
24 LG2219001 1 RELAY PCB ASSY
25 087311016 2 TAPTITE, CUP B M3X10
26 UG6219001 1 VIDEO CAPTURE PCB ASSY, MFC9600 FOR US / CAN
27 UU2044001 1 VC COVER, WHITE(1495), MFC9600
28 UU2045001 1 SWITCH COVER, MFC9600 FOR US / CAN
29 LG2221001 1 MAIN-RELAY(PANEL) HARNESS
30 LG2499001 1 MAIN-RELAY(CCD) HARNESS
31 LG2223001 1 MAIN-RELAY(MOTORS) HARNESS
32 LG2418001 1 CHASIS GROUNDING WIRE
List 7 (SCANNER UNIT) MFC9600, DCP1200
1 LE1524001 1 SCANNER UNIT (SP)
1-1 UU7490001 1 CCD MOTOR
1-2 LG2017001 1 CCD MOTOR HARNESS
1-3 0A4300605 2 SCREW, PAN (S / P WASHER) M3X6
1-4 LG2239001 1 CCD HP SENSOR
1-5 LG2019001 1 CCD HP SENSOR HARNESS
1-6 LG2025001 1 PANEL-MAIN HARNESS
1-7 LE2074001 1 CCD IDLE PULLEY HOLDER ASSY
1-8 LE1552001 1 CCD UNIT (SP)
1-9 LG2196001 1 CCD FLAT CABLE
1-10 LE2297001 1 CCD DRIVE BELT
1-11 LE2082001 1 CCD LOCK
1-12 LE2079001 1 COMPRESSION SPRING
1-13 LE2805001 2 TAPTITE, PAN B M3X10
1-14 087411216 4 TAPTITE, CUP B M4X12
1-15 LE1775001 1 MOTOR BRACKET
2 LE2092001 1 HARNESS SUPPORT
3 087310816 2 TAPTITE, CUP B M3X8
4 LG2020001 1 FLAT CORE (CCD)

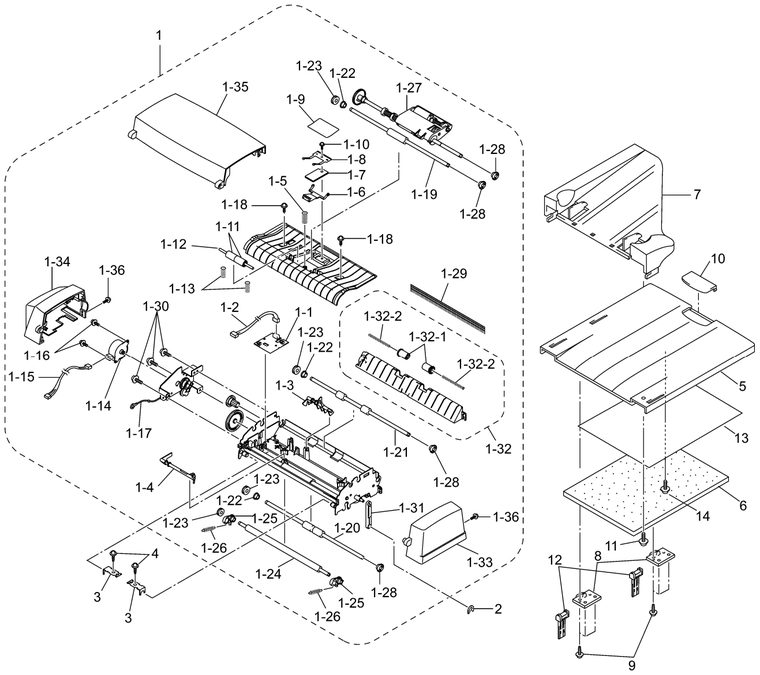

List 8(ADF&TRAY) MFC9600, DCP1200
1 LE1525001 1 ADF UNIT (SP)
1-1 UG6609001 1 DOCUMENT SENSOR PCB
1-2 LG2014001 1 DOCUMENT SENSOR HARNESS
1-3 UF7026001 1 DOCUMENT FRONT SENSOR ACTUATOR
1-4 LE2008001 1 DOCUMENT REAR SENSOR ACTUATOR
1-5 LE2011001 1 COMPRESSION SPRING
1-6 LE2551001 1 RUBBER HOLDER A
1-7
UU2055001 ADF Separation Pad
New
UU2055001 (New)
$25.65

1-8 LE1513001 1 SPRING PLATE A ASSY
1-9 LE2470001 1 ADF FILM
1-10 UF6116001 1 TAPTITE, PAN B M3X6
1-11 UF9009001 2 PRESSURE ROLLER
1-12 LE2471001 1 PRESSURE ROLLER SHAFT
1-13 LE2472001 2 PRESSURE ROLLER SPRING
1-14 LE1215001 1 ADF MOTOR
1-15 LG2201001 1 ADF MOTOR HARNESS
1-16 0A4300605 2 SCREW, PAN (S / P WASHER) M3X6
1-17 LG2016001 1 GROUNDING WIRE
1-18 087310815 2 TAPTITE, CUP B M3X8
1-19 LE2026001 1 UPPER LF ROLLER (GRAY)
1-20 LE2029001 1 LOWER LF ROLLER (BLACK)
1-21 LE2028001 1 DOCUMENT EJECTION ROLLER
1-22 UF8105001 3 CONDUCTIVE BUSHING
1-23 UU7039001 4 LF ROLLER GEAR 2 7
1-24 LE2030001 1 WHITE ROLLER
1-25 LE2032001 2 WHITE ROLLER BUSHING
1-26 LE2033001 2 EXTENSION SPRING
1-27
LE2919001 ADF Pickup Roller Assy
New
LE2919001 (New)
$66.16

1-27-1 LE2037001 2 DOCUMENT FEED ROLLER (RUBBER)
1-28 UU1290001 4 CONDUCTIVE BUSHING
1-29 UU7505001 1 ANTI-STATIC BRUSH
1-30 087320616 3 TAPTITE, CUP S M3X6
1-31 UF0208001 1 ADF ARM
1-32 LE2048001 1 DOCUMENT EJECTION CHUTE ASSY
1-32-1 LE2582001 2 PINCH ROLLER
1-32-2 UU2009001 2 PINCH ROLLER SPRING
1-33 LE2050001 1 ADF SIDE COVER F, WHITE(1495)
1-34 LE2051001 1 ADF SIDE COVER R, WHITE(1495)
1-35 LE2534001 1 ADF COVER ASSY, WHITE(1495)
1-36 087320816 2 TAPTITE, CUP S M3X8
2 UF8088001 1 PLASTIC RETAINING RING
3 LE2053001 2 ADF SUPPORT
4 087310816 2 TAPTITE, CUP B M3X8
5 LE2056001 1 DOCUMENT TRAY, WHITE(1495)
6 LE2487001 1 DOCUMENT SPONGE
7 LE3426001 1 DOCUMENT CHUTE, WHITE(1495)
8 LE2567001 2 HINGE A
9 087311015 6 TAPTITE, CUP B M3X10
10 LE2777001 1 DOCUMENT SUPPORT, WHITE(1495)
11 087320816 2 TAPTITE, CUP S M3X8
12 LE2568001 2 HINGE HOLDER A
13 LE1568001 1 DOCUMENT TRAY REINFORCEMENT PLATE
14 UF6116001 1 TAPTITE, PAN B M3X6

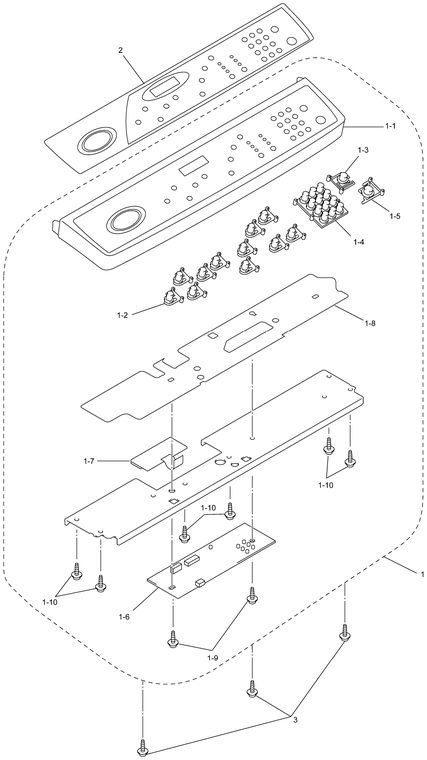

List 9(CONTROL PANEL DCP1200)
1 LE1554001 1 CONTROL PANEL ASSY, WHITE(1495), DCP1200 (SP)
1-1 LE1336001 1 CONTROL PANEL, WHITE(1495), DCP1200 (SP)
1-2 LJ4283001 1 1KEY, FUNCTION, WHITE(1496)
1-3 LJ4231002 1 KEY, STOP, PINK(2205)
1-4 LJ4284001 1 KEY, TEN, WHITE(1495)
1-5 LJ4285001 1 KEY, START, GREEN(5159)
1-6 LG2326001 1 CONTROL PANEL PCB ASSY, DCP1200
1-7 UG4552000 1 LCD
1-8 LE1556001 1 FPC KEY (SP)
1-9 087270815 2 TAPTITE, CUP B M2.6X8
1-10 087310615 6TAPTITE, CUP B M3X6
2 LE1338001 1 PANEL SHEET
3 087310816 3 TAPTITE, CUP B M3X8
List 9 (CONTROL PANEL MFC9600)
1 LE1527001 1 CONTROL PANEL ASSY, WHITE(1495), MFC9600 (SP)
1-1 LE2273001 1 CONTROL PANEL, WHITE(1495), MFC9600
1-2 UF4393007 1 KEY, TEN, WHITE(1495)
1-3 LE2274001 2 KEY, COPY / FAX AREA, WHITE(1495)
1-4 LE1340001 3 KEY, SCANNER, WHITE(1495)
1-5 UF8174008 1 KEY, COPY, WHITE(1495)
1-6 UF8174010 1 KEY, STOP, PINK(2205)
1-7 UF8174011 1 KEY, START, PURPLE(6255)
1-8 UF8176009 1 KEY, FUNCTION4, GRAY(1509)
1-9 UF4576008 3 KEY, SHIFT, WHITE(1495)
1-10 UF4576010 2 KEY, SHIFT, GRAY(1509)
1-11 UF9118006 4 KEY, ONE TOUCH, WHITE(1495)
1-12 LG2138001 1 CONTROL PANEL PCB ASSY, MFC9600
1-13 UG4552000 1 LCD
1-14 LG2190001 1 FPC KEY ASSY
1-15 087270815 2 TAPTITE, CUP B M2.6X8
1-16 087310615 6 TAPTITE, CUP B M3X6
2 LE2277001 1 PANEL SHEET-1
3 LE1219001 1 PANEL SHEET-2, FOR US / CAN / ASA
3 LE1560001 1 PANEL SHEET-2, FOR ARL / NZ
4 LE1221001 1 LCD SHEET FOR US / CAN
4 LE1561001 1 LCD SHEET FOR ARL / NZ / ASA
5 LE1341001 1 ADDRESS LABEL
6 087310816 3 TAPTITE, CUP B M3X8
List 1 0 (PCB ASSY) MFC9600, DCP1200
1 LG2320001 1 MAIN PCB ASSY, DCP1200
1 LG2226001 1 MAIN PCB ASSY, MFC9600 FOR US / CAN
1 LE1627011 1 MAIN PCB ASSY, MFC9600 FOR ARL / NZ / ASA (SP)
2 LG2139001 1 NCU PCB ASSY, MFC9600 FOR US / CAN
2 LG2311006 1 NCU PCB ASSY, MFC9600 FOR ARL / NZ
2 LG2305040 1 NCU PCB ASSY, MFC9600 FOR ASA
3
LJ8855001 Power Supply PCB - 110V
Fully refurbished with 90-day warranty
LJ8855001
$52.66

3 LJ4175001 1 LOW VOLTAGE POWER SUPPLY PCB ASSY, 2 30V FOR ARL / NZ / GUL (SP)
3 LG2167001 1 LOW VOLTAGE POWER SUPPLY PCB, 2 30V FOR ASA
4 LE1364001 1 HIGH VOLTAGE POWER SUPPLY PCB ASSY (SP)
5 LG2364001 1 ENGINE PCB ASSY
6 087320616 4 TAPTITE, CUP S M3X6 FOR DCP1200
6 087320616 5 TAPTITE, CUP S M3X6 FOR MFC9600
7 084320815 1 SCREW, FLAT S M3X8
8 0A5350606 1 SCREW, PAN (WASHER) M3.5X6
9 085411215 4 TAPTITE, BIND B M4X10
