Lexmark X940e & X945e Parts
Please call for parts assistance

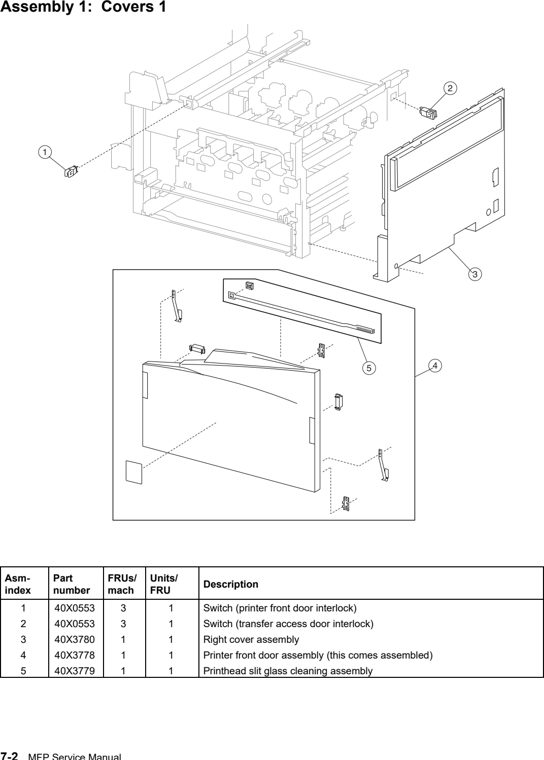

| 1 2 3 4 5 40X3779 Printhead slit glass cleaning assembly |  |

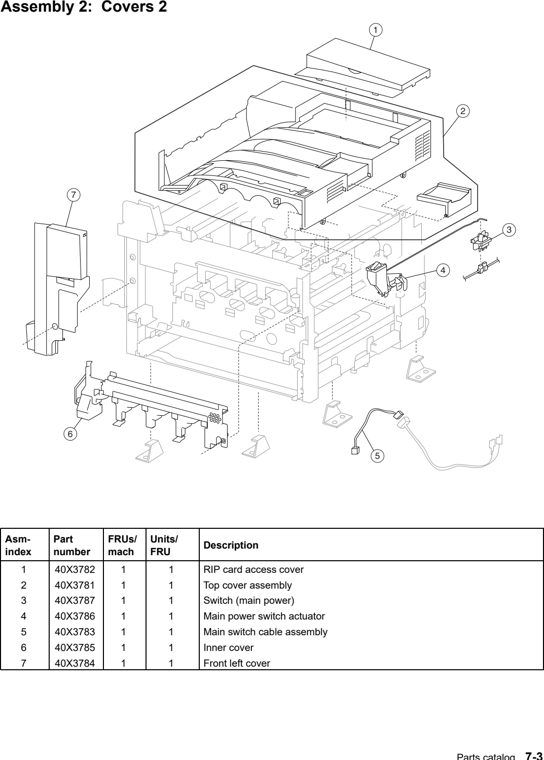

| 1 2 3 4 40X3786 Main power switch actuator 5 6 |  |

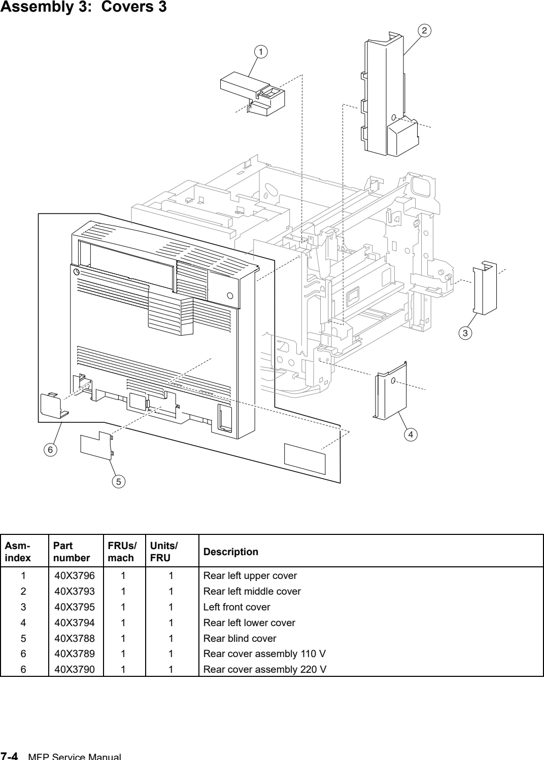

| 1 40X3796 Rear left upper cover 2 40X3793 Rear left middle cover 3 40X3795 Left front cover 4 40X3794 Rear left lower cover 5 40X3788 Rear blind cover 6 |  |

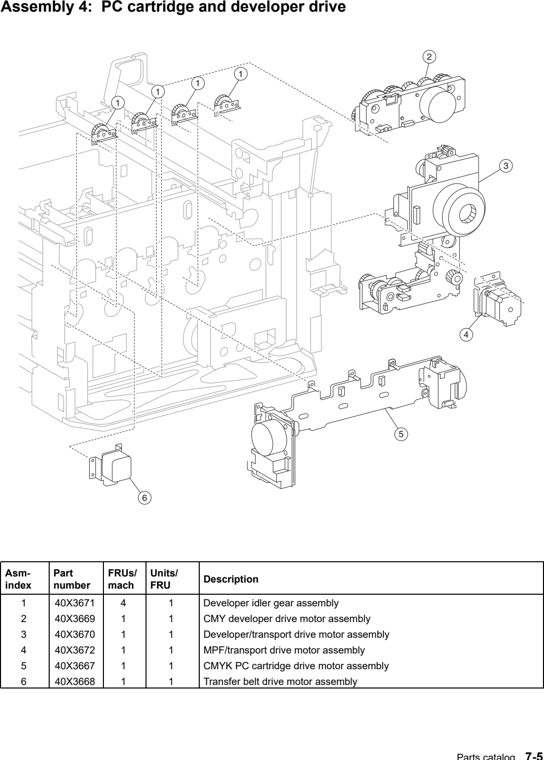

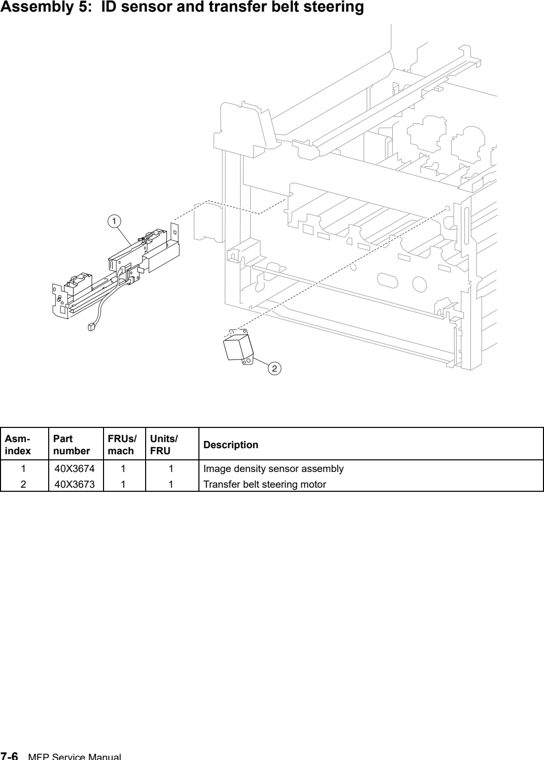

| 1 40X3671 Developer idler gear assembly 2 3 40X3670 Developer / Transport Drive Motor Assembly Fully refurbished with 90-day warranty 40X3670 $257.71 4 40X3672 Multipurpose feeder / transport drive motor assembly Fully refurbished with 90-day warranty 40X3672 $25.00 5 40X3667 CMYK PC cartridge drive motor assembly Fully refurbished with 90-day warranty 40X3667 $119.71 6 40X3668 Transfer belt drive motor assembly New 40X3668 (New) $58.01 Retired, no longer available: Contact for alternatives |  |
| 1 2 |  |

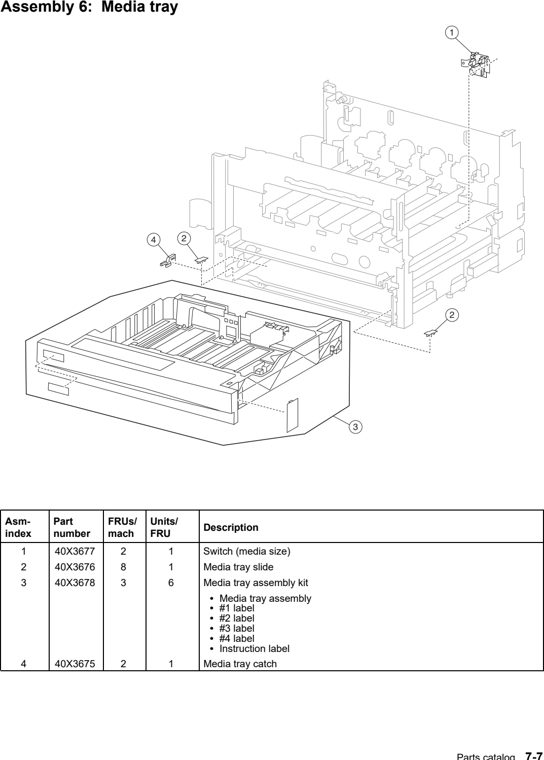

| 1 3 - Media tray assembly - #1 label - #2 label - #3 label - #4 label - Instruction label 4 40X3675 Media tray catch |  |

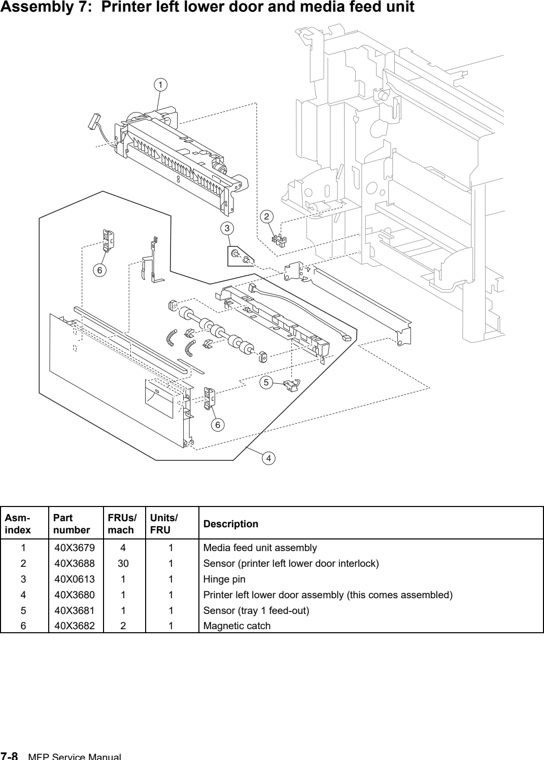

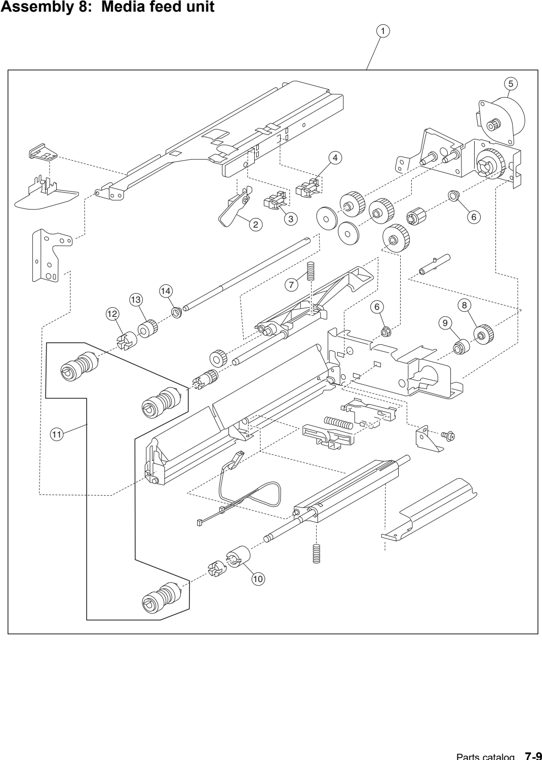

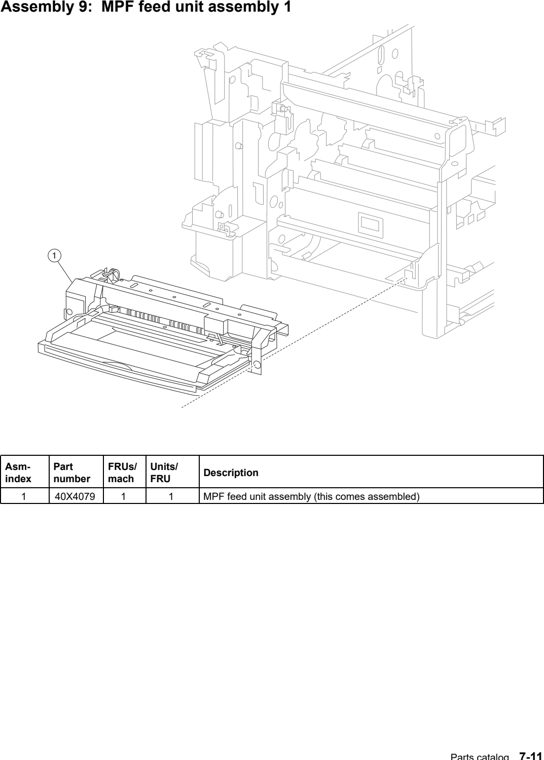

| 1 2 40X3688 Sensor (printer left lower door interlock) 3 4 (this comes assembled) 5 40X3681 Sensor (tray 1 feed-out) 6 40X3682 Magnetic catch |  |
| 1 2 40X3687 Media out actuator 3 40X3688 Sensor (tray media out) 4 40X3688 Sensor (tray media level) 5 6 7 8 40X3686 Media tray lift one-way gear 9 40X3685 Media tray lift one-way clutch 10 40X4086 Separation roll friction clutch 11 - Feed roll (2) - Pick roll (2) - Separation roll (2) 12 40X3690 Feed roll one-way clutch 13 40X3691 Feed roll one-way gear 22T 14 40X0952 Bushing 6 mm |  |
| 1 |  |

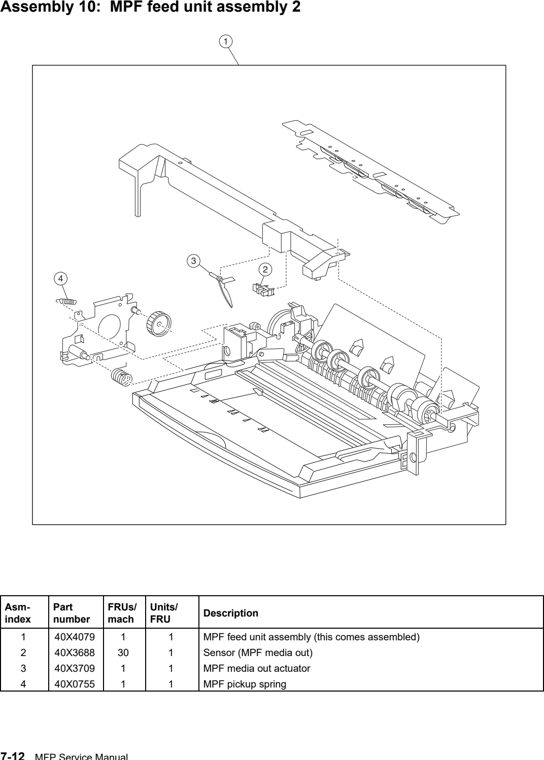

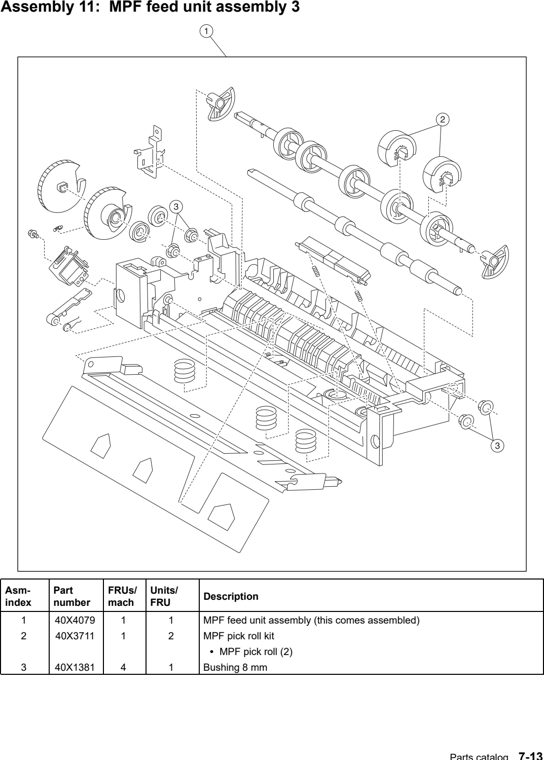

| 1 2 40X3688 Sensor (MPF media out) 3 40X3709 MPF media out actuator 4 |  |
| 1 2 40X3711 MPF pick roll kit - MPF pick roll (2) 3 40X1381 Bushing 8 mm |  |

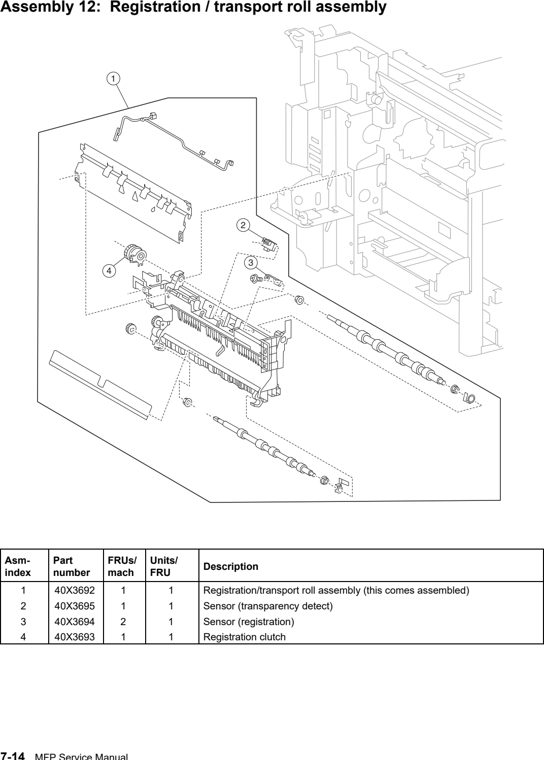

| 1 40X3692 Registration/transport roll assembly (assembled) Fully refurbished with 90-day warranty 40X3692 $87.75 2 3 40X3694 Sensor (registration) 4 |  |

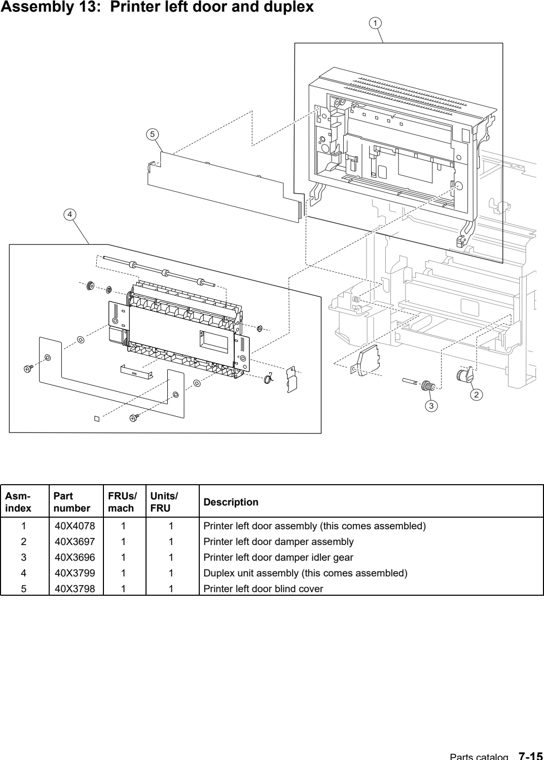

| 1 2 3 40X3696 Printer left door damper idler gear 4 5 40X3798 Printer left door blind cover |  |

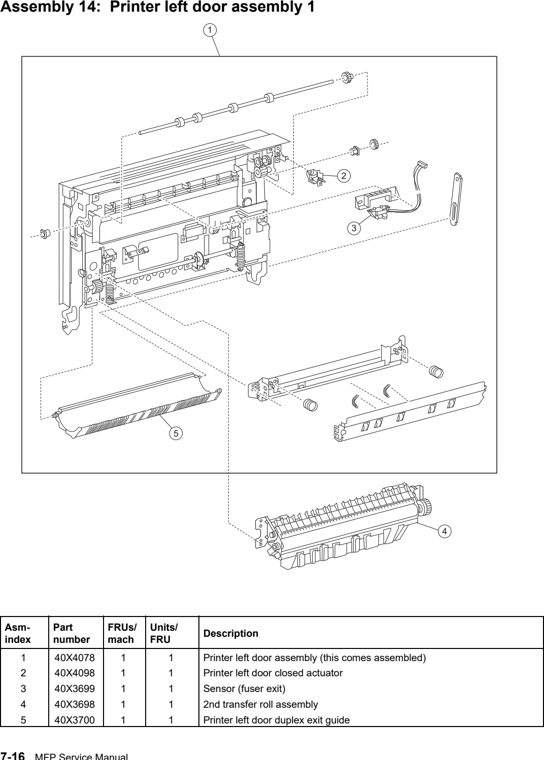

| 1 2 40X4098 Printer left door closed actuator 3 4 5 40X3700 Printer left door duplex exit guide |  |

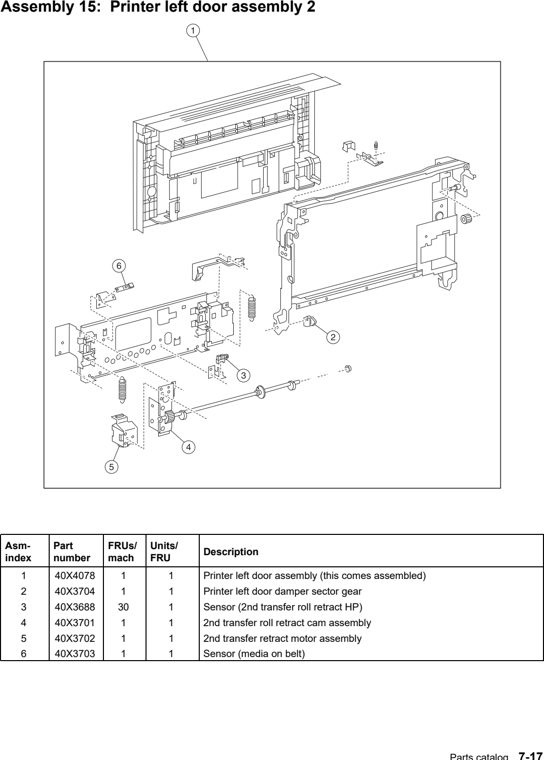

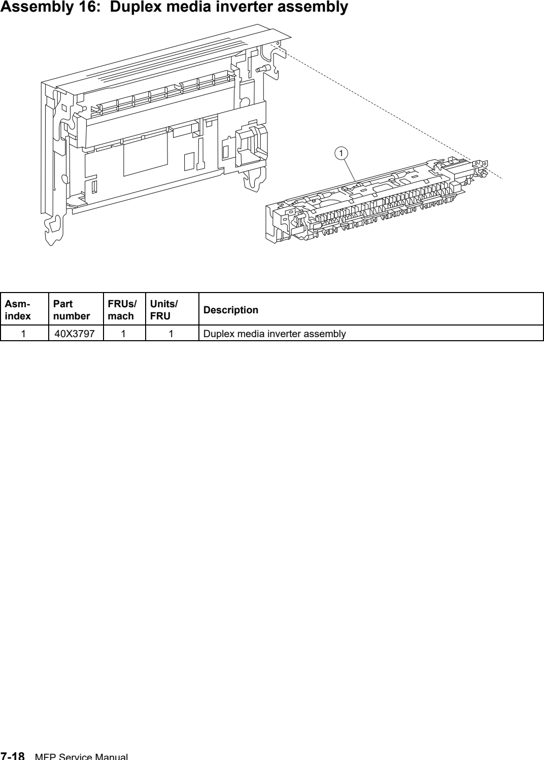

| 1 2 40X3704 Printer left door damper sector gear 3 40X3688 Sensor (2nd transfer roll retract HP) 4 5 6 |  |
| 1 |  |
| 1 2 40X3798 Printer left door blind cover |  |

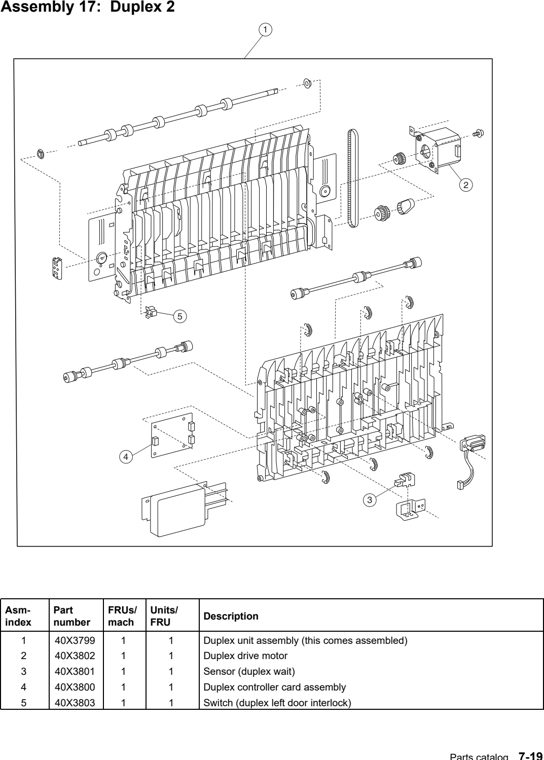

| 1 2 3 40X3801 Sensor (duplex wait) 4 5 40X3803 Switch (duplex left door interlock) |  |

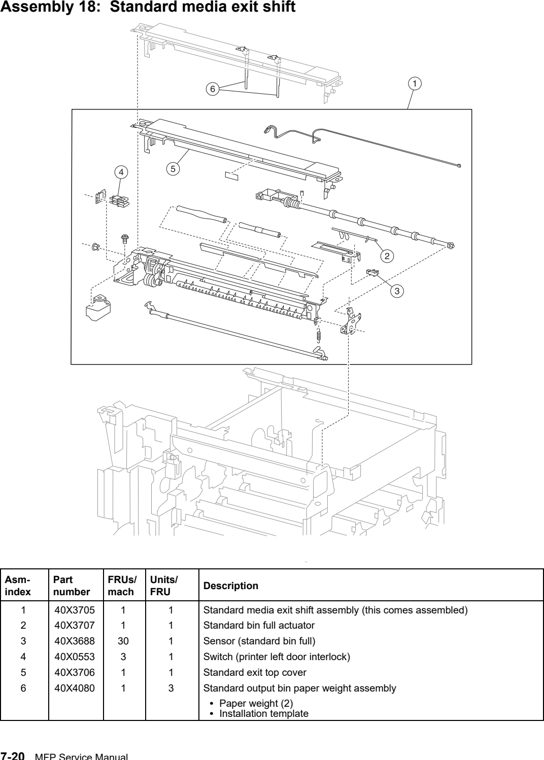

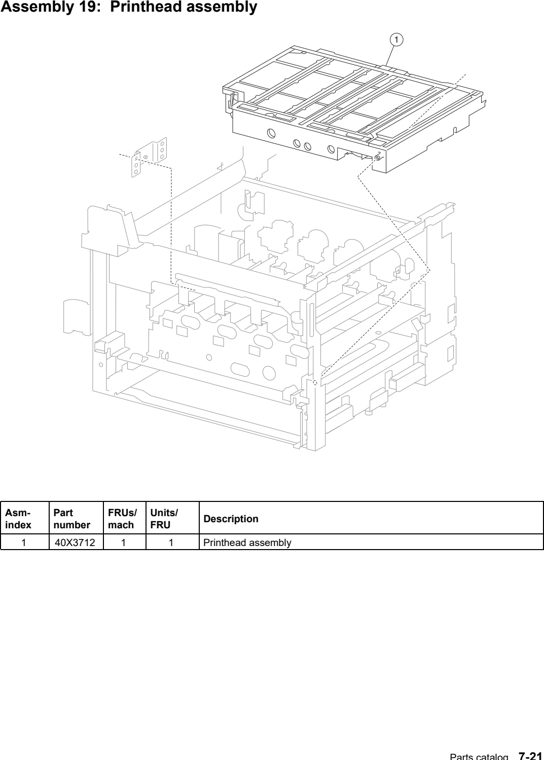

| 1 40X3705 Standard media exit shift assembly (assembled) Fully refurbished with 90-day warranty 40X3705 $103.00 2 40X3707 Standard bin full actuator 3 40X3688 Sensor (standard bin full) 4 5 40X3706 Standard exit top cover 6 40X4080 Standard output bin paper weight assembly - Paper weight (2) - Installation template |  |
| 1 |  |

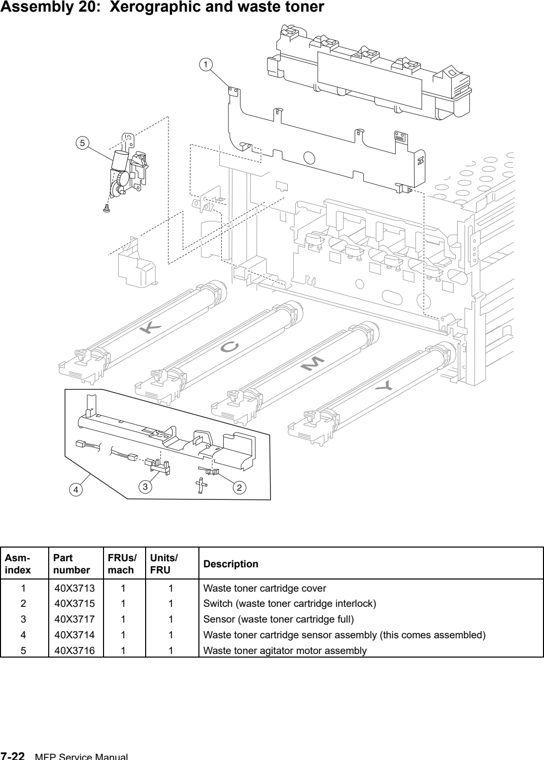

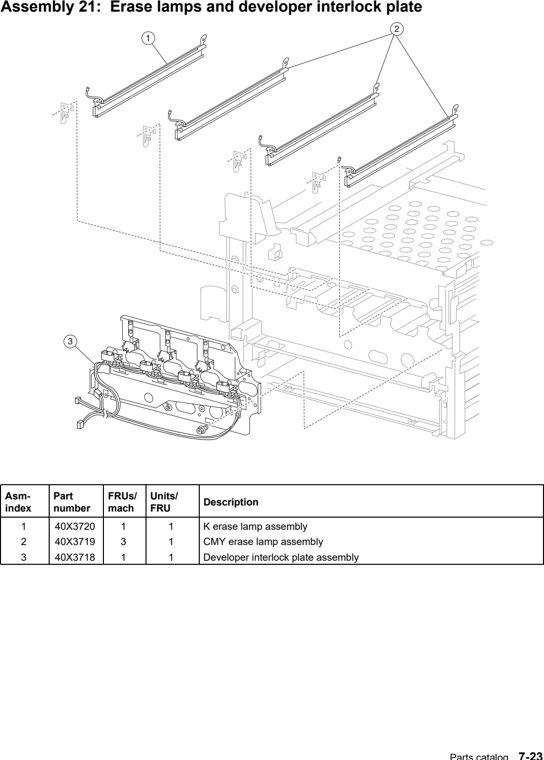

| 1 2 40X3715 Switch (waste toner cartridge interlock) 3 40X3717 Sensor (waste toner cartridge full) 4 40X3714 Waste toner cartridge sensor assembly (assembled) Fully refurbished with 90-day warranty 40X3714 $15.95 5 |  |
| 1 2 3 |  |

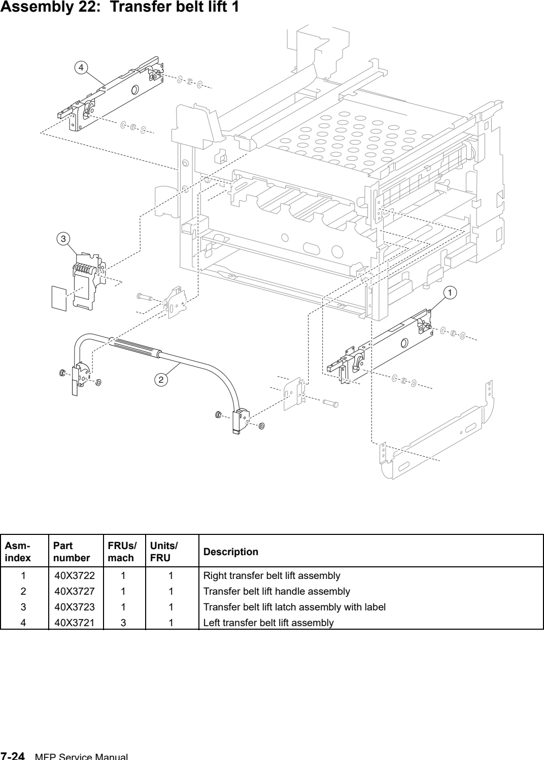

| 1 2 3 40X3723 Transfer belt lift latch assembly with label 4 |  |

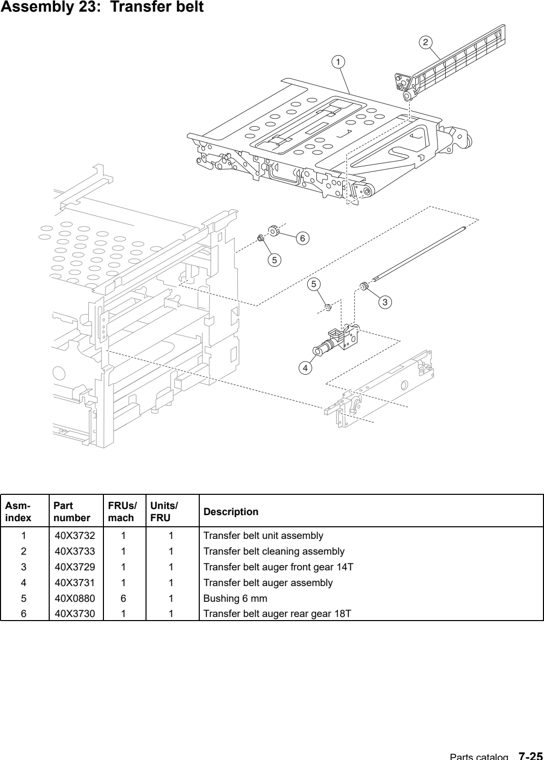

| 1 2 3 40X3729 Transfer belt auger front gear 14T 4 40X3731 Transfer belt auger assembly 5 6 40X3730 Transfer belt auger rear gear 18T |  |

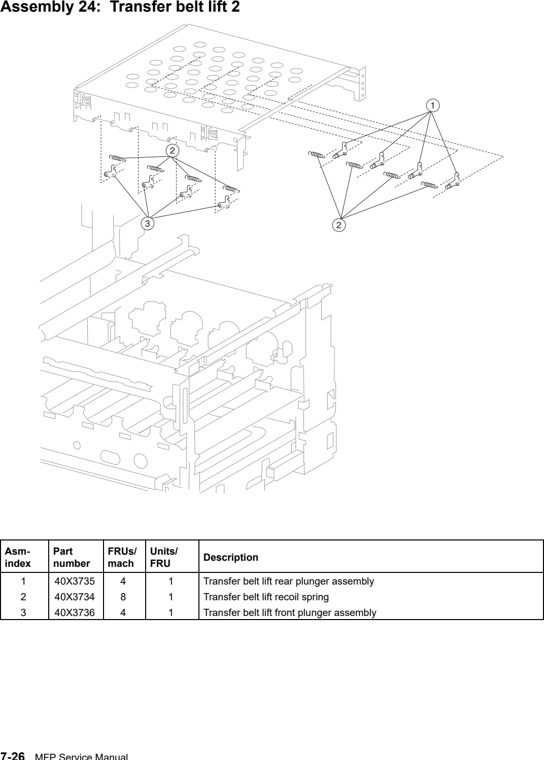

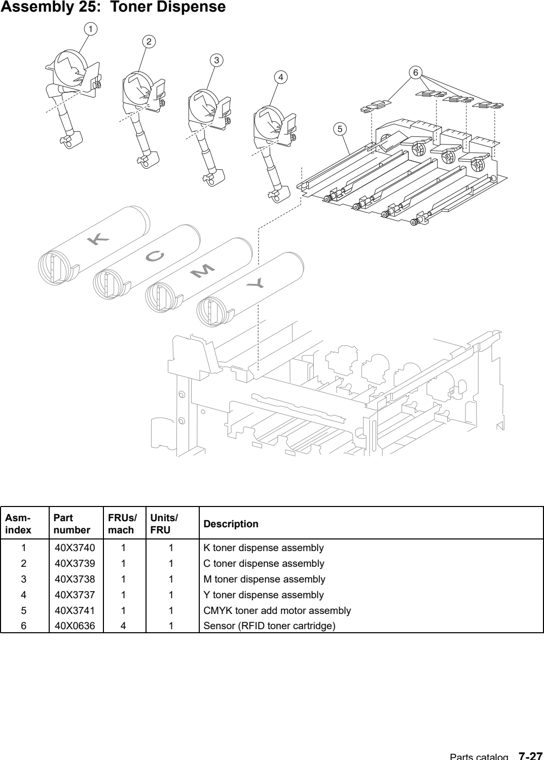

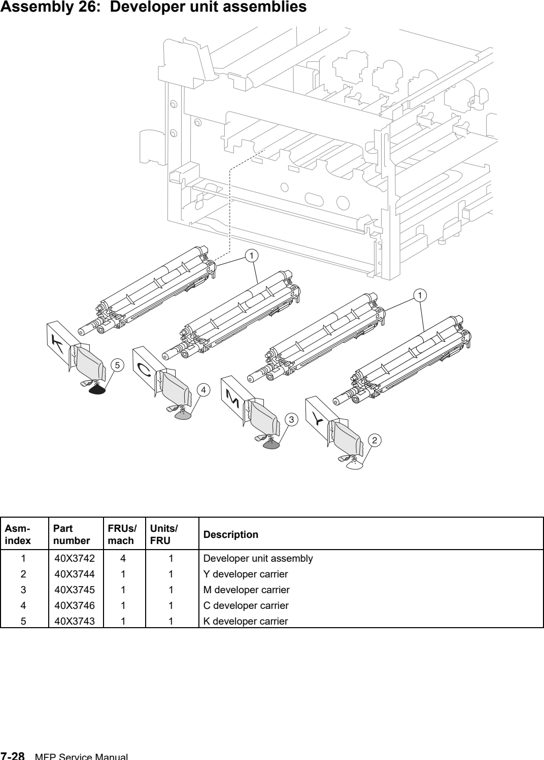

| 1 40X3735 Transfer belt lift rear plunger assembly 2 40X3734 Transfer belt lift recoil spring 3 40X3736 Transfer belt lift front plunger assembly |  |
| 1 2 3 4 5 6 |  |
| 1 2 3 4 5 |  |

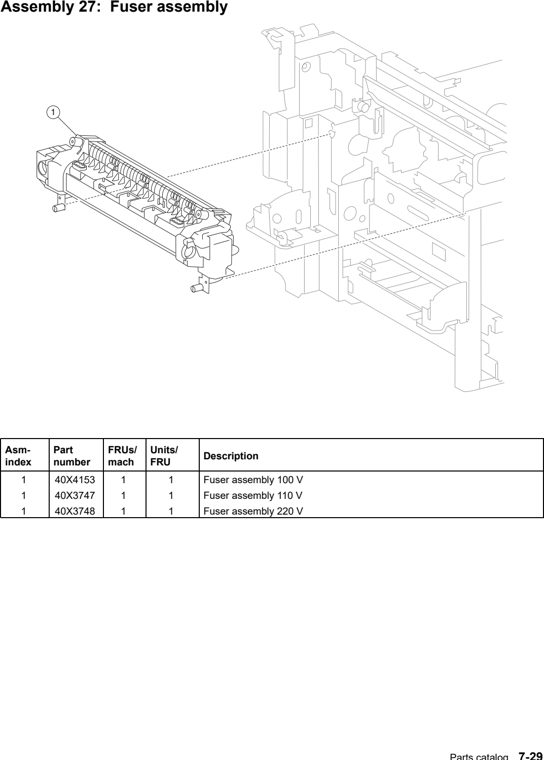

| 1 40X3747 Fuser Assembly C935 X940 X945 1759 1767 1769 Fully refurbished with 90-day warranty 40X3747 $174.72 |  |

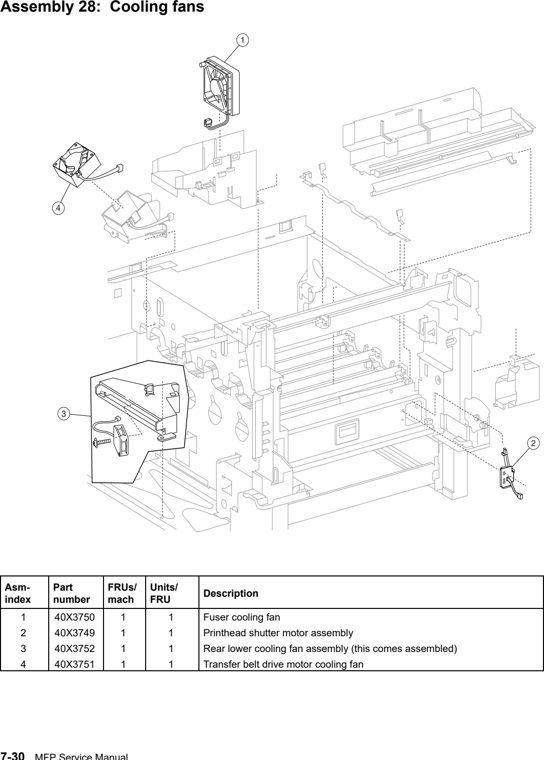

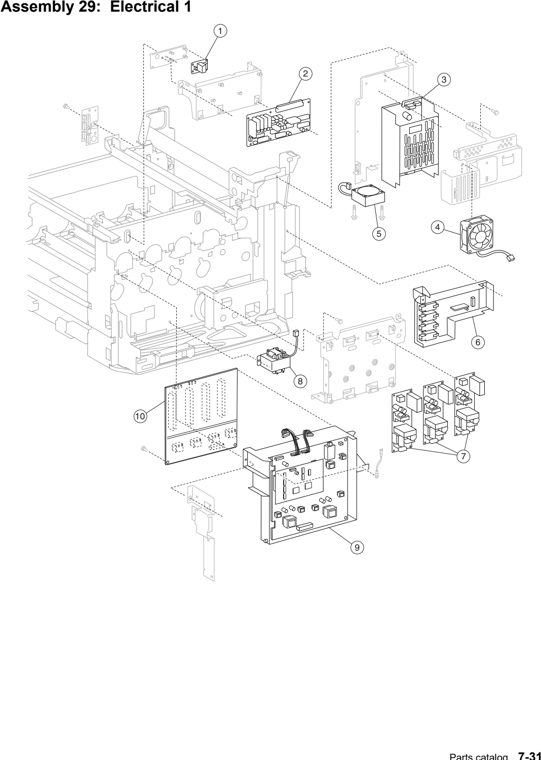

| 1 2 3 40X3752 Rear lower cooling fan assembly (assembled) Fully refurbished with 90-day warranty 40X3752 $24.71 4 |  |
| 1 2 3 4 5 6 7 8 9 40X3753 Developer/transfer roll HVPS card assembly Fully refurbished with 90-day warranty 40X3753 $179.72 10 |  |

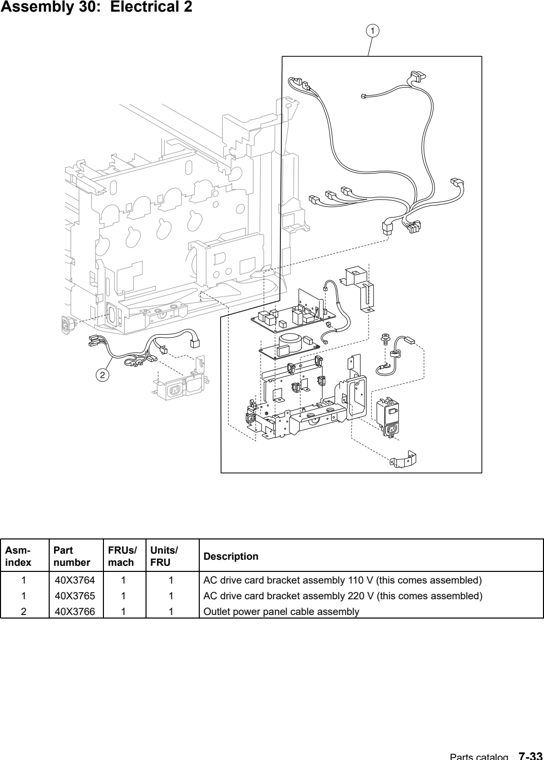

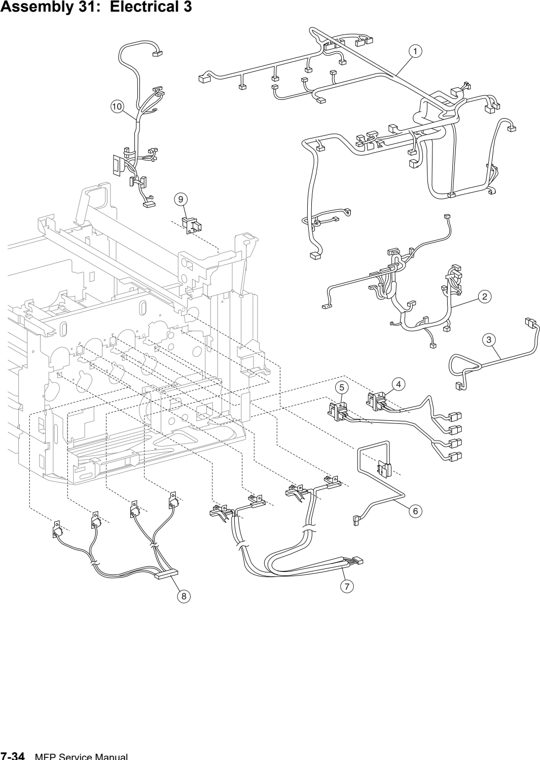

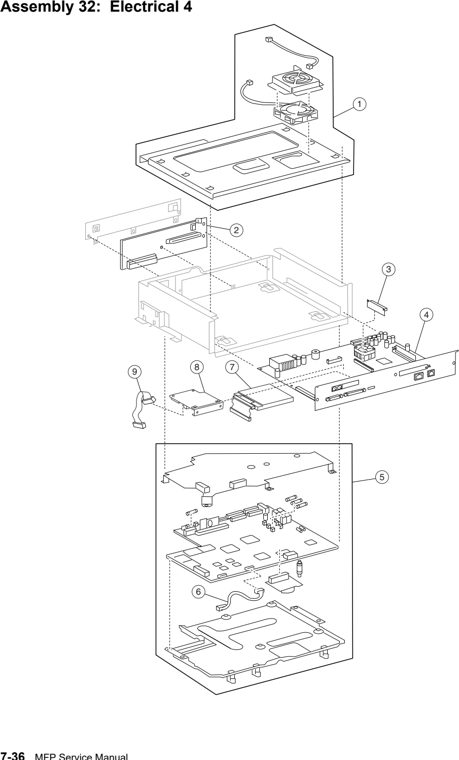

| 1 40X3764 AC drive card bracket assembly 110 V (assembled) Fully refurbished with 90-day warranty 40X3764 $91.00 2 |  |
| 1 2 3 40X3774 2nd transfer charge roll cable 4 5 6 40X3772 Transfer belt charge cable 7 8 9 40X3773 2nd transfer roll charge connector 10 |  |
| WARNING: In the event of replacement of any one of the following components: - RIP card assembly - Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never replace two or more of the components listed above without a POR after installing each one, or the printer will be rendered inoperable. WARNING: Never install and remove components listed above as a method of troubleshooting components. Once a component has been installed in a machine, it cannot be used in another machine. It must be returned to the manufacturer. 1 40X3804 RIP card cooling fan cover assembly (assembled) Fully refurbished with 90-day warranty 40X3804 $35.48 2 3 40X2359 Interconnect card assembly New 40X2359 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $45.42 40X2359 Interconnect card assembly Fully refurbished with 90-day warranty 40X2359 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $45.42 4 40X4091 RIP Card Assembly New 40X4091 40X5865 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 40X4091 RIP Card Assembly New 40X4091 40X5865 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 40X5865 RIP Card Assembly New 40X5865 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 40X5865 RIP Card Assembly New 40X5865 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 5 6 40X4081 Upper printer engine card cable assembly 7 - 2.5- 80GB hard drive - Data cable - Mounting bracket with hardware 8 9 |  |

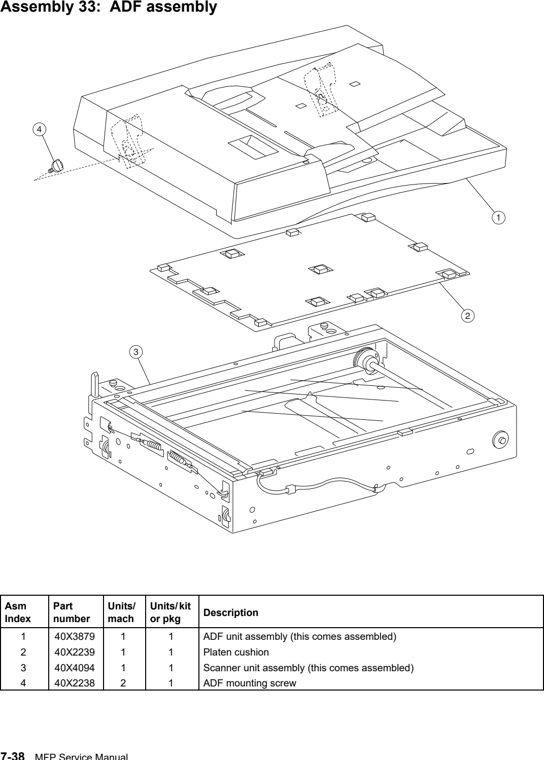

| 1 2 3 40X4094 Lower Scanner Unit Asm (X940E MFP X940E, X945E) Fully refurbished with 90-day warranty 40X4094 $1395.00 (this comes assembled) 4 40X2238 ADF mounting screw |  |

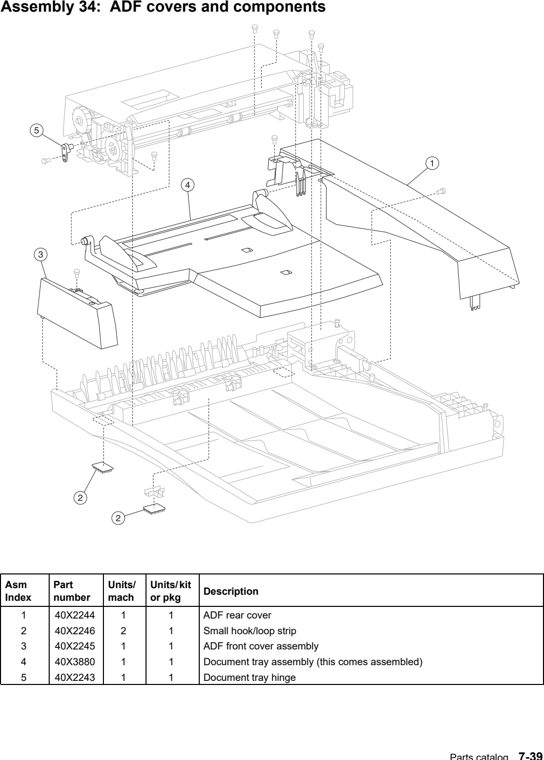

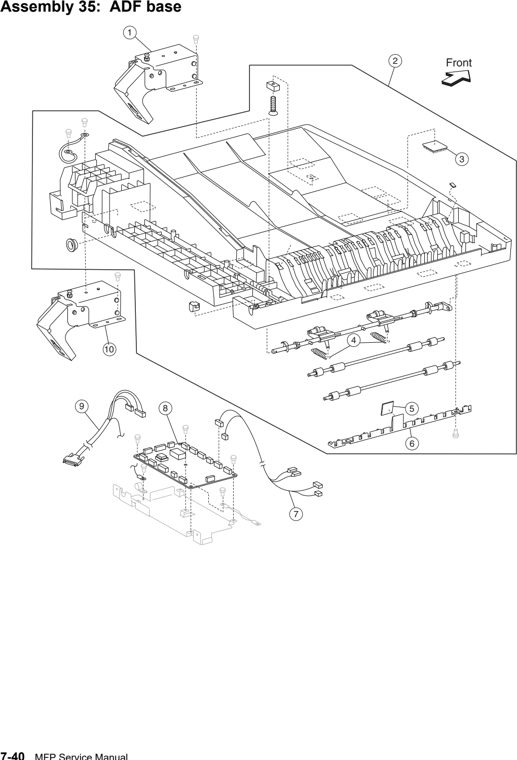

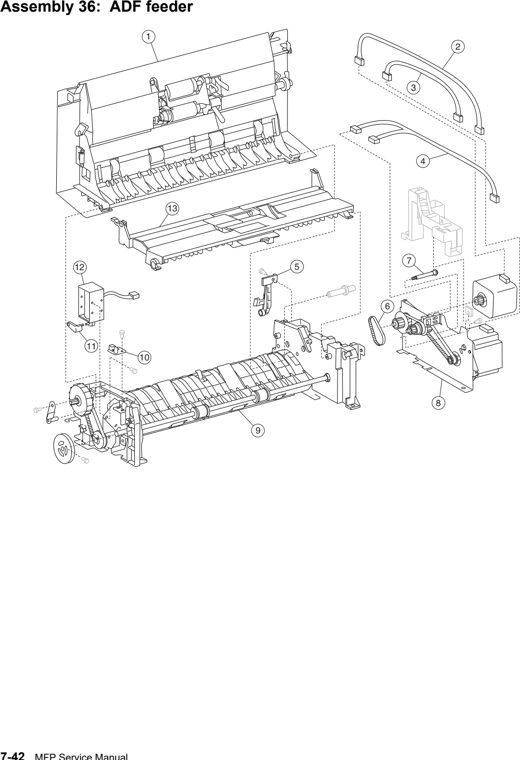

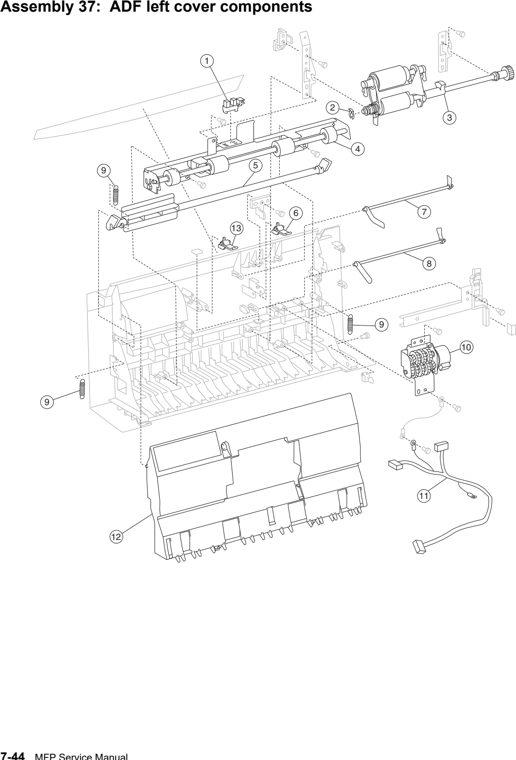

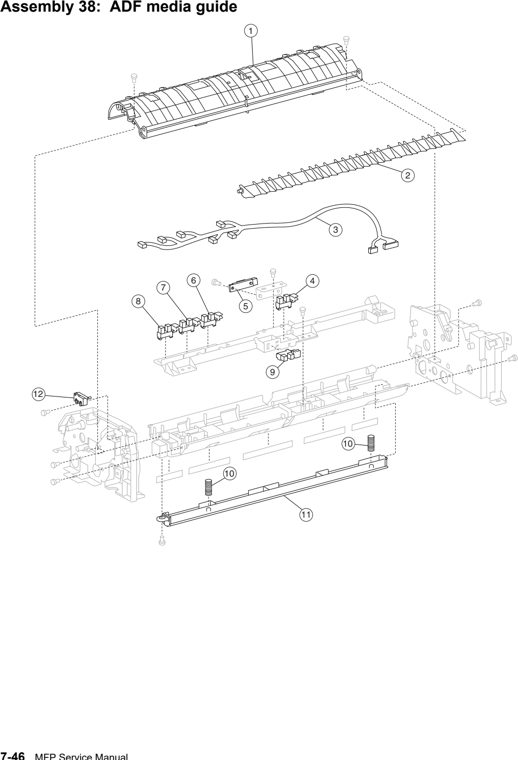

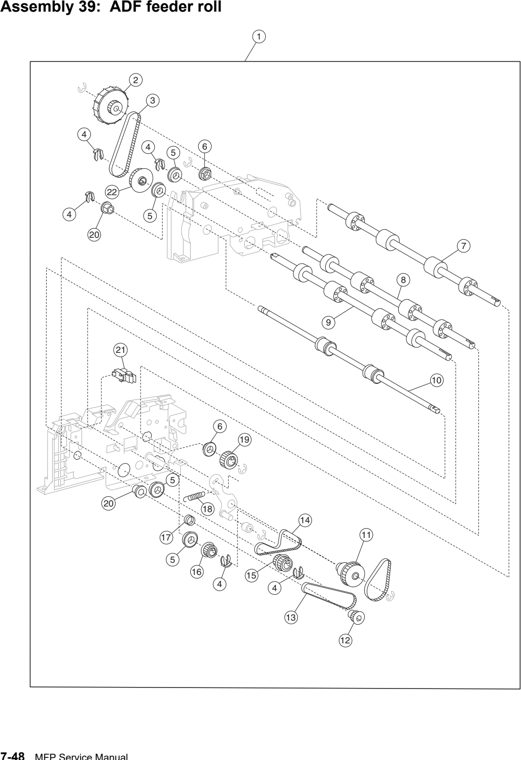

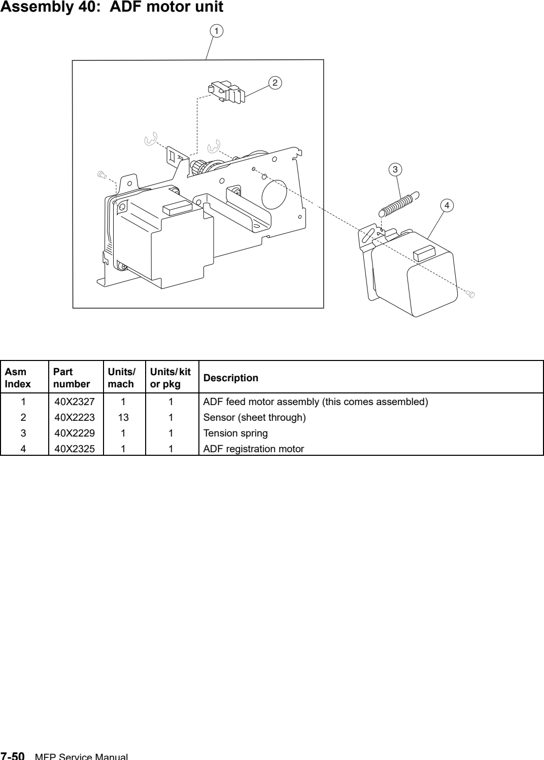

| 1 2 40X2246 Small hook/loop strip 3 40X2245 ADF front cover assembly 4 5 40X2243 Document tray hinge |  |
| 1 2 40X3883 ADF registration pinch/frame assembly (assembled) Fully refurbished with 90-day warranty 40X3883 $144.67 3 40X2247 Large hook/loop strip 4 40X2330 Spring 5 40X2354 Registration pad 6 40X4104 Registration pad cover 7 8 9 10 40X2258 ADF right hinge |  |
| 1 2 40X2265 Registration motor cable assembly 3 40X2266 ADF feed motor cable assembly 4 40X2264 Document set/sheet through cable assembly 5 6 40X2270 Registration main drive belt 7 40X2269 Stud screw 8 9 40X2383 ADF Main Feed Assembly (This Comes Assembled) Fully refurbished with 90-day warranty 40X2383 $341.52 10 11 12 13 40X2273 Separation Roll Guide Assembly (Assembled) Fully refurbished with 90-day warranty 40X2273 $61.34 (this comes assembled) |  |
| 1 40X2223 Sensor (pick roll position HP) 2 40X2291 Plastic ring clip 6 mm 3 40X2287 ADF feed/pick roll assembly (this comes assembled) 4 40X2276 Left Cover Pinch Roll Assembly (Assembled) Fully refurbished with 90-day warranty 40X2276 $30.64 5 6 40X2381 Document set rear stop 7 40X2283 Document set actuator 8 10 11 12 40X2321 Left cover media guide 13 40X2279 Document set front stop |  |
| 1 40X3890 Actuator/media guide assembly (assembled) Fully refurbished with 90-day warranty 40X3890 $51.57 2 3 4 40X2223 Sensor (ADF pre-registration) 5 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 6 40X2223 Sensor (ADF width APS 1) 7 40X2223 Sensor (ADF width APS 2) 8 40X2223 Sensor (ADF width APS 3) 9 40X2223 Sensor (ADF inverter) 10 40X3889 Media scan guide spring 11 40X3888 Media scan guide 12 40X2286 Switch (ADF left cover interlock) |  |
| 1 40X2383 ADF Main Feed Assembly (This Comes Assembled) Fully refurbished with 90-day warranty 40X2383 $341.52 2 3 4 40X2291 Plastic ring clip kit includes: - Plastic ring clip 6 mm - Plastic ring clip 8 mm 5 6 40X2339 Bushing 8 mm 7 8 9 10 11 40X2349 Registration main drive pulley 21/54T 12 40X2342 Exit roll drive pulley 20T 13 14 15 40X2341 Exit/feed-out roll drive pulley 25/28T 16 40X2340 Registration roll drive pulley 28T 17 40X2351 Retainer spring 18 40X2348 Tension spring 19 40X2343 Transport roll drive gear 20T 20 40X2338 Bushing 6 mm 21 40X2223 Sensor (document set) 22 |  |
| 1 2 40X2223 Sensor (sheet through) 3 40X2229 Tension spring 4 |  |

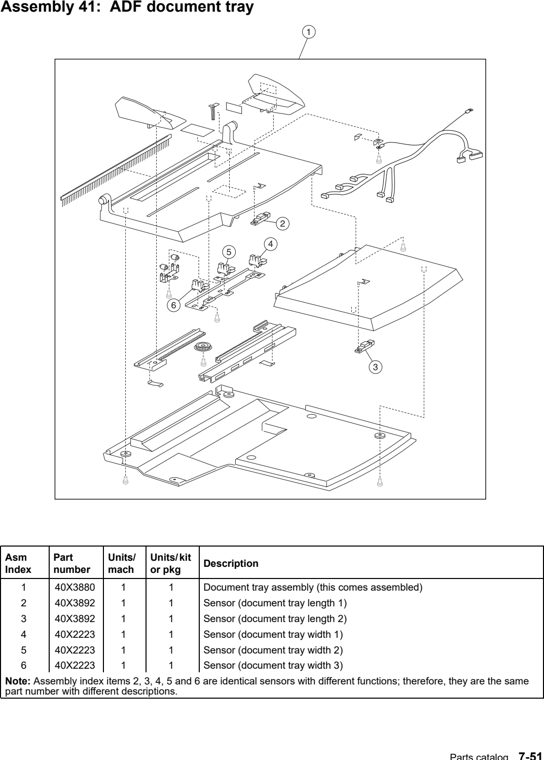

| 1 2 3 4 40X2223 Sensor (document tray width 1) 5 40X2223 Sensor (document tray width 2) 6 40X2223 Sensor (document tray width 3) Note: Assembly index items 2, 3, 4, 5 and 6 are identical sensors with different functions; therefore, they are the same part number with different descriptions. |  |

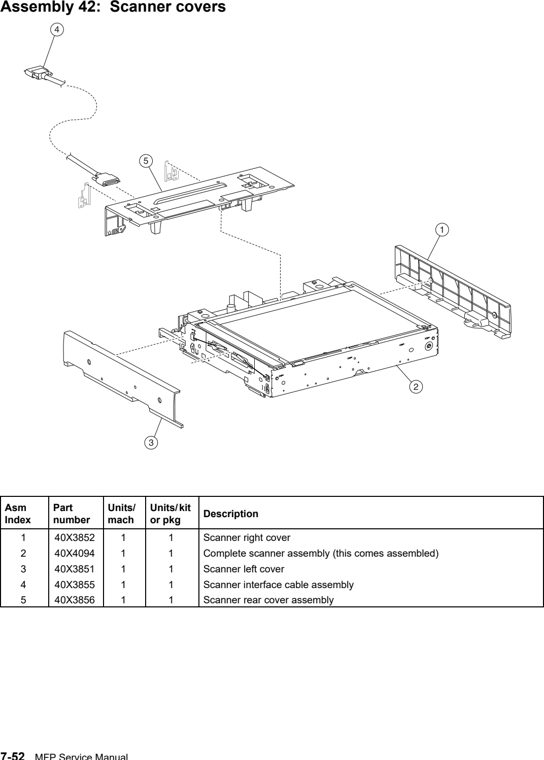

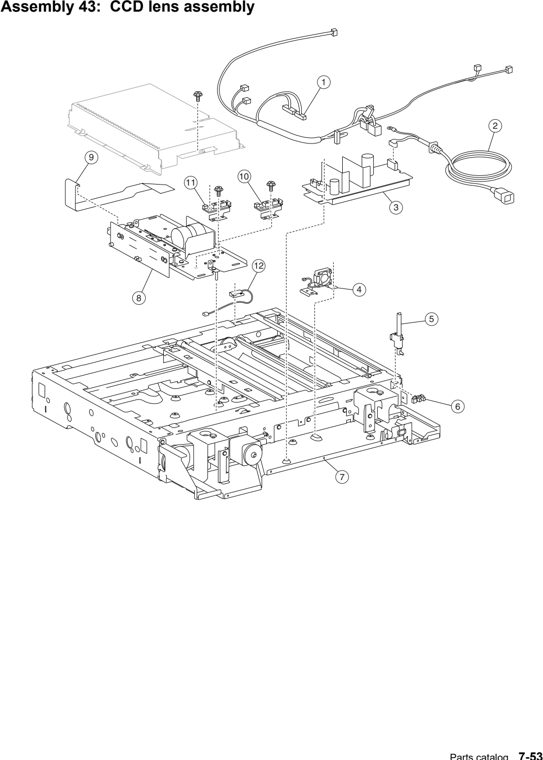

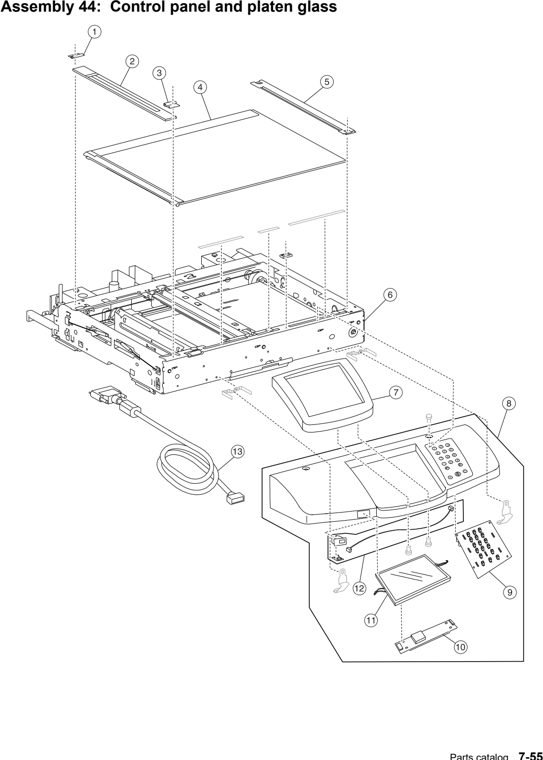

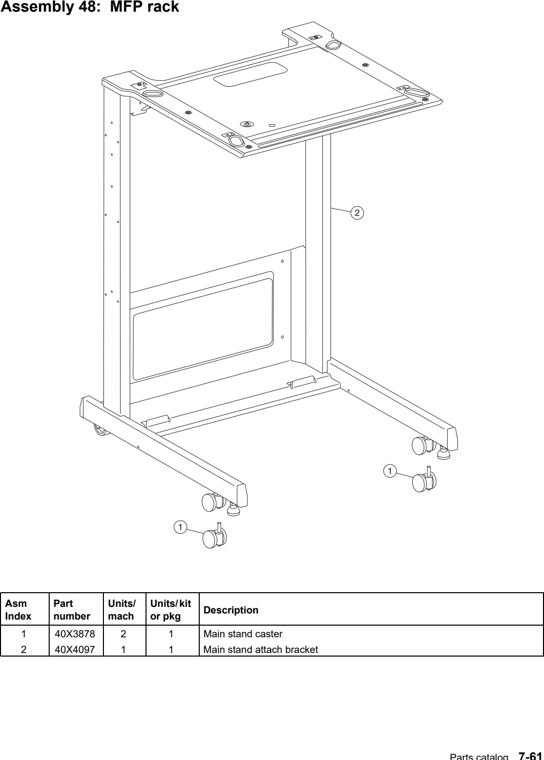

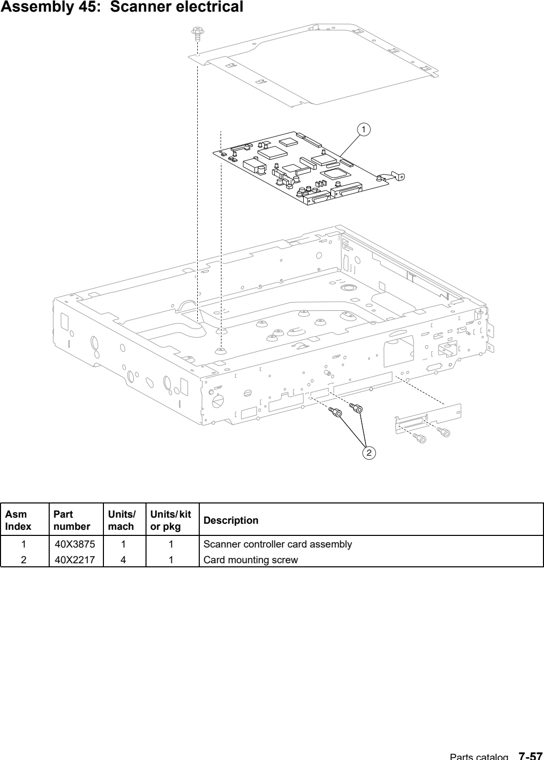

| 1 3 4 40X3855 Scanner interface cable assembly New 40X3855 (New) $67.63 Retired, no longer available: Contact for alternatives 5 |  |
| 1 2 3 4 5 6 40X2223 Sensor (ADF angle) 7 40X4094 Lower Scanner Unit Asm (X940E MFP X940E, X945E) Fully refurbished with 90-day warranty 40X4094 $1395.00 (this comes assembled) 8 9 10 11 12 40X2222 Switch (platen interlock) |  |
| Warning: In the event of replacement of any one of the following components: - RIP card assembly - Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never replace two or more of the components listed above without a POR after installing each one, or the printer will be rendered inoperable. Warning: Never install and remove components listed above as a method of troubleshooting components. Once a component has been installed in a machine, it cannot be used in another machine. It must be returned to the manufacturer. 1 40X2215 Small platen glass rear retainer 2 3 4 5 40X3858 Large platen glass retainer 6 40X4094 Lower Scanner Unit Asm (X940E MFP X940E, X945E) Fully refurbished with 90-day warranty 40X4094 $1395.00 (this comes assembled) 7 7 40X3870 Operator panel bezel X945e model 8 9 40X2363 Operator Panel Controller Card Assembly New 40X2363 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 10 40X2364 Operator Panel Inverter Card Assembly New 40X2364 (New) Retired, no longer available: Contact for alternatives 11 12 13 |  |
| 1 2 |  |

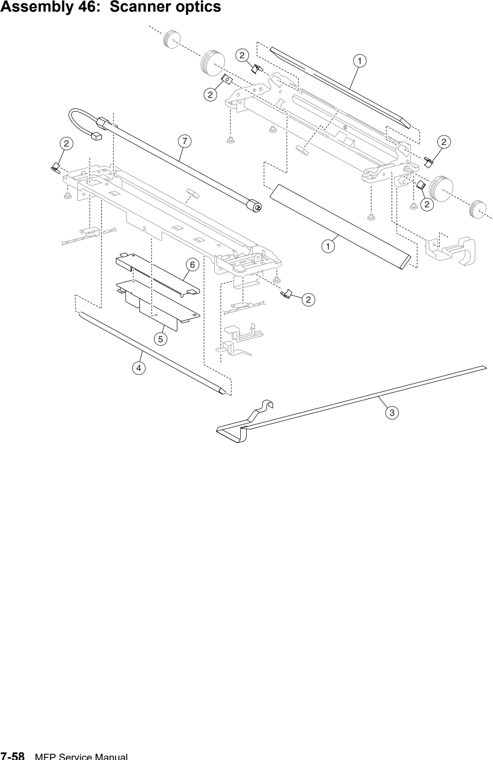

| 1 2 40X2233 Scanner mirror clip 3 40X3872 Exposure lamp PS ribbon cable 4 40X2234 1st mirror 5 6 40X3873 Exposure lamp PS card insulator 7 |  |

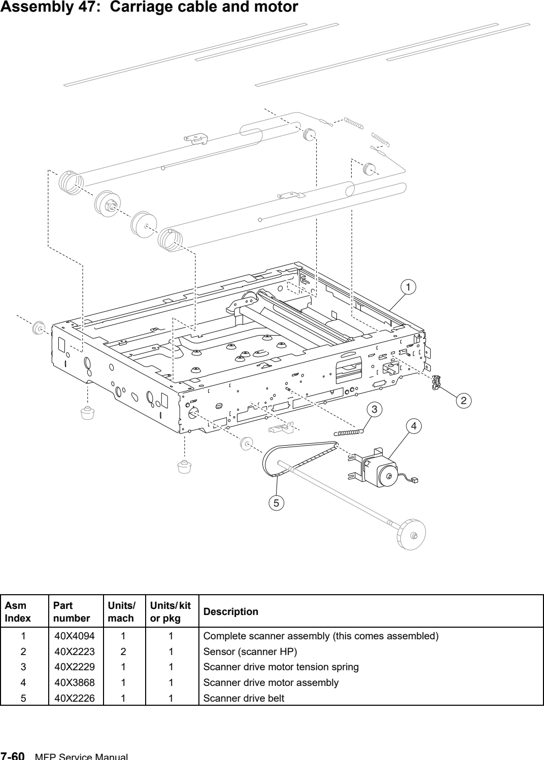

| 1 40X4094 Lower Scanner Unit Asm (X940E MFP X940E, X945E) Fully refurbished with 90-day warranty 40X4094 $1395.00 (this comes assembled) 2 40X2223 Sensor (scanner HP) 3 40X2229 Scanner drive motor tension spring 4 5 |  |

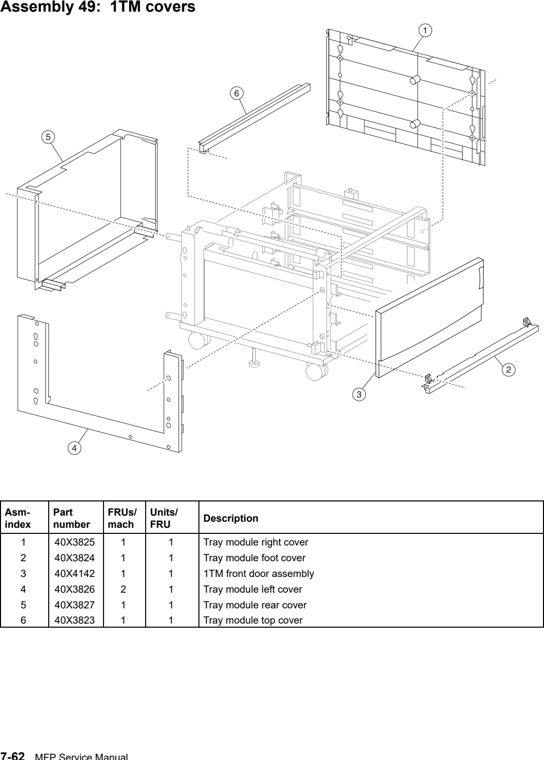

| 1 40X3825 Tray module right cover 2 40X3824 Tray module foot cover 3 40X4142 1TM front door assembly 4 40X3826 Tray module left cover 5 40X3827 Tray module rear cover 6 40X3823 Tray module top cover |  |

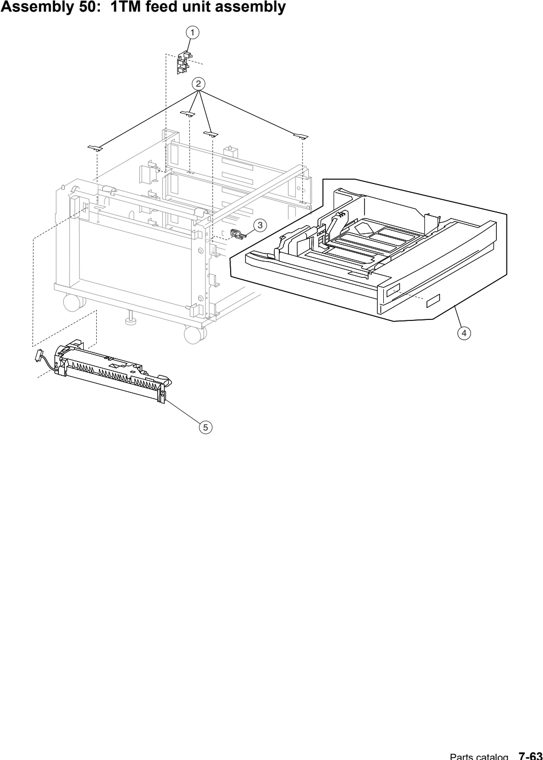

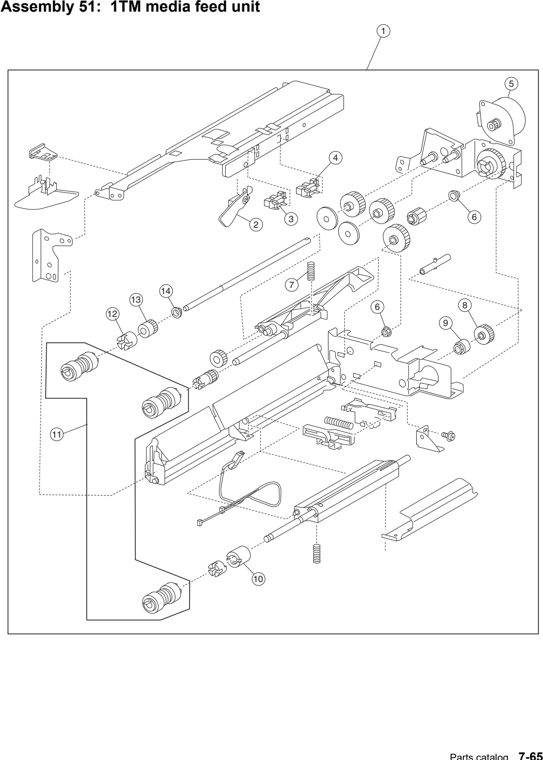

| 1 40X3677 Switch (media size) 2 40X3676 Media tray slide 3 40X3675 Media tray catch 4 40X3678 Media tray assembly kit Media tray assembly #1 label #2 label #3 label #4 label Instruction label 5 |  |
| 1 2 40X3687 Media out actuator 3 40X3688 Sensor (tray media out) 4 40X3688 Sensor (tray media level) 5 6 7 8 40X3686 Media tray lift one-way gear 9 40X3685 Media tray lift one-way clutch 10 40X4086 Separation roll friction clutch 11 Feed roll (2) Pick roll (2) Separation roll (2) 12 40X3690 Feed roll one-way clutch 13 40X3691 Feed roll one-way gear 22T 14 40X0952 6 1 Bushing 6 mm |  |

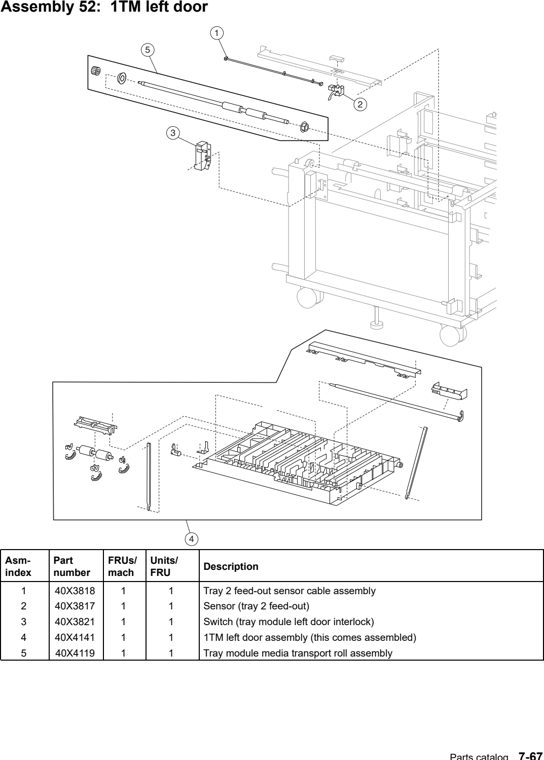

| 1 40X3818 Tray 2 feed-out sensor cable assembly 2 40X3817 Sensor (tray 2 feed-out) 3 40X3821 Switch (tray module left door interlock) 4 40X4141 1TM left door assembly (this comes assembled) 5 40X4119 Tray module media transport roll assembly |  |

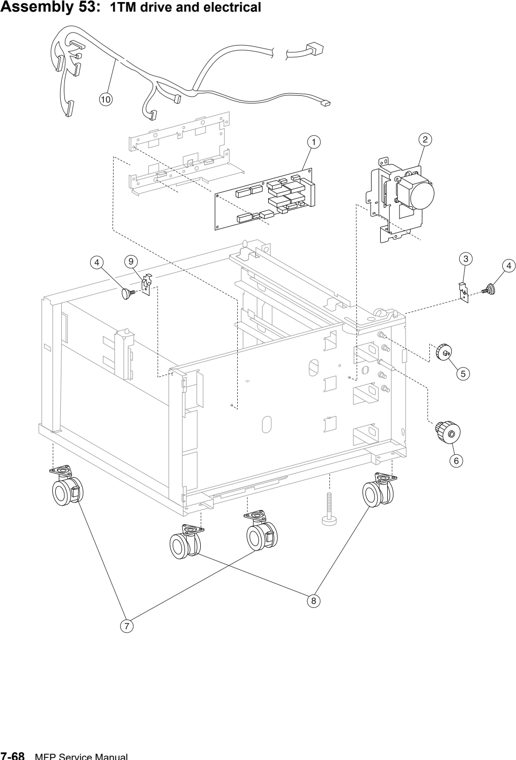

| 1 40X4152 1TM controller card assembly 2 40X3812 Tray module drive motor assembly 3 40X4068 Tray module left retaining bracket 4 40X4034 Tray module retainer screw 5 40X3815 Media transport gear 33T 6 40X3813 Media transport gear 23/46T 7 40X4117 Front locking caster 8 40X4143 Rear non-locking caster 9 40X4069 Tray module right retaining bracket 10 40X4109 1TM main cable assembly |  |

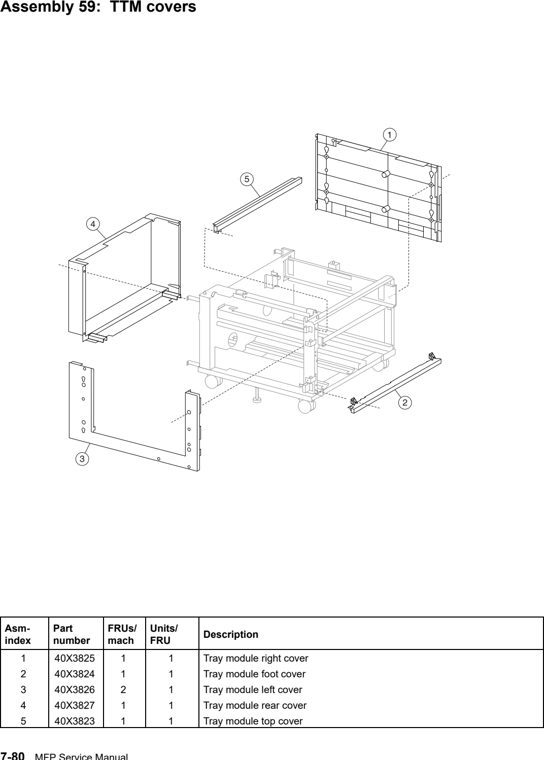

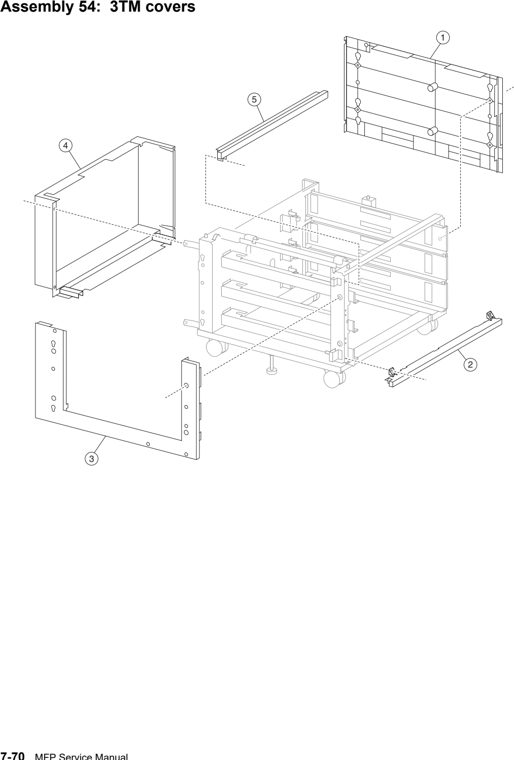

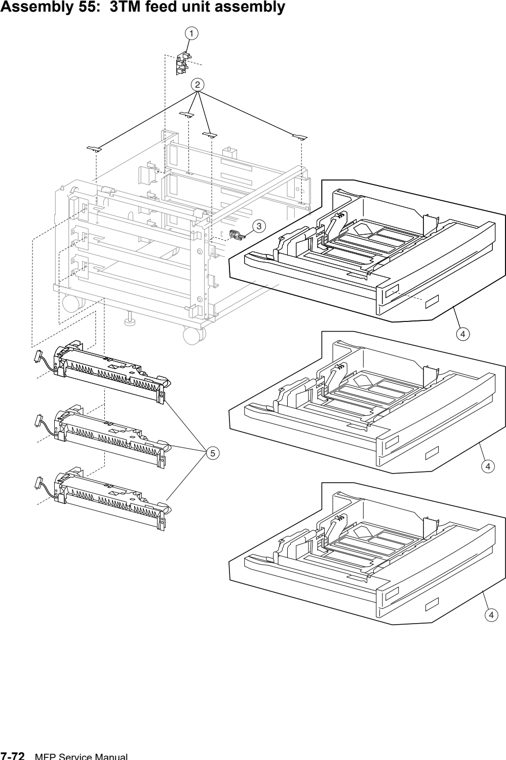

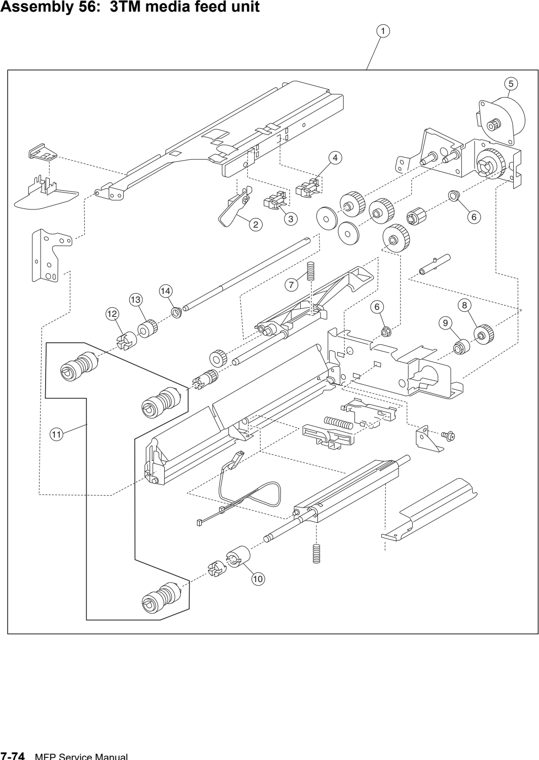

| 1 40X3825 Tray module right cover 2 40X3824 Tray module foot cover 3 40X3826 Tray module left cover 4 40X3827 Tray module rear cover 5 40X3823 Tray module top cover |  |
| 1 40X3677 Switch (media size) 2 40X3676 Media tray slide 3 40X3675 Media tray catch 4 40X3678 Media tray assembly kit Media tray assembly #1 label #2 label #3 label #4 label Instruction label 5 |  |
| 1 2 40X3687 Media out actuator 3 40X3688 Sensor (tray media out) 4 40X3688 Sensor (tray media level) 5 6 7 8 40X3686 Media tray lift one-way gear 9 40X3685 Media tray lift one-way clutch 10 40X4086 Separation roll friction clutch 11 Feed roll (2) Pick roll (2) Separation roll (2) 12 40X3690 Feed roll one-way clutch 13 40X3691 Feed roll one-way gear 22T 14 40X0952 Bushing 6 mm |  |

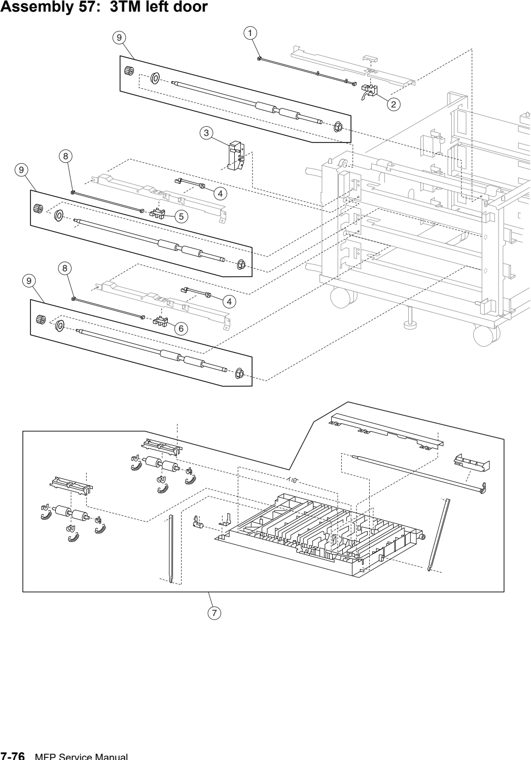

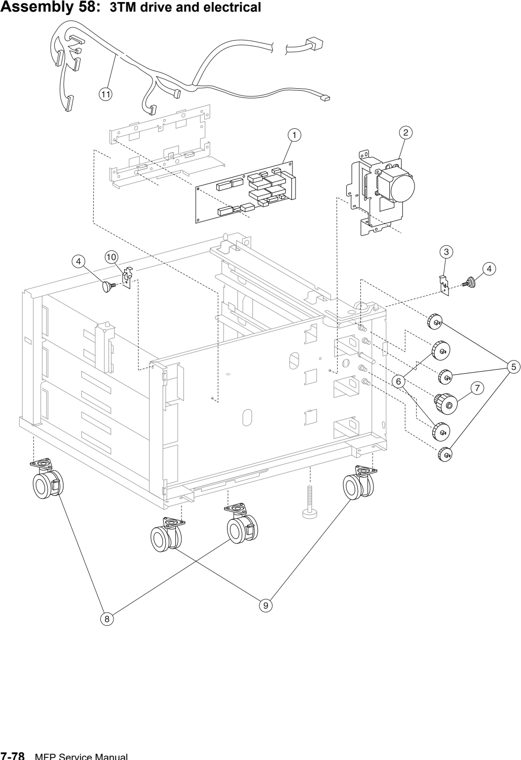

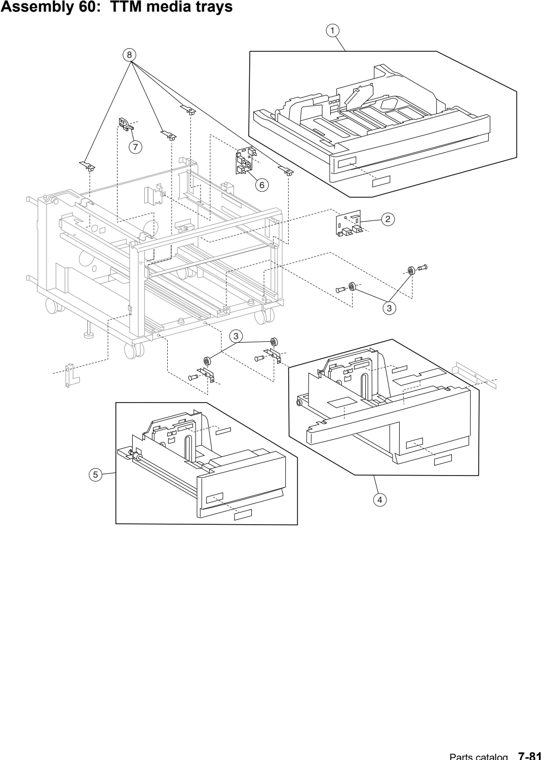

| 1 40X3818 Tray 2 feed-out sensor cable assembly 2 40X3817 Sensor (tray 2 feed-out) 3 40X3821 Switch (tray module left door interlock) 4 40X3819 Tray 3/4 feed-out sensor actuator 5 6 7 40X3816 3TM left door assembly (this comes assembled) 8 9 40X4119 Tray module media transport roll assembly |  |
| 1 40X3811 3TM controller card assembly 2 40X3812 Tray module drive motor assembly 3 40X4068 Tray module left retaining bracket 4 40X4034 Tray module retainer screw 5 40X3815 Media transport gear 33T 6 40X3813 Media transport gear 23/46T 7 40X3814 Media transport gear 46T 8 40X4117 Front locking caster 9 40X4143 Rear non-locking caster 10 40X4069 Tray module right retaining bracket 11 40X4108 3TM main cable assembly |  |
| 1 40X3825 Tray module right cover 2 40X3824 Tray module foot cover 3 40X3826 Tray module left cover 4 40X3827 Tray module rear cover 5 40X3823 Tray module top cover |  |
| 1 40X3678 Media tray assembly kit Media tray assembly #1 label #2 label #3 label #4 label Instruction label 2 40X3830 Switch (TTM media size) 3 40X3831 TTM tray support roll 4 5 40X3828 TTM media tray 3 assembly kit TTM media tray 3 #3 label Instruction label 6 40X3677 Switch (media size) 7 40X3675 Media tray catch 8 40X3676 Media tray slide |  |

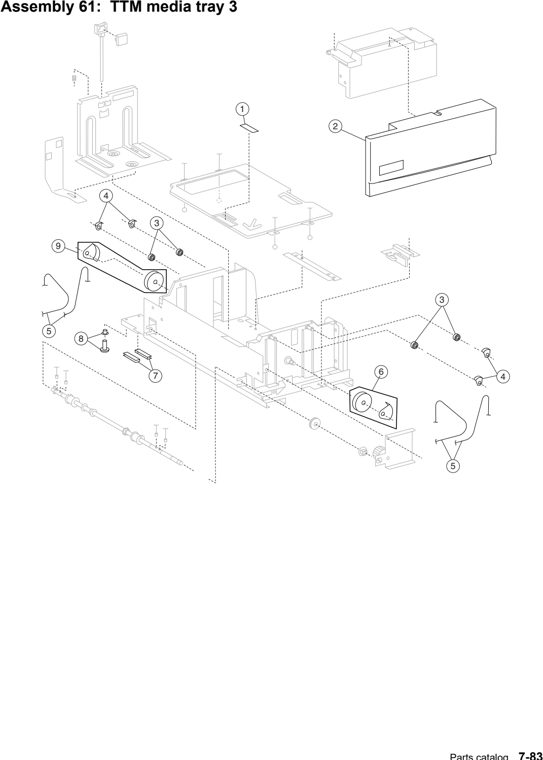

| 1 2 40X3832 TTM tray 3 front cover 3 40X4126 TTM tray lift idler pulley 4 40X4127 TTM tray lift idler pulley guide 5 40X4084 TTM tray 3 lift cable 6 TTM large idler pulley TTM large idler pulley guide 7 40X3834 TTM tray 3 slide strip 8 40X3835 TTM tray 3 slide button |  |

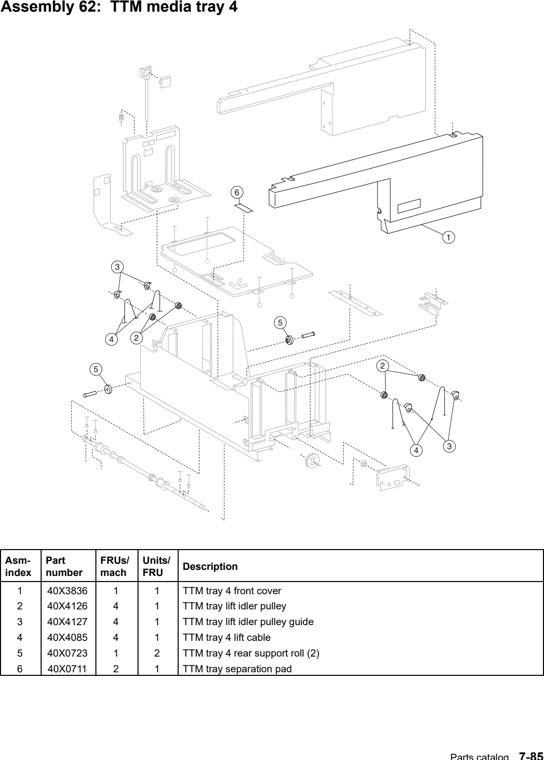

| 1 40X3836 TTM tray 4 front cover 2 40X4126 TTM tray lift idler pulley 3 40X4127 TTM tray lift idler pulley guide 4 40X4085 TTM tray 4 lift cable 5 40X0723 TTM tray 4 rear support roll (2) 6 |  |

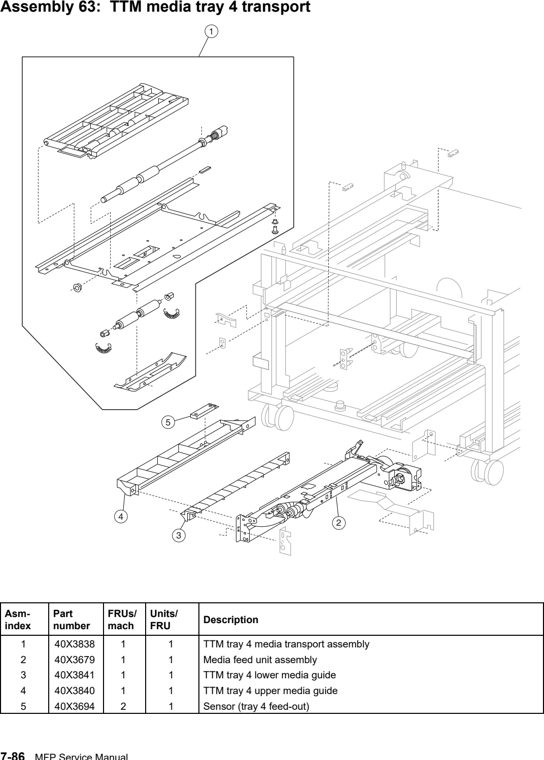

| 1 2 3 40X3841 TTM tray 4 lower media guide 4 40X3840 TTM tray 4 upper media guide 5 40X3694 Sensor (tray 4 feed-out) |  |

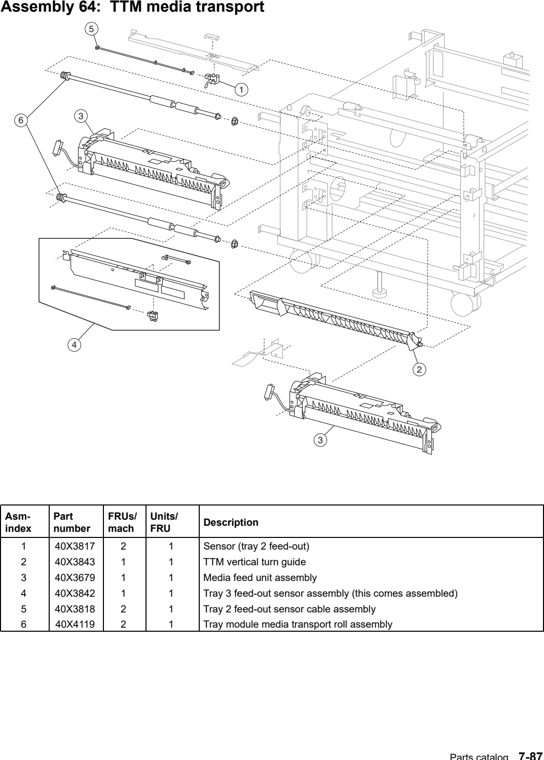

| 1 40X3817 Sensor (tray 2 feed-out) 2 40X3843 TTM vertical turn guide 3 4 40X3842 Tray 3 feed-out sensor assembly (this comes assembled) 5 40X3818 Tray 2 feed-out sensor cable assembly 6 40X4119 Tray module media transport roll assembly |  |

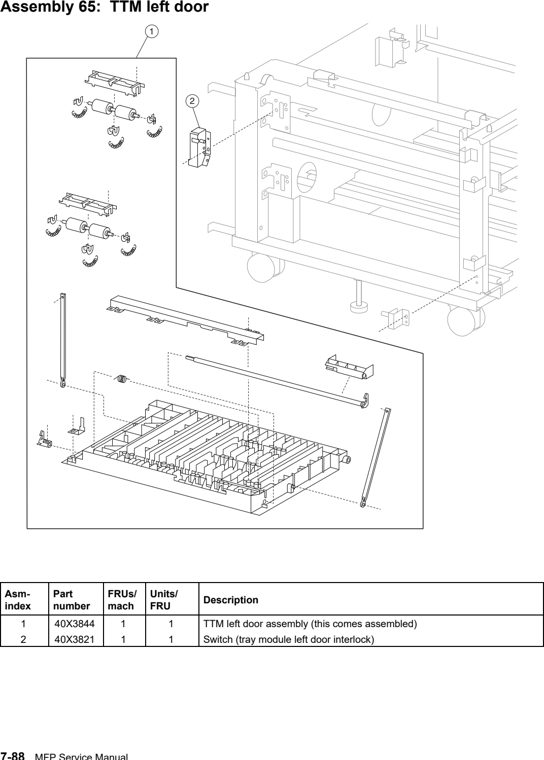

| 1 40X3844 TTM left door assembly (this comes assembled) 2 40X3821 Switch (tray module left door interlock) |  |

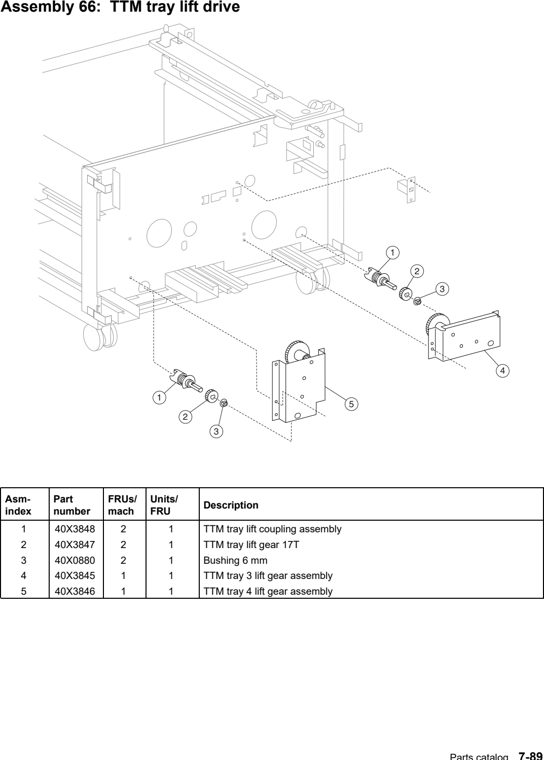

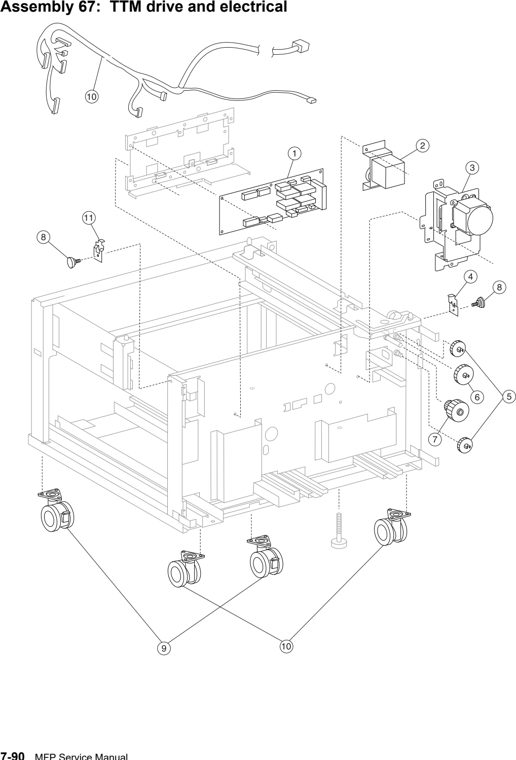

| 1 40X3848 TTM tray lift coupling assembly 2 40X3847 TTM tray lift gear 17T 3 4 40X3845 TTM tray 3 lift gear assembly 5 40X3846 TTM tray 4 lift gear assembly |  |
| 1 40X3850 TTM controller card assembly 2 40X3849 TTM tray 4 transport drive motor assembly 3 40X3812 Tray module drive motor assembly 4 40X4068 Tray module left retaining bracket 5 40X3815 Media transport gear 33T 6 40X3813 Media transport gear 23/46T 7 40X3814 Media transport gear 46T 8 40X4034 Tray module retainer screw 9 40X4117 Front locking caster 10 40X4143 Rear non-locking caster 11 40X4069 Tray module right retaining bracket 12 40X4103 TTM main cable assembly |  |
