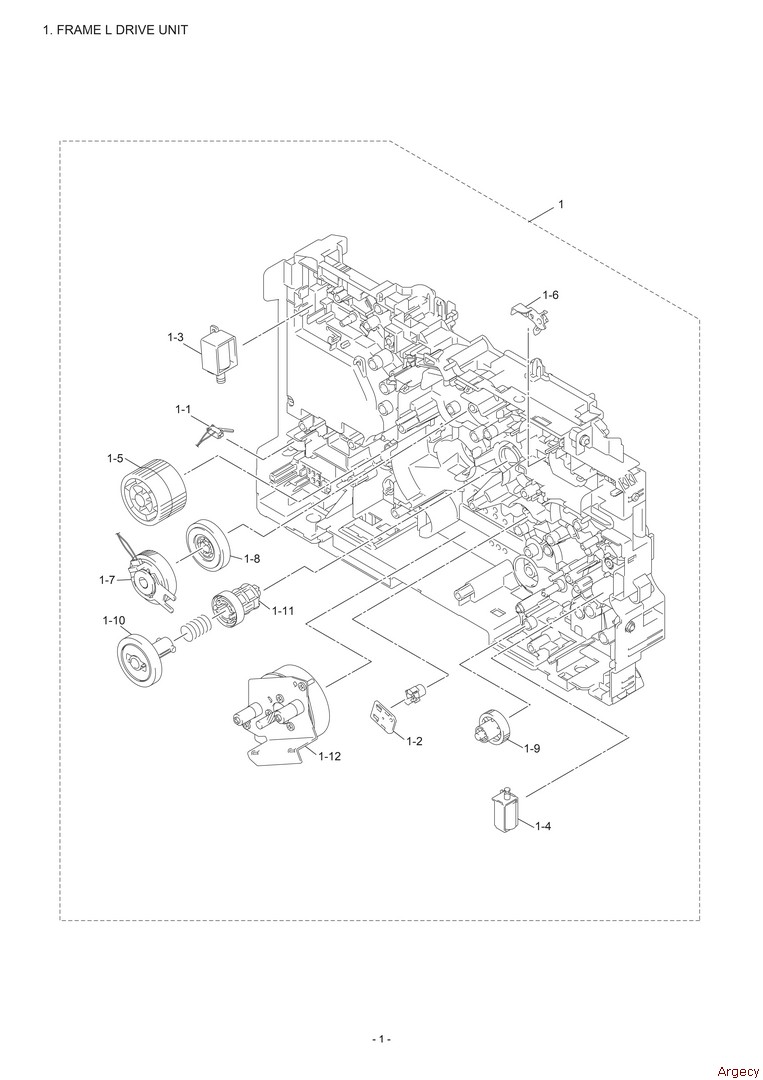

1. FRAME L & DRIVE UNIT 1 LY5698001 MAIN FRAME L ASSY (SP) FOR CHN / ARG / CHL 1 LU9838001 Main Frame Left Assembly Fully refurbished with 90-day warranty LU9838001 $99.91 1 LV0768001 BACK COVER SWITCH HARNESS ASSY 2 LV0766001 TONER SENSOR PCB ASSY 3 LY4446001 DUPLEX SOLENOID FOR CHN / ARG / CHL 3 LU9351001 DUPLEX SOLENOID EXCEPT FOR CHN / ARG / CHL 4 LY4393001 MP SOLENOID FOR CHN / ARG / CHL 4 LU9352001 MP SOLENOID EXCEPT FOR CHN / ARG / CHL 5 LY4450001 Fuser Drive Gear 39T New LY4450001 (New) $25.65 6 LY4454001 NEW TONER ACTUATOR 7 LY4408001 Develop Clutch 51R Fully refurbished with 90-day warranty LY4408001 $31.05 8 LY4409001 DEVELOP ONE WAY CLUTCH 53 9 LY4398001 LT DRIVE GEAR 29 10 LY4382001 DEVELOP JOINT GEAR 37 11 LY4380001 Develop Joint Fully refurbished with 90-day warranty LY4380001 $28.36 12 LY5383001 MAIN MOTOR ASSY (SP)

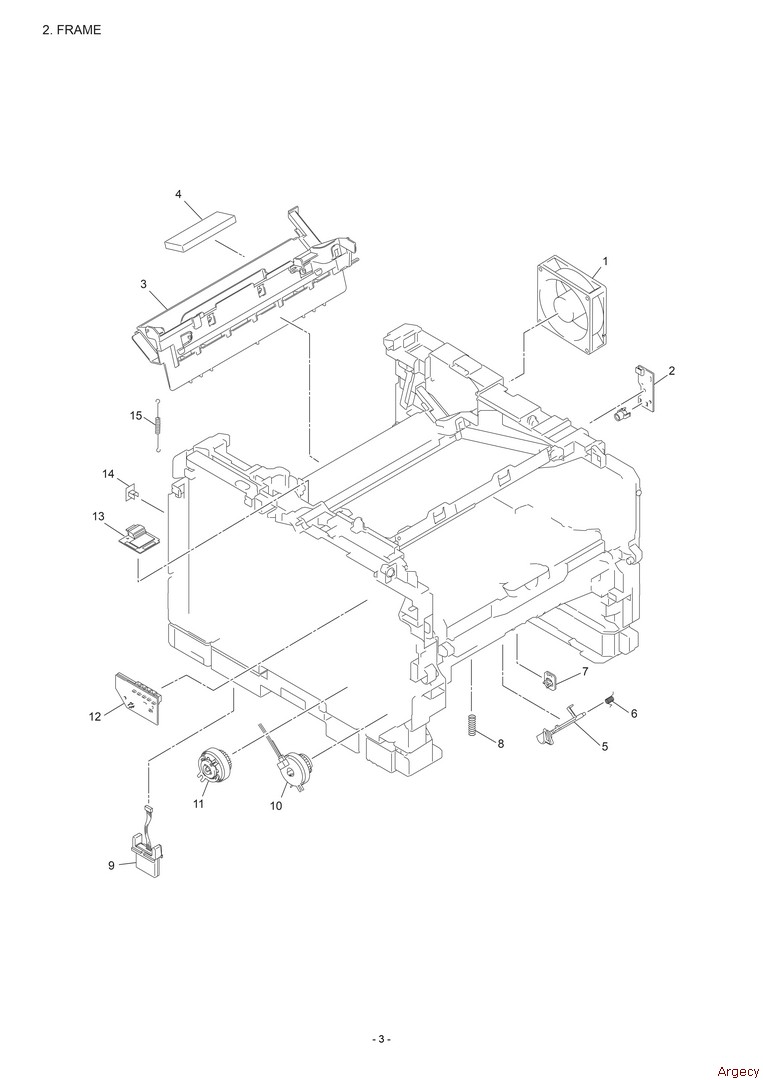

2. FRAME 1 LY4367001 Main Fan Fully refurbished with 90-day warranty LY4367001 $22.96 2 LV0771001 Toner Led PCB Assy Fully refurbished with 90-day warranty LV0771001 $32.41 3 LY4350001 AIR DUCT 4 LY5321001 FILTER 5 LY4562001 T2 Paper Feed Actuator Fully refurbished with 90-day warranty LY4562001 $31.05 6 LY4561001 T1 PAPER FEED ACTUATOR SPRING 7 LV0812001 T1 PAPER FEED SENSOR PCB ASSY 8 LY4331001 FEED GROUND SPRING 9 LM9266001 LT CONNECTOR (T1) 10 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 11 LY4332001 Registration Clutch Fully refurbished with 90-day warranty LY4332001 $31.05 12 LV0773001 Relay Front PCB Assy Fully refurbished with 90-day warranty LV0773001 $31.05 13 LT2155001 Wireless Lan PCB Fully refurbished with 90-day warranty LT2155001 $31.05 14 LY0872001 LAN PORT CAP EXCEPT FOR HL-5440D / 5445D 15 LY5704001 Fuser Unit Ground Spring Fully refurbished with 90-day warranty LY5704001 $29.71

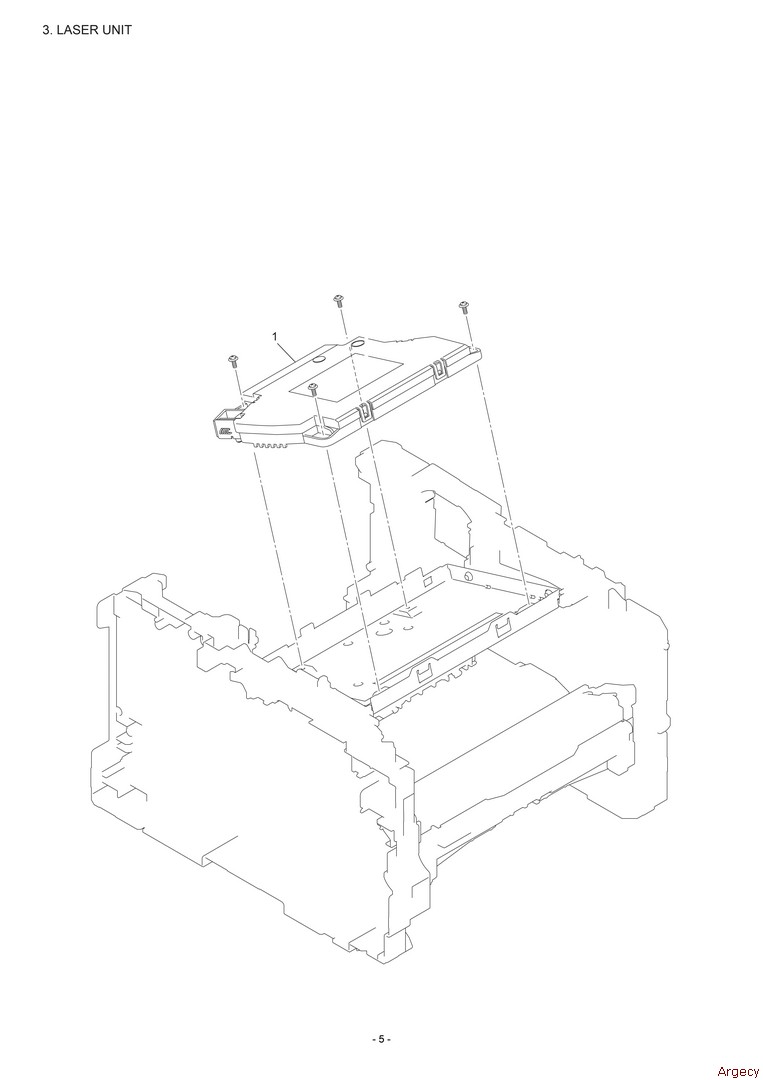

3. LASER UNIT 1 LY4628001 Laser Scanner Unit - SJ Type Laser New LY4628001 (New) $295.65 LY4628001 Laser Scanner Unit - SJ Type Laser Fully refurbished with 90-day warranty LY4628001 $93.16 1 LU9361001 Laser Scanner Unit - SM Type Laser Fully refurbished with 90-day warranty LU9361001 $79.66 *1 When replacing the Laser unit, open the front cover of the machine,check the first two characters of the Laser serial label attached on the Laser plate and order the same type of the Laser unit that was attached to the machine

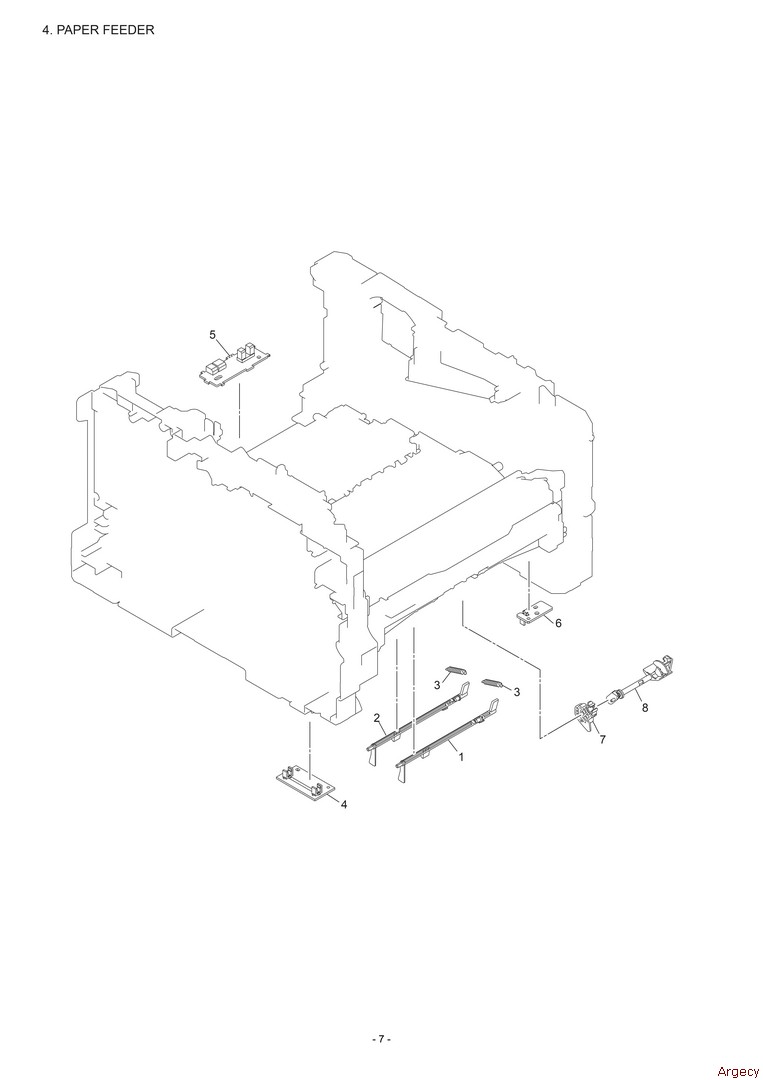

4. PAPER FEEDER 1 LY4311001 REGISTRATION FRONT ACTUATOR 2 LY4310001 Registration Rear Actuator Fully refurbished with 90-day warranty LY4310001 $31.05 3 LY4309001 2 REGISTRATION ACTUATOR SPRING 4 LV0785001 Registration Front/Rear Sensor PCB Assy Fully refurbished with 90-day warranty LV0785001 $29.71 5 LV1501001 EJECT SENSOR PCB ASSY 6 LV0789001 MP Paper Empty Sensor PCB Assy Fully refurbished with 90-day warranty LV0789001 $31.05 7 LY4290001 MP Paper Empty Actuator 2 Fully refurbished with 90-day warranty LY4290001 $31.05 28 LY4289001 MP Paper Empty Actuator 1 Fully refurbished with 90-day warranty LY4289001 $31.05

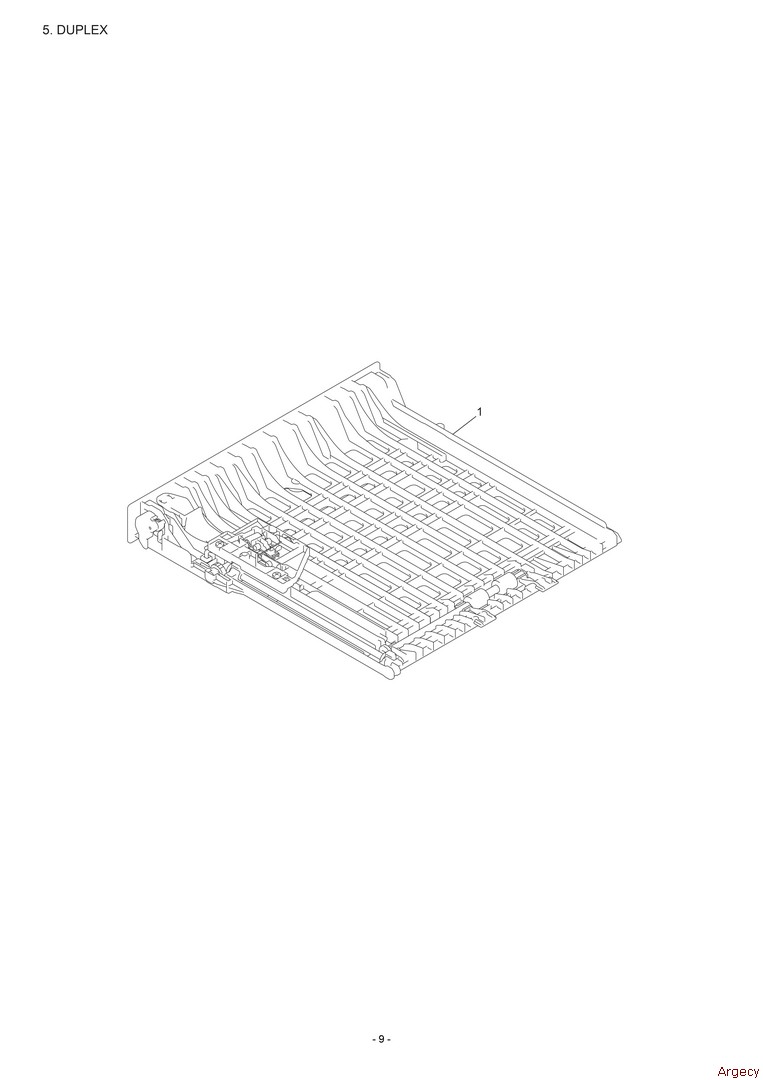

5. DUPLEX 1 LY5837001 Duplex Tray Letter Fully refurbished with 90-day warranty LY5837001 $36.46 1 LY5694001 DUPLEX TRAY A4 (SP) EXCEPT FOR US / CAN / PHL / ARG / CHL / BRA

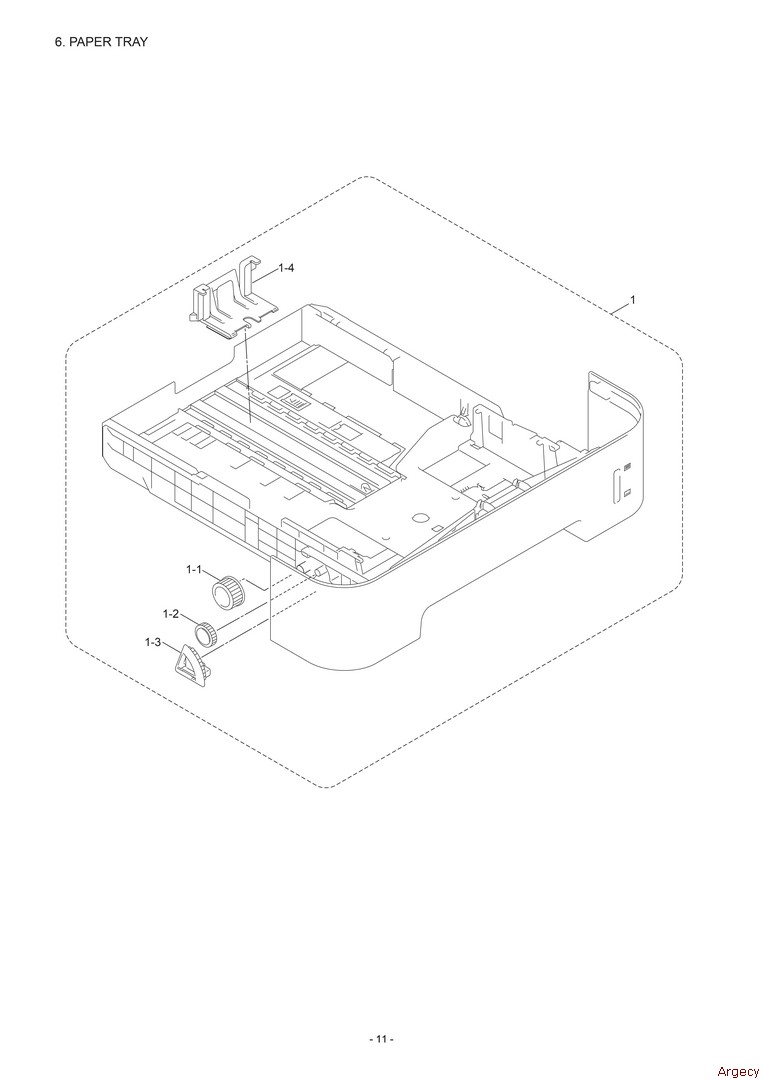

6. PAPER TRAY 1 LY5724001 Paper Tray 250 Sheets Main New LY5724001 (New) $113.41 LY5724001 Paper Tray 250 Sheets Main Fully refurbished with 90-day warranty LY5724001 $47.25 1 LU9592001 Paper Tray 1 - 500 Sheets New LU9592001 (New) $52.66 1 LY4243001 GEAR Z22M10 2 LY4242001 IDLE GEAR Z18M10*1 2 LU9365001 IDLE GEAR 50 Z18M10*1 3 LY4241001 LIFT GEAR Z27M10 EXCEPT FOR HL-6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 3 LY4516001 LIFT GEAR Z48M10, HL-6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 3-1 4LY2204001 PAPER REAR GUIDE, EXCEPT FOR HL-6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER *1 There are two types of IDLE GEAR you can order. When you replace the idle gear, please refer to Parts Change Information:1000040666 because you need to know which idle gear on the above list should be attached to the machine.

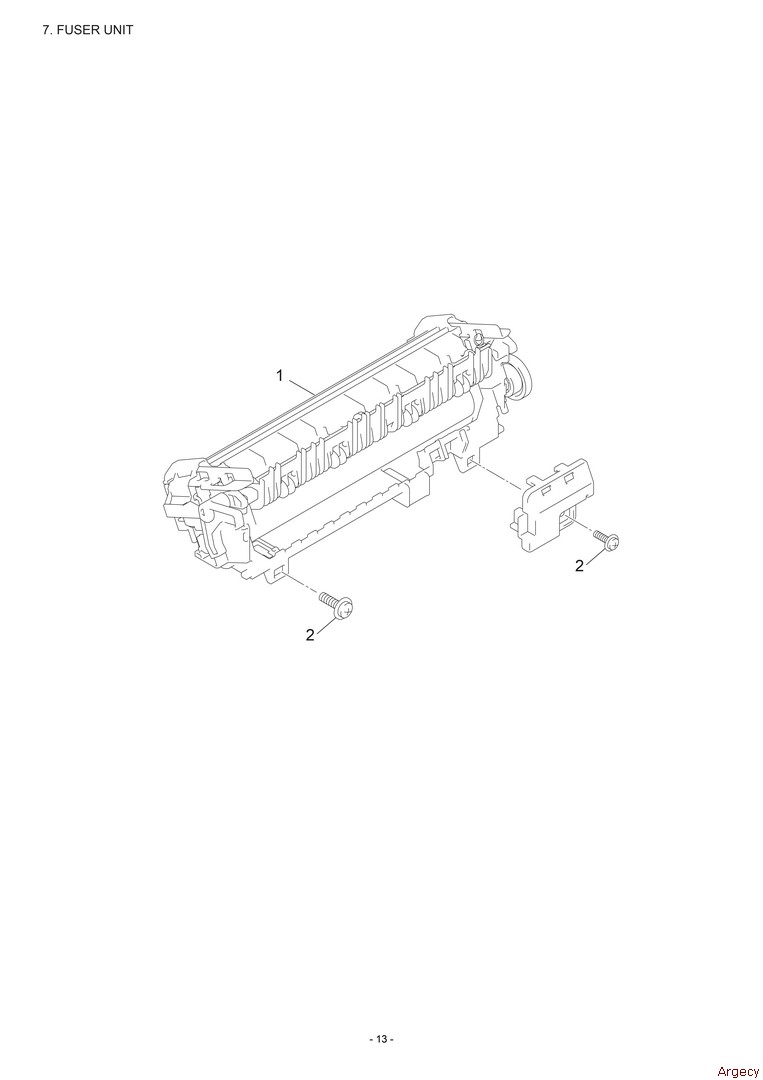

7. FUSER UNIT 1 LU8568001 Fuser - 115V Fully refurbished with 90-day warranty LU8568001 $174.15 1 LEJ628001 FUSER UNIT 115V (SP) FOR TWN 1 LJB693001 Fuser - 115V Fully refurbished with 90-day warranty LJB693001 $174.15 1 LU8566001 FUSER UNIT 230V (SP) EXCEPT FOR GER / GER TENDER 1 LU8567001 FUSER UNIT 230V (SP) FOR GER / GER TENDER (1-1) D0019H001 FUSER FRONT CHUTE 2 LJ0395001 2 TAPTITE PAN B M4X14

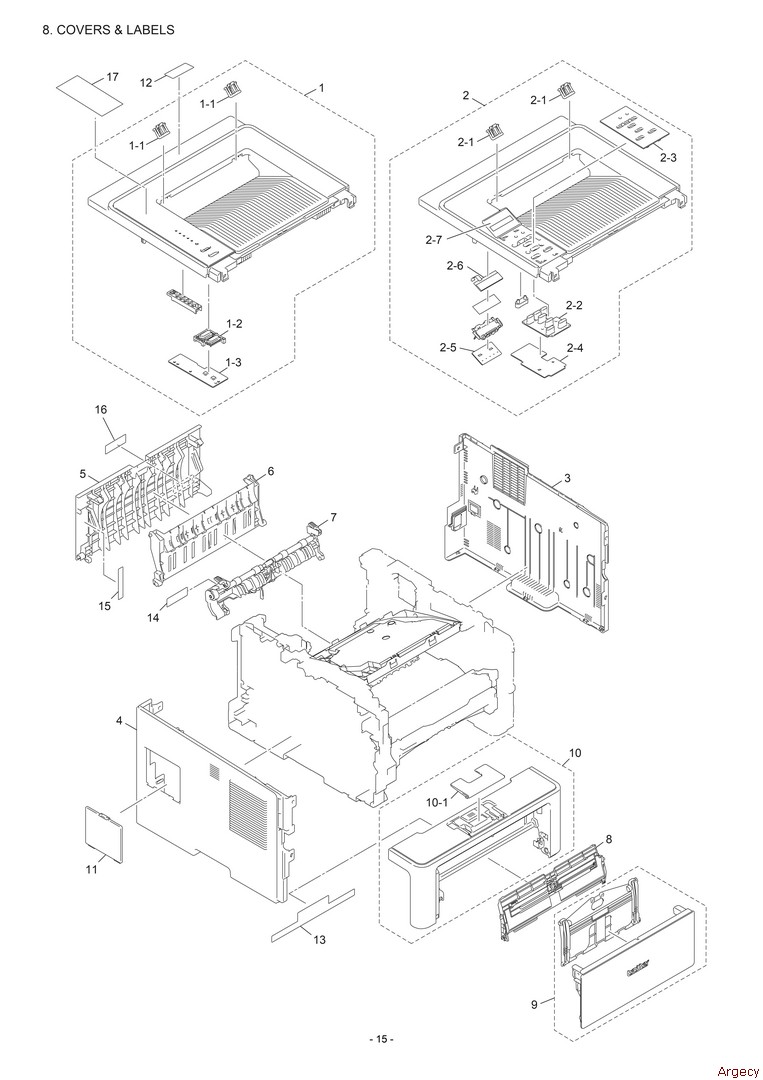

8. COVERS & LABELS 1 LY5846001 Top Cover Assy Fully refurbished with 90-day warranty LY5846001 $39.16 1 LY5847001 TOP COVER ASSY (SP), HL-5440D / 5450DN FOR CHN 1 LY5847002 TOP COVER ASSY (SP), HL-5445D 1 LU5292001 2 PAPER STACK LEVER, HL-5440D / 5445D / 5450DN / 5450DNT / 5452DN 2 LY4183001 SW KEY PRINTED ASSY, HL-5440D / 5450DN / 5450DNT / 5452DN 2 LY4183002 SW KEY PRINTED ASSY, HL-5445D 3 LV0793001 PANEL PCB ASSY, HL-5440D / 5445D / 5450DN / 5450DNT / 5452DN 2 LY5695001 TOP COVER ASSY (SP), HL-5470DW / 5470DWT FOR US / CAN / ARL / TWN / ARG / CHL / SGP 2 LY5849001 TOP COVER ASSY (SP), HL-5470DW EXCEPT FOR US / CAN / ARL / TWN / ARG / CHL / GUL / SGP / KOR 2 LY5850001 Top Cover Assembly Fully refurbished with 90-day warranty LY5850001 $76.95 FOR US / CAN / ARL / CHN / PHL / ARG / CHL / GUL / SGP / IND 2 LU9834001 TOP COVER ASSY (SP), HL-6180DW FOR KOR 2 LY5851001 TOP COVER ASSY (SP), HL-6180DW / 6180DWT / 6180DW GER TENDER EXCEPT FOR US / CAN / ARL / CHN / PHL / ARG / CHL / GUL / SGP / KOR / IND 2 LU9234001 TOP COVER ASSY (SP), HL-5470DW FOR TWN / GUL / SGP 2 LU9833001 TOP COVER ASSY (SP), HL-5470DW FOR KOR 2 LU9037001 TOP COVER ASSY (SP), HL-5472DW / 5472DWT 2 LU9187001 TOP COVER ASSY (SP), HL-6182DW / 6182DWT 1 LU5292001 2 PAPER STACK LEVER, HL-5470DW / 5470DWT / 5472DW / 5472DWT / 6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 2 LY4472001 RUBBER KEY PRINTED ASSY, HL-5470DW / 5470DWT / 5472DW / 5472DWT / 6182DW / 6182DWT, HL-6180DW / 6180DWT FOR US / CAN / ARL / CHN / PHL / ARG / CHL / GUL / SGP / KOR / IND 2 LY4472002 RUBBER KEY PRINTED ASSY, HL-6180DW / 6180DWT / 6180DW GER TENDER EXCEPT FOR US / CAN / ARL / CHN / PHL / ARG / GUL / SGP / KOR / IND 3 LY4470001 PANEL PRINTED ASSY, HL-5470DW / 5470DWT / 6180DW / 6180DWT FOR US / CAN / ARL / CHN / PHL / TWN / ARG / CHL / GUL / SGP / KOR / IND, HL-5472DW / 5472DWT / 6182DW / 6182DWT 3 LY4642001 PANEL PRINTED ASSY, HL-5470DW EXCEPT FOR US / CAN / ARL / TWN / ARG / CHL / GUL / SGP / KOR 3 LY4642002 PANEL PRINTED ASSY, HL-6180DW / 6180DWT / 6180DW GER TENDER EXCEPT FOR US / CAN / ARL / CHN / PHL / ARG / GUL / SGP / KOR / IND 4 LV0809001 PANEL PCB ASSY, HL-5470DW / 5470DWT / 5472DW / 5472DWT / 6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 5 LV0808001 BACKLIGHT PCB ASSY, HL-5470DW / 5470DWT / 5472DW / 5472DWT / 6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 6 LV0308001 LCD, HL-5470DW / 5470DWT / 5472DW / 5472DWT / 6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 7 LY4625001 LCD SHEET PRINTED ASSY, HL-6180DW / 6180DWT FOR US / CAN / ARL / CHN / PHL / ARG / CHL / GUL / SGP / KOR / IND 7 LY4625002 LCD SHEET PRINTED ASSY, HL-6180DW / 6180DWT / 6180DW GER TENDER EXCEPT FOR US / CAN / ARL / CHN / PHL / ARG / GUL / SGP / KOR / IND 7 LY4683001 LCD SHEET PRINTED ASSY, HL-5470DW / 5470DWT 7 LY5350001 LCD SHEET PRINTED ASSY, HL-5472DW / 5472DWT 7 LY5349001 LCD SHEET PRINTED ASSY, HL-6182DW / 6182DWT 3 LY4178001 SIDE COVER R EXCEPT FOR HL-6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 3 LY4465001 SIDE COVER R, HL-6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 4 LY4623001 SIDE COVER L, HL-5440D / 5445D 4 LY4177001 SIDE COVER L, HL-5450DN / 5450DNT / 5452DN / 5470DW / 5470DWT / 5472DW / 5472DWT 4 LY4464001 SIDE COVER L, HL-6180DW / 6180DWT / 6182DW / 6182DWT / 6180DW GER TENDER 5 LY4176001 BACK COVER 6 LY4175001 OUTER CHUTE 7 LY4580001 FUSER COVER 8 LY4174001 MP PAPER GUIDE ASSY 9 LY5327001 MP Cover Assy Fully refurbished with 90-day warranty LY5327001 $32.41 10 LY4164001 FRONT COVER ASSY, HL-5440D / 5450DN / 5450DNT / 5470DW / 5470DWT EXCEPT FOR CHN / PHL / TWN / SGP, HL-6180DW / 6180DWT FOR US / CAN / ARL / ARG / CHL 10 LY5287001 FRONT COVER ASSY, HL-5440D / 5450DN / 6180DW FOR CHN 10 LY5287002 FRONT COVER ASSY, HL-5445D FOR CHN 10 LY5684001 FRONT COVER ASSY, HL-5440D / 5450DN / 5470DW / 6180DW FOR PHL / TWN / GUL / SGP / KOR / IND 10 LY5972001 FRONT COVER ASSY FOR BRA
8. COVERS & LABELS 10 LY4164002 FRONT COVER ASSY, HL-6180DW / 6180DWT / 6180DW GER TENDER EXCEPT FOR US / CAN / ARL / CHN / PHL / ARG / GUL / SGP / KOR / IND 1 LY4160001 PAPER STOPPER, HL5440D / 5450DN / 5450DNT / 5452DN / 5470DW / 5470DWT / 5472DW / 5472DWT / 6182DW / 6182DWT, HL-6180DW / 6180DWT FOR US / CAN / ARL / CHN / PHL / ARG / CHL / GUL / SGP / KOR / IND 1 LY4160002 PAPER STOPPER, HL-5445D / 6180DW GER TENDER, HL-6180DW / 6180DWT EXCEPT FOR US / CAN / ARL / CHN / PHL / ARG / GUL / SGP / KOR / IND 11 LY4463001 ACCESS COVER EXCEPT FOR HL-5440D / 5445D 12 LY4704001 MODEL PLATE, HL-5440D 12 LY5254001 MODEL PLATE, HL-5445D 12 LY4571001 MODEL PLATE, HL-5450DN / 5450DNT 12 LY5347001 MODEL PLATE, HL-5452DN 13 LY4706001 LABEL PROCESS OP US LED 26X209, HL-5440D / 5450DN FOR US / CAN / ARG / CHL 13 LY4689001 LABEL PROCESS OP US 26X209, HL-5470DW / 5470DWT FOR US / CAN / ARG / CHL 13 LY4707001 LABEL PROCESS OP US FS 26X209, HL-6180DW / 6180DWT FOR US / CAN / ARG / CHL 13 LY4870001 LABEL PROCESS OP EU LED 26X209, HL-5440D / 5450DN / 5450DNT EXCEPT FOR US / CAN / CHN / ARG / CHL 13 LY4573001 LABEL PROCESS OP EUR 26X209, HL-5470DW / 6180DW / 6180DWT / 6180DW GER TENDER EXCEPT FOR US / CAN / CHN / ARG / CHL 13 LY4869001 LABEL PROCESS OP CHN LED26X209, HL-5440D / 5445D / 5450DN FOR CHN 13 LY5964001 LABEL PROCESS OP BR LED 26X209, HL-5452DN 13 LY5966001 LABEL PROCESS OP BRZ 26X209, HL-5472DW / 5472DWT 13 LY4868001 LABEL PROCESS OP CHN 26X209, HL-6180DW FOR CHN 13 LY5967001 LABEL PROCESS OP BRZ FS 26X209, HL-6182DW / 6182DWT 14 LY4690001 LABEL REAR JAM 17X55 15 LY4574001 LABEL H CAUTION REAR 14X72 16 LU9003001 LABEL AC CORD CAUTION FOR CHN 17 LY5258001 LED LABEL, HL-5440D / 5450DN FOR ARL 17 LY5333001 LED LABEL, HL-5440D / 5445D / 5450DN FOR CHN 17 LY5257001 LED LABEL, HL-5440D / 5450DN FOR PHL / TWN / GUL / SGP / KOR / IND

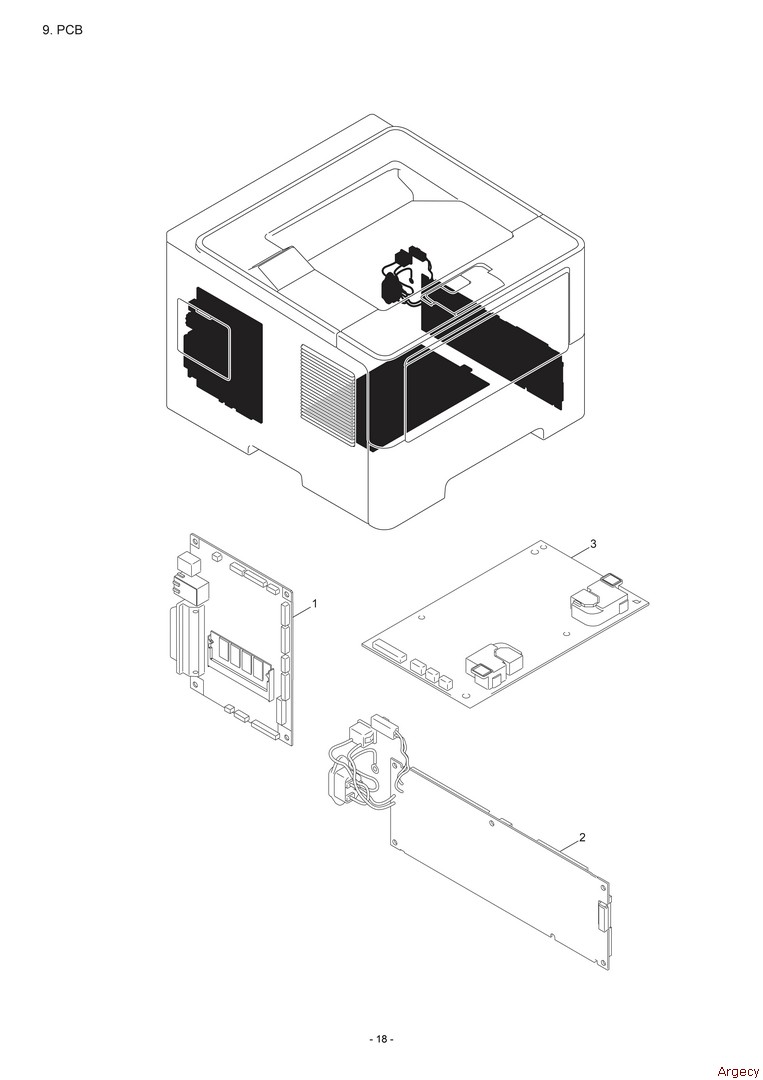

9. PCB 1 LV0838001 MAIN PCB ASSY, HL-5440D FOR US 1 LV0838002 MAIN PCB ASSY, HL-5440D EXCEPT FOR US / CHN 1 LV0838004 MAIN PCB ASSY, HL-5440D / 5445D FOR CHN 1 LV0795004 MAIN PCB ASSY, HL-5450DN FOR CHN 1 LV0818004 MAIN PCB ASSY, HL-6180DW FOR CHN 1 LV0795001 MAIN PCB ASSY, HL-5450DN / 5450DNT / 5452DN EXCEPT FOR CHN / KOR 1 LV0795007 MAIN PCB ASSY, HL-5450DN FOR KOR 1 LV0818001 Main PCB Assembly Fully refurbished with 90-day warranty LV0818001 $93.16 EXCEPT FOR CHN / KOR 1 LV0818007 MAIN PCB ASSY, HL-6180DW FOR KOR 1 LV0839007 MAIN PCB ASSY, HL-5470DW FOR KOR 1 LV0839001 Main PCB Assy - DW Fully refurbished with 90-day warranty LV0839001 $106.66 2 LV0802001 Low-Voltage Power Supply PCB Assembly Fully refurbished with 90-day warranty LV0802001 Contact for Details HL-5440D / 5450DN / 5452DN / 5470DW / 5470DWT / 5472DW / 5472DWT FOR US / CAN / TWN / BRA 2 LV0982001 LOW-VOLTAGE POWER SUPPLY PCB ASSY, HL-6180DW / 6180DWT FOR US / CAN, HL-6182DW / 6182DWT 2 LV0824001 LOW-VOLTAGE POWER SUPPLY PCB ASSY EXCEPT FOR US / CAN / CHN / TWN / BRA / IND / RUS 2 LV0859001 LOW-VOLTAGE POWER SUPPLY PCB ASSY FOR CHN / IND / RUS 3 LV0806001 High-Volt Power Supply Fully refurbished with 90-day warranty LV0806001 $52.66

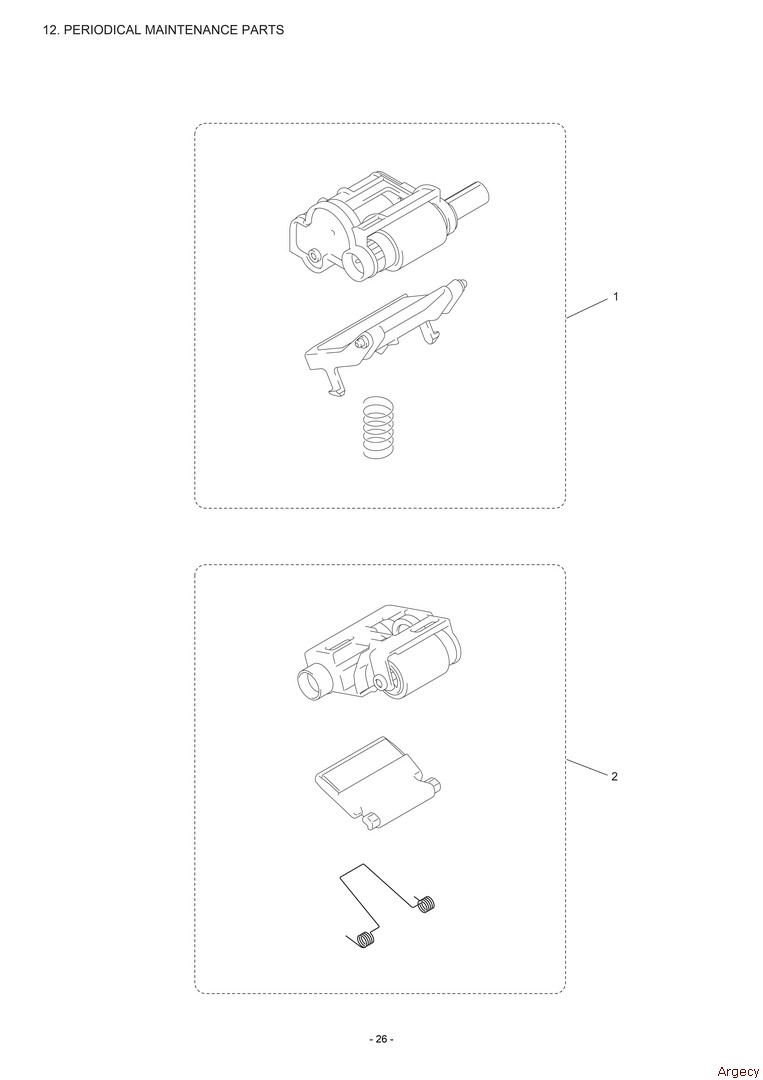

12. PERIODICAL MAITENANCE PARTS 1 2 LY5385001 Manual Bypass Feed Kit - Manual Bypass Paper Feed Kit New LY5385001 (New) $25.65
13. LOWER TRAY 1 LY4534001 T2 BACK COVER, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 2 LY4335001 Tray T1 - T2 Clutch Fully refurbished with 90-day warranty LY4335001 $32.41 3 LY4562001 T2 Paper Feed Actuator Fully refurbished with 90-day warranty LY4562001 $31.05 4 LY4561001 T2 PAPER FEED ACTUATOR SPRING, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 5 LV0812001 T2 PAPER FEED SENSOR PCB ASSY, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 6 LU9600001 PAPER TRAY 2 (SP), HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 1 LY4243001 GEAR Z22M10, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 2 LY4242001 IDLE GEAR Z18M10, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 2 LU9365001 IDLE GEAR 50 Z18M10, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 3 LY4516001 LIFT GEAR Z48M10, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 7 LY4533001 T2 FRONT COVER ASSY, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 8 LY4530001 T2 SIDE COVER L, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 9 LY4529001 T2 SIDE COVER R, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 10 LV0814001 T2 RELAY PCB ASSY, HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT 11 LY5498001 LT CONNECTOR ASSY (T2), HL-5450DNT / 5470DWT / 5472DWT / 6180DWT / 6182DWT *1 There are two types of IDLE GEAR you can order.When you replace the idle gear, please refer to Parts Change Information:1000040666 because you need to know which idle gear on the above list should be attached to the machine.
