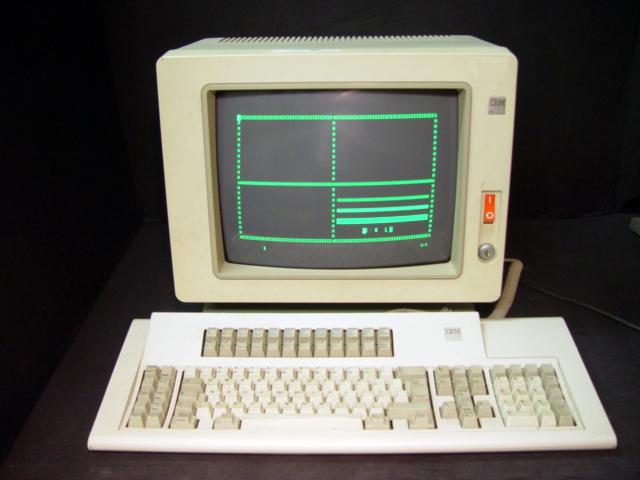

The IBM 3180 Display Station is a family of advanced-function CRT display stations for use with the S/360, S/370, the 303X, 308X, 3090, 43XX, and 9370 processors via a 3274 or 3276, and 8100 Information Systems, or the S/36, S/38, AS/400, and the 5294 or 5394 Remote Control Unit. The 3180 offers a high-resolution 15-inch (nominal), monochrome CRT display. The 3180 consists of five workstation elements: display, logic, keyboard, cable attachment, and power cord. Default order-entry schemes allow any available machine configuration to be ordered by model selection. The third digit in the model number indicates the language.

Model Abstract
The IBM 3180-110 Display Station consists of the appropriate video element, logic element, a typewriter-style keyboard, cable attachment element, and a 3.0 m (9.8 ft) power cord. Model 110 attaches to the 3274 and 3276 for use with the S/360, S/370, 43xx, 303x, 308x, 3090, or 8100. Model 110 also attaches to the 4321, 4331, or 4361 with the Display/Printer Adapter; the 4361 with the Workstation Adapter, or the 4701 with the Device Cluster Adapter. Model Abstract 3180-120

The IBM 3180-120 Display Station consists of the appropriate video element, logic element, a data entry-style keyboard, cable attachment element, and a 3.0 m (9.8 ft) power cord. No specify codes are required. Model 120 attaches to the 3274 and 3276 for use with the S/360, S/370, 43xx, 303x, 308x, 3090, or 8100. Model 120 also attaches to the 4321, 4331, or 4361 with the Display/Printer Adapter; the 4361 with the Workstation Adapter, or the 4701 with the Device Cluster Adapter.

---

Highlights

• High-resolution, 15-inch (nominal), monochrome CRT display
• Workstation elements: display, logic, keyboard, cable attachment, and power cord
• Standard models (default order-entry schemes) for available machine configurations, ordered by model selection

  ---

Description
The 3180 provides display functions compatible with the 3278 Models 2-5 and the 5251 Model 11, advanced display functions, and enhanced ergonomic characteristics including display screen, tilt, rotate, and elevate. The 3180 keyboards consist of 122 keys which includes control and cursor movement keys, 24 program function or command function keys, alphameric keys, and numeric pad keys. The keyboard is attached to the display by a pluggable, coiled cable and has three operator selectable slope settings. The keyboard keycaps are removable and, on the Model 1, under 3274 Configuration Support D (Release 63), may be moved about on the keyboard to suit individual desires (with certain restrictions as described in the "IBM 3270 Information Display System Keyboard Utility Users Guide", GA23-0187). Thus, users can create uniquely tailored keyboard layouts (see "Customer Responsibilities"].

The Model 1 provides the following operator selectable screen formats:

No. of Lines        24    32    43    27
Chars. Per Line     80    80    80   132
Tot. Data Chars. 1,920 2,560 3,440 3,564
Char. Box Dot    12x18 12x16 12x12 10x16
 Matrix
Char. Dot Matrix  9x11    **   9x8   8x8 9 x 8

The Model 1 provides the following functions:

• 3278 base function
• Operator and program selectable screen formats
• Vertical scrolling
• Record/playback of keystrokes
• Modifiable keyboard
• Extended highlighting
• Monocase/dual case selection
• Local copy
• Keyboard choice:
  • Typewriter Style
  • Typewriter/APL Style
  • Data entry style
  • Console style (Models 140)
    (in US, 145 only)
• Keyboard numeric lock selectable
• Adjustable audible alarm
• Security keylock
• Display tilt and rotate
• Display elevate
• Cursor position indicator
• Screen dimming
• Switch control unit (accessory)

The Model 2 provides the following program selectable screen formats:

No. of Lines           24             27
Chars. Per Line        80            132
Tot. Data Chars.    1,920          3,564
Chars.Box Dot     12 x 18        10 x 16
 Matrix
Chars. Dot Matrix  9 x 11          8 x 8

Refer to individual system pages for formats supported.

The Model 2 provides the following functions:

• 5251-11 function
• Program selectable screen formats
• Record/playback of keystrokes
• Keyboard choice
• Data entry style
• Typewriter style
• Adjustable audible alarm
• Security keylock
• Display tilt and rotate
• Display elevate
• Cursor position indicator
• Shadow cursor
• Special text symbols
• Screen dimming
• Multinational character set
• Message line
• Extended country character sets

Standard Models

Standard models are provided for order-entry convenience as follows:

Models 110 and 210 consist of the appropriate video element, logic element, a typewriter-style keyboard, cable attachment element, and a 3.0m (9.8 ft) power cord.
Model 210: For administrative purposes, the Model 210 is designated as Model 21Z when ordered as an optional device as part of the System/36 Total System Package (see M5360 and M5362 pages). Models 120 and 220 consist of the appropriate video element, logic element, a data entry-style keyboard, cable attachment element, and a 3m (9.8 ft) power cord. No specify codes are required.
For Model 1:

One of the following control unit attachments:

3274 with available Category A terminal port
3276 with available port or added #3225, #3256, or #3257

• The 3180 Model 1 is only available on the 3276 when emulating a 3278 Model 2-4.
• The 3180 Model 130 is available on a 3276 with APL/Text Control feature #1067.
4321 with standard display/printer adapter*
4331 with standard display/printer adapter or display/printer adapter expansion #2001 on a 4331 Model Group 1 or 2*
4361 with standard display/printer adapter* or WSA (Work Station Adapter) #2002
9370 with Workstation Subsystem Controller (#6020).
An available console position on a 3092 processor controller (uses Model 140or 145 only).
4701 with Device Cluster Adapter (#3101)

* The 3180 Model 1 is only available when emulating a 3278 Model 2.

1. 3274 Configuration Support D (starting with Release Level 63) for program selectable screen format sizes, vertical scrolling, modifiable keyboard, or cursor position indicator functions.

The use of magnetic readers and selector light pen on the 3180 is not supported.

For Model 2: One of the following control unit attachments:

• 5294
• 5360
• 5362
• 5381
• 5382
• 5394
• 9404
• 9406
