2085 and 2105 Parts (4)

Engine 61. Drive section 5 1 57P2940 Timing Pulley- 22T Fully refurbished with 90-day warranty 57P2940 Contact for Details 2 10R0491 Upper Drive Shaft 3 NP Paper Support Plate 4 NP Arm Bracket 5 57P2939 Lock Arm - Tandem Tray 6 57P1274 Spacer - 6mm (1) (kit) 7 57P1284 Spring - Small (1) (kit) 8 57P1284 Spring - Large (1) (kit) 9 57P1274 Spacer 8 x 20 x 1 (kit) 10 57P2938 Timing Pulley - 18T (2) 11 57P2938 Timing Pulley- 18T Fully refurbished with 90-day warranty 57P2938 Contact for Details 12 57P3758 Infoprint 2105/2085 DC Motor Fully refurbished with 90-day warranty 57P3758 Contact for Details 13 57P2935 DC Solenoid Coupling Fully refurbished with 90-day warranty 57P2935 $176.00 14 10R0492 Lower Drive Shaft 15 57P2934 DC Motor 1.9W (2), M16, M17 Fully refurbished with 90-day warranty 57P2934 $157.00 16 57P2933 Paper Size Harness (2) 17 NP Paper Size Bracket (2) 18 57P2932 Push Switch (2), SW10, SW11 19 NP Paper Tray Stopper (2) 20 57P3864 Gear - 30Z (2) 21 57P2930 Idler Pulley- M18 Fully refurbished with 90-day warranty 57P2930 Contact for Details 22 57P1284 Tension Spring (1) (kit) 23 NP Obsolete part 101 57P1278 Retaining Ring - M6 (kit) 102 57P1272 Philips Tapping Screw - M4x8 (kit) 103 57P1278 Retaining Ring - M4 (kit) 104 57P1277 Harness Clamp - LWS-1211Z (kit) 105 57P1277 Clamp (kit) 106 57P1277 Clamp (kit) 107 57P1272 Tapping Screw M4x10 (kit) 108 57P3731 Ball Bearing - 8x22x7
Engine 62. Electrical section 1 1 57P2928 Seal - Fan Duct 2 57P2907 Exhaust Fan Duct Fully refurbished with 90-day warranty 57P2907 Contact for Details 3 NP Fly Wheel 4 57P2908 Seal - 5x10x138 5 57P2890 Exhaust Duct Fully refurbished with 90-day warranty 57P2890 Contact for Details 6 57P2902 Infoprint 2105/2085 DC Motor Fully refurbished with 90-day warranty 57P2902 Contact for Details 7 57P2886 Seal - Fan (2) 8 NP Bracket - Exhaust Duct 9 57P2885 Cable - 10KV 105C 10 57P2410 Infoprint 2105/2085 DC Power Board Fully refurbished with 90-day warranty 57P2410 Contact for Details 11 57P2883 High Voltage Cable- G/B/S Fully refurbished with 90-day warranty 57P2883 Contact for Details 12 57P2882 Exhauset Duct Ass'y 13 57P2881 Ozone Filter 14 57P2879 Seal - Rear Duct 15 NP Bracket - Rear Duct 16 57P2872 Rear Duct Ass'y 17 57P2878 Grounding Wire - DF 18 57P2875 Interface Grounding Harness 19 NP ADF Plug Bracket 20 NP Sheet - DC Power Supply Board 21 NP Decal - High Voltage - IBM 101 57P1277 Nylon Clamp - 5n (kit) 102 57P1272 Philips Tapping Screw - M4x8 (kit) 103 57P1272 Tapping Screw - 4x16 (kit) 104 57P1272 Tapping Screw - M3x8 (kit) 105 57P1272 Tapping Screw - 4x8 (kit)
Engine 63. Electrical section 2 1 57P2876 Rear Receptacle Fully refurbished with 90-day warranty 57P2876 Contact for Details 2 57P2440 Receptacle Pin Fully refurbished with 90-day warranty 57P2440 Contact for Details 3 57P2874 Drum Cooling Duct Fully refurbished with 90-day warranty 57P2874 Contact for Details 4 57P2873 Seal - Cooling Duct 5 57p2887 Receptacle Connector G Fully refurbished with 90-day warranty 57p2887 Contact for Details 6 57P2880 Receptacle Connector C Fully refurbished with 90-day warranty 57P2880 Contact for Details 7 NP Left Hinge - BCU 8 NP Bracket BCU 9 57P2889 Inner Duct 10 57P2888 Seal - Inner Duct 11 NP Bracket - Under Cover 12 NP Left Hinge - BCU 13 57P2905 Exhaust Duct - Fusing 14 57P2904 Paper Exit Harness 15 57P1284 Spring Connector (2) (kit) 16 57P2813 Connector Guide Pin 17 57P2902 Infoprint 2105/2085 DC Motor Fully refurbished with 90-day warranty 57P2902 Contact for Details 18 57P2886 Seal - Fan 19 57P2411 Infoprint 2105/2085 BCU Board Fully refurbished with 90-day warranty 57P2411 Contact for Details 20 57P2898 DC Main Harness 21 57P2891 DC Harness - Power Supply 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Tapping Screw - M3x6 (kit) 103 57P1277 Harness Clamp - LWS 1316 (kit) 104 57P1277 Harness Clamp - IWS-2218 (kit) 106 57P1272 Tapping Screw - 4x16 (kit) 107 57P2439 SRAM STK12C68-W45 108 57P1277 Harness Clamp - WS-4N-V0 (kit)
Engine 64. Electrical section 3 1 57P2412 Infoprint 2105/2085 HV Power Supply Unit Fully refurbished with 90-day warranty 57P2412 Contact for Details 2 57P2896 AC Harness 3 57P2406 AC Drive Board (1), PCB10 Fully refurbished with 90-day warranty 57P2406 $349.00 4 NP Bracket - AC Drive Board 5 NP Bracket - Noise Filter 6 57P2893 Power Cord - USA 7 NP Bracket - Power Cord 8 NP Decal - Ground 9 75P2235 DC Harness (2) 10 75P2236 AC Harness - Heater 11 57P1578 Sheet - Power Supply Unit 12 NP Decal - High Voltage - IBM (3) 20 57P2096 Dummy connector for CN2 21 57P2097 Dummy connector for CN5 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Tapping Screw - M3x6 (kit) 103 57P1277 Locking Support (kit) 104 57P1277 Supportor - P.C.B. (kit) 105 57P1277 Harness Clamp - LWS 1316 (kit) 106 57P1273 Screw - Spring Washer - M5X8 (kit) 107 57P2643 Noise Filter, NF1 108 57P1277 Harness Clamp (kit) 109 57P2895 Circuit Breaker - 1.5KA, CB1 110 57P1272 Tapping Screw - M4x25 (kit) 111 NP Toothed Washer - 5MM
Engine 65. Electrical section 4 1 57P2416 Infoprint 2105/2085 I/O Board Fully refurbished with 90-day warranty 57P2416 Contact for Details 2 NP Bracket - Feed Control Board 3 57P2897 Paper Cooling Duct 4 57P2811 Fan Motor DC 2.88W Fully refurbished with 90-day warranty 57P2811 $119.00 5 57P2899 Duct Cover - Heat Pipe 6 NP Bracket - Feed Control Board (2) 7 57P2875 Interface Grounding Harness Fully refurbished with 90-day warranty 57P2875 Contact for Details 8 57P2884 Interface Finisher Griunding Harnes 9 NP Cable Connector Bracket 10 57P2916 Fusing Harness 11 57P1284 Spring Connector (2) (kit) 12 57P2813 Connector Guide Pin (2) 13 57P2798 Sub DC Harness - Paper Bank 14 57P2797 Main DC Harness - Paper Bank 15 NP Decal - High Voltage - IBM 101 57P1272 Tapping Screw - M3x6 (kit) 102 57P1272 Philips Tapping Screw - M4x8 (kit) 103 57P1272 Tapping Screw - M4x35 (kit) 104 57P1272 Tapping Screw - 4x10 (kit) 105 57P1273 Screw - M4X6 (kit) 106 57P1277 Harness Clamp - LWS 1316 (kit) 107 57P1272 Tapping Screw - 4x10 (kit) 108 57P1277 Nylon Clamp - 5N (kit) 109 57P1579 Harness Clamp - IWS-2218 110 57P1580 Washer - M4
Engine 66. Electrical section 5 1 57P2409 HDD ATA SU6 (2085) (2), HDD1, HDD2 1 57P3921 HDD ATA IBM 15G (2105) Fully refurbished with 90-day warranty 57P3921 Contact for Details 2 57P2804 HDD Ground Plate (2) 3 NP Air Block Plate (2) 4 57P2811 Fan Motor DC 2.88W Fully refurbished with 90-day warranty 57P2811 $119.00 5 57P2854 Fan Duct Fully refurbished with 90-day warranty 57P2854 Contact for Details 6 57P1271 Stepped Screw (6) (kit) 7 57P2843 Rubber Cushion (6) 8 NP Bracket - HDD 9 57P2408 Air Pump Motor- DC 5.85w (Toner Supply Motor Assembly including M5) Fully refurbished with 90-day warranty 57P2408 $186.00 10 57p2423 Photo interrupter Fully refurbished with 90-day warranty 57p2423 Contact for Details 11 NP Air Pump Bracket 12 57P2945 DC Motor- Toner Supply- 5.9W Fully refurbished with 90-day warranty 57P2945 Contact for Details 13 NP Toner Supply Pump 14 NP Collar - 4x7x8 15 NP Air Pump 16 NP Pump Seal 17 NP Pump Cap 18 57P3022 Tube - 6x9x170 19 57P3053 Tube - 6x9x1150 20 57P3052 Pump Joint 21 57P3043 Tube - 6x9x1000 22 NP Connector Bracket 23 NP Development Connector Bracket 24 57P3040 HDD Gasket (2) 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Bind Screw - M6x32 (kit) 103 57P1272 Tapping Screw - M4x14 (kit) 104 57P1272 Philips Tapping Screw - M4x35 (kit) 105 57P1272 Tapping Screw - 4x8 (kit) 106 57P1277 Metal Clamp - Al-4 (kit) 107 57P1272 Philips Tapping Screw - M4x35 (kit) 108 57P1275 Connector - RED 8P (kit) 109 57P1275 Connector - 8P (kit) 110 57P1275 Relay Connector - 2P (kit) 111 57P1275 Relay Connector - 13P (kit)
Engine 67. Electrical section 6 1 57P3031 Lever - Interlock Switch (2) 2 NP Bracket - Interlock Switch (2) 3 57P3027 Safety Switch Harness 4 NP ADF Holder (2) 5 57P3032 Ground Plate - Rear Frame (4) 6 57P3084 Seal - Operation Frame 7 NP Frame - Operation Panel 8 NP Right Upper Hinge 9 NP Bracket - Main Switch 10 57P3086 Cover - Main Switch 11 57P2981 Lower Left Hinge 12 NP Bracket - Upper Cover 13 57P3443 Magnetic Catch (2) 14 NP Bracket - Total Counter 15 57P3002 Total Counter 16 57P1271 Stepped Screw (2) (kit) 17 NP Decal - Main Switch Stand-by (US) 101 57P1272 Tapping Screw - M3-14 (kit) 102 57P2483 Micro Switch - V16506K-3C205, SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 103 57P1272 Philips Tapping Screw - M4x8 (kit) 104 57P2482 Micro Switch - DE2L-FJ10, SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 105 57P1273 Pah Head Screw - M2x16 (kit) 106 57P2484 Interlock Switch - FA7L-AJAB, SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 107 57P1273 Philips Pan Head Screw - M4x8 (kit) 108 57P2973 Switch - 250V/16A, SW1 109 57P1272 Tapping Screw - M3x8 (kit) 110 57P1277 Harness Clamp - LWS-0711 (kit)
Engine 68. Frame section 1 1 NP Finisher Connecting Bracket 2 NP Upper Guide Plate 3 NP Lower Exit Guide Plate 4 57P2722 Duplex Slide Rail 5 10R0493 Slide Rail Stay - Left 6 57P2745 Ground Plate - Left Frame (2) 7 57P2600 Slide Rail 8 10R0494 Slide Rail Bracket - Left Front 9 10R0495 Slide Rail Bracket - Left Rear 10 NP Fan Motor Bracket 11 57P2583 Fan Motor - DC6.48W (1), M30 12 NP Left Fixing Plate 13 57P2626 Lower Left Hinge 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Pan Head Self-tapping Screw - M4x8 (kit) 103 57P1272 Pan Head Self-tapping Screw - M4x6 (kit) 104 57P1272 Tapping Screw - M3x8 (kit) 105 57P1272 Tapping Screw - 4x12 (kit) 106 57P1277 Harness Clamp - LWS-0711 (kit) 107 57P1277 Harness Clamp - LWS-1316 (kit)
Engine 69. Frame section 2 1 57P2616 Duct - Left Rear Frame 2 57P2623 Fan Motor- DC24V 1.8W (M26- Polygon Mirror Motor Cooling Fan) Fully refurbished with 90-day warranty 57P2623 $79.00 3 57P2524 Duct - Optical Housing 4 NP Bracket - Optical Housing Fan 5 57P2537 Lower Seal- Fan Motor Fully refurbished with 90-day warranty 57P2537 Contact for Details 6 57P2538 Duct Assembly Fully refurbished with 90-day warranty 57P2538 Contact for Details 7 57P2555 Upper Seal- Fan Motor Fully refurbished with 90-day warranty 57P2555 Contact for Details 8 NP Right Rail - Drum Unit 9 NP Development Guide Rail 10 57P2565 Development Grounding Plate 11 57P2553 Ground Plate - Front Imaging Unit 12 57P2543 Ground Plate - Rear Imaging Unit 13 57P2544 Exit Duct Seal 14 57P2539 Entrance Duct Seal 15 57P2546 Entrance Duct Slider 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Tapping Screw - M3x6 (kit) 103 57P1272 Tapping Screw - 3x30 (kit) 104 NP Bushing - 19.44mm 105 57P1277 Harness Clamp - LWS-0711 (kit)
Engine 70. Frame section 3 1 NP Front Grounding Plate (4) 2 NP Duct Stay 3 NP Suction Duct 4 NP Upper Rear Duct Seal 5 NP Rear Duct Seal 6 NP Seal - 6x272x5 7 NP Seal - 6x185x5 8 57p2545 Heat Resistance Sheet Fully refurbished with 90-day warranty 57p2545 Contact for Details 9 57P2549 Heater Cover Fully refurbished with 90-day warranty 57P2549 Contact for Details 10 57P2600 Slide Rail Fully refurbished with 90-day warranty 57P2600 Contact for Details 11 10R0496 Guide Plate:Heater:Transfer Belt:Assembly 13 57P2720 Relay Harness- Transfer Belt Fully refurbished with 90-day warranty 57P2720 Contact for Details 14 15 NP Positioning Plate 16 57P2740 Belt Unit Knob Fully refurbished with 90-day warranty 57P2740 Contact for Details 17 57P2750 Support Plate Fully refurbished with 90-day warranty 57P2750 Contact for Details 18 NP Release Arm 19 57P2500 Toner Filter PM part Fully refurbished with 90-day warranty 57P2500 Contact for Details 20 NP Guide - Dust Filter 21 10R4691 Frame Channel 22 57P2737 Rear Grounding Plate (3) 23 NP Ground Plate 24 NP Arm Bushing 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Pan Head Self-tapping Screw - M4x6 (kit) 103 57P1272 Tapping Screw - M3x6 (kit) 104 57P1277 Harness Clamp (kit) 105 57P1273 Philips Screw With Spring Washer - M4x8 (kit) 106 57P1277 Harness Clamp - LWS-0711 (kit)
Engine 71. Frame section 4 1 NP Front Right Fixing Plate (2) 2 NP Right Holder (4) 3 NP Front Left Fixing Plate (2) 4 NP Slide Rail Stay - Right Rear 5 57P2722 Duplex Slide Rail 6 NP Channel Bracket - Center Front 7 NP Right Fixing Plate 8 NP Right Lower Stay 101 57P1272 Philips Tapping Screw - M4x8 (kit) 102 57P1272 Pan Head Self-tapping Screw - M4x8 (kit)
Engine 72. Frame section 5 1 57p2724 Left Rail- Tandem LCT Fully refurbished with 90-day warranty 57p2724 Contact for Details 2 NP Left Rail Bracket 3 57P2731 Lock Arm- Tandem Tray Fully refurbished with 90-day warranty 57P2731 Contact for Details 4 NP Stay - Left Rail 5 57P1284 Spring (1) (kit) 6 57P2780 Left Slide Rail 7 57P2784 Tray Lock Arm Fully refurbished with 90-day warranty 57P2784 Contact for Details 8 57P1284 Tray Lock Spring - 19mm (1) (kit) 9 NP Rear Upper Fixing Plate 10 NP Rear Side Plate 11 NP Rear Lower Fixing Plate 12 57P2787 Slide Rail- Tandem LCT Fully refurbished with 90-day warranty 57P2787 Contact for Details 13 NP Slide Rail Bracket 14 NP Supporting Stay 15 NP Stay - Tandem Tray 16 57P2789 Seal - Misfeed Removal 17 57P2790 Paper Tray Rail Fully refurbished with 90-day warranty 57P2790 Contact for Details 18 NP Front Upper Fixing Plate 19 NP Front Lower Fixing Plate 20 NP Harness Cover 21 57P2774 Front Side Plate 22 57P2661 Upper Heat Sink 23 57P2647 Anticondensation Heater - 230V 18W (2), H3, H4 24 57P2706 Lower Heat Sink 25 57P2699 Paper Guide Sheet Fully refurbished with 90-day warranty 57P2699 Contact for Details 26 57P2696 Stand - Hxagonal Bolt M12x35 (4) 27 75P2233 Stand Holder (4) 28 NP Guide Plate - Upper Heat Sink 29 NP Stand Bracket (4) 101 57P1273 Philips Pan Head Screw - M4x6 (kit) 102 57P1272 Philips Tapping Screw - M4x8 (kit) 103 57P1278 Retaining Ring - M4 (kit) 104 57P1273 Philips Pan Head Screw - M4x4 (kit) 105 57P1277 Harness Clamp - LWS-0711Z (kit) 106 57P2778 Caster - 250kgf 107 57P1273 Philips Screw With Washer - M5x8 (kit)
Engine 77. Interface board 1 NP Interface Board Bracket 2 57P1195 NTTR Board - IBM 101 57P1273 Philips Screw With Flat Washer - M3x6 (kit)

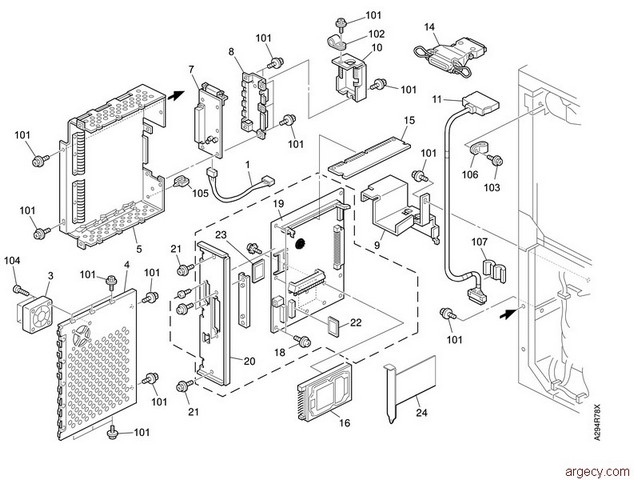

Engine 78. Printer controller 1 57P1581 Relay Harness 3 57P1582 Fan Motor DC5V 0.6W Fully refurbished with 90-day warranty 57P1582 $91.00 4 NP Control Board Cover 5 NP Control Board Bracket 7 57P1583 Motherboard Fully refurbished with 90-day warranty 57P1583 $281.00 8 NP Mother Board Cover 9 NP Printer Controller Stay 10 NP Connector Cover 11 57P1584 Video Harness 14 Connector 15 26P0565 SDRAM 256MB Fully refurbished with 90-day warranty 26P0565 Contact for Details 16 75P1474 Hard drive (HDD) with code Fully refurbished with 90-day warranty 75P1474 $471.00 18 57P1273 Screw (kit) 19 28P1652 Controller Card Fully refurbished with 90-day warranty 28P1652 $281.00 20 57P1169 Bezel Asm 21 57P1273 Bezel Screws (kit) 22 57P1337 PCL/PS Compact Flash (2085) 22 57P1338 PCL/PS Compact Flash (2105) Fully refurbished with 90-day warranty 57P1338 Contact for Details 23 57P1322 Double Byte CF 24 02N8367 Token Ring Card 24 75P2054 GB Ethernet Adapter Card 101 57P1272 Tapping Screw - M3x6 (kit) 102 57P1585 Nylon Clamp - 3N 103 57P1272 Philips Tapping Screw - M4x8 (kit) 104 57P1272 Tapping Screw - M3-14 (kit) 105 57P1586 Clamp 106 57P1277 Metal Clamp - Al-4 (kit) 107 57P1587 Ferrite Core
