IBM Infoprint 1832, 1852, 1872, 1892 (4551 4552 4553 4864) Parts






Please call for parts assistance

IBM 4551-N01 InfoPrint 1832N Printer with Network
Fully refurbished with 90-day warranty
4551-N01 39V2779
$999.00


IBM 4551-DN1 InfoPrint 1832DN Printer with Network and Duplex
New
4551-DN1 39V2780 (New)

Retired, no longer available: Contact for alternatives


SaleIBM 4552-N01 InfoPrint 1852N Printer with Network
Fully refurbished with 90-day warranty
4552-N01 39V2818 39V2832
$1299.00 $799.00


IBM 4552-DN1 InfoPrint 1852DN Printer with Network and Duplexer
Fully refurbished with 90-day warranty
4552-DN1 39V2819
$1399.00


SaleIBM 4553-N01 Infoprint 1872N with Network
Fully refurbished with 90-day warranty
4553-N01 39V2850
$1499.00 $1099.00



1



1

40X5894 Door assembly rear (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X5894



1

40X5895 Door assembly rear (InfoPrint 1852)
Fully refurbished with 90-day warranty
40X5895



2
40X4334 Cover Assembly Rear Lower
New
40X4334 (New)
$29.00



40X4334 Cover assembly rear lower (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X4334
$17.00



2
40X4335 Rear lower cover assembly
Fully refurbished with 90-day warranty
40X4335





3

40X4337 Right side cover
New
40X4337 (New)
$24.71



3
40X4338 Side cover right
Fully refurbished with 90-day warranty
40X4338
$29.94



40X4338 Right side cover
New
40X4338 (New)
$24.71



4
40X4336 Inner Cover Right
Fully refurbished with 90-day warranty
40X4336



5
40X4322 Inner cover left
Fully refurbished with 90-day warranty
40X4322



6
40X4339 Access door
New
40X4339 (New)
$14.72



7
40X4323 Side cover left
Fully refurbished with 90-day warranty
40X4323
$20.28



40X4323 Left side cover
New
40X4323 (New)
$24.71



7


7


8
9
40X4629 Rear connection bezel assembly
New
40X4629 I (New)
$12.98



10


10
40X4321 Laser cover assembly 500 sheet output (InfoPrint 1872)
Fully refurbished with 90-day warranty
40X4321 I
$31.90





11
40X4697 Media support
Fully refurbished with 90-day warranty
40X4697
$11.79



12
40X4417 Fuser wiper cover assembly
New
40X4417 41X4417 I (New)
$68.00



40X4417 Fuser wiper cover assembly
Fully refurbished with 90-day warranty
40X4417
$35.00



NS
40X2665 Oil Fuser Wiper (Wick), Black Housing
New
40X2665 VXPFF (New)
$24.25


oil wiper (black housing)
NS
40x2666 Wax Fuser Wiper (Gray)
New
40x2666 M4G25 (New)
$21.82


wax wiper (gray housing)
13
40X4470 Output bail
New
40X4470 (New)
$12.74



40X4470 Output bail
New
40X4470 I (New)
$12.74



14
40X4326 Output Cover Assembly
New
40X4326 (New)
$29.25



40X4326 Output cover assembly
Fully refurbished with 90-day warranty
40X4326
$13.32



1



2
41X0792 Operator panel assembly
New
41X0792 T654 1872 Only (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED


1872 only
2
1832
3
40X4462 Operator Panel Door Assembly
Fully refurbished with 90-day warranty
40X4462 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$90.00





4

4


4


5
40X4490 LCD Screen Bezel
Fully refurbished with 90-day warranty
40X4490



6

6
40X5729 Operator panel bezel left (Non USB)
Fully refurbished with 90-day warranty
40X5729





7
40X4377 USB cable assembly
New
40X4377 (New)
$11.65



40X4377 USB cable assembly
Fully refurbished with 90-day warranty
40X4377



8

40X4396 Operator panel hinge assembly left
Fully refurbished with 90-day warranty
40X4396
$10.39

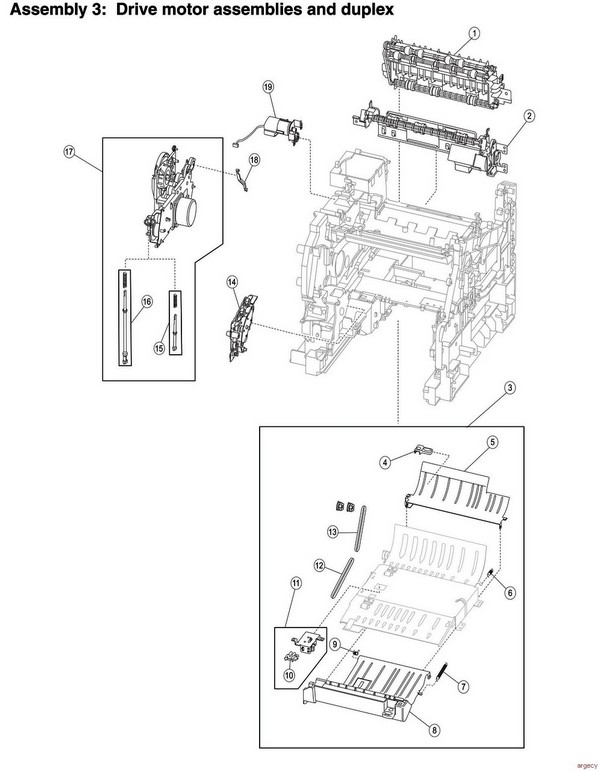

1

40X4465 Redrive assembly
Fully refurbished with 90-day warranty
40X4465
$29.71



1

40X4466 Redrive assembly (InfoPrint 1852)
Fully refurbished with 90-day warranty
40X4466
$39.23



1
40X4467 Redrive assembly
Fully refurbished with 90-day warranty
40X4467
$33.71



40X4467 Redrive assembly 1872
New
40X4467 I (New)
$49.01



2
40X4344 Duplex drive motor assembly
New
40X4344 I (New)
$44.50



40X4344 Duplex drive motor assembly
Fully refurbished with 90-day warranty
40X4344
$24.71



3



5
40X4352 Duplex guide rear
New
40X4352 (New)
$14.19





6
40X4353 Duplex guide spring rear
New
40X4353 (New)
$10.72



7


8
40X4348 Duplex guide assembly front
New
40X4348 I (New)
$15.86



40X4348 Front duplex guide assembly
New
40X4348 (New)
$15.86



10
40X4369 Sensor only
New
40X4369 (New)
$12.44



11
40X4345 Duplex (input) sensor assembly
Fully refurbished with 90-day warranty
40X4345
$10.32



40X4345 Duplex input sensor assembly
Fully refurbished with 90-day warranty
40X4345 I
$10.32



12
40X4350 Duplex drive belt lower
New
40X4350 (New)
$12.74



13
40X4354 Duplex drive belt upper
New
40X4354 (New)
$12.74



14

14



15
56P2078 Guide assembly paper exit
Fully refurbished with 90-day warranty
56P2078
$22.00





17



18

19
40X4343 Redrive motor assembly
New
40X4343 I (New)
$23.49



40X4343 Redrive motor assembly
New
40X4343 (New)
$23.49


1
40X4384 EP cooling fan duct
New
40X4384 (New)
$12.20



40X4348 Front duplex guide assembly
New
40X4348 (New)
$15.86



2
40X4390 Machine pad
New
40X4390 (New)
$13.22



40X4390 Machine pad
Fully refurbished with 90-day warranty
40X4390 I



3
40X1869 Transfer deflector with static brush
New
40X1869 KW29J (New)
$17.25



40X1869 Transfer deflector with static brush
Fully refurbished with 90-day warranty
40X1869
$10.28



4
40X1889 Duplex deletion assembly
New
40X1889 I (New)
$24.71



5
40X4387 Inner deflector
New
40X4387 (New)
$13.87



40X4387 Inner deflector (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X4387



5
40X4388 Inner deflector
New
40X4388 I (New)
$14.39



40X4388 Inner deflector
Fully refurbished with 90-day warranty
40X4388 I



6
40X1900 Media turn guide with actuator
New
40X1900 68Y37 (New)
$16.14



7


8


9



10
40X4389 LVPS cooling duct
New
40X4389 (New)
$13.31



12

13
40X4319 Fuser Access Door Assembly
New
40X4319 250-sheet version (New)
$17.71



40X4319 Fuser access door assembly (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X4319
$14.72


1
40X4418 Fuser assembly 110V type 1
Fully refurbished with 90-day warranty
40X4418
$145.00


Sale40X4418 Fuser assembly 110-120V type 1
New
40X4418 Compatible (New)
$199.00 $179.00


40X4418 IBM Fuser assembly 110V type 1
New
40X4418 I (New)
$259.00



1
40X5854 Fuser assembly 110V type 2
New
40X5854 Exchange (New)
$265.00



40X5854 Fuser assembly 110V type 2
New
40X5854 (New)
$299.00



2
40X4355 Low Volt Power Supply LVPS Card Assembly
Fully refurbished with 90-day warranty
40X4355
$109.00





40X4355 Low Volt Power Supply LVPS Card Assembly
New
40X4355 Advanced Exchange (New)
$110.00



3
40X4359 Fan
New
40X4359 (New)
$29.00



5
40X4383 Cleaning blade contact
New
40X4383 (New)
$12.44



6


7


40X4382 Print cartridge HV contact
Fully refurbished with 90-day warranty
40X4382 I



8
40X4370 Sensor (Toner Empty)
New
40X4370 (New)
$10.61



9

40X4362 HV Power Supply Card
Fully refurbished with 90-day warranty
40X4362



10
40X4317 Right charge roll link spring
New
40X4317 PN4RP (New)
$10.80



11
40X1866 Sensor shield assembly
New
40X1866 R7WG3 (New)
$13.52





12
40X4378 Sensor (toner density)
New
40X4378 (New)
$18.49



40X4378 Sensor (toner density)
Fully refurbished with 90-day warranty
40X4378



13

14
40X1888 Transfer roll bracket assembly right
Fully refurbished with 90-day warranty
40X1888



15



16

17
40X5852 Charge Roll Assembly
New
40X5852 (New)
$46.12



18
40X4472 Switch (media size) assembly
New
40X4472 (New)
$13.98



19
40X1892 Charge Roll Arm Assembly Left
New
40X1892 (New)
$12.93



20
40X4368 Sensor
New
40X4368 40X8673 (New)
$12.15



40X4368 Sensor (input)
Fully refurbished with 90-day warranty
40X4368 I



22
40X4374 I System Card Assembly 1872
New
40X4374 40x5911 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$319.00


(InfoPrint 1872)
22
40X4375 I System Card Assembly (InfoPrint 1832)
New
40X4375 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$164.72




(InfoPrint 1832)
22
40X4474 I System Card Assembly (InfoPrint 1852)
New
40X4474 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$254.72


(InfoPrint 1852)
23
40X1864 Print cartridge ID connector assembly
Fully refurbished with 90-day warranty
40X1864



40X1864 Print cartridge ID connector assembly
New
40X1864 WWFP7 (New)
$12.49



24
40X4363 Main Cooling Fan
New
40X4363 (New)
$18.23



40X4363 Main cooling fan (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X4363
$16.38



24

40X4364 Main Cooling Fan
New
40X4364 (New)
$24.71



25

26
40X4369 Sensor only
New
40X4369 (New)
$12.44



27
40X4367 Printhead Cable Assembly
New
40X4367 (New)
$15.36



28
40X4463 Printhead With Cable Assembly (InfoPrint 1832, T650)
New
40X4463 Advanced Exchange (New)
$166.12



40X4463 Printhead With Cable Assembly (InfoPrint 1832, T650)
Fully refurbished with 90-day warranty
40X4463
$104.71





29
40X1865 Printhead Cable
New
40X1865 (New)
$18.55



40X1865 Printhead Cable
Fully refurbished with 90-day warranty
40X1865
$12.18



30

40X4464 Printhead with cable assembly
Fully refurbished with 90-day warranty
40X4464 I
$69.71


1
40X4304 Pick Arm Assembly W/ Spring 250-Sheet
Fully refurbished with 90-day warranty
40X4304
$42.00



40X4304 Pick Arm Assembly W/ Spring 250-Sheet
New
40X4304 (New)

Retired, no longer available: Contact for alternatives



1

40X4305 Pick Arm Assembly With Spring 550-Sheet
Fully refurbished with 90-day warranty
40X4305
$27.71



2
40X4306 Pick arm spring (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X4306



2
40X4307 550 Sheet bellcrank recoil spring
Fully refurbished with 90-day warranty
40X4307





3

4
40X4309 250 Sheet media out actuator
New
40X4309 40X1384 (New)
$10.70



40X4309 250 Sheet media out actuator
Fully refurbished with 90-day warranty
40X4309



4
40X4310 550 Sheet media out actuator
New
40X4310 (New)
$10.93



40X4310 Media out actuator 550-Sheet
Fully refurbished with 90-day warranty
40X4310 I



5

6
40X4459 MPF lift plate assembly
New
40X4459 I (New)
$24.71



40X4459 MPF lift plate assembly
Fully refurbished with 90-day warranty
40X4459 I
$17.71



7

40X1884 MPF Tray Door Assembly
Fully refurbished with 90-day warranty
40X1884
$25.00



7
40X4460 MPF tray door assembly (InfoPrint 1832)
Fully refurbished with 90-day warranty
40X4460
$19.71





7



8
40X4468 Media Tray Assembly 250 Sheet
New
40X4468 40X6391 (New)
$91.98



40X4468 Media Tray Assembly 250 Sheet
Fully refurbished with 90-day warranty
40X4468 40X6391



8
40X4469 Media Tray Assembly 550 Sheet
Fully refurbished with 90-day warranty
40X4469 40X5786 (Not for x658)
$45.00



40X4469 Media Tray Assembly 550 Sheet
New
40X4469 40X5786 NOT for x658 (New)
$69.00



9
40X4457 MPF cam gear
Fully refurbished with 90-day warranty
40X4457



10
40X1876 MPF Gear Shield
New
40X1876 XHDWG (New)
$11.02



11
40X4365 MPF pick solenoid assembly
New
40X4365 40X6994 JWYNN (New)
$14.57



40X4365 MPF pick solenoid assembly
Fully refurbished with 90-day warranty
40X4365 I



12
40X4395 Tray roller catch assembly
New
40X4395 V41JC (New)
$11.54


1
40X4569 250-sheet Drawer complete assembly
Fully refurbished with 90-day warranty
40X4569
$118.71





2

40X3447 250 Sheet pick arm bracket assembly
Fully refurbished with 90-day warranty
40X3447
$45.73



3

40X3448 250 Sheet bellcrank recoil spring
Fully refurbished with 90-day warranty
40X3448
$13.49



4

5
40X4369 Sensor only
New
40X4369 (New)
$12.44



6
40X4369 Sensor only
New
40X4369 (New)
$12.44



7
40X4309 250 Sheet media out actuator
New
40X4309 40X1384 (New)
$10.70



40X4309 250 Sheet media out actuator
Fully refurbished with 90-day warranty
40X4309



8
40X4570 Anti-tip latch assembly
Fully refurbished with 90-day warranty
40X4570
$19.73



9

10
40X3822 Media tray catch spring
Fully refurbished with 90-day warranty
40X3822



11
40X4395 Tray roller catch assembly
New
40X4395 V41JC (New)
$11.54



12
40X3449 Media tray assembly 250 sheet
New
40X3449 40X4468 40x6391 (New)
$91.98



40X3449 Media tray assembly 250 sheet
Fully refurbished with 90-day warranty
40X3449 40X4468 40x6391
$65.00



13

40X4575 Sensor (pass through) with cable
Fully refurbished with 90-day warranty
40X4575



14
40X1863 Option Drive Shaft With Spring
Fully refurbished with 90-day warranty
40X1863



15

40X4572 Lower interface cable assembly
Fully refurbished with 90-day warranty
40X4572
$17.47



16
40X3854 Media size actuator
Fully refurbished with 90-day warranty
40X3854
$19.94


40X3854 Media size actuator
New
40X3854 (New)
$19.64



17

40X4574 250 Sheet controller card assembly
Fully refurbished with 90-day warranty
40X4574
$46.19



18

40X4571 Upper interface cable assembly
Fully refurbished with 90-day warranty
40X4571
$20.58


1
Sale40X4576 550-sheet Drawer complete assembly
New
40X4576 (New)
$289.00 $189.00



Sale40X4576 550-sheet Drawer complete assembly
Fully refurbished with 90-day warranty
40X4576
$179.00 $119.00



2

40X3454 550 Sheet Pick Arm Bracket Assembly
Fully refurbished with 90-day warranty
40X3454
$34.50



3
40X4307 550 Sheet bellcrank recoil spring
Fully refurbished with 90-day warranty
40X4307





4



5
40X4369 Sensor only
New
40X4369 (New)
$12.44



6
40X4369 Sensor only
New
40X4369 (New)
$12.44



7
40X4310 550 Sheet media out actuator
New
40X4310 (New)
$10.93



40X4310 Media out actuator 550-Sheet
Fully refurbished with 90-day warranty
40X4310 I



8
40X4570 Anti-tip latch assembly
Fully refurbished with 90-day warranty
40X4570
$19.73



40X4570 Anti-tip latch assembly
New
40X4570 (New)
$16.39



9

40X3957 550-Sheet Option Drawer Assembly (No Tray)
Fully refurbished with 90-day warranty
40X3957
$134.89



10
40X3822 Media tray catch spring
Fully refurbished with 90-day warranty
40X3822



11
40X4395 Tray roller catch assembly
New
40X4395 V41JC (New)
$11.54



12
40X4469 Media Tray Assembly 550 Sheet
Fully refurbished with 90-day warranty
40X4469 40X5786 (Not for x658)
$45.00



40X4469 Media Tray Assembly 550 Sheet
New
40X4469 40X5786 NOT for x658 (New)
$69.00



13

40X4575 Sensor (pass through) with cable
Fully refurbished with 90-day warranty
40X4575



14

15

40X4572 Lower interface cable assembly
Fully refurbished with 90-day warranty
40X4572
$17.47



16
40X3854 Media size actuator
New
40X3854 (New)
$19.64



40X3854 Media size actuator
Fully refurbished with 90-day warranty
40X3854
$19.94



17

40X4578 550 Sheet controller card assembly
Fully refurbished with 90-day warranty
40X4578
$29.25



18

40X4571 Upper interface cable assembly
Fully refurbished with 90-day warranty
40X4571
$20.58
