IBM Infoprint 1140 & 1140n (4540) Parts

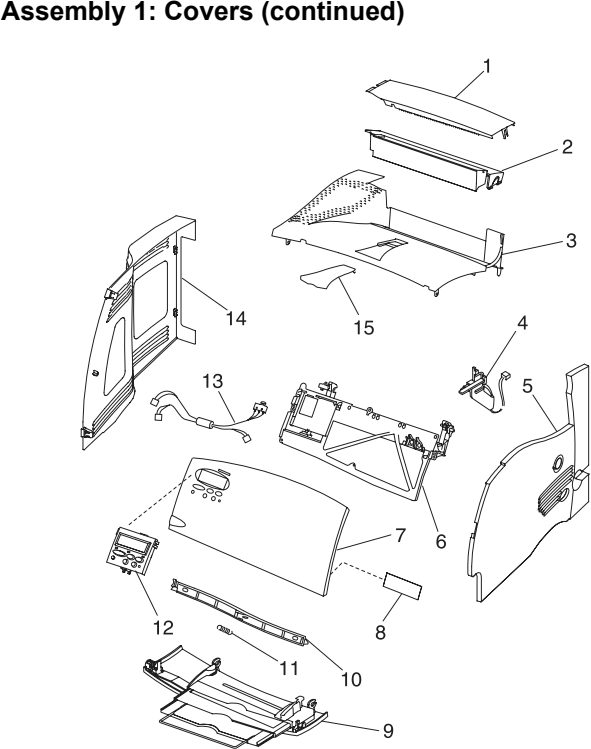

1 53P8434 Cover Assembly Redrive Cap Fully refurbished with 90-day warranty 53P8434 $39.00 2 53P8431 Cover Fuser Wick Assembly Fully refurbished with 90-day warranty 53P8431 Contact for Details 3 53P8430 Cover Assembly Laser 500 Output Fully refurbished with 90-day warranty 53p8430 $25.00 4 53P8663 Contact Assembly, Smart Cartridge 5 53P8796 Cover Right Side (1140) Fully refurbished with 90-day warranty 53p8796 $36.00 6 53P8631 Hinge Assembly, Upper Front Cover 7 56P9744 Kit, Upper Front Cover (1140) Fully refurbished with 90-day warranty 56p9744 Retired, no longer available: Contact for alternatives Contact for Details 8 53P8316 Label, TLI/ID/Serial No. - Blank 9 53P8433 Cover Assembly Lower Front Fully refurbished with 90-day warranty 53P8433 Contact for Details 10 53P8429 Latch Upper Cover Fully refurbished with 90-day warranty 53P8429 Contact for Details 11 53P8201 Spring Latch Fully refurbished with 90-day warranty 53P8201 Contact for Details 12 53P8428 Operator Panel Assembly Fully refurbished with 90-day warranty 53p8428 $95.00 13 53P8619 Switch, Cover Open w/Operator Panel Cable Assembly 14 53P8432 Cover Left Door Fully refurbished with 90-day warranty 53P8432 $45.00 15 53P8465 Support Paper Fully refurbished with 90-day warranty 53P8465 Contact for Details

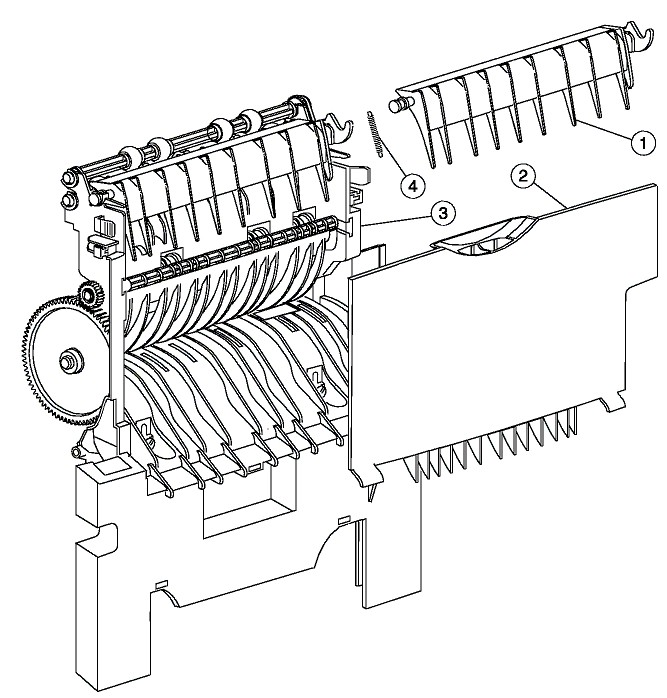

1 53P8610 Deflector Upper Redrive Fully refurbished with 90-day warranty 53P8610 $49.00 2 53P8444 Door Assembly Redrive 500 Fully refurbished with 90-day warranty 53P8444 $29.00 3 53P8443 Redrive Assembly Inner 500 Fully refurbished with 90-day warranty 53p8443 Retired, no longer available: Contact for alternatives Contact for Details 4 53P8222 Spring, Upper Diverter NS 53P8617 Screw, SEMS-Duplex Path, PP

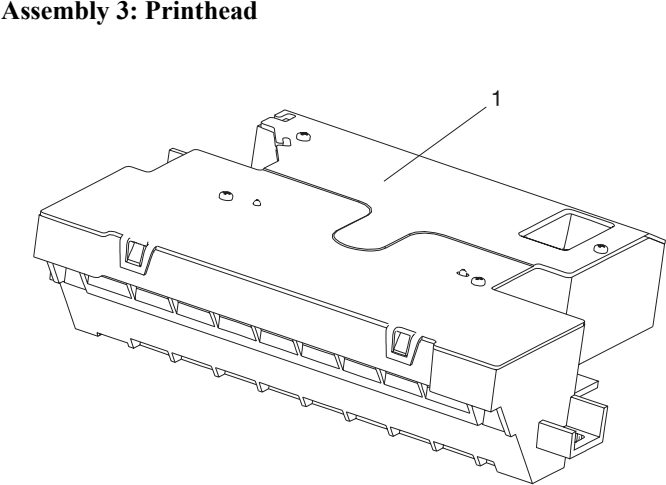

53P8744 Printhead Assembly 1140 (4540) Fully refurbished with 90-day warranty 53P8744 Retired, no longer available: Contact for alternatives Contact for Details

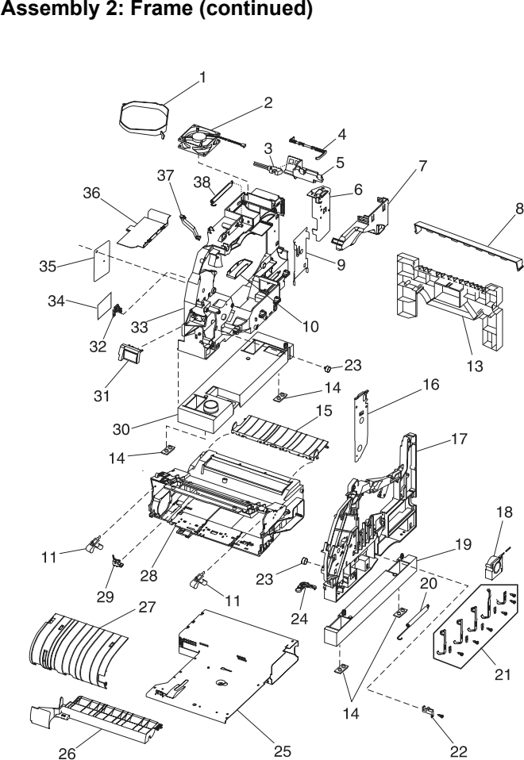

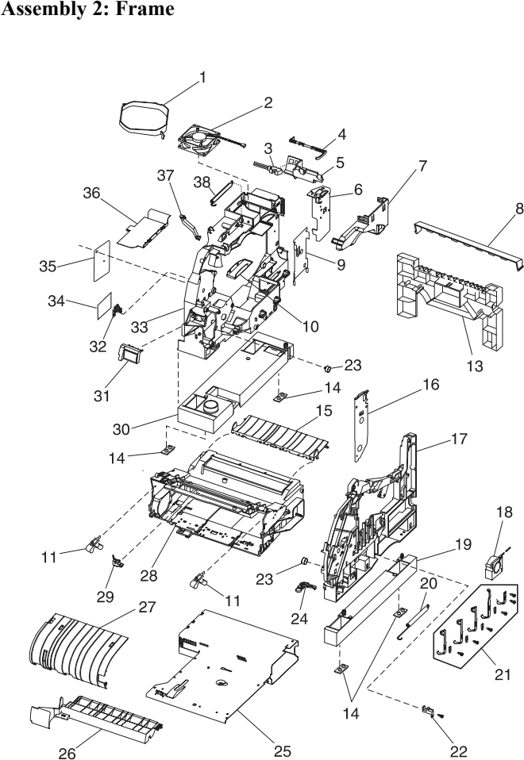

1 53P8468 Shroud, Fan 500 2 53P8637 Fan, Main 3 53P8639 Sensor, Standard Bin Level-4 53P8462 Flag, Output Paper Level 5 53P8611 Bracket, Level Sensor 6 53P8435 Duct, 500 Left Stacker 7 53P8405 Duct Main Body Fully refurbished with 90-day warranty 53P8405 Contact for Details 8 53P8609 Guide, Extension 500 Input 9 53P8490 Support, Left Lower Stacker 10 53P8224 Pan, Drip ITC 11 53P8825 Spring, Cartridge Hold Down 13 53P8438 Extension, 500 Input 14 53P8209 Pad, Machine Mounting 15 53P8466 Transfer Plate Assembly 16 53P8616 Support, Right Stacker Plate 17 53P8445 Right Sideframe 18 53P8848 Fan, Cartridge 19 53P8437 Frame Extension Right Fully refurbished with 90-day warranty 53P8437 Contact for Details 20 53P8204 Spring Tray Bias Fully refurbished with 90-day warranty 53P8204 $13.00 21 53P8361 Parts Packet Contact Kit Fully refurbished with 90-day warranty 53P8361 Contact for Details o Contact, Doctor Blade/TAR/Developer Roll o Contact, PC Drum o Contact, Charge Roll o Block, Contact Mounting o Screw, Contact Mounting 22 53P8335 Sensor Toner Cartridge Level Fully refurbished with 90-day warranty 53P8335 $19.00 23 53P8205 Roller Developer Support Fully refurbished with 90-day warranty 53P8205 $16.00 24 53P8203 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 53P8203 Contact for Details 25 53P8440 Pan, Center Assembly 26 53P8442 Deflector Upper PF Fully refurbished with 90-day warranty 53P8442 $12.00 27 53P8208 Kit, Inner Deflector o Inner Deflector o Side Restraint 2-28 53P8623 Frame, EP Module 29 53P8207 Sensor Input Fully refurbished with 90-day warranty 53P8207 $15.00 30 53P8436 Frame Extension Left Fully refurbished with 90-day warranty 53P8436 $72.00 31 53P8351 Shield ESD Assembly with label Fully refurbished with 90-day warranty 53P8351 Contact for Details 32 53P8211 Spring Switch Activate Fully refurbished with 90-day warranty 53P8211 $16.00 33 53P8622 Left Side Frame Assembly 34 56P1139 Board, Input Tray (ITC) Fully refurbished with 90-day warranty 56P1139 $25.00 Make an Offer 35 53P8641 Guard, Gear 36 53P8410 Pan, Motor Drip 37 53P8357 Link, Gear Release 38 53P8352 Spring Counterbalance Fully refurbished with 90-day warranty 53P8352 $13.00

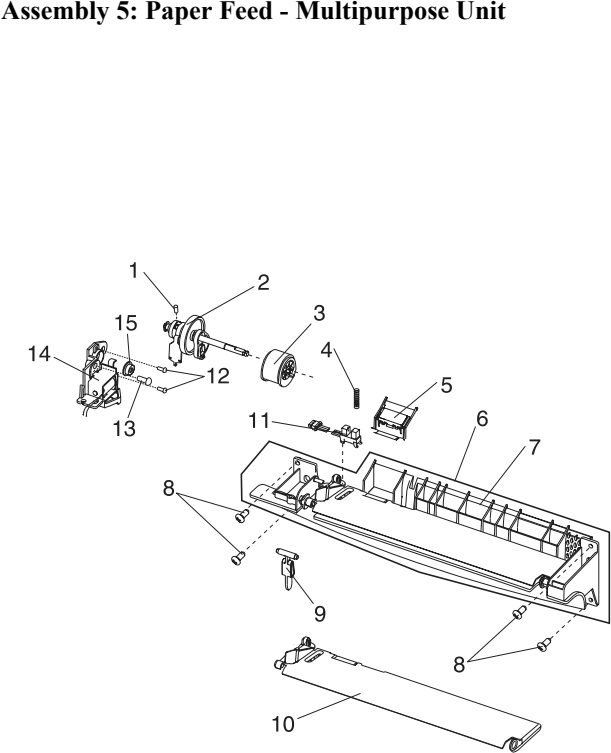

1 53p8215 2 53P8633 Arm Assembly, MPT 3 53P8795 Pick Roll Assembly Fully refurbished with 90-day warranty 53P8795 $19.00 4 53P8217 Spring Assembly Separator Fully refurbished with 90-day warranty 53P8217 $16.00 5 53P8219 MPT Pad/Separator Arm Assembly Fully refurbished with 90-day warranty 53P8219 $16.00 o Restraint Pad o MPT Pad Assembly 6 53P8635 Deflector Assembly MPT Fully refurbished with 90-day warranty 53P8635 $95.00 7 56P0125 Deflector, Lower 8 53P8617 Parts Packet Fully refurbished with 90-day warranty 53P8617 $38.00 8 53P8617 Parts Packet Fully refurbished with 90-day warranty 53P8617 $38.00 9 53P8220 Flag MPT Paper Out Fully refurbished with 90-day warranty 53P8220 $20.00 10 53P8218 Plate Assembly MPT Fully refurbished with 90-day warranty 53P8218 $19.00 11 53P8636 Sensor, MPT Paper Out 12 53P8213 Screw Damper Fully refurbished with 90-day warranty 53P8213 Contact for Details 13 53P8617 Screw, Frame Mounting, PP 14 53P8634 Solenoid, MPT 15 53P8214 Bushing Pick Roll Shaft Fully refurbished with 90-day warranty 53P8214 $16.00
1 53P9130 Sensor, Paper Out Internal Tray 2 53P8640 Pick Arm Assembly (500) Fully refurbished with 90-day warranty 53p8640 Contact for Details 3 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 4 53P8480 Flag, Paper Out 500 Tray Fully refurbished with 90-day warranty 53P8480 $20.00 5 56P0110 Spring, Bellcrank Internal 500 NS 53P8617 Screw, Hanger

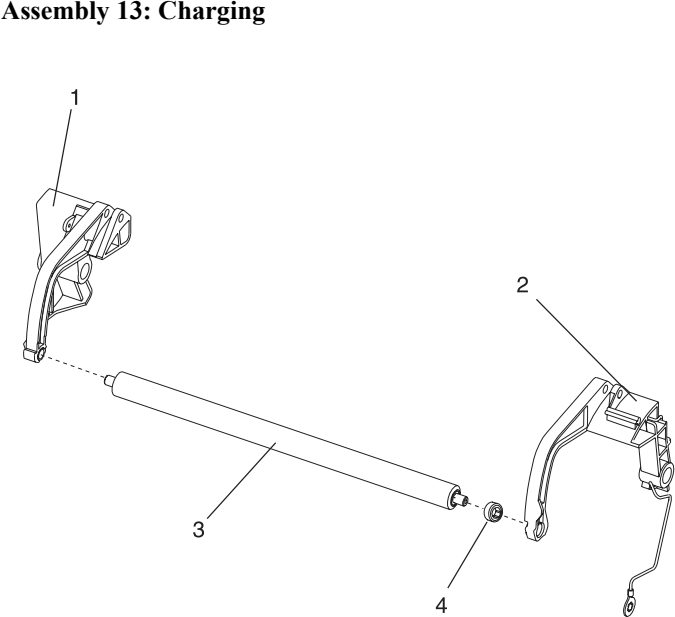

1 53P8348 Link Assembly, Charge Left Kit 2 3 28P2016 Charge Roll New 28P2016 (New) $41.00 4 53P8456 Bushing, Charge Roll NS 53P8617 Parts Packet, Screw (Charge Roll)

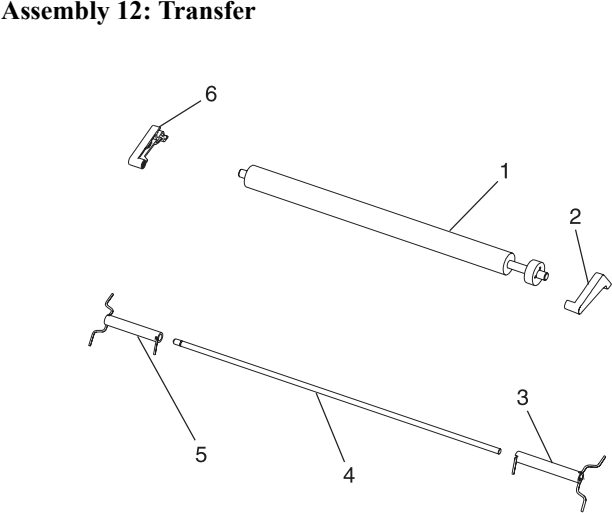

1 28P2017 Transfer Roll New 28P2017 (New) $40.00 2 53P8293 Arm, Transfer Roll Assembly Right 3 53P8242 Spring, Transfer Roll Right 4 53P8243 Shaft, Transfer Pivot 5 53P8241 Spring, Transfer Roll Left 6 53P8460 Arm, Transfer Roll Left NS 53P8249 Parts Packet, Retainer (Pivot Shaft)

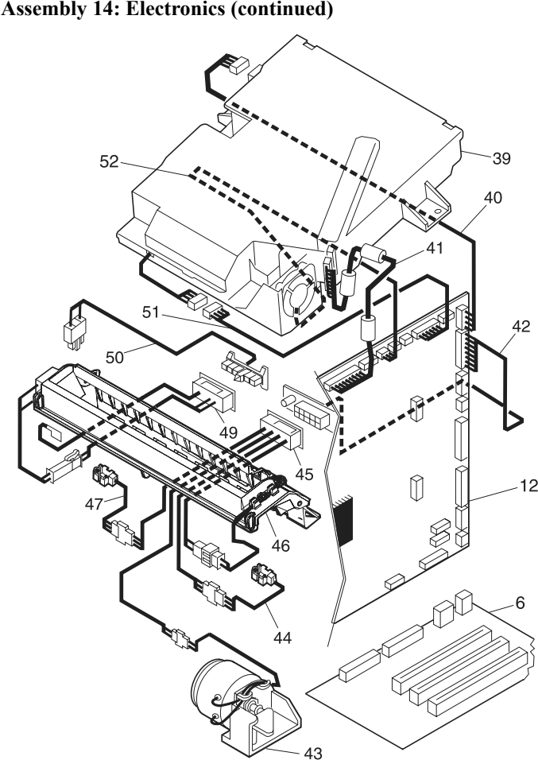

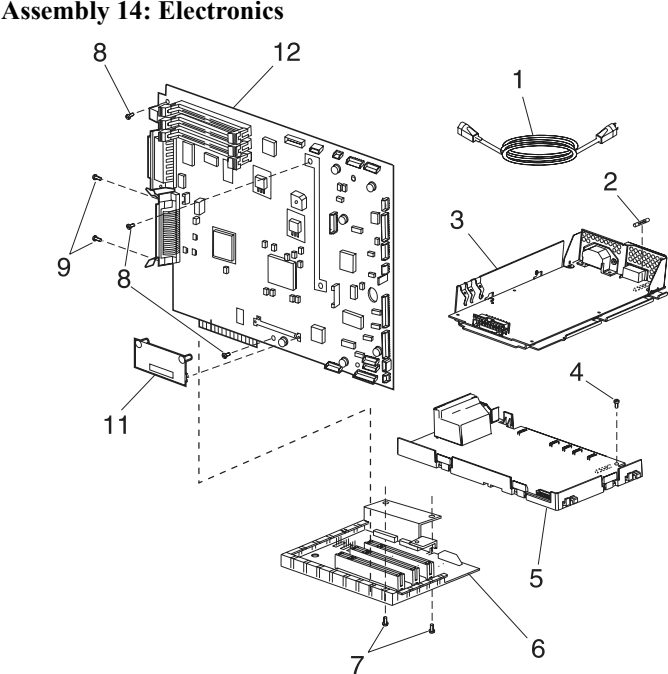

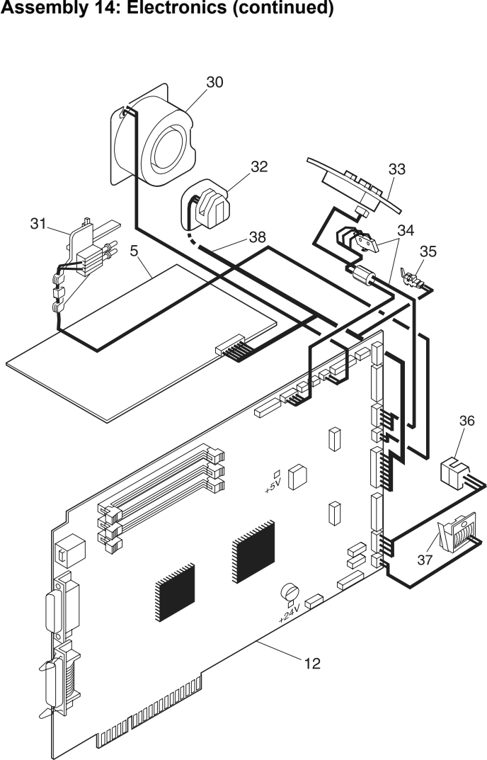

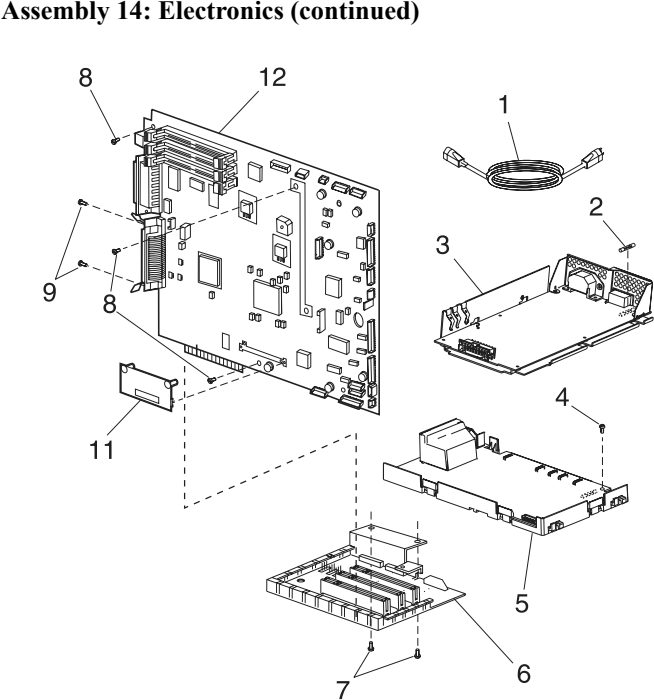

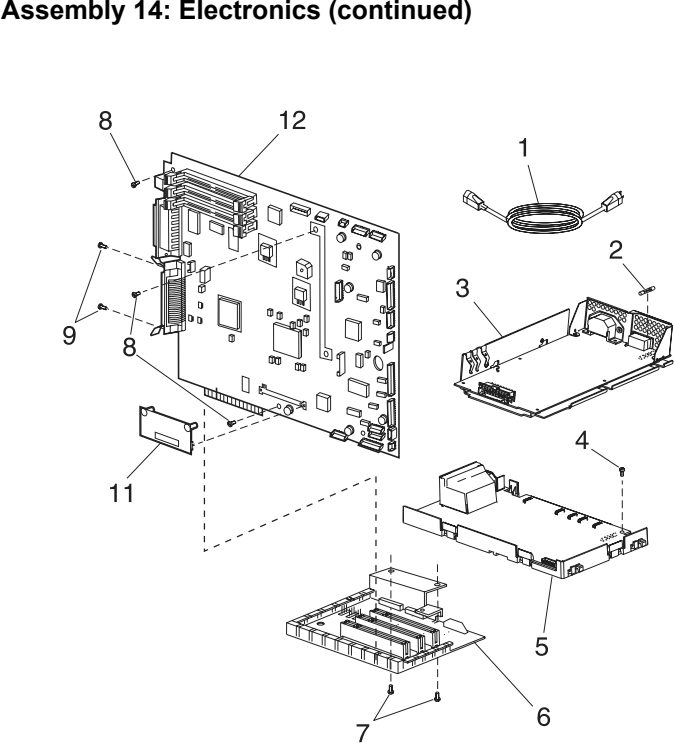

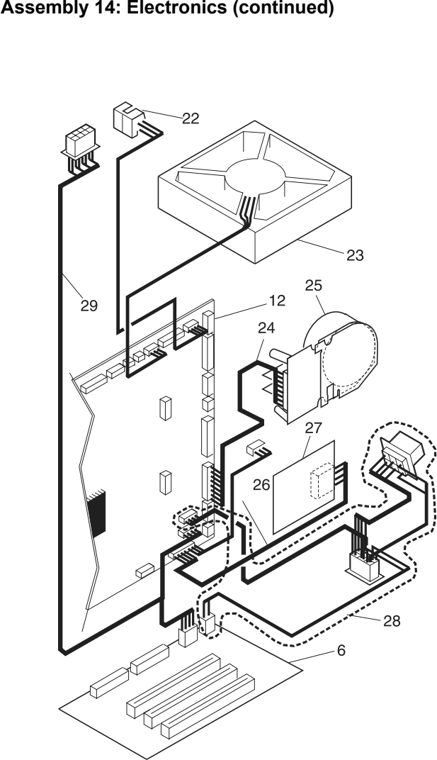

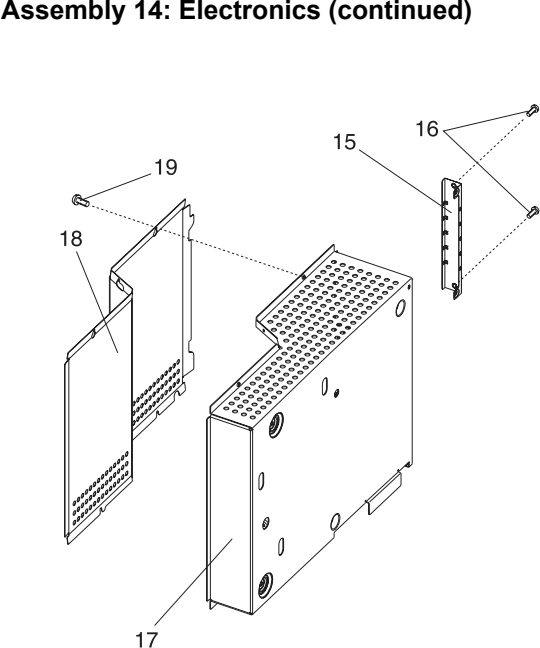

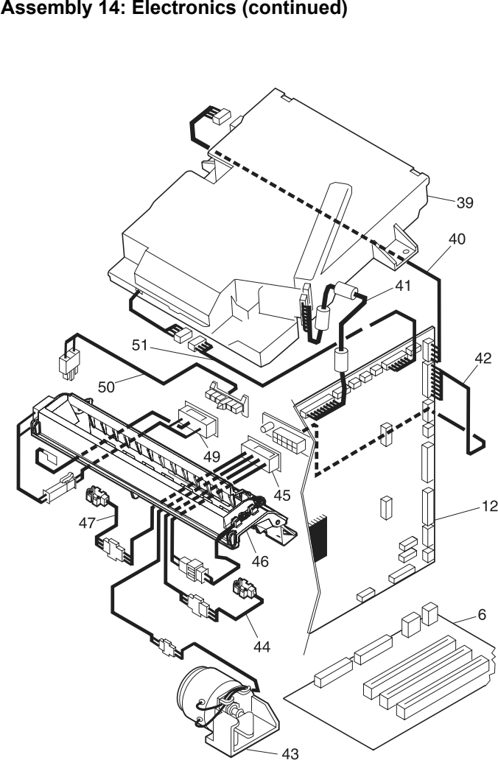

2 53P8855 Fuse, 110 V ac LVPS 12.5A 250V 3 53P8734 LVPS 110 V ac (1130) Fully refurbished with 90-day warranty 53p8734 Retired, no longer available: Contact for alternatives Contact for Details 53P8745 LVPS Low Voltage Power Supply 1140 Fully refurbished with 90-day warranty 53p8745 $79.00 4 53P8617 Screw, HVPS Mounting, PP 5 53P8646 High Voltage Power Supply HVPS Fully refurbished with 90-day warranty 53p8646 $39.00 6 53P8625 Interconnect Board Assembly 2 Slot with shield Fully refurbished with 90-day warranty 53P8625 $65.00 7 53P8617 Screw, Int Board Mounting, PP 8 53P8617 Screw, System Bd Mounting Front, PP 9 53P8854 Screw, Parallel Connector Mounting 11 53P8628 Card Assembly, NAND Flash 12 56P0051 System Board Assembly 4540 (1140) Fully refurbished with 90-day warranty 56P0051 Retired, no longer available: Contact for alternatives Contact for Details 56P0051 System Board Assembly 4540 (1140) Fully refurbished with 90-day warranty 56p0051 I Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 12 56P0052 System Board 4540 (1140n) Fully refurbished with 90-day warranty 56P0052 Retired, no longer available: Contact for alternatives Contact for Details 56P0052 System Board 4540 (1140n) Fully refurbished with 90-day warranty 56P0052 I Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details

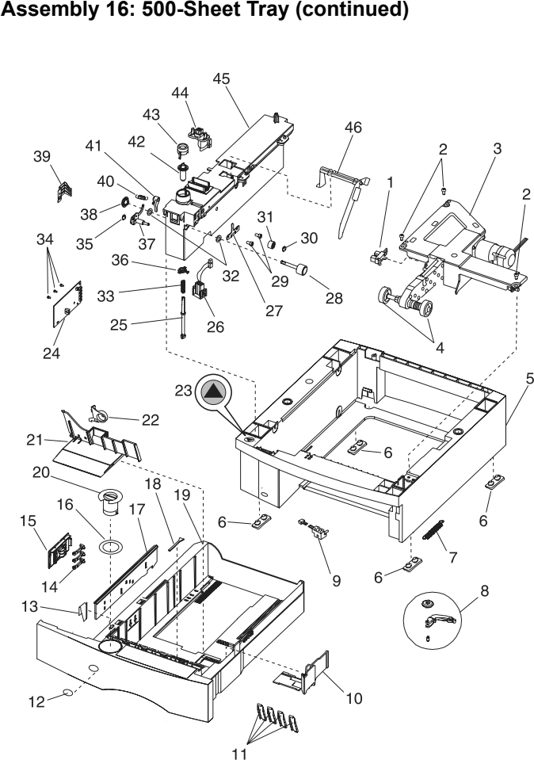

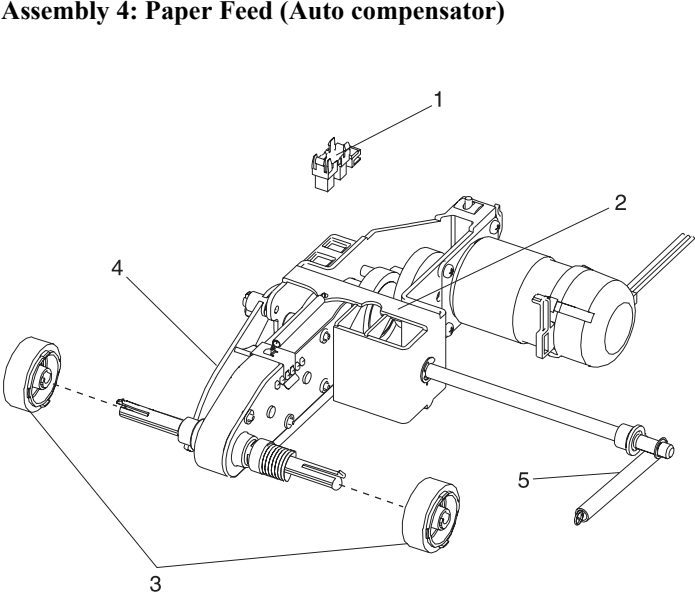

1 53P8294 Sensor Paper Low Fully refurbished with 90-day warranty 53P8294 $19.00 2 53P8617 Screw, Auto Comp Mounting, PP 3 53P8315 Pick Arm Assembly (500) Fully refurbished with 90-day warranty 53P8315 $59.00 Make an Offer 53P8315 Pickup Arm Assembly 500-Sheet Drawer New 53P8315 (New) $129.00 4 53P8212 Pick Roll Assembly New 53P8212 Set of two (New) $18.00 5 6 53P8209 Pad Base 500 New 53P8209 (New) $19.00 7 53P8322 Spring Tray Bias Fully refurbished with 90-day warranty 53P8322 $13.00 8 53P8203 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 53P8203 Contact for Details 9 53P8265 Sensor Option Pass Thru New 53P8265 (New) Retired, no longer available: Contact for alternatives Contact for Details 10 53P8747 Restraint Side 500-Sheet Tray Fully refurbished with 90-day warranty 53P8747 $19.00 11 53P8266 Wear Strips 12 53P8748 Label Tray Option Number Fully refurbished with 90-day warranty 53P8748 Contact for Details 13 53P8464 Plate 500 Tray Wear Fully refurbished with 90-day warranty 53P8464 Contact for Details 14 53P8229 Finger Autosize Fully refurbished with 90-day warranty 53P8229 $20.00 15 53P8228 Plate Snap-In Fully refurbished with 90-day warranty 53P8228 $20.00 16 53P8614 Label Paper Size Fully refurbished with 90-day warranty 53P8614 Contact for Details 17 53P8463 Slider Autosize 500 Fully refurbished with 90-day warranty 53P8463 Contact for Details 18 53P8226 Restraint Pad Fully refurbished with 90-day warranty 53P8226 $20.00 19 53P8459 Tray Assembly 500 Sheet Fully refurbished with 90-day warranty 53P8459 $95.00 20 53P8447 Knob Paper Size Fully refurbished with 90-day warranty 53P8447 Contact for Details 21 53P8474 Restraint Back 500-Sheet Tray New 53P8474 (New) $31.00 22 53P8473 Latch Back Restraint Fully refurbished with 90-day warranty 53P8473 99a1601 $19.00 23 53P8493 Label Options Fully refurbished with 90-day warranty 53P8493 Contact for Details 24 56P0557 Board, Tray ITC Fully refurbished with 90-day warranty 56P0557 $25.00 25 53P8328 Shaft 500 Drive Fully refurbished with 90-day warranty 53P8328 $17.00 26 53P8263 Cable 500 Auto Connect Bottom Fully refurbished with 90-day warranty 53P8263 $16.00 27 53P8568 Wear Plate Pass Thru Fully refurbished with 90-day warranty 53P8568 Contact for Details 28 53P8257 Roll Assembly Drive New 53P8257 (New) Contact for Details 29 53P8617 Screw, Wear Plate Mounting, PP 30 53P8330 Retainer Roller Fully refurbished with 90-day warranty 53P8330 Contact for Details 31 Sale53P8331 Roller Skewed Backup New 53P8331 99a0451 (New) ~~$12.00~~ $8.00 32 53P8325 Bearing Drive Roll Fully refurbished with 90-day warranty 53P8325 Contact for Details 33 53P8256 Spring Power Takeoff Fully refurbished with 90-day warranty 53P8256 $16.00 34 53P8617 Screw, Board Mounting, PP 35 53P8249 Parts Packet Retainer (Aligner Assembly) Fully refurbished with 90-day warranty 53P8249 Contact for Details 36 53P8261 Bearing Drive Shaft Low Fully refurbished with 90-day warranty 53P8261 $16.00 37 53P8327 Aligner Assembly Paper Fully refurbished with 90-day warranty 53P8327 Contact for Details 38 53P8255 Gear Feed Roll Fully refurbished with 90-day warranty 53P8255 $16.00 40 53P8264 Spring Backup Roller Fully refurbished with 90-day warranty 53P8264 $13.00 41 53P8491 Bellcrank Roller Release Fully refurbished with 90-day warranty 53P8491 Contact for Details 42 53P8254 Gear Bevel Fully refurbished with 90-day warranty 53P8254 $16.00 43 53P8260 Bearing Drive Shaft Fully refurbished with 90-day warranty 53P8260 $16.00 44 53P8262 Cable 500 Auto Connect Top Fully refurbished with 90-day warranty 53P8262 $16.00 45 53P8526 Stud Assembly 500 Frame Fully refurbished with 90-day warranty 53P8526 Contact for Details 46 53P8485 Arm Paper Out 500 Fully refurbished with 90-day warranty 53P8485 $24.00 Make an Offer

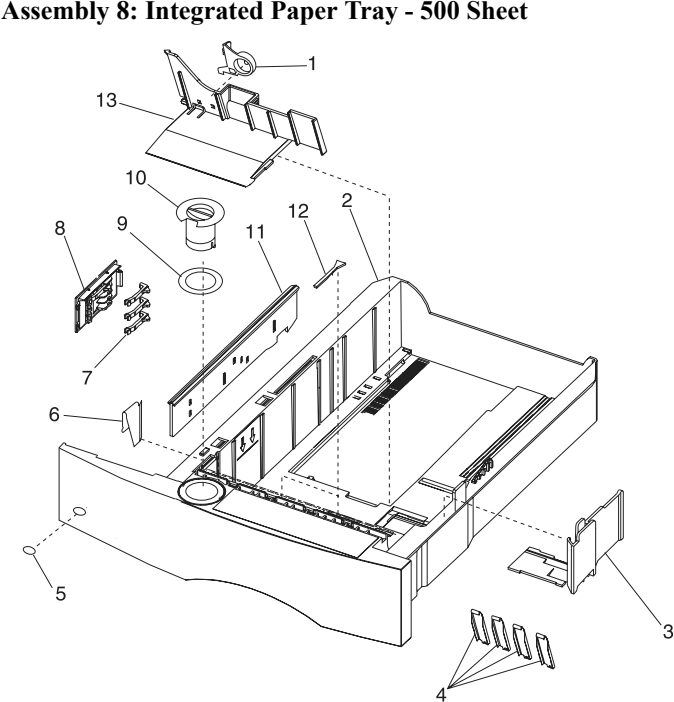

1 53P8473 Latch, Back Restraint 2 53P8459 Tray Assembly 500 Sheet Fully refurbished with 90-day warranty 53P8459 $95.00 3 53P8747 Restraint Side 500-Sheet Tray Fully refurbished with 90-day warranty 53P8747 $19.00 4 53P8266 Wear Strips New 53P8266 (New) $20.00 5 53P8483 Label, Tray Option Number 6 53P8464 Plate 500 Tray Wear Fully refurbished with 90-day warranty 53P8464 Contact for Details 7 53P8229 Finger Autosize Fully refurbished with 90-day warranty 53P8229 $20.00 8 53P8228 Plate Snap-In Fully refurbished with 90-day warranty 53P8228 $20.00 9 53P8614 Label Paper Size Fully refurbished with 90-day warranty 53P8614 Contact for Details 10 53P8447 Knob Paper Size Fully refurbished with 90-day warranty 53P8447 Contact for Details 11 53P8463 Slider Autosize 500 Fully refurbished with 90-day warranty 53P8463 Contact for Details 12 53P8226 Pad, Restraint 13 53P8474 Restraint Back 500-Sheet Tray New 53P8474 (New) $31.00

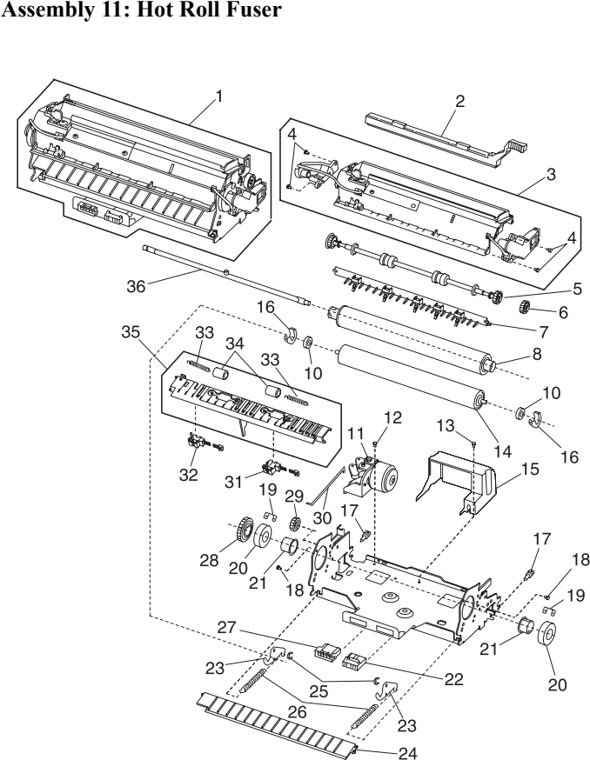

28P2627 IBM Fuser Assembly 1140 Fully refurbished with 90-day warranty 28p2627 Advanced Exchange $167.00 28P2627 IBM Fuser Assembly 1140 New 28P2627 (New) $320.00
1 53P8610 Deflector Upper Redrive Fully refurbished with 90-day warranty 53P8610 $49.00 2 53P8444 Door Assembly Redrive 500 Fully refurbished with 90-day warranty 53P8444 $29.00 3 53P8443 Redrive Assembly Inner 500 Fully refurbished with 90-day warranty 53p8443 Retired, no longer available: Contact for alternatives Contact for Details 4 53P8222 Spring, Upper Diverter
