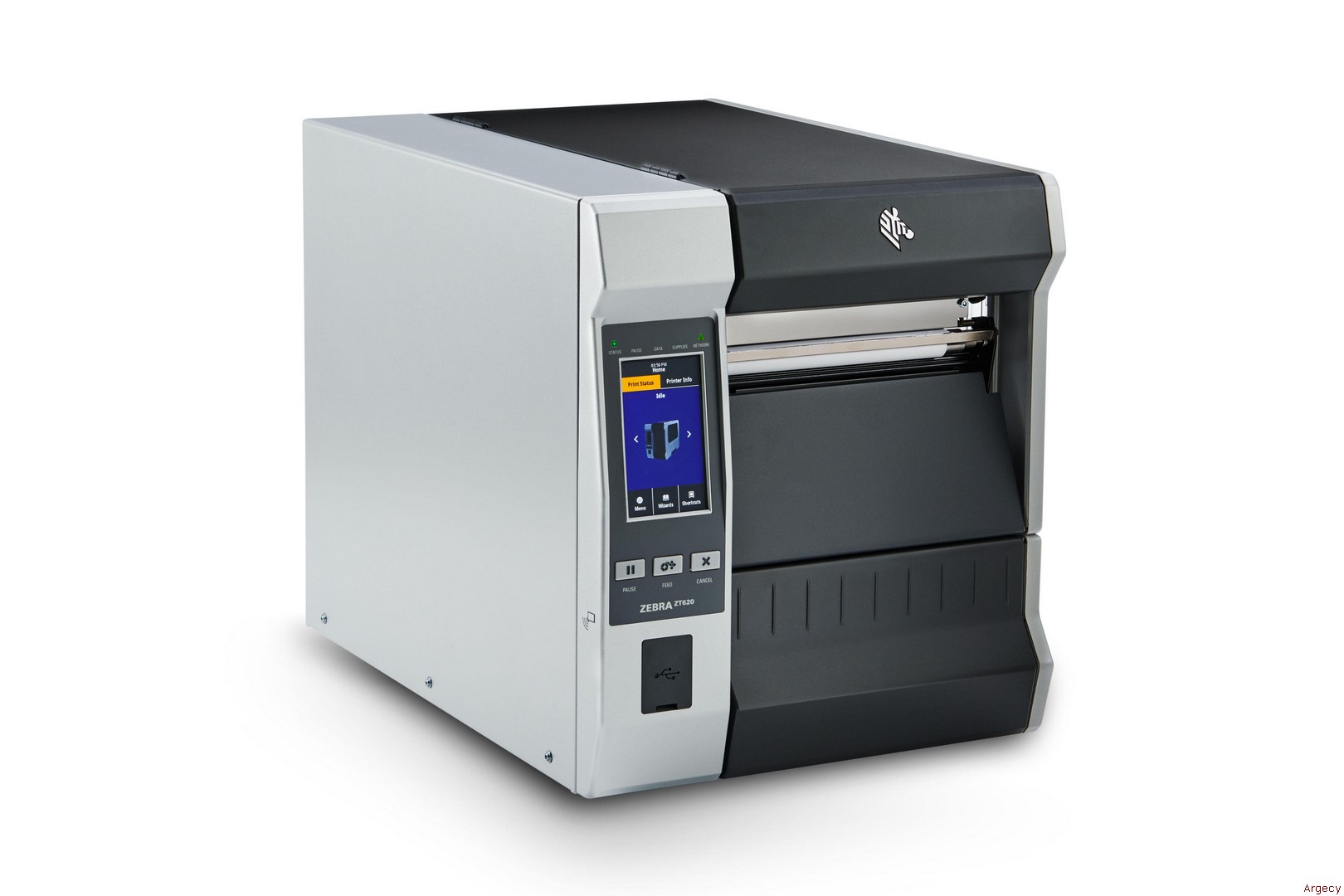

Zebra ZT610 ZT620 Printer
| ZT610 | ZT610 RFID | ZT620 |
 |  |  |
| Get the exceptional performance you need to keep mission-critical operations running smoothly, plus intelligent, user-friendly features that give you total visibility and control at all times with 4-inch width (104 mm), 600 dpi printing on the ZT610 | Get the exceptional performance you need to keep mission-critical operations running smoothly, plus intelligent, user-friendly features that give you total visibility and control at all times with 4-inch (104 mm) width and 600 dpi printing on the ZT610. | The next advancement in high-performance industrial label printing has arrived. Whether you're trying to keep up with high-volume demands or looking for ways to advance your business technology portfolio, the ZT620 prints 6 inches wide (168 mm) and 12 inches (305 mm) per second to have you covered. |
| Maximum Print Width - 4.09 in./104 mm Available Print Resolution - 203 dpi/8 dots per mm, 300 dpi/12 dots per mm, 600 dpi/24 dots per mm Maximum Print Speed - 14 ips/356 mm per second (203 dpi), 12 ips/305 mm per second (300 dpi), 6 ips/152 mm per second (600 dpi) Construction - All-metal heavy gauge structural components | Prints and encodes RFID labels and tags Maximum Print Width - 4.09 in./104 mm Available Print Resolution - 203 dpi/8 dots per mm, 300 dpi/12 dots per mm, 600 dpi/24 dots per mm Maximum Print Speed - 14 ips/356 mm per second (203 dpi), 12 ips/305 mm per second (300 dpi), 6 ips/152 mm per second (600 dpi) Construction - All-metal heavy gauge structural components | Maximum Print Width 6.6 in./168 mm Available Print Resolution - 203 dpi/8 dots per mm, 300 dpi/12 dots per mm Maximum Print Speed - 12 ips/305 mm per second (203 dpi), 8 ips/200 mm per second (300 dpi) Construction - All-metal heavy gauge structural components |
24/7 Reliability in the Harshest Environments
ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day in and day out, with superior print quality and speed across the widest range of applications.
Micro-Consistent Printing for Top-Quality Micro Labels
Featuring highly precise registration and print line adjustment, the ZT610 offers 600 dpi printing for labels as small as 3 mm high (length) for applications like circuit boards, chips and miniature components ??all without wasting expensive media due to improper printing.
User-Friendly Setup, Use, Maintenance & Troubleshooting
Intuitive Print DNA software, powered by Link-OS , delivers unparalled intelligence and innovation for advanced connectivity, device management and privacy controls. User-friendly design features, including an optional color touch display, streamline everything from deployment to daily use to routine maintenance. Compatibility with other printing systems and technologies simplifies integration and management, while onboard sensors, diagnostics and help resources guide troubleshooting so users don't have to call in support for every minor issue.
Highly Adaptable, Future-Ready Platforms
The last thing you need is a new piece of technology that will be obsolete in just a couple of years. That's why the ZT600 Series was engineered with the future in mind ??from an adaptable design that allows communications, media handling and other upgrades in the field, to compatibility with SOTI and AirWatch device management software, to intuitive Link-OS applications that simplify updates and reconfiguration as needed.
For more information about ZT600 Series Industrial Printers, visit www.zebra.com/zt600
or access our global contact directory at www.zebra.com/contact
Exceptional Today, Ready for Tomorrow, Built for the Future.
Unparalleled Performance Today
All-metal heavy gauge structural components are engineered to withstand the demands of 24/7 operations for years of continuous use
Built-in thermal management eliminates vents and cooling fans, blocking dust and debris for trouble-free printing even in challenging environments
High-quality print mechanism and internal components are meticulously designed to ensure outstanding performance and reliability
Best-in-class, high-resolution printing for micro labels offers exceptional quality for precision applications
Long-life printheads reduce replacement costs and printer downtime
Easy-adjust printhead pressure toggles feature a scale and color-coded pressure indicators to simplify printer setup and operation
User-Friendly for Day-to-Day Operations
Simple, intuitive side-loading of media increases printer uptime and reduces training requirements
Highly visible color display turns red when the printer is in an error state, allowing users to determine printer status from a distance
Guided media paths change color when a media error occurs, providing simple visual cues to help users locate and resolve problems quickly
Color LCD interface or optional 4.3-inch full-color touch display allow you to quickly navigate printer settings with the user friendly icon menu system to change languages, printer settings, connectivity options and more
Interior cabinet light illuminates ribbon and media paths for optimal visibility
Color-coded components enable easy identification of all touch points
QR codes link to error-specific help videos for fast problem resolution
Quick-change printhead simplifies maintenance with easy-in/easy-out socket, no wires ??and no hassles
Fused upper and lower media sensors offer the convenience of single-knob adjustment without compromising alignment
Insight for a Smarter Tomorrow
Link-OS Printer Profile Manager Enterprise lets administrators monitor networked Link-OS printers from a single user-friendly, browser-based interface
Mobile Device Management connectors easily integrate networked printers into AirWatch or SOTI Device Management systems
Link-OS Cloud Connect provides a direct, encrypted and authenticated connection to link printers to on-premise or cloud-based servers
Zebra's Visibility Services Portfolio enables enterprises to track and analyze printer health, performance and usage, facilitating improved business performance
Adaptability for a Bright Future
Optional advanced RFID encoding capabilities are easy to install and use
Field-installable media handling options utilize bulkhead electrical connectors for quick installation to expand printer capabilities
Two USB host ports offer the flexibility to connect a wide range of peripheral devices
Two open communication slots for fast and easy addition of connectivity options including 802.11ac, parallel, Ethernet, IPv6 and applicator interface
Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That's why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer ??and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.
| Maximum Print Width | ZT610: 4.09"/104 mm ZT620: 6.6"/168 mm |
| Maximum Print Speed | ZT610: 14 ips/356 mm per second at 203 dpi 12 ips/305 mm per second at 300 dpi 6 ips/152 mm per second at 600 dpi ZT620: 12 ips/305 mm per second at 203 dpi 8 ips/200 mm per second at 300 dpi |
| Print Resolution (dpi) | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only) |
|
| Operating System | Link-OS |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 1 GB RAM memory |
| Maximum Print Width | ZT610: 4.09"/104 mm |
| Maximum Print Speed | ZT610: 14 ips/356 mm per second |
| Media Sensors | Dual media sensors: transmissive and reflective |
| Maximum Continuous Print Length | ZT610 ZT620 |
| Media Width | ZT610: 0.79"/20 mm to 4.5"/114 mm |
| Maximum Media Roll Size | 8.0"/203 mm O.D. on a 3"/76 mm I.D. core |
| Thickness | 0.0023"/0.058 mm to 0.010"/0.25 mm |
| Media Types | Continuous, die-cut, notch, black-mark |
| Standard Length | 1476'/450 m |
| Width | ZT610: 0.79"/20 mm to 4.33"/110 mm |
| Core | 1.0"/25.4 mm I.D. |
| Environmental | Operating Temperature: Operating Humidity: 20% to 85% non-condensing Storage/Transportation Temperature: -22F to 140F/ Storage Humidity: 20% to 85% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts ENERGY STAR qualified |
| Agency Approvals | IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro |
| ZT610 closed | |
| Length | 19.88"/505 mm |
| Width | 10.56"/268.2 mm |
| Height | 15.58"/395.68 mm |
| Weight | 50 lbs/22.7 kg |
| ZT620 closed | |
| Length | 19.88"/505 mm |
| Width | 13.44"/341.45 mm |
| Height | 15.58"/395.68 mm |
| Weight | 57.4 lbs/26 kg |
| Development Tools | With faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost. |
| Management Tools | Minimize IT effort and maximize IT control with Print DNA management tools the easy way to add and manage any number of printers, anywhere from a handful of printers to thousands of printers all around the world. |
| Productivity Tools | Reach new levels of productivity with innovations that streamline tasks and workflow optimize device performance and solve tomorrow's printing problems today. |
| Visibility Tools | Regardless of whether or not you have an existing Mobile Device Management solution in place, robust Visibility Tools provide unparalleled insight into printer health, usage and performance |
| Print DNA features may vary by model and a Support Contract may be required. For more information, please visit: www.zebra.com/printdna |
| ZBI 2.0 Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more. ZPL and ZPL II Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers. XML-enabled Printing allows XML communications for barcode label printing. |
| Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec |
| 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts Asian and other international scalable and smooth bitmapped fonts Unicode: For multi-language printing Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0 32 MB user available DRAM 512 MB user available on-board Flash |
Connectivity Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port Media Handling Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner Cutter: Front-mount guillotine cutter and catch tray Ink-side in ribbon supply spindle RFID Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Integrated RFID system is user-upgradable in the field and available on both 4" and 6" models Adaptive Encoding Technology automatically selects optimum encode settings Display Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support Keyboard Display Unit ZKDU keyboard display units for stand-alone printing applications |
