Lexmark X548 Parts







Please call for parts assistance

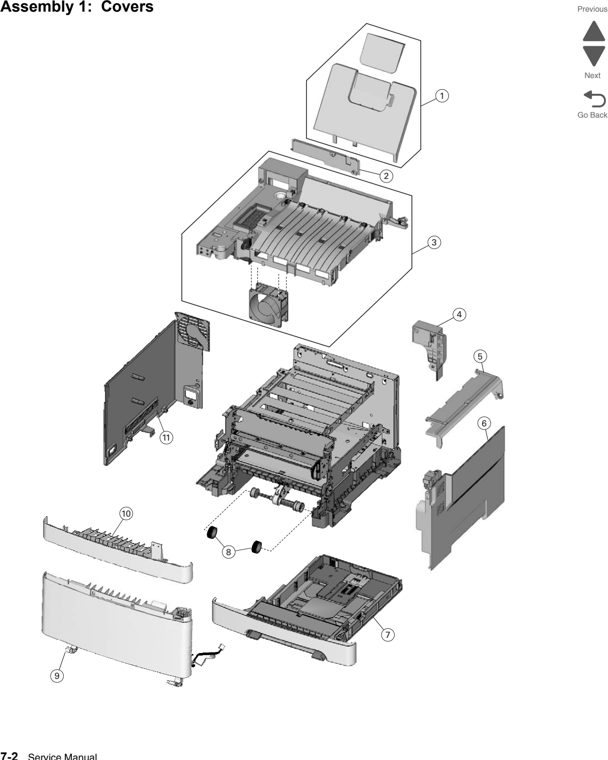

1-1 40X5484 Tray, Output bin

2 40X5489 Cover, AIO back cable

3
40X5482 Top Over Assembly
New
40X5482 (New)
$96.70



40X5482 Top over assembly
Fully refurbished with 90-day warranty
40X5482
$80.53



4 40X5537 Link, AIO

5 40X5534 Cover, AIO toner

6
40X5486 Right cover
New
40X5486 (New)
$24.60



40X5486 Right cover
Fully refurbished with 90-day warranty
40X5486
$20.03



7
40X5419 250-sheet tray assembly
New
40X5419 (New)
$44.71



8
40X5168 Pick Tire
New
40X5168 (New)
$11.57



9
40X5538 Front cover
New
40X5538 (New)
$28.86



40X5538 Front cover
Fully refurbished with 90-day warranty
40X5538
$36.30



10
40X5490 Front middle cover
New
40X5490 (New)
$20.12



40X5490 Front middle cover
Fully refurbished with 90-day warranty
40X5490
$18.07



11
40X5417 Left cover assembly
New
40X5417 (New)
$24.08



40X5417 Left cover assembly
Fully refurbished with 90-day warranty
40X5417
$24.57



NS

40X2284 550-Sheet Duo Drawer with Tray with 100-Sheet MPF (complete) C546 X546
Fully refurbished with 90-day warranty
40X2284 40X6997
$109.71



NS 40X7609 Tray Asm, 650-sheet

NS 40X5441 Cover, Legal extender

NS 40X2253 Front flatbed hinge
https://www.argecy.com/images/X548-320_cr.jpg

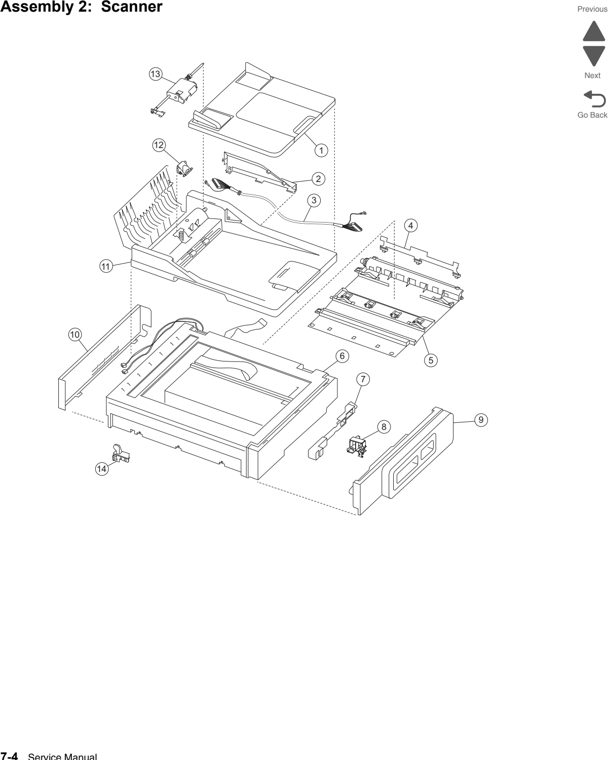

2-1
40X5470 ADF Input Tray
New
40X5470 (New)
$115.16



40X5470 ADF Input Tray
Fully refurbished with 90-day warranty
40X5470
$51.71



2 40X5478 Cover, ADF rear duplex

3 40X5479 Cable, ADF

4 40X5872 Bin full flag

5
40X5492 Redrive assembly
New
40X5492 (New)
$31.28



40X5492 Redrive assembly
Fully refurbished with 90-day warranty
40X5492
$25.47



6
40x7529 LED flatbed assembly
New
40x7529 (New)
$255.00



7


40X5536 Release lever
Fully refurbished with 90-day warranty
40X5536



8 40X1569 Flatbed pivot link

9 40X5487 Cover, Scanner right

10 40X5488 Cover, Scanner left

11
40X5468 Duplex ADF Assembly
New
40X5468 40X8092 (New)
$201.00



40X5468 Duplex ADF assembly
Fully refurbished with 90-day warranty
40X5468 40X8092
$119.71



12
40X5472 ADF Separator Pad
New
40X5472 40x8419 (New)
$45.00



13

NS
40X5535 ADF Flatbed Cushion
New
40X5535 (New)
$18.16



NS 40X2252 Redrive spacer screws
https://www.argecy.com/images/X548-322_cr.jpg

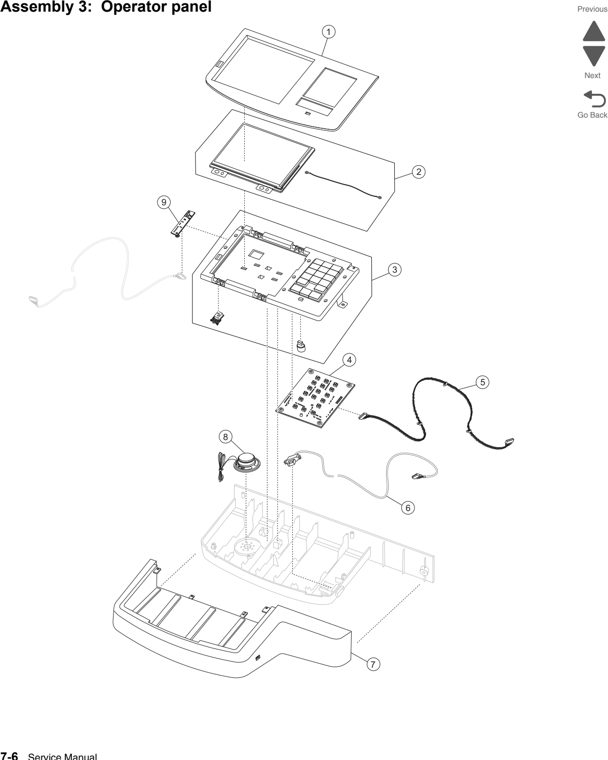

3-1
40X6523 Operator panel bezel cover
New
40X6523 (New)
$14.72



2

40X6521 7-inch LCD (with ground cable) display
Fully refurbished with 90-day warranty
40X6521
$205.95



3

40X6519 Operator panel cover with keypads sleep button and light pipe
Fully refurbished with 90-day warranty
40X6519
$18.45



4
40X6515 UICC card
New
40X6515 (New)
$77.20



40X6515 UICC card
Fully refurbished with 90-day warranty
40X6515



5
40X6516 UICC cable
New
40X6516 (New)
$25.86



40X6516 UICC cable
Fully refurbished with 90-day warranty
40X6516
$21.05



6 40X5480 Cable, USB (for thumbdrive)

7

40X6520 Operator panel frame cover cover
Fully refurbished with 90-day warranty
40X6520
$18.08



8
40X6517 Speaker
New
40X6517 (New)
$14.83



40X6517 Speaker
Fully refurbished with 90-day warranty
40X6517
$17.86



9
40X6518 PCBA EPROM
New
40X6518 (New)
$19.05



40X6518 PCBA EPROM
Fully refurbished with 90-day warranty
40X6518
$12.61


https://www.argecy.com/images/X548-324_cr.jpg

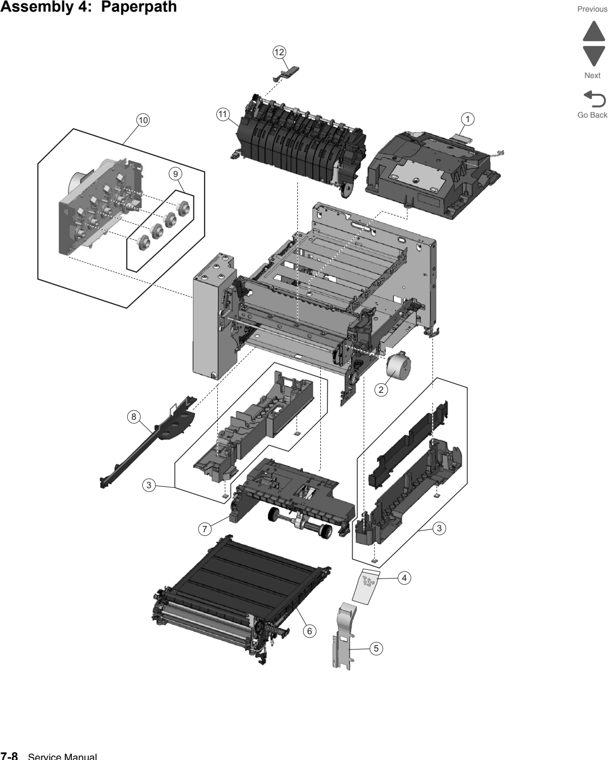

4-1
40X5411 Printhead
New
40X5411 (New)
$119.71



40X5411 Printhead
Fully refurbished with 90-day warranty
40X5411
$59.71



2
40X5415 Fuser drive motor assembly
New
40X5415 (New)
$14.47



3

40X5422 Lower left frame and lower right frame with cable cover
Fully refurbished with 90-day warranty
40X5422
$19.36



4 40X5424 Screw packet, miscellaneous screws
- - TAPTITE M3 L6 PANHD(4)
- - Tray Bias (2)
- - Fuser Latch (2)
- - ITU Front Hold Down (1)
- - Front Cover Latch Spring (2)
- - M3 x 6 Pan Head (2)
- - M3 x 6 Shoulder (1)
- - M3.5 X 5 Flat Head Plastite (1)
- - METAL ROLN M3.5 8L (2)
- - PLAST ROLN 2.9 8L (2)
- - PLAST ROLN 3.5 6L (4)

5 40X2263 Duplex reference edge

6
Sale40X5403 Image Transfer Unit (ITU) Assembly
New
40X5403 40X7610 (New)
$318.00 $259.00



7

40X1557 Paper Pick Motor Drive Assembly
Fully refurbished with 90-day warranty
40X1557
$51.62





8

40X5412 Main drive gear assembly with motors
Fully refurbished with 90-day warranty
40X5412
$35.46



9
40X7562 Fuser assembly, C540 C543 C544 C546
New
40X7562 40X5406 40X5437 (New)
$148.72



9 40X7563 Fuser assembly, 220 V

9 40X7564 Fuser assembly, 100 V

10 40X0411 Narrow media flag
https://www.argecy.com/images/X548-326_cr.jpg

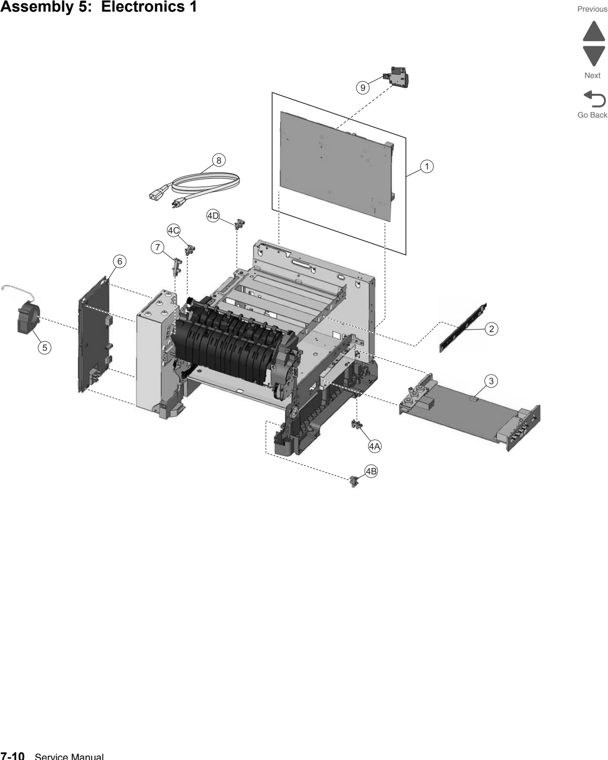

5-1
40X6514 Controller (RIP) card
New
40X6514 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$550.22



40X6514 Controller (RIP) card
Fully refurbished with 90-day warranty
40X6514 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$423.18



2

40X5404 Toner meter cycle card assembly
Fully refurbished with 90-day warranty
40X5404
$22.50



3
40X5405 High-Voltage Power Supply HVPS
New
40X5405 40x8695 (New)
$119.71



40X5405 High-voltage power supply HVPS
Fully refurbished with 90-day warranty
40X5405 40X8395
$79.71



4

A Tray present
B Duplex
C Narrow Media
D Exit bin

5
40X5409 Low-Voltage Power Supply (Universal Power Supply)
New
40X5409 (New)

Retired, no longer available: Contact for alternatives



40X5409 Low-voltage power supply (universal power supply)
New
40X5409 Advanced Exchange (New)

Retired, no longer available: Contact for alternatives



40X5409 Low-Voltage Power Supply (Universal Power Supply)
Fully refurbished with 90-day warranty
40X5409
$115.66



6
40X5413 Fuser exit sensor
New
40X5413 (New)
$11.00



7 40X0289 Power cord, 1.8 m (straight) USA, Canada

8
40X7054 Fax card
New
40X7054 (New)

Retired, no longer available: Contact for alternatives



NS 40X5485 Fax interface cable
https://www.argecy.com/images/X548-328_cr.jpg

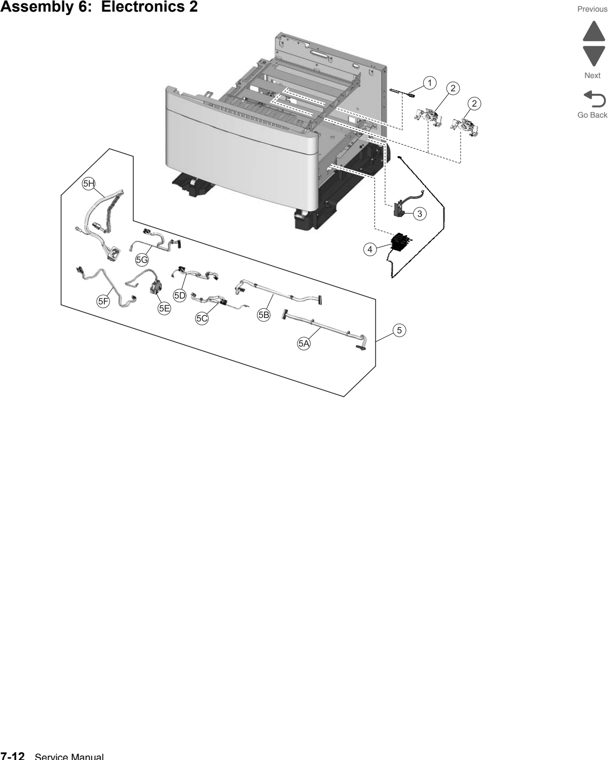

6-1 40X5429 ITU paper path thermistor

2

3

40X7046 Waste toner bottle contact block
Fully refurbished with 90-day warranty
40X7046
$24.71



4

5 40X5423 Cable packet, used for:
A AC power in
B Low-voltage power supply
C High-voltage power supply
D Fuser/S1
E CMY/ K motors
F Option tray
G Fuser exit/narrow media/bin full
H Wire tie (1.0mm)
NS Tray present cable
https://www.argecy.com/images/X548-330_cr.jpg

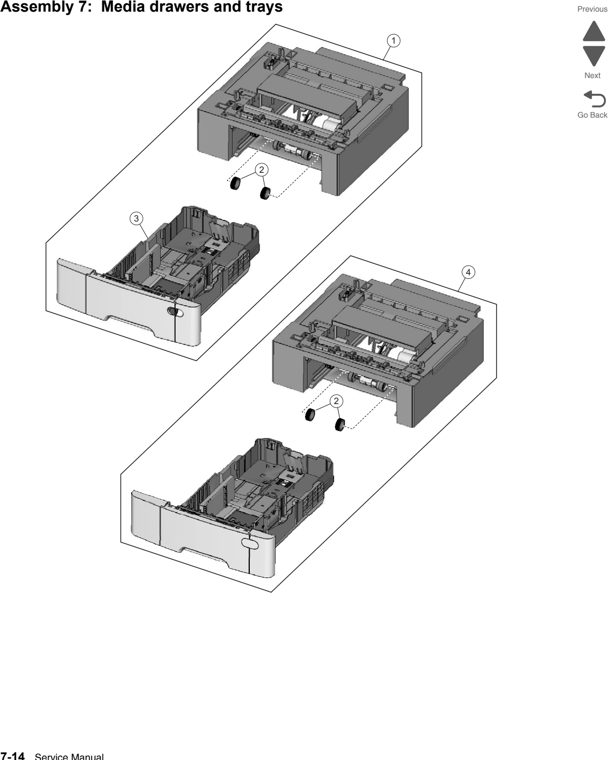

7-1
40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
Fully refurbished with 90-day warranty
40X5434 40x8341
$109.71



40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
New
40X5434 40X8341 (New)
$189.00



1

40X2284 550-Sheet Duo Drawer with Tray with 100-Sheet MPF (complete) C546 X546
Fully refurbished with 90-day warranty
40X2284 40X6997
$109.71



2
40X5168 Pick Tire
New
40X5168 (New)
$11.57



3

40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544
Fully refurbished with 90-day warranty
40X5435 40X2285
$108.02



3

40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544
Fully refurbished with 90-day warranty
40X5435 40X2285
$108.02



4
40x6997 550-Sheet Duo Drawer with 100-Sheet MPF
New
40X6997 40X2284 (New)
$219.72



NS 40X2512 550-sheet MPF latch cover
https://www.argecy.com/images/X548-332_cr.jpg
