Lexmark X543 X544 X546 Parts







Please call for parts assistance

Looking for whole machines? Click here

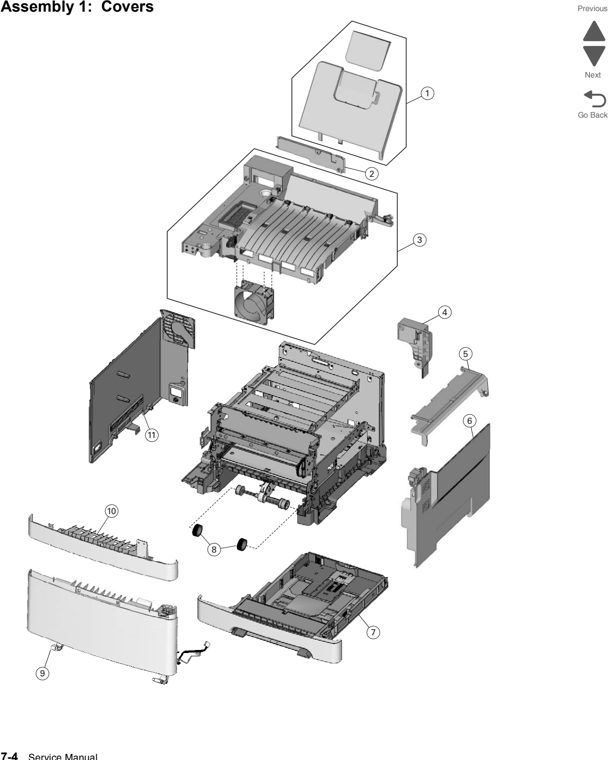

1

2 40X5489 Cover, AIO Back Cable

3
40X5482 Top Over Assembly
New
40X5482 (New)
$96.70



40X5482 Top over assembly
Fully refurbished with 90-day warranty
40X5482
$80.53



4
40X5537 AIO Link
New
40X5537 (New)
$14.56



5
40X5534 Toner cover
New
40X5534 (New)
$11.86



40X5534 Toner cover
Fully refurbished with 90-day warranty
40X5534



6
40X5486 Right cover
New
40X5486 (New)
$24.60



40X5486 Right cover
Fully refurbished with 90-day warranty
40X5486
$20.03



7
40X5419 250-sheet tray assembly
New
40X5419 (New)
$44.71



40X5419 250-sheet tray assembly
Fully refurbished with 90-day warranty
40X5419
$34.71



8
40X5168 Pick Tire
New
40X5168 (New)
$11.57



9

40X5538 Front cover
New
40X5538 (New)
$28.86



10
40X5490 Front middle cover
New
40X5490 (New)
$20.12



40X5490 Front middle cover
Fully refurbished with 90-day warranty
40X5490
$18.07



11
40X5417 Left cover assembly
Fully refurbished with 90-day warranty
40X5417
$24.57



40X5417 Left cover assembly
New
40X5417 (New)
$24.08



NS
40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
Fully refurbished with 90-day warranty
40X5434 40x8341
$109.71



40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
New
40X5434 40X8341 (New)
$189.00



NS
40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544
Fully refurbished with 90-day warranty
40X5435 40X2285
$108.02





NS 40X5441 Cover, Legal extender
https://www.argecy.com/images/X543-X544-X546-290_cr.jpg

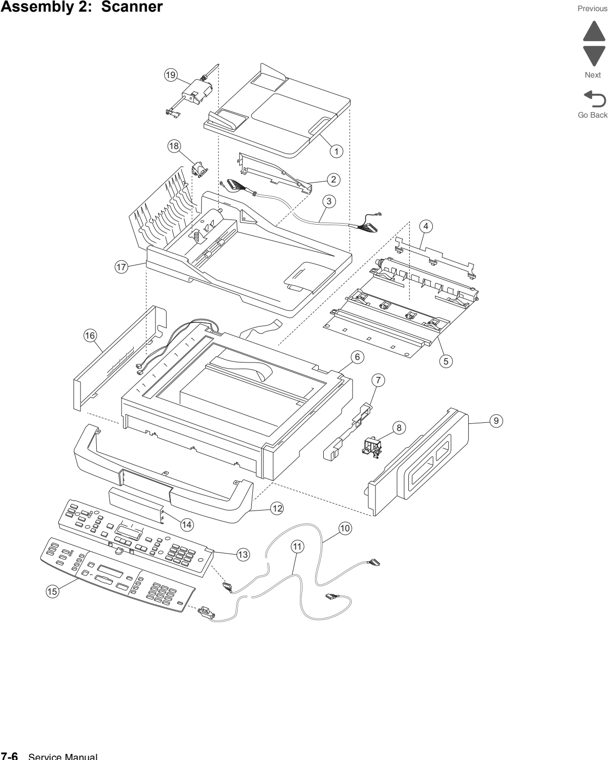

2-1
40X5470 ADF Input Tray
Fully refurbished with 90-day warranty
40X5470
$51.71



40X5470 ADF Input Tray
New
40X5470 (New)
$115.16



2


40X5477 ADF rear simplex cover
New
40X5477 (New)
$13.22



2 40X5478 Cover, ADF rear duplex

3 40X5479 Cable, ADF

4
40X5872 Bin full flag
New
40X5872 (New)
$12.28



40X5872 Bin full flag
Fully refurbished with 90-day warranty
40X5872



5
40X5492 Redrive assembly
New
40X5492 (New)
$31.28



40X5492 Redrive assembly
Fully refurbished with 90-day warranty
40X5492
$25.47



6
40X5467 Flatbed Assembly
New
40X5467 (New)
$309.77



40X5467 Flatbed assembly
Fully refurbished with 90-day warranty
40X5467
$226.00



7


40X5536 Release lever
Fully refurbished with 90-day warranty
40X5536



8 40X5487 Cover, scanner right

9 40X5533 Cover, bezel

10 40X5481 Cable, Op panel

11
40X5480 USB (thumbdrive) cable
New
40X5480 (New)
$11.91



12
40X5473 Operator panel
Fully refurbished with 90-day warranty
40X5473
$72.14



40X5473 Operator Panel
New
40X5473 (New)
$88.45



12
40X5474 Operator panel
New
40X5474 (New)
$74.71



40X5474 Operator panel
Fully refurbished with 90-day warranty
40X5474



12
40X5475 Operator panel DBCS
Fully refurbished with 90-day warranty
40X5475
$54.44



40X5475 Operator panel DBCS
New
40X5475 (New)
$66.74



12
40X5476 Operator panel DBCS
New
40X5476 (New)
$67.52



40X5476 Operator Panel DBCS
Fully refurbished with 90-day warranty
40X5476
$55.05



13 40X5491 Cover, Logo

14 40X5493 Bezel, op panel 4-1 (English)

15 40X5488 Cover, scanner left

16
40X5468 Duplex ADF Assembly
New
40X5468 40X8092 (New)
$201.00



40X5468 Duplex ADF assembly
Fully refurbished with 90-day warranty
40X5468 40X8092
$119.71



16
40X5469 Simplex ADF assembly
Fully refurbished with 90-day warranty
40X5469
$186.14



40X5469 Simplex ADF Assembly
New
40X5469 (New)
$242.06



17
40X5472 ADF Separator Pad
New
40X5472 40x8419 (New)
$45.00



18
40X5471 ADF Separator Roll
New
40X5471 40X7545 (New)
$35.00



NS
40X5539 ADF Flatbed Cushion Simplex
New
40X5539 (New)
$21.83





NS
40X5535 ADF Flatbed Cushion
New
40X5535 (New)
$18.16


https://www.argecy.com/images/X543-X544-X546-292_cr.jpg

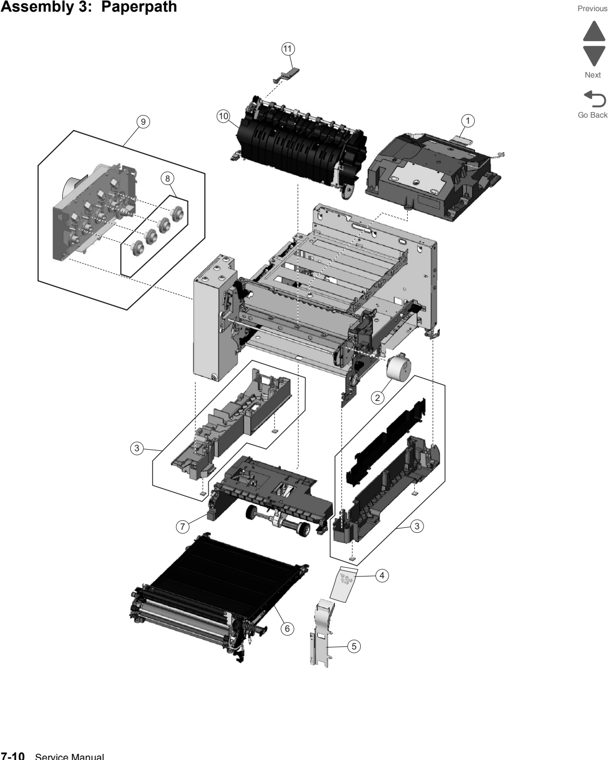

3-1
40X5411 Printhead
New
40X5411 (New)
$119.71



40X5411 Printhead
Fully refurbished with 90-day warranty
40X5411
$59.71



2
40X5415 Fuser drive motor assembly
New
40X5415 (New)
$14.47



3
40X5422 Lower left frame and lower right frame with cable cover
Fully refurbished with 90-day warranty
40X5422
$19.36





4 40X5424 Screw packet, miscellaneous screws
- TAPTITE M3 L6 PANHD(4)
- Tray Bias (2)
- Fuser Latch (2)
- ITU Front Hold Down (1)
- Front Cover Latch Spring (2)
- M3 x 6 Pan Head (2)
- M3 x 6 Shoulder (1)
- M3.5 X 5 Flat Head Plastite (1)
- METAL ROLN M3.5 8L (2)
- PLAST ROLN 2.9 8L (2)
- PLAST ROLN 3.5 6L (4)

5
Sale40X5403 Image Transfer Unit (ITU) Assembly
New
40X5403 40X7610 (New)
$318.00 $259.00



6

7
40X5412 Main drive gear assembly with motors
Fully refurbished with 90-day warranty
40X5412
$35.46





8
40X5406 Fuser Assembly C540 C543 C544 C546
New
40X5406 40X7562 40X5437 (New)
$148.72



40X5406 Fuser assembly C540 C543 C544 C546
Fully refurbished with 90-day warranty
40X5406 40X7562 40X5437


https://www.argecy.com/images/X543-X544-X546-296_cr.jpg

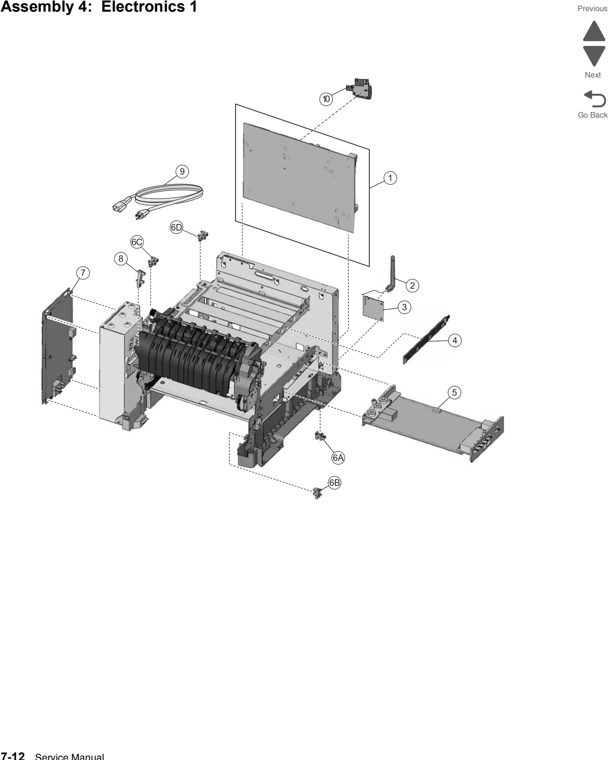

4-1
40X1524 Controller Card With Fax
New
40X1524 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$348.90

Retired, no longer available: Contact for alternatives



1
40X1523 Controller Card No Fax
New
40X1523 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$317.75



40X1523 Controller Card No Fax
New
40X1523 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$317.75



2 40X5319 Wireless antenna

3

4
40X5404 Toner meter cycle card assembly
Fully refurbished with 90-day warranty
40X5404
$22.50





5
40X5405 High-Voltage Power Supply HVPS
New
40X5405 40x8695 (New)
$119.71



40X5405 High-voltage power supply HVPS
Fully refurbished with 90-day warranty
40X5405 40X8395
$79.71



6

A Tray present
B Interlock
C Exit bin
7
40X5409 Low-voltage power supply (universal power supply)
New
40X5409 Advanced Exchange (New)

Retired, no longer available: Contact for alternatives



40X5409 Low-Voltage Power Supply (Universal Power Supply)
New
40X5409 (New)

Retired, no longer available: Contact for alternatives



40X5409 Low-Voltage Power Supply (Universal Power Supply)
Fully refurbished with 90-day warranty
40X5409
$115.66



8
40X5413 Fuser exit sensor
New
40X5413 (New)
$11.00



9 40X0289 Power cord, 1.8M (straight)-USA, Canada

NS 40X5485 Fax interface cable

NS
40X4820 Fax PCBA
New
40X4820 (New)
$134.29

Retired, no longer available: Contact for alternatives



40X4820 Fax PCBA
Fully refurbished with 90-day warranty
40X4820


https://www.argecy.com/images/X543-X544-X546-298_cr.jpg
5-1
40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
Fully refurbished with 90-day warranty
40X5434 40x8341
$109.71



40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
New
40X5434 40X8341 (New)
$189.00



1

40X2284 550-Sheet Duo Drawer with Tray with 100-Sheet MPF (complete) C546 X546
Fully refurbished with 90-day warranty
40X2284 40X6997
$109.71



C546dtn only (includes 100-sheet MPF)
2
40X5168 Pick Tire
New
40X5168 (New)
$11.57



3
40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544
Fully refurbished with 90-day warranty
40X5435 40X2285
$108.02





3

Note: Use only with P/N


40X2284 550-Sheet Duo Drawer with Tray with 100-Sheet MPF (complete) C546 X546
Fully refurbished with 90-day warranty
40X2284 40X6997
$109.71



4

C546dtn only
https://www.argecy.com/images/X543-X544-X546-300_cr.jpg
5-1
40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
Fully refurbished with 90-day warranty
40X5434 40x8341
$109.71



40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
New
40X5434 40X8341 (New)
$189.00



2
40X5168 Pick Tire
New
40X5168 (New)
$11.57



3
40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544
Fully refurbished with 90-day warranty
40X5435 40X2285
$108.02
