Lexmark Clinical Assistant







X646EParts

Brochure here



Lexmark Clinical Assistant
Add an extra set of hands to nursing stations with an integrated multifunction product workflow solution for healthcare

The Clinical Assistant includes all the functions of a Lexmark X646dte monochrome laser multifunction product (MFP) plus embedded applications to simplify healthcare workflow processes. The unique capabilities of the Clinical Assistant are easily accessed via four user-friendly icons on its intuitive eTask touchscreen interface. These icons allow clinical staff to complete complicated, time-consuming processes with a single touch, increasing productivity and giving them back valuable time to focus on quality patient care. In addition to providing time-saving workflow solutions, the Lexmark Clinical Assistant prints at speeds up to 50 pages per minute and also includes copy, scan and fax capabilities.


Includes embedded applications to simplify healthcare workflow processes.


Integrate directly with leading electronic medical records (EMR) solutions; use the 'Scan to EMR' icon to securely scan and route documents to pre-determined network destinations.


With 'Scan to EMR', reduce turnaround time because supporting documentation for insurance claims is easily accessible.


Includes an integrated 'Orders Routing' solution that allows nursing staff and clinicians to securely route physician orders and automatically separate STAT, or urgent, and normal orders with the touch of an icon.


Physician 'Order Routing' works with Lexmark's Queue & View? order management solution, an optional server-based application that allows pharmacists to view and manage orders online.


With 'Card Copy' solution, scan each side of the card and print both sides in an enlarged format on one side of a single sheet of paper with one touch of the icon on the Lexmark eTask interface.


Quickly and easily access 'Forms' with one touch of the icon through the Lexmark eTask interface, making it easy to choose and then print selected documents.


Lexmark's Embedded Solutions Framework (eSF) allows these Java-based applications to run directly on the Clinical Assistant, saving customers the expense of additional servers.


*This system is not designed, marketed or sold for use as a medical device or for diagnosis.


Scan to electronic medical records (EMR)

EMR systems help reduce errors because patient information is stored electronically, allowing physicians to quickly access critical information. The Clinical Assistant can integrate directly with leading EMR solutions, or the 'Scan to EMR' icon can be used to securely scan and route documents to pre-determined network destinations. Leading healthcare organizations use document imaging to complement computerized electronic medical records, providing access to more online patient information. Lexmark's Clinical Assistant can be placed at nursing stations, close to clinical staff, so that they can easily scan in time-sensitive patient updates, increasing their productivity and ensuring that critical information is entered into the patient's EMR in a timely fashion. These documents can also help reduce turnaround time for accounts receivable because supporting documentation for insurance claims is easily accessible.

Physician order routing

Improving the medication order process is a top priority in virtually every healthcare organization. Most organizations today are in the process of adopting Computerized Provider Order Entry (CPOE); however, for organizations that have not fully implemented CPOE or need a CPOE backup system, fax machines are still commonly used to send handwritten physician's orders to the pharmacy or a lab for processing. This process breaks down easily leading to lost or delayed orders.

The Clinical Assistant includes an integrated 'Orders Routing' solution that allows nursing staff and clinicians to securely route physician orders and automatically separate STAT, or urgent, and normal orders with the touch of an icon. The Clinical Assistant also integrates with leading medication order management systems and works with Lexmark's Queue & View? order management solution, an optional server-based application that allows pharmacists to view and manage orders online.

Lexmark's Queue & View? solution is driven by patient barcodes and accessed via secure Web browsers to streamline processes and helps to meet Joint Commission on Accreditation of Healthcare Organizations and Health Insurance Portability and Accountability Act mandates for patient safety and privacy.

Card copying

Patient insurance or identification cards are copied frequently and included with patient files. However, because the cards are typically two-sided, medical staff must go through an extra step and make two separate photocopies - one of both the front and the back of the card.

Lexmark's solution allows staff to scan each side of the card and print both sides in an enlarged format on one side of a single sheet of paper. The 'Card Copy' function is easily accessed with one touch of an icon on the Lexmark eTask interface on the Clinical Assistant, saving time, as well as paper, and making a frequently used process much more efficient.

Forms on demand

Many healthcare facilities are moving away from expensive pre-printed forms and storing frequently accessed documents online for printing on demand. This approach saves money and avoids compliance issues associated with using outdated forms. However, clinical staff do not have time to perform the extra steps required to log in to a workstation, locate the document via Web browser and submit a print job.

Lexmark's solution allows clinical staff to quickly and easily access those 'Forms' with the touch of an icon through the Lexmark eTask interface on the Clinical Assistant, making it easy to choose and then print selected documents. This solution provides the benefits of online access, without the hassle of the extra steps required to locate and print frequently used documents from an online repository.

Laser Toner/Print Cartridge

X644H01A High Yield Toner Cartridge for X642, X644e, X646e
New
x644h01a Compatible 21K Page yield (New)
$119.00




Connectivity

USB (2 Meter) Cable
1021294 USB (2 Meter) Cable
New
1021294 (New)
$21.14




Parallel (10') Cable





Parallel 1284-B Interface Card
Sale1021091 Parallel 1284-B Interface Card
New
1021091 (New)
$25.00 $15.00


RS-232C Serial Interface Card
Sale1021091 Parallel 1284-B Interface Card
New
1021091 (New)
$25.00 $15.00



Lexmark N4050e 802.11g Wireless Print Server


MarkNet N8020 GigaBit Ethernet Print Server


MarkNet N8030 Fiber Ethernet 100BaseFX, 10BaseFL


MarkNet N8050 802.11g Wireless Print Server


MarkNet N7020e Gigabit Ethernet Print Server
14T0220 4-Port USB MarkNet N7020e Gigabit Ethernet Print Server
New
14T0220 40X1592 4034-720 (New)
$413.03




Flash, SDRAM Memory

128MB DDR-DRAM
13N1523 Lexmark Brand 128MB DDR-DRAM
Fully refurbished with 90-day warranty
13N1523
$45.21



13N1523 Lexmark Brand 128MB DDR-DRAM
New
13n1523 (New)
$74.46


256MB DDR-DRAM
13n1524 Lexmark Brand 256MB DDR-DRAM
Fully refurbished with 90-day warranty
13n1524
$69.71



13N1524 Lexmark Brand 256MB DDR-DRAM
New
13n1524 (New)
$71.21


512MB DDR-DRAM
13N1526 512MB DDR-DRAM
New
13n1526 Compatible (New)
$209.56



13N1526 Lexmark Brand 512MB DDR-DRAM
New
13n1526 (New)
$209.56

Retired, no longer available: Contact for alternatives


32MB Flash Card
1021208 32MB Flash Card
Fully refurbished with 90-day warranty
1021208
$20.00



1021208 32MB Flash Card
New
1021208 (New)
$159.00


64MB Flash Card
1021209 64MB Flash Card
New
1021209 (New)
$270.00


Furniture


Sale22G0544 Printer Caster Base
New
22G0544 (New)
$287.00 $55.00



22G0551 MFP Printer Cabinet
New
22G0551 (New)
$80.32





Paper Handling

T64x 250-Sheet Drawer
20G0889 250-Sheet Drawer with Tray
Fully refurbished with 90-day warranty
20G0889
$89.00


T64x 500-Sheet Drawer

T64x 500-Sheet Tray

T64x 400-Sheet Universally Adjustable Tray with Drawer

T64x 400-Sheet Universally Adjustable Tray

T64x 250-Sheet Universally Adjustable Tray with Drawer

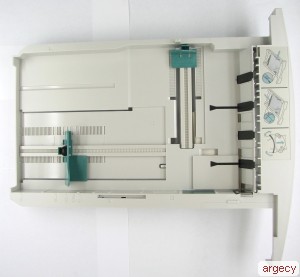

T64x 250-Sheet Universally Adjustable Tray

T64x Envelope Feeder
20G0891 T64x Envelope Feeder
Fully refurbished with 90-day warranty
20G0891 40x3248
$275.00




T64x 2000-Sheet High Capacity Feeder
20G0892 T64x 2000-Sheet High Capacity Feeder
Fully refurbished with 90-day warranty
20G0892
$299.00




Service Parts

X644e, X646e Fuser Maintenance Kit LV
Sale40X0100 Fuser Maintenance Kit
New
40x0100 Compatible (New)
$275.00 $200.00


User Replaceable Parts

X644e, X646e ADF Pick Up Assembly
40X0453 ADF Pickup Assembly
New
40X0453 (New)
$123.00



40X1382 MPF Feed Shaft Kit
Fully refurbished with 90-day warranty
40X1382
$118.82



T64x, X644e, X646e Dual Charge Roll Assembly


X644e, X646e Separator Roll Assembly
40X0454 Upper Entrance Guide Kit
New
40X0454 40X4656 40X2799 (New)
$52.00



X644e, X646e Flatbed White Cushion
40X0466 Cushion White Pressure Pad
New
40X0466 (New)
$24.71



T64x, X644e, X646e Transfer Roll Assembly
40X0130 Transfer Roll
New
40X0130 (New)
$25.48



T64x, X644e, X646e Oil Fuser Wiper
T64x, X644e, X646e Oil Fuser Wiper (40X2665)
T64x, X644e, X646e Wax Fuser Wiper
40x2666 Wax Fuser Wiper (Gray)
New
40x2666 M4G25 (New)
$21.82



Print TechnologyMonochrome Laser
UNSPSC Code43.21.21.10
Network Printing MethodsLPR/LPD
Direct IP (Port 9100)
Socket (Raw TCP/IP)
IPP (Internet Printing Protocol)
HTTP
NDS Queue-based Printing
NDPS/NEPS (Novell Distributed Print Services, Novell Netware Enterprise Print Services)
Enhanced IP (Port 9400)
FTP, TFTP
Network Protocol SupportTCP/IP IPv4
IPX/SPX
AppleTalk?
LexLink (DLC)
TCP/IP IPv6
TCP/IP Set of Application ServicesZero configuration
DDNS, mDNS
NTP: Network Time Protocol
ping, finger, telnet
TFTP
Network Management ProtocolsHTTP
HTTPs (SSL/TLS)
SNMPv1, SNMPv2c
SNMPv3
WINS
SLPv1
IGMP
BOOTP, RARP
APIPA (AutoIP)
DHCP
ICMP
DNS
Network SecuritySSL* Enabled Embedded Web Server
SNMPv3
TCP/IP port access control
Authenticated and encrypted MarkVision Professional communication
802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS
IPSec
*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
FunctionColor Scanning
Copying
Faxing
Network Scanning
Printing
Supplies: Functions only with replacement cartridges designed for use in the United States and Canada.
Print Speed (A4, Black): Up to48 ppm
Print Speed (A4, Black) Duplex: Up to36 spm
Print Speed (Letter, Black): Up to50 ppm
Print Speed (Letter, Black) Duplex: Up to37 spm
Time to First Page (Black) as fast as8.5 seconds
Copy Speed (Letter, Black): Up to50 cpm
Print Resolution, Black1200 Image Quality
1200 x 1200 dpi
2400 Image Quality
600 x 600 dpi
Specified Operating EnvironmentTemperature: 16 to 32?C (60 to 90?F)
Humidity: 8 to 80% Relative Humidity
Altitude: 0 - 3048 Meters (10,000 Feet)
Processor533 MHz
Memory, Standard256 MB
Expandable Memory OptionsYes
Apple Macintosh Operating Systems SupportedApple Mac OS X
Apple Mac OS 9.x
Microsoft Windows Operating Systems SupportedMicrosoft Windows 2000
Microsoft Windows NT (4.00/4.00 Server)
Microsoft Windows Me
Microsoft Windows XP
Microsoft Windows Server 2003
Microsoft Windows 98 2nd Edition
Microsoft Windows XP x64
Microsoft Windows Server 2003 running Terminal Server
Microsoft Windows 2000 Server running Terminal Services
Microsoft Windows Server 2003 x64 Edition
Microsoft Windows Server 2003 x64 Edition running Terminal Services
Microsoft Windows Vista
Microsoft Windows Vista x64
Citrix MetaFrameCitrix, MetaFrame and MetaFrame XP are registered trademarks or trademarks of Citrix Systems, Inc. in the U.S. and other countries.
Microsoft Windows 2000 Server running Terminal Services with Citrix MetaFrame XP Presentation Server or Citrix MetaFrame Presentation Server 3.0.
Microsoft Windows Server 2003 running Terminal Server with Citrix MetaFrame XP Presentation Server or Citrix MetaFrame Presentation Server 3.0
Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 4.0
Microsoft Windows Server 2003 running Terminal Server with Citrix Presentation Server 4.0
Microsoft Windows Server 2003 x64 Edition (Standard, Enterprise) running Terminal Server with Citrix Presentation Server 4.0
Linux Operating Systems SupportedRed Flag Linux Desktop 4.0, 5.0
Linpus Linux Desktop 9.2, 9.3
Red Hat Enterprise Linux WS 3.0, 4.0, 5.0
SUSE Linux Enterprise Server 8.0, 9.0, 10.0
SUSE Linux Professional 9.1, 9.2, 9.3
Debian GNU/Linux 3.1, 4.0
Linspire Linux 5.0
Novell Operating Systems SupportedNovell? Open Enterprise Server for Netware with NDS, iPrint or Novell Distributed Print Services (NDPS)
Novell NetWare? 3.2, 4.2 (bindery)
Novell NetWare 4.2, 5.x and 6.x (NDS)
Novell NetWare 5.x, 6.x with iPrint or Novell Distributed Print Services (NDPS)
Other Operating Systems SupportedIBM iSeries or IBM AS/400? Systems with TCP/IP with OS/400? V3R1 or later using OS/400 Host Print Transform
Virtually any platform supporting TCP/IP
UNIX Operating Systems SupportedSun Solaris SPARC 8, 9, 10
HP-UX 11.00, 11.1
IBM AIX 5.1, 5.2, 5.3
Sun Solaris x86 10
Web Browsers for Embedded Web ServerMicrosoft Internet Explorer 5.x, 6.x
Netscape Navigator 6.x, 7.x
Apple Mac OS X Safari 1.0
Mozilla FireFox 1.0
Paper Handling Standard500-Sheet Drawer
500-Sheet Duplex Unit
500-Sheet Output Bin
500-Sheet Input Tray
100-Sheet Multipurpose Feeder
Paper Input Capacity (Standard)1100 pages 20 lb or 75 gsm bond
Paper Input Capacity (Maximum)3100 pages 20 lb or 75 gsm bond
Paper Output Capacity (Standard)500 pages 20 lb or 75 gsm bond
Paper Output Capacity (Maximum)500 pages 20 lb or 75 gsm bond
Copy/Fax/Scan (ADF) Paper Input Capacity : Up to50 pages 20 lb or 75 gsm bond
Finishing Option?No
Number of Paper Inputs3
Number of Paper Inputs, Maximum4
Media Types SupportedCard Stock
Dual Web Labels
Envelopes
Integrated Labels
Paper Labels
Plain Paper
Polyester Labels
Transparencies
Vinyl Labels
Refer to the Card Stock & Label Guide
Media Sizes Supported10 Envelope
7 3/4 Envelope
9 Envelope
A4
A5
DL Envelope
Executive
Folio
JIS-B5
Legal
Letter
Statement
Universal
Supplies Yield10,000*-page Print Cartridge
21,000*-page High Yield Print Cartridge
32,000*-page Extra High Yield Print Cartridge
Ships with 21,000*-page High Yield Return Program Print Cartridge
*Average standard page yield value declared in accordance with ISO/IEC 19752.
Standard PortsEthernet 10/100BaseTX (RJ-45)
One Internal Card Slot
USB Compatible with USB 2.0 Specification
USB Direct interface on Operator Panel
Optional Network PortsLexmark N4050e 802.11g Wireless Print Server (Print Only)
Internal MarkNet? N8020 GigaBit Ethernet
Internal MarkNet? N8050 802.11g Wireless
Internal MarkNet? N8030 Fiber Fast Ethernet
Product CertificationsEnergy Star, CSA, ICES Class A, BSMI Class A, VCCI Class A, FCC Class A, UL 60950-1, IEC 320-1, ECMA-74, CE Class A, CB IEC 60950 1, IEC 61000-3-2, -3-3, EN 55022, EN 55024, GS (T ?V)-EN 60950-1, SEMKO, UL AR, CS, T ?V Rh, N Mark, C-tick Class A, CCC Class A, RPC, PSB, MIC, EK - K60950
Product WarrantyOne Year OnSite Repair
Fonts and Symbol Sets3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide
158 scalable PostScript fonts
2 PCL bitmap fonts
39 scalable PPDS fonts
5 PPDS bitmap fonts
84 scalable PCL fonts
OCR-A, OCR-B scalable PCL 5e fonts
For more information, refer to the Technical Reference.
Printer Languages (Standard)PCL 5e Emulation
PCL 6 Emulation
Personal Printer Data Stream (PPDS)
PostScript 3 Emulation
PDF 1.5
xHTML
Reduce / Enlarge Range25 - 400 %
Scan Area, Maximum8.5 x 14 inches
Modem Speed33.6 Kbps
Packaged Size (" - H x W x D)57.6 x 29.9 x 26.5 in.
Size (" - H x W x D)35 x 22 x 26 in.
Weight (kg)46.6 kg
Weight (lbs)102.8 lb.
Packaged Weight (kg)55.9 kg
Packaged Weight (lbs)123.02 lb.
Noise Level, Idle30 dBA
Print Noise Level, Operating56 dBA
Copy Noise Level, Operating62 dBA
Scan Noise Level, Operating59 dBA
Duty Cycle: Up to225,000 one-time maximum Impressions per month
