Lexmark C910 & C912 Parts







Please call for parts assistance

Please call for parts assistance

Looking for whole machines? Click here

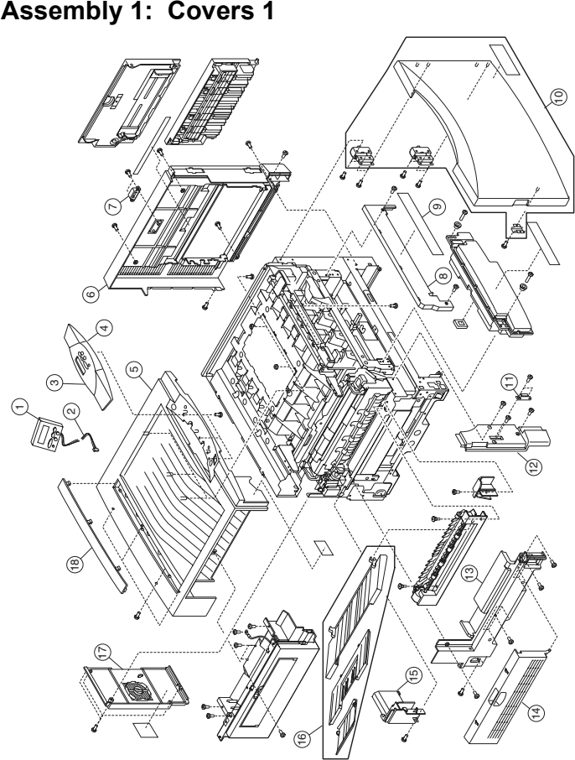

1

2
56P9736 Cable, operator panel
Fully refurbished with 90-day warranty
56P9736



56P9736 Cable operator panel
New
56P9736 (New)
$43.00



3

56P9555 Housing Lower Op Panel
Fully refurbished with 90-day warranty
56P9555



4

56P9556 Housing, lower operator panel
Fully refurbished with 90-day warranty
56P9556



5
56P9539 top cover
Fully refurbished with 90-day warranty
56P9539





6
56P9533 Right Side Cover
Fully refurbished with 90-day warranty
56P9533





7
56P9534 right side magnet latch
Fully refurbished with 90-day warranty
56P9534





8

56P9540 Waste Toner Bottle
Fully refurbished with 90-day warranty
56P9540



9 56P9545 Label, operator guide

10
56P9532 Front Cover
New
56P9532 (New)
$124.00



56P9532 Front Cover
Fully refurbished with 90-day warranty
56P9532
$69.00



11 56P9543 Magnet, front cover latch

12

13

56P9536 Cover, left side
Fully refurbished with 90-day warranty
56P9536



14

56P9537 Cover, paper feed
Fully refurbished with 90-day warranty
56P9537



15
56P9535 Cover solenoid
Fully refurbished with 90-day warranty
56P9535



56P9535 Cover, solenoid
Fully refurbished with 90-day warranty
56P9535



16
56P9531 Tray Assembly, Exit
Fully refurbished with 90-day warranty
56P9531
$34.00



56P9531 Tray assembly exit
New
56P9531 (New)
$61.00



17

56P9538 Cover rear
Fully refurbished with 90-day warranty
56P9538



18

56P9551 Cover adjustment
Fully refurbished with 90-day warranty
56P9551

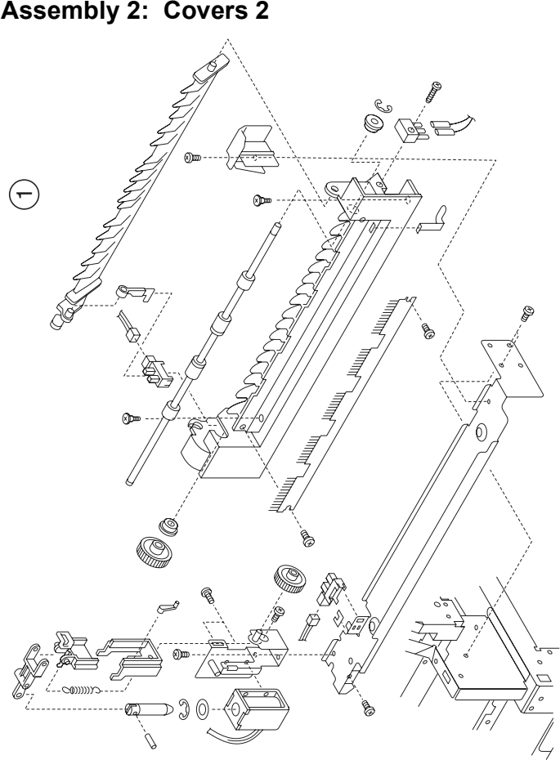

2
56P9557 Face Up Exit Assembly
Fully refurbished with 90-day warranty
56P9557




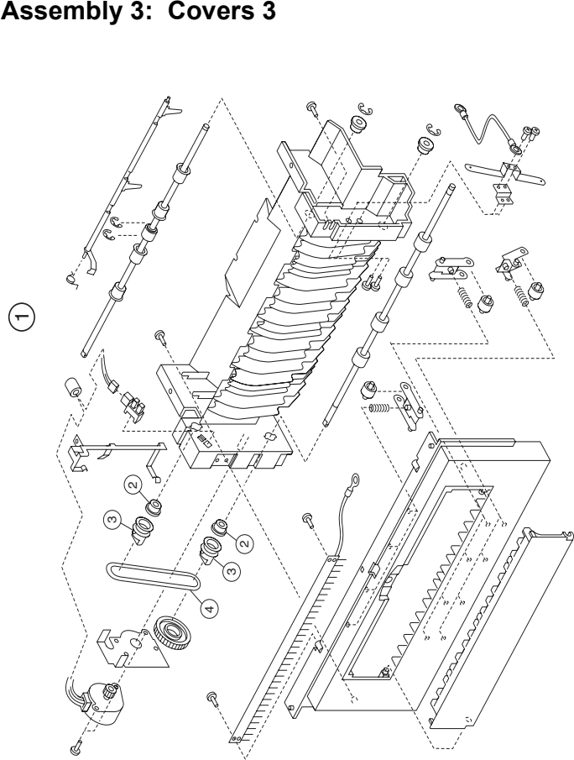

1
56P9566 Guide assembly, face-down
Fully refurbished with 90-day warranty
56P9566





2 56P9575 Bushing, face down pinch roller

3 56P9576 Pulley, face down feed roller

4 56P9578 Belt, face down roller

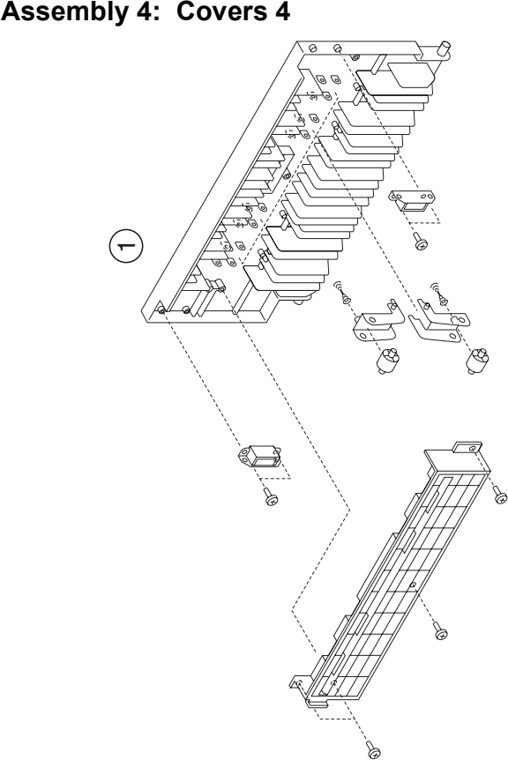

1
56P9584 Turn Guide Assembly
Fully refurbished with 90-day warranty
56P9584
$47.00



56P9584 Guide assembly, turn
New
56P9584 (New)
$95.00


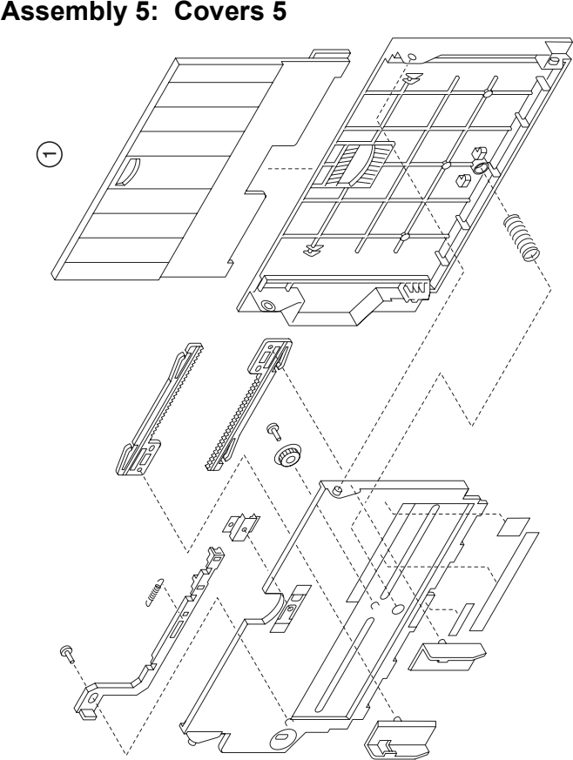

1
56P9587 Multipurpose feeder
New
56P9587 (New)
$157.00



subs to:
56P9972 Feed Assembly Multipurpose
Fully refurbished with 90-day warranty
56P9972
$59.00



56P9972 Feeder assembly, multipurpose
New
56P9972 (New)
$149.00

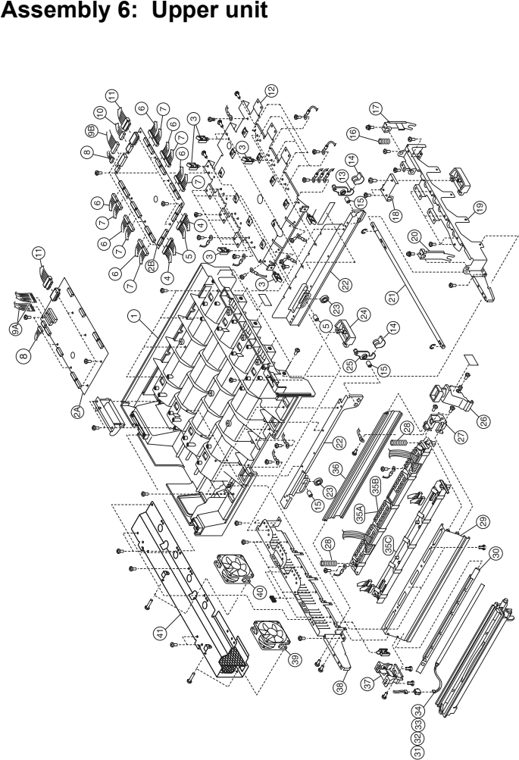

1

56P9591 Frame upper
Fully refurbished with 90-day warranty
56P9591



2
56P9620 Board, Printhead Controller
Fully refurbished with 90-day warranty
56P9620 P622-HDCONT(D)





3 56P9638 Holder, cable

4 56P9600 Cable assembly, K13

5 56P9601 Cable assembly, K24

6 56P9602 Cable assembly, CL13

7 56P9603 Cable assembly, CL24

8 56P9716 Cable assembly, 8 Pin PH controller

9 56P9718 Cable assembly, 30 Pin PH controller

10 56P9717 Cable assembly, 18 Pin PH controller

11

12
56P9637 Frame, printhead controller
New
56P9637 (New)
$57.00



56P9637 Frame printhead controller
Fully refurbished with 90-day warranty
56P9637
$38.00



13 56P9625 Hook, right link

14 56P9626 Cover, hook

15
56P9628 Pivot Color Ink
Fully refurbished with 90-day warranty
56P9628



16 56P9614 Spring, return

17

56P9618 Right Hook
Fully refurbished with 90-day warranty
56P9618



18

56P9615 Hook Middle
Fully refurbished with 90-day warranty
56P9615



19

56P9612 Bracket Front Upper
Fully refurbished with 90-day warranty
56P9612



20

56P9617 Hook Left
Fully refurbished with 90-day warranty
56P9617



21 56P9613 Rod, interlocking

22

56P9624 Link Frame
Fully refurbished with 90-day warranty
56P9624



23

56P9627 Bearing Roller
Fully refurbished with 90-day warranty
56P9627



24 56P9616 Handle, upper opening

25

56P9630 Hook Left Link
Fully refurbished with 90-day warranty
56P9630



26

56P9611 printhead holder front
Fully refurbished with 90-day warranty
56P9611



27

56P9608 front hsp holder
Fully refurbished with 90-day warranty
56P9608



28

56P9609 printhead spring
Fully refurbished with 90-day warranty
56P9609



29
56P9592 Left Slide Rail
Fully refurbished with 90-day warranty
56P9592



30 56P9594 Cover, eraser

31

56P9595 Erase lamp M
Fully refurbished with 90-day warranty
56P9595



32

33

56P9597 Erase lamp Y
Fully refurbished with 90-day warranty
56P9597



34

56P9598 Erase lamp K
Fully refurbished with 90-day warranty
56P9598



35
56P9599 LED printhead (set of 4)
New
56P9599 (New)
$399.00



56P9599 LED printhead (set of 4)
Fully refurbished with 90-day warranty
56P9599
$299.00



36
56P9610 right slide rail
Fully refurbished with 90-day warranty
56P9610



37
56P9593 rear printhead holder
Fully refurbished with 90-day warranty
56P9593



38
56P9619 Bracket Rear Upper
Fully refurbished with 90-day warranty
56P9619



39

56P9622 upper right fan
Fully refurbished with 90-day warranty
56P9622



40

56P9623 upper left fan
Fully refurbished with 90-day warranty
56P9623



41
56P9621 Fan Holder Bracket
Fully refurbished with 90-day warranty
56P9621
$29.00



56P9621 Bracket, fan holder
New
56P9621 (New)
$74.00



NS
56P9630 Hook Left Link
Fully refurbished with 90-day warranty
56P9630



56P9629 Frame Link
Fully refurbished with 90-day warranty
56P9629



NS

56P9639 Connector Upper
Fully refurbished with 90-day warranty
56P9639


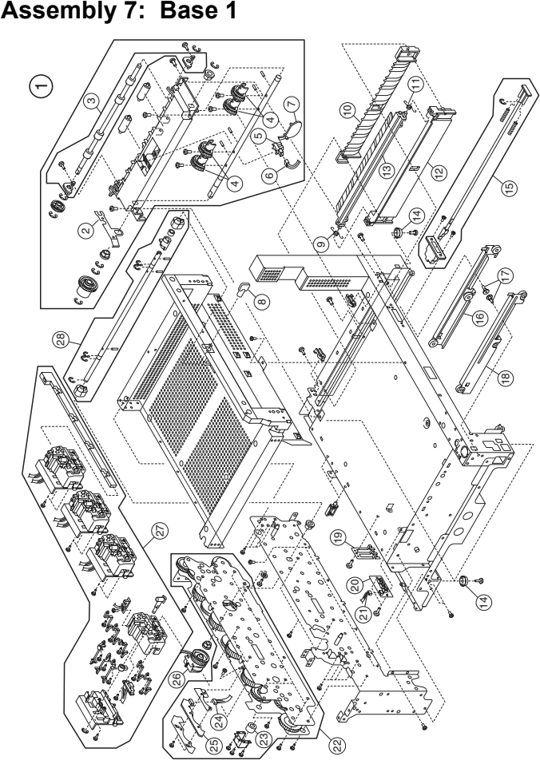

1
56P9664 Paper Feed Frame
Fully refurbished with 90-day warranty
56P9664
$145.00



56P9664 Frame paper feed
New
56P9664 (New)
$288.00



2 56P9508 Bracket, ground

3

4

5 11G0243 Interrupter, photo

6

56P9665 Sensor Paper Feed
Fully refurbished with 90-day warranty
56P9665



7

56P9507 Actuator Paper Feed Sensor
Fully refurbished with 90-day warranty
56P9507



8

56P9520 Handle Waste Bottle Cam
Fully refurbished with 90-day warranty
56P9520



9

56P9517 Spring Right Cassette Guide
Fully refurbished with 90-day warranty
56P9517



10

56P9519 Guide Lower Right Cassette
Fully refurbished with 90-day warranty
56P9519



11

56P9516 Spring Left Cassette Guide
Fully refurbished with 90-day warranty
56P9516



12

56P9518 Guide Lower Left Cassette
Fully refurbished with 90-day warranty
56P9518



13

56P9515 Guide Upper Cassette
Fully refurbished with 90-day warranty
56P9515



14 56P9503 Foot, rubber

15
56P9641 Actuator Frt Cover Open Switch
Fully refurbished with 90-day warranty
56P9641



16

56P9505 Right Slide Rail
Fully refurbished with 90-day warranty
56P9505



17 56P9524 Screw, slide rail

18

56P9504 Rail Left Slide
Fully refurbished with 90-day warranty
56P9504



19

56P9521 lever size sensor
Fully refurbished with 90-day warranty
56P9521



20

56P9522 Board- size sensor
Fully refurbished with 90-day warranty
56P9522



21 56P9523 Cable assembly, size sensor

22
56P9642 Drive Unit
Fully refurbished with 90-day warranty
56P9642





23
56P9643 Clutch Drive Unit
Fully refurbished with 90-day warranty
56P9643





24 56P9644 Cable assembly, drive unit sensor

25

56P9645 Sensor Drive Unit
Fully refurbished with 90-day warranty
56P9645
$42.00



26

56P9663 Clutch Belt Up Down
Fully refurbished with 90-day warranty
56P9663
$60.00



27
56P9646 Sub Frame
Fully refurbished with 90-day warranty
56P9646





28 56P9662 Shaft, changing

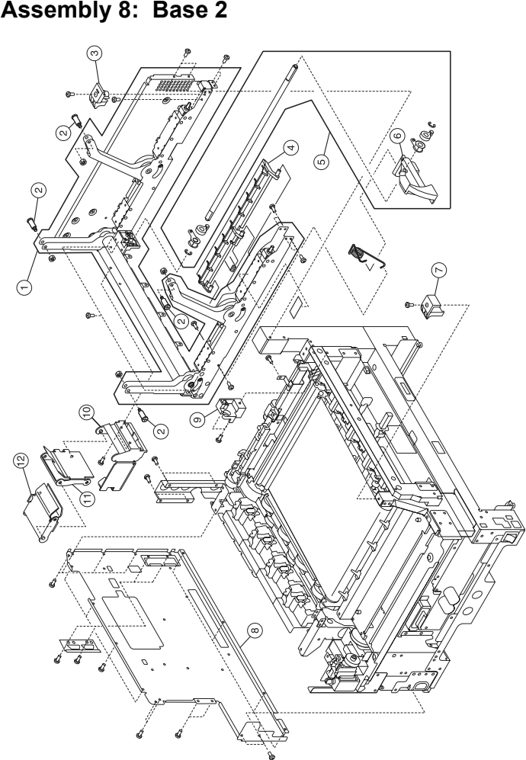

1

56P9666 Support Assembly Upper Unit
Fully refurbished with 90-day warranty
56P9666



2 56P9667 4 Pin, upper unit support

3

56P9668 Handle Assembly Lock
Fully refurbished with 90-day warranty
56P9668



4

56P9669 Handle- lock
Fully refurbished with 90-day warranty
56P9669



5

56P9673 Cover Electronic
Fully refurbished with 90-day warranty
56P9673



6 56P9670 Shroud, cable

7 56P9672 Guide, cable

8 56P9671 Guide, cable
9

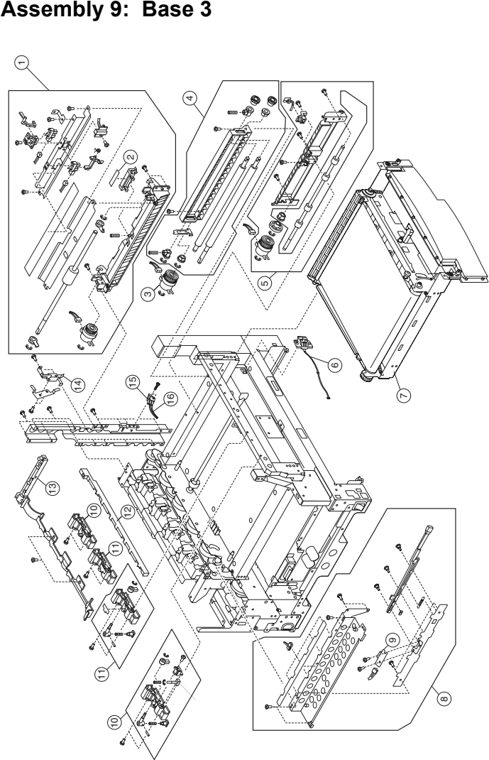

1

56P9971 Frame Assembly MFP
Fully refurbished with 90-day warranty
56P9971



2 11G0283 Pad, fanning

3

56P9681 registration clutch
Fully refurbished with 90-day warranty
56P9681



4
56P9680 Registration Frame Assembly
New
56P9680 (New)
$79.00



56P9680 Frame assembly registration
Fully refurbished with 90-day warranty
56P9680
$85.00



5
56P9682 carrying frame Assembly
Fully refurbished with 90-day warranty
56P9682





6 56P9696 Cable assembly, belt thermistor

7

56P9694 Image Transfer Belt Assembly ITU
Fully refurbished with 90-day warranty
56P9694



8
56P9674 Fuser Entrance Guide Assembly
Fully refurbished with 90-day warranty
56P9674





9
56P9676 Density Sensor
Fully refurbished with 90-day warranty
56P9676
$47.00



56P9676 Sensor
New
56P9676 (New)
$87.00



10 56P9684 Frame assembly, F1 sub

11

56P9685 Frame Assembly- F2 sub
Fully refurbished with 90-day warranty
56P9685



12

56P9686 Rod Lock
Fully refurbished with 90-day warranty
56P9686



13

56P9687 Cover Gear
Fully refurbished with 90-day warranty
56P9687



14

56P9693 Stopper Clutch
Fully refurbished with 90-day warranty
56P9693



15
56P9502 Switch Paper Exit Tray
Fully refurbished with 90-day warranty
56P9502



16 56P9695 Cable, turn guide door sensor

NS 56P9697 Bushing

NS 56P9692 Cable assembly, reg MPF sensor

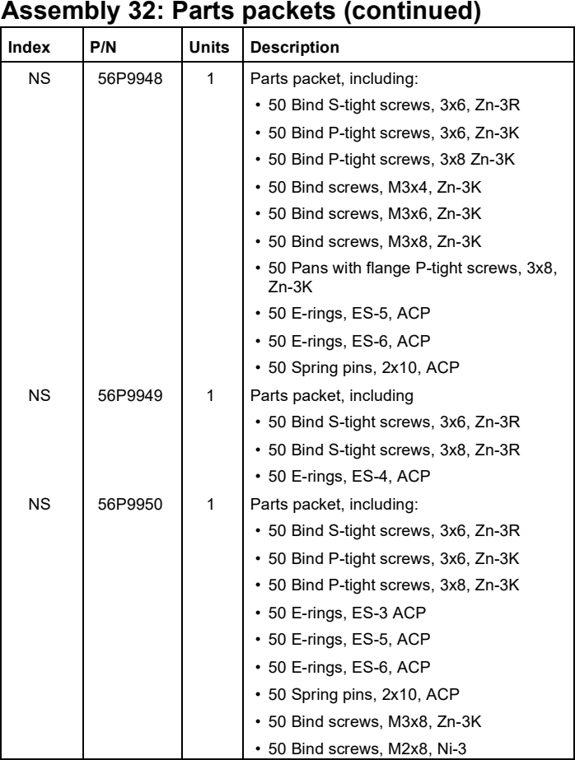

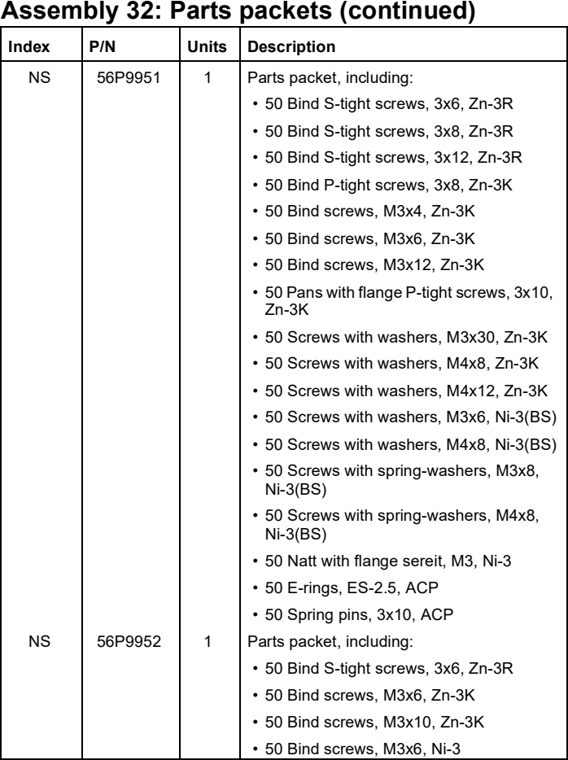

NS 56P9950 Parts packet

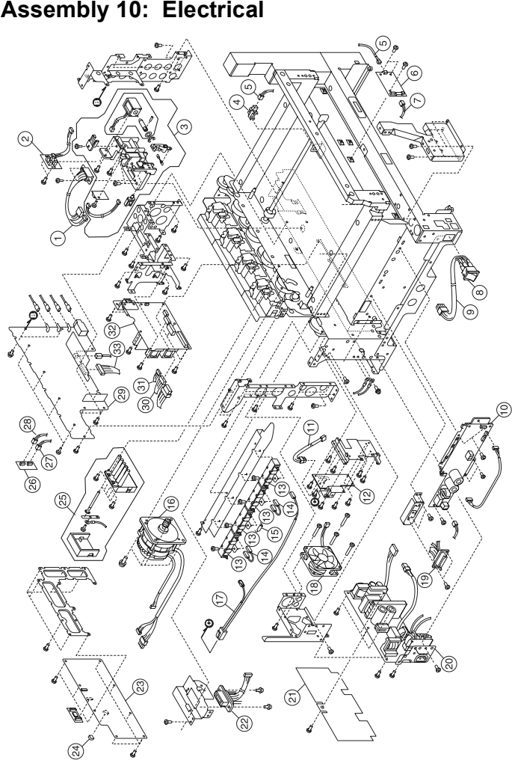

10

1 56P9705 Cable assembly, feeder

2 56P9704 Cable assembly, paper remaining sensor

3
56P9700 paper feed solenoid Assembly
Fully refurbished with 90-day warranty
56P9700





4 11G0243 Interrupter, photo

5 56P9702 Cable, belt up/down sensor

6
56P9701 Board, sensor
New
56P9701 (New)
$29.00



7 56P9703 Cable assembly, sensor board

8
56P9707 Switch Power
Fully refurbished with 90-day warranty
56P9707





9 56P9706 Cable, power switch

10
56P9709 Motor Driver Card
Fully refurbished with 90-day warranty
56P9709
$229.00



56P9709 Board, 120 V motor driver
New
56P9709 (New)
$456.00



11 56P9739 Cable asm., conditioning printer controller

12
56P9742 Board, heater drive
Fully refurbished with 90-day warranty
56P9742





16
56P9698 Drive Motor Assembly
Fully refurbished with 90-day warranty
56P9698





17 56P9740 Cable, conditioning resistor

18
56P9713 Power Suppply Fan
New
56P9713 (New)
$29.00



56P9713 Power Suppply Fan
Fully refurbished with 90-day warranty
56P9713



19 56P9708 Cable assembly, duplex connector

20
56P9722 120V Power Supply
Fully refurbished with 90-day warranty
56P9722





21 56P9737 Insulator, sheet

22 56P9711 Cable, THB drawer

23

56P9728 Controller Card
Fully refurbished with 90-day warranty
56P9728



56P9992 Controller Card (C912) S/N XX-1XXXX
Fully refurbished with 90-day warranty
56P9992
$199.00



24

25 56P9732 Belt, power supply

26 56P9734 HCF/finisher D-sub assembly

27 56P9731 Cable assembly, finisher

28 56P9730 Cable assembly, HCF

29
56P9714 High Voltage Power Supply HVPS
Fully refurbished with 90-day warranty
56P9714 P621-HVU
$165.00



56P9714 Board, high voltage power supply HVPS
New
56P9714 P621-HVU (New)
$364.00



30 56P9727 Cable assembly, printer controller power

31 56P9726 Cable assembly, printer controller power

32
56P9724 Power Supply
Fully refurbished with 90-day warranty
56P9724
$95.00





33 56P9715 Cable high voltage power supply board

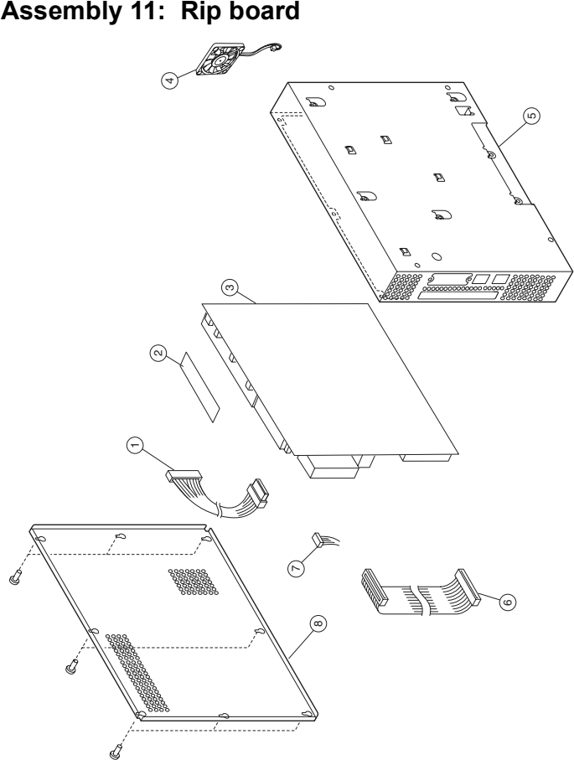

11

1 56P9749 Cable assembly, power RIP

2

56P9916 Riser Card
Fully refurbished with 90-day warranty
56P9916



3

56P9976 Board RIP controller
Fully refurbished with 90-day warranty
56P9976



3
56P9977 Board, RIP controller (network)
New
56P9977 (New)
$760.00



56P9977 Board RIP controller (network)
Fully refurbished with 90-day warranty
56P9977
$380.00



4
56P9750 Fan RIP
New
56P9750 (New)
$54.00



56P9750 RIP box fan
Fully refurbished with 90-day warranty
56P9750
$38.00



5
56P9745 Box RIP
Fully refurbished with 90-day warranty
56P9745





6

56P9719 Cable assembly 80 pin RIP controller
Fully refurbished with 90-day warranty
56P9719



7
56P9736 Cable, operator panel
Fully refurbished with 90-day warranty
56P9736



56P9736 Cable operator panel
New
56P9736 (New)
$43.00



8 56P9746 Cover, RIP box
12-1

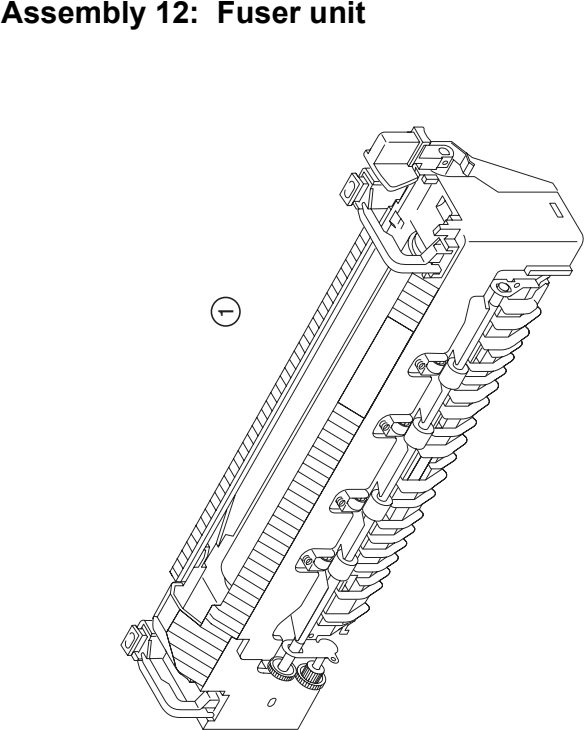

56P9751 Fuser Assembly
New
56P9751 (New)
$835.00




https://www.argecy.com/images/C910_C912_parts_412_cr.jpg

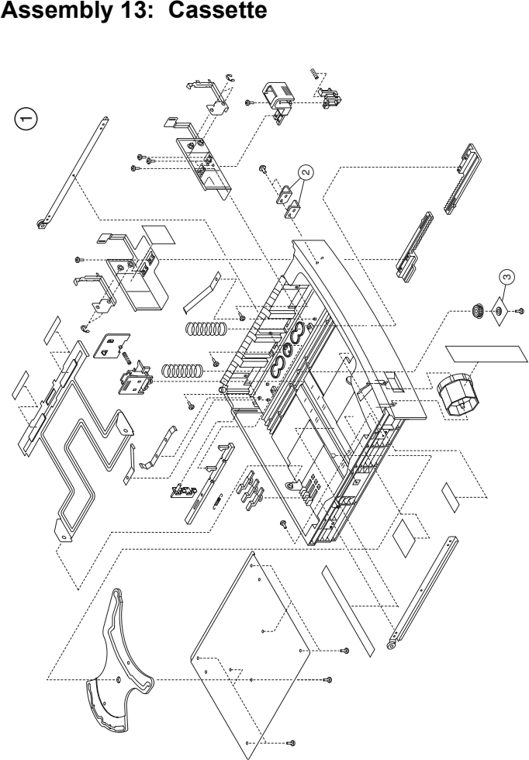

Assembly 13: Cassette

13-1

56P9500 Paper Tray
Fully refurbished with 90-day warranty
56P9500



NS 56P9902 Cassette, heavy media

2 56P9979 Guide, stop

3 56P9980 Guard, rack
https://www.argecy.com/images/C910_C912_parts_414_cr.jpg

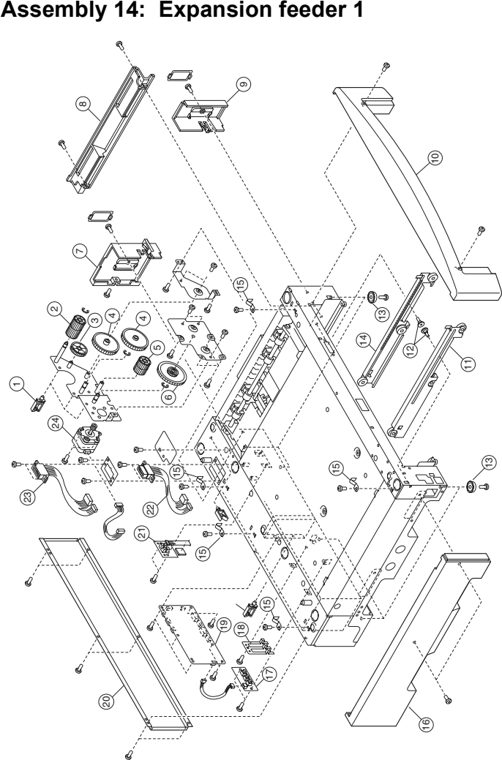

Assembly 14: Expansion feeder

14-1 11G0199 Guide, wire

2 56P9773 Gear, feeder E

3 56P9771 Gear, feeder C

4 11G0422 Gear, feeder B

5 56P9772 Gear, feeder D

6 11G0423 Gear, feeder A

7 56P9770 Cover, right side C

8 56P9769 Cover, right side B

9 56P9767 Cover, right side A

10 56P9765 Cover, front feeder

11 56P9504 Rail, left side

12 56P9524 Screw, slide rail

13 56P9503 Foot, rubber

14 56P9505 Rail, right side

15 11G0399 Plate, ground

16 56P9766 Cover, left side

17

56P9522 Board- size sensor
Fully refurbished with 90-day warranty
56P9522



18

56P9521 lever size sensor
Fully refurbished with 90-day warranty
56P9521



19 56P9779 Board, expansion feeder control

20 56P9768 Cover, rear

21 56P9776 Board, paper remaining sensor

22

56P9778 Cable assembly- lower optional drawer
Fully refurbished with 90-day warranty
56P9778



23

56P9777 Cable assembly- upper optional drawer
Fully refurbished with 90-day warranty
56P9777



24

56P9774 Motor feeder drive
Fully refurbished with 90-day warranty
56P9774



NS 56P9775 Cable assembly, size sensor

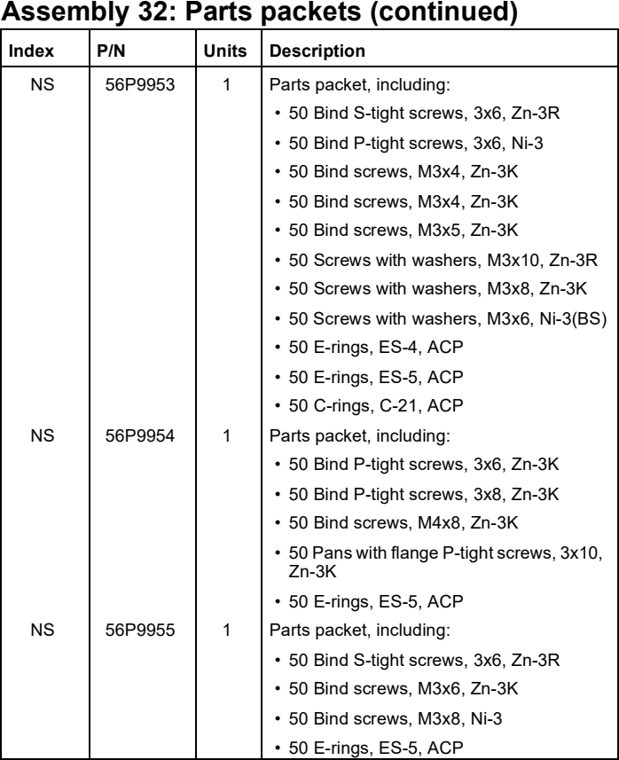

NS 56P9955 Parts packet
https://www.argecy.com/images/C910_C912_parts_416_cr.jpg

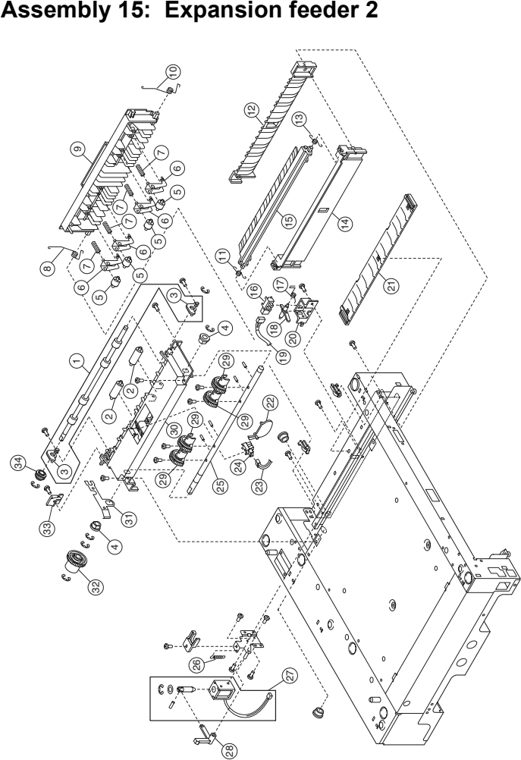

Assembly 15: Expansion feeder

15-1 56P9796 Roller assembly, carrying

2 56P9514 Roller, noise reduction

3 56P9513 Bushing, carrying

4 56P9509 Bushing, metal

5 56P9790 Roller, paper carrying

6 56P9792 Holder, roller

7 56P9791 Spring, paper carrying

8 56P9794 Spring, right turn guide

9 56P9789 Guide, turn

10 56P9793 Spring, left turn guide

11 56P9517 Spring, right cassette guide

12 56P9519 Guide, lower right cassette

13 56P9516 Spring, left cassette guide

14 56P9518 Guide, lower left cassette

15 56P9515 Guide, upper cassette

16 11G0563 Interrupter, photo

17 56P9786 Spring, paper detection sensor

18 56P9784 Actuator, paper detection

19 56P9787 Cable, paper present sensor

20 56P9785 Cover, paper present sensor

21

56P9788 Guide- HCF
Fully refurbished with 90-day warranty
56P9788



22

56P9507 Actuator Paper Feed Sensor
Fully refurbished with 90-day warranty
56P9507



23 56P9795 Cable, paper present sensor

24 11G0219 Interrupter, photo

25 56P9510 Shaft, paper feed

26 56P9782 Spring, solenoid

27 56P9783 Solenoid, feeder

28 56P9781 Lever, clutch

29

30 56P9506 Frame, paper feed

31 56P9508 Bracket, ground

32 11G0291 Clutch, paper feed

33 56P9797 Cover, gear

34 11G0297 Gear, paper carrying
https://www.argecy.com/images/C910_C912_parts_418_cr.jpg

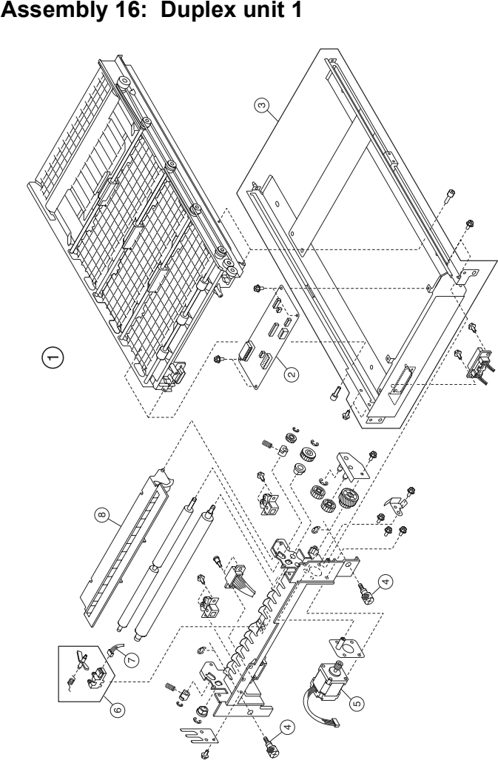

Assembly 16:Duplex unit

16-1 56P9798 Duplex assembly

2 56P9804 Board, duplex interface

3 56P9799 Frame, duplex

4 56P9800 Screw, duplex mounting

5 56P9803 Motor, duplex stepping

6 56P9525 Interrupter, photo

7 56P9806 Cable assembly, paper detection

8 56P9994 Plate, duplex guide

NS

56P9807 Cable assembly- duplex interface
Fully refurbished with 90-day warranty
56P9807



NS 56P9805 Cable assembly, duplex connection
https://www.argecy.com/images/C910_C912_parts_422_cr.jpg

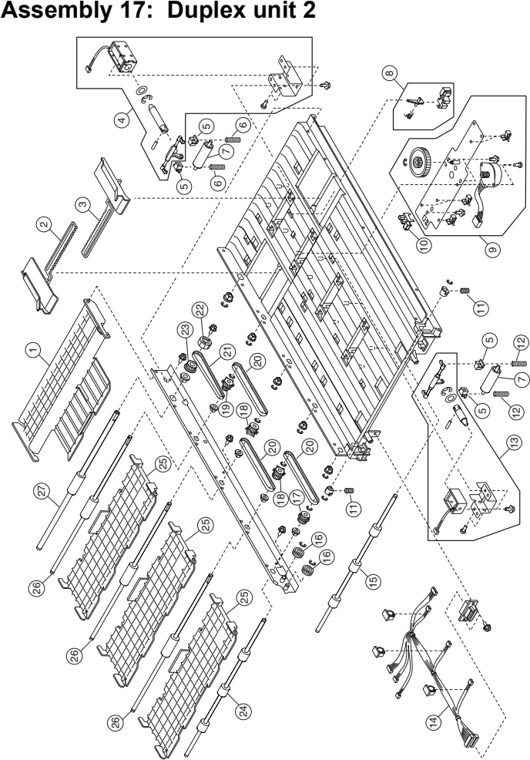

Assembly 17: Duplex unit

1

56P9825 Plate- paper re-feed drawer
Fully refurbished with 90-day warranty
56P9825



2

56P9827 Guide- rear side
Fully refurbished with 90-day warranty
56P9827



3

56P9826 Guide- front side
Fully refurbished with 90-day warranty
56P9826



4 56P9830 Solenoid assembly, paper re-feed

5 56P9814 Bearing, release

6 56P9816 Spring, re-feed roller

7 56P9813 Roll, release

8 56P9525 Interrupter assembly, photo

9

56P9828 Motor assembly- paper guide
Fully refurbished with 90-day warranty
56P9828



10 56P9808 Interrupter, photo

11 56P9526 Spring, feed roller

12 56P9815 Spring, reed roller

13 56P9829 Solenoid assembly, feed roller

14 56P9831 Cable assembly, duplex drawer

15 56P9810 Roller, follow-up feed

16 56P9527 Gear, idler

17 56P9817 Gear, carrying roller

18 56P9818 Pulley, carrying roller timing

19 56P9819 Pulley, feed roller

20 56P9822 Belt, timing

21 56P9823 Belt, timing

22 56P9821 Knob, paper re-feed

23 56P9820 Pulley, re-feed roller

24 56P9809 Roller, drive feed

25

56P9824 Plate- paper carrying drawer
Fully refurbished with 90-day warranty
56P9824



26 56P9811 Roller, middle feed

27 56P9812 Roller, re-feed

NS 56P9957 Parts packet
https://www.argecy.com/images/C910_C912_parts_424_cr.jpg

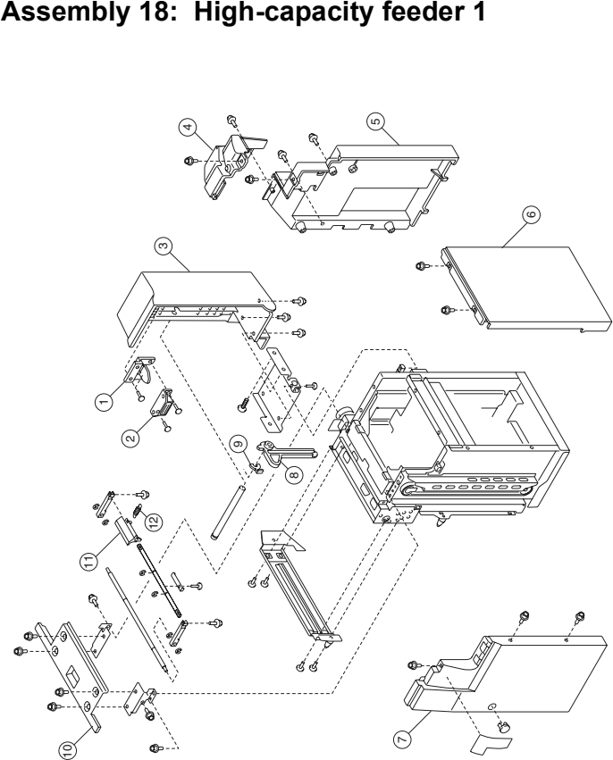

Assembly 18: High-capacity feeder

18-1 56P9838 Catch, door

2 56P9835 Magnet, latch

3 56P9837 Cover, upper

4 56P9834 Cover, upper rear

5 56P9843 Cover, lower rear

6 56P9839 Cover, right

7 56P9833 Cover, front

8 56P9836 Fence, end

9 56P9940 Ring, snap

10 56P9841 Cover
assembly, upper

11 56P9840 Lever, vertical transport

12 56P9842 Spring, tension

NS 56P9958 Parts packet
https://www.argecy.com/images/C910_C912_parts_426_cr.jpg

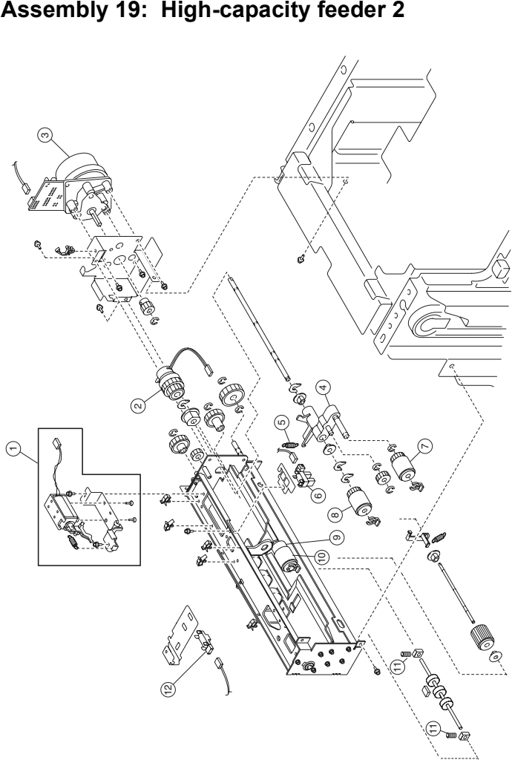

Assembly 19: High-capacity feeder

19-1 56P9846 Solenoid assembly, paper pickup

2 56P9848 Clutch, paper feed

3 56P9844 Motor assembly, transport

4 56P9941 Arm, pick-up

5 56P9501 Spring, pressure

6 56P9528 Interrupter, photo

7 56P9849 Roller, manual feed pickup

8 56P9850 Roller, manual feed

9 56P9852 Limiter, torque

10 56P9851 Roller, manual feed separate

11 56P9847 Spring, compression

12 56P9845 Sensor assembly, paper feed

NS 56P9959 Parts packet
https://www.argecy.com/images/C910_C912_parts_428_cr.jpg

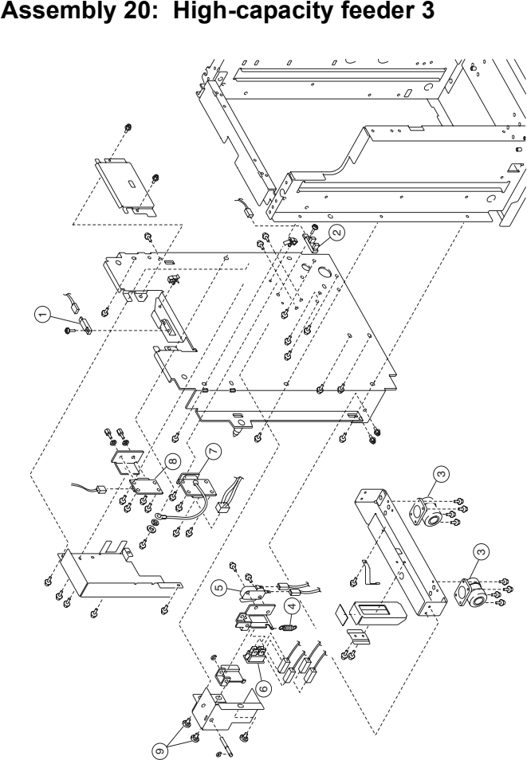

Assembly 20: High-capacity feeder

20-1 56P9854 Sensor assembly, photo

2 56P9855 Interrupter, photo

3 56P9529 Caster, HCF

4 56P9856 Spring, tension

5 56P9857 Switch, micro

6 56P9530 Switch, push

7 56P9859 Connector, inlet

8 56P9858 Connector, I/F

9 56P9853 Screw, shoulder

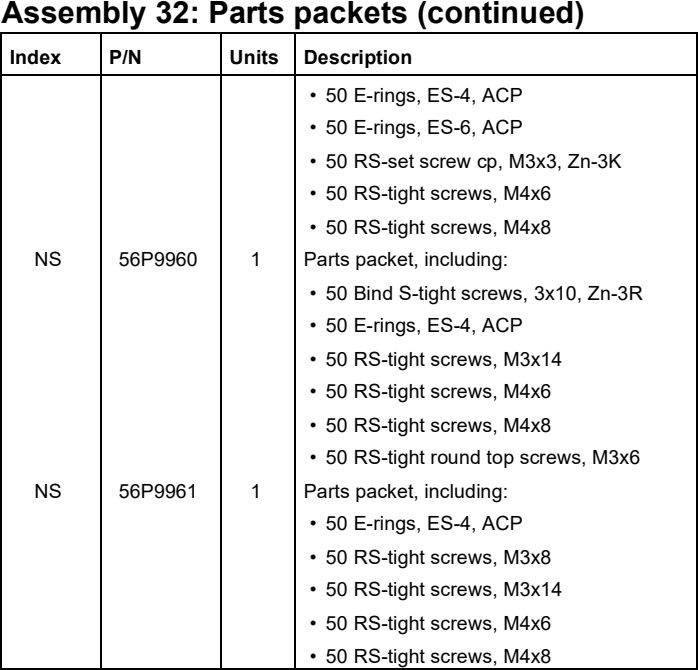

NS 56P9960 Parts packet
https://www.argecy.com/images/C910_C912_parts_430_cr.jpg

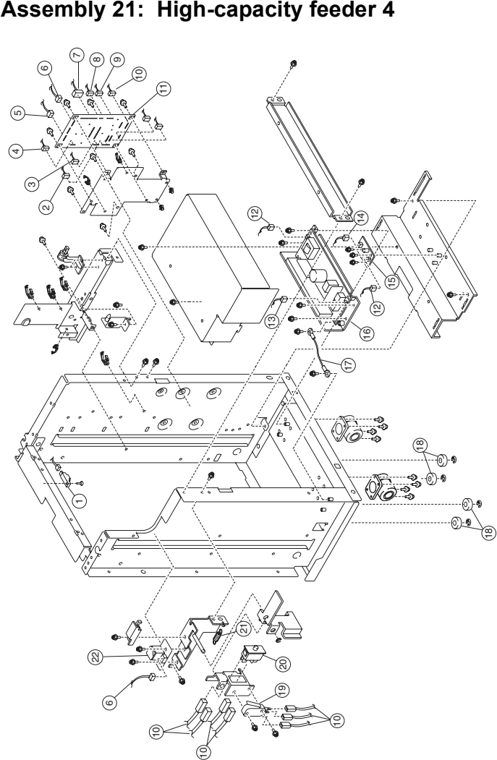

Assembly 21: High-capacity feeder

21-1 56P9541 Sensor, resistor

2 56P9875 Cable assembly, safety switch

3 56P9865 Cable assembly, HCF motor

4 56P9871 Cable assembly, I/F

5 56P9866 Cable assembly, paper feed sensor

6 56P9880 Cable, up/down switch

7 56P9879 Cable, paper volume

8 56P9878 Cable assembly, sensor

9 56P9877 Cable assembly, paper size sensor

10 56P9876 Cable assembly, lift motor

11 56P9868 Board, high-capacity feed

12 56P9873 Cable assembly, power supply out

13 56P9872 Cable assembly, power supply in

14 56P9874 Cable assembly, power supply

15 56P9870 Converter, DC/DC

16 56P9869 Power supply, HCF

17 56P9867 Cable assembly, drawer ground

18 56P9861 Roller, track

19 56P9864 Switch, micro

20 56P9530 Switch, push

21 56P9501 Spring, pressure pickup

22 56P9863 Switch, HCF push

NS 56P9961 Parts packet

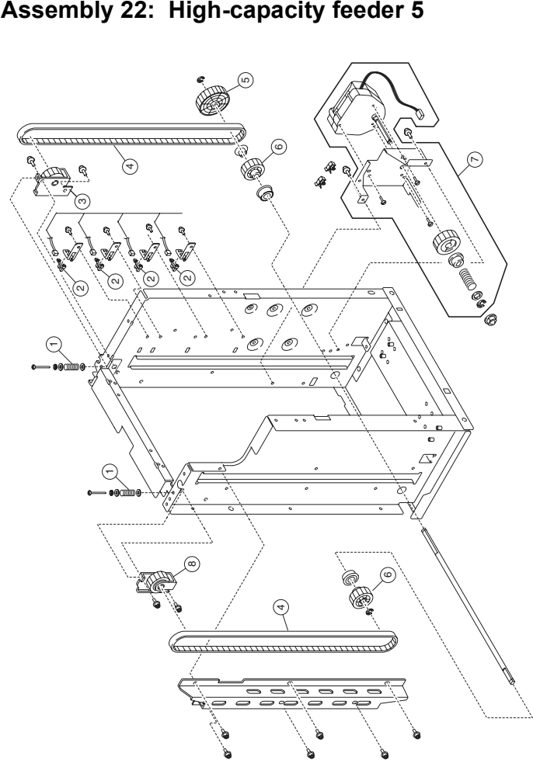

https://www.argecy.com/images/C910_C912_parts_432_cr.jpg
High-capacity feeder

22-1 56P9883 Spring, pressure

2 56P9528 Interrupter, photo

3 56P9888 Bracket, rear idler

4 56P9884 Belt, timing

5 56P9886 Gear, drive

6 56P9885 Pulley, timing

7 56P9882 Motor, HCF DC

8 56P9887 Bracket, front idler

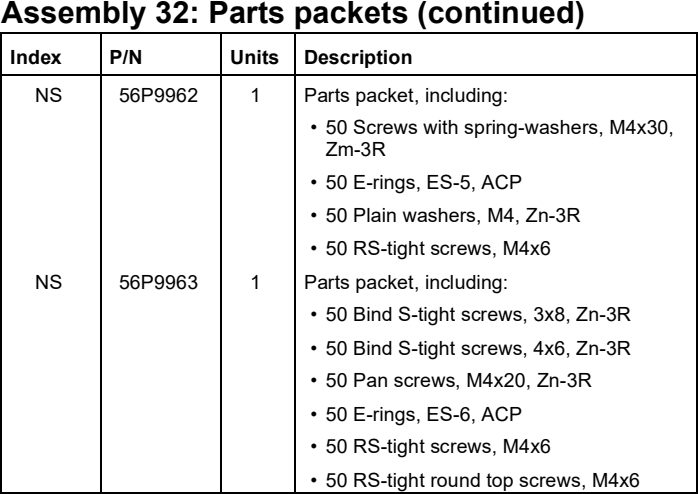

NS 56P9962 Parts packet
https://www.argecy.com/images/C910_C912_parts_434_cr.jpg

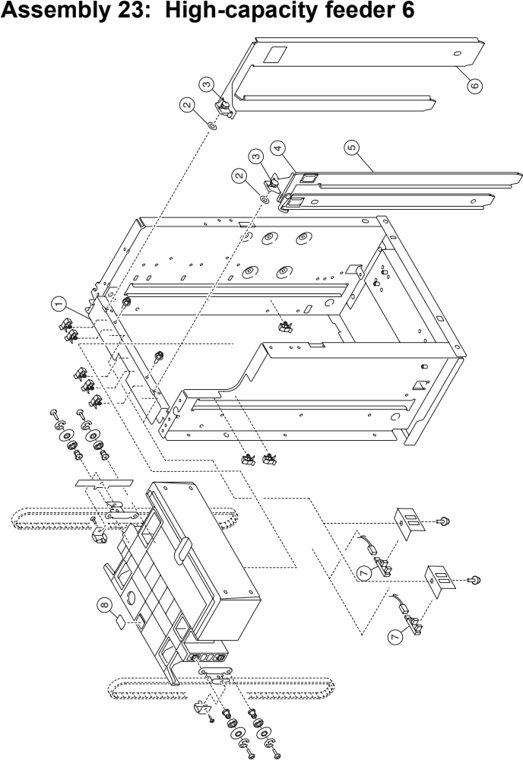

Assembly 23: High-capacity feeder

23-1 56P9892 Plate, upper side fence

2 56P9893 Knob, stopper

3 56P9891 Knob, tray

4 56P9890 Plate, paper adhesion

5 56P9915 Fence assembly, front side

6 56P9894 Fence assembly, rear side

7 56P9528 Interrupter, photo

8 56P9889 Pad, friction

NS 56P9963 Parts packet
https://www.argecy.com/images/C910_C912_parts_436_cr.jpg

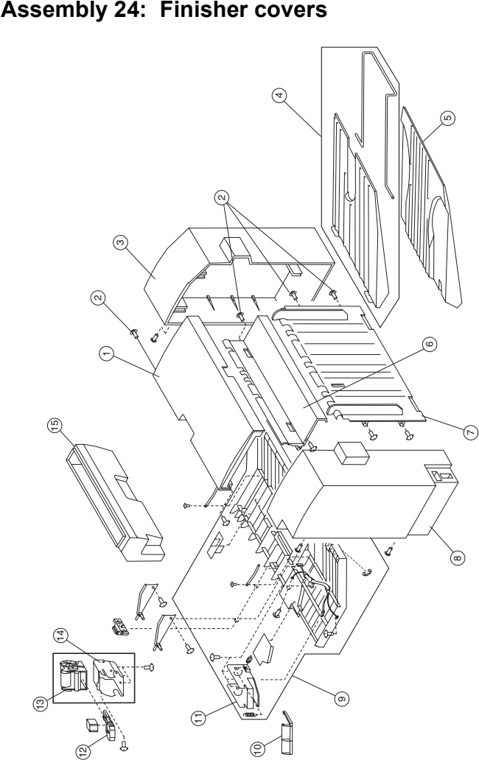

Assembly 24: Finisher covers

24-1 56P9353 Cover, top

2 56P9348 Screw, A

3 56P9355 Cover, front

4 56P9359 Tray, upper

5 56P9360 Tray, lower

6 56P9347 Panel, left upper

7 56P9352 Assembly, lower left panel

8 56P9356 Cover, rear

9 56P9350 Assembly, staple cover

10 56P9366 Lever, B

11 56P9365 Cover, staple A

12 56P9367 Cartridge, staple

13 56P9363 Stapler

14 56P9364 Cover, staple B

15 56P9354 Assembly, dust box
https://www.argecy.com/images/C910_C912_parts_438_cr.jpg

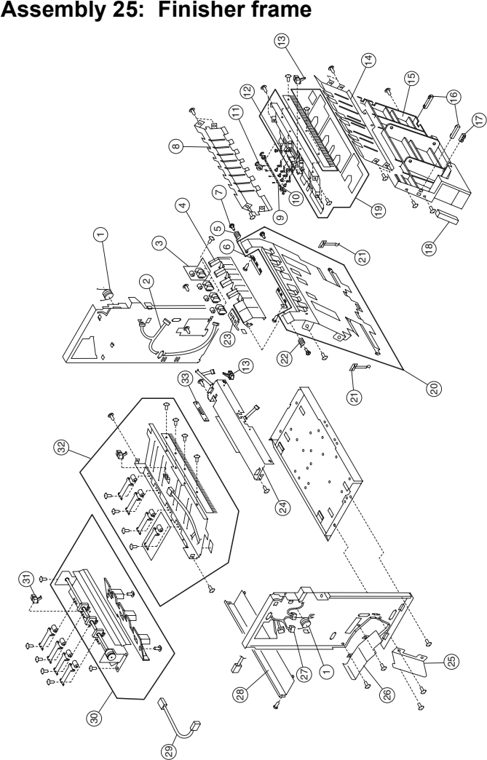

Assembly 25: Finisher frame

25-1 56P9321 Spring, I

2 56P9324 Cable, sensor relay

3 56P9369 Assembly, spring plate C

4 56P9370 Frame, guide

5 56P9371 Spring

6 56P9372 Brush, static discharge

7 56P9373 Screw, M4

8 56P9374 Frame, C guide

9 56P9375 Shaft, D

10 56P9376 Bushing

11 56P9377 Roller, D

12 56P9378 Plate, E spring

13 56P9380 Sensor, photo

14 56P9381 Frame, B guide

15 56P9418 Guide, stack

16 56P9399 Sensor, photo

17 56P9382 Sensor, photo

18 56P9383 Cushion

19 56P9309 Assembly, exit guide inverter

20 56P9302 Assembly, center guide

21 56P9384 Plate, B spring

22 56P9386 Spring

23 56P9387 Handle, jam

24 56P9389 Bracket

25 56P9345 Cover, staple inner B

26 56P9344 Cover, staple inner A

27 56P9327 Cable, upper side panel

28 56P9390 Plate, cover

29 56P9436 Cable

30 56P9313 Unit, 3 hole punch (U.S. only)

30 56P9314 Unit, hole punch (non U.S.)

31 56P9388 Sensor, photo

32 56P9319 Assembly, exit guide straight

33 56P9394 Handle
https://www.argecy.com/images/C910_C912_parts_440_cr.jpg

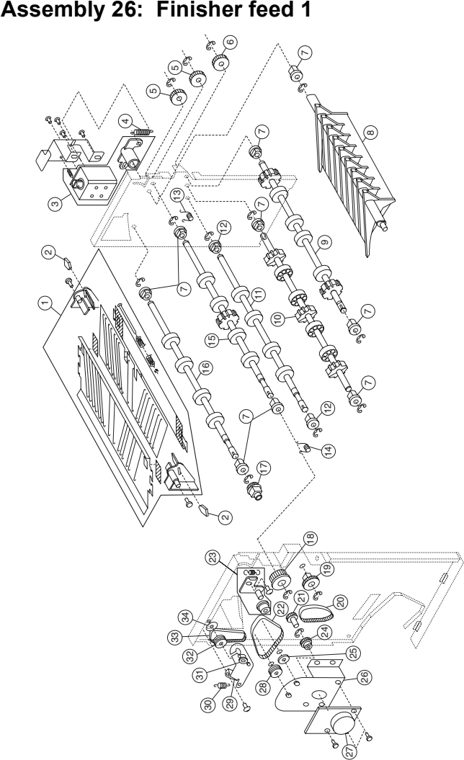

Assembly 26: Finisher feed

26-1 56P9395 Assembly, guide plate

2 56P9393 Plate, guide holder

3 56P9334 Assembly, solenoid

4 56P9396 Spring, H

5 56P9397 Gear, Z20

6 56P9398 Gear, Z19

7 56P9311 9 Bushing

8 56P9310 Gate

9 56P9400 Roller

10 56P9361 Roller, patting

11 56P9401 Roller, I

12 56P9402 Bushing

13 56P9403 Spring, A

14 56P9404 Spring, F

15 56P9312 Roller, F

16 56P9405 Roller, G

17 56P9335 Clutch, registration

18 56P9338 Pulley, T56

19 56P9406 Pulley, Z24/T42 gear

20 56P9407 Belt, timing 60S2M184

21 56P9408 Knob

22 56P9339 Belt, timing 60S2M334

23 56P9305 Assembly, tension D

24 56P9411 Pulley

25 56P9412 Spacer

26 56P9413 Assembly, motor bracket

27 56P9341 Assembly, feed motor

28 56P9414 Pulley

29 56P9315 Assembly, punch drive

30 56P9318 Spring, B

31 56P9316 Bushing

32 56P9415 Pulley, gear Z36/T24

33 56P9317 Belt

34 56P9417 Flange

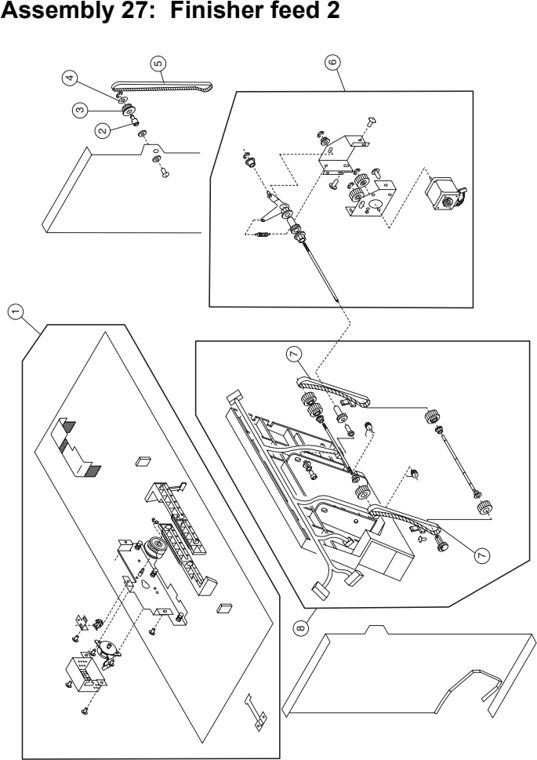

Assembly 27: Finisher feed

27-1 56P9300 Assembly, jogging unit

2 56P9422 Pin, N

3 56P9423 Pulley, Z19/Z20

4 56P9417 Flange

5 56P9333 Belt, timing (60S3M408)

6 56P9329 Assembly, tractor motor

7 56P9437 Belt, timing

8 56P9301 Assembly, guide stack

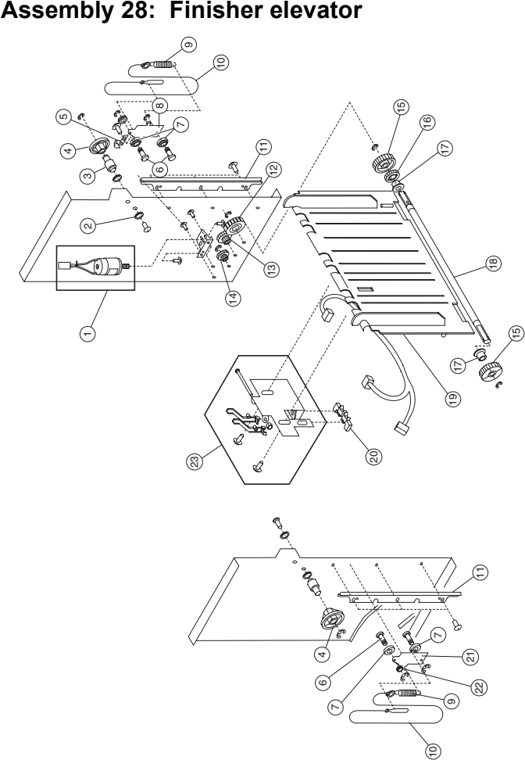

Assembly 28: Finisher elevator

28-1 56P9308 Assembly, elevator motor

2 56P9448 Washer

3 56P9449 Pin

4 56P9450 Pulley, wire A

5 56P9451 Shutter

6 56P9452 Pin, O

7 56P9453 Roller, C

8 56P9304 Assembly, hook front

9 56P9332 Spring, C

10 56P9331 Wire

11 56P9455 Bracket

12 56P9456 Gear, Z46/Z33

13 56P9457 Gear, Z90/Z14

14 56P9458 Gear, Z25/Z20

15 56P9459 Drum, wire

16 56P9460 Gear, Z30

17 56P9311 Bushing

18 56P9482 Shaft, A

19 56P9352 Panel, lower left

20 56P9382 Sensor

21 56P9307 Assembly, hook rear

22 56P9463 Pulley, wire B

23 56P9465 Assembly, sensor

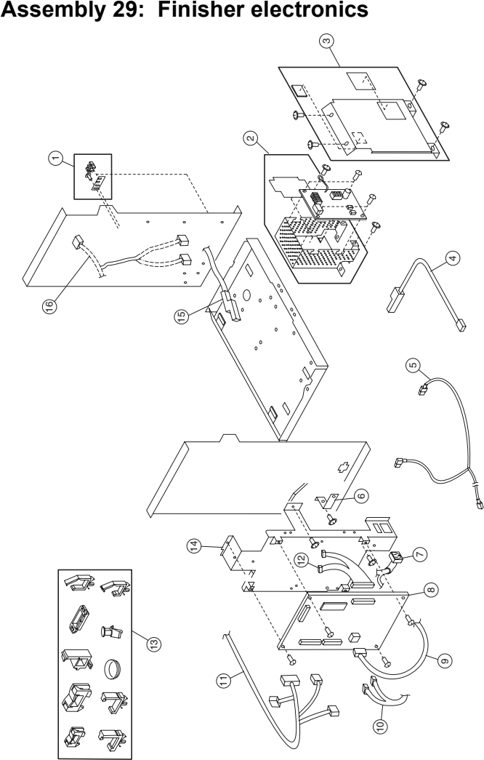

Assembly 29: Finisher electronics

29-1 56P9306 Assembly, upper limit sensor

2 56P9303 Supply, power

3 56P9351 Assembly, power supply plate

4 56P9435 Cable, set switch

5 56P9358 Cord, Y power

5 56P9368 Cord, Y power (230 V only)

6 56P9342 Assembly, bridge

7 56P9326 Cable, DC
power supply

8 56P9349 Board, finisher control

9 56P9428 Cable

10 56P9410 Cable

11 56P9325 Cable, front side panel

12 56P9343 Assembly, sensor cable

13 56P9340 Packet, parts

14 56P9420 Bracket, finisher control board

15 56P9409 Cable

16 56P9324 Cable, sensor relay

NS 56P9357 Cable, interface

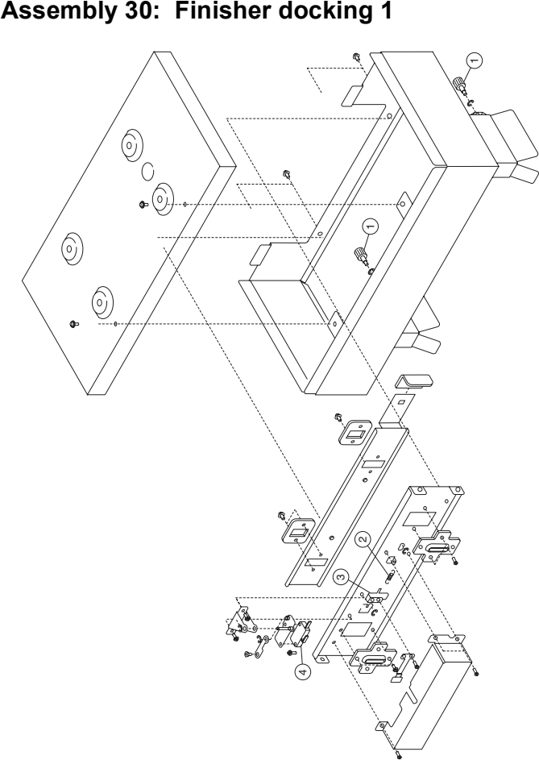

Assembly 30: Finisher docking

30-1 56P9467 Screw, thumb

2 56P9468 Spring

3 56P9469 Bracket

4 56P9470 Switch, set

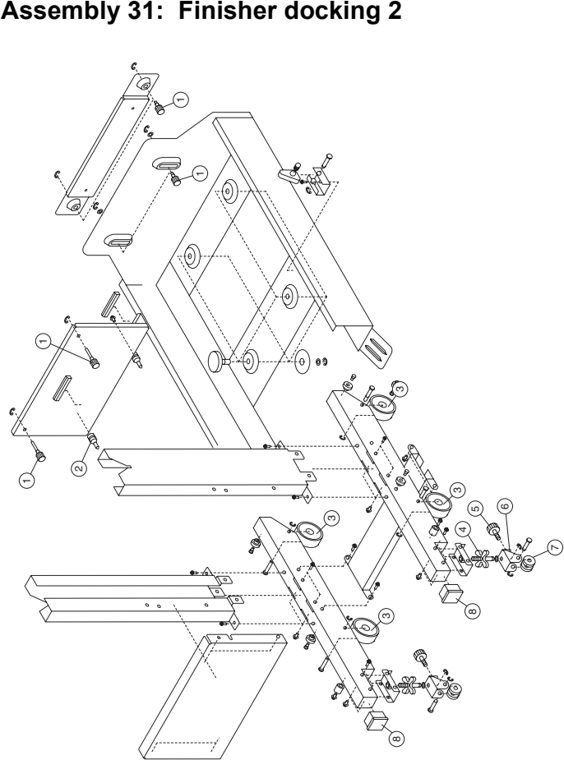

Assembly 31: Finisher docking

31-1 56P9472 Screw, lock

2 56P9473 Stud, lock

3 56P9474 Roller

4 56P9475 Knob, caster

5 56P9476 Stop, caster

6 56P9477 Housing, caster

7 56P9478 Caster

8 56P9479 Cap
