Lexmark C734 Parts







Please call for parts assistance

Looking for whole machines? Click here

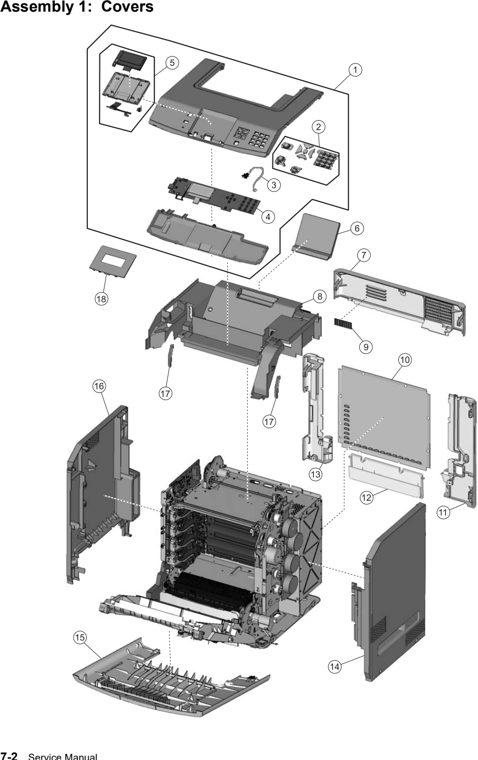

1-1
40X5114 Top Access Cover Assembly
Fully refurbished with 90-day warranty
40X5114
$41.96



40X5114 Top Access Cover Assembly
New
40X5114 (New)
$61.46



2 40X5120 Operator panel buttons parts package, including:
- - Back button
- - Menu button
- - Stop button
- - Navigation select button
- - Navigation up button
- - Navigation down button
- - Navigation left button
- - Navigation right button
- - Number pad buttons

3 40X5121 Bin full sensor with cable

4
40X5117 Operator Panel Assembly With Card
New
40X5117 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$86.84



40X5117 Operator panel assembly with card
Fully refurbished with 90-day warranty
40X5117 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$70.84



5 40X5118 Top access cover parts package, including
- - Display detent spring
- - Bin full flag
- - Operator panel lens
- - Display back bezel

6 40X5106 Output bin extension cover

7
40X5099 Top cover assembly
New
40X5099 (New)
$49.09



40X5099 Top cover assembly
Fully refurbished with 90-day warranty
40X5099
$30.91



8
40X5103 Rear upper cover
New
40X5103 (New)
$14.72



40X5103 Rear upper cover
Fully refurbished with 90-day warranty
40X5103



9 40X5145 Rear frame cover

10 40X5287 Cooling fan filter

11
40X5105 Rear right cover
New
40X5105 (New)
$16.98



40X5105 Rear right cover
Fully refurbished with 90-day warranty
40X5105



12
40X5153 Dust cover assembly
New
40X5153 (New)
$26.00



40X5153 Dust cover assembly
New
40X5153 (New)
$26.00



13
40X5104 Rear left cover
New
40X5104 (New)
$14.25



40X5104 Rear left cover
Fully refurbished with 90-day warranty
40X5104



14
40X5101 Right cover
Fully refurbished with 90-day warranty
40X5101
$21.71



40X5101 Right Cover
New
40X5101 (New)
$24.71



15
40X5110 Front access door cover assembly
Fully refurbished with 90-day warranty
40X5110
$36.85





16
40X5102 Left cover
Fully refurbished with 90-day warranty
40X5102



40X5102 Left cover
New
40X5102 (New)
$25.16



17



(Note: The left link is also available in the top access cover assembly-40X5114, and the right link is also available in the EP drive assembly-40X5125)

18 40X5115 Operator panel bezel, 230, 280

18 40X5116 Operator panel bezel, 430

18 40X5286 Operator panel bezel, 439

18 40X5150 Operator panel bezel, 410

18 40X5151 Operator panel bezel, 210
https://www.argecy.com/images/C734-C736-02.jpg

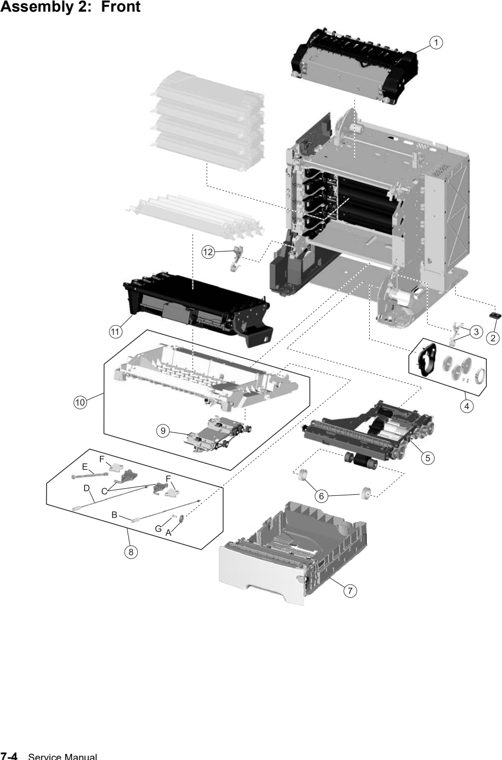

2-1

2 Printer pad, included in parts packet, screws (P/N 40X5136)

3 40X1446 Right bellcrank assembly, with spring

4

including
- - Retainer release arm
- - Grease packet (Nyogel 744)
- - Washer
- - Duplex engagement gear
- - MP feeder reduction gear
- - MP feeder/duplex reduction gear
- - MP feeder drive cover
5
40X5134 Paper Pick Assembly
New
40X5223 40X5275 40x5134 (New)
$88.59



40X5134 Paper Pick Assembly
Fully refurbished with 90-day warranty
40X5223 40X5275 40x5134
$68.53



6
40X5152 Pick arm roll (Set of two)
New
40X5152 (New)
$11.89



40X5152 Pick arm roll
Fully refurbished with 90-day warranty
40X5152



7
40X5273 Paper Tray Assembly 550-Sheet
Fully refurbished with 90-day warranty
40X5273





8
40X5111 Front door parts packet
New
40X5111 (New)
$12.02



including
- - A-Front access door cap (1)
- - B-Right cable assembly (1)
- - C-Front access cover pivot (1)
- - D-Left cable assembly (1)
- - E-Front access door straps (2)
- - F-Front access door bracket (1)
- - G-Screw
9
40X5113 Duplex reference edge assembly
Fully refurbished with 90-day warranty
40X5113





10
40X5112 Front Access Door Assembly
New
40X5112 (New)
$24.71



40X5112 Front access door assembly
Fully refurbished with 90-day warranty
40X5112



11
40X5096 Transfer module
Fully refurbished with 90-day warranty
40X5096



Sale40X5096 Transfer module Maintenance Kit
New
40X5096 40X6401 40X8307 (New)

Retired, no longer available: Contact for alternatives



12 40X1447 Left bellcrank assembly, with spring
https://www.argecy.com/images/C734-C736-04.jpg

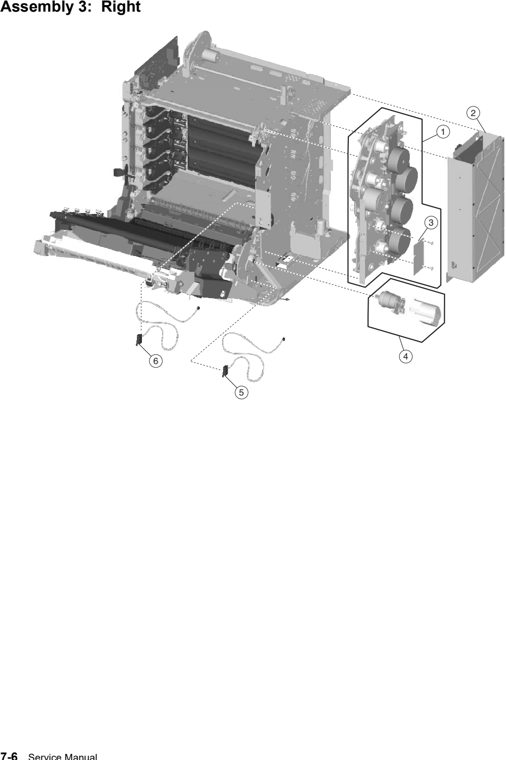

3-1
40X5125 EP Drive Assembly
New
40X5125 40X5290 (New)
$241.73



2
40X5124 Low-Voltage Power Supply LVPS
New
40X5124 (New)
$224.72



Sale40X5124 Low-Voltage Power Supply
Fully refurbished with 90-day warranty
40X5124
$202.78 $145.00



3
40X5126 Motor driver card
Fully refurbished with 90-day warranty
40X5126
$14.95



40X5126 Motor Driver Card
New
40X5126 (New)
$16.64



4
40X5131 MP Feeder/Duplex Motor
Fully refurbished with 90-day warranty
40X5131
$39.71



40X5131 MP Feeder/Duplex Motor
New
40X5131 (New)
$59.71



5 40X5128 24 V interlock switch

6 40X5127 5 V interlock switch
https://www.argecy.com/images/C734-C736-06.jpg

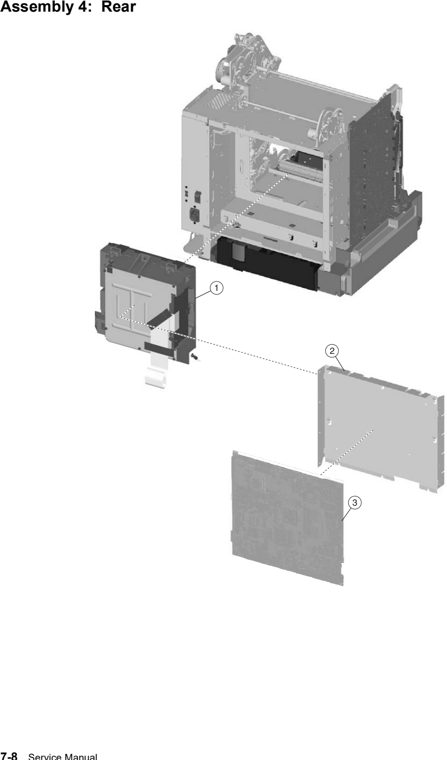

4-1
40X5123 Printhead Assembly
Fully refurbished with 90-day warranty
40X5123
$109.71



40X5123 Printhead Assembly
New
40X5123 (New)
$174.72



2
40X5107 System board support shield
New
40X5107 (New)
$12.72



40X5107 System board support shield
Fully refurbished with 90-day warranty
40X5107



3
40X5160 System Board (Network) 210 230 280
New
40X5160 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



40X5160 System Board (Network) 210 230 280
Fully refurbished with 90-day warranty
40X5160 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



3
40X5154 L System Board (Network) 410, 430, 439
New
40X5154 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$448.03



NS 40X0269 Power cord-USA, Canada, Bolivia, Peru
https://www.argecy.com/images/C734-C736-08.jpg

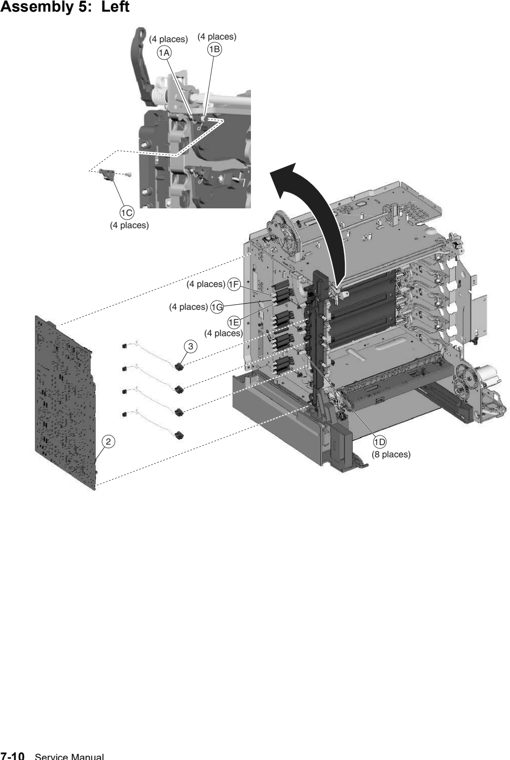

5-1 40X5137 Contact springs kit, including:
- - A-Torsion PCD contact spring
- - B-Torsion CR contact spring
- - C-Contact spring cap
- - D-Charge roll contact spring
- - E-HVPS TAR contact spring
- - F-HVPS doctor/developer contact spring
- - G-HVPS Db contact spring
- - Screw

2
40X5129 High-Voltage Power Supply
Fully refurbished with 90-day warranty
40X5129



40X5129 High-Voltage Power Supply HVPS
New
40X5129 (New)
$164.72



3 40X1416 Toner level sensor
https://www.argecy.com/images/C734-C736-12.jpg

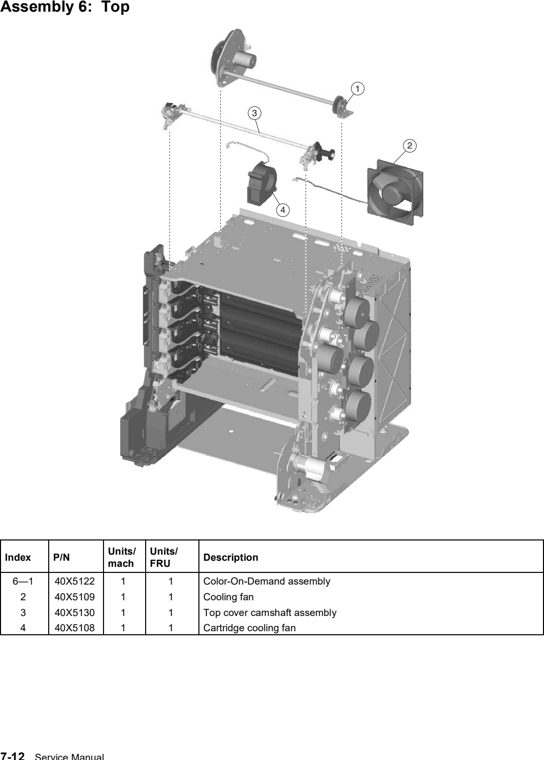

6-1
40X5122 Color-On-Demand Assembly
New
40X5122 (New)
$24.71



40X5122 Color-On-Demand assembly
Fully refurbished with 90-day warranty
40X5122



2
40X5109 Cooling Fan
New
40X5109 (New)
$24.71



40X5109 Cooling fan
Fully refurbished with 90-day warranty
40X5109



3
40X5130 Top cover camshaft assembly
Fully refurbished with 90-day warranty
40X5130



40X5130 Top Cover Camshaft Assembly
New
40X5130 (New)
$24.71



4
40X5108 Cartridge cooling fan
Fully refurbished with 90-day warranty
40X5108



40X5108 Cartridge cooling fan
New
40X5108 (New)
$20.44


https://www.argecy.com/images/C734-C736-12.jpg

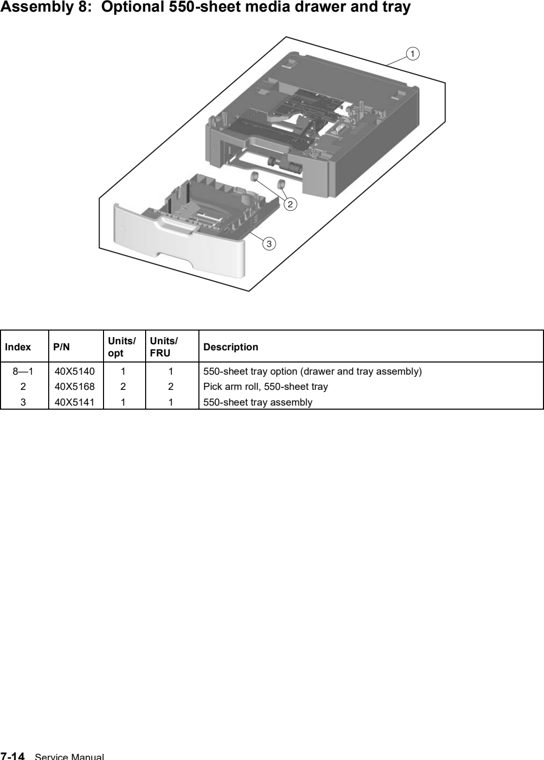

8-1
40X5140 550-Sheet Drawer (With Tray)
Fully refurbished with 90-day warranty
40X5140
$179.72



40X5140 550-Sheet Drawer (With Tray)
New
40X5140 (New)
$244.72



2
40X5168 Pick Tire
New
40X5168 (New)
$11.57



3
40X5141 550-Sheet Tray Assembly
New
40X5141 (New)
$100.99



40X5141 550-Sheet Tray Assembly
Fully refurbished with 90-day warranty
40X5141
$84.10


https://www.argecy.com/images/C734-C736-14.jpg

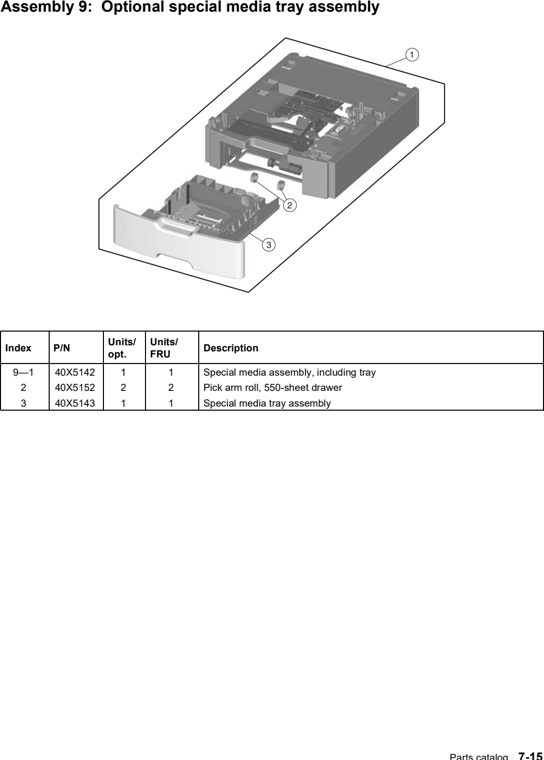

9-1
40X5142 Specialty Media Drawer (With Tray)
New
40X5142 (New)
$284.71

Retired, no longer available: Contact for alternatives



40X5142 Specialty Media Drawer (With Tray)
Fully refurbished with 90-day warranty
40X5142
$285.00



2
40X5152 Pick arm roll (Set of two)
New
40X5152 (New)
$11.89



40X5152 Pick arm roll
Fully refurbished with 90-day warranty
40X5152



3
40X5143 Specialty Media Tray
Fully refurbished with 90-day warranty
40X5143
$84.75



40X5143 Specialty Media Tray
New
40X5143 (New)
$101.77

Retired, no longer available: Contact for alternatives


https://www.argecy.com/images/C734-C736-15.jpg
13-1
40X5157 Top plate assembly
New
40X5157 (New)
$129.17



2
40X5168 Pick Tire
New
40X5168 (New)
$11.57



3
40X5156 Feed with bushing
New
40X5156 (New)
$23.71



4
40X5149 Rear cover
New
40X5149 (New)
$41.14



5 40X4585 Tray latch with spring

6
40X5159 Controller card assembly
New
40X5159 (New)
$170.28



7 40X4587 Slide assembly with springs

8
40X5147 Right cover
New
40X5147 (New)
$49.44



9
40X5155 Elevator motor with sensor
New
40X5155 (New)
$50.05



10

11
40X4593 Drawer slide assembly
Fully refurbished with 90-day warranty
40X4593





12
40X5146 Front tray cover
New
40X5146 (New)
$42.07



13
40X5144 Paper drawer tray assembly
New
40X5144 (New)
$266.09



14
40X5148 Left cover
New
40X5148 (New)
$44.67
