Lexmark C534 Parts







Please call for parts assistance

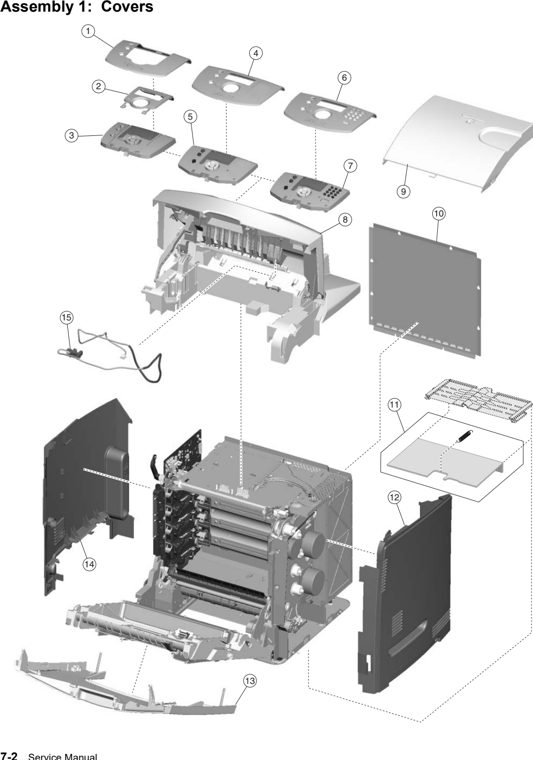

6

C534n
6
40X3588 Bezel (Duplex, Network)
New
40X3588 (New)
$16.65



C534dn
7
40X3583 Operator Panel Assembly C534
New
40X3583 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$114.71



C534n/C534dn
8

8

40X3604 Top Access Cover Assembly (Network) 3X
Fully refurbished with 90-day warranty
40x3604



C532n/C534n
8
40X3605 Duplex Top Access Assembly 3X
New
40X3605 (New)
$162.67


C530dn/C532dn/C534dn
9

10

11 40X3612 Paper tray dust cover with dust cover spring, C53x

12

40X1425 Right cover
Fully refurbished with 90-day warranty
40X1425



13

C530dn/C532dn/C534dn
13

40X3581 Front Access Door Cover Assembly (Non-Duplex Network) 3X
Fully refurbished with 90-day warranty
40X3581
$31.98



C532n/C534n
14

40X1426 Left cover
Fully refurbished with 90-day warranty
40X1426



15 40X3601 Bin full sensor with cable, C53x
2

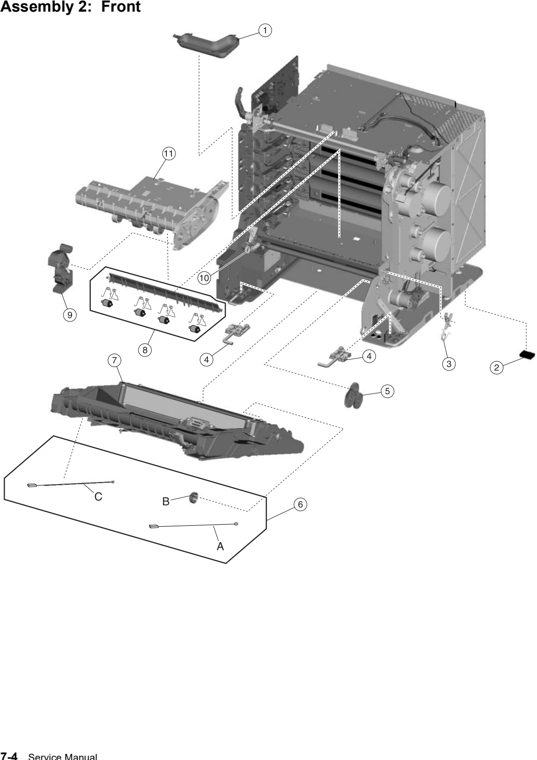

1 Fuser cable cover, included in parts packet (P/N 40X3598), C53x

2 Printer pad, included in parts packet, screws (P/N 40X1431)

3 40X1446 Right bellcrank assembly

4 40X1432 Bump aligner gear kit, including:
Align idler gear
First reduction gear
Second reduction gear
Grease packet
Washers (3)

5 40X3593 Front door parts packet, C53x, including
A Right cable assembly
B Front door cap
C Left cable assembly

6
40X3592 Duplex Front Door Assembly 3X
New
40X3592 (New)
$115.85



C530dn/C532dn/C534dn
6

40X3590 Front Door Assembly (Network) 3X
Fully refurbished with 90-day warranty
40X3590
$25.00



C532n/C534n
7
40X3615 Deflector Assembly 3X
New
40X3615 (New)
$17.38



9 40X1447 Left bellcrank assembly

10

40X3573 Paper Pick Mechanism Assembly 3X
Fully refurbished with 90-day warranty
40X3573
$42.73


3

1
40X3578 EP Drive Assembly 3X
New
40X3578 (New)
$71.21



40X3578 Ep Drive Assembly 3X
Fully refurbished with 90-day warranty
40X3578



2

40X3574 Low Voltage Power Supply 115/230 V
Fully refurbished with 90-day warranty
40X3574
$64.71



3
40X1433 Bump Aligner Motor
New
40X1433 (New)
$18.30



4
4
1
40X2168 Printhead Assembly
New
40X2168 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$359.17



40X2168 Printhead Assembly
Fully refurbished with 90-day warranty
40X2168 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$359.46



2
40X3616 System Network Card, C530dn, C532n, C532dn
New
40X3616 40X3575 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives



C530dn/C532n/C532dn
2
40X3617 System card (network), C534n
New
40X3617 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$460.24



C534n
2
40X3618 System Card (Network) C534dn C534dtn
New
40X3618 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$556.85



C534dn
3
40X3597 System Card Support Shield 3X
New
40X3597 (New)
$17.21

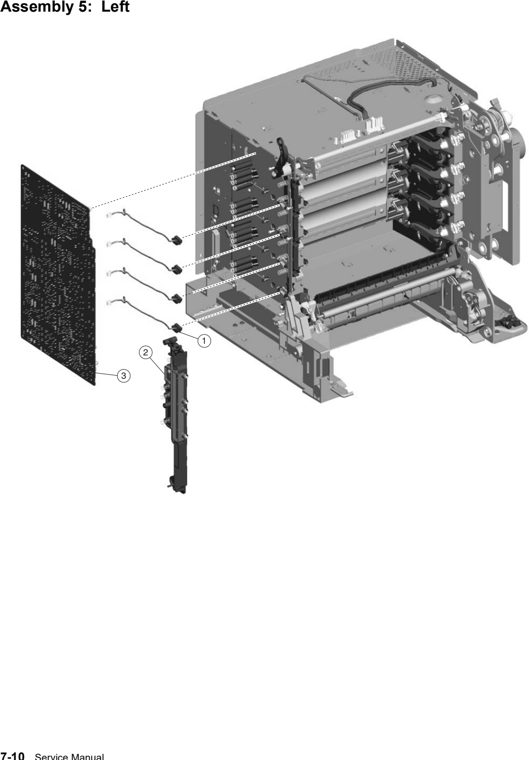

5-1
40X1416 Toner Level Sensor
Fully refurbished with 90-day warranty
40X1416
$13.78



2

3

40X3579 High Voltage Power Supply 3X HVPS
Fully refurbished with 90-day warranty
40X3579 36B1226
$45.21

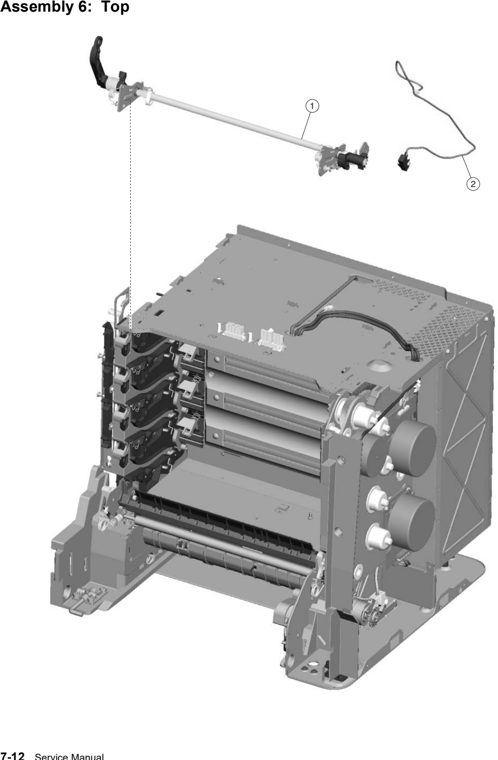

6-1
40X3613 Top Cover Camshaft Assembly
New
40X3613 40X3619 (New)
$19.21



2 40X1437 Top access door 24 V interlock switch

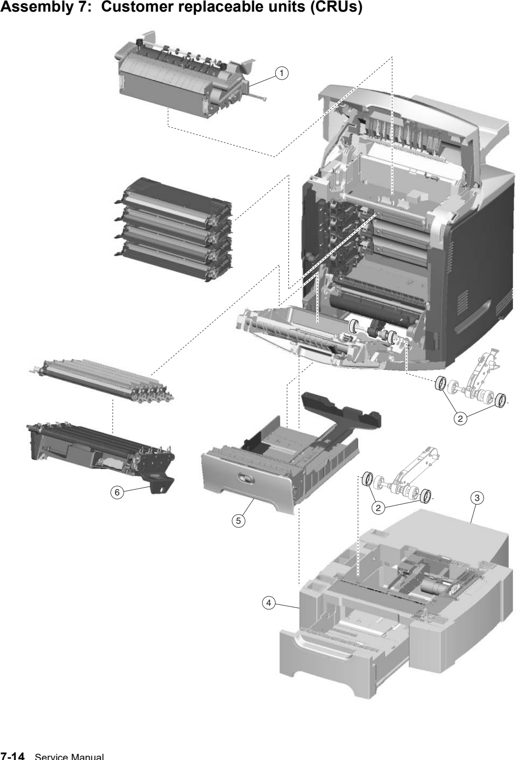

7
1
40X3569 C52x C53x Fuser Assembly
New
40X3569 L (New)

Retired, no longer available: Contact for alternatives



40X3569 Fuser Assembly
Fully refurbished with 90-day warranty
40X3569



C53x (also can be used in C52x)
2
40X3607 Pick Arm Roll
New
40X3607 (New)
$12.69



3

C532n/C532dn/
C534n/C534dn
4
40X3595 Tray Assembly 550-Sheet 3X
New
40X3595 (New)
$52.80



40X3595 Tray Assembly 550-Sheet 3X
Fully refurbished with 90-day warranty
40X3595
$43.05



C532n/C532dn/C534n/C534dn
5

40X3599 MPF Paper Tray Assembly 250-Sheet (N and DN versions)
Fully refurbished with 90-day warranty
40X3599
$56.44



C530dn/C532dn/C534n/C534dn
6
40X3572 Transfer Belt Maintenance Kit ITU 3X
New
40X3572 (New)
$349.00

Retired, no longer available: Contact for alternatives



NS 40X0297 Power cord USA

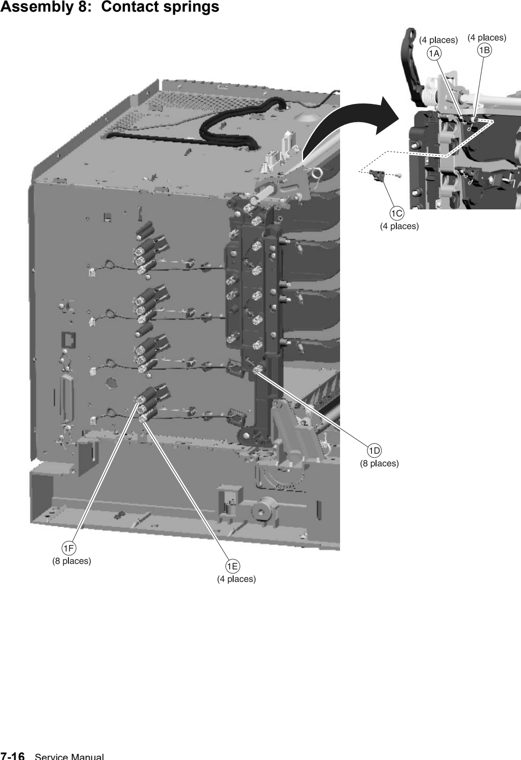

8-1 40X1434 Contact springs kit, including:
A Torsion PCD contact spring (4)
B Torsion CR contact spring (4)
C Contact spring cap (4)
D Charge roll contact spring (8)
E HVPS TAR contact spring (4)
F HVPS doctor/developer contact spring (8)
9

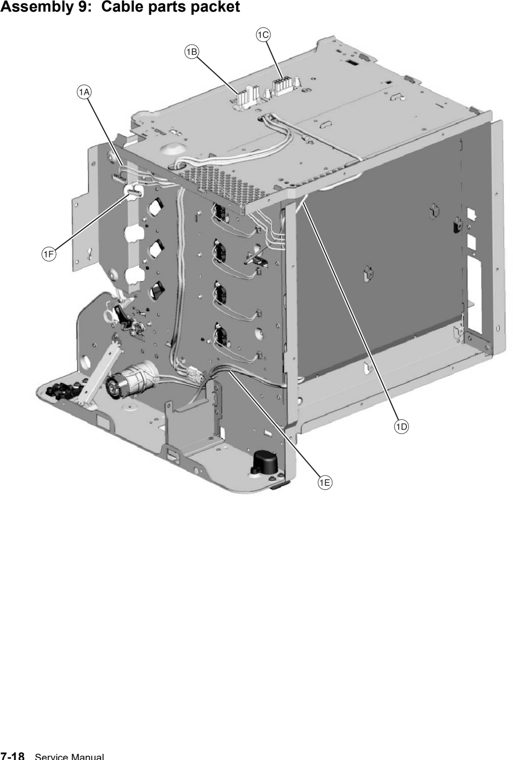

2 40X3598 Cables, C53x, including
A Cartridge motor cable (1)
B Fuser AC cable (1)
C Fuser DC cable (1)
E Option cable (1)
F Transport motor cable (1)
Fuser cable cover (1) (see Front on page 7-4 for part identification and location) Duplex cable (1)
