Lexmark 5-Bin Mailbox (Color Laser) Parts







Please call for parts assistance

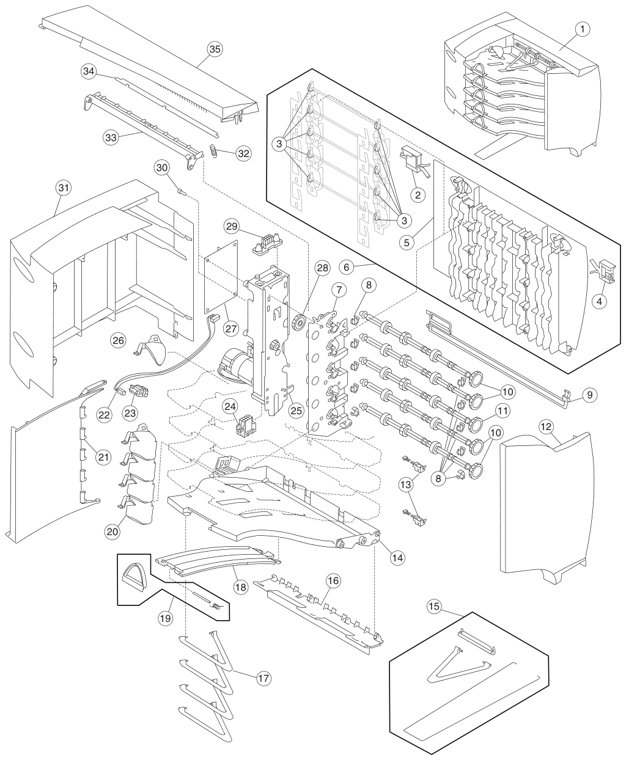

28-1 40X2020 5-Bin mailbox, complete

2 40X2157 Access door rear latch

3 40X2049 10 1 Rear access door roller assembly

4 40X2024 Access door front latch

5 40X2032 Front door cover

6 40X4268 Front door assembly

7 40X2044 Left frame assembly w/clutch assembly

8 40X2056 Drive shaft bushing packet

9 40X2033 Right cover

10 40X2054 Drive shaft assembly

11 40X2055 Drive with gear shaft assembly

12 40X2029 Front cover

13 40X3242 5-bin mailbox pass thru sensor

14 40X2028 Paper cap tray

15 40X2043 5-bin mailbox assembly kit

16 40X2027 Bail attach bracket assembly

17 Bail, order P/N 40X2043, 5-bin mailbox assembly kit

18 40X2035 Paper tray support

19 40X2042 Paper tray stop assembly

20 40X2038 Bin full flag

21 40X2030 Rear structural cover

22 40X2023 Tray media level sensor cable

23 40X3240 Dual bin level sensor

24 40X2052 Lower autoconnect cable assembly

25 40X2050 Main DC drive assembly

26 40X2026 Bin full flag

27 40X2064 5-bin mailbox system board assembly

28 40X2067 Drive gear

29 40X2053 Upper autoconnect cable assembly

30 12 12 Screw, parts packet, 40X2046 (board mounting)

31 40X2031 Rear assembly cover

32 40X2000 Upper diverter spring

33 40X2025 Top bin cover

34 40X2040 Wire cover

35 40X1638 Redrive cap cover assembly
https://www.argecy.com/images/ColorLaserOptions-412_cr.jpg
28.1-1 40X2065 Diverter spring

2 40X2039 Right side frame assembly

3 Screw type 323, parts packet, 40X1633

4 40X2057 Diverter actuator cam

5 40X2060 Diverter actuator spring

6 40X2058 Diverter actuator latch

7 40X2059 Diverter actuator arbor

8 40X2069 C-clip retainer

9 40X2021 Attach front bracket

10 40X2061 Diverter solenoid

11 40X2022 Static ground contact

12 40X2041 Paper exit deflector w/brush

13 40X2037 Paper deflector

14 40X2068 Deflector

15 40X2036 Paper top bin deflector

NS 40X1968 Drive gear

NS 40X2047 Roller retainer
