IBM Infoprint Finisher SR5000 (B830) Parts

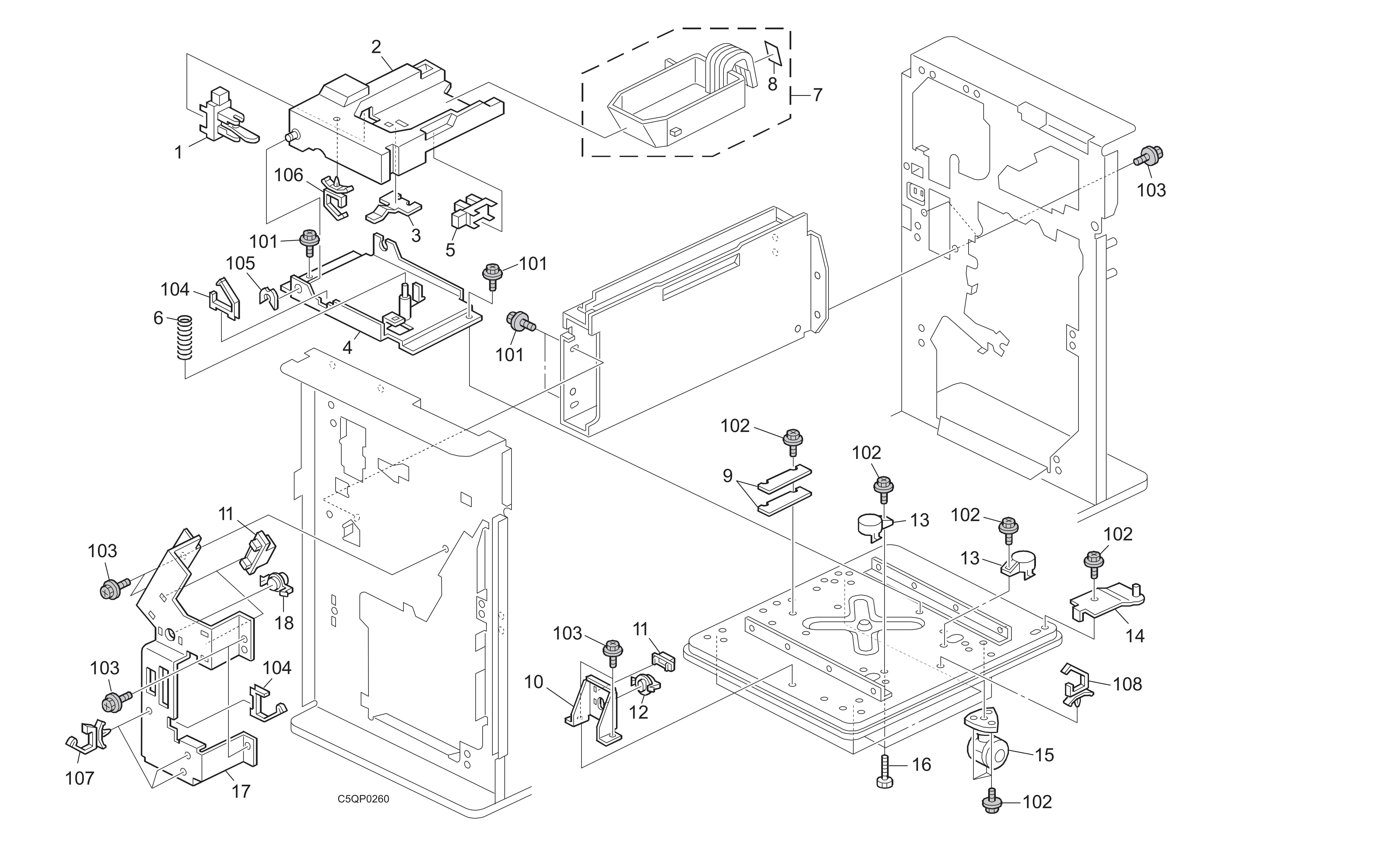

119 1 44D6418 Cover: Rear 2 44D5879 Tray Cover Upper 3 4 44D6585 Tray: Slide 5 44D5880 Cover Upper 6 54P1302 Spring 23x44mm 7 44D6438 Cushion 10x15x585 8 44D6024 Cushion: Cover: Upper 9 44D6587 Table: Ass-y 10 57P1588 Screw: Slider: LOCK 11 44D5907 Harness Stop Switch 12 44D6586 Lever: Slide 13 44D5876 Cover Left Upper 14 44D6414 Cover: Shift Tray: Inner Back: Ric 15 16 17 18 44D6570 Grounding Plate Bracket 19 44D6716 Tray: Auxiliary: Shift Tray 20 44D6757 Tray Slide 21 44D5653 Operation Instructions Holder 22 23 44D6715 Tray: Auxiliary: Proof Tray 24 75P2233 Holder: Stand 25 44D6713 Guide: Micro Switch: Shift 26 44D6417 Cover: Left Lower 27 44D6415 Cover: Shift Tray: Front: Ric 28 44D6416 Inner Cover: Left Sideways 29 44D6473 Screw: A 30 31 32 44D5878 Magnetic Door Catch 33 44D5877 Cover Front 34 NP Decal Missfeed Removal Paper 35 NP Decal: Missfeed Removal: Stapler 36 44D5875 Inner Cover Front 37 44D6478 Screw M4X4 38 44D5869 Coupling Bracket Correct 39 44D5870 Coupling Bracket 101 57P3990 Tapping Screw M3x8 102 57P3988 Tapping Screw 3x6 103 39U6639 Tapping Screw: 4x8 104 39U6642 Tapping Screw: 3x8 105 57P4005 Tapping Screw: M4x8 106 57P4002 Tapping Screw M3x8 107 39U6641 Tapping Screw M3x6 108 44D6536 Screw M4x14 | |
120 1 44D5874 Inner Cover Stapler Unit 2 44D5932 Bracket Rear 3 44D5938 Stopper Slide Shaft 4 44D5933 Timing Belt 40S2M500 5 44D5939 Stay 6 44D6789 Stopper Pawl Bracket 7 44D6790 Torsion Spring 8 44D6788 Stopper Pawl 9 44D5940 Shaft 10 44D6792 Tension Spring 11 44D5931 Bracket Front 12 57P3956 Screw: Contact Point 13 44D6791 Tightener 14 44D6787 Guide 15 NP Stopper Sensor Bracket 16 17 44D5934 Pulley 43T 18 NP Rail 19 44D5873 Stuni Grip 20 NP Decal Stapler Tray (R8) 21 44D5954 Slider Grip 22 NP Decal Knob (R10) 23 NP Decal Stapler Unit (R9) 24 10R1452 Pulley 101 39U6642 Tapping Screw: 3x8 102 39U6641 Tapping Screw M3x6 103 54P1192 Retaining Ring M4 104 44D6522 Retaining Ring 3m 105 44D6525 Ball Bearing 4x12x4 106 10R0153 Clamp 107 57P3991 Tapping Screw: 3x10 108 10R0160 Harness Clamp | |
121 1 44D5888 Stepper Motor DC6.7V 16W 2 NP Jogger Motor Bracket 3 NP Stay: Stapler: Upper 4 5 6 54P1283 Tension Spring: 4.9n 7 41U2092 Tightener 8 57P3956 Screw: Contact Point 9 10 11 NP Bracket 12 13 44D5941 Shaft 14 15 16 44D6785 Jogger Fence Rear 17 44D5944 Guide Plate Stapler Tray 18 44D6784 Jogger Fence Front 19 57P3551 Bushing M6x5 20 21 44D6420 Shaft: Jogger Fence: Slide 22 57P3566 Jogger Fence Slider 23 44D5945 Cover Rear Jogger Fence 24 44D6440 Lower Exit Shaft 25 44D5942 Exit Belt 140S2M848 26 44D6786 Tightener 27 44D5946 Cover Front Jogger Fence 101 57P3988 Tapping Screw 3x6 102 57P3926 Retaining Ring M6 103 57P3979 Tapping Screw M3x8 104 57P3925 Retaining Ring M4 105 39U6641 Tapping Screw M3x6 106 57P3149 Ball Bearing 6x12x4 mm 107 10R0153 Clamp 108 54P1152 Pin 2x10mm 109 39U5974 Screw M3X6 | |
122 1 44D5881 Stepper Motor DC2.2V 5.7W 2 44D5889 Stepper Motor DC1.35V 4W 3 NP Connector Bracket 4 NP Harness Sensor Drawer 5 NP Harness Motor Drawer 6 44D6700 Holder: Arm: Harness 7 54P1194 Snap Ring 8 44D6086 Arm: Harness: Stapler Unit 9 44D6085 Pin: Fix: Arm 10 44D6419 Arm: Swing Unit 11 12 10R1069 Tension Spring: Tightener 13 41U2092 Tightener 14 57P3956 Screw: Contact Point 15 16 10R0731 Timing Belt: 171P3M10R097TimingPulley: 20T-30T Fully refurbished with 90-day warranty 10R0731 17 10R0970 Timing Pulley: 20t30t 18 44D5504 Harness: Ground: Motor 101 39U6641 Tapping Screw M3x6 102 39U6642 Tapping Screw: 3x8 103 44D6538 Pan Head Screw m4x5 104 39U5964 Phillips Pan Head Screw M4x8 105 57P3995 Tapping Screw 4x6 106 57P3991 Tapping Screw: 3x10 107 57P3925 Retaining Ring M4 108 57P3926 Retaining Ring M6 109 10R0153 Clamp 110 10R0160 Harness Clamp 111 54P1172 Harness Clamp 112 10R0162 Edge Saddle Les1010 | |
123 1 44D5882 Stepper Motor DC2.24V 3.5W 2 44D6794 Motor Bracket 3 44D5928 Pulley 20T/33T 4 44D6166 Pulley 20T 5 44D6496 Timing Belt 40S2M156 6 44D5929 Shaft 7 44D6795 Standard Fence Slider 8 44D6793 Standard Fence 9 44D6441 Rear Shaft Slide Holder 10 44D5904 Harness Sensor 11 44D6461 Photo Reflection Sensor: Psr11d1b 12 NP Sensor Bracket 13 44D5947 Auxiliary Standard Fence Slider 14 44D5948 Auxiliary Standard Fence Rear 15 54P1284 Spring: Return: Standard Fence 16 10R0714 Bushing: Standard Fence 17 18 19 44D6782 Standard Fence Rear 20 44D6783 Standard Fence Slider Rear 21 54P1284 Spring: Return: Standard Fence 22 44D6781 Standard Fence Slider Front 23 24 44D6780 Standard Fence Front 25 44D5950 Slider Hook Bracket 26 44D5949 Slider Hook Shaft 27 NP Exit Sensor Bracket 28 44D6565 Photointerruptor 29 44D5943 Stapler Tray Guide Plate Small 30 NP Standard Fence Base 31 101 57P3988 Tapping Screw 3x6 102 57P3991 Tapping Screw: 3x10 103 57P3979 Tapping Screw M3x8 104 54P1192 Retaining Ring M4 105 39U6641 Tapping Screw M3x6 106 57P3925 Retaining Ring M4 107 44D6515 Harness Clamp LWS0306ZC | |
124 1 44D5964 Shaft 2 44D5967 Vibrating Plate Upper 3 57P3446 Bushing 6mm 4 57P3458 Bushing 6x9mm 5 44D6422 6 Shaft: Vibrating Plate: Both Ends 6 44D5966 Vibrating Plate Lower 7 44D6771 Tension Spring 8 44D5963 Paper Vibrating Plate 9 44D6770 Compression Spring 10 11 10R1068 Compression Spring: Plate: Moveable 12 44D5965 Slider 13 14 15 16 NP Cover Vibrating Plate 17 44D5882 Stepper Motor DC2.24V 3.5W 101 57P3990 Tapping Screw M3x8 102 57P3988 Tapping Screw 3x6 103 39U6641 Tapping Screw M3x6 104 39U6642 Tapping Screw: 3x8 105 57P3925 Retaining Ring M4 106 10R0153 Clamp | |
125 1 44D5936 Gear/pulley 20Z/33T 2 44D6165 Pulley 48T 3 44D5935 Gear/pulley Shaft 4 44D5937 Timing Belt 60S3M204 5 44D6164 Gear 30Z 6 NP Stopper Bracket 7 39U5904 Bushing 6mm 8 44D5891 Stepper Motor DC1.56V 3.7W 9 44D5930 Inner Cover 10 44D6733 Gathering Roller Lever 11 44D6004 Cam Gathering Roller Lever 12 44D6003 Timing Belt 60S3M237 13 44D6002 Timing Belt 60S3M162 14 15 NP Gathering Roller Bracket 16 44D5887 Stepper Motor DC2.52V 4.5W 17 18 44D6730 Gathering Roller Shaft 19 57P3440 Ball Bearing 6x13x5 20 44D6006 Gathering Roller Arm 21 44D6731 Tension Spring 22 44D6005 Lever Cushion 23 57P3440 Ball Bearing 6x13x5 24 25 26 54P1196 Snap Ring 27 57P3480 Pulley 17T 28 44D6732 Gathering Roller Bracket 101 39U6641 Tapping Screw M3x6 102 54P1192 Retaining Ring M4 103 57P3995 Tapping Screw 4x6 104 57P3925 Retaining Ring M4 105 10R0160 Harness Clamp 106 44D6540 Spring Pin 2x10mm 107 54P1151 Spring Pin M3x12 108 39U6642 Tapping Screw: 3x8 | |
126 1 44D6584 Guide Rod: Stapler 2 44D5959 Ball Bearing 3 44D6421 Bracket: Stay: Timing Belt 4 5 6 44D5952 Knob 7 NP Decal Stapler Unit (R10) 8 44D5960 Slider 9 44D5958 Sensor Bracket 10 NP Harness Home Position Sensor 11 44D5953 Gear 166Z 12 13 44D5955 Timing Belt 60S2M140 14 44D5956 Pulley 19T 15 44D5957 Worm Gear 16 44D6038 Stepper Motor: Mm42:S2m: T15: Ass-y 17 NP Stapler Holder Middle 18 44D5961 Fence Slider Hook Rear 19 44D6776 Stapler Holder 20 101 39U6641 Tapping Screw M3x6 102 57P3997 Tapping Screw: 4x10 103 57P3925 Retaining Ring M4 104 57P3149 Ball Bearing 6x12x4 mm 105 57P3587 Ball Bearing 6x12x4 mm 106 54P1191 Retaining Ring M6 107 10R0162 Edge Saddle Les1010 108 10R0152 Clamp LBWS0206SV0 109 10R0153 Clamp 110 54P1172 Harness Clamp 111 10R0161 Edge Saddle Les0510 112 75P2224 Harness Clamp LWS0711 | |
127 1 44D6775 Stapler Cover Rear 2 44D5898 Harness DC Solenoid 3 44D5951 DC Solenoid 24V 4 44D6777 Lever Bracket 5 44D6779 Tension Spring 6 44D6778 Stapler Lever 7 44D6772 Guide Standard Fence 8 44D6563 Stapler: Eh1200r 9 44D6709 Guard: Frame 10 44D5962 Cover Stapler Harness 11 44D6773 Stapler Base 12 44D6774 Stapler Cover Front 13 44D6552 Damper Junction Gate Solenoid 101 57P3990 Tapping Screw M3x8 102 57P3988 Tapping Screw 3x6 103 44D6522 Retaining Ring 3m 104 57P4054 Screw M3X4 105 10R0152 Clamp LBWS0206SV0 106 10R0831 Edge Saddle Eds06071 | |
128 1 NP Entrance Sensor Bracket 2 44D5913 Harness Entrance Sensor 3 75P0637 Photo Reflection Sensor: Ps117ed1 4 44D5871 Connecting Guide Plate Upper 5 44D5872 Connecting Guide Plate Lower 6 NP Entrance Guide Plate Lower 7 NP Guide Plate Punch 8 44D6736 Transport Roller 9 44D6749 Transport Roller 10 NP Turn Guide Plate 11 NP Sensor Bracket 12 44D5922 Harness Paper Jam Sensor 13 57P3440 Ball Bearing 6x13x5 101 39U6641 Tapping Screw M3x6 102 57P3988 Tapping Screw 3x6 103 57P3993 Tapping Screw: 3x14 104 57P3925 Retaining Ring M4 105 10R0153 Clamp | |
129 1 44D6742 Gate Pawl Stapler Tray 2 3 44D6741 Gate Pawl Proof Tray 4 NP Support Plate Exit Gate 5 57P3957 Screw: Pin: Positioning 6 44D6735 Torsion Spring 7 57P3543 Antistatic Brush 8 54P1293 Compression Spring: Transport: 6.5n 9 10 NP Supporting Plate 11 54P1289 Pressure Spring 5.5x19.5mm 12 44D6437 Decal R2 13 44D6001 Guide Plate Open And Close 14 39U6262 Magnet Catch 15 NP Decal Shift Tray (R3) 16 44D5998 Guide Plate Open And Close 17 44D5987 Gear 91Z 18 44D6507 Bushing 101 57P3988 Tapping Screw 3x6 102 57P3979 Tapping Screw M3x8 103 54P1192 Retaining Ring M4 | |
130 1 57P3543 Antistatic Brush 2 NP Supporting Plate 3 54P1289 Pressure Spring 5.5x19.5mm 4 5 44D5867 Decal Entrance (R1) 6 44D5997 Guide Plate Entrance 7 44D5995 Guide Plate Lower 8 NP Guide Auxiliary Shift 9 39U6262 Magnet Catch 10 44D6750 Transport Roller 11 44D6745 Lengthwise Gate Pawl Right 12 13 54P1287 Tension Spring: 2.16n 14 44D6743 Lengthwise Gate Pawl Left 15 44D5988 Bushing 16 44D5996 Exit Guide Plate 17 NP Guide Auxiliary Gate 18 NP Guide: Discharge (exit): Leading Edge 19 57P3440 Ball Bearing 6x13x5 20 44D6744 Tension Spring 21 44D5985 Arm Left 22 44D6746 Roller 23 44D5986 Arm Right 101 57P3979 Tapping Screw M3x8 102 57P3988 Tapping Screw 3x6 103 57P3925 Retaining Ring M4 104 39U6275 Tapping Screw: 4x6 105 39U6641 Tapping Screw M3x6 106 54P1192 Retaining Ring M4 | |
131 1 44D6740 Compression Spring 2 3 39U6262 Magnet Catch 4 NP Lengthwise Guide Plate Right Middle 5 NP Decal Lengthwise Right (R6) 6 44D6739 Transport Roller Duplex Stack 7 44D6738 Transport Roller 8 9 44D5993 Lengthwise Guide Plate Left Middle 10 NP Decal R5 11 12 44D5901 Harness Sensor 13 75P0637 Photo Reflection Sensor: Ps117ed1 14 57P3440 Ball Bearing 6x13x5 15 44D6507 Bushing 16 44D6748 Stopper Pawl 17 18 44D5994 Lengthwise Guide Plate Left 19 54P1289 Pressure Spring 5.5x19.5mm 20 54P1199 Snap Ring 21 44D5991 Coupling Bracket Middle 22 44D5987 Gear 91Z 23 NP Decal R4 24 44D5992 Spacer: Transport Roller 101 57P3979 Tapping Screw M3x8 102 39U6641 Tapping Screw M3x6 103 57P3925 Retaining Ring M4 | |
132 1 54P1293 Compression Spring: Transport: 6.5n 2 3 NP Guide Plate Lengthwise 4 75P0637 Photo Reflection Sensor: Ps117ed1 5 NP Positioning Sensor Bracket 6 44D5915 Harness Sensor 7 8 NP Exit Sensor Bracket Staple Tray 9 44D6750 Transport Roller 10 44D6736 Transport Roller 11 57P3474 Antistatic Brush 12 57P3643 Discharge Brush 13 54P1296 Spring 5x39mm 14 44D5990 Guide Plate Lower 15 44D6581 Guide: Open And Close 16 NP Decal Stapler Tray Exit (R7) 17 54P1290 Pressure Spring 14.5mm 18 44D6442 Brush Roller 19 44D6502 Brush Roller 20 44D6553 Joint Brush Roller 21 44D6737 Exit Roller Lower 22 57P3440 6 Ball Bearing 6x13x5 101 57P3988 Tapping Screw 3x6 102 57P3993 Tapping Screw: 3x14 103 39U6641 Tapping Screw M3x6 104 57P3979 Tapping Screw M3x8 105 57P3925 Retaining Ring M4 106 54P1192 Retaining Ring M4 107 54P1168 Clamp 108 54P1191 Retaining Ring M6 | |
133 1 44D6461 Photo Reflection Sensor: Psr11d1b 2 44D5912 Harness Paper Feed Sensor 3 54P1290 Pressure Spring 14.5mm 4 5 NP Exit Sensor Bracket 6 NP Guide Plate: Upper:Fix: Proof Tray: Ass-y 7 NP Exit Guide Upper Exit Guide 8 44D6027 Discharge Brush L=320 Mm3 9 44D6712 Silencer 10 75P0638 Roller: Exit: Auxiliary: Ass-y 11 NP Proof Tray Guide Plate Lower 12 44D6734 Exit Roller Proof Tray 13 44D6750 Transport Roller 14 57P3440 6 Ball Bearing 6x13x5 15 NP End Plate Lower 16 10R1278 Photo Reflection Sensor 17 44D5911 Harness Proof Tray Sensor 18 NP Bracket: Photo Reflection Sensor: Overflow 19 NP End Plate: Upper: Exit: Proof Tray 20 NP Cover Sensor 101 57P3992 Tapping Screw: 3x12 102 57P3988 Tapping Screw 3x6 103 39U6641 Tapping Screw M3x6 104 57P3925 Retaining Ring M4 105 10R0152 Clamp LBWS0206SV0 106 10R0161 Edge Saddle Les0510 | |
134 1 NP Bracket: Stepper Motor: Drive: Guide Plate 2 44D5886 Stepper Motor DV2.52V 4.5W 3 4 NP Bracket Home Position Sensor 5 44D5910 Harness Exit Sensor 6 NP Worm Wheel Guide Plate 7 NP Drive Guide Plate Exit 8 44D6016 Timing Belt 40S2M190 9 NP Worm Gear: 37t 10 NP Upper Exit Stay 11 44D6018 Shaft Worm Wheel 12 44D6017 Worm Wheel 16z 13 14 10R1278 Photo Reflection Sensor 15 44D5909 Harness Exit Shift Sensor 16 NP Exit Sensor Bracket 17 NP Upper Cover Stay 18 44D6725 Link Exit Roller Driven 19 54P1196 Snap Ring 20 44D6726 Compression Spring 21 NP Exit Guide Bracket 22 57P3474 Antistatic Brush 23 44D5999 Guide Plate Shaft 24 57P3605 Discharge Brush: L=320:Mm3 25 44D6551 Driven Roller Holder 26 44D6000 Exit Guide Plate 27 28 57P3603 Exit Mylar 29 44D6425 Exit Roller Shaft 30 39U5904 Bushing 6mm 101 57P3988 Tapping Screw 3x6 102 39U6641 Tapping Screw M3x6 103 10R3732 Screw: M3x14 104 57P3982 Tapping Screw M4x8 105 57P3925 Retaining Ring M4 106 54P1192 Retaining Ring M4 107 10R0161 Edge Saddle Les0510 108 10R0152 Clamp LBWS0206SV0 109 10R0160 Harness Clamp | |
135 1 57P3658 Gear 36Z/18Z 2 57P3476 DC Motor: 24V: 9.9W 3 54P1285 Compression Spring 10n 4 57P3661 Gear 30Z 5 57P3666 Gear 18Z 6 75P2243 Worm Gear 7 44D5982 Bracket Upper Lower 8 44D5983 Timing Belt 40S2M142 9 10 11 12 57P3616 Bushing 10x14x5.9 13 57P3617 Spacer 10x14x13.5mm 14 44D6501 Tray Drive Shaft 15 16 17 44D6714 Tighter Bracket 18 19 44D6009 Timing Belt 60S3M216 20 NP Stepper Motor Bracket 21 44D5891 Stepper Motor DC1.56V 3.7W 22 57P3420 Photo Interrupter-Lower Limit (FinA-S24S25S26- Stapler Sensors) Fully refurbished with 90-day warranty 57P3420 23 NP Paper Volume Sensor Bracket 101 39U6641 Tapping Screw M3x6 102 39U5958 Phillips Pan Head Screw M3x5 103 57P3926 Retaining Ring M6 104 54P1133 Washer 8.1mm 105 57P4031 Hexagon Headless Set Screw M4x4 106 57P3149 Ball Bearing 6x12x4 mm 107 54P1161 Parallel Pin 4x20 108 57P3995 Tapping Screw 4x6 109 10R0152 Clamp LBWS0206SV0 | |
136 1 44D6011 Timing Pulley 26T/17T 2 44D6010 Timing Belt 60S3M171 3 57P3440 Ball Bearing 6x13x5 4 NP Bracket: Sensor: Paper 5 6 44D5908 Harness Paper Exit Sensor 7 44D6443 Lever Stay 8 57P3665 Middle Exit Roller 9 10 11 44D6025 Actuator Bracket 12 44D6710 Lever: Sensor: Upper 13 NP Guide Plate: Exit: Lower 14 10R1071 Spring Plate: Shift: Exit 15 NP Shift Tray Holder 16 17 44D6752 Roller 18 44D6751 Shift Tray Base 19 44D6753 Side Plate: Shift Tray: Front: Unit 20 44D6754 Guide: Shift Tray: Upper Lower 21 44D6755 Side Plate: Shift Tray: Rear: Unit 22 54P1138 Spacer M6 23 24 44D6582 Shift Tray Guide Holder 25 101 39U6641 Tapping Screw M3x6 102 57P3988 Tapping Screw 3x6 103 39U6275 Tapping Screw: 4x6 104 57P3925 Retaining Ring M4 105 57P3926 Retaining Ring M6 106 54P1157 Parallel Pin 3x12 107 44D6523 Ball Bearing 6x15x5 108 39U5957 Screw: M3x4 | |
137 1 NP Cover Exit Roller 2 NP Spacer: Gathering Roller: Shift Tray 3 44D5905 Harness Shift Sensor 4 5 NP Shift Sensor Bracket 6 44D5890 Stepper Motor DC3.84V 9.2W 7 44D5906 Harness Motor 8 44D5981 Shift Bracket 9 44D5978 Timing Belt 60S3M342 10 44D5980 Timing Pulley 43T 11 44D5979 Shift Shaft 12 44D5977 Stay 13 57P3957 Screw: Pin: Positioning 14 57P3474 Antistatic Brush 15 NP Cover End Fence 16 NP End Fence 101 57P3995 Tapping Screw 4x6 102 57P4009 Binding Self Tapping Screw: 4x6 103 57P3988 Tapping Screw 3x6 104 57P3925 Retaining Ring M4 105 57P3924 Retaining Ring M3 106 44D6523 Ball Bearing 6x15x5 107 54P1178 Harness Clamp ES0505 108 10R0160 Harness Clamp 109 10R0152 Clamp LBWS0206SV0 110 54P1172 Harness Clamp | |
138 1 NP Bracket: Sensor: Paper Senser 2 3 NP Stepper Motor Bracket 4 44D5884 Stepper Motor DC3.1V 7.4W 5 6 NP Stay 7 8 44D6423 Bracket: Micro Switch 9 10 44D5903 Harness Tray Switch 11 44D6583 Guide: Feeler: Paper Sensor 12 13 44D6424 Bracket: Feeler: Paper Sensor 14 44D6760 Lever Cam 15 44D6388 Timing Belt: B40s2m158 16 10R1061 Spacer 17 44D5973 Stepper Motor Bracket 18 NP Bracket: Home Position Sensor 19 44D6038 Stepper Motor: Mm42: S2m: T15: Ass-y 20 10R1072 Torsion Spring: Plate: Lever: Back 21 22 44D5976 Timing Belt 40S2M100 23 24 44D5975 Timing Belt 40S2M84 25 26 27 28 10R1073 Torsion Spring: Plate: Lever: Front 29 30 31 44D6759 Gathering Roller Shaft 32 44D5974 Coupling Lever Bracket 101 39U6641 Tapping Screw M3x6 102 57P3988 Tapping Screw 3x6 103 57P4054 Screw M3X4 104 10R0152 Clamp LBWS0206SV0 105 54P1192 Retaining Ring M4 106 57P3209 Ball Bearing 6x10x3 107 57P3925 Retaining Ring M4 108 54P1172 Harness Clamp 109 10R0831 Edge Saddle Eds06071 110 10R1096 Switch DE2LBJ23 | |
139 1 44D5884 Stepper Motor DC3.1V 7.4W 2 NP Stepper Motor Bracket 3 4 44D5971 Gear 35Z 5 39U5904 Bushing 6mm 6 44D5897 Harness Sensor 7 44D5896 Harness Motor Control 8 9 10 44D5885 Stepper Motor DC3.3V 3.9W 11 NP Frame Jogger Uniform 12 44D6768 Tensioner Bracket 13 44D6769 Tension Spring 14 10R1061 Spacer 15 16 44D6030 Timing Belt: B40s2m390 17 18 44D5969 Timing Belt 40S2M848 19 44D5972 Slide Shaft 20 44D6761 Jogger Fence Holder Front 21 44D6762 Jogger Fence Holder Rear 22 44D6767 Jogger Fence: Exit: Guide: Inner Back 23 44D6431 Bushing 6mm 24 44D6763 Lever Jogger Fence 25 44D6765 Jogger Fence Inner Back 26 44D6764 Jogger Fence Front 27 44D6766 Jogger Fence: Exit: Guide: Front 28 44D5968 Cover Uniform Unit 29 44D5970 Shaft Jogger Fence Moveable 101 57P3988 Tapping Screw 3x6 102 39U5957 Screw: M3x4 103 57P3990 Tapping Screw M3x8 104 57P3925 Retaining Ring M4 105 10R0153 Clamp 106 10R0152 Clamp LBWS0206SV0 | |
140 1 44D5891 Stepper Motor DC1.56V 3.7W 2 NP Stepper Motor Bracket 3 44D6009 Timing Belt 60S3M216 4 54P1283 Tension Spring:4.9n 5 44D6711 Tightener Bracket 6 44D6020 Screw 7 8 44D6014 Timing Belt 60S3M306 9 44D6013 Timing Belt 60S3M852 10 NP Brushless Motor Bracket 11 12 44D6456 Brushless Motor: 7W: Dia56 13 NP Motor Bracket 14 44D6706 Stepper Motor: Dia42: Z17: Ass-y 15 16 57P3483 Idler Roller 17 18 44D6015 Timing Pulley 29T20T 19 57P3475 Timing Pulley 20Z 20 10R1061 Spacer 21 44D6009 Timing Belt 60S3M216 101 39U6641 Tapping Screw M3x6 102 57P3995 Tapping Screw 4x6 103 57P3993 Tapping Screw: 3x14 104 57P4007 Tapping Screw M3x6 105 57P3925 Retaining Ring M4 106 57P3926 Retaining Ring M6 107 54P1172 Harness Clamp 108 57P4030 Hexagon Headless Set Screw M3x3 109 44D6513 Clamp: Fcr30 | |
141 1 44D5883 Stepper Motor DC2.52V 4.5W 2 NP Stepper Motor Bracket 3 44D6002 Timing Belt 60S3M162 4 44D6706 Stepper Motor: Dia42: Z17: Ass-y 5 6 NP Motor Bracket 7 44D5984 Cam 8 54P1283 Tension Spring: 4.9n 9 44D6747 Roller 10 44D6020 Screw 11 44D6711 Tightener Bracket 12 13 14 10R1061 Spacer 15 16 17 44D6727 Timing Belt Guide FIX 18 44D6007 Gear/pulley 30Z/20T 19 44D6728 Timing Belt Guide Moveable 20 44D6015 Timing Pulley 29T20T 21 22 44D6103 Timing Belt: B60s3m954 23 44D6729 Tightener Bracket Middle 24 44D6008 Timing Pulley 20T/20T 25 44D6003 Timing Belt 60S3M237 101 39U6641 Tapping Screw M3x6 102 57P4007 Tapping Screw M3x6 103 54P1192 Retaining Ring M4 104 57P3925 Retaining Ring M4 105 57P3926 Retaining Ring M6 106 10R0152 Clamp LBWS0206SV0 107 54P1172 Harness Clamp 108 44D6515 Harness Clamp LWS0306ZC | |
142 1 NP Sensor Bracket 2 3 44D6439 Bracket Rear Upper Stay 4 NP Stay Rear Upper 5 44D6706 Stepper Motor: Dia Z17: Ass-y 6 NP Motor Bracket 7 44D5891 Stepper Motor DC1.56V 3.7W 8 44D6012 Timing Belt 60S3M537 9 10 57P3483 Idler Roller 11 57P3501 Timing Pulley 20Z 12 44D6711 Tightener Bracket 13 54P1283 Tension Spring: 4.9n 14 NP Harness Bracket 15 44D6020 Screw 101 39U6641 Tapping Screw M3x6 102 57P4007 Tapping Screw M3x6 103 39U6639 Tapping Screw: 4x8 104 57P3926 Retaining Ring M6 105 57P3925 Retaining Ring M4 106 44D6515 Harness Clamp LWS0306ZC 107 54P1172 Harness Clamp | |
143 1 44D5918 Harness Sensor Main Upper 2 44D5921 Harness Motor 3 44D5916 Harness Motor Main Upper 4 44D6796 PCS Main Control 5 NP PCB Bracket 6 NP Harness Bracket Upper 7 NP Guard: Tray Bracket Upper Lower 8 NP Harness Motor Drawer 9 NP Harness Sensor Drawer 10 44D6161 Screw: Connector 11 44D5914 Harness Sensor Main Shift 12 13 NP Harness Motor Stapler Section 14 44D5926 Harness Shift Tray 15 NP Harness: Motor: Stapler Unit: DC35V 16 44D5919 Harness Stapler Sensor 17 44D5925 Harness Sensor 18 44D5920 Harness Sensor 19 44D5924 Harness Duplex Stack Sensor 20 44D5923 Harness Motor 21 44D5917 Harness Sensor Staple Exchange 101 39U6641 Tapping Screw M3x6 102 10R0152 Clamp LBWS0206SV0 103 54P1172 Harness Clamp 104 10R0161 Edge Saddle Les0510 105 44D6541 PCB Stud 106 57P3988 Tapping Screw 3x6 |
