IBM Infoprint 39V0944 2000 Sheet Dual Input Parts
7-1 2 3 4 40X0703 Tray support roll (4) 5 6 (this comes assembled) - TTM media tray 4 assembly - Label (2) 7 8 40X0962 TTM media tray 3 assembly (this comes assembled) Fully refurbished with 90-day warranty 40X0962 - TTM media tray 3 assembly - Label 9 | |

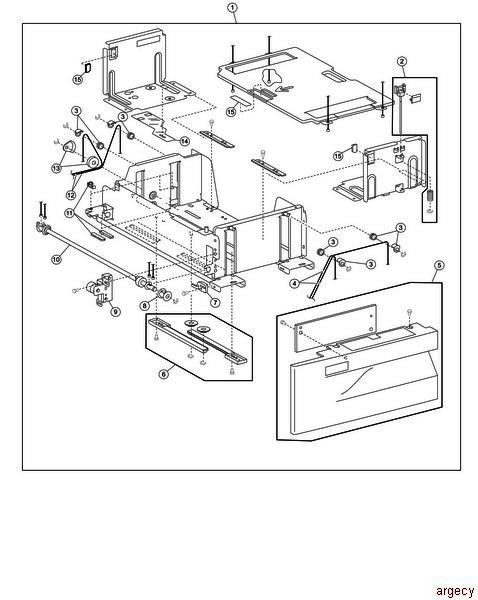

8-1 40X0962 TTM media tray 3 assembly (this comes assembled) Fully refurbished with 90-day warranty 40X0962 includes: - TTM media tray 3 assembly - Label (2) 2 includes: - Tray 3 media guide lock button - Tray 3 media guide lock shaft - Spring 3 includes: - TTM tray lift pulley (4) - Pulley guide (4) 4 5 includes: - Tray 3 front cover - Tray 3 tray handle 6 includes: - Media guide rack gear (2) - Media guide pinion gear (2) 7 40X0714 TTM tray catch 8 40X0706 Lift cable pulley 9 10 11 includes: - Tray 3 slide strip (2) - Tray 3 slide button (2) 12 40X0709 Tray 3 rear cable (2) 13 includes: - Large idler pulley - Large idler guide 14 15 includes: - Tray separation pad - Tray brush (2) | |

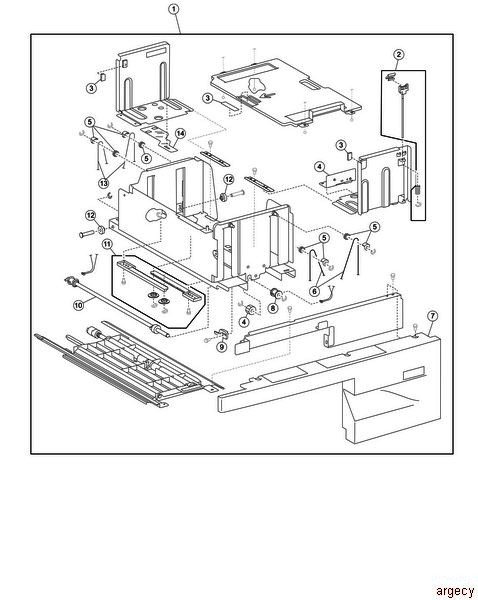

9-1 (this comes assembled) - TTM media tray 4 assembly - Label 2 includes: - Tray 4 media guide lock button - Tray 4 media guide lock shaft - Spring 3 includes: - Tray separation pad - Tray brush (2) 4 includes: - Tray 4 brake assembly - Tray 4 brake gear 18T 5 includes: - TTM tray lift pulley (4) - Pulley guide (4) 6 40X0720 Tray 4 front cable (2) 7 8 40X0706 Lift cable pulley 9 40X0714 TTM tray catch 10 11 includes: - Media guide rack gear (2) - Media guide pinion gear (2) 12 40X0723 Tray 4 rear support roll (2) 13 40X0719 Tray 4 rear cable (2) 14 | |

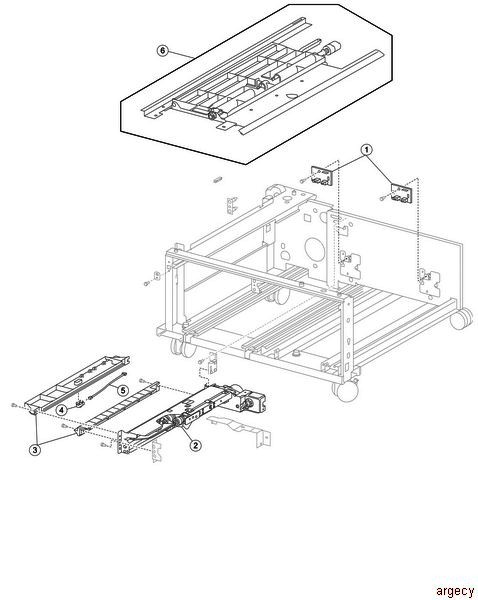

10-1 2 3 includes: - Tray 4 upper media guide - Tray 4 lower media guide 4 40X0727 Sensor (tray 4 feed-out) 5 6 | |

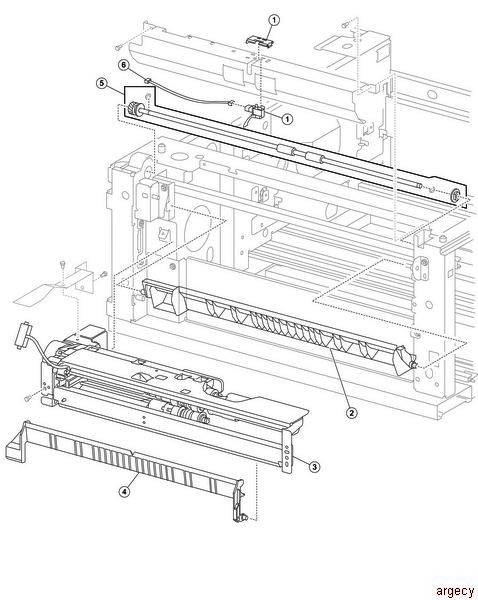

11-1 includes: - Sensor (tray 3 feed-out) - Sensor protector 2 3 4 5 includes: - 2TM/TTM media transport roll assembly - Bushing 8 mm 6 includes: - Tray 3 feed-out sensor cable - Tray 4 feed-out sensor cable | |

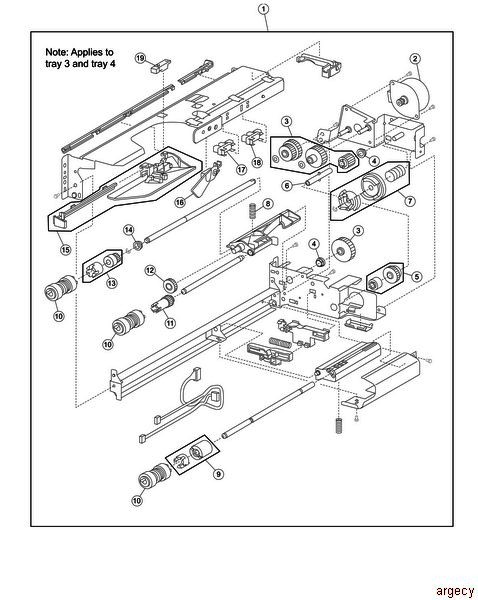

12-1 2 3 includes: - Media feed unit drive gear 13T - Media feed unit drive gear 28/21T - Media feed unit drive gear 29T - Media feed unit drive gear 27T - 2 mm washer (2) 4 5 40X0967 Media tray lift one-way clutch and gear Fully refurbished with 90-day warranty 40X0967 $29.48 includes: - Media tray lift one-way clutch - Media tray lift one-way gear 6 7 includes: - Tray lift coupling - Tray lift coupling gear 31T - Spring 8 9 includes: - Separation roll one-way friction clutch - Separation roll spacer 10 includes: - Feed roll - Pick roll - Separation roll 11 12 13 includes: - Feed roll one-way clutch - Feed roll one-way gear 22T 14 40X0952 6 mm bushing 15 includes: - Media feed unit front guide - Media feed unit front guide rail 16 17 18 19 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 | |

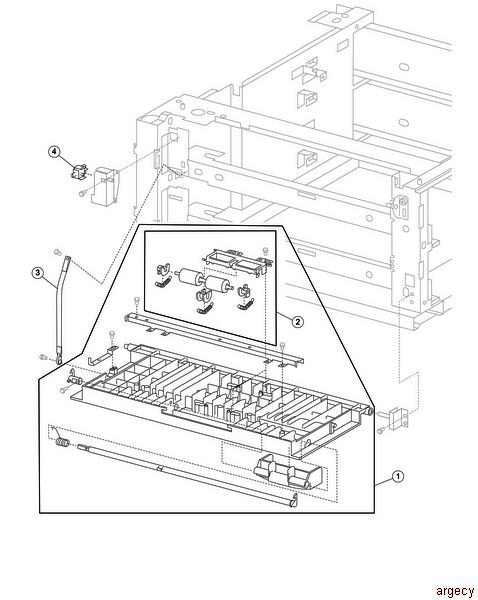

13-1 2 40X0696 Left door pinch roll assembly (assembled) Fully refurbished with 90-day warranty 40X0696 $35.37 3 40X0697 2TM/TTM left door support strap 4 | |

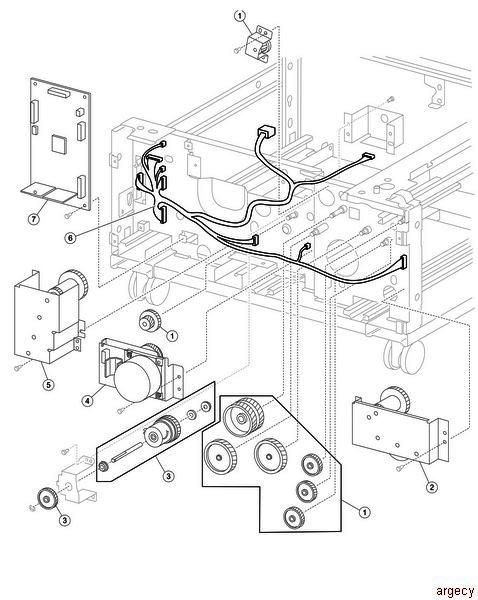

14-1 includes: - TTM drive gear 22/40T - TTM drive gear 37T (2) - TTM drive gear 32T - TTM drive Gear 60T (2) - TTM drive gear 60T - TTM drive gear bracket assembly 2 3 includes: - 2TM/TTM clutch assembly - Shaft - Bushing 8 mm - Clutch gear 38T - Bushing 8 mm - Washer 4 5 6 7 |
