IBM Infoprint 21 4322 Parts

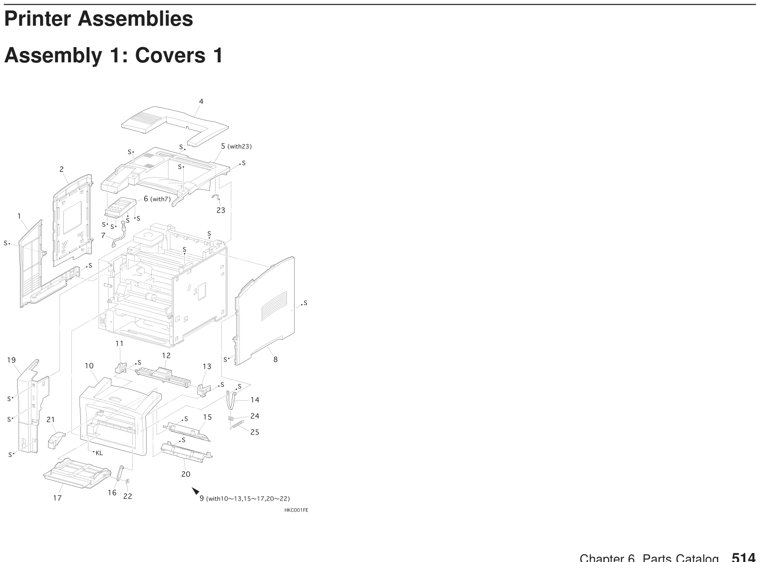

1-01 02N6691 Left Cover -02 -04 -05 (includes 1-23) -06 -07 02N6696 Operator Panel Harness -08 -09 (includes 1-10 to 1-13, 1-15 to 1-17, and 1-20) -10 Front Cover Panel -11 Front Cover Left Latch -12 Front Cover Lever -13 Front Cover Right Latch -14 02N6699 Front Cover Stop -15 Front Cover Env Chute -16 02N6700 Aux Tray Stop -17 02N6701 Aux Tray -19 -20 Aux Tray Paper Guide -21 Env Gear Cover -22 Aux Tray Stop Clip -23 Top Cover Earth Spring -24 Front Cover Stop Spring Joint | |

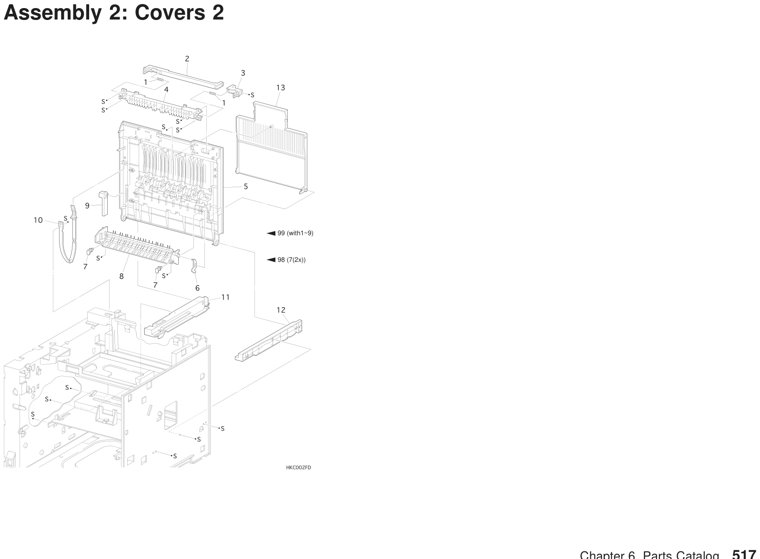

2-01 Rear Cover Latch Spring (same as 3-02) -02 Rear Cover Left Latch (same as 3-03) -03 Rear Cover Right Latch (same as 3-04) -04 Rear Cover Latch Guide (same as 3-05) -05 Rear Cover Plate (same as 3-06) -06 Rear Cover Arm (same as 3-12) -07 Fuser Stop (same as 3-17) -08 Rear Cover Chute -09 Rear Cover Pivot Stop (same as 3-14) -10 02N6704 Rear Cover Stop (same as 3-16) -11 Duplex Left Guide Rail -12 Duplex Right Guide Rail -13 Face-Up Cover -98 Fuser Stop Kit (includes 2 x 2-07) -99 (Without Face-Up Bin) (includes 2-01 to 2-09 and 2-13 ) | |

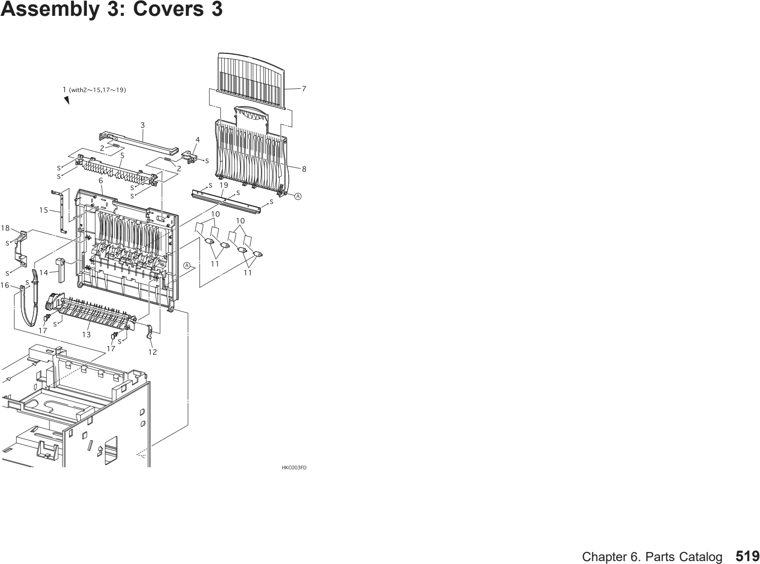

3-01 (With Face-Up Bin) (includes 3-02 to 3-15, 3-17 to 3-19) -02 Rear Cover Latch Spring (same as 2-01) -03 Rear Cover Left Latch (same as 2-02) -04 Rear Cover Right Latch (same as 2-03) -05 Rear Cover Latch Guide (same as 2-04) -06 Rear Cover Plate (same as 2-05) -07 Face Up Bin Extension -08 Face Up Bin -10 Pinch Roller Spring (same as 10-14) -11 Pinch Roller (same as 10-12) -12 Face Up Direction Lever (same as 2-06) -13 -14 Rear Cover Pivot Stop (same as 2-09) -15 Ground Spring -16 02N6704 Rear Cover Stop (same as 2-10) -17 Fuser Stop (same as 2-07) -18 Rear Cover Chute Cover -19 Face-Up Bin Static Eliminator | |

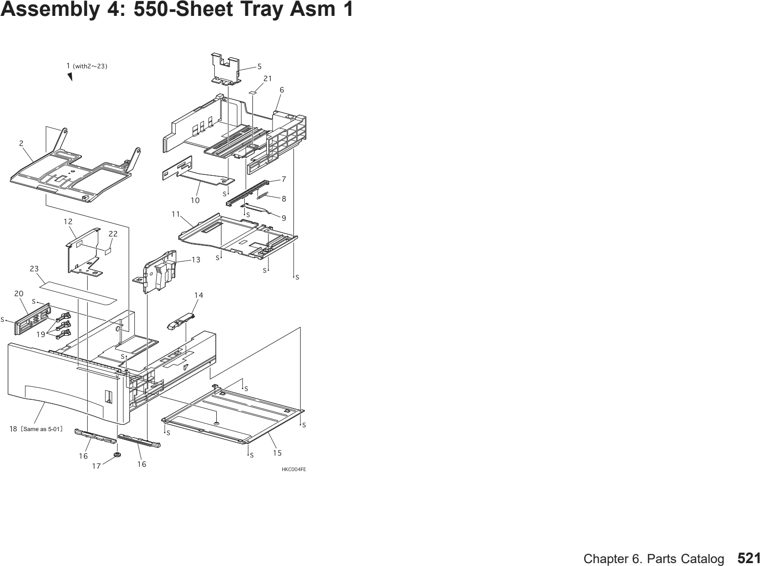

4-01 (includes 4-02 to 4-23) -02 Tray Paper Support Plate -05 Tray Paper Length Stop -06 Tray Housing Extension -07 Tray Paper Length Position -08 Tray Paper Length Spring -09 Tray Latch Spring -10 Tray Paper Length Plate -11 Tray Base Extension -12 Tray Left Paper Width Plate -13 Tray Right Paper Width Plate -14 Tray Link -15 Tray Base Plate -16 Tray Paper Width Rack -17 Tray Paper Width Pinion -18 Tray Sub Asm (same as 5-01) -19 Tray Paper Length Actuator -20 Tray Paper Length Actuator Cover -21 Tray Button Label -22 Tray Indicator Label -23 Tray Base Plate Label | |

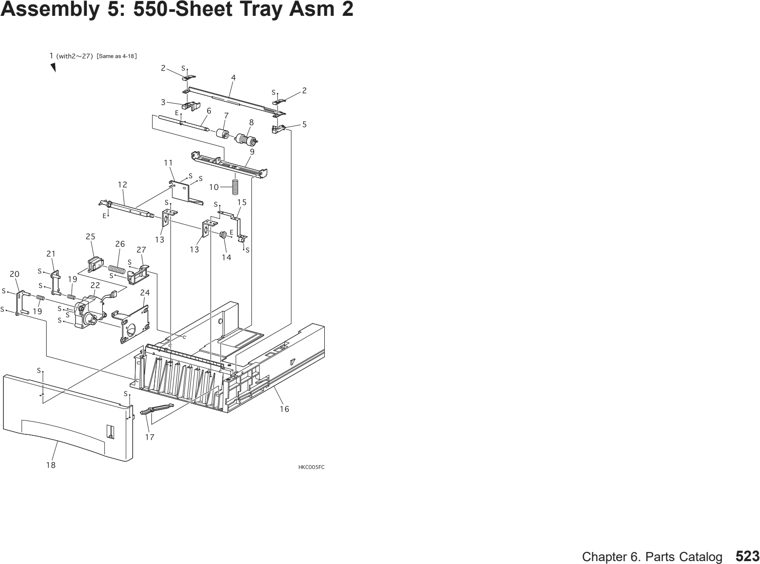

5-01 Tray Sub Asm (same as 4-18) (includes 5-02 to 5-27) -02 Tray Retard Chute Latch Cover -03 Tray Retard Chute Left Latch -04 Tray Retard Chute -05 Tray Retard Chute Right Latch -06 Tray Retard Shaft -07 -08 Tray Retard Roll -09 Tray Retard Bracket -10 02N6711 Tray Retard Spring -11 Tray Lift Plate -12 Tray Lift Shaft -13 Tray Lift Shaft Support -14 Bearing -15 Tray Lift Shaft Ground Spring -16 Tray Housing -17 Tray Paper Empty Display Lever -18 Tray Front Cover -19 Tray Motor Spring -20 Tray Right Motor Bracket -21 Tray Left Motor Bracket -22 02N6712 Tray Lift Motor -24 Tray Lift Motor Support -25 02N6713 Tray Connector -26 Tray Connector Spring -27 Tray Connector Guide | |

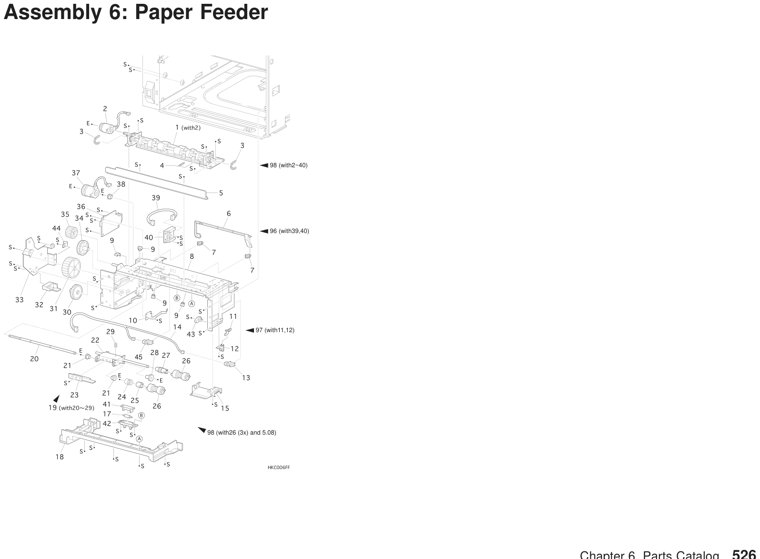

6-01 -02 Feed Roll Clutch -03 Feed Roll Spring -04 02N6715 Feed Roll Chute Spring -05 Feed Roll Chute Cover -06 -07 No Paper Actuator Support -08 Feed Frame -09 Feed Clamp -10 Feed Latch Spring -11 Low Paper Actuator -12 Low Paper Actuator Support -13 -14 02N6718 Harness (J66 - J661, J662) -15 Feed Position Plate -17 Feed Chute Pinch Roll -18 Feed Cover -19 02N6719 Pick Roll Asm (includes 6-20 to 6-29) -20 Pick Roll Shaft -21 Bearing -22 Pick Roll Support -23 Pick Roll Clutch -24 Pick Roll Clutch Support -25 Pick Roll Clutch Interlock -26 Pick Roll -27 Pick Gear 25T -28 Pick Gear 31T -29 Pick Roll Support Spring -30 Feed Gear 4 -31 Feed Gear 2 -32 Feed Gear Cover -33 Feed Bracket -34 Feed Gear 3 -35 Feed Gear 1 -36 02N6720 Feed PCB -37 02N6721 Pick Clutch - Electric -38 Bearing -39 Harness (J67 - J671) -40 Pick Tray Connector -41 Feed Chute Pinch Roll Support -42 Feed Chute Pinch Roll Turn -43 Feed Chute Tray Stop -44 Feed Bracket Clamp -45 -96 02N7015 Connector And Harness Kit (includes 6-39, 6-40) -97 02N7964 Actuator And Support Kit (includes 6-11, 6-12) -98 02N6724 Feed Asm (includes 6-01 to 6-45) -99 02N6725 Pick And Retard Roll Kit (includes 5-08, 2 x 6-26) | |

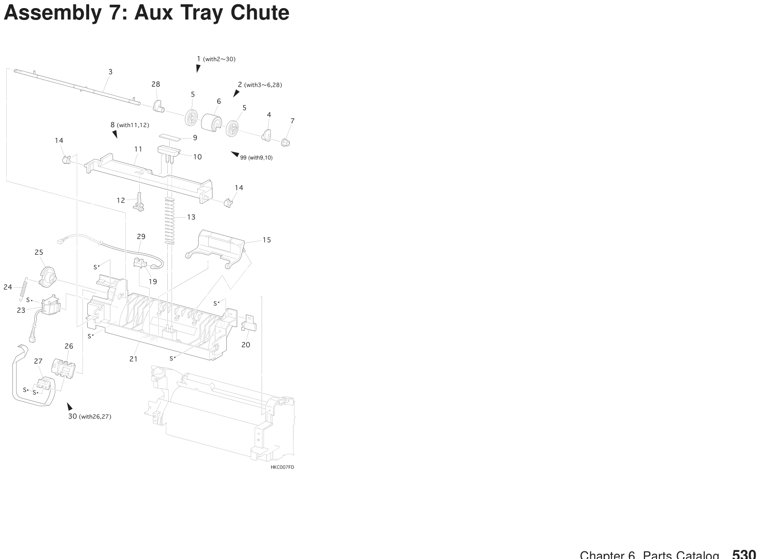

7-01 (includes 7-02 to 7-31) -02 Aux Pick Roll Asm (includes 7-03 to 7-06, 7-28) -03 Aux Pick Roll Shaft 04 Aux Pick Roll Right Cam 05 Aux Pick Roll Core 06 02N6727 Aux Pick Roll 07 Bearing 08 Aux Tray Bottom Asm (includes 7-11, 7-12) 11 Aux Tray Bottom 12 02N6728 (not stocked) Aux No Paper Actuator 13 Aux Tray Bottom Spring 14 Clip Bearing 15 02N6729 Aux Retard Pad Asm 19 20 Aux Tray Ground Plate 21 Aux Tray Frame 23 02N6731 Aux Pick Up Solenoid 24 02N6732 Aux Pick Up Gear Spring 25 02N6733 Aux Pick Up Gear 26 Env Connector Plate 27 02N6734 Env Connector - Female 28 Aux Pick Roll Left Cam 29 02N6735 Harness (J45 - J451) 30 Env Connector Asm (includes 7-26, 7-27) 99 02N6736 Aux Pick Up Pad Asm (includes 7-09, 7-10) | |

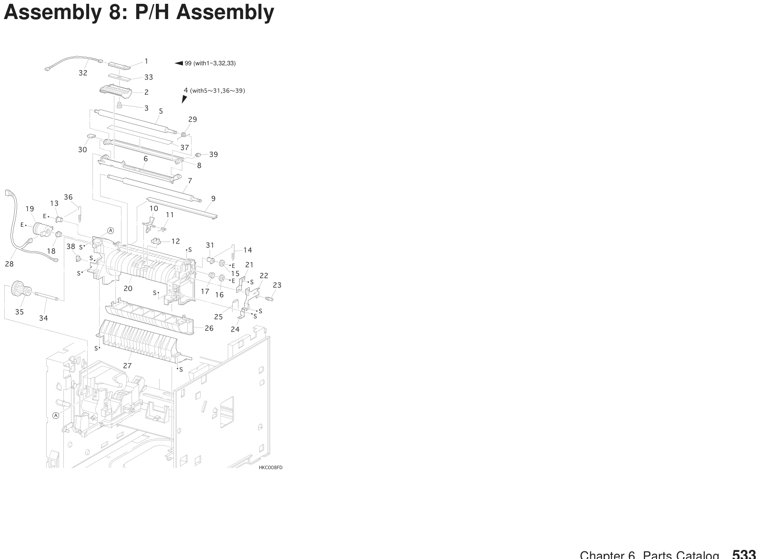

8-01 Toner Sensor 02 Toner Sensor Bracket 03 Toner Sensor Spring 04 (includes 8-02, 8-05 to 8-31, 8-36 to 8-39) 05 Metal Registration Roll 06 Front Registration Chute 07 02N6738 Rubber Registration Roll 08 Rear Registration Chute 09 Upper Registration Chute Bottom Ground Spring 10 02N6739 Registration Actuator 11 02N6740 Registration Actuator Spring 12 13 Left Metal Roll Bearing 14 02N6742 Right Registration Roll Spring 15 02N6743 Metal Registration Roll Gear 16 02N6744 Rubber Registration Roll Gear 17 Right Rubber Roll Bearing 18 Left Rubber Roll Bearing 19 02N6745 Registration Clutch - Electric 20 Upper Registration Chute 21 Upper Registration Chute Right Ground Spring 22 Upper Registration Chute Center Ground Spring 23 Grounding Screw 24 Upper Registration Chute Left Ground Spring 25 Upper Registration Chute Grounding Resistor 26 Center Registration Chute 27 Lower Registration Chute 28 02N6746 Harness (J43 - J432, J433) 29 Chute Torsion Spring 30 Rear Registration Chute Handle 31 Right Metal Roll Bearing 32 Harness (J42 - J421) 33 Toner Sensor Cushion 34 02N6748 Aux Drive Gear Shaft 35 02N6749 Aux Drive Gear 36 02N8366 Left Registration Roll Spring 37 Inlet Label 38 Upper Registration Chute Clamp 39 Rear Registration Chute Cap 99 02N6750 Toner Sensor Asm (includes 8-01 to 8-03, 8-32, 8-33) | |

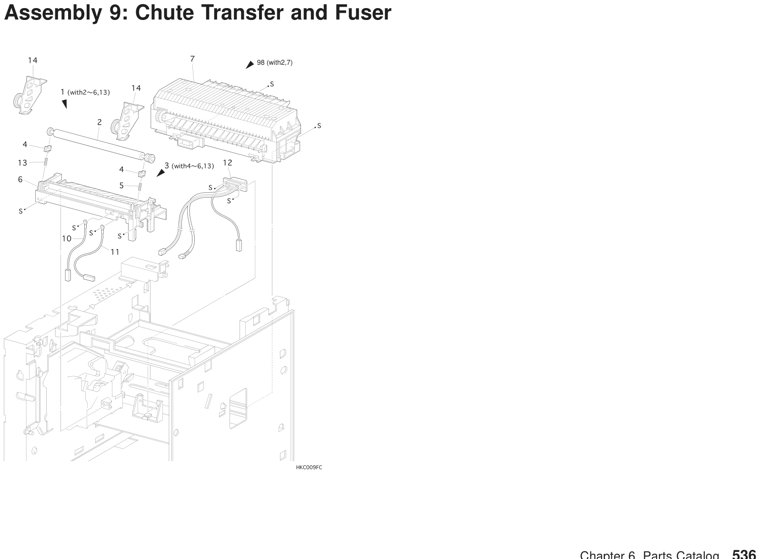

9-01 BTR Asm (includes 9-02 to 9-26, 9-13) 02 03 02N6752 BTR Support Asm (includes 9-04 to 9-06, 9-13) 04 BTR Support Bearing 05 BTR Support Right Bearing Spring 06 BTR Support Base 07 07 02N8579 Fuser Asm 230 v (Customer Replaceable Unit) 10 Dts Wire 11 Tr Wire 12 13 BTR Support Left Bearing Spring 14 BTR Lift 98 Usage Kit 120V (includes 9-02, 9-07, 3 x 6-26) Usage Kit 230V (includes 9-02, 9-07, 3 x 6-26) | |

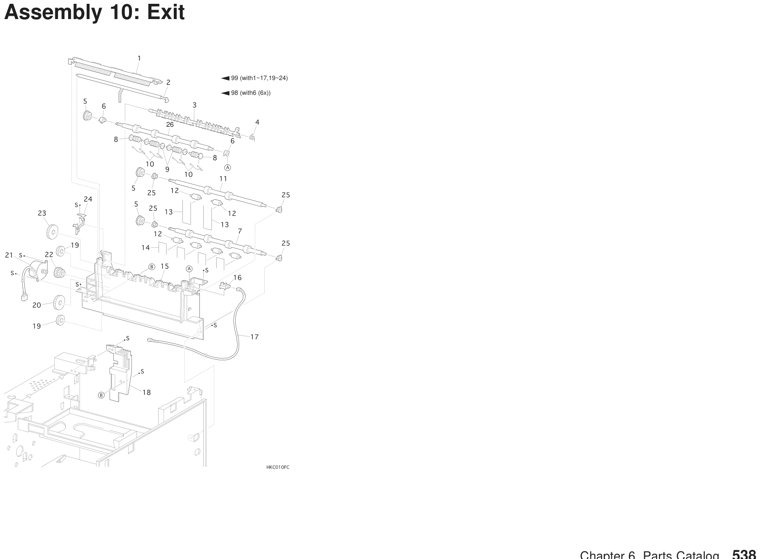

10-01 02N6755 Exit Static Eliminator 02 02N6756 Full Stack Actuator 03 Offset Exit Gate 04 Offset Exit Gate Spring 05 Exit Gear - 17 06 Bearing 07 02N6758 Exit Roll 1 08 Outside Exit Pinch Roll 09 Inside Exit Pinch Roll 10 Top Exit Pinch Roll Spring 11 02N6759 Exit Roll 2 12 Small Exit Pinch Roll (same as 3-11) 13 Middle Exit Pinch Roll Spring 14 Lower Exit Pinch Roll Spring (same as 3-10) 15 Exit Chute 16 02N6717 Full Stack Photo Sensor (same as 6-13) 17 18 Rear Interlock Switch Cover 19 Exit Gear - 23 20 Exit Gear - 33 21 22 Exit Gear - 17/47 23 Exit Gear - 32 24 Exit Chute Ground Spring 25 Bearing 26 02N6758 Exit Roll 1 (same as 10-07) 98 02N7032 Bearing Kit (includes 6 x 10-06) 99 (includes 10-01 to 10-17, 10-19 to 10-24) | |

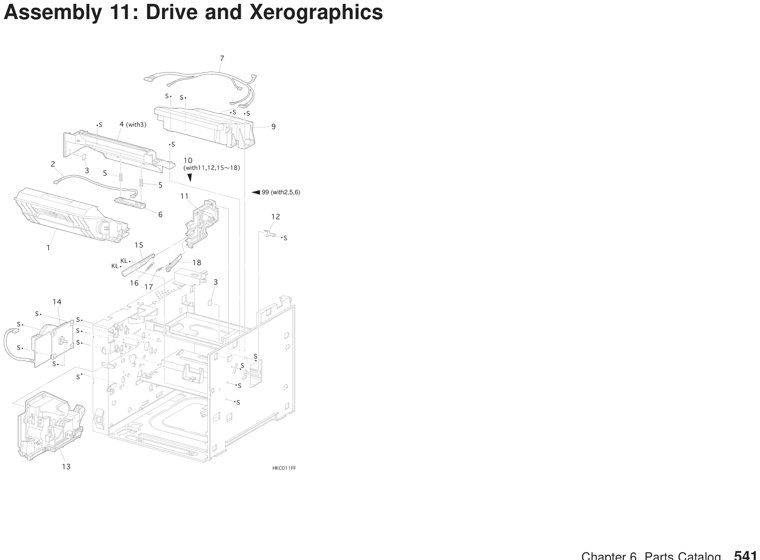

11-01 Toner Cartridge (customer replaceable unit - supply) 02 Harness (J25 - J251) 03 Toner Cartridge Top Guide Label 04 02N6764 Toner Cartridge Top Guide 05 Toner Cartridge Key Sensor Spring 06 Toner Cartridge Key Sensor 07 09 10 Toner Cartridge Right Guide Asm (includes 11-11, 11-12) 11 Toner Cartridge Right Guide 12 Toner Cartridge Right Guide Clip 13 14 15 Toner Cartridge Right Guide Arm A 16 Toner Cartridge Right Guide Spring A 17 Toner Cartridge Right Guide Arm B 18 Toner Cartridge Right Guide Spring B 99 02N6770 Toner Cartridge Key Sensor (includes 11-02, 11-05, 11-06) | |

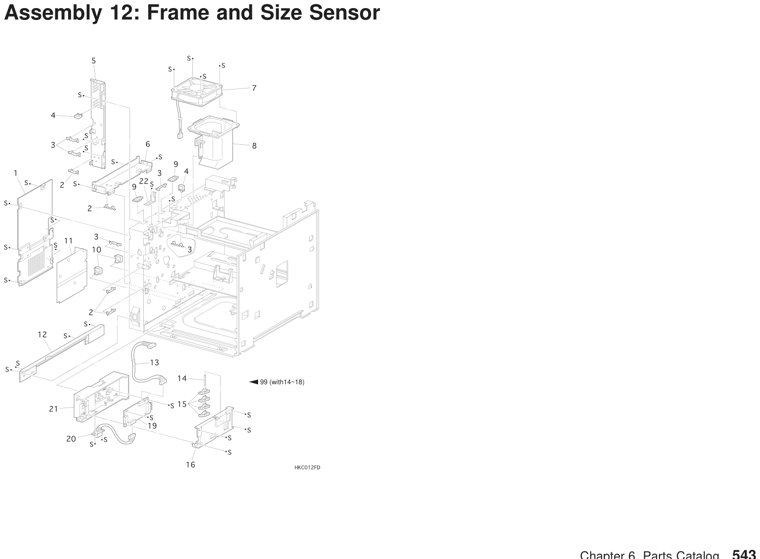

12-01 PCB Cover Plate 02 Harness Clamp 03 Top Harness Clamp 04 Square Harness Clamp 05 Controller Front Frame 06 Controller Lower Frame 07 02N6771 Fan Motor 08 Fan Duct 09 Protective Harness Clamp 10 Ac Harness Clamp 11 MCU PCB Back Insulator 12 Left Handle Plate 13 14 Paper Size Cam (same as 14-10) 15 Paper Size Cam Switch (same as 14-11) 16 Paper Size Front Cover (same as 14-12) 19 02N6773 Paper Size PCB 20 02N6774 (not stocked) Harness (J51 - J511) 21 Paper Size Housing (same as 14-06) 22 Earth Spring 99 02N6775 Paper Size Sensor Asm (includes 12-14 to 12-18) | |

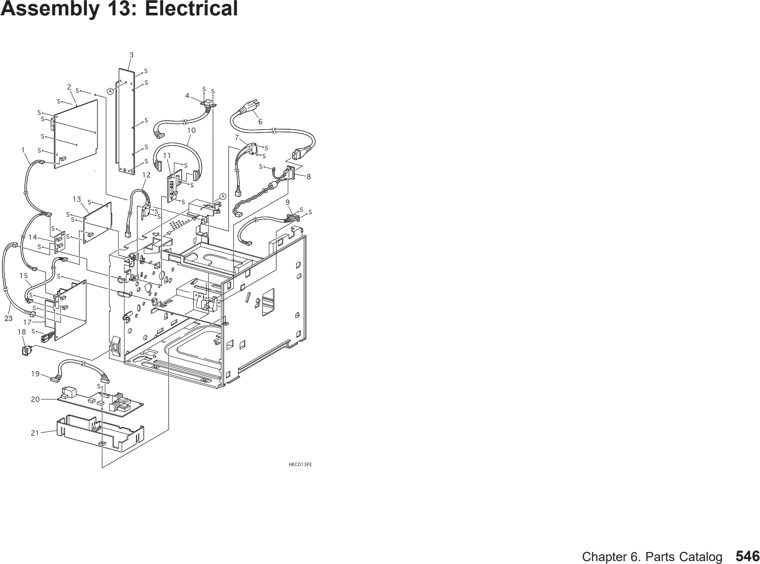

13-01 02N6776 (not stocked) Harness J282-J9, J288-J9 02 03 Controller Back Panel 04 06 Power Cord 07 02N6779 Rear Cover Interlock Switch 08 Harness (AC - J85) 09 02N6780 (not stocked) Harness (J34 - P341) 10 02N6781 (not stocked) Harness (J23 - J231) 11 12 13 14 15 02N6786 Harness (J28 - J281) 17 17 02N7027 LVPS 230V 18 19 02N6788 Harness (J26 - J261) 20 21 HVPS Housing 23 Harness (J1-J101) | |

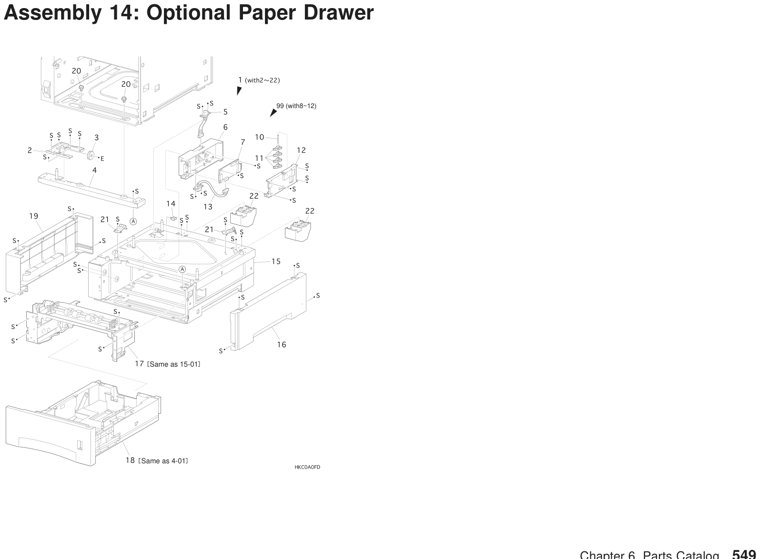

14-01 (includes 14-02 to 14-22) 02 Option Gear Bracket 03 02N6791 Option Top Gear 04 Option Top Front Plate 05 02N6792 (not stocked) Option Harness (J52 - J521) 06 Option Paper Size Sensor Housing (same as 12-21) 07 02N6793 Option Paper Size PCB 10 Option Paper Size Cam (same as 12-14) 11 Option Paper Size Cam Switch (same as 12-15) 12 Option Paper Size Front Cover (same as 12-16) 13 14 Option Clamp 15 Option Frame 16 02N6795 Option Right Cover 17 Option Feed Asm (same as 15-01) 18 550-Sheet Tray Asm (same as 4-01) 19 Option Left Cover 20 02N8375 Option Securing Screw 21 Option Earth Spring 22 Option Tray Stop 23 Option Securing Screw Kit (includes 3 x 14-20) 99 02N7007 Option Paper Size Sensor Asm (includes 14-08 to 14-12) | |

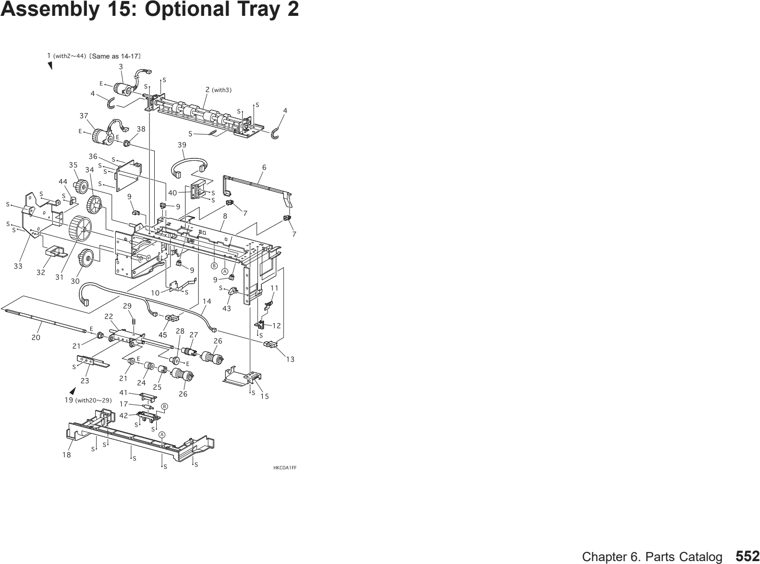

15-01 02N6798 Option Feed Asm (includes 15-02 to 15-44) 02 02N6799 Option Pick Roll Asm (includes 15-03) 03 Option Feed Roll Clutch 04 Option Feed Roll Spring 05 Option Chute Spring 06 07 Option No Paper Actuator Support 08 Option Feed Frame 09 Option Feed Clamp 10 Option Latch Spring 11 Option Low Paper Actuator 12 Option Low Paper Actuator Support 13 14 02N6718 Option Sensor Cable (same as 6-14) 15 Option Feed Position Plate 17 Option Chute Pinch Roll 18 Option Cover 19 02N6719 Option Pick Roll Asm (includes 15-20 to 15-29) 20 Option Pick Roll Shaft 21 Bearing 22 Option Pick Roll Support 23 Option Pick Roll Clutch 24 Option Pick Roll Clutch Support 25 Option Pick Roll Clutch Interlock 26 Option Pick Roll 27 Option Pick Gear 25T 28 Option Pick Gear 31T 29 Option Pick Roll Support Spring 30 Option Gear 4 31 Option Gear 2 32 Option Gear Cover Support 33 Option Gear Cover 34 Option Gear 3 35 Option Gear 1 36 02N6720 Option Feed PCB (same as 6-36) 37 02N6721 Option Pick Clutch - Electric (same as 6-37) 38 Bearing 39 Option Socket Cable (same as 6-39) 40 Option Socket (same as 6-40) 41 Option Chute Pinch Roll Support 42 Option Chute Pinch Roll Turn 43 Option Chute Tray Stop 44 Option Feed Bracket Clamp 45 | |

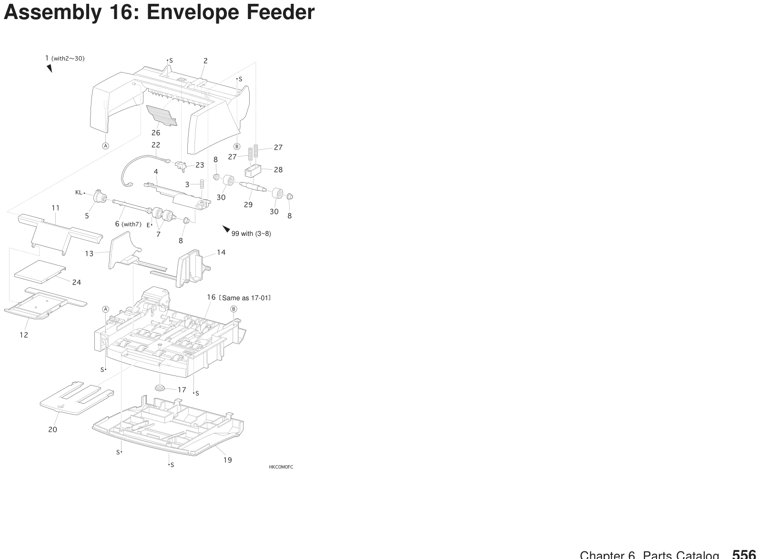

16-01 (includes 16-02 to 16-30) 02 02N6809 Env Top Cover 03 Env Retard Spring 04 Env Retard Support 05 Env Clutch - Torque 29 06 Env Retard Shaft (includes 16-07) 07 Env Retard Roll 08 Bearing 11 Env Arm Weight 12 Env Lower Arm Weight 13 Env Paper Width Left Guide 14 Env Paper Width Right Guide 16 Env Feed Asm (same as 17-01) 17 Env Pinion Gear 19 Env Bottom Cover 20 Env Tray Extension 22 Harness (J412 - J417) 23 02N6812 Env Exit Photo Sensor 24 Env Weight Cover 26 Env Top Cover Chute 27 Env Pinch Spring 28 Env Pinch Cap 29 Env Pinch Shaft 30 Env Pinch Roll 99 02N6813 Env Retard Roll Asm (includes 16-03 to 16-08) | |

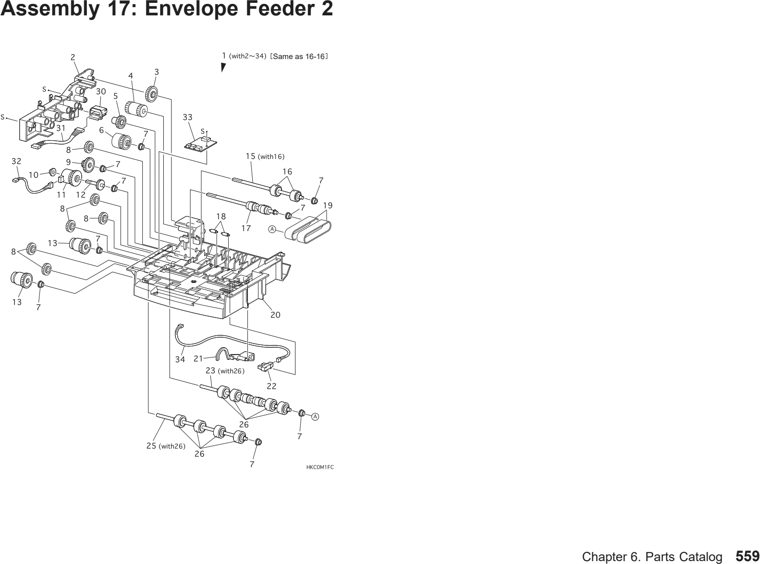

17-01 Env Feed Asm (includes 17-02 to 17-34) 02 Env Gear Cover 03 Env Gear 29 04 Env Drive Gear 21 05 Env Gear 23 06 Env Clutch - Torque 25 07 Bearing 08 Env Idler Gear 09 Env Clutch - One Way 26 10 Bearing 11 Env Clutch - Electric 12 Env Shaft Clutch - Electric 13 02N8578 (not stocked) Env Clutch - One Way 26A 15 Env Roll Shaft (includes 17-16) 16 Env Transfer Roll 17 Env Bottom Roll 18 Env Pinch Roll (same as 16-21) 19 Env Feed Belt 20 Env Frame 21 02N6814 Env No-Paper Actuator 22 02N6815 Env No Paper Photo Sensor (same as 6-13) 23 Env Roll Shaft 2 25 Env Roll Shaft 3 (includes 17-26) 26 Env Lower Roll 30 Env Connector - Male 31 Harness (J411 - J418) 32 Harness (J413 - J416) 33 Env PCB 34 Harness (J414 - J415) | |

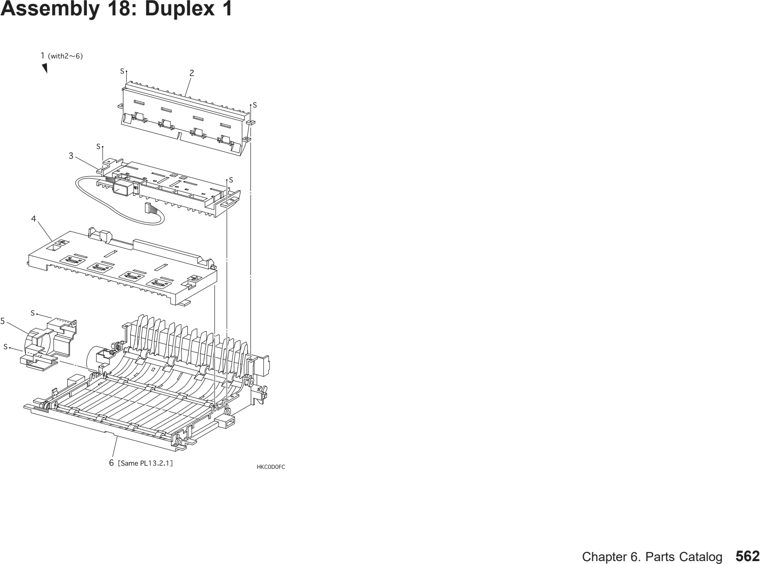

18-01 (includes 18-02 to 18-06) 02 Duplex Upper Guide 03 Duplex Connector Asm 04 02N6817 Duplex Top Cover 05 Duplex Motor Cover 06 Duplex Sub Asm (same as 19-01) | |

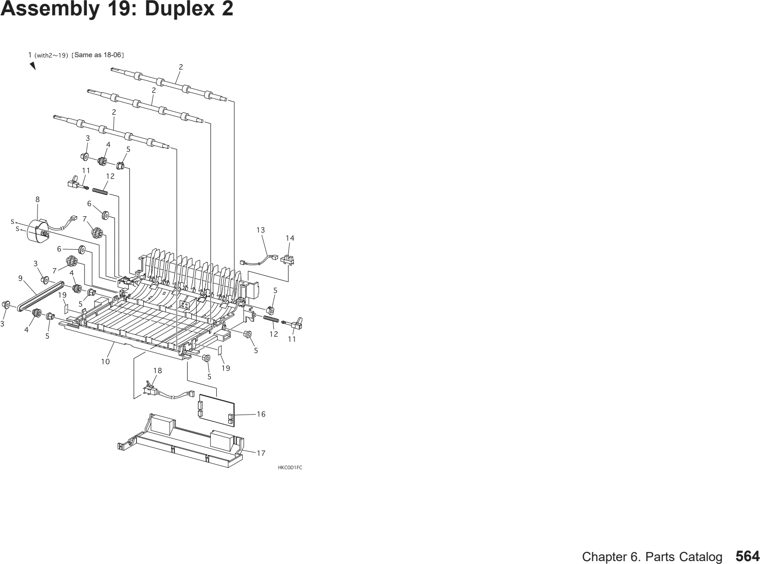

19-01 Duplex Sub Asm (includes 19-02 to 19-19) Note: This part is not stocked. In its place, order 18-01, Duplex Asm, part number 38L1394. 02 02N6818 (not stocked) Duplex Roll 03 02N6819 (not stocked) Duplex Roll Retaining Clip 04 Duplex Gear 17/Pulley 05 Duplex Roll Bearing 06 Duplex Gear 18 07 Duplex Gear 17/39 08 02N6820 (not stocked) Duplex Motor 09 02N6821 (not stocked) Duplex Drive Belt 10 Duplex Frame 11 Duplex Latch 12 Duplex Latch Spring 13 Harness (J360 - J361) 14 16 02N6823 Duplex PCB 17 Duplex Bottom Cover 18 02N6824 (not stocked) Duplex Paper Photo Sensor 19 Duplex Label | |

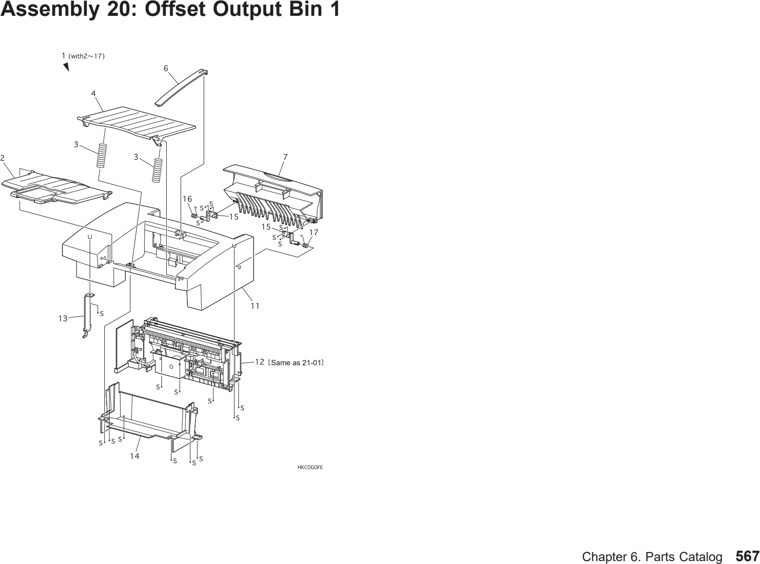

20-01 38L1398 Offset Asm (includes 20-02 to 20-17) 02 02N6826 Offset Exit Asm 03 Offset Tray Spring 04 02N6827 Offset Exit Bin 06 02N6828 Offset Paper Weight 07 02N6829 Offset Rear Cover 11 02N6830 Offset Top Cover 12 Offset Inner Asm (same as 21-01) 13 Offset Top Cover Hook 14 Offset Lower Cover 15 Offset Rear Cover Spring Support 16 Offset Rear Cover Left Spring 17 Offset Rear Cover Right Spring | |

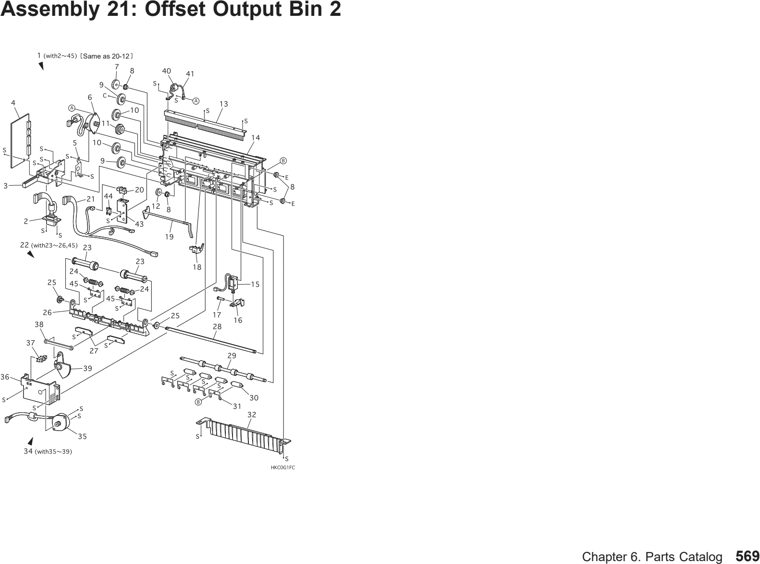

21-01 02N6831 Note: Order 20-01, Offset Asm, part number 38L1398 Offset Inner Asm (includes 21-02 to 21-45) 02 Harness (J21 - P202) 03 Offset PCB Support 04 02N6832 Offset PCB 05 Offset Ground Plate 06 02N6833 Offset Drive Motor 07 Offset Exit Gear 20 08 Bearing 09 Offset Gear 27 10 Offset Gear 26 11 Offset Gear 47W 12 Offset Exit Gear 13 Offset Eliminator 14 Offset Frame 15 02N6834 Offset Direction Solenoid 16 02N6835 Offset Direction Solenoid Lever 17 Offset Direction Solenoid Pin 18 02N6836 Offset Exit Photo Sensor 19 02N6837 Offset Full Stack Actuator 20 21 Harness (J224 - J225, J226, J227, J228) 22 Offset Mech Roll Asm (includes 21-23 to 21-26, 21-45) 23 Offset Exit Roll 24 Offset Exit Pinch Roll 25 Bearing 26 Offset Exit Guide 27 Offset Mechanism Asm Support 28 Offset Mechanism Shaft 29 Offset Roll Shaft 30 Offset Pinch Roll 31 Offset Pinch Roll Spring 32 02N6839 Offset Inner Chute Cover 34 02N6840 Offset Mechanism Asm (includes 21-35 to 21-39) 35 Offset Mechanism Motor 36 Offset Mechanism Motor Cover 37 38 Offset Mechanism Lever 39 Offset Mechanism Gear 40 Offset Ferrite Core 41 Offset Ground Wire 43 Offset Full Stack Sensor Bracket 44 Offset Harness Clamp 45 Offset Exit Guide Spring |
