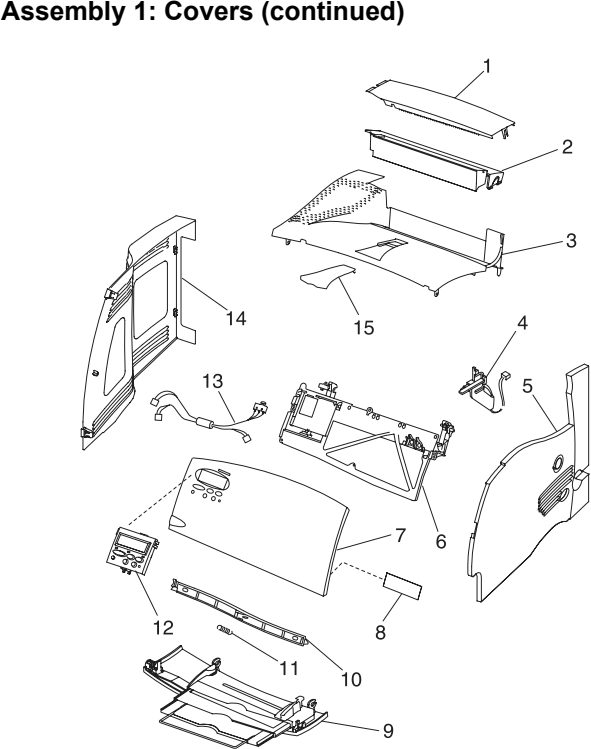

IBM Infoprint 1130 & 1130n (4530) Parts






Please call for parts assistance

1

1
53P8434 Cover Assembly Redrive Cap
Fully refurbished with 90-day warranty
53P8434
$39.00



2
53P8431 Cover Fuser Wick Assembly
Fully refurbished with 90-day warranty
53P8431



3
53P8430 Cover Assembly Laser 500 Output
Fully refurbished with 90-day warranty
53p8430
$25.00



4 53P8663 Contact Asm, Smart Cartridge

5
53P8736 Cover Right Side (1130)
Fully refurbished with 90-day warranty
53p8736

Retired, no longer available: Contact for alternatives



6 53P8631 Hinge Assembly, Upper Front Cover

7
56P9743 Kit, Upper Front Cover with Labels (1130)
Fully refurbished with 90-day warranty
56P9743

Retired, no longer available: Contact for alternatives



8 53P8316 Label, TLI/ID/Serial No. - Blank

9
53P8433 Cover Assembly Lower Front
Fully refurbished with 90-day warranty
53P8433



10
53P8429 Latch Upper Cover
Fully refurbished with 90-day warranty
53P8429



11
53P8201 Spring Latch
Fully refurbished with 90-day warranty
53P8201



12
53P8428 Operator Panel Assembly
Fully refurbished with 90-day warranty
53p8428
$95.00



13 53P8619 Switch, Cover Open w/Operator Panel Cable Assembly

14
53P8432 Cover Left Door
Fully refurbished with 90-day warranty
53P8432
$45.00



15
53P8465 Support Paper
Fully refurbished with 90-day warranty
53P8465

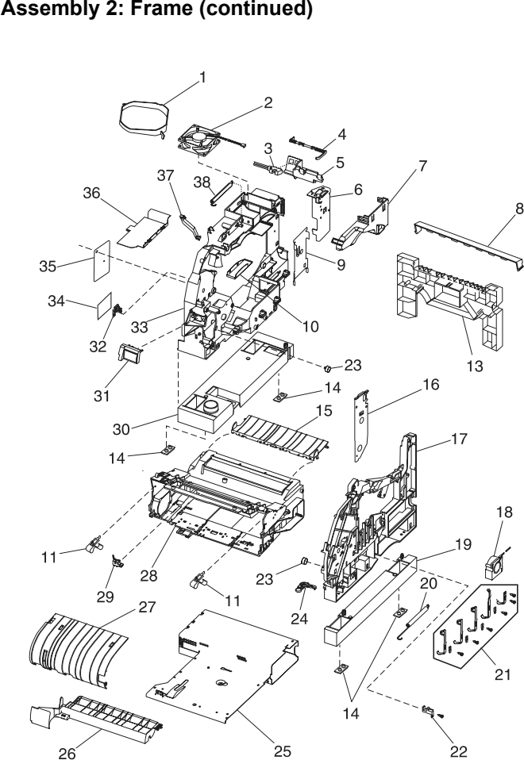

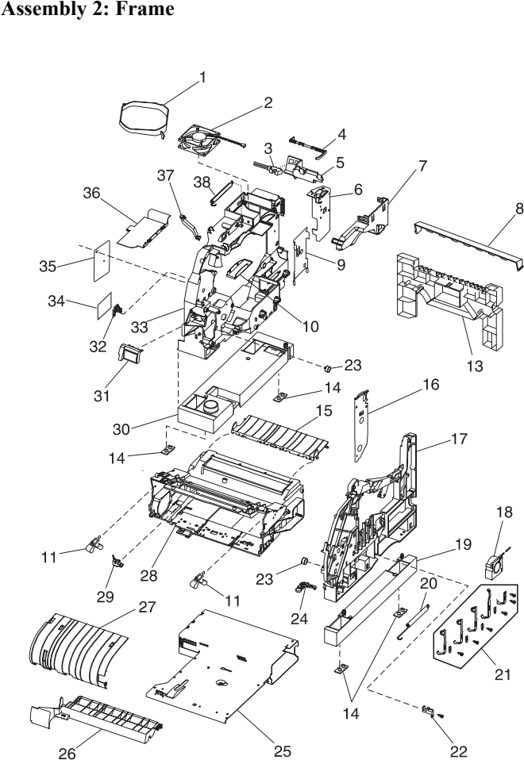

2

1 53P8468 Shroud, Fan 500

2 53P8637 Fan, Main

3 53P8639 Sensor, Standard Bin Level

4 53P8462 Flag, Output Paper Level

5 53P8611 Bracket, Level Sensor

6 53P8435 Duct, 500 Left Stacker

7
53P8405 Duct Main Body
Fully refurbished with 90-day warranty
53P8405



8 53P8609 Guide, Extension 500 Input

9 53P8490 Support, Left Lower Stacker

10 53P8224 Pan, Drip ITC

11 53P8825 Spring, Cartridge Hold Down

13 53P8438 Extension, 500 Input

14 53P8209 Pad, Machine Mounting

15 53P8466 Transfer Plate Assembly

16 53P8616 Support, Right Stacker Plate

17 53P8445 Right Sideframe

18 53P8848 Fan, Cartridge

19
53P8437 Frame Extension Right
Fully refurbished with 90-day warranty
53P8437



20
53P8204 Spring Tray Bias
Fully refurbished with 90-day warranty
53P8204
$13.00



21
53P8361 Parts Packet Contact Kit
Fully refurbished with 90-day warranty
53P8361



o Contact, Doctor Blade/TAR/Developer Roll
o Contact, PC Drum
o Contact, Charge Roll
o Block, Contact Mounting
o Screw, Contact Mounting

22
53P8335 Sensor Toner Cartridge Level
Fully refurbished with 90-day warranty
53P8335
$19.00



23
53P8205 Roller Developer Support
Fully refurbished with 90-day warranty
53P8205
$16.00



24
53P8203 Tray Bias Arm Assembly
Fully refurbished with 90-day warranty
53P8203



25 53P8440 Pan, Center Assembly

26
53P8442 Deflector Upper PF
Fully refurbished with 90-day warranty
53P8442
$12.00



27 53P8208 Kit, Inner Deflector
o Inner Deflector
o Side Restraint

28 53P8623 Frame, EP Module

29
30
53P8436 Frame Extension Left
Fully refurbished with 90-day warranty
53P8436
$72.00



31
53P8351 Shield ESD Assembly with label
Fully refurbished with 90-day warranty
53P8351



32
53P8211 Spring Switch Activate
Fully refurbished with 90-day warranty
53P8211
$16.00



33 53P8622 Left Side Frame Assembly

34
56P1139 Board, Input Tray (ITC)
Fully refurbished with 90-day warranty
56P1139
$25.00



35 53P8641 Guard, Gear

36 53P8410 Pan, Motor Drip

37 53P8357 Link, Gear Release

38
53P8352 Spring Counterbalance
Fully refurbished with 90-day warranty
53P8352
$13.00




1
53P8610 Deflector Upper Redrive
Fully refurbished with 90-day warranty
53P8610
$49.00



2
53P8444 Door Assembly Redrive 500
Fully refurbished with 90-day warranty
53P8444
$29.00



3
53P8443 Redrive Assembly Inner 500
Fully refurbished with 90-day warranty
53p8443

Retired, no longer available: Contact for alternatives



4 53P8222 Spring, Upper Diverter

NS 53P8617 Screw, SEMS-Duplex Path, PP
3-1

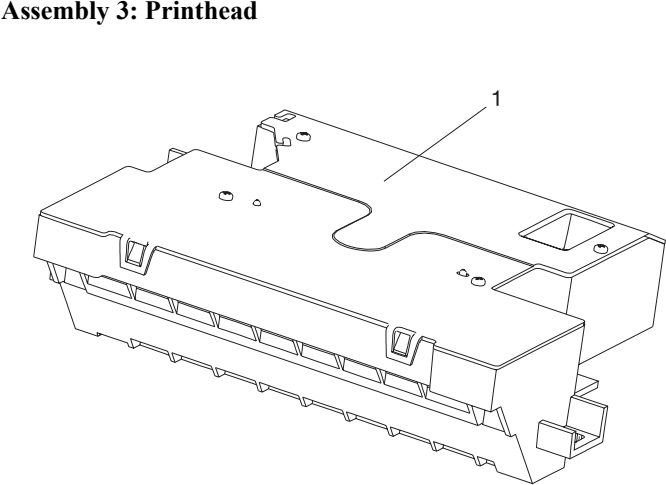

53P8733 Printhead Assembly 1130 (4530)
Fully refurbished with 90-day warranty
53P8733

Retired, no longer available: Contact for alternatives



(1130)

NS 53P8617 Screw, Printhead Mounting
https://www.argecy.com/images/1130_1140-3_cr.jpg
4

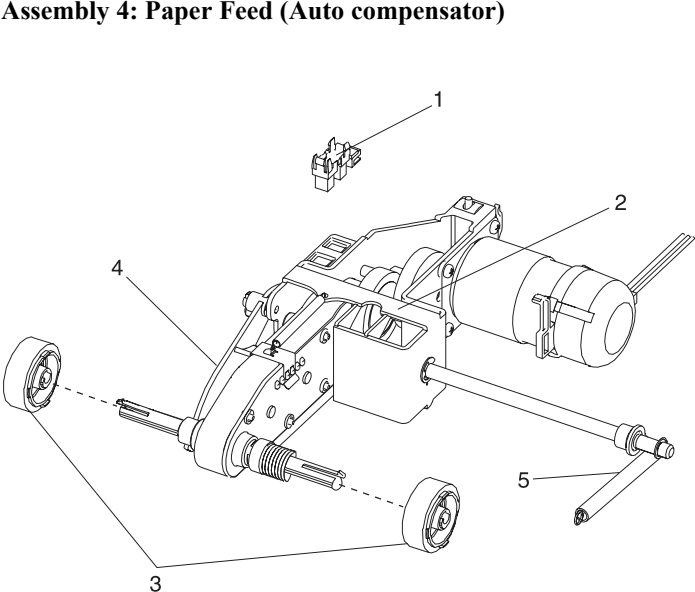

1 53P9130 Sensor, Paper Out Internal Tray

2
53P8640 Pick Arm Assembly (500)
Fully refurbished with 90-day warranty
53p8640



3
75P5958 Pick roll tires (2 per pack)
New
75P5958 (New)
$16.00



4 53P8480 Flag, Paper Out 500 Tray

5 56P0110 Spring, Bellcrank Internal 500

NS 53P8617 Screw, Hanger

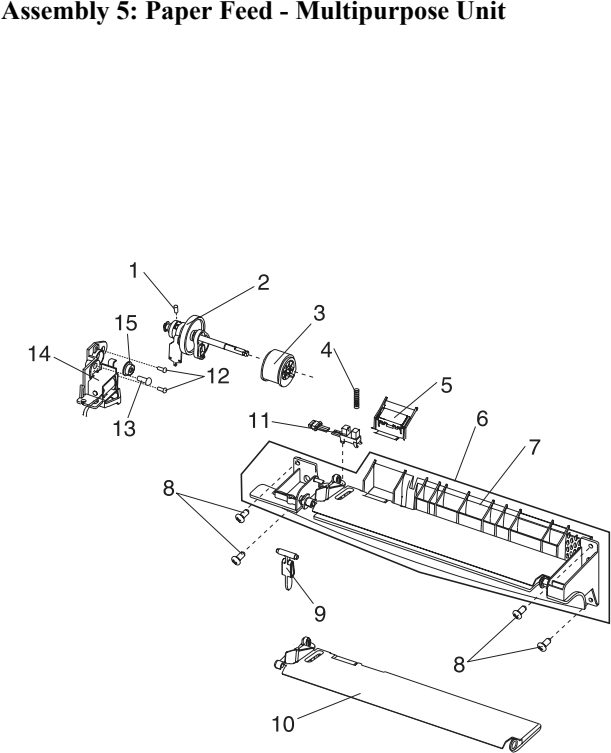

5

1 53p8215

2 53P8633 Arm Assembly, MPT

3
53P8795 Pick Roll Assembly
Fully refurbished with 90-day warranty
53P8795
$19.00



4
53P8217 Spring Assembly Separator
Fully refurbished with 90-day warranty
53P8217
$16.00



5
53P8219 MPT Pad/Separator Arm Assembly
Fully refurbished with 90-day warranty
53P8219
$16.00



o Restraint Pad
o MPT Pad Assembly

6 53P8635 Deflector Assembly, MPT

7 56P0125 Deflector, Lower

8
53P8617 Parts Packet
Fully refurbished with 90-day warranty
53P8617
$38.00



9
53P8220 Flag MPT Paper Out
Fully refurbished with 90-day warranty
53P8220
$20.00



10
53P8218 Plate Assembly MPT
Fully refurbished with 90-day warranty
53P8218
$19.00



11 53P8636 Sensor, MPT Paper Out

12
53P8213 Screw Damper
Fully refurbished with 90-day warranty
53P8213



13 53P8617 Screw, Frame Mounting, PP

14 53P8634 Solenoid, MPT

15
53P8214 Bushing Pick Roll Shaft
Fully refurbished with 90-day warranty
53P8214
$16.00

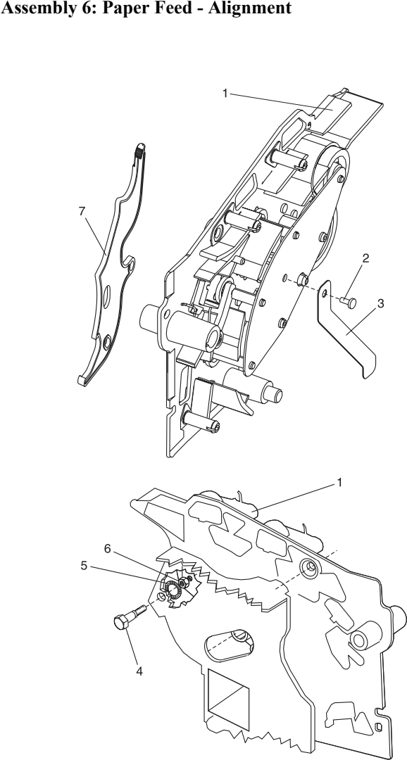

6-1
53P8221 Alignment Paper Feed Assembly
Fully refurbished with 90-day warranty
53P8221
$26.00



6-2 53P8828 Screw, Reference Ground Clip

6-3 53P8344 Clip, Reference Ground

6-4 53P8346 Screw, Paper Reference Adjustment

6-5 53P8355 Washer, Reference Adjustment

6-6 53P8356 Nut, Paper Reference Adjustment

6-7 53P8353 Lever, Bellcrank Release

NS 53P8617 Screw, Alignment Asm Mtg
https://www.argecy.com/images/1130_1140-6_cr.jpg

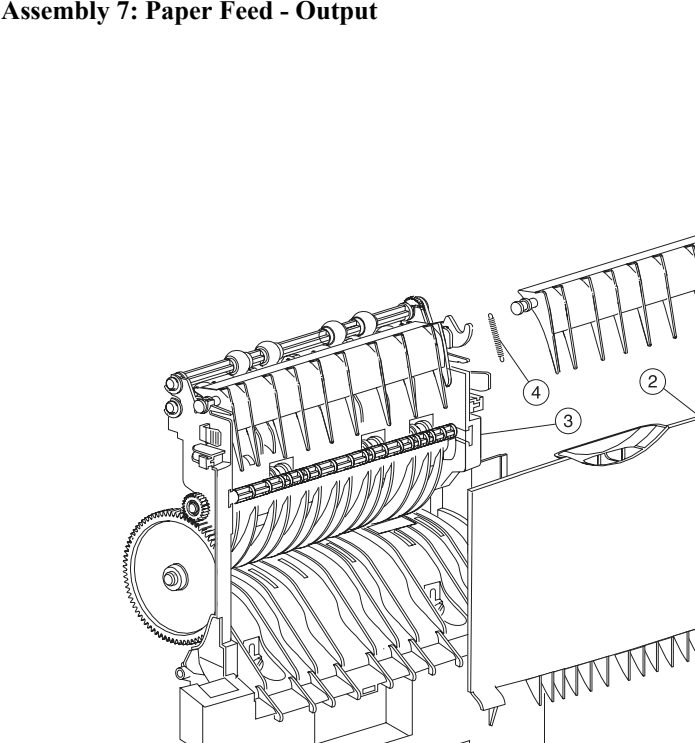

7

1 53P8610 Deflector, Upper Redrive

2 53P8444 Door Assembly, Redrive 500

3
53P8443 Redrive Assembly Inner 500
Fully refurbished with 90-day warranty
53p8443

Retired, no longer available: Contact for alternatives

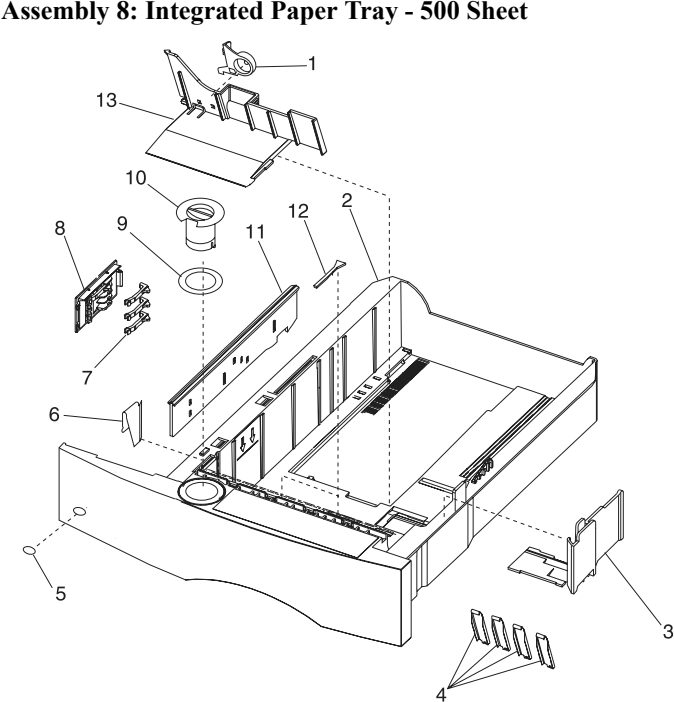

4 53P8222 Spring, Upper Diverter
8
1 53P8473 Latch, Back Restraint

2
53P8459 Tray Assembly 500 Sheet
Fully refurbished with 90-day warranty
53P8459
$49.00



3
53P8747 Restraint Side 500-Sheet Tray
Fully refurbished with 90-day warranty
53P8747
$19.00



4
53P8266 Wear Strips
New
53P8266 (New)
$20.00



5 53P8483 Label, Tray Option Number

6
53P8464 Plate 500 Tray Wear
Fully refurbished with 90-day warranty
53P8464



7
53P8229 Finger Autosize
Fully refurbished with 90-day warranty
53P8229
$20.00



8
53P8228 Plate Snap-In
Fully refurbished with 90-day warranty
53P8228
$20.00



9
53P8614 Label Paper Size
Fully refurbished with 90-day warranty
53P8614



10
53P8447 Knob Paper Size
Fully refurbished with 90-day warranty
53P8447



11
53P8463 Slider Autosize 500
Fully refurbished with 90-day warranty
53P8463



12 53P8226 2 Pad, Restraint

13
53P8474 Restraint Back 500-Sheet Tray
New
53P8474 (New)
$31.00


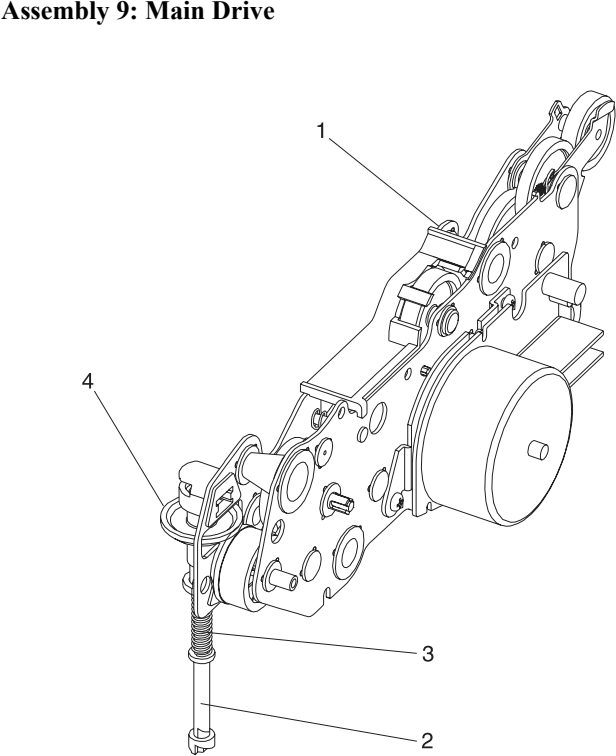

9-1
53P8732 Gearbox w/Motor (1130)
Fully refurbished with 90-day warranty
53P8732

Retired, no longer available: Contact for alternatives


(1130)

9-1 53P8743 Gearbox, w/Motor (1140)

9-2 53P8457 Shaft, Power Take Off 500

9-3 53P8256 Spring, Power Take Off Shaft

9-4 53P8415 Gear, Bevel with Grease Packet

NS 53P8617 Screw, Gearbox Mounting

NS 53P8617 Screw, Motor Mounting
https://www.argecy.com/images/1130_1140-9_cr.jpg

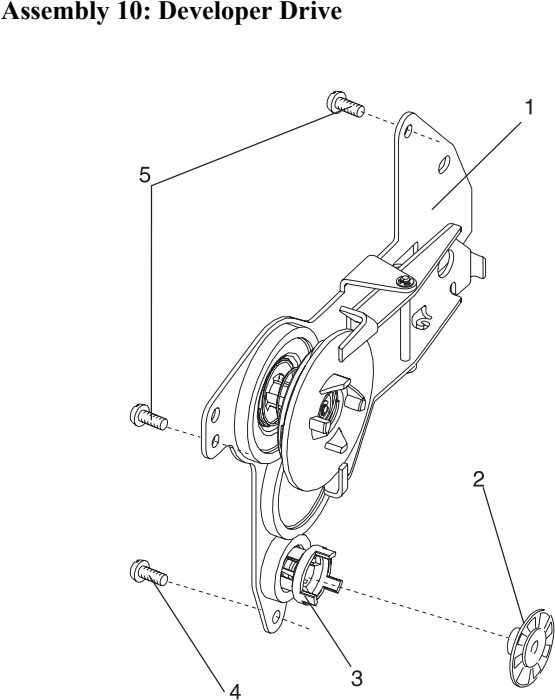

10

10-1

53P8451 Developer Drive Assembly
Fully refurbished with 90-day warranty
53P8451
$39.00



10-2 53P8232 Shaft, Developer Drive

10-3 53P8354 Coupler, Gear #55

10-4 53P8617 Screw, Developer Drive Ground

10-5 53P8617 Screw, Developer Drive Mtg
https://www.argecy.com/images/1130_1140-10_cr.jpg

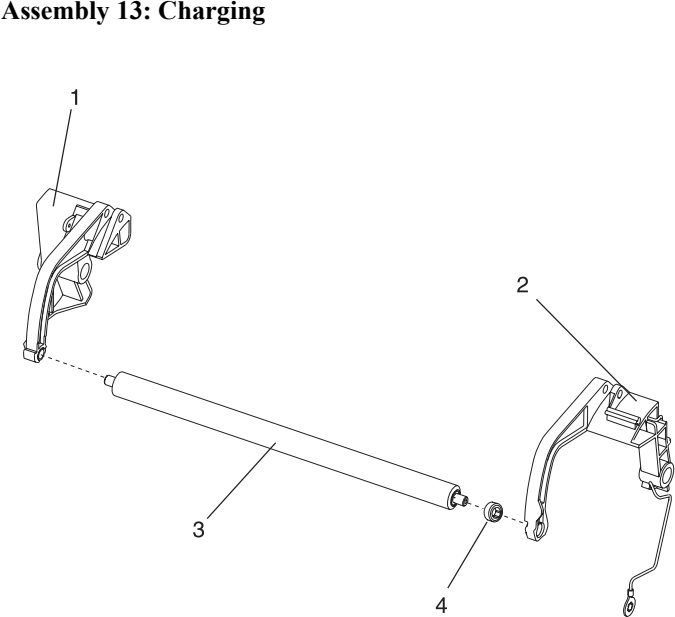

1 53P8348 Link Assembly, Charge Left Kit

2
3
28P2016 Charge Roll
New
28P2016 (New)
$41.00



4 53P8456 Bushing, Charge Roll

NS 53P8617 Parts Packet, Screw (Charge Roll)

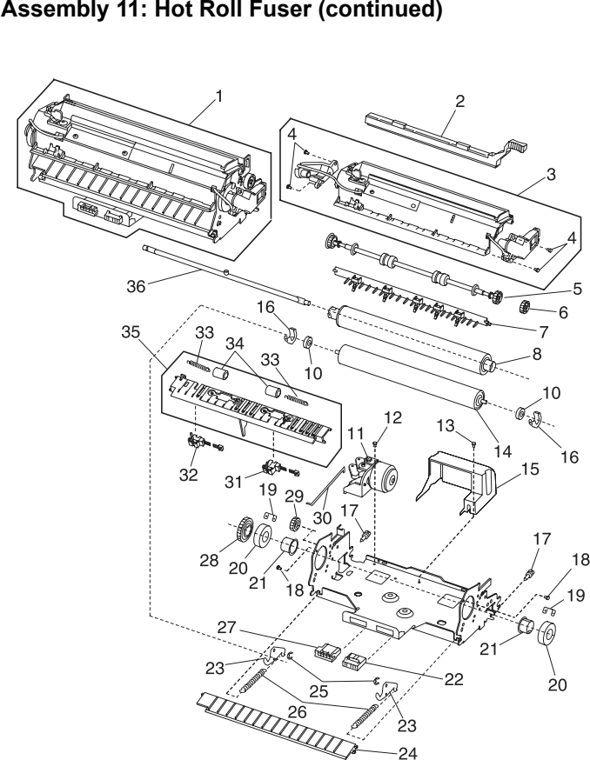

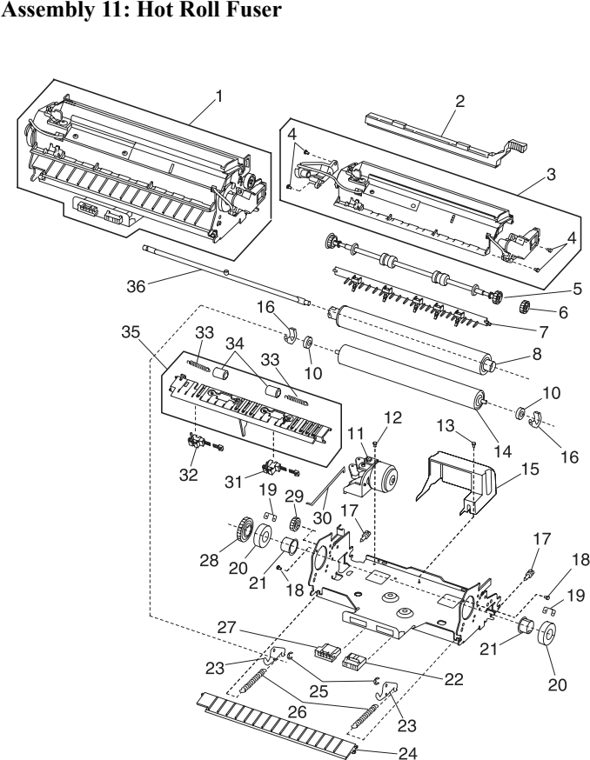

11



28P2014 IBM Fuser Assembly 1130
Fully refurbished with 90-day warranty
28P2014 Advanced Exchange

Retired, no longer available: Contact for alternatives

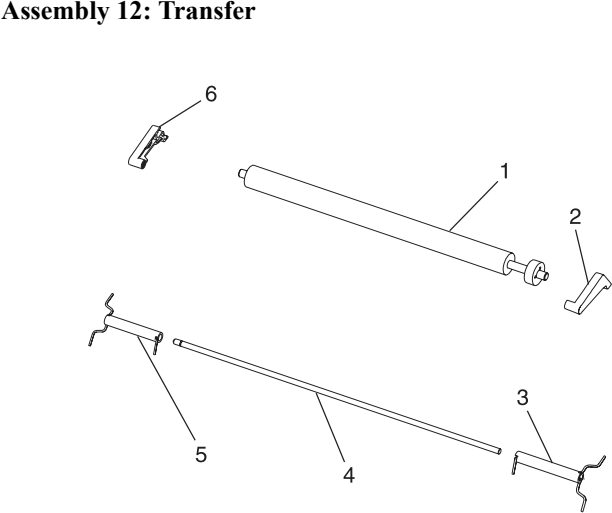

12

1
28P2017 Transfer Roll
New
28P2017 (New)
$40.00



2 53P8293 Arm, Transfer Roll Assembly Right

3 53P8242 Spring, Transfer Roll Right

4 53P8243 Shaft, Transfer Pivot

5 53P8241 Spring, Transfer Roll Left

6 53P8460 Arm, Transfer Roll Left

NS 53P8249 Parts Packet, Retainer (Pivot Shaft)
13-1 53P8348 Link Assembly, Charge Left Kit

13-2 53P8349 Link Assembly, Charge Right Kit

13-3 Supply Roll Assembly, Charge

13-4 53P8456 Bushing, Charge Roll

NS 53P8617 Screw, Charge Roll
https://www.argecy.com/images/1130_1140-13_cr.jpg

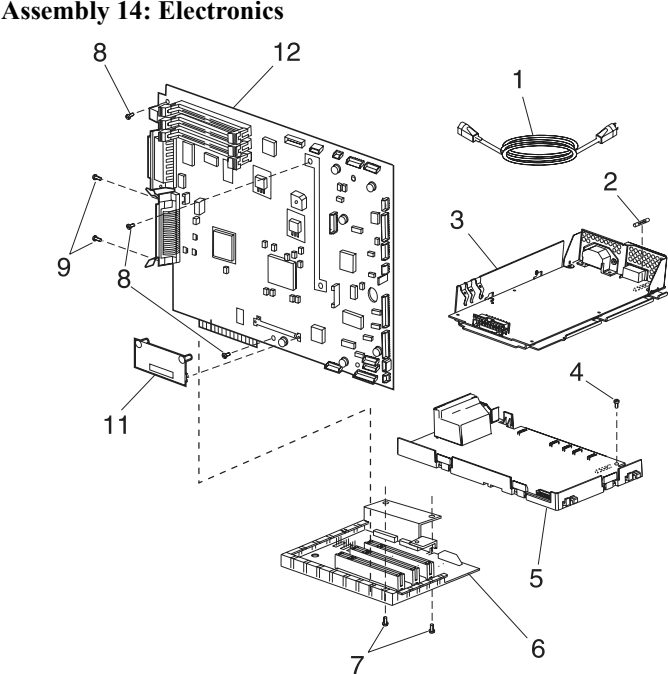

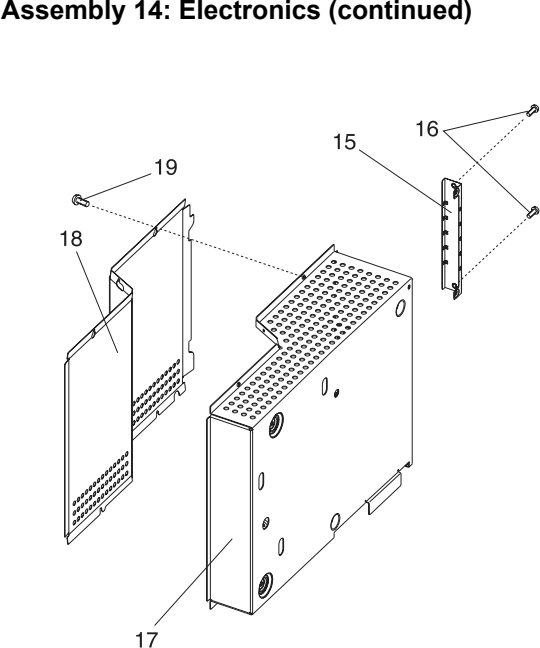

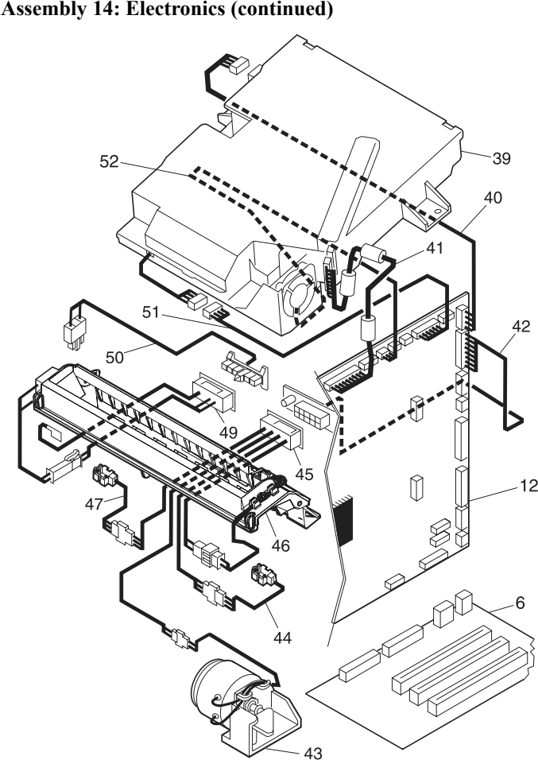

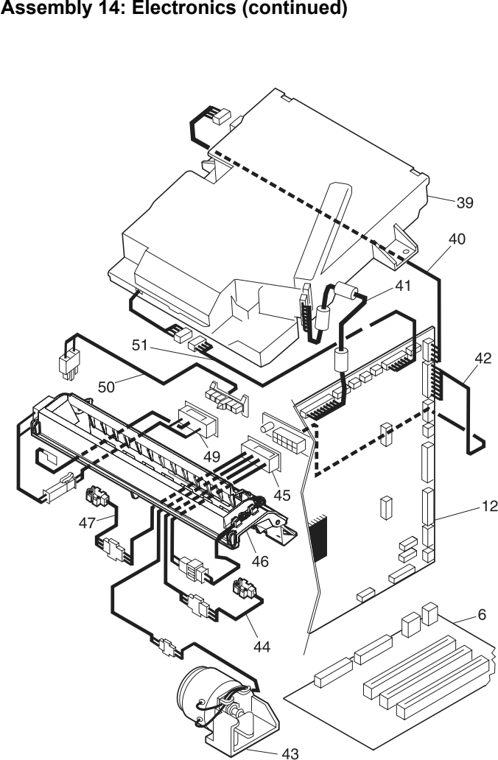

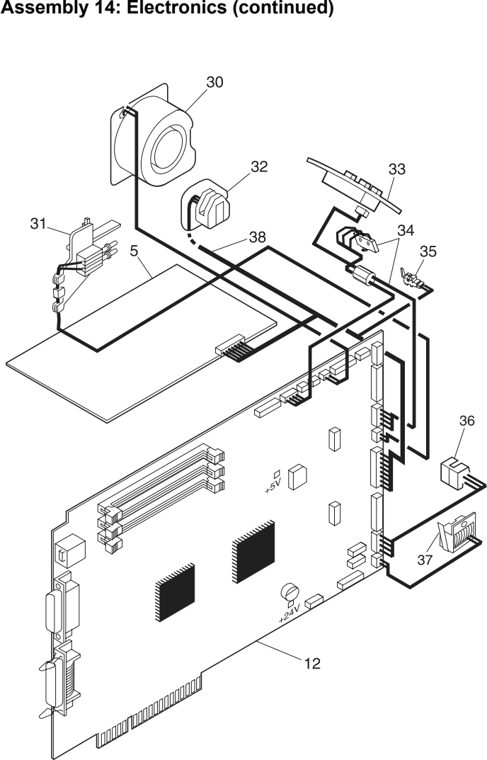

14

2 53P8855 Fuse, 110 V ac LVPS 12.5A 250V

3
53P8734 LVPS 110 V ac (1130)
Fully refurbished with 90-day warranty
53p8734

Retired, no longer available: Contact for alternatives



53P8745 LVPS Low Voltage Power Supply 1140
Fully refurbished with 90-day warranty
53p8745
$79.00



4 53P8617 Screw, HVPS Mounting, PP

5
53P8646 High Voltage Power Supply HVPS
Fully refurbished with 90-day warranty
53p8646
$39.00



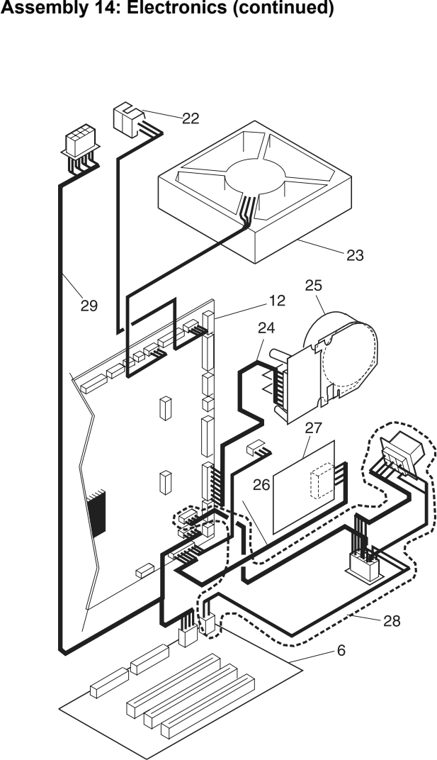

6

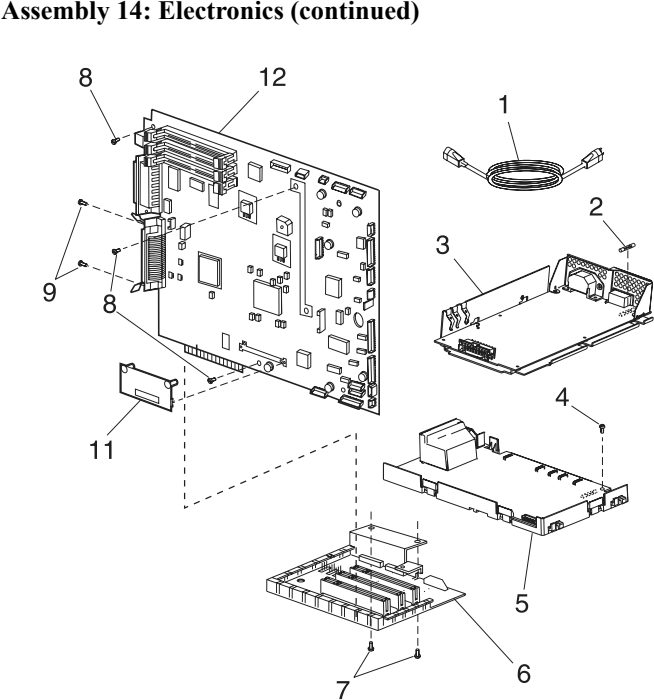

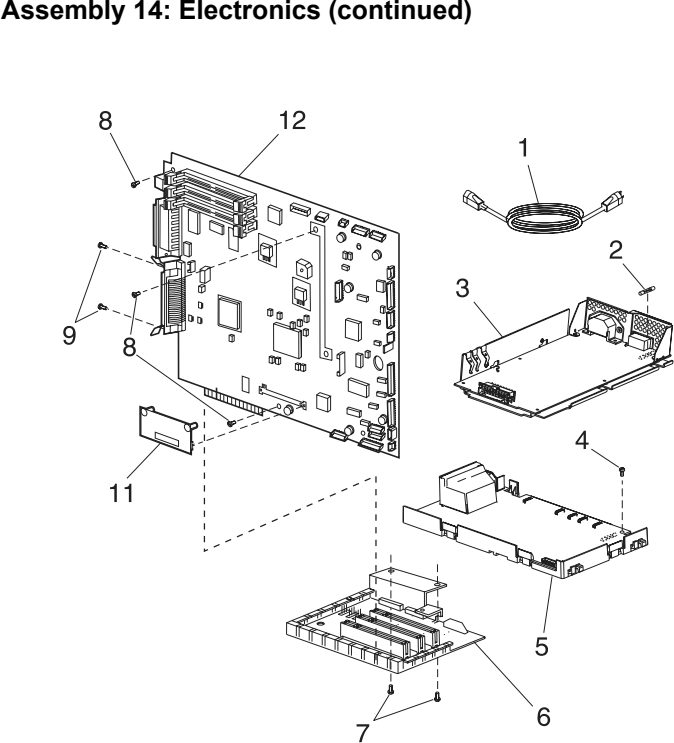

53P8625 Interconnect Board Assembly 2 Slot with shield
Fully refurbished with 90-day warranty
53P8625
$65.00



7 53P8617 Screw, Int Board Mounting, PP

8 53P8617 Screw, System Bd Mounting Front, PP

9 53P8854 Screw, Parallel Connector Mounting

11 53P8628 Card Assembly, NAND Flash

12
56P0049 4530-001 System Board (1130)
Fully refurbished with 90-day warranty
56P0049

Retired, no longer available: Contact for alternatives



12
56P0050 4530-n01 System Board (1130n)
Fully refurbished with 90-day warranty
56P0050

Retired, no longer available: Contact for alternatives


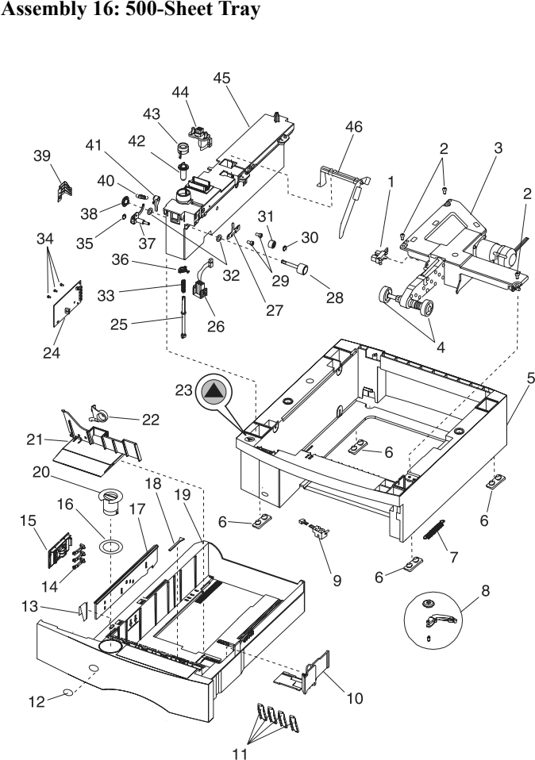

1
53P8294 Sensor Paper Low
Fully refurbished with 90-day warranty
53P8294
$19.00



2 53P8617 Screw, Auto Comp Mounting, PP

3
53P8315 Pick Arm Assembly (500)
Fully refurbished with 90-day warranty
53P8315
$59.00





4
53P8212 Pick Roll Assembly
New
53P8212 Set of two (New)
$18.00



5


6
53P8209 Pad Base 500
New
53P8209 (New)
$19.00



7
53P8322 Spring Tray Bias
Fully refurbished with 90-day warranty
53P8322
$13.00



8
53P8203 Tray Bias Arm Assembly
Fully refurbished with 90-day warranty
53P8203



9
53P8265 Sensor Option Pass Thru
New
53P8265 (New)

Retired, no longer available: Contact for alternatives



10
53P8747 Restraint Side 500-Sheet Tray
Fully refurbished with 90-day warranty
53P8747
$19.00



11 53P8266 Wear Strips

12
53P8748 Label Tray Option Number
Fully refurbished with 90-day warranty
53P8748



13
53P8464 Plate 500 Tray Wear
Fully refurbished with 90-day warranty
53P8464



14
53P8229 Finger Autosize
Fully refurbished with 90-day warranty
53P8229
$20.00



15
53P8228 Plate Snap-In
Fully refurbished with 90-day warranty
53P8228
$20.00



16
53P8614 Label Paper Size
Fully refurbished with 90-day warranty
53P8614



17
53P8463 Slider Autosize 500
Fully refurbished with 90-day warranty
53P8463



18
53P8226 Restraint Pad
Fully refurbished with 90-day warranty
53P8226
$20.00



19

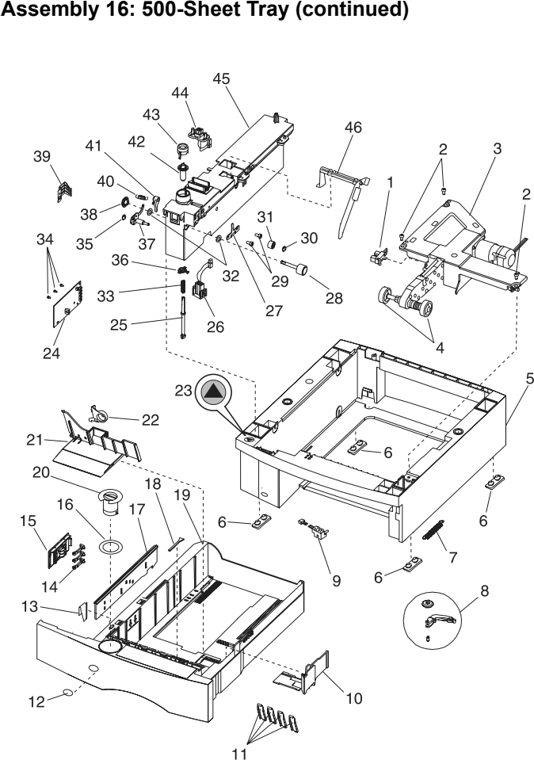

53P8459 Tray Assembly 500 Sheet
Fully refurbished with 90-day warranty
53P8459
$49.00



20
53P8447 Knob Paper Size
Fully refurbished with 90-day warranty
53P8447



21
53P8474 Restraint Back 500-Sheet Tray
New
53P8474 (New)
$31.00



22
53P8473 Latch Back Restraint
Fully refurbished with 90-day warranty
53P8473 99a1601
$19.00



23
53P8493 Label Options
Fully refurbished with 90-day warranty
53P8493



24
56P0557 Board, Tray ITC
Fully refurbished with 90-day warranty
56P0557
$25.00



25
53P8328 Shaft 500 Drive
Fully refurbished with 90-day warranty
53P8328
$17.00



26
53P8263 Cable 500 Auto Connect Bottom
Fully refurbished with 90-day warranty
53P8263
$16.00



27
53P8568 Wear Plate Pass Thru
Fully refurbished with 90-day warranty
53P8568



28

29 53P8617 Screw, Wear Plate Mounting, PP

30
53P8330 Retainer Roller
Fully refurbished with 90-day warranty
53P8330



31
Sale53P8331 Roller Skewed Backup
New
53P8331 99a0451 (New)
$12.00 $8.00



32
53P8325 Bearing Drive Roll
Fully refurbished with 90-day warranty
53P8325



33
53P8256 Spring Power Takeoff
Fully refurbished with 90-day warranty
53P8256
$16.00



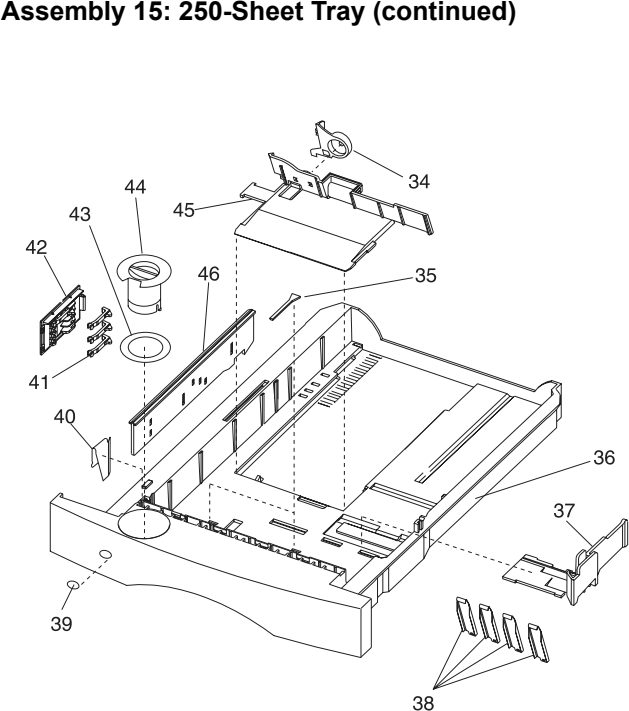

34 53P8617 Screw, Board Mounting, PP

35
53P8249 Parts Packet Retainer (Aligner Assembly)
Fully refurbished with 90-day warranty
53P8249



36
53P8261 Bearing Drive Shaft Low
Fully refurbished with 90-day warranty
53P8261
$16.00



37
53P8327 Aligner Assembly Paper
Fully refurbished with 90-day warranty
53P8327



38
53P8255 Gear Feed Roll
Fully refurbished with 90-day warranty
53P8255
$16.00



40
53P8264 Spring Backup Roller
Fully refurbished with 90-day warranty
53P8264
$13.00



41
53P8491 Bellcrank Roller Release
Fully refurbished with 90-day warranty
53P8491



42
53P8254 Gear Bevel
Fully refurbished with 90-day warranty
53P8254
$16.00



43
53P8260 Bearing Drive Shaft
Fully refurbished with 90-day warranty
53P8260
$16.00



44
53P8262 Cable 500 Auto Connect Top
Fully refurbished with 90-day warranty
53P8262
$16.00



45
53P8526 Stud Assembly 500 Frame
Fully refurbished with 90-day warranty
53P8526



46
53P8485 Arm Paper Out 500
Fully refurbished with 90-day warranty
53P8485
$24.00
