Brother HL-L8260CDW HL-L8260CDN HL-L8360CDW HL-L8360CDWT HL-L9310CDW Parts






Please call for parts

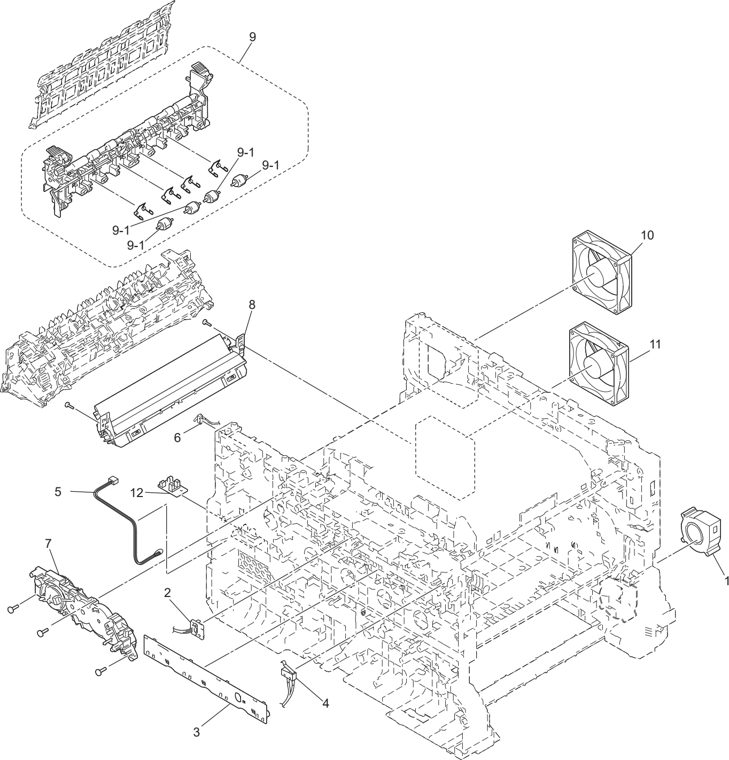

1. FRAME
1
D006V2001 Blower
Fully refurbished with 90-day warranty
D006V2001
$33.75



2
D006H1001 Develop Release Sensor PCB
Fully refurbished with 90-day warranty
D006H1001
$29.71



3 D006F6001 TONER/NEW SENSOR PCB ASSEMBLY
4
D006H5001 Front Cover Sensor
Fully refurbished with 90-day warranty
D006H5001
$29.71



5
D00A7S001 Internal Temparature Sensor
Fully refurbished with 90-day warranty
D00A7S001
$29.71



6 D006H6001 BACK COVER SENSOR ASSEMBLY
7
D006FA001 Develop Release Drive Unit
Fully refurbished with 90-day warranty
D006FA001
$33.75



8 LY7726001 REGISTRATION MARK SENSOR UNIT
9
LY7727002 Fuser Cover Assy
New
LY7727002 (New)
$79.66



9-1
LY0634001 Cleaner Pinch Roller S Assy
New
LY0634001 (New)
$25.65



10
D006FX001 Fuser Fan
Fully refurbished with 90-day warranty
D006FX001
$35.10



11
D006FY001 Power Fan
Fully refurbished with 90-day warranty
D006FY001
$35.10



12 LV1201001 EJECT SENSOR PCB ASSEMBLY HL-L8260CDW
12 LV1412001 EJECT SENSOR PCB ASSEMBLY HL-L8260CDW
12 LV1201001 EJECT SENSOR PCB ASSEMBLY HL-L8360CDW
12 LV1201001 EJECT SENSOR PCB ASSEMBLY HL-L8360CDWT
12 LV1201001 EJECT SENSOR PCB ASSEMBLY HL-L9310CDW

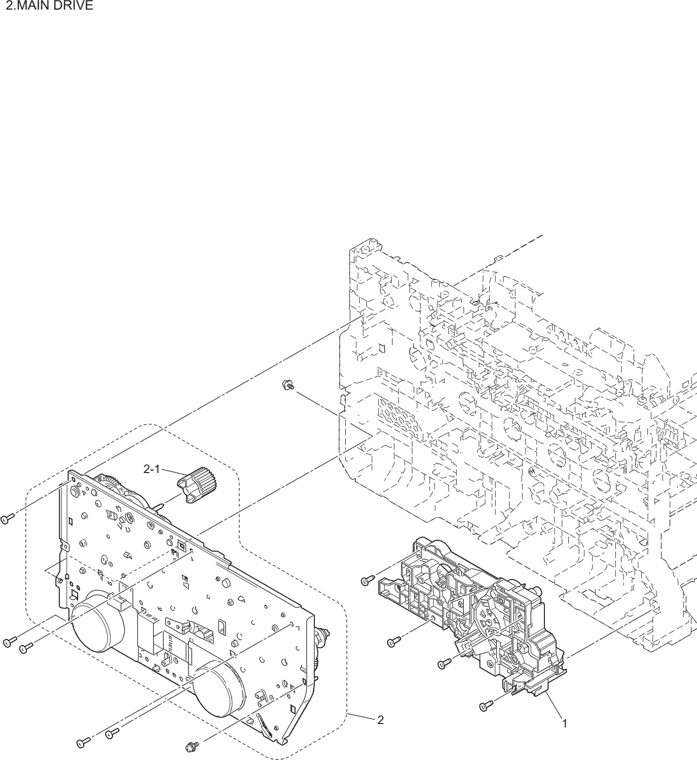

2. MAIN DRIVE
1 D0067E001 PAPER FEED DRIVE UNIT
2 D00H8V001 PROCESS DRIVE UNIT (SP
2-1 LY0233001 FUSER DRIVE GEAR Z25

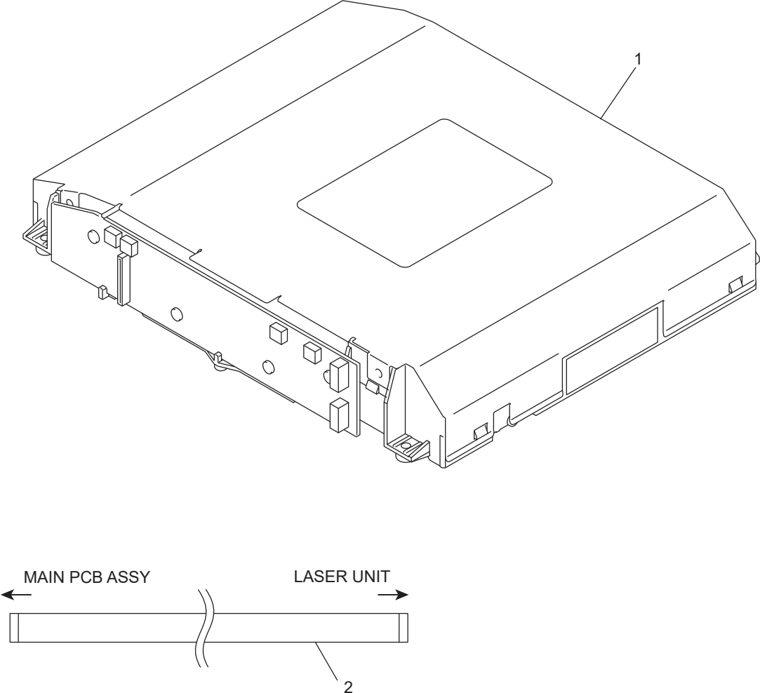

3. LASER UNIT
1
D009ML001 Laser Unit
New
D009ML001 (New)
$330.75


D009ML001 Laser Unit
Fully refurbished with 90-day warranty
D009ML001
$222.75



1
D009ML001 Laser Unit
New
D009ML001 (New)
$330.75


D009ML001 Laser Unit
Fully refurbished with 90-day warranty
D009ML001
$222.75



1
D009ML001 Laser Unit
New
D009ML001 (New)
$330.75


D009ML001 Laser Unit
Fully refurbished with 90-day warranty
D009ML001
$222.75



1
D009ML001 Laser Unit
New
D009ML001 (New)
$330.75


D009ML001 Laser Unit
Fully refurbished with 90-day warranty
D009ML001
$222.75



2 LV1174001 LASER UNIT FLAT CABLE

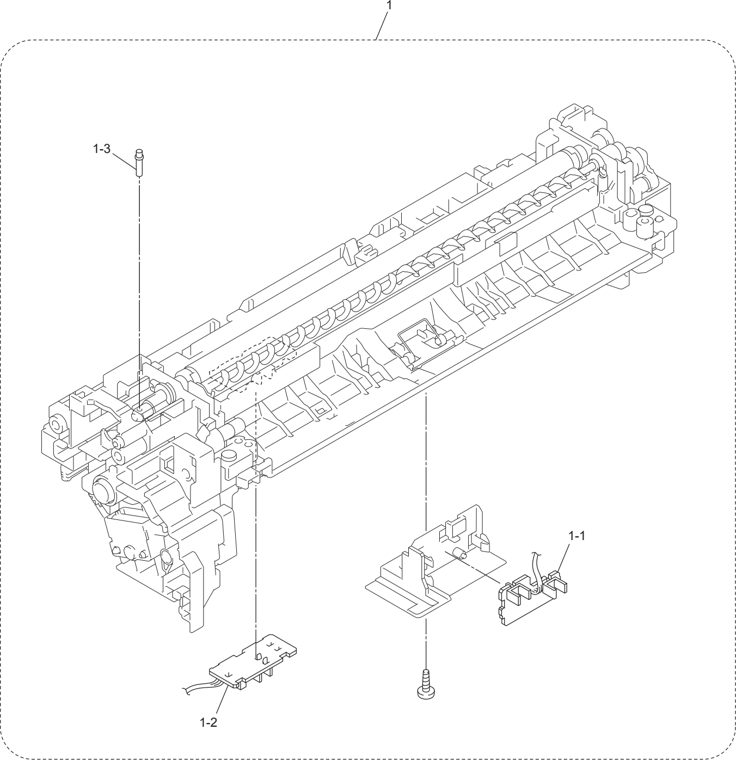

4. PAPER FEEDER
1
D00H8D001 Paper Feed Unit
Fully refurbished with 90-day warranty
D00H8D001
$41.85



1
D00H8D001 Paper Feed Unit
Fully refurbished with 90-day warranty
D00H8D001
$41.85



1 D00H8H001 PAPER FEED UNIT (SP) HL-L8360CDW
1 D00H8H001 PAPER FEED UNIT (SP) HL-L8360CDWT
1 D00H8H001 PAPER FEED UNIT (SP) HL-L9310CDW
1-1 D0077S001 REGISTRATION FRONT/REAR SENSOR PCB ASSEMBLY
1-2 D0077T001 T1 PAPER FEED SENSOR PCB ASSEMBLY HL-L8260CDN
1-2 D0077T001 T1 PAPER FEED SENSOR PCB ASSEMBLY HL-L8260CDW
1-2
D0077U001 T1 Paper Feed Sensor PCB
New
D0077U001 (New)
$43.21



1-2
D0077U001 T1 Paper Feed Sensor PCB
New
D0077U001 (New)
$43.21



1-2
D0077U001 T1 Paper Feed Sensor PCB
New
D0077U001 (New)
$43.21



1-3 LY7136001 JOINT PIN

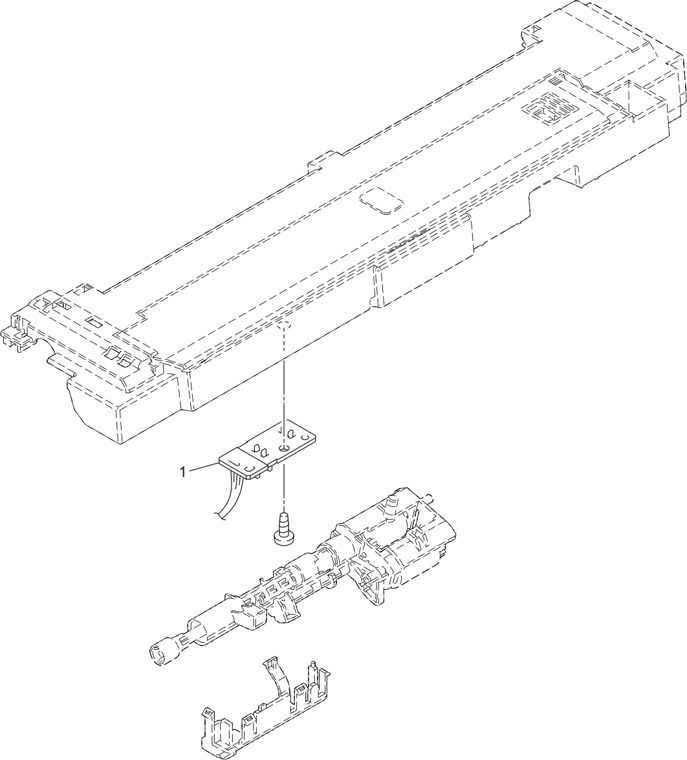

5. MP
1 D0077V001 MP PAPER EMPTY/REGISTRATION FRONT SENSOR PCB ASSEMBLY

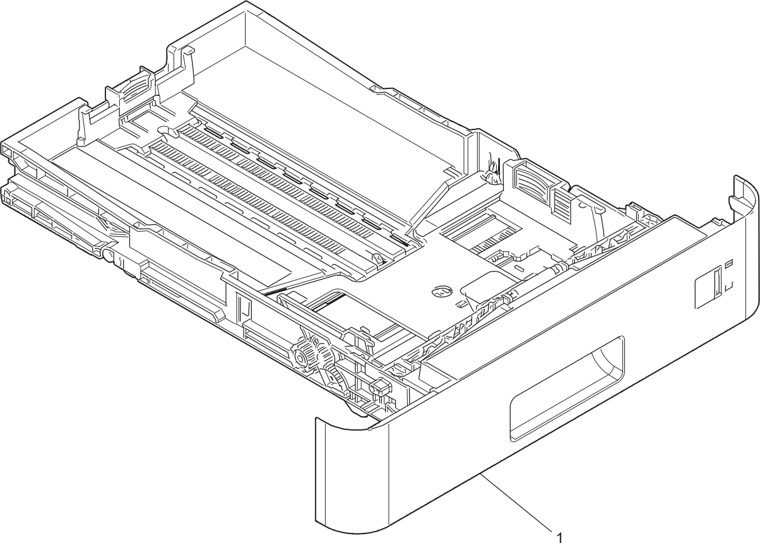

6. PAPER CASSETTE
1 D006GX001 PAPER TRAY

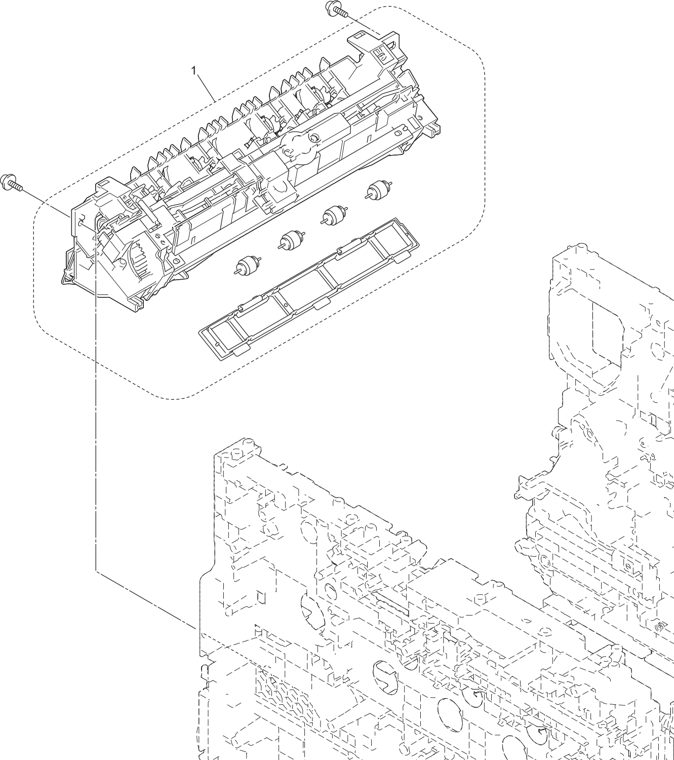

7. FUSER UNIT
1
D00C54001 Fuser Unit 115V
New
D00C54001 (New)
$330.75



1
D00C54001 Fuser Unit 115V
New
D00C54001 (New)
$330.75



1
D00C54001 Fuser Unit 115V
New
D00C54001 (New)
$330.75



1
D00C54001 Fuser Unit 115V
New
D00C54001 (New)
$330.75




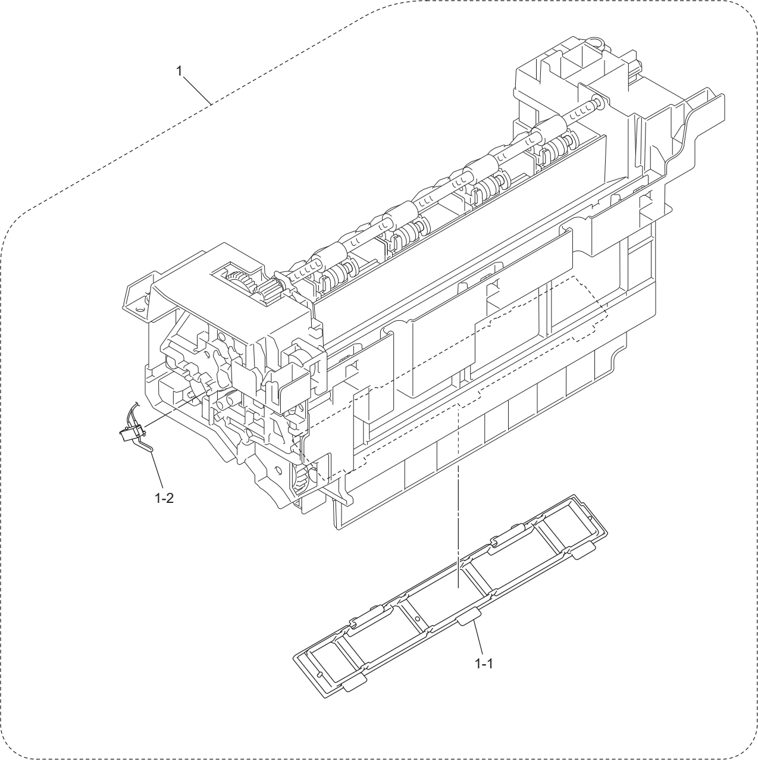

8. PAPER EJECT
1
D00GN3001 Paper Eject Assy
New
D00GN3001 (New)
$187.65


D00GN3001 Paper Eject Assy
Fully refurbished with 90-day warranty
D00GN3001
$63.46



1
D00GN3001 Paper Eject Assy
New
D00GN3001 (New)
$187.65


D00GN3001 Paper Eject Assy
Fully refurbished with 90-day warranty
D00GN3001
$63.46



1

1

1 D00GN4002 PAPER EJECT ASSEMBLY (SP) HL-L9310CDW
1-1 LY7841001 TONER FILTER ASSEMBLY
1-2 D006A3001 PAPER EJECT ORIGIN SENSOR HL-L8360CDW
1-2 D006A3001 PAPER EJECT ORIGIN SENSOR HL-L8360CDWT
1-2 D006A3001 PAPER EJECT ORIGIN SENSOR HL-L9310CDW

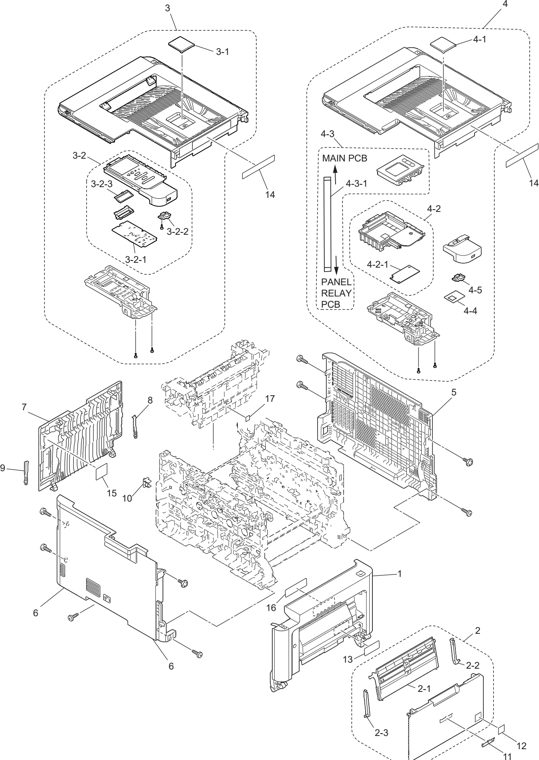

9. COVERS & LABELS
1 D006JZ001 FRONT COVER
2 D006KD001 MP COVER ASSEMBLY
2-1 D006KP001 MP PAPER GUIDE ASSEMBLY
2-2 D006KV001 MP LINK R
2-3 D006KW001 MP LINK L
3 D00GL3001 TOP COVER ASSEMBLY (SP) HL-L8260CDN
3 D00GL6001 TOP COVER ASSEMBLY (SP) HL-L8260CDW
3-1 D006L0001 PAPER STOPPER HL-L8260CDN
3-1 D006L0001 PAPER STOPPER HL-L8260CDW
3-2 D00D29001 PANEL COVER ASSEMBLY HL-L8260CDN
3-2 D006L1001 PANEL COVER ASSEMBLY HL-L8260CDW
3-2-1 D006LC001 PANEL PCB HL-L8260CDN
3-2-1 D006LC001 PANEL PCB HL-L8260CDW
3-2-2 D006LH001 USB HOST PCB ASSEMBLY HL-L8260CDN
3-2-2 D006LH001 USB HOST PCB ASSEMBLY HL-L8260CDW
3-2-3 A62009001 LCD HL-L8260CDN
3-2-3 A62009001 LCD HL-L8260CDW
4 D00GLY001 TOP COVER ASSEMBLY (SP) HL-L8360CDW
4 D00GLY001 TOP COVER ASSEMBLY (SP) HL-L8360CDWT
4
D00GLZ001 Top Cover Assy
Fully refurbished with 90-day warranty
D00GLZ001
$76.95



4-1 D006L0001 PAPER STOPPER HL-L8360CDW
4-1 D006L0001 PAPER STOPPER HL-L8360CDWT
4-1 D006L0002 PAPER STOPPER HL-L9310CDW
4-2 D006MR001 PANEL CASE ASSEMBLY HL-L8360CDW
4-2 D006MR001 PANEL CASE ASSEMBLY HL-L8360CDWT
4-2 D006MR002 PANEL CASE ASSEMBLY HL-L9310CDW
4-2-1 D006MT001 PANEL RELAY PCB HL-L8360CDW
4-2-1 D006MT001 PANEL RELAY PCB HL-L8360CDWT
4-2-1 D006MT001 PANEL RELAY PCB HL-L9310CDW
4-3 D006N7001 LCD PANEL ASSEMBLY HL-L8360CDW
4-3 D006N7001 LCD PANEL ASSEMBLY HL-L8360CDWT
4-3 D00C79001 LCD PANEL ASSEMBLY HL-L9310CDW
4-3-1 D006NL001 PANEL RELAY FLAT CABLE HL-L8360CDW
4-3-1 D006NL001 PANEL RELAY FLAT CABLE HL-L8360CDWT
4-3-1 D006NL001 PANEL RELAY FLAT CABLE HL-L9310CDW
4-4 D0000T001 NFC PCB ASSEMBLY HL-L8360CDW
4-4 D0000T001 NFC PCB ASSEMBLY HL-L8360CDWT
4-4 D0000T001 NFC PCB ASSEMBLY HL-L9310CDW
4-5 D006LH001 USB HOST PCB ASSEMBLY HL-L8360CDW
4-5 D006LH001 USB HOST PCB ASSEMBLY HL-L8360CDWT
4-5 D006LH001 USB HOST PCB ASSEMBLY HL-L9310CDW
5 D006LP001 SIDE COVER R
6 D006LV001 SIDE COVER L ASSEMBLY HL-L8260CDN
6 D006LV001 SIDE COVER L ASSEMBLY HL-L8260CDW
6 D0087C001 SIDE COVER L ASSEMBLY HL-L8360CDW
6 D0087C001 SIDE COVER L ASSEMBLY HL-L8360CDWT
6 D006WA001 SIDE COVER L ASSEMBLY HL-L9310CDW
7 D006LY001 BACK COVER
8 LY0451001 BACK COVER STOPPER ARM R
9 LY0450001 BACK COVER STOPPER ARM L
10 LY0872001 LAN PORT CAP
11 LY4852007 EMBLEM BROTHER SHEET
12 D009Y1001 COLOR LASER LABEL
13 D00A61001 MP SET INSTRUCTION LABEL
14 D00LS4001 LABEL DR OPERATION PRT 2
15 D007A0001 LABEL H/SP CAUTION REAR 49X45 HL-L8260CDW
15 D007A0001 LABEL H/SP CAUTION REAR 49X45 HL-L8360CDW
15 D007A0001 LABEL H/SP CAUTION REAR 49X45 HL-L8360CDWT
15 D007A0001 LABEL H/SP CAUTION REAR 49X45 HL-L9310CDW
16 D007A3001 LABEL H/SP CAUTION F 135 US HL-L8260CDW
16 D00E9X001 LABEL H/SP CAUTION F 135 US2 HL-L8360CDW
16 D00E9X001 LABEL H/SP CAUTION F 135 US2 HL-L8360CDWT
16 D00EBK001 LABEL H/SP CAUTION F 135 US3 HL-L9310CDW
17 D00CBH001 LABEL HIGH TEMP 13.9X108 HL-L8260CDW
17 D00CBH001 LABEL HIGH TEMP 13.9X108 HL-L8360CDW
17 D00CBH001 LABEL HIGH TEMP 13.9X108 HL-L8360CDWT
17 D00CBH001 LABEL HIGH TEMP 13.9X108 HL-L9310CDW

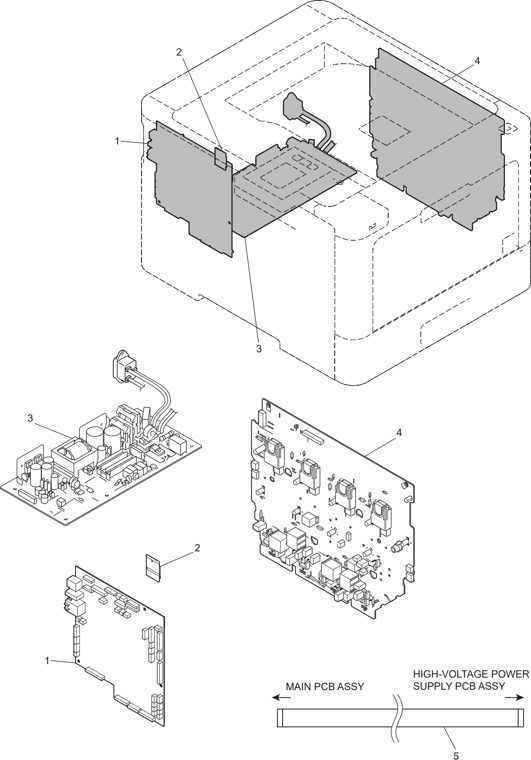

10. PCB
1 D00HDN005 MAIN PCB ASSEMBLY HL-L8260CDN
1
D00HDN001 Main PCB Assy
New
D00HDN001 (New)
$174.15


D00HDN001 Main PCB Assy
Fully refurbished with 90-day warranty
D00HDN001
$106.66



1 D00HDP001 MAIN PCB ASSEMBLY HL-L8360CDW
1 D00HDP001 MAIN PCB ASSEMBLY HL-L8360CDWT
1 D00HDR001 MAIN PCB ASSEMBLY HL-L9310CDW
2
LD1969001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LD1969001
$33.75



2
LD1969001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LD1969001
$33.75



2
LD1969001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LD1969001
$33.75



2
LD1969001 Wireless Lan PCB Assy
Fully refurbished with 90-day warranty
LD1969001
$33.75



3
D006CJ001 Low Voltage Power
Fully refurbished with 90-day warranty
D006CJ001
$79.66



3
D006CJ001 Low Voltage Power
Fully refurbished with 90-day warranty
D006CJ001
$79.66



3
D006CJ001 Low Voltage Power
Fully refurbished with 90-day warranty
D006CJ001
$79.66



3
D006CJ001 Low Voltage Power
Fully refurbished with 90-day warranty
D006CJ001
$79.66



4
D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4
Fully refurbished with 90-day warranty
D006PM001
$106.66



4
D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4
Fully refurbished with 90-day warranty
D006PM001
$106.66



4
D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4
Fully refurbished with 90-day warranty
D006PM001
$106.66



4
D006PM001 High Voltage Power Supply PCB - HVPS PCB Unit BC4
Fully refurbished with 90-day warranty
D006PM001
$106.66



5
D006H8001 High-Voltage Power Supply Flat Cable
Fully refurbished with 90-day warranty
D006H8001
$29.71

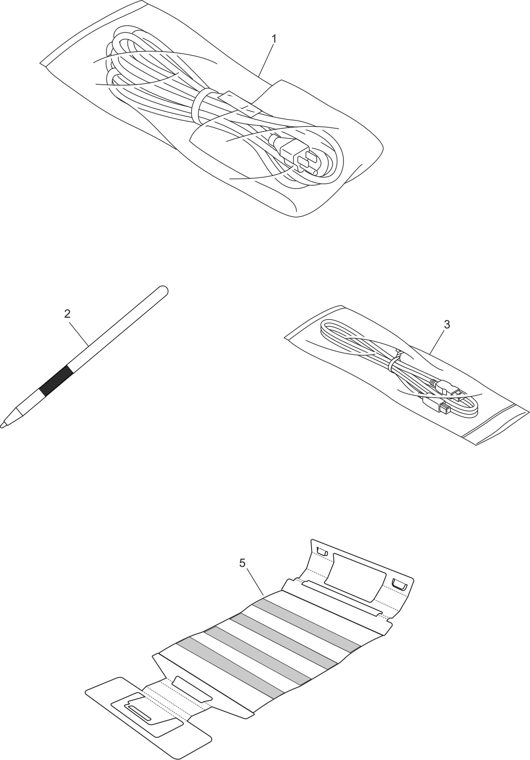

11.ACCESSORIES
1 LM9362001 AC CORD BAG ASSEMBLY LF UL/CSA 13A HL-L8260CDW FOR USA
1 LM9362001 AC CORD BAG ASSEMBLY LF UL/CSA 13A HL-L8360CDW FOR USA/CAN
1 LM9362001 AC CORD BAG ASSEMBLY LF UL/CSA 13A HL-L8360CDWT
1 LM9362001 AC CORD BAG ASSEMBLY LF UL/CSA 13A HL-L9310CDW FOR USA/CAN
1 LV0364001 AC CORD BAG ASSEMBLY LF VDE S HL-L9310CDW FOR GER/RUS/PND/EU
2 XA9940051 TOUCH PEN
3 LJ9803001 USB CABLE
5 D00JRR001 DRUM CLEANING SHEET KIT(SP)

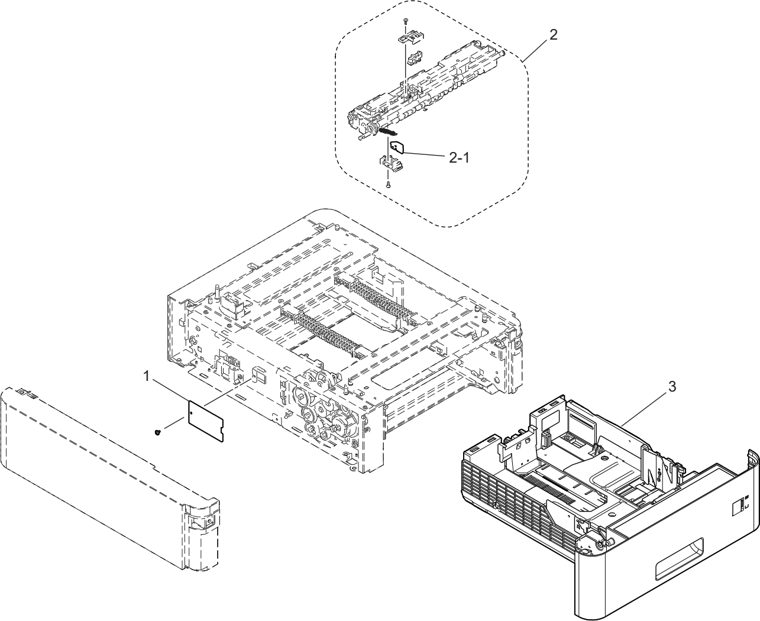

13. LT
1 D007ZN001 LT RELAY PCB ASSEMBLY HL-L8360CDWT
2 D008M6001 LT PAPER FEED FRAME UNIT HL-L8360CDWT
2-1 D009VN001 LT PAPER EMPTY/PLATE ORIGIN SENSOR PCB ASSEMBLY HL-L8360CDWT
3 D007ZU001 LT PAPER TRAY HL-L8360CDWT
